Scale-Invarinat Kernelized Correlation Filter using Convolutional

Feature for Object Tracking

Mingjie Liu, Cheng-Bin Jin, Bin Yang, Xuenan Cui and Hakil Kim

Information and Communication Engineering, Inha University, 100 Inha ro, Namgu 22212, Incheon, Republic of Korea

Keywords: Object Tracking, Kernelized Correlation Filter, Convolutional Features, Scale Variation, Appearance Model

Update Strategy.

Abstract: Considering the recent achievements of CNN, in this study, we present a CNN-based kernelized correlation

filter (KCF) online visual object tracking algorithm. Specifically, first, we incorporate the convolutional

layers of CNN into the KCF to integrate features from different convolutional layers into the multiple

channel. Then the KCF is used to predict the location of the object based on these features from CNN.

Additionally, it is worthying noting that the linear motion model is applied when do object location to reject

the fast motion of object. Subsequently, the scale adaptive method is carried out to overcome the problem of

the fixed template size of traditional KCF tracker. Finally, a new tracking update model is investigated to

alleviate the influence of object occlusion. The extensive evaluation of the proposed method has been

conducted over OTB-100 datasets, and the results demonstrate that the proposed method achieves a highly

satisfactory performance.

1 INTRODUCTION

Visual object tracking, which is a crucial component

of computer vision system, has widespread

applications, including surveillance, traffic control,

and automatic drive (Yilmza, 2006), (David, 2008),

(Arnold, 2014). The adoption of the online-based

discriminative learning method has arguably

constituted a breakthrough in visual object tracking

(Babenko, 2009), (Hare, 2016), (Zhang, 2014).

Given an initial image patch containing the target,

the classifier is trained to distinguish the appearance

and its background. This classifier can be evaluated

exhaustively in many locations, in order for

detection to be carried out in subsequent frames.

After locating the object’s position, a new image

patch is provided to update the model.

Although the discriminative learning method has

resulted in a great deal of progress in visual object

tracking, issues of tracking bounding box drift and

object loss still occur as a result of factors such as

occlusion, scale variance, background clutter, and

illumination changes. Specifically, the root causes of

these issues from a features view can mainly be

attributed to the following: (i) object features are not

robust enough to distinguish the object from the

background; (ii) ideal features cannot be obtained

because of the occlusion; (iii) object appearance is

changed drastically by pose, illumination, and scale,

among others. In general, the features extracted from

training data cannot adequately describe the object,

which results in the object imprecisely being located

from a given image patch.

To solve those problems, different machine

learning-based algorithms are proposed. Hare et al.

(Hare, 2016) present a framework for adaptive

visual object tracking using structured output

prediction, which is based on a kernelized structured

output SVM to provide adaptive tracking. Henriques

et al. (Henriques, 2015) take advantage of the fact

that the convolution between two image patches in

time domain can be transformed into an element-

wise product in frequency domain, which can

specify the desired output of a linear classifier for

several translations, or image shifts, simultaneously.

To solve occlusion problem, Yang et al. (Yang,

2016) recently extend the correlation filter-based

method through fusing the feature color name

histograms of oriented gradients (CN-HOG), which

consists of CNs and HOG, and is robust to partial

occlusion.

Liu, M., Jin, C., Yang, B., Cui, X. and Kim, H.

Scale-Invarinat Kernelized Correlation Filter using Convolutional Feature for Object Tracking.

DOI: 10.5220/0006694003350340

In Proceedings of the 4th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2018), pages 335-340

ISBN: 978-989-758-293-6

335

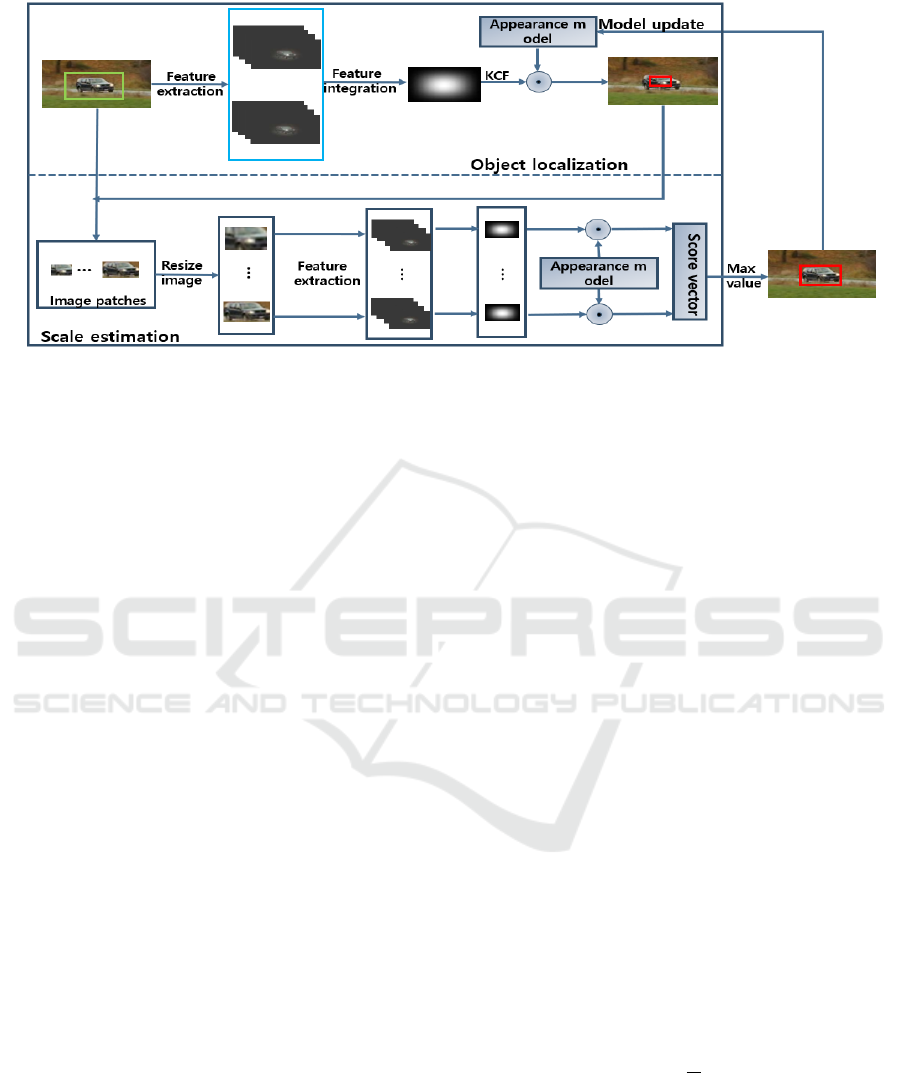

Figure 1: Object tracking system overview.

Correlation filter based tracking algorithm have

shown favorable performance recently. Nonetheless,

scale variance and tracking model update strategy

limit their accuracy enhancement. In this paper, we

separate tracking algorithm into two parts: object

localization and scale estimation. During object

localization, motion model is applied to locate the

search window, which can solve fast motion

problem. Since multiple channels can be applied in

kernelized correlation filter (KCF) for the image

features, features extracted from the different

convolutional layers in search window are integrated

into the object representation to improve the tracking

accuracy, and it is then convolved with the KCF

tracker to generate a response map, in which the

maximum value of location indicates the estimated

target position. Then, a scale adaptive method is

proposed to overcome the problem of the fixed

template size in the traditional KCF tracker.

Furthermore, a new tracking model update strategy

is exploited to avoid the model corruption problem.

2 PROPOSED METHOD

With the aim of locating the object precisely and

solving the scale variation problem, we separate

tracking algorithm into two parts: object localization

and scale estimation. Figure 1 illustrates the main

steps of our method.

2.1 Object Localization

During object localization, the search window is first

estimated by motion model to overcome the fast

motion problem. Since multiple channels can be

applied in KCF for the image features, features

extracted from the different convolutional layers in

search window are integrated into the object

representation, and it is then convolved with the

KCF tracker to generate a response map, in which

the maximum value of location indicates the

estimated target position.

2.1.1 Motion Model

The location of the object is predicted in a search

window which is usually obtained by padding object

position got from previous frame. However, if the

object moves fast, it will be out of the search

window. To this point, a simple linear motion model

with constant velocity is applied to roughly estimate

the location of object in frame

based on the

predicted position in frame

1t -

, and then search

window is obtained by padding predicted object

position based on motion model.

Given the velocity

-1

in frame

t -1

, the

velocity

in frame

is updated as

ttt

tt t

vTpp

vv vaa

=+-

()

(1 )

(1)

where

ttt

pxy= [, ]

is the center location of the

object at frame

and

is the time gap between

two adjacent frames,

is frame rate of the video.

After getting the velocity of the object in frame

, the predicted location of the object by motion

model at frame

t + 1 is defined as

ttt

ppvT

(2)

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

336

2.1.2 Kernelized Correlation Filter

Viewing the correlation filters as classifiers, they

can be trained by finding the relation between the

th input

and its regression target

from the

training set, and then use linear regression to finish

prediction (Li, 2014). To utilize correlation filter to

linear non-separable samples, we hope to find a

nonlinear mapping function (kernel) which can map

those samples to a higher dimension to make them

linear separable, which is called kernelized

correlation filter (KCF). The key innovation of KCF

is the use of the structure of circulant matrices. A

circulant matrix is used to learn all the possible

shifts of the object from base sample. The

coefficient

encodes the training samples,

consisting of all shifts of base sample in the

frequency domain. The learning equation is

expressed as

(3)

where ^ denotes the Discrete Fourier Transform

(DFT) of a vector.

is the kernel correlation

function between signals

and

′

. The training

label matrix

follows a Gaussian distribution that

smoothly decays from the value of 1 for the

estimated target bounding box to 0 for other shifts.

The division represent an element-wise division and

l is a regularization parameter that controls

overfitting.

The final object position is determined by

arg max( (k ))f

between the current and the next

patch.

is the spatial index with maximum

response in

(k )f

. The response for each location is

xz xz

kkfF

ˆˆ

() ( ) a

. (4)

2.1.3 Convolutional Feature Integration

Based on the deep feature analysis for object

tracking in (Wang, 2015), we know that different

layers encode different feature types: deeper layers

capture the semantic concepts of object categories,

while lower layers encode more discriminative

features. Convolutional layers from VGG

(Simonyan, 2014) are applied to represent object

appearance. We focus only on the accurate object

position in the tracking. In this case, fully connected

layers can be removed to save processing time, as

they exhibit little spatial resolution.

The outputs of the selected convolutional layers

are used as multi-channel features. Suppose the

multiple data representation channels are

concatenated into a vector

x=[x x x ]

,...,

, the

Gaussian kernel correlation function

k is defined

kxxxx

æö

¢¢

=- +-

èø

exp ( 2 ( ( ) ( ))

(5)

The features from different convolutional layers

are complementary to another; therefore, our method

can fuse both the semantic and discriminative

information for object location. It should be noted

that spatial resolution is gradually reduced with an

increase in convolutional layer depth due to the

pooling operators used in CNN, which results in

insufficiently accurate object location. This issue is

addressed by resizing each feature map to a fixed,

larger size. Let

denote the feature map and

the upsampled feature map; then, the feature vector

for the

-th location is

iikk

(6)

where the interpolation weight

depends on the

positions of the neighboring feature vectors

and

, respectively. Note that this interpolation occurs

spatially, and can be seen as location interpolation.

2.2 Scale Estimation

Scale variation poses a significant challenge in

correlation filter-based trackers. The desired tracker

should not only precisely locate the object, but also

be adaptive to the object size variations.

Following object location, we employ object

padding to enlarge the image representation space.

Let

s(,)

ss=

denote the current frame’s

template size and

be the number of scales. For

each

n Î

ìü

úê ú

ïï

úê ú

íý

úê ú

ïï

ûë û

ïï

îþ

,...,

, an image patch

of size

as as´

centered on the estimation location is

cropped, and its corresponding convolutional feature

is extracted. Here,

is the scale factor. Since data

with a fixed size is necessary for the dot-product in

KCF, we resize each image patch into

by means

of bilinear interpolation. The final response is

calculated by Eq. (4) to obtain the largest value for

arg max ( )

f z

, where

has already been resized

to the fixed size

By combining position prediction and scale

estimation, the proposed tracker can not only

enhance accuracy, but also deal with scale variation.

Scale-Invarinat Kernelized Correlation Filter using Convolutional Feature for Object Tracking

337

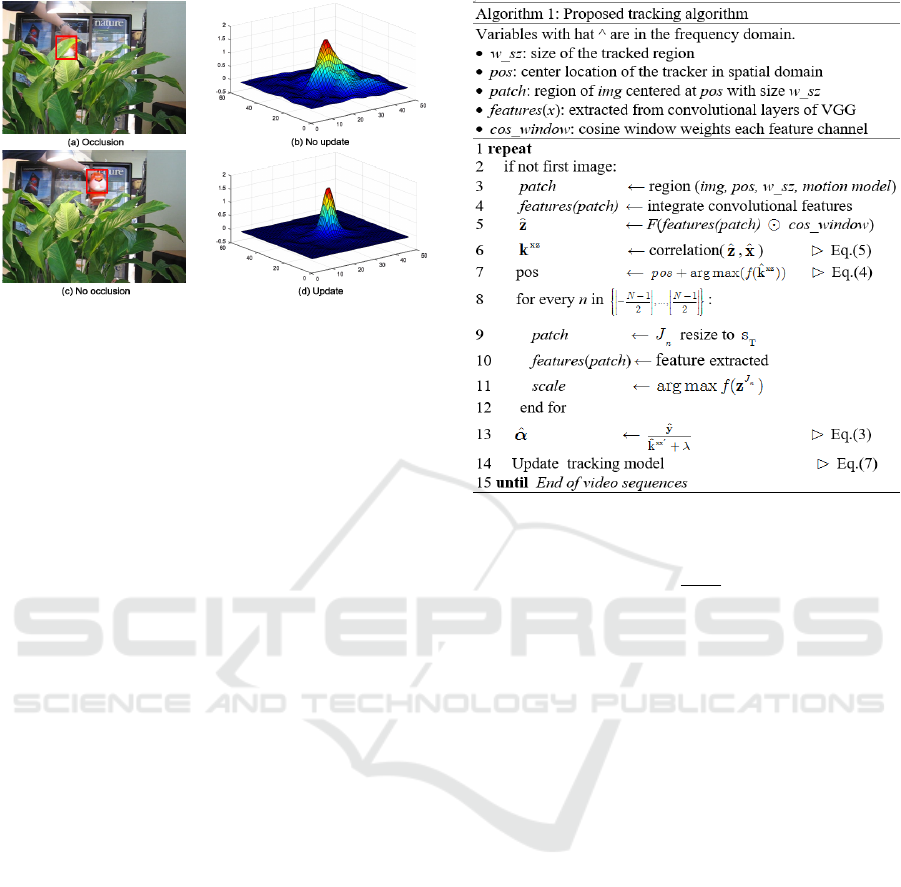

Figure 2: The first column are the images of sequence

tiger from OTB-2015, where the red bounding boxes

indicate the tracking object. the response maps in the

second column are corresponding to the tracking object.

When the object is severely occluded (a), the response

map fluctuates intensely and the peak value of the

response map is not clear enough (b). When the object is

not occluded (c), the peak value of the response map is

sharp and clear (d).

2.3 Model Update

To keep the tracker robust, tracking model online

updating is very important for the tracking algorithm.

Most existed trackers update the tracking models at

each frame by using predicted result got from last

frame without considering whether the result is

accurate or not (Danelljan, 2014), (Ning, 2016). This

may cause a deterministic failure once the object is

severely occluded or totally missed in the current

frame. In our study, we utilize the average of five

tracking results with highest peak value to update

tracking model, which is named multi-model update

strategy.

The peak value of the response map got by KCF

can reveal the confidence degree about the tracking

results to some extent. The ideal response map

should have only one sharp peak. The higher the

correlation peak value is, the better the location

accuracy is. It can be seen in Figure 2. For model

update, a pool with five tracking results from

previous frames is fixed, where each result has only

sharp peak and highest peak value. When new result

is obtained, if it is satisfied with only one sharp peak

and its peak value is larger than any of them in the

pool, the pool will be updated by deleting the result

with smallest peak value and adding the new one.

Then the proposed tracking model will be

updated online as follows

aha

ˆˆ

(7)

where

h is the weight for each element in the pool,

it is calculated based on peak value

arg max( (k ))f

An overview of the proposed method is

summarized in Algorithm 1.

3 EXPERIMENT RESULTS

In order to evaluate our method’s performance, we

carry out experiments on the OTB-100 (Wu, 2015)

benchmarks. It covers 11 types of challenge

scenarios including illumination variation (IV), scale

variance (SV), occlusion (OCC), deformation

(DEF), motion blur (MB), fast motion (FM), in-

plane rotation (IPR), out-of-plane rotation (OPR),

out-of-view (OV), background clutters (BC) and low

resolution (LR). We use one-pass evaluation (OPE)

matrix as suggested in (Wu, 2015) to assess our

method. Furthermore, to analyze the effectiveness of

motion model and model update strategy, we test

different version of proposed method on OTB-100.

We implemented our method in MATLAB on an

Intel i7-4770K 3.50GHz CPU with 24GB RAM, and

it can arrive 4 frames per second.

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

338

Table 1: Comparison of tracking results of SKCF, SKCF-

Motion, SKCF-Multi-model and SKCF-MM.

Tracker Precision Success

SKCF 0.840 0.578

SKCF-MOTION 0.851 0.603

SKCF-Multi-model 0.857 0.615

SKCF-MM 0.868 0.639

3.1 Evaluation on Different Version

Proposed Method

To demonstrate the effect of motion model and

multi-model update strategy, we denote the

algorithm without motion model and with traditional

model update strategy as SKCF, with motion model

and traditional model update strategy as SKCF-

Motion, without motion model and with multi-model

update strategy as SKCF-Multi-model and with both

motion model and multi-model update strategy as

SKCF-MM. The characteristics and tracking results

are summarized in Table 1.

As shown in Table 1, SKCF-MM shows the best

tracking accuracy and robustness. Without motion

model, SKCF-Multi-model gets poor performance

because of fast motion of the object. with traditional

model update strategy, the appearance model update

in every frame, the tracking bounding box may drift

because of occlusion. As shown in experimental

results, both motion model and multi-model update

strategy improve the tracking performance

observably.

3.2 Evaluation on SKCF-MM

We evaluate SKCF-MM with 9 state-of-the-art

trackers including KCF (Henriques, 2015), HCF

(Ma, 2015), DeepSRDCF (

Danelljan, 2015), C-COT

(

Danelljan, 2016), SAMF (Li, 2014), DSST

(

Danelljan, 2014), CFNet (Valmadre, 2017), SRDCF

(

Danelljan, 2015) and CSK (Henriques, 2012).

Figure 3 shows the performance of SKCF-MM

with other 9 trackers including top 5 are deep

learning-based methods. Although the performance

of SKCF-MM is lower than C-COT, the tracking

speed is 16 times faster than it which is 0.25 FPS.

Our method’s effective performance can be

explained by three major factors. Firstly, motion

model can solve fast motion problem. Secondly, our

model update strategy can reduce the influence of

occlusion. Thirdly, scale estimation is performed

after locating the object, which improves accuracy.

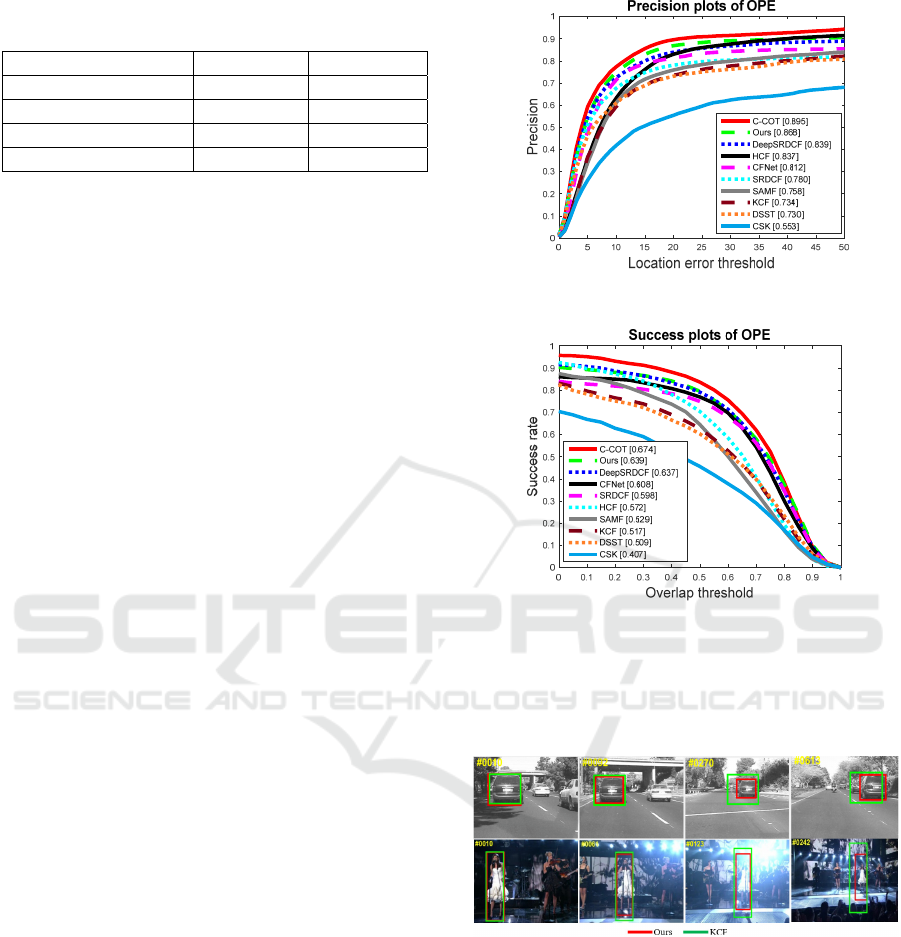

(a) The precision plots of OPE on OTB-100

(b) The success plots of OPE on OTB-100

Figure 3: The precision and success plot of OPE on OTB-

100. The numbers on the legend indicate the average

precision scores for the precision plot and the average

AUC scores for success plot.

Figure 4: Tracking results over two video sequences with

scale variation.

3.3 Scale Variation Evaluation

To demonstrate the effectiveness of our proposed

algorithm on scale variation, two typical sequences

reflecting scale variation are shown in figure 4,

which represents our method and KCF. From the

figure, we can observe that our method, which is

developed by KCF, can be adaptive to scale

variation.

Scale-Invarinat Kernelized Correlation Filter using Convolutional Feature for Object Tracking

339

4 CONCLUSIONS

In this paper, we present a novel means of solving

the problems of scale variation and appearance

model representation. We presented empirical

results of different version based on our method, in

which we measured the quantitative performance of

them. These results demonstrate that motion model

and multi-candidate model update strategy can

largely improve the algorithm's performance.

Furthermore, the scale variation problem is

addressed by means of proposed adaptive scale

approach. Moreover, we presented empirical results

of various challenging video clips, in which we

measured the quantitative performance of our

tracker in comparison with a number of state-of-the-

art algorithms. Sufficient evaluations on challenging

benchmark datasets demonstrate that SKCF-MM

tracking algorithm performs well against most state-

of-the-art correlation filter-based methods.

ACKNOWLEDGEMENTS

This work was financially supported by the

Industrial Strategic Technology Development

program of MOTIE/KEIT [10077445, Development

of SoC technology based on Spiking Neural Cell for

smart mobile and IoT Devices.
