TendeR-Sims

Similarity Retrieval System for Public Tenders

Guilherme Q. Vasconcelos

, Guilherme F. Zabot

, Daniel M. de Lima

Jos

e F. Rodrigues Jr.

, Caetano Traina Jr.

, Daniel dos S. Kaster

, Robson L. F. Cordeiro

Institute of Mathematics and Computer Sciences, University of S

ao Paulo, S

ao Carlos, Brazil,

Computer Science Department, State University of Londrina, Paran

a, Brazil

Keywords:

Relational Databases, Division Operator, Similarity Comparison, Complex Data, Ontology, Public Tendering.

Abstract:

TendeR-Sims (Tender Retrieval by Similarity) is a system that helps to search for satisﬁable request for ten-

der’s lots in a database by ﬁltering irrelevant lots, so companies can easily discover the contracts they can

win. The system implements the Similarity-aware Relational Division Operator in a commercial Relational

Database Management System (RDBMS), and compares products by combining a path distance in a prepro-

cessed ontology with a textual distance. Tender-Sims focuses on answering the following query: select the

lots where a company has a similar enough item for each of all required items. We evaluated our proposed

system employing a dataset composed of product catologs of Brazilian companies in the food market and real

requests for tenders with known results. In the presented experiments, TendeR Sims achieved up to 66% cost

reduction at 90% recall when compared to the ground truth.

1 INTRODUCTION

The initial step of a public tendering process is to

publish a Request For Tender (RFT) document out-

lining the agency’s needs, requirements, criteria and

instructions. When the RFT is designed to acquire

goods, the later are usually grouped in lots, which can

have the requirement that a bidding company should

provide all the goods listed. RFTs are semi-structured

documents, as their structure may vary for each speci-

ﬁc request and agency, and product/service descripti-

ons are usually written in natural language. Moreover,

these documents are commonly organized by grou-

ping products and/or services in lots to which a busi-

ness must be able to supply all of them to qualify for

the tender. These characteristics makes challenging to

automatically match companies to tenders.

It is interesting to note that the Division operator

from Relational Databases is well-suited to ﬁnd

out whether or not a given business can provide all

products of a lot, since this operator was designed

to answer queries with the idea of “for all”, such as

“Which companies have all products of a given lot?”.

However, one cannot expect that the product descrip-

tions presented in a lot will be exactly identical to

its counterparts in a business catalog, thus, comparing

descriptions by identity (=) is useless for this

type of data.

Whenever identity comparison cannot be used in

a given setting, comparing the data by similarity may

be the best solution (Zezula et al., 2010). Similarity

queries, in essence, analyze data objects represented

by feature vectors extracted from intrinsic data infor-

mation. For example, images are usually compared

against each other using numeric features that repre-

sent color, texture or shape patterns extracted from

their visual content. For textual data, on the other

hand, a bag-of-words representation deﬁnes a feature

vector where each element indicates the presence or

absence of a speciﬁc word in the sentence; a TF-IDF

representation (Rajaraman and Ullman, 2011) aug-

ments the bag-of-words by making each value quan-

tify the frequency of a word in the sentence norma-

lized by its frequency in all sentences; and so on. A

distance function is then used to measure similarity

between elements of a dataset using the chosen repre-

sentation.

The inclusion of similarity queries is usually done

by means of extending operators of the Relational Al-

gebra, such as the Relational Division operator. This

operator was extended to support similarity compa-

rison (Gonzaga and Cordeiro, 2017) and it is well-

Vasconcelos, G., Zabot, G., de Lima, D., Rodrigues Jr., J., Traina Jr., C., Kaster, D. and Cordeiro, R.

TendeR-Sims.

DOI: 10.5220/0006697601430150

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 143-150

ISBN: 978-989-758-298-1

 2019 by SCITEPRESS – Science and Technology Publications, Lda. All r ights reserved

143

suited to answer queries with an idea of “candidate

elements and requirements” involving complex data

objects that despite of being distinct, can be similar

to each other — which is the case in our application

over product descriptions (semi/non-structured text).

In this context, we propose the Tender Retrieval

By Similarity system — TendeR-Sims, a system ca-

pable of comparing product descriptions in request for

tender lots with those in a business catalog in order to

ﬁlter out irrelevant lots — those not satisﬁable by the

company. TendeR-Sims takes advantage of the afore-

mentioned Similarity-aware Relational Division ope-

rator to answer queries with the idea of “for all” in

textual data. The similarity is achieved by comparing

elements from RFT lots and business catalogs against

elements in an ontology that organize terms according

to their semantics in a given tender domain. Elements

from the RFT lots and business catalogs are said si-

milar if their closest element in the ontology belongs

to the same group.

To validate our proposals, we performed a case

study using data from real RFTs and business cata-

logs in the context of the Brazillian food market. In

this study, our TendeR Sims system was highly ef-

fective with up to 66% cost reduction at a 90% recall

threshold when searching request for tenders where a

given business is most likely to be able to attend. Our

main contributions in this work are as follows.

1. Prospective Client Identiﬁcation – We carefully

developed an automatic mediator system between

public organizations and private companies targe-

ted at reducing the efforts of the latter when se-

lecting RFTs to bid for.

2. Case Study – We validated our system with real

data in the context of food RFTs in Brazil. To

make it possible, we also developed and publis-

hed:

2.1. A novel food ontology in Brazilian Portuguese;

2.2. An example dataset of Brazilian RFTs and food

business catalogs.

The remainder of this article is organized as fol-

lows: Section 2 presents the background word and

related work, Section 3 focuses the development met-

hodology of our system proposal, Section 4 reports

the results obtained in our case study with Brazilian

RFTs, and Section 5 concludes this article.

2 BACKGROUND AND RELATED

WORK

This section presents the background on similarity

queries, the division operator and the related work on

computer solutions to recover and ﬁlter data from ten-

dering process and the inclusion of similarity queries

on RDBMS.

2.1 Similarity Queries

Complex data like images, audio, ﬁngerprints, textual

descriptions and graphs are typically manipulated by

similarity. The queries require the dataset represented

as feature vectors and a distance function to evaluate

the dissimilarity between pairs of data elements.

The inclusion of similarity queries in RDBMS can

be performed either by extending the core of the sy-

stem or by implementing external resources that exe-

cute similarity-aware operations and return informa-

tion to the core. For instance, PostgreSQL-IE (Gu-

liato et al., 2009) and Kiara (Oliveira et al., 2016)

encapsulate similarity query algorithms in User De-

ﬁned Functions in PostgreSQL while SimDB (Silva

et al., 2010) is an extension of PostgreSQL’s core. Si-

ren (Barioni et al., 2006), SimbA (Bedo et al., 2014)

are similarity retrieval middlewares that recognizes

an extended SQL syntax by intercepting the canoni-

cal query, executing similarity operations externally

and rewriting the query with stardard SQL statements.

Finally, FMI-SiR (Kaster et al., 2010) is a module

that use interface and resource extensions provided

by Oracle to implement DBMS-linked data types, fe-

ature extractors, distance functions and indexes for

similarity-based retrieval.

Most researchers have been extending relational

operators to support similary queries based on two

approches (Zezula et al., 2010): a) the range query,

which selects all elements that are similar enough to

a query center element, up to a predeﬁned threshold;

and b) k-Nearest Neighbors (k-NN) query, which re-

turns the k most similar elements to the query center.

One of the extended operators is the Similarity-

aware Division (Gonzaga and Cordeiro, 2017). This

new operator is able to evaluate complex data and ans-

wers queries with the concept of “for all”. As we

discussed in the introductory section, the Similarity-

aware Division is a basis to our work, so we detail it

in the next subsection.

2.2 Similarity-Aware Division

The Division operation from the Relational Algebra

directly corresponds to the Universal Quantiﬁcation

from the Relational Calculus (Codd, 1972). It allows

writing queries involving the concept of “for all” in

a simple and intuitive manner, such as “Which com-

panies can provide all products listed in a request for

tender’s lot?”

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

144

To illustrate the division, let us consider this query

about RFT lots and business catalogs, as well as the

example relations shown in Table 1. In this setting, re-

lations CompanyProducts and RFTLotProducts list,

respectively, the products in the catalog of four dis-

tinct businesses (Table 1a) and the products in a given

tender lot (Table 1b). The relational division between

these two relations produces a third relation, Com-

pany (Table 1c), which contains the companies that

can provide all products required in the lot, containing

exactly the same descriptions, and, therefore, can bid

for that lot.

However, the description of each product or ser-

vice listed in a RFT rarely matches exactly the corre-

sponding description found in business catalogs. This

happens for a number of reasons, like synonym repre-

sentation, mispelling and the addition of extra infor-

mation such as trademarks or technical speciﬁcations.

So, the relational division operator may miss compa-

nies that fully match an RFT lot but are discarded due

to small differences in product/service descriptions.

As we mentioned earlier, long texts are commonly

compared by similarity and not equality, thus the

similarity-aware division is better suited to answer

such queries. The Similarity-aware Division ope-

rator (Gonzaga and Cordeiro, 2017) relaxes attribute

comparisons that are intrinsic to the traditional divi-

sion, originally performed by identity (=), by redeﬁ-

ning them to be compared by similarity according to

an user-deﬁned distance function and a threshold. In

this setting, tuples of relation CompanyProducts (li-

nes 4-6 in Table 1a) match by similarity tuples of re-

lation RFTLotProducts (Table 1b), thus providing a

more complete answer by adding company Company

#2 to the result (Table 1c).

2.3 Computer-aided Tendering

Processes

In several countries, whenever a public sector agency

— such as the Legislative and Judicial Branch, the Pu-

blic Ministry, the Court of Accounts, etc. — needs to

buy goods or request a service, it must open a tende-

ring process. This administrative procedure is public

and garantees market competition, as any private bu-

siness can participate in, and isonomy as the business

that is best-suited to attend a tendering will be the one

selected (Batista and Prestes, 2004).

After the companies submit their proposal to be

evaluated, each tender will be veriﬁed and the best

proposal wins. There are four types of tenders in

Brazil (Mazza, 2011): lowest price, best technique,

technique and price and highest bid. The types may

vary from scenario to scenario. For instance, the Mi-

nistry of Defence usually demands the best technique

over price, whereas a school requiring a catering com-

pany will probably go for the lowest price.

In regards to information systems for consulting

Brazilian tenders, the Ministry of Planning, Budget

and Management released, in 2007, the Compras-

net system (Minist

erio do Planejamento Desenvolvi-

mento e Gest

ao do Governo Federal do Brasil, 2007).

It is an online tool developed to publish information

about tendering processes and hirings promoted by

the Federal Brazilian Government. An interesting fe-

ature is the eletronic tender dealing. It also aims to

provide easy access to request for tenders documents

so that companies are encouraged participate in.

Following the same perspective, in 2017, an on-

line governmental system named Painel de Prec¸os

(Minist

erio do Planejamento Desenvolvimento e

Gest

ao do Governo Federal do Brasil, 2017) has been

released. It allows the storage, analysis and compari-

son of reference prices in the acquisition of goods and

contracting services for public administration. The

tool allows anyone to compare prices for a particu-

lar item, possibly ﬁltering the data by date or country

regions, displaying details of previous purchases for

the purpose of establishing a reference price.

These systems are focused on presenting infor-

mation regarding RFTs for the general audience and

lack more advanced features like manipulating or ﬁl-

tering the requirements themselves. As the authors

did not ﬁnd another tendering application in Brazil

with more advanced features, we propose TendeR-

Sims. TendeR-Sims is focused on ﬁltering Request

for Tender documents to reduce amount of effort nee-

ded to search for RFTs to bid in, thus helping pro-

spective companies to ﬁnd contracts more easily.

3 METHODOLOGY

This section details our proposal, the TendeR-Sims sy-

stem – Tender Retrieval by Similarity. Provided that

textual product descriptions are better compared by

similarity and such form of manipulation is still not

properly supported by RDBMS, it becomes neces-

sary to implement new functionalities in the RDBMS

environment in order to execute queries that use the

similarity-aware division operator.

We acquired request for tender documents and bu-

siness product catalogs from online websites and cre-

ated a food ontology to semantically group different

representations for similar products.

Then, we carefully designed a novel distance

function well-suited to compare product descriptions

by similarity, based on the ontology and the Jaccard

TendeR-Sims

145

Table 1: Example of division to select companies able to provide all products listed in an RFT lot. Notice that CompanyPro-

ducts (a) with a darker shade are not present in the lot, so they are not matched to any product in the table RFTLotProducts (b).

(a) CompanyProducts

Company Product

Company #1 bread

Company #1 butter

Company #1 milk

Company #2 white bread

Company #2 salted butter

Company #3 light butter

Company #3 tomato ketchup

Company #4 bread

Company #4 butter

Company #4 popcorn

Company #4 raw fish

(b) RFTLotProducts

Product

bread

butter

Company

Company #1

Company #4

distance. It is worth to notice that similarity measure

developed, in which we use the bag-of-words repre-

sentation and Jaccard distance, was chosen for sim-

plicity. Any other text representation model and simi-

larity metric can be used in TendeR-Sims. The text

representation and distance function is effectively a

parameter of the SQL query. Finally, we implemen-

ted the similarity-aware division operator in a com-

mercial DBMS by extending the FMI-SiR similarity

retrieval module

3.1 Data Acquisition

The tender documents were collected from Brazilian

governmental agencies and non-governmental orga-

nizations websites: the Social Commerce Service of

the state of Paran

a (SESC·PR)

, the Regional Council

of Engineering and Agronomy of the State of Paran

(CREA·PR)

, and the Camboriu/SC City Administra-

tion website

— all written in Brazilian Portuguese.

These websites provide tender documents in

Adobe’s Portable Document Format (PDF), in such a

way that any one can have download these documents

freely. Only food-related tenders that have been alre-

ady completed were collected, that is, those that have

already been taken by some company. A total of nine

RFT documents were obtained in this process and 18

companies catalogs were collected.

Based on the deﬁned scope of the tenders, a survey

of the companies participating in the bidding process

was carried out in order to create a database from their

products. We did not have access to the internal da-

tabase of the companies participating in the tenders,

To access the source code visit

https://bitbucket.org/tendersimsproject/tendersims/

http://www.sescpr.com.br/sesc-parana/licitacoes

http://www.crea-pr.org.br/ws/licitacoes-do-crea-pr

http://www.camboriu.sc.gov.br/licitacoes compra.php

so we decided to carry out the extraction of the pro-

duct information from their websites. For this, web-

crawler clients were used, capable of capturing and

extracting the information presented in their product

catalog. Data was then processed to remove informa-

tion related to brands, trademarks, units of measure,

quantity as well as symbols, stopwords and any other

information that was irrelevant about the product it-

self. Part of the normalized data was used to build the

ontology and the other part was used in our experi-

ments.

3.2 Ontology

The leaf nodes represent unique product categories

and the parent nodes are generalizations of these cate-

gories, creating a hierarchical structure in which pro-

ducts share common nodes. we deﬁned categories and

subcategories to represent products of a food domain

in Brazilian Portuguese in a hierarchical structure, be-

cause we did not found any such an ontology availa-

ble in this language. In Figure 1, the leaves are illus-

trated as rectangles and circles represent leaf nodes

Thus, “turkey ﬁllet” and “chicken ﬁllet” are placed in

different leaf nodes, however, both are types of fowl,

so their ontology relation branches on the fowl node,

meaning they are different subcategories of fowl pro-

ducts. In the leaf nodes there are many textual repre-

sentation of the product. This representations are used

to compare similarity between products. As shown in

ﬁgure 1, the leaf product “whole grain” contains fol-

lowing representations: “whole grain bread vit

aogr

12 grains”, “supreme whole grain bread apple and

nut” and “whole oatmeal bread”.

We preprocessed the item descriptions in both the

RFTs and business catalogs to generate the ontology,

Our ontology is in Portuguese, but we translated to En-

glish in the ﬁgure for easier explanation.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

146

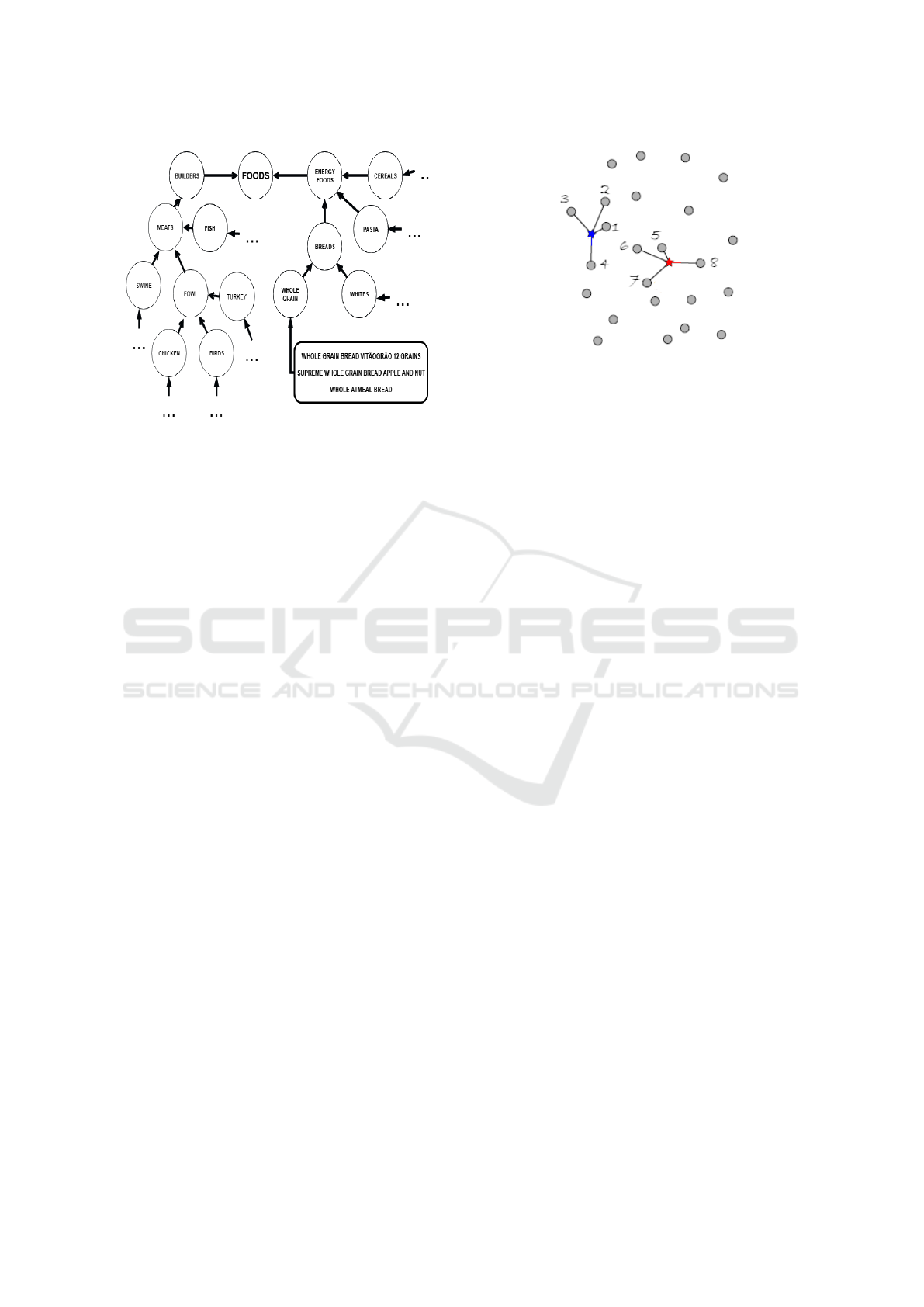

Figure 1: Overview of our ontology with its classes and

subclasses.

which is one of the knowledge bases of our method.

The ontology provides useful semantics when dealing

with synonyms with different spellings, e.g., “whole

grain bread vit

aogr

ao 12 grains” and “white bread

bauducco”, which could be considered similar snacks

in an university restaurant, but different in a more re-

strictive diet.

The creation of the categories represented in Fi-

gure 1 is based on the food pyramid, in which the

food domain is divided into four large groups: a)

the energetics – the bases of human nutrition such as

bread, pasta and other products rich in carbohydrates;

b) the builders – protein-rich foods; c) the regulators

– known for their high content of vitamins and mi-

nerals; and d) the extra energetics – sugars, oils and

fats. However, we also inserted new nodes to repre-

sent products that do not ﬁt into the four large groups,

such as industrialized products, as is the case with

canned food, colorants and ﬂavoring agents. Each

product description were manually added to an ini-

tial ontology category according to their position in

the food pyramid.

An example is the breads subcategory, which deri-

ves from the energetics. Based on the ontology crea-

ted, methods that use comparison by similarity can be

implemented using the hierarchy present in the onto-

logy to improve the result returned by the comparison.

3.3 Similarity Comparison

We measure two types of similarity: lexical and se-

mantical. To measure the lexical similarity, the leaves

elements are represented as a bag-of-words in such

a way that the text is represented as a sorted array

with the length equal to the amount of distinct words.

Then, the bag-of-words is evaluated using the Jaccard

Figure 2: Illustration of the elements of the ontology (in

gray), the RFT’s text (in blue) and the business catalog’s (in

red). Elements labeled from 1 to 4 are the 4-nearest neig-

hbors of the RFT’s element and the elements labeled from

5 to 8 are the 4-nearest neighbors of the business catalog’s

element.

distance, which is the relation between the amount

of exclusive words (set difference) and the overall

amount of distinct words (set union). As an exam-

ple, let us consider the comparison between “whole

grain bread” and “whole grain bread loaf”, with re-

spective bag-of-words representations [1,1,1,0] and

[1,1,1,1]. The distance between these two elements is

0.25, since there are three matching words out of four

possible matches. The smaller the value, the more si-

milar the pair of elements is.

This similarity calculus is represented in Figure 2.

The element in blue is the text of a product in a RFT

lot, the element in red is the text of the product in the

business catalog and the gray dots are the representa-

tions of the ontology’s leaf nodes elements. As seen

in the picture, the four closest elements to the text of

the product in the RFT lot are the elements 1, 2, 3

and 4 while the four closest elements to the text of the

product in the business catalog are 5, 6, 7 and 8.

The semantical similarity is achieved by the on-

tologic categorization of the elements. If one of the

k-nearest elements of the product’s text in the RFT’s

lot and one of the k-nearest elements of the business

catalog’s text belongs to the same category, the onto-

logy consider the product in a RFT lot and the product

in the business catalog to be similar.

3.4 Implementing TendeR-Sims in a

commercial RDBMS

To implement our proposed TendeR-Sims system, we

extended the FMI-SiR similarity retrieval module.

This module offers resources such as distance functi-

ons, feature extractors and database indexes for com-

plex data. FMI-SiR is implemented in C++ as an Ora-

cle library that is controled by the query processor.

TendeR-Sims

147

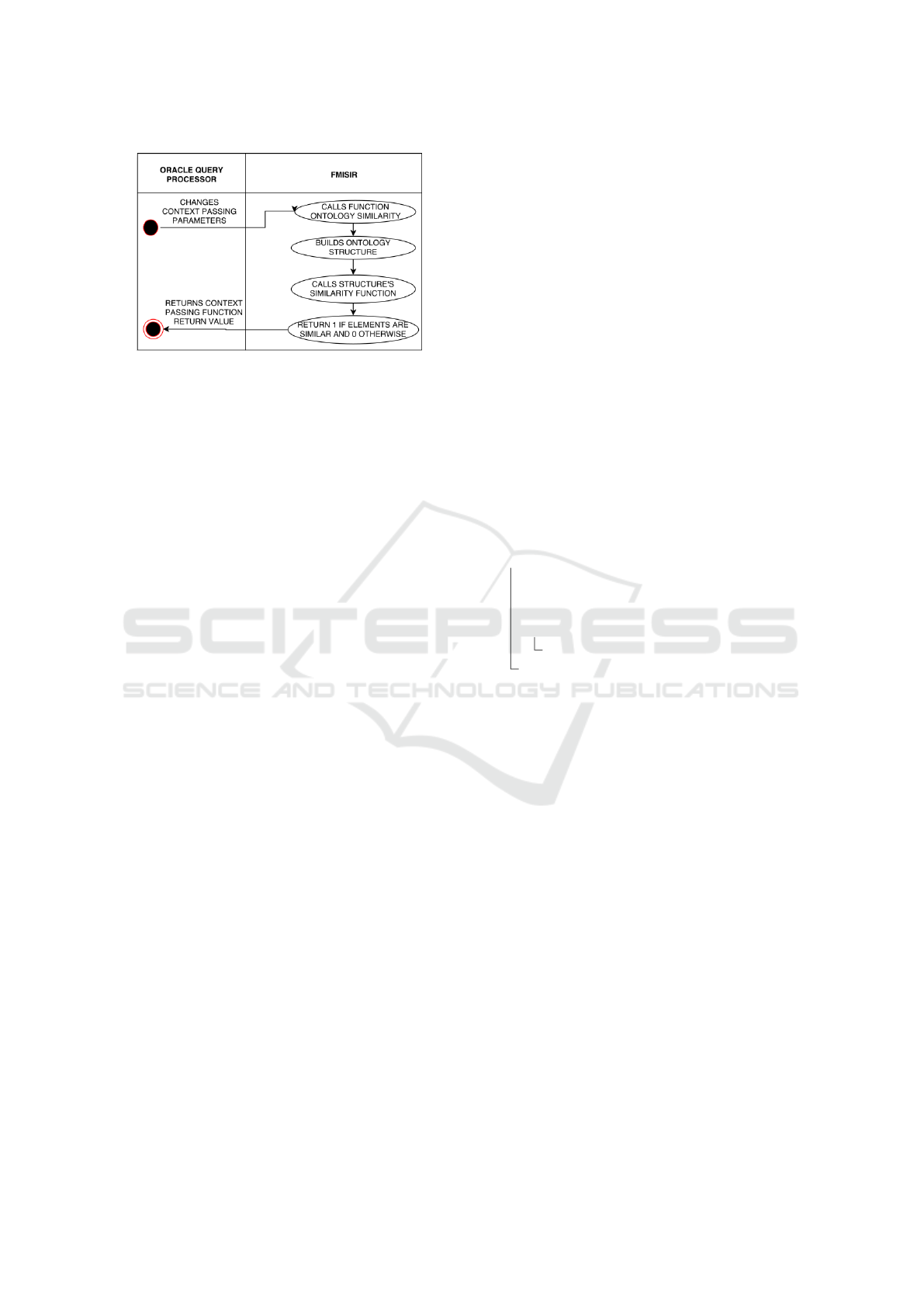

Figure 3: Sequence of operations to execute similarity-

aware division. During the query execution, the DBMS

query processor execute similarity operation externally.

This allows applications to manipulate complex data

and use of Oracle database resources together.

Speciﬁcally, we inserted our ontology, the Jaccard

distance function and the similarity function Ontolo-

gySimilarity (which evaluates pairs of text segments)

inside the module. To associate our external simila-

rity function to the schema, one must run the folowing

command on Oracle:

CREATE FUNCTION

OntologySimilarity

(text1 varchar2, text2 varchar2,

ontologyPathFile varchar2, k number)

RETURN float

LANGUAGE C LIBRARY libfmisir

NAME "OntologySimilarity"

WITH CONTEXT;

This command creates a function that takes, as pa-

rameters, two texts and the number of neighbouring

elements and a structured ﬁle containing the relati-

onship between leaves elements and categories. The

implementation is within the FMI-SiR module. When

this function is invoked in a SQL query, the DBMS

changes context from SQL to C++, as shown in Fi-

gure 3. The function loads the ontology into memory

and evaluates whether or not the pair of product des-

criptions received is classiﬁed to the same node. The

function returns one if a pair of elements is similar

and zero otherwise. The pseudo-code this function is

illustrated in Algorithm 1 and Algorithm 2. The later

represents the function in the ontology structure that

evaluates similarity between elements as descripted in

section 3.3. This result is sent back to the RDBMS,

which continues to process the query.

Provided that there is no explicit SQL implemen-

tation for the division, it must be represented through

the combination of existing operators. We used dou-

ble negation for this task, that is, we selected compa-

nies that do not have any product that are not similar

to a given product from a given lot of a request for ten-

der, i.e lot one of RFT of id one. The corresponding

code is given as follows:

SELECT DISTINCT company

FROM CompanyProducts this

WHERE NOT EXISTS (

SELECT textDescription

FROM RFTLotProducts request

WHERE lot = 1 AND RFTID = 1 AND NOT EXISTS (

SELECT * FROM CompanyProducts product

WHERE product.company = this.company

AND OntologySimilarity(

request.textDescription,

product.textDescription,

"ontology_file", 2

) = 1

));

This concludes our methodology. The next

Section will present and discuss the experimental eva-

luation of this method with the database we collected.

Data: text1, text2, k, ontologyFilePath

Result: a value representing if elements are

similar or not

begin

creates ontology structure based on

relationships in the ontologyFilePath; if

ontologyStructure.similar(text1,text2,k)

then

return 1;

return 0;

Algorithm 1: Skeleton of the OntologySimilarity al-

gorithm. text1 and text2 are the texts from the RFT

lot’s product and the text from the business catalog’s

product. This function is invoked by the query pro-

cessor, builds ontology in memory and uses the struc-

ture’s function ”similar” to measure similarity between

the elements.

4 EXPERIMENTS

To evaluate TendeR-Sims in a meaningful context, we

performed a semi-supervised case study in a realistic

setting: a food distributor looking for contracts in the

public sector using the data acquired in section 3.1.

Our case study focused on the product description for

validation purposes, and we intend to consider other

attributes in future work.

We randomly selected 20% of the RFT lots and

manually labelled all the companies to satisfy (real

positives) or not satisfy (real negatives) each RFT lot.

This resulted in a set of 35 RFT lots which were

used as our evaluation database, with a positive preva-

lence of 0.163, i.e., on average each company satisﬁes

16.3% of all lots.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

148

Data: text1, text2, k

Result: a value representing if elements are

similar or not

begin

initialize an empty list of leaf’s names

and distances to text1;

initialize an empty list of leaf’s names

and distances to text2;

foreach leaf in ontologyStructure do

foreach textRepresentation in leaf do

calculate jaccardDistance

between textRepresentation and

text1;

save value and leaf’s name in the

list for text1;

calculate jaccard distance

between textRepresentation and

text2;

save value and leaf’s name in the

list for text2;

foreach item in the list for text1 do

foreach item in the list for text2 do

if leaf’s name in item for text1 is

equal to leaf’s name in item for

text2 then

return 1;

return 0;

Algorithm 2: Skeleton of the similarity evaluation al-

gorithm. This function is implemented in the Ontology-

Strucure class and it is invoked by Algorithm 1. It takes

two texts and a number of neighboring elements as pa-

rameters. In the leaf nodes object there are information

about the leaf’s name and all the textual representati-

ons.

From this evaluation database, we selected two

companies catalogs (11.1%) to “train” our model —

only the products in these two catalogs were prepro-

cessed and added to the ontology. A total of 3,068

products categories are present in this training list,

and are further ﬁltered by a more strict list of stop-

words to better reﬂect the semantics of the product ca-

tegories present in the RFT lots. The words removed

includes numbers, manufacturer and product proper

names. The resulting list has 2,229 product catego-

ries, which were then put into the ontology. The other

companies were used as the test dataset.

For each one of the RFT lots in the test data-

set, TendeR-Sims queries the companies satisfying all

products in the lot. This behaviour make this system

act as a ﬁlter which removes irrelevant items from the

analytical workﬂow. Those items are the lots that can-

not be satisﬁed by the company. The efﬁciency of this

ﬁlter is measured by how much manual work can be

avoided by the user when she uses TendeR-Sims.

The power of such a ﬁlter can be expressed by

the measures summarized in Table 2. Speciﬁcity tells

how many irrelevant lots are left out of the answer,

which should be as high as possible in order to re-

duce the number of RFTs that will be analyzed manu-

ally by the user; Recall informs how many of relevant

lots are returned in the query, which should be high

in order to not ignore possibly satisﬁable contracts;

the value of Precision is how many of the returned

lots are indeed satisﬁable, which should be high, so

the user does not spend time analyzing irrelevant lots;

F1-Score is the harmonic average of Precision and

Recall, which summarizes the overall predictive and

selective power for the positive class.

Table 2: Evaluation results.

k = 1 k = 2

Speciﬁcity 0.958 0.805

Precision 0.740 0.474

Recall 0.607 0.902

F1-score 0.667 0.621

ECR 0.762 0.656

According to the expectations in Table 2 at k = 1,

if we use TendeR-Sims to ﬁlter these RFTs, the sy-

stem will answer with ≈ 5 RFT lots on average, where

3 or 4 (≈ 3.7) of those can really be satisﬁed by the

company. The Precision of this answer is 3.7 / 5 ≈

74%, and the Recall is 3.7 / 6 ≈ 61%.

This means we can ﬁnd (recall) ≈ 61% of rele-

vant RFT lots by using TendeR-Sims then manually

verifying only the ﬁve lots that were returned in the

answer. For comparison, if we want to ﬁnd the same

amount of relevant lots by hand, we could randomly

shufﬂe and select 21 lots (60% of the dataset), then

verify all the selected lots manually. The number of

objects to be manually veriﬁed in this case was redu-

ced from 21 to 5, a 76.2% cost reduction.

By adjusting this k — the similarity threshold, it

is possible to recall more RFT lots by trading off pre-

cision. In Table 2 we observe that setting k = 2 raises

Recall to 90.2% and lowers Precision to 47.4%. In

this case, TendeR-Sims will return 11 results, where 5

or 6 (≈ 5.4) of them will be relevant lots for the com-

pany. Thus, to ﬁnd 90% of the relevant RFT lots, the

manual effort is reduced from 32 (randomly picking

90% of the dataset) to 11 objects by using TendeR-

Sims, a 65.6% cost reduction for achieving 90% re-

call. It still is a signiﬁcant cost reduction to ﬁnd ne-

arly all (90%) of the relevant items in the database.

This Estimated Cost Reduction (ECR in Table 2)

is then an expected estimate of how many RFT lots

will not be needed to be manually processed if the

TendeR-Sims

149

user wants ﬁnd the same proportion (recall) of rele-

vant RFT lots from the database. Larger databases

will beneﬁt even more from our system, for example,

a company looking for tendering any RFT lot in the

country may need to analyze tens of thousand lots.

As the ECR is a ratio, proportinally many hours may

be saved by TendeR-Sims. We then conclude that

TendeR-Sims can reduce the amount of manual work

and the associated cost by a signiﬁcant amount.

5 CONCLUSION

TendeR-Sims is a system carefully designed to ﬁlter

requests for tender (RFTs) according to whether or

not a company of interest is suited to tender them.

Considering that product descriptions in a request

document may differ from the companies product ca-

talogs by little variations, so any comparison by iden-

tity (=) will retrieve only exact matches and leave out

relevant items, making this approach unsuited for this

type of data. On the other hand, comparing complex

data is better addressed by how similar (or inversely,

how distant) their are. Thus, our system relies on the

Similarity-aware Relational Division Operator.

We created a dataset, proposed an ontology and

extended a similarity retrieval module so that all data

manipulation runs inside a well-known commercial

RDBMS (Oracle 12c).

Our results show that TendeR-Sims can signiﬁ-

cantly reduce the number of manually analyzed RFT

lots and their overall associated cost by up to 76%

of the original amount. As future work we plan to

improve the ontology, the similarity measure and ex-

plore other ontology domains.

ACKNOWLEDGEMENTS

Special thanks to the Databases and Images Group of

ICMC/USP, to the CAPES, CNPq and FAPESP fun-

ding agencies, to the ICMC/USP staff and also to the

many individuals that contributed to this study.

REFERENCES

Barioni, M. C. N., Razente, H. L., Traina, A. J. M., and

Traina Jr., C. (2006). SIREN: A similarity retrieval

engine for complex data. In Proceedings of the 32nd

International Conference on Very Large Data Bases,

pages 1155–1158.

Batista, H. G. and Prestes, C. (2004). Guia valor econ

omico

de licitac¸

oes. Globo Livros.

Bedo, M. V. N., Traina, A. J. M., and Traina Jr., C. (2014).

Seamless integration of distance functions and fea-

ture vectors for similarity-queries processing. JIDM,

5(3):308–320.

Codd, E. F. (1972). Relational completeness of data base

sublanguages. IBM Research Report, RJ987.

Gonzaga, A. S. and Cordeiro, R. L. F. (2017). The

similarity-aware relational division database operator.

In Proceedings of the Symposium on Applied Compu-

ting, SAC 2017, pages 913–914.

Guliato, D., Melo, E. V., Rangayyan, R. M., and Soa-

res, R. C. (2009). POSTGRESQL-IE: an image-

handling extension for postgresql. J. Digital Imaging,

22(2):149–165.

Kaster, D. S., Bugatti, P. H., Traina, A. J. M., and Traina Jr.,

C. (2010). Fmi-sir: A ﬂexible and efﬁcient module

for similarity searching on oracle database. Journal of

Information and Data Management, 1(2):229–244.

Mazza, A. (2011). Manual de Direito Administrativo. Sa-

raiva.

Minist

erio do Planejamento Desenvolvimento e Gest

do Governo Federal do Brasil (2007). Com-

prasnet. https://www.comprasgovernamentais.gov.br/

index.php/comprasnet-siasg. Accessed: 2017-10-08.

Minist

erio do Planejamento Desenvolvimento e Gest

do Governo Federal do Brasil (2017). Painel

de Prec¸o. http://paineldeprecos.planejamento.gov.br/

perguntas.html. Accessed: 2017-10-06.

Oliveira, P. H., Fraideinberze, A. C., Laverde, N. A., Gual-

dron, H., Gonzaga, A. S., Ferreira, L. D., Oliveira,

W. D., Rodrigues Jr., J. F., Cordeiro, R. L. F., Traina

Jr., C., Traina, A. J. M., and Sousa, E. P. M. (2016).

On the support of a similarity-enabled relational data-

base management system in civilian crisis situations.

In Proceedings of the 18th International Conference

on Enterprise Information Systems, ICEIS 2016, pa-

ges 119–126.

Rajaraman, A. and Ullman, J. D. (2011). Mining of Massive

Datasets. Cambridge University Press, New York,

NY, USA.

Silva, Y. N., Aly, A. M., Aref, W. G., and Larson, P. (2010).

Simdb: a similarity-aware database system. In Pro-

ceedings of the ACM SIGMOD International Confe-

rence on Management of Data, SIGMOD 2010, pages

1243–1246.

Zezula, P., Amato, G., Dohnal, V., and Batko, M. (2010).

Similarity Search: The Metric Space Approach. Sprin-

ger Publishing Company, Incorporated, United States,

1st edition.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

150
