Software Process Improvement through the Combination of Data

Provenance, Ontologies and Complex Networks

Maria Luiza Falci, Regina Braga, Victor Stroële and José Maria N. David

Postgraduate Program in Computer Science, Federal University of Juiz de Fora, Juiz de Fora, Minas Gerais, Brazil

Keywords: Data Provenance, Software Process, Data Provenance Model, Process Improvement.

Abstract: Software development is a complex and unpredictable activity. The idea of using knowledge from previous

software processes can be a good idea to improve the quality of future executions. The aim of this work is to

propose a software process improvement architecture named OntoComplex, which helps software managers

in decision making about software projects. Among the technologies used in OntoComplex we highlight the

use of ontologies and complex networks, associated with a provenance data model (ProvONE). By monitoring

and analyzing process execution data using these technologies, we can extract implicit kno wledge that can

help project managers to make decisions. An initial evaluation of OntoComplex was conducted using data

from a Brazilian medium size software company.

1 INTRODUCTION

Software development is a complex activity that is

usually followed by unexpected software behaviour

(Fuggetta, 2000). Monitoring different development

phases can be a good tactic for dealing with the

software unpredictability, improving also its quality.

One way of monitoring software properly is through

software process control. Software process control is

a critical factor for developing a software with good

quality.

Software process can be characterized as a set of

necessary activities for developing and implementing

software, executed by a group of organized people

according to an organizational structure and

supported by conceptual and technical tools (Acuna

et al., 2000). To be able to control software process,

the support of suitable tools and techniques is

essential. Monitoring and continuously improve

processes are important mechanisms to be

implemented. This monitoring and improvement go

through the information knowledge related to the

process, considering that, based on process model

information, as well as based on previous or similar

process executions, it is possible to refine new

executions and provide process quality and software

improvements. Therefore, with the monitoring and

analysis of models and execution data, it’s possible to

bring previous knowledge to improve new processes.

One way of saving this previous knowledge is

through the use of data provenance techniques.

Data provenance describes the origin and the

history of use of this data (Cuevas-Vicenttín et al.,

2015). It is a relevant metadata, which can facilitate a

better understanding about data, and provide

information about where data came from, which

process have generated it, what have influenced it, its

context, how it was produced and its path until it was

saved.

Considering the software process context, data

provenance can improve it through provenance

models and previous executions analysis. In order to

facilitate data provenance capture and integration,

there are some models such as OPM (Moreau et al.,

2011) and PROV (Groth and Moreau, 2013), this last

one the most widely used in academic community

nowadays.

The PROV model has some specific extensions,

such as ProvONE (Cuevas-Vicenttín et al., 2015),

which is specific to be used in scientific workflows

context and can be extended to be used with software

processes. Furthermore, we believe that in this

context, it is possible to extract implicit knowledge

from stored provenance data, which can help future

executions, as, for example, to find out obsolete tasks,

overwhelmed agents, among other information

related to processes executions.

This paper presents OntoComplex, an architecture

that uses ontology, complex networks and inferences

Furtuozo Falci, M., Braga, R., Ströele, V. and David, J.

Software Process Improvement through the Combination of Data Provenance, Ontologies and Complex Networks.

DOI: 10.5220/0006700400610070

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 61-70

ISBN: 978-989-758-298-1

to derive implicit knowledge from provenance data

related to software process. Its main goal is to assist

software managers to improve future executions and

reuse processes.

As a first step to OntoComplex specification, in

order to identify the deficiencies in the domain, a

systematic review was conducted to find relevant

works in the area, specially works which propose

techniques, frameworks, tools or procedures that

could support project managers to make decisions

based on data.

(Gencel et al, 2013) and (Naedele et al, 2015)

propose models to deals with metrics and

measurement programs. (Fonseca et al, 2017)

proposed an ontology-based approach for

measurement systems integration.

A systematic literature review was performed by

(Tahir et al, 2016) to answer questions about software

measurement programs. Challenges faced by

companies which adopt data-driven decision making

are presented by (Bosch, 2017).

This paper is organized as follows: Section 1

presents the introduction. Section 2 discusses the

research context. In Section 3 OntoComplex

architecture is presented and in Section 4 some

related works are detailed. Finally, in Section 5

conclusions are discussed.

2 RESEARCH CONTEXT

Software development is a complex and

unpredictable activity (Acuna et al, 2000). Through

software process monitoring and analysis, it is

possible to bring knowledge from previous process to

new processes, finding and understanding

vulnerabilities and deficiencies. One approach that

can help in that tasks is data provenance, a

“description of the origins of a piece of data and the

process by which it arrived in a

database” (Buneman et al., 2001).

Data provenance is a metadata that helps a better

understanding about data origin, which process have

generated or influenced it, its context and how it was

produced used until the moment it was stored.

Provenance describes which processes and steps are

related to a data lifecycle. Considering software

process context, a process uses a data and can

generate another data, which can be input in another

process or be relevant for a software manager

decision making, which, based on this information

can find the origin of errors, data accuracy, related

users, execution time, execution date, used

configuration parameters, among others. Benefits

from using data provenance can be even more

relevant when associated to technologies that help

finding implicit knowledge, improving decision

making strategies. Among these technologies, we can

cite ontologies (Prabhune et al., 2016) and complex

networks (Harary, 1969).

Ontologies are models that represent knowledge

about a domain, which are able to express entities,

relationships and rules related to that domain

(Prabhune et al., 2016). The Prov-O ontology, part of

PROV model from W3C, is specified using OWL2

language (Web Ontology Language). The Prov-O has

classes, properties and restrictions that can be used to

represent and acquire provenance information,

generated by different systems and in different

contexts. This model can also be specialized, adding

new classes and properties to express knowledge

from different applications and domains (Belhajjame

et al., 2012). In this context, ProvONE (Cuevas-

Vicenttín et al., 2015) is a Prov-O ontology

specialization, to be used in scientific workflows

domain.

ProvONE ontology can also be interpreted as a

graph, with nodes and edges. In this paper is proposed

a representation of this model as a complex network,

where nodes and edges are related to the model

entities and properties. With this new representation

it is possible to better understand data influence and

behaviour, which may generate strategic information

to help decision making. In this vein, OntoComplex

architecture was proposed considering different

technologies, as part of the process management

framework proposed in (Costa et al., 2016b) and

(Dalpra et al., 2015) with the main objective to derive

strategic knowledge to improve future software

process executions.

3 OntOComplex

Considering the ProvONE model, and the use of

ontologies, complex networks and visualization

techniques, this section details OntoComplex

architecture (Figure 1), which aims to provide

software process improvement. The main goal of this

architecture is to use software process and its

execution data analysis, to help managers to make

decisions based on acquired knowledge to improve

future executions.

A partnership with a medium size development

company was proposed with the goal of evaluating

OntoComplex functionalities and its architecture use.

A real dataset from error solution and new

functionalities requirements from an ERP (Enterprise

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

Resource Planning) was used. The dataset was

collected from the company database using the

Mantis

software. After collecting data, they were

processed based on interviews made with company´s

managers and developers. These data have

information about activities flow and information

generated by each process.

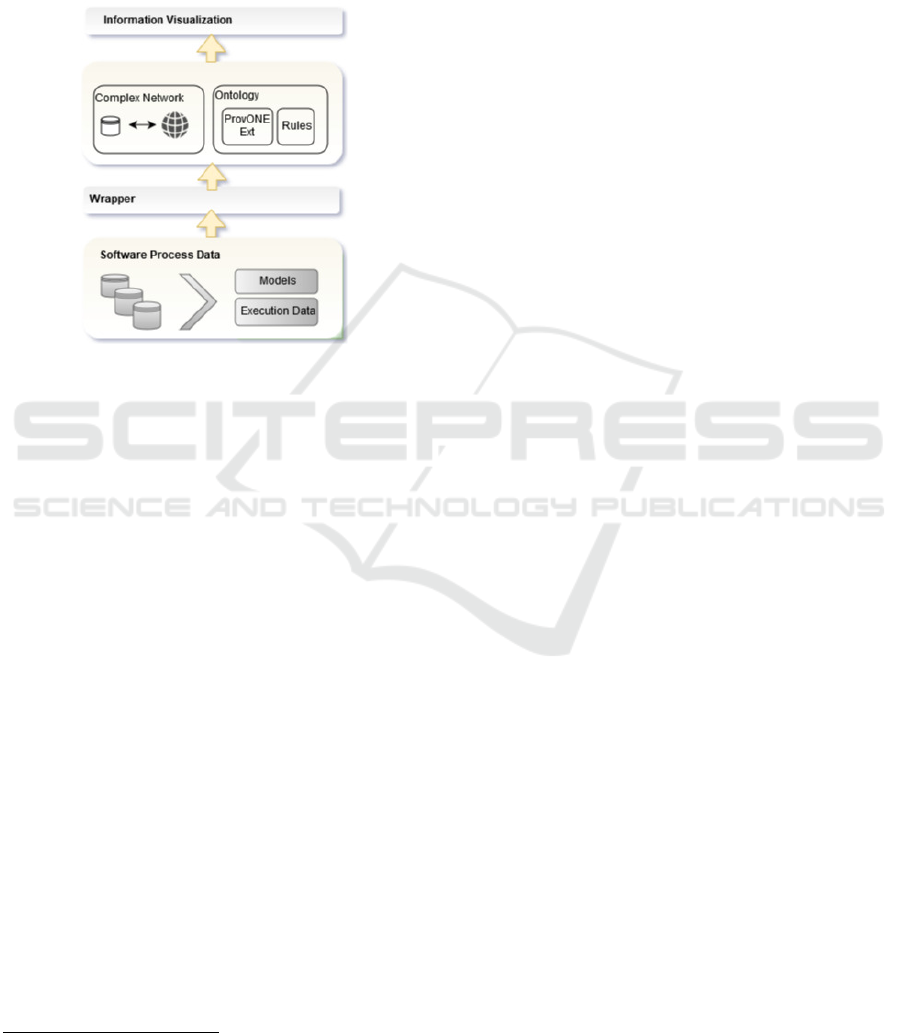

The layers are detailed in Figure 1.

Figure 1: OntoComplex architecture.

3.1 Software Process Data

As stated before, the main goal of the architecture is

to improve future software process executions. Thus,

it was decided to support multiple software process

data repositories, in multiple formats, in order to

make the process management easier. Therefore, it is

possible to use the approach in shared environments,

allowing the data reuse in similar processes, which

were generated by different process execution tools,

in different organizations.

In order to make it possible, it was specified an

intermediate layer (Wrapper on Figure 1), to make the

necessary conversions between different data

formats. To each data format it is necessary a new

specific wrapper. However, OntoComplex provides a

generic wrapper that needs to be specialized to

specific formats, as necessary.

The dataset from the ERP Company was available

in Mantis tool data format. Thus, the generic wrapper

provided by OntoComplex was specialized to convert

this specific format to PROVONE model. After the

conversion, the dataset had 5624 registers with 29

attributes. The data were loaded into the ontology and

ontological analysis were processed, together with

complex network topological analysis.

3.2 Data Analysis

The use of ontological classes, their relationships and

rules allow the derivation of new knowledge

extracted from data. OntoComplex architecture uses

these functionalities to derive strategic knowledge

considering software process data. However, to make

it possible, it was necessary to create specific

extensions to software process context. As stated

before, ProvONE model is a PROV extension for

scientific workflows context. Considering the

similarities between scientific workflows and

software processes, it was decided to use ProvONE as

a base model to create the specific extensions.

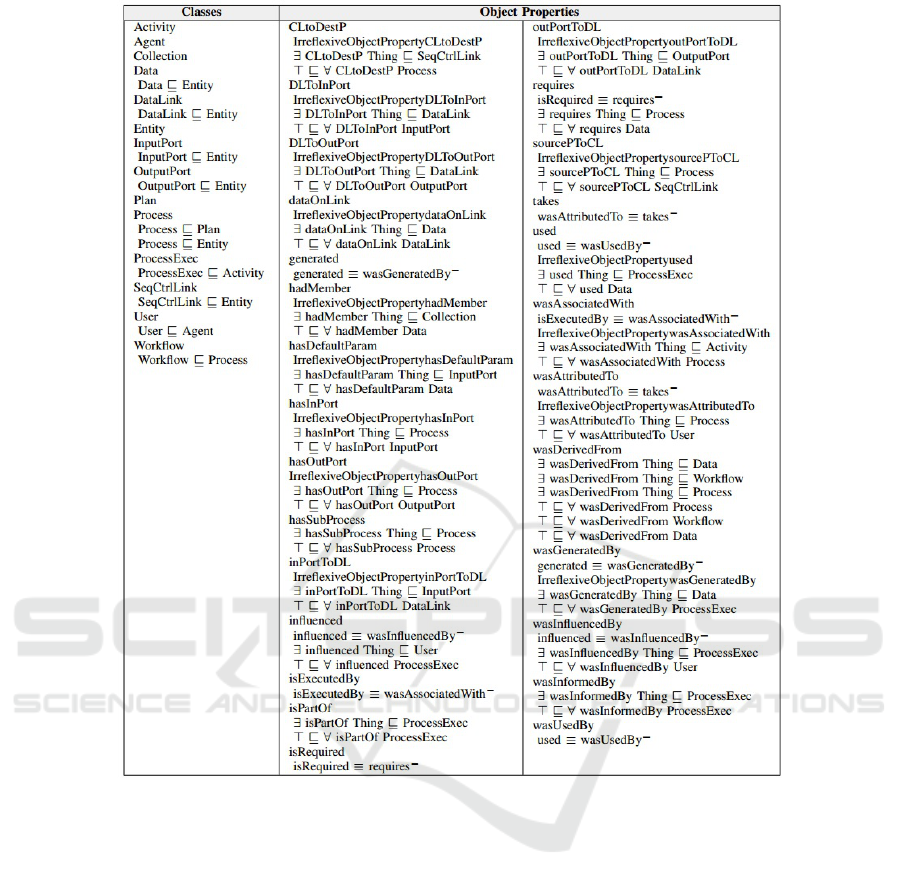

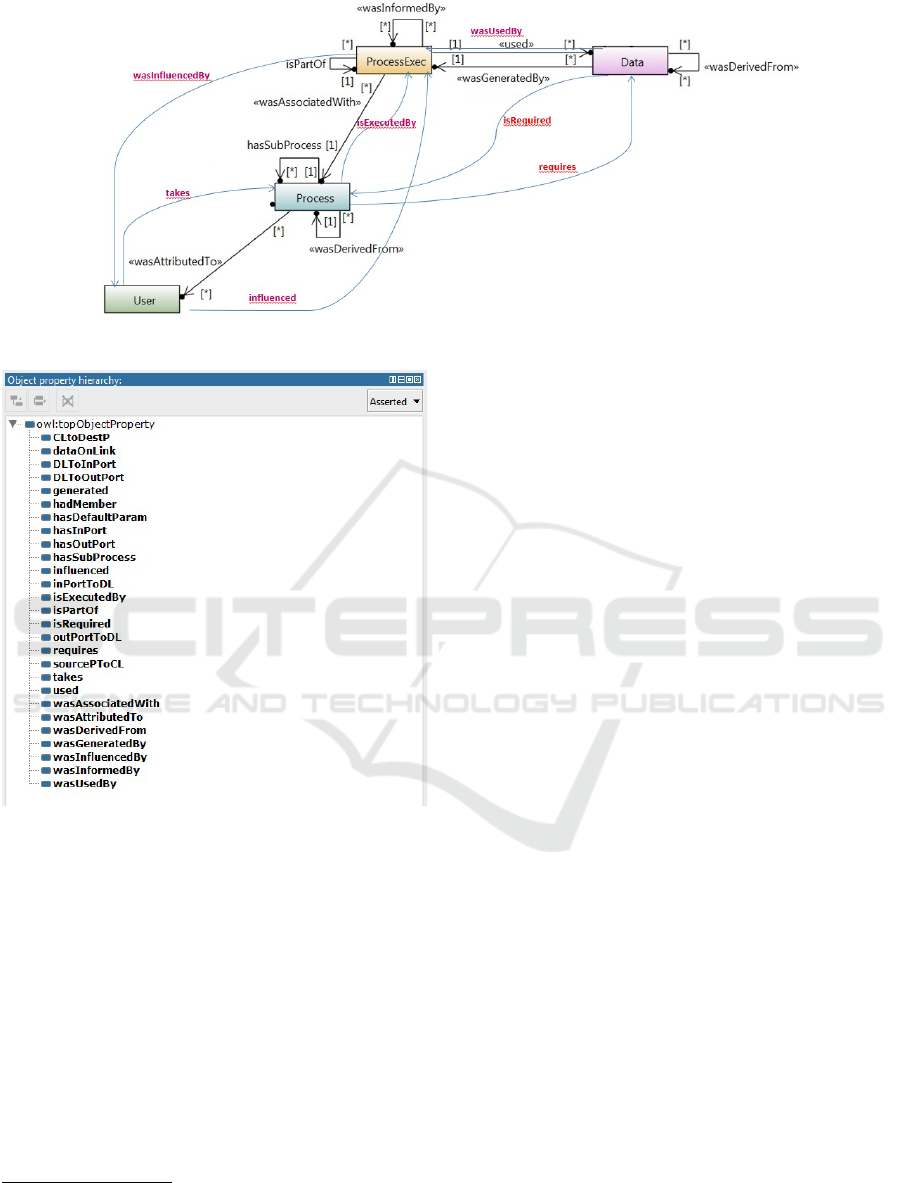

Starting from the ProvONE model, it was created an

extended ontology (ProvONEExt) presented on

Figure 2. Figure 2 presents the extensions made on

the model, which are mainly related to new

relationships between classes and new ontological

rules. As PROV is a generic model and ProvONE has

more specific classes for scientific workflows, the

model was adapted.

Based on this model (Figure 2), software process

data extracted from the data layer were converted,

loaded into the ProvONEExt ontology, and the

ontological analysis were processed (starting from the

specified ontological rules) as well as the complex

network topological analysis. Details of how

ontological analysis were made using the dataset

provided by the ERP Company are presented in the

following subsections.

3.2.1 Ontological Analysis

As it was mentioned before, ProvONEExt was

created as a ProvONE extension, and it has ProvONE

original classes and properties, besides original and

added properties (created in this work context) that

complement the model. Figure 3 presents object

properties from ProvONEExt.

To provide a better understanding of

ProvONEExt ontology use, the dataset from ERP

Company was associated to the ontology’s classes

and subclasses, and all the relations were defined. The

dataset is related to software process maintenance and

include information such as: who requested the

maintenance, its priority, to which user the

maintenance was attributed to, the frequency which

the errors happen, the submission date, the product

version, and other information.

After initial definitions, it was chosen a reasoner

(Pellet) for inferring knowledge. Figure 4 presents

https://www.mantisbt.org/

Software Process Improvement through the Combination of Data Provenance, Ontologies and Complex Networks

Figure 2: Data Provenance Model ProvONE [15], with new extensions.

Figure 3: Some properties added to ProvONEExt ontology,

using the software Protégé tool, version 5.1.0.

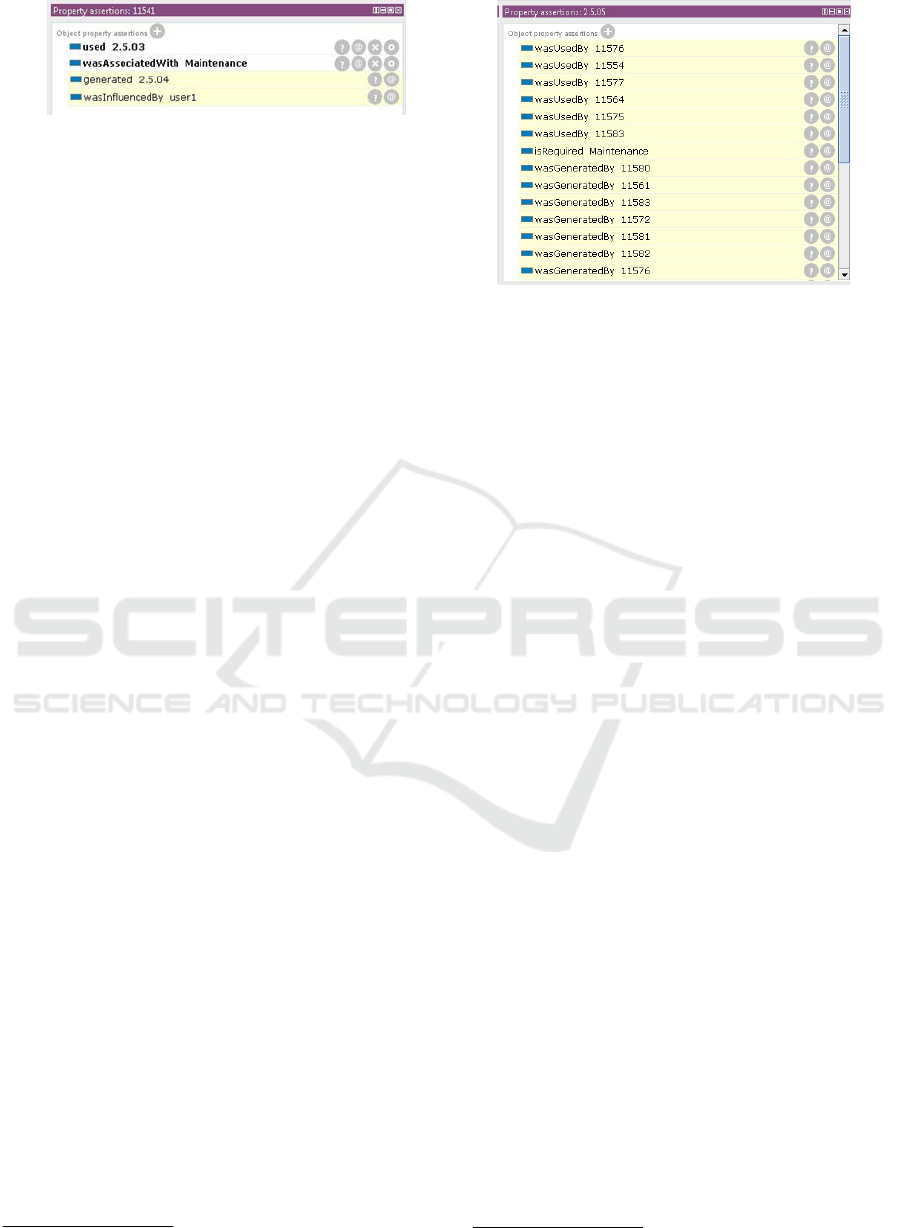

some information inferred by reasoned following the

ontological rules. Figure 4 shows specifically

inferences about software versions that were

influenced by other versions.

For example, software version 2.5.05 was

generated by other versions’ maintenance indicated

by the relationship ‘wasGeneratedBy’.

Based on the knowledge extracted from ontology

through inferences, it was possible to analyse and use

information to make strategic decisions using the

visualization layer. For example, it is possible to

know which software versions were used for which

The weights were defined based on the dataset. Thus, the

severity or execution time of the process, was used to define

the edge weights in this specific dataset.

other software executions, and which version was

generated by that use, among other information. It is

strategic decision because it makes easier to

understand the impact of one version into other, and

it is possible to make deep analysis if the manager

considers that the impact was big, for example related

budget cost and if these costs can decrease.

3.2.2 Complex Network Topological

Analysis

The modelling of the complex network, in the

OntoComplex context, was made with the data

instantiated into ProvONEExt ontology, generating a

graph through existing ontological relationships.

Considering ERP company dataset, it was created

nodes and edges based on the model. It was also

created weights for the edges

considering the

dataset. Based on these data, information could be

derived using complex network data mining

techniques, analysing the network and its nodes.

OntoComplex analysis intend to define the

complex network characteristics, and as

consequence, extract knowledge from its data, for

example centrality analysis, income degree, outcome

degree, vulnerability in case of attacks, among others.

These analyses allow a better understanding of the

network, knowing the impacts that the network would

have with the removal of a node. For example,

considering the ERP Company, if a developer makes

the majorities of the maintenance activities, how the

network would be impacted if this developer was

removed from it, how is the impact into the company

if this person quits the job. Is there someone who

would be able to substitute this person?

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

Figure 4: ProvONEExt ontology Inferences and Assertions a) and b), using the Protégé 5.1.0.

Moreover, with the complex network, it is

possible to have an overview of companies’ software

processes, and it is also possible to analyse selected

nodes and specific edges to understand them better

considering a particular behaviour.

Following the initial complex network modelling,

the network was populated with 5000 real process

execution data. Some of this data, such as a process

execution ‘severity’ and ‘execution time’, were used

to define the edge weights of the graph, to relate a

node to other, for example, an activity and the

software version to which it is related.

After the complex network structure definition

and storage using the Neo4j

database management

system, which allows graph queries, the network

analysis was processed in order to obtain relevant

information about data and execution processes. One

analysis example is related to the most critical

activities and which users are related to them. Two

different analysis can be made, the first one is

numerical, where can be showed the most complex

activities, the execution time, etc. The other possible

analysis is visual.

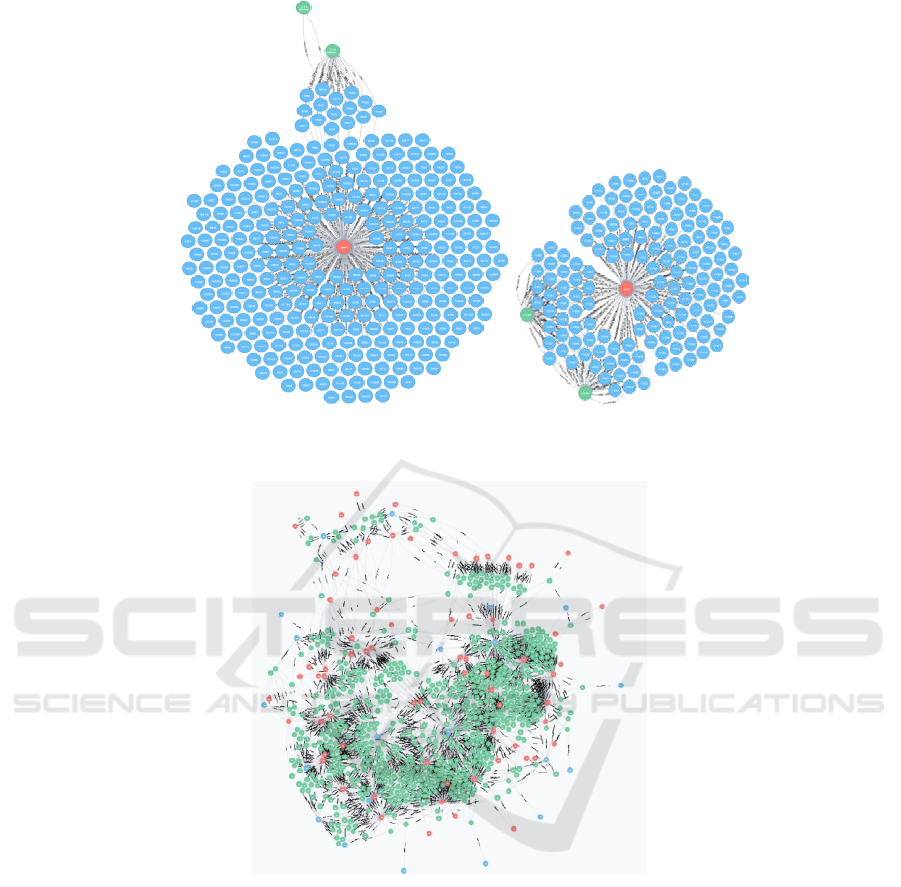

In Figure 5 it is illustrated the relation between a

developer (red nodes), the process executions (in

blue), and the software version which was influenced

by these executions (in green). It is possible to

observe in Figure 5a) that the developer is connected

to a big amount of execution processes, much more

than the developer on Figure 5b). It is possible to

make some analysis based on that observations, for

example investigate why a developer has much more

execution processes assumed, if these executions are

harder than others, what would be the impact if this

user quit the company, etc. The answers obtained

from these questions help to better understand the

importance of each network element, for example

developers/users, as it is illustrated in Figure 5.

https://neo4j.com/

To have a general overview of the complex

network using the ERP execution data, Figure 6

represents all execution data from the related process

model.

Complex network analysis together with

ontological analysis can derive useful strategic

knowledge to software managers. As a practical

example of how this work, if a manager clicks on a

developer node, it can be analysed which processes

were influenced by him and what is the intensity of

this process, as well as information inferred using

ontological rules. Thus, in the same view, it is

possible to fire the two types of analysis, ontological

and topological.

However, it is important to highlight that

ontological and complex networks analysis provide

the data analysis from different perspectives and

granularities, and one complements the other.

Ontological analysis is applicable when the analysis

must be done in a more detailed point of view, in

specific data, showing its details (Figure 7). Analysis

related to complex networks are less specific and

based on the nodes neighbours and graphic data

visualization in general (Figure 8).

3.2.3 Information Visualization

Information visualization layer was specified to

facilitate software process visualization and analysis.

This layer includes Visionary framework (Costa et

al., 2016a) to make better understanding of data

processed by OntoComplex analysis layer. The

visualization layer loads provenance data and uses the

D3.js

framework to generate the visualizations.

As it was highlighted in the previous section,

ontologies and complex networks allow a better

visualization of data, its relations, and the main

implicit knowledge present on data. Considering the

https://d3js.org/

Software Process Improvement through the Combination of Data Provenance, Ontologies and Complex Networks

Figure 5: Complex network selections a) and b) show different relations between developers and maintenance activities, and

the software versions related to them.

Figure 6: Complete view from the complex network data.

ERP company dataset, with the use of ontological

and inferences rules, for example, it is possible to

click on execution process data, on developers’ data,

on software versions, and see with which other data

these ones are related, and what are the relation types.

With the complex network based analysis, it can be

observed a relation between data, and observe their

behaviour on the network.

Some examples of visualizations generated by the

Visualization layer are presented on Figure 7. The

main nodes’ names are available by default (with an

option of showing all the names), and with one click

on a specific node it is possible to show details and its

more specific connections to other nodes. Nodes use

a structured layout to automatically adjust its

positions, to avoid any of them to be hided. It is also

possible to show more information from a node if it

is selected, including its related elements and

relationships, helping to make established tasks.

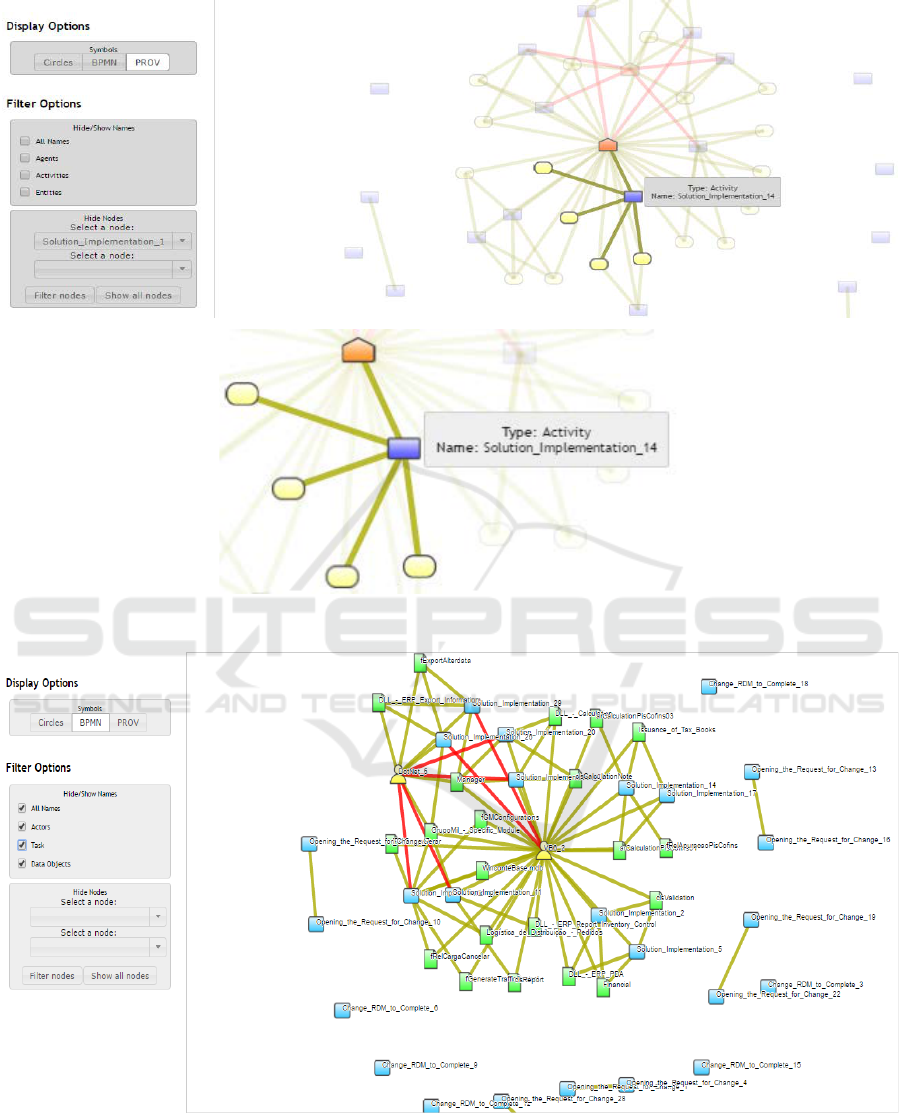

The visualization presented in Figure 8 represents

some immediate information to the system user. For

example, the developer ‘Support_4’ has few

connections with other elements, which allows a

deduction that this user can be allocated to simpler

tasks. On the other hand, ‘VB6_2’ has a lot of

connections, which can indicate that this developer

has been involved with more activities. The final

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

decision to be made is up to the software manager

based on these data analysis.

4 RELATED WORKS

Related work will be analysed in the following

paragraphs through different perspectives, a) the

provenance data used, considering provenance data

models and b) the approaches proposed to improve

software processes.

DataONE is a multi-institutional, multinational

and interdisciplinary organization that has

collaboration from different researchers who intend

to contribute to the scientific community with data

science, using data provenance (Allard, 2012).

Cuevas-Vicenttín (Cuevas-Vicenttín et al., 2014a)

proposes a repository named Pbase intending the

integration with DataONE. The authors experience

shows the potential acquired for supporting different

search types through data provenance. Challenges

faced by PBase are presented, as the definition of a

provenance model that is compatible with the main

scientific workflows, as well as functionalities

characterization required to specific searches and also

the development of a structure that allows users to

evaluate queries effectively.

One of drawbacks of ProvONE is to model data

provenance without a tool support. In this vein, a tool

called Prov2ONE was proposed by (Prabhune et al.,

2016) to generate the prospective provenance to

scientific workflows. The provenance graph is them

updated with the relevant retrospective provenance,

improving the academic community interoperability,

facilitating the share and workflows analysis.

Oliveira (Oliveira et al., 2016) discusses about the

challenges faced by the academic community

considering the different provenance models

available, and the difficulty to interoperate them. The

authors proposed a common model for two different

models (SciCumulus e e-Science Central), using the

ProvONE. The goal is to allow different workflows,

which use different workflow models, to have a

common model, allowing its reuse.

Considering approaches that deal with process

improvement, as state before, a systematic review

was conducted to find relevant works in the area,

especially works which propose techniques,

frameworks, tools or procedures that could support

project managers to make decisions based on data.

In (Gencel et al, 2013) it is proposed a framework

to assist software organizations to choose the right

metrics when planning measurement programs.

(Naedele et al, 2015) presents how knowledge from

manufacturing execution systems can be used in

software engineering. The authors provide a

framework for increasing software development

predictivity and quality, and developed a prototype

that presents analysis that can help in software

development decision making.

(Fonseca et al, 2017) proposed an ontology-based

approach for measurement systems integration. The

ontology helps organizations to integrate different

systems and helps them to establish measurement

process and tool support.

Another recent systematic literature review was

performed by (Tahir et al, 2016) to answer questions

about software measurement programs, considering

measurement models, tools and practices, whether

they are discussed in the literature and success and

failure models.

(Bosch, 2017) presents challenges faced by

companies which adopt data-driven decision making.

The author explains the transition from a traditional

decision-making company to a data oriented

decision-making company.

Although the works above improves the state of

art, none of them have proposed tools which use data

from development processes, to extract implicit

knowledge from these data, and at the end help

managers to make decisions based on the processes,

in direction to a data-oriented decision-making

approach (Bosh, 2017).

5 FINAL REMARKS

Knowledge extraction from datasets is an activity that

can be very complex because of the huge amount of

data. Software managers frequently don’t know

models, tools or techniques that can support them to

extract knowledge and consequently make better

strategic decisions.

This paper proposes an architecture that has data

provenance models, ontologies and complex

networks, used together to help project managers to

make better decisions.

To make an initial evaluation of the approach

presented, real data from a medium size development

company were used and from the analysis made, it

was possible to extract strategic knowledge from

data, presenting initial evidences of the architecture

utility. However, a validation through a formal

experiment is necessary, as well as architecture

improvements, mainly considering its performance.

Therefore, formal evaluations are being planned and

this pilot evaluation presented in this paper serves as

a first step to the architecture improvement.

Software Process Improvement through the Combination of Data Provenance, Ontologies and Complex Networks

Figure 7: ERP process data visualization selection.

Figure 8: PROV Visualization.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

REFERENCES

Acuna, S. T., De Antonio, A., Ferre, X., Lopez, M., Mate,

L., and Estero, S. 2000. The Software Process:

Modelling, Evaluation and Improvement. Handbook of

Software Engineering and Knowledge Engineering, pp.

1–35.

Allard, S. 2012. DataONE: Facilitating eScience through

collaboration. Journal of eScience Librarianship, 1(1),

Belhajjame, K., Cheney, J., Corsar, D., Garijo, D., Soiland-

Reyes, S., Zednik, S., and Zhao, J. 2012. Prov-o: The

prov ontology. W3C Working Draft.

Bosch, J. (2017). Speed, Data, and Ecosystems: Excelling

in a Software-Driven World, CRC Press.

Buneman, P., Khanna, S., and Wang-Chiew, T. 2001. Why

and where: A characterization of data provenance. In

International conference on database theory (pp. 316-

330). Springer Berlin Heidelberg.

Costa, G. C., Schots, M., Oliveira, W. E., LO, H., Dalpra,

C. M., Braga, R., and Campos, F. (2016a). SPPV:

Visualizing Software Process Provenance Data.

Sociedade Brasileira de Computação–SBC, 49.

Costa, G. C. B., Werner, C. M., & Braga, R. (2016b).

Software Process Performance Improvement Using

Data Provenance and Ontology. In International

Conference on Business Process Management (pp. 55-

71). Springer International Publishing.

Cuevas-Vicenttín, V., Kianmajd, P., Ludäscher, B.,

Missier, P., Chirigati, F., Wei, Y., and Dey, S. 2014.

The PBase scientific workflow provenance repository.

International Journal of Digital Curation, 9(2), 28-38.

Cuevas-Vicenttín, V., Ludäscher, B., Missier, P.,

Belhajjame, K., Chirigati, F., Wei, Y., and Altintas, I.

2015. ProvONE: A PROV Extension Data Model for

Scientific Workflow Provenance. DOI =

http://vcvcomputing.com/provone/provone.html

Dalpra, H. L., Costa, G. C. B., Sirqueira, T. F., Braga, R.

M., Campos, F., Werner, C. M. L., & David, J. M. N.

(2015). Using Ontology and Data Provenance to

Improve Software Processes. In ONTOBRAS.

Fuggetta, A. 2000. Software process: a roadmap.

Proceedings of the Conference on the Future of

Software Engineering. ACM.

Groth, P., and Moreau, L. 2013. PROV-Overview. An

overview of the PROV Family of Documents.

Harary, F. Graph theory. Addison. Reading, MA, 1969.

Moreau, L., Clifford, B., Freire, J., Futrelle, J., Gil, Y.,

Groth, P., and Plale, B. 2011. The open provenance

model core specification (v1. 1). Future generation

computer systems, 27(6), 743-756.

Oliveira, W., Missier, P., Ocaña, K., de Oliveira, D., and

Braganholo, V. 2016. Analyzing Provenance Across

Heterogeneous Provenance Graphs. In International

Provenance and Annotation Workshop (pp. 57-70).

Springer International Publishing.

Prabhune, A., Zweig, A., Stotzka, R., Gertz, M., and

Hesser, J. 2016. Prov2ONE: An Algorithm for

Automatically Constructing ProvONE Provenance

Graphs. In International Provenance and Annotation

Workshop (pp. 204-208). Springer International

Publishing.

APPENDIX

In order to give more information about ProvONEExt

ontology, in appendix it is presented its Description

Logics (DL) Syntax.

Software Process Improvement through the Combination of Data Provenance, Ontologies and Complex Networks

ICEIS 2018 - 20th International Conference on Enterprise Information Systems
