A Proactive Approach to Support Risk Management in Software Projects

using Multi-agent Systems

Thayse Alencar

, Mariela Cortés

, Nécio Veras

and Lui Magno

State University of Ceará, Fortaleza, Brazil

Federal Institute of Education, Science and Technology of Ceará, Tianguá, Brazil

Keywords:

Software Project Management, Risk Management, Multi-agent Systems, MAS, Metrics.

Abstract:

Software project management is a complex and demanding task full of threats or negative risks that lead to the

delay or the failure of the project. Risks stem from many different internal sources as well as external ones

in the company and the project. In addition, these events can originate in any phase of the project life cycle,

and thereby increase the complexity of the decisions for the project manager. Aiming to reduce the negative

consequences caused by these events, we propose an approach that extends a multi-agent system to provide

support for risk management in software projects by using metrics and contingency reserves. The approach is

evaluated with a feasibility study demonstrating that agent-oriented approaches are promising solutions that

support risk management processes.

1 INTRODUCTION

One of the challenges in software development pro-

jects is the high level of uncertainty that emerges from

inaccurate estimates of schedule and resources, in-

adequately deﬁned scope or requirements, frequent

changes in the requirements, among other reasons. In

2015, about 71% of projects have failed or had pro-

blems to meet deadlines, budget targets or quality in

general (Hastie and Wojewoda, 2015). These data

conﬁrm that these uncertainties cause risks that com-

promise the performance and success of the achie-

vement goals in the project.

A risk is an event of an uncertain condition that, if

it occurs, will either have a positive or negative effect

on the project objectives by: (1) threatening the pro-

ject itself through the schedule, cost, and resources;

(2) impacting the quality of the product that is being

developed; (3) or affecting the organization at the

business-level (Sommerville, 2011) (Pressman, 2011)

(PMI, 2013). In the organization or project, risks can

emerge from both internal and external sources. As a

result, both of these sources and triggers, which con-

tribute to the progress of these events, require conti-

nuous monitoring and management.

According to Sommerville (2011), risk manage-

ment is recognized as one of the most important tasks

of project management. Knowing how to handle risks

is one of the decisive factors for project success as it

can compromise goals of time, cost, quality and cus-

tomer satisfaction. However, only 32% of worldwide

organizations employ a formal methodology (structu-

red by policies, procedures and forms) for risk mana-

gement (PMI, 2014).

To handle the negative events threatening projects,

organizations must have a proactive and consistent ap-

proach to support risk management through the en-

tire project life cycle (PMI, 2013). In this context,

intelligent agents have been held as a promising so-

lution for supporting project management activities,

due to their abilities: to detect and monitor changes

in complex and highly dynamic environments; to rea-

son about these changes; and to act proactively (Veras

et al., 2015). In this paper, we propose a proactive

and automated approach based on agent technology

to assist the software project manager in the execu-

tion of the Risk Management processes (SEI, 2010)

(PMI, 2013), regardless of the application domain.

This paper is organized as follows: the theoretical

background is presented in Section 2. Section 3 con-

tains the related works. The proposed approach for

risk management is described in Section 4. The de-

sign and implementation of the multi-agent platform

is detailed in Section 5. Section 6 shows some ﬁn-

dings obtained from the implementation of our pro-

posal. Finally, conclusions and future work are pre-

sented in Section 7.

Alencar, T., Cortés, M., Veras, N. and Magno, L.

A Proactive Approach to Support Risk Management in Software Projects using Multi-agent Systems.

DOI: 10.5220/0006703804150424

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 415-424

ISBN: 978-989-758-298-1

415

2 THEORETICAL BACKGROUND

2.1 Risk Management

Risk Management (RM) aims to increase the chance

and impact of positive events (opportunities), while

decreasing those of negative events (threats) (PMI,

2013). RM is one of the critical activities of a pro-

ject manager and is important for software projects

because of the inherent uncertainties faced by most

projects (Sommerville, 2011). Risk management

is a continuous process and should address issues

that may compromise critical project objectives (SEI,

2010). A risk management strategy should be deve-

loped early in the project to detect negative events,

due to the fact that introducing changes in the initial

phases is more efﬁcient than in the ﬁnal phases of the

project. Project Risk Management has several pro-

cesses, such as: risk management planning, identiﬁ-

cation, qualitative and quantitative analysis, response

planning, and control (SEI, 2010) (PMI, 2013).

The main focus of Risk Identiﬁcation is to iden-

tify potential problems, threats and vulnerabilities

that can affect the work effort or project plans (PMI,

2013). It can be performed with tools and techni-

ques such as checklists, questionnaires and stake-

holder interviews, documentation reviews, Strengths-

Weaknesses-Opportunities-Threats analysis (SWOT),

Failure Mode and Effect Analysis (FMEA), expert

opinions, brainstorming, etc. Qualitative Analysis

evaluates the priority or exposure to the individual

risk for each identiﬁed risk based on the comparison

parameters (PMI, 2013). The most common risk com-

parison parameters are: probability occurrence and

impact (or seriousness) of the occurrence. The Quan-

titative Analysis involves analyzing the aggregate ef-

fect of all risks in the project in order to provide a cor-

rect understanding of the ﬂaws, outcomes and events

that are difﬁcult to explain in a qualitative approach.

The Planning of Responses handles the selection stra-

tegies or merging of risk-taking strategies by conside-

ring their speciﬁc probability and impact. There are

strategies normally used to treat both negative (pre-

vent, transfer, mitigate and accept) and positive risks

(exploit, improve, share, and accept) in projects. Fi-

nally, Risk Control involves continuous and periodic

support of the risk factors, by performing all proces-

ses previously reported. They include several activi-

ties: implementation of risk response plans, tracking

identiﬁed risks, monitoring residual risks, identifying

new risks, and evaluating the effectiveness of the risk

management process throughout the project.

These processes are iterative and require many

steps of planning. Even with comprehensive conside-

ration for planning, hardly any of the risks will be eli-

minated from the project. In this context there are se-

veral factors that contribute to the complexity of these

processes, among them being: the occurrence of ne-

gative events at any step of the project; multiple sour-

ces of risk in projects; and the need for specialized

knowledge to conduct the processes. Perhaps, for this

reason, many organizations neglect some of these pro-

cesses, hence jeopardizing the success of the projects.

In the current state of the area, we consider ﬁnding so-

lutions that support RM in speciﬁc contexts or apply

restrictions. Among the solutions found in the litera-

ture, many offer partial support by excluding several

RM processes (Fontoura and Price, 2008), while some

are theoretical (Rafele et al., 2005) or semi-automated

(Knob et al., 2006), and others require greater efforts

from the manager or were developed for a speciﬁc

context (Rad, 2013).

2.2 Agents and Multi-agent Systems

Agent-based technology has been applied increa-

singly by the scientiﬁc community to develop com-

plex computational systems (Jennings, 2001). An

agent is an entity able to perceive its environment

through sensors, and acts on it through its actuators

(Russell and Norvig, 2013). Agents can be biologi-

cal (e.g., people or animals), robotic or computatio-

nal, and can perform several tasks, usually to support

some human individual (Coppin, 2004). Agent per-

ception refers to perceptual inputs acquired from the

environment at an instant, while the actuation refers

to the agent’s response to the stimulus received. This

idea is presented in Figure 1.

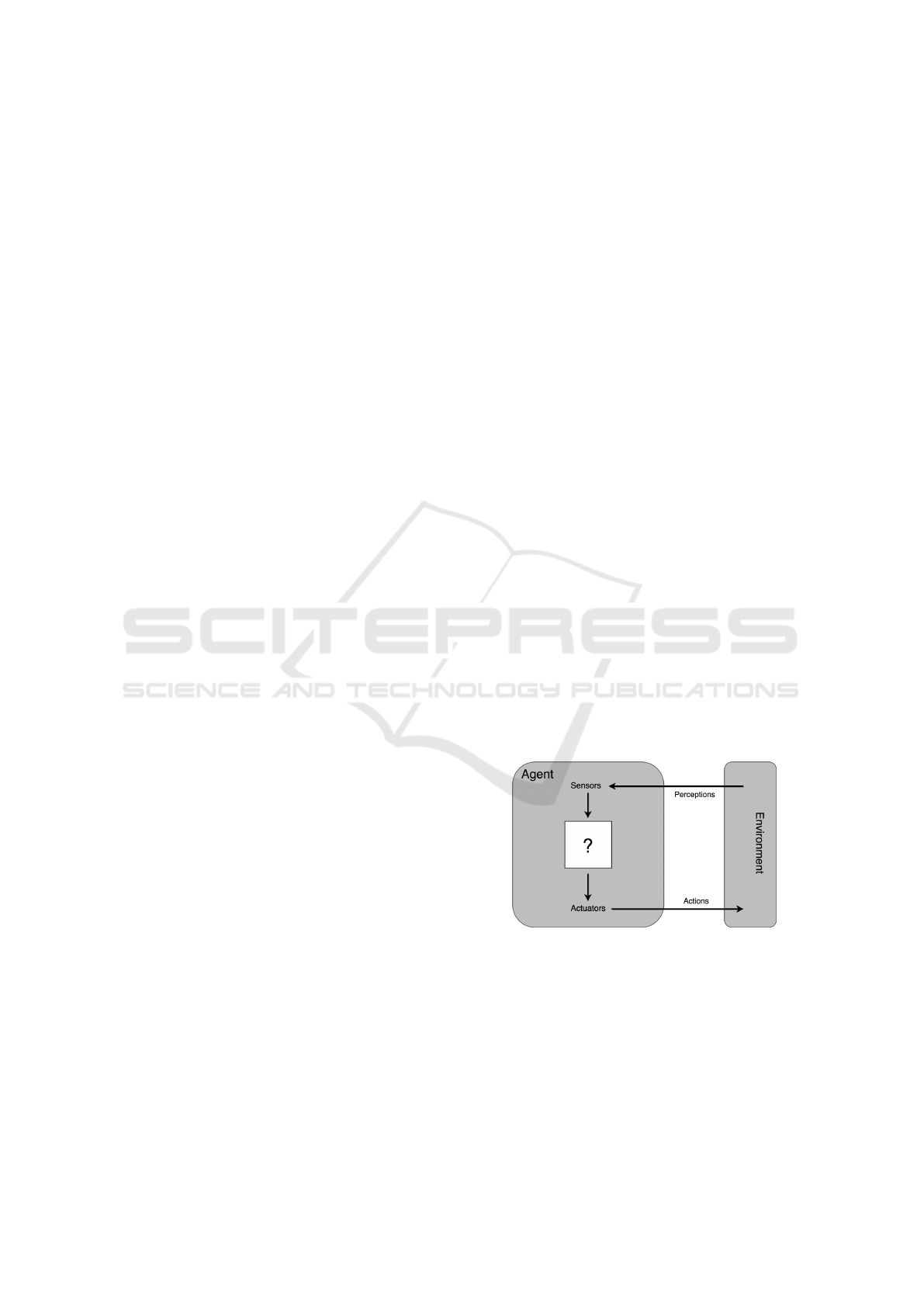

Figure 1: A standard agent illustration adapted from (Rus-

sell and Norvig, 2013).

Artiﬁcial Intelligence (AI) is the ﬁeld of science

and engineering that attempts to understand and con-

struct intelligent entities (Russell and Norvig, 2013).

In this context, agents are different software programs

in comparison to other computational programs, due

to features such as: autonomy, the ability to perceive

the environment in which they are inserted; persis-

tence during a speciﬁc length of time; adaptation

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

416

to change; and proactivity to create and reach goals

(Russell and Norvig, 2013).

Another concept assigned to agent technology is

rationality. A rational agent is able to act in order to

achieve the best result or, when there is uncertainty,

the best expected result (Russell and Norvig, 2013).

Intelligent agents should not only collect information,

but should also learn as much as possible from envi-

ronment. This learning allows agents to improve their

performance in executing a speciﬁc task over the time

(Coppin, 2004). Moreover, agents have the ability to

learn from other agents — as the case of multi-agent

systems (MAS). When there is more than one agent

collaborating or disputing with each other in the same

environment, this is called multi-agent system.

Achieving a perfect rationality (doing the right

thing) is not simple in complex environments (Rus-

sell and Norvig, 2013). Agents are problem solvers,

capable of balancing ﬂexible behavior to pursue their

project objectives, acting both reactively (able to re-

spond to changes occurring in the environment) and

proactively (able to adopt targets and take initiatives)

(Jennings, 2001). For this reason, agent-based solu-

tions are suitable for dynamic and complex environ-

ments, such as software project management and de-

velopment.

In complex problems of Software Engineering,

the adoption of an agent-oriented approach utili-

zes the decomposition of the problem into multiple

sub-problems, as well as autonomous components

(agents) that act and interact in a ﬂexible way to

achieve established objectives (problem resolution)

(Jennings, 2001). For instance, in the ﬁeld of Soft-

ware Engineering, agents can be used to perform tasks

relevant to processes or people. Similar to subjects

who have tasks allocated in a process, agents can per-

form delegated actions for them.

3 RELATED WORK

In order to provide an overview of the methodologies

and solutions that support project management, while

focusing on Risk Management, a literature review

was conducted. Our current research covers topics

of how organizations conduct management, which

processes of risk management are more applicable,

which tools and techniques are utilized, and what li-

mitations are encountered the most.

The usage of multi-agent systems supporting the

risk management can be observed in some works.

Nienaber (2008) proposes a framework to support

all areas of project management proposed by (PMI,

2013), by using specialized software agent techno-

logy, where each agent is responsible for a general

task. The architecture of the framework integrates va-

rious multi-agent systems, and each of these systems

is responsible for the processes of a management area,

while fulﬁlling a speciﬁc objective. The proposed ap-

proach was implemented in the prototype containing

only the multi-agent module for risk management and

including only the processes of Qualitative Analysis

and Risk Monitoring. The technique of Probability

and Impact Matrix in its most simplistic version is ap-

plied in the qualitative analysis. The tool is not avai-

lable to the scientiﬁc community.

Another multi-agent platform for project manage-

ment was developed by Veras et al. (2015) , which

provides the monitoring and control of the project

work and the integrated changes management. The

approach applies the Aggregate Asset Management

(AAM) and the Critical Path Method (CPM) (PMI,

2013) to provide a consistent view of project pro-

gress, and assist the project manager in decision ma-

king. The agents are able to detect deviations during

the execution of project’s activities and suggest cor-

rective actions to reduce the negative impact of devi-

ations. The approach does not provide support for all

the project management processes (PMI, 2013) (SEI,

2010) and is not available for the scientiﬁc commu-

nity.

Focusing speciﬁcally on risk management, Shah

(2004) suggests the association of qualitative and

quantitative approaches to identify risks in complex

systems. Based on the combination of different theo-

retical frameworks for risk management and the (Pro-

babilistic Risk Assessment Model - PRA) evaluation

model, the approach is able to identify and quantify

risk factors in complex systems. In addition, the ap-

proach supports only three risk management proces-

ses (Identiﬁcation, Qualitative and Quantitative Ana-

lysis) and bases on prioritizing risks to allocate re-

sources, aiming at reducing costs and mitigating risks.

The approach lacks the implementation of an automa-

ted tool as a proof of concept.

Rafael et al. (2005) also present another method

for risk management in projects utilizing a Risk Bre-

akdown Matrix - RBM, comprised of the Work Break-

down Structure - WBS and the Risk Breakdown Struc-

ture - RBS. This strategy is useful for associating risks

with the activities of a project. While the WBS deﬁ-

nes the activities and packages of work in the project,

RBS identiﬁes possible sources of risk, enabling the

approach to perform a more robust analysis than the

simple Probability and Impact Matrix. The approach

includes three risk management processes (Identiﬁ-

cation, Qualitative and Quantitative Analysis), but it

does not offer any automated support tools.

A Proactive Approach to Support Risk Management in Software Projects using Multi-agent Systems

417

Intended as a support to all risk management pro-

cesses (PMI, 2013)(SEI, 2010), the semi-automated

tool proposed by Knob et al. (2006), RiskFree, aims

to help software development project teams to colla-

boratively manage risks in their projects. Due to the

fact that processes can be executed by various techni-

ques, the tool RiskFree is designed to allow organi-

zations to develop components that meet their own

needs. In such approach, the only process that is truly

semi-automated is the Qualitative Analysis performed

through the Probability and Impact Matrix technique,

denoting that the manager or person in charge is re-

sponsible for the manual execution of the other pro-

cesses.

In a technical report, Rad (2013) describes the

GOES-R Series RM, a decision-making tool used to

ensure safety and functionality of the Geostationary

Operational Environmental Satellite - GOES system.

The GOES-R Series RM has the risks in a Risk Dis-

tribution Matrix — a more robust version of the Pro-

bability and Impact Matrix — and positions them ac-

cordingly with the value of their risk exposure (RE).

When some signiﬁcant change occurs in the project,

the affected risks are updated and repositioned in the

matrix. The tool provides reports, suggestions for mi-

tigation actions and supports all risk management pro-

cesses (PMI, 2013) (SEI, 2010). Although this tool is

developed privately for a speciﬁc domain, the theo-

retical approach of this work can be adapted to other

application domains.

The use of project metrics can also be observed as

a technique for supporting risk management proces-

ses. Fontoura et al. (2004) proposed an approach for

risk prevention based on the customization of the or-

ganization’s software process. The approach is orien-

ted as deﬁned metrics from the Goal/Question/Metric

paradigm, and supports the Identiﬁcation, Qualitative

Analysis, Response Planning, and Risk Control pro-

cesses. Considering the previously cited works, the

approach also uses the Probability and Impact Matrix

technique in its most simplistic version to calculate

the effect of a risk. In an extended version of this

work, Fontoura and Price (2008) presented a tool that

implements such an approach, but the tool is not avai-

lable online.

The use of agents in the context of software ma-

nagement projects, in particular, is a relatively new

ﬁeld of research, and as such the literature is not wi-

dely available. Based on the analysis of the works,

RBS and the Impact and Probability Matrix are struc-

tures commonly used in the detection and evaluation

of risks. This is justiﬁed by the fact that RBS pro-

vides the visualization of complex projects and sys-

tems in smaller segments; and the Probability and Im-

pact Matrix is a simple, quick, and inexpensive way

to obtain the critical level of each risk. However, both

techniques are static strategies, applied at speciﬁc ti-

mes of the project. Another observation is the simpli-

city and the limitation of the mathematical formula-

tions that calculate the risk exposure (ER), which ex-

clude project or organization factors contributing to

the criticality of the risks. Finally, parameters that

conﬁrm the obtained results are lacking in the majo-

rity of works, since many of them do not contain an

automated support tool. In the next section, a pro-

active approach to risk management in software pro-

jects will be discussed in detail.

4 PROPOSED APPROACH

Aiming to assist software project managers with the

Risk Management Process (RM) as suggested by the

PMI (2013) and SEI (2010), we propose the develop-

ment of an intelligent agent to treat risks (ARis) in an

integrated way with diverse aspects of the project such

as scope, schedule, cost, and changes management.

To perform a robust analysis of the project’s risks, the

mathematical formulation developed in our approach

takes into account these parameters: (i) the impact of

each risk for the various project aspects (cost, sche-

dule, scope and others); (ii) requested changes in the

project; and (iii) the amount of available contingency

reserve.

The proposed approach is divided into four macro-

process — Risk Analysis, Simulation Environment,

Updating Environment and Monitoring Project Me-

trics — which are performed by the risk agent accor-

ding to the current state of the project environment.

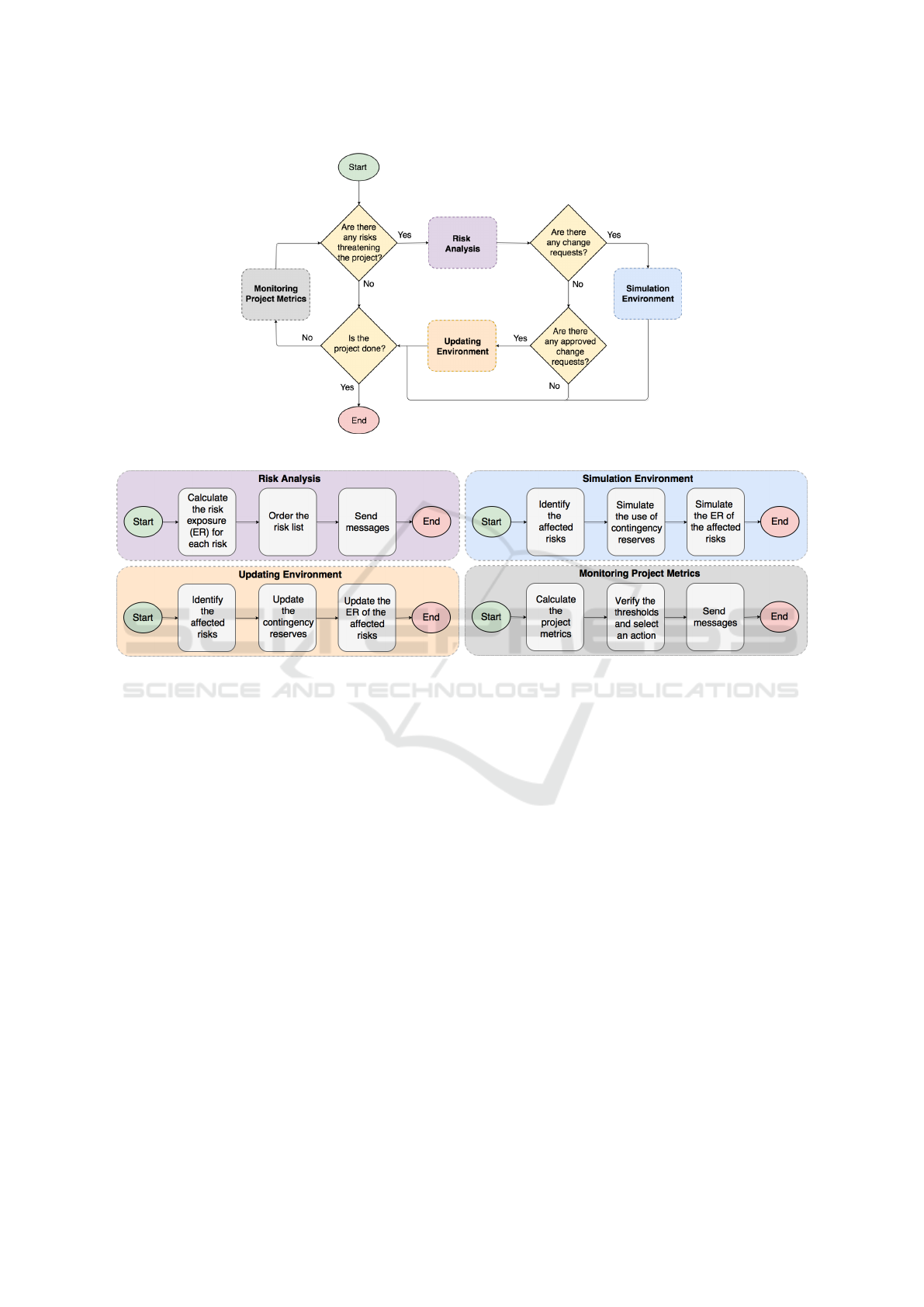

Figure 2 shows the execution ﬂow diagram of these

processes implemented by the risk agent ARis in the

approach.

At the onset of the project, the properly identi-

ﬁed and documented risks as explained in Section 2

are incorporated into the internal state of ARis. Once

the existence of risk factors jeopardizing the project

is detected, the agent executes the process Risk Ana-

lysis, which consists of calculating the priority of each

risk factor and updating its internal state. The occur-

rence of changes must be predicted during a project,

but only formally approved change requests can be

incorporated into the project’s baseline (PMI, 2013).

To be approved, a change request needs to be evalu-

ated because it might result in one or more modiﬁ-

cations in the project attributes. In this scenario, ac-

cording to the approach proposed here, whenever the

agent ARis is notiﬁed of any change request, it per-

forms the Simulation Environment process to simulate

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

418

Figure 2: The ﬂow diagram of the macro-processes performed by the ARis agent.

Figure 3: Macro-processes in-depth.

the new state of the environment from the application

of the change. If the change is approved by the ma-

nager, then ARis executes the Updating Environment

process to update the information about the project’s

risks in its internal state.

Due to the interactive nature of project manage-

ment, the macro-process proposed in this approach

overlap and interact in different ways. The union

of all these processes reﬂect the Risk Management

process proposed in the literature that can be seen in

Section 2. More details about each macro-process and

their mathematical modeling are discussed in the fol-

lowing sections.

4.1 Approach Processes

4.1.1 Risk Analysis

The qualitative risk analysis process explained in

Section 2 is executed in this approach through the

Risk Analysis illustrated in Figure 3. Let LR =

,..., r

} be the set of N risks that endanger

a project P and let CI = {c

,..., c

} be the set

of M attributes of the project affected by risks. Con-

sidering that each r

∈ LR is able to simultaneously

affect more than one attribute c

∈ CI, each risk r

therefore has probability and impact values associa-

ted with each attribute c

, respectively P

i, j

and I

i, j

Thus the estimated risk exposure RE for each risk r

is given by Equation 1:

∑

j=1

i, j

∗ I

i, j

, (1)

where RE

= total risk effect i; P

i, j

= risk probability

i in an attribute j ∈ CI and I

i, j

= risk impact i in an

attribute j ∈ CI.

The impact of each risk is measured from a scale

of 1-5, where 1 is very low and 5 is very high. The

probability is deﬁned in percentage values from 0%

to 100%, representing the occurrence chances of the

project events. An example of the application of

Equation 1 for a set of risks LR is given by Table 1.

In this example, the set CI is composed of the attri-

butes Cost, Time, and Scope. The stored values in

these columns of the table represent the risk impact

in the attributes of the project. The columns labeled

PC, PT and PE store the probability values of the risk

in the same attributes of cost, time, and scope — in

A Proactive Approach to Support Risk Management in Software Projects using Multi-agent Systems

419

other words, the probability of a risk affects the attri-

butes of the project. The row labeled TOTAL RE BY

AREA store the total value of risk exposures by area

of the project. The arrangement and analysis of the

risks in this approach uses a Risk Breakdown Struc-

ture combined with a Probability and Impact Matrix

throughout the project life cycle.

Considering the number base values in Table 1,

some of the conclusions derived are: (i) identify what

project areas/attributes are most vulnerable to risks (in

this case it is Time with 5.2 total risk exposure); (ii)

identify the most important risk, i.e. the highest RE

value (in this case it is R3); (iii) identify the most sig-

niﬁcant relationships (in the example, the relation be-

tween Cost and Incorporation of a new technology).

4.1.2 Simulation and Updating the Environment

According to PMI (2013) , a contingency reserve

should be designated for both known and unknown

risks, which can not be managed proactively. In the

RM, project contingency reserves are used to respond

to risks or to apply mitigation actions, possibly lea-

ding to changes in the project. The current appro-

ach uses the contingency reserve of time and cost

both for the treatment of risks and possible changes

in the project baseline requested by stakeholders. The

amount of contingency reserve should be deﬁned by

the manager considering the size of the project, con-

tract terms and the proﬁle of the organization of the

clients or investors. In this approach, the time and

cost reserves of a project P are determined by:

= x% ∗CP, (2a)

= y% ∗ T P, (2b)

where RC

= Reserve of the Cost Contingency; CP =

Total Cost of the Project; RC

= Reserve of the Time

Contingency; T P = Total Time of the Project; and

x/y = Percentage established for reserves.

In Figure 3, the Simulation Environment process

measures the evolution of the risks based on the usage

of the contingency reserve. Since a decrease in this

reserve implies a reduction in the resources needed

to apply changes or handle threats, the use of contin-

gency reserves for change requests has a direct im-

pact on the progress of the project’s risks. In other

words, the smaller the amount of available reserves,

the more critical the treatment of risks is. For this re-

ason, the strategy of simulating change impacts in the

project environment, before they are approved, assists

the manager in his/her decision making and provides

clear and concise visualization of risk progress; hence

saving time and money, and simplifying the project

execution of risk management processes in the orga-

nization.

The Simulation Environment process is executed

every time that a change is solicited in an activity of

the project. Let A = {a

,..., a

} be the set of

N activities of the project P, an activity a

∈ A is re-

presented by a tuple (id, title, estimatedTime, actu-

alTime, estimatedCost, actualCost, estimatedScope,

actualScope). Thus a change in any activity a

∈ A

can affect its estimatedTime, estimatedCost, estima-

tedScope. In this approach, the variation in cost (VC

)

and time (V T

) are deﬁned by Equations 3a and 3b.

Regarding variation in scope or any other attributes

of the project, they are all mapped to cost and time

variations.

= AC

− EC

, (3a)

V T

= AT

− ET

, (3b)

where VC

= Variation of cost in activity i; AC

= Ac-

tual cost of activity i; EC

= Estimated cost of activity

i; V T

= Variation of time in activity i; AT

= Actual

time of activity i; and ET

= Estimated time of activity

As stated earlier, the act of changing the project

baseline may require the use of contingency reserves

of time or cost. It is important to emphasize that the

time reserves are only used for time changes in acti-

vities of the critical path in the project, hence these

are able to impact the total duration of the project.

The calculation of the amount of contingency reser-

ves used for variations in the project P, at the same

instant t, is given by:

URC

∑

i=1

, (4a)

URC

∑

i=1

V T

, (4b)

where k = number of change requests at an instant t;

URC

= Use of cost contingency reserve; U RC

Use of time contingency reserve.

Due to the direct impact on the progress of the pro-

ject’s risks, the amount of available contingency re-

serve increases or decreases the progress of the risks

proportionally. Consequently, updating the progress

of the affected risks requires updating their probabi-

lity values. In this approach, the updating of the risk

probability, i.e. the chance of affecting the attributes

(time or cost) of the project is given by:

(

URC

∗ (1 − PC

) + PC

, if URC

> 0

URC

∗ PC

+ PC

, otherwise.

(5a)

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

420

Table 1: Risk Exposure Matrix of Equation 1.

Cost Time Scope PC PT PE RE Classiﬁcation

R1. Deﬁnition of Scope IE = 4 - - 30% 1.2 5

R2. Misunderstanding of the requisites IT = 5 - 50% - 2.5 3

R3. Incorporation of a new technology IC = 5 70% - - 3.5 1

R4. Unrealistic schedule IT = 3 IE = 1 - 90% 40% 3.1 2

R5. Unrealistic budget IC = 4 IE = 1 30% - 50% 1.7 4

TOTAL RE BY AREA 4.7 5.2 2.1

(

URC

∗ (1 − PT

) + PT

, if URC

> 0

URC

∗ PT

+ PT

, otherwise.

(5b)

and PT

are new probabilities of risk i affecting

the cost and time of the projects, respectively. PC

and

are the initial probabilities of risk i affecting the

the cost and time, respectively.

After updating the probabilities of the affected

risks in the Simulation Environment, the agent recal-

culates the RE value of the same risks to close the si-

mulation scenario and send a set of messages to the

change requestor. The requestor, in turn, can ana-

lyze the scenario information and decide whether or

not to approve the change in the project. After the

Simulation Environment, the ARis agent veriﬁes for

approved changes to initiate the Updating Environ-

ment process shown in Figure 3. The environment

update consists of changing the project environment

variables by applying what was shown in the simula-

tion scenario, as well as updating the internal state of

the ARis agent. The process of controlling risks (see

Section 2) is executed in this approach by the combi-

nation of the Simulation Environment, Updating En-

vironment and Monitoring Project Metrics processes.

4.1.3 Monitoring Project Metrics

Soon after the processes of simulation or updating

the environment, a set of deﬁned metrics using the

Goal/Question/Metric paradigm (extracted and adap-

ted from the work of (Fontoura et al., 2004)) is calcu-

lated by the ARis agent in order to identify new risks

or sources of risks. ARis’ decision-making subsystem

computes the metrics and information for its internal

state, while considering a set of condition-action rules

and metric thresholds. Such actions include alert mes-

sages to the manager, prediction of new risks, sug-

gestions or preventive/corrective actions that should

be applied to the project, etc. In this approach, me-

trics are used for both triggering condition-action ru-

les and assisting the manager to project the probabi-

lity of risks in future projects. The ﬂow is illustrated

in Figure 3 and one example of the metric used by the

ARis agent is shown in Table 2.

Table 2: GQM metric example.

Goal 1 To evaluate the ability of workers on a team based on

the perspective of the project manager

Question 1 What percentage of qualiﬁed workers perform their

role on a team?

Metric 1.1 Percentage of qualiﬁed workers PQW = (number of

qualiﬁed workers / number of workers on team) * 100

5 THE ARis AGENT AND THE

MULTI-AGENT PLATFORM

The implementation of the approach comes from the

development and integration of the ARis agent into

the MAS proposed by (Veras et al., 2015). Originally,

the platform includes three agents (AMon, ACon and

AMud) that provides the monitoring and control of

the project work and the integrated changes manage-

ment through environment simulations of the project.

Figure 4 illustrates the interactions between the agents

and the components of the platform. During the exe-

cution, ARis perceives the evolution of the project en-

vironment and exchanges messages with the AMud

agent, supervising the progress of the risks in the en-

vironment. In the referred illustration, the arrows in-

dicate what actions the agents perform and what in-

formation the components send and receive.

AMon is a model-based reﬂex agent (Russell and

Norvig, 2013) responsible for monitoring the “Project

Environment” with the goal of verifying differences

between the current and planned project performance.

This agent incorporates a set of condition-action rules

based on the theory of AAM to verify, in real time,

the progress of the project in relation to the cost and

schedule. According to the obtained indicators, this

agent is able to detect deviations and send alerts to

the manager.

ACon is a model-based reﬂex agent (Russell and

Norvig, 2013) in charge of the integrated control pro-

cess proposed by (PMI, 2013) and obtains the in-

formation from AMon. ACon consists of a set of

condition-action rules that allows it to suggest pre-

ventive/corrective actions to the manager in order to

reduce detected deviations. When the suggested acti-

A Proactive Approach to Support Risk Management in Software Projects using Multi-agent Systems

421

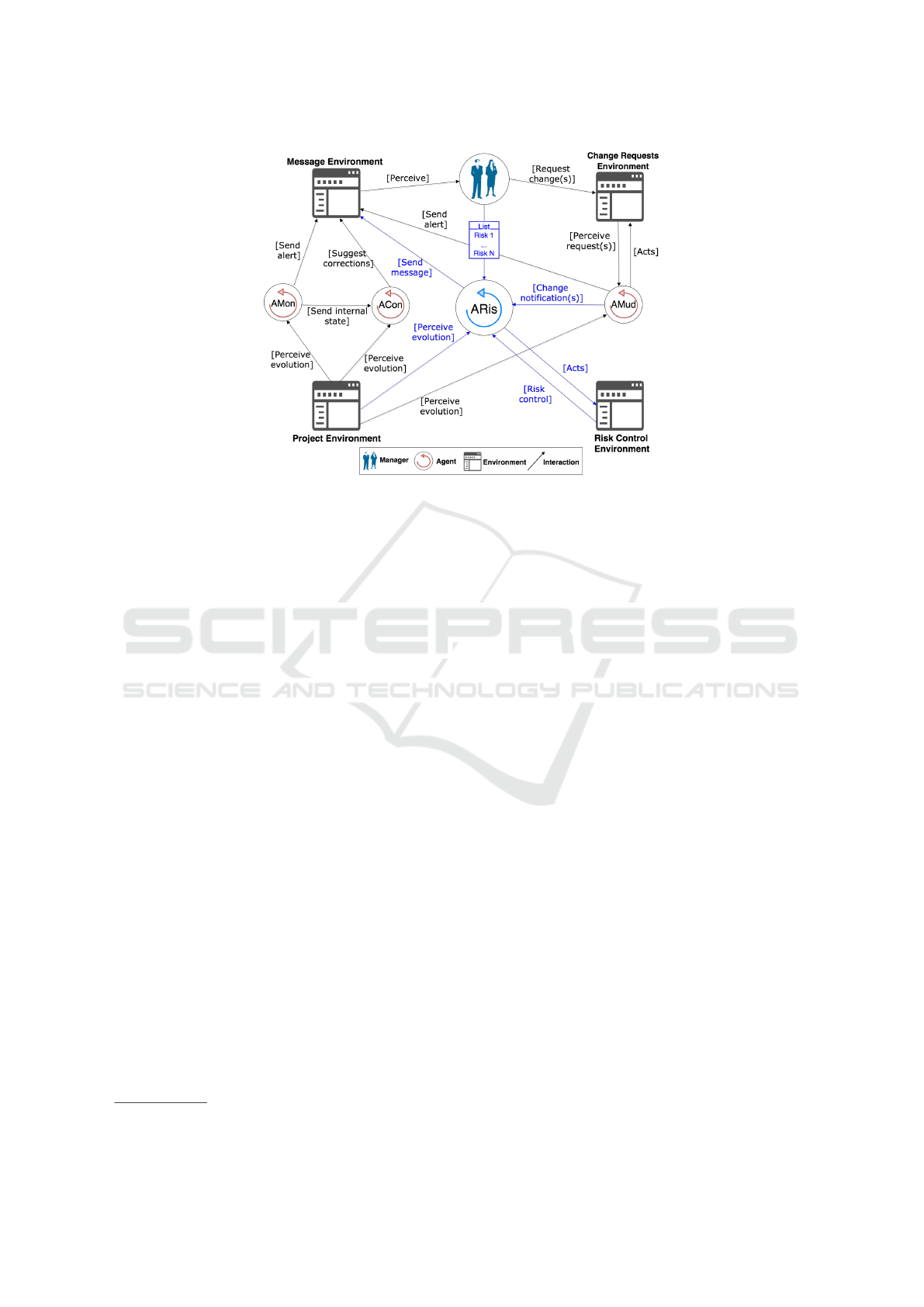

Figure 4: ARis and the multi-agent platform.

ons are taken, this agent generates new estimations

based on the compensations of cost or time, and be-

gins to monitor and control the project activities with

the new incoming information from the new consoli-

dated plan.

AMud is a simple-reﬂex agent (Russell and Nor-

vig, 2013) responsible for monitoring and controlling

change requests registered in the “Change Request

Environment”. Through the SUT (Severity, Urgency

and Trend) Matrix, AMud calculates the priority of

the change requests. The severity of a change repre-

sents the impact in cost (IC) and time (IT) of the pro-

ject. The urgency (U) represents the available time to

insert the change in the project. Thus, the priority (P)

of a change is given by the equation P = ICxITxU.

ARis, the new agent, is a model-based reﬂex

agent (Russell and Norvig, 2013) responsible for the

risk management of the project and acts based on

the information obtained by its perceptions of the

“Project Environment” and a set of condition-action

rules. Moreover, ARis exchanges messages with

AMud, calculates projects metrics, and performs the

macro-processes of the proposed approach described

in Section 4.1. This agent aims at contributing to

the comprehensiveness of the multi-agent platform,

by providing a robust analysis of the change requests

managed by AMud and assisting the project manager

in decision-making.

The multi-agent platform proposed by (Veras

et al., 2015) uses the JaCa Programming Model

where Jason is adopted as the programming language

to implement and execute agents that work and coope-

http://jacamo.sourceforge.net/?page_id=40

rate inside common environments; and CArtAgo, as

the framework to program and execute these environ-

ments. As a result, in the JaCa model, the agents

are programmed on one side, encapsulating the tasks

logic control that must be executed; and on the ot-

her side, the environment, providing a ﬁrst-class ab-

straction to the actions and functionalities exploited

by the agents. As seen in Figure 4, each agent has

access to at least one environment to use or observe

its resources.

6 FINDINGS

Aiming at performing a feasibility study of the propo-

sed approach, we developed the risk agent ARis fully

implemented with all the macro-processes except the

Updating Environment. To run the experiments, six

ﬁctitious project scenarios were created. The scena-

rio explored in this section is comprised of nine acti-

vities (A-I), totaling 160 time units until completion

and a total budget of 7000 money units. Due to space

restrictions, the details about the project’s activities

(pre-requisite, cost, duration and others) were omit-

ted. The list of risks threatening this project can be

seen in Table 1. The project manager had established

48% and 30% for cost and time contingency reserves

respectively, translating to 3360 extra cost units and

48 extra time units. The manager is represented by

another agent [manager] and through the execution

of this scenario various events happen, such as time

and cost change requests and the emergence of new

risks in the project.

Initially, when the scenario is loaded in the MAS,

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

422

all the agents observe the "Project Environment" to

obtain partial information about their world — in this

case, the running project (see Figure 5) — and af-

terwards all agents start their respective tasks at the

same time. ARis perceives the existence of ﬁve risks

(originally registered by the manager) threatening the

project, and it initiates the process Risk Analysis con-

tinuously until it receives a notiﬁcation of a change

request or observes a metric reaching a certain thres-

hold. At the instant 40, ARis receives a notiﬁcation

of a change request made by the manager for activity

I, requiring an increase of 11.9% in cost and 11.8%

in time. Upon being notiﬁed, ARis begins execu-

ting the macro-process Simulation Environment and

sends messages to the manager. The set of informa-

tion shown in Figure 6 represents the project’s future

state based on the application of the change such as:

(i) variation in the cost and/or time of activity I, (ii)

the new cost and/or new time of activity I, (iii) the

available amount of contingency reserves, and (iv) the

list of affected risks including the new probabilities

and RE values.

Figure 5: ARis executes the macro-process Risk Analysis.

Following the execution of the macro-process Si-

mulation Environment before the completion of the

project, ARis initiates the macro-process Monitoring

Project Metrics as shown in Figure 7. The metrics

calculated by ARis in the current version of the MAS

are show in Table 3. Each one of these metrics has

its acceptance interval. Let B = {m

,..., m

}

be the set of N metrics of the project P. The accep-

tance interval of each metric is given by [a,b] = {m

∈

R | a ≤ m

≤ b}, in which a and b are values between

0 and 1, previously deﬁned by the project manager.

The relation between metrics and risks is given by 6a:











no risk detected, if m

> b

a new risk detected, if a ≤ m

≤ b

risk occurred, if m

< a

(6a)

Our ﬁctitious scenario simulates a lack of qua-

liﬁed workers, representing a new risk in the pro-

Table 3: Metrics for the approach.

Percentage of Cost Changes:

m1 = 1 - (NumberOfCostChanges / TotalNumberOfChanges)

Percentage of Available Cost Reserve:

m2 = CurrentCostReserve / TotalCostReserve

Percentage of Time Changes:

m3 = 1 - (NumberOfTimeChanges / TotalNumberOfChanges)

Percentage of Available Time Reserve:

m4 = CurrentTimeReserve / TotalTimeReserve

Percentage of Scope Changes:

m5 = 1 - (NumberOfScopeChanges / TotalNumberOfChanges)

Percentage of Qualiﬁed Workers:

m6 = NumberOfQualiﬁedWorkers / TotalNumberOfWorkers

ject. By qualiﬁed workers we refer to team members

who have the required skills for the project. Mean-

while at instant 40, ARis detects a ≤ m6 ≤ b lea-

ding to the identiﬁcation of this risk shown in Figure

7. ARis sends warnings to the manager and sugge-

sts corrective actions to reduce the probability of the

negative event. Afterwards at instant 41, the routine

Risk Analysis is re-executed and the new risk is inclu-

ded in the process; now the project’s risk list contains

6 instead of 5 elements. During the remainder of the

scenario execution, more changes will be requested,

the agents will continue to trade information and exe-

cute their roles, as well as the macro-processes of this

approach.

Based on our ﬁndings by executing ﬁctitious sce-

narios, we conclude that ARis provides an anticipated

and efﬁcient view of the project’s future state that aids

the project manager into his/her decision making pro-

cess; moreover, the metrics are effective support for

predicting new risks at no extra cost. Based on these

results, we have conﬁrmed our hypothesis that agent

technology contributes to automated project manage-

ment, mainly in proactive risk and change manage-

ment. In conclusion, we claim that agent-oriented ap-

proaches are promising solutions that support the risk

management processes regardless of the application

context. To improve our ﬁndings, the macro-process

Updating Environment will be included in the release

of the next version of this tool, which will be accessi-

ble online for the scientiﬁc community.

7 CONCLUSIONS AND FUTURE

WORK

In this paper, we present a proactive and automated

approach based on agent technology to assist the soft-

ware project manager in the execution of the Risk Ma-

nagement processes, as well as the decision-making

throughout the project life cycle (SEI, 2010) (PMI,

A Proactive Approach to Support Risk Management in Software Projects using Multi-agent Systems

423

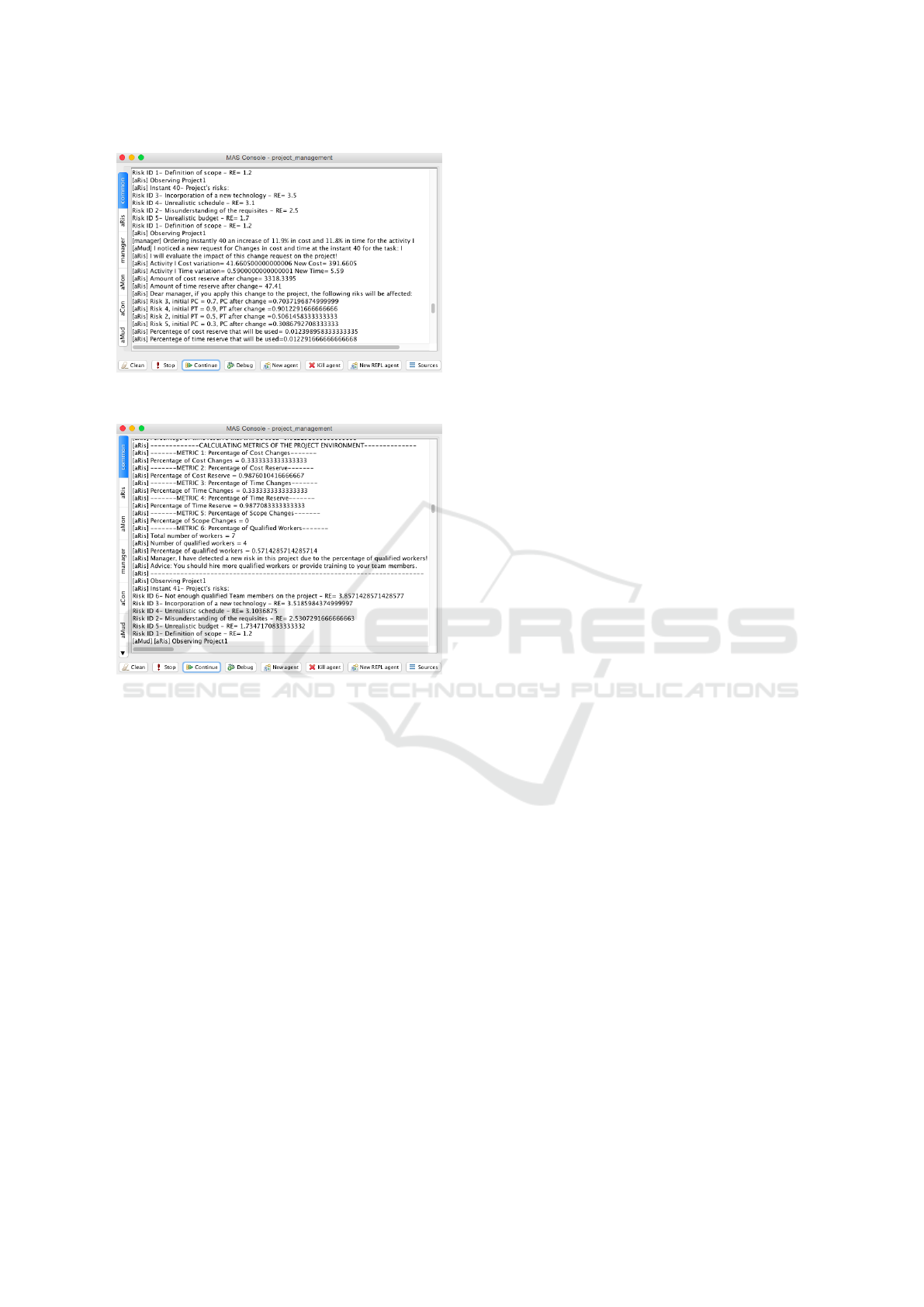

Figure 6: ARis executes the macro-process Simulation En-

vironment.

Figure 7: ARis executes the macro-process Monitoring Pro-

ject Metrics.

2013). The approach provides support in identiﬁca-

tion, analysis, planning of responses and controlling

of risks in an integrated and sensitive manner that re-

sponds to changes in the project environment. The

proposed approach is based on simulations of the pro-

ject environment, and its processes are triggered by

change requests and metrics, revealing the progress of

the project’s risks. The approach incorporates a rich

mathematical formulation that considers the usage of

contingency reserve of the project to calculate proba-

bility and risk exposure.

As a result, the agent-oriented approach has pro-

ven to be a promising solution for supporting risk ma-

nagement regardless of the application context. Mo-

reover, the approach provides evidence to monitor the

risks throughout the project life cycle at no cost for

the organization, and intends to improve and control

the project risk indices. The MAS proposed by Veras

et al. (2015) has been extended with the integration of

the ARis agent, but it is currently still being develo-

ped for the completeness of the macro-process Upda-

ting Environment. Aiming at predicting a wider risk

spectrum, a more in-depth group of metrics will be

included in the release of the next version.

REFERENCES

Coppin, B. (2004). Artiﬁcial intelligence illuminated. Jones

& Bartlett Learning.

Fontoura, L. and Price, R. (2008). Systematic approach to

risk management in software projects through process

tailoring. In SEKE, pages 179–184.

Fontoura, L., Price, R., and Phil, D. (2004). Usando

gqm para gerenciar riscos em projetos de software.

In Anais do XVIII Brazilian Symposium on Software

Engineering, pages 39–54. Brazilian Symposium on

Software Engineering (SBES).

Hastie, S. and Wojewoda, S. (2015). The 2015 chaos report.

Technical report.

Jennings, N. (2001). An agent-based approach for building

complex software systems. Communications of the

ACM, 44(4):35–41.

Knob, F., Silveira, F., Orth, A., and Prikladnicki, R. (2006).

Riskfree: Uma ferramenta de gerenciamento de riscos

baseada no pmbok e aderente ao cmmi. V Brazilian

Symposium on Software Quality (SBQS), pages 203–

217.

Nienaber, R. (2008). A Model for Enhancing Software Pro-

ject Management Using Software Agent Technology.

PhD thesis, University of South Africa (South Africa).

AAI0821180.

PMI (2013). A Guide to the Project Management Body of

Knowledge: PMBOK Guide. Project Management In-

stitute, Inc., 14 Campus Boulevard Newtown Square,

Pennsylvania 19073-3299, Estados Unidos.

PMI (2014). Pmsurvey.org 2014 edition. Technical report,

Project Management Institute.

Pressman, R. (2011). Software Engineering: A Practitio-

ner’s Approach, 7th Edition. The McGraw Hill.

Rad, A. (2013). Goes-r series risk management plan.

Technical report, DOC, NOAA, NESDIS, NASA.

Rafele, C., Hillson, D., and Grimaldi, S. (2005). Understan-

ding project risk exposure using the two-dimensional

risk breakdown matrix. Technical report, Project Ma-

nagement Institute.

Russell, S. and Norvig, P. (2013). Artiﬁcial Intelligence: A

Modern Approach, 3rd Edition. Pearson.

SEI (2010). CMMI for Development, Version 1.3. Soft-

ware Engineering Institute, Carnegie Mellon Univer-

sity, Pittsburgh, PA.

Shah, J. (2004). Probabilistic risk assessment method for

prioritization of risk factors. Master’s thesis, Master

of Science in Industrial Engineering. Louisiana State

University and Agricultural and Mechanical College.

Sommerville, I. (2011). Software Engineering, 9th Edition.

Pearson.

Veras, N., Cortés, M., Queiroz, A., and Souza, L. (2015).

Abordagem proativa para a gestão integrada dos tra-

balhos de projeto. Theoretical and Applied Computing

Journal (RITA), 22(2):166–180.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

424
