Using COSMIC FSM Method to Analyze the Impact of Functional

Changes in Business Process Models

Wiem Khlif

, Asma Sellami

, Mariem Haoues

and Hanêne Ben-Abdallah

2,1

Mir@cl Laboratory, University of Sfax, Sfax, Tunisia

King Abdulaziz University, Jeddah, K.S.A.

Keywords: COSMIC Functional Size Measurement, Business Process, Functional Change, Impact Analysis,

Requirement Change.

Abstract: Today's dynamic, socioeconomic constraints often force enterprises to change their Business Processes (BP),

for instance, by deleting some activities or merging certain work units. These changes induce functional

changes on the business process whose performance might be affected. Consequently, there is need for a well-

defined change measure and a control process to ensure the success of the BP management projects. This

paper proposes to apply COSMIC Functional Size Measurement method to evaluate the BP functional

changes to help both business process developers and decision makers to accept/defer or deny a functional

change. The proposed evaluation identifies the real impact of a functional change on the project and provides

indicators for analyzing the functional change status. In addition, when there are multiple change requests, it

uses a heuristic algorithm to prioritize the changes while minimizing the required effort to answer them.

1 INTRODUCTION

Today's dynamic, socioeconomic constraints often

force enterprises to change their Business Processes

(BP), by replacing some of their activities,

restructuring their business units (Khlif et al., 2017)

merging with partners (La Rosa et al., 2013), moving

to new IT platforms like the cloud (Ferme et al.,

2016), and so on. These changes induce functional

changes on the business process, whose impact on the

BP management must be carefully analyzed. Indeed,

a functional change may incur additional cost to be

implemented, and degrade the BP performance.

Several researchers addressed change impact

analysis in different phases of the BP lifecycle:

 in the requirement phase to identify the

elements impacted by a change (e.g., (Khlif et

al., 2017));

 in the design phase to analyze the effects of a

change (e.g., (Uronkarn and Senivongse,

2014)); or

 in the implementation phase by mining BP

event logs to overview changes that have

happened (e.g., (Nezhad et al., 2011) and (Van

der Aalst, 2011)).

Independently of their application phase, the

proposed functional change analysis solutions are

designed to identify an adopted change. In other

words, they do not provide for a means to measure the

impact of a change request in order to assist in

deciding on its adoption or rejection. This is the main

contribution of the herein proposed method.

More specifically, in this paper, we propose to

build on our preliminary work (Khlif et al., 2017) on

Functional Change (FC) impact analysis in the early

requirement phase of a BP project. We reuse the top-

down approach to decompose BP modelled in the

standard BPMN notation (ISO/IEC 19510, 2013) into

fragments that specify requirements at different levels

of abstraction. This decomposition helps in assessing

the impact of a FC, and henceforth deciding whether

to adopt it or refuse it. In addition, we propose here to

measure the impact of a FC by applying the COSMIC

method (COSMIC, 2017) which can be used for

sizing functional changes. Compared to other FSM

methods, COSMIC can be used for sizing FC and it

can be applied to various functional domains

(business application, real time, infrastructure

software, etc.) at any phase of the software life-cycle.

Toward this end, we first propose to expand the

Task Descriptions (TD) (Lauesen, 2002) proposed to

textually document the Functional User

124

Khlif, W., Sellami, A., Haoues, M. and Ben-Abdallah, H.

Using COSMIC FSM Method to Analyze the Impact of Functional Changes in Business Process Models.

DOI: 10.5220/0006707301240136

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineer ing (ENASE 2018), pages 124-136

ISBN: 978-989-758-300-1

Requirements (FUR) (COSMIC, 2017). The

expanded TD template describes behavioural

elements of the BP, including the relationships among

tasks and their types. It helps BP developers to

establish a concrete way of quantifying a FC in terms

of COSMIC Function Point (CFP) units. It also helps

decision makers in accepting or refusing a FC based

on their analysis of its impact on the BP project.

Furthermore, to provide for this decision-making,

we present two contributions: First, we propose a

method for the assessment of the FC status. This later

can be used as indicator to monitor FC requests, and

it can also be used to identify the FC risks on the

project scope. Second, we propose an algorithm for

assigning priorities for multiple change requests

based on two factors: the preference of the change

requester and the FC status.

The remainder of this paper is organized as

follows: Section 2 overviews the COSMIC

Functional Size Measurement (FSM) method,

discusses related work and presents an expanded

textual description of a business concept for

measurement purposes. In section 3, we measure the

Functional Size of a FC and identify its impact on the

functional size of the affected business concept and

its impact on the related business concepts. Then, we

proposes an algorithm for prioritizing functional

changes. Section 4 first illustrates our change impact

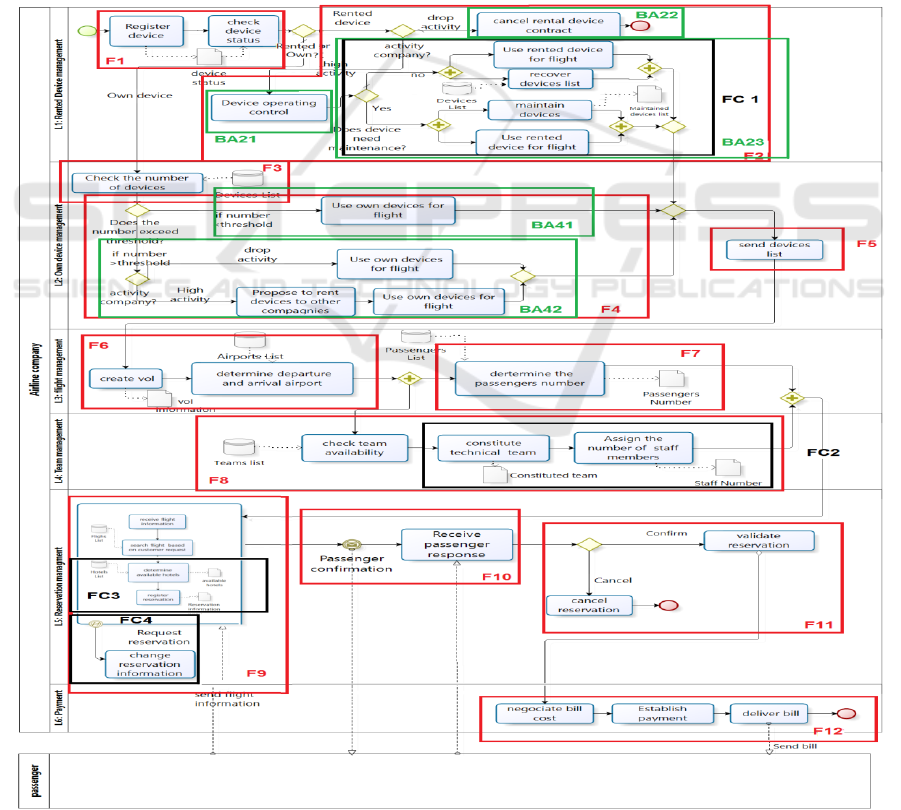

analysis approach through the business application

"Airline Company"; secondly, it identifies threats to

the validity of our study. Section 5 summarizes the

presented work and outlines some of its extensions.

2 BACKGROUND

2.1 COSMIC FSM Method

COSMIC FSM method proposes a standardized

measurement process to measure the functional size

of any software. The software functional size is

derived by quantifying the FURs (COSMIC, 2017).

FURs represent the “user practices and procedures

that the software must perform” (ISO 14143, 2012).

A FUR involves a number of functional processes.

Each Functional Process (FP) consists of a set of

functional sub-processes that move data or

manipulate data. A data movement moves a single

data group from/to a user (respectively Entry and eXit

data movement) or from/to a persistent storage

(respectively Read and Write data movement). The

unit of measurement is one data movement for one

data group, referred to as one CFP. The size of a FP

is equal to the number of its data movements.

Consequently, the software size is equal to the sum of

the sizes of all its functional processes.

Furthermore, COSMIC defines a FC as "any

combination of additions of data movements or of

modifications or deletions of existing data

movements" (COSMIC, 2017). To measure the

Functional Size of a FC, referred to as FS(FC),

COSMIC recommends to attribute one CFP for each

changed data movement regardless of the change type

(addition, deletion, or modification). Thus, the

functional size of the software after a FC is given as

the sum of all added data movements minus the

functional size of all removed data movements

(COSMIC, 2017).

2.2 Related Work on FC Analysis in

BP Models

This section overviews studies focusing on change

impact analysis in different phases of the BP

lifecycle:

In the requirement specification phase, (khlif et

al., 2017), presented a top-down decomposition

method of BPM into fragments. It used a Lauesen’s

Task & Support Descriptions template (Lauesen,

2002) to derive from the fragment descriptions, the

scenarios' descriptions of the functional requirements

associated with the whole BPMN model. Besides, the

presented method provides for measuring and

analysing change impact of BP models at different

levels of abstraction.

In the design phase, (Uronkarn and Senivongse,

2014) proposed a structural change pattern-driven

traceability in BP. Given an initial BP model and its

modified version, they compared both models to

instantiate the change patterns, and, therefore

determine the affected BP model elements. This

approach can be used when the change has already

been adopted and the aim is to go-back and analyzed

its effects.

In addition, (Wang et al., 2012) proposed a

pattern-based approach to facilitate the change impact

analysis for service-oriented BP models. They

focused on a typical scenario where multiple services

are supported by a single BP. Their change impact

analysis approach can be used to enable the analysis

of the BP change propagation and associated services.

They proposed algorithms for analyzing change

impact and scopes.

In the implementation phase, (Nezhad et al., 2011)

(Van der Aalst, 2011) proposed an analysis of “Event

logs” through process mining approaches to provide

support for changing processes. The proposed change

Using COSMIC FSM Method to Analyze the Impact of Functional Changes in Business Process Models

125

processes provide an aggregated overview of all

changes that happened so far.

In summary, many researchers studied change

impact analysis in BP models either at the design or

implementation phases. However, it is not reflected in

the requirement phase since it lacks a detailed textual

description. In addition, change impact analysis

(CIA) before starting the changes is important to

decide on the change acceptance. The CIA provides a

useful information that lead to better solution for

continuous improvement, for predictions in

subsequent execution phases, and the avoidance of

project failure.

2.3 Business Concept Description

In our previous work (Khlif et al., 2017), we

presented a hierarchical approach to describe a

business process by dividing a BPMN model into

fragments. Each one depicts how the organizational

process fits into the business concept. It can serve

both as a check on sequential tasks in each lane, and

as a description of the whole business process.

The fragment-based decomposition provides the

information needed to apply COSMIC FSM method

at both the functional level (fragments) and the

dynamic level (business activities). The dynamic

level of a fragment is modelled through the textual

description of its business activities (BA). Because

there is no standard for BA documentation, we use the

Task and Task & Support Descriptions (Lauesen,

2002) for the requirements specification as a means

to document the BA concept.

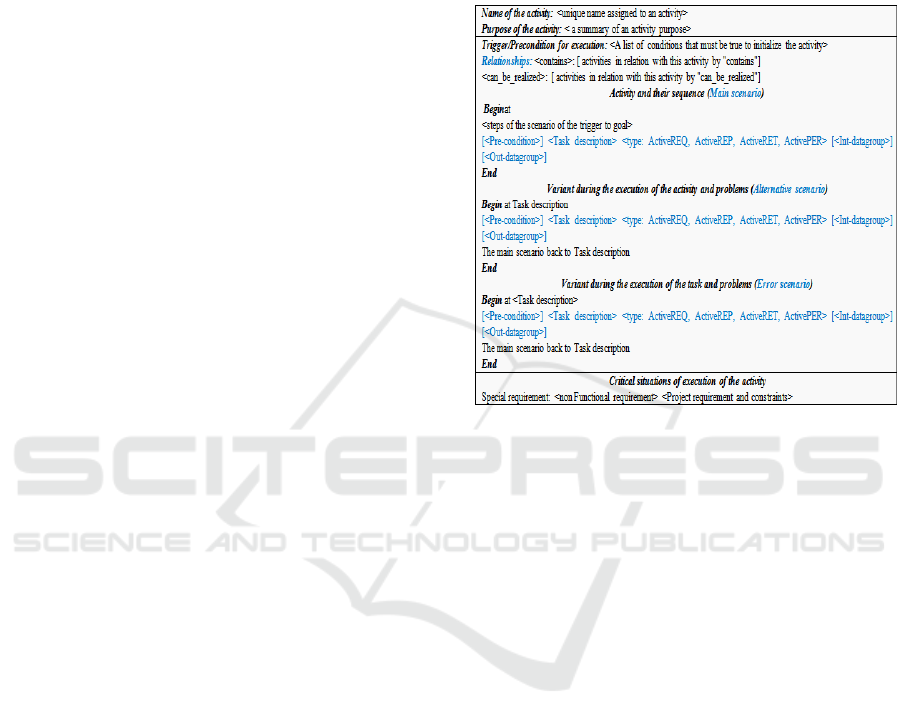

That is, as illustrated in Figure 1, we propose to

document each business activity with: the

Trigger/precondition for execution, the detailed tasks

of the Main scenario, the detailed tasks of the

Alternative scenario and Error scenario. This business

concept description contains three blocks. The first

block is used to identify the activity, it includes

information such as name, purpose of the activity.

The second block describes the activity, and it

provides information such as Trigger/precondition

for execution, main scenario expressed by sub tasks

and their sequence, alternative and error scenarios are

indicated by the variant during the execution of the

tasks and problems, etc. Finally, the third block

includes special requirements (such as non-functional

requirement & project requirements and constraint).

The Main Scenario (MS) expresses an unconditional

set of steps that describe how the fragment can be

achieved and all related actors’ interests can be

satisfied. Each step is essential to achieve the

fragment and each step must succeed. Variations of

the Main Scenario (VMS) meets the post conditions

of a business fragment. The conditions are expressed,

after a split gateway (exclusive, inclusive complex),

by the conditional sequence flow. Exception Scenario

(EMS) indicates the exception scenario does not

realize the post conditions of an activity. It can be

generated by different types of intermediate events.

Figure 1: Detailed description of a business concept.

In a business activity, a task is typically detailed

by the <Task description>, <Task Type><Int-data

group><out-datagroup>. The task type can be

"ActiveREQ", "ActiveREP", "ActiveRET",

"ActivePER" or "Passive" representing respectively

"Entry", "eXit", "Read", "Write" or "data

manipulation" in COSMIC concepts. "ActiveREQ"

corresponds to a task representing the act of asking

for something. "ActiveREP" corresponds to a reply

sent after asking for something. "ActiveRET"

corresponds to a task allowing data retrieval.

"ActivePER" corresponds to a task allowing the data

record. "Passive" task does not lead to an exchange of

data.

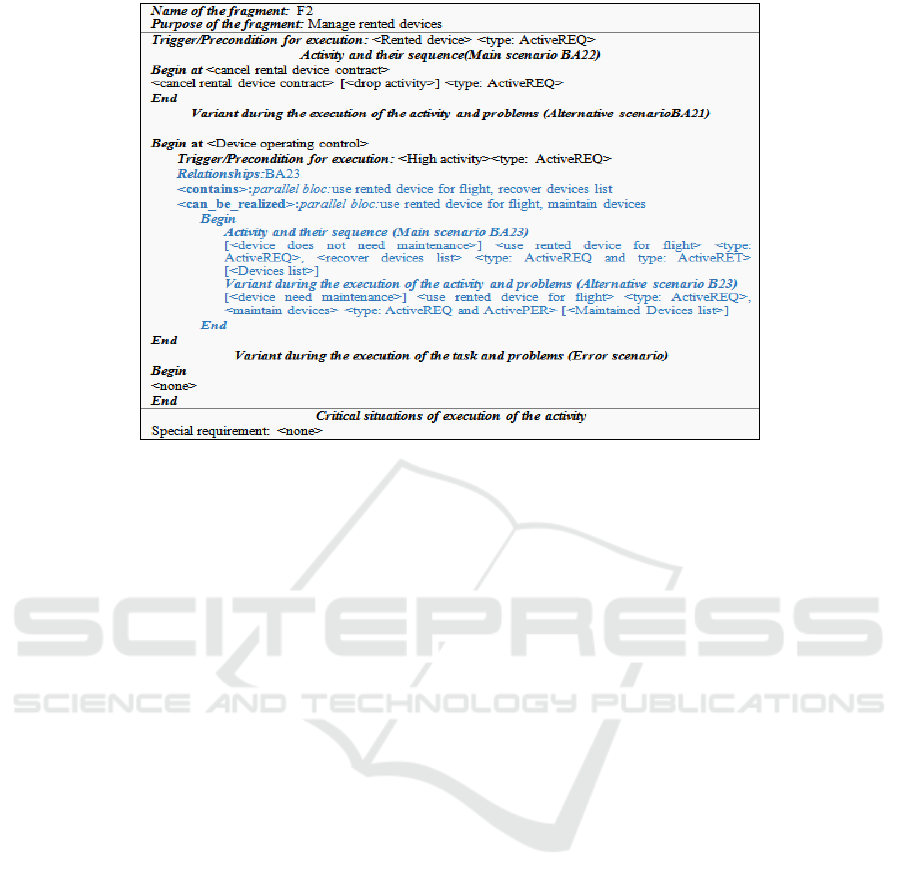

For example, in the Figure 6, we present the

detailed description of the fragment F2 of the "Airline

company" model (See Figure 7). The "recover

devices list" type in BA23 represents "ActiveREQ"

and "ActiveRET". The "maintain devices" expresses

an "ActiveREQ" and "ActivePER".

Note that the business concept description of

Figure 1 can be used at different levels of

abstractions: in the high level, the business concept

represents a fragment or a business activity, whereas

in the low level, it represents an atomic task.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

126

3 FUNCTIONAL SIZE OF FC

AND ITS IMPACT ANALYSIS

The FUR affected by a change expresses a FC, such

as adding a task, modifying a data object, deleting a

relation between tasks, etc. Aligning the FUR with

COSMIC is crucial for the traceability of a FC and

eventually the BP project success. In this section, we

use this alignment to assess the Functional Size of a

FC (noted by FS(FC)) in terms of CFP units, and to

determine its impact on the size of the changed

business concept and the whole BPMN model.

Our change impact analysis operates in the four

steps illustrated in Figure 2: A FC can be submitted

by a requester (Step 1). Each FC is translated into a

description that annotates the BPMN model (Step 2)

before proceeding with its impact analysis (Step 3).

The functional change impact analysis generates the

FC status report that will be used to evaluate the risk

on the project scope (Step 4). The provided

measurement results can be used as an indicator to

make the appropriate decision regarding the change

purpose. Responses to risk can be classified as

accepting, deferring or denying (Fairley, 2009).

In this Change Impact Analysis (CIA), we

distinguish between inter FC and intra FC. An inter

FC affects a business activity (BAa) in relation with

other BAs or a fragment F or the related fragments in

the BPMN model. An intra FC affects only the BA

(or the fragment) that does not have any impact on

other BAs (or other fragments) in the BPMN model.

Thus, an intra FC may affect directly the size of the

BPMN and that of the BAa (or the fragment) without

changing any of its other BAs (or fragments). In

contrast, an inter FC may impact the size of the

affected BA (BAa), its fragment (BAa in Fa: Figure

2), the sizes of the related fragments (F1,..., Fn), and

consequently the size of the whole BPMN model. An

inter FC will incur a substantial impact if it affects

information such as trigger/precondition for

execution, variants during execution of the task and

problems, and sub-tasks and their sequence.

In the case of an inter FC, we identify:

 the affected BA (BAa in Fa),

 the various business activities (BA1, ..., BAn)

in relation with BAa. According to the type of

the relationships and also its direction (see

section 3.1), we identify whether these business

activities are affected by the FC or not. Once

we determine all the BAa and the Number of

their Relationships (NRBA) with BAa, we

identify the sensitivity of BAa, ("High",

"Medium", or "Small"). This latter depends on

the FS(BAa) and NRBA.

 the FC Status. The status of an inter FC

depends on the FS(FC), and the BAa

sensitivity;

On the other hand, we identify all changed

fragments related to the affected one (Fa). The same

interpretation given to the affected BA (BAa in Fa) is

applied to Fa. Once we determine all the affected

fragments and the Number of their Relationships

(NRF) with Fa, we identify the sensitivity of Fa. This

latter depends on the FS(Fa) and the NRF. Then, the

FC status is identified in the same manner as BA. In

both cases, the status of an intra FC depends only on

the FS(FC) itself.

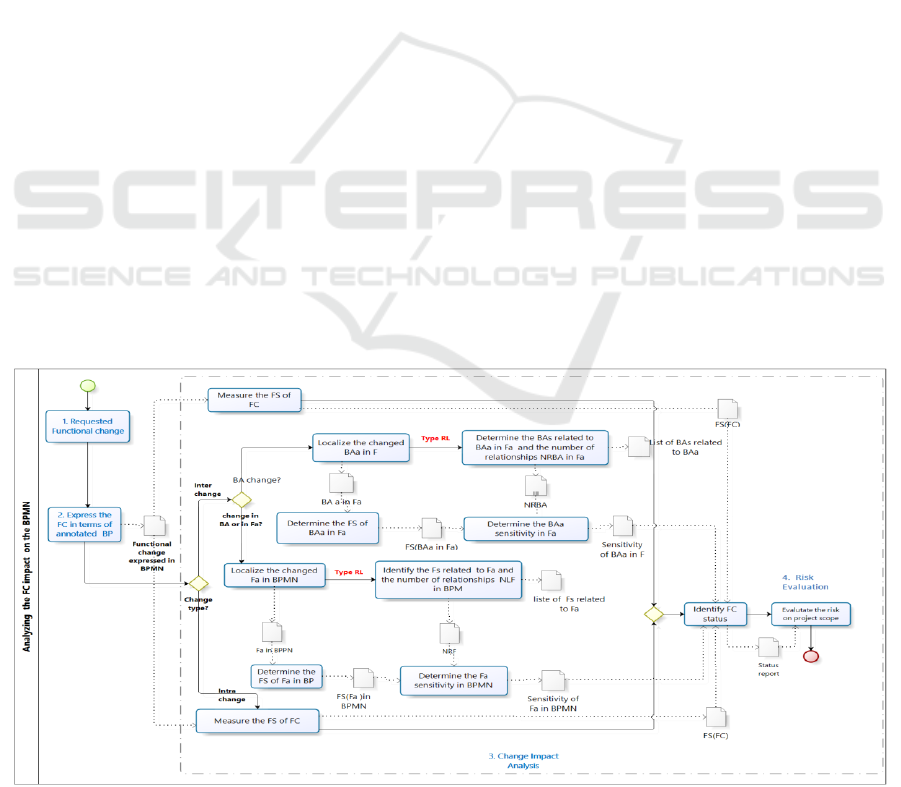

Figure 2: Phases for the FC impact analysis in BPMN models.

Using COSMIC FSM Method to Analyze the Impact of Functional Changes in Business Process Models

127

3.1 Sensitivity of the Changed Business

Activities in a Fragment

3.1.1 Identification of the Affected BA

The identification of the BAa with its relations (BAa,

BA1a,..., BAna) affected by an inter FC depends on

the relationships types between BAa and (BA1, ...,

BAn). In fact, we propose two types of dependency

relationship: "contains" and "can_be_realized". The

"contains" relationship is expressed by the default

branch after a decision gateway. The

"can_be_realized" relationship is considered as an

alternative or exception flow (See Table 1). If two

BAs (i.e. BAi and BAa) are related by a relationship

(contains or can-be-realized), this does not mean that

the FC will certainly lead to a change in BAi. In the

example shown in Figure 3, if A3 is affected by a

change, then this does not lead to a change in A1

despite of the relationship can-be-realized between

A1 and A3. On the other hand, a BA can be affected

by a FC even if it is indirectly in relation with BAa.

For instance, as illustrated in Figure 3, if

A1_contains_A0, and A0 is affected by the FC, then

A1 is affected by this change. In addition, A2 will be

affected by this change despite the absence of a direct

relation between A0 and A2. This is explained by the

fact that A1_contains_A0 which is connected to A2

by the "contains" relationship across A1. To handle

these indirect relationships, we determine the

changed business activities using Algorithm 1.

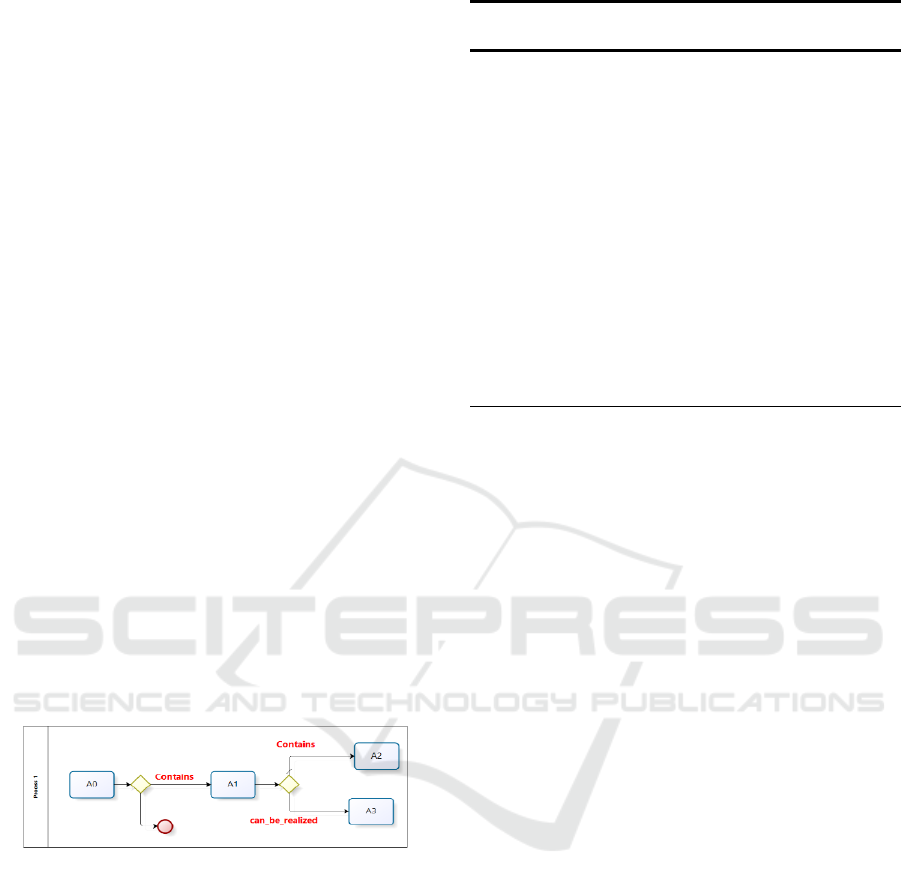

Figure 3: Identification of the affected business activities.

In Algorithm 1, the list of the BAs in the BPM are

grouped in listeBA. For each BA in listeBA (BAi),

we verify if it has a relationship (contains or

can_be_realized) with the BAa. The

listaffectedChBA includes all the BAs directly

affected by the change. Then, for each BAi in

listaffectedChBA, we determine the BAs in listeBA

that have a relationship with BAi. Hence, the list of

the indirectly affected BAs is identified.

Algorithm 1: Affected business activities identification,

BAa in Fa, BPMN.

listAffectedChBA [], I :=0

listeBA := getBA list

for BAi in listeBA do

if BAi_contains_BAa then

Set listAffectedChBA [I++] := BAi

Else if BAi_can_be_realized_BAa then

Set listAffectedChBA [I++] := BAi

end if; end for

for BAi in listAffectedChBA do

listeBA := getBA list

for BA in listeBA do

if BA_contains_BAi then

Set listAffectedChBA [I++] := BA

Else if BA_can_be_realized_BAi then

Set listAffectedChBA [I++] := BA

end if; end for; end for

Let BAi ∈ (BA1, ...,BAn), according to the

following measurement formulas:

 

()

can be realized

FS condition FS BA if BA BA

cond i i a

contains

FS BA f FS BA FS BAi if BA BA

i a i a

otherwise



 



  







(1)

where:

 FS(BAi)i: the initial functional size of BAi;

 FS(BAi)f: the final functional size of BA;

 FS(BAa): the FS of the affected BAa;

 FScond (condition): the FS of the condition. It

is equal to 1 CFP if it exists and if it has

variables, otherwise it is equal to 0 CFP.

Equation (1) measure the FS(BAi) after a FC that

affects BAa. For instance, if there is a

"can_be_realized" relationship between BAi and

BAa, then the FS(BAi)f is equal to the FS(BAi)i plus

the FS(BAa) and the FScond(condition).

To derive the relationships "contains" and

"can_be_realized" between business activities, we

propose the patterns listed in Table 1.

3.1.2 Identifying the Sensitivity of BAa in Fa

Business designers/developers assess the sensitivity

of a BA to help managers in determining how much

attention they should devote to assess the FC request.

Informally, the sensitivity of a BA expresses the

degree of risk encountered on a project. In our

context, we determine the sensitivity of the changed

BA based on the FS(BAa) and the number of its

relationships (NRBA) with other business activities.

The identification of BAa sensitivity is required in

the case of inter FC that affect a BA. For this purpose,

we need to determine the mean value of data

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

128

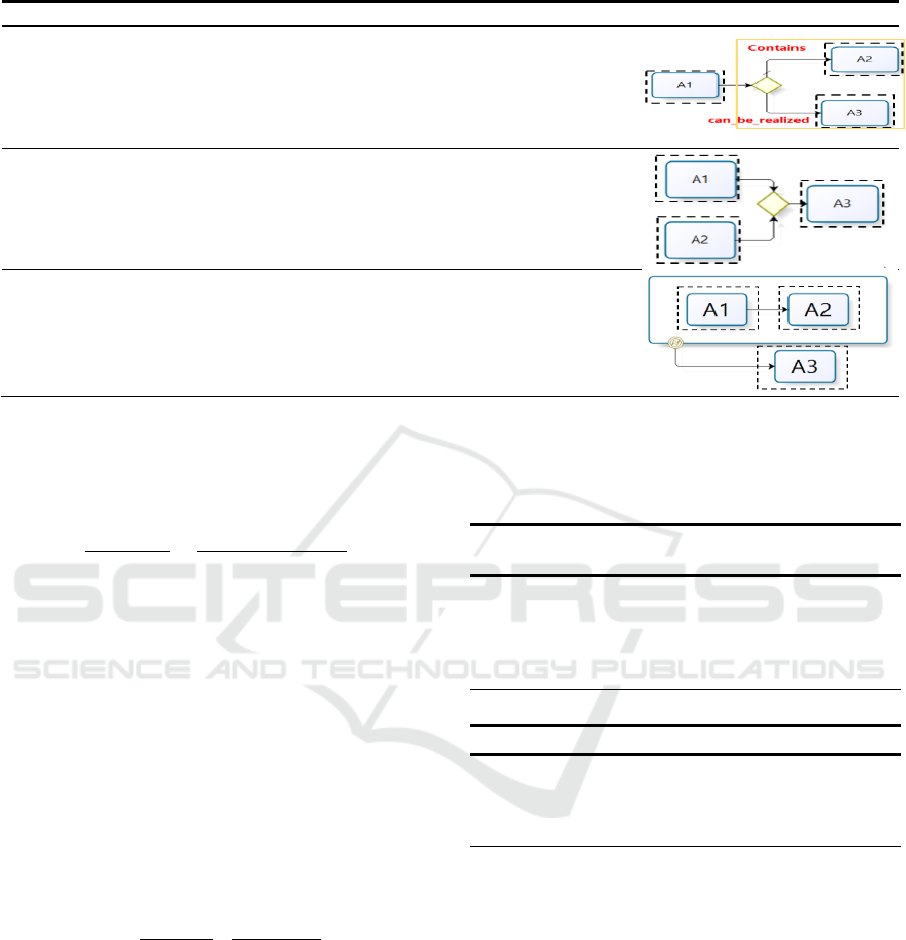

Table 1: Patterns for deriving relations between BAs.

movements in Fa (noted by AV

). NRBA and the

comparison of AV

with FS(BAa) will be used as

indicators of the BAa sensitivity.

 

()

FS BAi

FS Fa







(2)

where:

 FS(Fa): the functional size of the affected

fragment Fa;

 n: the total number of BAs in Fa (n > = 1, since

there is at least one BA in F).

 FS (BAi): the functional size of the BAi

Similarly, the sensitivity of Fa in a BPMN is

determined in the case of an inter FC that affect a F.

It depends on the FS(Fa) and the number of relations

with other fragments (NRF) in BPM. In fact, we

determine the average value of data movements in

BPM (AV

BPM

) as follows:

()

BPM

FS F

FS BPM







(3)

where:

 FS(BPM): functional size of the BPM;

 m: the total number of fragments in the BPM.

 FS(Fi): functional size of the Fi

On the other hand, to facilitate the interpretation

of BA or Fa sensitivity, we propose the following

classification: "High", "Medium", and "Small" (see

Algorithm 2 and Algorithm 3). In this classification,

we assume that if FS(BAa) is relatively greater than

and NRBA is relatively important, then the

change impact is risky, i.e., it represents a "High"

sensitivity in comparison to a BA with "Medium" or

"Small" sensitivity.

Algorithm 2: BAa sensitivity identification, FS(BAa),

NRBA.

: = FS(Fa) / n

If FS(BAa) = 1 and NRBA = 0 then Set sensitivity := Small

else if FS(BAa) > AV

and NRBA > 1 then

Set sensitivity : = High

Else Set sensitivity := Medium; Endif

Algorithm 3: Fa sensitivity identification, FS(Fa), NRF.

BPM

:= FS(BPM) / m

If FS(Fa) = 1 and NRF= 0 then Set sensitivity := Small

else if FS(Fa) > AV

BPM

and NRF > 1 then Set sensitivity := High

Else Set sensitivity := Medium; endif

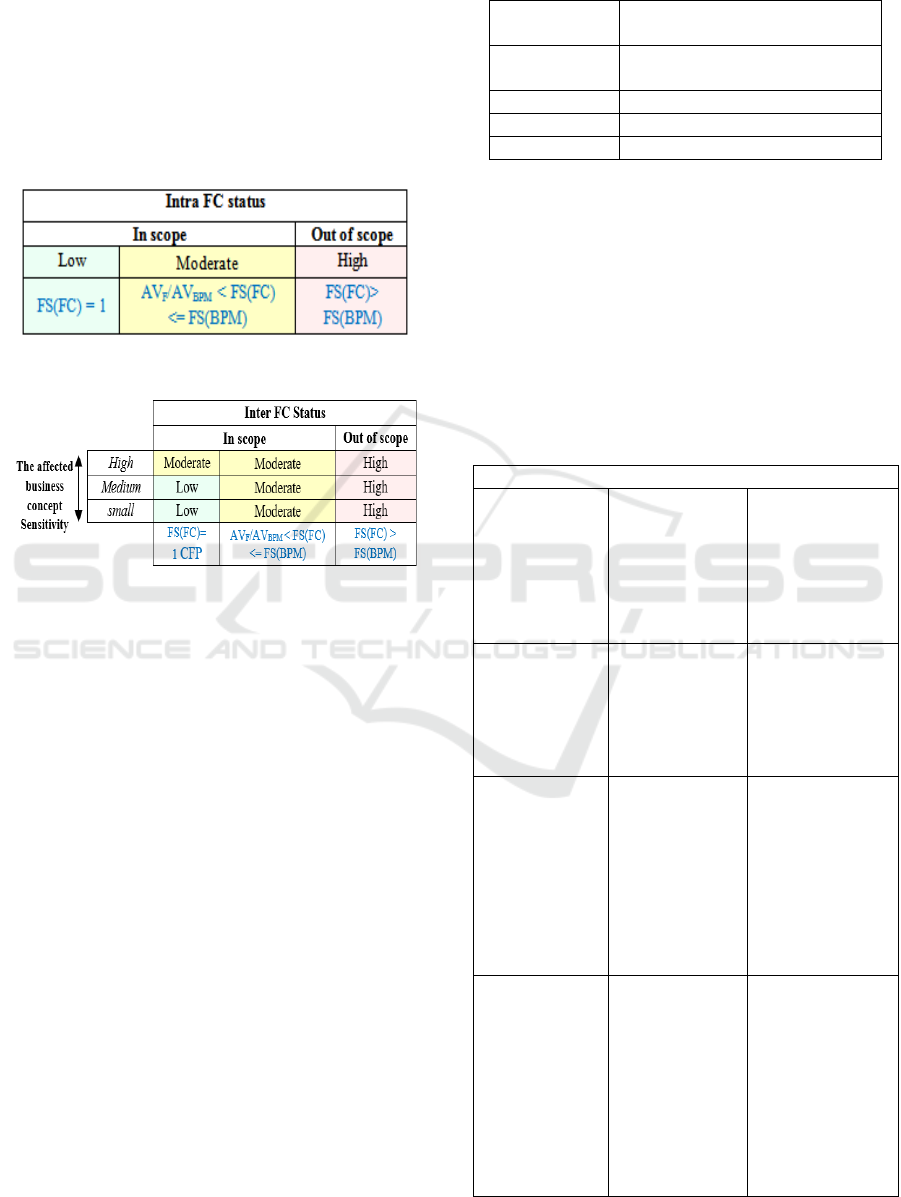

3.2 Classification of FC Status

The FC status is classified into an ordinal scale

including "in scope" FC and "out of scope" FC

(Fairley, 2009). If the FS(FC) = 1 CFP then the FC is

classified as an "in scope" change. An "in scope" FC

can be accomplished with few or no changes in the

BPM life cycle progress. It indicates that the FC

status is classified as "Moderate" or "Low". A FC that

can be handled without any impact on the BP project

is considered as "Low". The "Moderate" status

indicating a few changes of the affected scope can be

manifested when the FS(FC) > AV

/AV

BPM

and

FS(FC) < = FS(BPM). It expresses minor changes in

the project scope.

Pattern

Description

(a) If there are several activities connected by an exclusive or inclusive gateway, the

task/sub process preceding the gateway A1 is related to a task/sub process A2

covering the default branch by a "contains" relationship. Also, the task/sub

process preceding the gateway is related to the task/sub process A3 in the

alternative flow by a "can_be_realized".

(b) When two or more control flows are merged into one by an exclusive gateway,

the activity A3 identified after the merge has to be related to the activities of each

branch by means of a contain relationship. Thus, it reflects that whenever an

activity A of a branch is completed the activity A following the merge has to be

executed.

flows are covered by several activities A1 and A2, then a new Activity A3 must

be created to control the exception flow. This has to be related by can be realized

relationships to the activities covering sub process's flows. The exception is thus

encapsulated in an activity A that extends to the others.

Using COSMIC FSM Method to Analyze the Impact of Functional Changes in Business Process Models

129

The "out of scope" shows that the proposed FC

affects a big number of data movements. It indicates

that the FC status is "High". It expresses a potential

change, such as the development of a new business

project. It can be manifested when the FS(FC) >

FS(BPM). The identification of an intra FC status, as

given in Figure 4, is based only on the FS(FC). While

the identification of an inter FC status, as given in

Figure 5, is based on both the sensitivity of the

affected business concept and the FS(FC).

Figure 4: FC status evaluation in the case of an intra FC.

Figure 5: FC status evaluation in the case of inter FC.

In Figure 5, each element in the matrix represents

a different value of FS(FC) and BAa/Fa sensitivity. It

is divided into "Red", "Yellow" and "Green" zones

which represent respectively High, Moderate and

Low status. The red zones are centred on the right

corner of the matrix (FS(FC)> FS(BPM)). While, the

green zones are centred on the left corner (when

FS(FC) =1 CFP) except when the sensitivity of the

affected business concept is high and the FS(FC) =1

CFP. The yellow zones extend specially the middle of

the matrix.

In summary, the effort required to fulfill a FC with

a status represented by a red zone in the above

matrices is more important than the effort required to

answer a FC with a status represented by green zones.

3.3 Sizing the Business Concept after a

FC Request

To measure the FS of a business concept, the mapping

between the business model concepts and those of the

COSMIC method is required. Therefore, we can

determine not only the size of the added data

movements in a business concept but also their types

based on the task type (see Table 2).

Table 2: Alignment of COSMIC data movement types with

BA elements.

Data Movement

Types

BA Elements

Entry

Task: Type = "ActiveREQ",

Precondition, Event

eXit

Task: Type = "ActiveREP"

Read

Task: Type = "ActiveRET"

Write

Task: Type = "ActivePER"

3.3.1 FS(BAa) in FA after an Inter/Intra FC

Table 3 presents the FS(BAa) after an intra FC. It is

expressed when it affects one of the BAa elements.

The impact of an intra FC on the FS(BAa), is given in

Table 3, where:

 FS(BAi): is the FS of the affected business

activity before the FC.

 FS(BAf): is the FS of the affected business

activity after the FC.

Table 3: FS(BAa) after an intra FC-FC in BAa elements.

Functional Change Concerning Elements in BAa

Addition

(SP: Pre-

condition) | (Task:

Pre-condition) | (SP:

event)

FS(BAf) =

FS(BAi) +1CFP

Deletion

(SP: Pre-

condition) | (Task:

Pre-condition) | (SP:

event)

FS(BAf) =

FS(BAi) – 1CFP

Modification

(SP: Pre-condition)

| (Task: Pre-

condition) | (SP:

event)

FS(BAf) = FS(BAi)

Addition

(Task: Type =

Passive

)

FS(BAf) =

FS(BAi)

Deletion

(Action: Type =

Passive)

FS(BAf) =

FS(BAi)

Modification

(Task: Type =

Passive)

NewType! = Passive

FS(BAf) = FS(BAi)

+1CFP

Addition

(Task: Type! =

Passive)

FS(BAf) =

FS(BAi) +1CFP

Deletion

(Task: Type! =

Passive)

FS(BAf) =

FS(BAi) – 1CFP

Modification

(Task: Type! =

Passive)

if NewType =

Passive

FS(BAf) = FS(BAi)

−1CFP

else FS(BAf) =

FS(BAi)

Addition

(Task: Int-

datagroup |Task:

Out-datagroup)

are in the same

object of interest)

and (Task: Type

!=Passive)

FS(BAf)

=FS(BAi)

Deletion

(Task: Int-

datagroup |Task:

Out-datagroup)

are in the same

object of interest)

and (Task: Type!

=Passive)

FS(BAf) =

FS(BAi)

Modification

Task: Int-

datagroup |Task:

Out-datagroup)

and (Task: Type!

=Passive)

FS(BAf) = FS(BAi)

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

130

We kept only the elements that may affect the

FS(BAa) such as: SP: Pre-condition, Task: Pre-

condition, SP: event, Task: Type, Task: Int-

datagroup, Task: Out- datagroup. For example, in the

case where BAa is in a fragment, the addition or

deletion of a task or SP having a pre-condition will

lead to a change in the FS(BAa). However, the

modification of a task or SP having a pre-condition

does not lead to a change in the FS(BAa).

Moreover, the addition or the deletion of a task

with Type = Passive does not lead to a change in the

FS(BAa). In this case, the modification of a task with

Type = Passive by a Task with NewType != Passive

increase the FS(BAa) by 1CFP. Whereas, the addition

or the deletion of a Task with Type != Passive leads

to a change in the FS(BAa). In this case, the

modification of a Task with Type != Passive by a

Task with NewType = Passive will decrease the

FS(BAa) by 1 CFP.

The deletion or the modification of input or output

data group related to the same business object with

task Type !=Passive, does not lead to a change in the

FS(BAa).

Table 4 presents an inter FC applied on the

business activity. It is expressed when the affected

BAa is related to other business activities in the same

fragment. For example, the addition, deletion or

modification of a relationship outgoing from the

affected business activities (BAa) has an impact on

the related (BAn) in the same fragment.

Table 4: FS(BAa) after an inter FC.

FC Concerning Direct Relationship with BAa

Addition

(BAa_can be

realized_ BAn)

FS(BAf ) =

FS(BAi ) +

FS(BAn) +

FS(cond)

Deletion

(BAa_can be

realized_ BAn)

FS(BAf ) =

FS(BAi )

-FS(cond) -

FS(BAn)

Modification

(BAa _can_be

_realized_ BAn)

if NewR= contains (BA,

BAn)

FS(BAf) = FS(BAi) +

FS(BAn) - FS(cond)

Addition

(BAa_contains

_BAn)

FS(BAf) =

FS(BAi) +

FS(BAn)

Deletion

(BAa_contains

_BAn)

FS(BAf) =

FS(BAi)

− FS(BAn)

Modification

(BAa_contains_BAn)

if NewR=

can_be_realized(BAa,

BAn)

FS(BAf) =FS(BAi) +

FS(BAn) + FS(cond)

FC Concerning Indirect Relations with BAa

(BAa_contains_BAn)

FS(BAf) = FS(BAi) +

FS(BAnf)

(BAa_ can_be_realized

_BAn)

FS(BAf) = FS(BAi) +

FS(BAnf) + FS(cond)

The impact of an inter FC on the FS(BAa), is

given in Table 4, where:

 FS(BAi): FS of BAa before the FC.

 FS(BAf): FS of BAa after the FC.

 FS(BAnf): FS of BAn after the FC.

 FS(BAn): FS of of BAn before the FC.

According to formula 1, the addition or the

deletion of the relation "can_be_realized" between

BAa and BAn modify respectively the FS(BAf) by

adding/deleting the FS(BAn) and the FS of the

condition to/from the initial FS(BAi). The

modification of the "can_be_realized" between BAa

and BAn by "contains" leads to a change in the

FS(BAa). Hence, the FS(BAf) is equal to FS(BAi)

plus the FS(BAn) minus the FS of the condition

(FS(cond)).

In the case of "contains" relationship, this later is

expressed by a default flow, which does not specify

any condition. For data-based exclusive or inclusive

gateways, one type of flow is the default condition

flow. This flow will be used only if all other outgoing

conditional flow are not true at runtime. The addition

or the deletion of this relationship between BAa and

BAn modify respectively the size of BAa by

adding/deleting the FS(BAn) to/from FS(BAi). The

modification of the "contains" relationship between

BAa and BAn by a "can be realized" relationship will

lead to a change in the FS(BAa). Hence, the FS(BAf)

is equal to its FS(BAi) plus the FS(BAn) and

FS(cond).

On the other hand, if a change affects a BAn

which has a relationship with BAa, then the FS(BAa)

is changed as given in Table 4. For instance, if

BAa_contains_BAn, and the FS(BAn) is changed,

then the FS(BAa) is changed. The FS(BAf) is equal

to the FS(BAi) plus the FS(BAnf). The same thing is

applied to the "can_be_realized" relationship. Thus,

if BAa_can_be_realized_BAn, and the FS(BAn) is

changed, the FS(BAf) is equal to the FS(BAi) plus the

FS(BAnf) and FS(cond).

3.3.2 FS(Fa) in BPM After an intra/inter FC

A intra FC in a Fragment can be expressed in two

cases: on the one hand, it is applied on the addition,

deletion or the modification of a BA in the affected

fragment Fa, and this BA has no impact on the other

business activities in Fa. On the other hand, the intra

FC is applied on fragment's elements. In fact, if a

change request proposes the addition, or the deletion

of a data object, a message flow with data group, or

sequence flow with condition, then the FS of the

associated fragment F will be changed as given in

Using COSMIC FSM Method to Analyze the Impact of Functional Changes in Business Process Models

131

Table 5. For example, the addition of a data object

will increase the FS(F) by 1 CFP. However, the

modification of a data object, a message flow with

data group, or sequence flow with condition, does not

lead to a change in the FS(F).

Table 5 summarizes the impact of a FC where:

 FS(Fi): the FS of the Fa before the change.

 FS(Ff): the FS of the Fa after the change.

 FS(BA): the FS of the BA.

Table 5: FS(F) after an intra FC.

Functional Change Concerning BA in Fa

Addition

(BA in Fa)

Deletion

(BA in Fa)

Modification

(BA in Fa)

FS(Ff)=

FS(Fi) + FS(BA)

FSf(Ff) =

FSf(Fi) –FS(BA)

See Table 3

Functional Change Concerning Elements in Fa

Addition

(data Object)

FS(Ff) = FS(Fi) +

1CFP

Deletion

(data Object)

FS(Ff) = FS(Fi)

- 1CFP

Modification

(data Object)

FS(Ff) = FS(Fi)

Addition

(Message flow

with data group)

FS(Ff ) = FS(Fi) +

1CFP

Deletion

(Message flow

with data

group)

FS(Ff ) = FS(Fi)

- 1CFP

Modification

(Message flow

with data group)

FS(Ff) = FS(Fi)

Addition

(Sequence flow

with condition)

FS(Ff ) = FS(Fi) +

1CFP

Deletion

(Sequence flow

with condition)

FS(Ff ) = FS(Fi)

- 1CFP

Modification

(Sequence flow

with condition)

FS(Ff) = FS(Fi)

The inter FC is expressed when a change in a

fragment Fa affects another fragment. It is possible to

apply Table 4 in this case by replacing: BAa with Fa,

BAi with Fi, BAnf with Fnf, BAf with Ff and BAn

with Fn.

3.3.3 FS(BPM) after an Inter/Intra FC in

BAa/Fa

The FS of a BPM is measured as the sum of the FS of

all the fragments it includes. Thus, each inter/intra FC

affecting either a fragment Fa or a BAa in Fa, will

certainly lead to a change in the FS of the BPM.

3.4 Prioritizing FC Requests

If more than one FC is proposed simultaneously, we

identify which FC should be realized before the other

one. In order to define how the change can be

implemented sequentially or in parallel, we propose a

heuristic algorithm for assigning priorities to

functional changes based on their status identified

separately.

H 1: If there is a "contains" relationship between two

BA/F (BA1/F1 contains the behavior of BA2 /F2)

and two functional changes are proposed where

FC1 affects BA 1/F2 and FC2 affects BA 2/F2, then

FC2 must be implemented before FC1.

H2: If there is a "can_be_realized" relationship

between two BAs/Fs (BA 1/F1 can be realized after

BA 2/F2) and two functional changes are proposed

where FC1 affects BA 1/F1 and FC2 affects

BA2/F2, then implement FC2 before FC1.

H3: If the inter change proposes the addition or the

deletion of a "contains" relationship, an intra FC

change is implemented before the inter change.

H4: If the inter change proposes the addition or the

deletion of a "can_be_realized" relationship,

implement inter change before the intra change.

Algorithm 4: Prioritization of changes G(V, E).

input:– G =(V, E); V set of nodes each representing a FC, E is

the edges representing the FC inter-dependency.

1: if PR-Req are given then

2: allChanges := getChangeOrder (V, PR-Req)

3: else allChanges := getChangeOrder (V, FC status)

4: endif

5: while allChanges !=null do

6: forFCi in allChanges do

7: for FCi+1 in allChanges do

8: if ∃ dependRel (FCi, FCi+1) then

9: dependRel := true

10: break; endif

11: end for

12: if dependRel = true then

13: SubChange := least cost path (G

−1

FCi)

14: for FCj in SubChange do perform (FCj)

15: remove (FCj from allChanges)

16: endfor

17: else perform (FCi); endif;

18: endfor; end while

Based on the above heuristics, we build a directed

graph G = (V, E), where V represents nodes

expressing the changes and E represents directed

edges expressing the dependency between the

changes. For each node (i.e. FC), we can identify its

status as explained in section 3.2. In addition, to

prioritize a set of FCs, we propose algorithm 4 which

takes as input the list of the change requests. For each

FC, we identify the preference of the change requester

(PR_Req) and the FC status. The algorithm generates

the scheduling of the changes based on the above

heuristics. As proposed in (Fairley, 2009), user

requirements are classified into Essential, Desirable,

or Optional. By referring to this classification, we

identify three categories of PR_Req (Desirable,

Essential, Optional). A desirable FC is a change that

adds value to the business process. It is implemented

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

132

Figure 6: Detailed description of F2.

after satisfying all the essential changes and if there is

no or few changes in the initially estimated time and

budget. An essential FC is an obligatory FC that must

be implemented even if it will lead to an extra-effort

and a "big" impact on the business process project;

otherwise, the final product will not satisfy the user

needs. An optional FC is a change that might be

implemented if there is sufficient time and resources

after satisfying the essential and desirable changes.

In Algorithm 4, all changes are first grouped in the

allChanges based on the PR_Req order. In the case

where the change requester does not specify any

preference, then the changes are ordered according to

their FC status (lines 1–4, Algorithm 4).

Consequently, the change with the lowest FC status is

the first to be implemented. Changes are then

implemented with respect to the order provided in the

list of allChanges. However, if there are inter-

dependencies between changes, then we determine

the sub-graph including the minimum cost start from

the first FC in the list of allChanges (lines 5–13). We

execute all the changes identified in the sub-graph

(line 14). Then, we remove these changes from the

list of allChanges (line 15). We repeat these steps

until the end of the list of allChanges.

4 CASE STUDY AND THREATS

TO VALIDITY

In this section, we illustrate the applicability of our

proposed approach through the “Airline Company”

BPMN as described in Figure 7 and the documented

FC2 in Figure 6. Afterward, we discuss threats to

validity of our study.

4.1 Measurement Illustration

Based on the BPMN decomposition approach (Khlif

et al., 2017), the "Airline Company" BPMN is

presented as a series of fragments (F1, F2, F3, F4, F5,

F6, F7, F8, F9, F10, F11 and F12). Each fragment

may contain one or more business activities

documented using our expanded description. For

example, Figure 6 presents the F2 description.

The FS of the “Airline Company” BPMN model

is determined by aggregating the FS of all fragments

which are described by the proposed extended textual

description. The total FS(BPM) is equal to 22 CFP.

For instance, Table 6 presents the functional size

of the affected fragments (F2, F8 and F9) before and

after the change. In order to illustrate the proposed

change impact analysis in the business concept, we

propose:

 an inter FC in F2 referred to FC1 "adding

BA23" (Figure 7) including the "contains" and

"can_be_realized" relationships. FC1 has an

impact not only on the FS of the affected

fragment F2, but also on the FS of fragment F5

as shown in Table 1.b.

 FC2 expresses an intra FC by adding two

sequential tasks with Type = ActivePER.

These added tasks have no impact on any other

BAs/fragments.

Using COSMIC FSM Method to Analyze the Impact of Functional Changes in Business Process Models

133

 FC3 is an intra FC that proposes to add two

tasks in F9 with Type = ActiveRET or Type =

ActivePER.

 FC4 is an inter FC since there is a

"can_be_realized" relationship expressing that

an exception is related to the activities covering

the sub-process "Request reservation" (See

Table 1)

As presented in Table 6, all the requested changes

(FC1, FC2, FC3 and FC4) are "in-scope". For

example, regarding FC1, AV

= 1 CFP and the

FS(FC1) = 4 CFP. Thus, as presented in Figure 5, this

FC is considered as "in-scope" since AV

< FS(FC1)

<= FS(BPM). It is considered as a "Moderate" FC.

The measurement results in Table 6 show that all

the proposed changes are "in-scope". The acceptance

of an "in-scope" FC can be accomplished with no

disruption to the planned work activities. Thus, no

modifications are needed in the schedule, budget and

resources to handle the proposed changes. However,

in the case of "out-of-scope" changes, major

modifications are required in the schedule, budget

and resources. Hence, to take the appropriate

decisions regarding an "out-of-scope" change, it is

required to estimate the effort and resources to

implement the change. Consequently, in the

illustrative example, the decision-makers will

approve all the FC requests since they are "in-scope"

changes.

When prioritizing the change requests, the

preference of the change requester is taken into

account since all the changes have the same FC status

"in-scope". By applying the Algorithm 4, the

approved change requests are classified according to

Figure 7: "Airline company" model after the change.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

134

Table 6: Measurement results for the "Airline company" model.

the PR_Req. Hence, the designers/developers will

take these changes starting by the "Essential" FC,

then the "Desirable" FC, and finally the "Optional".

4.2 Threats to Validity

In our study, threats to validity are relevant to internal

validity, external validity and construct validity

(Wohlin et al., 2000).

 Internal validity threats stem from the

determination of change status which can be

expressed in two cases. The first one is based on

the on the FS(FC) in the case of intra FC. The

second one is based on the FS(FC) and the

BAa/Fa sensitivity in the case of inter FC.

However, the determination of the change status

neglects other factors such as change type, the

required effort to handle the change request, etc.

And the deletion of a business concept should be

analyzed if it is developed or not yet developed.

In the first case, the deletion saves development

time. In the second case, it causes more effort.

Furthermore, many situations do not require the

same level of details of the proposed ordinal

scale about FC status. In fact, for an approximate

identification of FC status, three categories will

be enough. However, a more detailed

identification of FC status will requiremore

detailed scale.

Besides, the request for functional changes must

be determined, otherwise the classification induce an

analysis that does not express the real importance of

the change.

The second issue related to internal validity is the

use of a high-level business activity that does not

address the architectural aspects in the code. Thus,

some detailed activities may appear in the

implementation phase without being identified in the

requirement phase.

 External validity: The main threats to the

external validity expresses the insufficiency of

data that makes difficult the generalization of

this study results. As it is not possible to collect

data from companies, our research study is

exploratory. Our work can be generalized to

take into account the development and the

requirement phases. Furthermore, the

COSMIC method can be used in all the

business process life cycle phases. In our study,

COSMIC is used in the requirements phase.

Fragment

Functional Sub-process

Before the

change

After the

change

FS(FC)

FC Type

FC status

BA21

Device operating control

none

3CFP/2 =

1 CFP

FC1 status =

"In-scope"

BA22

Cancel rental device contract

none

BA23

Use rental device for flight

Recover device lists

4 CFP

Inter FC1:

adding

BA23 in

Maintain device

Use rented device for flight

Total

3 CFP

7 CFP

4 CFP

Check team availability

2 CFP

Intra FC2:

adding

tasks in

1 CFP/ 1 =

1 CFP

FC2 status =

"In-scope"

Constitute technical team

Assign the number of stuff

members

Total

1 CFP

3 CFP

2 CFP

Receive flight information

FS(FC3)

= 3 CFP

Intra FC3:

adding

tasks in

1 CFP / 1 =

1CFP

FC3 status =

"In-scope"

Determine the available hotel

Search flight based on customer

request

Send flight information

Change reservation

information

FS(FC4)

= 1 CFP

Inter FC4:

adding an

exception

1 CFP / 1 =

1CFP

FC4 status =

"In-scope"

Total

2 CFP

6 CFP

4 CFP

Using COSMIC FSM Method to Analyze the Impact of Functional Changes in Business Process Models

135

Moreover, the required level to apply COSMIC

was a detailed level of a business concept.

Whereas, in practice, we do not always have a

detailed description of a business concept.

Further studies will be needed to address FC

status in a high level of abstraction.

 The threats of construct validity investigate the

potential of applying this study in practice. One

predicament to our study stems from the lack

of feedback about the FC status it determines.

Indeed, the judgment of how important is a FC

depends on the specific expertise of the people

participating in the change impact analysis, etc.

This judgment will improve the change status

classification and the ratio AV

5 CONCLUSIONS

The presented work proposed measuring the

functional changes in BPMN models using COSMIC

method (COSMIC 2017). The proposed FC measure

provides a firmer basis for analyzing the impact of

change on the functional size of business concepts in

terms of CFP units. Based on the functional size of

the FC and the sensitivity of the affected business

concepts, we determine the status of the FC. FC status

can be used to identify the degree of risk on the

project scope. It helps both business process

developers and manager in making decisions to

accept, deny or defer a change request.

While the illustrative example showed the

feasibility of the approach, it also confirmed our need

to conduct empirical studies to improve the thresholds

used to determine the mean value of data movements.

To prepare for such empirical studies, we are in the

process of implementing CASE tools to get

automatically indicators about how to manage the risk

of a FC during the BP project development.

Other factors may interfere in identifying the

importance of a FC such as the preference of the

change requestor, the effort required to answer the

change. Moreover, when the functional size is the

input for the effort estimation models, it is possible to

estimate the effort required to implement the change

using one of the estimation tools supporting COSMIC

method.

REFERENCES

COSMIC 2017. Common Software Measurement

International Consortium. 2017. COSMIC Functional

Size Measurement Method, Version 4.0.2.

Fairley, R.E., 2009. Managing and Leading Software

Projects. Wiley-IEEE Computer Society Press.

Ferme, V., Ivanchikj, A., Pautasso, C., 2016. Estimating

the Cost for Executing Business Processes in the Cloud.

In Proc. of Business Process Management Forum -

BPM Forum 2016, Brazil, September pp. 72-88.

ISO/IEC 19510. 2013. Information technology -- Object

Management Group Business Process Model and

Notation. 2013.

ISO/IEC 14143-6:2012. 2012. Information technology –

Software measurement – Functional size measurement

– Part 6: Guide for use of ISO/IEC 14143 series and

related International Standards.

Khlif., W, Haoues M., Sellami A., Ben-Abdallah H., 2017.

Analyzing Functional changes in BPMN models using

COSMIC. In ICSOFT’17,Proc. of International

conference on software engineering and applications,

Portugal, July, pp. 265-274.

Lauesen, S., 2002. Software Requirements: Styles and

Techniques. Addison-Wesley, London.

Nezhad, H.R.M., Saint-Paul, R., Casati, F., Benatallah, B.,

2011. Event correlation for process discovery from web

service interaction logs. In the Inter Journal on Very

Large Data Bases,20(3), pp.417–444.

Uronkarn, W., Senivongse, T., 2014. Change Pattern-

Driven Traceability of Business Processes. In

IMECS’14 ,InterMultiConference of Engineers and

Computer Scientists. March, Hong Kong, pp 441-455.

Van der Aalst, W.M.P. Process Mining: Discovery,

Conformance and Enhancement of Business Processes.

2011. Springer, Germany, pp 1-352.

Wang, Y., Yang, J., Zhao, W., 2012. Change Impact

Analysis in Service based Business Processes. In

SOCA’12, International Conference on Service-

Oriented Computing and Applications, pp. 131-149.

Wohlin, C., Runeson, P., Höst, M., Ohlsson, M.C., Regnell,

B., Wesslén, A., 2000. Experimentation in Software

Engineering: An Introduction, 2000.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

136
