A Hybrid Approach To Detect Code Smells using Deep Learning

Mouna Hadj-Kacem and Nadia Bouassida

Mir@cl Laboratory, Sfax University, Tunisia

Keywords:

Hybrid Approach, Deep Learning, Auto-encoder, Artiﬁcial Neural Networks, Code Smell Detection.

Abstract:

The detection of code smells is a fundamental prerequisite for guiding the subsequent steps in the refactoring

process. The more the detection results are accurate, the more the performance of the refactoring on the

software is improved. Given its inﬂuential role in the software maintenance, this challenging research topic

has so far attracted an increasing interest. However, the lack of consensus about the deﬁnition of code smells in

the literature has led to a considerable diversity of the existing results. To reduce the confusion associated with

this lack of consensus, there is a real need to achieve a deep and consistent representation of the code smells.

Recently, the advance of deep learning has demonstrated an undeniable contribution in many research ﬁelds

including the pattern recognition issues. In this paper, we propose a hybrid detection approach based on deep

Auto-encoder and Artiﬁcial Neural Network algorithms. Four code smells (God Class, Data Class, Feature

Envy and Long Method) are the focus of our experiment on four adopted datasets that are extracted from

74 open source systems. The values of recall and precision measurements have demonstrated high accuracy

results.

1 INTRODUCTION

Due to the ever-increasing software complexity, the

maintenance has become arduous, time-consuming

and hence more costly. More than two-third of the

total project budget is dedicated to the maintenance

activities, mainly because of the continuous changes

(Erlikh, 2000; April and Abran, 2012). Very often,

these changes could be improperly treated by devel-

opers who may, unwittingly, commit violations of

software design principles. In such case, possible

design problems may appear in the software. These

problems are known in the literature as code smells or

by other designations like anti-patterns (Brown et al.,

1998), anomalies, bad smells, design ﬂaws, design

defects, etc. According to (Fowler et al., 1999), a code

smell is deﬁned as ’a surface indication that usually

corresponds to a deeper problem in the system’.

Many research studies have empirically investi-

gated the impact of code smells on the software qual-

ity (Khomh et al., 2012; Soh et al., 2016). They

have pointed out that the code smells make the soft-

ware more fault-prone and difﬁcultto maintain, which

subsequently leads to the deterioration of its qual-

ity. In order to mitigate the problems caused by

the code smells, a refactoring process should be fol-

lowed (Fowler et al., 1999). By deﬁnition, refac-

toring is a popular maintenance activity, devoted to

enhance the software quality with economical costs

(Mens and Tourwe, 2004). It reconstructs the inter-

nal software structure without affecting its external

behaviour (Fowler et al., 1999). According to (Mens

and Tourwe, 2004), the refactoring process consists of

three consecutive steps: (i) detection of code smells,

(ii) identiﬁcation of the adequate refactoring opera-

tions and (iii) evaluation of the preservation of the

software quality.

The earlier the code smells are detected, the less

will be the cost of refactoring and the better the soft-

ware quality will be. Therefore, the detection step

plays a decisive role in improving the results of the

other steps and thereby on the performance of the

software refactoring. As a result, several approaches

have been proposed to deal with this research topic by

using different techniques. However, the lack of con-

sensus regarding the deﬁnition of code smells in re-

search studies results in great difﬁculties in interpret-

ing or making meaningful comparisons of detection

results. This was explicitly stated by (M¨antyl¨a and

Lassenius, 2006), who conﬁrmed that the conﬂicting

perceptions of developers conduct to subjective code

smell interpretations, which in turn lead to the vari-

ances in the performance evaluation. In this context,

the use of machine learning techniques has been con-

sidered as a suitable way to deal with the confusion

surrounding this lack of consensus. On the one hand,

Hadj-Kacem, M. and Bouassida, N.

A Hybrid Approach To Detect Code Smells using Deep Learning.

DOI: 10.5220/0006709801370146

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 137-146

ISBN: 978-989-758-300-1

137

it can provide additional objectivity to face this issue

by reducing the developers’ subjective cognitive in-

terpretations (Arcelli Fontana et al., 2016). On the

other hand, it proves more efﬁciency when dealing

with large-scale systems and more ability to interact

with newly acquired data.

Recently, deep learning (LeCun et al., 2015), an

emerging branch of machine learning, has spread

widely over many research ﬁelds including the pat-

tern recognition issues. The architectures of deep

learning techniques are based on multilayer neural

networks that are intended to effectively model high-

dimensional data. According to (Bengio et al., 2013),

the deep learning algorithms aim to provide multi-

ple levels of abstraction of the data ranging from low

to high levels. They are different from conventional

machine learning techniques that are built on shallow

structure.

In this paper, we propose a hybrid learning ap-

proach to detect four object-oriented code smells. Our

approach consists of an unsupervised learning phase

followed by a supervised learning phase. In the ﬁrst

phase, we perform a dimensionality reduction of the

input feature space by using a deep auto-encoder

(Hinton and Salakhutdinov, 2006) that extracts the

most relevant features. The output of this phase is

a reduced representation of newly extracted features

that is used as a basis for the supervised classiﬁcation

in the second phase. The selected algorithm for this

task is the Artiﬁcial Neural Networks (ANN) classi-

ﬁer.

In our study, the four selected code smells are God

Class, Data Class, Feature Envy and Long Method.

The two ﬁrst ones belong to the class-level and the

two latter ones belong to the method-level. Accord-

ing to (Fowler et al., 1999), their corresponding deﬁ-

nitions are as follows:

• God Class is a large class that dominates a great

part of the main system behaviour by implement-

ing almost all the system functionalities. It is dis-

tinguished by its complexity and by encompass-

ing a high number of instance variables and meth-

ods.

• Data Class is a class that is merely composed of

data without complex functionalities. This class

is free of responsibility; it is designated to be ma-

nipulated by other classes.

• Feature Envy is a method-level smell character-

ized by its excessive use of variables and/or oper-

ations belonging to other classes more than using

its own ones. Thus, this method tends to make so

many calls to use the data of the other classes.

• Long Method refers to a large method in terms of

its size, which dominates the implementation of

several functionalities.

To evaluate the performance of our approach, we

conducted our experiments on four adopted datasets

(Arcelli Fontana et al., 2016) that are generated from

74 open source systems. Furthermore, to evaluate the

effectiveness of our approach, we conduct a compari-

son between our hybrid detection method and the ba-

sic classiﬁer. The reported experimental results un-

derline the importance of reducing the dimensionality

in improving the accuracy of the detection.

In summary, the main contributions of this paper

are two-fold:

• We propose the ﬁrst hybrid detection approach

based on combining two learning techniques

(deep auto-encoder and ANN) for the detection of

code smells.

• We show that the detection performance can be

signiﬁcantly improved when exploiting a reduced

number of extracted features by means of a deep

learning algorithm.

The rest of this paper is organized as follows.

Section 2 overviews the related work dealing specif-

ically with the machine learning-based detection ap-

proaches. Section 3 describes the proposed approach.

The experimental setup and results are described in

Section 4. Section 5 discusses the threats to validity

of our study. Finally, Section 6 concludes the paper

and outlines future work.

2 RELATED WORK

Several approaches have been proposed to detect code

smells. Based on the used techniques, we divide

these approaches into ﬁve broad categories: rule-

based (Moha et al., 2010a), search-based (Sahin et al.,

2014), visualization-based (Murphy-Hill and Black,

2010), logic-based (Stoianov and S¸ora, 2010) and

machine learning-based approaches (Kreimer, 2005;

Hassaine et al., 2010; Oliveto et al., 2010; Khomh

et al., 2011; Maiga et al., 2012a; Fu and Shen, 2015;

Palomba et al., 2015; Arcelli Fontana et al., 2016).

Since our approach belongs to the latter category,

we focus the related work only on the approaches

falling in the partially or fully machine learning-

based.

(Kreimer, 2005) proposed a detection approach

based on decision trees. The selected technique was

applied to detect two design ﬂaws that are Long

Method and Large Class. The experimental result was

based on two projects that are IYC system and WEKA

package.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

138

Table 1: Machine learning-based detection approaches.

Learning Nature

ML Algorithm Number of Systems Features Type

Supervised Unsupervised Hybrid

(Kreimer, 2005) x Decision Tree 2 Structural

(Khomh et al., 2009) x Bayesian Belief Networks

(BBNs)

2 Structural + Lexical (From the

rule cards (Moha et al., 2010b))

(Hassaine et al., 2010) x Artiﬁcial Immune System

Algorithm

2 Structural

(Oliveto et al., 2010) x B-Splines 2 Structural

(Khomh et al., 2011) x BBNs based on the Goal

Question Metric (GQM)

2 Structural

(Maiga et al., 2012b) x Support Vector Machines

(SVM)

3 Structural

(Maiga et al., 2012a) x Support Vector Machines

(SVM)

3 Structural (Renforced with the

feedback of users)

(Palomba et al., 2013) x Association Rule Mining 8 Historical

(Fu and Shen, 2015) x Association Rule Mining 5 Structural

+ Historical

(Palomba et al., 2015) x Association Rule Mining 20 Historical

(Arcelli Fontana et al.,

2016)

x 16 Algorithms

∗

74 Structural

Our Approach x Auto-Encoder + Artiﬁcial

Neural Networks (ANN)

4 Adopted

Datasets

∗∗

Structural

+ Generated Features

∗

J48 (with pruned, unpruned and reduced error pruning), JRip, Random Forest, Na¨ıve Bayes, SMO (with Radial Basis Function and Polynomial kernels) and LibSVM (with the two

algorithms C-SVC and ν-SVC in combination with Linear, Polynomial, RBF and Sigmoid kernels)

∗∗

See Section 4.1

(Khomh et al., 2009) proposed an extension of the

DECOR (DEtection & CORrection) approach (Moha

et al., 2010b) in order to support uncertainty in the

detection of smells. In this work, the authors trans-

formed the speciﬁcations which are in form of rule

cards into BBNs (Bayesian Belief Networks). How-

ever, the expressiveness of the rule cards was limited

and their composition can lead to the emergence of

many intermediate nodes in the BBNs. As a solu-

tion, the authors (Khomh et al., 2011) suggested BD-

TEX (Bayesian Detection Expert) that is based on the

GQM (Goal Question Metric) methodology to extract

information from the anti-pattern deﬁnition. Thus,

the BBNs can be systematically built without rely-

ing on the rule cards. The experiment was conducted

on GanttProject and Xerces to detect the occurrences

of Blob, Functional Decomposition and the Spaghetti

Code.

(Hassaine et al., 2010) have drawn a parallel be-

tween the human’s immune system and the detec-

tion approach. They have applied the artiﬁcial im-

mune systems algorithms to identify the occurrences

of Blob, Functional Decomposition and the Spaghetti

Code on two open source systems that are GanttPro-

ject and Xerces.

(Oliveto et al., 2010) proposed an approach, called

ABS (Anti-pattern identiﬁcation using B-Splines).

The signature of the anti-pattern is learned and is per-

formed through an interpolation curve that is gener-

ated by a set of metrics and their values. Then, based

on the distance between this signature and the signa-

ture of a given class, the similarity value is deducted.

Thus, the higher the similarity value, the higher the

likelihood that the given class is affected. ABS has

been tested with Blob on two medium size Java sys-

tems.

(Maiga et al., 2012b) proposed a support vector

machine-based approach to detect the occurrences of

Blob, Functional Decomposition and the Spaghetti

Code. Later, the authors (Maiga et al., 2012a) ex-

tended their previous work by suggesting an approach

called SMURF, which takes into account the feedback

of practitioners. Both approaches were experimented

on the same three open source systems which are Ar-

goUML, Azureus and Xerces.

(Palomba et al., 2013; Palomba et al., 2015) pro-

posed an approach named HIST (Historical Informa-

tion for Smell deTection) to detect ﬁve types of bad

smells. Only the historical information extracted from

version control systems was used by the association

rule mining algorithm. Then, they deﬁned heuristics

which were applied to identify each one of the con-

sidered code smells.

Similarly, (Fu and Shen, 2015) proposed a de-

tection approach by mining the evolutionary history

of projects extracted from revision control system.

Three code smells are chosen to be detected from 5

projects, whose the duration of the evolutionary his-

tory vary from 5 to 13 years. The two latter works

used historical properties. The common limitation

A Hybrid Approach To Detect Code Smells using Deep Learning

139

shared by them is the lack of availability of ver-

sions from a given system in order to have historical

changes that are fed into the association rule mining

algorithm.

Recently, (Arcelli Fontana et al., 2016) conducted

an experimentation of 16 machine learning algo-

rithms on four code smells that are Data Class, Large

Class, Feature Envy and Long Method. The selected

algorithmsare as follows: J48 (with pruned, unpruned

and reduced error pruning), JRip, Random Forest,

Na¨ıve Bayes, SMO (with Radial Basis Function and

Polynomial kernels) and LibSVM (with the two algo-

rithms C-SVC and ν-SVC in combination with Lin-

ear, Polynomial, RBF and Sigmoid kernels). Addi-

tionally, these algorithms have been combined with

a boosting technique. The experiment is based on a

large heterogeneous repository composed of 74 soft-

ware systems belonging to the Qualitas Corpus (Tem-

pero et al., 2010).

In contrast to the previous approaches, we exploit

in this paper two learning algorithms for the tasks

of dimensionality reduction and classiﬁcation. Also,

the type of the trained features is the extracted ones

from the deep auto-encoder because they can signif-

icantly help the learner to reduce the computational

overhead and yield high accuracy results. More de-

tails about the previous works and ours are tabulated

in Table 1. They are listed according to the nature

of learning (i.e., supervised, unsupervised or hybrid),

the machine learning (ML) algorithm, the number of

systems and the type of the used features. For the

datasets, we adopt them from (Arcelli Fontana et al.,

2016) because their oracle was built by means of advi-

sors and raters (see Section 4.1), in difference to other

works that are applied on fully manually constructed

oracles.

3 PROPOSED APPROACH

In this study, we propose a hybrid learning-based ap-

proach consisting of two main phases. The ﬁrst phase

performs an unsupervised learning procedure based

on the use of a deep auto-encoder. The auto-encoder

is applied on an unlabelled data in order to reduce its

dimensionality and to extract a new feature represen-

tation. Then, based on the output of the ﬁrst phase, the

second phase targets a supervised learning classiﬁca-

tion by using an Artiﬁcial Neural Networks (ANN).

The structure of the proposed approach is outlined

in Figure 1. More details of the approach are given in

the next subsections.

Datastets

Auto-Encoder

Dimensionality Reduction

ANN Classifier

Results

uction

Code Smell

Not Code Smell

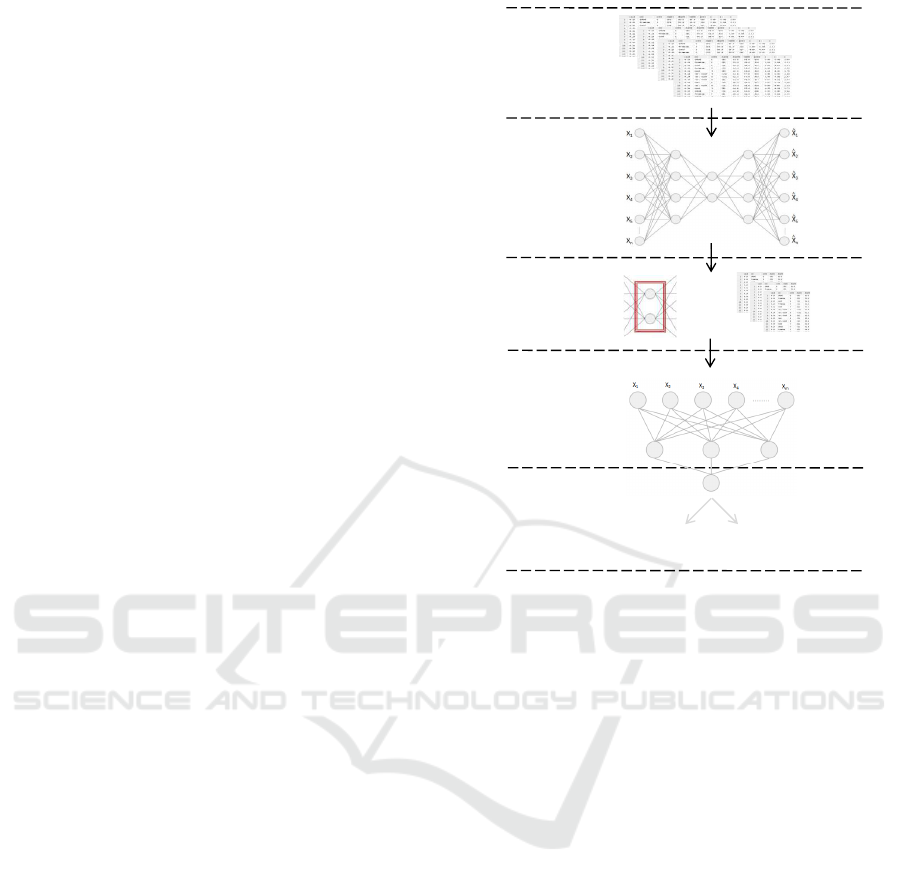

Figure 1: Overview of the proposed approach.

3.1 Phase 1: Unsupervised Feature

Learning

The presence of a large number of features may con-

tain redundancy and noise that can affect the per-

formance of a learner and subsequently increase the

complexity of the generated model. To tackle these

problems, a dimensionality reduction should be ap-

plied. Given an input of unlabelled data, a feature ex-

traction is applied to perform the needed transforma-

tions that generate the most signiﬁcant features (Han

et al., 2011). As a consequence, the generated low-

dimensional data will be easily classiﬁed and also

makes it possible for the classiﬁer to improve its per-

formance results.

An auto-encoder (Bengio et al., 2009) is an unsu-

pervised neural network that is trained with feedfor-

ward and backpropagation algorithms. It mainly aims

at the reduction of its original input and reproducing

it as an equivalent reconstructed output. The structure

of the auto-encoder consists of an input and output

layers of equal sizes, and one or more hidden layers.

It is composed of an encoder f : x → h that maps the

input to the hidden layer h, and a decoder g : h → bx

that maps back to the original input. The principle of

the encoding procedure is as follows:

Given an input data {x(1), x(2), ..., x(n)}, the encoder

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

140

network compresses these n inputs into a lower di-

mensional feature subspace. The hidden layer is given

by:

h = f(x) = tanh(Wx+ b

) (1)

where W is the weight and b

is the bias of the hidden

layer. Afterwards, the decoder network reproduces

the output { bx(1), bx(2), ..., bx(n)} that is computed as

follows:

bx = g(h) = tanh(W

h+ b

) (2)

where b

is the bias of the output. The auto-encoder is

trained to minimize the reconstruction error between

the input and the output:

Err =

∑

i=1

–bx

)

(3)

Figure 2 illustrates an example of an auto-encoder

containing 3 hidden layers that are respectively com-

posed of 4, 2, 4 neurons.

Encoding

Input Layer

Output LayerHidden Layers

Decoding

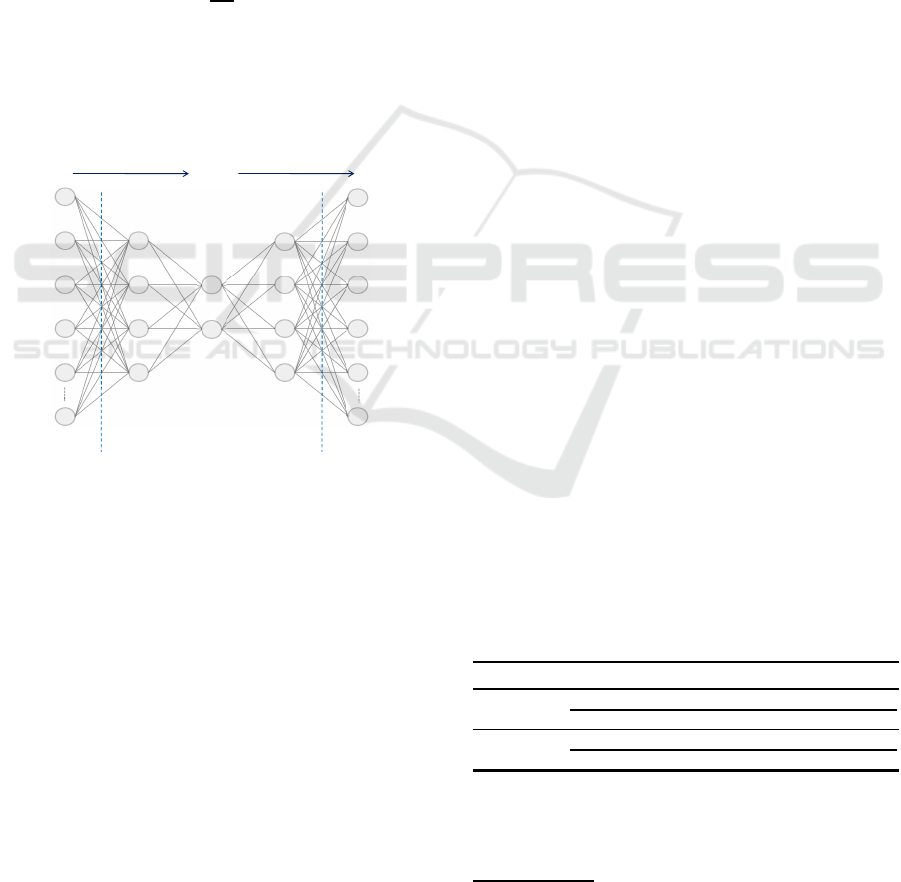

Figure 2: An auto-encoder structure.

3.2 Phase 2: Supervised Classiﬁcation

In this phase, the new extracted feature space will

be combined with a feature vector from the original

dataset. This feature vector is the response class that

indicates if the sample is affected or not by one of the

studied code smells. Thus, we obtain a reduced la-

belled training set to be fed as an input of the selected

classiﬁer.

There exists a variety of supervised learning algo-

rithms, like the probabilistic classiﬁers (i.e., BBNs),

classiﬁcation rules (i.e., JRip), decision trees (i.e.,

Random Forest) and neural networks (i.e., ANN). In

our study, we select a supervised classiﬁer belonging

to the family of neural networks that is the Artiﬁcial

Neural Networks (ANN). The ANN consist of input,

hidden and output layers, in which the neurons are

connected, and for each connection, weights are set.

As it is a binary classiﬁcation, the output neuron will

decide whether it is a code smell or not, according to

its type.

4 EXPERIMENTS

In this section, we describe the used datasets as well

as the experimental settings. Then, the results are

evaluated according to the standard measures of per-

formance.

4.1 Datasets

As stated before, we experiment our approach us-

ing the datasets proposed in (Arcelli Fontana et al.,

2016). In brief, the authors selected 74 open source

systems from Qualitas Corpus (Tempero et al., 2010).

The systems are heterogeneous; they belong to dif-

ferent application domains and vary in their sizes.

Then, the metrics are computed using the DFMC4J

(Design Features and Metrics for Java) tool (Ferme,

2013). Afterward, the authors achieved the la-

belling by means of advisors which are existing

code smell detection tools (iPlasma (Marinescu et al.,

2005), PMD

, Fluid Tool (Nongpong, 2012), AntiPat-

tern Scanner (Wieman, 2011)) and rules (Marinescu,

2005), followed by a manual validation made by 3

raters. Once the labelling process is done, a balanced

dataset is generated for each type of code smells.

Each dataset contains 1/3 smelly samples and the rest

2/3 are non smelly samples.

As shown in Table 2, the two ﬁrst datasets concern

the code smells at class level where the number of

features is 62. While at method level, the number of

features rises because of the difference in granularity

where there is more ﬁne-grained features. The list

of all the used features is shown in Figure 3. The

detailed deﬁnitions of these features are available in

the appendix in (Arcelli Fontana et al., 2016).

Table 2: Datasets description.

Dataset Code Smell # Samples # Features

Class level

DS1 God Class 420 62

DS2 Data Class 420 62

Method level

DS3 Feature Envy 420 83

DS4 Long Method 420 83

https://pmd.github.io/

A Hybrid Approach To Detect Code Smells using Deep Learning

141

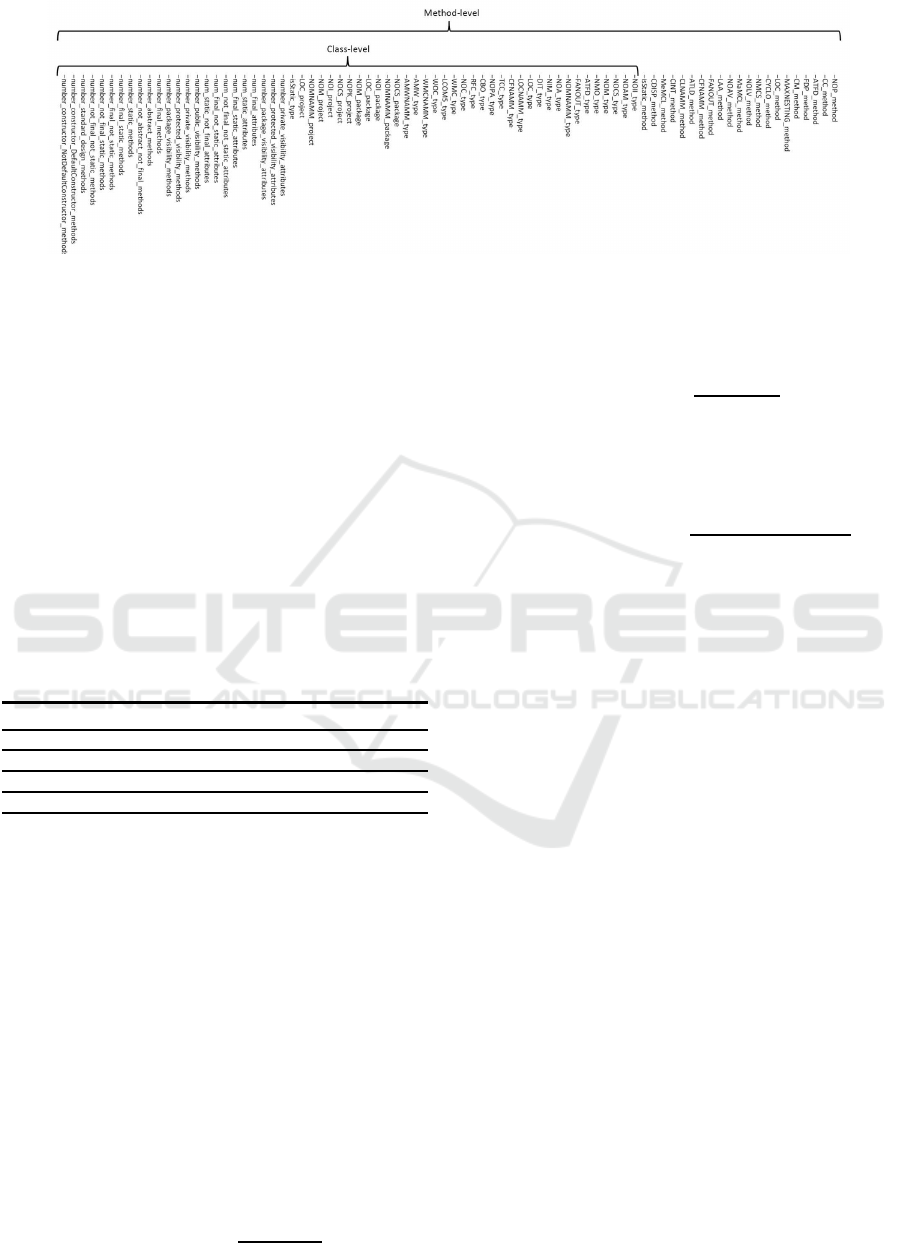

Figure 3: Original features at class and method levels.

4.2 Experimental Setup

Our experiments are performed in the R programming

environment (R Core Team, 2014).

In order to tune the parameters of the auto-

encoder, we use the metric of mean squared error

(MSE) to minimize the rate of the reconstruction of

the input. The chosen auto-encoder in this experiment

is a ﬁve-layers network composed of input and output

layers with three hidden ones. The activation function

is hyperbolic tangent (tanh). The rest of the selected

parameters are summarized in Table 3. For the ANN

classiﬁer, the parameter optimization was made by the

use of a grid search approach.

Table 3: The parameters of the auto-encoder.

Parameters Values

Activation function Hyperbolic Tangent (Tanh)

Number of hidden layers 3

Neurons in each hidden layer 20 . 10 . 20

Number of epochs 200

4.3 Experimental Results

The experimental results are ﬁrst discussed, then are

followed by a comparison with a conventional detec-

tion.

4.3.1 Performance Measurements

The performance of our approach is evaluated based

on the precision, recall and F-measure metrics. They

are deﬁned as follows:

• Precision: the percentage of correctly identiﬁed

code smells by the number of detected code smell

candidates.

precision =

TP + FP

(4)

• Recall: the percentage of correctly identiﬁed code

smells by the total number of actual code smells.

recall =

TP + FN

(5)

• F-measure: the harmonic mean of the precision

and recall metrics, it represents a balance between

their values.

F − measure = 2 ∗

Precision ∗ Recall

Precision + Recall

(6)

Where TP (True Positive) indicates the number of the

correctly detected code smells. TN (True Negative) is

the number of non code smells that are correctly clas-

siﬁed. While FP (False Positive) and FN (False Neg-

ative) correspond to incorrectly classiﬁed code smells

and non code smells respectively.

4.3.2 Performance Evaluation

To evaluate the performance of the model, we use 10-

fold cross-validation (Witten et al., 2011) where the

data is randomly split into 10 subsets. Each time one

subset is used for testing and the other nine subsets are

used for training. Once the 10 subsets are reported,

the mean of each performance measurements is con-

sidered.

Overall, the values of the precision and the recall

have demonstrated high accuracy results. As shown

in Table 4, the best F-measure value is of 98.93%, it

is reached with the code smell God Class. Even at

method level, the F-measure surpasses 96%. In sum-

mary, the results were very close which means the ef-

fectiveness of the proposed approach at both abstrac-

tion levels.

To further evaluate our approach, we plot the ROC

(Receiver Operating Characteristic) curves for each

code smell. The curve is obtained by means of plot-

ting the TPR (True Positive Rate) against the FPR

(False Positive Rate) for different threshold values.

Figure 4 shows four ROC curves that correspond to

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

142

False positive rate

True positive rate

0.0 0.2 0.4 0.6 0.8 1.0

(a) God Class

False positive rate

True positive rate

0.0 0.2 0.4 0.6 0.8 1.0

(b) Data Class

False positive rate

True positive rate

0.0 0.2 0.4 0.6 0.8 1.0

False positive rate

True positive rate

0.0 0.2 0.4 0.6 0.8 1.0

(d) Long Method

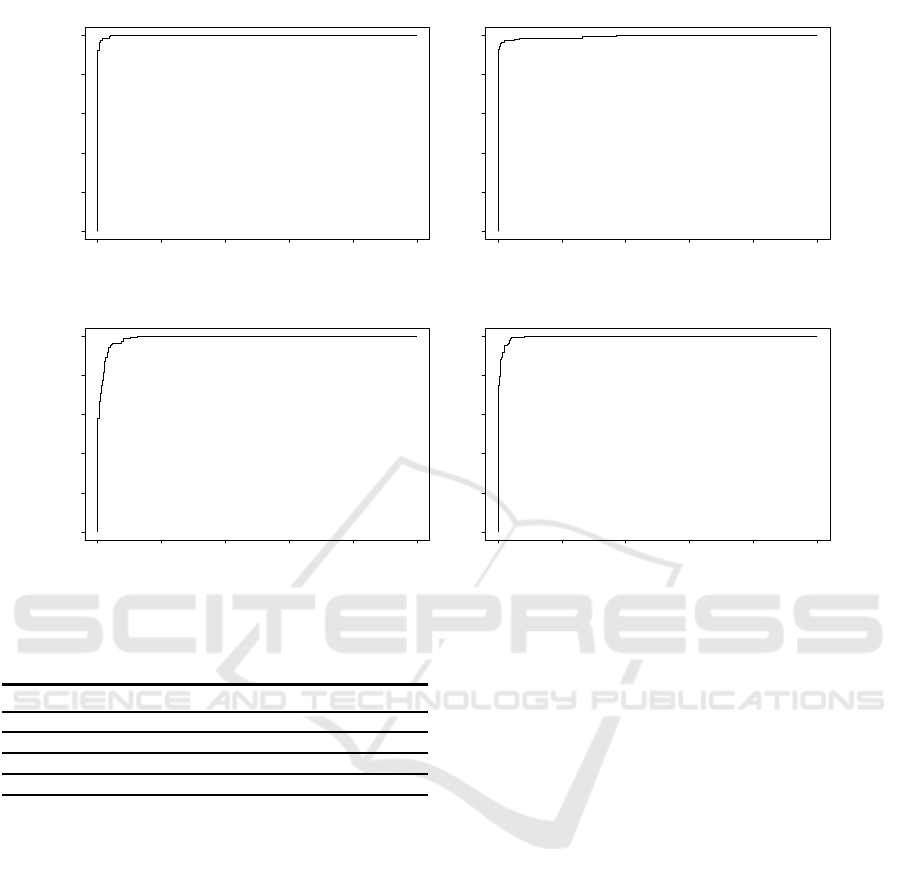

Figure 4: The ROC curves of (a) God Class, (b) Data Class, (c) Feature Envy and (d) Long Method.

Table 4: The performance results.

Code Smell Precision Recall F-measure

God Class 99.28% 98.58% 98.93%

Data Class 98.92% 98.22% 98.57%

Feature Envy 96.78% 96.09% 96.44%

Long Method 96.78% 97.83% 97.30%

the four code smells. The area under the ROC curve is

a sign of the performance of the classiﬁer. The larger

area under the ROC curve is, the better the classiﬁer’s

performance will be. In parallel with the results de-

picted in Table 4, the ROC of God Class outperforms

the ROC of the other code smells.

Generally, the values are very encouraging and in-

dicate the efﬁciency of dimensionality reduction by

means of the auto-encoder in improving the detection

performance of the classiﬁer.

4.3.3 Comparison Between our Hybrid

Approach and the Basic Classiﬁer

To evaluate the effectiveness of our approach, we

conduct a comparison between our hybrid detection

method and a detection based solely on the basic clas-

siﬁer. The latter detection is the followed strategy ap-

plied in previousworks where the original features are

directly fed into the basic classiﬁer that is the ANN in

our case. For more consistent evaluation, we use the

boxplots to compare side by side the results of both

approaches by means of the median values and even

the distribution of values between the lower and upper

quartiles.

The F-measure is the selected metric for the com-

parison as it provides a balance between the precision

and recall metrics. As depicted in Figure 5, our results

are better than those of the basic classiﬁer. It is signif-

icantly observed from the distribution of values across

the quartiles that the detection with the auto-encoder

outperforms the basic classiﬁer which is trained with-

out dimensionality reduction. Another difference re-

sides in the tuning of the ANN. When applying a con-

ventional detection, the tuning of the ANN parame-

ters becomes more complex and time-consuming be-

cause of the high number of features (that is 62 at

class level and 83 at method level). Whereas the tun-

ing of the ANN parameters in our approach is faster

and less complex with the extracted features.

A Hybrid Approach To Detect Code Smells using Deep Learning

143

Using_Original_Features

Using_Extracted_Features

0.90 0.95 1.00

Our Hybrid Approach

Basic Classifier

(a) God Class

Using_Original_Features

Using_Extracted_Features

0.7 0.8 0.9 1.0

Our Hybrid Approach

Basic Classifier

(b) Data Class

Using_Original_Features

Using_Extracted_Features

0.75 0.80 0.85 0.90 0.95 1.00

Our Hybrid Approach

Basic Classifier

Using_Original_Features

Using_Extracted_Features

0.70 0.75 0.80 0.85 0.90 0.95 1.00

Our Hybrid Approach

Basic Classifier

(d) Long Method

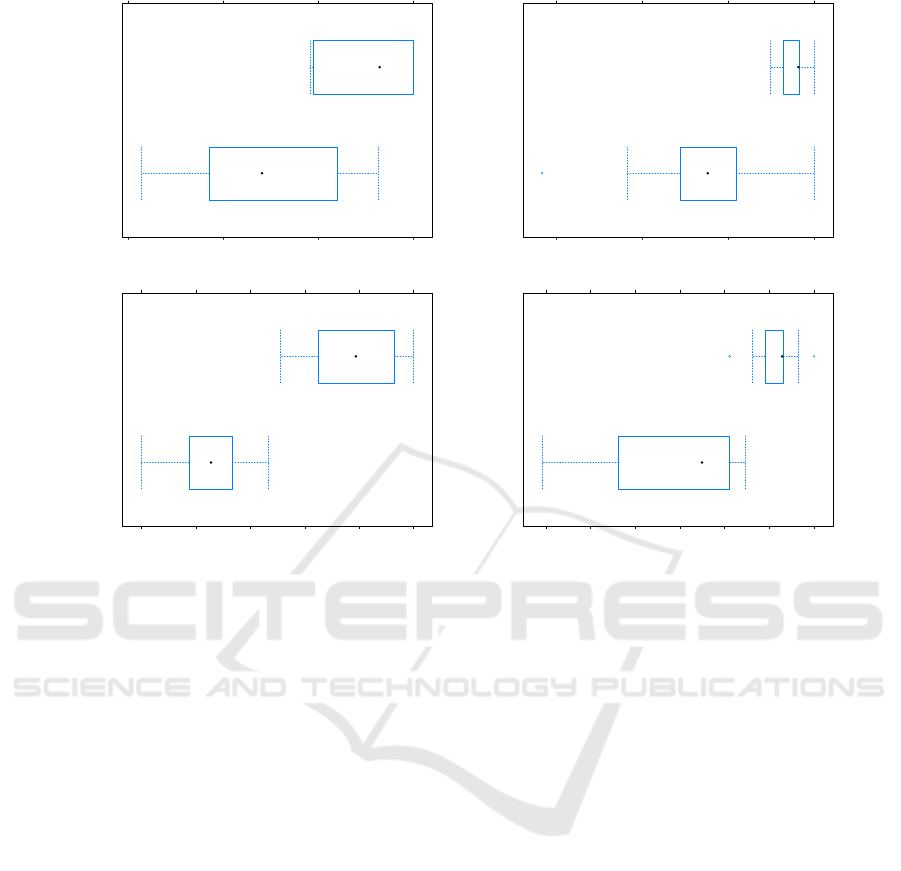

Figure 5: Comparison of F-measure between our hybrid approach and the basic classiﬁer of (a) God Class, (b) Data Class, (c)

Feature Envy and (d) Long Method.

5 THREATS TO VALIDITY

There is a number of potential threats to validity that

could inﬂuence the results of our study.

• Internal validity refers to whether there is a causal

relationship between the experiment and the ob-

tained results. In our study, this threat can be

related to the adopted datasets (Arcelli Fontana

et al., 2016). As we have mentioned above, the

datasets are partially built manually. The manual

part is not performed by experienced developers.

Potentially, this may affect, to some extent, the

experimental results. However, since there is an

automatic part in the construction of the datasets

that is performed by previous detection tools and

rules, this can alleviate the actual threat.

• Conclusion validity concerns the relationship be-

tween the treatment and the results of the experi-

ment. It relates to the analysis of the experimental

results, i.e., the implementation of the treatment

and the measurement performance. This threat

is treated by performing a comparison to another

scenario of detection that is similar to the strategy

of the prior works, where the detection is based

solely on the basic classiﬁer with the original fea-

tures.

• External validity refers to the ability to generalize

the ﬁndings obtained from the experiment. Ac-

tually, we use generated datasets from only open

source systems. Thus, we cannot generalize our

ﬁndings to industrial projects. Additional study is

required to resolve this issue.

6 CONCLUSION

In this paper, we propose a hybrid approach that ap-

plies both unsupervised and supervised algorithms to

detect four code smells. The ﬁrst phase performs a di-

mensionality reduction by using a deep auto-encoder

that extracts the most relevant features. Once the fea-

ture space is reduced with a small reconstruction er-

ror, the ANN classiﬁer learns the new generated data

and outputs the ﬁnal results. Our approach is vali-

dated on four adopted datasets that are generated from

a large number of open source systems. The experi-

mental results conﬁrm that the dimensionality reduc-

tion prior to classiﬁcation plays an important role in

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

144

improving the detection accuracy. Additionally, we

observed that the hybrid approach is able to outper-

form the basic classiﬁer algorithm because it is based

on the most relevant features that are extracted with

the deep auto-encoder.

Our future direction focuses on exploring other

types of features in order to underpin the results of

our detection approach. The features that we intend to

add, are ﬁne-grained and cover the detection of other

types of code smells. In addition, we plan to apply

other deep learning algorithms and compare between

them. For this reason, we will expand the data be-

cause deep learning outperforms better results with

richer dataset.

REFERENCES

April, A. and Abran, A. (2012). Software maintenance man-

agement: evaluation and continuous improvement,

volume 67. John Wiley & Sons.

Arcelli Fontana, F., M¨antyl¨a, M. V., Zanoni, M., and

Marino, A. (2016). Comparing and experimenting

machine learning techniques for code smell detection.

Empirical Software Engineering, 21(3):1143–1191.

Bengio, Y., Courville, A., and Vincent, P. (2013). Repre-

sentation Learning: A Review and New Perspectives.

IEEE Transactions on Pattern Analysis and Machine

Intelligence, 35(8):1798–1828.

Bengio, Y. et al. (2009). Learning deep architectures for AI.

Foundations and Trends in Machine Learning, 2(1):1–

127.

Brown, W. H., Malveau, R. C., McCormick, H. W., and

Mowbray, T. J. (1998). AntiPatterns: refactoring soft-

ware, architectures, and projects in crisis. John Wiley

& Sons.

Erlikh, L. (2000). Leveraging Legacy System Dollars for

E-Business. IT Professional, 2(3):17–23.

Ferme, V. (2013). JCodeOdor: A software quality advisor

through design ﬂaws detection. Master’s thesis, Uni-

versity of Milano-Bicocca, Milano, Italy.

Fowler, M., Beck, K., Brant, J., Opdyke, W., and Roberts,

D. (1999). Refactoring: improving the design of exist-

ing code. Pearson Education India.

Fu, S. and Shen, B. (2015). Code Bad Smell Detection

through Evolutionary Data Mining. In ACM/IEEE In-

ternational Symposium on Empirical Software Engi-

neering and Measurement, pages 1–9.

Han, J., Pei, J., and Kamber, M. (2011). Data mining: con-

cepts and techniques. Elsevier.

Hassaine, S., Khomh, F., Gueheneuc, Y. G., and Hamel, S.

(2010). IDS: An Immune-Inspired Approach for the

Detection of Software Design Smells. In Seventh In-

ternational Conference on the Quality of Information

and Communications Technology, pages 343–348.

Hinton, G. E. and Salakhutdinov, R. R. (2006). Reduc-

ing the Dimensionality of Data with Neural Networks.

Science, 313(5786):504–507.

Khomh, F., Penta, M. D., Gu´eh´eneuc, Y.-G., and Antoniol,

G. (2012). An exploratory study of the impact of an-

tipatterns on class change- and fault-proneness. Em-

pirical Software Engineering, 17(3):243–275.

Khomh, F., Vaucher, S., Guhneuc, Y. G., and Sahraoui, H.

(2009). A Bayesian Approach for the Detection of

Code and Design Smells. In Ninth International Con-

ference on Quality Software, pages 305–314.

Khomh, F., Vaucher, S., Guhneuc, Y.-G., and Sahraoui, H.

(2011). Bdtex: A gqm-based bayesian approach for

the detection of antipatterns. Journal of Systems and

Software, 84(4):559 – 572. The Ninth International

Conference on Quality Software.

Kreimer, J. (2005). Adaptive detection of design ﬂaws.

Electronic Notes in Theoretical Computer Science,

141(4):117 – 136. Proceedings of the Fifth Workshop

on Language Descriptions, Tools, and Applications.

LeCun, Y., Bengio, Y., and Hinton, G. (2015). Deep learn-

ing. Nature, 521(7553):436–444.

Maiga, A., Ali, N., Bhattacharya, N., Saban, A., Guhneuc,

Y. G., and Aimeur, E. (2012a). SMURF: A SVM-

based Incremental Anti-pattern Detection Approach.

In 19th Working Conference on Reverse Engineering,

pages 466–475.

Maiga, A., Ali, N., Bhattacharya, N., Saban, A., Guhneuc,

Y. G., Antoniol, G., and Ameur, E. (2012b). Support

vector machines for anti-pattern detection. In Pro-

ceedings of the 27th IEEE/ACM International Confer-

ence on Automated Software Engineering, pages 278–

281.

M¨antyl¨a, M. V. and Lassenius, C. (2006). Subjective eval-

uation of software evolvability using code smells: An

empirical study. Empirical Software Engineering,

11(3):395–431.

Marinescu, C., Marinescu, R., Florin Mihancea, P., Ratiu,

D., and Wettel, R. (2005). iPlasma: An Integrated

Platform for Quality Assessment of Object-Oriented

Design. In Proceedings of International Conference

on Software Maintenance, pages 77–80.

Marinescu, R. (2005). Measurement and quality in object-

oriented design. In 21st IEEE International Confer-

ence on Software Maintenance, pages 701–704.

Mens, T. and Tourwe, T. (2004). A survey of software refac-

toring. IEEE Transactions on Software Engineering,

30(2):126–139.

Moha, N., Gueheneuc, Y. G., Duchien, L., and Meur, A.

F. L. (2010a). DECOR: A Method for the Speciﬁca-

tion and Detection of Code and Design Smells. IEEE

Transactions on Software Engineering, 36(1):20–36.

Moha, N., Gu´eh´eneuc, Y.-G., Meur, A.-F. L., Duchien, L.,

and Tiberghien, A. (2010b). From a domain analysis

to the speciﬁcation and detection of code and design

smells. Formal Aspects of Computing, 22(3):345–361.

Murphy-Hill, E. and Black, A. P. (2010). An Interactive

Ambient Visualization for Code Smells. In Proceed-

ings of the 5th International Symposium on Software

Visualization, SOFTVIS ’10, pages 5–14, New York,

NY, USA. ACM.

Nongpong, K. (2012). Integrating” code smells” detection

A Hybrid Approach To Detect Code Smells using Deep Learning

145

with refactoring tool support. PhD thesis, The Uni-

versity of Wisconsin-Milwaukee.

Oliveto, R., Khomh, F., Antoniol, G., and Gueheneuc, Y. G.

(2010). Numerical Signatures of Antipatterns: An Ap-

proach Based on B-Splines. In 14th European Con-

ference on Software Maintenance and Reengineering,

pages 248–251.

Palomba, F., Bavota, G., Penta, M. D., Oliveto, R., Lucia,

A. D., and Poshyvanyk, D. (2013). Detecting bad

smells in source code using change history informa-

tion. In 28th IEEE/ACM International Conference on

Automated Software Engineering, pages 268–278.

Palomba, F., Bavota, G., Penta, M. D., Oliveto, R., Poshy-

vanyk, D., and Lucia, A. D. (2015). Mining Version

Histories for Detecting Code Smells. IEEE Transac-

tions on Software Engineering, 41(5):462–489.

R Core Team (2014). R: A Language and Environment for

Statistical Computing.

Sahin, D., Kessentini, M., Bechikh, S., and Deb, K. (2014).

Code-Smell Detection As a Bilevel Problem. ACM

Transactions on Software Engineering and Methodol-

ogy (TOSEM), 24(1):6:1–6:44.

Soh, Z., Yamashita, A., Khomh, F., and Guhneuc, Y. G.

(2016). Do Code Smells Impact the Effort of Differ-

ent Maintenance Programming Activities? In IEEE

23rd International Conference on Software Analysis,

Evolution, and Reengineering, volume 1, pages 393–

402.

Stoianov, A. and S¸ora, I. (2010). Detecting patterns and

antipatterns in software using Prolog rules. In Inter-

national Joint Conference on Computational Cyber-

netics and Technical Informatics, pages 253–258.

Tempero, E., Anslow, C., Dietrich, J., Han, T., Li, J.,

Lumpe, M., Melton, H., and Noble, J. (2010). The

Qualitas Corpus: A Curated Collection of Java Code

for Empirical Studies. In Asia Paciﬁc Software Engi-

neering Conference, pages 336–345.

Wieman, R. (2011). Anti-Pattern Scanner: An Approach to

Detect Anti-Patterns and Design Violations.

Witten, I. H., Frank, E., and Hall, M. A. (2011). Data

Mining: Practical Machine Learning Tools and Tech-

niques. Morgan Kaufmann Publishers Inc., San Fran-

cisco, CA, USA, 3rd edition.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

146
