Improving Course Content While Creating Customized Assessment

and Support at the Conceptual Level

Toby Dragon and Elisabeth Kimmich Mitchell

Department of Computer Science, Ithaca College, 953 Danby Rd, Ithaca, NY, U.S.A.

Keywords: Concept Maps, Automated Assessment, Intelligent Tutoring Systems (ITS), Expert Knowledge Bases (EKB).

Abstract: We present a system that utilizes a wide variety of available assessment information to automatically analyze

students' understanding at a conceptual level and offer relevant automated support to teachers and students.

This support includes interactive visualization of the conceptual knowledge assessment, individualized

suggestions for resources to improve areas of weakness, and suggestions for dynamic student groups for in-

class activities. This system differs from prior related work in that the basis for analysis and feedback is

entirely customized to the individual instructors' course content. We discuss how the system is configured for

each course, and provide evidence that this configuration process helps instructors improve their course

content. We then provide detailed descriptions of how the system performs analysis and offers support

including suggesting resources for students and creating dynamic groups within a class. Finally, we discuss

the potential benefits provided by this system and how the system is being applied to six different computer

science courses currently.

1 INTRODUCTION

Instructors currently face an ever-wider variety of

resources to support their courses. These options

range from traditional textbooks to fully interactive

online learning environments. Instructors can take a

traditional approach, relying on a single source for

their material, but instructors also have the option to

use several different types of resources, pulling from

traditional text, online articles, online practice

environments, video tutorials, etc. While these

materials may rapidly change for a variety of reasons,

most instructors also have an understanding of the

core concepts and organization of a course that

remains consistent across iterations of the course and

changes in materials. Our system supports instructors

that want to apply their own organization to a variety

of content in this way.

Our system offers automated analysis and support

to students and teachers in these dynamic scenarios

by allowing instructors to encode their conceptual

organization for a course and to attach the varied

types of educational materials and assessment used.

In this way, the instructor has a means to organize

their course around their choice of important

concepts, rather than letting the educational resources

impose an organization.

We demonstrate that, for instructors interested in

defining their own conceptual vision of a course, our

system actually helps improve the content and

organization of the course. We then demonstrate how

the artifacts created through this process can be used

to provide a variety of intelligent feedback, including

an open-learner-model visualization of conceptual

understanding, direct feedback for teachers and

students, and intelligent grouping suggestions. We

discuss the general manner in which the framework

can be used for such feedback, and the specific

implementation we currently employ.

The paper is organized as follows: first we present

relevant related work from a wide variety of fields

(section 2). We then present our goals in context of

that prior work (section 3), and the underlying

structure on which our system is based (section 4).

We present the manner in which the system is

configured by instructors, and our experience

configuring the system (section 5). Finally, we

present the various types of feedback the system

provides (section 6), and discuss plans for ongoing

classroom experimentation (section 7).

110

Dragon, T. and Kimmich Mitchell, E.

Improving Course Content While Creating Customized Assessment and Support at the Conceptual Level.

DOI: 10.5220/0006710101100121

In Proceedings of the 10th International Conference on Computer Supported Education (CSEDU 2018), pages 110-121

ISBN: 978-989-758-291-2

2 RELATED WORK

Our work is currently focused on the domain of

computer science education. Therefore, to understand

the greater setting, we should consider the technology

available for use in computer science education and

how it relates to our current efforts. However, we

should note the system is not inherently tied to this

domain, and that we see great promise in application

in other domains.

Current computer science education technology

systems may provide either instruction (educational

content), practice environments, or both. These

systems may also provide automated feedback to

students, tools to support teachers in the grading

process (including automation) or both. Finally, there

are several full-fledged Intelligent Tutoring Systems

(ITS) for computer science education that perform

automated analysis and use it to offer individualized

feedback and educational information. We consider

our system to offer something different from these

other tools in respect to customization, and we see

great potential for integration with these systems that

could benefit users of both systems.

Online textbooks are available and used for a

significant portion of current computer science

courses, and for good reason. They are more easily

edited, customized, and updated than traditional

textbooks. They can also offer interactive practice

interleaved with content, and are often less expensive.

However, a concern for instructors is that these

systems provide an inconsistent set of tools to

understand student's performance on interactive

practice problems. These tools can range from almost

no support to complex data analysis tools. For

example, Vital Source

, a popular e-textbook source,

provides text with practice problems, but offers the

teachers no information about student performance.

Runestone Interactive

, a free, open source textbook

project, offers certain statistics about student

performance including pages viewed, and success on

multiple-choice-type questions, but for more complex

information one must consider individual answers or

access the database and process the raw information

oneself. The rapidly growing online textbook system

Zybooks

offers higher-level analytical information

including automated grading of programming

assignments based on test cases. This wide variety of

accessible information makes it hard to a teacher to

switch tools, or aggregate different tools.

Considering systems that are not online textbooks,

many online homework systems for computer science

offer more robust and automated tools for instructors

to grade assignments, but do not deliver content

directly, rather offering only practice. These systems

are generally used in tandem with online or standard

textbooks. Examples of these systems include

Problets

, MyLab Programming

, Codio

, and

Vocareum

. These systems all provide some level of

automation and tools to help instructors assess

students.

The information all of these systems provide to

instructors and students is rooted in specific

individual assignments or questions. There is great

power in this information. However, in all of these

systems, the information is focused on student

performance on specific assignments, rather than any

type of summary of what concepts the students

understand. Our system uses that type of assignment-

specific information as a basis for assessment at a

higher level of abstraction, namely the conceptual

level.

Focusing on research in the ITS field, there are

many systems that teach various aspects of computer

science (Barnes et al., 2017) . Many ITS for computer

science education organize analysis at a higher level

of abstraction in order to base feedback on a

conceptual level, rather than remaining assignment–

specific. Butz et al. present a system employing

Bayesian networks to estimate higher-level

assessment (Butz et al., 2006). Sosnovsky and

Brusilovsky present a system that organizes both

content and assessment by topic, and present

compelling evidence of the system's success with

extensive usage (Sosnovsky and Brusilovsky, 2015).

These systems demonstrate the potential for a system

to offer high-level assessment and feedback, but they

are tied to a certain knowledge base and a certain set

of resources. Even when automating the process of

creation (Lin et al., 2011), the product is a single set

of content organized by the ITS developers. Many

instructors desire this type of "out-of-the-box"

functionality. However, our system is aimed at

instructors that want automated support but also want

to exert a high level of control of the content and

organization of their course.

Our system provides the ability to assess students

at the conceptual level using each specific instructor's

understanding of their course, their materials, and

their assessment metrics. Those metrics could include

any of the assignment-specific assessment offered by

the aforementioned computer science education

technology, as we discuss further in section 4.3. We

offer a solution that includes the benefits of ITS

techniques combined with the variety of content and

assessment available through the plethora of online

tools and offline resources, and catered to the

Improving Course Content While Creating Customized Assessment and Support at the Conceptual Level

111

individual instructors' needs and understanding of the

course.

Our approach to offering this customization is

based on concept mapping. Concept mapping has

been shown to be a useful tool for science education,

helping students organize their knowledge and to

demonstrate their understanding of interconnections

between concepts (Novak, 1990). Likewise,

instructors who are planning courses or curricula can

use the same technique to explicate the concepts and

the interconnections to be taught. This application of

concept mapping during curriculum development has

demonstrated benefits in biology and medicine,

including improved cohesion and clarification of

concepts and their interconnections (Starr and

Krajcik, 1990; Edmondson, 1995).

A potential concern we consider about this prior

work is that these concept maps were not connected

to the actual assignments given in class, were not used

in the practice of the class, and therefore were most

likely left behind at some point. Closer to our own

technique, Kumar demonstrated the use of concept

maps as a basis for intelligent tutoring (Kumar, 2006).

We apply this technique to in a way that uses the

instructor's concept map in the classroom process,

and ties it directly to the specific course content.

3 GOALS

Our approach leverages the ideas and technology

from the fields of computer science education, ITS,

and concept mapping to accomplish one major

overarching goal: to support students and instructors

in situations where instructors want fine-tuned

control over their course content and organization.

We provide a holistic system that helps instructors

improve their organization and content while

simultaneously creating a data structure used by the

same system to provide intelligent, automated

assessment and feedback. This goal can be broken

down into component parts: 1) creating a generic

underlying structure that can be customized for

individual courses and used by an ITS to offer

automated support to instructors and students (section

4); 2) creating a customization process that helps

instructors improve their course organization and

content (section 5); and 3) using that customized

structure to provide automated assessment and

feedback (section 6).

Considering these goals, our approach will only

be successful if: 1) the effort expended customizing

the system for a given class actually helps the

instructor improve their course; 2) if this

customization process can be accomplished in a

reasonable amount of time, such that it is feasible for

instructors; and 3) if the system using the structure

can provide useful assessment and feedback.

4 THE SYSTEM FOUNDATION

All analysis performed by our system is based upon a

data structure we term the concept graph. For an

instructor to use our system with their course, they

must define a concept graph and connect the

resources they intend to use. This process explicates

what concepts need to be taught and the manner in

which the resources used for the course are related to

those concepts. We have seen indication that the

instructor's role in creating these graphs has direct

benefits for the instructor's course (see section 5).

4.1 The Concept Graph

The concept graph is a Directed Acyclic Graph

(DAG) explicating the specific concepts to be taught

in the course and their inter-relations, see Fig. 1. We

draw these graphs with high-level concept nodes

appearing at the top of the graph, and low-level nodes

appearing underneath. Low-level nodes have edges

that point to higher-level nodes. Each edge represents

roughly the relationship "is-a-part-of." Node B

pointing to node A would indicate that the knowledge

of topic B is part of the necessary knowledge for topic

A. In ITS terms, this model serves as the domain

model, an Expert Knowledge Base (EKB) (Woolf,

2010). It also serves as the basis for a student model.

Namely, our student model is an overlay model,

because we hold an estimate of the student's

knowledge for each node (concept) in the EKB.

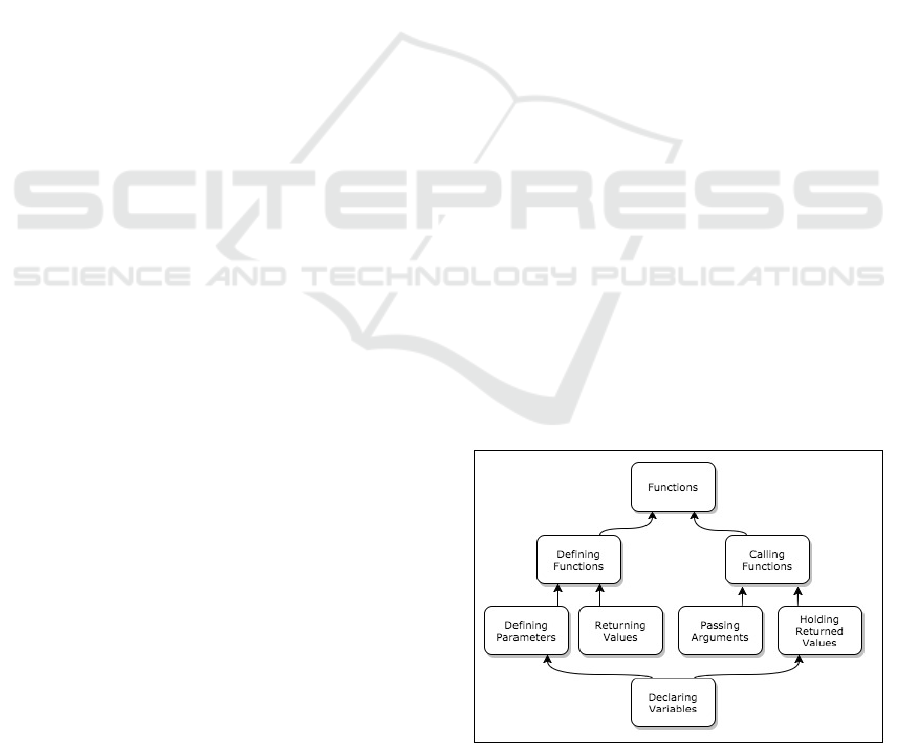

Figure 1: An example concept graph explicating the

concepts related to functions that are taught in an

introductory computer science course.

CSEDU 2018 - 10th International Conference on Computer Supported Education

112

This concept graph structure serves as the core

representation that the system uses to provide

automated analysis and support to students. The

structure is encoded in JSON text format as a list of

nodes and links, making it easily customizable and

configurable.

4.2 Connecting Resources

Beyond the basic concept graph that encodes the

important concepts and their interconnection, the

system also requires a record of the resources used in

the course and how these resources relate to the

concepts in the graph. We use the term resource to

refer to any artifact that imparts information to a

student about the content (subject matter) of the

course. We consider two main categories of

resources: assessments and materials. Assessments

are any resources about which a student receives a

grade. An easy location to gather this information is

the gradebook the instructor keeps for the course.

Materials are any resource that simply provide

information to the student, such as textbook chapters,

websites, practice environments that do not provide

information to the instructor, etc. This distinction

between assessments and materials is important

because the system uses assessments to calculate the

knowledge estimate for each concept (see section 6.1)

and then uses both materials and assessments when

making suggestions (see section 6.2).

Our system currently keeps little information

about these resources, each being identified by only a

display string and an ID. The system does not

currently maintain any information about the actual

content.

Resources are connected to the concept graph

manually by the instructor (this process is one step of

the authoring process that creates complete graphs,

described in section 5). The list of resources is

generally large for an entire course and complex

(each resource is potentially linked to several

concepts).

4.3 Connecting Assessment Data

The system now needs data for individual students.

These data are entered into the system through CSV

file format, which can be directly exported from many

systems that hold assessment information. Any

common spreadsheet program used for grades (e.g.,

Microsoft Excel, Google Sheets) can output in this

format and be accepted by our system, as well as

many educational software programs. For example,

our college uses the Sakai educational software

platform. Any grades entered in Sakai for a course

can be automatically output to a file and directly input

into our system. Zybooks and Codio output similar

CSV data formats, and can be accepted by our system.

Multiple CSV files are accepted, allowing several

different sources of assessment for the same course.

The connection between the output from these

different tools and the resources recognized by the

system is the ID of the resource. The ID for the

resource must match a column header in the CSV file

for the data to be recognized. For this reason, our

system processes CSV files and produces a JSON file

that represents the assessments from the CSV files.

This JSON file is then edited to add titles, concept

connections and relative weights of the specific

assignments, defining the resource connections to the

system. In this way, we directly connect student data

from any external assessment to our concept graph.

5 IMPROVING COURSE

CONTENT THROUGH

AUTHORING

The prior section describes the process by which the

system is customized for a given course, namely

creating a concept graph, connecting resources, and

finally inputting grade files. This work can be

considered an authoring task for an ITS (Murray,

2003), and therefore we need to consider carefully the

time, effort, and payoff involved to understand the

likelihood of instructors successfully adopting the

system. We now offer some detail of the process we

employ to complete these necessary steps, and

describe our experience using the system with real

instructors.

5.1 The Authoring Process

The first step in creating a concept graph is to define

a set of concepts that students should learn in the

given course. There are many sources from which to

derive this set, including the course syllabus, student

learning objectives associated with the course, the

course schedule, and the table of contents of an

associated text. Creating a single set from all these

varied sources may seem daunting due to the sheer

size and varied levels of abstraction, therefore we

must understand that this is merely a brain-storming

step, and in our view there is no single right or wrong

collection. We have also found that, when given

examples, instructors are intuitively aware of such a

Improving Course Content While Creating Customized Assessment and Support at the Conceptual Level

113

set of concepts for classes they have already taught

(see section 5.2).

Moving beyond the set of concepts, the next step

is to draw a graph structure representing the

connections between these concepts. This will likely

cause revision of the concept list: addition,

subtraction, merging for simplification, dividing for

clarification, etc.

This mapping moves the author beyond isolated

concepts (such as those addressed by concept

inventories (Almstrum et al., 2006) ), and also beyond

organizations like course schedules (ordered list) and

tables of contents (tree), which are all inherently

limited. In a list, concepts can only be associated as

before or after another concept, and in a tree, each

concept can only have one parent concept (i.e., the

concept can only appear in one entry of the table of

contents). You can note the redundant and sometimes

awkward representation in the table of contents of

texts where multiple chapters contain the same

concept revisited. By allowing a many-to-many

mapping when considering topics, we loosen the

constraints to allow important distinctions, such as

clarifying that a single concept learned early on in the

course will be used and reinforced when learning

higher-level concepts covered later in the course.

While we consider this freedom crucial to accurately

representing certain scenarios, it should be noted that

a tree or list organization is perfectly acceptable as a

DAG, and therefore can be used when an instructor

considers it the ideal representation.

This process of mapping the interrelations of

concepts can aid instructors in improving the overall

organization of their course content (see section 5.3).

Instructors find relations that were not made clear to

students, identify redundant presentation of concepts,

and recognize better ordering in which to present

concepts.

Once a first draft version of the concept graph has

been drawn, the next task is to associate the resources

used in the course with this concept graph. For this

part of the process, the instructor needs to identify

each resource (assessments and materials) with a

unique name. Clearly, an instructor must be aware of

all the resources used when administering the course.

The challenge of this portion is to connect those

resources to individual concepts in the concept graph.

The list of resources is generally large and each

resource is potentially linked to several concepts, so

we engage in the resource relation process by

considering each individual resource and identifying

the connection to concepts, rather than attempting to

draw a diagram of the relations.

The process of identifying relations between

resources and concepts is productive because it

informs the instructor as to how the actual assessment

and materials provided are related to their intention of

teaching specific concepts. Through this process,

instructors can recognize areas for improvement in

their course content, such as limited or no

assessments on key concepts, or too little material

directly related to a concept (see section 5.3). They

might also recognize that assessments should be

divided in order to help their students and themselves

pinpoint areas of misconception.

The concept graph itself can become large and

complex, and in practice we have found it generally

too complicated to visualize resources as separate

items in the same diagram as the concept graph (as

mentioned previously).

5.2 Authoring in Action

To test the practicality and potential benefit of this

authoring process, we engaged seven different

instructors (including one author of this paper) to

create seven concept graphs for six different courses

in our departmental curriculum. In most of the cases,

individual instructors created the graph for their

course. Alternatively, for certain courses with

multiple sections, pairs of instructors who co-teach

created the graphs together. Each graph creation

started with a 30-45 minute introduction and

discussion with our team to communicate the task and

the purpose as described in section 5.1. Instructors

then created graphs on their own time by drawing on

white boards and taking pictures (tracking their time

investment). They delivered their initial attempts to

our team, who analyzed the results and conducted

another 30-45 minutes of clarification and discussion

with the participants for each graph.

A graph was created for each course, although

some graphs represented only a sub-section of a

course and others did not have resources associated

with them. We do not consider these partial creations

an incomplete attempt, but rather a step in an iterative

process from which we can learn (for further

discussion see section 5.3). Table 1 summarizes the

courses and the respective effort to create a concept

graph for each.

Overall, the average creation time for a complete

graph (rows 1, 4, and 6) is 3.7 hours and average

authoring time spent over all graphs including partial

solutions is 2.4 hours. We recognize the weakness of

small sample size, and the specific bias that an author

created several of the most complete graphs. Even

with this considered, we see indication that

CSEDU 2018 - 10th International Conference on Computer Supported Education

114

productive graphs can be created on the order of

hours, which we consider to be a time expense that

most instructors could afford as long as there is

recognizable benefit to their class.

Table 1: Individual courses and their respective authoring

efforts. Different instructors created two different graphs

for different implementations of Comp. Sci. I. * indicates

one instructor that worked on multiple graphs and is an

author of this paper.

Course

Title

instructors

Hours

authoring

concepts

Complete

course?

Resources

connected?

Comp. Sci. I

Yes

Comp. Sci. I

Yes

Comp. Sci. II

Yes

Data Structures

Yes

Discrete Structures

Yes

Website Dev.

Yes

Comp. Info. Tech.

Yes

We see that increased time also indicates increased

complexity in the graph structure, and that connecting

resources seems to also be correlated with more

complex graphs. Fig. 2 and Fig. 3 shows two different

concepts graphs, one simpler example created in a

short period of time without connecting resources,

and another created by the author demonstrating more

complexity. We consider both of these efforts to have

been successful in their own right, as both instructors

found significant value in the process.

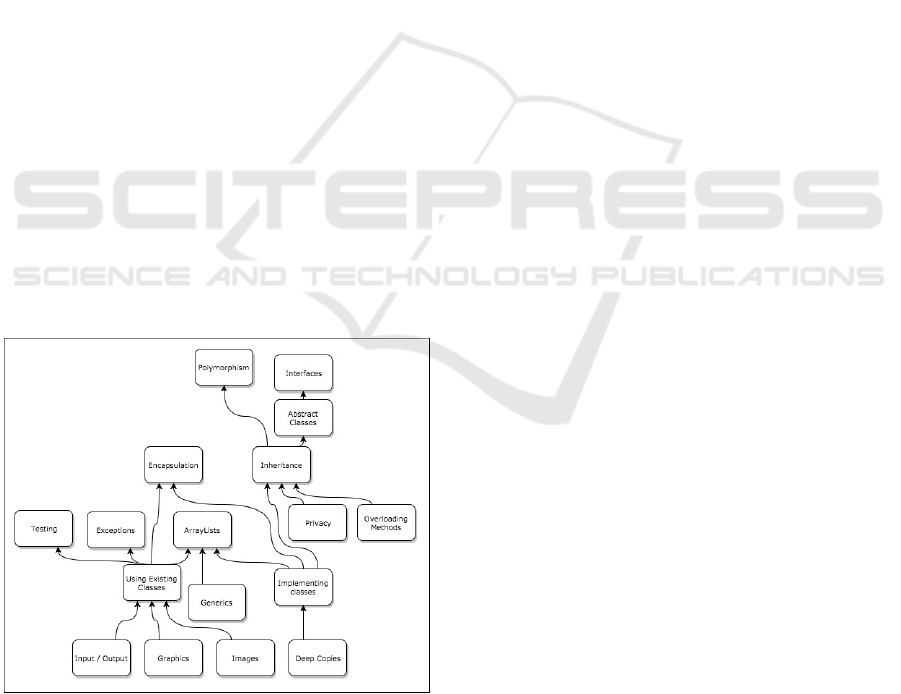

Figure 2: The concept graph created for Comp Sci. II

demonstrates the results of a shorter effort without

connecting resources. The course is focused on Object

Oriented Programming.

5.3 Benefits and Challenges of

Authoring

There was general consensus that the authoring

process urged instructors to improve both

organization and content within their courses. The

process required instructors to carefully consider the

order in which concepts are introduced and clarified.

For example, two instructors noticed overarching

concepts that were not being addressed as such. The

issue was mitigated by reordering the topics to group

around the actual concept in one case, and, in another

case where this wasn't possible, by introducing the

general concept more clearly in the beginning and

noting the various applications as they occur.

In terms of content, the most common realization

was that assessments were broad; covering many

different concepts e.g., "Lab 8 covers these six

concepts." When a student scores poorly on such an

assessment, neither the instructor nor the student

receive clear information about which specific

concepts are the root of the issue. Several professors

are currently re-working their assessments to include

smaller, more targeted assessment. Other realizations

included excessive assessment of one topic, missing

direct assessment of others, and assessments on topics

where very few materials are available for individual

study (an indication more materials might be helpful).

The overall process was reportedly helpful for both

revisiting familiar material and developing a new

course. Most instructors were applying this technique

to a course that they had already taught. These

instructors reported that the process helped them

formalize and clarify a structure for information with

which they were already somewhat familiar. One pair

of instructors was applying the process to a new

course and reported that the process helped them

realize that the course might be covering too much

information and therefore provide too little practice

when considering assessments and materials for each

of the given concepts.

The main concern expressed by instructors about

the process was managing the complexity of the task

at hand. While the process is not overly time

consuming (as shown in Table 1), the scope and

ambiguity can be challenging. To complete a detailed

concept graph for an entire course in addition to

connecting relevant resources offers a daunting

challenge. There are several approaches to mitigate

this concern. The first is built into our process; the

idea of splitting this task into two distinct portions,

creating the concept graph and then linking the

resources. These steps can operate fairly

independently. As we described in section 4,

Improving Course Content While Creating Customized Assessment and Support at the Conceptual Level

115

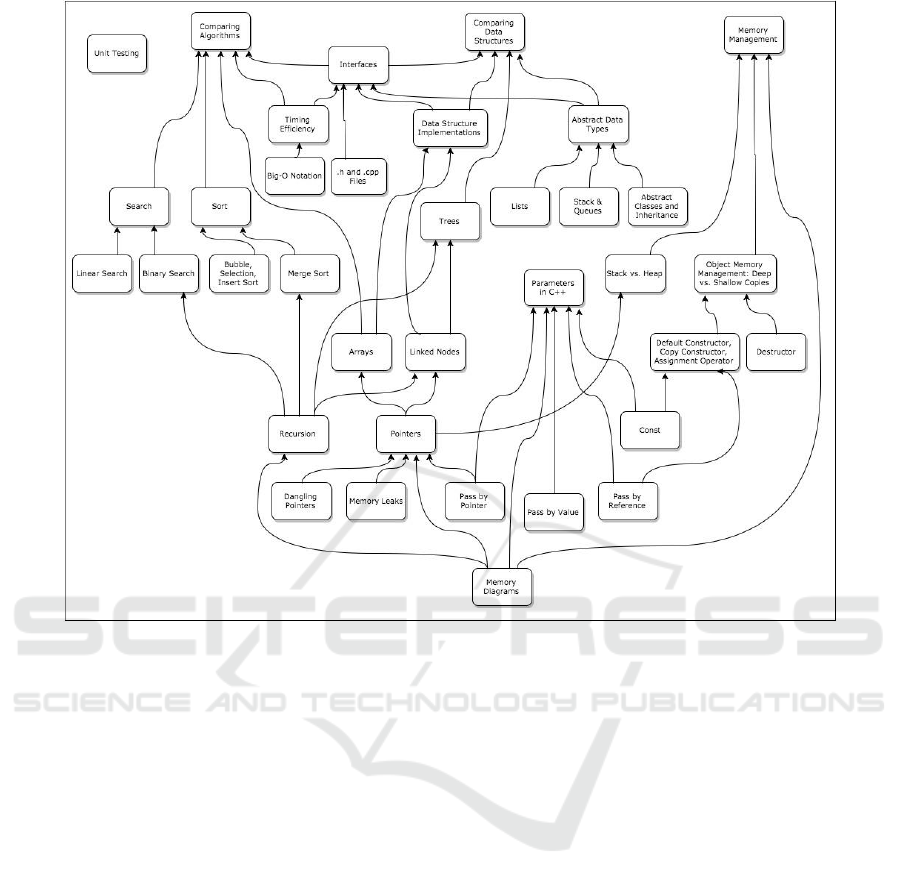

Figure 3: The concept graph created for Data Structures demonstrates a more complex graph resulting from a longer effort

that included the process of connecting related resource. The course covers memory management and data structures in C++.

performing the linking process for each resource in

isolation simplifies and clarifies the task, rather than

mapping each resource as a node in the graph, which

can become overwhelming

In practice, some instructors used the

graph/resource split to limit their upfront effort. As

seen in the table, some instructors did not link their

resources during this exercise. Rather, they intend to

link resources as they use them in class during the

semester. This is a particularly practical approach for

those that are either starting a new course or

drastically altering the resources provided.

A different approach to limiting the scope of the

initial work was to build the graph and link the

resources for only a subsection of the course. In this

way, the instructor has a full description of conceptual

basis and the link to the resources for part of the

course.

Both of these approaches yield an incomplete

concept graph artifact. We still consider the effort to

be meaningful in two distinct ways. First, given the

amount of time invested, we consider it to be

reasonable that full graphs can be completed by

instructors during any given semester. Second, even

in situations where the graph creation was limited to

a portion of the course, the product is still useful. The

instructor still noted the benefits of improved course

organization and content, and as long as relevant

resources were connected the to graph, the

incomplete work can still be used by the ITS.

Another recurring concern during the graph

creation process was ambiguity. Participants found it

challenging to create a "correct" graph. This was due

to the general debate about the manner in which a

course should be taught, as well as specific concerns.

In terms of the general debate, our suggestion is

to enjoy the discussion and remember that the graph

is a living artifact. The main utility of this entire

concept mapping process is to generate formalized

thought on the best content and organization of the

course. This type of discussion will clearly lead to

debate and discussion. We observed this debate

particularly with pairs of instructors working together

to make a graph, which we consider positive. There

should be discussion when teaching a course together,

and participants noted that the discussion was more

clear and structured due to the graph. In the end of the

discussion, a decision must be made, and this is the

CSEDU 2018 - 10th International Conference on Computer Supported Education

116

time to remember that the graph is a living artifact.

Changes can and will happen in the classroom and

those changes can easily be reflected in later

iterations of the graph.

One specific concern worthy of note was raised in

regard to the level of abstraction (e.g., "How detailed

should the graph be?"). We established a rule of

thumb that if you have, or should have, distinct

assessment that relates to a proposed concept, that

concept should be its own node in the graph. If the

proposed concept is simple enough or too entwined

with other concepts to be assessed individually, then

it is not abstract enough to include as a node in the

graph. This is pragmatic, but is also directly tied to

the ITS which uses these graphs to offer support.

6 SUPPORT OFFERED

Now that there is an understanding of the underlying

data structure (the concept graph), and we see that the

creation process can be productive, we can discuss the

manner in which this structure is used to provide

automated support for students and teachers. The

system provides a direct view of the conceptual-level

assessment for students and teachers to better

understand their situation; suggested resources to

offer action items for students to improve; and

dynamic group suggestion to identify groups of

students that are potentially helpful to each other..

6.1 Knowledge Estimation

The system provides estimates of a student's

knowledge of each concept in the concept graph. To

perform this analysis, the system must have a concept

graph definition and connected assessments (as

described in section 4).

Thus far, student data are connected to the

resources in the graph, those resources are connected

to concepts, and those concepts are inter-connected in

a DAG. Our algorithm for making knowledge

estimates is a recursive bottom-up traversal of the

graph. Each node's estimate is a weighted average of

all the resources connected directly to that node,

along with recursive estimates of all other concepts

below that node. We should note that the weighted

average estimate can be easily replaced with more

sophisticated techniques as the system matures, but in

our first efforts we strive for simplicity to understand

precisely where added complexity will yield the most

benefit. These concept knowledge estimates can also

be aggregated for any group of students. Currently,

we only offer the end user the ability to look at a

single student or an average of the entire course.

Weights of specific assessments are set by the

instructor. A simple default scheme is to use the

proportion of that assessment as a part of the course

grade. Weights of any given node are currently

calculated as a sum of the weights of all assessments

and nodes connected to that node. This weighting

system is naïve in several ways (e.g., direct

assessment of a concept is weighted equally to

indirect assessment), but we chose to keep the

simplest algorithm possible to test functionality in

practical scenarios before deciding the manner in

which add complexity to the calculation.

The bottom-up algorithm gives no estimate for a

concept that has no data below it in the graph because

there is no direct evidence that a person has any

knowledge of this concept. However, we can also

perform top-down calculations, which we term

knowledge predictions. Predictions estimate your

ability to understand a lower level concept based on

your understanding of higher level concepts. As these

predictions are not based on direct evidence and have

not been vetted by experimentation yet, they are not

currently included in the visualization.

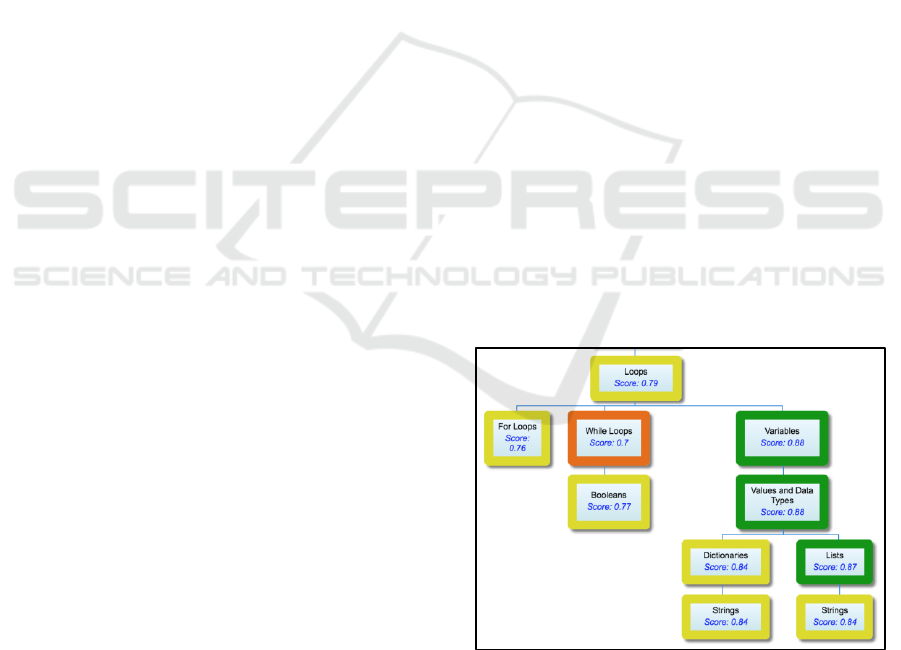

To visualize the concept graph and the knowledge

estimates for each concept, we present an html page

using google charts

, see Fig. 4. Each node displays

the knowledge estimate as a number between zero

and one, and is color coded to indicate areas of

concern. The color coding is adjustable by the

instructor's choice, but generally is based on set

values related to the course (e.g., A, B, C/D, F).

Figure 4: An example portion of the visualization of a

students' knowledge estimates as displayed by our system

for the introductory computer science course.

Clicking on a concept will display the resources

related to that concept, and if the resource is an

assessment, the score received on the assessment.

Improving Course Content While Creating Customized Assessment and Support at the Conceptual Level

117

Concept nodes in this display can be collapsed to hide

the lower-level nodes. It should be noted that the

google charts tool can only display tree structures and

so our graph is converted to a tree by making

duplicate nodes with the same titles and information.

This is not ideal, and a direct visualization of the

graph is an area of active research.

This visualization provides a quick artifact that

students or teachers can review in order to see

strengths and weaknesses at a conceptual level rather

than an assignment level. The ability to open and

close nodes and see associated resources also allows

students to explore the reason behind the knowledge

estimates. This type of display can be considered an

Open Learner Model (OLM), as it displays the

automated analysis to the student in order to allow

them to consider and reflect on their current state of

knowledge. OLMs have been demonstrated to have

positive effects on learning, even without offering

further feedback (Bull et al., 2010), and have shown

promise in closing the achievement gap (Mitrovic and

Martin, 2002). This specific visualization of color-

coded items has been demonstrated to allow users to

gain useful information in a brief interaction

(Mavrikis at al., 2016). Visualizing the average of all

students in a single graph is useful to instructors to

understand full class dynamics (e.g., that concept was

not covered well), and potentially also useful to

students for comparing themselves to an average of

their peers.

6.2 Resource Suggestion

In addition to visualizing the aggregate assessment,

the system uses these estimates to suggest resources

that should be useful to a student. We encode certain

pedagogical principles in order to automatically

suggest on which concepts students should focus, and

which resources are best to study the selected

concepts. In this way, the following suggestion

algorithm represents a pedagogical model (Woolf,

2010) because it controls the manner in which the ITS

uses the assessment to offer pedagogically-

meaningful recommendations.

Fig. 5 represents the algorithm used to make

suggestions based on the concept graph. We now

explain each step in the process, and the pedagogical

rationale for each. Italics indicates steps that are

directly represented in the diagram.

Starting from the concept graph, the first step is to

identify a set of concepts on which the student should

focus. A common pedagogical theory based in

Vitgostky's theory of Zone of Proximal Development

(Chaiklin, 2003) is that we must choose topics that are

not already known, but also not too far beyond

student's current knowledge. To identify these

concepts, we choose the concepts in range from

yellow to orange, leaving out known concepts

(green), and potentially unreachable concepts (red).

The next step does an ancestry check in the graph to

ensure that if many related concepts might be

suggested, only the lowest level concepts are

included. This decision is based on the theory that we

should work on simpler concepts before the concepts

that build on them. From these steps of choosing

concepts, we have a specific set for which we now

need to find appropriate related resources to suggest.

The system also has a mode that allows users to

directly specify the concepts to study rather than

employing the algorithm for this step.

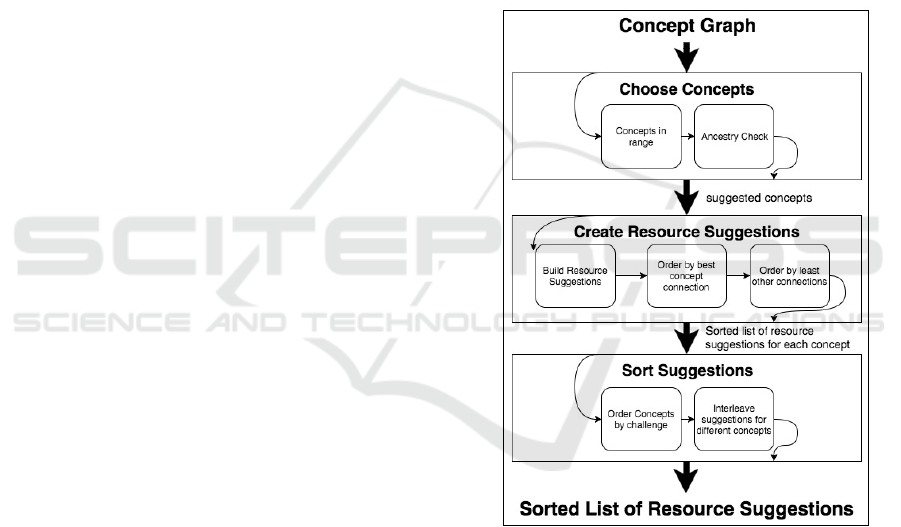

Figure 5: The algorithm for producing suggested resources

based on the concept graph structure and knowledge

estimates.

For each concept that has been identified as in

need, the system now identifies related resources. The

system builds resource suggestions for each concept

to link the suggested resource with the given concept.

This ensures the student receives information not only

about which resource they should study, but also why

they should study it (the important associated concept

that is a weakness for them specifically). For each

concept, all related resources are then sorted by

multiple criteria. The most important criteria is to find

CSEDU 2018 - 10th International Conference on Computer Supported Education

118

the resources most directly related to the concept at

hand. These could be resources directly connected

within the concept graph (strongest connections), or

they could be found by recursively exploring the

concept graph for indirect connections. We judge

indirect connections by counting the number of paths

from an indirect resource to the relevant concept.

Each path found represents one set of sub-concepts

that connect the resource to the concept. Many of

these paths indicate that a resource contains many

relevant sub-concepts of the desired concept. Using

this count of paths, resources are then ordered by best

concept connection, being direct and then strongest

indirect connections. In practice with sample data

from our work with real concept graphs (see section

4.2), we observed that many resources are equal by

this standard, and so to further sort the list, we find

resources with least other connections. This indicates

that a resource directly addresses the concept at hand,

and is not muddied by other concepts. This entire

process creates a sorted list of resource suggestions

related to each concept.

Considering this list of resource suggestions for

each concept, the system now chooses the ordering of

resources to be presented to the user. First, the system

chooses an ordering of concepts by challenge. The

system identifies knowledge estimates that are closest

to the center of the range of concepts to study. This

approach attempts to balance the need for concepts

that are the most likely to be necessary to study with

the need for concepts most likely for a student to be

ready to study. Finally, the system interleaves

suggestions for different concepts in the order of

concept priority, offering the best suggestion about

the top concept, followed by the best suggestion for

the second concept, etc. This decision is driven by the

theory that variety in educational materials is

beneficial, and also by pragmatism, in that the best

suggestions will appear first, rather than some sub-par

suggestions for the most important concept appearing

before the best suggestion for another important

topic.

Overall, this algorithm considers the

individualized knowledge estimates and utilizes the

concept graph structure to automatically create

intelligent suggestions for reflection and study. These

suggestions not only provide the user with the

resources, but also with the related concept that

should be the focus of their use of each suggested

resource. These suggestions are intuitively useful to

students, but instructors can use them as well. This

same algorithm can be applied to a graph containing

estimates for an entire class, and suggestions would

be relevant to the average student in the class,

representing good potential classroom exercises.

We note that the pedagogy encoded is debatable

and changeable. Further research in educational

theory could warrant changes, and use with real

classrooms will define our understanding of the

success/failure of this specific pedagogy. However,

the system source code is developed in a modular

fashion with clean software interfaces that allow for

alteration or multiple interchangeable pedagogical

models for experimentation.

6.3 Dynamic Group Suggestion

Similar to resource suggestions, we have defined an

algorithm for dynamic group selection based on the

concept graph and certain pedagogical principles

(Dragon et al., 2016). Automated group selection is a

challenging problem (Dillenbourg, 2002) that is

addressed by a large body of research, including the

fields of Computer Supported Collaborative Learning

(CSCL) and Computer Supported Cooperative Work

(CSCW). We are not seeking to replicate the large

body of work based on grouping students by traits or

roles. Rather, we seek to understand the effect of

basing groups on concept knowledge, similar to

techniques pioneered earlier (Greer et al., 1998;

Hoppe, 1995), but less explored in recent literature.

To more clearly define the task, the system is

designed to support groupings for short-term

interactions during a class period. Students will be

grouped differently each class period of group work.

Different principles would be important for other,

more long-term types of group work.

The system employs a generic grouping

mechanism by which different grouping methods can

be applied in any order. Fig. 6 offers a visualization

of the technique. Using this technique, any type of

grouping method can be applied in any order to allow

for experimentation.

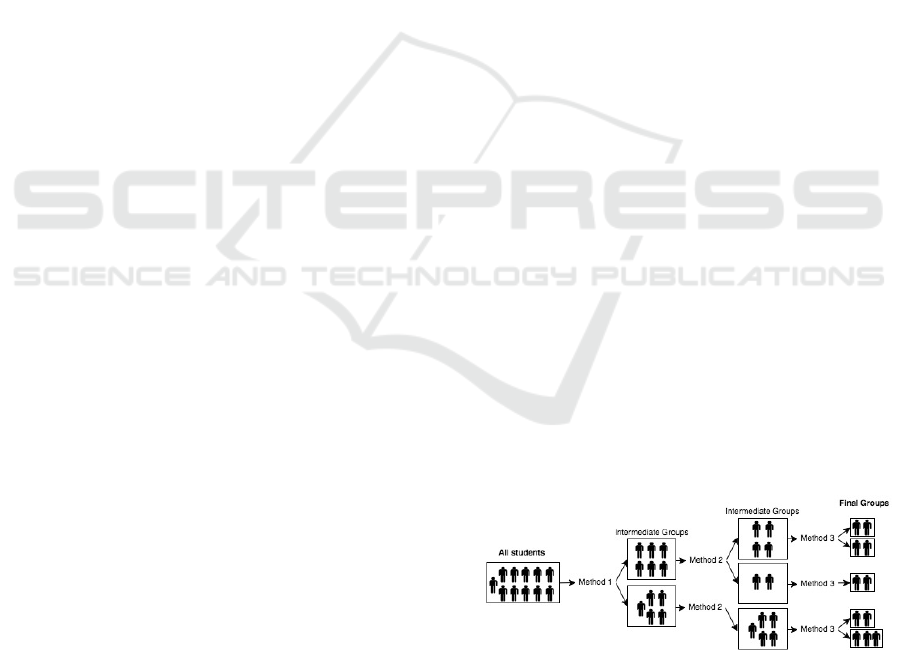

Figure 6: The result of applying 3 different grouping

methods in our generic grouping system. Each consecutive

method will produce more groups with less students in each

group.

Considering specific grouping methods, the

system has can use the individual concept graphs for

Improving Course Content While Creating Customized Assessment and Support at the Conceptual Level

119

each student to make choices. Fig. 7 shows the

specific grouping methods currently implemented by

our system, and their ordering.

The algorithm takes the set of knowledge graphs,

and computes an overall knowledge estimate for each

one by finding the sum of all knowledge estimates in

the given graph. The system then uses this score to

divide the set of students into buckets. The number of

buckets is relative to the size of the class. For our

current class sizes of 20-30 students, we are using

three buckets, representing advanced, average, and

struggling students respectively. The theory behind

this step is to group students with similar abilities.

Our experience tells us that small groups with large

gaps in ability tend to devolve into advanced students

completing the work while struggling students

disengage.

Within these large subsets of students with similar

abilities, the system identifies common concepts that

are in need of improvement. The system builds a list

of the students most in need of work on each concept.

If a student is in need of multiple concepts, they are

grouped with the concept closest to the center of the

range of need, for the same reasons described in

section 4.2.

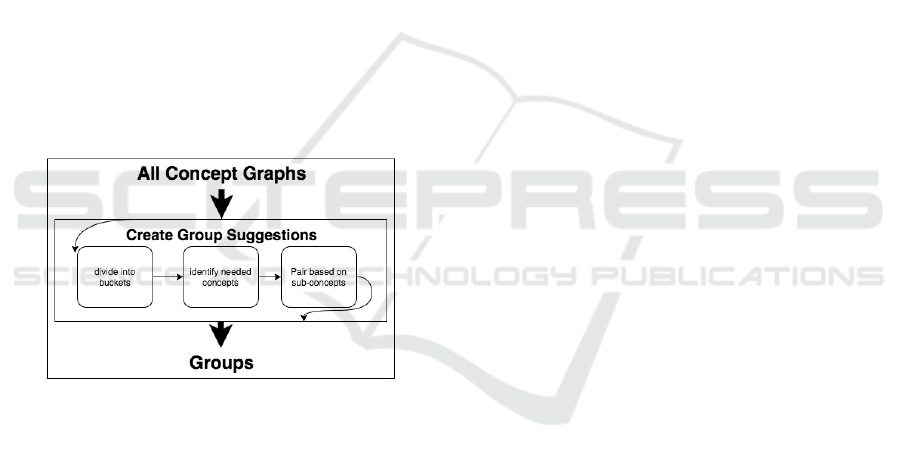

Figure 7: The algorithm for producing suggested groups

based on the concept graph structure knowledge estimates

of each student.

Finally, within these sub-sets of students with

similar abilities that need work on the same concepts,

we make the actual group suggestions (of 2-4

students). The system makes the final determination

of the best groups by examining the concept graphs

of the involved students. The system searches for sets

of students that have differences in knowledge

estimates of sub-concepts directly related to the

chosen concept. This identifies sets of students that

have a similar level of understanding of the concept

to study, but have differing levels of understanding of

the sub-concepts. Theoretically, this will bring

together sets of students that have complimentary

parts of the overall necessary knowledge for the

concept at hand.

Once the group and concept has been identified,

the system uses the suggestion algorithm from section

6.2 to also identify a list of potential resources with

which the group could be tasked.

By the third level of selection, the system is

looking for something very specific, which will likely

not be found for every group. However, the system

then defaults to simply grouping only by concept, or

finally grouping by ability. The worst case scenario is

that groups need to be made across buckets. We still

consider this acceptable because our basis for

comparison is a random grouping procedure currently

employed for these classroom activities.

Similar to the suggestion algorithm, this algorithm

is an initial attempt at a pedagogically–driven group

selection process. We will test this theory with

experimentation. We have currently also developed a

random group selection mechanism to provide a

control group for experimentation with this grouping

policy.

7 CONCLUSIONS AND FUTURE

WORK

We see great potential in this system, as it provides

personalized support to students and instructors while

allowing the instructors to define the organization and

bring together their own selection of materials for

their chosen courses.

We currently have six computer science courses

(>200 students enrolled) within our department that

have concept graphs defined and we are applying the

system with test groups. Specifically, we are

collecting usage experience for the graph

visualization and the suggested resources across a

diverse body of students, and we have specific

experimental plans to test the efficacy of the dynamic

group assignment algorithm as compared to random

assignment. Finally, instructors are regularly

revisiting and editing their concept graphs throughout

the semester and plan to make major revisions after a

semester of use. From these different applications of

the system, we intend to investigate the most

important question: is the system useful to real

instructors and students in real classroom scenarios?

We plan to first take a design-based research

approach to this question, where we learn from

interactions with students and rapidly adjust the

system accordingly while also noting the lessons

learned. However, we also plan more specific

experimentation with regard to research questions

such as: Are the visualizations and suggestions both

CSEDU 2018 - 10th International Conference on Computer Supported Education

120

equally useful? Is one preferable to the other? Are

they helpful to be presented together? Can predictions

be made accurately based on the graph? Does the

predication ability indicate anything about the quality

of the graph creation? Can we automatically

recognize issues and offer suggestion during the

graph creation process?

Further project goals include tighter integration

with external tools, particularly continuing work to

smooth the interaction for popular systems such as

Zybooks, Codio, and Runestone (all systems

potentially used by the classrooms where the software

is currently being applied). By furthering our

integration, we plan to harness the power of external

software that automatically assesses code exercises,

using this very complex assignment-specific

feedback to inform our higher-level conceptual

model.

REFERENCES

Almstrum, V. L., Henderson, P. B., Harvey, V., Heeren, C.,

Marion, W., Riedesel, C., ... & Tew, A. E. 2006, June.

Concept inventories in computer science for the topic

discrete mathematics. In ITiCSE-WGR '06. ACM, New

York, NY, USA, 132-145. DOI: 10.1145/1189215.

1189182.

Barnes, T., Boyer, K., Sharon, I., Hsiao, H., Le, N. T., &

Sosnovsky, S. 2017. Preface for the Special Issue on

AI-Supported Education in Computer Science.

International Journal of Artificial Intelligence in

Education, 27(1), 1-4.

Bull, Susan, and Judy Kay. 2010. "Open learner models."

Advances in intelligent tutoring systems: 301-322.

Butz, C. J., Hua, S., & Maguire, R. B. 2006. A web-based

bayesian intelligent tutoring system for computer

programming. Web Intelligence and Agent Systems,

4(1), 77-97.

Chaiklin, S. 2003. The zone of proximal development in

Vygotsky’s analysis of learning and instruction. In

Vygotsky’s educational theory in cultural context 1: 39-

64.

Dillenbourg, P. 2002. Over-scripting CSCL: The risks of

blending collaborative learning with instructional

design. In Three worlds of CSCL. Can we support

CSCL?, 61-91.

Dragon, T., Lindeman, C., Wormsley, C., & Lesnefsky, D.

2016. Better than Random: Can We Use Automated

Assessment to Form Productive Groups on the Fly? In

The Workshop on Intelligent Support for Learning in

Groups, 13th International Conference on Intelligent

Tutoring Systems, ITS-2016.

Edmondson, K. M. 1995. Concept mapping for the

development of medical curricula. In Journal of

Research in Science Teaching, 32(7), 777-793.

Greer, J. E., Mccalla, G., Collins, J. A., Kumar, V. S.,

Meagher, P., & Vassileva, J. 1998. Supporting peer

help and collaboration in distributed workplace

environments. International Journal of Artificial

Intelligence in Education (IJAIED), 9, 159-177.

Hoppe, H. U. 1995. The use of multiple student modeling

to parameterize group learning. In Proceedings of AI-

ED'95, 7th World Conference on Artificial Intelligence

in Education.

Kumar, A. N. (2006). Using Enhanced Concept Map for

Student Modeling in Programming Tutors. In FLAIRS

Conference (pp. 527-532).

Lin, Y. L., Brusilovsky, P., & He, D. 2011. Improving self-

organising information maps as navigational tools: a

semantic approach. Online Information Review, 35(3),

401-424.

Mavrikis, M. and Gutierrez-Santos, Sergio &

Poulovassilis, A. 2016. Design and evaluation of

teacher assistance tools for exploratory learning

environments. In Proceedings of the Sixth International

Conference on Learning Analytics & Knowledge

(LAK’16). ACM, pp. 168-172. ISBN 9781450341905.

Mitrovic, A. and Martin, B. Evaluating the Effects of Open

Student Models On Learning. In P. DeBra, P.

Brusilovsky and R. Conejo (eds.), Proceedings of

Adaptive Hypermedia and Adaptive Web-Based

Systems, Spring-Verlag, BerlinHeidelberg, 2002, 296-

305.

Murray, T. 2003. An Overview of Intelligent Tutoring

System Authoring Tools: Updated analysis of the state

of the art. In Authoring tools for advanced technology

learning environments (pp. 491-544). Springer

Netherlands.

Novak, J. D. 1990. Concept mapping: A useful tool for

science education. In Journal of research in science

teaching, 27(10), 937-949.

Sosnovsky, S., & Brusilovsky, P. 2015. Evaluation of topic-

based adaptation and student modeling in QuizGuide.

User Modeling and User-Adapted Interaction, 25(4),

371-424.

Starr, M. L., & Krajcik, J. S. 1990. Concept maps as a

heuristic for science curriculum development: Toward

improvement in process and product. In Journal of

research in science teaching, 27(10), 987-1000.

Woolf, B. P. 2010. Building intelligent interactive tutors:

Student-centered strategies for revolutionizing e-

learning. Morgan Kaufmann.

https://www.vitalsource.com/

http://interactivepython.org/runestone/default/user/login.

http://www.zybooks.com.

http://problets.org/

https://www.pearsonmylabandmastering.com/northameri

ca/myprogramminglab/

https://codio.com/

https://www.vocareum.com/

https://developers.google.com/chart/

Improving Course Content While Creating Customized Assessment and Support at the Conceptual Level

121
