Iterative Calibration of a Vehicle Camera using Trafﬁc Signs Detected by

a Convolutional Neural Network

Alexander Hanel and Uwe Stilla

Photogrammetry and Remote Sensing, Technical University of Munich, Arcisstrasse 21, Munich, Germany

Keywords:

Advanced Driver Assistance Systems, Camera Calibration, Convolutional Neural Network, Image Processing.

Abstract:

Intrinsic camera parameters are estimated during calibration typically using special reference patterns. Me-

chanical and thermal effects might cause the parameters to change over time, requiring iterative calibration.

For vehicle cameras, reference information needed therefore has to be extracted from the scenario, as reference

patterns are not available on public streets. In this contribution, a method for iterative camera calibration using

scale references extracted from trafﬁc signs is proposed. Trafﬁc signs are detected in images recorded during

driving using a convolutional neural network. Multiple detections are reduced by mean shift clustering, before

the shape of each sign is ﬁtted robustly with RANSAC. Unique image points along the shape contour together

with the metric size of the trafﬁc sign are included iteratively in the bundle adjustment performed for camera

calibration. The neural network is trained and validated with over 50,000 images of trafﬁc signs. The iterative

calibration is tested with an image sequence of an urban scenario showing trafﬁc signs. The results show that

the estimated parameters vary in the ﬁrst iterations, until they converge to stable values after several iterations.

The standard deviations are comparable to the initial calibration with a reference pattern.

1 CALIBRATION OF CAMERAS

FOR ADVANCED DRIVER

ASSISTANCE SYSTEMS

In recent years, an increasing number and capability

(ﬁgure 1) of advanced driver assistance systems per

vehicle can be observed (Shapiro, 2017), what is also

reﬂected by the continuously growing sales of needed

electronic control units in cars (AlixPartners, 2015).

For capturing the scenario in and around the car for

advanced driver assistance systems, different sensors

are used (Dempsey, 2016). Ultrasonic sensors in the

front and rear bumper can capture the close scenario

in front and behind the car to avoid collisions dur-

ing parking maneuvers. Radar sensors can be distin-

guished by their operating range. Cross trafﬁc warn-

ings can be realized with a short-range radar system

with a range up to 30 m. A cruise control system

adapting the speed of the ego-car dependent on pre-

ceding cars is used typically in highways scenarios,

wherefore long-range radar systems with a range of

more than 200 m are suitable. Pedestrian detection

systems are typically used in urban scenarios with

moderate speeds driven, requiring medium-range sen-

sors like a LiDAR or a camera (Ors, 2017).

During development of a new car model, costs are

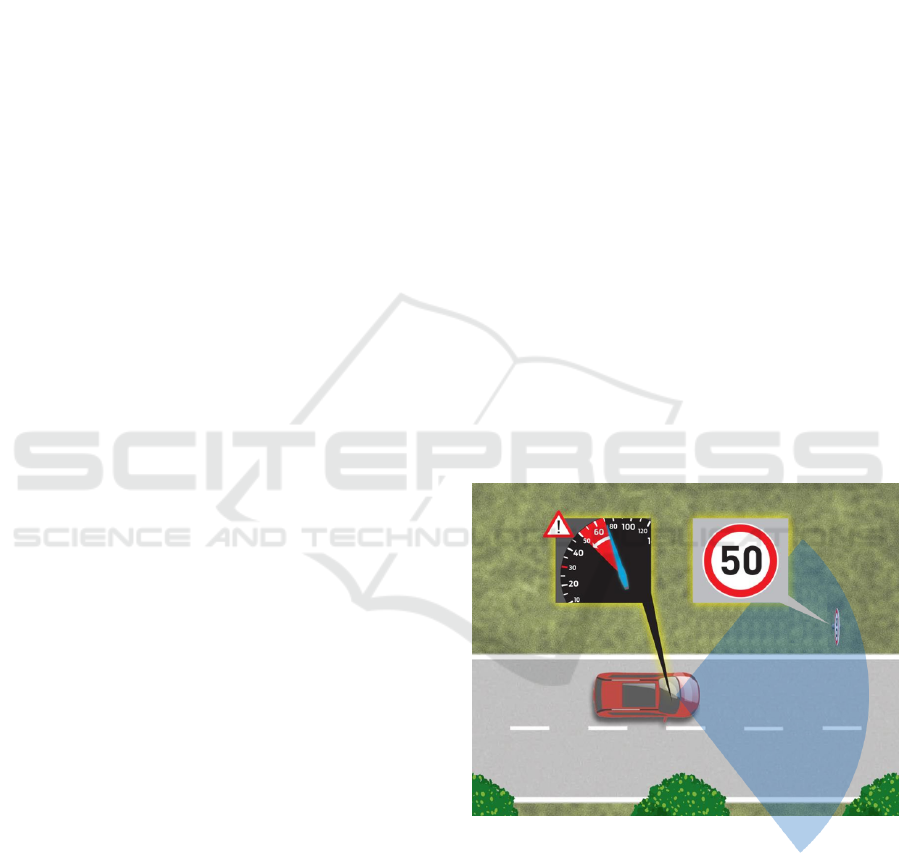

Figure 1: Trafﬁc signs detected in images of a vehicle cam-

era (ﬁeld of view in blue) can be used to warn the driver

against speed limits or other trafﬁc regulations. These de-

tections can be also used to iteratively calibrate the camera

(Auto Body Professionals Club, 2017).

an important design factor regarding customer accep-

tance. As the type of sensors installed in a car in-

ﬂuences the total costs of advanced driver assistance

systems, cameras with lower costs than for example

LiDAR or radar sensors (e.g. BMW 7 series parts

Hanel, A. and Stilla, U.

Iterative Calibration of a Vehicle Camera using Trafﬁc Signs Detected by a Convolutional Neural Network.

DOI: 10.5220/0006711201870195

In Proceedings of the 4th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2018), pages 187-195

ISBN: 978-989-758-293-6

187

catalogue: (bmwfans.info, 2017)) are interesting to

consider. Images of an optical camera installed in a

car can be used for detections on the one hand and

for measurements on the other hand. Detecting a pre-

ceding car and measuring the relative distance to the

ego-car are application examples, respectively. The

accuracy and reliability of the measurements depend

on the quality of the sensor, in this case the optical

camera. For this purpose, a camera calibration can be

performed.

Several authors have already worked on the cal-

ibration of vehicular cameras recording the environ-

ment (Broggi et al., 2001) (Bellino et al., 2005)

(Ribeiro et al., 2006). Their works can be distin-

guished by the estimated parameters: either the es-

timation of the intrinsic parameters (e.g. (Heng et al.,

2013)) or the estimation of the extrinsic parameters

(e.g. (Friel et al., 2012)), typically relative to a vehic-

ular coordinate system (Hanel and Stilla, 2017). Their

works can also be distinguished based on the calibra-

tion method: either a calibration method using a spe-

ciﬁc calibration pattern in the acquired scene (Bellino

et al., 2005) (Hanel et al., 2016) or an auto-calibration

method without the need of a special calibration pat-

tern (Heng et al., 2013) (Bovyrin and Kozlov, 2017).

Basis for auto-calibration is in many cases the detec-

tion of road markings in images (Ribeiro et al., 2006)

(Paula et al., 2014) providing image points for camera

calibration. Typically, the road markings are shown in

the lower half of an image of a vehicle camera, mak-

ing it impossible to conclude on the distortions in the

upper image half. Furthermore, it can’t be assumed

that in all scenarios road markings are available, for

example on narrow roads or in parking garages. An-

other frequent type of objects in street scenarios are

trafﬁc signs. In the ﬁeld of view of a vehicular cam-

era, they are typically shown in the upper half of the

image. As well as for road markings, the shape and

size of trafﬁc signs are standardized (e.g. (Depart-

ment of Transport - Ireland, 2010)), allowing to obtain

3d object coordinates corresponding to the extracted

image points for camera calibration.

When the car is being driven, a rough street sur-

face can cause vibrations in the car or the sun can heat

up its interior. Both mechanical and thermal effects

can inﬂuence the intrinsic parameters of cameras in-

stalled in the car over time (Dang et al., 2009) (Smith

and Cope, 2010). Therefore, it is recommended to

update the calibration parameters iteratively to have

valid parameter values for images recorded during

a longer drive. Especially scale information has a

strong inﬂuence on the estimated parameters (Luh-

mann et al., 2013). Therefore, in this contribution a

method to iteratively estimate the intrinsic parame-

ters using scale references extracted from images of

trafﬁc signs using a convolutional neural network is

proposed.

The remainder of this paper is organized as fol-

lows: in section 2 the processing steps to extract the

scale references from images of trafﬁc signs and to

perform the iterative camera calibration are described.

Section 3 shows the experimental setup and data used

to test the proposed method. In section 4 the results

of the camera calibration are described and discussed.

Section 5 concludes the paper.

2 INITIAL AND ITERATIVE

CAMERA CALIBRATION

This section is divided into two parts. In subsection

2.1, the process for initial camera calibration to obtain

initial intrinsic parameter values is described. This

step is designated to be performed before a vehicle

equipped with a camera is driven on public streets. In

subsection 2.2, the details of the method for extracting

scale references and including them into the iterative

camera calibration are shown. This step is designated

to be performed iteratively when and during the vehi-

cle is driven on public streets.

2.1 Initial Camera Calibration

Objective of the initial camera calibration is to pro-

vide estimates for the intrinsic parameters including

distortion parameters of the vehicle camera. A cen-

tral perspective camera model is used. According

to (Hastedt et al., 2016), a central perspective cam-

era model is valid also for wide-angle action cam-

eras, which are due to their low costs and small size

interesting for automotive use, if the manufacturer-

provided distortion correction has been applied to the

images. This correction reduces the largest part of

distortions in the image, so that only small parts re-

main, which can be modelled by a central perspective

camera model. Additionally, in the case of distortion-

corrected images, it is valid to use a planar calibration

pattern. As these authors have further reported difﬁ-

culties in estimating the decentering distortion param-

eters, they are not considered.

The estimated intrinsic parameters of the camera

are x

, y

as principal point, c

as focal length, and

three radial-symmetric distortion parameters accord-

ing to the model of Brown (Brown, 1971) (equations

1, 2):

dist,rad

= x · (1 + k

+ k

) (1)

dist,rad

= y · (1 + k

+ k

) (2)

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

188

with x

dist,rad

, y

dist,rad

as distorted image coordinates,

x, y as undistorted image coordinates, r as radial dis-

tance of x, y from the principal point and k

, k

radial distortion parameters.

The following well-known process for test ﬁeld

calibration is used: Several images of a planar calibra-

tion pattern with photogrammetric marks are captured

from different camera positions, orientations and dis-

tances relative to the pattern plane. Image coordinates

of the photogrammetric marks are extracted with sub-

pixel accuracy from the images. 3d object coordi-

nates of the marks have been estimated previously

with high quality reference information. During a

bundle adjustment (Triggs et al., 2000), the residu-

als between the extracted image coordinates and the

image coordinates projected from the object coordi-

nates using estimates for the intrinsic parameters are

minimized.

2.2 Scale Reference Extraction and

Iterative Camera Calibration

This section describes the steps (ﬁgure 2) iteratively

repeated for each new image provided by a vehi-

cle camera. The ﬁrst subsection 2.2.1 gives details

about the trafﬁc sign detection and the second subsec-

tion 2.2.2 about the shape extraction of circular trafﬁc

signs. The third subsection 2.2.3 describes how the

scale references are obtained in both image space and

object space. Finally, the fourth subsection 2.2.4 is

dedicated to the recalibration itself.

2.2.1 Trafﬁc Sign Detection with a Deep

Convolutional Neural Network

Trafﬁc sign detection is used to distinguish trafﬁc

signs and other objects in images, like buildings, peo-

ple, vehicles. For the following processing steps, the

detection provides regions of interest (ROI) in the

image probably containing trafﬁc signs. Recent ap-

proaches for trafﬁc sign detection use deep learning

networks (e.g. (Zhu et al., 2016)), often with a con-

volutional network based on the well-known Lenet-5

net (Lecun et al., 1998), like proposed for example by

(Wu et al., 2013). In this contribution, the following

variation of the network proposed by these authors is

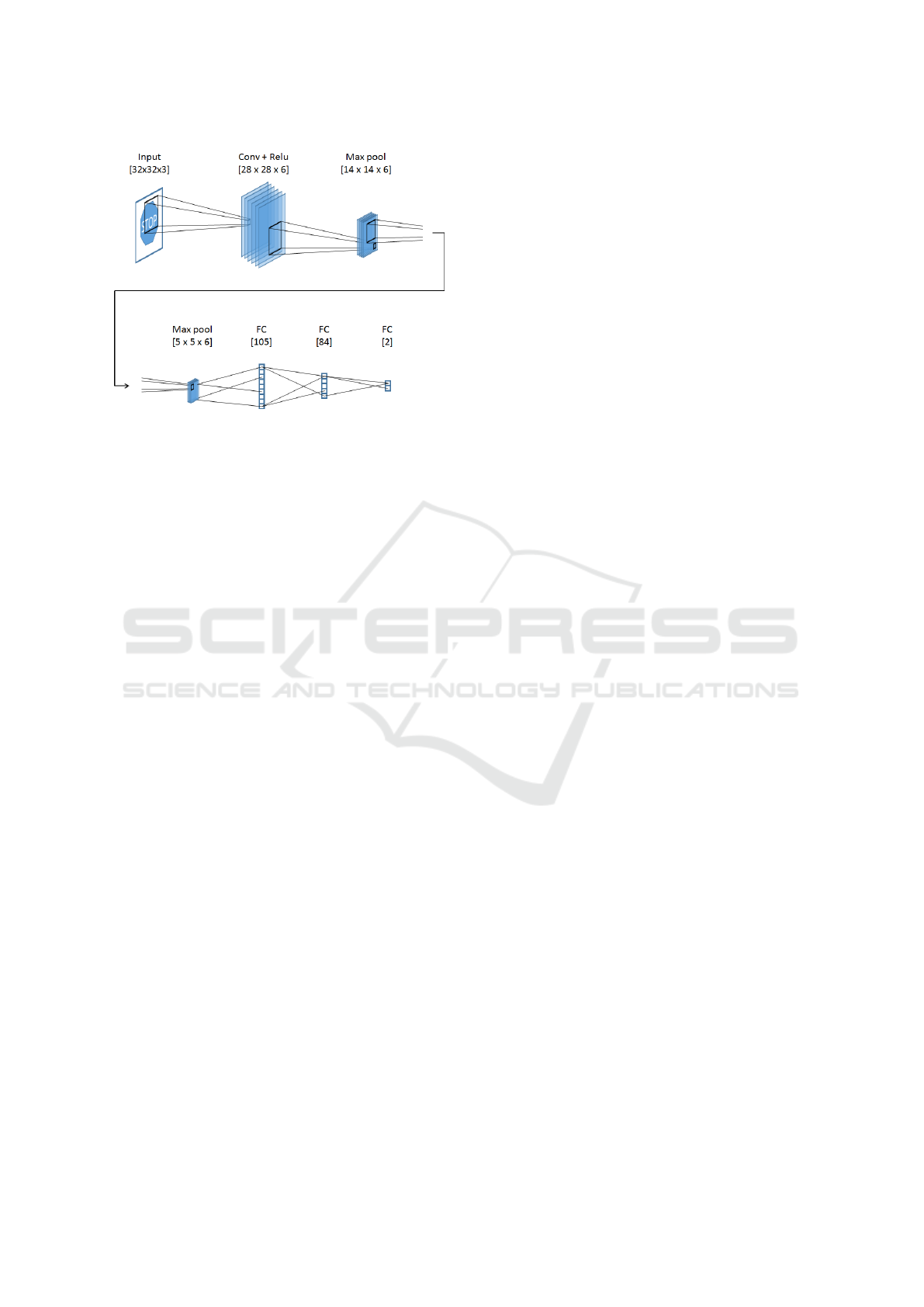

applied (ﬁgure 3). Input to the network is a candidate

for a ROI consisting of an image with a resolution

of 32 x 32 pixels and three colour channels. Those

ROI images are selected from an image pyramid (e.g.

showing a street scenario) using a sliding window ap-

proach. The ﬁrst layer performs convolutions with

different kernels for feature extraction in combination

with a ”ReLu” activation function to ensure the non-

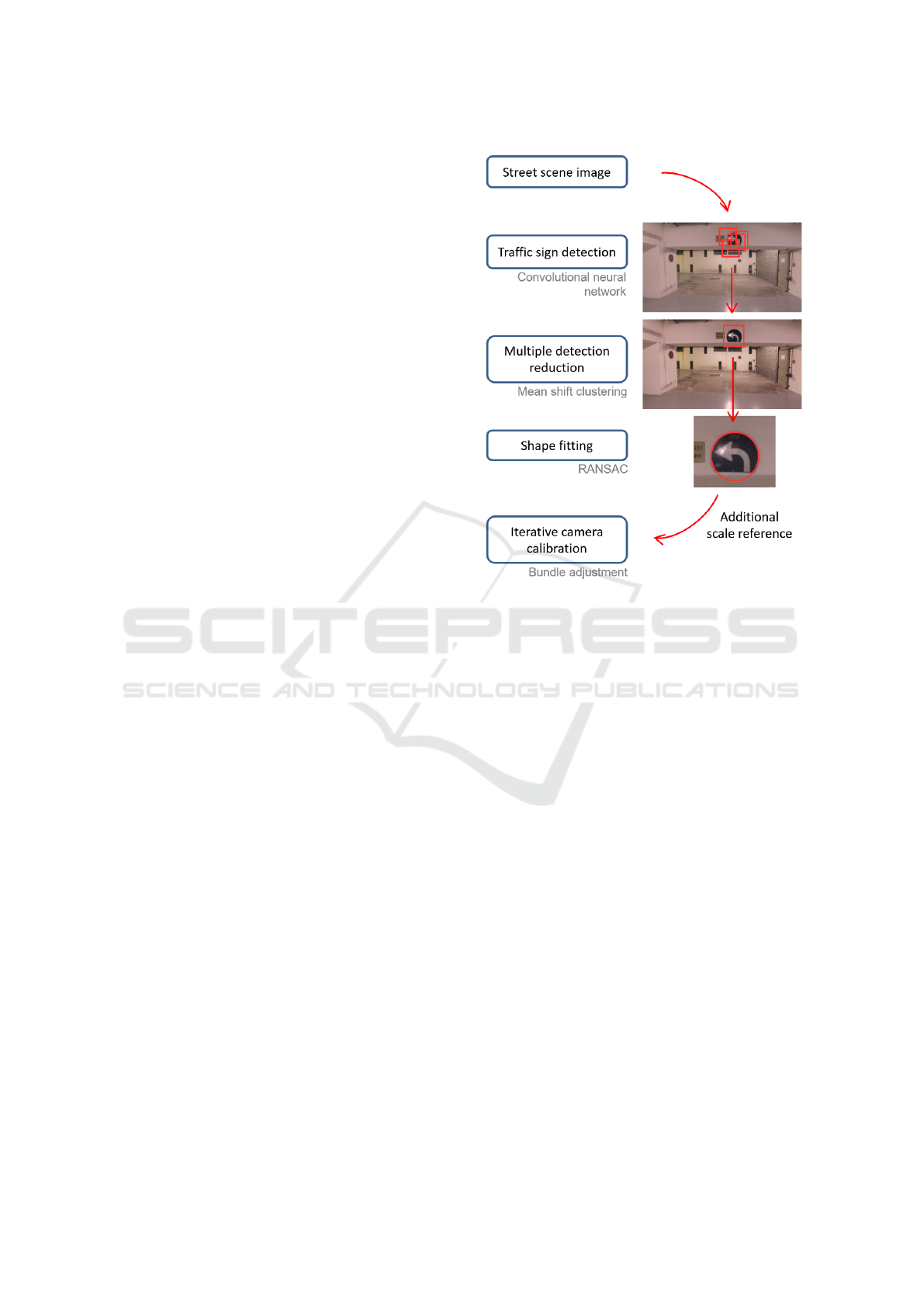

Figure 2: Processing steps performed for one iteration of

the iterative camera calibration. Input is a street scene im-

age recorded by a vehicle camera, whereof additional scale

references for the camera calibration are extracted. Output

are new estimates for the intrinsic parameters obtained by

bundle adjustment. A new iteration of these steps is per-

formed for each image captured over time when the vehicle

is on the road.

linearity property of the network, followed by max-

pooling for down-sampling as second layer. Another

max-pooling layer follows, to which dropout is ap-

plied to avoid overﬁtting. This layer is ﬂattened and

followed by three fully connected layers. Thereby the

number of nodes is reduced stepwise to two output

neurons, one for the class trafﬁc sign, the other for the

class no trafﬁc sign. Softmax is used as loss function

to select one of these classes.

Depending on the step size of the sliding window

approach, one trafﬁc sign can be detected multiple

times in the image pyramid in slightly shifted regions

of interest and with slightly different sizes. To avoid

the question which region of interest is the most ap-

propriate one for a shown trafﬁc sign, the multiple de-

tections are reduced to one region of interest. There-

fore, mean shift clustering (Fukunaga and Hostetler,

1975) is applied to all detected regions of interest in

an image to ﬁnd a cluster center for each shown traf-

ﬁc sign. The size of the resulting region of interest

is the mean size of all regions of interest contributing

to this cluster. It is assumed, that the center of mass

Iterative Calibration of a Vehicle Camera using Trafﬁc Signs Detected by a Convolutional Neural Network

189

Figure 3: Architecture of the convolutional neural network

for trafﬁc sign detection consisting of a convolutional layer,

two max-pooling layers and three fully-connected (FC) lay-

ers. Input is an image which is assigned to the class trafﬁc

sign or no trafﬁc sign.

of the multiple detections corresponds to the position

of a trafﬁc sign in the image. Advantageous of mean

shift clustering is that the number of clusters has not

to be determined a-priori, being therefore capable to

assign clusters to several trafﬁc signs in one image.

2.2.2 Trafﬁc Sign Shape Extraction

The shape contour of a trafﬁc sign shown in a region

of interest (subsection 2.2.1) has to be known to ex-

tract the image points of the reference information

needed for camera calibration. The shape is hereby

described by a geometric primitive. It is exploited,

that the geometric primitives used for trafﬁc signs in

the real world are a-priori known and limited to a

small number, typically either a circle, a triangle or

a rectangle. In an image, those geometric primitives

can be seen by intensity differences between the traf-

ﬁc sign itself and the image background. Further, the

algorithm described in the following is designed for

trafﬁc signs with a perpendicular orientation to the

viewing direction of the camera, which is typical for

front-looking vehicular cameras. For a ﬁrst investiga-

tion of the possibilities of the method proposed in this

paper, the shape extraction algorithm is limited to the

circle as the most common shape of trafﬁc signs in the

public.

The algorithm ﬁts an ellipse to the edge of the traf-

ﬁc sign shape in an image. Thereby it is used that a

real-world circle is projected to an ellipse in an image.

It is assumed, that this projection is approximately

valid if only small image distortions remain from the

initial camera calibration. The algorithm obtains es-

timates for the ellipse parameters position, size and

orientation in the image. First, the grayscale image

of the region of interest is normalized to the complete

8-bit value range to increase the contrast of intensity

edges. Second, an absolute global threshold is applied

to create a binary image. Some of its intensity edges

between image parts with unique intensity are sup-

posed to follow the shape contour of the sign. Third,

groups of contour points belonging to the edges of

different parts are extracted from the binary image

(algorithm from (Suzuki and Abe, 1985)). Groups

with a small number of points are neglected, assuming

the edge of the trafﬁc sign shape to be the dominant

contour in the image with a high number of contour

points. Fourth, the RANSAC algorithm (Fischler and

Bolles, 1981) selects iteratively the consensus set of

contour points belonging to the edge of the trafﬁc sign

shape from the remaining groups. Therefore, ellipse

parameters are calculated with different sampled con-

tour points in each iteration and the set of all contour

points within a maximal distance to the ellipse is de-

termined. The largest set in all iterations is used as

consensus set. The number of iterations is chosen to

have at least one set of sample points without outliers

with a probability of 99 %. The ﬁnal ellipse parame-

ters are estimated in a least-squares-adjustment using

the consensus set.

2.2.3 Extraction of Scale References from the

Trafﬁc Sign Shape

Additional reference information to be used for cam-

era calibration has to be known in the image space

and the object space. From circular trafﬁc signs, the

diameter of its shape can be used as scale reference.

In the object space, the diameter is known from gov-

ernmental regulations (e.g. (Department of Transport

- Ireland, 2010)). In the image space, the major axis

of the ellipse is perpendicular to the line of sight of

the camera and the distance between the ellipse ver-

tices of the major axis corresponds to the diameter of

the real-world circle of the trafﬁc sign (Elder, 2017).

Therefore, the distance is used as diameter in the im-

age space.

Only the diameter of detections with a high output

probability of the neural network is used to lower the

risk to use wrong information from false positive de-

tections. Implausible ellipse parameters are removed

by a series of checks, e.g. whether the complete el-

lipse is contained in the region of interest.

To extract scale references it is sufﬁcient, if a

trafﬁc sign is being seen in two images, allowing to

determine the distance of the sign from the camera.

A structure-from-motion or SLAM approach can be

used for a 3d reconstruction of the environment shown

in the images and to derive the distance thereof.

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

190

2.2.4 Iterative Recalibration of the Camera

The objective of the iterative recalibration is to esti-

mate the intrinsic parameters including distortion pa-

rameters for images recorded by the vehicle camera

when the car is driven. The parameter values are esti-

mated together with their standard deviations. A new

iteration of the recalibration is triggered, when addi-

tionally at least one scale reference is available from

new recorded images. For recalibration, the same

camera model and bundle adjustment as for the ini-

tial camera calibration are used (subsection 2.1). All

extracted scale references (see subsection 2.2.3) avail-

able in each iteration are added to the reference infor-

mation used already for the initial calibration and are

used by the bundle adjustment. The scale references

are modeled hereby in the bundle adjustment as dis-

tance condition, wherefore the image coordinates of

the end points of the distance and the metric length in

the object space is used.

3 DATASET AND EXPERIMENTS

The GTSRB dataset (Stallkamp et al., 2012) and

GTSDB (Houben et al., 2013) dataset are used

for training and validation of the neural network.

RGB images (further called ’cutouts’) of the GRSRB

dataset show a trafﬁc sign in the center, surrounded

by a small border containing background objects. The

trafﬁc signs are shown in different daylight illumina-

tion situations (e.g. sunny, shadowy) with a roughly

frontal view on them (examples see ﬁgure 4). 50,000

cutouts are used as samples for the class trafﬁc sign.

The same number of samples for the class no trafﬁc

sign are cutouts extracted from street scene images

of the GTSDB dataset showing arbitrary content (e.g.

buildings, vegetation, sky, ...). All samples have the

same geometric and radiometric resolution, they are

randomly shufﬂed, 80 % are used for training and 20

% for validation. The training is performed with a

learning rate of 0.001 and a dropout rate of 0.5. 80

epochs are trained, until there is no remarkable de-

crease in the loss anymore.

The iterative camera calibration is tested with an

image sequence extracted from a video recorded dur-

ing a ﬁve minute test drive through an underground

car park. The car park has in average one trafﬁc sign

mounted at the wall every few meters, providing a

higher density than on public roads in average. The

camera used for recording is a wide-angle Garmin

VIRB Ultra 30 action camera (table 1). Following

the advices of (Hastedt et al., 2016) for a stable cali-

bration of action cameras, the manufacturer-provided

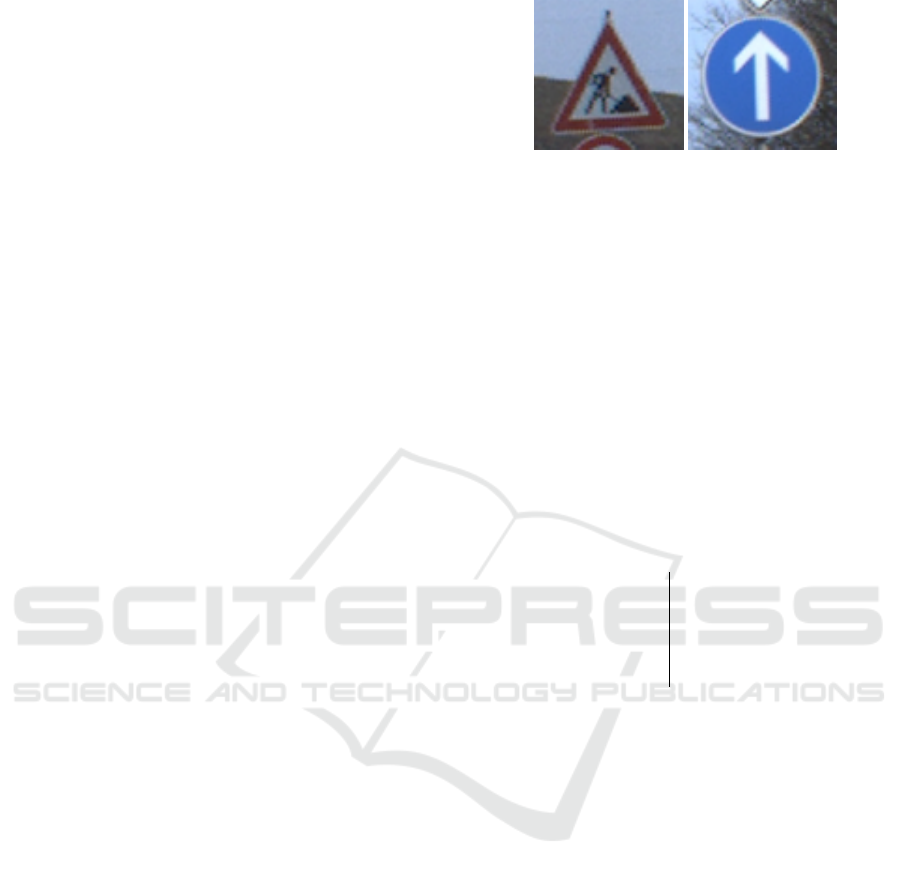

Figure 4: Examples of the GRSRB trafﬁc sign dataset. Left:

Triangle-shaped construction warning sign in the shadow.

Right: Circle-shaped go straight sign in sunny light.

distortion correction of the camera is activated. In

each image, regions of interest for trafﬁc signs are

obtained from the trafﬁc sign detector, the multiple

detections are reduced. An ellipse is ﬁtted to get the

shape of the trafﬁc sign in each region of interest and

thereof the length of the major ellipse axis is derived

for camera calibration. The length is included in the

camera calibration as additional scale reference and

the calibration is performed for each image the length

can be derived from detected trafﬁc signs.

Table 1: Technical speciﬁcations and video recording set-

tings of the action camera used to record the test video

(Pemble, 2017).

Camera Garmin VIRB Ultra 30

Lens 2.73 mm ﬁx focal length

Geometric resolution 2,688 x 1,512 px

Temporal resolution 30 fps

Settings ISO 400, focus inf, f/2.6

The source code implementation of the proposed

method uses the programming library openCV (It-

seez, 2017) for image processing and tensorﬂow

(Abadi et al., 2015) for machine learning. The bundle

adjustment for camera calibration is performed with

the software Aicon 3D Studio (Schneider et al., 2014).

4 EXPERIMENTAL RESULTS

AND DISCUSSION

The training and validation of the neural network with

images of the GTSDB and GTSRB dataset gives an

overall accuracy of 95.9 % (table 2). Applied to the

images of the test drive through the underground car

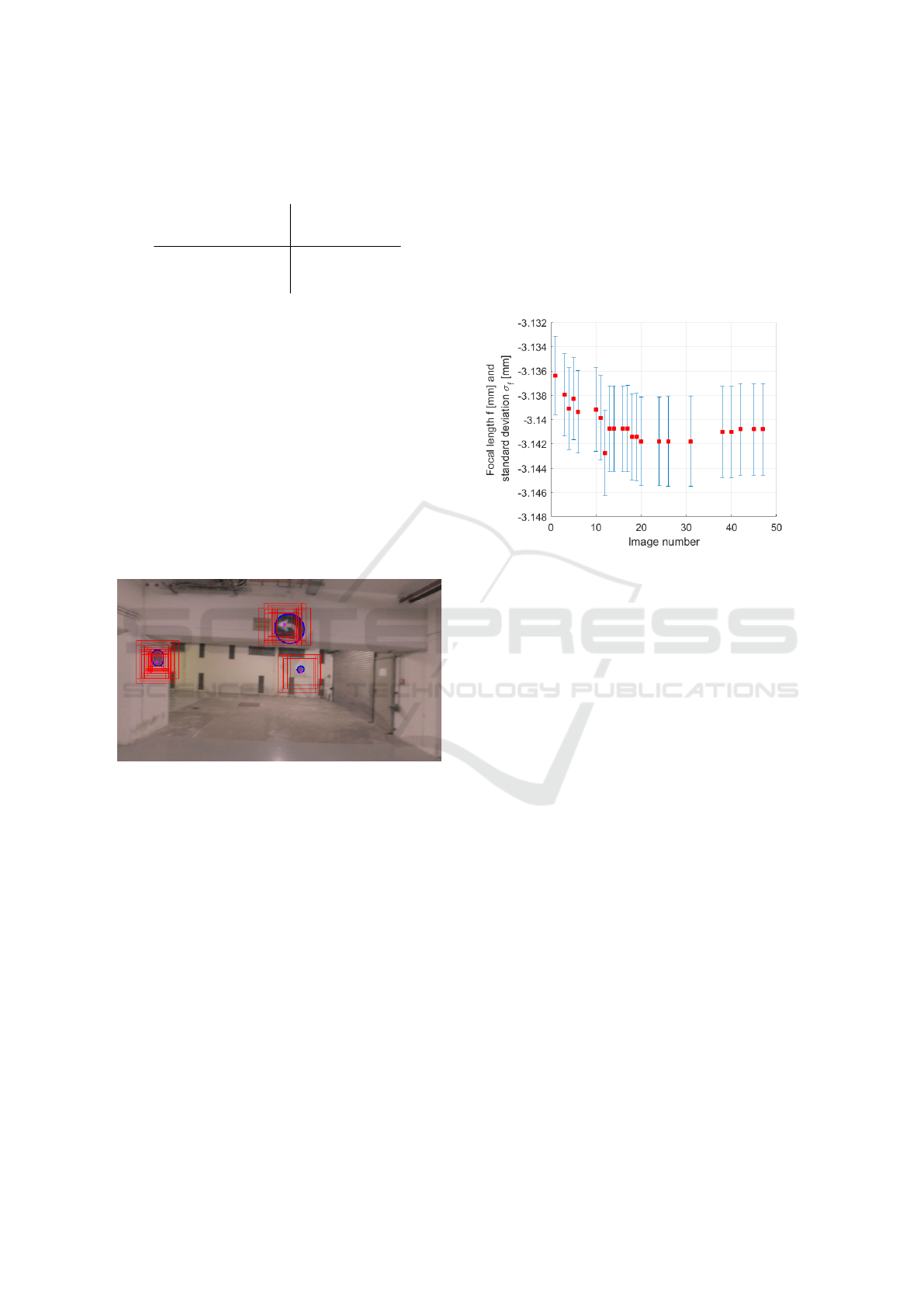

park, multiple regions of interest are typically de-

tected around each trafﬁc sign shown an image (ﬁgure

5). A high certainty threshold used for the detection

can decrease the number of multiple regions, but en-

sures a low false positive rate. Thereby the risk of

using detections not showing trafﬁc signs and subse-

quently extracting wrong scale references is kept low.

The shape ﬁtting algorithm can ﬁt an ellipse with

Iterative Calibration of a Vehicle Camera using Trafﬁc Signs Detected by a Convolutional Neural Network

191

Table 2: Confusion matrix for the training and validation of

the convolutional neural network for trafﬁc sign (TS) detec-

tion.

True class

TS No TS

Predicted

class

TS 96 % 4 %

No TS 4 % 96 %

a RMS error of in average 1 pixel between the ﬁtted

ellipse and the inlier points selected as consensus set

by the RANSAC algorithm. Especially the extraction

of the contour points has the largest inﬂuence on the

RMS error. Contour points of partly occluded trafﬁc

signs or of a background object with a dominant shape

near a trafﬁc sign in the image might be included in

the consensus set leading to a decrease of the RMS

error value. Numerical analysis shows, that a shape

ﬁtted to contour points not belonging to a trafﬁc sign

can be recognized by a large RMS error value, which

is used to reject them from further processing. This is

especially the case, if a cluster center resulting from

the mean shift clustering lies not on or close to a trafﬁc

Figure 5: Example image of the test drive used to evalu-

ate iterative camera calibration. Multiple detected regions

of interest around each trafﬁc sign (red rectangles) can be

reduced to one region of interest by mean-shift clustering

(pink dots). An ellipse is ﬁtted to the edge of each trafﬁc

sign shape to extract reference information for camera cali-

bration from the image (blue ellipses).

The intrinsic parameters can be estimated for

those images of the test image sequence, which pro-

vide additional scale references extracted from de-

tected trafﬁc signs. The different estimated parame-

ters show a similar behaviour over time, it will be dis-

cussed in more detail in the following text for the fo-

cal length (ﬁgure 6), the principal point (ﬁgure 7) and

the radial distortion parameters (ﬁgure 8). Notable

is the value drift in the beginning of the image se-

quence until the parameters converge to a stable value

at the end of the image sequence. The drift might

result from a changing reference conﬁguration used

for camera calibration from a planar reference pattern

used in the initial calibration to an increasing number

of scale references over time. The high number of de-

tected trafﬁc signs in the ﬁrst images of the sequence

might intensify the drift in this part of the image se-

quence. Though the drift in the focal length is clearly

visible in ﬁgure 6, the absolute value changes over

the whole image series are less than 1/100 millimeter,

which is approximately within the 1σ interval around

the estimated focal length values.

Figure 6: The focal length (red squares; converted from

pixels to millimeters given the pixel size) estimated during

iterative camera calibration for the images of a test drive

converges to a stable value at the end of the test image se-

quence. The standard deviations (blue bars) keep constant

over time. The calibration is performed for each image with

an additional scale reference available.

The stable values in the end of the sequence can

probably be explained that to the end of the sequence

the inﬂuence of the additional scale references on

the scale of the calibration conﬁguration is dominant.

Also notable is the constant standard deviation of the

estimated parameters over time, what might be led

back to that the scale references still are only a small

part of the total reference information used for cam-

era calibration. Finally, the deviation of the estimated

focal length values from the technical speciﬁcations

(table 1) has to be mentioned. A reason might be, that

the value in the technical speciﬁcation is related to the

full image sensor, while the recorded test video uses

a lower geometric resolution with a smaller ﬁeld of

view to ensure a high number of frames per second,

ensuring only small differences in the content of con-

secutive images at higher vehicle speeds.

The x- and y-component of the principal point

vary over time within 1/1000 millimeter, with the

strongest variations again in the beginning of the im-

age sequence. The constant value of the standard de-

viation is remarkably lower than for the focal length,

what indicates that the principal point is estimated

more reliably than the focal length. These observa-

tions lead to the conclusion that the inﬂuence of the

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

192

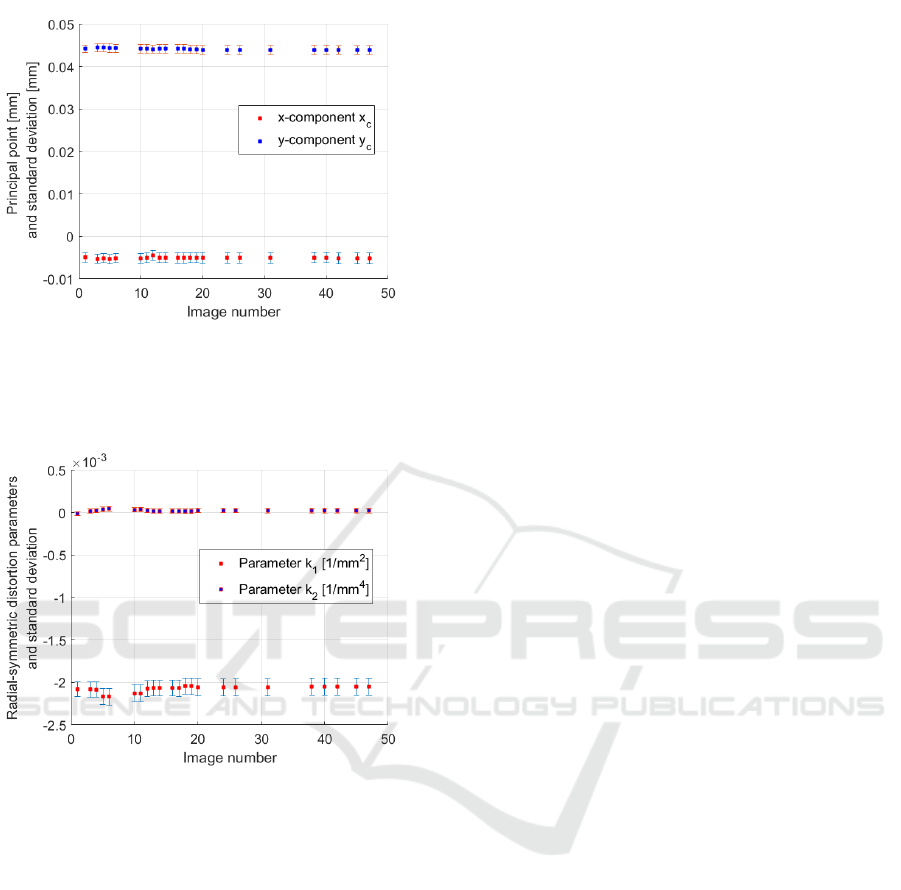

Figure 7: The principal point (red and blue squares) esti-

mated during iterative camera calibration converges as well

as the focal length (ﬁgure 6) to a stable value at the end of

the test image sequence. Its standard deviation (blue and

red bars) remains constant over time.

Figure 8: The radial-symmetric distortion parameters (red

and blue squares) estimated during iterative camera calibra-

tion converge to a stable value at the end of the test image

sequence, their standard deviations (blue and red bars) re-

main constant over time.

additional scale references is larger on the focal length

than on the principal point.

The relative value variations in the radial-

symmetric distortion parameters k

and k

in the be-

ginning of the sequence are larger than the variations

in the principal point. Furthermore, the standard de-

viations of k

are remarkably larger than the standard

deviations of k

. This observation might be explained

by the stronger inﬂuence of the additional scale ref-

erences on k

, as radial-symmetric distortions, which

are prevalently modelled by lower-order coefﬁcients

in equations 1 and 2, can be interpreted as scale

change (Luhmann et al., 2013). The mentioned strong

inﬂuence of the scale references on the focal length

and k

is supported by the strong correlation between

these two parameters.

Overall, the results above show that the proposed

method can iteratively provide values for the intrinsic

parameters. Hence, allows to correct for changes in

these parameters occurring over time.

5 CONCLUSION

In this paper, a method for iterative camera calibration

using scale references extracted from images of traf-

ﬁc signs has been proposed. It is shown, that trafﬁc

signs can be detected and scale references extracted

iteratively for the images of a test image sequence

recorded in an urban scenario. While especially the

estimated values of the focal length and low-order

radial-distortion parameters change during the ﬁrst it-

erations, the estimated values of all intrinsic param-

eters are stable after several iterations. The standard

deviations are at least one decimal power smaller than

the estimated values. The proposed method can there-

fore be seen as suitable to calibrate a vehicle cam-

era during driving. Regarding the estimation of dis-

tortion parameters valid for the whole camera image,

trafﬁc signs typically shown in the upper image half

are the supplementary extension to road marks typ-

ically shown in the lower image half, which are al-

ready widely used for calibration.

One next logical step for the future is to enhance

the neural network to be able to recognize different

shapes of trafﬁc signs, which could be used as a-priori

information for shape ﬁtting. Consequently, the shape

extraction could be extended by rectangular and trian-

gular shapes, leading to more reference information

for camera calibration. Besides, reference informa-

tion from road markings can be integrated into the

proposed method. The spatial coherence of consecu-

tive images can be exploited by a tracking algorithm.

This allows to reduce false positive detections which

typically don’t occur in consecutive images.

REFERENCES

Abadi, M., Agarwal, A., Barham, P., Brevdo, E., Chen, Z.,

Citro, C., Corrado, G. S., Davis, A., Dean, J., Devin,

M., Ghemawat, S., Goodfellow, I., Harp, A., Irving,

G., Isard, M., Jia, Y., Jozefowicz, R., Kaiser, L., Kud-

lur, M., Levenberg, J., Man

e, D., Monga, R., Moore,

S., Murray, D., Olah, C., Schuster, M., Shlens, J.,

Steiner, B., Sutskever, I., Talwar, K., Tucker, P., Van-

houcke, V., Vasudevan, V., Vi

egas, F., Vinyals, O.,

Warden, P., Wattenberg, M., Wicke, M., Yu, Y., and

Zheng, X. (2015). TensorFlow: Large-scale machine

learning on heterogeneous systems. Software avail-

able from tensorﬂow.org.

Iterative Calibration of a Vehicle Camera using Trafﬁc Signs Detected by a Convolutional Neural Network

193

AlixPartners (2015). Global adas unit production volume

from 2014 to 2021 (in 1,000 units). statista. (2017-09-

18).

Auto Body Professionals Club (2017). Im-

age. http://www.abpclub.co.uk/bodyshop-

news-images/Ford%20S-

MAX intelligent speed limiter2.jpg. Accessed

2017-09-26.

Bellino, M., Holzmann, F., Kolski, S., de Meneses, Y. L.,

and Jacot, J. (2005). Calibration of an embedded cam-

era for driver-assistant systems. In Proceedings. 2005

IEEE Intelligent Transportation Systems, 2005., pages

354–359.

bmwfans.info (2017). Bmw parts catalog. dis-

tance systems, cruise control bmw 750ix

g11. Website. http://bmwfans.info/parts-

catalog/G11/Europe/750iX-

N63R/browse/distance systems cruise control.

Accessed on 2017-10-29.

Bovyrin, A. and Kozlov, A. (2017). Real-time automatic

vehicle camera calibration.

Broggi, A., Bertozzi, M., and Fascioli, A. (2001). Self-

calibration of a stereo vision system for automotive

applications. In Proceedings of the 2001 IEEE In-

ternational Conference on Robotics and Automation,

volume 4, pages 3698–3703.

Brown, D. C. (1971). Close-range camera calibration. Pho-

togrammetric Engineering, 37(8):855–866.

Dang, T., Hoffmann, C., and Stiller, C. (2009). Continuous

stereo self-calibration by camera parameter tracking.

IEEE Transactions on image processing, 18(7):1536–

1550.

Dempsey, M. (2016). The next seat belt. how advanced

driver assistance systems will become mandatory and

could be the immediate opportunity in mobility. Web-

site. https://medium.com/frontier-tech/the-next-seat-

belt-60e980c3ea8b. Accessed on 2017-10-29.

Department of Transport - Ireland (2010). Trafﬁc Signs

Manual.

Elder, J. (2017). Determining rotations be-

tween disc axis and line of sight. Website.

http://web.ncf.ca/aa456/scale/ellipse.html. Accessed

2017-10-29.

Fischler, M. A. and Bolles, R. C. (1981). Random sample

consensus: A paradigm for model ﬁtting with appli-

cations to image analysis and automated cartography.

Commun. ACM, 24(6):381–395.

Friel, M., Savage, D. A., Hughes, C., and Ermilios, P.

(2012). Online vehicle camera calibration based on

road surface texture tracking and geometric proper-

ties.

Fukunaga, K. and Hostetler, L. (1975). The estimation of

the gradient of a density function, with applications in

pattern recognition. IEEE Transactions on Informa-

tion Theory, 21(1):32–40.

Hanel, A., Hoegner, L., and Stilla, U. (2016). Towards the

inﬂuence of a car windshield on depth calculation with

a stereo camera system. International Archives of the

Photogrammetry, Remote Sensing & Spatial Informa-

tion Sciences, 41.

Hanel, A. and Stilla, U. (2017). Structure-from-motion

for calibration of a vehicle camera system with non-

overlapping ﬁelds-of-view in an urban environment.

International Archives of the Photogrammetry, Re-

mote Sensing & Spatial Information Sciences, 42.

Hastedt, H., Ekkel, T., and Luhmann, T. (2016). Eval-

uation of the quality of action cameras with wide-

angle lenses in uav photogrammetry. In International

Archives of the Photogrammetry, Remote Sensing and

Spatial Information Sciences, volume XL-1/W4.

Heng, L., Li, B., and Pollefeys, M. (2013). Camodocal: Au-

tomatic intrinsic and extrinsic calibration of a rig with

multiple generic cameras and odometry. In IEEE/RSJ

International Conference on Intelligent Robots and

Systems (IROS), pages 1793–1800. IEEE.

Houben, S., Stallkamp, J., Salmen, J., Schlipsing, M., and

Igel, C. (2013). Detection of trafﬁc signs in real-world

images: The German Trafﬁc Sign Detection Bench-

mark. In International Joint Conference on Neural

Networks, number 1288.

Itseez (2017). Open source computer vision library.

https://github.com/itseez/opencv.

Lecun, Y., Bottou, L., Bengio, Y., and Haffner, P. (1998).

Gradient-based learning applied to document recogni-

tion. In Proceedings of the IEEE, volume 86, pages

2278–2324.

Luhmann, T., Robson, S., Kyle, S., and Boehm, J. (2013).

Close-range Photogrammetry and 3D Imaging. De

Gruyter textbook. De Gruyter.

Ors, A. O. (2017). Radar, camera, lidar

and v2x for autonomous cars. Website.

https://blog.nxp.com/automotive/radar-camera-and-

lidar-for-autonomous-cars. Access on 2017-10-29.

Paula, M. D., Jung, C., and Silveira, L. D. (2014). Au-

tomatic on-the-ﬂy extrinsic camera calibration of on-

board vehicular cameras. Expert Systems with Appli-

cations: An International Journal, 41(4):1997–2007.

Pemble, C. A. (2017). Garmin VIRB Ul-

tra 30 Technical Speciﬁcations. Website,

http://www8.garmin.com/automotive/pdfs/VIRB-

Ultra30-specs.pdf. 2017-01-29.

Ribeiro, A. A. G. A., Dihl, L. L., and Jung, C. R. (2006).

Automatic camera calibration for driver assistance

systems. In Proceeedings of 13th International Con-

ference on Systems, Signals and Image Processing,

pages 173–176.

Schneider, C.-T., Boesemann, W., and Godding, R. (2014).

Aicon 3d systems gmbh.

Shapiro, D. (2017). Nvidia and bosch announce ai self-

driving car computer. the nvidia blog. (2017-09-18).

Smith, M. J. and Cope, E. (2010). The effects of tem-

perature variation on single-lens-reﬂex digital camera

calibration parameters. In International Archives of

Photogrammetry, Remote Sensing and Spatial Infor-

mation Science, volume XXXVIII, pages 554–559.

Stallkamp, J., Schlipsing, M., Salmen, J., and Igel, C.

(2012). Man vs. computer: Benchmarking machine

learning algorithms for trafﬁc sign recognition. Neu-

ral Networks, 32(Supplement C):323–332. Selected

Papers from IJCNN 2011.

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

194

Suzuki, S. and Abe, K. (1985). Topological structural anal-

ysis of digitized binary images by border following.

Computer Vision, Graphics, and Image Processing,

30(1):32–46.

Triggs, B., McLauchlan, P. F., Hartley, R. I., and Fitzgibbon,

A. W. (2000). Bundle adjustment - a modern synthe-

sis. In Proceedings of the International Workshop on

Vision Algorithms: Theory and Practice, ICCV ’99,

pages 298–372, London, UK, UK. Springer-Verlag.

Wu, Y., Liu, Y., Li, J., Liu, H., and Hu, X. (2013). Traf-

ﬁc sign detection based on convolutional neural net-

works. In The 2013 International Joint Conference on

Neural Networks (IJCNN), pages 1–7.

Zhu, Z., Liang, D., Zhang, S., Huang, X., Li, B., and Hu, S.

(2016). Trafﬁc-sign detection and classiﬁcation in the

wild. In 2016 IEEE Conference on Computer Vision

and Pattern Recognition (CVPR), pages 2110–2118.

Iterative Calibration of a Vehicle Camera using Trafﬁc Signs Detected by a Convolutional Neural Network

195
