Road Detection from Satellite Images by Improving U-Net with

Difference of Features

Ryosuke Kamiya

, Kazuhiro Hotta

, Kazuo Oda

and Satomi Kakuta

Meijo University, Shiogamaguchi, Tempaku-ku, Nagoya 468-0073, Japan

Asia Air Survey co.,ltd, Kanagawa 215-0004, Japan

Keywords: Road Detection, U-Net, Difference of Feature.

Abstract: In this paper, we propose a road detection method from satellite images by improving the U-Net using the

difference of feature maps. U-Net has connections between convolutional layers and deconvolutional layers

and concatenates feature maps at convolutional layer with those at deconvolutional layer. Here we introduce

the difference of feature maps instead of the concatenation of feature maps. We evaluate our proposed

method on road detection problem. Our proposed method obtained significant improvements in comparison

with the U-Net.

1 INTRODUCTION

The road detection from a satellite image is carried

out manually now. This takes enormous time, and a

physical and mental burden is large. Automation of

the work using image recognition technology is

demanded to solve the problem. In conventional

method, they improved the detection accuracy by

using satellite images with 7 channels (T. Ishii et al.,

2016) and Convolutional Neural Network (CNN).

Other conventional methods achieved high precision

by using deep learning (Saito et al., 2016,

Vakalopoulou et al., 2015, O. A et al., 2015). In this

paper, we would like to detect roads by improving

the U-Net (Ronneberger et al., 2015).

U-Net consists of encoder part using convolution

and decoder part using deconvolution

(Badrinarayanan et al., 2015). In addition, the

network connects the encoder parts with decoder

parts to compensate for the information eliminated

by encoder part because fine information such as

small objects and correct position of objects are lost

by pooling and deconvolution. In the U-net, the

feature maps at encoder part were concatenated to

those at decoder part. However, in residual network

(He et al., 2016), the summation of feature maps

were used and it worked well. Thus, the other

computation may be effective though original U-net

used simple concatenation at the connection.

In this paper, we compute the difference of

feature maps at the connection part of the U-Net to

improve the segmentation accuracy. Since we use

ReLU as an activation function, negative values

obtained by the difference of feature maps become

0. Thus, we expect that high-frequency components

such as road are emphasized.

Our proposed method is applied to road detection

problem from the satellite images. We evaluate the

accuracy using four satellite images with high

resolution. The proposed method improved the

accuracy more than 5% in comparison with the

original U-Net.

This paper is organized as follows. At first, we

explain the details of the proposed method in section

2. Next, we show the experimental results on road

detection from satellite images in section 3. The

comparison with the original U-net is also shown in

the section. Finally, we describe conclusion and

future works in section 4.

2 PROPOSED METOD

In this paper, we propose a new network which uses

the difference of the feature maps. We show the

structure of the original U-Net and the proposed

method in Figure 1. U-Net concatenated the output

of conv1 layer and that of deconv1 layer. The output

of conv2 layer and that of deconv2 layer is also

concatenated.

Shallower layers have the information about

high-frequency component such as the position of

Kamiya, R., Hotta, K., Oda, K. and Kakuta, S.

Road Detection from Satellite Images by Improving U-Net with Difference of Features.

DOI: 10.5220/0006717506030607

In Proceedings of the 7th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2018), pages 603-607

ISBN: 978-989-758-276-9

603

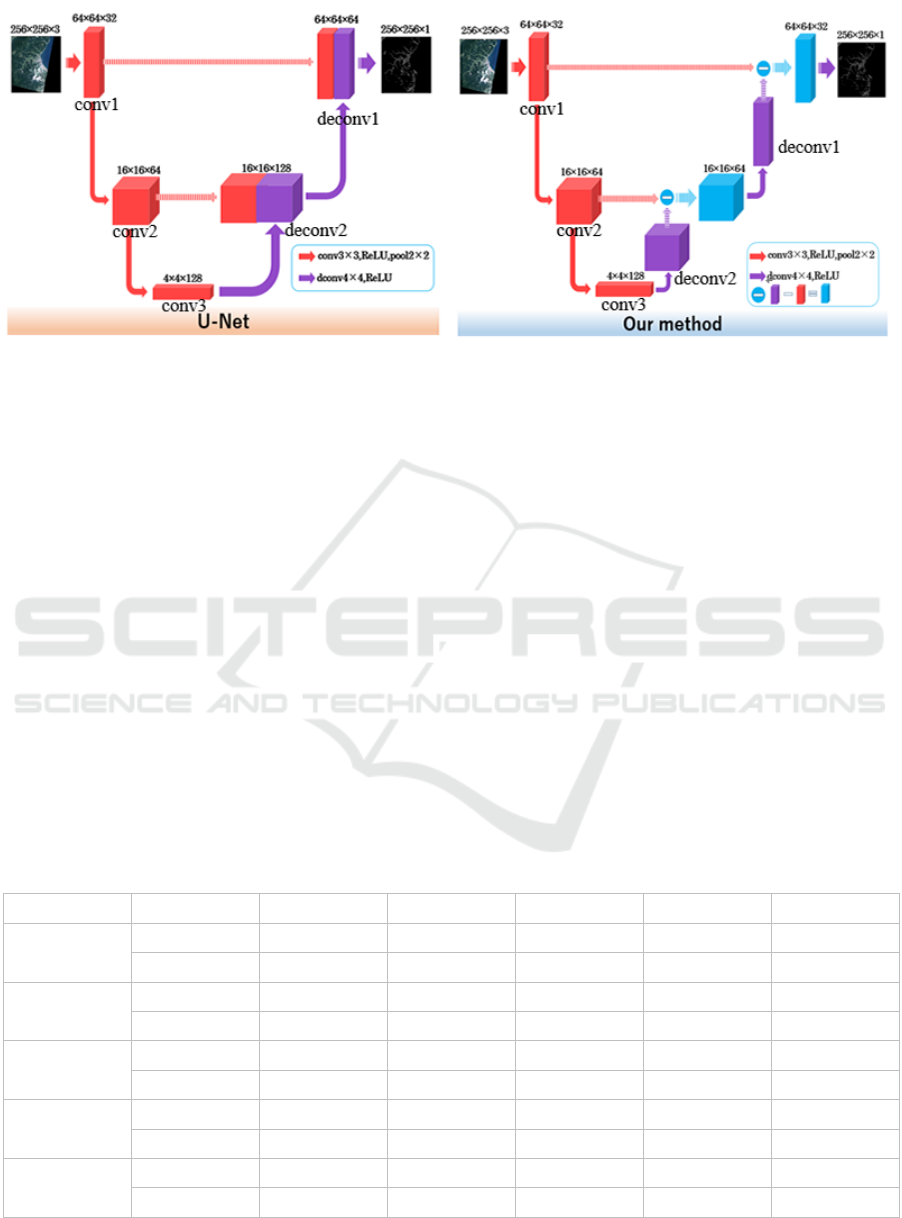

Figure 1: Structure of U-Net and Ours method.

objects and the border between objects. Deeper

layers have semantic information of objects. Fine

information such as road is lost by pooling and

deconvoluion. U-Net compensates for the lost

information by concatenating the feature maps at

encoder part to decoder part.

On the other hand, in the proposed method, we

compute the difference between the feature map at

conv1 layer and that at deconv1 layer instead of

concatenation. Similarly, we also compute the

difference between conv2 layer and deconv2 layer.

Since we use ReLU as an activation function,

negative values obtained by the difference of feature

maps become 0. This can emphasize easily the high-

frequency component such as road by while

removing the noise that occurred by deconvolution.

The roads in satellite images are high-frequency

component. Thus, we consider that deep network is

not necessary and use a shallow encoder-decoder

network as shown in Figure 1.

In both networks, conv1 layer has 32 filters,

conv2 layer has 64 filters, conv3 layer has 128

filters, deconv1 layer has 32 filters and deconv2

layer has 64 filters. In addition, the filter size at

convolutional layer is set to 3 × 3, that at

deconvolutional layer is set to 4×4.

3 EXPERIMENTS

In this section, we show the evaluation results by the

U-Net and the proposed method. At first, we explain

the dataset used in experiments in section 3.1.

Evaluation method is explained in section 3.2. We

explain comparison methods in section 3.3.

Comparison result with the original U-net is shown

in section 3.4.

Table 1: Highest AUC of each method.

Network

Adam

dataset1

dataset2

dataset3

dataset4

Average

U-Net

1e-4

62.69%

68.01%

61.66%

56.14%

62.13%

1e-5

46.72%

43.83%

57.66%

63.81%

53.01%

Add

1e-4

51.83%

55.85%

61.36%

55.76%

45.24%

1e-5

33.97%

50.60%

68.91%

48.23%

50.43%

Ours

1e-4

61.98%

56.37%

73.28%

68.03%

64.91%

1e-5

55.72%

50.77%

57.64%

61.83%

56.49%

Ours(fp)

1e-4

62.00%

66.88%

73.51%

54.57%

64.24%

1e-5

34.87%

61.85%

55.43%

60.61%

53.19%

Ours(sp)

1e-4

64.59%

70.07%

75.47%

69.49%

69.90%

1e-5

60.91%

67.15%

73.21%

65.10%

66.59%

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

604

3.1 Dataset

We use four satellite images captured by Hodoypshi-

1 in experiments. The resolution of the original

image is 4,152×4,003 pixels. Since four images are

too small to evaluate the accuracy, we crop a region

of 128×128 pixels at the overlap ratio of 0.25 from

the original images. In general, many supervised

images are required for training a deep learning.

Thus, we rotate the cropped images at the interval of

90 degrees. This makes the method to be robust to

the direction of roads.

In experiments, three original images are used

for training and remaining one original image is

used for test. For evaluating the general accuracy

fairly, we made four datasets while changing a

combination of three training images and one test

image. Thus, all original images are used as test.

As a result, training regions in dataset 1 is

124,828, those in dataset 2 is 125,704, those in

dataset 3 is 127,820 and those in dataset 4 is 129,704.

Test images for four datasets are 12,372 regions

cropped without overlap. The number of training

regions is different among datasets because we crop

local regions without a black region in Figure 4.

3.2 Evaluation Method

In this paper, since we have only four satellite

images, we cannot prepare the dataset for validation

and choose the most suitable model for test. Thus,

we train each method until 100 epochs and save the

model at every 5 epochs and compute Precision

Recall Curve (PRC) and Area Under the Curve

(AUC).

We drew the graph whose horizontal axis is the

number of epoch and vertical axis is AUC. We

evaluate each method by the graph and the

maximum AUC.

3.3 Comparison Methods

At first, we must compare our method with the

original U-net. We also evaluate the network which

adds the feature map at encoder part to that at

decoder part in order to investigate the effectiveness

of the difference of the feature map. The summation

of feature map is like the ResNet

and we call this

network “Add”.

In addition, we also evaluate the network that the

difference of feature maps is used at only the first

layer or the second layer in order to investigate

which layer is effective. The first network does not

have the path between the second layers while only

first layer has the path. We call this method Ours

(fp:first path). The second network does not have the

path between the first layers while only second layer

has the path. We call this method Ours (sp:second

path).

3.4 Experimental Results

In this experiment, we classify a satellite image into

two classes; road and background. We evaluate all

methods using two kinds of alpha value in Adam

optimizer (Kingma at al., 2015); 1e-4 and 1e-5.

AUC graphs of each method at alpha 1e-4 and 1e-5

are shown in Figure 2 and 3. In addition, we show

the maximum AUC of each network in Table 1.

Only top 3 AUCs are shown as the red in Table1.

As we can see from Table1, our method using

two paths for the difference of feature maps

improved approximately 3% in comparison with the

original U-net. The best AUC is obtained by the

method “Ours(sp)”. This method is approximately

5% bettetr than the U-Net. This result demonstrated

that the difference of the feature maps is effective

for classifying small objects like road.

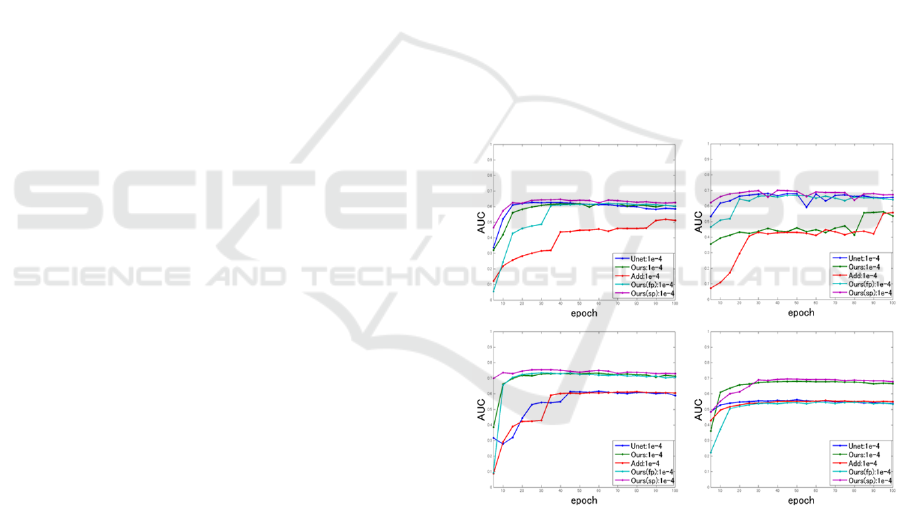

Figure 2: AUC graph when alpha is1e-4. (upper left:

dataset 1, upper right: dataset 2, bottom left: dataset 3,

bottom right: dataset 4).

When we compare Ours(fp) with Ours(sp), the

difference of the feature maps of the conv2 layer and

the deconv2 layer is more effective, and the

difference of the feature maps of conv1 and the

deconv1 improve the accuracy slightly. It is

necessary for the road detection that high-frequency

component indicating the position and semantic

information of the road. The shallow layer of

convolution layers has the information of the high-

Road Detection from Satellite Images by Improving U-Net with Difference of Features

605

frequency component such as a border between

objects and the deep layer has semantic information

such as object class. We consider that those two

information was included in Ours(sp) in a good

balance in comparison with Ours(fp).

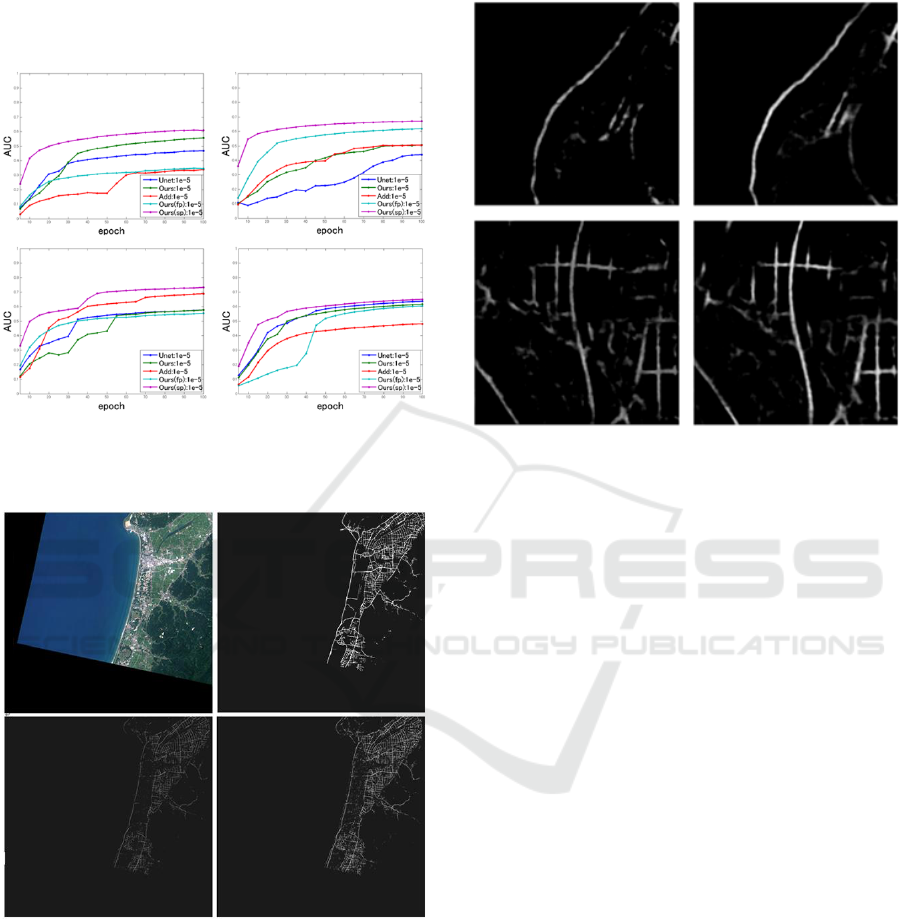

Figure 3: AUC graph when alpha is 1e-5. (upper left:

dataset 1, upper right: dataset 2, bottom left: dataset3,

bottom right: dataset4).

Figure 4: Detection result for dataset 3. (upper left: input

image, upper right: ground truth, bottom left: U-Net,

bottom right: Ours(sp)).

We show the input and output image when we

use dataset 3 in Figure 4. We see that both U-Net

and the proposed method can detect the road roughly.

However, the output of our proposed method is

clearer than the U-Net. This shows that our method

detects small part of the road.

We show the enlarged image of Figure 4 in

Figure 5 in order to confirm the fine detection result.

As we can see from Figure 5, our proposed method

can detect fine road well in comparison with the U-

Net.

Figure 5: Comparison of fine detection result for dataset 3.

(left: U-Net, right: Ours(sp)).

4 CONCLUSION

By using the difference of feature maps between

convolutional layer and deconvolutional layer, we

can emphasize the small objects as road. Our

proposed method gave better result than the original

U-Net.

However, there are roads that are hard to classify

because of crowding buildings shown in center of

Figure 5. We consider that they are hard to learn

because space between roads is too narrow by the

resolution of the current image.

After we crop the local regions, we should

enlarge the regions by super-resolution methods (C.

Dong al., 2015) in order to enlarge the distance

between roads. In addition, we used shallow network

in this paper. Thus, we should use more layers.

These are subjects for future work.

REFERENCE

T. Ishii, E. Simo-Serra, S. Iizuka, Y. Mochizuki, A.

Sugimoto, H. Ishikawa, and R. Nakamura, “Detection

by classiﬁcation of buildings in multispectral satellite

imagery” Proc. International Conference on Pattern

Recognition(ICPR), 2016.

S. Saito, T. Yamashita, and Y. Aoki. “Multiple object

extraction from aerial imagery with convolutional

ICPRAM 2018 - 7th International Conference on Pattern Recognition Applications and Methods

606

neural networks.” Journal of Imaging Science and

Technology, Vol. 60, No. 1, 2016.

M. Vakalopoulou, K. Karantzalos, N. Komo-dakis, and N.

Paragios. “Building detection in very high resolution

multispectral data with deep learning features.” Proc.

IEEE International on Geoscience and Remote

Sensing Symposium (IGARSS), pp 1873-1876, 2015.

O. A. B. Penatti, K. Nogueira, and J. A. dos Santos. “Do

deep features generalize from everyday objects to

remote sensing and aerial scenes domains?” Proc.

IEEE Conference on Computer Vision and Pattern

Recognition (CVPR) Workshops, pp.44-51, 2015.

O. Ronneberger, P. Fischer and T. Brox, “U-Net:

Convolutional Networks for Biomedical Image

Segmentation”. Proc. Medical Image Computing and

Computer Assisted Intervention, pp 234-241, 2015.

V. Badrinarayanan, A. Kendall and R. Cipolla, “SegNet:

A Deep Convolutional Encoder-Decoder Architecture

for Image Segmentation.” IEEE Transactions on

Pattern Analysis and Machine Intelligence (TPAMI),

Vol.39, No.12, pp.2481-2495, 2017.

K. He, X. Zhang, S. Ren and J. Sun, “Deep Residual

Learning for Image Recognition.” Proc. IEEE

Conference on Computer Vision and Pattern

Recognition, pp771-778, 2016.

D. P. Kingma, J. Ba, “Adam: A Method for Stochastic

Optimization.” Proc. International Conference on

Learning Representations (ICLR), 2015.

C. Dong, C. C. Loy, K. He and X. Tang, “Image Super-

Resolution Using Deep Convolutional Networks.”

IEEE Transactions on Pattern Analysis and Machine

Intelligence (TPAMI), Vol.38, No.2, pp.295-307,

2015.

Road Detection from Satellite Images by Improving U-Net with Difference of Features

607
