Health State of Google’s PlayStore

Finding Malware in Large Sets of Applications from the Android Market

Alexandre Dey, Loic Beheshti and Marie-Kerguelen Sido

Operational Cryptology and Virology Research Laboratory (C +V )

, ESIEA,

38 rue des Docteurs Calmette et Gu

erin, Laval, France

Keywords:

Android, Malware, Machine Learning, Crawler, Neural Network, Static Analysis.

Abstract:

Android has, to this day, more than 80% of the mobile OS market share. Android users also have access to

more than 2 million applications via the Google Playstore. The Playstore being an ofﬁcial market, users tend

to trust the applications they ﬁnd in it, and therefore, the store is an interesting platform to spread malware. We

want to provide a health state of this store by ﬁnding the proportion of malware that managed to get published

in it. In this paper, we explain how we developed the crawler that massively downloads the application

directly from the Playstore. Then we describe what features we extract from the applications and how we

classiﬁed them with the help of an Artﬁﬁcial Neural Network. Our study conﬁrms that there are malicious

applications on the Playstore. The proportion of them is around 2%, which corresponds to about 40,000

ofﬁcially downloadable malware.

1 INTRODUCTION

Google, with its Android platform, has been solidly

integrated into the smartphone market in recent ye-

ars. One of the reasons for its success is its applica-

tion catalog also called ”Playstore” (Statista (2017))

which contains, based on our estimation, more than 2

million applications. It is also the developers’ favo-

rite platform because publishing applications is both

quick and free.

However, the number of users of this platform

make it an attractive target for spreading malware

(malicious applications). Despite the protections put

in place by Google, it is certain that malicious of ap-

plications exist on the Playstore such as Viking Horde

(A. Polkovnichenko (2016)), DressCode (TrendMi-

croInc (2016)) or FalseGuide (O. Koriat (2017)) at-

tacks have demonstrated.

This article will present our study which aims at

determining the proportion of malware on Google

Play. We consider as malware any application in-

tentionally causing harm or subverting the system’s

intended function (this includes Adware), as well as

manipulating information without user’s express con-

sent. To perform this study, we have designed a cra-

wler able to simulate the download of an application

and to bypass the downloading restrictions of Google

Play. Then, with data from static analysis, we trai-

ned an Artiﬁcial Neural Network to discover new mal-

ware on the PlayStore. This neural network bases its

detection on features that are extracted by reversing

these applications.

In the following paper, we will detail the different

techniques involved in performing our study. It is or-

ganized as follow : Section II, the crawler ; Section

III, the features used for static analysis ; Section IV,

the feed and forward neural network ; Section V the

results. We will conclude by discussing our results.

2 PLAYSTORE CRAWLER

As we are conducting a study on Googles Playstore,

we ﬁrst need to retrieve a huge set of applications

from it (large enough to be statistically representa-

tive). To do so, we have developed a Python script

to download applications massively directly from the

Playstore. We describe here the restrictions imple-

mented by Google and how we bypassed them.

First of all, there is no exhaustive list of the appli-

cations available on the Playstore. Moreover, Google

tends to bring out the most popular applications and

to hide those less successful. Secondly, even though

the communication with Playstore servers go through

HTTPS, to only allow Android devices with a valid

Google account, a proprietary protocol is used on top

Dey A., Beheshti L. and Sido M.

Health State of Googleâ

Zs PlayStore - Finding Malware in Large Sets of Applications from the Android Market.

DOI: 10.5220/0006727705380544

In Proceedings of the 4th International Conference on Information Systems Security and Privacy (ICISSP 2018), pages 538-544

ISBN: 978-989-758-282-0

of it. This protocol is based on Google’s protobuf

(Google (2017)), and has not been ofﬁcially descri-

bed as of now, but has been, for the most part, reverse

engineered (Figure 1). Finally, any behaviour consi-

dered as not ”human” (such as downloading a large

amount of applications in a short time, or following

the same pattern at ﬁxed interval, ...) will be detected

and will lead to an account ban. Furthermore, the cri-

teria to deﬁne whether or not a behaviour is normal

seems to be changing every few weeks or months.

Previous work that involves crawling the Plays-

tore has been made by other researchers, and they des-

cribed how they prevent account banning. Playdrone

(N. Viennot and Nieh (2014)) crawls the entire Store

using Amazon EC2 cloud services and thus connecti-

ons come from multiple IP addresses. As for Sher-

lockDroid (Apvrille and Apvrille (2014)), they limit

the number of downloads by pre-ﬁltering what they

are interested in (potential malware), and also, each

connection goes through Tor. The ﬁrst one is expen-

sive and the second one does not respond to our pro-

blematic, crawling the whole PlayStore.

message AndroidAppDeliveryData {

optional int64 downloadSize = 1;

optional string signature = 2;

optional string downloadUrl = 3;

repeated AppFileMetadata additionalFile = 4;

repeated HttpCookie downloadAuthCookie = 5;

optional bool forwardLocked = 6;

optional int64 refundTimeout = 7;

optional bool serverInitiated = 8;

optional int64 postInstallRefundWindowMillis = 9;

optional bool immediateStartNeeded = 10;

optional AndroidAppPatchData patchData = 11;

optional EncryptionParams encryptionParams = 12;

}

Figure 1: Playstore’s protocol part (application download).

On GitHub, we can ﬁnd a Python script (dﬂower

(2014)) that is able to communicate with the Plays-

tore. This script implements the basic functionalities

of the store (search for applications, get the details,

download, ...) and needs only two elements to work

with: a valid Google account and an Android Device

ID (a unique token generated for each Android de-

vice) (Android (2017c)). However, the tool is not de-

signed for mass downloading and we modiﬁed it to

suit our needs.

To avoid being banned because of non-human be-

haviours, we crowd-sourced the creation of 30 activa-

ted Google accounts (an Android device is required to

validate an account before it is allowed to download

from the Playstore, and you can only create a few ac-

counts from one device) and we try to put as much

time as possible between two downloads from the

same account (multiple minutes). We also generate

an Android ID for every account thanks to android-

checkin (Viennot (2012)). When crawling, we keep

the authentication token as long as it is possible to

download applications and we renew the token each

time it is invalidated. When an account is banned,

the Playstore servers return an error message when

attempting to login. We use a list of HTTPS proxies

to prevent our IP address from being blacklisted.

We ﬁnd the applications by using the search

function of the Playstore with words randomly se-

lected from multilingual dictionary. Each search gives

at most 250 results. From this point, we download

applications that are free (we cannot download paid

apps) and ”compatible” with our fake device (we can-

not download tablet speciﬁc apps without a compati-

ble Android Device ID). To speed up the whole pro-

cess, we split the dictionary between multiple proces-

ses and each of these spawns a thread provided with

an account/device ID pair for each app to download

(see Figure 2).

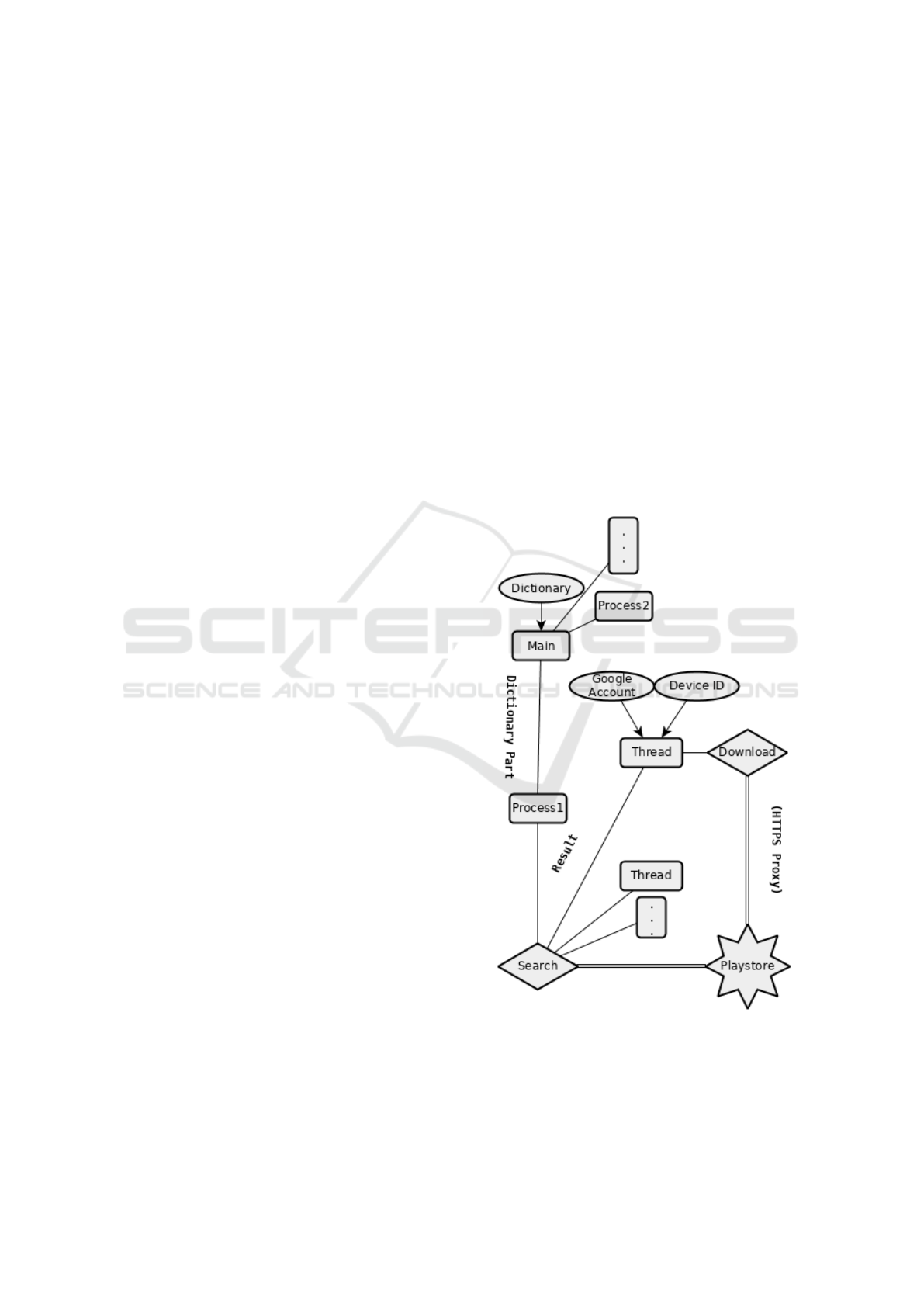

Figure 2: Playstore Crawler scheme.

The crawler is designed to be scalable. Provided

that we have enough accounts and Device IDs, it is

possible to distribute the crawling across multiple ma-

chines. In our case, to synchronize the different pro-

cesses, we store the applications inside a Cassandra

NoSQL database (Apache (2008)) and before down-

loading a new one, we check if the application is ab-

sent from the database.

The crawler has been used for two purposes. First,

in October 2016, it was conﬁgured not to download

applications, but just to ﬁnd them. It has generated a

list of more than 2 millions applications. In January

2017, we used it to download and extract the features

(see section 3) of 3,650 applications, which constitute

our sample for this study. For this second usage, we

used a laptop with a 2 core 4 thread intel CPU and the

process took 2 weeks (depending on the application

extracting the features can take up to 15 min while

downloading takes less than one minute).

3 FEATURE ANALYSIS

3.1 Extraction

We perform static analysis, and therefore, we extract

all the features that can be interesting for classiﬁca-

tion directly from the APK ﬁle. To reverse applica-

tions, we use the set of tools Androguard (Bachmann

(2015)) written in Python. We provide the type of fea-

tures we extract and why. Our static analysis follows a

similar pattern to what was presented by P. Irolla and

E. Filiol at Black Hat Asia Conference (2015) (Irolla

and Filiol (2015)).

• General Information:

This information is not directly used to perform

the analysis, but more as a way to identify and

contextualize it. We extract these information

mainly from the application manifest (Android

(2017a)).

First, we retrieve the application common name

(ex: Facebook Messenger) the package name

(com.orca.facebook), and the version number.

Both of these are supposed to identify the appli-

cation, but considering it is easy to repackage an

Android application, we use the SHA-256 hash of

the APK instead.

We also extract the certiﬁcate used to sign the ap-

plication (to be published on the Playstore, an ap-

plication must be signed). From this certiﬁcate,

we can extract interesting information on the de-

veloper.

The other things we extract are the information

relative to the SDK (Android (2012)) (minimal/-

maximal/target version), the intent for the stati-

cally deﬁned receivers (communication between

applications), intents for the activities (starting a

foreground process inside an application) and in-

tent for the services (background processes). The

last thing retrieved is all the URLs statically deﬁ-

ned in the application.

• Classiﬁcation Information:

These are the features on which the detection is

based. They are retrieved by decompiling the .dex

ﬁles in the application. These ﬁles store the java

bytecode that will be executed by dalvik (or An-

droid RunTime), the android Java virtual machine

(Android (2017b)). We chose these features be-

cause, based on other researcher’s work, they see-

med promising for static analysis (see: G. Canfora

and Visaggio (2015b); G. Canfora and Visaggio

(2015a); D. Arp and Rieck (2014)).

Most of the information we extract is based

on the opcodes (the instructions executed by

dalvik) themselves, without the operands.

The ﬁrst thing we use is opcodes frequencies

(G. Canfora and Visaggio (2015b)). As a more

representative value, we store trigrams (An

N-gram is a sequence of N adjacent opcodes)

frequencies (G. Canfora and Visaggio (2015a)).

In Figure 3, the opcodes are (invoke-static,

move-result-object, if-eqz, invoke-direct, return-

object, const/4, goto), and the corresponding

trigrams would be ([invoke-static:move-result-

object:if-eqz], [move-result-object:if-eqz:invoke-

direct], [if-eqz:invoke-direct:return-object],

[invoke-direct:return-object:const/4], [return-

object:const/4:goto])

To use several Android API methods, Android

applications have to ask for certain permissions

(use network, bluetooth, access user information,

...). Malware also have to ask for these permis-

sions, and some permissions give access to more

potentially malicious behaviour, and are therefore

a good way to analyze applications (D. Arp and

Rieck (2014)).

Finally, we extract the Android API call sequence.

The API is a software interface (a set of functi-

ons) used by developers to perform device re-

lated tasks (sending SMS, manipulating the UI,

etc...). Some of these tasks can be maliciously

employed. These calls were found to also be

pertinent to detect android malware (D. Arp and

Rieck (2014)). For Figure 3, API call would be

api function call1, api function call2, as well as

the constructor of api type1

From a collection of applications, we extracted

these features. There is a total of 228 dalvik opco-

des. The applications were constituted on average of

80,000 to 100,000 opcodes, but a few reached more

method_name

{

invoke-static {v3}, api_function_call1

move-result-object v0

if-eqz v0, 000c

new-instance v1, api_type1

invoke-direct {v1, v0}, api_function_call2

return-object v1

const/4 v1, #int 0

goto 000b

}

Figure 3: Decompiled code (SMALI).

than a million of them. From these opcodes, we found

a list of 500,000 trigrams, but not all trigrams are pre-

sent in each application. For the API calls, we re-

corded a total of 100,000 different ones. Finally we

found 250 permissions. Therefore, if we wanted to

represent applications inside vectors, the dimension

of them would be greater than 600,000.

3.2 Feature Selection

Even with neural networks being powerful tools, we

must limit the number of entries to have optimal re-

sults. Taking as entry all the application’s features

would lead building a neural network with millions of

entries which is not easily computable. An optimal

way to limit our entries is to take the most relevant in-

formation/features, those features can be found using

statistical methods.

A way to ﬁnd relevant features would be to ﬁnd

the features most represented in Malware. A clas-

sic way to do this is to ﬁrst apply Principal Compo-

nent Analysis (PCA). PCA was not implemented for

our problem for many reasons. The main reason is

the amount of data, PCA has a too high complexity,

O( f

n + f

), where f is the number of features and

n the number of samples, and this is too difﬁcult to

solve considering the number of features we have.

To optimize results on malware detection, we took

the features most represented in malware while being

the least represented in benign applications. A well-

known statistical method allows us to ﬁnd those fe-

atures easily, the TF-IDF indicator (J.Z. and Maloof

(2006)). This method, originally used for document

research for example in search engines, can be adap-

ted for our purpose. The TF or term frequency is the

frequency of a word in a given text. The IDF or in-

verted document frequency is a value evaluating the

generality of a given sequence, the more a word is re-

presented, the less pertinent it becomes as a matter of

selection, the lower the IDF value is.

The TF-IDF is the product of these two values,

thus, the higher the value is the most pertinent the

result will be. In our case, things are slightly dif-

ferent. TF is the feature presence frequency in our

malware database and the IDF is the feature presence

frequency in the benign dataset. We have then an in-

dicator that grows if the feature is well represented in-

side the malware database and diminish if the feature

is well represented in the benign application database.

t f (t, d) =

t,d

∑

∈d

( f

)

(1)

id f (t, d) =

|{d ∈ D : t ∈ d}|

(2)

t f id f (t, D) = t f (t, d) ∗ id f (t, D) (3)

After calculating our modiﬁed version of the TF-

IDF on each feature and sorting the results from the

most pertinent to the least pertinent, we plot the TF-

IDF histogram for each section (Figures 4, 5 and 6).

We can select the most important features given on

the results distribution and, by cutting a section for

each graph, we then obtain 12175 features which will

be our entries.

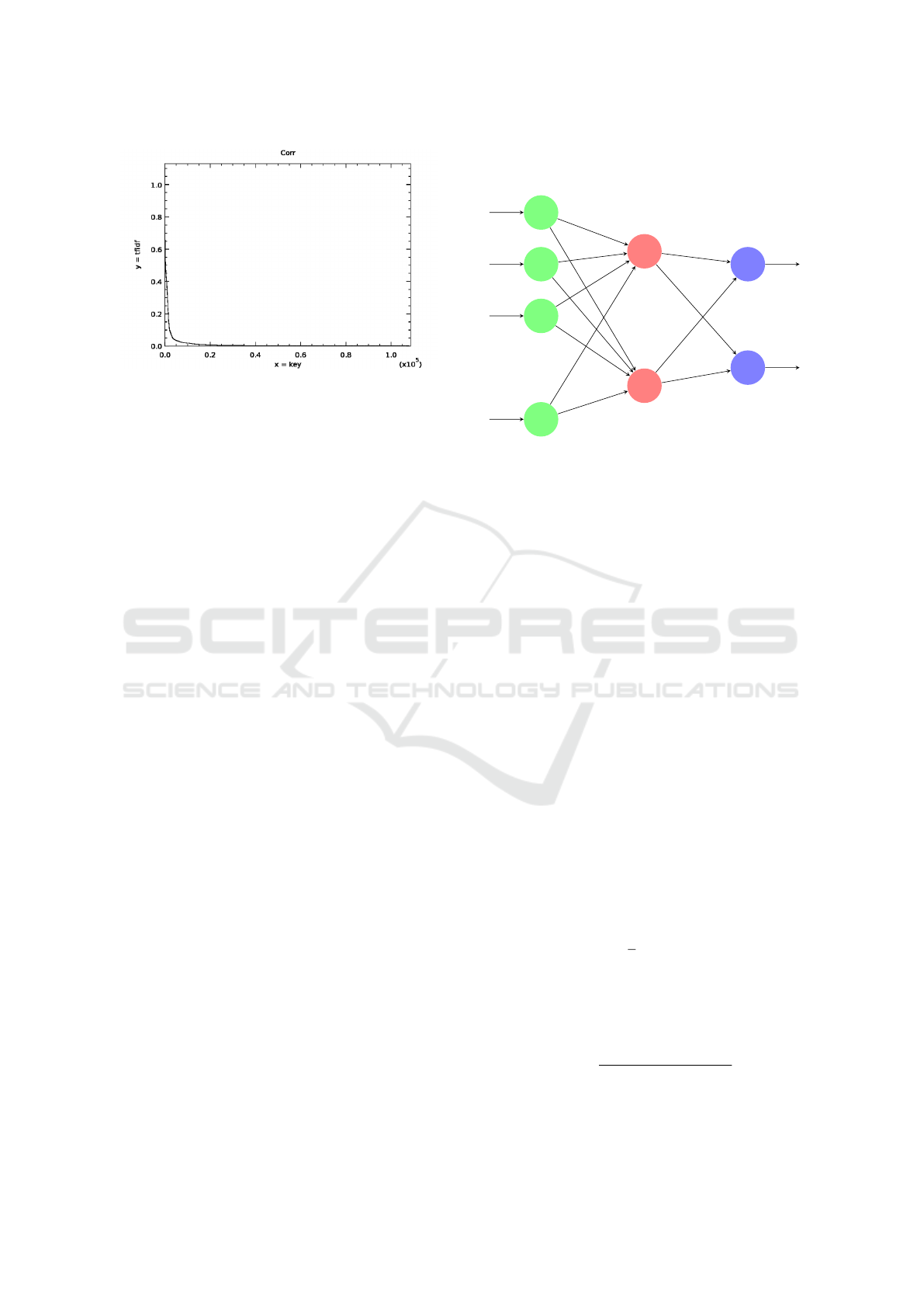

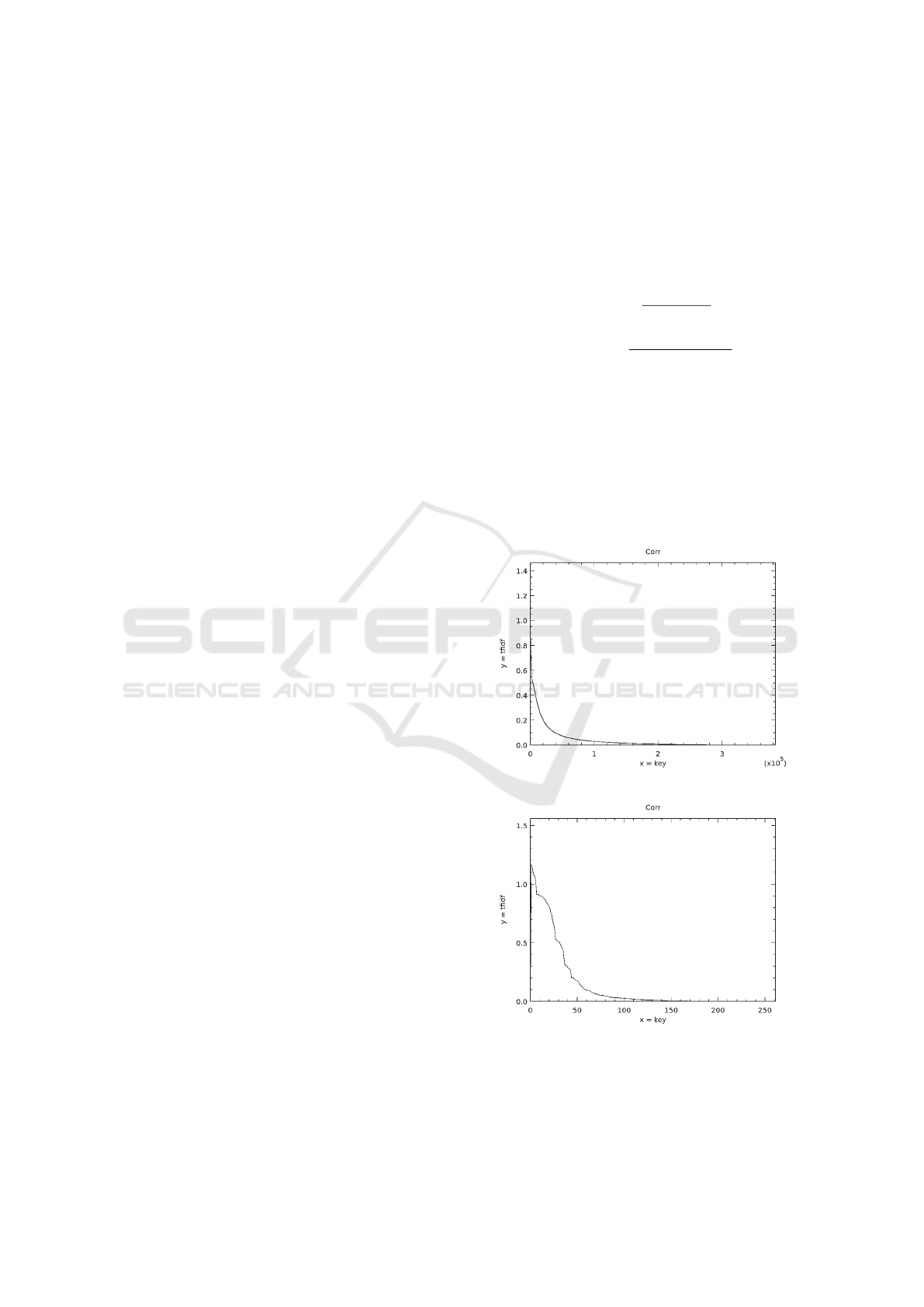

Figure 4: TF-IDF curve: Trigram Frequencies.

Figure 5: TF-IDF curve: Applications Permissions.

Figure 6: TF-IDF curve: API Calls.

4 CLASSIFICATION

4.1 Training Dataset

We use an artiﬁcial neural network to classify applica-

tions. To build it, we need a set of applications that are

already classiﬁed. We use the Drebin Dataset (D. Arp

and Rieck (2014)). The Drebin Dataset is widely used

by the Android malware researcher community.

At ﬁrst we used the 5585 malware and 2201 be-

nign applications as our training dataset. We have

conducted a study on this initial set (Irolla and Dey

(2017)) that show that 42.5% of these applications can

be regrouped into 592 (584 malware, 8 benign) sets of

repackaged applications with the same code and only

resources and a few strings that differ from one anot-

her. Therefore, we removed the duplicates from the

Drebin Dataset, and we end up training on a set con-

stituted of 2891 malware APK and 2178 benign ones.

4.2 Artiﬁcial Neural Network

As for the classiﬁer, we use an Artiﬁcial Neural Net-

work (ANN) (Widrow and Lehr (1990)). Our neural

network is a multilayer perceptron. A perceptron is

one of the simplest structures in machine learning but,

from previous experimentation using a single percep-

tron applied to malware detection, we deduced that

this structure was sufﬁcient for our problematic.

The ﬁnal neural network parameters are: 1 input

and 1 hidden layer set to a sigmoid symmetric acti-

vation function , 12175 entry nodes, 25 nodes on the

hidden layer, 2 nodes on the output (Figure 7), trai-

ning results are (-0.95;0.95) for a malware and (0.95;-

0.95) for a benign application. The learning method

is incremental (classic backpropagation), the learning

rate is set to 0.25 and the library used is FANN (Nis-

sen (2015)). The entry nodes will take the selected

12175

Input

layer

Hidden

layer

Ouput

layer

Figure 7: Multilayer Perceptron.

features frequencies as entries. The hidden layers

are the layers in between the entry layer and the out-

put, the more we have nodes and layers on the hid-

den layer, the more complex the structure becomes to

train. The results are the values on the two output no-

des, our decision strategy is winner takes all.

The neural network conﬁguration was a compro-

mise between performance and training speed.The le-

arning rate can be seen as the progression speed, but

a too big learning rate may miss the optimal solution.

The neural network is trained to maximize the genera-

lization property via cross validation. The validation

subset is 20% of our original subset of 4908 applica-

tions.

4.3 Testing Phase

We trained our neural network to maximize our ge-

neralization capabilities. The optimal training was

found thanks to the cross validation method. Our cri-

teria for this training is the MSE (Mean Squared Er-

ror) (Lehmann and Casella (1998)). We select the trai-

ning stage where the MSE on a foreign dataset is at its

lowest (See Figure 8).

MSE =

∑

i=1

(

− e

)

(4)

The best neural network among all the created

neural networks is the one with the best accuracy. The

accuracy criteria is:

Acc =

T P + T N

T P + T N + FP + FN

(5)

With TP, number of True Positive, TN, True Ne-

gative, FP, False Positive and FN, False Negative. For

a health state, instead of a ROC analysis, we privile-

ged accuracy with an ANN giving a 98.03% accuracy

with equal false positive and false negative rates. As

such, with a large enough sample, applications falsely

detected as malware are compensated by the malware

that are not detected, and thus, the proportion of mal-

ware is accurate.

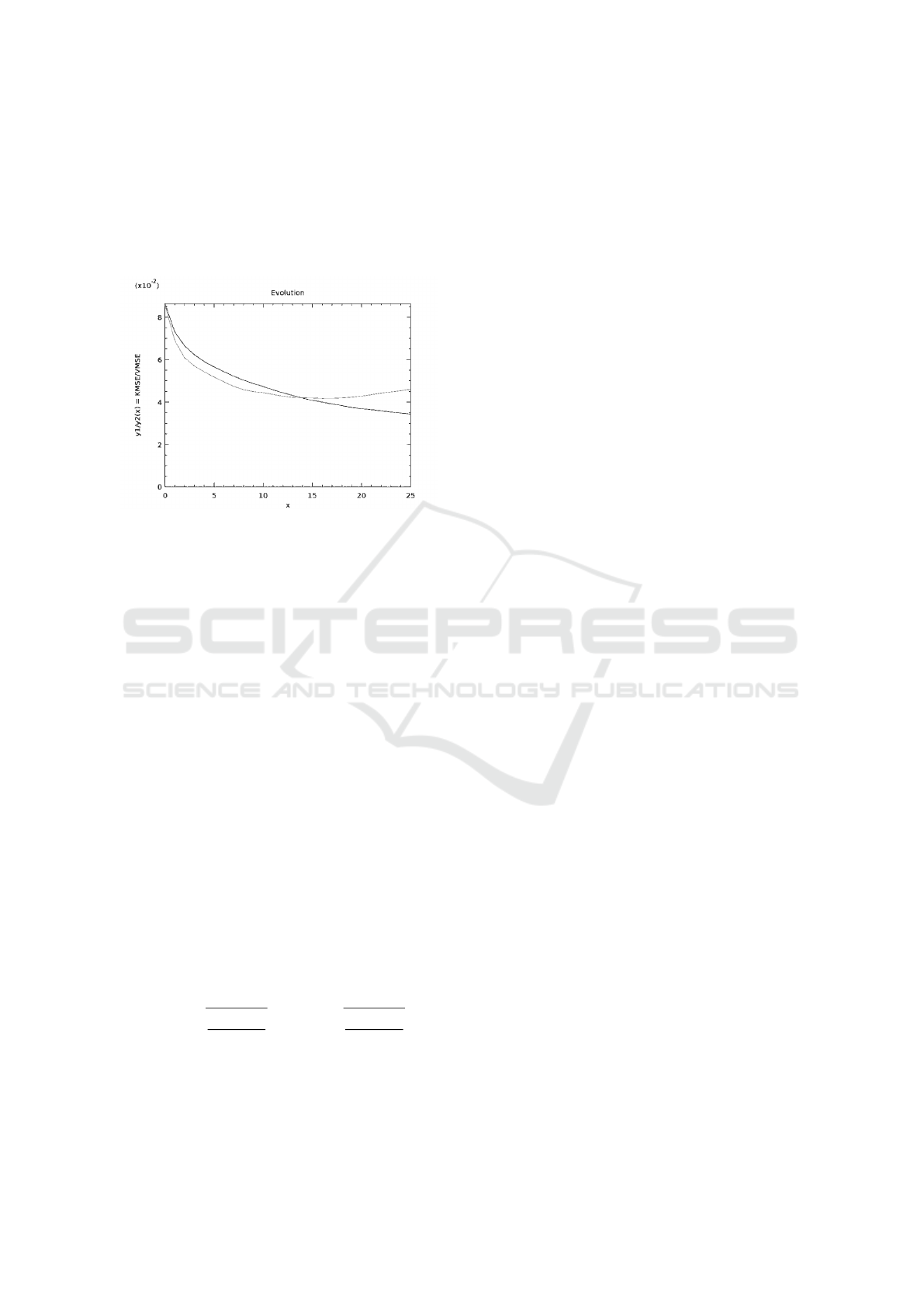

Figure 8: MSE for Generalization VMSE (Gray) and Kno-

wledge KMSE (Black).

5 RESULTS AND CONCLUSION

We ran the crawler for 2 weeks on a machine shipped

with an Intel®Core

T M

i7 3520M CPU. Each appli-

cation was decompiled before downloading the next

one, and that was what took the majority of the time.

We harvested a total of 3,650 applications directly

from the Playstore. We search the Playstore for appli-

cations using random words in a large dictionary and

therefore these 3560 applications constitute a repre-

sentative sample. Before downloading, we also used

the crawler to generate a list of applications on the

Playstore. This list contains a little under 2 million

applications.

Among the 3,650 applications, the neural network

classiﬁed 92 as being malicious. This represents

2.52% of our sample. From this, and considering that

our classiﬁer is selected to be the most accurate and

that false positive rate is roughly equal to false ne-

gative rate, assuming proportion of malware follows

a normal distribution, using the normal estimation of

the interval (6), we calculate the conﬁdence interval

of the proportion of malware on the Playstore:

[X − 1.96

X(1 − X)

, X + 1.96

X(1 − X)

] (6)

With X our measured proportion and n the sample

size. We can estimate with a 95% conﬁdence level

that the proportion of malware on the Playstore sits

between 2.01% and 3.03%.

Some of these applications were manually tested

and proved to be malicious. For example, the appli-

cation Battery King (now removed from the store) is

granted many permissions by the user and uses them

to leak information about him. The application also

writes binary ﬁle on the machine and execute them

afterward.

By allocating more resources (more accounts,

Device IDs, CPU power, ...) to the crawler, it would

be feasible to crawl most of its applications. The

main bottleneck here is the time needed to extract the

features from the applications. This is explained by

the fact that Androguard is a really complete tool that

does more than what we actually need. Some testings

showed that using a C++ program greatly reduces

the extraction time for the opcodes (this program is

still work in progress). Additionally, once it will be

easily deployable and fully documented we plan on

releasing the crawler to the OpenSource community

(https://github.com/AlexandreDey/cygea-playstore-

crawler).

Considering the classiﬁer, it shows great accuracy

for only light computation time. The TF-IDF variant

employed here also allowed us to target more preci-

sely the important features without the need of deep

knowledge in the Android malware domain. Howe-

ver, moving to a deep learning algorithm might be

beneﬁcial for the accuracy rate. Classiﬁcation capa-

bilities could be enhanced by using a larger training

dataset constituted of more actual and complex mal-

ware.

Finally, we are sure that Google’s Playstore hou-

ses a certain number of malware, and we estimate that

this number is between 40,000 and 60,000 applicati-

ons. We are hoping that in the near future it will be

possible to conduct the same kind of study on a larger

scale, and with the best classiﬁer possible.

ACKNOWLEDGMENT

We would like to thank Paul Irolla, currently pursuing

a PhD at (C + V )

for his knowledge and support

throughout the whole study. We also thank Eric Fi-

liol, head of the (C + V )

laboratory for making this

possible.

REFERENCES

A. Polkovnichenko, O. Koriat, V. H. (2016). A new type of

android malware on google play.

Android, D. (2012). Developer tools. https://developer.

android.com.

Android, D. (2017a). App manifest. https://developer.

android.com/.

Android, D. (2017b). Dalvik executable format. https://

source.android.com.

Android, D. (2017c). Setting.secure android id. https://

developer.android.com.

Apache (2008). Apache cassandra. http://cassandra.

apache.org/.

Apvrille, A. and Apvrille, L. (2014). Sherlockdroid, an in-

spector for android marketplaces.

Bachmann, S. (2015). Androguard. https://github.com/

androguard/androguard.

D. Arp, M. Spreitzenbarth, M. H. H. G. and Rieck, K.

(2014). Drebin: Effective and explainable detection

of android malware in your pocket.

dﬂower (2014). google-play-crawler. https://github.com/

dﬂower/google-play-crawler.

G. Canfora, A. De Lorenzo, E. M. F. M. and Visaggio, C.

(2015a). Effectiveness of opcode ngrams for detection

of multi family android malware.

G. Canfora, F. M. and Visaggio, C. (2015b). Mobile mal-

ware detection using op-code frequency histograms.

Google, D. (2017). Protocol buffers. https://developers.

google.com/protocol-buffers/.

Irolla, P. and Dey, A. (2017). The duplication issue within

the drebin dataset. Submitted to Journal of Computer

Virology and Hacking Techniques.

Irolla, P. and Filiol, E. (2015). (in)security of mobile ban-

king...and of other mobile apps.

J.Z. and Maloof, M. (2006). Learning to Detect Malicious

Executables.

Lehmann, E. and Casella, G. (1998). Theory of Point Esti-

mation (2nd ed.).

N. Viennot, E. G. and Nieh, J. (2014). A measurement study

of google play.

Nissen, S. (2015). Fast artiﬁcial neural network library.

https:// github.com/libfann/fann.

O. Koriat, A. Polkovnichenko, B. M. (2017). Falseguide

misleads users on googleplay.

Statista (2017). Number of available applications in the

google play store from december 2009 to september

2017. https://www.statista.com.

TrendMicroInc (2016). Dresscode and its potential impact

for enterprises. http://blog.trendmicro.com.

Viennot, N. (2012). Android checkin. https://github.com/

nviennot/android-checkin.

Widrow, B. and Lehr, M. (1990). 30 years of adaptive neu-

ral networks: perceptron, madaline, and backpropaga-

tion.
