Modelling a CPS Swarm System: A Simple Case Study

Melanie Schranz

, Alessandra Bagnato

, Etienne Brosse

and Wilfried Elmenreich

Lakeside Labs, Klagenfurt, Austria

Softeam, Research and Development Department, Paris, France

Alpen-Adria-Universit

at Klagenfurt, Klagenfurt, Austria

Keywords:

Cyber Physical Systems(CPS), Uniﬁed Modeling Language (UML), Swarm of CPS, System Modeling

Language (SysML), Swarm Algoritms, Optimization.

Abstract:

The CPSwarm workbench is a toolchain that facilitates the entire design process of swarms of CPS including

modelling, design, optimization, simulation and deployment. This paper highlights part of the work of the

CPSwarm workbench in the context of the CPSwarm H2020 project. In particular, the CPSwarm workbench

allows to create a generic swarm library that can be customized by developers to design new swarm environ-

ments, new swarm members and new swarm goals. This paper shows an application of the initial CPSwarm

workbench by the example of a reference problem called EmergencyExit. In this example a swarm of robots

needs to ﬁnd an exit in an unmapped environment and leave this room through the exit as soon as possible.

The example problem is further used to show the integration of Modelio, a UML/SysML modelling tool, and

FREVO, an optimization tool in the CPSwarm workbench.

1 INTRODUCTION

Cyber Physical Systems (CPSs) are characterized by

the strong integration of software and hardware (Mar-

tins and McCann, 2017). Their concept enriches em-

bedded devices by interacting with the physical world

through sensors and actuators. A typical characte-

ristic is the strong focus on a high interconnection

among CPSs. As tasks are getting complex with

swarms of autonomous drones, cars, or ground rovers,

systems of swarms of CPSs become challenging to

design, implement, optimize, and deploy (Lee, 2008).

To address this problem, we suggest to build a tool-

chain covering the development steps, starting with

design of a swarm of CPS, optimization and simula-

tion of the used algorithms, and deployment on the

ﬁnal piece of hardware.

In this work, we focus on modelling a swarm

of CPS. This includes adapting and extending ex-

isting approaches as well as developing new CPS

models where no reference model is available. Of

special interest are available open source approaches

and examples like developed in the INTO-CPS pro-

ject

. The INTO-CPS project makes use of UML and

SysML (Bagnato et al., 2016) proﬁle. It aims to de-

http://projects.au.dk/into-cps/

velop a model-based tool chain for CPS development,

applying model-based systems engineering (MBSE):

high level simulation using the FMI standard between

the simulation engine and the related modelling tools

such as Overture, OpenModelica, and 20-sim; C code

generation for speciﬁc platforms; and test automa-

tion is also in the scope of the project via the usage

of tools such as RT-Tester Model-Checker (Larsen

et al., 2016), (Bagnato et al., 2015). In order to de-

sign swarm systems, we refer to related approaches

from designing self-organizing systems for technical

applications (Elmenreich and de Meer, 2008), which

involves bio-inspired design, trial and error and lear-

ning from optimal solutions that use additional infor-

mation, like perfect sensors, which are removed later

(Auer et al., 2008).

This work contributes to the EU-H2020 project

CPSwarm

by focusing on the modelling and optimi-

zation of swarms of CPSs (Bagnato et al., 2017). The-

refore, we introduce the EmergencyExit example that

is used as use case for the initial library of CPS mo-

dels. In the EmergencyExit example, multiple swarm

members move in a simple 2D discrete environment

and try to ﬁnd one out of the two emergency exits. In

each discrete time step, a CPS senses the neighbou-

https://cpswarm.eu

Schranz, M., Bagnato, A., Brosse, E. and Elmenreich, W.

Modelling a CPS Swarm System: A Simple Case Study.

DOI: 10.5220/0006731106150624

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 615-624

ISBN: 978-989-758-283-7

615

ring cells and moves to a free cell. When a CPS rea-

ches an emergency exit, it is removed from the envi-

ronment. The goal is that all CPSs exit the environ-

ment.

For this case study, we built upon the follo-

wing tools: the modelling tool Modelio developed

by Softeam and the optimization tool FREVO (Sobe

et al., 2012) developed by Lakeside Labs/Alpen-

Adria-Universitt Klagenfurt.

The rest of this paper is organized as follows:

Section 2 provides a background about CPSwarm,

Modelio and FREVO. Section 3 summarizes the CPS

swarm model indroduced by CPSwarm. Section 4

describes the workbench approach and shows how

Modelio and FREVO are used to achieve the CPS-

warm goals. Section 4 depicts the results and dis-

cusses how the evolved algorithms can be evaluated.

Section 5 concludes the paper.

2 BACKGROUND

2.1 CPSwarm Project

The main motivation of the EU-H2020 CPSwarm pro-

ject is to provide a workbench to explicitly manage

behavior and emerging properties of swarms of CPS.

This CPSwarm workbench CPSwarm tools will ease

development and integration of complex herds of he-

terogeneous CPS that collaborate based on local po-

licies and that exhibit a collective behavior capable

of solving complex, industrial-driven, real-world pro-

blems. Related to this paper, the main goals of the

project are to signiﬁcantly improve the support to

design complex, autonomous swarms of CPS; pro-

vide a self-contained, yet extensible library of re-

usable models for describing CPS; enable a sensible

reduction in complexity and time of the CPS deve-

lopment workﬂow; and to establish reference patterns

and tools for integration of CPS artefacts. Further de-

tails to the CPSwarm project are already presented

in (Bagnato et al., 2017).

Inside the CPSwarm architecture, a Design En-

vironment has been speciﬁed. This environment is

responsible of providing the CPS swarm architecture

modelling functionality and is composed of two sub

components - the Modelling Tool and Modelling Li-

brary - that are strongly linked. The Modelling Tool

also uses the Optimization Tool API to communicate

with the Optimization Tool - part of the Algorithm

Optimization Environment as shown in Figure 1.

The current CPSwarm Workbench includes tools

provided by the contributing partners: Modelio as the

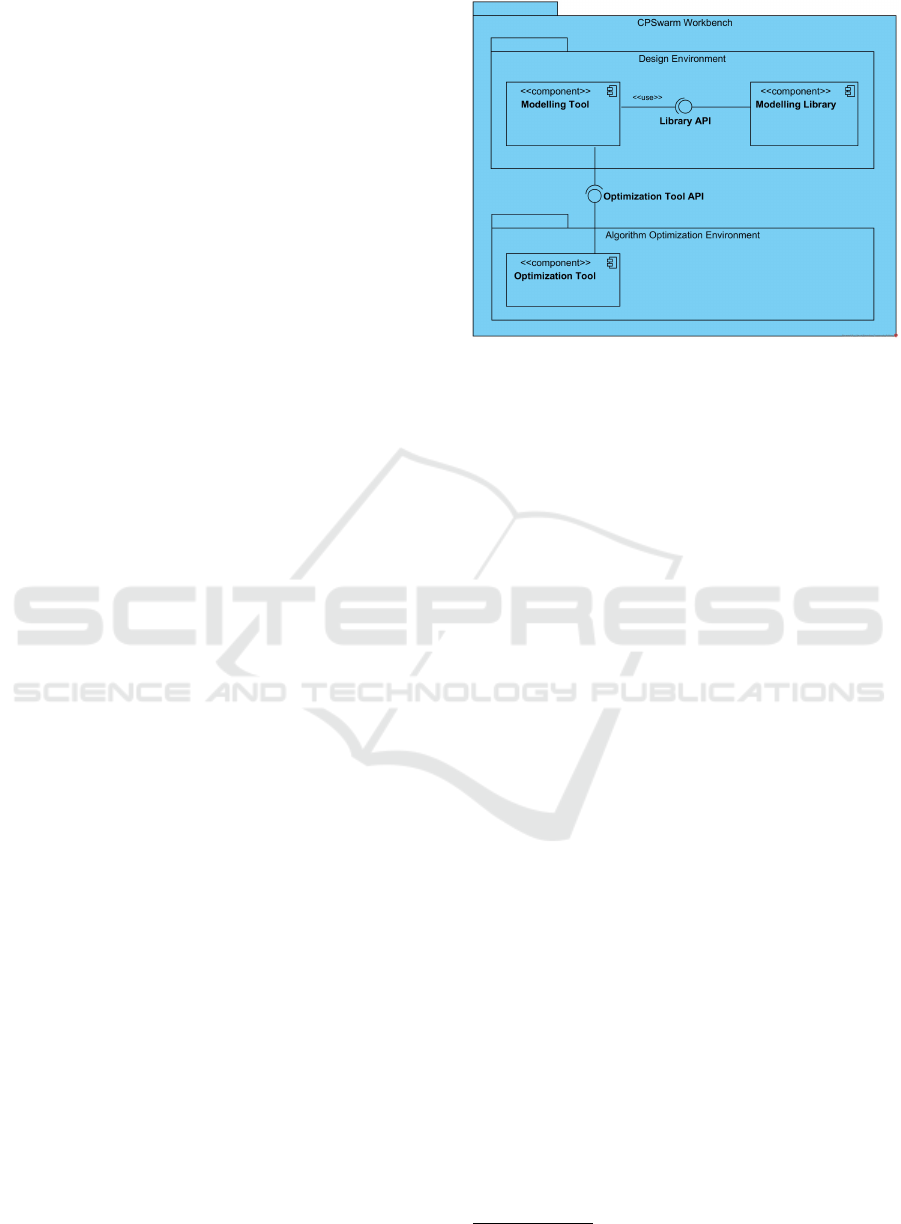

Figure 1: The Design Environment Architecture.

modelling tool and FREVO as the optimization tool

that are presented in the following subsections.

2.2 Modelio

Modelio

is a modelling environment developed by

Softeam under a dual license, commercial and GPLv3

open-source. Modelio is based on Eclipse Rich Plat-

form (RCP). It is used to create and manage mo-

dels in various formats and notations. In addition,

it provides many software features that compliments

its modelling features such as: model transformation,

code-to-model reverse engineering, and code genera-

tion. The CPSwarm Modelling Tool is built on top

of the open source modelling environment (suppor-

ting UML2, BPMN2, MARTE, and SysML standards

among others) named Modelio. Modelio Architecture

is built around a central repository, around which a set

of extension are deﬁned cf. Figure 2.

Each extension provides some speciﬁc facilities,

which can be classiﬁed in the following categories:

• Scoping: this category is composed of Go-

als, Dictionary, Business Rules and Requirement

which allow specifying high-level business mo-

dels for any IT system;

• Modelling: for example, SysML, MARTE and

BPMN are included in this category. The extensi-

ons belonging to this category are used to model

different speciﬁc aspects of a system such as Bu-

siness Process, component architectures, SOA, or

embedded systems;

• Code generators: such as C++ or JAVA. These ex-

tensions allow users to generate and to reverse the

code to/from different programming languages;

https://www.modelio.org/

IndTrackMODELSWARD 2018 - MODELSWARD - Industrial Track

616

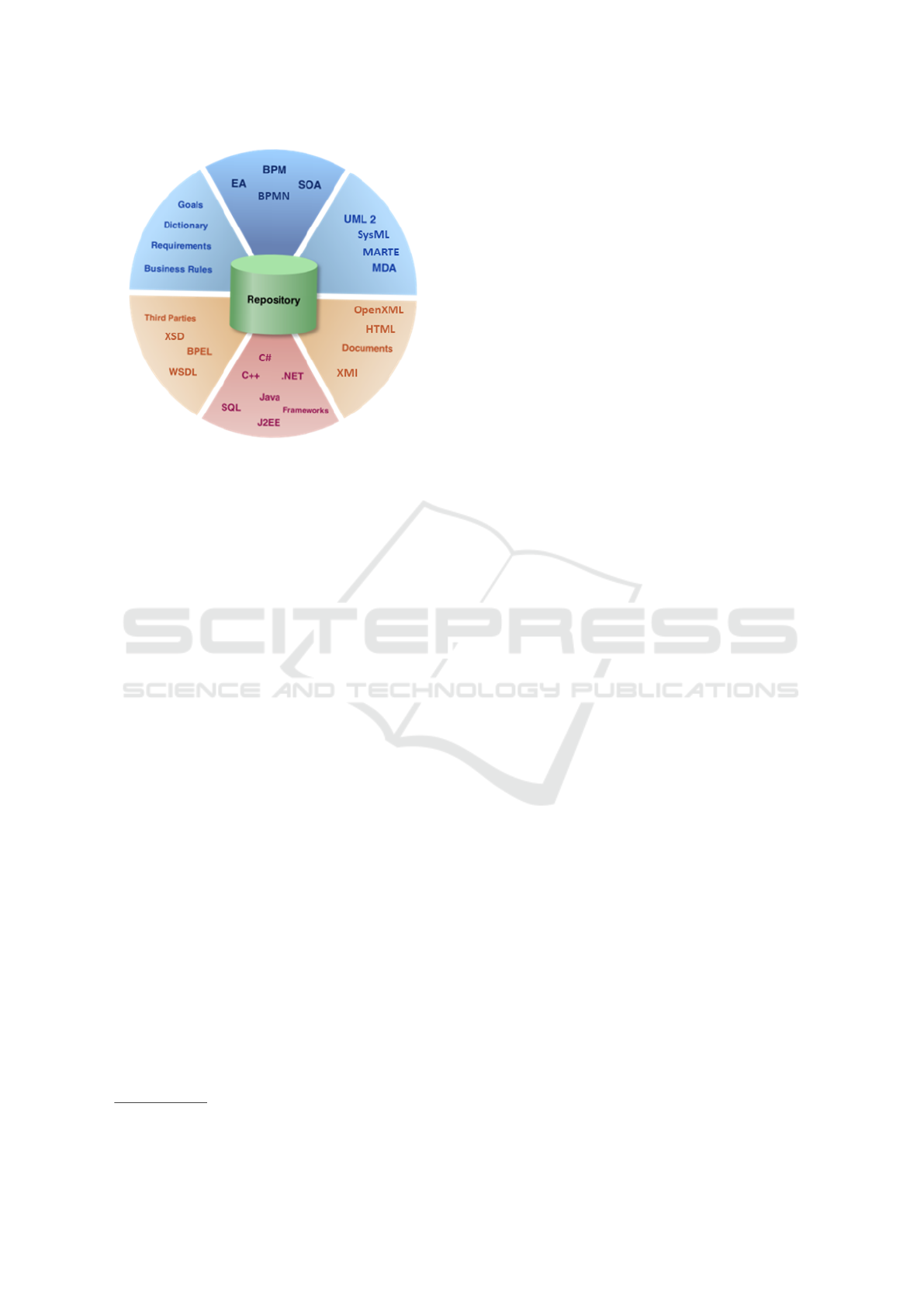

Figure 2: The Modelio architecture.

• Utilities: modules allowing transversal utility fa-

cilities like teamwork or import/export functiona-

lities.

This architecture allows Modelio modelling envi-

ronment to be ﬂexible and conﬁgurable simply by ad-

ding the desired extension and related functionalities.

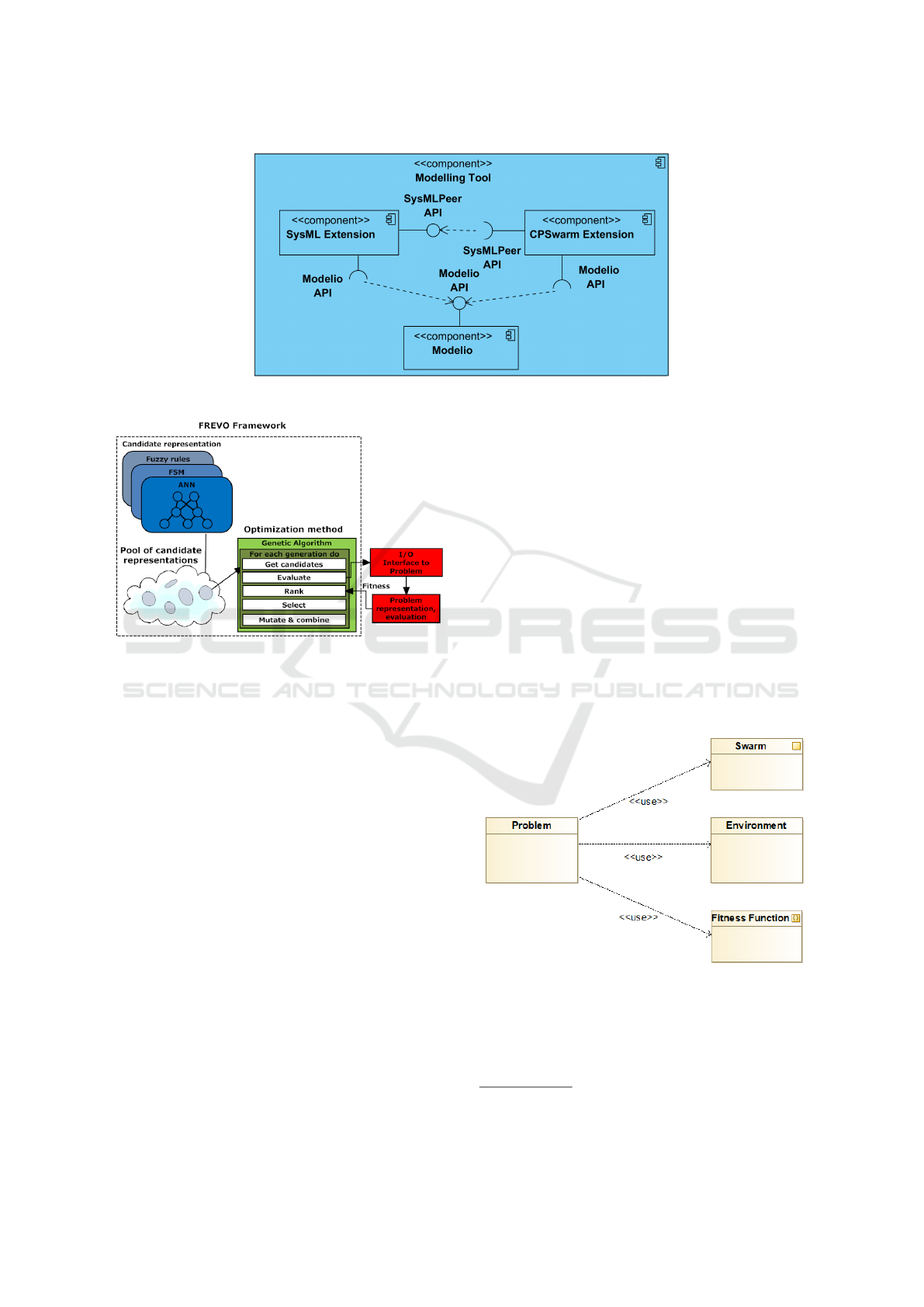

As depicted in Figure 3, the CPSWarm Modelling

tool is composed of Modelio itself, a dedicated CPS-

warm extension to provide the functionalities related

to CPS swarm design, and also a set of pre-existing

extensions to reuses their relevant functionalities in

the CPSwarm context. At M9 of CPSwarm project,

only the SysML extension has been pick for its functi-

onalities related to System modelling.

Extension has mean to extend the underneath Mo-

delling environment. This extension can be done in

several ways including:

• the metamodel by specifying stereotypes,

• the menus by adding commands (or buttons),

• the behaviour by listening speciﬁc events.

All the extension points are currently used by the

CPS swarm extension and are detailed in the follo-

wing sections.

2.3 FREVO

FREVO

- the FRamework for EVOlutionary design

- is a software tool to design self-organizing systems.

It is a general purpose framework that optimizes a ge-

neric representation of a given problem using evolu-

tionary methods. Such an evolutionary approach re-

quires a testbed that allows extensive and safe testing

http://frevo.sourceforge.net/

at low cost, for example a simulation of the target sy-

stem with a model of the environment, the agents and

their sensor/actor interface (Elmenreich et al., 2009).

As it supports agent-based modelling, it is well suited

to evolve the controllers for CPSs, when the control-

ler is implemented as a generic, evolvable represen-

tation, e.g., an artiﬁcial neural network (ANN). An

iterative heuristic search is applied to ﬁnd an optimi-

zed conﬁguration of the controller for a CPS with re-

spect to a system level optimization measure, called

ﬁtness. The result is a controller that exhibits the lo-

cal interaction rules to reach the desired global beha-

viour of the system. The controller can be evaluated

on a large scale of parameters under predeﬁned con-

ditions. FREVO uses a modular approach, where the

distinct steps of evolutionary design are split into dif-

ferent components. Its graphical user interface (GUI)

simpliﬁes the design process and offers statistics and

graph generation for easy evaluation of the chosen de-

sign. The main purpose of FREVO is to support the

optimization process as it guides through the indivi-

dual steps of the evolutionary design, whereas it re-

quires work by the software developer to implement

the modelled problem details.

FREVO is implemented in the Java programming

language and makes strong use of the object-oriented

programming paradigm. FREVO’s architecture is

component-based (see Figure 4) and where each com-

ponent implements a distinct feature of the evolutio-

nary approach. The problem component deﬁnes the

speciﬁcs of a CPS controller, the environment, and

the ﬁtness function. The representation component

deﬁnes how the controller of the CPS is represented.

The optimization component deﬁnes the method for

ﬁnding the optimal candidate representation. The mu-

tation and crossover operators are encapsulated with

the representation, while population size and number

of generations deﬁned in the optimization component.

FREVO provides a number of different implementa-

tions for each component type, for example there are

different evolutionary optimization strategies availa-

ble (Dittrich and Elmenreich, 2015; Zhevzhyk and El-

menreich, 2015).

The ranking component deﬁnes how the candi-

date representations are ordered based on their perfor-

mance according to the ﬁtness function. Each compo-

nent is deﬁned by an abstract class so that the interfa-

ces between the components are well deﬁned. The-

refore, new components can easily be implemented

requiring only the implementation of the core functi-

onality. This step is guided by the built-in component

generator that assists the software developer by gene-

rating the required code skeleton in the context of the

class hierarchy.

Modelling a CPS Swarm System: A Simple Case Study

617

Figure 3: The modelling tool architecture.

Figure 4: The FREVO architecture.

3 LIBRARIES TO MODEL CPS

SWARMS

The overall idea is to have a library for the modeller

that contains certain predeﬁned models. These mo-

dels can be reused, changed or added by the modeller.

Such a library structure supports the process of mo-

delling swarms of CPSs. The models in the libraries

are separated into three groups of libraries: swarm

members, environments, and goals. These three li-

braries are used to model a problem as shown in Fi-

gure 5. Each model in the library (swarm member,

environment, and goal) has the following mandatory

parts:

Unique name:

• each model needs to be distinguishable from other

models by name,

• each models name needs to be given in a way that

is associated with the models functionality.

Description

• a detailed description is necessary for i) documen-

tation and ii) the programming tasks by the soft-

ware developer,

• the description is created as parameter of the mo-

del with Property: string [256] (see point 3 Para-

meters for further details).

Parameters

• each model contains a set of parameters that have

the following form:

– Property: name, type [range]: Deﬁnes a con-

stant parameter of the model,

– Input: name, type [range]: Deﬁnes an input pa-

rameter to the model,

– Output: name, type [range]: Deﬁnes an output

parameter of the model.

The following sections describe in more details of

each library by referring to the EmergencyExit exam-

ple already described in section 1.

Figure 5: Problem Statement.

The modelling is performed by using SysML lan-

guage and, more precisely, a Block Deﬁnition Di-

agram (BDD). The CPSwarm initial library on the

EmergencyExit is stored on the Modelio Forge

https://forge.modelio.org/projects/cpswarm-

modelio36/ﬁles

IndTrackMODELSWARD 2018 - MODELSWARD - Industrial Track

618

3.1 Swarm Member

The swarm member library describes a single CPS in

the swarm. To better specify the characteristics of a

CPS, we introduce several sub-libraries (together with

examples) including:

• library ”local memory”: local status, e.g. the cur-

rent x/y position, available energy, etc.

• library ”behaviour”: collecting data from sensor,

performing calculations, sending data to actua-

tors,

• library ”physical aspects”: sensors and actuators,

• library ”security”

• library ”human interaction”

Related to the EmergencyExit example the swarm

member is a ground rover. The corresponding swarm

member model architecture is depicted in Figure 6.

Each rover has a local state (sub-library local me-

mory) to express its current x/y position. Further,

each rover needs sensors and actuators (sub-library

physical aspects). The ﬁrst sensor ”POI Sensor” re-

turns a vector, describing the path to the next point

of interest (POI). The second sensor ”Range Sensor”

returns the map around the swarm member. The actu-

ator is called ”Locomotion” and is a motor that moves

the swarm member to a given x/y coordinate. Finally,

the behaviour (sub-library behaviour) is modelled as

”EmergencyExit Behavior” and describes the Emer-

gencyExit problem deﬁnition (see Section 1).

Finally a swarm can be modelled by a compostion

of a set of swarm members (see Figure 7).

3.2 Environment

The environment library describes the environment in

which the swarm of CPSs is acting. Several aspects

express an environment, whereby the following ones

are modelled (see Figure 8):

• 2D map of the environment,

• size of the environment,

• resolution,

• points of interests (emergency exits).

3.3 Fitness Function

The ﬁtness function represents the goal of the speci-

ﬁed CPS swarm. By maximizing this ﬁtness function,

the Algorithm Optimization Environment (cf. Section

4) can provide the best CPS swarm conﬁguration. Fi-

gure 9 corresponds to the modelled goal of the Emer-

gencyExit example. The goal of the swarm of CPSs is

to ﬁnd the two points of interest - the emergency exits

- as fast as possible. Achieving this goal is expressed

by the ﬁtness value, computed by following equation:

−

∑

(POI.x − LocalState

.x)

+ (POI.y − LocalState

.y)

(1)

In this ﬁtness function the distances of all swarm

members i to a point of interest are summed up and

negated. Since the sum of the distances would be a

cost function, the negation is used to express it as a

ﬁtness function. To modify the intended behavior it is

sufﬁcient to change the ﬁtness function.

4 CPS SWARM MODELLING

WITH THE CPSWARM

WORKBENCH

The initial CPS models that are developed in Section 3

are the ﬁrst parts of the CPS modelling library. As in-

troduced in Figure 1 the modelling library represents

just one component within the design environment ar-

chitecture of the CPSwarm workbench. This library is

used by the modelling tool to model swarms of CPSs.

Via the optimization tool API these models are used

as input for the optimization tool for further optimiza-

tion. For the Modelling Tool, we use Modelio (intro-

duced in Section 2.2). For the Optimization Tool, we

use FREVO (introduced in Section 2.3). The integra-

tion of the tools together with the API are described

in the following sections.

4.1 Integration of Modelio to the

Architecture

Modelling is always a difﬁcult task if you want to

start from scratch. In this case, guidance is helpful.

With Modelio we are able to generate a swarm tem-

plate for the end users. The main goal of this swarm

template generation command is to help the modeler

by creating a simple CPS swarm model with all mi-

nimum concept. The CPS swarm generation can be

done by right clicking on any package, then selecting

CPSwarm/CPS swarm creation entry as depicted in

Figure 10.

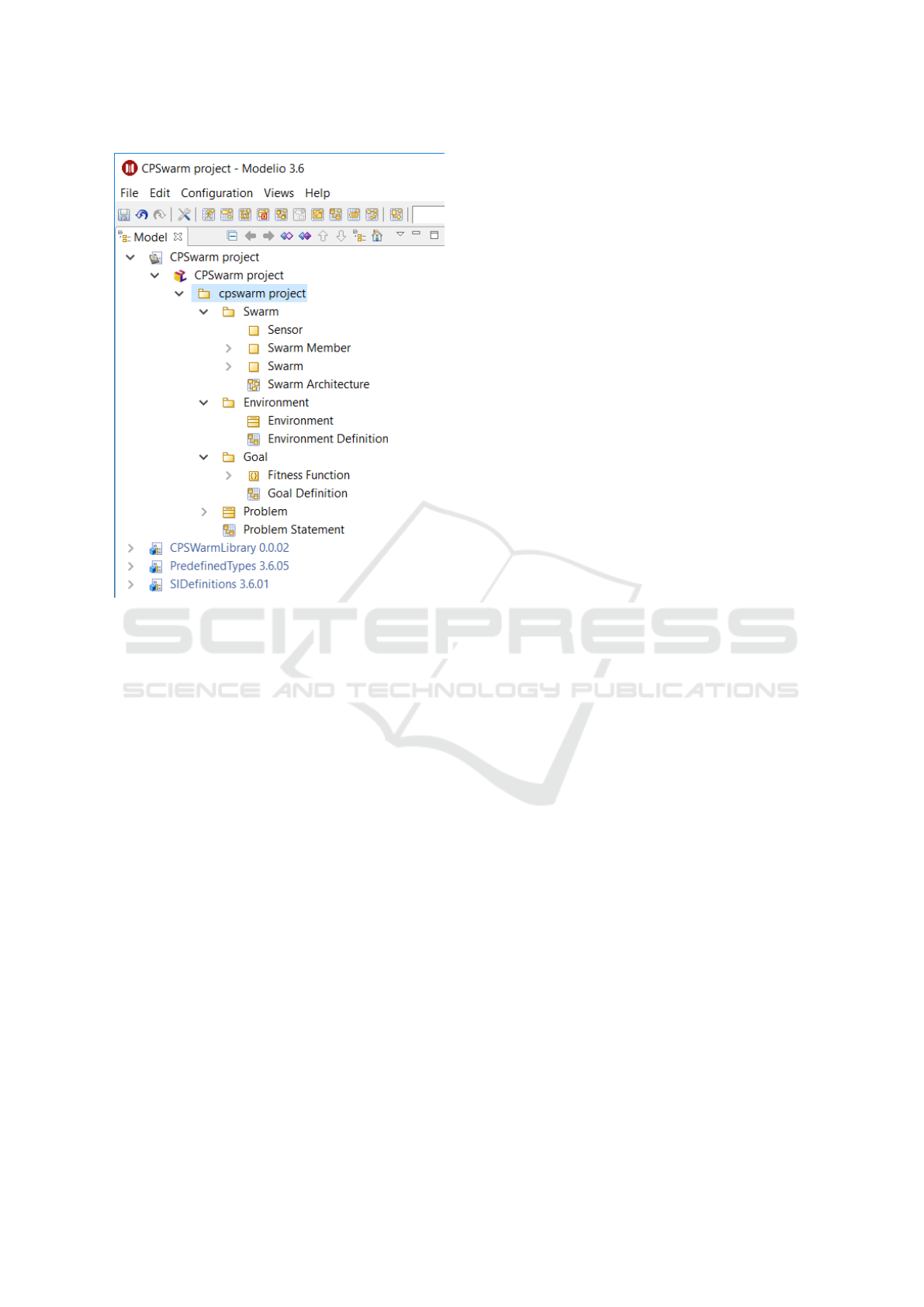

Figure 11 shows the result of the CPS swarm tem-

plate generation. The swarm template generator pro-

duces a set of initial diagrams that have been identi-

ﬁed as necessary to completely model a CPS swarm.

As described in the previous section this includes the

swarm and its member, the environment, and the goal

or ﬁtness function.

Modelling a CPS Swarm System: A Simple Case Study

619

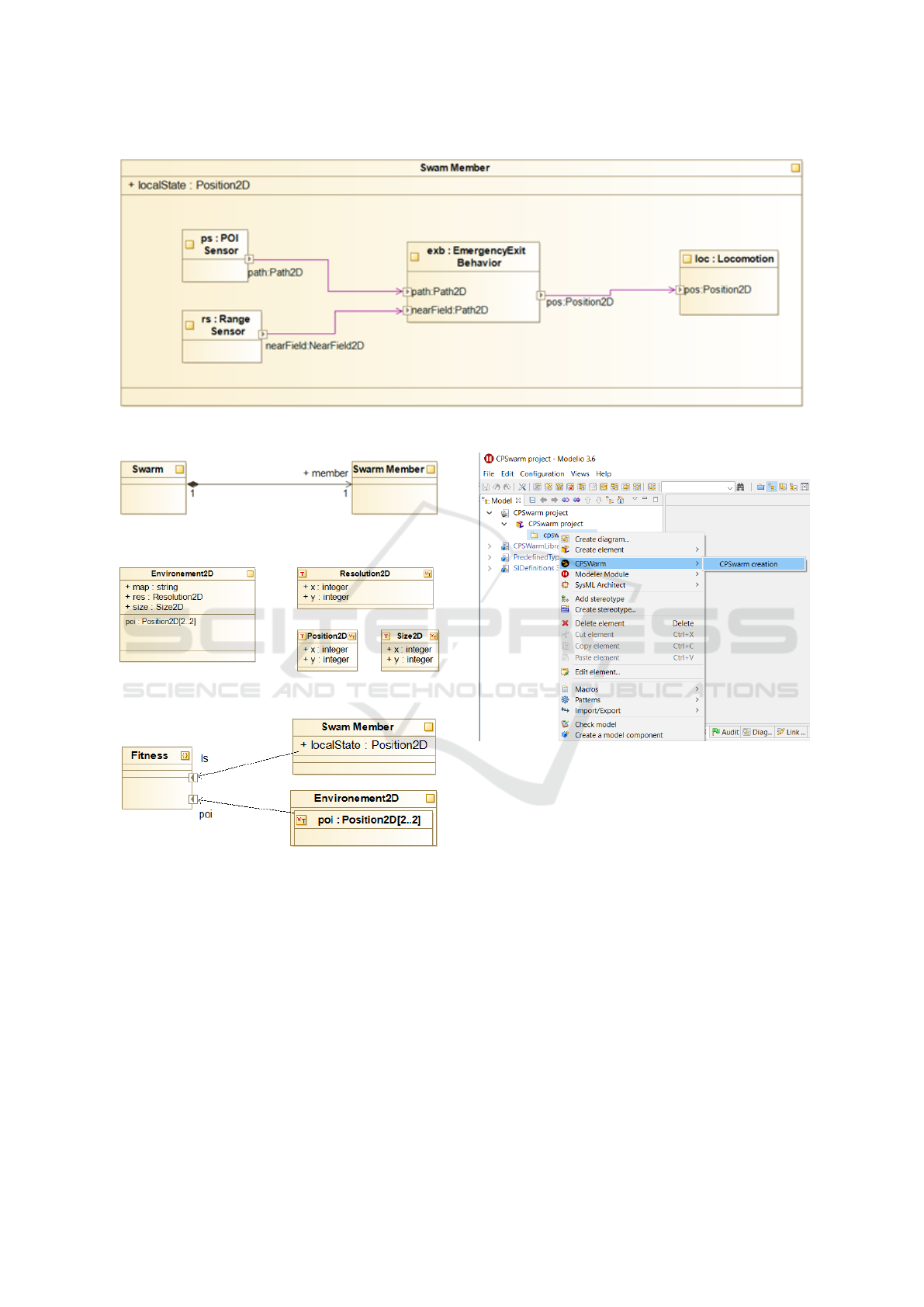

Figure 6: The swarm member architecture.

Figure 7: The swarm architecture.

Figure 8: The environment model.

Figure 9: Modelling of the Fitness Function.

The modeler can modify their initial content by

following the needs of the speciﬁc case study he/she

is modelling. The CPSwarm modeler will ﬁnd on

the right part of each of the diagrams (namely En-

vironment Deﬁnition, Goal Deﬁnition, Problem Sta-

tement, Swarm Architecture, Swarm Member Archi-

tecture) the predeﬁned selection of the modelling ele-

ments he/she can speciﬁcally use for that speciﬁc di-

agram context. Environment Deﬁnition and Problem

Statement mainly uses UML Class Diagram and rela-

ted concepts. Swarm Architecture and Swarm Mem-

ber Architecture are speciﬁed by using, respectively,

SysML Block Diagram Deﬁtion (BDD) and Internal

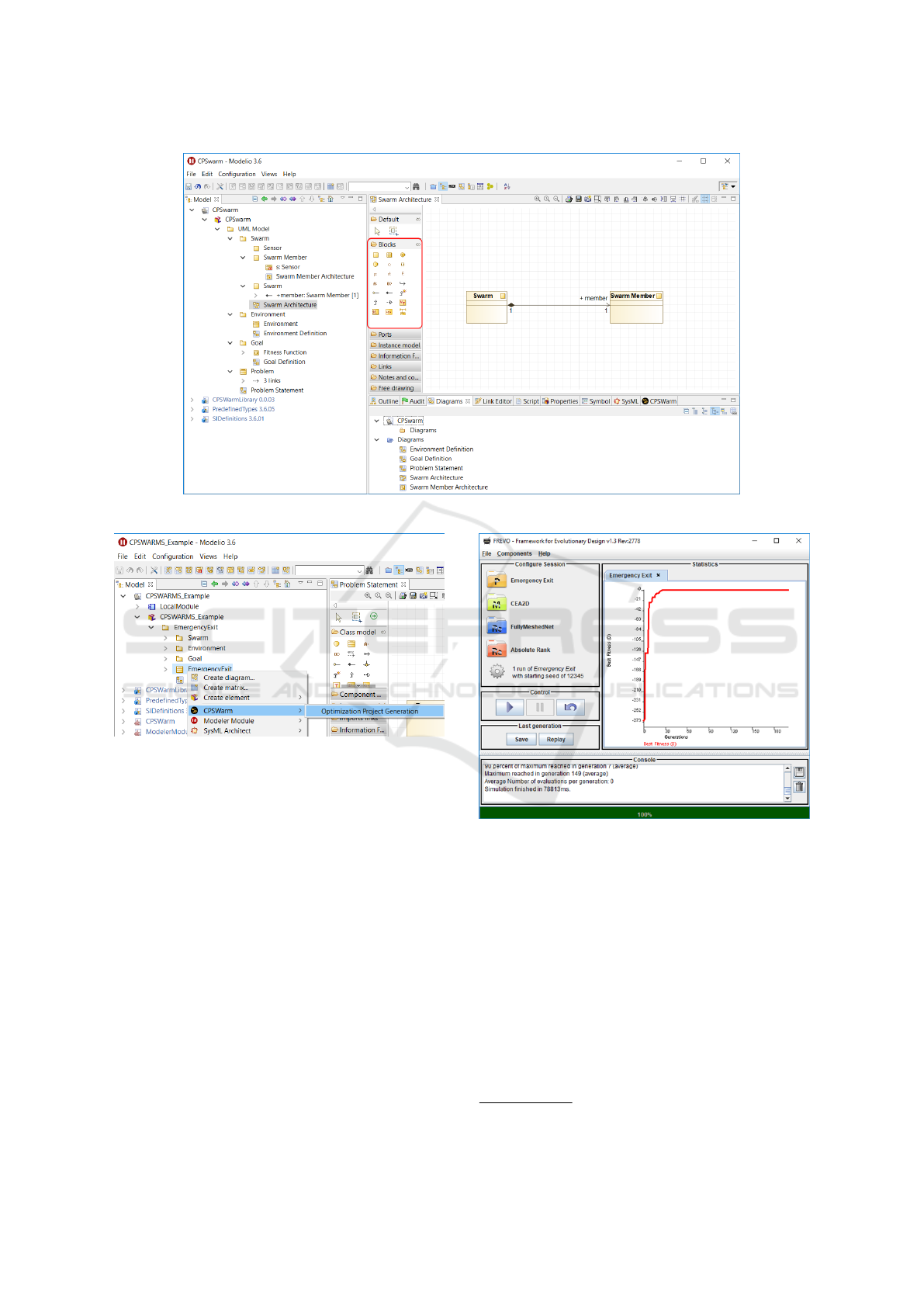

Figure 10: Creating a new swarm model.

Block Diagram (IBD) elements. SysML Parametric

Diagram and MathML are both used for Goal Deﬁ-

nition. Figure 12 is showing the speciﬁc modelling

environment for the Swarm Member Architecture Di-

agram. The diagram is meant to show the high-level

structure of the swarm member.

4.2 Design of the Optimization Tool API

The optimization tool API passes conﬁguration ﬁles

from the modelling tool to FREVO. This conﬁgura-

tion consists of two ﬁles: The problem description

and the optimization parameters. The problem des-

cription is a generated .java ﬁle. It contains every-

thing that is necessary to test and evaluate a possible

solution. This functionality is used by the optimiza-

tion tool to perform an automated search for a viable

solution. The parameters are available in a .xml ﬁle.

They describe the setup of FREVO. These parameters

IndTrackMODELSWARD 2018 - MODELSWARD - Industrial Track

620

Figure 11: New swarm result.

include conﬁguration, properties, and requirements.

Both parts are exported from the Modelio (see Figure

13). Once these ﬁles are passed to FREVO, a recom-

pilation of FREVO is required before starting the op-

timization process.

4.3 Integration of FREVO to the

Architecture

FREVO requires conﬁguration and code of a new pro-

blem to be implemented via a .java and .xml ﬁle. Both

ﬁles have been already generated in the Modelling

Tool, although the implementation part needs to be

extended. The main task is to implement the evalu-

ateCandidate method, where the given candidate re-

presentation needs to be evaluated. This is done by

simulation, either by implementing it directly within

FREVO or by calling an external simulator. There-

fore, a model of the environment and the CPS capa-

bilities, i.e. its sensors and actuator behavior need to

be implemented. The sensor input(s) of the CPS are

passed to the getOutput method of the candidate re-

presentation, which returns the output for the actua-

tor(s). Additionally, a suitable performance measure

needs to be implemented that is used to return the ﬁt-

ness value of the simulation run.

After the implementation of a component is com-

plete, the component needs to be compiled. It is then

automatically loaded upon the launch FREVO.

After launching FREVO, following settings for

the simulation need to done:

• Selected Problem: EmergencyExit

• Selected Method: CEA2D

• Selected Representation: FullyMeshedNet

• Selected Ranking: Absolute Ranking

The method CEA2D is a cellular evolutionary al-

gorithm (EA) that arranges all candidates on a 2D to-

rus surface. Genetic operations are performed in a

local context. It features better diversity with slower

convergence compared to a standard EA (Dittrich and

Elmenreich, 2015). For the representation, we select

FullyMeshedNet. It is a recurrent, fully meshed ANN

with one hidden layer. During evolution, the biases

of the neurons as well as the connection weights are

changed. Adaptive mutations are also supported. The

ranking algorithm sorts candidate representations ba-

sed on their performance, i.e. their ﬁtness value. For

this example absolute ranking is selected. A ranking

algorithm that sorts candidates by the ﬁtness value

returned from the problem component. It supports

multi-threading to decrease the time needed for op-

timization.

After a click on the play button the optimization

runs until the selected termination criterion has been

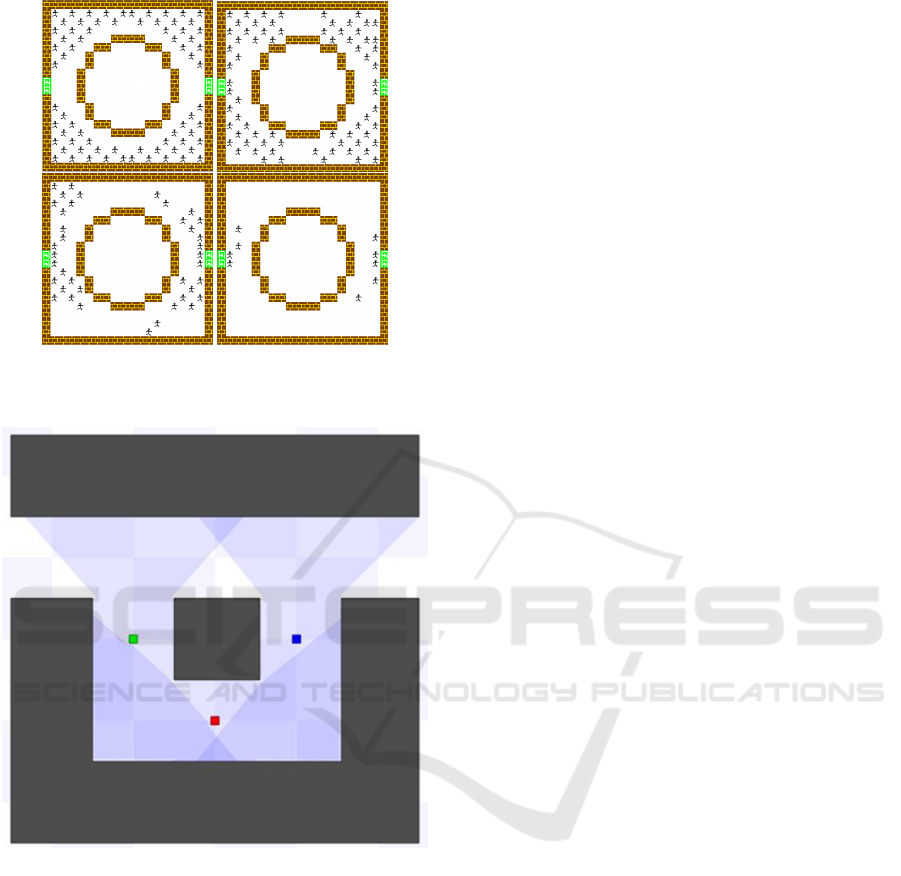

fulﬁlled. Figure 14 shows the simulation result of the

EmergencyExit example - the ﬁtness value is max-

imized towards 0. FREVO has several more featu-

res: The entire simulation run is saved automatically.

Nevertheless, you could click the ”Pause” button and

”Save” the simulation at a speciﬁc generation. This

is not the ﬁnal evolved one, but a speciﬁc interme-

diate state of evolution. Moreover, when you click

the ”Replay” button, to get more information on the

evolutionary produced results. FREVO allows also to

evaluate the evolved results with a simple graphical

representation of the simulation.

5 EVALUATION

The evolved result from FREVO provides the beha-

vior of the swarm members for the given problem.

These evolved results come as a black box algorithm,

so it is necessary to evaluate the performance of the

algorithm under different environments. FREVO al-

lows to evaluate the evolved results of the related

problem deﬁnition with different variations, including

changing the number of candidates, the size of the 2D

Modelling a CPS Swarm System: A Simple Case Study

621

Figure 12: Swarm Member Architecture Modelling Elements.

Figure 13: Exporting the ﬁles for the optimization tool from

the design environment.

environment and to make a statistical evaluation of the

behavior using Monte-Carlo simulation over different

random seeds.

In the EmergencyExit example, parameters like

success rate or the average or worst case time until the

simulated robots have left the scene through the exits

can be used as a numeric assessment of the algorithm.

Furthermore, a graphical depiction of the simulation

can be helpful to evaluate the algorithm. The Emer-

gencyExit problem in FREVO has been implemen-

ted with a very basic simulation interface showing the

movement of agents on a grid (see Figure 15). The

EmergencyExit problem was designed as test problem

for the integration of two open source tools in our CP-

Swarm workbench. Due to the relatively simple se-

tup, the solutions to the problem were always success-

ful in leaving the area.

Figure 14: Simulation Settings of FREVO.

As mentioned in Section 4.3, it is also possible to

use FREVO with an external simulator - in this case

the Stage

simulator - with FREVO, as shown in Fi-

gure 16.

6 CONCLUSION

This paper has demonstrated the functionality of an

initial version of the CPSwarm workbench. The main

focus was put on the modeling and optimization part.

Therefore, the workbench integrated two open-source

tools, Modelio and FREVO. As a case study, a pro-

http://playerstage.sourceforge.net/index.php?src=stage

IndTrackMODELSWARD 2018 - MODELSWARD - Industrial Track

622

Figure 15: Replay of a simulation the EmergencyExit ex-

ample by FREVO.

Figure 16: Simulation of the EmergencyExit example with

Stage/ROS.

blem named emergency exit was chosen. In this ex-

ample a swarm of robots needs to ﬁnd an exit in a un-

mapped environment and leave this room through the

exit as soon as possible. A possible scenario matching

this problem could be ﬁre or collapsing buildings. In

the case study, the problem was ﬁrst modeled using

Modelio and then exported to FREVO for optimiza-

tion. FREVO was then used to generate a possible so-

lution by applying an evolutionary search algorithm

in order to optimize the weights for an ANN. In this

work solution had been evaluated using simulation.

Future work will include an extension of the work-

bench towards deploying the generated solution on

real systems, which will involve code generation for

embedded target systems.

ACKNOWLEDGEMENTS

We would like to thank the anonymous reviewers for

their constructive comments on the submission ver-

sion of this paper. The research leading to these re-

sults has received funding from the European Union

Horizon 2020 research and innovation programme

under grant agreement No 731946, CPSwarm Project.

REFERENCES

Auer, C., W

uchner, P., and de Meer, H. (2008). A met-

hod to derive local interaction strategies for impro-

ving cooperation in self-organizing systems. In Pro-

ceedings of the Third International Workshop on Self-

Organizing Systems, Vienna, Austria.

Bagnato, A., B

ır

o, R. K., Bonino, D., Pastrone, C., Elmen-

reich, W., Reiners, R., Schranz, M., and Arnautovic,

E. (2017). Designing swarms of cyber-physical sys-

tems: The H2020 cpswarm project: Invited paper. In

Proceedings of the Computing Frontiers Conference,

CF’17, pages 305–312, New York, NY, USA. ACM.

Bagnato, A., Brosse, E., Quadri, I., and Sadovykh, A.

(2015). Into-cps: An integrated tool chain for com-

prehensive model-based design of cyber-physical sys-

tems. G

enie Logiciel, pages 31–35.

Bagnato, A., Brosse, E., Quadri, I., and Sadovykh, A.

(2016). SysML for modeling co-simulation orches-

tration over FMI: the INTO-CPS approach. Ada User

Journal, 37(4):215–218.

Dittrich, T. and Elmenreich, W. (2015). Comparison of a

spatially-structured cellular evolutionary algorithm to

an evolutionary algorithm with panmictic population.

In Proceedings of the 12th International Workshop

on Intelligent Solutions in Embedded Systems (WI-

SES’15), pages 145–149, Ancona, Italy.

Elmenreich, W. and de Meer, H. (2008). Self-organizing

networked systems for technical applications: A dis-

cussion on open issues. In K.A. Hummel, J. S., editor,

Proceedings of the Third International Workshop on

Self-Organizing Systems, pages 1–9. Springer Verlag.

Elmenreich, W., D’Souza, R., Bettstetter, C., and de Meer,

H. (2009). A survey of models and design methods for

self-organizing networked systems. In Proceedings of

the Fourth International Workshop on Self-Organizing

Systems, volume LNCS 5918, pages 37–49. Springer

Verlag.

Larsen, P. G., Fitzgerald, J. S., Woodcock, J., Fritzson, P.,

Brauer, J., Kleijn, C., Lecomte, T., Pfeil, M., Green,

O., Basagiannis, S., and Sadovykh, A. (2016). In-

tegrated tool chain for model-based design of cyber-

physical systems: The INTO-CPS project. In 2016

2nd International Workshop on Modelling, Analysis,

and Control of Complex CPS, CPS Data 2016, Vienna,

Austria, April 11, 2016, pages 1–6.

Lee, E. A. (2008). Cyber physical systems: Design challen-

ges. In 11th IEEE International Symposium on Object

Modelling a CPS Swarm System: A Simple Case Study

623

Oriented Real-Time Distributed Computing (ISORC),

pages 363–369.

Martins, P. and McCann, J. (2017). Chapter 7 - network-

wide programming challenges in cyber-physical sys-

tems. In Song, H., Rawat, D. B., Jeschke, S., and

Brecher, C., editors, Cyber-Physical Systems, Intelli-

gent Data-Centric Systems, pages 103 – 113. Acade-

mic Press, Boston.

Sobe, A., Feh

erv

ari, I., and Elmenreich, W. (2012).

FREVO: A tool for evolving and evaluating self-

organizing systems. In Proceedings of the 1st Interna-

tional Workshop on Evaluation for Self-Adaptive and

Self-Organizing Systems, Lyon, France.

Zhevzhyk, S. and Elmenreich, W. (2015). Comparison of

metaheuristic algorithms for evolving a neural con-

troller for an autonomous robot. Transactions on Ma-

chine Learning and Artiﬁcial Intelligence, 2(6):62–

76.

IndTrackMODELSWARD 2018 - MODELSWARD - Industrial Track

624
