Towards Automated Analysis of Model-Driven Artifacts in Industry

Ramon Schiffelers

1,2

, Yaping Luo

2,3

, Josh Mengerink

and Mark van den Brand

ASML N.V., Veldhoven, The Netherlands

Department of Mathematics and Computer Science, Eindhoven University of Technology, The Netherlands

Altran Netherlands B.V., Eindhoven, The Netherlands

Keywords:

Model-Driven Engineering, Domain-Speciﬁc Languages, MDSE Ecosystems, Evolution.

Abstract:

Developing complex (sub)systems is a multi-disciplinary activity resulting in several, complementary models,

possibly on different abstraction levels. The relations between all these models are usually loosely deﬁned in

terms of informal documents. It is not uncommon that only till the moment of integration at implementation

level, shortcomings or misunderstanding between the different disciplines is revealed. In order to keep models

consistent and to reason about multiple models, the relations between models have to be formalized. Multi-

Disciplinary System Engineering (MDSE) ecosystems provide a means for this. These ecosystems formalize

the domain of interest using Domain Speciﬁc Languages (DSLs), and formalize the relations between models

by means of automated model transformations. This enables consistency checking between domain and aspect

models and facilitates multi-disciplinary analysis of the single (sub)system at hand. MDSE ecosystems provide

the means to analyze a single (sub)system model. A set of models of different (sub)systems can be analyzed

to derive best modeling practices and modeling patterns, and to measure whether a MDSE ecosystem fulﬁlls

its needs. The MDSE ecosystem itself can be instrumented to analyze how the MDSE ecosystem is used in

practice. The evolution of models, DSLs and complete MDSE ecosystems is studied to identify and develop

means that support evolution at minimal costs while maintaining high quality. In this paper, we present the

anatomy of MDSE ecosystems with industrial examples, the ongoing work to enable the various types of

analysis, each with their dedicated purpose. We conclude with a number of future research directions.

1 INTRODUCTION

Developing complex (sub)systems is a multi-

disciplinary activity. Mechanical, electrical, and soft-

ware engineers develop their own models of the system

to analyze properties relevant within their discipline.

Within a single discipline, several models might be

developed on different abstraction levels. To reason

about (sub)system wide properties, one might need

information from multiple models that originate from

different disciplines. The relations between all these

models are usually loosely deﬁned in terms of infor-

mal documents. It is only at the implementation level

where all artifacts resulting from the different disci-

plines come together in terms of hardware and soft-

ware artifacts, and the couplings between them become

explicit. It is not uncommon that only on this imple-

mentation level, shortcomings or misunderstanding

between the different disciplines is revealed. Even

more importantly, having these interdisciplinary re-

lations loosely deﬁned on the model level limits the

ability to reason about the realization of system-wide

key performance indicators and trade-offs (throughput

versus accuracy) sufﬁciently early in the development

process.

In order to keep models consistent and to reason

about multiple models, the relations between models

have to be formalized. Tooling is needed to deﬁne,

validate and maintain these relations. As a ﬁrst step

in this direction, ASML, the world’s leading provider

of complex lithography systems for the semiconductor

industry, is developing so-called Multi-Disciplinary

Systems Engineering (MDSE) ecosystems. Lithog-

raphy machines are highly complex Cyber-physical

Systems of Systems, designed to be extremely accu-

rate, provide very high throughput and operate 24/7

to deliver exceptionally reliable results. To keep up

with the increasing system performance, evolvabil-

ity and predictability requirements, ASML combines

state-of-the-art methods and techniques from academia

with state-of-the-practice in industry into these MDSE

ecosystems. In such ecosystem, concepts and knowl-

edge of the several involved disciplines is formalized

into of one or more domain speciﬁc languages (DSLs).

Schiffelers, R., Luo, Y., Mengerink, J. and Brand, M.

Towards Automated Analysis of Model-Driven Artifacts in Industry.

DOI: 10.5220/0006749407430751

In Proceedings of the 6th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2018), pages 743-751

ISBN: 978-989-758-283-7

743

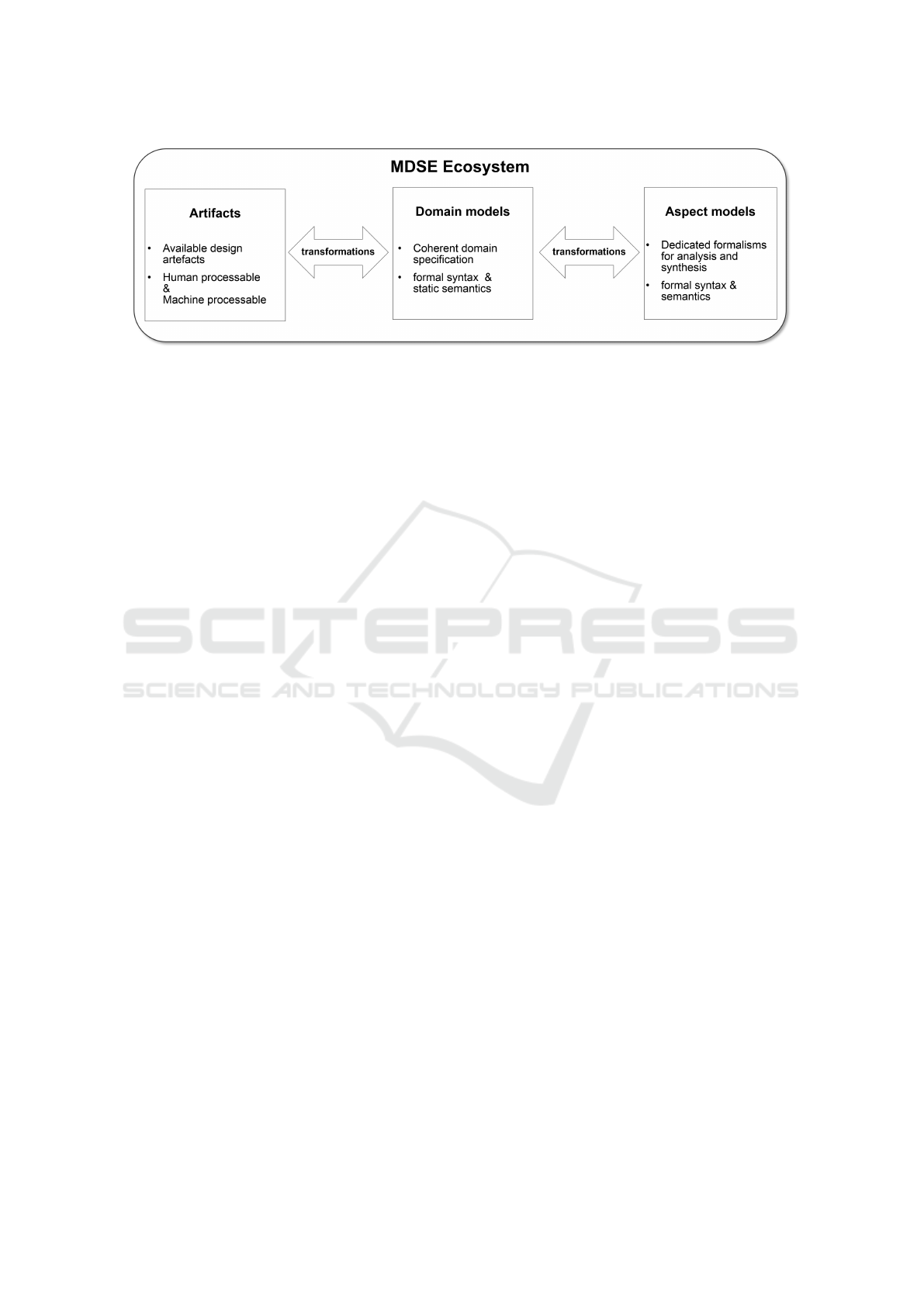

Figure 1: Anatomy of a MDSE Ecosystem.

Transformations between these languages formalize

the relations between them. In this way, such ecosys-

tem facilitates in clear and precise, unambiguous com-

munication between the different disciplines.

This paper presents current and future research

efforts, and their rationale, on model analysis, in par-

ticular in the context of Multi-Disciplinary Systems

Engineering (MDSE) ecosystems. To prevent what

happened in the software engineering domain, where

the growth of software complexity resulted in ever

increasing development and maintenance costs, we

•

propose several analysis techniques and directions

to ensure that proper MDSE ecosystems will be

developed that fulﬁll their needs sufﬁciently well;

•

analyze the evolution of models, DSLs and com-

plete MDSE ecosystems to identify and develop

means that support evolution at minimal costs

while maintaining high quality.

Outline.

The outline of this paper is as follows. In

Section 2, MDSE ecosystems are described and illus-

trated by means of examples. The different types of

analysis techniques and directions together with their

rationale are described in Section 3. A tool to support

(a subset of) the proposed analysis is described in Sec-

tion 4. Directions for future research are outlined in

Section 5.

2 MDSE ECOSYSTEMS

A Multi-Disciplinary Systems Engineering (MDSE)

ecosystem is an open/extendable set of seamlessly in-

teracting tools supporting engineers from different dis-

ciplines to develop complex systems. Its ingredients

as well as their rationale are described in Section 2.1.

Concrete examples taken from industry are described

in Section 2.2, and Section 2.3 describes the develop-

ment principles and vision of MDSE ecosystems.

2.1 Anatomy

A MDSE ecosystem consists of domain models, aspect

models, and automatic transformations between them,

see Figure 1. Many ecosystems are also equipped

with automated model-re-constructors to reuse already

existing artifacts from predecessor systems.

Domain Models.

The domain of interest is syntac-

tically formalized in terms of metamodels and Ob-

ject Constraint Language (Warmer and Kleppe, 2003)

(OCL) constraints. The domain metamodel contains

the relevant domain concepts with their relations and

those concepts and relations only. This avoids domain

encoding in an overly expressive language. Concrete

textual and/or graphical syntaxi are deﬁned according

to the requirements and wishes that domain experts

have on them. This increases the understandability for

domain experts, and is crucial for the adoption of a

MDSE ecosystem in industry. Domain concepts hardly

need any (behavioral) semantical explanation for do-

main experts to be comfortable to work with; they

already know these concepts very well. Obviously, by

transforming domain models to aspect models, their

(behavioral) semantics are deﬁned formally as well.

Aspect Models.

To analyze several different kinds

of properties, such as timing (worst/best case, stochas-

tic) and correctness (absence of deadlock), of a do-

main model, the domain model is transformed to sev-

eral aspect models. Each aspect models has its own

analysis purpose and dedicated tool associated with

it. Examples of typical analysis tools are simulators,

modelcheckers, or ﬁnite element analysis tools. The

analysis results are used for making key decisions or

for design validation. Another form of aspect models

are models from which implementation/realization ar-

tifacts are synthesized. Examples of synthesis tools

are codegenerators or 3D printers.

MOMA3N 2018 - Special Session on Model Management And Analytics

744

Each of these aspect tools have their own applica-

tion domain together with their strengths and weak-

nesses. Their combination is needed to develop high

complex systems. Often, one can observe that one of

the input languages of aspect tools is lifted to become

the speciﬁcation language for some domain. However,

mostly, this is a suboptimal solution, as the domain

concepts are most likely encoded in terms of different

concepts that are relevant for the aspect only.

Artifacts and Reconstruction.

New high complex

systems are rarely developed from scratch, they rather

evolve from predecessor systems. The size and value

of the existing artifacts and the required time-to-market

constraints usually prevents a green-ﬁeld approach for

modeling, e.g. modeling from scratch. This requires

an incremental introduction of an MDSE ecosystem in

an existing system development process. Automated

model reconstruction from existing artifacts enables a

gradual introduction of a MDSE ecosystem. Reusing

the artifacts from a predecessor system, the automated

model-re-constructors construct domain models from

them. These models can be adapted and modiﬁed to

develop the new system. Examples of such predeﬁned

artifacts are source code, test cases, or models from

(software) versioning systems, or logging information

obtained from running systems.

Automated Transformations.

Automated transfor-

mations re-use conventions and invariants from the

domain. They formalize the relations between model-

s/languages, and ensure consistency between the vari-

ous models at hand. Their automation is indispensable

to obtain an efﬁcient and effective development pro-

cess.

2.2 Examples of MDSE Ecosystems

As explained before, each MDSE ecosystem has its

own well deﬁned application domain. Examples of

developed MDSE ecosystems are:

•

CARM 2G, application domain Process Control.

It enables mechatronic design engineers to de-

ﬁne the application in terms of process (motion)

controllers (coupled with defacto standard Mat-

lab/Simulink, provides means for electronic en-

gineers to deﬁne the platform containing sensors,

actuators, the (multi-processor, multi-core) com-

putation platform and the communication network,

and means for software engineers to develop an

optimal mapping of the application on to the plat-

form, see (Schiffelers et al., 2012; Adyanthaya,

2016);

•

ASOME, application domain software. It enables

functional engineers (from different disciplines)

to deﬁne data structure and algorithms, and pro-

vides software engineers to deﬁne supervisory con-

trollers and data repositories (Alberts, 2016);

•

WLSAT, application domain Manufacturing Logis-

tics. It provides a formal modeling approach for

compositional speciﬁcation of both functionality

and timing of manufacturing systems. The per-

formance of the controller can be analyzed and

optimized by taking into account the timing char-

acteristics. Since formal semantics are given in

terms of a (max, +) state space, various existing

performance analysis techniques can be reused.

(van der Sanden et al., 2015);

•

MIDS, application domain Model Inference from

(legacy) Software. It enables software engineers to

infer models capturing the behavior of the software

by integrating techniques for source code analysis,

active learning and passive learning (Schiffelers,

2017);

•

T-iPPS, application domain Performance Analy-

sis of (large-scale) Software. It provides software

execution architects to monitor and dimension the

computing and communication (network) platform

that executes the software applications of a TWIN-

SCAN machine. Furthermore, it supports product

architects to diagnose anomalies in the run-time

behavior of a TWINSCAN machine;

•

CIF, application domain Supervisory Controller

Synthesis. It provides means to develop supervi-

sory controllers by modeling the uncontrolled plant

behavior and the requirements in terms of automata

(untimed). The resulting supervisor is synthesized

automatically and by construction guaranteed to be

deadlock free. By means of simulation, the timed

behavior can be analyzed and visualized (van Beek

et al., 2014).

2.3 Vision of MDSE Ecosystems

Positioning the use of MDSE ecosystems w.r.t. the

ideation, externalization and production phases of

systems engineering, MDSE ecosystems facilitate un-

ambiguous communication during the externalization

phase, and bridge the gap between the externalization

and production phases for its particular application

domain. There is less focus on supporting the ideation

phase since new high tech systems usually evolve from

existing systems and are rarely developed from scratch.

Development Process.

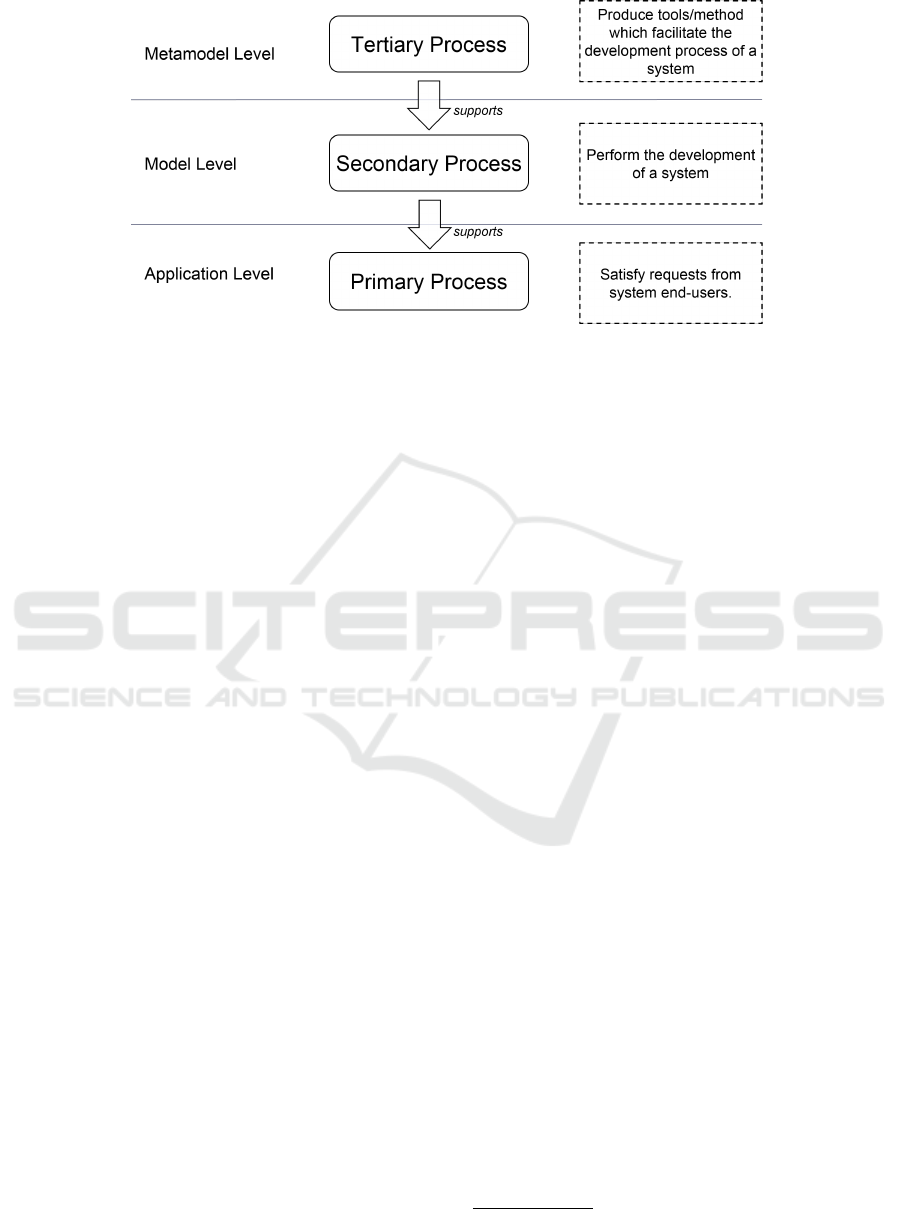

Figure 2 shows the three

main processes. A system runs/executes in the pri-

Towards Automated Analysis of Model-Driven Artifacts in Industry

745

Figure 2: The relations of primary process, secondary process, and tertiary process.

mary process to satisfy the user requests of the system.

For example, a TWINSCAN machine exposes wafers

for end-users. The development of such (TWINSCAN)

system is done in a secondary process by practitioners.

Finally in the tertiary process, tools or methods which

facilitate the (TWINSCAN) system development pro-

cess are developed by toolsmiths; e.g. toolsmiths de-

velop development tools for practitioners.

MDSE ecosystems raise the level of abstraction

towards the functional level and the generation of code

artifacts reduces the need for software engineers (prac-

titioners) in the secondary process. Software engineers

will move from contributing to the secondary process

towards the tertiary process, and become toolsmiths.

For software engineers that remain contributing in the

secondary process, the time formerly spend at code

level can now be spend on thinking about the design

and analyzing it automatically on the model level, be-

fore generating the code automatically.

Formally Deﬁned (Language) Interfaces.

MDSE

ecosystems are and should be extendable. The meta-

models are external interfaces of a MDSE ecosystem.

They formalize the data/information that can be ex-

changed and are used to formally deﬁne model-to-

model transformations to other ecosystems to facili-

tate unambiguous model exchange. In practice, lots of

efforts are spend on integrating different tools to facil-

itate some form of model exchange. While for some

disciplines, this is very well established, e.g. CAD/-

CAM coupling in the mechanical engineering domain,

for some disciplines this is still a laborious task involv-

ing developing parsers and encoding transformations

in a general purpose language, whereas the model re-

lations are despite being implemented and automated,

still not formally deﬁned. Related work in this direc-

tion is megamodeling, as proposed in (Diskin et al.,

2013). Megamodeling aims to make the meaning of

relations among the models explicit as well.

Prepared for Evolution.

As explained before, in

practice the development of MDSE ecosystems starts

small; a narrow domain will be addressed offering lim-

ited functionality. Over time, the ecosystem grows,

see (Favre, 2005). Growth can be in different direc-

tions, e.g. addressing a larger application domain, or

the increase of functionality/use of models for analy-

sis or (artifact) synthesis. In this respect, Lehman’s

laws (Lehman, 1980) for software engineering also

hold for MDSE ecosystems.

DSLs in MDSE ecosystems are a hotspot-by-

design, e.g., many artifacts such as editors are gen-

erated from them. DSLs are strongly related with

each other by means of model transformations. The

evolutionary changes of DSLs and, as such, MDSE

ecosystems, are much bigger compared to general pur-

pose languages and their development ecosystems /

Integrated Development Environments. To prevent

that the evolution of MDSE ecosystems becomes a

costly and error-prone process, signiﬁcant research

efforts are put in to develop methods and tools to

support cost-effective evolution of DSLs (Mengerink

et al., 2016b), models (Rose et al., 2010b; Rose et al.,

2010a; Vissers et al., 2016; Hebig et al., 2017) and

model transformations (García et al., 2013). For in-

stance, the evolution of the DSLs can be speciﬁed

in a evolution DSL (Mengerink et al., 2016a; Men-

gerink et al., 2016b), from which the co-evolution

speciﬁcations to co-evolve the models and model-

transformations can be derived (Vissers et al., 2016).

Several tools have been developed/extended to support

this approach, such as Edapt

, COPE (Herrmanns-

dörfer, 2011), EMFMigrate (Di Rocco et al., 2012),

Edapt. https://www.eclipse.org/edapt/. Accessed: 2015-

04-07.

MOMA3N 2018 - Special Session on Model Management And Analytics

746

Udapt (Mengerink et al., 2016c).

3 ANALYSES

In this section, we describe several types of analysis.

This section is organized according to the inputs that

the different types of analysis require: a single model,

multiple models conforming to the same DSL, a single

MDSE ecosystem, and multiple MDSE ecosystems.

The latter, analyzing multiple ecosystems, mostly fo-

cuses on the analyzing their evolution to minimize

development costs.

Analysis of a Single Model.

One of the main pur-

poses of a MDSE ecosystem is to facilitate analysis of

a domain model of some subsystem. It enables confor-

mance checking of the domain model w.r.t. its DSL.

To analyze the properties of the domain model, it can

be transformed to several aspect models. Examples of

different analysis techniques that have been enabled

within the MDSE ecosystems as described in Sec-

tion 2.2 are given below. For software analysis, formal

veriﬁcation (Gabmeyer et al., ) is becoming increas-

ingly important. The ASOME ecosystems enables

modelchecking of software models. Other analysis

techniques in the software domain (Thüm et al., 2014),

such as static analysis, might be integrated in future as

well. Non-functional properties such as timing can be

analysis by means of simulation. The MDSE ecosys-

tems CARM 2G, WLSAT, and CIF provide discrete-

event and combined discrete-event/continuous-time

(so-called hybrid) simulators to analyze the (stochas-

tic) timing behavior. The ecosystem MIDS integrates

the process mining tool PROM (Leemans and van der

Aalst, 2015), and the automata learning technique

Learnlib (Raffelt et al., 2005) to infer models from

(legacy) software.

Analysis of Multiple Models.

The increasing num-

ber of models conforming to the same DSL/domain

enables their analysis. For instance, to support the fu-

ture modeling process, these models can be analyzed

to identify best modeling practices within the particu-

lar DSL/domain, and outliers and modeling patterns

can be detected. Frequently occurring model patterns

can be even lifted to become primary modeling prim-

itives directly available in the DSL, enabling a more

efﬁcient and less error prone modeling process. Fur-

thermore, insights can be obtained for modularization

and product-line engineering reﬁnements.

There are mainly two types of techniques for multi-

model analysis: deep compare and analysis based on

metrics.

Deep Compare.

Pair wise comparison is used to com-

pare two models for conformance or similarity,

such as implemented in the tool EMFCompare

Deep-comparison of many models can be useful

to obtain insights in a particular domain. A tech-

nique based on N-grams that has been successfully

used for, amongst others, clone detection in DSLs,

can be found in (Babur et al., 2016; Babur and

Cleophas, 2017).

Metric Analysis.

Metrics provide a holistic view of

one or more models. For software engineering,

analysis techniques which are currently available

on the code-artifact level have to be lifted to the

model level and incorporated in MDSE ecosys-

tems to assist their users. Examples of metrics as

deﬁned for general purpose languages are Lines-

of-Code, cyclometric complexity, see (Fenton and

Bieman, 2014) for an overview, and can be com-

puted using tools such as TICS

. Such metrics

have to be deﬁned on models as well, and tools

to compute them have to be integrated in MDSE

ecosystems. Challenges are the deﬁnition of the

metrics themselves, and the interpretation/classiﬁ-

cation of these metrics. For the deﬁnition and inter-

pretation of metrics, multiple models are required.

Given a metric, it can be computed on a single

model. Work in this direction for the ASOME

ecosystem can be found in (Lambrechts, 2017).

Analysis of a MDSE Ecosystem.

Many existing

MDE tools include too many options that are not

needed but paralyze developers (Whittle et al., 2014).

Analyzing how a MDSE ecosystem is being used in

practice, helps toolsmiths to know whether they are

developing what is actually needed by the practition-

ers. MDSE ecosystems have to be instrumented to

obtain data for empirical validation of their usage,

and to assess whether the needs of MDSE ecosystems

are addressed sufﬁciently. This analogue to the study

described in (Fernández-Sáez et al., 2015) in which

empirical evidence is provided to show that forward

designed UML diagrams are useful for maintaining

the code of well-known domains.

Evolution Analysis.

As stated in Section 2.3,

MDSE ecosystems, DSLs in particular, evolve over

time. As in industry models can number in the thou-

sands (Vissers et al., 2016), the maintenance effort

required to maintain these models can become quite

EMF Compare,https://www.eclipse.org/emf/compare/,

Accessed: 2017-11-01.

TICS Analyzer. https://www.tiobe.com/tics-analyzer/.

Accessed: 2017-11-01.

Towards Automated Analysis of Model-Driven Artifacts in Industry

747

high. As such, cost of maintenance also increases,

calling for automated techniques. In literature, many

have worked towards this goal (Rose et al., 2009). As

shown in previous work, several of the earlier studies

fail to meet the challenge, mainly because they missed

key cases (Mengerink et al., 2016b). Such shortcom-

ings can be prevented by having a better understanding

of the problem at hand (Hutchinson et al., 2011). By

gaining insight into the exact nature of the challenges

in practice (Mengerink et al., 2018; Mengerink et al.,

2016b) we can better tailor solutions, allowing us to

tackle the challenges in a more adequate way. As re-

lated work we mention (Iovino et al., 2012), where

megamodeling is used to depict dependencies among

models that need to be considered during model co-

evolution.

4 TOOL SUPPORT FOR

ANALYTICS: EMMA

The EMF (Meta) Model Analysis tool (EMMA) (Men-

gerink et al., 2017b) provides means to perform a

subset of the analyses that are sketched in Section 3.

Rather than creating a set of analysis tools per DSL/e-

cosystem, EMMA provides DSL-independent analy-

ses services. To do so, EMMA is based on the meta-

metamodel (Ecore). By the “everything is a model”

paradigm, EMMA exploits the standardization of meta-

metamodel/metamodel and metamodel/model instanti-

ation relations, allowing it to provide a single generic

analysis toolkit that operates out of the box on all

EMF-based artifacts.

Out of the box, it supports several types of analy-

ses that, in practice, prove to be powerful enough to

answer a broad spectrum of questions.

•

Count the number of occurrences of a modeling

concept;

• Compute differences between two models;

• Compute a metric on a model-element;

• Analyze evolution of (meta) models.

4.1 Counts

The ﬁrst type of analysis supported by EMMA is

counting the occurrences of modeling-concepts. As

mentioned, this is done automatically by exploiting

the ﬁxed instantiation relations of EMF. As an exam-

ple, EMMA has been used to investigate the usage of

the Object Constraint Language (OCL) (Warmer and

Kleppe, 2003) in practice, see Figure 3.

To perform all these analyses in a uniform way, the

count-analysis uses the Metrics functionality described

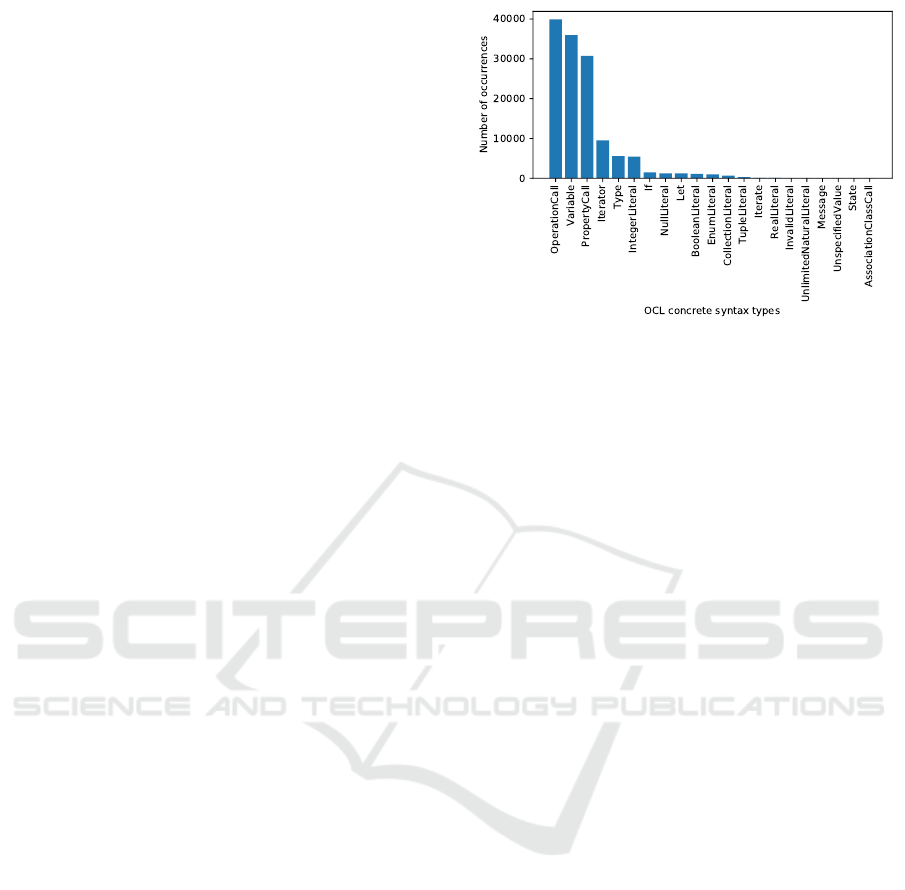

Figure 3: A histogram showing the number of occurrences

of OCL constructs in a large open-source dataset (Noten

et al., 2017).

in Section 4.2. As the data aggregation, described in

Section 4.4, stores its information at object granularity,

this functionality can be exploited to do counting. For

example:

•

We start by deﬁning a metric “CountVertex” that

returns

for every Vertex in a Graph. Genera-

tion of such metrics can be fully automated as the

instantiation relations in EMF are standardized;

•

As data is stored on a per-object basis, a

CountVertex = 1 will be stored per object;

•

By counting (or summing) over all such values, we

reuse the generic metric-calculation framework to

do counting, obtaining ﬁgures such as the one in

Figure 3.

4.2 Metrics

As mentioned before, EMMA provides a generic

metric-calculation framework for EMF by exploiting

the standardization of instantiation relations. As an ex-

ample, to automatically generate the metrics described

in Section 4.1, one can look at a metamodel and create

a metric “CountX”, for every concept (

EClass

) X in

the metamodel. As no concepts other than those in the

metamodel(s), can be instantiated in the model, this

gives us a complete summary of the model.

Such standard metrics can answer a plethora of

questions, but are not sufﬁcient for all cases. As such,

EMMA is designed to be extensible. For this, we allow

easy deﬁnition of custom metrics, as the examples in

Listing 1 (Mengerink et al., 2017b)) illustrate.

MOMA3N 2018 - Special Session on Model Management And Analytics

748

Listing 1: An example of metrics on a graph DSL.

@Metric ( name=" o u t d e g r e e " )

p u b l i c i n t out g o i n g ( V e r t e x v ) {

r e t u r n v . e dges ;

}

@Metric ( name=" numNodes " )

p u b l i c i n t out g o i n g ( Graph g ) {

r e t u r n g . nod es . s i z e ( ) ;

}

4.3 Differences

The second main type of analysis that EMMA sup-

ports is model differencing. Using EMFCompare

EMMA can systematically compute differences and

store them in a database. Aggregating such informa-

tion over various versions can give insight into evo-

lutionary behavior of the models in question. For

instance, model differencing is used to gain insight

into the most frequently occurring types of metamodel

evolution (Mengerink et al., 2016b), supporting the

challenges described in Section 2.3.

4.4 Data Aggregation

In previous work (Mengerink et al., 2017b), we have

already elaborated on the various aforementioned fea-

tures and analyses that EMMA supports. The core

strength of EMMA not explicitly showcased in that

work is the capability to freely aggregate data at vari-

ous levels:

•

Metrics are calculated and persisted on a per-object

basis;

• Membership of objects to ﬁles is recorded;

•

Membership of ﬁles to a particular collection

(“datasets” in EMMA terminology) is recorded;

The statistical analyses using the R (Ihaka and Gen-

tleman, 1996) integration within EMMA, or visualiza-

tions supported by EMMA (Mengerink et al., 2017b)

allow selection of data to be analyzed/visualized based

on the aforementioned aggregations. For example:

•

When analyzing a single ﬁle, one can perform

sanity checks such as “all attributes should have

non-null values”;

•

Combining measurements from multiple ﬁles, dis-

tributions may be observed. For example about

the the average complexity of OCL expressions in

open-source (Noten et al., 2017);

EMF Compare,https://www.eclipse.org/emf/compare/,

Accessed: 2017-11-01.

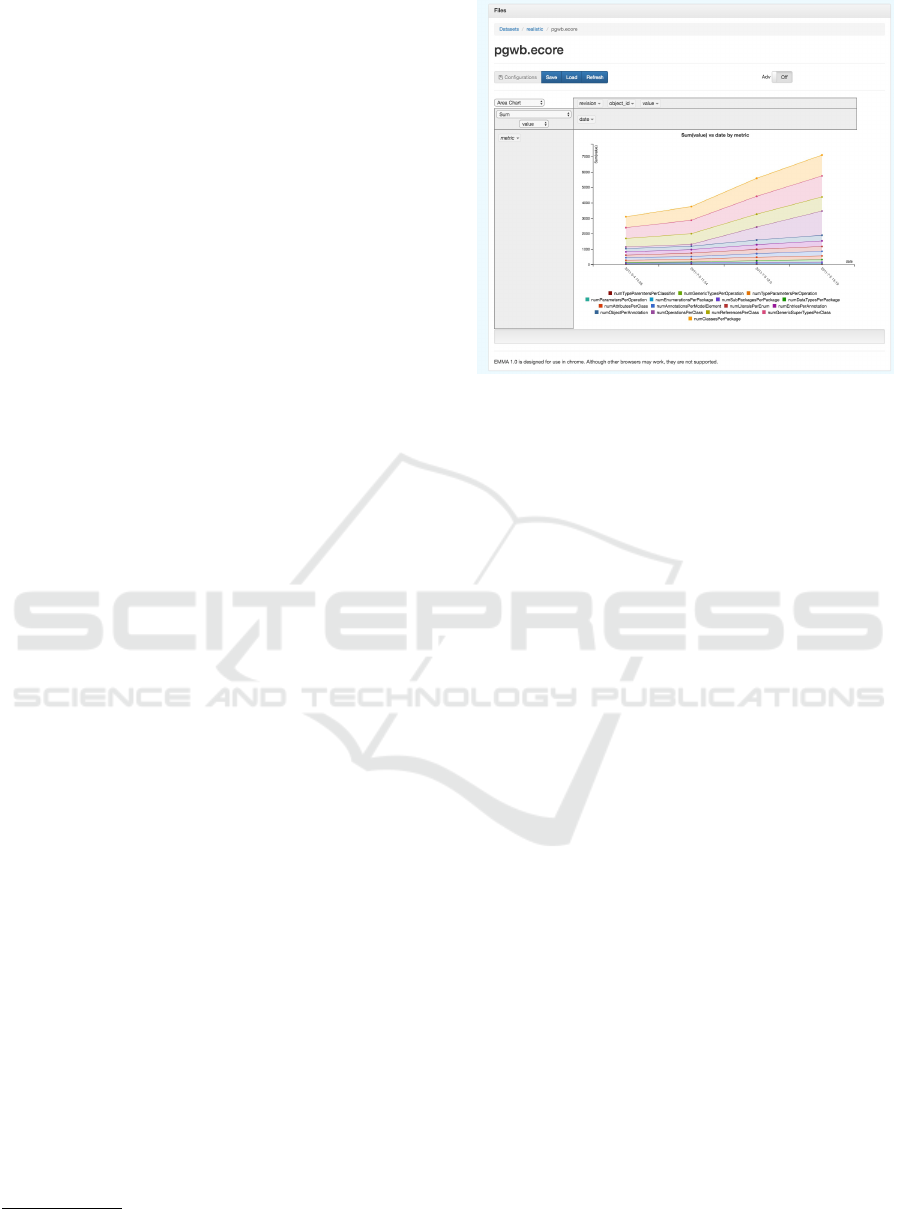

Figure 4: A screenshot of EMMA taken from (Mengerink

et al., 2017b), showing aggregation by date, which allows

analyses over time (e.g., evolution).

•

By taking dataset-level measurements, one can

also make better statements about individual ﬁles,

e.g., “this model is bad, because its complexity is

40% higher than the average model in the dataset”.

•

One can also compare measurements from two

datasets. For example to compare complexity of

open-source and industrial MDE artifacts (Men-

gerink et al., 2017a).

•

Orthogonally, aggregation by date is possible. This

allows analyzing artifacts over time. e.g., how

the size & structure of a DSL changes of time as

illustrated in Figure 4 (Mengerink et al., 2017b;

Vissers et al., 2016; Mengerink et al., 2016b).

These forms aggregation, coupled with the simple

but powerful out-of-the-box analyses, allows EMMA

to cater to a plethora of industrial analysis needs.

5 FUTURE RESEARCH

Multi-disciplinary System Engineering (MDSE)

ecosystems have proven to deliver effective design sup-

port resulting in improved system quality and reduced

development time. Although they provide a signiﬁcant

step forward in industry, they only form a partial so-

lution. Still, quite a number of challenges have to be

addressed in order to deal properly with the increased

complexity of high tech systems development.

Conceptually.

To allow effective prediction and

trading-off of key system aspects concerning perfor-

mance, correctness, reliability and evolvability, a grand

Towards Automated Analysis of Model-Driven Artifacts in Industry

749

challenge concerns the identiﬁcation and formalization

of the semantic relations between domain and aspect

models, spanning different levels of abstraction. En-

gineering principles, such as abstraction, architecture,

or decomposition, are different across disciplines. To

understand how these principles relate and impact each

other is another challenge to be addressed.

Modeling Effectiveness.

Empirical research is

needed to obtain convincing measurements of model-

ing effectiveness. What are the measurable beneﬁts

of modeling? In industry, there is still a lot of discus-

sion about this. Regarding quality of models, one can

distinguish two directions:

•

Is the model a good abstraction of the system?

Does the model describe the modeled system suf-

ﬁciently accurate (‘just enough modeling’), such

that one can draw conclusions from it? What can

be and should be modeled, which is a trade-off

between expressivity and analytical tractability.

What is the (minimal) required expressivity to max-

imize its analytical tractability.

•

Is the model a good model? How to measure qual-

ity of the model themselves? Work on quality

models and attributes can be found for instance

on in (Gerpheide et al., 2016a; Gerpheide et al.,

2016b).

Tooling.

Currently, most mature tooling is text-

based, which makes it hard to reason and exploit the

structure of models. A lot of research has been done

to lift these tools to model/graph based tools and to

deal with scalability, see (Kolovos et al., 2013; Kehrer

et al., 2011; Maoz and Ringert, 2015). However, tools

that can be used at large scale in industry are still in

their infancy.

ACKNOWLEDGEMENTS

The authors thank Jeroen Voeten, Wilbert Alberts,

Sven Weber, Marc Hamilton and Rogier Wester for

stimulating discussions and constructive feedback on

earlier versions of this paper. Furthermore, we thank

the anonymous reviewers whose valuable comments

and suggestions helped to improve and clarify this

paper.

REFERENCES

Adyanthaya, S. (2016). Robust multiprocessor scheduling

of industrial-scale mechatronic control systems. PhD

thesis, Eindhoven: Technische Universiteit Eindhoven.

Alberts, W. (2016). ASML’s MDE Going Sirius.

https://www.slideshare.net/Obeo_corp/siriuscon2016-

asmls-mde-going-sirius. Accessed: 2017-11-01.

Babur, Ö. and Cleophas, L. (2017). Using n-grams for the

Automated Clustering of Structural Models, pages 510–

524. Springer International Publishing, Cham.

Babur, Ö., Cleophas, L., and van den Brand, M. (2016).

Hierarchical Clustering of Metamodels for Compara-

tive Analysis and Visualization, pages 3–18. Springer

International Publishing, Cham.

Di Rocco, J., Iovino, L., and Pierantonio, A. (2012). Bridg-

ing state-based differencing and co-evolution. In Mod-

els and Evolution, pages 15–20. ACM.

Diskin, Z., Kokaly, S., and Maibaum, T. (2013). Mapping-

Aware Megamodeling: Design Patterns and Laws. In

Software Language Engineering - 6th International

Conference, SLE 2013, Indianapolis, IN, USA, October

26-28, 2013. Proceedings, pages 322–343.

Favre, J.-M. (2005). Languages evolve too! changing the

software time scale. In Principles of Software Evolu-

tion, pages 33–42.

Fenton, N. and Bieman, J. (2014). Software metrics: a

rigorous and practical approach. CRC Press.

Fernández-Sáez, A. M., Genero, M., Chaudron, M. R.,

Caivano, D., and Ramos, I. (2015). Are forward de-

signed or reverse-engineered uml diagrams more help-

ful for code maintenance?: A family of experiments.

Information and Software Technology, 57(Supplement

C):644 – 663.

Gabmeyer, S., Kaufmann, P., Seidl, M., Gogolla, M., and

Kappel, G. A feature-based classiﬁcation of formal

veriﬁcation techniques for software models. Software

& Systems Modeling, pages 1–26.

García, J., Diaz, O., and Azanza, M. (2013). Model transfor-

mation co-evolution: A semi-automatic approach. In

SLE, volume 7745 of LNCS, pages 144–163. Springer.

Gerpheide, C. M., Schiffelers, R. R. H., and Serebrenik, A.

(2016a). Assessing and improving quality of QVTo

model transformations. Software Quality Journal,

24(3):797–834.

Gerpheide, C. M., Schiffelers, R. R. H., and Serebrenik, A.

(2016b). Assessing and improving quality of qvto

model transformations. Software Quality Journal,

24(3):797–834.

Hebig, R., Khelladi, D. E., and Bendraou, R. (2017). Ap-

proaches to co-evolution of metamodels and models:

A survey. IEEE Transactions on Software Engineering,

43(5):396–414.

Herrmannsdörfer, M. (2011). COPE - A workbench for the

coupled evolution of metamodels and models. In SLE,

volume 6563 of LNCS, pages 286–295. Springer.

Hutchinson, J. E., Whittle, J., Rounceﬁeld, M., and Kristof-

fersen, S. (2011). Empirical assessment of MDE in

industry. In ICSE, pages 471–480.

MOMA3N 2018 - Special Session on Model Management And Analytics

750

Ihaka, R. and Gentleman, R. (1996). R: a language for data

analysis and graphics. Journal of computational and

graphical statistics, 5(3):299–314.

Iovino, L., Pierantonio, A., and Malavolta, I. (2012). On the

impact signiﬁcance of metamodel evolution in MDE.

Journal of Object Technology, 11(3):3: 1–33.

Kehrer, T., Kelter, U., and Taentzer, G. (2011). A rule-

based approach to the semantic lifting of model differ-

ences in the context of model versioning. In 2011 26th

IEEE/ACM International Conference on Automated

Software Engineering (ASE 2011), pages 163–172.

Kolovos, D. S., Rose, L. M., Matragkas, N., Paige, R. F.,

Guerra, E., Cuadrado, J. S., De Lara, J., Ráth, I., Varró,

D., Tisi, M., and Cabot, J. (2013). A research roadmap

towards achieving scalability in model driven engineer-

ing. In Proceedings of the Workshop on Scalability

in Model Driven Engineering, BigMDE ’13, pages

2:1–2:10, New York, NY, USA. ACM.

Lambrechts, C. (2017). Metrics for control models in a

model-driven engineering environment. PDeng Thesis„

Technische Universiteit Eindhoven.

Leemans, M. and van der Aalst, W. M. P. (2015). Process

mining in software systems: Discovering real-life busi-

ness transactions and process models from distributed

systems. In 2015 ACM/IEEE 18th International Con-

ference on Model Driven Engineering Languages and

Systems (MODELS), pages 44–53.

Lehman, M. M. (1980). Programs, life cycles, and laws

of software evolution. Proceedings of the IEEE,

68(9):1060–1076.

Maoz, S. and Ringert, J. O. (2015). A framework for relating

syntactic and semantic model differences. Software &

Systems Modeling, pages 1–25.

Mengerink, J., Schiffelers, R. R., Serebrenik, A., and van den

Brand, M. (2016a). Dsl/model co-evolution in indus-

trial emf-based mdse ecosystems. In ME@ MODELS,

pages 2–7.

Mengerink, J., van der Sanden, B., Cappers, B., Serebrenik,

A., Schiffelers, R., and van den Brand, M. (2018).

Exploring dsl evolutionary patterns in practice: A study

of dsl evolution in a large-scale industrial dsl repository.

In Modelsward.

Mengerink, J. G. M., Noten, J., Schiffelers, R. R. H., van den

Brand, M. G. J., and Serebrenik, A. (2017a). A case

of industrial vs. open-source ocl: Not so different after

all. In 20th ACM/IEEE International Conference on

Model Driven Engineering Languages and Systems.

Mengerink, J. G. M., Serebrenik, A., Schiffelers, R. R. H.,

and van den Brand, M. G. J. (2016b). A complete

operator library for DSL evolution speciﬁcation. In

ICSME 2016, Raleigh, NC, USA, pages 144–154.

Mengerink, J. G. M., Serebrenik, A., Schiffelers, R. R. H.,

and van den Brand, M. G. J. (2016c). Udapt: Edapt

extensions for industrial application. In IT.SLE, CEUR-

WS.

Mengerink, J. G. M., Serebrenik, A., Schiffelers, R. R. H.,

and van den Brand, M. G. J. (2017b). Automated

analyses of model-driven artifacts: Obtaining insights

into real-life application of MDE. In IWSM Mensura.

Noten, J., Mengerink, J. G. M., and Serebrenik, A. (2017).

A data set of OCL expressions on GitHub. In MSR.

Raffelt, H., Steffen, B., and Berg, T. (2005). Learnlib: A

library for automata learning and experimentation. In

Proceedings of the 10th international workshop on

Formal methods for industrial critical systems, pages

62–71. ACM.

Rose, L. M., Etien, A., Mendez, D., Kolovos, D. S., Po-

lack, F. A. C., and Paige, R. F. (2010a). Comparing

Model-Metamodel and Transformation-Metamodel Co-

evolution. In Model and Evolution Workshop.

Rose, L. M., Kolovos, D. S., Paige, R. F., and Polack,

F. A. (2010b). Model migration with Epsilon Flock.

In ICMT, volume 6142 of LNCS, pages 184–198.

Springer.

Rose, L. M., Paige, R. F., Kolovos, D. S., and Polack, F. A. C.

(2009). An analysis of approaches to model migration.

In MoDSE-MCCM, pages 6–15.

Schiffelers, R. (2017). Model Driven Development

of TWINSCAN software, but not from scratch!

http://www.ictopen.nl/content/Speakers/invited+

speakers+per+track. Accessed: 2017-11-01.

Schiffelers, R. R. H., Alberts, W., and Voeten, J. P. M. (2012).

Model-based speciﬁcation, analysis and synthesis of

servo controllers for lithoscanners. In Proceedings

of the 6th International Workshop on Multi-Paradigm

Modeling, MPM ’12, pages 55–60, New York, NY,

USA. ACM.

Thüm, T., Apel, S., Kästner, C., Schaefer, I., and Saake,

G. (2014). A classiﬁcation and survey of analysis

strategies for software product lines. ACM Comput.

Surv., 47(1):6:1–6:45.

van Beek, D. A., Fokkink, W. J., Hendriks, D., Hofkamp, A.,

Markovski, J., van de Mortel-Fronczak, J. M., and Re-

niers, M. A. (2014). CIF 3: Model-Based Engineering

of Supervisory Controllers, pages 575–580. Springer

Berlin Heidelberg, Berlin, Heidelberg.

van der Sanden, B., Reniers, M., Geilen, M., Basten, T., Ja-

cobs, J., Voeten, J., and Schiffelers, R. (2015). Modular

model-based supervisory controller design for wafer

logistics in lithography machines. In 2015 ACM/IEEE

18th International Conference on Model Driven En-

gineering Languages and Systems (MODELS), pages

416–425.

Vissers, Y., Mengerink, J. G. M., Schiffelers, R. R. H., Sere-

brenik, A., and Reniers, M. A. (2016). Maintenance of

speciﬁcation models in industry using edapt. In FDL,

pages 1–6.

Warmer, J. and Kleppe, A. (2003). The Object Constraint

Language: Getting Your Models Ready for MDA.

Addison-Wesley, 2 edition.

Whittle, J., Hutchinson, J., and Rounceﬁeld, M. (2014). The

state of practice in model-driven engineering. IEEE

software, 31(3):79–85.

Towards Automated Analysis of Model-Driven Artifacts in Industry

751
