Lightweight Deep Convolutional Network for Tiny Object Recognition

Thanh-Dat Truong

, Vinh-Tiep Nguyen

and Minh-Triet Tran

University of Science, Vietnam National University, HCMC, Vietnam

University of Information Technology, Vietnam National University, HCMC, Vietnam

Keywords:

Object Recognition, Lightweight Deep Convolutional Neural Network, Tiny Images, Global Average Pooling.

Abstract:

Object recognition is an important problem in Computer Vision with many applications such as image search,

autonomous car, image understanding, etc. In recent years, Convolutional Neural Network (CNN) based mod-

els have achieved great success on object recognition, especially VGG, ResNet, Wide ResNet, etc. However,

these models involve a large number of parameters that should be trained with large-scale datasets on power-

ful computing systems. Thus, it is not appropriate to train a heavy CNN with small-scale datasets with only

thousands of samples as it is easy to be over-ﬁtted. Furthermore, it is not efﬁcient to use an existing heavy

CNN method to recognize small images, such as in CIFAR-10 or CIFAR-100. In this paper, we propose a

Lightweight Deep Convolutional Neural Network architecture for tiny images codenamed “DCTI” to reduce

signiﬁcantly a number of parameters for such datasets. Additionally, we use batch-normalization to deal with

the change in distribution each layer. To demonstrate the efﬁciency of the proposed method, we conduct exper-

iments on two popular datasets: CIFAR-10 and CIFAR-100. The results show that the proposed network not

only signiﬁcantly reduces the number of parameters but also improves the performance. The number of pa-

rameters in our method is only 21.33% the number of parameters of Wide ResNet but our method achieves up

to 94.34% accuracy on CIFAR-10, comparing to 96.11% of Wide ResNet. Besides, our method also achieves

the accuracy of 73.65% on CIFAR-100.

1 INTRODUCTION

Object recognition is one of the important tasks in

computer vision whose objective is to automatically

classify images into many classes. The result of im-

age classiﬁcation is an essential precondition of many

tasks such as understanding images, image search en-

gine. Current approaches for image classiﬁcation are

based on machine learning.

Yann LeCun et. al. proposed Convolutional Neu-

ral Network (LeCun et al., 1989) in the early 1990’s

which demonstrates excellent performance at recog-

nition tasks. Several papers have shown that they

can also deliver outstanding performance on more

challenging visual recognition tasks: Ciresan et. al.

(Ciresan et al., 2012) demonstrate state-of-the-art per-

formance on CIFAR-10 dataset. CNN has recently

enjoyed great success in large-scale image recogni-

tion, e.g CNN architecture is proposed by Krizhevsky

et. al. (Krizhevsky et al., 2017a). In 2015, Karen

Simonyan and Andrew Zisserman propose an archi-

tecture (Simonyan and Zisserman, 2014) which im-

proves the performance of the original architecture of

Krizshevsky.

In reality, objects taken from cameras are often

small or even tiny. Object detection is a method to

determine the object location in an image. Object de-

tection pipeline involves the object recognition mod-

ule. For each object proposal region, we need to rec-

ognize the object in this region. And some regions are

quite small or tiny. In the autonomous car, detecting

and recognizing from far away is really challenging

because objects are taken quite small.

In the recent years, lifelogging rapidly becom-

ing a mainstream research topic. With the rich data

captured over a long period of time, it will require

both advanced methods that can provide an insight

of the activities of an individual and systems capable

of managing this huge amount of data. In the lifelog

scenario there will be present several objects of small

sizes, but the object detection part is equally impor-

tant in this scenario.

The recent common methods deal with tiny ob-

ject recognition is to resize a small image into larger

ones and use common networks having the best per-

formance such as VGG (Simonyan and Zisserman,

2014), Inception (Szegedy et al., 2015), ResNet (He

et al., 2016a), etc. to recognize. But the computa-

Truong, T-D., Nguyen, V-T. and Tran, M-T.

Lightweight Deep Convolutional Network for Tiny Object Recognition.

DOI: 10.5220/0006752006750682

In Proceedings of the 7th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2018), pages 675-682

ISBN: 978-989-758-276-9

675

tional cost of their method is really large and cannot

be employed in real time. Although GPU with high

performance can deal with this problem, the price of

GPU is really expensive and not suitable for small de-

vices. Furthermore, resizing a tiny image into a large

image really does not get more information of an im-

age. Additionally, training a large network takes a lot

of time and requires the hardware to be really power-

ful enough.

A good solution for this problem is to keep the size

of the image and to build a network with fewer param-

eters but it still has the ability to recognize with high

accuracy. On this basis, we propose a new method

to employ very deep CNN called Lightweight Deep

Convolutional Network for Tiny Object Recognition

(DCTI). Our proposed network has not only fewer pa-

rameters but also high performance on the tiny im-

age. It has both good accuracy and minimal com-

putational cost. Through experiments, we achieved

some good results which are quite effective for multi-

purposes. This is the motivations for us to continue

to develop our method and build many systems which

make use of object recognition such as understanding

image systems, image search engine systems.

Contributions. In our work, we consider in tiny

images with size 32 × 32. We focus on exploiting

local features with small convolutional ﬁlters size.

Therefore, we use convolutional ﬁlters size 3 × 3. It

ﬁts with tiny images and helps to extract local fea-

tures. Besides that, it helps reducing parameters and

to push network going deeper.

In traditional approaches, the last layers use fully

connected layers to feed feature maps to feature vec-

tors. However, it increases more parameters and leads

to over-ﬁtting. Our network proposes using global av-

erage pooling (Lin et al., 2013) instead of fully con-

nected layers. The purpose of this work is to help the

network directly project signiﬁcant feature maps into

the feature vectors. Additionally, global average pool-

ing layers do not employ parameters. So it has fewer

parameters and over-ﬁtting is avoided.

In deep networks, small changes can amplify layer

by layer. It leads to change distribution each layer.

This problem is called Internal Covariate Shift. To

tackle this problem, we use Batch-Normalization pro-

posed by Ioffe et. al. (Ioffe and Szegedy, 2015).

Once again, through experiments, we prove batch-

normalization is potential and efﬁcient. It also helps

faster learning.

Additionally, to prevent over-ﬁtting, we use

dropout. In common, dropout is put after fully con-

nected layers. But in our network, we put it after

convolutional layers. Through experiment, this work

helps improving accuracy and to avoid over-ﬁtting.

We also use data augmentation and whitening

data to improve accuracy. Our method only uses

21.33% number of parameters than the state-of-the-

art method (Zagoruyko and Komodakis, 2016). How-

ever, we achieve the accuracy up to 94.34% and

73.65% on CIFAR-10 and CIFAR-100. With our re-

sult we achieved, it proves that our method not only

gets high accuracy but also reduce parameters signif-

icantly.

The rest of this paper is organized as follows. Sec-

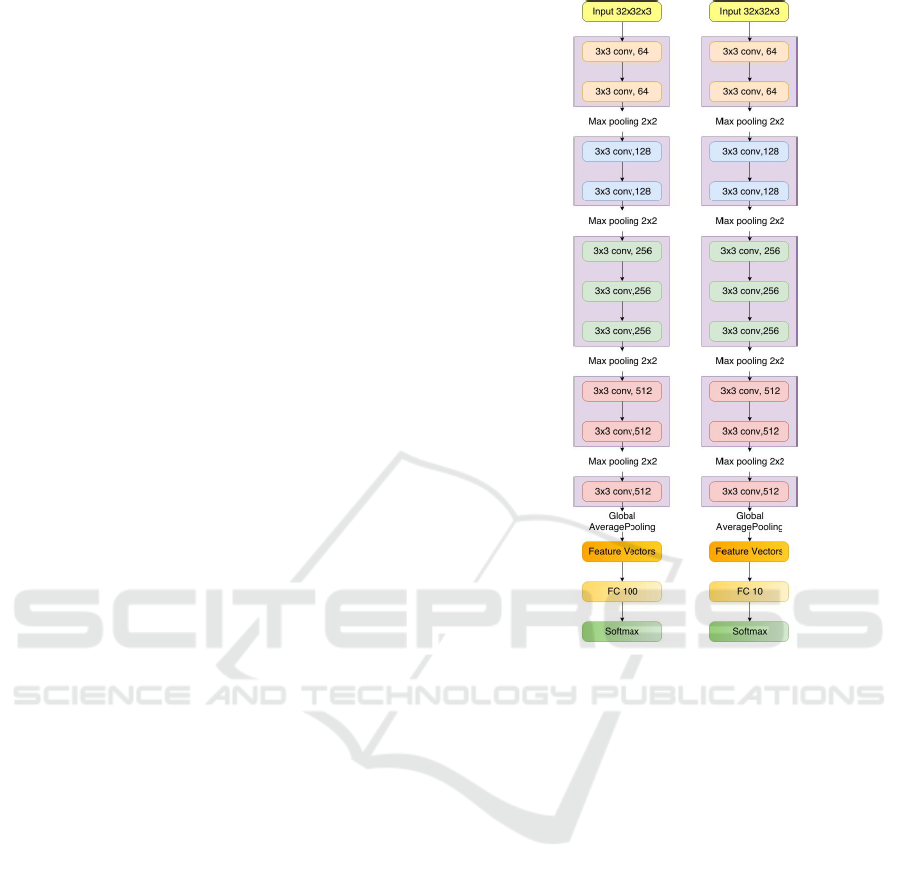

tion 2 presents related works. The proposed architec-

ture of our network is presented in Section 3. Section

4 presents our experimental conﬁguration on CIFAR-

10 and CIFAR-100. We compare our results to other

methods in section 5. Finally, Section 6 concludes the

paper.

2 RELATED WORKS

The earlier method for object recognition named Con-

volutional Neural Networks is proposed by Yann Le-

cun et. al. (LeCun et al., 1989). It demonstrates

high performance on MNIST Dataset. Many current

architectures used for object recognition are based

on Convolutional Neural Networks (Graham, 2014),

(Krizhevsky et al., 2017a), (Zeiler and Fergus, 2013).

Very Deep Convolutional Neural Networks: a

method proposed by Andrew Zisserman et. al. (Si-

monyan and Zisserman, 2014). It has good perfor-

mance on ImageNet Dataset. Very deep convolu-

tional neural networks have two main architectures

are VGG-16 and VGG-19. VGG-16 and VGG-19

mean that there are 16 layers and 19 layers having

parameters. The main contribution of its paper is a

thorough evaluation of networks of increasing depth

using an architecture with very small (3 × 3) convo-

lution ﬁlters, which shows that a signiﬁcant improve-

ment on the prior-art conﬁgurations can be achieved

by pushing the depth to 16-19 weight layer.

Network In Network: notice the limitations of

using the fully connected layer, a novel network struc-

ture called Network In Network (NIN) to enhance the

model discriminability for local receptive ﬁelds (Lin

et al., 2013). Global average pooling is used in this

network instead of fully connected layer. The pur-

pose of this work is to reduce parameters and enforc-

ing correspondences between feature maps and cate-

gories. It continues improving by Batch-normalized

Maxout and has good performance on CIFAR-10

dataset (Chang and Chen, 2015). In our work, we

also use global average pooling approach.

Deep Residual Learning for Image Recogni-

tion: one of the limitations when the network has

INDEED 2018 - Special Session on INsights DiscovEry from LifElog Data

676

more layers is the gradient is vanished in back-

propagation process. To avoid this problem, a method

proposed by Kaiming He (He et al., 2016a). It

presents a residual learning framework to easy the

training of networks that are substantially deeper than

those used previously. Deep Residual gets high per-

formance on ImageNet dataset, CIFAR dataset.

Going Deeper with Convolutions: one of the

important works when designing a network is that se-

lects kernels for each layer. Should we use a size of

the kernel of convolutional layers is 1 × 1, 3 × 3 or

5 × 5? To solve this problem, the group of Google’s

authors proposed a method codenamed Inception that

achieves the new state-of-the-art for classiﬁcation and

detection in the ImageNet Large-Scale Visual Recog-

nition Challenge 2014 (Szegedy et al., 2015). The

idea of the method is to use all three size kernels

each convolutional layer. By a carefully crafted de-

sign, they increase the depth and width of the network

while keeping the computational budget constant.

Deep Networks with Internal Selective Atten-

tion through Feedback Connections: traditional

CNN are stationary and feed-forward. They neither

change their parameters during evaluation nor use

feedback from higher to lower layers. Real brains,

however, do. So does the Deep Attention Selective

Network (DasNet) architecture. DasNet’s feedback

structure can dynamically alter its convolutional ﬁl-

ter sensitivities during classiﬁcation. It harnesses the

power of sequential processing to improve classiﬁca-

tion performance, by allowing the network to itera-

tively focus its internal attention on some of its con-

volutional ﬁlters (Stollenga et al., 2014).

Recurrent Convolutional Neural Network for

Object Recognition: a prominent difference is that

CNN is typically a feed-forward architecture while

in the visual system recurrent connections are abun-

dant. Inspired by this fact, its paper proposes a recur-

rent CNN (RCNN) for object recognition by incorpo-

rating recurrent connections into each convolutional

layer (Liang and Hu, 2015).

3 PROPOSED ARCHITECTURE

3.1 Overall Architecture

DCTI has 5 phases of convolutional layers (see Fig-

ure 1). We use all ﬁlters with receptive ﬁeld 3x3

for all convolutional layers. All hidden layers are

equipped with the rectiﬁcation (ReLUs (Krizhevsky

et al., 2017b)) non-linearity. We use dropout and

batch-normalization after each convolutional layer.

Figure 1: Overall architecture of Lightweight Deep Con-

volutional Network for Tiny Object Recognition (top for

CIFAR-10, bottom for CIFAR-100).

From the original image size 32 × 32 and 3 color

channels, we process multiple phases, after each

phase, we use max pooling with the pool size 2 × 2

to reduce the size of feature maps down to two times.

The purposes of this work are to reduce variance, re-

duce computation complexity (as 2 × 2 max pooling

reduces 75% data) and extract low level features from

a neighborhood. Through four max pooling layers,

we receive feature maps with the size 2 × 2.

In the ﬁrst phase, the current input size is 32 ×32.

Therefore, we use convolutional ﬁlters size 5 × 5 to

deal with detail local features. Instead of using one

convolutional layer with the kernel size 5 × 5, we use

two convolutional layers with kernel size 3×3. Using

two convolutional ﬁlers size 3 × 3 is equivalent to one

convolutional ﬁlter size 5 × 5. By this way, we reduce

parameters and push network going deeper.

In the second phase, the current input size is

16 × 16. We continue processing local feature with

convolutional ﬁlter size 5 × 5 on all feature maps. We

implement this by 2 convolutional layers with kernel

size 3 × 3. The similarity with the ﬁrst phase, using

2 convolutional ﬁlters help reducing parameters and

Lightweight Deep Convolutional Network for Tiny Object Recognition

677

increase more layers.

In the third phase, the current input size is 8 × 8.

We want to hold on global feature maps, so we use

convolutional ﬁlters 7 × 7. We implement by three

convolutional layers with the kernel size 3 × 3, it is

equivalent to one layer 7 × 7. We incorporate three

non-linear rectiﬁcation layers instead of a single one,

which makes the decision function more discrimina-

tive. Second, we decrease the number of parame-

ters than use one convolutional layers with kernel size

7 × 7. This can be seen as imposing a regulariza-

tion on the 7 × 7 convolutional ﬁlters, forcing them

to have a decomposition through the 3x3 ﬁlters (with

non-linearity injected in between).

In the fourth and ﬁfth phases, the input sizes are

just 4 × 4 and 2 × 2. We continue dealing with global

features. We use convolutional ﬁlters size 5×5 for the

fourth phase and convolutional ﬁlters size 3×3 for the

ﬁfth size. It guarantees that convolutional ﬁlters still

ﬁt with feature maps. We use two convolutional ﬁlters

size 3 ×3 instead of using one convolutional ﬁlter size

5×5. Finally, we receive feature maps with size 2×2,

it uses to directly feed to feature vectors.

In ﬁnal, we use global average pooling layer to

feed directly feature maps into feature vectors. From

feature vectors, we apply fully connected and softmax

to calculate probability each class.

3.2 Data Normalization

Since the range of values of raw data varies widely,

in some machine learning algorithms, objective func-

tions will not work properly without normalization.

Another reason why data normalization is applied is

that gradient descent converges much faster with data

normalization than without it.

Data normalization makes the values of each fea-

ture in the data have zero-mean (when subtracting

the mean in the numerator) and unit-variance. This

method is widely used for normalization in many

machine learning algorithms (e.g., support vector

machines, logistic regression, and neural networks)

(Grus and Joel, 2015). This is typically done by cal-

culating standard scores. (Mohamad et al., 2013) The

general method of calculation is to determine the dis-

tribution mean and standard deviation for each fea-

ture. Next, we subtract the mean from each fea-

ture. Then we divide the values (mean is already sub-

tracted) of each feature by its standard deviation.

3.3 Whitening Transformation

A whitening transformation or sphering transforma-

tion is a linear transformation that transforms a vector

of random variables with a known covariance matrix

into a set of new variables whose covariance is the

identity matrix meaning that they are uncorrelated and

all have variance(Kessy et al., 2015).

We use ZCA whitening transformation

(Krizhevsky, ) to transform our data. We store

d × n − dimensional data points in the columns of a

d × n matrix X. Assuming the data points have zero

mean.

First, we need to compute Σ =

. Next, we

computes the eigenvectors Σ. Suppose matrix U con-

tains the eigenvectors of Σ (one eigenvector per col-

umn, sorted in order from top to bottom eigenvector),

and the diagonal entries of the matrix S will contain

the corresponding eigenvalues (also sorted in decreas-

ing order).

ZCAW hite

= U.diag(S)

−

where: diag(S) means diagonal of matrix S. Exponent

−

means each element of matrix has exponent −

3.4 Rectiﬁer

The most important feature of AlexNet is ReLUs

(Krizhevsky et al., 2017b) nonlinearity, which shows

the importance of nonlinearity. Two additional major

beneﬁts of ReLUs are sparsity and a reduced likeli-

hood of vanishing gradient. But ﬁrst recall the deﬁni-

tion of a ReLUs is h = max(0, a).

One major beneﬁt is the reduced likelihood of the

gradient to vanish. This arises when a > 0. In this

regime, the gradient has a constant value. In contrast,

the gradient of sigmoids becomes increasingly small

as the absolute value of x increases. The constant gra-

dient of ReLUs results in faster learning.

The other beneﬁt of ReLUs is sparsity. Sparsity

arises when a ≤ 0. The more such units that exist in

a layer the more sparse the resulting representation.

Sigmoids, on the other hand, are always likely to gen-

erate some non-zero value resulting in dense repre-

sentations. Sparse representations seem to be more

beneﬁcial than dense representations.

3.5 Batch Normalization

Batch normalization potentially helps in two ways:

faster learning and higher overall accuracy. The im-

proved method also allows you to use a higher learn-

ing rate, potentially providing another boost in speed.

For very deep networks, small changes in the pre-

vious layers will amplify layer by layer and ﬁnally

cause some problem. The change in the distribu-

tion of layer inputs causes problems since the pa-

rameter should adapt to new distribution with itera-

tions, which is called Internal Covariate Shift (Ioffe

INDEED 2018 - Special Session on INsights DiscovEry from LifElog Data

678

and Szegedy, 2015). To solve this problem, Google’s

researcher Ioffe proposed Batch Normalization (Ioffe

and Szegedy, 2015), which normalizes every layer’s

inputs, thus it makes the network converge much

faster, converge at lower error rate and reduce over-

ﬁtting to some degree.

Y = γ

X −µ

+ β

Where: µ = X, σ

= (X − µ)

, γ, β are learnable pa-

rameters. In our experiment, we set γ = 1 and β = 0.

3.6 Global Average Pooling

This method is proposed by Min Lin et. al. (Lin

et al., 2013). They propose another strategy called

global average pooling to replace the traditional fully

connected layers in CNN. The idea is to generate one

feature map for each corresponding category of the

classiﬁcation task in the last block of the convolu-

tional layer. Instead of adding fully connected lay-

ers on top of the feature maps, they take the aver-

age of each feature maps, and the resulting vector is

fed directly into the softmax layer. One advantage of

global average pooling over the fully connected lay-

ers is that it is more native to the convolution structure

by enforcing correspondences between feature maps

and categories. Thus the feature maps can be easily

interpreted as categories conﬁdence maps. Another

advantage is that there is no parameter to optimize in

the global average pooling thus over-ﬁtting is avoided

at this layer.

In our architecture, instead of being fed directly

into the softmax layer, we use global average pooling

to extract feature vectors 512-dimension. Global av-

erage pooling sums out the spatial information, thus it

is more robust to spatial translations of the input.

3.7 Dropout

When we use a very deep CNN for small datasets, it

easily tends to over-ﬁtting. The most common meth-

ods reducing over-ﬁtting is dropout (Srivastava et al.,

2014). The standard way of using dropout is to set

dropout at the fully connected layers where most pa-

rameters are. However, the model is very deep and the

dataset is relatively small, we use a different way of

dropout setting. We set dropout for convolution lay-

ers, too. Speciﬁcally, we set dropout rate as 0.3 for

the ﬁrst and second group of convolution layers, 0.4

for the third and fourth group. The dropout rate for

the feature vectors 512D layer was set to be 0.5.

4 EXPERIMENTS

We experiment our method on CIFAR-10 dataset.

Each image we have a vector result with 10-

dimension, each element represents for the proba-

bility of corresponding class. To rate our architec-

ture, we use Cross-Entropy Cost Function as objec-

tive function.

L = −

∑

j=1

∑

i=1

ln(y

) + (1 −t

)ln(1 − y

) +

∑

||W ||

Where t

is the target of input j

, x

is the output j

W is the parameters, λ is a regularization parameter.

We use Stochastic gradient descent (sgd) to opti-

mize parameters. To reduce time training, we train on

GPU instead of CPU. We implement by MatConvNet

of MatConvNet Team. CIFAR-10 dataset has 60000

images with 6000 images each class. We divide the

dataset into 2 sets are training set and test set. Train-

ing set has 50000 images, test set has 10000 images.

Conﬁgurations of computer use for this training are

CPU Core i3 4150, RAM 8GB, GPU GTX 1060 6GB.

The training process takes about 10 hours to train.

We conduct the training model for 500 epochs.

Use mini-batch sgd to solve the net, with batch-size

of 64. The momentum, base learning rate and base

weight decay rate are set to 0.9, 0.1, 0.0005, respec-

tively. Lower down the learning rate every an epoch

by a factor of 0.9817.

To accelerate training process and prevent over-

ﬁtting, we use data augmentation while training. We

ﬂip image left to right with probability is 0.5 and ran-

dom crop with padding is 4 (pads array with mirror

reﬂections of itself). We also experiment on CIFAR-

100 dataset. We use same experimental conﬁgura-

tions with the experiment on CIFAR-10.

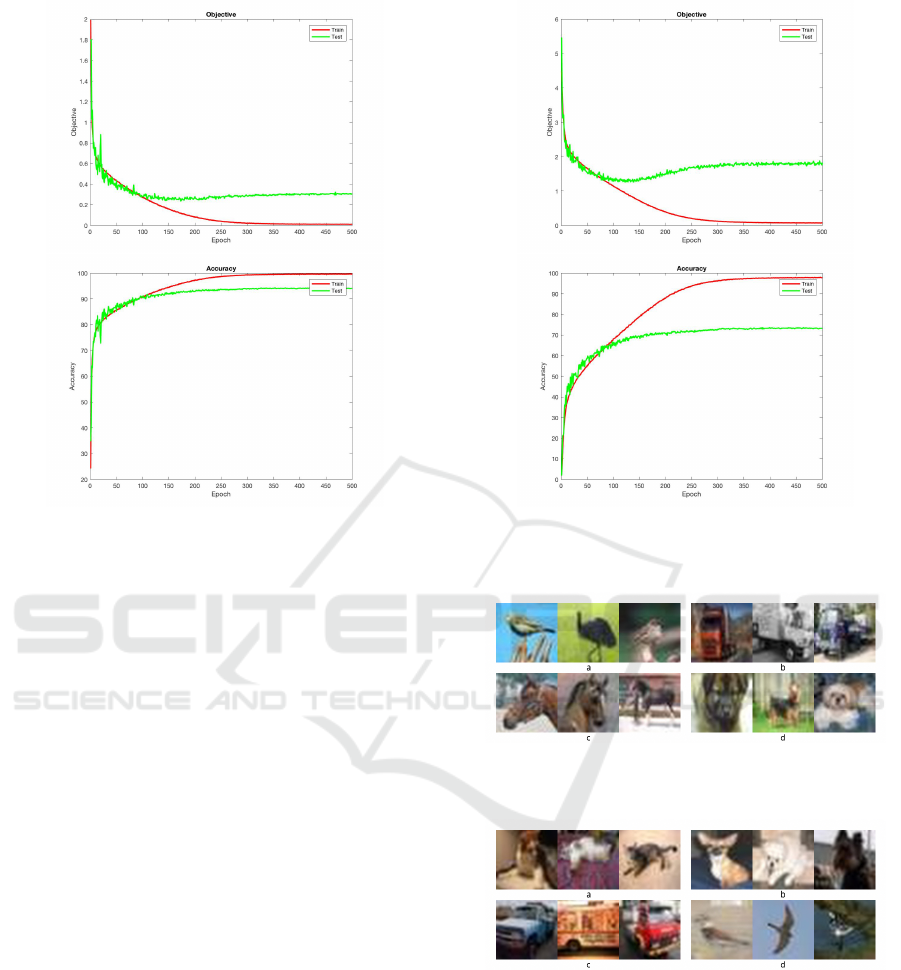

In ﬁgure 2 , the red line represents for training

and the green line represents for testing. In 250 ﬁrst

epochs, the objective and accuracy converge quickly

to stabilized result. After the result does not change

too much and the result is stabilized. Through that,

our method can quickly converge to stabilized result

quickly with regular conﬁgurations of computer and

takes less time to training (500 epochs take 10 hours

to train). It is equivalent when we train our method on

CIFAR-100 (Figure 3).

5 RESULT

The accuracy we achieve on CIFAR-10 test set is

94.34%. See some true predictions in Figure 4. The

input images are tiny, but our method can classify cor-

rectly. In some case, some classes are similarity such

as dog and cat, automobile and truck, etc. It lead to

Lightweight Deep Convolutional Network for Tiny Object Recognition

679

Figure 2: Objective (top) and Accuracy (bottom) training

plot (CIFAR-10).

our method can wrongly classify (see some wrongly

predicted images in Figure 5). Considering in con-

fusion matrix (Table 1), dogs are easily wrongly pre-

dicted as cats, trucks are also easy wrongly predicted

as automobiles or deers are also wrongly predicted as

cats. Because of an abstracted level features, there is

not much difference between these classes.

We compare our architecture to the VGG archi-

tecture. We use fewer parameters than VGG architec-

ture. The number of parameters of our architecture

is about 7.6 million. In while, VGG-16 and VGG-

19 have more than 100 million parameters. Our re-

sult is event better than modiﬁed VGG-16 applied to

CIFAR-10 dataset (Liu and Deng, 2015).

We also compare the accuracy of our method with

other methods on CIFAR-10. See the result in Table 2.

Our result uses only 21.33% number of parameters of

the state-of-the-art method but we achieve accuracy

up to 94.34%. Comparing with the other methods

such as VGG, NiN, Dasnet, our method outperform

than their methods. Using only about 7.6M parame-

ters, we reducing parameters signiﬁcantly and achieve

convincing results.

We also compare our method with the other meth-

ods on CIFAR-100. See the result in Table 3.

Our method performs better than DasNet and NiN

method. Our results are nearly as close to ResNet

1001 method but we use fewer parameters than its

Figure 3: Objective (top) and Accuracy (bottom) training

plot (CIFAR-100).

Figure 4: a) Correctly predicted examples (a) bird (b) truck

Figure 5: Same examples of wrongly predicted images (a)

Cats are wrongly predicted as dogs, (b)dogs are wrongly

predicted as cats; (c) trucks are wrongly predicted as auto-

mobiles; (d) birds are wrongly predicted as airplanes.

method. Although our result does not reach the state-

of-the-art, by our method we reduce parameters sig-

niﬁcantly. Speciﬁcally, out method has fewer param-

eters than the state-of-the-art method 4.5 times. Ad-

ditionally, we also reach good accuracy and low com-

putational cost.

To achieve this result, we use very small convolu-

INDEED 2018 - Special Session on INsights DiscovEry from LifElog Data

680

Table 1: Confusion matrix (CIFAR-10).

Table 2: Some results of the comparative experiments (CIFAR-10).

Method Accuracy Params

Wide Residual Networks (Zagoruyko and Komodakis, 2016) 96.11% 36.5M

DCTI 94.34% 7.63M

CIFAR-VGG-BN-DROPOUT (Liu and Deng, 2015) 91.55% 14.7M

NiN (Lin et al., 2013) 91.20% 1.00M

DasNet (Stollenga et al., 2014) 90.78% 1.00M

Table 3: Some results of the comparative experiments (CIFAR-100).

Method Accuracy Params

Wide Residual Network (Zagoruyko and Komodakis, 2016) 81.15% 36.5M

ResNet 1001 (He et al., 2016b) 77.29% 10.2M

DCTI 73.65% 7.68M

DasNet (Stollenga et al., 2014) 66.22% 1.00M

NiN (Lin et al., 2013) 64.32% 1.00M

tional ﬁlters size to deal with local features and push

network can going deeper. And the network can learn

high level features. Furthermore, we use global av-

erage pooling helps reducing parameters signiﬁcantly

and is more native to the convolution structure by en-

forcing correspondences between feature maps and

feature vectors. The new way of putting dropout after

convolutional layers help improving accuracy. It was

proved through our result we achieved.

6 CONCLUSION

In our research, we proposed a new method for object

recognition with tiny images. By using very small

convolutional ﬁlters, we pushed our network going

deeper and dealt with local features. It also helped

our network learn high level features. And by using

global average pooling instead of fully connected lay-

ers, we reduced parameters signiﬁcantly. Moreover,

it helped the network directly project signiﬁcant fea-

ture maps into the feature vectors. Beside that, us-

ing batch-normalization and dropout helped to accel-

erate the learning process and preventing over-ﬁtting.

Furthermore, it also improved performance and re-

duced computational cost. Although we cannot reach

the state-of-the-art, the results we achieved proved

that our method is promising. It was also demon-

strated that the representation depth is beneﬁcial for

the recognition. Additionally, we proved very deep

models were used to ﬁt small datasets as long as the

input image is big enough so that it does not van-

ish as the model going deeper. Our results yet again

conﬁrmed the performance of very deep CNN for the

pattern recognition task. In the future, we continue

improving our method to get higher performance and

reduce parameters.

REFERENCES

Chang, J. and Chen, Y. (2015). Batch-normalized maxout

network in network. CoRR, abs/1511.02583.

Ciresan, D. C., Meier, U., and Schmidhuber, J. (2012).

Multi-column deep neural networks for image classi-

ﬁcation. In CVPR, pages 3642–3649. IEEE Computer

Society.

Graham, B. (2014). Fractional max-pooling. CoRR,

abs/1412.6071.

Grus and Joel (2015). Data science from scratch. CA:

O’Reilly. pp. 99, 100. ISBN 978-1-491-90142-7.

Lightweight Deep Convolutional Network for Tiny Object Recognition

681

He, K., Zhang, X., Ren, S., and Sun, J. (2016a). Deep resid-

ual learning for image recognition. In CVPR, pages

770–778. IEEE Computer Society.

He, K., Zhang, X., Ren, S., and Sun, J. (2016b). Identity

mappings in deep residual networks. In ECCV (4),

volume 9908 of Lecture Notes in Computer Science,

pages 630–645. Springer.

Ioffe, S. and Szegedy, C. (2015). Batch normalization: Ac-

celerating deep network training by reducing internal

covariate shift. In ICML, volume 37 of JMLR Work-

shop and Conference Proceedings, pages 448–456.

JMLR.org.

Kessy, A., Lewin, A., and Strimmer, K. (2015). Optimal

whitening and decorrelation. arXiv.

Krizhevsky, A. Appendix a of learning multiple layers of

features from tiny images.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2017a).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. Commun. ACM, 60(6):84–90.

Krizhevsky, A., Sutskever, I., and Hinton, G. E. (2017b).

Imagenet classiﬁcation with deep convolutional neu-

ral networks. Commun. ACM, 60(6):84–90.

LeCun, Y., Boser, B. E., Denker, J. S., Henderson, D.,

Howard, R. E., Hubbard, W. E., and Jackel, L. D.

(1989). Backpropagation applied to handwritten zip

code recognition. Neural Computation, 1(4):541–551.

Liang, M. and Hu, X. (2015). Recurrent convolutional neu-

ral network for object recognition. In CVPR, pages

3367–3375. IEEE Computer Society.

Lin, M., Chen, Q., and Yan, S. (2013). Network in network.

CoRR, abs/1312.4400.

Liu, S. and Deng, W. (2015). Very deep convolutional

neural network based image classiﬁcation using small

training sample size. In ACPR, pages 730–734. IEEE.

Mohamad, B., Ismail, and Usman, D. (2013). Standardiza-

tion and its effects on k-means clustering algorithm.

Simonyan, K. and Zisserman, A. (2014). Very deep con-

volutional networks for large-scale image recognition.

CoRR, abs/1409.1556.

Srivastava, N., Hinton, G. E., Krizhevsky, A., Sutskever, I.,

and Salakhutdinov, R. (2014). Dropout: a simple way

to prevent neural networks from overﬁtting. Journal

of Machine Learning Research, 15(1):1929–1958.

Stollenga, M. F., Masci, J., Gomez, F. J., and Schmidhuber,

J. (2014). Deep networks with internal selective at-

tention through feedback connections. In NIPS, pages

3545–3553.

Szegedy, C., Liu, W., Jia, Y., Sermanet, P., Reed, S.,

Anguelov, D., Erhan, D., Vanhoucke, V., and Rabi-

novich, A. (2015). Going deeper with convolutions.

In Computer Vision and Pattern Recognition (CVPR).

Zagoruyko, S. and Komodakis, N. (2016). Wide residual

networks. In BMVC.

Zeiler, M. D. and Fergus, R. (2013). Stochastic pooling for

regularization of deep convolutional neural networks.

CoRR, abs/1301.3557.

INDEED 2018 - Special Session on INsights DiscovEry from LifElog Data

682
