Deadline-constrained Stochastic Optimization of Resource Provisioning,

for Cloud Users

Masoumeh Tajvidi

, Daryl Essam

and Michael J. Maher

School of Engineering and Information Technology, UNSW, Canberra, Australia

Reasoning Research Institute, Australia

Keywords:

Cloud Computing, Stochastic Optimization and Scheduling, Multi-stage Stochastic Programming, Deadline,

Google Trace Data.

Abstract:

Acquiring computational resources dynamically, in response to demand, and only paying for the resources

used, is the main beneﬁt cloud computing may bring for cloud customers. However, this beneﬁt can only be

realized when customers can determine the right size of the resources required and allocate such resources

in a cost-effective way. While resource over-provisioning can cost users more than necessary, resource under

provisioning hurts application performance. To leverage the potential of clouds, a major concern, hence is

optimizing the monetary cost spent in using cloud resources while ensuring the quality of service (QoS) and

meeting deadlines. Unfortunately, there is still a lack of a good understanding of such cost optimization. The

resource provisioning, from the cloud-user perspective, is a complicated optimization problem that consists of

much uncertainty, as well as heterogeneity in its parameters. The variety of pricing plans further complicates

this problem. There has been little work on solving this problem as it is in the real world and from the end

users view. Most works relax the problem by not considering the dynamicity or heterogeneity of the envi-

ronment. The aim of this paper, however, is optimizing the operational cost whilst guaranteeing performance

and meeting deadline constraints, by taking into account parameters’ uncertainty and heterogeneity, as well as

considering all three available pricing plans, i.e. on-demand, reservation, and spot pricing. The experimental

implementation using a real cloud workload shows that, however the proposed model has not the perfect fore-

sight of future; results are very close or in many cases similar to, the full knowledge model. We also analyse

the results of various users with different workload pattern, based on a k-means clustering.

1 INTRODUCTION

The key advantage of cloud computing is the dynamic

scalability of resources, because of its pay-as-you-go

model. Cloud computing providers rely on virtual-

ization techniques to manage the dynamic nature of

their infrastructure. Virtualization technologies help

cloud providers pack their resources into different

types of virtual machines (VMs) with different con-

ﬁgurations to satisfy the computing resource needs of

a wide variety of application types. Table 1 illustrates

a number of VM types and prices available at Ama-

zon Elastic Compute Cloud service (Amazon EC2,

2017). Cloud computing users must use this informa-

tion to determine the appropriate subset of resource

conﬁgurations that could run an application cost ef-

fectively, while also meeting the Quality of Service

(QoS) goals, such as performance. Therefore, the cost

effectiveness of cloud computing highly depends on

how well a customer can optimize the cost of renting

resources from cloud providers.

Table 1: Amazon EC2 instance types, and hourly prices.

Hourly price($)

VM Type CPU Memory On-demand Reservation

t2.micro 1 EC2 Compute Unit 1 GB 0.012 0.008

t2.small 1 EC2 Compute Unit 2 GB 0.023 0.017

c4.large 2 EC2 Compute Unit 3.75 GB 0.1 0.063

c4.xlarge 4 EC2 Compute Unit 7.5 GB 0.19 0.126

c4.2xlarge 8 EC2 Compute Unit 15 GB 0.39 0.252

With regards to pricing, three pricing plans have

been introduced for VMs: on-demand, reservation,

and spot pricing. On-demand is offered by all cloud

providers, in which the user is only charged for the

time the VM is running. Reserved VM is provided by

only some (big) cloud providers that establish a long-

term commitment between the user and the provider

with a signiﬁcant discounted price. On the other

hand, spot is a new pricing scheme introduced by few

Tajvidi, M., Essam, D. and Maher, M.

Deadline-constrained Stochastic Optimization of Resource Provisioning, for Cloud Users.

DOI: 10.5220/0006761401790189

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 179-189

ISBN: 978-989-758-295-0

179

providers and brings more cost saving for the end-

users by enabling them to bid on unused instances.

However, the instances may be terminated by the

cloud provider if their prices increases above the bid-

ding price, which makes this pricing plan unreliable.

Choosing the right number of VM with appropriate

type and pricing plan is a barrier the end user faces

for renting cloud resources. Since future workload

is often not known a priori and the on-demand and

spot VM prices vary over time, this problem cannot

be simply solved by deterministic approaches.

Although the resource provisioning problem can

be viewed from different perspectives, like the Infras-

tructure as a Service (IaaS) provider, the Software as a

Service (SaaS) provider, and the cloud end-user view.

There is little attention from the end users view, so we

focus on this problem from the end-user perspective,

and tackle the main issues and complexity a user faces

during the resource selection phase.

The main contributions of our research are: ﬁrstly,

modeling the problem such that deals effectively with

the uncertainty of demand and price. Secondly, con-

sidering the heterogeneity of pricing plans and VM

types. Thirdly, our previous proposed work (Tajvidi

et al., 2017) is extended by an enhanced model, which

optimizes cost and satisfy the deadline constraints, at

the same time. unreliability of spot could hurt the ap-

plication performance by not ﬁnishing the tasks on

time; therefore, the optimization model is improved to

deal with both cost and deadline, simultaneously. An-

other improvement we made in this extended model is

supporting more hourly time steps (696) ,rather than

having only one time step to capture the whole year

data (Tajvidi et al., 2017), in order to get more ac-

curate results. More details such as a more realis-

tic reservation pricing plan are also introduced in our

current work. Finally, to make the evaluation more

valid and reasonable, a real cloud workload demand,

Google Cluster Trace (John Wilkes, 2011), is applied

in the experiments.

We model the problem as a stochastic cost opti-

mization problem that does not allow the execution

time of a particular application goes beyond its spec-

iﬁed deadline. We divide it into two phases, each di-

vided into 696 time steps. In the ﬁrst phase, the num-

ber of reserved VMs is determined and in the second

phase number of spot and on-demand VMs, based on

all constraints, is speciﬁed. Our experimental results

show that our model outperforms the state of the arts

by 20%. Comparing the proposed model with a sim-

ilar model that has the perfect knowledge of future,

we observe that our solutions are close to, and of-

ten exactly the same as, the solutions that are based

on perfect foresight. To understand user-speciﬁc jobs

results, we perform K-mean clustering on users at-

tributes of Google trace (John Wilkes, 2011), and ﬁnd

out that different workload patterns affect the ﬁnal re-

sults.

The rest of this paper is organized as follows. In

section II we provide an insight into the problem de-

scription and model overview, followed by formula-

tion of the problem in section III. Then in IV the

model implementation is discussed. The experiments

and the experimental results are reported in section V.

A brief survey of related work is provided in VI, and

ﬁnally, in section VII, conclusions is stated.

2 PROBLEM DESCRIPTION

The cloud end-user needs to rent a combination of

cost-effective VMs available by cloud providers and

various pricing schemes, for a speciﬁc period. Since

they are not aware of the exact price of spot and on-

demand VMs as well as their application workload

demand in advance, they need to solve an uncertain

optimization problem. The problem is to ﬁnd the op-

timal number of reserved VMs for the whole problem

time period and the optimal number of on-demand

and spot VMs in each time slot (every hour) to ful-

ﬁll the requested demand and tasks’ deadline.

2.1 Pricing Plans

Cloud Providers generally offer various types of VMs

with different pricing plans. Amazon is one of the

dominant providers that support all three pricing plans

of reservation, on-demand, and spot. In experimental

evaluation, we use Amazon EC2 VMs data (pricing

and conﬁguration). We explain more details in the

following sections.

Standard reservation pricing refers to the advance

reservation of resources for a speciﬁc time, while se-

curing a lower usage charge (up to 75% discount over

on-demand instance pricing). It offers consumers

three purchasing variants, “all upfront”, “partial up-

front”, and “no upfront” to purchase reserved in-

stances. With the all-upfront variant, users pay for

the entire reserved instance with one upfront payment.

This variant provides the largest discount. With the

partial-upfront variant, users make a low upfront pay-

ment and are then charged a monthly rate for their

instances, even for instances that are not utilized in

this period. The no-upfront variant does not require

any upfront payment and provides a monthly rate for

the duration of the term.

Convertible reservation pricing, on the other hand

is a new reserved instance type recently introduced

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

180

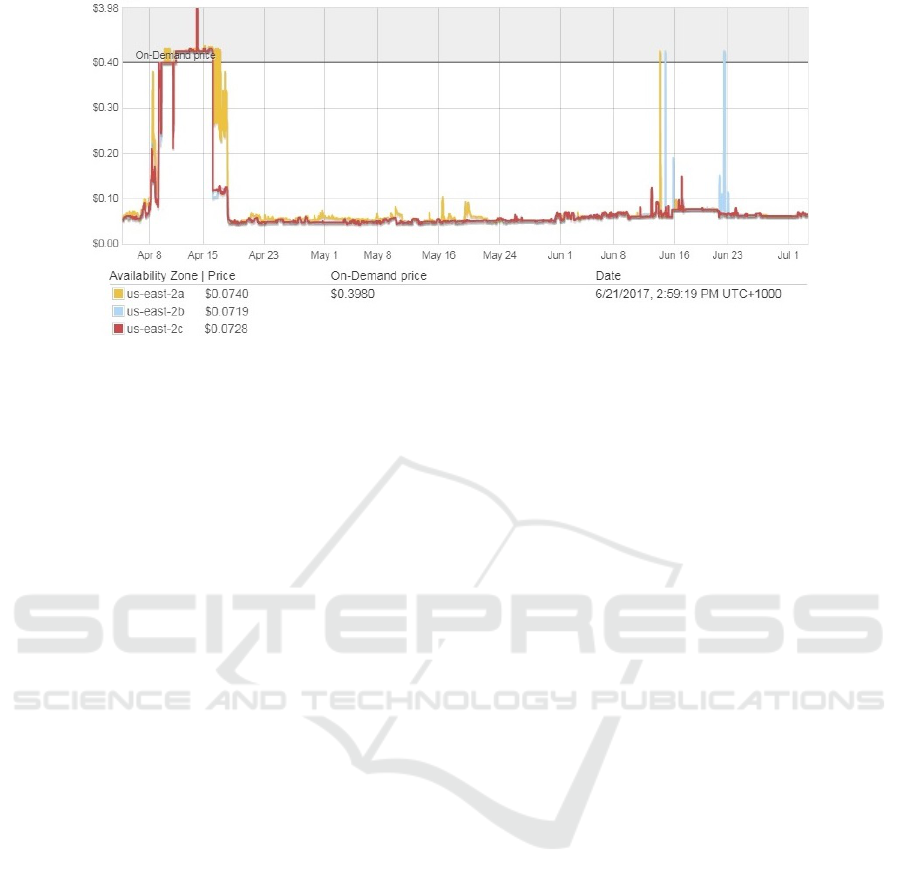

Figure 1: Amazon EC2 spot instance pricing history; c4.2xlarge (us-east regions, Linux/Unix).

by Amazon. It provides customers with additional

ﬂexibility for still a very signiﬁcant discount (around

45% discount over on-demand instance pricing), that

can be purchased for a 3-year term. Customers have

the option at any time to change the instance fam-

ily, OS, or tenancy associated with their reserved in-

stance. However, we use standard reservation pricing

in our model, since our implementation is running for

less than 3 years.

On-Demand pricing lets customers pay for com-

pute capacity by the hour, with no long-term com-

mitments or upfront payments. Depending on the de-

mand of their application, users can simply increase

or decrease their compute capacity and only pay for

the speciﬁed hourly rate for the instances used. Al-

though this pricing model provides convenient ﬂexi-

bility and reliability, it charges customers higher rates

than other plans. The on-demand price is not a ﬁxed

price and the cloud provider can change it at any time.

Spot pricing enables users to bid for unused Ama-

zon EC2 capacity. This price ﬂuctuates periodically,

depending on the supply and demand for spot in-

stances. To acquire spot instances, the users place

a spot request, specifying the instance type and the

maximum price they are willing to pay per hour per

instance. If the customer’s bid price meets or exceeds

the current spot price, the requested instances are

granted and they will run until either the user chooses

to terminate them or the spot price increases above the

maximum bid price. In the latter case, the instances

are terminated by the cloud providers with 2 minutes

notice. The actual price users pay for their instances

is the spot market price, regardless of their bid price.

See Fig 1 for spot price history of a typical VM type.

Due to the uncertain availability of spot instances, and

the potential interruptions they may bring, the spot

instance plan is not reliable and is only practical for

fault tolerant applications. In other words, applica-

tion’s downtime or even failure should not adversely

impact the operations.

When it comes to spot instances, a big challenge

is choosing a good bidding strategy. There are vari-

ous strategies proposed in the literature (Tang et al.,

2012), but generally one can bid high as a means

of ensuring to obtain instances with less volatility or

bid lower to optimize costs and send any overﬂow

to on-demand or reserved instances. The most com-

mon strategy, however, is to bid on-demand price,

called “always bidding on-demand price”(AO). With

this strategy, customers ensure that they will get a dis-

count over on-demand; in addition, they have a lower

chance to be interrupted. The main motivation of this

strategy is that if the current spot price is lower than

the bid price, customers will be charged the current

spot price regardless of their bid. The AO strategy

guarantees 1) minimum completion time because the

spot price rarely goes beyond on-demand price and

2) being at most 10 percent more than the spot min-

imum cost (Tang et al., 2014). In our model, we use

this simple and effective bidding strategy.

2.2 Model Overview

Having uncertainties in our model, one of the most

appropriate techniques to solve it, is stochastic pro-

gramming (Birge and Louveaux, 2011). In this ap-

proach, uncertainty is usually characterized by a prob-

ability distribution on the parameters. In practice, it

can range in detail from a few scenarios (possible out-

comes of the data) to speciﬁc probability distributions

(Shapiro and Philpott, 2007). The general idea is to

divide the problem into at least two stages. In the ﬁrst

stage, a decision is made and the expected cost is op-

timized, then in the next stage, the consequences of

that decision is compensated by a new decision, or

the recourse function.

Deadline-constrained Stochastic Optimization of Resource Provisioning, for Cloud Users

181

This problem is divided into two phases. In the

ﬁrst phase, we generate some scenarios for the un-

certain cost and workload demand to ﬁnd the optimal

number of reserved VMs for the reservation period

(the reservation period is one year). The scenarios are

generated based on a prediction of the actual work-

load. Then, in the second phase, which is also called

the rolling phase, the actual prices and workload de-

mand become known. So the optimization model run

every hour (the billing period of on-demand and spot

instances is calculated hourly by the cloud provider)

to determine the optimal number of on-demand and

spot VM in that time slot. The aim is to minimize the

operational cost while the execution time is the short-

est possible time. The main constraints of this opti-

mization problem are ﬁrstly being capable of giving

enough performance to serve the load for each time

slot, and not exceeding the deadline speciﬁed by the

user to complete a task.

Spot instances are not reliable resources, conse-

quently, if a VM terminate, an extra hour (at most) is

required to complete a task. Therefore the execution

time may extend more than expected if no arrange-

ment for such situations is introduced. In order not

to hurt the reliability, the task’s deadline is consid-

ered as a constraint. Such that the tasks with deadline

length of 1 hour or less cannot be assigned to spot

VMs. Also, we introduce a limitation that if a task

terminates once, spot VMs can no longer be allocated

to it because we are trying to greedily minimize exe-

cution time with minimum interruption of tasks.

3 PROBLEM FORMULATION

Both the ﬁrst and second phase of the model have

common parameters and constraints, the only differ-

ence is the decision variables. The decision variables

are the number of each VM type provisioned under

different purchasing variants and pricing plans. See

Table 2 for notation. The decision variable x

is the

number of reserved VM type i, subscribed to purchas-

ing variant k in the ﬁrst stage, while x

denotes the

number of operating VM type i with purchasing vari-

ant k. However, for the second phase model, x

con-

verts to a parameter instead of a variable, and its value

is assigned by the ﬁrst phase outcome.

Also decision variables x

and x

, respectively,

are the number of on-demand and spot VMs of type

i in the second phase. We have three provisioning

costs, formulated as follows:

• The total Reservation Cost, or the upfront cost of

reserving resources, where c

is the price of VM

type i with purchasing variant k:

∑

(1)

• The total On-demand cost, where c

is the price

of VM type i:

∑

(2)

• The total Spot cost, where c

is the price of VM

type i:

∑

(3)

The objective function z is the total expected pro-

visioning cost.

Min z =

∑

+ IE

Ω

[Φ(x

, ω)] (4)

subject to:

∈ N (5)

where IE

Ω

[Φ(x

, ω)] is the expected cost under

uncertainty Ω, which is a combination of all scenar-

ios. Φ is the recourse optimization problem, the ob-

jective of Φ(x

, ω) is to minimize the cost under un-

certainty given scenario ω:

Minimize [

∑

)] +C

(6)

subject to (∀ ω) :

z ≤ MaxBudget (7)

TotalCPU ≥

∑

Req

CPU

(8)

TotalMemory ≥

∑

Req

Memory

(9)

NonSpotCPU ≥

∑

t:L

≤1

Req

CPU

∑

UrgentReq

CPU

(10)

NonSpotMemory ≥

∑

t:L

≤1

Req

Memory

∑

UrgentReq

Memory

(11)

≤ x

(12)

The ﬁrst constraint (7) states that the total provi-

sioning cost, or the objective function z, cannot be

greater than the maximum budget the customer spec-

iﬁed for running their application.

Constraints (8) and (9) both ensure that the

amount of required resources for all tasks is satisﬁed

by the VMs acquired in the second stage. The in-

stance types comprise varying combinations of CPU

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

182

Table 2: Notation of the problem.

Symbol Description

I set of VM Types

R set of VM resources or features; CPU and Memory

T set of Tasks

Cap

CPU

CPU Capacity of VM type i

Cap

Memory

Memory Capacity of VM type i

Req

Memory

Amount of memory required for completing task t

Req

CPU

Amount of CPU required for completing task t

UrgentReq

Memory

Amount of memory required for completing task t where t is terminated in the previous stage

UrgentReq

CPU

Amount of CPU required for completing task t where t is terminated in the previous stage

time (hour) required for completing task t

K Set of reservation purchasing variants, all-, partial-, or no-upfront

MaxBudget User’s maximum budget

Reservation Cost of VM type i subscribed purchasing variant k

Number of reserved Vms type i subscribed purchasing variant k

Number of Operation VM type i, subscribed purchasing variant k

On-demand Cost of VM type i

Number of on-demand VM type i

Spot Cost of VM type i

Number of Spot VM type i

and memory, and give the customer the ﬂexibility to

choose the appropriate mix of resources for their ap-

plications. Therefore, each task can be run on mul-

tiple VMs simultaneously, just as each VM can host

multiple tasks of a particular application. TotalCPU

and TotalMemory are the available CPU and Memory

in stage i, and are deﬁned as follows:

TotalCPU =

∑

Cap

CPU

∑

+ x

)Cap

CPU

(13)

NonSpotCPU and NonSpotMemory are the CPU and

Memory of available reserved and on-demand VMs:

NonSpotCPU =

∑

Cap

CPU

∑

)Cap

CPU

(14)

Number of reserved and on-demand VMs should

be enough to fulﬁll the demand of two type of jobs,

constraints (10) and (11). First, jobs that have been

terminated in the previous stage, their requirement

is deﬁned by UrgentReq

Memory

and UrgentReq

CPU

Second, tasks that are submitted in the current stage,

but their deadline time is less than an hour, as spot

termination can hurt the application’s performance.

The last constraint (12), limits the number of op-

erating reserved VMs (x

) of each type to be less

than or equal to the number of reserved VMs (x

As discussed earlier, the customer reserves a number

of VMs in the ﬁrst stage and pays an upfront fee for

them, then in the second stage, these reserved VMs

can be used by the customer. So the number of used

VMs (operating VMs) in the next phase cannot be

greater than the number of reserved VMs in the ﬁrst

phase.

4 MODEL IMPLEMENTATION

4.1 Data Set

Google cluster dataset (John Wilkes, 2011), released

in 2011, is measured on a heterogeneous 7000-

machine server cluster on a 29-day period involving

672,075 jobs and more than 48 million tasks. Work-

load demand arrives in the form of jobs. A job is com-

prised of one or more tasks, each of which is accom-

panied by a set of resource requirement. The dataset is

partitioned into six families, namely, machine events,

machine attributes, job event, task event, task usage,

and task constraints. Our focus on this paper is on the

task and job-related information from the job event

and task event categories. The workload dimensions

we take into account are task duration and deadline in

hour, CPU usage in core, memory usage in Gigabyte,

and the associated users to them. The duration of the

tasks is calculated as the difference of the time when

Deadline-constrained Stochastic Optimization of Resource Provisioning, for Cloud Users

183

it submitted and the time when it ﬁnishes the execu-

tion (Chen et al., 2014). The trace we utilize does

not contain information about task deadlines. Thus,

we assigned deadlines based on the time the task state

change to “dead” (task completed normally, fails, or

killed by the user or provider).

The Google Trace data has been obfuscated to

hide exact machine conﬁguration. The resource sizes

have been linearly transformed (scaled) by dividing

the largest capacity of the resource on any machine in

the trace, both CPU and memory are normalized by

the same constant value (Reiss et al., 2011). These

normalized values are not themselves suitable for our

model, ﬁrstly because the resource usage values are

too small with multiple ﬂoating point values, which

slows down the optimization execution time. Sec-

ondly, this little demand makes the solver to choose

one or zero number of reserved VMs, that doesn’t al-

low us to precisely ﬁnd the correlation of number of

VMs with other parameters. Since the absolute val-

ues are not available, a reasonable ratio is used. We

multiply both CPU and memory by 32, based on an

analysis of the largest VM size in Google and Ama-

zon EC2.

In this dataset, each job is associated with a partic-

ular user, and since we are viewing this problem from

the end-user perspective, we divide the data set into

multiple users with different workload demands and

attributes. User names are hashed and provided as an

opaque base64-encoded string; therefore, we have no

information about who the actual users are. Hence,

we assign a number to each user to more easily iden-

tify them in our analysis. Users with zero task sub-

mission during the one-month period in question, are

completely ignored in our analysis.

4.2 Minizinc Model

Our stochastic model is implemented in the MiniZ-

inc modeling language (Nethercote et al., 2007), us-

ing the COIN-OR CBC solver. We model the prob-

lem in two separate MiniZinc models. The ﬁrst model

solves the problem of determining the number of re-

served VM before the unknown parameters become

known.

To represent the uncertainty of parameters, 20

workload scenarios are generated pseudo-randomly,

such that the workload for each hour was randomly

chosen from all 29 days at the same exact hour from

Google cluster data (John Wilkes, 2011). Similarly,

20 cost scenarios for on-demand and spot prices were

generated, based on the extracted data of April to

June 2017, from Amazon EC2 ofﬁcial website (Ama-

zon EC2, 2017). The 1-month (29 days) data was

split into 696, 1-hour stages, and the scenarios con-

tain the demand and price data for every stage. The

reason the stage length is chosen as 1 hour, is be-

cause the minimum VM prices are calculated hourly

by the cloud providers. The optimization model of the

ﬁrst phase minimizes the operational cost while ful-

ﬁlling the performance of each task and meeting the

deadline for task’s execution time. The outcome of

this model is hence the optimum number of reserved

VMs, thereby allowing a user to guarantee resource

availability in advance for an extended period (e.g. 1

year).

In the second phase (rolling phase), the real work-

load and real prices of on-demand and spot VMs

become known. A single set of real workload de-

mand from our Google data set (John Wilkes, 2011)

is used with the VM prices of the prevalent IaaS cloud

provider, Amazon EC2 (Amazon EC2, 2017) over

May 2017. Based on these data and the determined

number of reserved VMs from the ﬁrst phase, the out-

come of the second phase is the optimal number of

spot and on-demand instances and the actual cost in

every single stage, as well as the actual total cost over

all stages.

The model contains some approximations. Firstly,

not all instances of a particular type, in general, per-

form to exactly the same standards, because of vari-

ations in the physical hardware that is allocated for

them and possible multi tenancy (Mao and Humphrey,

2012). We use the minimum guaranteed performance

of EC2 instances as the baseline to ensure that sufﬁ-

cient resources are available for each job. Secondly,

VM startup is not the same for all VMs and can affect

the execution time, however, (Mao and Humphrey,

2012) shows that in EC2, the VM startup time is rel-

atively constant across all instances, 100 seconds in

average, where requesting a pool of VMs to start. Al-

ternatively, in (Ali-Eldin et al., 2012) the start-up time

for all VMs is considered to be less than 1 minute. In

either case, because these times are a small fraction

of the 1-hour decision steps, we ignore this factor. Fi-

nally, the data transferring cost is not included in our

operational cost, because we use VMs from the same

regions, and there is no data transfer charge between

Amazon EC2 and other Amazon web services within

the same regions (Amazon EC2, 2017).

5 EXPERIMENTS

We need to investigate if the proposed model enables

end-users to create precise and cost effective provi-

sioning for jobs running in the cloud. To do that, we

will pursue and evaluate the following objectives. The

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

184

ﬁrst objective is to show that the results we get in an

uncertain environment are very close to the results if

the model has the perfect knowledge of future. Sec-

ond, we show that our model’s results are better than

other available options. Third, we cluster users and

show that our model works better for users with spe-

ciﬁc workload patterns.

5.1 Experimental Settings

In this case study, we address two popular type of

VMs, c4large and c4xlarge within the same region,

US-east. The c4 instances are the latest generation of

Compute-optimized instances, featuring the highest

performing processors and the lowest price/compute

performance in EC2 (Amazon EC2, 2017). However,

our approach can easily be extended to further VM

types.

The model runs 10 times for each user, and the av-

erage results are discussed in the next section. A Java

program is automating the runs and the time it takes

to complete each run, including (i) generating differ-

ent scenarios of the price and demand for the ﬁrst

phase, (ii) running the ﬁrst phase Minizinc model, (iii)

repeating the rolling phase Minizinc model for 696

time, and (v) writing the output results in an appro-

priate ﬁle, is 5-15 minutes for each individual user.

5.2 Experimental Results

We repeated our experiment for three different op-

tions, that are various combinations of Amazon EC2

pricing plans. The options are:

• Reservation-OnDemand-Spot option: This is the

main focus of this work. It considers all three pric-

ing plans.

• Reservation-OnDemand (RO): Using only reser-

vation and on-demand instances, a common trend

for most related work (D

ıaz et al., 2017). There-

fore, it provides us with a basis comparison with

state-of-the-art.

• On-demand (O): The only pricing plan in this op-

tion is on-demand, the most expensive and ﬂexi-

ble one.

For the ROS model, we consider two alternatives; one

is the main model that consists of uncertainty and ran-

dom scenarios, as explained in the previous section.

Another one is an omniscient ROS, which has the full

knowledge of the future, i.e. it is similar to the main

ROS option, but instead of having multiple uncertain

scenarios, its scenarios represent the actual price and

workload demand. Therefore, it has an extraordinary

advantage of knowing the exact future demand and

price. Although it is not a realistic model, it can be

used as an evaluation guidance tool that demonstrates

the optimal number of VMs and cost.

Figure 2 shows the total cost comparison between

the options for individual users. The highest total op-

erational cost belongs to the O and RO options, while

ROS and omniscient-ROS have the lowest total op-

erational cost, and the difference between their re-

sults is either zero, or very small. The omniscient-

ROS only gets around 1.5% better results on aver-

age, over all users, than ROS. Based on this compari-

son, two user categories can be recognized. One with

the exact same results for ROS and omniscient-ROS

and another with slight differences in the results. We

name the ﬁrst category, perfectly-ﬁtted (around 63%

of all users), and the second, imperfectly-ﬁtted users

(around 37% of all users). Table 4 provides more de-

tails. In the imperfectly-ﬁtted category, the difference

between ROS and omniscient-ROS ranges from 9%

(e.g. user 51) to 0.09% (e.g. user 86), and is around

3%, on average.

This indicates that although ROS does not know

the real future workload and makes a decision based

on random scenarios, it is still a reliable model, since

its results are very close to the optimal results.

More information can be seen in Table 3, which

shows number of VMs, over-provisioned and under

provisioned VMs, and total cost on average for all

users. Number of over-provisioned is the average

number of unused reserved VMs that are paid for but

are idle in some stages. On the other hand, number of

under-provisioned VMs is the sum of on-demand and

spot VMs that are allocated, because the number of

reserved instances is not enough to satisfy the work-

load demand.

Furthermore, ROS outperforms O and RO by

about 50% and 20%, on average over all users. This

indicates that choosing cloud providers with spot in-

stances, beside on-demand and reservation, can make

big cost savings for users. However for some users,

this difference is very little or even zero.

By investigating users with a lower than aver-

age difference in RO and omniscient-ROS, we ﬁnd

that they have similar steady state workload patterns

(Varia, 2012). For such workload patterns, the opti-

mal number of reserved VMs covers all or most of

the demand, rather than on-demand and spot, and

because these two ﬂexible pricing plans are not in-

volved, we see little difference in RO and omniscient-

ROS options. However, no uniform workload pattern

for users with differences above the average has been

identiﬁed.

A similar spiky workload pattern (Varia, 2012) is

found in common among users that have a below av-

Deadline-constrained Stochastic Optimization of Resource Provisioning, for Cloud Users

185

Figure 2: Total costs (USD) for each pricing option, for each user.

Table 3: Comparison of the average number of VMs, number of over/under provisioned VMs, and the total cost for all users

during the 696 stages.

Option Average number of VMs over all users Average Total Cost

Reserved Operating On-demand Spot Over-provisioned under-provisioned

Omni-ROS 7 5319 739 1490 23 2229 545.2

ROS 5 4073 746 2076 24 2823 553.39

RO 10 7170 1589 0 76 1589 651.02

O 0 0 6036 0 0 6036 1207

Table 4: Comparison of user characteristics.

User Category Average over all users

Memory Variance CPU variance Submission frequency

Perfectly-ﬁtted 8.06 116.1 11.3

Imperfectly-ﬁtted 40.9 142.9 6.5

erage difference between O and omniscient-ROS op-

tions. For spiky demand, it seems that the optimal so-

lution reserves no VMs and, instead, rents short-term

spot and on-demand VMs for completing tasks. How-

ever, this is strongly related to the availability and

price of spot instances in the spiked stages. No par-

ticular common workload pattern was found for the

users with above average difference.

Figure 3 shows two example users with steady

state (user 68:a) and spiky (user83:b) workload pat-

terns. The diagrams show the resources requested in

each stage during the one-month time slot for each

user.

One important observation is the tight correlation

of the total cost differences and the number of re-

served VM differences, which is 95% for ROS and

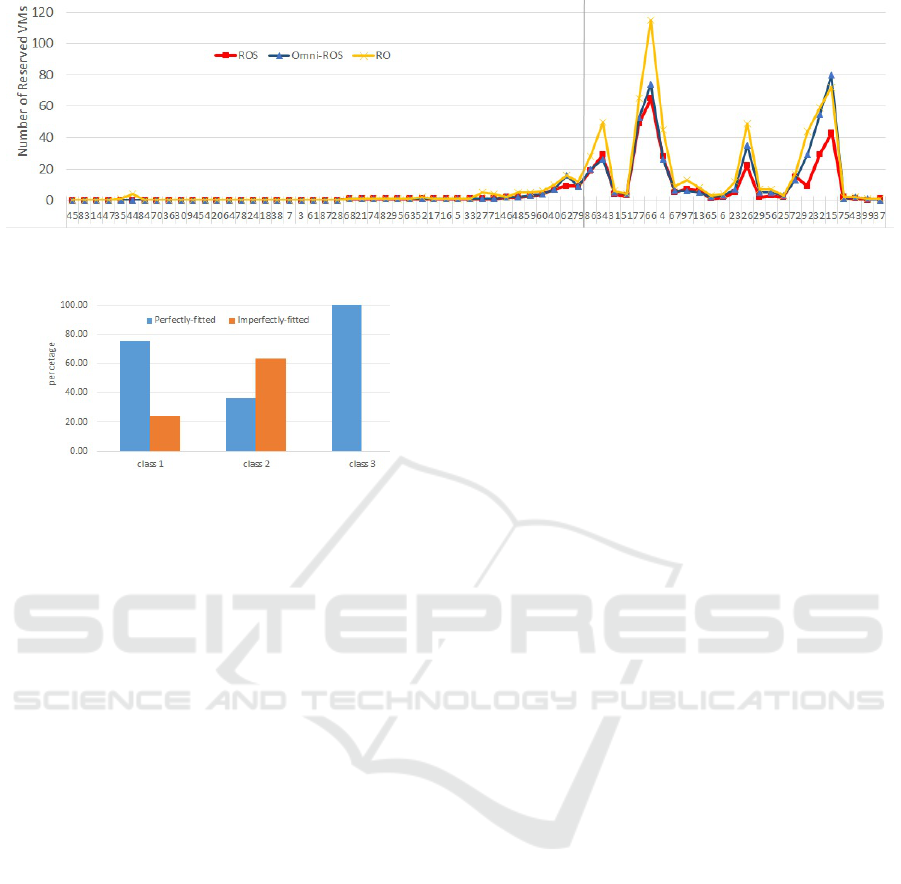

omniscient-ROS. Figure 4 shows the number of Re-

served VMs of different options, divided into the per-

fectly and imperfectly-ﬁtted categories. The number

of reserved VMs for the users in the perfectly-ﬁtted

category are very small, and are equal or very close to

the reserved VMs by omniscient-ROS.

Evidently, the number of reserved VMs chosen

by omniscient-ROS is the optimal numbers for this

problem, so when other options reserve the same

number, they get the exact same results. However,

when the solver reserves more or less VMs than

omniscient-ROS, the ﬁnal total cost increases. This

is because reserving less VMs results in more oc-

currence of under-provisioning, while reserving more

VMs brings more over-provisioning incidences, and

therefore more cost. In Table 3, ROS reserves less

VMs than omniscient-ROS, on average, and therefore

has more under-provisioned VMs, while RO reserves

more VMs, and so has more over-provisioned VMs in

comparison to other options.

Another observation, indirectly related to the pre-

vious correlation, is that in the imperfectly-ﬁtted cat-

egory, the resource usage variation is much higher,

while the task submission frequency is lower, com-

pared to the perfectly-ﬁtted category. See Table 4.

This indicates that variation in CPU and memory

demand is an important factor in our optimization

model. The reason behind this, is that because uncer-

tain workload is generated randomly in the ﬁrst stage,

and more variance is likely to bring less similarity be-

tween random and the real workload, so the ﬁrst stage

decision is less accurate. In other words, the number

of reserved VMs are less close to optimal.

In order to further determine user workload char-

acteristics and their correlations with CPU and mem-

ory variance, we perform clustering on users, using an

off-the-shelf statistical technique, k-means clustering

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

186

(a) Steady state workload pattern.

(b) Spiky workload pattern.

Figure 3: Two example users with completely different

workload patterns (a) user 68 and (b) user 83.

Table 5: Three classes and their distribution among all

users.

Cluster rate Centroids of users task features

CPU usage Memory Usage Duration

class1 66% 7.8 6.1 0.5

class2 32% 2.5 0.1 18

class3 4% 446 691 6

(Hartigan, 1975). The clustering was performed on

three important attributes: task’s CPU usage, memory

usage, and duration. We varied the number of clus-

ters from 2 to 10 and found that the best similarity

and dissimilarity score, within and between classes,

is achieved when 3 clusters were selected. The cen-

troids of the 3 clusters and their share among users are

shown in Table 5. Class 1 has medium resource usage

and short running tasks, while both class 2 and 3 are

long-running tasks, with small and large resource us-

age, respectively. In each class, 80% of user’s task

CPU and memory usage are below the centroid pro-

vided in Table 5.

In our dataset, no information of application or

task types is provided. However, in general, there

are two type of long-running tasks. First, user-facing

tasks that run continuously, so as to respond quickly

to user requests (class2). Second, compute-intensive

ones, such as processing web logs (class3). While

from Table 5, we see that users with short duration

and low resource usage (class1) tasks, such as in-

dex look up and search, dominate the user population,

which is consistent with related work (Mishra et al.,

2010).

As Figure 5 shows, most of the users in class 1 and

3, are among the perfectly-ﬁtted users, around 65%

and 100%, respectively, while only 30% of class 2

users are perfectly-ﬁtted.

Analysis of individual user’s temporal work-

load patterns within the same class of users shows

that overall, users with lower variances tend to sit

in the perfectly-ﬁtted category while users in the

imperfectly-ﬁtted category have higher variance.

6 RELATED WORK

The resource provisioning problem has been viewed

and solved from different perspectives (Meng et al.,

2010), (Li et al., 2015), with little attention from the

end-user’ view.

The paper closest to our work optimizes the cost

of VM provisioning in the cloud computing envi-

ronment from the end-user’s point of view (Chaisiri

et al., 2012) by an optimal cloud resource provision-

ing algorithm (OCRP) while considering both reser-

vation and on-demand pricing plans. Even though

the heterogeneity of VMs has been considered in the

problem formulation, by specifying the number of

VMs as the demand unit in their experiments, het-

erogeneity of VM has been implicitly denied. In

this work, spot pricing was completely ignored and

reservation cost is simpliﬁed as hourly cost. Another

work that also neglects spot VM in their optimiza-

tion problem is (D

ıaz et al., 2017). In it, an opti-

mization technique, called LLOOVIA, is proposed to

minimize cost, while quarantining the required level

of performance. This work has been evaluated with

synthetic workloads and Wikipedia users’ workloads.

The characterization of the workloads are known and

therefore the number of reserved VMs are chosen

based on a known workload demand. A joint resource

provisioning approach that combines both VM and

bandwidth allocation is proposed in (Chase and Niy-

ato, 2015). The uncertainty of the problem is also

taken into account using stochastic programming. A

scenario reduction algorithm is used for scalability of

the problem. This work is useful and applicable for

both users and cloud providers.

In (Genaud and Gossa, 2011), a satisfactory trade-

off between cost and speed to process a set of inde-

Deadline-constrained Stochastic Optimization of Resource Provisioning, for Cloud Users

187

Figure 4: Number of Reserved VMs for individual users for different options.

Figure 5: Percentage classes in each category.

pendent jobs, is conducted from the end-users’ side,

but only the on-demand pricing model is taken into

account. The main focus of (Zhu and Agrawal, 2010)

is an automated and dynamic resource allocation ap-

proach, in the cloud environment, based on control

theory techniques. This problem is solved under con-

straints of resource budget and a ﬁxed time limit for

a particular task. An autonomous elasticity controller

is proposed in (Ali-Eldin et al., 2012), it changes the

number of virtual machines allocated to a service,

based on both monitored load changes and prediction

of future work.

Most of the existing literature on cloud resource

provisioning focuses on deterministic formulations

over ﬁxed horizons, where the scheduler has perfect

foresight (Teng and Magoules, 2010). Those that have

considered uncertainty in their problem, typically fo-

cus on just one aspect (Chaisiri et al., 2012), or use

very simple and artiﬁcial data (Zafer et al., 2012).

Pricing and VM heterogeneity are also neglected in

most of them. In our previous work (Tajvidi et al.,

2017), we solved a simple version of this problem,

while considering parameter uncertainty and hetero-

geneity of pricing plan and VM types. However we

simpliﬁed some complexity of the problem, for ex-

ample, the only optimization objective was cost and

the deadline was not modelled. The reservation cost

was calculated hourly (to make it comparable with

on-demand and spot price), which is not applicable

in real-world problems. The workload was not inves-

tigated as temporal workload and only two stages of

time were modelled.

7 CONCLUSION

In this paper, we have proposed an optimization strat-

egy which determines the number, type, and pricing

plan of VMs in multiple stages, to satisfy a user’s

workload demand and the deadline of tasks.

The experimental results shows that although the

user requirements have uncertainty, users can use our

model (ROS) to attain provisioning that is close to

that obtained with perfect foresight (Omni-ROS). We

also conclude that having spot instances beside on-

demand and reservation can make a big cost saving

for the users. Although the user’s workload pattern

is an important factor for getting better results, users

with lower variance in CPU and memory usage get

closer to optimal provisioning, in general. Finally,

based on the clustering we performed, we found the

majority of the users are allocated to class 1, with

short duration and medium resource usage and they

are mainly well-ﬁtted to the ROS option. Similarly,

the lower variance users within each class get better

results.

REFERENCES

Ali-Eldin, A., Kihl, M., Tordsson, J., and Elmroth, E.

(2012). Efﬁcient provisioning of bursty scientiﬁc

workloads on the cloud using adaptive elasticity con-

trol. In Proceedings of the 3rd workshop on Scientiﬁc

Cloud Computing Date, pages 31–40. ACM.

Amazon EC2 (2017). Amazon Elastic Compute Cloud.

http://aws.amazon.com/ec2/.

Birge, J. R. and Louveaux, F. (2011). Introduction to

stochastic programming. Springer Science & Busi-

ness Media.

Chaisiri, S., Lee, B.-S., and Niyato, D. (2012). Opti-

mization of resource provisioning cost in cloud com-

puting. Services Computing, IEEE Transactions on,

5(2):164–177.

Chase, J. and Niyato, D. (2015). Joint optimization of re-

source provisioning in cloud computing. IEEE Trans-

actions on Services Computing.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

188

Chen, S., Ghorbani, M., Wang, Y., Bogdan, P., and Pedram,

M. (2014). Trace-based analysis and prediction of

cloud computing user behavior using the fractal mod-

eling technique. In Big Data (BigData Congress),

2014 IEEE International Congress on, pages 733–

739. IEEE.

ıaz, J. L., Entrialgo, J., Garc

ıa, M., Garc

ıa, J., and Garc

ıa,

D. F. (2017). Optimal allocation of virtual machines

in multi-cloud environments with reserved and on-

demand pricing. Future Generation Computer Sys-

tems, 71:129–144.

Genaud, S. and Gossa, J. (2011). Cost-wait trade-offs in

client-side resource provisioning with elastic clouds.

In Cloud computing (CLOUD), 2011 IEEE interna-

tional conference on, pages 1–8. IEEE.

Hartigan, J. A. (1975). Clustering algorithms (probability

& mathematical statistics).

John Wilkes (2011). More Google Cluster Data.

Li, S., Zhou, Y., Jiao, L., Yan, X., Wang, X., and Lyu, M. R.-

T. (2015). Towards operational cost minimization in

hybrid clouds for dynamic resource provisioning with

delay-aware optimization. Services Computing, IEEE

Transactions on, 8(3):398–409.

Mao, M. and Humphrey, M. (2012). A performance study

on the VM startup time in the cloud. In Cloud Com-

puting (CLOUD), 2012 IEEE 5th International Con-

ference on, pages 423–430. IEEE.

Meng, X., Isci, C., Kephart, J., Zhang, L., Bouillet, E., and

Pendarakis, D. (2010). Efﬁcient resource provisioning

in compute clouds via VM multiplexing. In Proceed-

ings of the 7th international conference on Autonomic

computing, pages 11–20. ACM.

Mishra, A. K., Hellerstein, J. L., Cirne, W., and Das,

C. R. (2010). Towards characterizing cloud backend

workloads: insights from Google compute clusters.

ACM SIGMETRICS Performance Evaluation Review,

37(4):34–41.

Nethercote, N., Stuckey, P. J., Becket, R., Brand, S., Duck,

G. J., and Tack, G. (2007). Minizinc: Towards a stan-

dard CP modelling language. In Proc. Int. Conf. on

Principles and Practice of Constraint Programming,

pages 529–543.

Reiss, C., Wilkes, J., and Hellerstein, J. L. (2011). Google

cluster-usage traces: format+ schema. Google Inc.,

White Paper, pages 1–14.

Shapiro, A. and Philpott, A. (2007). A tutorial on stochastic

programming. Manuscript. Available at www2. isye.

gatech. edu/ashapiro/publications. html, 17.

Tajvidi, M., Maher, M. J., and Essam, D. (2017).

Uncertainty-aware optimization of resource provi-

sioning, a cloud end-user perspective. In CLOSER

2017 - Proceedings of the 7th International Con-

ference on Cloud Computing and Services Science,

Porto, Portugal, April 24-26, 2017., pages 293–300.

Tang, S., Yuan, J., and Li, X.-Y. (2012). Towards optimal

bidding strategy for Amazon EC2 cloud spot instance.

In Cloud Computing (CLOUD), 2012 IEEE 5th Inter-

national Conference on, pages 91–98. IEEE.

Tang, S., Yuan, J., Wang, C., and Li, X.-Y. (2014). A frame-

work for Amazon EC2 bidding strategy under SLA

constraints. Parallel and Distributed Systems, IEEE

Transactions on, 25(1):2–11.

Teng, F. and Magoules, F. (2010). Resource pricing and

equilibrium allocation policy in cloud computing. In

Computer and Information Technology (CIT), 2010

IEEE 10th International Conference on, pages 195–

202. IEEE.

Varia, J. (2012). The total cost of (non) ownership of

web applications in the cloud. Amazon Web Services

whitepaper, Amazon, Seattle, WA.

Zafer, M., Song, Y., and Lee, K.-W. (2012). Optimal bids

for spot VMs in a cloud for deadline constrained jobs.

In Cloud Computing (CLOUD), 2012 IEEE 5th Inter-

national Conference on, pages 75–82. IEEE.

Zhu, Q. and Agrawal, G. (2010). Resource provisioning

with budget constraints for adaptive applications in

cloud environments. In Proceedings of the 19th ACM

International Symposium on High Performance Dis-

tributed Computing, pages 304–307. ACM.

Deadline-constrained Stochastic Optimization of Resource Provisioning, for Cloud Users

189
