Deep Learning Process Prediction with Discrete and Continuous Data

Features

Stefan Sch

onig, Richard Jasinski, Lars Ackermann and Stefan Jablonski

Department of Computer Science, University of Bayreuth, Germany

Keywords:

Process Prediction System, Neural Network, Deep Learning, Multi Perspective, Process Event Log.

Abstract:

Process prediction is a well known method to support participants in performing business processes. These

methods use event logs of executed cases as a knowledge base to make predictions for running instances. A

range of such techniques have been proposed for different tasks, e.g., for predicting the next activity or the

remaining time of a running instance. Neural networks with Long Short-Term Memory architectures have

turned out to be highly customizable and precise in predicting the next activity in a running case. Current

research, however, focuses on the prediction of future activities using activity labels and resource information

while further event log information, in particular discrete and continuous event data is neglected. In this paper,

we show how prediction accuracy can signiﬁcantly be improved by incorporating event data attributes. We

regard this extension of conventional algorithms as a substantial contribution to the ﬁeld of activity prediction.

The new approach has been validated with a recent real-life event log.

1 INTRODUCTION

Process prediction methods support process par-

ticipants in performing running instances of a

business process, e.g., software development pro-

cesses (Van der Aalst et al., 2011). Therefore, these

techniques use given event logs of the considered pro-

cess, i.e., historical information of completed soft-

ware development processes, as a knowledge base to

make predictions about the evolution of running in-

stances. An event log consists of traces, such that

each trace corresponds to one execution of the pro-

cess. Each event in a trace consists as a minimum of

an event class (i.e., the activity to which the event cor-

responds) and generally a timestamp. In some cases,

other information may be available such as the origi-

nator of the event (i.e., the performer of the activity)

as well as data produced by the event in the form of

attribute-value pairs (Sch

onig et al., 2016).

Several prediction techniques have been described

in literature that focus on different tasks, e.g., pre-

dicting the next activity to be executed (Becker et al.,

2014) or predicting the remaining runtime of the cor-

responding process instance (Polato et al., 2016). The

results of process prediction approaches can be used

to recommend next process steps to users or to sup-

port planning and resource allocation.

Contemporary process prediction approaches are

tailored to speciﬁc prediction tasks and are not gen-

erally applicable. Furthermore, their prediction qual-

ity varies signiﬁcantly depending on the knowledge

base, i.e., the used input event log. As a result, a cer-

tain technique may produce good prediction results

for one speciﬁc process but not for another one. In

many cases, several techniques need to be used in par-

allel to ensure sufﬁcient prediction quality (Metzger

et al., 2015).

Latest research has shown that neural networks

with Long Short-Term Memory (LSTM) architec-

tures (Hochreiter and Schmidhuber, 1997) are highly

customizable and precise in predicting the next activ-

ity in a running case. Here, LSTMs deliver highly

accurate prediction results in a variety of different ap-

plication. For example, the work in (Evermann et al.,

2017) applied LSTMs to predict the next activity in

a running instance. In (Tax et al., 2016) it is shown

that LSTMs also achieve consistent and high quality

results when being applied to further prediction prob-

lems like time-related properties, i.e., timestamp pre-

diction of activities and the remaining instance run-

time.

Current research, however, focuses on the predic-

tion of future activities using activity labels and re-

source information while further event log informa-

tion, in particular additional discrete and continuous

event data is neglected. To the best of our knowl-

314

Schönig, S., Jasinski, R., Ackermann, L. and Jablonski, S.

Deep Learning Process Prediction with Discrete and Continuous Data Features.

DOI: 10.5220/0006772003140319

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 314-319

ISBN: 978-989-758-300-1

edge there is currently no research work that exam-

ines the impact and effects of discrete and continu-

ous event log data on prediction quality. In this paper,

we show how prediction accuracy can be signiﬁcantly

improved by incorporating additional event data at-

tributes in LSTM based process prediction. There-

fore, our contribution forms the building blocks for

a comprehensive multi perspective process prediction

method. It substantially improves conventional activ-

ity prediction approaches by opening them to multi

perspectives bearing valuable information for process

prediction. The new approach has been validated with

a recent real-life event log.

This paper is structured as follows: Section 2 de-

scribes fundamentals of neural networks. Section 3

gives an overview of related work. Section 4 intro-

duces our approach to multi-perspective process pre-

diction. Section 5 brieﬂy describes how we imple-

mented the technique. In Section 6 we describe the

evaluation of our approach in detail and the paper is

concluded in Section 7.

2 BACKGROUND

In this section, we introduce the foundations of our

approach. First, we introduce process event logs.

Then, we brieﬂy introduce neural networks and in

particular long short-term architectures.

2.1 Event Logs for Multi-perspective

Process Recommendation

Our prediction approach takes as input a process event

log, i.e., a machine-recorded ﬁle that reports on the

execution of tasks during the enactment of the in-

stances of a given process. In an event log, every

process instance corresponds to a sequence (trace)

of recorded entries, namely, events. We require that

events contain an explicit reference to the enacted

task. This condition is commonly respected in real-

world event logs (van der Aalst, 2011). For instance,

the following excerpt of a business trip process event

log encoded in the XES logging format (Verbeek

et al., 2011a) shows the recorded information of the

start event of activity Apply for trip performed by re-

source ST.

<event>

</event>

2.2 Artiﬁcial Neural Networks

Artiﬁcial neural networks are gaining more and more

importance in many applications, especially through

advancements in the ﬁeld of deep learning (Schmid-

huber, 2015). A neural network consists of three types

of layers: one input, multiple hidden and one output

layer. These layers consist of neurons which are con-

nected to neurons of the predecessor layer by train-

able weights. Neurons of the hidden and output layer

can be described by input, activation and output func-

tions. In order to accumulate the output o

of the pre-

decessor layer neurons i with their weights w

i j

, the

input function of a neuron j is a weighted sum func-

tion:

net

∑

i j

· o

(1)

Activation and output function can be chosen freely.

In the case of the hidden layer, we use long short-term

memory units that are described in Section 2.3 of the

work at hand. The number of neurons in the input

and output layers is limited by the input and output

dimension of the neural network, respectively. The

number of hidden layers and hidden layer neurons can

be chosen independently to tune the neural network

performance for a given application.

2.3 Long Short-term Memory Units

In this paper, we build on neural network archi-

tecture that uses so called long short-term memory

(LSTM) units. LSTM networks have been intro-

duced in (Hochreiter and Schmidhuber, 1997) and

have proven to be powerful in learning long term de-

pendencies, e.g., for speech recognition (Graves and

Schmidhuber, 2005). Here, a unit can be described by

following equations:

=σ(W

t−1

+ b

) (2)

=σ(W

x f

h f

t−1

c f

t−1

+ b

) (3)

= f

t−1

+ i

tanh(W

t−1

+ b

) (4)

=σ(W

t−1

+ b

) (5)

tanh(c

) (6)

Through the cell state c

it is possible to use contex-

tual information for the prediction at the time t. This

cell state is regulated by an input gate i

, a forget gate

, and the current input x

. h

is the output of the unit,

is the output gate, σ is a sigmoid function chosen

by the user. W are the weight matrices for the corre-

sponding gates or vectors, e.g. W

h f

the hidden-forget

weight matrix. During training these weight matri-

ces are optimized. Since the output of a unit depends

on the past output, this neural network architecture

Deep Learning Process Prediction with Discrete and Continuous Data Features

315

is called recurrent neural network. This allows us to

predict a next event by taking several past events into

account.

3 RELATED WORK

In this section, we give a short overview of related ap-

proaches to multi-perspective event log analysis and

process prediction. Process event logs have been used

for different purposes such as dynamic guidance fea-

tures in process management systems (G

unther et al.,

2012), multi-perspective process mining (Sturm et al.,

2017) or translation of process models from language

to another one (Ackermann et al., 2016). Several

approaches have been proposed that focus on time-

related aspects of process prediction. The work in

(Pika et al., 2012) describes a technique to predict

deadline violations, (Metzger et al., 2015) focuses on

predicting delays of activities and (Senderovich et al.,

2014) predicts delays of instance executions by ap-

plying queue mining techniques. Furthermore, there

are approaches that predict the remaining cycle time

of running instances (Van der Aalst et al., 2011; van

Dongen et al., 2008). Another branch of approaches

focuses on the prediction of case outcomes, i.e., nor-

mal or deviant, based on the sequence of activities that

have been executed (Maggi et al., 2014; Leontjeva

et al., 2015). In order to predict the next activity to

be executed several approaches have been proposed

as well. While the authors in (Breuker et al., 2016)

use probabilistic automatons for prediction, the work

in (Evermann et al., 2017) and (Tax et al., 2016) are

based on LSTMs. The LSTM based solutions have

turned out to be more precise and more generalizable

to further prediction tasks.

None of the mentioned approaches examine the

impact and effects of incorporating discrete and con-

tinuous additional data attributes on prediction quality

and accuracy, i.e. they neglect information available

to improve prediction. Therefore, our approach opens

a new ﬁeld of prediction algorithms that has the po-

tential to signiﬁcantly improving prediction quality.

The validation (Section 5) substantiates this thesis.

4 MULTI-PERSPECTIVE

PROCESS PREDICTION

SYSTEM

In this section, we describe how data of an event log

is preprocessed and how the neural network is build

dependent on the preprocessed data.

4.1 Data Preprocessing

A neural network is expecting any input to be in a

vectorial shape so that each input neuron is responsi-

ble for one vector component. Therefore we will con-

sider events and any contextual information as matri-

ces where each row corresponds to one event:







event

resource

. . . x

event

resource

. . . x







(7)

In a most minimal case this will only contain n events

of an event log. It is possible to add additional dis-

crete features, e.g., the resource that performed the

corresponding event, or continuous attributes (event

log features) like credit score data. For creating a suit-

able training data set several processing steps have to

be applied.

First, a column has to be added that represents the

expected output. We distinguish between a single per-

spective output, which is ”only” event

t+1

, and a multi

perspective output, which consists of at least two fea-

tures, e.g., the next activity to be performed as well as

the performing resource event

t+1

resource

t+1

. Here,

we also predict the organizational perspective. After-

wards, this data set is normalized to convert discrete

data into numerical data and to be able to compare

continuous attributes. In case of continuous attributes,

we are using the min-max normalization:

norm

− y

min

max

− y

min

(8)

Discrete attributes are normalized with a one-hot en-

coding. For each value of a discrete feature a new

column has to be introduced that takes the value 1

if the discrete feature was present in that row. The

newly created matrix for a multi-perspective predic-

tion of the next occurring event e and its resource r in

consideration of a discrete or continuous data variable

x can now be written as:







. . . e

. . . r

x e

. . .

1 . . . 0 1 . . . 0 x

1 . . .

0 . . . 1 0 . . . 1 x

0 . . .







(9)

The ﬁrst row was kept for better readability and is not

present in the data set. With this method, an arbi-

trary number of discrete or continuous features can

be used for predicting the next event under consider-

ation of multiple process perspectives, i.e., resources

or data values. This way, the process prediction ap-

proach can be adapted to different business processes

and the corresponding event log knowledge bases.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

316

4.2 Creating and Training the Neural

Network

Based on the preprocessed data set, we can deﬁne the

topology of the neural network. The number of in-

put neurons is equal to the number of columns of the

preprocessed data set minus the columns dedicated

to the output, e.g., event

resource

. The number of

neurons in the output layer is analogous equal to the

number of columns in the data set representing a nor-

malized output feature. Two hidden layers of LSTM

units are used. Additionally, we choose a softmax

activation function for the output neurons to model

a probabilistic output with a cross-entropy loss func-

tion (Bishop, 1995). This logistic function limits the

sum of the outputs of the output layer to 1. To avoid

overﬁtting, dropout (Srivastava et al., 2014) was ap-

plied with a probability of 0.3, which means that in

each training step 30% of the hidden neurons with

their weights are randomly dropped. For each out-

put feature the neural network will output a probabil-

ity, so that the feature with highest probability will

win and therefore will dictate the next event or in

a multi-perspective setting the next event performed

by a certain resource etc. This way, it is also possi-

ble to display other outputs with their probability to

give the user additional feedback. This neural net-

work is trained through rmsprop (Tieleman and Hin-

ton, 2012). It is a improved stochastic gradient de-

scent algorithm, which adapts the learning rate.

5 IMPLEMENTATION

To use neural networks on a high abstraction level,

we implemented the neural network with the software

Keras (Chollet, 2015). The user interface is visual-

ized in Fig. 1. We assume that the event logs used

as a data source for constructing the neural networks

are given in the XES standard format (Verbeek et al.,

2011b). After choosing a XES compatible event log

it is subsequently transformed to a CSV ﬁle for ac-

complishing the matrix shape as described in Section

4.1.

• Add two columns representing traces and events.

• For each event in the .xes log add a new row and

ﬁll the event column with the event name and the

trace column with the case name.

• For each additional event key, add a new column

and ﬁll it accordingly.

Keras differentiates between stateless and stateful

long short-term memory units. In theory, units are al-

ways stateful, meaning their internal memory will be

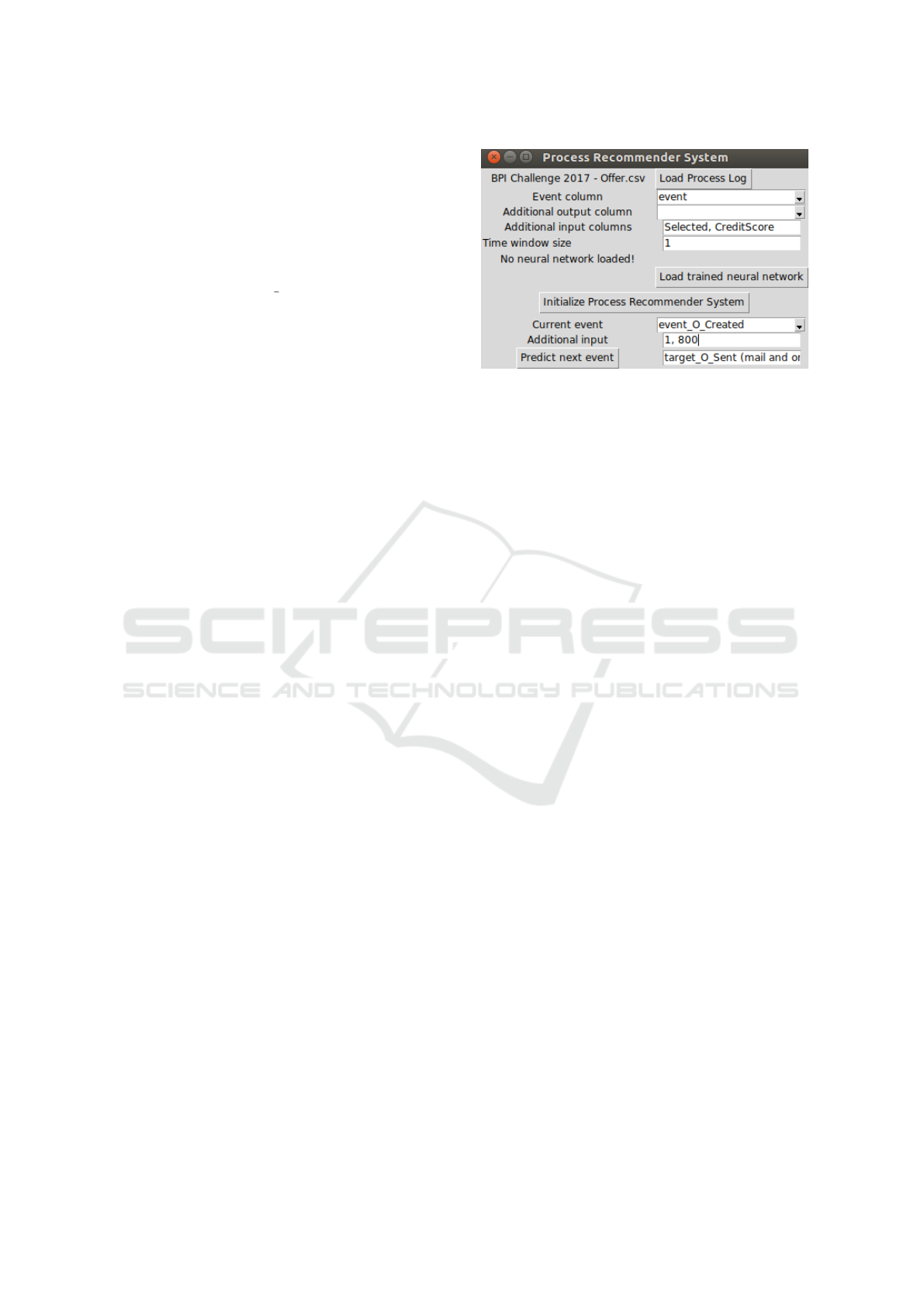

Figure 1: Graphical user interface of the process recom-

mender system.

maintained over the whole training period. In Keras,

the memory will be reset by default. This way a unit

can only use the past n predictions for n unfolding

steps. We use these stateless units to avoid inﬂuences

between two traces. A graphical user interface was

implemented with tkinter. It allows to load a CSV

ﬁle, select input and output features, and to make pro-

cess predictions based on the trained network.

6 EVALUATION

In this section, we provide an evaluation of our pro-

cess prediction system approach w.r.t. a real-life event

log. We ﬁrst evaluate the prediction accuracy by con-

sidering also discrete and continuous data attributes.

Afterwards, we highlight the impact of the number of

unrolled steps on the prediction accuracy.

6.1 Prediction Accuracy

We evaluated the application of a LSTM network with

different input conﬁgurations on a real-life event log

(Van Dongen, 2017) since this offers a high variety of

additional discrete and continuous data attributes be-

sides the standard event data. The event log pertains

to a loan application process of a Dutch ﬁnancial insti-

tute. The data contains all offers made for an accepted

application. In total, there are 1,202,267 events per-

taining to 31,509 loan applications. For these appli-

cations, a total of 42,995 offers were created. The

prediction target was for every conﬁguration the next

occurring event. We used different input conﬁgura-

tions of the discrete input features selected and ac-

cepted, which are describing, whether the offer was

selected and accepted by the customer. Furthermore,

the continuous features credit score and monthly cost

were considered as well. To evaluate possible overﬁt-

ting, we applied stratiﬁed 5-fold cross-validation. The

Deep Learning Process Prediction with Discrete and Continuous Data Features

317

Table 1: Prediction accuracy for different input combina-

tions.

Additional Data

Attributes

Training

Accuracy

Validation

Accuracy

None 0.655 0.642

Credit score

(cont.)

0.832 0.814

Credit score,

monthly cost

(cont.)

0.832 0.814

Accepted, se-

lected (disc.)

0.908 0.886

Credit score,

monthly cost,

accepted and

selected (both)

0.917 0.895

data set was split into 5 subsets with the same propor-

tions of prediction targets. Each set was used as a

validation data set, which was not used for training,

the remaining sets are used as training data sets. The

prediction accuracy is given in Table 1. The accuracy

is calculated by dividing the number of correct predic-

tions by the number of all predictions for the current

validation set and afterwards averaged for the 5 dif-

ferent sets. Training took at maximum 100 epochs,

so 100 iterations over the training data set, to achieve

converging loss.

We can report an acceptable level of overﬁtting

with 2%. Biggest impact on prediction accuracy was

achieved by selecting accepted and selected as in-

put features (accuracy increased from 0.642 to 0.886).

This can be intuitively explained since these are suf-

ﬁcient conditions for an offer to be refused or can-

celed. Addition of credit score lead to an similiar

increasement. Monthly cost had no impact on accu-

racy. To validate the impact of the continuous fea-

ture credit score, the discrete features accepted and

selected were added as input features and input com-

binations were compared. Prediction accuracy could

be increased by 0.9% in case of credit score, monthly

cost, accepted and selected in comparison to this

combination without using the continuous input pa-

rameters.

6.2 Impact of Number of Unrolled Steps

Since the number of unrolled steps is an impor-

tant parameter as mentioned in Section 5, we ex-

amined whether this has impact on prediction accu-

racy. Traces should be viewed independent from each

other. The number of unrolled steps was chosen af-

ter the minimum number of events per trace and the

maximum number of events per trace. The results are

given in Table 2. The work in (Evermann et al., 2017)

shows that the number of unrolled steps has little to no

impact on prediction accuracy. This is also the case if

we add continuous parameters, since these parame-

ters are static for an event trace. Therefore, no long-

term dependencies can be veriﬁed. One can expect

that this will change as soon as parameter are chang-

ing during a trace. Results are overall higher, because

we skipped cross-validation, since no improvement of

accuracy could be detected.

Table 2: Validation accuracy over number of unrolled steps.

Input Parameters

Number of Unrolled Steps

5 3 1

None 0.649 0.651 0.650

Credit score 0.870 0.870 0.876

Credit score and

monthly cost

0.869 0.871 0.877

Accepted and se-

lected

0.912 0.912 0.919

Credit score,

monthly cost,

accepted and

selected

0.924 0.925 0.931

7 CONCLUSION AND FUTURE

WORK

In this paper, we introduced a general approach to-

wards a multi-perspective process prediction system.

We used a deep learning architecture based on LSTM

units with event logs containing contextual data fea-

tures. We evaluated the architecture for a real-life

event log. It showed to be an effective way to use

an arbitrary number of additional input features be-

sides the main event information. The prediction error

could be decreased from 35.8% to 10.5% (Table 1) by

using additional input features. In this paper, discrete

text data and continuous data were discussed. For

future work, we also want to consider hybrid neural

network architectures that comprise additional input

data like image data. This approach could be used for

process automation by embedding a neural network

into a software agent This way, accurate predictions

by using different data sources can be made automat-

ically executed. Other applications were introduced

like (Bose et al., 2012) with the same goal, but these

depend on explicitly modeling the process.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

318

REFERENCES

Ackermann, L., Sch

onig, S., and Jablonski, S. (2016).

Towards simulation- and mining-based translation of

resource-aware process models. In Business Pro-

cess Management Workshops - BPM 2016 Interna-

tional Workshops, Rio de Janeiro, Brazil, September

19, 2016, Revised Papers, pages 359–371.

Becker, J., Breuker, D., Delfmann, P., and Matzner, M.

(2014). Designing and implementing a framework

for event-based predictive modelling of business pro-

cesses. In EMISA, pages 71–84.

Bishop, C. M. (1995). Neural networks for pattern recog-

nition. Oxford university press.

Bose, S., Scimone, S., Sriraman, N., Duan, Z., Bernstein,

A., Lewis, P., and Grosu, R. (2012). Business process

automation. US Patent 8,332,864.

Breuker, D., Matzner, M., Delfmann, P., and Becker, J.

(2016). Comprehensible predictive models for busi-

ness processes. MIS Quarterly, 40(4):1009–1034.

Chollet, F. (2015). Keras. https://github.com/fchollet/keras.

Evermann, J., Rehse, J.-R., and Fettke, P. (2017). Predict-

ing process behaviour using deep learning. Decision

Support Systems.

Graves, A. and Schmidhuber, J. (2005). Framewise

phoneme classiﬁcation with bidirectional lstm and

other neural network architectures. Neural Networks,

18(5):602–610.

unther, C., Sch

onig, S., and Jablonski, S. (2012). Dy-

namic guidance enhancement in workﬂow manage-

ment systems. In Proceedings of the ACM Symposium

on Applied Computing, SAC 2012, Riva, Trento, Italy,

March 26-30, 2012, pages 1717–1719.

Hochreiter, S. and Schmidhuber, J. (1997). Long short-term

memory. Neural computation, 9(8):1735–1780.

Leontjeva, A., Conforti, R., Di Francescomarino, C., Du-

mas, M., and Maggi, F. M. (2015). Complex sym-

bolic sequence encodings for predictive monitoring of

business processes. In BPM, pages 297–313.

Maggi, F. M., Di Francescomarino, C., Dumas, M., and

Ghidini, C. (2014). Predictive monitoring of business

processes. In CAISE, pages 457–472. Springer.

Metzger, A., Leitner, P., Ivanovi

c, D., Schmieders, E.,

Franklin, R., Carro, M., Dustdar, S., and Pohl, K.

(2015). Comparing and combining predictive busi-

ness process monitoring techniques. Transactions on

Systems, Man, and Cybernetics: Systems, 45(2):276–

290.

Pika, A., van der Aalst, W. M., Fidge, C. J., ter Hofstede,

A. H., and Wynn, M. T. (2012). Predicting deadline

tansgressions using event logs. BPM.

Polato, M., Sperduti, A., Burattin, A., and de Leoni,

M. (2016). Time and activity sequence predic-

tion of business process instances. arXiv preprint

arXiv:1602.07566.

Schmidhuber, J. (2015). Deep learning in neural networks:

An overview. Neural Networks, 61:85 – 117.

Sch

onig, S., Di Ciccio, C., Maggi, F. M., and Mendling,

J. (2016). Discovery of multi-perspective declara-

tive process models. In Service-Oriented Comput-

ing - 14th International Conference, ICSOC 2016,

Banff, AB, Canada, October 10-13, 2016, Proceed-

ings, pages 87–103.

Senderovich, A., Weidlich, M., Gal, A., and Mandelbaum,

A. (2014). Queue mining–predicting delays in service

processes. In CAISE.

Srivastava, N., Hinton, G. E., Krizhevsky, A., Sutskever, I.,

and Salakhutdinov, R. (2014). Dropout: a simple way

to prevent neural networks from overﬁtting. Journal

of Machine Learning Research, 15(1):1929–1958.

Sturm, C., Sch

onig, S., and Di Ciccio, C. (2017). Dis-

tributed multi-perspective declare discovery. In Pro-

ceedings of the BPM Demo Track and BPM Disser-

tation Award co-located with 15th International Con-

ference on Business Process Modeling (BPM 2017),

Barcelona, Spain, September 13, 2017.

Tax, N., Verenich, I., La Rosa, M., and Dumas, M. (2016).

Predictive business process monitoring with lstm neu-

ral networks. arXiv preprint arXiv:1612.02130.

Tieleman, T. and Hinton, G. (2012). Lecture 6.5-rmsprop:

Divide the gradient by a running average of its recent

magnitude. COURSERA: Neural networks for ma-

chine learning, 4(2).

van der Aalst, W. (2011). Process mining: discovery,

conformance and enhancement of business processes.

Springer-Verlag Berlin Heidelberg.

Van der Aalst, W. M., Schonenberg, M. H., and Song, M.

(2011). Time prediction based on process mining. In-

formation Systems, 36(2):450–475.

Van Dongen, B. (2017). Bpi challenge 2017 - offer log.

van Dongen, B., Crooy, R., and Van der Aalst, W. (2008).

Cycle time prediction: When will this case ﬁnally be

ﬁnished? CoopIS, pages 319–336.

Verbeek, E., Buijs, J., van Dongen, B., and van der Aalst, W.

(2011a). XES, xESame, and ProM 6. In Information

Systems Evolution, volume 72, pages 60–75.

Verbeek, E., Buijs, J., van Dongen, B., and van der Aalst, W.

(2011b). XES, xESame, and ProM 6. In Information

Systems Evolution, pages 60–75.

Deep Learning Process Prediction with Discrete and Continuous Data Features

319
