A Systematic Review of Concolic Testing with Aplication of Test

Criteria

Lucilia Y. Araki and Leticia M. Peres

Department of Informatics, Federal University of Paraná UFPR, R. Cel. H. dos Santos, 100, Curitiba, PR, Brazil

Keywords: Software Testing, Test Criteria, Concolic Testing, Dynamic Symbolic Execution.

Abstract: We present in this paper a systematic review, using (Biolchini et al., 2005) approach, of methods,

techniques and tools regarding to concolic testing with application of test criteria. The test activity is the

process of running a program with the intent of discovering defects. The search for test cases to increase the

coverage of structural tests is being addressed by approaches that generate test cases using symbolic and

concolic execution. Concolic testing is an effective technique for automated software testing, that aims to

generate test inputs to locate failures of implementation in a program. Application of a test criterion is very

important to ensure the quality of the test cases used. The number of elements exercised provides a measure

of coverage that can be used to evaluate the test data set and consider the test activity to be closed.

1 INTRODUCTION

Software validation is intended to ensure that the

software developed complies with the original

requirements. The most commonly used validation

approach in industry to improve software reliability

and quality is software testing. Testing is the process

of running a program with the purpose of revealing

defects (Myers, 1979) and involves producing a set

of tests and then running the system with these test

cases.

Software testing is a fundamental software

quality assurance activity. Its main purpose is to

execute a program with the objective of discovering

failures (Myers, 1979). The main challenge of the

test is to select input values to create good test cases

that are likely to reveal faults.

The problem of generating test data to achieve

adequate coverage is an inherently automated

activity. This automation ensures a significant

impact because the generation of test data is an

arduous and time-consuming task.

Several techniques have been proposed to

generate input values automatically to improve

software testing. Each method covers a set of test

cases criteria that are used to determine the test

requirements that must be satisfied by test cases. A

technique of automatic generation of tests known as

concolic testing (Sen and Agha, 2006) has gained

importance due to its low number of false positives

and high code coverage (Seo and Kim, 2014).

One limitation of current approaches is that they

only generate test data for an entire program or

function. Current approaches do not generate test data

to cover only a single slice of code. Symbolic

execution have been used for more than three decades

as an effective technique for automatic generation of

test data (Cadar and Sen 2013), this can be noticed

through works such as (Majumdar and Sen, 2007);

(Qu and Robinson, 2011); (Godboley et al., 2013);

(Luckow, et al., 2016) that discuss the concolic test,

but none of them aims to study the test criteria in

conjunction with the concolic test.

The main goal through this work is provides an

overview of a research area, identifying the quantity,

types of research undertaken, available results, and

the frequency of publications over time to identify

trends. Another goal is to relate articles that address

the concolic testing with test criteria and identify a

weakness in the state of the art, related to the

concolic test and test coverage. We opted to perform

systematic review as a method of scientific

investigation that brings along relevant studies.

This paper is organized as follows. Section 2

provides the background. Section 3 presents our

methodology of systematic review. Section 3.1

details search strategy. Section 3.2 provides the

study selection. Section 4 discusses the results and

the analysis. Section 5 related work. Section 6

concludes and discusses future work.

Araki, L. and Peres, L.

A Systematic Review of Concolic Testing with Aplication of Test Criteria.

DOI: 10.5220/0006776301210132

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 121-132

ISBN: 978-989-758-298-1

121

2 BACKGROUND

2.1 Concolic Testing

Concolic testing (CONCrete + symbOLIC)

(Godefroid, Klarlund and Sen, 2005), (Sen, Marinov

and Agha, 2005) also known as Dynamic Symbolic

Execution (DSE) (Godefroid, Klarlund and Sen,

2005), (Sen, Marinov and Agha, 2005), (Cadar et al.,

2008). It is a test method for generating input data in

a given program and it is executed both concretely

and symbolically at the same time. In other words,

test inputs are generated dynamically from a real

executable program, rather than statically, from a

model (Kähkönen et al., 2010). Concolic testing is

considered an important vulnerability detection

technique (Wang and Zeng, 2015).

Concolic testing uses concrete values as well as

symbolic values for inputs and executes a program

both concretely and symbolically. This is called

concolic execution. Concrete execution is a part of

concolic execution and constitutes the normal

execution of the program. Symbolic execution part

of concolic execution collects symbolic constraints

over the symbolic input values at each branch point

encountered along the concrete execution path.

Concolic testing starts by first executing a

program under test with any concrete input values.

Execution of the program can branch into different

execution paths at branching statements that depends

on input values. When executing such statements,

concolic testing constructs a symbolic constraint that

describes the possible input values causing the

program to take the true or false branch at the

statement in question. A path constraint is a

conjunction of these symbolic constraints and new

test inputs for the subsequent test runs are generated

by solving them. Typically this is done by the using

SMT (Satisfiability-Modulo-Theories) solvers with

integer arithmetic or bit-vectors as the underlying.

2.2 Test Criteria

In designing test planning, one of the steps is design

the test strategy. Test strategy comprises defining

following items: the test level, that is, definition of

the software development phase in that the test will

be applied; test technique to be used; test criterion to

be adopted; type of test to be applied in software

(Crespo et al., 2004).

The application of a test criterion is very

important to ensure quality of test cases used. They

assist in choosing the best inputs (test data) from a

generally infinite and impractical set. A test criteria

is a predicate to be satisfied that establishes certain

test requirements, called required elements, that

must be exercised during the execution of the

program, that is, executed by a test data (Rapps and

Weyuker, 1985). The idea is to generate the best

data that can reveal most defects with low cost

(Maldonado, 1991). The number of elements

exercised provides a measure of coverage that can

be used to evaluate the test data set and consider the

test activity to be closed. Testing criteria help the

tester organize the testing process. They should be

chosen according to the available testing effort. Test

coverage measures are defined as a relationship

between test cases required to meet the criteria and

those that were performed. Measures are used to

obtain information on the completeness of the

integration tests.

Test criteria are classified according to the

information used to derive the test requirements

established from three basic techniques: structural,

which uses internal structure of program to derive

test data; functional, which derives test data based

on functional requirements of software; and based

on defects that derive test data based on common

defects committed during software development.

Branch coverage is a testing requirement that all

branches of the program must be exercised. A

branch is the result of a decision, so branch coverage

simply the measures what the decision results have

been tested (Zhu; Patrick and John, 1997). That is,

all branches (decision) taken from each path, true

and false. This helps validate all branches in the

code, ensuring that no branch leads to abnormal

application behaviour.

Path coverage criterion requires that all paths

from the program input to its output run during the

test, though traversing all paths do not guarantee that

all errors will be detected. Another problem is that

programs with loops can have an infinite number of

paths and therefore the criteria of all paths must be

replaced by a weaker one that selects only a subset

of the paths

Data flow criteria are based on the analysis of the

data flow of the program to be tested. It consists in

focusing the assignment of values to the variables

and the later use of these values, establishing that the

occurrence of a variable can be of two types:

definition and use (Rapps and Weyuker, 1985;

Myers, 1979).

The test criterion is used to select and evaluate

the test cases in order to increase the chances of

causing failures or, when this does not happen, to

establish a high level of confidence in the

correctness of the product.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

122

The process of applying a structural criterion

consists of analysing the implementation of the

application. Next, the paths of implementation to be

executed are defined. After that, the test data from

program inputs domain is selected to ensure that the

selected paths are executed. Then, expected the

outputs for each of chosen inputs are determined.

And so, the test cases are constructed. Finally, a

comparison is made of the outputs obtained with the

outputs expected to verify the success or the failure

of each test case, and can generate a report with

results for analysis.

3 METHODOLOGY OF

SYSTEMATIC REVIEW

Considerable progress has been made in defining

protocol models and conducting systematic reviews

in Software Engineering. Even with all difficulties

still existing in the Software Engineering context to

perform Systematic Reviews (Mian et al., 2005),

some interesting results can already be identified.

We conducted a systematic review (Biolchini et al.

2005) with the objective of identifying, analysing

and evaluating the reading techniques proposed in

the literature. We chose following the steps of

Biolchini et al. (2005) because the authors

performed a systematic review in the area of

software engineering.

The first step of systematic review is define the

objectives, main research sources and criteria,

selection, validation, inclusion and exclusion of the

papers. The research string was being modified in

early April 2017 to middle of April 2017 to adapt to

the standard of advanced searches and to address the

issues of the problem.

The research was restricted to titles, abstracts and

introduction of publications. It was initialized in

middle of April 2017 and finalized in late of May

2017, using ACM Digital Library (http://dl.acm.

org), Periódicos Capes (https://www.periodicos.

capes.gov.br), Engineering Village (https://www.

engineeringvillage.com), IEEE Xplore Digital

Library (http://ieeexplore.ieee.org), Science Direct

(http://.sciencedirect.com) and Scopus (https://www.

scopus.com) databases. Abstracts of works searched

through the search string being read the topics: title,

abstract and introduction. As a criterion to search

and selection, restriction on publication year was

that it must between 2005 and 2017 and were

considered only English material. Concolic testing

was first appeared in 2005 in Godefroid, Klarlund

and Sen (2005) and in Sen, Marinov and Agha

(2005), because of it the interval of years of

publication to be between 2005 and 2017 in the

search string.

3.1 Search Strategy

Search string used to find tools / methods /

techniques / theory / model that apply test criteria in

concolic testing or concrete test. The following

search string were used to research: “(Software OR

Program) AND (Concolic OR Concrete) AND (Test

OR Testing) AND (Branch OR Structural) AND

(Coverage OR Criteria OR Criterion).”

We are looking for papers that present initiatives

to evaluate models / techniques / methods / model /

theory that apply criteria in concolic or concrete test.

We do not select papers that do not consider

concrete/concrete test or tools that do not use this

test technique.

We used 4 criteria to include papers:

 CI1: Empirical study of concolic /concrete test

 CI2: Tool / methods / techniques / theory /

model concolic testing

 CI3: Methods of path generation

 CI4: Concrete test

And 2 criteria to exclude papers:

 CE1: Test tools that are not concolic or

concrete

 CE2: Do not indicate how to generate test data

and do not use concolic tool

3.2 Study Selection

Although search string defined was very specific to

research, we still found a large number of false

positives. Because the search string presents

concrete, some papers related to construction were

found. After we conducted a study selection

criterion in those primary studies, selected papers

were validated to study selection process, as shown

on Table 1. Search string used to find tools /

methods / techniques / theory / model.

Since initial selection of papers was made

through reading of abstract and introduction of those

that were accepted (87), articles were read fully and

it was verified if they answered the research

questions. Through initial selection it was verified

that there were 25 articles that were submitted by

more than one database, for example, Majumdar and

Sen (2007) is presented by ACM, Engineering

Village, IEEE and Scopus databases. It was decided

to leave classified paper according to its original

base, i.e., if the IEEE base redirected certain article

A Systematic Review of Concolic Testing with Aplication of Test Criteria

123

to ACM database, this article is classified as

belonging to ACM database and so on. New

selection can be seen through column Second

Selection - Selected Papers in Table 1.

The extraction of data was done with the aid of

spreadsheets that contained forms with general

information of the studies as: title, authors, place of

publication, year of publication.

Table 1: Number of papers presented by search string.

Database

Total

presented

by Database

First Selection

Second

Selection

Excluded

Papers

Repeated

Papers

Included

Papers

Selected

Papers

ACM 24 10 3 10 9

CAPES 250 247 0 3 1

ngineering

Village

31 16 9 6 1

IEEE 103 52 2 49 26

Science

Direct

64 64 3 0 0

Scopus 44 20 8 16 8

Manual - - - 3 3

Total 516 409 25 87 48

In addition, we also conducted research in

Google (https://www.google.com.br) search engine

performing manual technique and 3 more articles

were included because they deal with the research

topic, increasing the number of included papers to

48.

Papers that presented only coverage criterion

without relating methodologies or concolic/concrete

test tools were excluded. This phase was supported

by a quality questionnaire, in which were adapted 3

questions, according Biolchini et al. (2005):

 Q1: Is used any data generation technique?

 Q2: Is any test criteria applied with concolic

testing?

 Q3: Is any concolic tool used or developed?

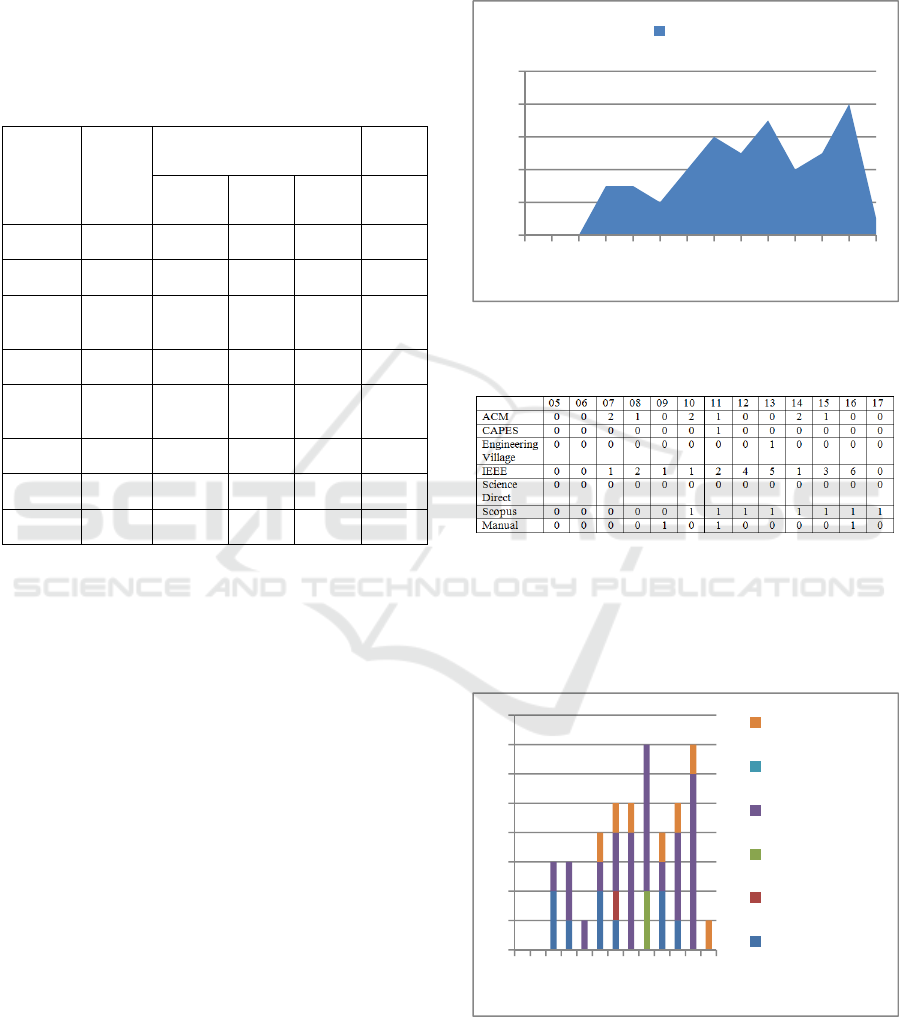

Figure 1 shows that interest in the subject has

been growing over the years. In 2016, 8 articles were

published related to the subject and presents this

information according to corresponding database.

Table 2 shows number of publications over the years

in selected database. After checking, it was found 6

articles that before had been included, but were

excluded in second selection phase, because they

only addressed the topic of coverage, not mentioning

concolic/concrete test or concolic/concrete tools. As

part of systematic review survey was conducted at

end of May, it may not present some papers that are

from 2017 year.

Figure 1: Selected papers per publication year.

Table 2: Selected papers per publication year.

Figure

2 shows number of papers found in years

2005 to 2017 in each database. The IEEE portal has

the largest number of publications in the search

period, except in year 2010, that SCOPUS has

surpassed the number of publications on the subject.

Figure 2: Year of publication of included papers.

Year

2005

2006

2007

2008

2009

2010

2011

2012

2013

2014

2015

2016

2017

Papers

2005

2007

2009

2011

2013

2015

2017

SCOPUS

SCIENCE

DIRECT

IEEE

ENGINEERING

VILLAGE

CAPES

ACM

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

124

Figure 3: The most used concolic testing tools.

4 RESULTS AND DISCUSSIONS

Among the steps necessary for systematic review

practice is to track the best evidence and critically

assess the validity, impact, and applicability of the

evidence. To achieve the objective of this review, 3

research questions were elaborated as mentioned in

section 3.1.

In Table 1 we show the total of articles presented

and selected by each database: ACM database

obtained 9 articles selected, CAPES 1 article,

Engineering Village 1 article, IEEE 26 articles,

Scopus 8 and Manual Search 8 articles totalling 48

articles selected.

In order to answer Q1 we had 38 papers that use

concolic testing for generating test data. Other 3

papers performing mutation test introduced by

Hamlet (1977) and DeMillo et al. (1978), mutation

analysis is based on the production of syntactical

alterations of code under test aiming at producing

semantically different program versions. The

different program versions are called mutated

versions as each one contains a simple syntactic

change of the original code.

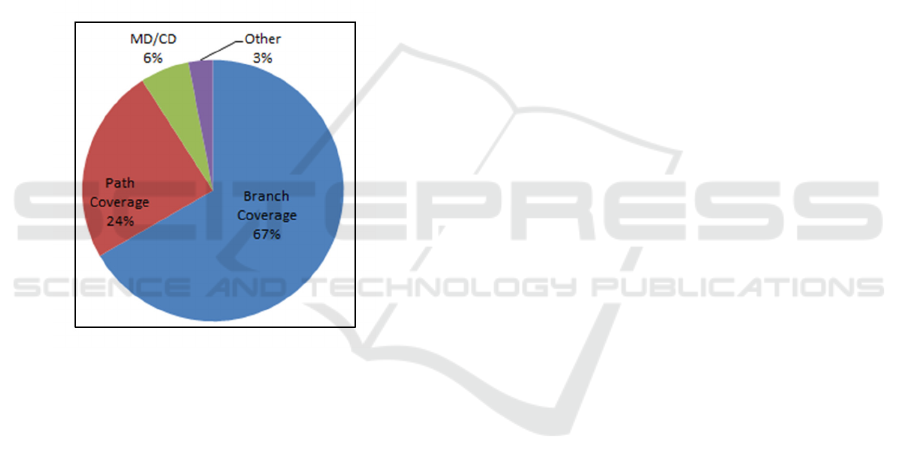

For Q2 the analysis shows that the most used test

criterion is the branch coverage with 67% as we can

see in Figure 4. Then, we have path coverage with

24%. The most significant scalability challenge in

path-based testing is how to handle the exponential

number of paths in program. Path explosion is

mainly due to nested calls, loops and conditions

(Krishnamoorthy; Michael and Loganathan, 2010).

And with 6% Condition/Decision Coverage

(MC/DC) that is a structural coverage criterion

requiring that each condition within a decision is

shown by execution to independently and correctly

affect outcome of the decision (Chilenski and

Steven, 1994).

For answering Q3 we have analysed selected

papers regarding concolic testing tools that were

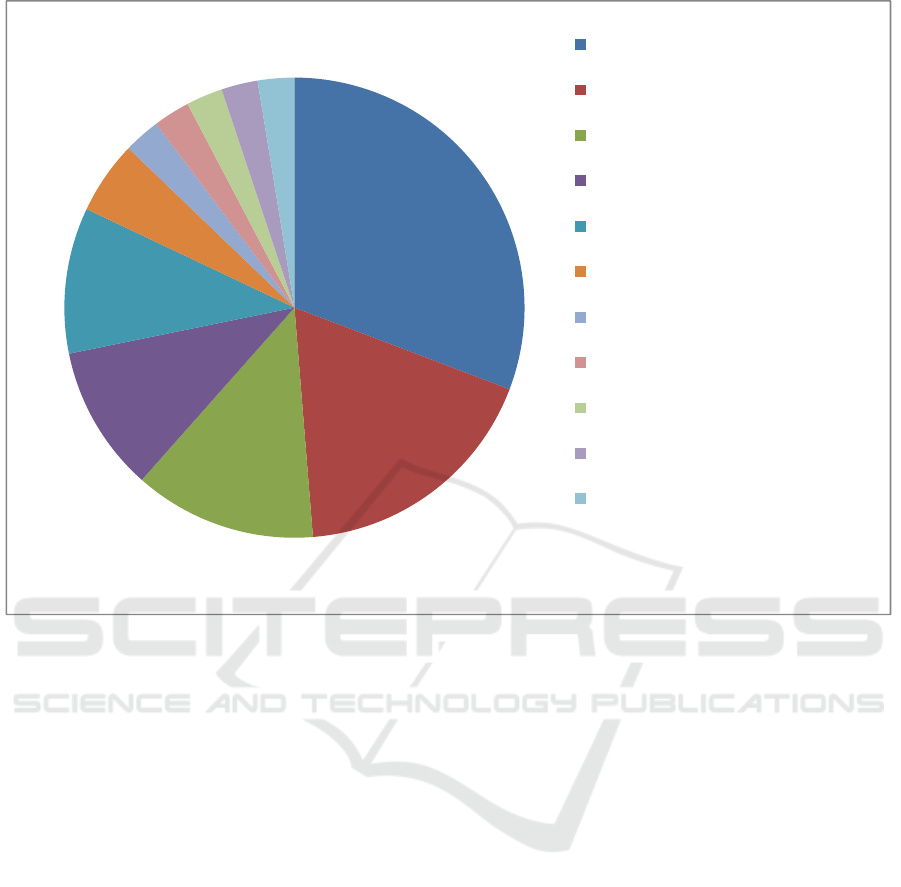

used. As we can see in Figure 3 the most used

concolic testing tool in this systematic review is

CREST (Burnim and Sen, 2008), 38%,that is an

open-source tool for C programs. Then comes

CUTE (Concolic Unit Testing Engine) (Sen and

Agha, 2006) and KLEE (Cadar, Dunbar and Engler,

2008) tool, the first one is a tool for C program

implement concolic testing and handle input data

31%

18%

13%

10%

CREST (Burnim and Sen, 2008)

KLEE (Cadar, Dunbar and Engler,

2008)

CUTE (Sen and Agha, 2006)

jCUTE (Sen and Agha, 2006)

PathCrawler (Williams et al. ,

2005)

AUSTIN (Lakhotia et al., 2008)

DART (Godefroid Klarlund and

Sen, 2005)

Sage (Godefroid, Levin and

Molnar, 2008)

iConSMutate(Sarkar, Basu and

Wong, 2014)

CREST-BV (Kim et al., 2012)

SynConSMutate(Sarkar, Basu and

Wong, 2013)

A Systematic Review of Concolic Testing with Aplication of Test Criteria

125

structures and multi-threading KLEE is implemented

as a modified LLVM (Low Level Virtual

Machine)virtual machine targeting LLVM bytecode

programs (Kim et al. 2012). jCute (Java Concolic

Unit Testing Engine) (Sen and Agha, 2006) is

created for Java programs. Most notably AUSTIN

(AUgmented Search–based TestINg) (Lakhotia et

al., 2008) cannot generate meaningful inputs for

strings, void and function pointers, as well as union

constructs (Lakhotia; Harman and Gross, 2010).

PathCrawler (Williams et al., 2005) is an automatic

generator of test case inputs to ensure structural

coverage of C source code. The exhaustive

exploration of the source code can also be used to

demonstrate the absence of certain runtime errors or

anomalies that may indicate a potential bug (or

cause future maintenance problems) in any program

(Kosmatov et al., 2013).

Figure 4: Testing criteria applied.

4.1 Tools and Analysis

Table 3 presents a summary of properties of the

concolic testing tools (Godboley et al., 2016).

Abbreviation used in Table 3 are given below with

its meaning:

 “✓” supports the feature.

 “X” the tool does not support the feature.

 “P” the tool supports partially the feature.

 “-” unknown

For instance, CREST is an open source for C

programs which does not support pointer, but KLEE

that is also an open source for C programs does. As

the goal of concolic testing is to generate test inputs

which result in higher path coverage, the ability to

generate these inputs depends on efficiency of its

underlying constraint solver and most of them do not

support float or double types, and they are unable to

handle non-linear arithmetic constraints.

We can see in Table 3 that 6 of the concolic

testing tools are for C: Austin, CREST, CUTE,

DART and KLEE; 5 for Java: CATG, jCUTE,

JDART, jFuzz and LCT; 2 for SQL language:

iConSMutate and SynConSMutate; 1 for machine

code: SAGE. The majority of concolic testing tools

do not support variable of float/double type, pointers,

native calls, non-linear arithmetic operations and

function pointer. Only one of the tools stands out,

jDART (Luckow, et al., 2016) a dynamic symbolic

tool for Java that supports CORAL, SMTInterpol and

Z3solvers and is able to handle software with

constraints containing bit operations, floating point

arithmetic and complex arithmetic operations. The

study showed that 5 of the concolic tools are open

source: CREST, CUTE, KLEE, jCUTE and DART

(Table 3), only the last one is not for Linux Platform.

CREST uses YICES construct solver, CUTE and

DART uses LP_Solvers and KLEE uses STP.

Table 4 shows the related concolic testing tools

that we separated by data test generation and

coverage criteria. For 48 papers listed, 37 generate

data using the concolic execution: (Qu and

Robinson, 2011), (Xu et al. ,2011), (Kim et al.

,2012), (Dong et al., 2013), (Godboley, Sahani and

Mohapatra, 2015), (Williams, 2010), (Godboley et

al., 2017), (Su et al., 2014), (Lakhotia; McMinn and

Harman, 2009), (Kim; Cha and Bae, 2013),

(Baluda, 2011), (Papadakis, and Malevris, 2011),

(Baluda; Denaro and Pezze, 2016), (Dutta;

Godboley and Mohapatra, 2016), (Lu et al., 2016),

(Jin et al., 2015), (Giantsios; Papaspyrou and

Sagonas, 2017), (Huang et al., 2012), (Köroglu and

Sem, 2016), (Wassermann et al., 2008), (Inkumsah

and Xie, 2007), (Wang and Zeng, 2015), (Garg et

al., 2013), (Burnim and Sem, 2008), (Majumdar,

Saha and Wang, 2010), (Tanno et al. , 2015),

(Kosmatov et al. , 2012), (Dhok;Ramanathan and

Sinha, 2016), (Luckow, et al., 2016), (Jayaraman, et

al., 2009) and (Kähkönen, et al., 2011); 3 use

mutation: (Papadakis, and Malevris, 2011), (Sarkar,

Tanmoy, Basu and Wong, 2014) and (Sarkar, Basu

and Wong, 2013) . Most of the studies (38) (Qu and

Robinson, 2011), (Xu et al., 2011), (Kim et al. ,

2012), (Dong et al., 2013), (Godboley, Sahani and

Mohapatra, 2015),

(Godboley et al., 2017), (Su et

al., 2014), (Lakhotia; McMinn and Harman, 2009),

(Kim; Cha and Bae, 2013), (Baluda, 2011),

(Papadakis, and Malevris, 2011), (Baluda; Denaro

and Pezze, 2016), (Dutta; Godboley and Mohapatra,

2016), (Lu et al., 2016), (Jin et al., 2015),

(Giantsios; Papaspyrou and Sagonas, 2017), (Huang

et al., 2012), (Köroglu and Sem, 2016), (Majumdar

and Xu, 2007), (Wassermann et al., 2008),

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

126

Table 3: Summary of properties and limitations of concolic testing tools adapted from Godboley et al. (2016).

Language Open

Source

Platform Construct

Solvers

Support for

float/double

Support

for

pointer

Support

for

native

call

Support for

non-

linear

rithmetic op.

Support

for

function

pointer

Austin

C - - -

✓ ✓

- -

✓

CATG

Java

✓

- - X

- - -

CREST

✓

Linux YICES X X X - X

CUTE

✓

Linux LP_Solver X

✓

X P X

DART

✓

- LP_Solver X X X - X

iConSMutate

SQL

- - - - - - -

jCUTE

Java

✓

Linux - X - - X X

jDART

Java

✓

- CORAL,

SMTInterpol,

and Z3

solvers,

✓ ✓ ✓ ✓ ✓

jFuzz

Java - - - - - - - -

KLEE

✓

Linux STP X

✓

LCT

Java

✓

- SMT

Boolector or

YICES

✓

- - - -

Path Crawler

C and C++ - - - - - X - -

SAGE

Machine

Code

- Windows Disolver X - - - -

SynConSMutate

SQL - - - - - - - -

Table 4: Related papers of Data Test Generation, Test Criteria and Concolic testing Tools.

Papers

Data Test

Generation

Coverage Criteria

Concolic testing Tools

Concolic

utatio

Branch

Coverage

Path

Coverag

MC/DC

Used Implemented

(Qu and Robinson, 2011)

✓

DART, CUTE,

jCUTE,

PathCrawler, SAGE

(Xu et al. ,2011)

✓

CREST

(Kim et al. ,2012)

✓

SCORE

(Dong et al., 2013)

✓

CREST

(Godboley, Sahani and Mohapatra,

2015)

✓

jCUTE Architectural model

for branch coverage

Enhancement

(ABCE)

(Williams, 2010)

✓

PathCrawler

(Godboley et al., 2017)

✓

jCUTE Green Analysis of

Branch Coverage

Enhancement

(Su et al., 2014)

✓

KLEE and CREST

(Lakhotia; McMinn and Harman,

2009)

✓

CUTE and AUSTIN

(Kim; Cha and Bae, 2013)

✓

SAGE

(Baluda, 2011)

✓

(Papadakis, and Malevris, 2011)

✓ ✓

Concolic execution

tool

(Baluda; Denaro and Pezze, 2016)

✓

CREST and KLEE

(Dutta; Godboley and Mohapatra,

2016)

✓

CREST COLT

(Lu et al., 2016)

✓

A Systematic Review of Concolic Testing with Aplication of Test Criteria

127

Table 4: Related papers of Data Test Generation, Test Criteria and Concolic testing Tools (cont.).

Papers

Data Test

Generation

Coverage Criteria Concolic testing Tools

Concolic Mutation Branch

Coverage

Path

Coverage

C/D

Used Implemented

(Jin et al., 2015)

✓

COMEDY

(Giantsios; Papaspyrou and Sagonas,

2017)

✓

(Huang et al., 2012)

✓

KLEE CRAX

(Köroglu and Sem, 2016)

✓

CREST

(Majumdar and Xu, 2007)

✓

CUTE CESE

(Wassermann et al., 2008)

✓

✓ ✓

(Godboley et al., 2013a)

✓

CREST

(Baluda, 2011)

✓

CREST and KLEE

(Inkumsah and Xie, 2007)

✓

Evacon

(Wang and Zeng, 2015)

✓

SAGE CrashFinderHB

(Garg et al., 2013)

✓

(Burnim and Sem, 2008)

✓

CREST

(Seo and Kim, 2014)

✓

CREST

(Majumdar and Sen, 2007)

✓

CUTE

(Sarkar, Tanmoy, Basu and Wong, 2014)

✓ ✓

iConSMutate

(Inkumsah and Xie, 2008)

✓

Evacon

(Godboley et al., 2013b)

✓

CREST

(Kim et al., 2012)

✓

CREST-BV and

KLEE

(Gao et al. , 2016)

✓

KLEE LLSPLAT

Mouzarani, Sadeghiyan and Zolfaghari,

2015)

✓

KLEE

(Baluda et al., 2010)

✓

Star (Software

Testing by

Abstraction

Refinement)

(Kosmatov et al. , 2013)

✓

PathCrawler

(Mao, Yu and Chen, 2012)

✓

(Sarkar, Basu and Wong, 2013)

✓ ✓

SynConSMutate

(Majumdar, Saha and Wang, 2010)

✓

SPLAT

(Dinges and Agha, 2014)

✓

jCUTE.

(Tanno et al. , 2015)

✓

CATG

(Kosmatov et al. , 2012)

✓

PathCrawler

(Dhok;Ramanathan and Sinha, 2016)

✓

(Luckow, et al., 2016)

✓

jDart

(Jayaraman, et al., 2009)

✓

jFuzz

(Kähkönen, et al., 2011)

✓

LCT

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

128

(Inkumsah and Xie, 2007), (Wang and Zeng, 2015),

(Garg et al., 2013), (Burnim and Sem, 2008), (Seo

and Kim, 2014), (Majumdar and Sen, 2007),

(Sarkar, Tanmoy, Basu and Wong, 2014), Inkumsah

and Xie, 2008), (Kim et al., 2012), (Gao et al. ,

2016), (Mouzarani, Sadeghiyan and Zolfaghari,

2015), (Baluda et al., 2010) (Mao, Yu and Chen,

2012), (Sarkar, Basu and Wong, 2013), (Majumdar,

Saha and Wang, 2010) and (Dhok;Ramanathan and

Sinha, 2016) use the branch coverage and 9 use path

coverage (Williams, 2010), (Wassermann et al.,

2008), (Kosmatov et al. , 2013), (Dinges and Agha,

2014), (Tanno et al. , 2015), (Kosmatov et al. ,

2012), (Luckow, et al., 2016), (Jayaraman, et al.,

2009) and (Kähkönen, et al., 2011); and 2 MC/ DC

(Godboley et al., 2013a) and (Godboley et al.,

2013b).

None of the 48 analysed articles works with the

data flow test criteria, showing the necessity to study

concolic testing along with this criterion.

5 RELATED WORK

For more than three decades, symbolic execution has

been used in the context of software testing to

generate test data with test criteria (King, 1976),

(Cadar and Sen, 2013). However, symbolic

execution has challenges. Several approaches have

been proposed to improve problems such as path

explosion, competition, complex data, constraint

solvers, and integration with external libraries

(Pasareanu and Visser 2009), (Godefroid 2012),

Cadar and Sen 2013).

In (Majumdar and Sen, 2005) they implement a

hybrid concolic testing using the CUTE tool, to

achieve branch coverage for C programs. They

present an algorithm that merges the application of

random testing with concolic testing for exploitation

in depth and width of the program.

In (Baluda et al., 2010) they proposed a

technique that combines static and dynamic analysis

approaches to identify infeasible program elements

that can be eliminated from the structural coverage

calculation to obtain accurate coverage data. The

approach identifies a relevant number of impractical

elements, the elements that belong statically to the

code, but cannot be executed under any input

condition. They implemented a prototype tool Star

(Software Testing by Abstraction Refinement), built

based on the Crest. The technique can also generate

new test cases that execute the discovered elements,

thus increasing the structural coverage of the

program.

In (Majumdar and Xu, 2007) they address the

problem of automatic generation of test inputs for

large programs. The authors have developed the

CESE tool, which implements the generation of test

using symbolic grammars for C programs. The work

presents a test input generation algorithm that

combines the advantages of the selective and

enumerative test generation and the generation of

directed symbolic test.

In (Qu and Robison, 2009) identify existing

concolic testing techniques and tools, identifying the

languages and the platforms that it run. Then they

identify the limitations of identified concolic testing

techniques and tools, also study the limitations, as

well as how they may affect the effectiveness

(measured in branch coverage) of test suites

generated in large programs.

In (Seo and Kim, 2014) they introduce the

context-guided search (CGS) strategy, in that the

search is guided by the set of branches. The CGS

selects a branch from a new set to the next input. In

addition CGS excludes irrelevant branches in the

context information calculating domain. They

implement the CGS strategy using two concolic test

tools: CREST and CarFast.

In (Dhok's, Ramanathan and Sinha, 2016) they

found an extension of the concolic testing for Java

Script (JS) programs that causes the generation of a

large number of inputs. The authors have proposing

an approach that incorporates a type of intelligent

awareness to the conventional test, thus reducing the

number of inputs generated for JS programs.

The main difference between our work and the

ones above is that through this work is provides an

overview of a research area, identifying the quantity,

types of research undertaken, and the frequency of

publications over time to identify trends. We could

verify the necessity of studies that combine the

concolic testing and the structural criteria of test

considering data flow to evaluate the quality of the

applied test.

6 CONCLUSION

The systematic review was conducted by means of a

review protocol that specified the methods used

during the conduction of the work. The methodology

defined in the protocol were necessary and sufficient

to obtain the primary studies necessary to achieve

the research. The systematic review proved to be an

effective, though time-consuming, methodology

which involved hard work in reading and analyzing

A Systematic Review of Concolic Testing with Aplication of Test Criteria

129

primary studies in order to obtain answers to the

questions raised for the research.

Through the systematic review, 48 related papers

that addresses concolic testing and test criteria.

Through systematic review process, we could

identify a deficiency related the application of

test criteria that are not branch coverage or path

(Figure 4).

The problem of generating test data to achieve

adequate coverage is an inherently automated

activity. This automation ensures a significant

impact because the generation of test data is an

arduous and time-consuming task.

One limitation for elaborating this article was

that this work was originated from a software

engineering lectures, being executed in just a few

months. Having the main challenge the definition of

the search string covering the largest number of

works related to the research theme within the range

of 2005 to 2017.

This research allowed to verify the necessity of

studies that combine concolic testing and structural

criteria of test to evaluate the quality of the applied

test.

Our objective with this work was to perform a

study about papers that deal with concolic testing

and test criteria. Thus, we can see a lack with respect

to data flow criteria of software test. We intend to

make an approach to generate test data to cover only

test requirements selected by users considering data

flow and control criteria along concolic test which

will be our future work.

ACKNOWLEDGEMENTS

We thank the support from Department of

Informatics from Federal University of Paraná

(UFPR) and Federal Technological University of

Paraná (UTFPR – Câmpus Pato Branco).

REFERENCES

Ammann, Paul, and Jeff Offutt. Introduction to software

testing. Cambridge University Press, 2016.

Baluda, Mauro, et al. "Structural coverage of feasible

code." Proceedings of the 5th Workshop on

Automation of Software Test. ACM, 2010.

Baluda, Mauro. "Automatic structural testing with

abstraction refinement and coarsening." Proceedings

of the 19th ACM SIGSOFT symposium and the 13th

European conference on Foundations of software

engineering. ACM, 2011.

Baluda, Mauro, Giovanni Denaro, and Mauro Pezze.

"Bidirectional symbolic analysis for effective branch

testing." IEEE Transactions on Software Engineering

42.5 (2016): 403-426.

Biolchini, J., Mian, P. G., Natali, A. C., Travassos, G. H.

(2005) “Systematic Review in Software Engineering:

Relevance and Utility”, Technical Report, PESC -

COPPE/UFRJ.

Burnim, Jacob, and Koushik Sen. "Heuristics for scalable

dynamic test generation." Automated Software

Engineering, 2008. ASE 2008. 23rd IEEE/ACM

International Conference on. IEEE, 2008.

Cadar, Cristian, Daniel Dunbar, and Dawson R. Engler.

"KLEE: Unassisted and Automatic Generation of

High-Coverage Tests for Complex Systems

Programs." OSDI. Vol. 8. 2008.

Cadar, C. and Sen, K. Symbolic execution for software

testing: three decades later. Communications of the

ACM, 56(2):82–90. 2013.

Chilenski, John Joseph, and Steven P. Miller.

"Applicability of modified condition/decision

coverage to software testing." Software Engineering

Journal 9.5 (1994): 193-200.

Crespo, Adalberto Nobiato, et al. "Uma metodologia para

teste de Software no Contexto da Melhoria de

Processo." Simpósio Brasileiro de Qualidade de

Software (2004): 271-285.

DeMillo, R. A., Lipton, R. J., & Sayward, F. G. (1978).

Hints on test data selection: Help for the practicing

programmer. Computer, 11(4), 34–41. doi:10.1109/C-

M.1978.218136.

Dhok, Monika, Murali Krishna Ramanathan, and Nishant

Sinha. "Type-aware concolic testing of JavaScript

programs." Software Engineering (ICSE), 2016

IEEE/ACM 38th International Conference on. IEEE,

2016.

Dinges, Peter, and Gul Agha. "Targeted test input

generation using symbolic-concrete backward

execution." Proceedings of the 29th ACM/IEEE

international conference on Automated software

engineering. ACM, 2014.

Dong, Qixing, et al. "A Search Strategy Guided by

Uncovered Branches for Concolic testing." Quality

Software (QSIC), 2013 13th International Conference

on. IEEE, 2013.

Dutta, Arpita, Sangharatna Godboley, and Durga Prasad

Mohapatra. "COLT: Extending Concolic testing to

measure LCSAJ Coverage." Region 10 Conference

(TENCON), 2016 IEEE. IEEE, 2016.

Gao, Min, et al. "LLSPLAT: Improving Concolic testing

by Bounded Model Checking." Source Code Analysis

and Manipulation (SCAM), 2016 IEEE 16th

International Working Conference on. IEEE, 2016.

Garg, Pranav, et al. "Feedback-directed unit test

generation for C/C++ using concolic execution."

Proceedings of the 2013 International Conference on

Software Engineering. IEEE Press, 2013.

Giantsios, Aggelos, Nikolaos Papaspyrou, and

Konstantinos Sagonas" Concolic testing for functional

languages." Science of Computer Programming

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

130

(2017).

Godboley, Sangharatna, et al. "Enhanced modified

condition/decision coverage using exclusive-nor code

transformer." Automation, Computing, Communica-

tion, Control and Compressed Sensing (iMac4s), 2013

International Multi-Conference on. IEEE, 2013 (a).

Godboley, Sangharatna, et al. "Increase in modified

condition/decision coverage using program code

transformer." Advance Computing Conference (IACC),

2013 IEEE 3rd International. IEEE, 2013 (b).

Godboley, Sangharatna, et al. "Making a concolic testinger

achieve increased MC/DC." Innovations in Systems and

Software Engineering 12.4 (2016): 319-332.

Godboley, Sangharatna, Arun Sahani, and Durga Prasad

Mohapatra. "ABCE: a novel framework for improved

branch coverage analysis." Procedia Computer

Science 62 (2015): 266-273.

Godboley, Sangharatna, et al. "An Automated Analysis of

the Branch Coverage and Energy Consumption Using

Concolic testing." Arabian Journal for Science and

Engineering 42.2 (2017): 619-637.

Godefroid, Patrice, Nils Klarlund, and Koushik Sen.

"DART: directed automated random testing." ACM

Sigplan Notices. Vol. 40. No. 6. ACM, 2005.

Godefroid, Patrice, Michael Y. Levin, and David A.

Molnar. "Automated whitebox fuzz testing." NDSS.

Vol. 8. 2008.

Hamlet, R. G. (1977). Testing programs with the aid of a

compiler. IEEE Transaction on Software Engineering,

3(4), 279–290. doi:10.1109/TSE.1977.231145.

Huang, Shih-Kun, et al. "Crax: Software crash analysis for

automatic exploit generation by modeling attacks as

symbolic continuations." Software Security and

Reliability (SERE), 2012 IEEE Sixth International

Conference on. IEEE, 2012.

Inkumsah, Kobi, and Tao Xie. "Evacon: A framework for

integrating evolutionary and concolic testing for

object-oriented programs." Proceedings of the twenty-

second IEEE/ACM international conference on

Automated software engineering. ACM, 2007.

Inkumsah, Kobi, and Tao Xie. "Improving structural

testing of object-oriented programs via integrating

evolutionary testing and symbolic execution."

Proceedings of the 2008 23rd IEEE/ACM

International Conference on Automated Software

Engineering. IEEE Computer Society, 2008.

Jayaraman, Karthick, et al. "jFuzz: A concolic whitebox

fuzzer for Java." (2009).

Jin, Hao, et al. "Concolic metamorphic debugging."

Computer Software and Applications Conference

(COMPSAC), 2015 IEEE 39th Annual. Vol. 2. IEEE,

2015.

Kähkönen, K., Kindermann, R., Heljanko, K., & Niemelä,

I. Experimental comparison of concolic and random

testing for Java Card applets. In: Model Checking

Software. Springer Berlin Heidelberg, 2010. p. 22-39.

Kähkönen, Kari, et al. "LCT: An open source concolic

testing tool for Java programs." Proceedings of the 6th

Workshop on Bytecode Semantics, Verification,

Analysis and Transformation (BYTECODE). 2011.

Kim, Su Yong, Sungdeok Cha, and Doo-Hwan Bae.

"Automatic and lightweight grammar generation for

fuzz testing." Computers & Security 36 (2013): 1-11.

Kim, Yunho, et al. "Industrial application of concolic testing

approach: A case study on libexif by using CREST-BV

and KLEE." Software Engineering (ICSE), 2012 34th

International Conference on. IEEE, 2012.

Kosmatov, Nikolai, and Nicky Williams. "Tutorial on

automated structural testing with pathcrawler."

Proceedings of the 6th international conference on

Tests and Proofs. Springer-Verlag, 2012.

Kosmatov, Nikolai, et al. "Structural Unit Testing as a

Service with PathCrawler-online.com." Service

Oriented System Engineering (SOSE), 2013 IEEE 7th

International Symposium on. IEEE, 2013.

Köroglu, Yavuz, and Alper Sen. "Design of a Modified

Concolic testing Algorithm with Smaller Constraints."

CSTVA@ ISSTA. 2016.

Krishnamoorthy, Saparya, Michael S. Hsiao, and

Loganathan Lingappan. "Tackling the path explosion

problem in symbolic execution-driven test generation

for programs." Test Symposium (ATS), 2010 19th

IEEE Asian. IEEE, 2010.

Lakhotia, Kiran, Mark Harman, and Phil McMinn.

"Handling dynamic data structures in search based

testing." Proceedings of the 10th annual conference on

Genetic and evolutionary computation. ACM, 2008.

Lakhotia, Kiran, Phil McMinn, and Mark Harman.

"Automated test data generation for coverage: Haven't

we solved this problem yet?." Testing: Academic and

Industrial Conference-Practice and Research

Techniques, 2009. TAIC PART'09.. IEEE, 2009.

Lakhotia, Kiran, Mark Harman, and Hamilton Gross.

"AUSTIN: A tool for search based software testing for

the C language and its evaluation on deployed

automotive systems." Search Based Software

Engineering (SSBSE), 2010 Second International

Symposium on. IEEE, 2010.

Lu, Jiawen, et al. "Complexity analysis and comparison of

test paths based on DSE." Software Engineering,

Artificial Intelligence, Networking and

Parallel/Distributed Computing (SNPD), 2016 17th

IEEE/ACIS International Conference on. IEEE, 2016.

Luckow, Kasper, et al. "JDart: A dynamic symbolic

analysis framework." International Conference on

Tools and Algorithms for the Construction and

Analysis of Systems. Springer Berlin Heidelberg, 2016

Maldonado, J. C. Critérios Potenciais Usos: Uma

Contribuição ao Teste Estrutural de Software.

Orientador: Prof. Dr. Mário Jino (Tese) ICMC/USP.

São Carlos/SP, 1991.

Majumdar, Rupak, and Ru-Gang Xu. "Directed test

generation using symbolic grammars." Proceedings of

the twenty-second IEEE/ACM international conferen-

ce on Automated software engineering. ACM, 2007.

Majumdar, Rupak, and Koushik Sen. "Hybrid concolic

testing." Software Engineering, 2007. ICSE 2007. 29th

International Conference on. IEEE, 2007.

Majumdar, Rupak, Indranil Saha, and Zilong Wang.

"Systematic testing for control applications." Formal

A Systematic Review of Concolic Testing with Aplication of Test Criteria

131

Methods and Models for Codesign (MEMOCODE),

2010 8th IEEE/ACM International Conference on.

IEEE, 2010.

Mao, Chengying, Xinxin Yu, and Jifu Chen. "Swarm

intelligence-based test data generation for structural

testing." Computer and Information Science (ICIS),

2012 IEEE/ACIS 11th International Conference on.

IEEE, 2012.

Mian, Paula; Conte, Tayana Uchoa; Natali, Ana Candida

Cruz; Biolchini, Jorge; Travassos, G. H.. Lessons

Learned on Applying Systematic Reviews to Software

Engineering. In: WSESE2005- Workshop Series in

Empirical Software Engineering, 2005, Oulu.

Proceedings of the 3rd International Workshop

“Guidelines For Empirical Work” in the Workshop

Series on Empirical Software Engineering 2005.

Kaiserslautern: Fraunhofer Center, 2005. v. 1. p. 1-6.

Mouzarani, Maryam, Babak Sadeghiyan, and Mohammad

Zolfaghari. "Smart fuzzing method for detecting stack-

based buffer overflow in binary codes." IET Software

10.4 (2016): 96-107.

Myers, G. J. Art of Software Testing. John Wiley & Sons,

Inc., New York, NY, USA, 1979.

Papadakis, Mike, and Nicos Malevris. "Automatically

performing weak mutation with the aid of symbolic

execution, concolic testing and search-based testing."

Software Quality Journal 19.4 (2011): 691.

Qu, Xiao, and Brian Robinson. "A case study of concolic

testing tools and their limitations." Empirical Software

Engineering and Measurement (ESEM), 2011

International Symposium on. IEEE, 2011.

Rapps, S., e Weyuker, E. Selecting software test data

using data flow information. IEEE Transactions on

Software Engineering 11, 04 (April), 367–375, 1985.

Sarkar, Tanmoy, Samik Basu, and Johnny Wong.

"Synconsmutate: Concolic testing of database

applications via synthetic data guided by sql mutants."

Information Technology: New Generations (ITNG),

2013 Tenth International Conference on. IEEE, 2013.

Sarkar, Tanmoy, Samik Basu, and Johnny Wong.

"iConSMutate: Concolic testing of Database

Applications Using Existing Database States Guided

by SQL Mutants." Information Technology: New

Generations (ITNG), 2014 11th International

Conference on. IEEE, 2014.

Sen, Koushik, Darko Marinov, and Gul Agha. "CUTE: a

concolic unit testing engine for C." ACM SIGSOFT

Software Engineering Notes. Vol. 30. No. 5. ACM,

2005.

Sen, Koushik, and Gul Agha. "CUTE and jCUTE:

Concolic unit testing and explicit path model-checking

tools." CAV. Vol. 6. 2006.

Seo, Hyunmin, and Sunghun Kim. "How we get there: A

context-guided search strategy in concolic testing."

Proceedings of the 22nd ACM SIGSOFT International

Symposium on Foundations of Software Engineering.

ACM, 2014.

Su, Ting, et al. "Automated coverage-driven test data

generation using dynamic symbolic execution."

Software Security and Reliability, 2014 Eighth

International Conference on. IEEE, 2014.

Tanno, Haruto, et al. "TesMa and CATG: automated test

generation tools for models of enterprise applications."

Proceedings of the 37th International Conference on

Software Engineering-Volume 2. IEEE Press, 2015.

Xu, Zhihong, et al. "A hybrid directed test suite

augmentation technique." Software Reliability

Engineering (ISSRE), 2011 IEEE 22nd International

Symposium on. IEEE, 2011.

Wang, W. and Zeng, Q. Evaluating Initial Inputs for

Concolic testing. In: Theoretical Aspects of Software

Engineering (TASE), 2015 International Symposium

on. IEEE, 2015. p. 47-54.

Wassermann, Gary, et al. "Dynamic test input generation

for web applications." Proceedings of the 2008

international symposium on Software testing and

analysis. ACM, 2008.

Williams, Nicky, et al. "PathCrawler: Automatic

Generation of Path Tests by Combining Static and

Dynamic Analysis." EDCC. Vol. 3463. 2005.

Williams, Nicky. "Abstract path testing with

PathCrawler." Proceedings of the 5th Workshop on

Automation of Software Test. ACM, 2010.

Zhu, Hong, Patrick AV Hall, and John HR May.

"Software unit test coverage and adequacy." ACM

computing surveys (csur) 29.4 (1997): 366-427.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

132
