An Architecture for Efﬁcient Integration and Harmonization of

Heterogeneous, Distributed Data Sources Enabling Big Data Analytics

Andreas Kirmse, Vadim Kraus, Max Hoffmann and Tobias Meisen

Cybernetics Lab IMA/ZLW & IfU in Aachen, RWTH Aachen University, Dennewartstr. 27, 52068 Aachen, Germany

Keywords:

Big Data, Ingestion and Integration Pattern, Hadoop, OPC UA, Industry 4.0.

Abstract:

We present a lightweight integration architecture as an enabler for the application of process optimization via

Big Data analytics and machine learning in large scale, multi-site manufacturing companies by harmonizing

heterogeneous data sources. The reference implementation of the architecture is entirely based on open-

source software and makes use of message queuing techniques in combination with Big Data related storage

and extraction technologies. The approach speciﬁcally targets challenges related to different network zones

and security levels in enterprise information architectures and across divergent production sites.

1 INTRODUCTION

Since Internet of Things (IoT) and embedded devices

have become an integral part of the manufacturing,

an increasing number of data sources are part of mo-

dern production processes. This is true, especially for

large companies that act on a global scale with pro-

duction sites across the world. Such companies face

major challenges when coping with the complexity of

hundreds of different data types and sources, in parti-

cular if the application and usage of Big Data analysis

promises high optimization potentials that can be ex-

ploited.

In order to make use of Big Data related technolo-

gies and to establish continuous analytics workﬂows

that operate on heterogeneous data sources, the ﬁrst

major step is to make information accessible. In this

paper, we present an architectural solution for a lig-

htweight modular integration system based on mes-

sage queuing concepts that synchronize heterogene-

ous data sources semantically in order to facilitate a

generic and uniform access. This approach especi-

ally targets information and communication techno-

logy (ICT) infrastructures that are characterized by

high security levels of the respective network zones,

e.g., by taking into account shop ﬂoor systems and

the encapsulation of different production network zo-

nes. We are able to incorporate legacy information

systems such as traditional relational databases (RD-

BMS); network attached storages (NAS) as well as

live streaming data of manufacturing equipment via

interface standards such as OPC Uniﬁed Architecture

(OPC UA) that are able to incorporate legacy and pro-

prietary bus systems and insular solutions from the

ﬁeld level. The goal is not only to provide ease of

access, but also to incorporate data security by privacy

means as well as access control rights. A prototypical

implementation of the architecture was evaluated in

terms of large companies for multiple months.

2 PROBLEM DESCRIPTION

Current challenges within industrial production are

not the lack of available information, but having the

appropriate information accessible when and where

needed. Separated production sites use distinct sy-

stems for data storage and transfer. The high costs

for new machines and their ramp-up time impede

long life cycles in a factory and thus the slow adop-

tion of modern technologies increase the variety of

(legacy-) systems, devices and communications pro-

tocols being used. Moreover, the complexity of pro-

duction processes are increasing and heterogeneous

types of machines, constructions, robots and sub ma-

nufacturing routines are involved. The success of

each step, and therefore each machine, in the process

chain is of equal signiﬁcance to the whole process.

For example, a typical production operation is the as-

sembly of separate individually assembled sub-parts

into a product, where a failure in the pre-build part

can have an effect on the process of combining the

parts together. When optimizing the entire process, it

Kirmse, A., Kraus, V., Hoffmann, M. and Meisen, T.

An Architecture for Efﬁcient Integration and Harmonization of Heterogeneous, Distributed Data Sources Enabling Big Data Analytics.

DOI: 10.5220/0006776701750182

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 175-182

ISBN: 978-989-758-298-1

175

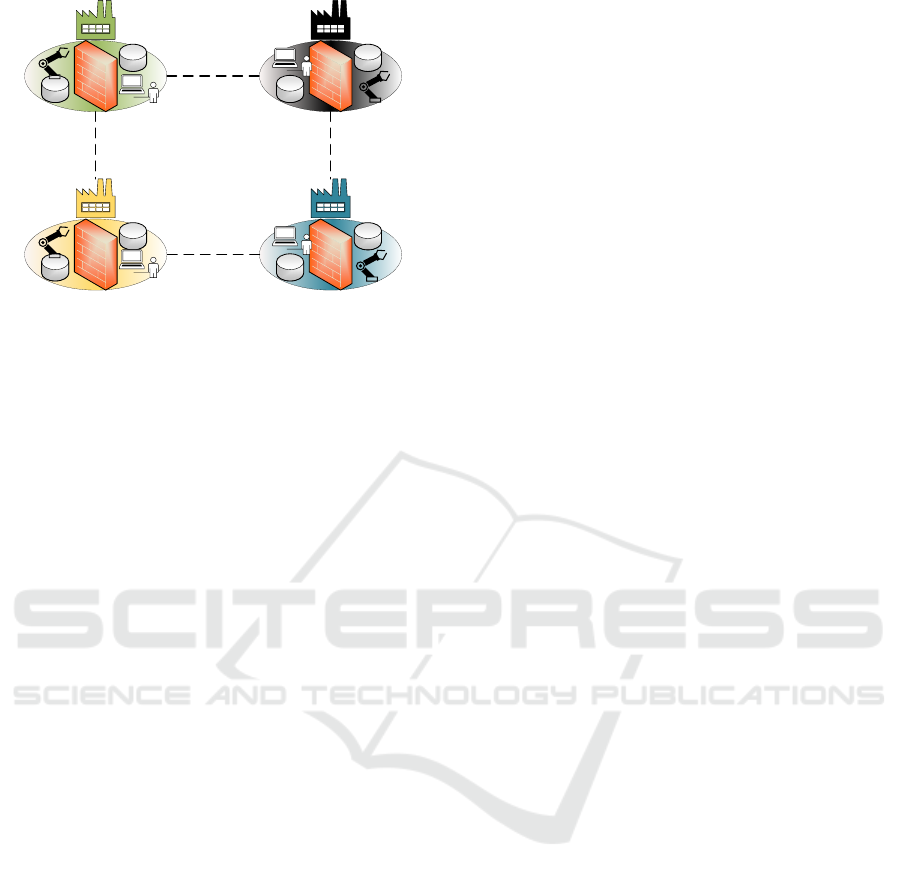

Figure 1: Scenario of four factories and their two separate

network zones, production and ofﬁce.

is thereby important to not limit the view to an indivi-

dual part of its manufacturing routine but it is impera-

tive to consider the complete picture. The data from

every part of the chain could be of relevance. There-

fore, the ﬁrst challenge of optimizing production pro-

cesses via Big Data Analytics lies within information

consolidation and harmonization efforts across the en-

tire process chain. In a distributed context this chal-

lenge increases signiﬁcantly with the number of loca-

tions.

Each geographically distributed factory operates

on its own and although they are similar and often

produce the same general product, there are variances

and differences in each dedicated process. Not only

do they produce other parts or assembly another kind

of product, the machines are naturally of different age

and wear levels. Furthermore, regional factors such

as working hours, legal requirements or the stability

of the electric network have to be regarded. Additi-

onally, timing optimization of the production have to

deal with different time zones and the information of

location is vital.

Therefore, it is necessary to be able to establish

a clear distinction between several manufacturing re-

sources and apply required harmonization and syn-

chronization to the relevant parts, as required.

Figure 1 shows an example scenario for a com-

pany with four factories, each side has two separates

network zones (e.g., production and ofﬁce), which is a

typical setup for an enterprise to secure and separate

the production shop ﬂoor from business ofﬁce com-

puters. This separation is usually established due to

the fact that productive systems should never be af-

fected by ofﬁce local area networks, e.g., in terms of

networking trafﬁc or possible attacks.

However, despite the security aspect, these re-

strictions oppose the endeavors of an Industry 4.0

which demands a full and seamless interconnection

of machines and information systems along the ma-

nufacturing hierarchy and represent the another ma-

jor challenge. Current standards, such as ISO/IEC

27002 (Technology, 2013) or (Calder, 2009), are the-

refore suggesting the use of technical barriers like ﬁ-

rewalls and audited access control.

Finally, another challenge lies in the interoperabi-

lity and reproducibility of analytics use cases. Cur-

rently, for each factory use cases yield insular solu-

tions with their own speciﬁcs, not connected and not

interchanging vital information about production with

their similar counterparts. Across factories, these use

cases are applied and similar problems often undergo

the same methodology, the same steps to acquire data

and to consider optimization goals to the underlying

processes. The establishment of a shared data pool,

available to all enterprise locations, can save tremen-

dous efforts.

Current Situation. In terms of former moderniza-

tion approaches within production and manufactu-

ring, the goal was primarily to establish distinctive au-

tomation for most of the processes and to interconnect

devices in order to perform selective analytics tasks

for the optimization of dedicated processes. This tra-

ditional approach follows a hierarchical organization

of the production and is manifested in terms of the

automation pyramid as shown in Figure 2. Diverse

systems interact on different layers with each other.

The business levels on the top of the pyramid are in

charge of the production organization and the bottom

is characterized by the shop ﬂoor (machines, sensors

and devices). This ﬁeld level, represents the concrete

controlling of the shop ﬂoor devices and is thus de-

pendent on real-time information to seamlessly inte-

ract with each other and to react on events within a

determined time range. Going up each level, the ti-

meliness gets less mandatory and the velocity as well

as the granularity of the incoming data reduces. One

of the major goals with regard to the topics of the um-

brella term Industry 4.0 is to build so-called cyber-

physical system that reﬂect the physical processes on

the shop ﬂoor and to service a digital representation of

the underlying processes in terms of a digital model.

In order to achieve the desired information repre-

sentation on all levels of the production, seamless data

integration and information management are crucial

goals to obtain. In current manufacturing systems,

each level is usually characterized by speciﬁc island

solutions that provide parts of the information needed

to optimize not only automation itself, but give a dee-

per insight to the production process at the speciﬁc

steps. These solutions are based on the use of data

warehouses (DWH) or alike, where structured data

tailored to one problem category is stored. The data

integration is carried out by data processing steps, cal-

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

176

corporate level

(ERP)

operational management level

(MES, MIS, LIMS)

process control level

(SCADA, HMI)

control level

(SPS)

field level

real-time

critical

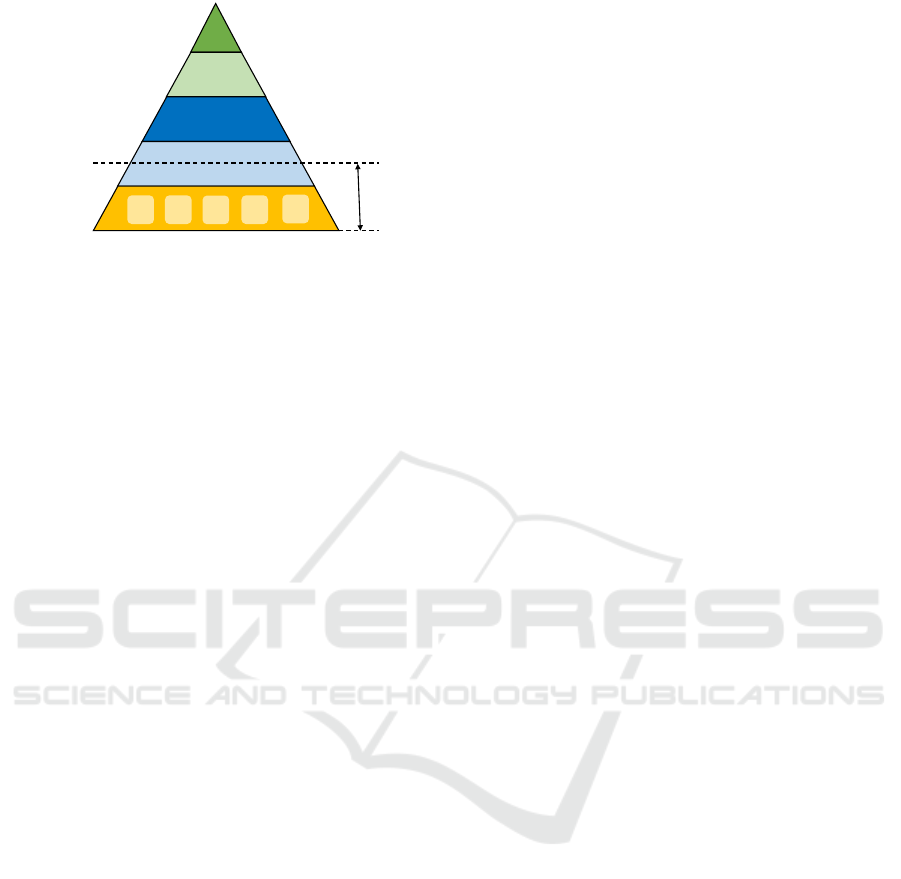

Figure 2: Automation pyramid showing the different layers

of automated systems in manufacturing and the real-time

critical components.

led Extract-Transform-Load (ETL) mechanisms, that

apply a ﬁxed and given star-schema to bring the in-

formation to the representation form required. Typi-

cal applications in such scenarios include the provi-

sion of reporting dashboards which generate insights

about the last cycle(s) of production for a batch or

for continuous monitoring, e.g., for alarm and event

purposes. The described processing is useful for con-

tinuous determination of Key Performance Indicators

(KPI) or daily reports. However, when it comes to

gaining deeper and more holistic insights to the under-

lying processes, approaches such as Artiﬁcial Intelli-

gence and Machine Learning (ML) have to be consi-

dered. These procedures, operated on chunks of data,

intend to identify patterns within the data even among

different sorts of information and across multiple pro-

cesses.

For those, a traditional data warehousing approach

to data collection and preparation is not well equip-

ped and even lacks the required ﬂexibility and diver-

sity of data representation to train a (decision) model.

Scaling up a data warehouse to hold years of archi-

ved data gets expensive rather quickly, as speciﬁc har-

dware to operate is required. Additionally, the DWH

philosophy considers data that is rarely used as cold

and will ultimately discard it, in order to keep access

speeds high. In a production process, which is already

working in a proﬁtable range, there are almost no de-

fect products, which need further optimizations. This

leads to a data basis that is biased by design and lacks

the objectivity of correct data analysis. Thus, limiting

the storage to hold only faulty product process infor-

mation might bias any machine learning approach of

ﬁnding possible causation patterns.

Data Integration and Big Data itself is not a new

topic, the concepts behind the term were already ex-

amined for decades in terms of information manage-

ment (Hohpe and Woolf, 2003; Goodhue et al., 1992;

Cox and Ellsworth, 1997). But, according to the des-

cribed limitations, more sophisticated solutions for

storing large amounts of highly heterogeneous data

are needed. A ﬁrst solution that ﬁts to the needs of

such storage capabilities, are Big Data based soluti-

ons, which are designed to scale very well with large

amounts of fast incoming, heterogeneous data.

Having a look in the future of fully connected fac-

tories in Industry 4.0, business models like a company

or even a global marketplace for optimizations or dis-

tributed knowledge generation could be realizable. In

these scenarios, information would be available to sta-

keholders which potentially exceed the boundaries of

one company. Machine manufactures could, for ex-

ample, provide special services, such as predictive

maintenance information in order to prevent machine

malfunctions, as an incentive for manufacturing com-

panies to share information generated on their pre-

mise.

3 RELATED WORK

Different approaches of how data aggregation that tar-

get the described challenges of heterogeneous and

distributed information within production environ-

ments are suggested. We present similar, related work

ﬁrst before having a look into relevant technologies

and protocols.

(Ball et al., 2017; Runge et al., 2016) focus on pro-

duct quality assurance with the Open Manufacturing

Information System (OMIS) approach. Their motiva-

tion bases on the one-off production in the small satel-

lite manufacturing of Raytheon, where each product

has its own assembly and diverse quality parameters,

with the special case of Quality-in-depth (QiD). This

quality method describes the over watch of manual

quality inspectors, which watch the technicians. The-

refore, OMIS combines existing enterprise systems

with digital product assurance results (video and sen-

sors) and claims to reduce costs by using COTS devi-

ces (commercial off-the-shelf) not particularly tested

for space environment use.

(Theorin et al., 2015) proclaims the Line Informa-

tion System Architecture (LISA) that uses the idea of

an Enterprise Service Bus (ESB) to reduce point-to-

point connections in a traditional client/server appro-

ach by making use of service mediation techniques.

They claim to have made the service oriented archi-

tecture principle of ESB together with an event-driven

bus system industrially applicable and scalable based

on ActiveMQ. LISA uses an own message format to

in-cooperate source systems and thereby solve the ho-

mogenization aspect.

(Bonci et al., 2016) show a database-centric ap-

proach based on cyber-physical production systems.

An Architecture for Efﬁcient Integration and Harmonization of Heterogeneous, Distributed Data Sources Enabling Big Data Analytics

177

Analytics

Data Lake

Volume

Variety

Volume

Variety

Velocity/Freshness/Real-Time

Reaction/Controlling

Velocity/Freshness/Real-Time

Reaction/Controlling

Monitoring

Controlling

Reporting

Dashboard

Unstructured

Iterative

Explorative

Structured

Linear

Repeatable

Figure 3: Placement of the Data Lake concept in an existing

landscape of monitoring controllers and reporting dashbo-

ards for a production line in manufacturing.

The idea to use RDBMS along with the SQL query

language is quiet established; their novel approach

however focuses on lightweight database synchroni-

zation through distributed replication on every CPS

device. Furthermore, they add the swarmlet concept

by facilitating the publish/subscribe paradigm for IoT

devices and add a plug-in structure, which extends the

central database to a service-oriented architecture si-

milar to an Enterprise Service Bus.

Related Technology. The presented related work

contains architectural concepts in order to handle data

load and data aggregation, but there are no technolo-

gical solutions available that are directly ready to use.

Big Data storage techniques are the key aspect of

managing the data load of Industry 4.0 related ap-

plications. The techniques require either speciali-

zed hardware or database instances capable of hol-

ding large amounts of data, commonly resulting in

a Data Warehouse. Apache on the other hand – tar-

geting NoSQL information storage approaches – of-

fers a scalable data storage on commodity hardware

for large data sets, called the Hadoop Distributed File

System (HDFS) (Shvachko et al., 2010). Through

the expandable architectural approach it is possible to

provide a large-scale ﬁle storage solution across dif-

ferent systems at affordable costs.

Conﬂuent provides Kafka Stream (Kleppmann

and Kreps, 2015) as an idea and concept for hand-

ling real-time streaming data seamlessly and in a sca-

lable manner. Conﬂuent makes use of Apache Kafka,

which main philosophy of log processing differs from

general message queuing due to the lack of an ackno-

wledgement (ACK) of messages and thus does not

guarantee delivery. The underlying concept uses a

consumer centric approach in contrast to broker or

server/data centric protocols like AMQP (Vinoski,

2006) and MQTT. For server centric mechanisms, the

control and thus responsibility fully lies in the mas-

ter server, each client thus has to give a receipt for

receiving and thereby handling the message. In con-

trast, the consumer centric approach of Kafka leaves

all control to the receiver, where the different partiti-

ons of a broker hold numerous messages.

On the shop ﬂoor, a shift to new technologies is

currently taking place, which helps to better under-

stand and also handle data from further automated

production plants. OPC Uniﬁed Architecture (OPC

UA) and the Dynamic Distribution Service (DDS)

are two advanced protocols that allow for easier and

more holistic access to machine data. OPC UA is

a machine-to-machine communication protocol spe-

ciﬁed in 2006 and advanced continuously since then

that models automation hardware in the form of ob-

jects of a process work ﬂow (Rinaldi, 2013). UA

is an enhancement on the classical OPC, where the

machine itself has the ability to describe its availa-

ble information and enhance the raw data with meta-

information. OPC UA lifts the low-level machine

control on the PLC level to a higher application layer

with added security and advanced capabilities to add

semantics to the production data generated in the

ﬁeld.

More and more production machines natively run

an embedded OPC UA server, which provides a base

model including the process parameters and annota-

ted information available at the speciﬁc machine.

4 CONCEPT

The concept proposed in this work focuses on data

accessibility and does not change any of the incoming

information. The goal is to have the raw informa-

tion at hand for easy access. Therefore, our inges-

tion methodology differs from commonly used clas-

sical enterprise integration patterns, where semanti-

cal data transformation in terms of the data structure

always takes place. The kinds of source systems re-

tain their semantical structure and form the (Big) Data

Lake (O’Leary, 2014). The general idea thus is to

have a long-term storage of available data that is re-

quired to perform analysis processes such as pattern

recognition and machine learning methods in a ho-

listic manner. Artiﬁcial Intelligence methods require

large sets of training data to learn. The data sets

should be universally available by providing a mana-

ged data pool that allows access for users or autono-

mous optimization applications. The information re-

quirements differ for each speciﬁc use case, a deﬁni-

tive access to all available information is thus more

important than the delivery of speciﬁc information

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

178

that is already tailored to some purpose. Through the

general overview, the analysis is more likely to ﬁnd

hidden and so far unexplored relations in the data.

The source of data covers the full range of systems

located on the automation pyramid, from the real-

time systems on the shop ﬂoor with streaming data

up to annual reports form data warehousing systems

that are not only low in frequency, but also low in vo-

lume and higher in density of information. Figure 3

shows the conceptual placement of a Data Lake com-

ponent inside the existing landscape of the automation

pyramid. The attributes of volume and variety, buil-

ding two of the three ”V”s in Big Data, are displayed

on upper horizontal axis and increment from left to

right. Thereby, the Data Lake concept is predestined

for data of high variety, whereas e.g., a controlling

instance directly at a machine heavily relies on very

speciﬁc data. On the bottom axis, the velocity and ac-

tuality of data are depicted in declining order, indica-

ting that a Data Lake by design is not reactive enough

for real-time controlling.

The main goal of the described concept is to ena-

ble data analysis applications on a consolidated, long-

term storage, therefore, the velocity aspect is neg-

ligible. For a live application of, e.g., trained ma-

chine learning models, however, we suggest an ad-

ditional layer. This layer would follow the concept

of a lambda architecture, where the data ﬂow is split

into two different streams. In this case, one stream

is used to redirect the incoming data into long-term

storages, whereas the other stream is processed in a

timelier fashion, responding to potential requests to a

machine learning model.

In the production machine-to-machine context, in-

consistent network conditions, e.g. varying response

times in the range of milliseconds exceed crucial time

constraints for remote control commands. Therefore,

another alternative model application scenario con-

sists in the deployment of machine-learning models

directly at the machine on the shop ﬂoor. The training

of the models deployed on these edge computing de-

vices, however, should be performed by analytics sys-

tems that are directly connected to the Data Lake, e.g.

in the form of a server farm. This way, the model can

be trained with a combination of all available data to

determine optimal parameters for the processes in the

scope.

As a consequence, through the described process

the data analyst is able to perform model extraction

of trained data from machine learning processes and

to re-integrate new insights into the production pro-

cess. Thus, although the Data Lake analysis on the

big data aggregation is not able to directly control the

machines due to the high latency, it is the enabler of

improved control units in short or medium-range time

cycles, which can provide real-time reactions.

4.1 Data Acquisition

As we focus on applicable data integration in the pro-

duction context, we have to consider how companies

in this area traditionally operate. Therefore, it is not

possible to assume a factory as a green ﬁeld and to

assume the theoretically best-case scenario. When a

factory is built, its operations are planned over deca-

des, the processes to be performed in the production

environments evolve over years. Due to the high in-

vestment costs and amortization time range an ex-

change of manufacturing machines is usually not an

option. Consequently, the emphasis of this work fo-

cuses on a modular approach that is especially prepa-

red to integrate legacy systems from the brown-ﬁeld

without the need for an adaptation of internal struc-

tures and the entire underlying legacy systems. For

this purpose, each module encapsulates one category

of source systems taking into account their indivi-

dual challenges and individual demands. Based on a

homogenization of the underlying data structure, the

modular concepts is able to represent the extracted in-

formation using a generic messaging format that des-

cribes the payload accurately and without using se-

mantic meta-data that is induced from the source sy-

stem. This modular approach also allows for an exten-

sibility in regards for future technological advances.

In the following paragraphs, we will present some of

the most common resources of production informa-

tion that can be found in the industrial manufacturing

context.

Management Systems. Various management sys-

tems are deployed at different levels of the company,

a typical storage concept of these systems are data-

bases or more advanced data warehouses for repor-

ting purposes. (Relational) Database management sy-

stems (RDBMS), therefore, play an important role in

enterprise information systems, resource planning as

well as for manufacturing execution, consisting of the

monitoring and reporting of the production process.

The storage engine holds all relevant information of

the production process ranging from different failure

states or key performance indicators. This informa-

tion stored in this database is characterized by its own

database schema deﬁning data types and providing

additional context information to the represented va-

lues.

One key challenge is the variance in Structured

Query Language (SQL) dialects, different vendors of

RDBMS do not fully comply with the SQL standard.

The ISO/IEC 9075 (Technology, 2008) norm deﬁnes

An Architecture for Efﬁcient Integration and Harmonization of Heterogeneous, Distributed Data Sources Enabling Big Data Analytics

179

the bare SQL standard in its current latest version

from 2016, where each vendor is free to extend it,

however different database engines are even charac-

terized by differences in the core syntax. Moreover,

database structures differs per database product or sy-

stem that incorporates a database itself. Often, it is not

obvious that a pre-built and functional production sy-

stem already comes with a deﬁned database system of

the manufacturer. Especially, in production systems

equipped with a default database system, it is not pos-

sible to perform changes without risking an overall

system breakdown or at least violating existing ser-

vice level agreements. Therefore, the database con-

nectors need to take into account existing legacy devi-

ces and their underlying information systems instead

of relying on the requirements of a green ﬁeld.

Shop Floor. Another viable information source for

manufacturing enterprises consists of data from the

production ﬁeld. This raw machine data of sensor or

actuator states is highly structured and usually charac-

terized by high frequencies as the devices are directly

based on the shop ﬂoor. The structure is based on

the correlation to the actual sensor value of the phy-

sical device and thereby deﬁned by a native register

value in a state machine. Different machine vendors

sometimes use proprietary native communication and

control protocols, which are usable only in terms of

their licensed counterparts, e.g., control units. OPC

UA is one uprising protocol trying to harmonize com-

munication protocols and their respective information

ﬂows from the shop ﬂoor. The Uniﬁed Architecture

(UA) protocol extension deﬁnes an industry standard

information model, which can be extended by me-

ans of vendor speciﬁc information models as needed.

Hereby, the vendor of the controller fully describes

the information available in the system and how they

can be described for further usage. Machine manu-

facturers already adopt OPC UA connectors directly

into their systems and controllers as machine opera-

tors demand integration of these protocols for inter-

connecting their future factory environments. This

pseudo standardization constitutes already an impro-

vement in comparison to directly accessing registers

on a PLC without proper knowledge of the ﬂag in-

formation. One further challenge of the described

methodology consists in the high number of different

vendors for control units, each providing a different

information model that still has to be combined and

semantically harmonized in order to describe the ma-

nufacturing process itself and tailored to the required

tasks. In this sense, the heterogeneity of the shop ﬂoor

is redirected to higher semantic levels, in which the

harmonization takes place and the data integration is

ﬁnally handled.

4.2 Data Ingestion - Message Format

In this section, we describe the implementation of

a general-purpose payload format with an additional

description of meta-information to make context in-

formation explicitly available after data integration.

The additional meta-information includes a precise

source description including the time and place in

which the data ﬁrst occurred, hence the time stamp

from a speciﬁc shop ﬂoor device. Furthermore, the

meta data describes factory localization which are

needed to account for different time zones and pos-

sible synchronization timestamps as well as language

differences. However, the payload of the transfer-

red information is not adapted during transit, hence

the data is simply passed on directly to the persistent

storage without prior modiﬁcation. Thus, in terms of

the integration step, all additional semantic informa-

tion from the source system is kept in their original

form. In order to decouple systems and separate in-

formation security layers, all messages are buffered

between gateways of two network zones in terms of

a message queue. This proceeding additionally at-

tempts to secure shop ﬂoor systems, which will not be

inﬂuenced, if data is stuck on the intermediate storage

and piles up.

4.3 Data Storage

Subsequently to the process of data acquisition ba-

sed on the raw data of a source system, enhanced

with meta-information and in a common generalized

payload-driven format, the data is enabled for inte-

gration without concrete applying of a semantic trans-

formation. Each source system of raw data provides

a schema (if available and applicable), which is also

used for the storage within a HDFS ﬁle. As schemata

might evolve over time, different versions have to be

considered in order to enable structural changes over

time.

By an application of the schema-on-read principle

an analyst always accesses the respective information

in the desired fashion.

This principle deﬁnes the creation of a schema

when reading the data and thereby enabling the com-

bination of different schemata into one coherent des-

cription.

Drawbacks of the requirements that are connected

to the creation of such schema can be neglected, be-

cause the analyst should always be able to use the

schema, in which the data was written originally

and thus created. Additionally, the shift from static

schema descriptions to a dynamic creation of sche-

mata allows for much easier integration of source sy-

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

180

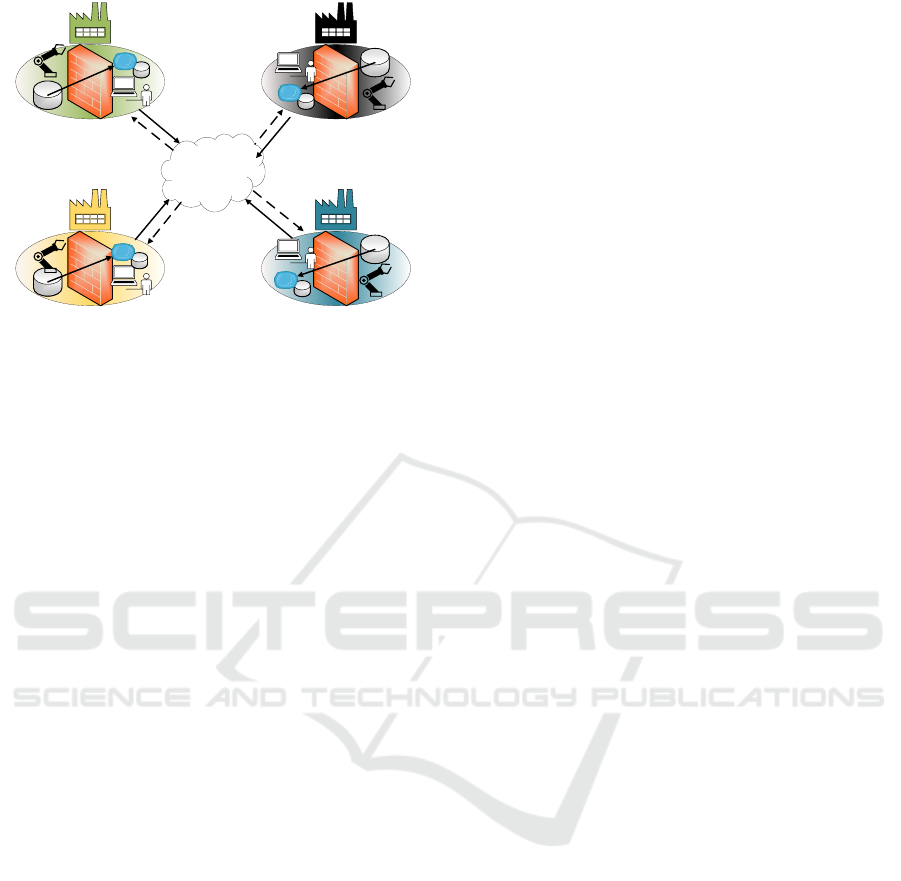

Figure 4: Aggregating and combining factories with data

lakes into a (virtual) data cloud.

stem as no modeling or prior transformation to a pre-

deﬁned schema has to take place, e.g., as it is neces-

sary prior integration into a Data Warehouse.

Figure 4 shows the conceptual placement of this

ingestion process into Data Lakes that are located at

each factory. Due to the nature of accessibility to

the information by a data scientist, the data archive

is not located in the production network itself, but

in the neutral business network zone with restricted

access. The concept furthermore enables the possibi-

lity to combine all of the production plants data lake

structures into one virtual data cloud covering the en-

tire company and exchanging insights gathered from

each of these factories.

5 PROTOTYPE ARCHITECTURE

In this section, we describe the prototypical imple-

mentation of the architecture for an efﬁcient integra-

tion and harmonization of heterogeneous distributed

data sources. Hadoop (Shvachko et al., 2010) and ot-

her open-source solutions from the Apache product

family provide the basic foundation for the Data Lake

storage concept. These technologies enable scalable

data storage based on commodity hardware and deli-

ver the use of available computing power via the Map

Reduce paradigm. HDFS combined with the scalable

computing paradigm facilitates the invested hardware

and allows for Big Data analytics (Dean and Ghema-

wat, 2008).

RabbitMQ (Videla and Williams, 2012), as the de-

fault implementation of the AMQP protocol (Vino-

ski, 2006), delivers a fast, robust and scalable bro-

ker system for message exchange and thereby enables

the network buffering and separation of critical pro-

duction systems. It is designed to not trust the under-

lying network infrastructure and therefore also ﬁts the

use case of the neutral business network, in which no-

body is able intercept the data ingestion process. The

specialized and generic message format previously

mentioned is a direct adoption of AMQP messages.

A message consists of a generic body for arbitrary

data types without further additions coupled with a

header deﬁnition comprised of key-value ﬁelds. The-

reby, AMQP is a lightweight message protocol with

efﬁcient routing algorithms that assure delivery with

package acknowledgements and act as the concentra-

tor of the distributed data sources in a network zone.

Spring Integration (SI) (Fisher et al., 2012) as the

Java implementation for Enterprise Integration Pat-

terns (EIP) and for message-based data integration

provides a conﬁgurable pipeline approach allowing

for a modular composition via reusable Spring Bean

components. The entire integration process is split

into different instances consisting of different pipeli-

nes for different systems. One instance alone is not

required to map and process the entire integration pi-

peline, thus the approach proposed in this work al-

lows for dynamic scalability of different parts of the

pipeline. This dynamic scalability further demonstra-

tes the efﬁciency of the proposed concept.

The Data acquisition part in terms of access to da-

tabases is achieved via the native Java Database Con-

nectivity (JDBC) interface, that already contains the

required drivers for interconnection of information re-

sources. In a similar fashion, another modules can be

implemented allowing the access to data source such

as streaming data via OPC UA or legacy system pro-

tocols. Another step in the pipeline consists in the

processing after completed data acquisition. The re-

trieved data is stored in the message queue and then

enriched during the integration step into the HDFS.

This step includes a determination and application

of a schema onto the data along with other meta-

information to be used in the message formats header

ﬁelds by another Spring Integration pipeline residing

connected to the Hadoop system.

The storage format of integrated information can

be further facilitated by making use of Apache

Avro (Apache Software Foundation, 2009), which

does not only support native serialization and dese-

rialization of arbitrary data, but also fully enables

the schema-on-read principle. Data written with one

schema in Avro and stored using the same format can

be read with a different schema. Another advantage of

the Avro format is the ability of Avro to compress in-

formation. In comparison to the JSON format, which

stores the same amount of information as Avro, the

Avro ﬁle format approximately consumes about 15 %

of storage space.

An Architecture for Efﬁcient Integration and Harmonization of Heterogeneous, Distributed Data Sources Enabling Big Data Analytics

181

Another member of the Apache family is

Hive (Thusoo et al., 2009), which provides database

like view on data in HDFS. It uses so-called SerDe

modules to serialize and deserialize data for querying

via SQL. SQL is a well-established query language

for relational structured data in familiar tools. Due

to the fact that Hive follows the SQL standard JDBC

and ODBC Database drivers are available to connect

with familiar frontend tools in order to analyze and

work with the data. Such tools include for example

Tableau for visualization and Matlab for data explora-

tion. Using the schema-on-read principle in combina-

tion with consolidated storages a harmonized access

to the data can be realized. All data can be accessed

via well-deﬁned interfaces, allowing for a fast and ho-

listic analysis.

6 CONCLUSION

In this work, we presented an architectural frame-

work and integration chain that enables Big Data ana-

lytics workﬂows for further application in the ma-

nufacturing domain. By making use of the propo-

sed concepts, production environments with their spe-

cial challenges and requirements can be appropria-

tely mapped to an overall information management

and data harmonization. One of the major inside of

this work consists in the identiﬁcation of lacking data

accessibility in current factories. By increasing the

general data accessibility through the proposed inte-

gration approach, it becomes possible to get deeper

insides with regard to the production processes and to

reveal patterns based on machine learning for corre-

lations across different data sources. We shown how

possible ingestion processes of these different sorts of

data sets and streams into one coherent data pool can

be realized by making use of established technolo-

gies. Further steps that are required for a more generic

integration of shop ﬂoor devices into data lake struc-

tures can be identiﬁed especially in the ﬁeld of OPC

UA data and information modeling. Other topics to be

further investigated are issues related to data gover-

nance and auditing. This is especially important for

cases, in which privacy or customer/user data become

relevant and are included into the data lake structure.

REFERENCES

Apache Software Foundation (2009). Apache Avro.

https://avro.apache.org - last accessed Jan-2018.

Ball, G., Runge, C., Ramsey, R., and Barrett, N. (2017).

Systems integration and veriﬁcation in an advanced

smart factory. In 2017 Annual IEEE International Sy-

stems Conference (SysCon), pages 1–5.

Bonci, A., Pirani, M., and Longhi, S. (2016). A database-

centric approach for the modeling, simulation and

control of cyber-physical systems in the factory of the

future. IFAC-PapersOnLine, 49(12):249–254.

Calder, A. (2009). Information Security Based on ISO

27001/ISO 27002: A Management Guide - Best

Practice. Van Haren Publishing.

Cox, M. and Ellsworth, D. (1997). Managing big data for

scientiﬁc visualization. In ACM Siggraph, volume 97,

pages 21–38.

Dean, J. and Ghemawat, S. (2008). Mapreduce: Simpli-

ﬁed data processing on large clusters. Commun. ACM,

51(1):107–113.

Fisher, M., Partner, J., Bogoevici, M., and Fuld, I. (2012).

Spring Integration in Action. Manning Publications

Co., Greenwich, CT, USA.

Goodhue, D. L., Wybo, M. D., and Kirsch, L. J. (1992). The

impact of data integration on the costs and beneﬁts of

information systems. MiS Quarterly, pages 293–311.

Hohpe, G. and Woolf, B. (2003). Enterprise Integration

Patterns: Designing, Building, and Deploying Messa-

ging Solutions. Addison-Wesley Longman Publishing

Co., Inc., Boston, MA, USA.

Kleppmann, M. and Kreps, J. (2015). Kafka, Samza and

the Unix Philosophy of Distributed Data. IEEE Data

Eng. Bull., 38(4):4–14.

O’Leary, D. E. (2014). Embedding AI and Crowdsour-

cing in the Big Data Lake. IEEE Intelligent Systems,

29(5):70–73.

Rinaldi, J. (2013). OPC UA - the basics: An OPC UA over-

view for those who are not networking gurus. Ama-

zon, Great Britain.

Runge, C., Lynch, K., Ramsey, R., and Pauline, T. (2016).

Digital product assurance for model-based open ma-

nufacturing of small satellites. In 2016 IEEE Inter-

national Conference on Emerging Technologies and

Innovative Business Practices for the Transformation

of Societies (EmergiTech), pages 206–209.

Shvachko, K., Kuang, H., Radia, S., and Chansler, R.

(2010). The hadoop distributed ﬁle system. In 2010

IEEE 26th Symposium on Mass Storage Systems and

Technologies (MSST), pages 1–10.

Technology, I. (2008). ISO/IEC 9075 Database languages -

SQL. Technical report, International Organization for

Standardization.

Technology, I. (2013). ISO/IEC 27002:2013 - Information

technology – Security techniques – Code of practice

for information security management. Technical re-

port, International Organization for Standardization.

Theorin, A., Bengtsson, K., Provost, J., Lieder, M., Johns-

son, C., Lundholm, T., and Lennartson, B. (2015). An

event-driven manufacturing information system archi-

tecture. IFAC-PapersOnLine, 48(3):547–554.

Thusoo, A., Sarma, J. S., Jain, N., Shao, Z., Chakka, P., An-

thony, S., Liu, H., Wyckoff, P., and Murthy, R. (2009).

Hive: A warehousing solution over a map-reduce fra-

mework. Proc. VLDB Endow., 2(2):1626–1629.

Videla, A. and Williams, J. J. (2012). RabbitMQ in action:

distributed messaging for everyone. Manning.

Vinoski, S. (2006). Advanced message queuing protocol.

IEEE Internet Computing, 10(6):87–89.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

182
