Intrusion Detection and Prevention with Internet-integrated CoAP

Sensing Applications

Jorge Granjal and Artur Pedroso

CISUC/DEI, University of Coimbra, Coimbra, Portugal

Keywords:

Internet-integrated Sensor Networks, CoAP, 6LoWPAN, IoT, Intrusion Detection.

Abstract:

End-to-end communications between Internet devices and Internet-integrated constrained wireless sensing

platforms promise to contribute to the enabling of many of the envisioned IoT applications. In this context,

communication technologies such as 6LoWPAN and CoAP are currently materializing this vision, and we

may fairly observe that security in the presence of such devices, and particularly in the context of end-to-end

communications with Internet-integrated WSN, will be of prime importance. Considering the constraints of

sensing devices in terms of critical resources such as energy, memory and computational capability, it is clear

that Internet-integrated WSN will need security against various types of attacks, particularly those originated

at devices without the constraints of WSN sensors (e.g. Internet hosts). Existing encryption strategies for

communications in IoT environments are unable to protect the WSN for Denial of Service (DoS) and other

intrusion attacks, particularly in what regards the usage of CoAP to enable application-layer communications.

Therefore, anomaly and intrusion detection will play a major role in the enabling of IoT applications in various

areas. In this article, we approach a framework to cope with intrusion detection and reaction in CoAP Internet-

integrated WSN, and in the context of this framework we implement and evaluate various complementary

detection and prevention mechanisms. Our proposal is evaluated experimentally and ours is, as far as our

knowledge goes, the ﬁrst proposal with the above-mentioned goals.

1 INTRODUCTION

Most of the applications envisioned for the Internet of

Things (IoT) are critical in respect to security. The

IoT will be enabled by communication and security

technologies based on the 6LoWPAN (IPv6 over Low

power WPAN) (Montenegro et al., 2007) adaptation

layer, in particular by the Constrained Application

Protocol (CoAP) (Bormann et al., 2012), which was

designed to support RESTful application-layer com-

munications with heterogeneous constrained sensing

and actuating platforms. Another relevant protocol

is RPL (IPv6 Routing Protocol for Low-Power and

Lossy Networks) (Winter, 2012), which is a routing

framework adaptable to various types of IoT appli-

cation areas. CoAP is beginning to enable transpar-

ent and pervasive web communications supporting

IoT applications, but on the other end such Internet-

integrated devices are exposed to external threats, par-

ticularly in the form of Denial of Service (DoS) at-

tacks and attacks subverting the usage rules of CoAP.

Although security mechanisms may be adopted to se-

cure CoAP communications, such as DTLS or even

IPSec, such mechanisms only protect against exter-

nal attacks, and are also not able to offer protection

against DoS threats. In fact, cryptography cannot de-

tect attackers with legal keys, either internal or exter-

nal, but behaving maliciously. Intrusion detection and

prevention will thus play a very important role in en-

abling most of the envisioned IoT applications (Palat-

tella et al., 2013), and appropriate solutions need to

be designed that ate able to protect CoAP commu-

nication environments, not only from DoS-related at-

tacks, but also from attacks design to explore vulnera-

bilities of the newly designed CoAP application-layer

protocol. Thus, unlike in isolated WSN (wireless sen-

sor networks) environments, 6LoWPAN networks use

IP and are directly connected to the untrusted Inter-

net, opening the door to new threats that must be pre-

vented and dealt with. Although there are various pro-

posals in the literature focusing on intrusion detection

in WSN environments, most of such proposals are not

ﬁt for the IoT. Many proposals are designed without a

central manager or controller, without considering the

availability of message security and considering that

sensing devices are not capable of global communica-

164

Granjal, J. and Pedroso, A.

Intrusion Detection and Prevention with Internet-integrated CoAP Sensing Applications.

DOI: 10.5220/0006777901640172

In Proceedings of the 3rd International Conference on Internet of Things, Big Data and Security (IoTBDS 2018), pages 164-172

ISBN: 978-989-758-296-7

tions and identiﬁed globally (e.g. by an IP address).

In the context of the IoT, the global Internet archi-

tecture is starting to encompass sensing devices, and

in consequence 6LBR (6LoWPAN border routers) are

assumed to be always accessible, end-to-end message

security is required and devices are globally identiﬁed

by IPv6 addresses (Palattella et al., 2013). Consid-

ering such goals, we consider a set of representative

attacks against devices using CoAP, which we eval-

uate in the context of a framework for application-

layer (CoAP) intrusion detection and reaction. The

article is structured as follows. We begin by dis-

cussing intrusion detection prevention in the IoT in

the next Section, and in Section III we discuss our

framework, together with its main components and

the messaging format employed for security-related

management procedures. In Section IV we focus on

intrusion detection and reaction mechanisms imple-

mented and evaluated later in the article, in Section V.

Finally, in Section VI we conclude our discussion.

2 INTRUSION DETECTION AND

PREVENTION USING CoAP

In classic approaches on intrusion detection and

prevention in the Internet three complementary ap-

proaches are normally considered: signature-based,

anomaly-based and speciﬁcation-based systems. A

signature or misuse-based IDS ﬁrst deﬁnes patterns of

the known attacks and checks the trafﬁc against such

known attacks. Mechanisms in this class are usually

characterized by low-false alarm rates, although they

need to store large data sets (signatures and also the

data to be analyzed) and are limited in detecting new

attacks. In anomaly-based intrusion detection, normal

network behaviors are ﬁrst classiﬁed, and compared

with monitored operations and communications, in

order to detect anomalous activities. This class of sys-

tems possess the ability to detect new attacks but can

be characterized by a high false-alarm rate. Finally,

speciﬁcation-based systems are a variant of anomaly-

based systems, and work by specifying normal net-

work operations in detail and monitoring any break-

ing of that speciﬁcation. Such system decrease the

false detection rate but on the other hand the opera-

tion patterns must be usually created by specialists.

The current trend in IDS research in the context of

the IoT is to combine these before mentioned meth-

ods, in order to jointly beneﬁt from the qualities of

the various approaches. Other useful characteriza-

tion of intrusion detection and prevention is in what

respects the topology of the employed architecture,

which may be either distributed, centralized or hybrid.

In the former, the role of detection and reaction to at-

tacks may be supported by various devices in the net-

work, while in distributed systems one single system

is responsible for such tasks. A hybrid system com-

bines distributed intrusion detection supported by de-

vices in the network with a central manager, usually

responsible for more complex analysis and decisions

operations. In this article, we consider the imple-

mentation of a hybrid intrusion detection and preven-

tion architecture employing signature-based, as well

as DoS detection. Looking at recent (less than ﬁve

years) research proposals dealing with intrusion de-

tection and prevention in 6LoWPAN and CoAP envi-

ronments, we ﬁnd proposals mostly focused on pro-

tecting against attacks on routing using RPL in 6LoW-

PAN environments. A ﬁrst approach towards IDS in

IoT environments is presented in (Raza et al., 2013),

in the form of SVELTE, a system designed to protect

WSN from attacks against routing operations, in par-

ticular spoofed or altered information, sinkhole and

selective-forwarding. Attacks are detected by main-

taining a dedicated routing information in the 6LBR,

which is constructed from RPL information and also

from information reported by the various sensors, for

the purpose of detecting inconsistencies in the rout-

ing tree. SVELTE is mostly focused on RPL-based

6LoWPAN networks, and this proposal doesnt ad-

dress security against attacks at the network and upper

layers, neither DoS or other types of attacks. In (Le

et al., 2012) the authors focus again on threats against

RPL, and propose a two-layer IDS architecture de-

signed to detect internal attacks on routing operations,

based on three components: an RPL speciﬁcation-

based monitor, an anomaly-based used in cooperation

with the speciﬁcation-based to monitor the node per-

formance and a statistical-based component to reveal

the attacker source. Although this work performs a

good job in discussing the applicability of WSN IDS

systems to IoT 6LoWPAN environments, it is mostly

focused on internal attacks against RPL. Also, the de-

scribed system model is also not materialized in the

form of concrete detection and reaction mechanisms.

In (Lee et al., 2014) the authors propose an intrusion

detection method based on evaluating over time the

energy consumption of sensing devices. The authors

classify sensing devices with irregular energy con-

sumptions as malicious attackers, by considering en-

ergy consumption models built for communications

in a 6LoWPAN network, in both the mesh-under and

route-over operation modes of IEEE 802.15.4. From

simulation, the authors state that this strategy may al-

low to detect misbehaving nodes and that such nodes

may thus be excluded from operations in the network.

One limitation of this approach is that IoT applica-

Intrusion Detection and Prevention with Internet-integrated CoAP Sensing Applications

165

tions may not always present a homogeneous energy

consumption proﬁle over time, and other is that in this

work the focus is not on attacks at the network or ap-

plication layers. In (Rghioui et al., 2014) the authors

also focus on discussing DoS attacks against RPL op-

erations. Despite their discussion on various type of

attacks against the routing layer, as well as various

recommendations on aspects such as the placement

of IDS system, as well as on the types of systems to

employ and the parameters to consider in various sce-

narios, the article does not propose nor evaluate any

particular mechanisms. In (Kasinathan et al., 2013)

the authors propose a DoS architecture for 6LoW-

PAN, designed to integrate with the network frame-

work developed within the EU FP7 project ebbits.

This framework is focused on critical network en-

vironments, and the proposed architecture has been

designed and evaluated for industrial environments.

A preliminary implementation is also discussed and

evaluated using a penetration testing system. The pro-

posed system is focused on jamming attacks, but is

dependent on information modules available on the

eebits architecture, and security-related notiﬁcations

are dependent on the usage of a dedicated commu-

nications medium for security-related data. The au-

thors in (Surendar and Umamakeswari, 2016) pro-

pose an improvement to SVELTE when dealing on

attacks against routing, particularly focused on sink-

hole attacks. The proposal is evaluated through sim-

ulation while, again, this proposal focuses on attacks

against a particular class of attacks against routing in

6LoWPAN environments. In (Shreenivas et al., 2017)

SVELTE is again improved by adding a new parame-

ter, in the form of a link reliability metric which helps

in preventing the 6LBR and neighbouring nodes to

actively engage with malicious intruders. The imple-

mentation and evaluation are based on Contiki and

COOJA is used for simulations, and the authors claim

that their proposal improves the true positive rate of

SVELTE. In (Rghioui et al., 2015) the authors ad-

dress the design of a system based on detecting mis-

behaving nodes in a 6LoWPAN networks, with the

assumption that neighbour nodes in such a network

behave similarly (in terms of communications) dur-

ing the lifetime of the application. The proposal is

evaluated against its performance (true positives and

false positives) and found to perform better, the same

applying to energy. We note that this work is fo-

cused again on attacks against routing operations in

a 6LoWPAN network, in this case considering that

all nodes in a given DODAG are supposed to operate

similarly. From the previous analysis, we may ob-

serve that, on the one hand, intrusion detection and

prevention in 6LoWPAN environments is very recent.

On the other hand, most of the existing proposal fo-

cus on attacks against routing using the RPL frame-

work. If it is true that some proposals deal with at-

tacks (DoS attacks) disrupting 6LoWPAN operations,

we have found no proposals considering the conju-

gation of DoS attacks with attacks perpetrated at the

application-layer.

3 A FRAMEWORK FOR

INTRUSION DETECTION AND

PREVENTION WITH CoAP

We now proceed by presenting the proposed frame-

work for intrusion detection and prevention in CoAP

Internet-integrated sensing environments. With this

goal in mind, we start by identifying the system and

security requirements, and proceed to discuss the op-

eration of the various modules that constitute our

framework. We also address security-related manage-

ment and later in the article the intrusion detection

techniques implemented.

3.1 System and Security Requirements

As previously discussed, IoT applications are being

envisioned and implemented in areas as diverse as

smart cities, surveillance and smart energy, among

others, that will require fundamental security assur-

ances from the infrastructure, and this certainly ap-

plies also to the capability to detect and react timely

to attacks against the availability of such devices and

of the IoT application. As we have previously ana-

lyzed, there is currently a lack of systems and mecha-

nisms designed to enable intrusion detection in CoAP

networks, and therefore this motivates us towards the

proposal of a framework with the following goals:

• Cross-layer attack detection: being able to de-

tect attacks at the network (6LoWPAN), transport

(RPL) and application (CoAP) layers.

• Detect attacks originated at external (namely, In-

ternet hosts) and internal devices (e.g. other sens-

ing devices, either in the same or in a separate

WSN domain).

• Intrusion prevention and ﬁltering: be able to react

(timely) to attacks by blocking attackers.

• Extensibility: support intrusion and prevention

mechanisms at the various layers, according to the

requirements of the IoT application at hand.

• Conﬁgurability: support reconﬁgurable detection

and reaction policies, during the lifetime of the

application.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

166

Taking into consideration the previously identi-

ﬁed atributes, we proceed by describing our proposed

framework for intrusion detection and prevention in

IoT CoAP environments.

3.2 Intrusion Detection and Prevention

Framework

For an intrusion detection and prevention system to

be feasible in most Internet-integrated WSN environ-

ments, it must cope with the resource constraints of

sensing and actuating platforms, while on the other

hand being able to adapt and beneﬁt to devices with

less constraints, as is usually the case with 6LoWPAN

Border Routers (6LBR). As previously discussed, for

this reason, we adopt a hybrid approach to the support

of intrusion and detection functionalities. Figure 1 il-

lustrates the system model for the proposed system.

Sensor

6LBR

WSN1

6LBR

WSN2

Sensor

Attacker

External

host

INTERNET

Sensor

Attacker

Sensor

Attacker

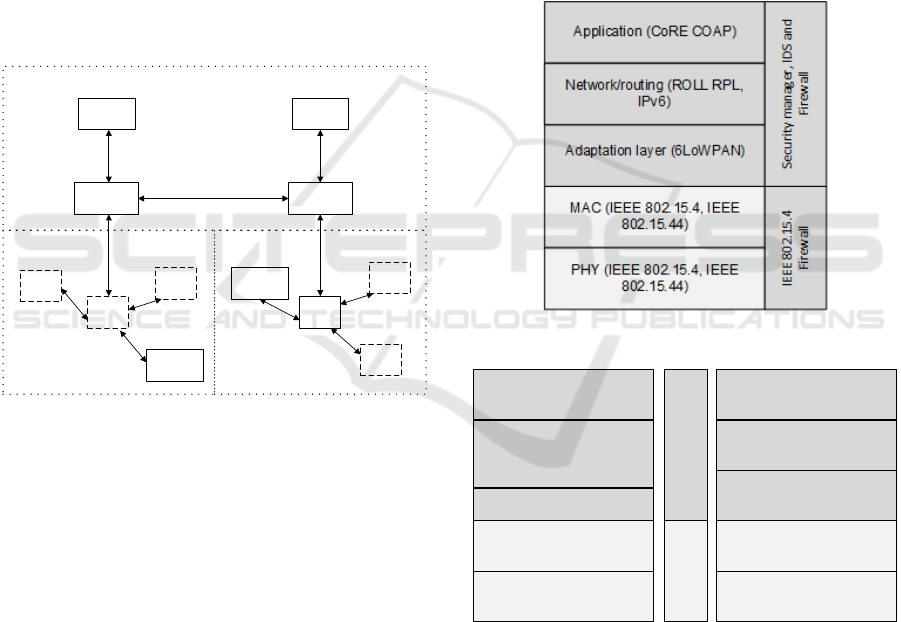

Figure 1: System architecture for intrusion detection and

prevention in CoAP Internet-integrated networks.

It is also important to identify the trust model as-

sumed in the deﬁnition and usage of our framework.

We consider that devices assuming the role of intru-

sion detection, prevention and ﬁltering of commu-

nications are trusted, and this applies to both con-

strained sensing devices and gateways (6LBR enti-

ties). Thus, we focus on security against external at-

tackers, from the point of view of the communications

and also of the devices participating in normal opera-

tions. We also assume that more intensive processing

is performed by the 6LBR, thus allowing us to bene-

ﬁt from the resouces available in this platform, while

the various sensors in the WSN domains also coop-

erate in the task of detecting and reacting to attacks

against the security of the network. As illustrated in

Figure 1, attackers may be internal for a given WSN

domain but also external (e.g. an Internet host). Thus,

the cooperation of the various devices in the role of

attack detection and blocking is fundamental in or-

der to timely stop attacks, either at the end device

being attacked or, if necessary, by blocking commu-

nications between the Internet and WSN domains (at

the 6LBR). Thus, the hybrid approach allows for the

rapid detection of attacks and the timely distributed

reaction to such attacks, also with the help of border

routers. For example, if certain conditions arise, the

6LBR may block communications between WSN do-

mains, or originated at the Internet, and also to in-

struct the various sensing devices in the WSN to start

blocking communications from a particular origin de-

vice. We proceed by identifying the modules that ma-

terialize our intrusion detection and reaction system,

in the context of the sensing device in Figure 2 and of

the 6LBR in Figure 3.

Figure 2: IDS and ﬁrewall in the stack (sensing device).

Application

(CoRE COAP)

Network/routing

(ROLL RPL, IPv6)

Adaptation layer

(6LoWPAN)

MAC (IEEE 802.15.4, IEEE

802.15.44)

Firewall

SecurityManager,

IDS and Firewall

PHY (IEEE 802.15.4, IEEE

802.15.44)

Application

(HTTP)

Network/routing

(TCP/UDP)

IPv6

MAC (IEEE 802.3, 802.11,

802.16, LTE)

PHY (IEEE 802.3, 802.11,

802.16, LTE)

Figure 3: IDS and ﬁrewall in the stack (6LBR).

We note that encryption can be enabled either at

the physical and data-link layers in the WSN, through

IEEE 802.15.4 encryption, or by using DTLS or

IPSec. As illustrated in Figures 2 and 3, we enable

detection of attacks by analyzing trafﬁc at various lay-

ers of the communications stack, in particular from

the 6LoWPAN adaptation layer up. The framework

also supports a ﬁrewall to ﬁlter out undesired com-

munications at the various stages (layers) of process-

Intrusion Detection and Prevention with Internet-integrated CoAP Sensing Applications

167

ing in the context of the 6LoWPAN/CoAP network-

ing stack. Thus, a given message may be blocked, if

conditions arise, at the network, routing or application

(CoAP) layers.

3.3 Security Management

As previously discussed, the security module in sens-

ing devices and in the 6LBR assumes the role of gen-

erating, receiving and processing security manage-

ment messages. Such messages allow us to transmit

critical information regarding attacks that are detected

and on how the various devices may act in order to

coordinately stop such attacks. As we focus on intru-

sion detection and prevention on CoAP IoT networks,

security management messages are transported in the

payload of CoAP conﬁrmable messages, as such be-

ing inherently protected from packet lost (Bormann

et al., 2012). In Figure 4 we illustrates the format for

security management messages exchanges between

devices in the context of our framework and we also

assume that communications in this context may be

protected via encryption either at the neywork layer

using IPSec or at the transport layer using DTLS. In

this ﬁgure, at the top we illustrate the format for se-

curity messages originated at a sensing device, and at

the bottom security messages originated at the 6LBR.

ip_index

Index_request num_requests

CoAP headers

ip_to_block

CoAP headers

Figure 4: Format of security notiﬁcation messages.

In the ip index we store a position in a vector

storing structures storing an IP address, the number

of distinct requests received in the sensor from that

source IP address and a ﬂag indicating weather mes-

sages from that address are already blocked or not.

The index request indicates the type of request re-

ceived by the constrained device (and that has subse-

quently motivated the generation of this security no-

tiﬁcation message). Finally, in the num requests ﬁeld

we transport the number of requests received so far

by the sensor, of type index request, from the IP ad-

dress stored in the position ip index of the vector. As

for messages originated at the 6LBR, ip to block is

used again as an index to a position in a vector main-

tained in the destination sensing device, containing

the information about the blocked origin device. We

may also note that the vector maintaining information

about each entity know in the network, together with

the counter of requests received from the that entity

and blocking information, must be maintained in the

various devices of the system in a synchronized fash-

ion. This information, together with the identiﬁcation

of the type of request, allows for the exchange and

updating of the information required for the security

management modules to detect and act upon received

6LoWPAN and CoAP communications.

4 IMPLEMENTATION

STRATEGY

We proceed by discussing the implementation of the

proposed framework in the Contiki operating system

(Dunkels et al., 2004), starting with the mechanisms

that allow us to internally integrate security with the

processing of 6LoWPAN and CoAP communications.

4.1 Counters and Thresholds for Attack

Detection

As previously noted, the proposed framework is ex-

tensible, and extensibility here is in fact two dimen-

sional. On the one hand, ﬁltering and analysis mech-

anisms can be integrated in the framework, as illus-

trated in Figure 2, at the network, routing and applica-

tion layers. On the other hand, such mechanisms may

be designed to distinguish between different types of

requests at such layers. The combination of both

types of analysis and ﬁltering lays the ground for the

support of various intrusion detection strategies. We

start by noting that it is fundamental to be able to de-

tect and prevent resource exhaustion attacks at CoAP

networks, particularly because the network conges-

tion control in CoAP is not controlled by the server,

in fact being implemented via transmission parame-

ters in CoAP messages sent by client (Le et al., 2012).

With such aspect in mind, we consider the detection

of the number of requests that a constrained device re-

ceived in a speciﬁc period (in a minute), above which

the security and the stability of the WSN environment

(and thus of the IoT application) may be at risk, and

also attacks employing other types of messages, as

well as those subverting the usage rules of the CoAP

protocol. Overall, we maintain, in each sensing de-

vice, separate counters for the following types of mes-

sages received by the system during a previous time

window:

• Number of valid CoAP requests to resources (sen-

sors and actuators) available and published by the

device;

• Number of invalid CoAP requests, thus mal-

formed requests or requests to resources (sensors

and actuators) that are not available in the device;

• Number of messages not intended for CoAP pro-

cessing, such as ICMP, TCP and others;

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

168

The previous counters, as well as thresholds that

may be activated for each type of attack, allow us to

detect and react to attacks using the security manager

and ﬁrewall modules, respectively.

4.2 Intrusion Detection and Prevention

Policy

We now describe the intrusion detection and reaction

policy considered for the purpose of evaluating the

impact of the proposed mechanisms, that we discuss

later in the article. In both the sensing devices and

the 6LBR the rules in the policy are implemented as a

set of pre-conﬁgured rules in memory, which describe

the conditions triggering particular actions, with the

help of the previously discussed counters. We also

note that the framework is generic, in the sense that

it allows for the activation of different detection and

blocking policies, in line with the particular require-

ments of the IoT application at hand. Next we de-

scribe the security policy considered in the context of

our experimental evaluation of the proposed mecha-

nisms, that we have implemented in the constrained

sensing devices. As can be seen, the security policy

is deﬁned as a set of rules that identify the conditions

upon which intrusion detection and prevention takes

place.

# For requests to resource CoAP1 received from a device with source

# IP address orig1, communications are immediately blocked

If IP=orig1 and res=CoAP1 then block

# Notify the 6LBR if more than 5 requests are received for the CoAP

# resource CoAP2, irrespective of the source IP address

If IP=* and res=CoAP2 and NReqMin>=5 then notify

# Enable security against attackers sending undesired and malformed

# CoAP requests

If IP=* and res=malformed and NReqMin>=1 then notify

If IP=* and res=malformed and NReqMin>=3 then block and notify

# Establish a threshold to control the acceptable number of messages

# that can be accepted and processed in the device

If IP=* and res=* and NReqMin>=5 then notify

We start by considering requests that are already

blocked, as well as requests to a particular resource

that, above a particular threshold, trigger a notiﬁca-

tion to be sent to the 6LBR. We also enable security

against undesired or malformed CoAP requests, by

notifying and blocking further communications enter-

ing the device. Finally, we enable DoS protection via

a limit of requests per minute above which we notify

the 6LBR. Next we describe the same security policy,

now as enforced by the 6LBR.

# Block external (e.g. from the Internet) requests to resource CoAP2

# on sensor1, if a notification is received from that device and

# when the number requests per minute is above 5

If NotifSource=sensor1 and IP=external and res=CoAP2 and NReqMin>=5

then blockdst=sensor1

# Notify all sensors in the WSN about a device making requests to

# resource CoAP2, when at least two sensing devices have sent alerts

If NotifSource=* and NNotif>=2 and IP=internal and res=CoAP2

then notifyblock=all

# Block malformed messages received from an internal sensing device

# and notify other internal devices also block such communications

If NotifSource=* and NNotif>=3 and res=malformed and IP=*

then notifyblock=all and blockdst=all

# Notify internal devices about all communications exceeding 7

# messages per minute, irrespective of their origin, type and CoAP

# resource requested

If NotifSource=* and NNotif>=2 and res=* and IP=* and NReqMin>=7

then notifyblock=all

From the policy considered for the 6LBR we may

observe that the gateway is able to control and block

the forwarding of 6LoWPAN and CoAP communi-

cations according to security warnings received from

devices in the WSN domain, while also sending to

devices in the WSN domain notiﬁcations instructing

such devices on how to act on communications re-

ceived from the (suspect) IP origin address.

5 EXPERIMENTAL EVALUATION

The proposed intrusion detection and prevention

framework has been implemented and experimentally

evaluated, with the goal of determining the effective-

ness (in regard of its capability of detecting and re-

acting to attacks in a timely fashion) of the proposed

mechanisms, as well as its impact in the critical re-

sources available in constrained sensing platform, in

particular memory, computational power and energy.

We start our discussion by describing our experimen-

tal evaluation setup.

5.1 Experimental Evaluation Setup and

Goals

As previously discussed, we have implemented and

experimentally evaluated the proposed framework

and security mechanisms. In Figure 5 we illustrate

the experimental evaluation scenario. As illustrated,

CoAP requests, as well as other types of messages

targeting a constrained sensing device, may be origi-

nated either at another WSN device or at an external

(Internet) host.

6LBR

External

(Internet) host

Internal

(sensing device)

Internal

(sensing device)

Attack / CoAP messages

Attack /

CoAP messages

WSN Internet

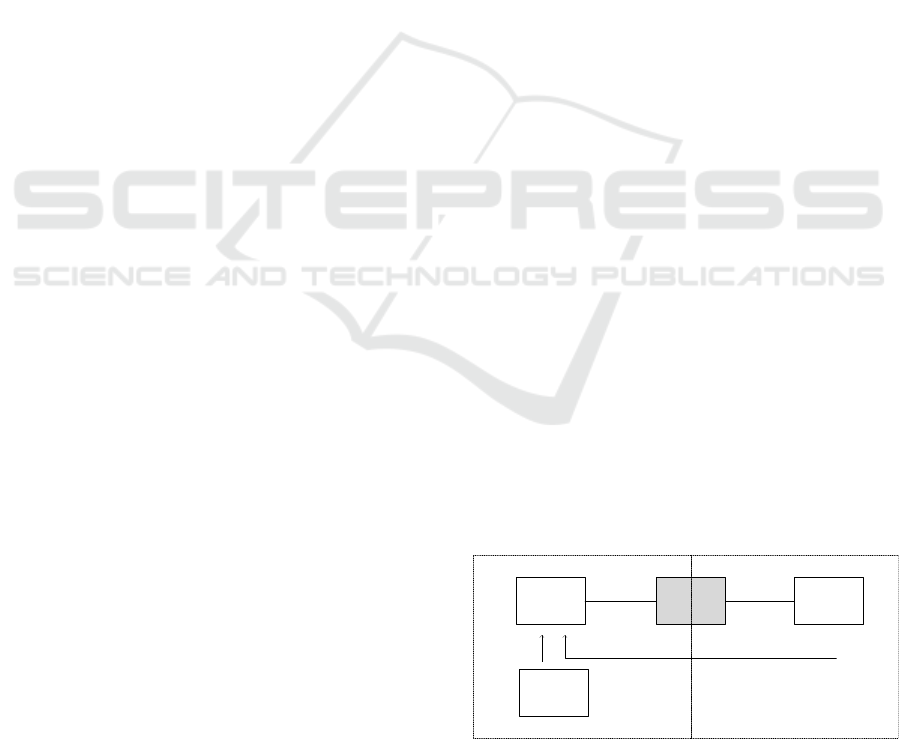

Figure 5: Experimental evaluation setup.

We have modiﬁed the source code of the Contiki

operating system (Dunkels et al., 2004), with the goal

Intrusion Detection and Prevention with Internet-integrated CoAP Sensing Applications

169

of implementing and experimentally evaluating the

proposed intrusion detection and prevention mecha-

nisms, using a MTM-CM5000MSP TelosB. As for

the support of the 6LBR, we employ a Raspberry Pi

model B device running Linux (Raspbian) to support

forwarding of communications, as well as security

management and ﬁltering. In this setup we send dif-

ferent types of request messages to a CoAP sensing

device and at different rates, with the goal of evaluat-

ing the effectiveness of the implemented mechanisms

in dealing with DoS, as well as attacks against CoAP.

Our main goal is to experimentally evaluate the im-

pact of intrusion detection and prevention on the re-

sources of constrained devices and on the operations

of IoT applications employing 6LoWPAN and CoAP,

in particular via the following strategy:

• Evaluate the impact of security on the memory of

the sensing device. Memory is a scarce resource

on such devices, and as such this is important in

order to ascertain on the effectiveness of our pro-

posal.

• Evaluate the energy consumption on the con-

strained sensing device in the presence of attacks,

in comparison with normal operations, as this di-

rectly inﬂuences the achievable lifetime of IoT ap-

plications.

With the previous goals in mind, we proceed by

discussing the three considered experimental evalua-

tion scenarios.

5.2 Evaluation Scenarios

We have considered the following complementary ex-

perimental evaluation scenarios, with the following

goals:

• Scenario E1 - Filtered CoAP external requests: in

this scenario the sensing device is already block-

ing requests to resource coap1, originated at a

known external (in the Internet) device.

• Scenario E2 - Notify and block at the 6LBR (ex-

ternal attacker): in this scenario we consider a

known device in the Internet sending CoAP re-

quests to resource coap2 on the constrained sens-

ing device. According to the previously discussed

security policy, the sensing device is conﬁgured to

notify the 6LBR when a given IP address trans-

mits 5 or more requests per minute to a given

CoAP resource. Upon receiving such notiﬁca-

tions, 6LBR blocks further forwarding of commu-

nications.

• Scenario E3 - Notify and block (internal attacker):

in this scenario, we consider a known internal

attacker (in the same WSN as the attacked de-

vice), sending requests to the resource coap2. The

attacked sensing device is conﬁgured to notify

the 6LBR when receiving 5 or more requests per

minute directed to that resource, and upon receiv-

ing such notiﬁcations the 6LBR is conﬁgured to

notify the devices in the WSN to block further re-

quests received from the attacker.

Other than the three previous scenarios, we also

consider the existence of a CoAP device fully exposed

to internal and external communications. In this sce-

nario, CoAP requests to resource coap1 are received

from an unknown external device, and the sensor tries

to honor (receive and process) all such requests, thus

being fully exposed to DoS and attacks against CoAP.

This scenario may thus provide us with a baseline for

comparing with the aforementioned evaluation sce-

narios with security.

5.3 Impact on Memory

In Figure 6 we illustrate the impact of the proposed in-

trusion detection and reaction mechanisms, when im-

plemented in Contiki, in the memory available in the

sensing device. The implementation of CoAP with

security (IDS) supports the previously discussed in-

trusion detection and prevention mechanisms. The

impact of our IDS implementation on Contiki is of

10.6% in the case of RAM (6830 bytes are used with

IDS, against 6173 without security), and of 5.6% in

the case of ROM (for the program code, requiring

44926 bytes with security against 42528 bytes with-

out security).

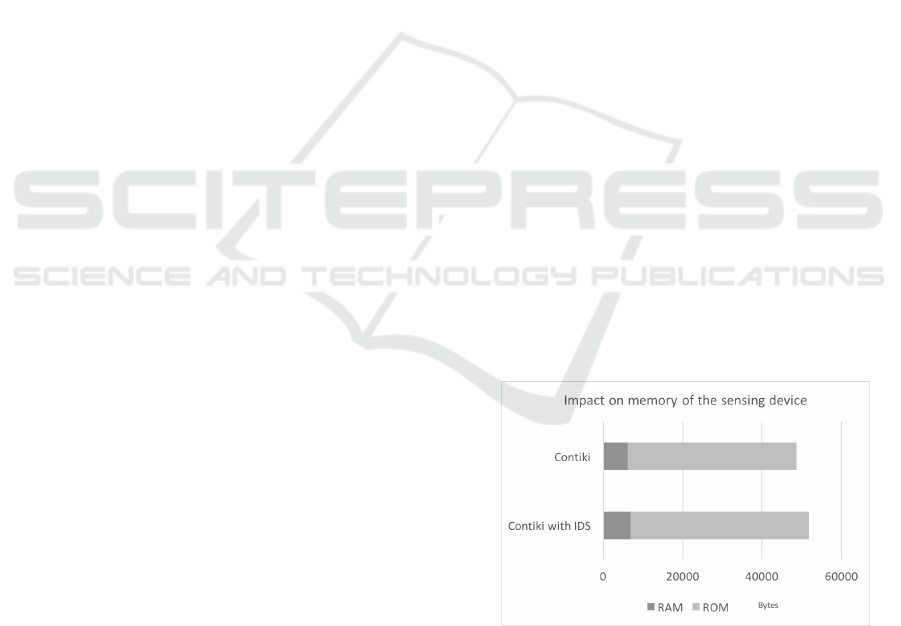

Figure 6: Impact of the proposed framework on the memory

available on the sensing device.

Regarding the previously discussed measure-

ments, we may safely consider that intrusion detec-

tion and prevention (together with the ﬁrewall and

security management modules) demands an accept-

able overhead on the memory available on the sens-

ing device, thus not compromising the employment

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

170

of the previously discussed security functionalities on

devices with the characteristics of the TelosB.

5.4 Impact on Energy

Energy is a critical resource on IoT environments,

considering that many constrained sensing platforms

still depend on batteries. Therefore, the communica-

tions and security protocols must be efﬁcient in terms

of the required energy, in order not to compromise

the lifetime of the IoT application at hand. With the

purpose of measuring the energy consumption of in-

trusion detection and prevention, we have employed

Powertrace (Dunkels et al., 2011) with Energest to

proﬁle power consumption in Contiki. This tool is

characterized by around 94% of reported accuracy in

its energy measurements. Using Energest, we are able

to measure the CPU and radio cycles spent by the

sensing device, when receiving communications and

processing security, measured at each 20 seconds, for

a period of at least 80 seconds. In each experience, we

start making requests to a sensing device in the begin-

ning of the second period of 20 seconds and refuse the

measures taken by Energest in the ﬁrst period. Thus,

we collect the next three 20 second periods measured

by Energest, and calculate the average cycles per sec-

ond used by the sensing device in a 60 second period.

Energest reports the CPU, LPM, Tx and RX measure-

ments, from which are may analytically obtain the

power usage. We consider 3V as standard voltage for

our calculations, and that a node is in low power mode

(LPM) when the radio is off and the MCU (micro con-

troller unit) is idle. We calculate the CPU time when

the MCU is on. In Figure 7 we illustrate the power re-

quired (in mW) to process different number of CoAP

requests, considering the previously discussed conﬁg-

urations (with and without security).

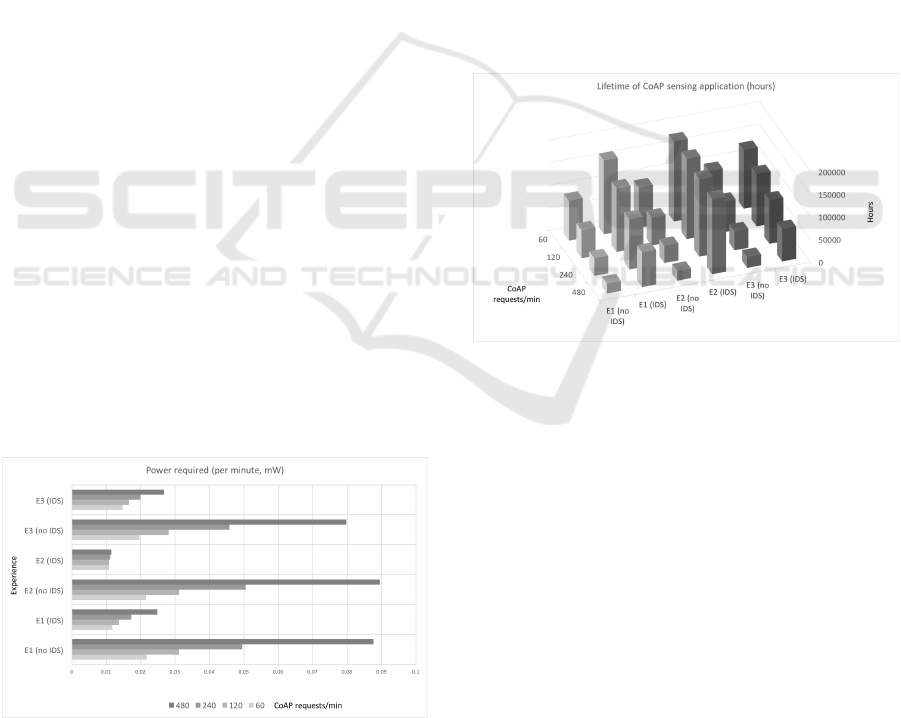

Figure 7: Power required to process CoAP requests (with

and without IDS).

As can be observed in the previous Figure, the im-

pact of the implement security mechanisms provides

evident energy savings, if compared with the corre-

spondent experimental evaluation scenarios where the

sensor is exposed to attacks and thus without intru-

sion detection and reaction mechanisms. For exam-

ple, in the scenario E3 without security the device

is attacked by an internal attacker and up to 0,079

mW are required to process 480 CoAP requests in a

minute, while security in this case (scenario E3 with

IDS) lowers this requirement to 0,026mW, or aproxi-

matelly 32% of the original value.

5.5 Lifetime of Sensing Applications

Another useful evaluation is on the impact of security

on the lifetime of IoT applications. Thus, considering

our previous measurements on the energy required in

the various evaluation scenarios, and the availability

of two new AA-type batteries in the sensing device,

we are able to analytically derive the expected life-

time of IoT applications, that we illustrate in Figure

Figure 8: Lifetime (analytical) of CoAP applications (with

and without IDS).

It is important to note that the previously illus-

trated results consider only the energy required for

processing communications and security, thus not ac-

counting the impact of other operations related with

the IoT application at hand. Nevertheless, it allows us

to ascertain on weather intrusion detection and pre-

vention may compromise the goals of the application,

in what respects the lifetime of sensing devices run-

ning on batteries. The effectiveness of the proposed

security mechanisms is again visible in this evalua-

tion. In the worst scenario (E3 for 480 CoAP requests

per minute), security still provides approximatively

71700 hours of lifetime, in contrast with only ap-

proximately 24060 without security. Also, if we con-

sider the baseline measurements (E1 without secu-

rity), for 480 requests per minute the achievable life-

time (21900 hours) is less than one third of the coun-

terpart with security (approximately 72240 hours).

Intrusion Detection and Prevention with Internet-integrated CoAP Sensing Applications

171

6 CONCLUSIONS AND FUTURE

WORK

In this article we propose an architecture for dis-

tributed intrusion detection and reaction in Internet-

integrated CoAP sensing environments, and evalu-

ate its effectiveness in detecting and reacting to at-

tacks, as well as the impact of the proposed secu-

rity mechanisms on the memory and energy of con-

strained wireless sensing devices. As we have ob-

served, the proposed framework is ﬂexible and exten-

sible, so that other attacks (which can also be detected

at the network, routing and application layers) can be

supported in the future. As future work, we plan to

extend the detection and ﬁltering capabilities of the

framework to detect new types of application attacks

against the CoAP protocol.

REFERENCES

Bormann, C., Castellani, A. P., and Shelby, Z. (2012). Coap:

An application protocol for billions of tiny internet

nodes. IEEE Internet Computing, 16(2):62–67.

Dunkels, A., Eriksson, J., Finne, N., and Tsiftes, N. (2011).

Powertrace: Network-level power proﬁling for low-

power wireless networks.

Dunkels, A., Gronvall, B., and Voigt, T. (2004). Contiki-a

lightweight and ﬂexible operating system for tiny net-

worked sensors. In Local Computer Networks, 2004.

29th Annual IEEE International Conference on, pages

455–462. IEEE.

Kasinathan, P., Pastrone, C., Spirito, M. A., and Vinkovits,

M. (2013). Denial-of-service detection in 6lowpan

based internet of things. In Wireless and Mobile Com-

puting, Networking and Communications (WiMob),

2013 IEEE 9th International Conference on, pages

600–607. IEEE.

Le, A., Loo, J., Lasebae, A., Aiash, M., and Luo, Y.

(2012). 6lowpan: a study on qos security threats and

countermeasures using intrusion detection system ap-

proach. International Journal of Communication Sys-

tems, 25(9):1189–1212.

Lee, T.-H., Wen, C.-H., Chang, L.-H., Chiang, H.-S., and

Hsieh, M.-C. (2014). A lightweight intrusion detec-

tion scheme based on energy consumption analysis

in 6lowpan. In Advanced Technologies, Embedded

and Multimedia for Human-centric Computing, pages

1205–1213. Springer.

Montenegro, G., Kushalnagar, N., Hui, J., and Culler,

D. (2007). Transmission of ipv6 packets over ieee

802.15. 4 networks. Technical report.

Palattella, M. R., Accettura, N., Vilajosana, X., Watteyne,

T., Grieco, L. A., Boggia, G., and Dohler, M. (2013).

Standardized protocol stack for the internet of (impor-

tant) things. IEEE communications surveys & tutori-

als, 15(3):1389–1406.

Raza, S., Wallgren, L., and Voigt, T. (2013). Svelte: Real-

time intrusion detection in the internet of things. Ad

hoc networks, 11(8):2661–2674.

Rghioui, A., Khannous, A., and Bouhorma, M. (2014).

Denial-of-service attacks on 6lowpan-rpl networks:

Threats and an intrusion detection system proposition.

Journal of Advanced Computer Science & Technol-

ogy, 3(2):143.

Rghioui, A., Khannous, A., and Bouhorma, M. (2015).

Monitoring behavior-based intrusion detection system

for 6lowpan networks. International Journal of Inno-

vation and Applied Studies, 11(4):894.

Shreenivas, D., Raza, S., and Voigt, T. (2017). Intrusion

detection in the rpl-connected 6lowpan networks. In

Proceedings of the 3rd ACM International Workshop

on IoT Privacy, Trust, and Security, pages 31–38.

ACM.

Surendar, M. and Umamakeswari, A. (2016). Indres: An

intrusion detection and response system for internet

of things with 6lowpan. In Wireless Communications,

Signal Processing and Networking (WiSPNET), Inter-

national Conference on, pages 1903–1908. IEEE.

Winter, T. (2012). Rpl: Ipv6 routing protocol for low-power

and lossy networks.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

172
