Energy Monitoring IoT Application using Stream Reasoning

Varun Shah

, Suman Datta

, Debraj Pal

, Prateep Misra

and Debnath Mukherjee

Union College, NY, U.S.A.

TCS Innovation Labs, Tata Consultancy Services, Kolkata, India

Keywords: Energy Monitoring, Stream Reasoning, Internet of Things, Maintainability.

Abstract: We consider the application of stream reasoning to the problem of monitoring energy consumption of a

premises with buildings, each building having multiple floors. The floors have energy meters in several

categories such as AC, UPS and Lighting. The objective is to compute the real-time aggregate energy

consumption and alert whenever energy consumption thresholds are crossed, at the building, floor or meter-

type level, thus determining whether there is overloading. We also want to have a solution that can be easily

applied to a large number of floors and buildings. We show how just a few continuous SPARQL queries and

performance enhancing rules can implement the solution. Finally we compare the performance of queries

with and without the HAVING clause and with and without using entailments from rules.

1 INTRODUCTION

Monitoring the energy consumption of a premises is

important as it prevents overloading and power

outages, allowing the business to run smoothly.

Furthermore, being informed of their current power

consumption patterns gives companies the

opportunity to develop more energy-efficient

approaches to power consumption which would help

reduce electricity expenses. More and more energy-

efficient technologies are emerging and developing a

system that can monitor and measure their

performance is of utmost importance.

An energy monitoring system is also one

example where the Internet of Things (IoT)

technology can be applied. The "things" here are the

energy meters and the IoT message payloads are the

energy meter readings. These readings are captured

at a central processing facility. In this paper, we

discuss energy monitoring of premises and build-

ings and floors within the buildings. The processing

consists of generation of alerts when thresholds are

crossed.

In this paper, we consider the design of an

energy monitoring system (EMS) for a building with

multiple floors, each having meters that measure the

power consumption of AC, UPS and LIGHTING on

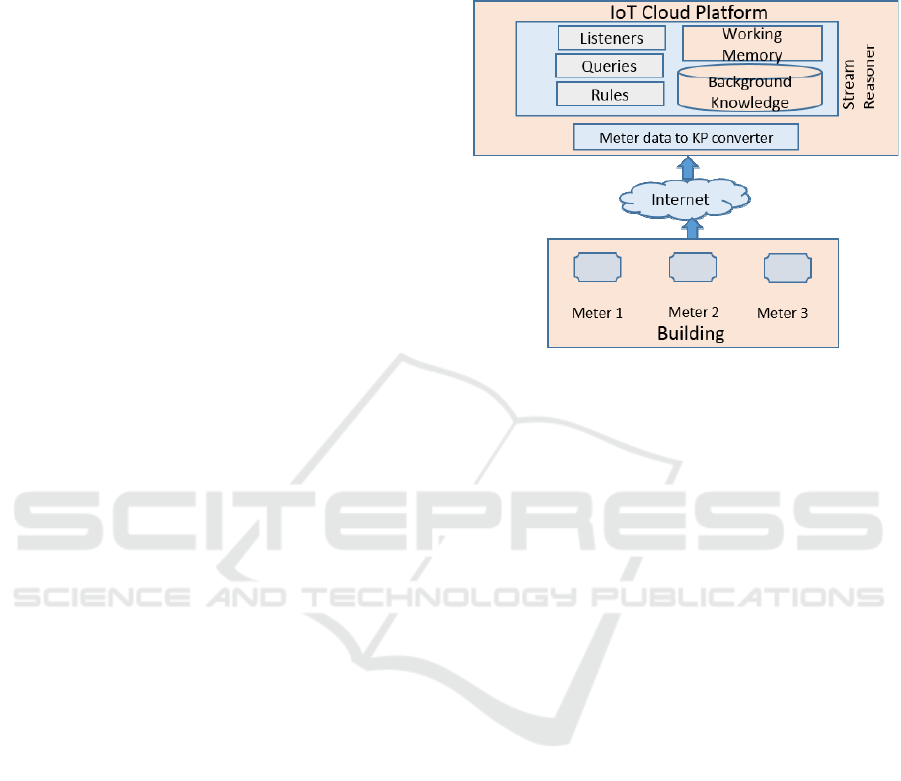

that floor. The meters stream dynamic data

continuously to an IoT cloud platform housing a

stream reasoner. The stream reasoner performs

reasoning over the dynamic meter data and back-

ground knowledge about the relationships between

meters and their location (floor, building). The

stream reasoner is used to send out alerts when

certain thresholds of power consumption are crossed

e.g. building-level, floor-level, meter type level etc.

One of the important requirements of EMS

addressed in this paper is maintainability: how the

system can be implemented such that a large number

of buildings can be monitored with only a few

continuous queries and rules. The QUARKS

(QUerying And Reasoning over Knowledge

Streams) stream reasoner (Mukherjee, Banerjee and

Misra 2013) has been adopted to implement the

energy monitoring system.

The contributions of this paper are:

 Design of an ontology for the energy

monitoring application which combines both

meter domain and building domain

 A combination of only a few rules and

continuous queries using aggregate functions to

implement energy consumption monitoring in a

premises

 Design of maintainable Continuous SPARQL

queries that yield comprehensive and accurate

results

 Configuration of sliding windows that perform

real-time analytics on dynamic data

Shah, V., Datta, S., Pal, D., Misra, P. and Mukherjee, D.

Energy Monitoring IoT Application using Stream Reasoning.

DOI: 10.5220/0006782006270634

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 627-634

ISBN: 978-989-758-298-1

627

 Evaluation of the pros and cons of using count-

based sliding windows for energy monitoring

 Experimental performance evaluation using

energy monitoring use cases.

 An analysis outlining the various advantages

and disadvantages of the different types of

queries used.

The rest of the paper is organized as follows: Section

2 presents the Problem Statement, Section 3 presents

the Related Work, Section 4 presents the Solution

Approach, Section 5 presents experiments and

results, and Section 6 presents Analyses of results.

Section 7 concludes the paper and discusses future

work.

2 PROBLEM STATEMENT

We are given a premises having a number of

buildings. Each of these buildings have an

overloading threshold. Additionally, every floor of

each of these buildings has its own overloading

threshold. Each floor has 3 meters of type

AC_meter, UPS_meter and LIGHTING_meter.

Each type of meter has its own overloading

threshold as well. Our goal is to develop a system

that sends out alerts if, at any given point of time,

any of these thresholds is exceeded.

To be more specific, an alert is sent out if, at

any point of time, any of the following cases are

true:

 All meters in a building have a total

consumption greater than or equal to the

building threshold.

 All meters on a floor have a total consumption

greater than or equal to the floor threshold.

 All AC_meter meters, UPS_meter meters and

LIGHTING_meter meters in a building or floor

have a total consumption greater than or equal

to the AC_meter threshold, UPS_Meter

threshold or LIGHTING_meter thresholds for

the building or floor respectively.

3 RELATED WORK

In this section, we discuss related work on energy

monitoring and stream reasoning.

(Vijayaraghavan and Dornfeld 2010) discusses

how to monitor energy consumption patterns and

reduce it to improve the environmental performance

of manufacturing systems. This is achieved through

stream processing techniques for automatic

monitoring and energy consumption. This paper

describes a software based approach for automated

energy reasoning to support decision making,

concurrent energy monitoring, scalable architecture

for large data and modular architecture for analysis.

The software also includes components to normalize

data exchange with a rules engine and complex

event processing (CEP) to handle data reasoning and

processing.

(Vikhorev, Greenough and Brown 2013)

proposes an advanced energy management

framework to monitor and manage energy in factory.

It also does real time energy data analysis and

performance measurement of energy usage. Key

performance indicators (KPIs) are used to monitor

energy and measuring performance indicators.

Further analysis and optimization are done on the

result data. Complex event processing technique is

used to do real time analysis using a set of tools and

algorithms. It also displays the result data in a graph

for better visualization.

In related work on stream reasoners, C-

SPARQL (Barbieri et al 2009) is an early stream

reasoner that defined a language for stream

reasoning based upon SPARQL and its windowing

mechanisms. CQELS (Le-Phuoc et al 2011) is

another stream reasoner which demonstrates good

performance and is based on a native approach

without using existing data stream management

systems. The stream reasoner QUARKS has

usability features such as knowledge packets,

incremental queries and application managed

windows and also shows good performance.

This paper discusses the application of Stream

Reasoning using the QUARKS stream reasoner in

energy monitoring. Compared to (Vijayaraghavan

and Dornfeld 2010), our work is focused on

maintainability aspects i.e. application to large

number of floors, buildings and premises. We

discuss potential for improvement of performance

using rules. Also it signals an alert for any kind of

threshold violation at any level.

4 SOLUTION APPROACH

We outline the solution approach in this section. We

discuss energy monitoring systems and our solution

using stream reasoning.

4.1 Energy Monitoring Systems

Energy Monitoring Systems (EMSs) use sensors and

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

628

meters that capture energy consumption, occupancy,

temperature etc. and create analytical models in

order to optimize energy consumption across offices

and homes. Right data models combined with

advanced machine learning techniques can enable an

EMS to continuously improve its behavior, leading

to better predictive capabilities and increased

accuracy of anomaly detection on an ongoing basis.

It is also very important to get real-time visibility

and alerting for the anomalies detected. This work

implements alerting based on thresholds. It has been

tested on energy consumption (classified into

appliance categories like Lighting, HVAC etc.) and

occupancy data obtained from a large office

building.

4.2 Application Ontology

To model the problem, we present our design of an

ontology composed of building elements and meter

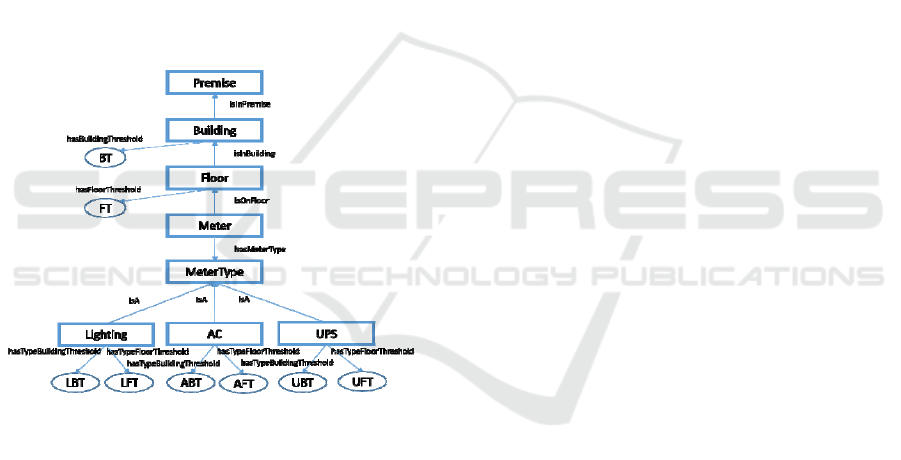

elements. The ontology is presented in Figure 1.

Figure 1: Ontology used in the application.

The rectangles represent “resources” and the ovals

are “literals”. The abbreviations are BT: Building

Threshold, FT: Floor Threshold, LBT: Lighting

Building Threshold, LFT: Lighting Floor Threshold,

ABT: AC Building Threshold, AFT: AC Floor

Threshold, UBT: UPS Building Threshold and UFT:

UPS Floor Threshold.

The Building elements are connected to

Premise elements using isInPremise predicate (i.e.

Buildings are located in a Premise), the Floor

elements are connected to Building using

isInBuilding predicate (i.e. Floors are located in a

Building). Building elements have a

BuildingThreshold property which represents the

energy threshold for the aggregate energy

consumption of all meters in the building, which

when crossed triggers an alert. Similarly, Floors

have a FloorThreshold property.

Meters are associated with Floors via the

isOnFloor predicate. It signifies that a meter is

located on the specified floor. Meters have meter

types which could be either: Lighting, AC or UPS.

Each meter type has a building threshold which

represents the aggregate energy consumption for all

the meters of that type in the building beyond which

alerts will fire. Similarly, meter types have a floor

threshold for aggregate energy consumption of all

meters of that meter type on floors.

It is to be noted that the ontology depicted

above is used in the static background knowledge of

the energy monitoring application.

4.3 Why Stream Reasoning?

We are dealing with continuous, real-time, dynamic

streams of reading data. Had we been working with

static data, a query based approach would have been

sufficient. However, for dynamic real-time analytics,

we must adopt the stream processing approach.

This problem requires us to build associations

between meters, floors, buildings and meter types.

This requires reasoning over static knowledge as

well as dynamic knowledge. An example of a static

fact is that a meter, meter_1 is on floor_1. The static

fact is thus represented as an RDF (Resource

Description Framework) triple:

<meter_1, isOnFloor, floor_1>

Two examples of a dynamic facts are the following:

<reading_1 hasMeter meter_1>

<reading_1 hasValue val>

The reading_1 represents a meter reading streamed

from the meter to the stream reasoner after

conversion of raw meter data to the RDF triple

format. The set of two dynamic facts are part of a

Knowledge Packet (KP) in QUARKS. (Triples in a

KP are processed atomically by the QUARKS

stream reasoner). The first dynamic fact states that

the reading originates from meter meter_1. The

second dynamic fact states that the reading has a

value of “val” (val is a literal which contains the

actual energy consumption of the meter).

Using the static fact and the two dynamic facts we

can compute the aggregate energy consumption on

the floor by a SPARQL query, as follows:

Select ?floor sum(xsd:float(?value)) where {

?meter isOnFloor ?floor.

?reading hasMeter ?meter.

?reading hasValue ?value.

Energy Monitoring IoT Application using Stream Reasoning

629

} GROUP BY ?floor

Further we might define rules that allow us to reason

over the background knowledge to derive the

building-level energy consumptions: since we know

that a meter is on a specific floor and the floor is in a

specific building, we can associate a meter with the

building using a rule and then compute the sum of

all meter readings within the building.

For example, we know from the background

knowledge that the meter_1 meter is on floor floor_1

and that it is of type AC_meter. Again, from the

background knowledge we know that floor_1 is

located in building building_1. Thus we can reason

automatically that meter_1 is located in building_1.

Similarly, we can also associate AC_meter with

building_1 since we know that meter_1 is an

AC_meter and is located in building building_1.

This reasoning becomes important when we are

calculating energy consumption at the meter type

level and are required to query all the AC_meter

meters in building_1.

The energy consumption reported by meter_1

(i.e. the reading of meter_1) is constantly changing

and is an example of continuously streamed dynamic

data. Now, we not only have to associate meter_1

with building_1 but also the reading of meter_1 with

building_1.

Thus we see that both dynamic facts and static

facts are required in the reasoning and querying,

necessitating a stream reasoner.

4.4 Design and Architecture

The energy monitoring system described in this

paper uses the stream reasoner, QUARKS, which

uses query processor and reasoner of Apache Jena.

QUARKS accepts streams of facts expressed as

triples and encapsulated in data structures called

knowledge packets (KP). These dynamic facts are

combined with static facts stored in background

knowledge in a working memory. Rules are run

using the fast Rete reasoner (Forgy 1982). Then

continuous SPARQL queries are fired to discover

situations which need alerting. These situations are

conveyed to listener objects which takes necessary

actions for generating alerts. The architecture of the

application is depicted in Figure 2.

An important component of the architecture

is the “meter data to KP converter”. The meter data

is simply an energy reading. Along with the reading,

the meter id can also be obtained. The KP converter

takes these two information and constructs a

knowledge packet consisting of two triples:

<reading_1, hasMeter, meter_1>

<reading_1, hasValue, value>

The KP converter sends the KP to the stream

reasoner.

Figure 2: Architecture of the application.

The output generated by the continuous queries are

handled by the query listener objects which “listen”

to the query and processes the results produced by it.

Processing could include printing these results or

performing mathematical computations using these

results or even comparing these results with an

instance variable (like a threshold) and only printing

them under certain conditions (like if the threshold

has been exceeded).

QUARKS supports windows. A count-based

window is used to monitor the meter reading values.

The way a count-based window works is that it

processes a specified number of events at once. In

the case of our problem, the count-based window

processes a number of meter readings together. The

syntax is: COUNT N, where N is the number of

events (KP) maintained in working memory. This

count-based window slides by taking N events,

processing them and then adding the newest event

after deleting the oldest one. This window slides by

1 and only one event is added as another is deleted,

thus, maintaining N events at all times.

This sliding count-based window allows us to

continuously process meter reading events together

which is useful because for the computation we need

to perform, we need data from all the meters at a

given time. With a sliding window, we can

continuously add the latest meter reading while

deleting the oldest one. This allows for real-time

energy monitoring.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

630

4.5 Solution Details

In order to instantaneously monitor energy, we have

designed building-level, floor-level and meter type-

level queries that are fired simultaneously,

additionally configuring floor-level, building-level

and meter type-level thresholds and meter-floor,

floor-building, and meter-type relationships in the

background knowledge.

Continuously streamed dynamic knowledge is

converted into triples that give us information

regarding the meters and their readings. These

triples could have been constructed in a number of

different ways:

 <meter, hasValue, value>: This triple creates a

direct association between a meter and its power

consumption at a given point in time. However,

for two readings of the same meter which have

the same value, the system overwrites the

reading with the most recent reading observed

in the stream. For our purpose, we need

readings of each meter separated by time.

 <reading, hasMeter, meter>, <reading,

hasValue, value>: Here, we are using two

triples to separately store a meter and its

reading. With each new event, the value of

“reading” (which is a resource in this case)

serves as an iterator which helps us identify the

chronological order of events. Reading values

are stored as “reading1”, “reading2”, …

“reading n”. This ensures that the subject is

unique for every event, therefore, preventing the

overwriting problem we faced with the previous

triple.

Now that we have both static as well as dynamic

knowledge, let us dive into the reasoning part of this

solution. In addition to the background knowledge,

we have written a number of rules that the stream

reasoner uses to reason on:

Rule 10002: Building Meter Rule

(?meter isOnFloor ?floor)

(?floor isInBuilding ?building)

→(?meter hasBuilding ?building)

In this rule, if a meter is located on a particular floor

and that floor is located in a particular building,

there is a direct association created between the

meter and the building. Both the triples are obtained

from the background knowledge.

Rule 10003: Building Reading Rule

(?meter hasBuilding ?building)

(?reading hasMeter ?meter)

→ (?reading hasReadingBuilding ?building)

In this rule, we condense the combination of two

triples into one. Here, if a meter is located in a

certain building, then the reading resource adopts its

value as the building's value. It should be noted that

the first triple is an entailment of Rule 10002

described earlier in this section. Therefore,

executing this rule will automatically execute the

Building-Meter Rule.

rule10005: Reading Meter Type Rule

(?meter hasMeterType ?type)

(?reading hasMeter ?meter)

→ (?reading hasReadingMeterType ?type)

This rule builds an association between the reading

and type of meter that is being reported. Here, if a

meter has a certain type, then the reading resource

adopts its value as the meter type's value.

Rule 10006: Floor Value Rule

(?meter isOnFloor ?floor)

(?reading hasMeter ?meter)

→ (?reading hasReadingFloor ?floor)

Here, if a meter is located on a particular floor, then

the reading resource adopts its value as the floor's

value. Thus, this rule builds an association between

the reading and the floor on which it is recorded.

Rule 10001: Remove Meter Value Rule

(?reading hasMeter ?meter)

(?reading hasValue ?value)

(?reading removeMeter ?meter)

(?reading removeValue ?value)

→ remove(0) remove(1) remove(2) remove(3)

When we wish to delete an event, we simply add the

corresponding “remove” triples to the working

memory. An example of a remove triple is:

<reading1, removeMeter, meter1>. These newly

added “remove” triples in the working memory

match the meter and value of an existing reading.

Once the appropriate triples with the specific ?me-

ter and ?value have been found, they (including the

corresponding “remove” triples) are removed from

the working memory and are no longer included in

any computations, facilitating the “slide”.

Now that we have our repertoire of rules, we

can implement them in queries at the different

levels:

Query 01: Building-level Query

SELECT ?building ?threshold

(SUM(xsd:float(?value)) as ?sumBuilding) WHERE

{

?reading hasReadingBuilding ?building.

?building hasBuildingThreshold ?threshold.

?reading hasValue ?value.

Energy Monitoring IoT Application using Stream Reasoning

631

}

GROUP BY ?building ?threshold

HAVING (SUM(xsd:float(?value)) >=

AVG(xsd:float(?threshold)))

This query returns the continuous building-level

power consumption if, and only if, the total power

consumption of the building meets the building-level

threshold at that particular time. There are multiple

<building, hasBuildingThreshold, threshold> triples

in the result that all have the same threshold value

but are continuously added due to the number of

events generated by the same building. Therefore,

we would not be able to compare the ?sumBuilding

to ?threshold as there are multiple threshold values

for the same subject and predicate leaving the

system confused as to which particular value we are

referring to, even though they are all the same! Thus,

a good way around that problem is to compare

?sumBuilding with the with the average value of

?threshold since all the values we are considering

are the same.

Similarly we could have a floor level query as

mentioned below:

Query 02: Floor level Query

SELECT ?floor ?threshold (SUM(xsd:float(?value))

as ?sumFloor) WHERE

{

?reading hasReadingFloor ?floor.

?floor hasFloorThreshold ?threshold.

?reading hasValue ?value.

}

GROUP BY ?floor ?threshold

HAVING (SUM(xsd:float(?value)) >=

AVG(xsd:float(?threshold)))

Query 03: Type Building-level Query

SELECT ?type ?building ?threshold

(SUM(xsd:float(?value)) as ?sumType) WHERE

{

?reading hasReadingMeterType ?type.

?reading hasReadingBuilding ?building.

?type hasTypeBuildingThreshold ?threshold.

?reading hasValue ?value.

}

GROUP BY ?type ?building ?threshold

HAVING (SUM(xsd:float(?value)) >=

AVG(xsd:float(?threshold)))

This query returns the continuous meter type-level

power consumption if, and only if, the total power

consumption of that meter type meets the building

meter type-level threshold at that particular time.

Similarly, we can have a Type Floor-level

Query (Query 04), definition of which is similar to

the Type Building-level Query.

Note that the queries above output the location

(building, floor) as well as type of meter (AC, UPS

etc). This gives the user comprehensive information

about the alert.

This design makes the energy monitoring

application modular as it gives the user the option to

set floor-level thresholds for each type of meter.

All the queries described above implement a

count-based sliding window of value 12, since there

are a total of 12 different meters in our data set

which means that, for any given time, there will be

12 distinct meter readings.

Note that these queries only display the results

when one of the thresholds has been met thus saving

us the pain of writing code for the listener to check if

the sum of energy readings is meeting a threshold

and having the queries to function as per our specific

requirement.

5 EXPERIMENTS AND RESULTS

In this section we present the experiments, results

and analyses.

5.1 Experiments Conducted

The experiments conducted were:

Experiment 1: Compare the query times for the

building level query with and without rules, and with

and without the having clause

Experiment 2: Repeat the above for the floor level

query.

The experiments were conducted on an Intel

Core I5 2.67 GHz CPU with 4 GB RAM. As already

mentioned in Section 4.1, the system has been tested

on energy consumption (classified into appliance

categories like Lighting, UPS etc.) obtained from a

large office building.

All experiments were run with 1000 events

(readings) and the results were averaged.

5.2 Results

Table 1 shows results for building level query.

Times are in milliseconds. (Insert time is the time to

insert in working memory). The following codes are

used in the table: B – building level query, F – floor

level query, R – with rules, H – with HAVING.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

632

Table 1: Building level query analysis.

Scenario Query

time

Insert

time

Listener time

BRH 3.261 0.3096 0.052

BR 2.389 0.299 0.037

BH 3.578 0.198 0.044

B 2.847 0.171 0.0437

The results for floor level query are in the table

(Table 2) below.

Table 2: Floor level query analysis.

Scenario Query

time

Insert

time

Listener time

FRH 3.198 0.345 0.122

FR 2.898 0.2685 0.2283

FH 3.253 0.207 0.091

F 3.228 0.223 0.207

6 ANALYSIS OF RESULTS

The results show us that the queries perform best

when the HAVING clause is not implemented. It

would make sense that removing the HAVING

clause would increase the performance of these

queries as it allows us to omit querying for each

threshold and then comparing the power con-

sumption to those different thresholds. Therefore,

each query executes fewer computations and runs

faster, leaving the bulk of the work for the listeners

to do.

Regarding the performance enhancing rules, the

performance enhancement is seen only in specific

queries where the corresponding query without rule

support would have a large number of patterns. In

our case, some improvement is seen in the building

level query (Query 01). The building level query is

aided by 2 rules: Building Meter Rule (Rule 10002)

and Building Reading Rule (Rule 10003), where the

former rule output is used in Rule 10003. The

Building level query has 3 patterns whereas the

same query without rules would need 5 patterns.

While the Building Meter rule works on static

background knowledge, it will always remain pre-

computed in the working memory and is therefore

efficient. However Building Reading rule has to be

computed every time a reading is received.

The system performs best without the HAVING

clause. This is because, removing the HAVING

clause means there will be less processing load on

the SPARQL processor, therefore, improving

performance. Furthermore, we no longer need to

query for the threshold of each floor/building/meter

type which, again, eases the processing load for the

SPARQL engine.

Based on the above, it may seem that removing

the HAVING clause and implementing the threshold

checking logic in the listener would be the best

approach. However, there is a big disadvantage in

making the listener compute and manage thresholds.

It entails writing a tedious amount of code. In this

approach, we are not utilizing SPARQL to its fullest

and are depending on regular code to monitor the

energy. A big disadvantage with this design is the

lack of modularity in the system. This is because,

while it is fairly simple to declare instance variables

that describe thresholds for different meter types,

floors and buildings, it is extremely tedious to do

this in cases where there are many buildings in the

premises: this means the number of floors increases

manifold. By managing threshold overloading

within the query itself, we simply access the

background knowledge to identify the various

thresholds instead of hard coding each of them

individually. Also all configuration data including

floor, building, meter type etc. and the thresholds are

maintained in the background knowledge, making it

more convenient for SPARQL continuous queries to

access them, and eliminating need for additional

code in listener.

7 CONCLUSION AND FUTURE

WORK

We conclude that despite the fact that the queries

without the HAVING clause perform the best in our

use case, it is better to develop queries that

implement the HAVING clause since that would

reduce the load on the listeners, the lines of code

having to be written and would make our energy

monitoring system far more modular and main-

tainable. Moreover, we have shown that the entire

energy monitoring system can be implemented using

only a few rules and continuous queries.

Further, as currently implemented, our energy

monitoring system uses a sliding count-based

window which accepts as many values as there are

meters. Since the data fed in is ordered by time and

meter, the window contains a reading from each of

the meters at all times. However, these readings are

not necessarily recorded at the same time. This is

because of the sliding feature. This is why, we can

also consider a tumbling window. This way, the

Energy Monitoring IoT Application using Stream Reasoning

633

window will contain all the meter readings at a

particular time, and once all the readings have come

in, it will delete all of them and add the next

specified number of readings.

REFERENCES

Barbieri, D., Braga, D., Ceri, S., Valle, E., Grossniklaus,

M. 2009: C-SPARQL: SPARQL for continuous

querying. In: Proceedings of the 18th World Wide

Web Conference, 1061–1062. ACM.

Forgy, C.L.1982. Rete: A Fast Algorithm for the Many

Pattern / Many Object Pattern Match Problem.

Artificial Intelligence 19, 17–37.

Le-Phuoc, D., Dao-Tran, M., Xavier Parreira, J.,

Hauswirth, M. 2011. A native and adaptive approach

for unified processing of linked streams and linked

data. In: Aroyo, L., Welty, C., Alani, H., Taylor, J.,

Bernstein, A., Kagal, L., Noy, N., Blomqvist, E. (eds.)

ISWC, Part I. LNCS, vol. 7031, 370–388. Springer,

Heidelberg.

Mukherjee, D., Banerjee, S., Misra, P. 2013. Towards

Efficient Stream Reasoning. In: Demey Y.T., Panetto

H. (eds) On the Move to Meaningful Internet Systems:

OTM 2013 Workshops. OTM 2013. Lecture Notes in

Computer Science, vol 8186. Springer, Berlin,

Heidelberg.

Vijayaraghavan, A., Dornfeld, D. 2010. Automated energy

monitoring of machine tools. Cirp Annals-

manufacturing Technology 59: 21-24.

Vikhorev, K., Greenough, R., Brown, N. 2013. An

advanced energy management framework to promote

energy awareness. Journal of Cleaner Production,

43:103-112.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

634
