NoSQL Database Performance Tuning for IoT Data

Cassandra Case Study

Lucas B. Dias

1,2

, Maristela Holanda

, Ruben C. Huacarpuma

and Rafael T. de Sousa Jr

Applied Economics Research Institute (Ipea), Bras

ılia, Brazil

Department of Computer Science, University of Bras

ılia, Bras

ılia, Brazil

Cybersecurity INCT Unit 6, LATITUDE, Dept. of Eletrical Engineering, University of Bras

ılia, Bras

ılia, Brazil

Keywords:

Database, NoSQL, Internet of Things Data Management, Performance Tuning, Compaction Strategy.

Abstract:

Data provided by Internet of Things (IoT) are time series and have some speciﬁc characteristics that must be

considered with regard to storage and management. IoT data is very likely to be stored in NoSQL system

databases where there are some particular engine and compaction strategies to manage time series data. In this

article, two of these strategies found in the open source Cassandra database system are described, analyzed

and compared. The conﬁguration of these strategies is not trivial and may be very time consuming. To provide

indicators, the strategy with the best time performance had its main parameter tested along 14 different values

and results are shown, related to both response time and storage space needed. The results may help users to

conﬁgure their IoT NoSQL databases in an efﬁcient setup, may help designers to improve database compaction

strategies or encourage the community to set new default values for the compaction strategies.

1 INTRODUCTION

IoT data may be classiﬁed as Big Data, as they present

big Volume, Velocity and Variety, if the number of

devices present in an IoT environment is big and

increasing (Ramaswamy et al., 2013; Zhang et al.,

2013; Zaslavsky et al., 2013). NoSQL Databases are

more suitable than relational databases for storing the

IoT Data (Vongsingthong, Suwimon and Smanchat,

Sucha, 2015; Ma et al., 2013; Zhu, 2015), as they can

handle Big Data and some of them have speciﬁc en-

gines for time series data.

IoT Data is one speciﬁc case of time series data,

as they are measurements taken along the time, in a

sequential fashion (Ramesh et al., 2016). There are

some characteristics of IoT data that must be treated

by the database system to improve the efﬁciency

of storage in data writing, data reading and space

needed. The following represent these speciﬁci-

ties (Waddington and Lin, 2016; Abu-Elkheir et al.,

2013):

• Massive Data – The number of devices connected

to the Internet has been increasing rapidly in the

recent years and is expected to achieve 24 billion

by 2020 (Gubbi et al., 2013). The amount of data

is proportional to the number of devices, hence it

may achieve huge volumes.

• Data is ordered – Sensor generated data very of-

ten comes with a timestamp, which can be used by

the system (usually a Middleware) to insert data in

the correct order (Cruz Huacarpuma et al., 2017).

The device data is usually inserted in the database

in the order it was observed in the environment.

• Time based data retrieval – Users typically want

to query data by a time-related key.

• Data rarely changes – For the most part, IoT data

does not change. Nonetheless, data can be over-

written or deleted if some severe accuracy error

is perceived in some device. Consistency is not

a critical issue, because it is very unlikely a user

will get old data instead of the updated one.

• IoT data expires – The life cycle of the IoT Data

depends on the application, but generally, if it in-

tends to provide monitoring, old data is not useful

and can be deleted or aggregated because it will

seldom be needed. Even in more persistent appli-

cations, new data is more frequently queried than

old data.

NoSQL databases ﬁt very well some of those char-

acteristics. There are even some speciﬁc time series

databases. However, some general purpose NoSQL

databases can also be very appropriate to store IoT

Data. This paper presents some performance tuning

Dias, L., Holanda, M., Huacarpuma, R. and de Sousa Jr, R.

NoSQL Database Performance Tuning for IoT Data.

DOI: 10.5220/0006782702770284

In Proceedings of the 3rd International Conference on Internet of Things, Big Data and Security (IoTBDS 2018), pages 277-284

ISBN: 978-989-758-296-7

277

conﬁgurations to make NoSQL databases more efﬁ-

cient in terms of response time and space used. More

speciﬁcally, the database compaction parameters will

be tuned. A study case is stated using the Cassandra

NoSQL database.

The remainder of this paper is organized as fol-

lows: Section 2 explains the process of database com-

paction, so that the reader can understand the problem

and the impact of the parameters in the performance;

Section 3 presents related work; Section 4 describes

the test environment and Section 5 presents the re-

sults, while Section 6 presents our conclusion, as well

as ongoing and future work.

2 NoSQL DATA COMPACTION

Google BigTable (Chang et al., 2008) presented a new

distributed, high performance database solution for a

massive data income rate, with certain fault tolerance.

Two years later, Lakshman and Malik from Facebook

presented another database system, inspired both in

BigTable and Dynamo (DeCandia et al., 2007), called

Cassandra. It does not support a relational data model

with relational integrity, but provides a ﬂexible col-

umn family data model. “Cassandra system was de-

signed to run on cheap commodity hardware and han-

dle high write throughput while not sacriﬁcing read

efﬁciency“ (Lakshman and Malik, 2010).

The NoSQL systems derived from BigTable (Cas-

sandra, HBase, RocksDB etc.) use a storage struc-

ture where recently inserted data stays in memory, in

structures called Memtables, which are, essentially,

string arrays (Chang et al., 2008). Speciﬁcally in Cas-

sandra, the data is ﬂushed to disk when (i) Memtables

reaches its maximum size, (ii) Memtables reach their

maximum age or (iii) when the user commands. The

ﬂush operation involves saving the data in the disk, in

a structure called Sorted-String Table (SSTable). The

SSTables are immutable and this provides good write-

intensive performance (Singh, 2015).

If eventually a cell from a SSTable column fam-

ily gets updated, the new value is stored in another

Memtable, live in memory. If this Memtable under-

goes a ﬂush, then there will be two SSTables with

data from the same cell. When there is a read opera-

tion, the system must read data in those two SSTables,

seek for this cell in the Memtables, merge every cell

value implicitly and exhibit the most recent value to

the user. If one cell has different values along several

SSTables, this process will be very costly (DataStax,

2017).

Deleting cells in Cassandra does not free up space,

initially. When a delete operation occurs, the cell

is marked as a tombstone, a process similar to a

soft deletion in relational databases. Each tomb-

stone receives an expiration time, called a ‘grace pe-

riod’, which is set in the column-family speciﬁcation.

Tombstones are not retrieved to the user but they stay

on disk until their grace period expires and the SSTa-

bles are compacted.

Compaction, in this context, is not related to com-

pression or data compaction algorithms. It is the term

used to deﬁne the operation that merges two or more

SSTables, unites the column family cells that have dif-

ferent values and evicts the tombstone expired data,

freeing up storage space (Chang et al., 2008; Singh,

2015). Since SSTables are already ordered, this oper-

ation is not CPU bound, but it is I/O bound (Ghosh

et al., 2015). Typically, storage space will have a

peak, needed to allocate space to the new SSTable,

followed by a reduction. This operation is illustrated

in Figure 1.

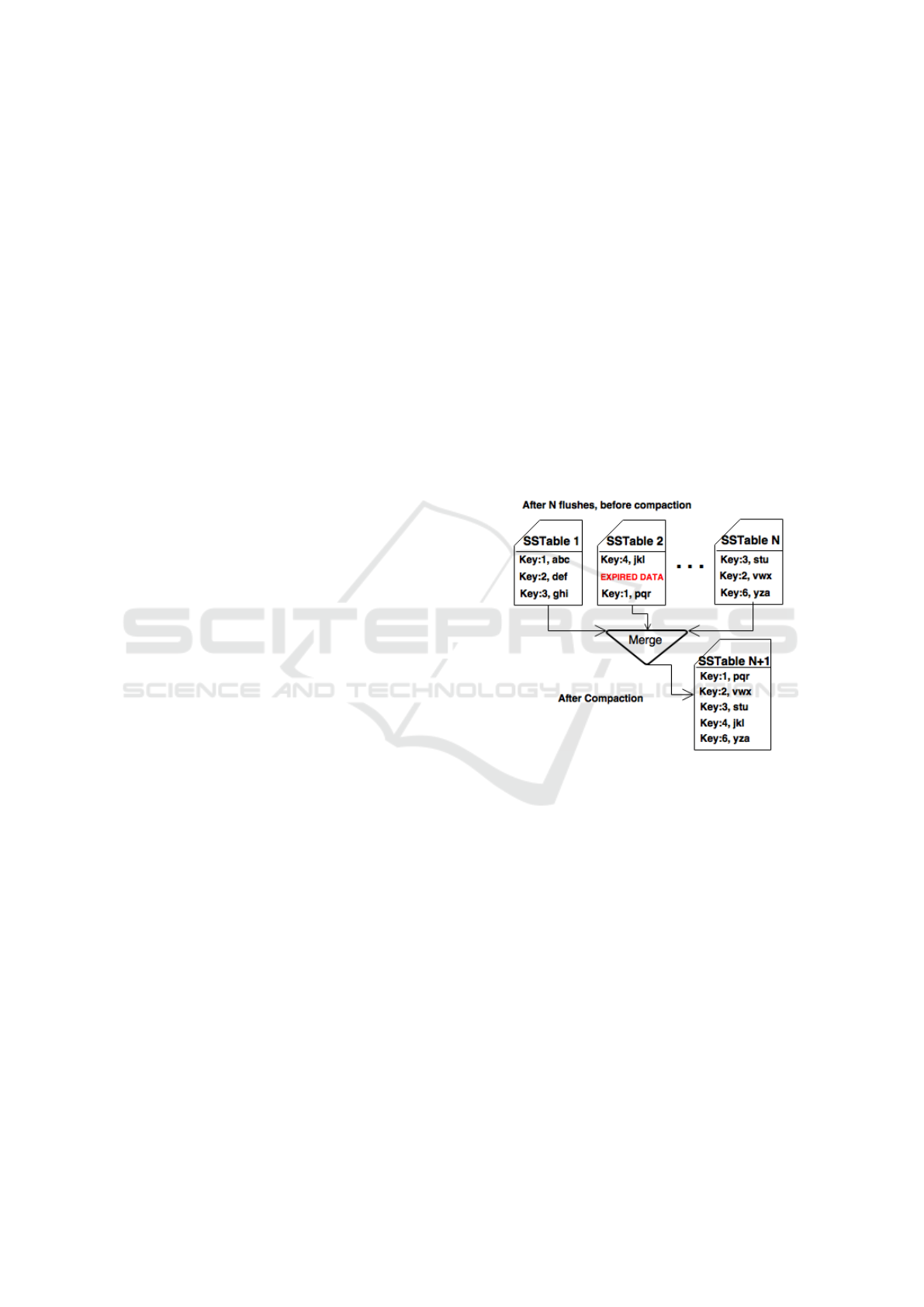

Figure 1: Cassandra database compaction.

If Compaction is not made, read operations will

have to seek many SSTables to look for the data,

on other hand, the compaction operation is I/O in-

tensive and therefore impacts on the system perfor-

mance, especially if performed frequently. Hence, an

optimal amount of compaction operations is neces-

sary where these compaction operations yield better

read and write response time. In this paper we inves-

tigate how to achieve a near-optimal point, in terms of

response time and disk usage in an IoT environment.

The main objectives of compaction operations are:

(i) regain disk space, purging the expired and deleted

data; (ii) to store data in a contiguous fashion, keep-

ing data from the same column family and partition

in the same SSTable, or in as few as possible; (iii) to

optimize server reads, assuring they will have to ac-

cess as few SSTables as possible, to faster response

(DataStax, 2017).

There are two compaction strategies in Cassandra

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

278

to handle time series: Date Tiered Compaction Strat-

egy (DTCS) and Time Window Compaction Strat-

egy (TWCS). Both rely on grouping data by its age

(i.e. difference between insertion and now) and de-

ﬁne time windows. One capital difference is that in

case of TWCS, as long as the time window has not

been reached, it uses another method, the Size Tiered

Compaction Strategy (STCS) to compact SSTables, if

needed. In other hand, DTCS does not compact if the

data threshold has not been reached. Less compaction

results in Cassandra using less effort in organizing

data, however, if a queried cell lays in many SSTa-

bles, read operations will have to scan more SSTables

in disk while seeking for data.

3 RELATED WORK

Studies have been conducted about NoSQL Perfor-

mance tuning, however, very few have broadened the

conﬁguration of database compaction strategies.

Lu and Xiaohui studied the DTCS, present in the

Cassandra system and, based on the simulated results,

concluded that Cassandra is a remarkable database

and is very suitable for storing time series, such as

the IoT Data (Lu and Xiaohui, 2016).

(Kona, 2016) and (Ravu, 2016) simulated the Cas-

sandra behavior in a high intensive workload. The

former concluded that the DTCS is not the best strat-

egy in a write-intensive workload (90% write oper-

ations and 10% read operations) and the latter con-

cluded that in a balanced workload (50% read and

50% write) the DTCS was the most efﬁcient strategy

to date. However, this paper differs from those two

studies in that the data in the present work is conﬁned

to IoT Data.

The Cassandra performance was also analyzed

by (Sathvik, 2016), by changing parameters and the

conﬁguration of Memtables and Key-Cache, that is

a special table that saves pointers to the rows in

each SSTable. However, it differs from our study

because compaction strategy parameters were not

changed. Indeed, they conclude recommending that

future works consider altering the parameters of com-

paction strategies to further optimize performance.

Unlike these studies, our paper presents a perfor-

mance tuning approach to compare the novel TWCS

to the preexistent DTCS. Furthermore we change the

TWCS main parameters in order to evaluate response

time, throughput and disk usage.

4 TEST ENVIRONMENT AND

METRICS

This section presents in Subsection 4.1 the computa-

tional environment where experiments were executed;

Subsection 4.2 presents the IoT environment simula-

tion; Subsection 4.3 show the execution of two test

cases and ﬁnally Subsection 4.4 explains what met-

rics were chosen and why.

4.1 Test Bed

All tests were performed in a cluster with 10 nodes of

equal capacity. Each node has one Intel Xeon



core;

3.2GB of RAM memory; 7200 rpm spinning disks

with 50GB of space; Linux installed, with Ubuntu

distribution. Cassandra version 3.11.1 is installed in

all nodes. They are all virtual machines and the host

server is not exclusive for these tests. We tried to min-

imize the impact of other services on tests by repeat-

ing the stress operations on different weekdays and

different schedules.

The main tool used to generate and simulate the

operations is the Cassandra Stress Tool (Apache,

2016), maintained by the Cassandra Community. Ev-

ery stress operation was run on a machine outside the

cluster. The stress process had 24 threads that gener-

ated, inserted and queried data in parallel.

4.2 IoT Environment

The IoT scenario is typically a write-intensive appli-

cation. The test operations were distributed as 90% of

write operations and 10% of read queries, distributed

as: 4% for a query that selects all measures from one

device, which we call devdata, 3% for a query that

retrieves one value, given the device and observation

time (named onerow) and a query that retrieves the

average value of one device, given its Id (named avg-

data).

In all tests, a one-hour Time to Live (TTL) pa-

rameter was applied to the column family. This pa-

rameter sets the data expiration time, which added to

the grace period parameter (that was ﬁxed in half an

hour) states that data may get purged from the table

after 90 minutes.

The column family schema was modeled with the

partition key (K) being the device identiﬁer and each

device may provide different services (in tests, a ﬁxed

number of ﬁve services). The service name, along

the observation value compose the clustering key (C).

The model is presented in the Chebotko notation, a

special model for column family databases (Chebotko

et al., 2015), in Figure 2.

NoSQL Database Performance Tuning for IoT Data

279

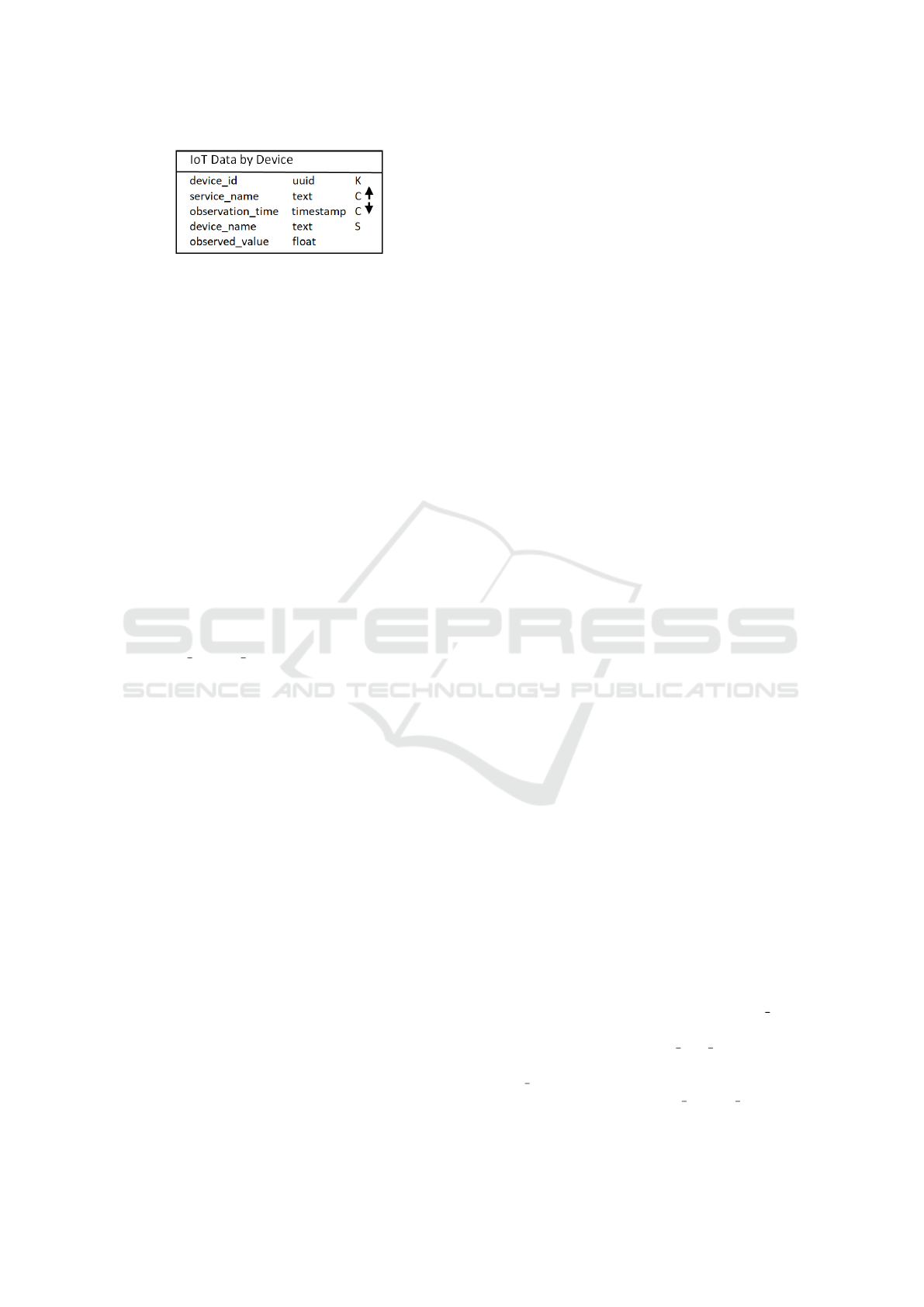

Figure 2: Column family schema.

The observation time is stored in a descending or-

der, because more recent data is more often queried

and retrieved. The device name does not repeat at ev-

ery observation, so it is deﬁned as a static column (S),

what in Cassandra makes it be saved beside the parti-

tion key and not repeatedly in every row.

4.3 Test Cases

The ﬁrst test case modeled was the comparison be-

tween DTCS and TWCS. The former was marked as

deprecated although it is still available in Cassandra,

whilst the latter is the natural substitute for DTCS.

Although the community has made tests to perform

this substitution (Jirsa, 2016), we could not ﬁnd any

published paper that compared TWCS with DTCS.

The second test case modeled was the adjust-

ment of the main parameter in TWCS to achieve a

near-optimal performance result. The parameter is

compaction window size, which, in short, tells the

database system the age at which the SSTables be-

come available to compact and when not to compact

them anymore.

In both test cases, the volume of data was the

same. The number of rows inserted RI is given by

Equation 1.

RI = OP ∗ IR ∗ T S ∗OV (1)

The stress tool created 2,000,000 operations OP

(90% writes and 10% reads), which means that the

insert ratio (IR) is 0.9. In each operation, a device

received 5 time series (TS), one for each service name.

Each time series gets 60 observation values (OV).

RI = 2, 000, 000 ∗ 0.9 ∗ 5 ∗ 60 = 540, 000, 000 (2)

These values resulted in 540 million rows inserted

throughout the cluster, as shown in Equation 2. This

conﬁguration was set so that there would be enough

time for the data to expire. With TTL (60 minutes)

plus the grace period (30 minutes) set at 90 minutes,

each stress operation lasted more than 120 minutes,

so the 540 million rows never persisted at the same

time. After 90 minutes, as new data was coming, old

data was being purged.

4.4 Metrics

To evaluate the performance, the main metrics chosen

were:

• throughput – the amount of operations per sec-

ond, in the case of the read queries, and the

amount of rows per second, in the case of insert

operations. Typically, as the scenarios involved

the same amount of data, the throughput impacted

directly on the total simulation time.

• latency – the time needed for the system database

to respond to a request. It starts counting when the

request is received and stops when the message is

delivered to the client. Both write and read latency

were evaluated.

• disk space – the total amount of disk space used

to store the data.

The chosen metrics represent the user point-of-

view of the system, and although the CPU, Memory

and I/O used have been analyzed, they are not pre-

sented here because they are reﬂected in the chosen

metrics. For instance, an I/O bottleneck will impact

the throughput and latency. With some exceptions,

the same happens to memory-bound and CPU-bound

operations.

The metrics were provided by Cassandra either by

the Stress Tool logs or by the Core Metrics library,

which runs inside Cassandra, in a conﬁgurable way.

They both provide column family speciﬁc measures,

which aids test precision because it isolates the mea-

sures from other column families or possible OS re-

quests.

5 RESULTS

The tests were made according to the two test cases

presented in Subsection 4.3. The results collected and

analyzed are presented in the following subsections.

5.1 DTCS Versus TWCS

In order to test the two compaction strategies, the

same data was inserted and queried in two column

families, one at a time. The schemas of the two col-

umn families are the same as Figure 2, except for the

compaction strategy. The column family IoT DTCS

was created with DTCS with its default parameters

except the most relevant: base time seconds, which

was set to 10 minutes. In other hand, the column fam-

ily IoT TWCS was created with TWCS default pa-

rameters, except the compaction window size, which

was set also to 10 minutes.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

280

The ﬁrst performance indicator shown is the

elapsed time needed to manage the data. Overall, six

stress operations were made in each compaction strat-

egy and the standard deviation was low, which is why

we report the mean. The time results are presented

in Table 1, with standard deviation (STD) in percent

values of the mean and Speedup being the DTCS time

divided by TWCS time.

Table 1: Mean time elapsed for the 600M operations using

DTCS and TWCS.

Strategy Mean Time STD (%) Speedup

DTCS 02h41m48s 0.71% N/A

TWCS 02h14m57s 0.18% 1.20

The TWCS has stored the same amount of data

20% faster than the DTCS. This may also be seen in

the throughput of the insertion operation (see Figure

3) expressed in inserted rows per second. The mean

throughput standard deviation among the six simula-

tions was 6.5% overall – not in every 30 second inter-

val, but throughout the whole stress process.

Figure 3: Both scenarios were executed in different times

but displayed together along the same timeline. The y axis

represents thousands of inserted rows per second while the

x axis stands for the execution time, in minutes.

Moreover, the read operations, that are more sus-

ceptible to the compaction operations are, overall,

better using the TWCS than DTCS. To illustrate, we

show in Table 2 the results of one stress operation of

TWCS and the comparison over one stress operation

of DTCS. The ones chosen among the six stress op-

erations were those with an execution time closer to

the mean time. The rightmost column is the DTCS

latency divided by TWCS latency.

Similarly, as in elapsed time, TWCS was shown

to have a faster mean latency at 22%. The fact that

the median time was slightly faster in DTCS does not

represent a relevant advantage, because the TWCS

mean and the other two percentiles are lower. The

percentile 0.99 shows that Cassandra can respond to

99% of the requests in under 677.4 milliseconds us-

ing TWCS, while the same percentile in DTCS was

responded up to 1618.9 milliseconds. The upper per-

Table 2: Latency (ms) statistics with percentiles.

TWCS Read Insert Total DT/TW

mean 181.8 88.6 97.9 1.22

median 62.0 40.9 41.5 0.93

0.95 595.9 231.6 260.0 1.40

0.99 1683.7 426.2 677.4 2.39

0.999 8018.1 4945.1 5326.8 1.09

max 27263 46271 46271 0.52

centiles show that this database system respond to the

majority of the users in a timely fashion. The maxi-

mum latency shows high numbers, but consideration

must be made to the fact that 600 million operations

were performed, and that it would be very costly to

guarantee low-latency responses to all requests, using

regular commodity hardware (DeCandia et al., 2007).

However, DTCS has showed an advantage over

TWCS in disk space used. In Figure 4, all nodes had

their space summed and an average has been applied

to all six stress operations. It is important to remem-

ber that data becomes expired after 90 minutes. Al-

though new rows are continuously being inserted, the

volume becomes stable after 110 minutes because the

compaction starts to purge expired data.

Figure 4: Both scenarios were executed in different times

but displayed together along the same timeline.

Figure 4 shows that DTCS uses less disk space

than TWCS. Throughout the whole cluster, the max-

imum disk space used was 18.4% higher in TWCS

than in DTCS. Considering all 30 seconds intervals,

the mean disk space used was 5.5% higher in TWCS.

Tests were run with the compression disabled, to en-

hance performance. Further tests must be carried out

with the default compression algorithm enabled to ob-

serve if the space advantage persists in the same level

or is decreased.

5.2 Compaction Window Size

TWCS was shown to perform better than DTCS in

terms of response time. Moreover, the latter has been

marked as deprecated by the Cassandra community,

which justiﬁes our choice of furthering studies with

NoSQL Database Performance Tuning for IoT Data

281

TWCS.

The main parameter of this compaction strategy is

compaction window size, which sets the time interval

for contemporary data in the same SSTable. In these

tests we tried to ﬁnd a near-optimal parameter that

would give the best performance results to our IoT

test environment. Fourteen test cases were executed,

changing only the compaction window size parameter,

receiving values from 1 to 240 minutes.

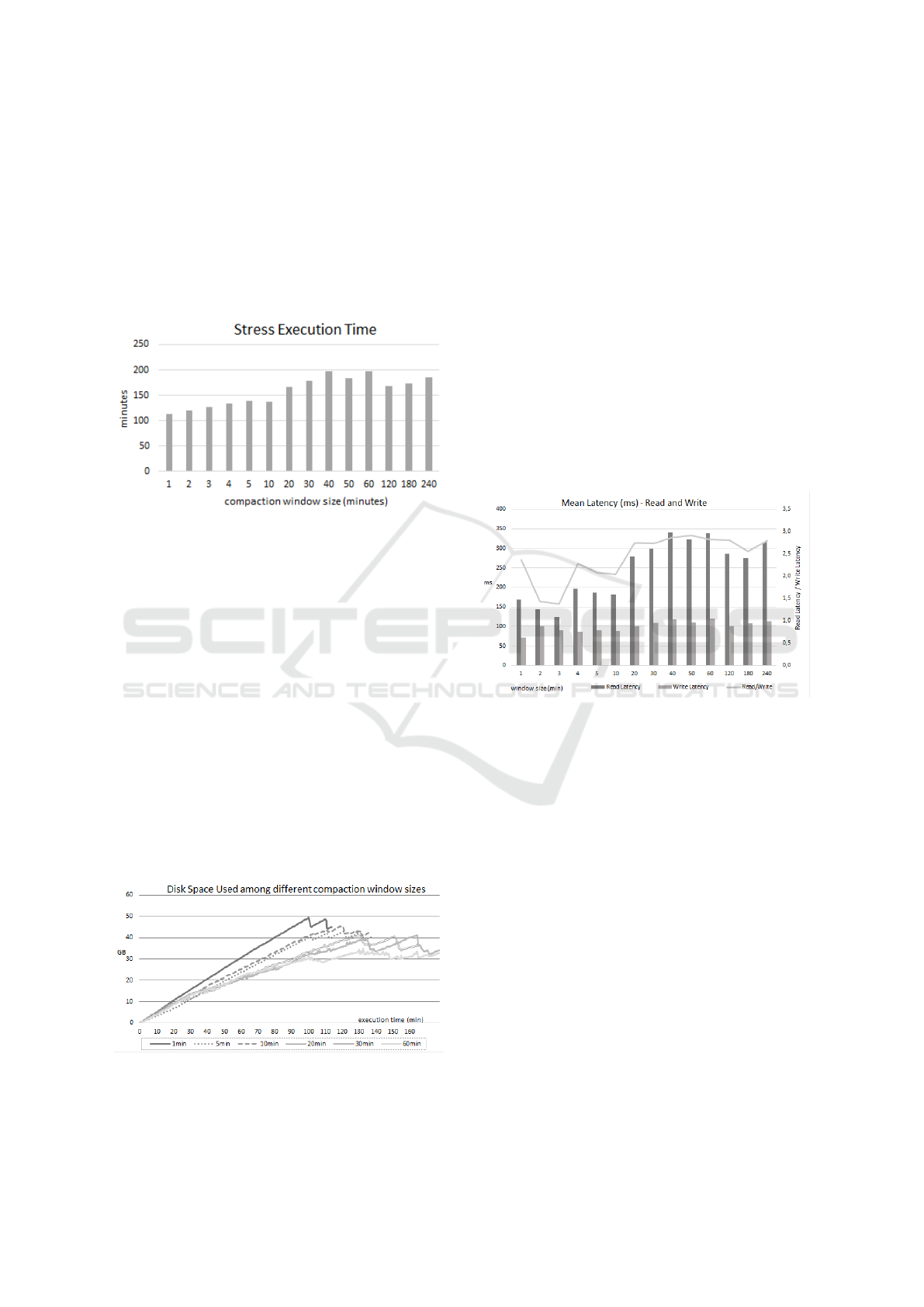

Figure 5: The y axis shows the execution time and x axis the

time window size, both in minutes. The fastest execution

was with 1 minute window.

Figure 5 shows that the most time-efﬁcient con-

ﬁguration was the 1 minute window size. As the

windows increase, the execution time increases and

it does not decrease to achieve the lowest values of

1 minute, since the 240 minutes is greater than the

execution time, which means that values greater than

240 would not have any difference in the execution of

these tests operations.

The total disk space used throughout the 10 cluster

nodes is presented in Figure 6. The compaction sizes

are shown from 1 to 60 minutes. The space used does

not decrease with compaction window size more than

60 minutes. As in the DTCS versus TWCS case, the

fastest conﬁguration is the one that uses more space.

The 1 minute window size used more space, both in

average and peak.

Figure 6: The 1 minute window uses more space.

The more space needed is due to the fact that, in

the 1 minute compaction window size, SSTables are

grouped in a small window and therefore are not com-

pacted anymore until it expires. With larger window

sizes, the SSTables continue to be compacted until the

time window size has not been reached. Thus, with a

big window size, there will be more compaction op-

erations using STCS, which is the default compaction

strategy as long as the time window is not achieved.

Another interesting aspect that must be analyzed

is the relation between the read latency and write la-

tency. As showed in Section 2, the read operation de-

pends on the number of SSTables. Without expired

data, the lower the compaction window size, the more

SSTables in a long term. However, the effect of aug-

menting read latency is not direct, because, for each

SSTable, there is a bloom ﬁlter that tells if some par-

tition is not present in that ﬁle. Therefore, it avoids

scanning most of the SSTables, which reduces the im-

pact of a bigger number of SSTables in the read oper-

ation.

Figure 7: The read and write latency values and ratios for

different compaction window sizes.

Notably, the lowest read/write ratio is in the 3

minute compaction window size. In this test scenario,

the proportion between the amount of insert and read

operations are 9 to 1. Thus the insert operation is far

more relevant for the total execution time. Neverthe-

less, if more read operations occur, most likely the

optimal compaction window size will be closer to 3

minutes than to 1 minute.

All experimental results can be found at

https://github.com/lucasbenevides/iotbds.

6 CONCLUSION AND FUTURE

WORK

Data derived from IoT environments may achieve

high throughput levels and may get bulky as time goes

by. In order to optimize the computational resources

in the IoT data storing task, this work has tuned a

NoSQL database system, speciﬁcally the compaction

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

282

strategies, and analyzed its results.

In many computational problems, there is a trade-

off between storage space and time. In both test

cases performed in this work this trade-off remains.

In the ﬁrst test case, Cassandra’s TWCS performed

20% faster than DTCS, but the former used, in peak,

18.4% more disk space. In addition, the conﬁguration

of TWCS is simpler than the one to DTCS, what cor-

roborates with the community decision to deprecate

DTCS and continue developing TWCS. Users should

choose DTCS only if the disk space is limited.

The second test case evaluated different

conﬁgurations of the TWCS parameter com-

paction window size in relation to a scenario where

data becomes expired after 90 minutes. The 1 minute

value was near-optimal in terms of elapsed time,

latency and throughput. Nevertheless, the space

trade-off continued to be an issue. The fastest test

case was shown to be the one that used more space,

in peak 40.8%, in comparison with the 60 minute

window size, which lasted 72.6% more.

The 1 minute was the lowest value accepted in the

TWCS conﬁguration. As it has shown to be the near

optimal, we recommend that other values lower than

1 minute be accepted by Cassandra.

The ratio between the expiration time (TTL plus

grace period) and compaction window size shall be

tested with different values. If a near-optimal relation

can be conﬁrmed, users may have a ”golden rule” to

conﬁgure their column-families.

Further work is needed mainly in the second test

case. Tests must be performed in a larger test bed to

evaluate if the results are consistent. Likewise, other

read/write ratio operations must be tested. Although

600 million rows is already a considerable size, tests

should be made with larger data sets – preferably

with real data sets instead of generated data as in the

present paper.

This study will be useful within a broader research

goal the authors aim to achieve: the creation of an

auto tuning component for compaction parameters,

initially within TWCS. These results will help to cre-

ate rules that lead to an autonomous performance tun-

ing agent, which intends to eliminate the time and ef-

fort users spend tuning the database compaction strat-

egy parameters.

ACKNOWLEDGEMENTS

This research work has the support of the Brazil-

ian research and innovation Agencies CAPES

(Grant 23038.007604/2014-69 FORTE–Tempestive

Forensics Project), CNPq (Grant 465741/2014-

2 – Cybersecurity INCT) and FAPDF (Grants

0193.001366/2016 UIoT–Universal Internet of

Things and 0193.001365/2016–Secure Software De-

ﬁned Data Center (SSDDC)), as well as the Ministry

of Planning, Development and Management (Grants

005/2016 DIPLA–Planning and Management Direc-

torate and 11/2016 SEST–Secretariat of State-owned

Federal Companies) and the DPGU–Brazilian Union

Public Defender (Grant 066/2016).

REFERENCES

Abu-Elkheir, M., Hayajneh, M., and Ali, N. (2013). Data

Management for the Internet of Things: Design Prim-

itives and Solution. Sensors, 13(11):15582–15612.

Apache, S. F. (2016). The Cassandra-stress tool.

http://cassandra.apache.org/doc/latest/tools/cassandra

stress.html. Last accessed 22 January 2018.

Chang, F., Dean, J., Ghemawat, S., Hsieh, W. C., Wallach,

D. A., Burrows, M., Chandra, T., Fikes, A., and Gru-

ber, R. E. (2008). Bigtable: A distributed storage sys-

tem for structured data. ACM Transactions on Com-

puter Systems (TOCS), 26(2):4.

Chebotko, A., Kashlev, A., and Lu, S. (2015). A Big Data

Modeling Methodology for Apache Cassandra. pages

238–245. IEEE.

Cruz Huacarpuma, R., de Sousa Junior, R. T., de Holanda,

M. T., de Oliveira Albuquerque, R., Garc

ıa Villalba,

L. J., and Kim, T.-H. (2017). Distributed Data Service

for Data Management in Internet of Things Middle-

ware. Sensors, 17(5):977.

DataStax (2017). Datastax docs : The write path to

compaction. https://docs.datastax.com/en/cassandra/

2.1/cassandra/dml/dml write path c.html. Last ac-

cessed 22 January 2018.

DeCandia, G., Hastorun, D., Jampani, M., Kakulapati,

G., Lakshman, A., Pilchin, A., Sivasubramanian, S.,

Vosshall, P., and Vogels, W. (2007). Dynamo: Ama-

zon’s Highly Available Key-value Store. In Proceed-

ings of Twenty-ﬁrst ACM SIGOPS Symposium on Op-

erating Systems Principles, SOSP ’07, pages 205–

220, New York, NY, USA. ACM.

Ghosh, M., Gupta, I., Gupta, S., and Kumar, N. (2015).

Fast Compaction Algorithms for NoSQL Databases.

In 2015 IEEE 35th International Conference on Dis-

tributed Computing Systems, pages 452–461.

Gubbi, J., Buyya, R., Marusic, S., and Palaniswami, M.

(2013). Internet of Things (IoT): A vision, architec-

tural elements, and future directions. Future Genera-

tion Computer Systems, 29(7).

Jirsa, J. (2016). TWCS experiments and improvement

proposals - ASF JIRA [CASSANDRA-10195].

https://issues.apache.org/jira/browse/CASSANDRA-

10195.

Kona, S. (2016). Compactions in Apache Cassandra :

Performance Analysis of Compaction Strategies in

Apache Cassandra. Master’s thesis, Blekinge Insti-

tute of Technology, Karlskrona, Sweden.

NoSQL Database Performance Tuning for IoT Data

283

Lakshman, A. and Malik, P. (2010). Cassandra: A Decen-

tralized Structured Storage System. SIGOPS Oper.

Syst. Rev., 44(2):35–40.

Lu, B. and Xiaohui, Y. (2016). Research on Cassandra data

compaction strategies for time-series data. Journal of

Computers, 11(6):504–513.

Ma, M., Wang, P., and Chu, C. H. (2013). Data Manage-

ment for Internet of Things: Challenges, Approaches

and Opportunities. In Green Computing and Com-

munications (GreenCom), 2013 IEEE and Internet of

Things (iThings/CPSCom), IEEE International Con-

ference on and IEEE Cyber, Physical and Social Com-

puting, pages 1144–1151.

Ramaswamy, L., Lawson, V., and Gogineni, S. V. (2013).

Towards a quality-centric big data architecture for

federated sensor services. In Big Data (BigData

Congress), 2013 IEEE International Congress on,

pages 86–93. IEEE.

Ramesh, D., Sinha, A., and Singh, S. (2016). Data mod-

elling for discrete time series data using Cassandra

and MongoDB. In 2016 3rd International Confer-

ence on Recent Advances in Information Technology

(RAIT), pages 598–601.

Ravu, V. S. S. J. S. (2016). Compaction Strategies in

Apache Cassandra : Analysis of Default Cassandra

stress model. Master’s thesis, Blekinge Institute of

Technology, Karlskrona, Sweden.

Sathvik, K. (2016). Performance Tuning of Big Data Plat-

form : Cassandra Case Study. PhD thesis, Blekinge

Institute of Technology, Faculty of Computing, De-

partment of Communication Systems, Karlskrona,

Sweden.

Singh, K. (2015). Survey of NoSQL Database Engines for

Big Data. Master’s thesis, Aalto University. School of

Science.

Vongsingthong, Suwimon and Smanchat, Sucha (2015). A

Review of Data Management in Internet of Things.

KKU Research Journal, pages 215–240.

Waddington, D. G. and Lin, C. (2016). A Fast Lightweight

Time-Series Store for IoT Data. CoRR - Computing

Research Repository. arXiv: 1605.01435.

Zaslavsky, A., Perera, C., and Georgakopoulos, D. (2013).

Sensing as a service and big data. arXiv preprint

arXiv:1301.0159.

Zhang, J., Iannucci, B., Hennessy, M., Gopal, K., Xiao, S.,

Kumar, S., Pfeffer, D., Aljedia, B., Ren, Y., Griss, M.,

Rosenberg, S., Cao, J., and Rowe, A. (2013). Sen-

sor Data as a Service – A Federated Platform for Mo-

bile Data-centric Service Development and Sharing.

In 2013 IEEE International Conference on Services

Computing, pages 446–453.

Zhu, S. (2015). Creating a NoSQL database for the In-

ternet of Things : Creating a key-value store on the

SensibleThings platform. PhD thesis, Mid Sweden

University, Faculty of Science, Technology and Me-

dia, Department of Information and Communication

systems, Sundsvall, Sweden.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

284
