Digitalization of Legacy Building Data

Preparation of Printed Building Plans for the BIM Process

Hermann Mayer

Corporate Technologies CT RDA SDT MSP-DE, Siemens AG, Otto-Hahn-Ring 6, Munich, Germany

Keywords: BIM, Building Information Modelling, Building Plans, Digitalization, Digital Twin.

Abstract: Today, preparing existing building plans for a 3D BIM (building information modelling) process is a

tedious work involving lots of manual steps. Even if the data is already in a digitized and vectorised format,

the lack of semantics often prevents the data from being processed in automated workflows. However, the

requirements for simulation tasks, which are relevant for brown-field projects, are not too demanding

regarding the level of detail. In most cases (e.g. optimized placement of fire safety equipment, evacuation

planning, daylighting simulation etc.), only information about spaces and their interconnections are needed.

If coefficients for the heat-transfer between spaces can be added, also energy simulations can be performed.

Therefore the goal of this work is to provide a basic standardized building model, which can be derived

from all sorts of legacy data (different CAD formats and styles and even scanned plans). Also basic

semantics will be added to the data, which complements the definitions of the BIM standard used in this

work. Based on the models, building simulation can be enabled as a cheap surplus service, promoting the

usage of cloud implementation of the BIM process.

1 INTRODUCTION

Since there is a long history of building planning

(reaching back to ancient times), there is a vast

variety of formats and styles for representing

building data. In addition, buildings are long-lasting

assets - sometimes existing for centuries – which

need regular renovations and therefore building data

needs to be kept updated.

For most of the time, manually drawn or printed

paper plans have been the default representation.

Even today, this still is true for most private houses,

where printed plans are the only accepted standard

for the building permission process at official

authorities. In the second half of the last century,

computer technology has revolutionised also the

building planning process by introducing computer

aided design (CAD). However, most plans from the

earlier days of this technology are available in

printed form only. This is due to regulatory

restrictions as mentioned above or to the lack of

archiving the electronic documents. Digitising those

plans often ends up with scanning them into a

computer system. This process produces pixel-based

data, which can hardly be processed automatically.

While pixel-based data is yet digitized, but still

has lots of issues associated (low density of

information, missing scalability, low maintainability

etc.), modern CAD applications usually produce

vectorised data. This means the drawings are

composed out of geometric primitives, which come

with a parameterised description. For example, a

pixel-based circle is composed out of several points

placed around a common centre point, while a

vectorised description only needs to store the centre

point itself and a radius in order to reproduce the

circle in an arbitrary resolution. This promotes the

automatic interpretation of a building plan and

allows for better data handling. Another advantage

of vectorised building information is the ability to

store additional data with the vectors. This already

allows for semantic augmentation like forming

layers or using colours with certain meanings (can

be used for pixel data as well, but usage is

restricted). Another advantage is the description of

non-visible features. Particularly if some structures

are hidden behind each other, the hidden features

can be easily brought to foreground if the drawing is

vectorised. Otherwise this would not be possible for

pixel-based data, where all information, which

cannot be represented directly by visible pixels, is

304

Mayer, H.

Digitalization of Legacy Building Data.

DOI: 10.5220/0006783103040310

In Proceedings of the 7th International Conference on Smart Cities and Green ICT Systems (SMARTGREENS 2018), pages 304-310

ISBN: 978-989-758-292-9

lost. However, there are still lots of challenges

associated with vectorised data as well. One of the

most common issues with vectorised data is the

interpretation of formats. Pixel-based data can be

interpreted quite easily by data processing

applications, at least as long as it is not compressed

(like gif or jpeg images). When it comes to

vectorised formats, readability often requires

sophisticated algorithms (like for rendering .pdf or

.svg) or formats are restricted to applications of

certain vendors (like the AutoDesk .dwg format). In

addition, the semantic annotation of features is often

user-specific and there is no standardized process for

its interpretation.

In order to solve the latter challenge, a

standardized format for storing semantic information

was established by the introduction of BIM -

building information modelling (Eastman, 2011). It

describes the Industry Foundation Classes (IFC) as a

standard for hierarchical data storage (Liebich,

2006). Although this methodology solves a lot of the

former issues, it comes with some new challenges

like ambiguities and missing structures for

simulation data.

BIM does not necessarily force the author to add

semantics in an extent, which is needed to derive

dedicated models from the format (e.g. for fire

detector placement or evacuation simulation).

Additional semantics like room usage, occupancy or

connectivity of accessible areas has to be derived by

downstream processes – as discussed below. This

information is not stored directly inside the BIM

model in order not to break compatibility with

general BIM CAD solutions. An important feature

still missing in BIM is the definition of common

interfaces to real-time data (Mayer, Frey, 2014).

2 QUALITY OF DATA

Typically the quality of data has improved during

the development of new standards for building plans

as described above. Particularly the introduction of

electronic data processing and the establishment of

international standards promoted the evolution of

consistent formats, which are easy to interpret.

2.1 Pixel Data

Starting with paper scans the quality of raw data

after digitisation depends on the resolution and

overall quality of scanning and photography devices.

Some plans (particularly older ones) might be

afflicted by stains and wrinkles. Resulting artefacts

might be reduced by post-processing algorithms like

opening, closing or smoothing. However, usually not

all of the artefacts can be eliminated by these

procedures and some missing or erroneous data has

to be replaced in later processing stages.

Vectorising pixel data is a complex task of its

own. Most applications try to reconstruct a set of

known geometric primitives from the pixels. For

example, pixels constituting a straight line will be

replaced by a parametric description of the line. This

reconstruction stage is usually not uniquely defined.

For example it might not be clear for some artefacts,

of which primitive they are a part of. Also

interruptions within straight lines can be interpreted

differently: new line, same line but missing parts,

dashed line? etc. Unlike the original intention of the

author is known, reconstructing vector data from the

pixels is usually not unambiguous.

Regarding formats, it is not always clearly

defined if they contain pixel data or vectorized data.

For example the well-known .pdf format may

contain vectorized structures as well as pixel data. If

relevant parts of the .pdf file are still not vectorized,

the .pdf should be converted into an image and fed

into the vectorization process. In the subsequent

sections, we assume .pdf files contain a vectorized

version of the relevant data.

2.2 Vector Data

Even if the data is vectorised already, different

issues regarding data quality might occur. One

typical challenge when interpreting vectorised data

is the resolution of ambiguities. As mentioned above

there are lots of completely different formats for

storing vector data, all of them providing different

ways of describing geometric primitives. For

example, there are very different variants to describe

a circular or ellipsoid primitive. As depicted in fig. 1

from left to right: one alternative is providing a

centre point and a radius, the next option is to

discretise the circular outline by linear chords or

tangents. Yet another alternative is constructive

geometry, where a smaller filled white circle is

subtracted from a filled black circle or (at the very

left of fig. 1) combining arcs to describe a circle.

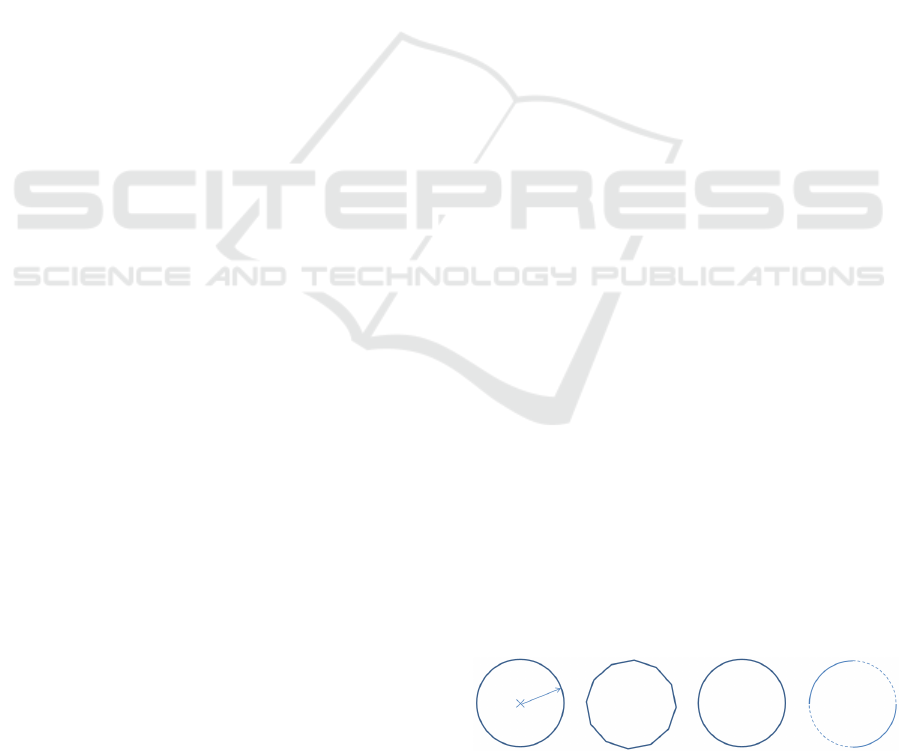

Figure 1: Four different alternatives of vector circles.

Digitalization of Legacy Building Data

305

Any software which claims to provide a general

solution for understanding vectorised data would

have to respect all possible alternatives for all

relevant primitives. Given the abundance of formats

for vector data, this requirement can hardly be met.

Therefore a fall-back solution for converters is to

offer an interface for pixel-based data as well. That

means apart from the vector data, the program

processes a pixel-based rendering of the data in

parallel. The rendered pixel image can either be

provided by the user (to enable individual scaling

and pre-processing) or can be produced by the

software itself (e.g. by standard .pdf or .svg

renderers). Therefore the conversion starts with

extracting known vector primitives, while the

processing of unknown parts of the image will start

by vectorising the pixels in a standardized way for

the remaining parts as described in 2.1.

2.3 Semantics

Even if all corresponding primitives can be

reconstructed by the software, all parts still need to

be assigned to a certain semantics group (walls,

measurement lines, stairs, etc.). If no semantic

information is present in the underlying vector

format, structures have to be matched individually

by patterns (see below). If at least semantic groups

are present, but not yet assigned, the process can be

improved by deciding a common semantics for each

group. Unassigned semantic groups are constituted

by entities like layers, hierarchies or geometric

attribution (e.g. colour groups, hatching, line weight

etc.). While those groups can easily be extracted

from original vector data, extraction from vectorised

pixel data is not always possible or at least not

distinct. While layers are not present at all in this

kind of data, different colours and line weights are

sometimes hard to differentiate depending on the

quality of the pixel data (e.g. line weights or

grayscales). The intended semantics of the author

might first become clear if the interpretation is done

across several floor plans or even several projects of

the same author (best practises).

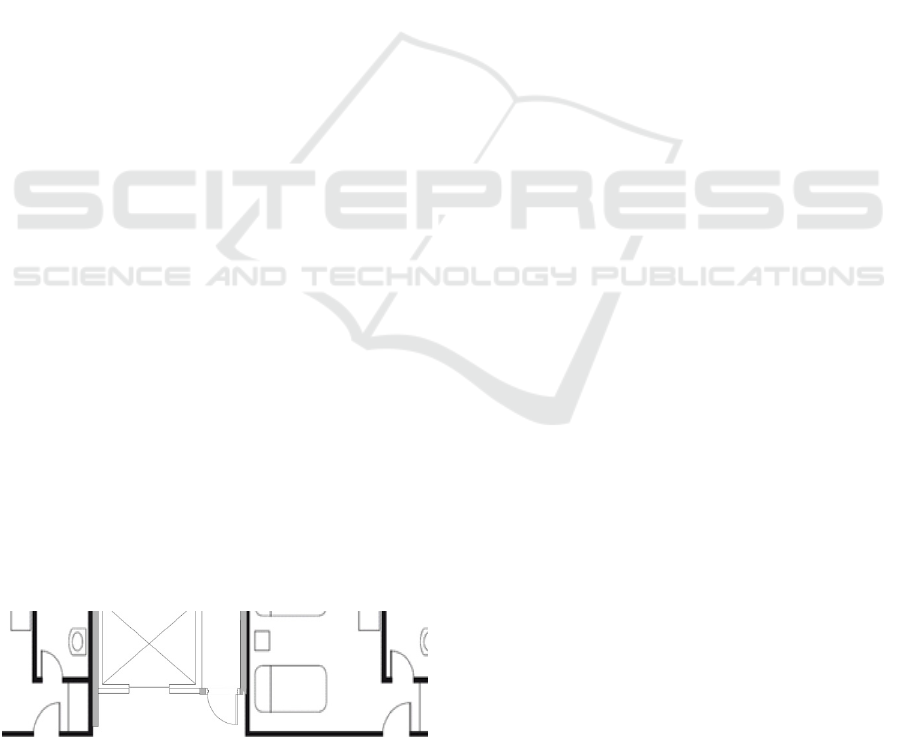

Figure 2: Combination of pixel and vector data.

A special case is the combination of vector data

and pixel-based information within the same file. As

depicted in fig. 2 for the building plan of a hotel, the

hotel rooms have been pasted into the plan from

pixel data, while other structures, e.g. the area

around the elevator are already vector-based. A

direct interpretation of hatching and line weights

would lead to inconsistent semantic groups. In

addition, if the pixel-based elements are interpreted

separately from the vectors, this can lead to

duplication of structures (like the walls around the

elevator in fig. 2).

2.4 Industry Foundation Classes (IFC)

In order to overcome the issues when interpreting

vectorised or even pixel-based data, BIM establishes

a common standard for a certain type of semantics

by introducing IFC - Industry Foundation Classes

(Laakso, 2012). BIM-IFC is also known as the first

open 3D standard for building-specific data

representation. Afterwards more dimensions have

been added to BIM data representations like time,

costs and operational data. However, adding new

dimensions to the model also extends the variability

of possible representations. For example, if we look

again at the circle in fig. 1, all depicted versions can

serve as a basis for a 3D cylinder. Again, for the

creation of the cylinder, several options exist: e.g.

extrusion along a straight line, adding orthogonal

facets or creating a rotational solid. In models all

possible permutations of varieties might be found.

We already proposed some methods to import non-

conform IFC files (Mayer, 2012). Apart from

geometric primitives, there might be also pixel-

based data included in IFC models – so-called point

clouds. They can regularly be found in models,

which are exported by 3

party applications into

IFC. If there is no known representations of

proprietary entities in IFC the fall-back solution of

most programs is exporting faceted point clouds.

This sort of data can also be found if existing

buildings are digitised by laser scanners (cf. fig. 3).

The task of processing these point clouds is

comparable to the vectorisation of pixel-based data

as described above. Again, rendering point clouds

can be a fall-back solution for the processing of

otherwise unhandled 3D formats. In an extreme

case, a valid IFC file might contain point clouds

only, and therefore, the processability of those files

is much worse than the one of vectorised 2D data.

SMARTGREENS 2018 - 7th International Conference on Smart Cities and Green ICT Systems

306

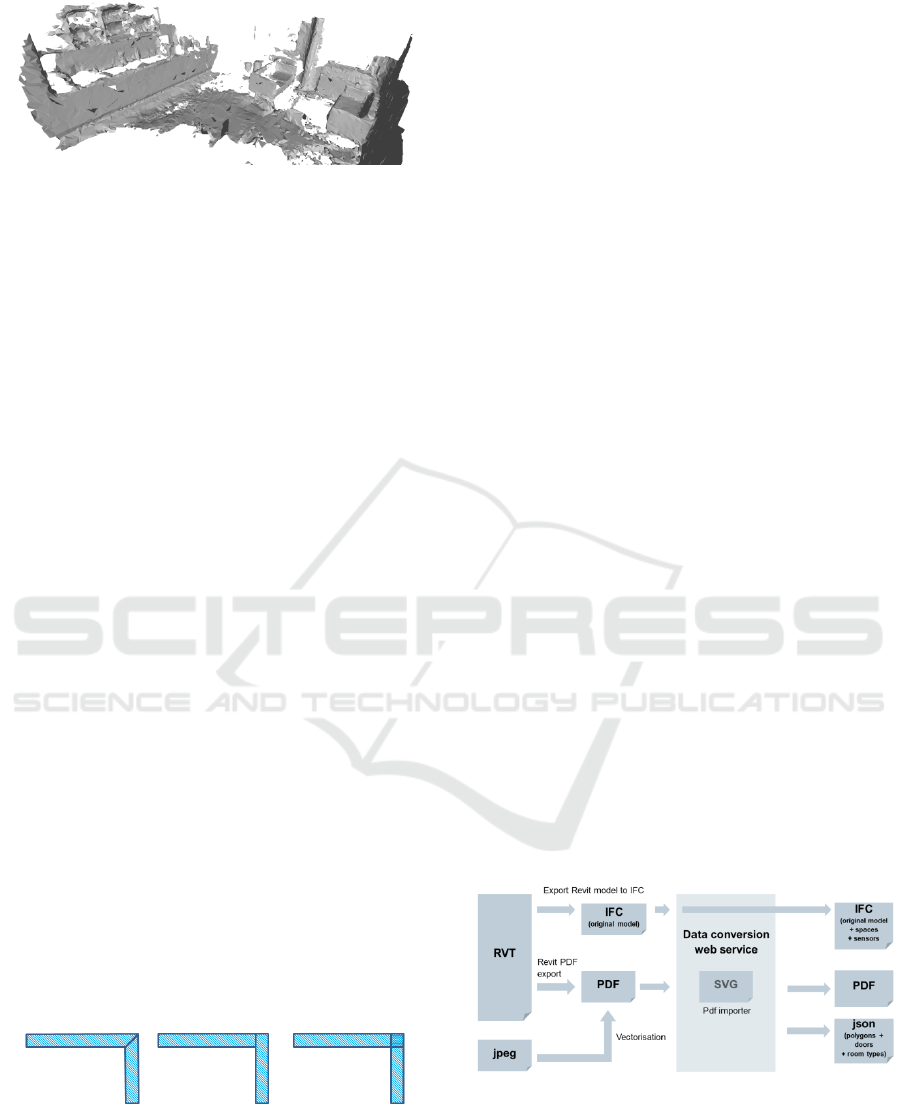

Figure 3: Typical point cloud after scanning a room.

Anyway, even if the geometric primitives of a

3D IFC representation are of perfect quality, other

parts of the IFC file can still cause issues. A typical

anomaly of an IFC file is the erroneous arrangement

of elements in its hierarchy. According to the IFC

standard, all elements should be arranged in a tree-

like structure. However, it does not say anything

about the correct position of elements within the

hierarchy. Therefore, even directly neighbouring

elements might be added to unexpected parts of this

hierarchy. For example, an IFC hierarchy usually

contains different floors of the building, but

elements can be put into arbitrary floors. Therefore,

a room might be place inside the correct floor, while

all furniture of this room is assigned to the ground

floor by adding a corresponding offset – still

constituting a valid IFC file. Some elements of the

IFC hierarchy might be duplicated for several

reasons. Usually, there should be only one building

root element, but due to merging several models

(e.g. architectural model and MEP – i.e. Mechanical

Electrical Plumbing structure) duplicated elements

can occur. Therefore some delimiters of a room like

dry walls are contained in the architectural node,

while other elements like structural walls are

contains in the MEP node. Usually there are no

references introduced when merging the models.

The only way to find neighbouring elements is an

exhaustive search, which is computationally

expensive. Another issue typically found in IFC files

from different vendors is the non-standardized

joining of walls. Joining walls is particularly

important to detect leak-proof entities (like for

energy or smoke simulation).

Figure 4: Different ways of joining walls.

Again, software for automatic model generation

has to deal with all relevant versions. As depicted in

fig. 4, walls might be joined inclined, straight or

overlapping.

Another issue with IFC files is often the wrong

or ambivalent utilization of elements. For example

dry walls or mobile walls are sometimes modelled as

furniture. In contrast, some types of room separators

attached to furniture are often modelled even as

structural walls. Also the relations of entities as

defined in the IFC standard are often not

implemented by IFC exporters (e.g. windows should

be related to openings, which are contained in walls

– but those entities are often found without any

semantic relation between each other). Some

elements in IFC files are sometimes not even

represented by a 3D entity, but just by 2D textures

on top of some other elements (e.g. doors painted on

walls instead of modelling them in 3D). There are

also elements, where IFC itself allows for a lot of

options instead of restricting itself to a clear

definition. For example stairs can be expressed in

large variety of implementations without demanding

a clear subset of common features. This is due to the

self-evident architect-centric definition of IFC,

which neglected at some points the requirements of

simulation engineers. Apart from these issues, BIM

IFC is a big step towards automatic data processing

of building data. Particularly IFC-based databases

like the BIM server (van Berlo, 2016 and Taciuc

2016) enable an efficient and integrative

management a large amounts of data.

3 DATA CONVERSION

In order to deal with different qualities of data, we

have introduced a semiautomatic process to enable

data conversion. The process starts at legacy paper

work (.jpeg) and ends with the generation of BIM-

IFC models – as depicted in fig. 5.

Figure 5: Conversion workflow.

Apart from legacy data, the workflow also

incorporates the processing of 3

party models. As

an example we have chosen AutoDesk Revit to

serve as a 3

party format, since a large variety of

models is designed with Revit today. As depicted in

Digitalization of Legacy Building Data

307

fig. 5, general 3

party models are integrated early

in the processing chain. The reason for that is the

lack of spatial information in most files (no

IFCSPACES defined). Regarding this important

feature, existing BIM models without spaces are

treated as ordinary vectorised files and converted to

.pdf format, which is possible in all commonly used

3D CAD applications. If supported by the 3

party

software, we export an IFC model as well, which

will be augmented by spaces afterwards. When

exporting from 3

party applications, the user should

usually support the conversion process by restricting

the export to relevant layers.

The conversion of legacy data is provided by an

external vectorisation service. It can be started in

batch mode and is therefore able to convert several

pages with pre-set parameters consequently. The

software detects primitives like lines and circles and

can also form semantic groups to some extend -

depending on the picture quality and distinctiveness

of features. For example if there are only two very

distinct line types at high quality, the application

should be able to detect two semantic groups.

After storing the building data to a .pdf file, it is

converted to a .svg file (scalable vector graphics).

The advantage of .svg is the better availability of

APIs (application programming interfaces).

3.1 Automatic Room Detection

After storing the building data to a .pdf file, it is

converted to a .svg file (scalable vector graphics).

The advantage of .svg is a higher availability of API

interfaces and it is in theory a human readable

format, which facilitates testing and debugging. The

API extracts the primitives stored in the file and

converts them to internal structures of the

corresponding programming language. Based on

these primitives, the application then searches for

certain patterns describing doors. Currently the

patterns are fixed, but a more flexible approach of

user-defined patterns is under preparation. The

pattern for the door describes the arrangement of

primitives, which are usually taken by architects to

describe this element (e.g. a straight line connected

to a quarter arc). In addition, we evaluated neural

networks to solve the task of door detection.

However, neural networks suffer from a high

demand for training data before reliable results can

be expected (Abu-Mostafa, 2012). Therefore, they

are not well-suited for an application on building

data with a limited amount of examples for the same

style.

After the doors are detected by pattern matching,

they serve as a starting point for detecting the

polygonal delimiters of rooms. If the door sill is

taken as starting line, it is quarantined for connected

lines to be part of the room polygon. As depicted in

fig. 6, there are two runs for each direction, starting

at the door.

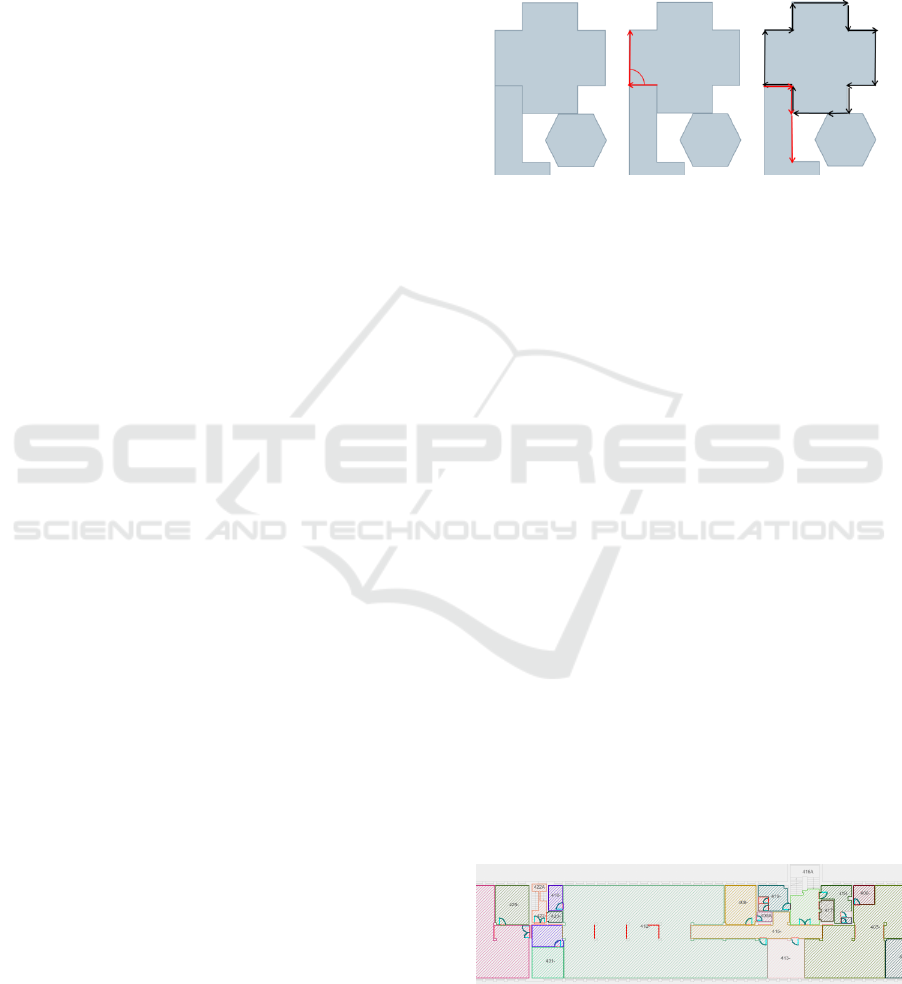

Figure 6: Algorithm to search for room polygons.

The first run connects all points starting at one

end-point of the sill. The next point is always

connected in a way to form the smallest possible

angle. As depicted in fig. 6 (middle) the connection

with angle 90° was chosen, while there would have

been another alternative constituting 270°

(downwards). By using the smallest possible

connection, it is guaranteed to intersect with the

formed line again after the lowest possible number

of steps (black line in fig. 6 right). After one run was

completed, the other direction is tested for forming a

polygon, again taking the smallest possible angle for

connections (red line in fig. 6 right). Since the size

of doors is known, an approximate scale of the plan

can be determined (by assuming a single door to

have a width of 0.7 m – 1.5 m). Therefore, the

approximate area of polygons can be determined in

order to filter off small polygons. Another special

case to be treated is the exterior of the building,

which is detected by starting at one of the entrances.

Once the room detection is completed (all doors are

processed), the connectivity of rooms is determined

(showing neighbouring rooms in different colours in

fig. 7). Connections via stair cases are added by

searching for pre-defined patterns for stairs. Again

these patterns are fixed right now, but are going to

be replaced in future versions by a flexible approach.

Figure 7: Coloured polygons after room detection.

When the polygons are detected, they are merged

in order to form rooms according to predefined

SMARTGREENS 2018 - 7th International Conference on Smart Cities and Green ICT Systems

308

rules. One of these rules merges embrasures of doors

and windows with the adjourning room. After the

room detection algorithm terminates, a 3D model is

extruded from the room polygons (fig. 8). The

height for extrusion is taken from user-defined

parameters.

Figure 8: Extrusion of polygons into a 3D model.

Originally the extrusion also included the

generation of walls. However, since the

reconstruction of valid BIM IFC walls is hardly

possible, and walls are not necessary for most

relevant simulation tasks, wall generation is omitted

in the current version of the software.

The accuracy and access rate of the room

detection depends mainly on the quality of the input.

For properly prepared CAD data (with well-defined

layers and re-used building blocks like doors), the

procedure is quite successful in finding all rooms.

There are some issues regarding the handling of

stairs, due to their high variability between

buildings. We have defined some standard types of

stairs - however the whole abundance of design

options cannot be covered right now. Regarding the

processing of scanned plans, the success rate

predominantly depends on the quality of the scans

and on the individual pre-processing by the user.

Therefore an overall success rate cannot be given or

guaranteed without defining further restrictions.

3.2 Room Types

A more important attribute of the detected rooms is

their usage type. The usage of a room decides about

dependent features like fire safety equipment or

occupant evacuation (Mayer, 2014). For the

detection of room types we are currently developing

a supervised learning suite based on three different

features, which uniquely describe the room type.

The first feature is the topology of the room, i.e. its

arrangement in the building hierarchy. For example,

aisles usually are connected to the stair case and to

several rooms. Restrooms usually have an entrance

area with basins, followed by another room with

small cabinets. However, most rooms cannot be

classified by topological features alone. Therefore,

as a second feature, rooms are searched for text

patterns indicating their usage. Text indicators might

be straight-forward like “kitchen” or “office” (in

different languages) or indirect like typical family

names of persons indicating a cubicle office. Texts

are detected by regular expressions (Aho, 1986),

which have to be defined by the user. Texts as an

indicator have a very high reliability, but since not

all variants of building plans contain those texts, a

third feature is added for determining room types.

Most architects use certain symbols or artefacts to

indicate the usage of rooms. If we look again at

fig. 2, the usage type as a bedroom is clear from the

symbols (beds and nightstands). Additional

conclusions can be drawn from context: if a building

contains predominantly bedrooms, it is most likely a

hotel and the bedrooms are guest rooms. Therefore

symbols are a powerful feature found in most plans

today. However, formalizing their usage is much

more complex compared to texts. Currently we are

developing a symbol matching algorithm based on

support vector machines (SVM) used for

classification (Schölkopf, 2001).

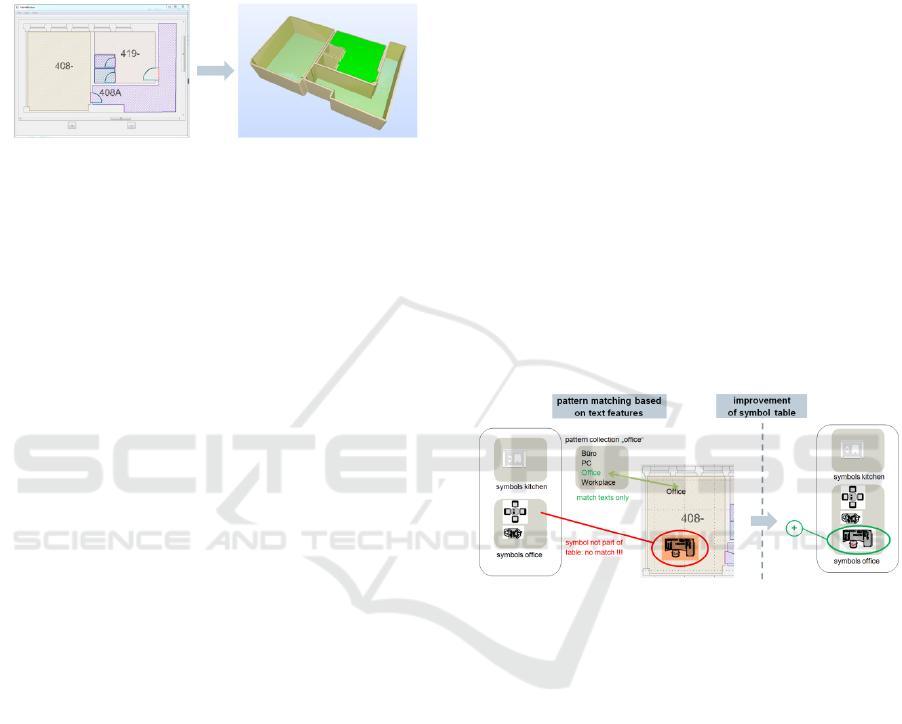

Figure 9: Extrusion of polygons into a 3D model.

While the algorithm works already based on a

separate/independent classification of the three

features, we are currently preparing an integrated

solution. As depicted in fig. 9, some rooms are

attributed by several different features: in this

example a text feature (“Office”) and a symbol

feature (office furniture). In the depicted situation,

classification can be determined by texts only, since

the furniture is not yet added to the symbol table. By

distinctly classifying the room as an office by text,

the contained symbols can now be added to the

symbol table. Later, other rooms with this type of

furniture can be classified as offices as well without

the need of a textual description. Therefore,

connecting the detection of different features in this

way, will automatically improve the overall

classification quality (self-improving system). As an

additional option, the manual classifications of users

will be collected and analysed in a central place (via

Digitalization of Legacy Building Data

309

web services) to improve the classification as well.

Based on the spatial information combined with the

usage type of rooms an evacuation simulation can be

derived, which complies with the regulations of the

International Maritime Organization (IMO 2002)

and the German RiMEA (RiMEA, 2009).

4 CONCLUSIONS

We have presented a novel approach to improve the

data quality of legacy building data in order to

derive BIM models automatically and to add

semantics as far as needed for simulation tasks.

After pre-processing the raw input, which could be

just scanned plans, building structures like doors and

rooms will be detected automatically. Rooms and

their connectivity is a central key for providing

downstream service without extensive effort. A

central key is the detection of rooms and the

determination of their usage. This can be achieved in

an interactive process by providing as much

automation as possible. Interactive means the

expertise of human experts using the service will be

used to improve the classification processes in an

iterative approach. Once all rooms are properly

classified, many simulation applications can profit

from this information and will not need too much

frontloading anymore. For example the number of

occupants can be increased for office rooms (in

evacuation planning) or a fire simulation can be

performed with better realism (fires usually start in

kitchens and storage rooms). We think that this

preparation of legacy data can leverage use cases for

simulation on the one hand, and reduces costs on the

other hand, and therefore, will improve the quality

and safety of buildings in the future.

As a next step we want to finalize the work on

the room detection and classification and provide

them as web services in the internet. The quality of

results of the self-learning algorithms will massively

profit from a large user community. In exchange for

contributing to the platform with their experience,

they can use the services at a reduced rate or will be

rewarded by data usage. The hope is for such a

system to improve itself at a steep rate at the

beginning, while results stabilize when the amount

of users reached a critical number (critical in a sense

to be sufficient for the platform to live on).

By providing a central platform for uploading

models and providing services independent from a

specific platform vendor, the basic idea behind the

BIM process as a method for building lifecycle

management will be promoted.

REFERENCES

Abu-Mostafa, Y., Magdon-Ismail, M., Lin, H., 2012.

Learning from Data. AMLBook.

Aho, A., Sethi, R., Ullman, J., 1986. Compilers:

Principles, Techniques and Tools. Addison Wesley.

van Berlo, L., Papadonikolaki, E., 2016. Facilitating the

BIM coordinator and empowering the suppliers with

automated data compliance checking. ECPPM.

Eastman CM, Teicholz P, Sacks R, Liston K., 2011: BIM

handbook: A guide to building information modeling

for owners, managers, designers, engineers and

contractors. 2nd ed., Wiley.

IMO Guidelines. 2002: Interim Guidelines for Evacuation

Analyses for new and existing passenger ships.

International Maritim Organization (IMO).

MSC/Circ. 1033.

Laakso M., Kiviniemi A. O., 2012: The IFC standard: A

review of History, development, and standardization.

ITcon 17.9, pp. 134-161.

Liebich T., Adachi Y., Forester J., Hyvarinen J., Karstila

K., & Wix J. 2006. Industry Foundation Classes:

IFC2x Edition 3 TC1. International Alliance for

Interoperability (Model Support Group).

Mayer H., Frey C., 2014. Modeling and Computer

Simulation for an advanced Building Management

System. 15

International Conference on Automatic

Fire Detection. Duisburg. Germany.

Mayer H., Klein W., Frey C., Daum S., Kielar P.,

Borrmann A., 2014. Pedestrian Simulation based on

BIM data. ASHRAE/IBPSA-USA Building Simulation

Conference. Atlanta, GA, USA.

Mayer H., Paffrath M., Klein W., Kleiner S., 2016.

Simulation des Entfluchtungsverhaltens in der

Planungsphase von Gebäuden mit Hilfe der automa-

tisierten Prozessintegration und Designoptimierung.

NAFEMS DACH Conference. pp. 433-436.

Taciuc, A., Karlshøj, J., Dederichs, A., 2016.

Development of IFC based fire safety assessment

tools. Proceedings of the International RILEM

Conference Materials, Systems and Structures in Civil

Engineering.

RiMEA Guidelines. 2009: Richtlinie für mikroskopische

Entfluchtungs-Analysen, https://rimeaweb.files.word

press.com/2016/06/rimea_richtlinie_3-0-0_-_d-e.pdf.

Schölkopf, B., Smola, A., 2001. Learning with Kernels:

Support Vector Machines, Regularization, Optimiza-

tion and Beyond (Adaptive Computation and Machine

Learning Series). MIT Press.

SMARTGREENS 2018 - 7th International Conference on Smart Cities and Green ICT Systems

310
