Function References as First Class Citizens in UML Class Modeling

Steffen Heinzl and Vitaliy Schreibmann

University of Applied Sciences W

urzburg-Schweinfurt, Sanderheinrichsleitenweg 20, 97074 W

urzburg, Germany

Keywords:

Functional Modeling, UML, MOF, Modeling.

Abstract:

There have been a number of philosophical discussions whether functional programming or object-oriented

programming is the better programming concept. In reality, programmers utilize both concepts and functional

programming concepts improve object-oriented languages. Likewise the modeling of OO languages should

also reﬂect these concepts in the modeling process. This paper improves the modeling of behavior (usually ex-

pressed through functional programming) in UML class diagrams. In UML class diagrams, behavior modeling

is only achieved by modeling a new class containing the desired function. If several alternatives for a certain

behavior have to be expressed, the modeling complexity increases because we need to introduce an interface

and for each alternative an additional class. Therefore, we propose a new function element that circumvents

these problems and reduces the complexity of the model. Due to the proposed <<Function>> stereotype,

functions in the model can be identiﬁed at ﬁrst glance. The new model is motivated by the strategy pattern and

evaluated against a more complex design pattern. A possible ﬁrst implementation is presented.

1 INTRODUCTION

Object-oriented programming (OOP) is used to map

objects as well as relations between objects from the

real-world into programming languages. During this

mapping process, developers have repeatedly faced a

number of similar problems. Gamma et al. (Gamma

et al., 1995) collected object-oriented design patterns

that had been used to overcome these recurring prob-

lems. Developers following these design patterns pos-

sess a common vocabulary when talking about these

problems as well as a common way to structure a so-

lution. Some of the patterns (such as the strategy

pattern) are cumbersome due to the lack of expres-

siveness of purely object-oriented languages and their

representation by class diagrams.

For a few years now, all major OOP languages

(Java, C#, C++) (partially) support functional pro-

gramming and allowing developers to mix both pro-

gramming styles. But are purely object-oriented de-

sign patterns still adequate for modeling? Should

modeling languages, such as the Uniﬁed Modeling

Language (UML) (Object Modeling Group, 2015),

contain functional concepts?

The contributions of this paper are answers to

these questions by introducing a new UML stereotype

<<Function>> to model function references as ﬁrst-

class citizens in UML class diagrams. The proposed

function element complements the modelers’ existing

toolkit (consisting of interfaces, classes, enums, etc.).

The evaluation shows that the complexity of modeling

design patterns can also be reduced.

The paper is structured as follows: Section 2

explains—exempliﬁed by the strategy pattern—the

reason for introducing a function element. In the Sec-

tion 3, the function element is speciﬁed. Section 4

shows how the function element can reduce modeling

complexity. Section 5 demonstrates a ﬁrst implemen-

tation of the model in Java and Section 6 presents the

related work. Section 7 concludes our paper and dis-

cusses areas of future work.

2 MOTIVATION

Dijkstra (Dijkstra, 1984) claimed: ”the Romans have

taught us ”Simplex Veri Sigillum” that is: simplicity

is the hallmark of truth [...], but [...] the sore truth

is that complexity sells better”. The strategy pattern

shown in Figure 1 is a good example for overly com-

plex depiction compared to its function.

The strategy pattern consists of a Context that has

an object of a strategy. The Strategy is represented

by an abstract class or interface, and a class hierarchy

subclassing/implementing the abstract class/interface.

ConcreteStrategyA to ConcreteStrategyC encapsulate

different behaviors by providing a single accessible

Heinzl, S. and Schreibmann, V.

Function References as First Class Citizens in UML Class Modeling.

DOI: 10.5220/0006783603350342

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 335-342

ISBN: 978-989-758-300-1

335

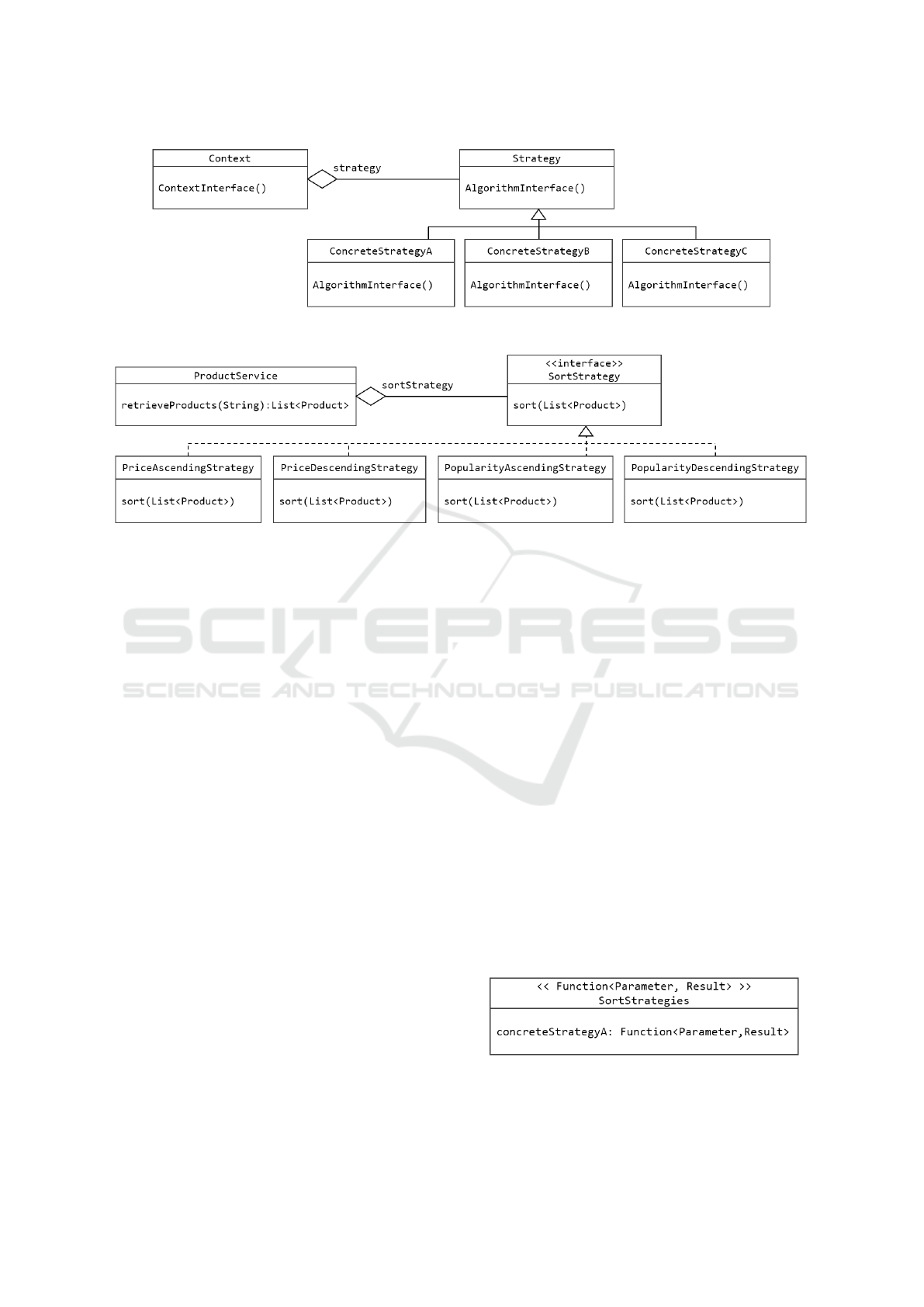

Figure 1: Strategy Pattern.

Figure 2: An example of the strategy pattern taken from an online shop.

method. Most of the times, the pattern is used for

the choice of an algorithm or—in more general—to

capture different alternative behaviors. According to

Gamma et al. (Gamma et al., 1995, pp. 315) the pat-

tern is used to prevent the use of multiple conditionals

to select an algorithm. Instead the algorithms can be

varied independently of the client. New algorithms

can be added by adding a new subclass/implement-

ing class. Modeling the strategies in such a way is

ﬁne if you want to put strong emphasis on the differ-

ent strategies. For example, Figure 2 depicts a sorting

algorithm for an online shop that is able to sort prod-

ucts in an ascending or descending fashion by means

of the products’ prices or popularity.

When modeling a complete online shop, concepts

such as customer, invoice, cart, order, message for-

mats, services, etc. might be more important than

sorting strategies, which might take a large space in

the shop model.

The strategy pattern has been selected as an ex-

ample because each strategy consists of a straightfor-

ward class encapsulating only behavior without state.

Behavior can usually also be encapsulated in a single

method in a separate encapsulating object. Most lan-

guages provide function references that also can en-

capsulate an anonymous method, a so-called lambda

expression. In Java, for example, function refer-

ences are introduced by a FunctionalInterface named

Function<T,R>. T stands for the type of the argu-

ment passed to the function and R stands for the re-

turn type of the function. C# provides a similar so-

lution. Function references in C# are introduced by a

so-called Delegate named Func<T,TResult>. Simi-

larly, T is the type of the incoming argument, TResult

the type of the outgoing result.

UML class diagrams are limited to only classes.

Stereotypes are necessary to distinguish between

classes, abstract classes, interfaces, etc. Anonymous

methods, functional interfaces, functional references,

and delegates are all terms relating to the realization

of lambda expressions in OOP languages. But UML

class diagrams do not support this concept out-of-the-

box. Therefore, we propose to deﬁne a stereotype

<<Function>> to model behavior instead of using the

<<interface>> stereotype (and subclassing as in the

strategy pattern). Beside classes, interfaces, etc. we

now have a new model element named function in our

toolkit. With the <<Function>> stereotype shown in

Figure 3 we can model the types and return types the

function reference is able to work with. Furthermore,

the element in Figure 3 contains a function reference

attribute to a function (i.e. the UML class with the

stereotype <<Function>>).

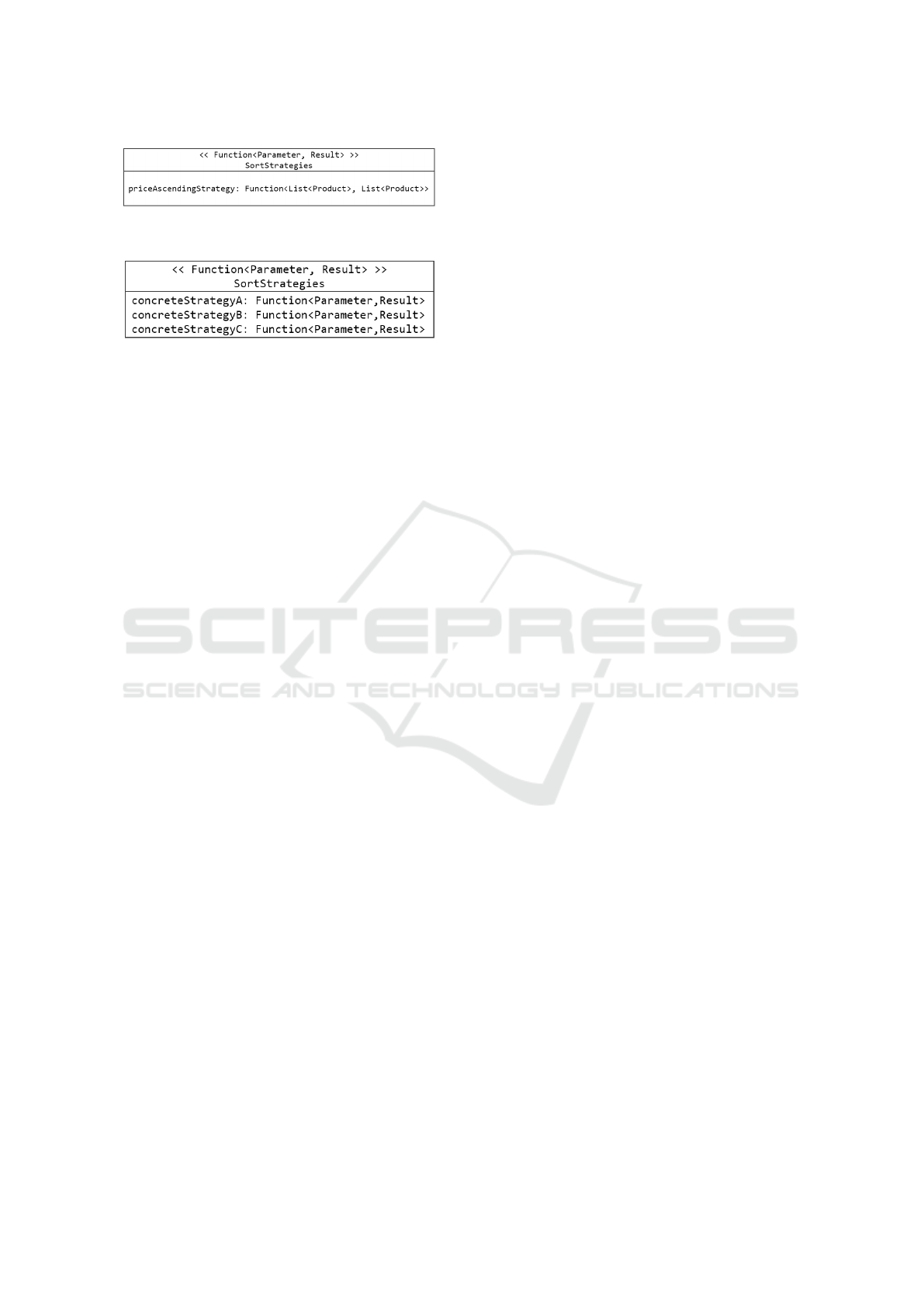

Figure 3: Function stereotype with one function reference.

The function element acts a container to save

a function reference that is able to work with the

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

336

Figure 4: Function stereotype example with one function

reference.

Figure 5: Function stereotype with several function refer-

ences.

type Parameter and return type Result given in the

stereotype. Figure 4 shows an example function from

our online shop which contains a function reference

taking a list of products and returning a sorted prod-

ucts list.

We can also group function references as shown

in Figure 5. The stereotype speciﬁes that all func-

tion references work with the parameter and result

type speciﬁed by the stereotype. That means the

stereotype forces all Function objects to be of type

Function<Parameter,Result>.

After all this effort, we can now take a look again

at the strategy pattern in Figure 6, this time expressed

with a function. The context has an aggregation to

SortStrategies. This aggregation means—depending

on the multiplicity—that the Context can have be-

tween 0 and n function references with the type de-

ﬁned in the stereotype. Usually this attribute is ﬁlled

with the Functions attributes listed inside the function

by holding a direct reference (i.e. concreteStrategyA).

3 SPECIFICATION OF THE

FUNCTION ELEMENT

In UML, we apply stereotypes to ”transform” classes

to either interfaces, abstract classes, enums, or others.

Our approach utilizes this mechanism to introduce the

function element. Until now, it has not been possible

to directly associate function references with other el-

ements in class diagrams. With the function, it is pos-

sible to treat function references as ﬁrst class citizens

in class diagrams.

3.1 Function Element

In the following, we specify the function and its se-

mantics.

In Figure 7, a general representation of the func-

tion is shown. The function has a name (Function-

Name), a stereotype with parameter and result type,

and several attributes with a type speciﬁed by the

stereotype. The following sections discuss the com-

ponents of function in detail:

Name: The name serves—as usual—as a good

description for the element in order to provide a clear

understanding of the reality captured in the model.

Stereotype: Our stereotype is named Function

and enables the modeler to distinguish between func-

tion and normal classes. Furthermore, the Function

stereotype can be parameterized to specify the object

types that all its function references take as parameter

and return types. In case the stereotype is not param-

eterized, the attributes (i.e. function references) must

indicate the parameter and the return type themselves.

Attributes: The attributes of a function are static

in nature because they are known at coding time. As a

consequence, the attributes are all non-modiﬁable and

therefore read-only. The attributes are by default pub-

lic and the readOnly property can be omitted. Also,

the type of the attribute can be omitted if it is already

speciﬁed by the stereotype. Such a speciﬁcation is

depicted in Figure 8. Non function references are

not allowed. In case a state is needed across several

function references, a normal class should be used for

modeling.

The parameters have a polymorphic character.

That means that either the type of the parameter itself

or of a subclass can be used.

If several arguments are to be passed to the func-

tion reference, they should be encapsulated in a single

object. Alternatively, it would also be possible to use

a parameter list and interpret the last parameter as the

return type. As a remark: Common programming lan-

guages such as C# and Java have decided against this

approach and work instead with a single parameter

type and a single return type.

3.2 Multiplicity and Relations

An element can be related to a number of functions

in the same ways it can be related to other objects. In

Figure 9, an instance of Context holds exactly n func-

tion references speciﬁed in our function. The main

difference to normal classes is that not n objects of

FunctionName are held by the Context instance but

n attributes (i.e. function references) inside of Func-

tionName. All known multiplicities from UML can be

utilized with the multiplicity of n representing several

function references.

Function References as First Class Citizens in UML Class Modeling

337

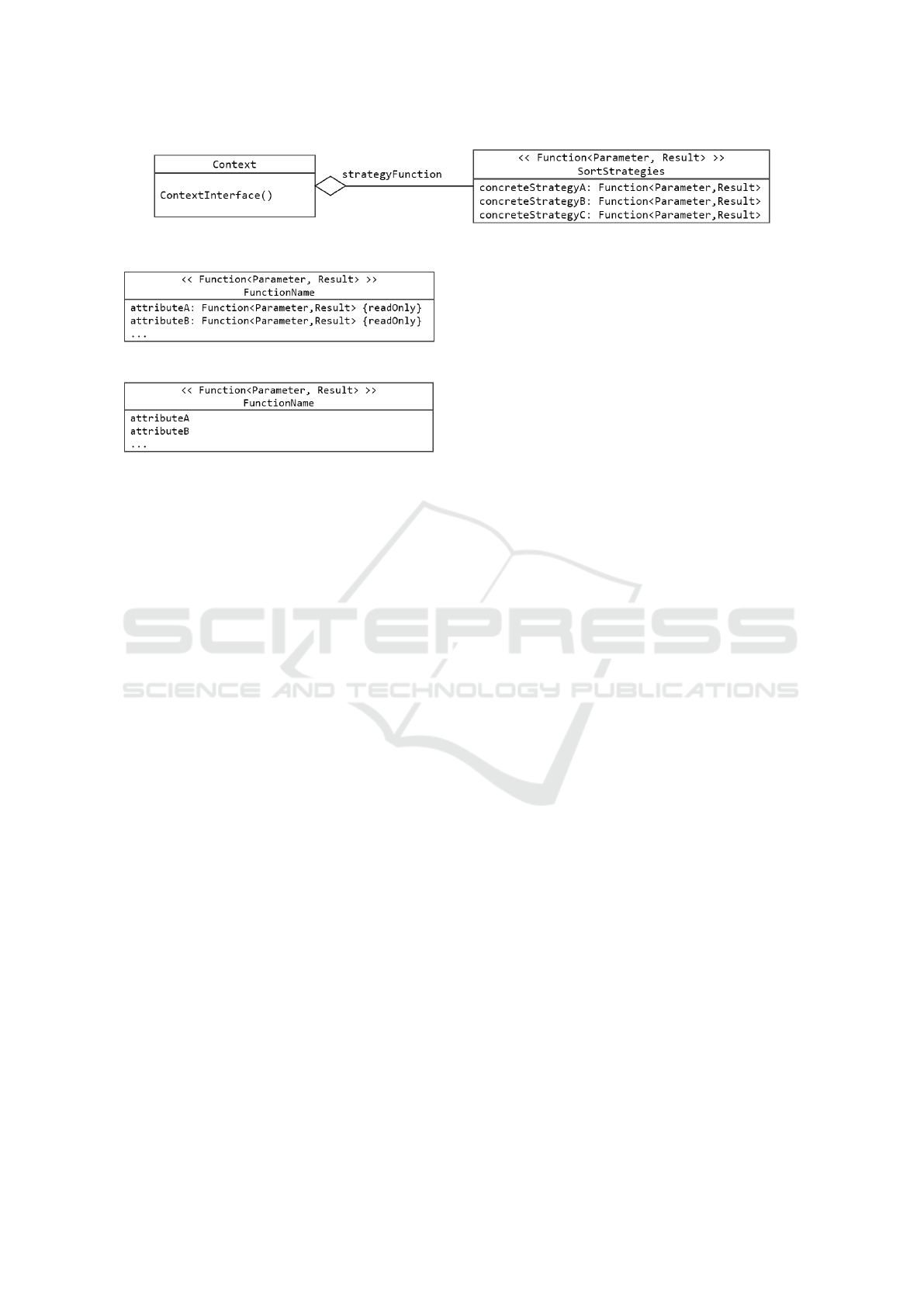

Figure 6: Strategy pattern expressed with the new Function.

Figure 7: Speciﬁcation of the function.

Figure 8: Speciﬁcation of the Function without Explicitly

Showing Defaults.

3.3 Abstraction

The Function<Parameter,Result> (or shorter:

Function<P,R>) provides a good abstraction for dif-

ferent languages. Therefore, the knowledge of lan-

guage speciﬁc types is not necessary in the model.

We provide two examples how the abstraction

matches types from the underlying languages: The

following mapping can be used to map our abstrac-

tion to Java types from the standard library:

• Function<P, void> matches Consumer

• Function<void, R> matches Supplier<R>

• Function<P,R> matches Function<P,R>

• Function<void,void> matches Runnable

The following mapping can be used for C#:

• Function<P, void> matches Action

• Function<void, R> matches Func<R>

• Function<P,R> matches Func<P,R>

• Function<void,void> matches Action

3.4 MOF Extension

Our proposed approach can be realized by an exten-

sion of the EMOF model from the Meta Object Facil-

ity (MOF) Speciﬁcation (Object Management Group

(OMG), 2016, p. 27). We added the new function

element on the same level as the class element using

a similar extension mechanism that has already been

shown by Min et al. (Min et al., 2011). The reason

is that a function element in the UML model does not

share all properties and behavioral aspects of a class,

i.e. for example the list of operations. In addition, we

can extend the function element independently from

the class element (e.g. for the deﬁnition of stereotypes

and subelements). We decided to keep the extension

of MOF (as shown in Figure 10) to a minimum and

extend it further in future work.

4 EVALUATION

As an evaluation for our approach, we take a look at

three different examples and verify the application of

the newly introduced function.

4.1 Visitor Pattern

We selected the rather complex visitor pattern from

(Gamma et al., 1995, pp. 334) (depicted in Figure 11)

to analyse how well our modeling approach is suited

to simplify the modeling.

We start modeling by adding different function

references to a function element. The small excerpt

in Figure 12 already shows a number of problems:

The Element and its subclasses accept a vis-

itor with the accept method. The problem is

that the Element in our modeling has to accept

function references of different parameters and re-

sult types (see Figure 12). We have to use

a type, such as Function<Element, void> in-

stead of Function<ConcreteElementA, void> or

Function<ConcreteElementB, void>. In a pro-

gramm, this distinction is usually done during run-

time using polymorphism and late binding. The prob-

lem lies in the access to generic types during run-

time, which is not provided by all widespread object-

oriented languages. For example in Java, type erasure

is applied to generic types during compilation. This

point must be embraced in an implementation of the

model as discussed in Section 5 and shown in Figure

13.

The accept method in the Element interface and

the ConcreteElement classes are replaced by the

standard method for executing a Function, and hence

need not be modeled explicitly. The two visitor func-

tion references offered can work on all subclasses of

Element. The complexity of the model is reduced

compared to (Gamma et al., 1995, pp. 334).

The visitor pattern is usually used to visit an object

structure. Between the visits of single elements of the

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

338

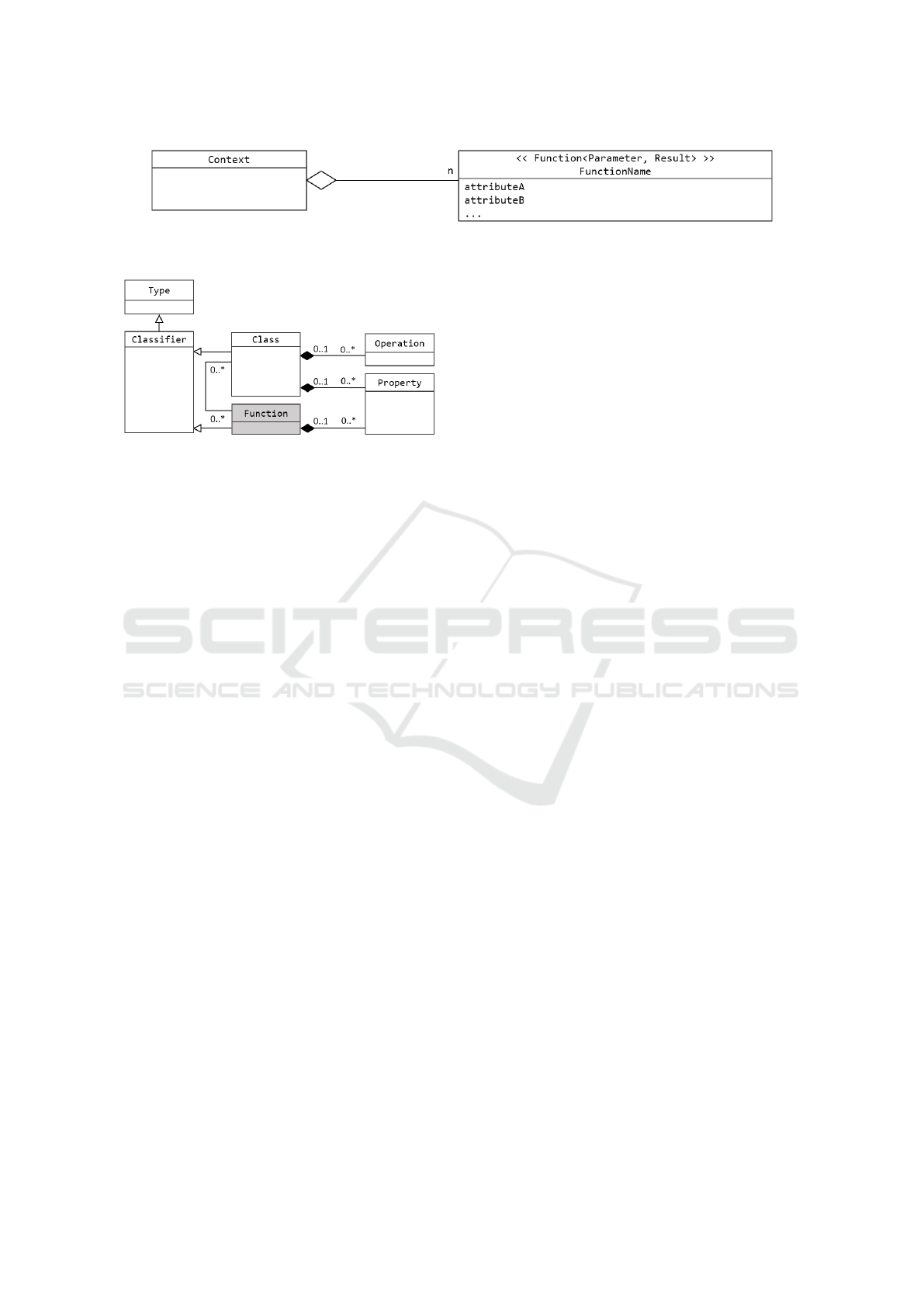

Figure 9: Example of multiplicity with function element.

Figure 10: Simpliﬁed depiction of the MOF extension with

a function element.

structure, the visitor is also able to save state. Saving

state is problematic in the functional approach but can

be achieved by passing the state as an argument from

function invocation to function invocation.

4.2 ”Simple” Visitor

The proposed function element can also be used for

simpler and more often used behavioral modeling.

Figure 14 shows one way to instantiate a thread in

Java. The constructor of the Thread class accepts

a ”visitor” that implements the interface Runnable

and executes the Runnable’s run method in its own

run method. Figure 15 illustrate the same situa-

tion but modeled with a function. A Java Runnable

has exactly one method (the run method), which

takes and returns no arguments perfectly matching

Function<void, void>. This model is elementary

and appears more often in software compared to the

full visitor pattern. Since Function<void, void>

can automatically mapped to Runnable, we do not—

in contrast to the ﬁrst model—explicitly need to show

the interface in the model.

4.3 Strategy Pattern

To end our evaluation, let us point to the Motivation

section where the less complex model of the strategy

pattern (see Figure 6) was contrasted to the original

model. This example has shown very well how mod-

eling was made less complex.

5 IMPLEMENTATION

In the Evaluation section, we spotted the problem

that in Java generic types are erased by the compiler

and are not available at runtime. We could achieve

the desired behavior by broadening the interface

through changing the accept method’s signature to

accept(Function<ConcreteElementA, void>,

Function<ConcreteElementB, void>). The

problem with this approach, however, is that each

time a new ConcreteElement is deﬁned, we have to

change the interface by adding another parameter to

the accept method.

Mario Fusco has shown an implementation of the

visitor pattern using functional programming in Java

(Fusco, 2016d). His work inspired our implementa-

tion in Java that can be used to implement the sug-

gested function element. For each function element

in the model, we create a class with function refer-

ences. Figure 18 shows an example for two different

sort strategies. As a function reference, we use our

class UMLFunc as shown in Figure 19 that implements

the function interface.

The UMLFunc circumvents the problem that Java

cannot access the generic type at runtime, allow-

ing the registration of class-behavior pairs. Allowed

classes are mapped to a behavior that should occur

when the UMLFunc is executed on an object of that

class. The standard execution method of a function in

Java is the apply method. This method must be over-

riden to apply different functions based on the class

name by looking into the map. We see one weak-

ness of this implementation: We do not support true

polymorphism. We register the implementation class

of our list instead of the List or Collection interface

and cannot distinguish between lists of different types

(e.g. list of prices, list of customers).

For the visitor pattern, we need a UMLFunc for

each different visitor. With the register method

we specify a class (ConcreteElement1, ConcreteEle-

ment2, ...) with the corresponding behavior (e.g. a

lambda expression calculation the area of a mathe-

matical ﬁgure). So instead of carrying the name of

each class in the method’s name (e.g. visitConcre-

teElementA and visitConcreteElementB), the class is

a parameter to the register method.

Function References as First Class Citizens in UML Class Modeling

339

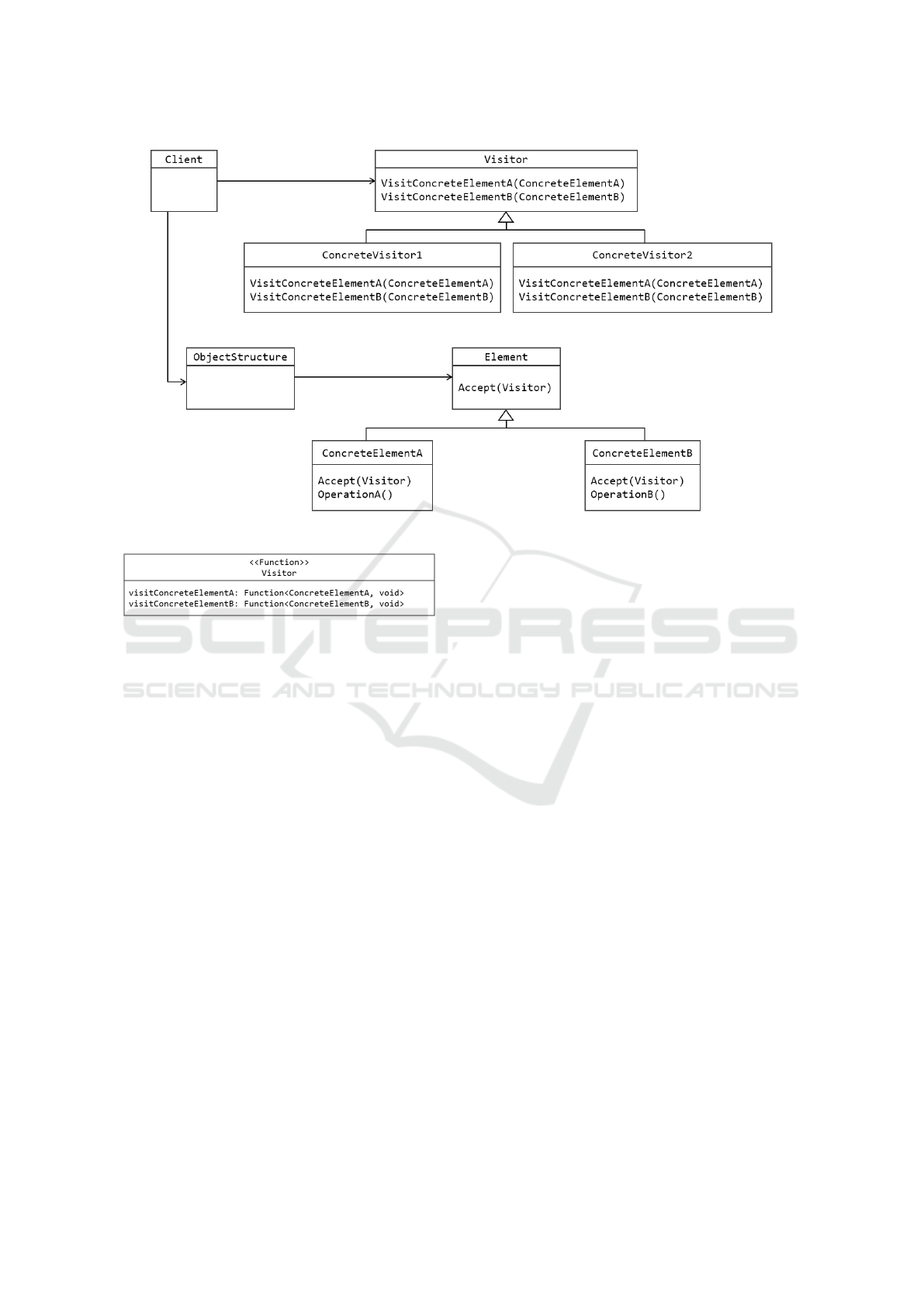

Figure 11: Depiction of the visitor pattern from the book (Gamma et al., 1995).

Figure 12: Excerpt of visitor pattern with function.

6 RELATED WORK

The aim of our work was to provide a modeling of

function references for OOP languages which have

been extended by functional programming concepts.

There are a few people, such as Mario Fusco

(Fusco, 2016a) (Fusco, 2016b) (Fusco, 2016c)

(Fusco, 2016d), who dealt with the topic of combin-

ing object-oriented programming design patterns with

functional programming concepts that were brought

into the OOP languages excessively. This shows

nicely how complex examples of OOP work together

with the functional programming concepts. He did,

however, only address improvements when it comes

to writing code but not for the modeling.

UML (Object Modeling Group, 2015) has a lot

of capabilites. If we had to model the function ele-

ment with current UML (version 2.5), we could use

the abstract class/interface approach as shown for the

strategy example in Figure 2. But the goal was to

provide a more prominent modeling of function ref-

erences, making them ﬁrst class citizens in modeling.

So we try to use normal UML model the newly in-

troduced semantics as similarly as possible. First, we

take a normal class with attributes. For every function

reference, you have to specify the types it adheres to.

The attributes have to be {readOnly} and public as

shown in Figure 16, otherwise they could be overwrit-

ten during the course of a program execution. From a

modeling perspective we can avoid several drawback

with our approach:

1. With default UML parameter and result of the

function references are not seen at ﬁrst sight.

However, including the parameter and result types

in the stereotype enables a more prominently

modeling.

2. With default UML it is harder to understand that

the actual intention of the modeling is the encap-

sulation of behavior.

3. Usually, in order to model functional references,

you have to take the actual type of the implemen-

tation. The function used in the stereotype ab-

stracts from that. In Java, the name of the con-

tainer for function references is also Function, but

neither parameter nor result type could be void.

Other types are needed to achieve this behavior

and in C#, you would need to use Func. If function

was a ﬁrst class element in UML as we propse,

tool support should easily achieve the mapping to

different programming languages.

Our function element in UML simpliﬁes the mod-

eling of dynamic systems, such as mobile agents.

Bosse (Bosse, 2016) deﬁned a system of mobile

agents in an Internet of Things environment with

JavaScript as a programming language. An agent was

modeled with an Activity-Transition Graph (ATG)

(Bosse, 2016, Figure 2) which consist of a class

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

340

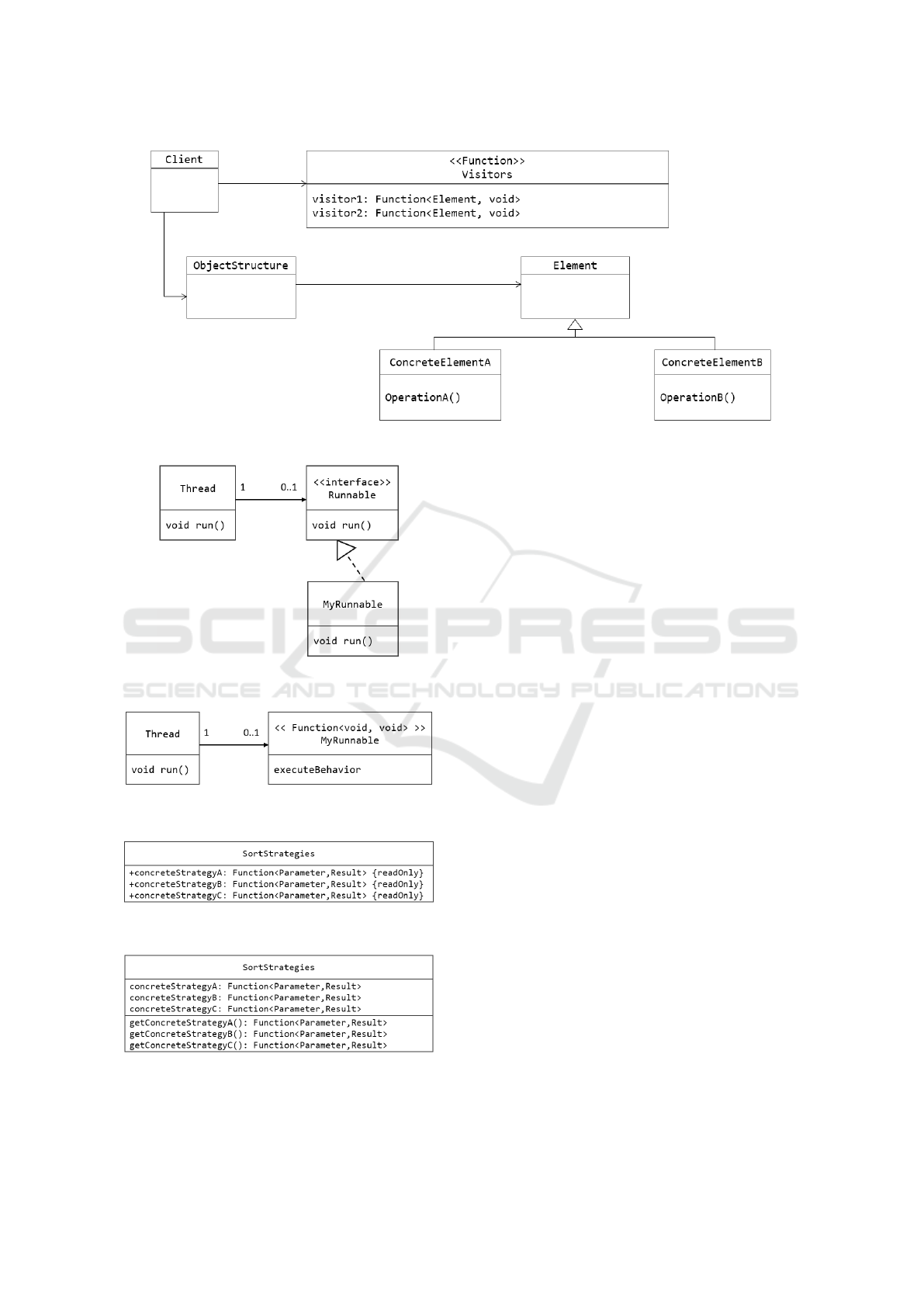

Figure 13: Modeling of visitor pattern with our function element.

Figure 14: ”Simple” version of the visitor in the Java run-

time library (default).

Figure 15: ”Simple” version of the visitor in the Java run-

time library (with function).

Figure 16: Modeling sorting function element with our

UML meta-model.

Figure 17: Modeling sorting function element with our

UML meta-model (alternative).

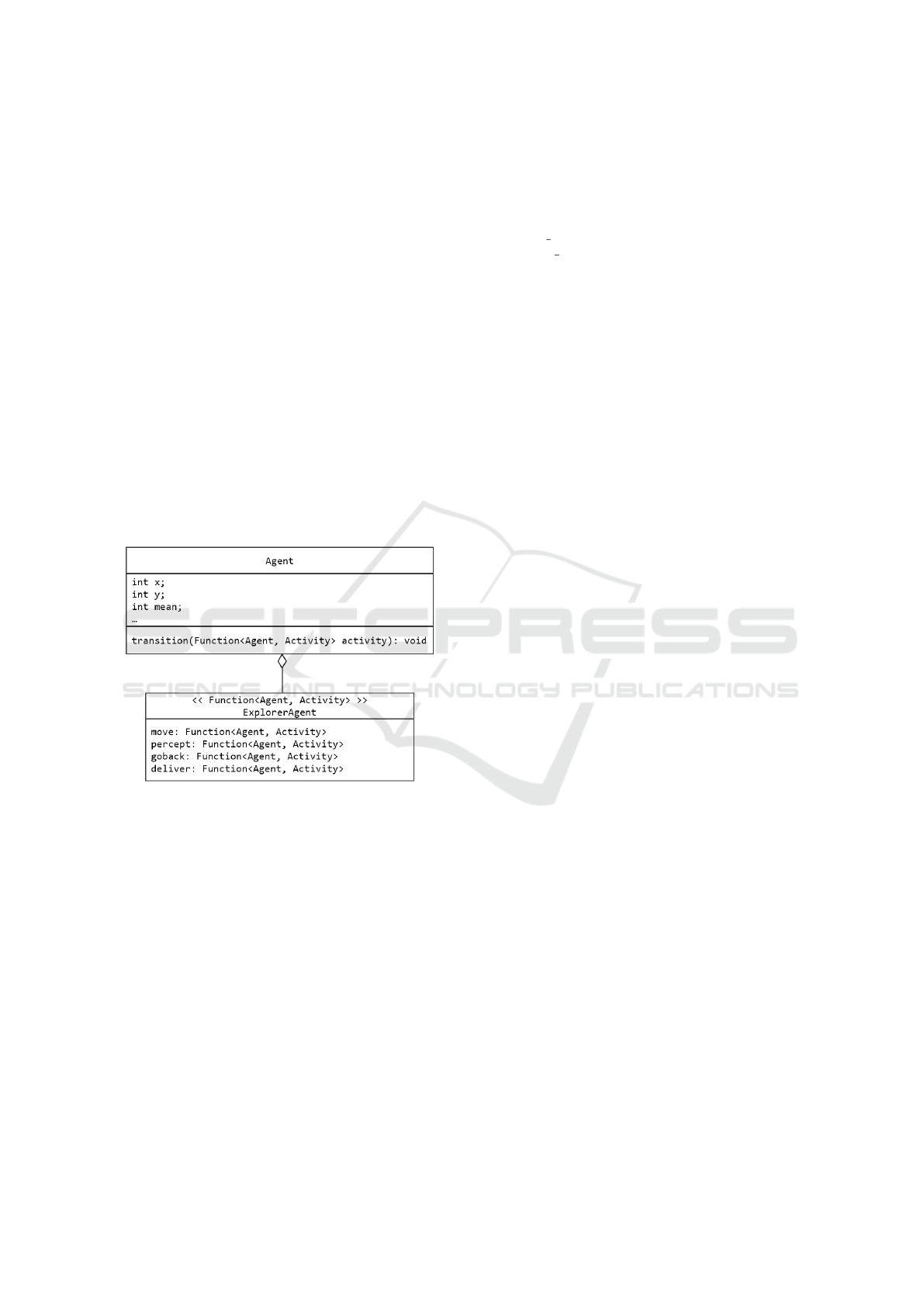

model and activity transition graph. We suggest to ap-

ply our extension of UML and model the class model

separately as shown in Figure 20. Our modeling ap-

proach would beneﬁt the source code generation be-

cause we are close to the original EMOF.

7 CONCLUSION AND FUTURE

WORK

In the last decade, lambda expressions and function

references have become part of major OO languages,

such as Java and C#. The modeling of these con-

cepts has not evolved in the same way. This paper

has shown how to extend UML class diagrams by a

function element. The speciﬁcation of the function el-

ement has been presented and evaluated. The evalua-

tion has shown that behavioral modeling is made eas-

ier, thus making—at least in the cases of the strategy

and visitor pattern—the modeling of design patterns

less complex.

In the future, we evaluate beneﬁts of our design

in the area of Fog/Edge computing. As described by

Hao et al. (Hao et al., 2017), tasks can move from

device to device because of user movement or per-

formance issues. Their suggested workﬂow approach

could beneﬁt from functional programming and prob-

ably from our modeling approach, too.

Function References as First Class Citizens in UML Class Modeling

341

p u b l i c c l a s s S o r t S t r a t e g i e s {

p u b l i c f i n a l UMLFunc<L i s t , L i s t > p r i c e s A s c = new UMLFunc< >();

p u b l i c f i n a l UMLFunc<L i s t , L i s t > p r i c e s D e s c = new UMLFunc< >();

p u b l i c S o r t S t r a t e g i e s ( ) {

p r i c e s A s c . r e g i s t e r ( A r r a y L i s t . c l a s s , l −> l a m b d a e x p r e s s i o n ) ;

p r i c e s D e s c . r e g i s t e r ( A r r a y L i s t . c l a s s , l −> l a m b d a e x p r e s s i o n ) ;

}

Figure 18: Realization of the strategy pattern in Java for function element.

p u b l i c c l a s s UMLFunc<T , R> im ple men ts F u n c t i o n <O b j e c t , R> {

p r i v a t e f i n a l Map<C l a s s <?>, F u n c t i o n > f u n c t i o n M a p = new HashMap < > ();

p u b l i c <T2 e x t e n d s T> v o i d r e g i s t e r ( Cl a s s <T2> c l a z z , F u n c t i o n <T2 , R> f u n c t i o n ) {

f u n c t i on M a p . p u t ( c l a z z , f u n c t i o n ) ;

}

p u b l i c R a p p l y ( O b j e c t o ) {

F u n c t i o n <O b j e c t , R> f u n c t i o n = f u n c t i o nM a p . g e t ( o . g e t C l a s s ( ) ) ;

r e t u r n f u n c t i o n ! = n u l l ? f u n c t i o n . a p p l y ( o ) : n u l l ;

}

Figure 19: Possible Java implementation of the function element.

Figure 20: Application of new Function element based on

(Bosse, 2016).

REFERENCES

Bosse, S. (2016). Mobile multi-agent systems for the

internet-of-things and clouds using the javascript

agent machine platform and machine learning as a ser-

vice. In 2016 IEEE 4th International Conference on

Future Internet of Things and Cloud (FiCloud), pages

244–253.

Dijkstra, E. (1984). The threats to computer science. EWD

898 (Delivered at the ACM 1984 South Central Re-

gional Conference, November 16–18, Austin, Texas.).

Fusco, M. (2016a). Gang of Four Pat-

terns in a Functional Light: Part 1.

https://www.voxxed.com/2016/04/gang-four-

patterns-functional-light-part-1/.

Fusco, M. (2016b). Gang of Four Pat-

terns in a Functional Light: Part 2.

https://www.voxxed.com/2016/05/gang-four-

patterns-functional-light-part-2/.

Fusco, M. (2016c). Gang of Four Pat-

terns in a Functional Light: Part 3.

https://www.voxxed.com/2016/05/gang-four-

patterns-functional-light-part-3/.

Fusco, M. (2016d). Gang of Four Pat-

terns in a Functional Light: Part 4.

https://www.voxxed.com/2016/05/gang-four-

patterns-functional-light-part-4/.

Gamma, E., Helm, R., Johnson, R., and Vlissides, J.

(1995). Design Patterns: Elements of Reusable

Object-Oriented Software. Addison-Wesley.

Hao, Z., Novak, E., Yi, S., and Li, Q. (2017). Challenges

and software architecture for fog computing. IEEE

Internet Computing, 21(2):44–53.

Min, B.-K., Ko, M., Seo, Y., Kuk, S., and Kim, H. S. (2011).

A UML metamodel for smart device application mod-

eling based on Windows Phone 7 platform. In TEN-

CON 2011 - 2011 IEEE Region 10 Conference, pages

201–205.

Object Management Group (OMG) (2016). OMG Meta Ob-

ject Facility (MOF) Core 2.5.1 Speciﬁcation. OMG

Document Number formal/2016-11-01.

Object Modeling Group (2015). OMG Uni-

ﬁed Modeling Language Version 2.5.

http://www.omg.org/spec/UML/2.5/.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

342
