Goal-Satisfaction Verification to

Combination of Use Case Components

Saeko Matsuura

, Shinpei Ogata

and Yoshitaka Aoki

Graduate School of Engineering and Science, Shibaura Institute of Technology, Saitama, Japan

Graduate School of Science and Technology, Shinshu University, Nagano, Japan

Yoshitaka Aoki, Nihon Unisys Ltd. Tokyo, Japan

Keywords: Requirements Analysis, Use Case, Non-functional Requirements, Model Checking.

Abstract: Functional requirements of a system can be specified by fundamental use cases that satisfy "the effective

and useful scenarios in the system usage" so as to meet "the goal of the system". Ambiguous non-functional

requirements against the system goal often cause uncertainty of use cases and scenarios at the early stage of

software development. In this paper, from the viewpoint of non-functional requirements that are included in

the goal, we discuss how to check satisfaction of the goal due to the combination of functional requirements

during requirements analysis using an example.

1 INTRODUCTION

It is well known that requirement analysis is a key to

success to develop high-quality system efficiently.

Requirements specification has to be specified not

only functional requirements but also non-functional

requirements. Non-functional requirements include a

system goal, external interfaces with the user,

hardware, software, and communications. Moreover,

user characteristics that are general characteristics of

the intended users of the product including

educational level, experience, and technical

expertise affect not only the system usage but also

the service quality.

On the other hand, functional requirements can

be modelled as essential use cases by a semi-formal

and widely used language such as UML (Unified

Modelling Language) (OMG UML) in Model

Driven Development (MDD). System usage

scenarios can be defined by the combination of these

use cases. However, the abovementioned

architectural and external factors in non-functional

requirements strongly affect the combination.

Moreover, the presence or absence of the necessity

of the use case may occur. Although such

uncertainty of requirements is unavoidable at the

early stage of system development, it is important to

manage traceability of requirements connected with

non-functional requirements in a system more

formally.

To manage such traceability of requirements,

this paper proposes the following modelling method

and process at the early stage of system development.

 Assume that use cases are fundamental

components of the requirements defined

formally by UML models. In addition, a

system usage scenario is constructed by the

combination of the use case components

under the conditions which may solve some

uncertainty. Then, all scenarios are verified

whether they satisfy the goal.

 An iterative cycle of analysis and verification

in which the requirements specification of a

system is defined incrementally.

The rest of the paper is organized as follows.

Section 2 discusses the modelling method and

process based on the problem of requirements

specification verification. Section 3 explains our

method and process using a case study of a

reservation system of conference rooms. Section 4

discusses the related work.

2 REQUIREMENTS

SPECIFICATION

VERIFICATION PROBLEM

2.1 Requirements Specification in

Model Driven Development

Model Driven Development (MDD) (S. J. Mellor,

Matsuura, S., Ogata, S. and Aoki, Y.

Goal-Satisfaction Veriﬁcation to Combination of Use Case Components.

DOI: 10.5220/0006785003430350

In Proceedings of the 13th International Conference on Evaluation of Novel Approaches to Software Engineering (ENASE 2018), pages 343-350

ISBN: 978-989-758-300-1

343

OMG MDD) promoted by OMG is a promising

approach to develop high-quality software products

efficiently because it enables code generation and

the translation rules give high traceability

throughout the development. Changeability of

platforms can be solved by separating concerns

about platforms as Platform Independent Model

(PIM) and Platform Specific Model (PSM) using

UML. As mentioned before, aside from such

platform view, there are various kinds of features

that are different in level of abstraction within the

requirements for a system and have a mutual

relationship.

The initial model of a system depends on several

features in non-functional requirements, because

these features may restrict the service or expand the

contents of the service. Therefore, the quality of the

generated codes is affected by these source models

that was separated various kinds of concerns within

the requirements. Especially, initial requirements

specification needs elaborating under consideration

of these features step by step as discussed in the

Twin Peaks Model (Nuseibeh).

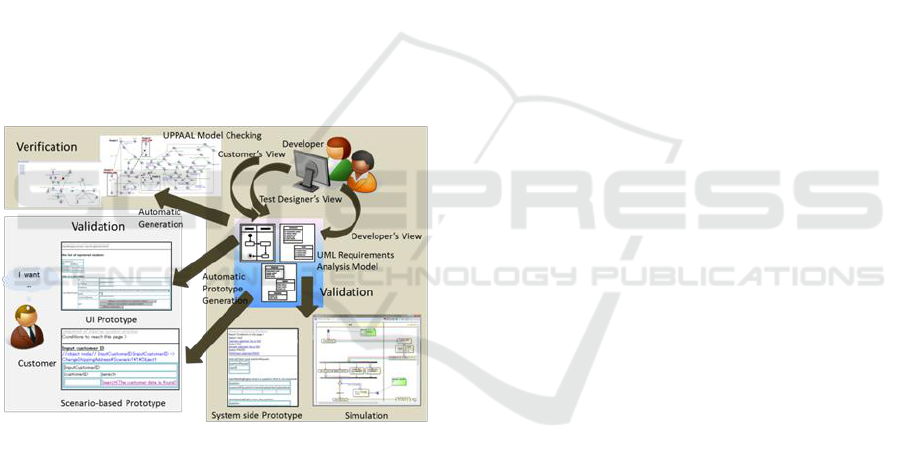

Figure 1: V&V of Requirements Analysis Model.

We proposed a method of model-driven

requirements analysis using UML. Figure 1 shows a

Validation and Verification (V & V) requirements

analysis process in which developers define and

refine the requirements analysis model combining

with the following verification process.

 Automatically generated three types of

prototypes help customers and developers

validate their requirements and the defined

models by directly operating the HTML-

based prototypes(Ogata).

 Simulating UML models by preparing test

data from test designer's view helps

developers find the inconsistency or some

omissions or oversights for the defined

requirements analysis model(Shikimi).

 Verifying some specification for UML

requirements analysis models with the model

checking tool UPPAAL helps developers

detect defects of the defined UML

models(Aoki). In this case, UML

requirements analysis model and a model

defined a feature that should be satisfied are

translated into a UPPAAL model, and

UPPAAL model checking tool automatically

verifies whether the feature is satisfied the

base model.

2.2 Use Case Components

UML requirements analysis model (RA Model) that

is a target of validation and verification is defined as

follows. RA Model is created based on a use case

analysis, which is known to be an effective method

for clarifying functional requirements.

We specify a use case from the following four

viewpoints to answer the associated questions:

 Application requirements: what kinds of

input data and conditions are required to

execute a use case as expected?

 Application requirements observation: what

kinds of conditions should be required when

not executing the use case? Moreover, how

should the system treat these exceptional

cases?

 Use case conditions: what kinds of

behaviours are required to execute the use

case?

 Output: What kinds of data outputs result

from these behaviours?

Both process flow and entity data, which are

required to execute the target application

requirements, are defined with UML activity

diagrams and a class diagram based on the

aforementioned four viewpoints and questions.

Figure 2 shows an outline of RA model. The

relation between use cases in the specified use case

diagram is expresses by an activity diagram includes

some sub-activity nodes corresponding to use cases.

Each use case is defined by an activity diagram.

Activity diagrams specify not only normal and

exceptional action flows, but also data flows that are

related to these actions. Actions are defined by

action nodes and data is defined by object nodes that

are classified as members of a class that is defined in

a class diagram. Accordingly, these two kinds of

diagrams enable us to specify application process

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

344

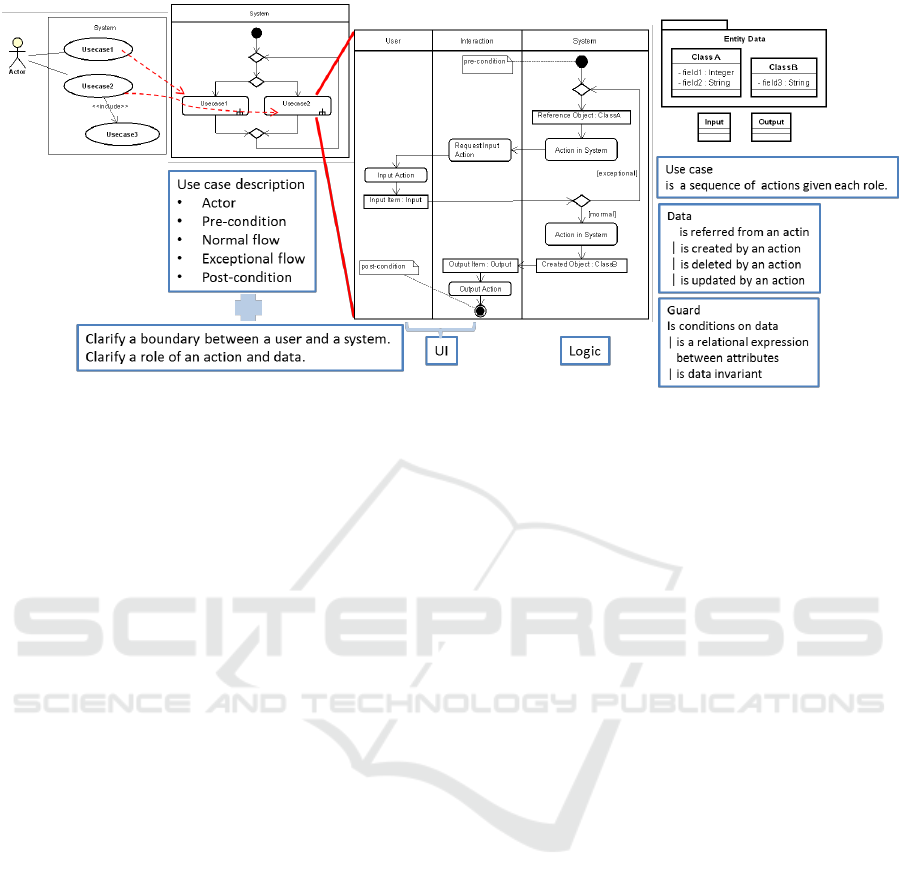

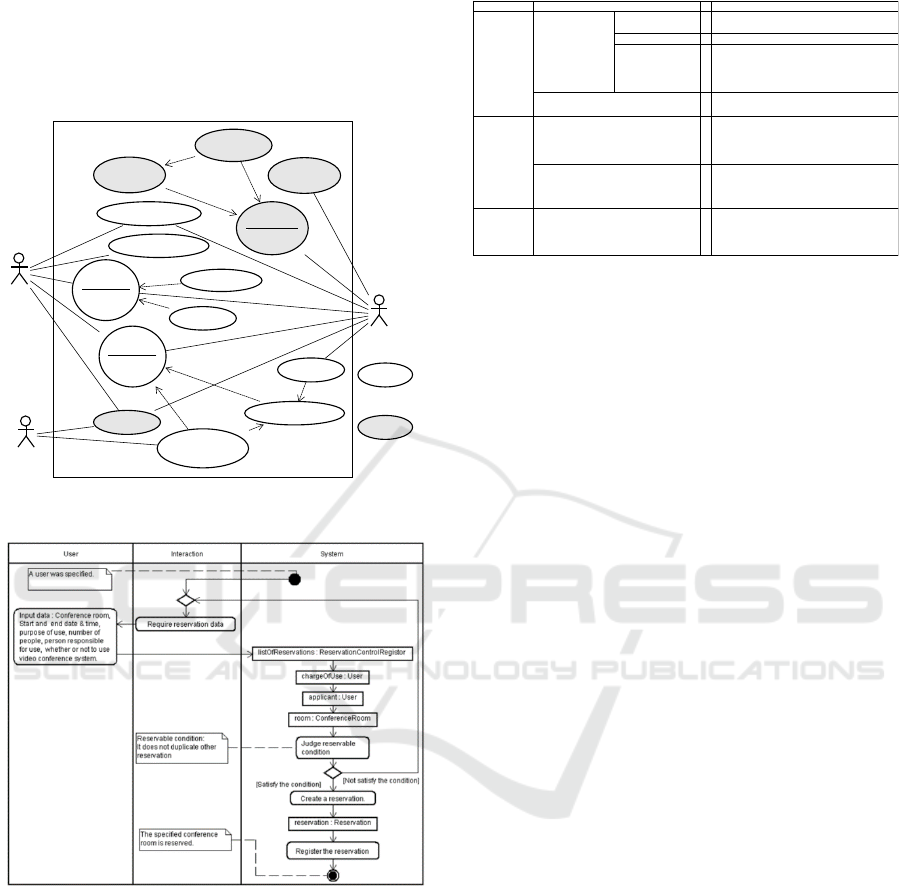

Figure 2: UML Requirements Analysis Model (RA Model).

flows in connection with the data. The interaction between

a user and a system especially includes requisite flows and

data on user input, conditions, and output to execute a use

case correctly.

The feature of our method is an activity diagram

that has three types of partitions: user, interaction,

and system. These partitions enable ready

identification of the following activities: user input,

interaction between a user and system caused by the

conditions for executing a use case, and the resulting

output. Object nodes in the user, interaction, and

system partitions represent input data, output data,

and entity data, respectively.

The actions and the data in the user and

interaction partition allow us to automatically

generate a prototype system that shows the defined

application process flow with the data.

Using the relation between the actions and the

data that have own role specified by each partition

enables us to systematically prepare test data for the

application process flows.

Defining the state transition of data as conditions

which must be met from data perspective against the

application process flows allows us to verify

whether the application process flow meets the

condition. The conditions can be verified by

combining with the application process flows using

a model checking tool (Aoki.) This is one of the

advantages of our method to use activity diagrams

and class diagrams to specify some non-functional

requirements such as security requirements.

Such use cases written in UML can have various

verifiable features, so use cases that are fundamental

components of the RA models are called use case

components. The RA model is defined using a

modelling tool astah*.

The point of this method is to define properties

to be satisfied in the combination with use case

components by a state machine diagram or a

decision table. We have verified the following

properties for the application process flow by a

combination of some use case components.

 The related data with the use cases satisfy the

universal rule concerning CRUD (Create,

Read, Update, and Delete.)(Aoki)

 The security rules related to access control

obtained by security requirement analysis

(Aoki).

If we can define the behaviour of the

combination of use case components so as to bring

about the expected results, it can also contribute to

the improvement of the quality of the code resulted

by MDD. However, there are various non-functional

requirements besides the functional requirements, it

is not clear when and how to define and verify the

requirement until extracting necessary and sufficient

use case components.

2.3 Definition and Verification of

Non-functional Requirements

Based on Chapter 4 “Considerations for producing a

good SRS (Software Requirements Specifications)”

and Chapter 5 “the parts on an SRS” in

IEEEstd.8300-1998 (IEEE), we focus on the

following parts about non-functional requirements

and propose an iterative requirements analysis

process as shown in Figure 3.

Goal-Satisfaction Veriﬁcation to Combination of Use Case Components

345

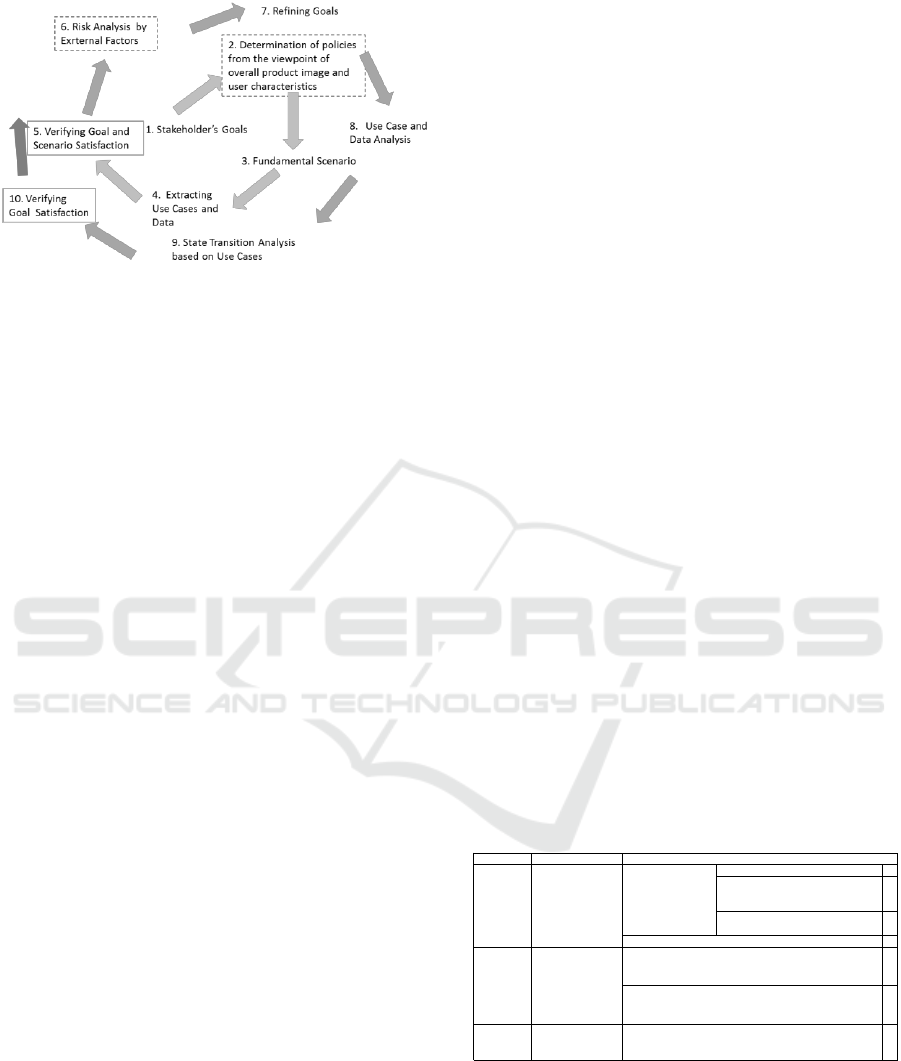

Figure 3: Iterative Requirements Analysis Process.

The process means that functional requirements

of a system can be specified by fundamental use

cases that satisfy "the effective and useful scenarios

in the system usage" so as to meet "the goals of the

system". We focus on the following internal and

external factors of software.

1) Goals of the stakeholders

2) Overall product image based on the following

two external factors.

A) External interfaces with the user,

hardware, software, and communications.

B) User characteristics that are general

characteristics of the intended users of the

product including educational level,

experience, and technical expertise which

affect the system usage.

3) As software acts for a part of human activity in

the real world, some entity objects in the

software correspond to entity objects in the real

world. The risk that such objects in the real

world affect to the software should be analyzed

and be appropriately coped with. We call such

an object an external activity entity.

In this paper, we explain this process through a

case study that analyzes a conference reservation

system what RA models we define and verify these

items as follows steps shown in Figure 3.

We begin at determining stakeholders of the

target system and the goals of each stakeholder.

Each original goal may unclear and there are

sometimes conflicts between different goals. So we

assume that these goals will be added and be

detailed by checking goal satisfaction for

fundamental use case components during the

requirements analysis process. The above-mentioned

factors may seriously affect determining use case

components that have required functions.

We begin at specifying fundamental use cases

that satisfy "the effective and useful scenarios in the

system usage." After defining each use case

component as mentioned Section B, we verify that

they can meet "the goals of the system." As a result,

the goals will be improved. A task enclosed by

broken lines in Figure 2 shows the above-mentioned

points.

3 CASE STUDY

3.1 Example Requirements

A case is a reservation system of conference rooms

in our university. The users of the conference room

are faculty members of the university and the total

number of conference rooms is about 13. Currently,

they submit a paper-based application form. In the

administrative section of each school building, they

are separately managed the reservation control

cases where video conferences are held among three

school buildings, and integrated management of

reservations is desired.

3.2 System Goal and Goal Analysis

The goal of systematization is to abolish paper-based

procedures and to improve the convenience of

reserving procedures for conference rooms and to

facilitate information management. According to the

concern of each stakeholder of the system, the goal

was analysed as shown in Table 1.

Table 1: The Goal of Each Stakeholder.

3.3 Fundamental Scenario Analysis

Next, based on the viewpoint 2) of the non-

functional requirements described in Section II-C),

we decide a policy for satisfying the goal as shown

in Table 2. As shown by colouring, there are items

related to multiple goals.

Stake h o l de r Ro le

The device can be used easily. I

If the user makes a reservation,

he/she can get the right to use

without other procedures.

The user can operate the system

easily.

III

e-Lab staff

administrator of video

teleconference system

VII

Goal

Faculty staff

For preparation and troubleshooting, he/she can know the

schedule and location of the reservation that the video

conference system is to be used.

applicant

The user can make

reservations easily.

The reservation is guaranteed until the reserved date.

Student affairs

division staff

administrator

The location of responsibility is clear when a trouble occurs

in the conference room/equipment due to the use of the

conference room.

There is no inappropriate use purpose or an occupied state

so that the applicant can fairly use the conference room as

a result.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

346

We consider the policy from the viewpoint of user

characteristics and the system architecture. The goal

I is the problem of a user environment. In this case,

it is no problem to assume use from a smartphone or

PC because the system will be used in the university.

Reservation of the conference room may be done by

accumulating reservation information and allowing

it to be used by users of multiple roles. The system

can be implemented as an ordinary Web application.

However, under consideration of the goal III,

hardware may be changed to make it easy to input

some data. In addition, the assumed user has no

trouble with the use of these devices.

Table 2: Policy for Satisfying the Goals.

3.4 Impact Analysis of External

Factors

The goal IV in Table 2 is an item to be considered

after determining the reservation management data

for the goal V. The goal VII is an item to consider

when considering the V. To satisfy the goals II and

VI, the rules to approve a reservation need to be

decided according to them.

In order to achieve the goal V, the fundamental

scenario for acquiring data that the reservation has

been approved and the system should have is

specified as follows.

A faculty-staff reserves a conference room

that he/she wants to use, and use it on the date.

Regarding reservation, official approval by the

student affairs division staff is not required, but

we will check if there is inappropriate use

purpose or an occupied state. If a user cannot

make a reservation as he/she wishes, he/she can

make another appointment. If a student affairs

division staff judges it as inappropriate, he/she

notifies it to the user by telephone etc. separately

and encourages correction. Moreover, a student

affairs division staff can make reservations for

conference rooms necessary for university work

as a priority.

Here, the underlined part is the rules to approve a

reservation in accordance with the goals II and VI in

Table 1. If there are many inappropriate

circumstances, it may be necessary that the system

checks them strictly by the way such as limiting use

purpose and use time etc.

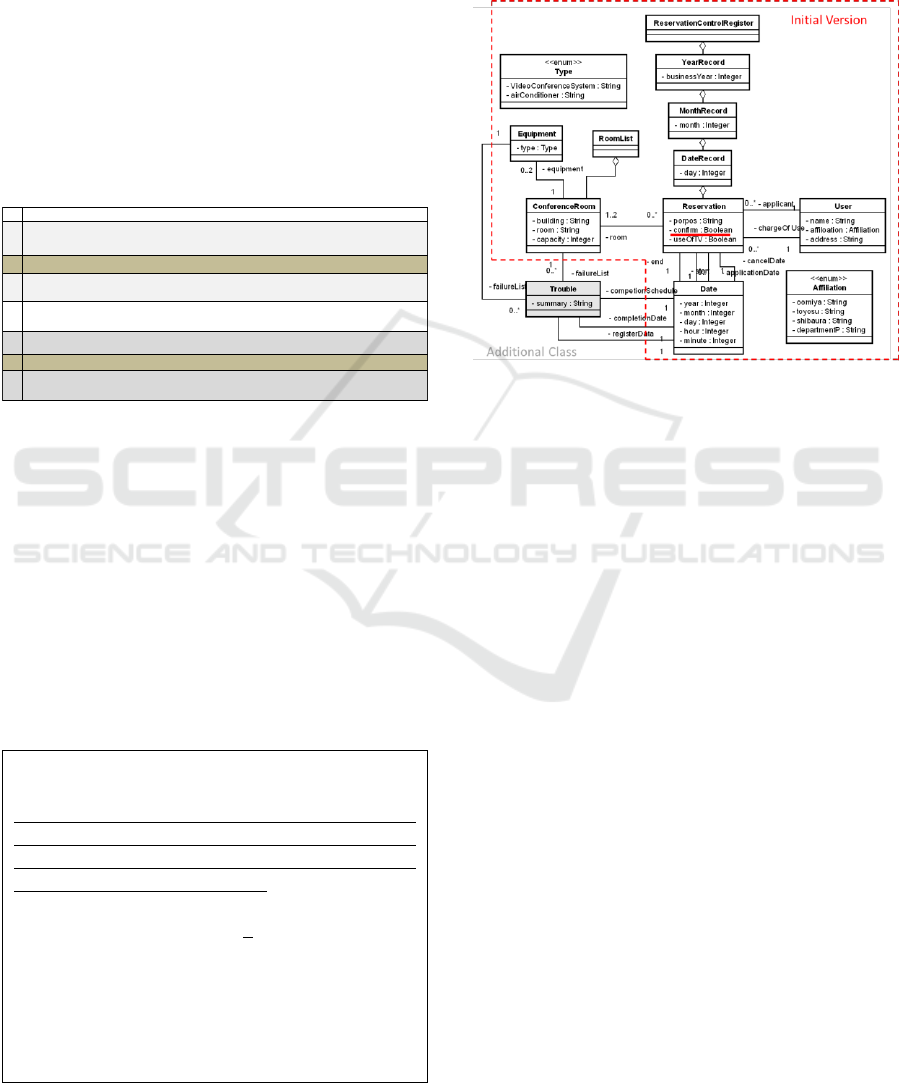

Figure 4: Final Class Diagram.

3.5 Data and Behavioural Analysis of

Use Case

Based on the above scenario, "reservation",

"reservation condition" and "inappropriate use" are

specified so as to satisfy the scenario, and the use

cases for realizing the scenario is extracted.

A reservation is defined by a class diagram as

shown a part enclosed by dotted lines in Figure 4, an

applicant applies for "who (person in charge of use)

uses which conference room from when (start) to

what time (end)." Looking the contents of the

reservation, each data can be selected from the data

already included in the system except user required

input, so there is no effect on the goal I.

In order for a student affairs division staff to

check the inappropriateness, it is necessary for

him/her to input and to keep the data on whether the

reservation was confirmed or not. A use case for

checking the inappropriateness named Confirm a

reservation needs to be added to a use case diagram

in addition to the essential use case extracted from

the fundamental scenario considering functions for

CRUD (Create/Read/Update/Delete) of a reservation

data. Figure 5 except five colored use cases is a use

case diagram in this stage. Moreover, to leave the

data that a reservation is checked or not, an attribute

confirm is added to Reservation class. The attribute

underlined in red in Figure 4 is the added data.

Polic y

Assume the device to be used. In this case, no special consideration is

required for the user characteristics and the usage situation.

Consider how to solve II under the constraint of VI.

III

Depending on the required input information, the hardware configuration

may change.

How can we guarantee the approved reservation? Refine the meaning of

the guarantee clear.

Determine reservation management data that is required to satisfy this goal.

How can we confirm that the constraints are satisfied?

VII

It is sufficient that the staff can only to browse the necessary reservation

information to be known.

Goal-Satisfaction Veriﬁcation to Combination of Use Case Components

347

For Update, we assume change of time and

conference room from the attributes of Reservation

class. For Read, to satisfy the goal VII in Table 1,

we define a use case that checks the reservation

schedule in which the video conference system will

be used.

Figure 5: Final Use Case Diagram.

Figure 6: Use Case Description of Create a reservation.

Use case description of "Create a reservation" is

defined by an activity diagram as shown in Figure 6.

Pre-conditions, post-conditions and guards are

defined by using a note node. From the viewpoint of

data flow, we can confirm that each action can be

realized with the data defined in the class diagram.

We will confirm that the combination of use case

components meets the fundamental scenario

described in Section III-D). We consider the goal's

satisfaction with the goals of Table 1 using the use

case components that have been decided so far.

Table 3 shows the result.

Table 3: Consideration of Goal’s Satisfaction.

A reservation condition is "for all reservations in

the reservation register, there exists no reservation

that has attribute value being overlapped between

the start and end times in the same conference

room." This condition is satisfied because it can be

judged by the data being accessed in the use case

description.

At this stage, if this condition is satisfied, it is

possible to make a reservation, and we can see that a

reservation will be approved if there is no problem

with the check by the student affairs division staff.

In this sense, if the applicant does not violate the

condition, the reservation is guaranteed until the

reserved date. However, it is the final goal that the

reservation is guaranteed even outside the applicant's

responsibility.

3.6 Improvement Requirements

Specification

For the goal IV, we will consider what is a probable

factor outside the applicant's responsibility from the

viewpoint 3) of the non-functional requirements

described in Section 2.3).

From the class diagram in Figure 4, we analyse

the risks of external activity entities that affect the

services of the reservation system. Being able to

respond to risks is a desirable result for users of the

system, which leads to "the reservation is guaranteed

even outside the applicant's responsibility" which is

the goal of the applicant.

The affected external activity entity is

"conference room" and its "equipment" and "user".

The meaning of reservable is as follows.

 The applicant can use the room on the

reserved date in actually.

 He/she can the required equipment on the

reserved date in actually.

Although the goal V in Table 3 seems to be

satisfied at first glance, it can occur that another

ver5_0_enguc

applicant

administrator

Create a reservation

Cancel a reservation

item

extension points

Change a

reservation

Change a room

Change a time

<<extend>>

key

extension points

Search a

reservation

Seach reservations

by date

<<extend>>

reservations by use

of video system

<<extend>>

e-Lab member

Confirm a

reservation

<<include>>

failure part

extension points

information

completion of

repair

trouble

equipment

trouble

<<extend>>

<<include>>

Authenticate

use case

Initial version

additinal use case in

Updated version

ro le Go al- satisfaction

The device can be

used easily.

○

If the user makes a

○

The user can

operate the system

easily.

III

○As required input and output data is defined,

there is no hardware change. To satisfy the

goal finally, it is necessary to elaborate

operability at the implementation phase.

Any user can make a reservation if conditions

are satisfied.

○Since the person in charge of the

reservation and the contact address are

recorded, it is possible to contact him/her if

any trouble happens.

○The applicant who received the notification

may cancel or update the reservation.

administrator of

video

teleconference

system

VII

○For example, a user can search for

reservations in which a video conference

system is used in this week.

For preparation and troubleshooting,

he/she can know the schedule and

location of the reservation that the video

conference system is to be used.

Go al

applicant

The user can make

reservations easily.

The reservation is guaranteed until the

reserved date.

administrator

The location of responsibility is clear

when a trouble occurs in the conference

room/equipment due to the use of the

conference room.

There is no inappropriate use purpose or

an occupied state so that the applicant

can fairly use the conference room as a

result.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

348

person different from the actual user is forced to have

the responsibility when the applicant is impersonated

by another user.

Therefore the goals should be redefined more

precisely. Table 4 shows the added and detailed goals

by risk analysis.

As a result, four new use cases are extracted and a

class Trouble is added to the class diagram as shown

in Figure 4 and 5. Since the responsible user and the

applicant are necessary for the application, it is

possible to correctly grasp the location of

responsibility by certifying the applicant.

Table 4: Added and Detailed Stakeholder’s Goals.

3.7 Verification of Goal Satisfaction

The reservation condition is determined by the

attribute related to "reservation" of the class diagram.

Due to the change of addition of Trouble class, the

condition of "there are no troubles in the reserved

room" is added to the condition. This change is dealt

with by correcting the condition of the action "judge

reservable condition" in Figure 6 with the attribute of

the class.

The satisfaction level of the goal so far could be

confirmed by the existence of elements of the model.

In order to verify the satisfaction of the added and

detailed goals in Table 4, we should consider what

kind of results will be obtained if more than one use

cases are executed during the service. Therefore, from

the use case components extracted so far, using a state

machine diagram, we analyse the influence of the

trouble of the conference room on the state of the

conference room of a certain reservation as shown in

Figure 6.

In Figure 7, every transition event is an

activation of a use case in the use case diagram. The

subject of an event is the applicant or the

administrator as shown in Figure 7. Therefore, the

subject of the use case recognizes the state occurring

as a result of his/her action but cannot recognize it if

it is not the executor. Even in the reserved state, the

information of availability of equipment is

sometimes important, so it is always necessary to

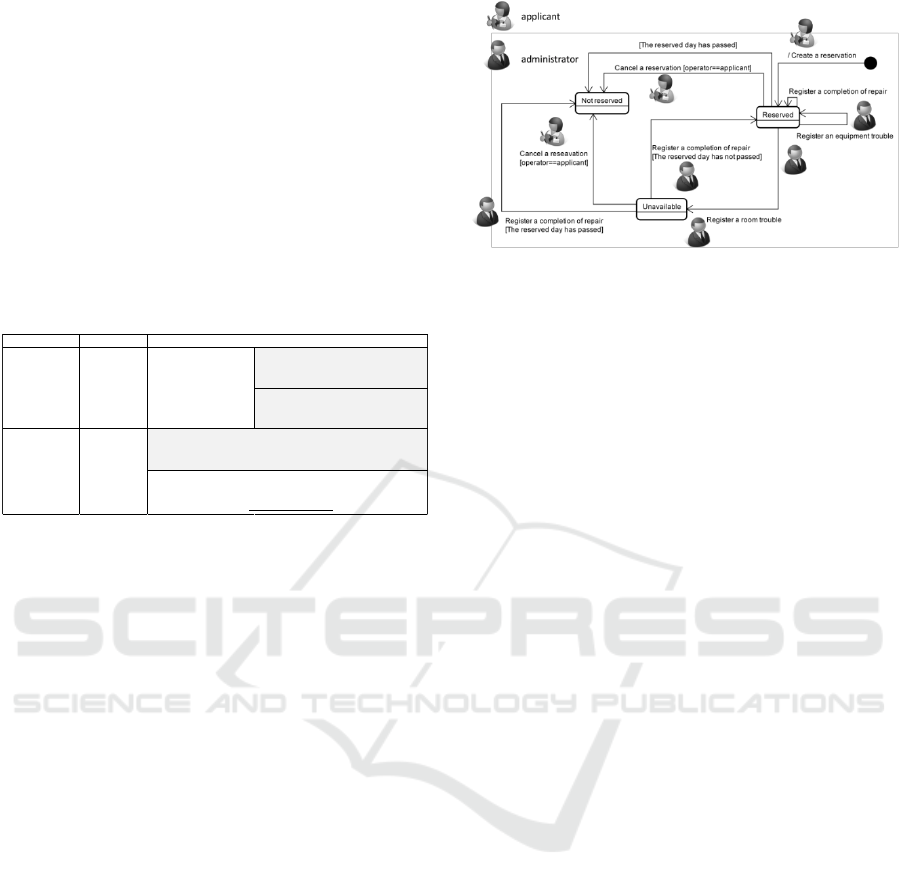

Figure 7: State of a conference room on the other day.

recognize the trouble by notice of conference room

and equipment trouble.

When notifying the trouble from the system, add

a notification action to the action flow in the

corresponding use case description of "Register an

equipment trouble" and "Register a room trouble"

use cases regarding the breakdown of the conference

room. Due to this refinement, the refined goal of the

applicant in Table 4 is satisfied anyway, but it is not

sufficient for the administrator's added goal. Namely,

if it is not possible to use the room in the end, or if

the date of use is near, it is unsatisfactory to the

applicant, and the applicant himself/herself needs to

reserve again.

4 DISCUSSION AND

CONCLUSIONS

Garlan (David Garlan) says, "It is important to treat

uncertainty as a primary concern of software

development." During acquiring requirements for a

desirable system, it is a fact that there are many such

uncertain factors caused by non-functional require-

ments, especially items mentioned in Section II-C).

There are some studies on requirements

acquisition such as Goal-oriented analysis (Chung,

L.). However, it is difficult to treat uncertainty

caused by non-functional requirements about

external activity entity such as hardware, users and

physical things as a primary concern.

In this paper, separating concerns for users and

physical things such as a room or an equipment from

the fundamental scenario lead systematically to

finding new use cases that reduce the risks caused by

them.

In this case, user characteristics give no

influence to a system. However, they often affect the

system architecture and kinds of use cases.

Therefore, the iterative analysis is necessary while

St akeh o lder Ro le

A user cannot actually reserve a

conference room although it is

unavailable.

When there are some troubles, a

user can know the situation

promptly.

Goal

Faculty staff

applicant

The reservation is

guaranteed until the

reserved date.

Student affairs

division staff

administrator

When a trouble occurs in the conference room or the

equipment, it can deal with so that inconvenience does

not occur to the user who reserves it.

By using the conference room, when a trouble occurs in

the conference room or the equipment, the location of

responsibility can be grasped correctly.

Goal-Satisfaction Veriﬁcation to Combination of Use Case Components

349

goal satisfaction of combination of use case

components is verified during the early stage of

requirements analysis. Modelling use case

components semi-formally related with goal

satisfaction make it possible to module uncertain

requirements with traceability to functions.

REFERENCES

Moore, R., Lopes, J., 1999. Paper templates. In

TEMPLATE’06, 1st International Conference on

Template Production. SCITEPRESS.

Smith, J., 1998. The book, The publishing company.

London, 2

edition.

OMG, “Unified Modeling Language”,

http://www.uml.org/

S. J. Mellor, K. Scott, A. Uhl, and D. Weise, MDA

Distilled Principles of Model-Driven Architecture.

Addison-Wesley, 2004.

OMG, “MDA Guide Version 1.0.1.” Object Management

Group, Tech. Rep., 2003. http://www.omg.org/mda/

Nuseibeh, B., Weaving the Software Development Process

Between Requirements and Architectures, IEEE

Computer, 34(3), pp. 115-117, 2001.

Shinpei Ogata, Saeko Matsuura,Evaluation of a Use-Case-

Driven Requirements Analysis Tool Employing Web

UI Prototype Generation, WSEAS Transactions on

Information Science and Applications, Issue 2, Volume

7, pp.273-282, February 2010.

R. Shikim, S. Ogata and S. Matsuura, Test Case

Generation by Simulating Requirements Analysis

Model, Proc. of 2012 IEEE 36th International

Conference on Computer Software and Applications,

pp 356-357, 2012.

Y. Aoki, S. Ogata, H. Okuda and S. Matsuura, Data

Lifecycle Verification Method for Requirements

Specifications Using a Model Checking Technique,

Proc. of The Eighth International Conference on

Software Engineering Advances (ICSEA2013),

pp.194-200, 2013.

Yoshitaka Aoki and Saeko Matsuura, Verifying Security

Requirements using Model Checking Technique for

UML-Based Requirements Specification, Proc. of 1st

International Workshop on Requirements Engineering

and Testing, pp.18-25, 2014.

IEEE Computer Society, IEEE Recommended Practice for

Software Requirements Specifications, IEEE Std 830-

1998 (1998).

David Garlan. Software Engineering in an Uncertain

World. In Proceedings of the FSE/SDP workshop on

Future of Software Engineering Research, pp. 125-

128, ACM, New York, NY, USA, 2010. ISBN 978-1-

4503-0427-6.

Chung, L., Nixon, B. A., Yu, E. and Mylopoulos, J., Non-

Functional Requirements in Software Engineering,

Academic Publishers, 1999.

ENASE 2018 - 13th International Conference on Evaluation of Novel Approaches to Software Engineering

350
