R2SMA - A Middleware Architecture to Access Legacy Enterprise Web

Services using Lightweight REST APIs

Jan K

onigsberger and Bernhard Mitschang

Institute for Parallel and Distributed Systems, University of Stuttgart, Universit

atsstr. 38, 70569 Stuttgart, Germany

Keywords:

REST, API, SOAP, Web Service, SOA, Enterprise SOA, Architecture.

Abstract:

This paper presents the SOAP-to-REST Middleware Architecture which provides an abstraction layer for

conventional web services. This layer semi-automatically creates REST API (REpresentational State Transfer)

proxies for existing enterprise web services that allows companies to provide ﬂexible and lightweight access

to exiting web services. Therefore, REST APIs can be offered for existing web services without the need to

adapt them, which allows for ﬂexible and fast integration scenarios. The architecture also provides additional

enterprise-grade functionality such as caching and security.

1 INTRODUCTION

Service-oriented architectures have been the method

of choice for enterprise application integration in re-

cent years. Lately, the focus has shifted from large en-

terprise applications providing ”conventional”, usu-

ally SOAP-based, web services to a more diverse and

heterogeneous integration landscape. This includes

mobile applications, microservices and devices as

part of the (Industrial) Internet of Things (IIoT).

While conventional web services provide many

beneﬁts and possibilities required for adoption within

an enterprise environment, like reusability, ease of

integration or fast adaptability, companies are now

faced with new technological challenges. New and

more lightweight use cases from the mobile and

IIoT context also require more lightweight integra-

tion technologies like REST (REpresentational State

Transfer, (Fielding, 2000)), which allows for a fast

and ﬂexible access to resources and information. At

the same time new requirements emerge that ask for

the use of existing applications within those new use

cases. With the ongoing digitalization, companies

also start to expand into new business areas, for exam-

ple by providing access to their services to outside de-

velopers via pay-per-use scenarios. Therefore, com-

panies need to ﬁnd a way to make a large, already ex-

isting service portfolio available via more lightweight

protocols. The development of new services and APIs

is, of course, a huge effort. Aside from the develop-

ment of new interfaces, the applications also have to

be tested and redeployed, which may lead to unde-

sired and costly downtimes.

To help alleviate these challenges, this paper

presents the SOAP-to-REST Middleware Architec-

ture. The architecture abstracts from the existing

legacy service layer and provides a semi-automatic

way to create REST proxies for existing conventional

web services, without the need to adapt the existing

services. Current approaches in this area are mostly

manual processes and lack certain enterprise-grade

functionality such as security and caching.

2 REQUIREMENTS

This paper aims to design an architecture that sup-

ports companies in providing RESTful access to their

legacy SOA infrastructure. From an enterprise view-

point certain requirements have to be fulﬁlled by the

architecture to be applicable in practice, especially

regarding security concerns. This section discusses

those requirements in detail.

: Reuse of Existing Services. Having relied on

service-oriented Architectures (SOA) for some time,

companies usually have a large number of conven-

tional web services available and integrated into their

everyday processes. To have all of these services

ported to RESTful APIs by application developers

would require enormous efforts in time and money,

both of which are notoriously scarce resources within

an enterprise. This makes it necessary to ﬁnd a way to

704

Königsberger, J. and Mitschang, B.

R2SMA - A Middleware Architecture to Access Legacy Enterprise Web Services using Lightweight REST APIs.

DOI: 10.5220/0006785407040711

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 704-711

ISBN: 978-989-758-298-1

provide RESTful access to those services without the

need for each application to develop new REST APIs

and without the additional effort that comes with test-

ing and redeployment of all applications.

: Flexible and Quick Access. When providing

mobile access to services, a fast time to market is im-

portant. Development cycles in the ”mobile world”

run a lot faster than in the slower changing enterprise

world. Therefore users expect regular updates and

quick improvements. Especially large companies of-

ten struggle initially to meet these expectations.

Historically, companies have developed applica-

tions in relatively long release-cycles, for example

only having one or two releases per application and

year. More agile development models such as Scrum

and DevOps are only slowly ﬁnding their way into

enterprise software development. Therefore, an archi-

tecture is necessary that allows to handle both the fast

paced changes in RESTful APIs as well as those of

the slower back-end applications. McKinsey coined

the term two-speed architecture (Bossert et al., 2014)

to describe such architectures. This need for ﬂexibil-

ity and fast access to existing services via lightweight

interfaces therefore requires the decoupling of APIs

from the back-end applications.

: Reliability. Reliability is always one of the

most important goals within enterprise architectures.

With our goal of providing RESTful access to existing

SOAP-based web services, reliability can be viewed

in three different dimensions:

(1) REST doesn’t provide reliable messaging as

we know it from conventional web services, which

provide reliable delivery on the transport level, e.g.

through WS-ReliableMessaging

. Indeed, this is not

necessarily required and also could be handled within

the business logic.

(2) Access to the services has to be reliably avail-

able, i.e. services should never be ofﬂine or not ac-

cessible, for example by setting up fail-over systems.

(3) Consumers accessing RESTful services ex-

pect the interfaces to adhere to the REST constraints.

This includes the correct behavior of a system when

querying it using speciﬁc HTTP methods. This style

also differs from what developers know from conven-

tional web services. The main difference is that con-

ventional web services are operation-based, whereas

REST APIs are resource-centric.

http://docs.oasis-open.org/wsrx/wsrm/200702/wsrm-

1.2-spec-os.html

: Security. Within an enterprise context there

usually are restrictions and security mechanisms in

place to prevent unauthorized users to access data

and information. In case of web services, this usu-

ally means authentication mechanisms such as user

name/password or API keys. These security require-

ments also have to be fulﬁlled by a REST proxy.

Therefore, the proxies have to be tied into the over-

all enterprise security architecture of a company and

appropriate authentication information has to be prop-

agated to the back-end services.

: Versioning. When creating and providing web

services to users, these services usually will change

over time. If the functional range of an application is

extended or modiﬁed, these changes usually also need

to be reﬂected in the service interfaces. Adapting con-

sumer applications to a new interface typically takes

some time and it may not be possible to immediately

switch to a new interface version for all consumers.

This makes it necessary that different versions of an

interface might exist in parallel. It also might be nec-

essary to only change the RESTful interface of a ser-

vice for some reason, for example to implement new

architectural guidelines. Such changes should ideally

be handled without any modiﬁcation of the underly-

ing back-end application.

3 RELATED WORK

We did a comprehensive analysis of current ap-

proaches for RESTful access to conventional web ser-

vices. Work in this area can be clustered into two ma-

jor areas:

• Scientiﬁc research papers, which mostly illumi-

nate the differences between conventional web

services and REST APIs (e.g. (Pautasso et al.,

2008)). There is very little work researching

RESTful access to conventional web services.

• API middleware tools and corresponding indus-

try whitepapers: There are some products, mainly

API middleware solutions, which already support

the creation of REST to SOAP proxies to some

extent.

The relevant scientiﬁc papers are mainly mo-

tivated from a workﬂow-oriented viewpoint. In

(de Giorgio et al., 2010) the authors look into how

both SOAP-based and RESTful web services can be

used within BPEL workﬂows. They describe a way

to semantically map the description of both services

types, allowing them to switch between a SOAP-

based and a RESTful web service at runtime.

R2SMA - A Middleware Architecture to Access Legacy Enterprise Web Services using Lightweight REST APIs

705

The reverse direction to our approach is presented

in (Peng et al., 2009). Their SOAP2REST frame-

work allows the wrapping of RESTful web services

as SOAP-based services to utilize them within BPEL

processes. The Framework relies on a WADL de-

scription (Web Application Description Language) of

the RESTful service to generate a SOAP proxy.

Apigee (Apigee, 2014) provides the users of its

API platform with a wizard that helps them to con-

vert SOAP-based into RESTful web services. To

achieve this, the wizard utilizes the WSDL descrip-

tion (Web Service Description Language

) of the ser-

vice to generate a skeleton for the RESTful service

and lets users deﬁne the required REST parameters

like resource URIs and HTTP method. In comparison

to our approach, functionality for enterprise-readiness

such as caching or security-propagation don’t seem to

be available.

Mulesoft (Agrawal, 2015) describes a mostly

manual process to create a REST proxy. After deﬁn-

ing the desired REST description using RAML, the

vendor’s Anypoint Studio is used to create a message

transformation for a HTTP query to a SOAP request.

To summarize, none of the existing solutions fully

address the requirements we presented in Section 2.

We therefore present our REST-to-SOAP Middleware

Architecture in the following sections.

4 REST-to-SOAP MIDDLEWARE

ARCHITECTURE

Conventional web services have many beneﬁts that

make them the ideal technology to integrate enter-

prise applications. With the growing demand for

greater ﬂexibility within enterprise architectures in re-

cent years, more lightweight technologies, such as

REST, have been integrated into these architectures.

The REST-to-SOAP Middleware Architecture

(R2SMA) we present in this section allows a company

to abstract existing conventional web services via a

middleware proxy that provides REST APIs for those

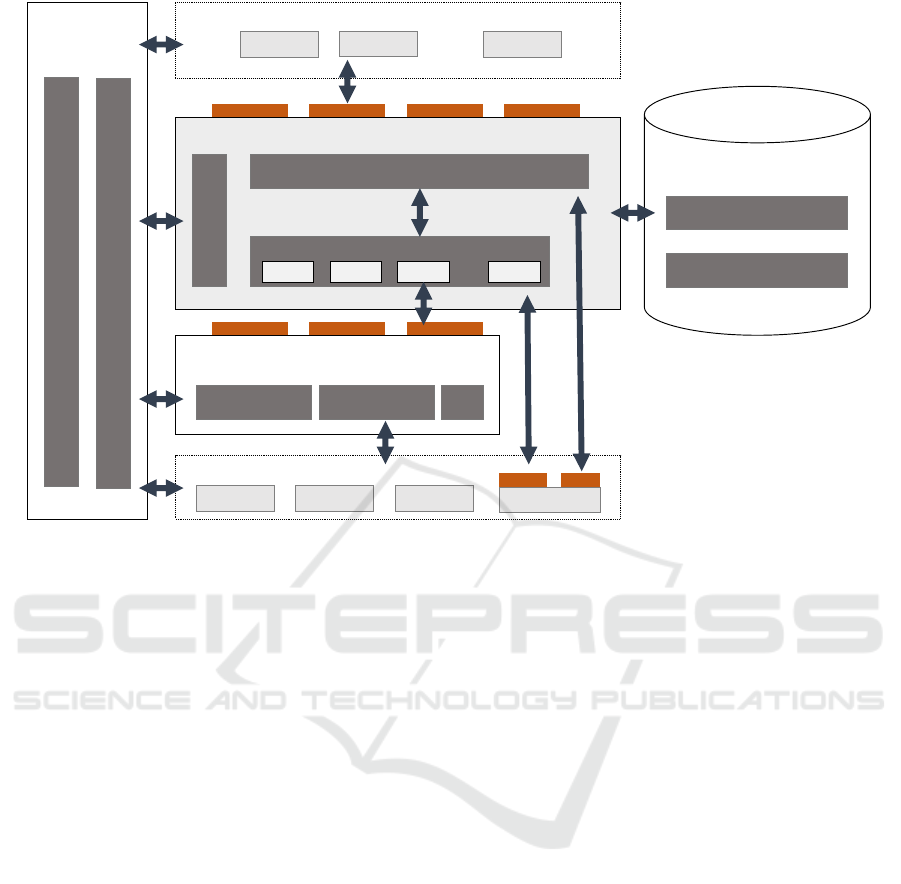

back-end services. Figure 1 shows the R2SMA. The

core functionality is handled by the REST-to-SOAP-

Proxy component, which provides REST endpoints

for the conventional web services to consumers. The

component also provides caching as well as transfor-

mation capability for REST requests. Existing web

services are provided via a middleware layer, like an

enterprise service bus, that is connected to the trans-

formation sub-component. The architecture is com-

pleted by an enterprise security gateway dealing with

https://www.w3.org/TR/wsdl20/

authentication and authorization as well as a reposi-

tory component for interface management and proxy

generation.

4.1 Transformation

Each request to a REST API proxy triggers a subse-

quent request to a back-end web service, unless the

response is already stored in the cache (see next sec-

tion). This second request is completely transparent

to a service requester. The transformation compo-

nent translates a message from a REST-compatible

JSON representation into a data format understood

by the back-end service, usually SOAP. The speciﬁc

transformations and data models are deﬁned during

the creation of a REST proxy service and are part of

its description document. The transformation compo-

nent also validates the data in the incoming requests to

make sure they can be mapped to the SOAP format. A

thorough validation is necessary, because JSON only

supports limited data types. For example: numbers

are not differentiated between integer and ﬂoating-

point values, which may lead to undesired behavior.

4.2 Caching

Caching is required to manage the load on back-end

systems and to provide faster response times. REST-

ful web services are in certain common usage sce-

narios required to process more requests than conven-

tional ones to achieve the same result. This is due to

the fact that REST operates on resources. Retrieving

a list of items and all their data following the REST

paradigm consists of 1) retrieve list of items and 2)

query each item (i.e. resource) separately for its in-

formation. This means the longer the list, the more

requests are necessary. Conventional services usually

return all items within a single response. Addition-

ally, REST supports content ranges, i.e. the requester

can deﬁne to only return a certain range of items from

a list. Without any caching mechanism this means

that if a requester splits the retrieval of a list contain-

ing 500 items into chunks of 50 items, 10 requests

are necessary to retrieve all items. In other words:

Each of the 10 requests is propagated to the underly-

ing back-end service, increasing the load.

The following sections discuss ways to design the

caching component for our architecture.

4.2.1 Cache Security

In any enterprise environment users oftentimes work

with highly sensitive data. This on the one hand ne-

cessitates that a cache is included in the overall secu-

rity concept, ensuring that users have only access to

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

706

Service Consumer

Back-end Services

REST-to-SOAP-Proxy

SOA Repository

Enterprise

Security

Existing Middleware Layer/

Enterprise Service Bus

Transformation

Caching

Interface Management

Proxy-Generator

Security

Security Orchestration …

Authentication

Authorization

REST

REST REST REST

SOAP

SOAP SOAP

RESTSOAP

Figure 1: REST-to-SOAP Middleware Architecture.

data they have permission on and data is only trans-

ferred securely. On the other hand, it might be re-

quired that certain extremely sensitive data is never

cached and only passed through the proxy. This of

course leads to the already mentioned higher load on

the back-end system, but in certain instances is worth

the trade-off for higher security.

4.2.2 Types of Caches

There are different types of caches that can be consid-

ered for our architecture:

1. a central, user-independent cache,

2. a user-based cache and

3. a session-based cache.

The central cache can be compared to a standard

HTTP cache that stores each requested resource once

and subsequently delivers it independently from the

identity of the requester. For services that are pub-

licly accessible without any authentication this option

would be the most obvious and efﬁcient. In our case

this solution is not viable, as services in an enter-

prise environment allow access to sensitive data and

therefore require user authentication. A user-based

cache stores resources separately for each user. This

of course leads to increased storage requirements,

because the same resource may be cached multiple

times. To decrease the necessary storage space, the

time a resource is cached can be reduced if a session-

based cache is used. In this specialized version of

a user-based cache, resources are removed from the

cache as soon as a user’s session ends, which might

be signiﬁcantly lower than the resources time-to-live.

4.2.3 Position of the Cache

Each response from a back-end service is translated

with the help of the transformation component into a

REST-compatible JSON format corresponding to the

deﬁned data format. This allows for two positions

of the cache. It can either be located before or after

the transformation component, which also inﬂuences

how the cache operates.

If located before the transformation, the cached

data needs to be transformed again for each subse-

quent request, increasing the load on the proxy. To

prevent this, the cache can instead be placed after the

transformation, having the data already transformed

for subsequent requests. On the other hand, caching

the data before the transformation would allow to

reuse it for different types of requests, keeping the

cache size small. Because of the already discussed

security requirements, different requests have to be

answered at least once by a back-end service to guar-

antee that the requester indeed has the necessary au-

thorization. The use of cached responses is therefore

not possible, which requires us to position the cache

after the transformation in our architecture. There

R2SMA - A Middleware Architecture to Access Legacy Enterprise Web Services using Lightweight REST APIs

707

may of course be additional HTTP caches between

service consumer and the REST API. Those are part

of the underlying communication and network infras-

tructure and therefore are not part of our architecture.

4.3 HATEOAS and Hypermedia

Controls

One of the key concepts of a REST API is that it is

self-describing, i.e. it informs the user how the API

can be used and which operations are available on

a resource and what URIs have to be queried. This

concept is described by the term Hypermedia as the

Engine of Application State (HATEOAS) (Fielding,

2008). Therefore it is possible to use a REST APIs

without any prior knowledge about the interfaces and

possible operations as long as an entry URI is known.

Within enterprise environments this behavior is of-

ten undesired, because stability, and therefore clearly

deﬁned interfaces, are preferred. Still, these aspects

have to be taken into consideration.

Our R2SMA supports, at a conceptual level, HA-

TEOAS and hypermedia controls. During generation

of a REST proxy the operations of a conventional web

service are matched onto resources that are then used

by the REST proxy. This in theory allows to deliver

URIs for subsequent requests and operations on a re-

source with each response.

4.4 Identity and Access Management

To secure access to the REST API proxies, the

R2SMA needs to support enterprise security features.

It does not itself authenticate users. Instead it propa-

gates login information such as user name-password-

combinations or single sign-on tokens to the back-end

services. The back-end services then authorize the re-

quests and return a result or in case authorization was

not successful return an appropriate error message.

Additionally, the R2SMA is also tied into enterprise

security to validate single sign-on tokens, for example

to access cached responses.

Conventional web services support a number of

advanced security mechanisms like the Web Services

Security speciﬁcation

building on XML encryption

and XML signatures. For the realization of the REST

proxies it is necessary to build on security mecha-

nisms that are supported by both REST APIs and con-

ventional web services. The R2SMA relies on Secu-

rity Assertion Markup Language (SAML

) tokens for

that. Also feasible would be the use of HTTP basic

https://www.oasisopen.org/standards#wssv1.1.1

https://tools.ietf.org/html/rfc7522

authentication und propagation of the login informa-

tion to the back-end service.

4.5 Interface Management

The SOA repository is also responsible for the man-

agement of interface description documents, for both

REST APIs and conventional web services. For the

description of REST interfaces the R2SMA relies on

the OpenAPI standard (Open API Initiative, 2017).

OpenAPI has become widely used in the last few

years and is supported by large companies such as Mi-

crosoft, Google and Atlassian.

Description documents are provided by the repos-

itory. Users can access them to integrate the services

into their applications. The repository also handles

the interfaces’ life cycle and versions. This for ex-

ample includes notiﬁcation of users about upcoming

changes to interfaces

4.6 Proxy Generator

The proxy generator component located in the SOA

repository is responsible for the creation of REST

proxies and accompanying interface description doc-

uments. The repository also contains the web service

description documents for all existing services. Based

on these descriptions, a skeleton for a correspond-

ing REST proxy is generated. This skeleton is then

completed by a user who maps the web service oper-

ations onto REST resources and deﬁnes the appropri-

ate HTTP methods. The data models deﬁned in the

WSDL ﬁle are then transformed into a JSON schema

description. With the manually added mappings and

the automatically created service skeleton and JSON

schemas, a REST proxy component can be generated

and deployed on the REST-to-SOAP-Proxy.

5 IMPLEMENTATION

The presented architecture provides a blueprint for the

realization of a REST-to-SOAP Middleware. The spe-

ciﬁc selection of technologies is highly dependent on

the IT ecosystem of a company. This section provides

an overview over possible technologies that can be

utilized for realization. It also presents a prototypi-

cal implementation of select components.

5.1 Implementation Technologies

For the realization of the proxy, including cache,

transformation and security, off-the-shelf software

products can be used. Application servers usually

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

708

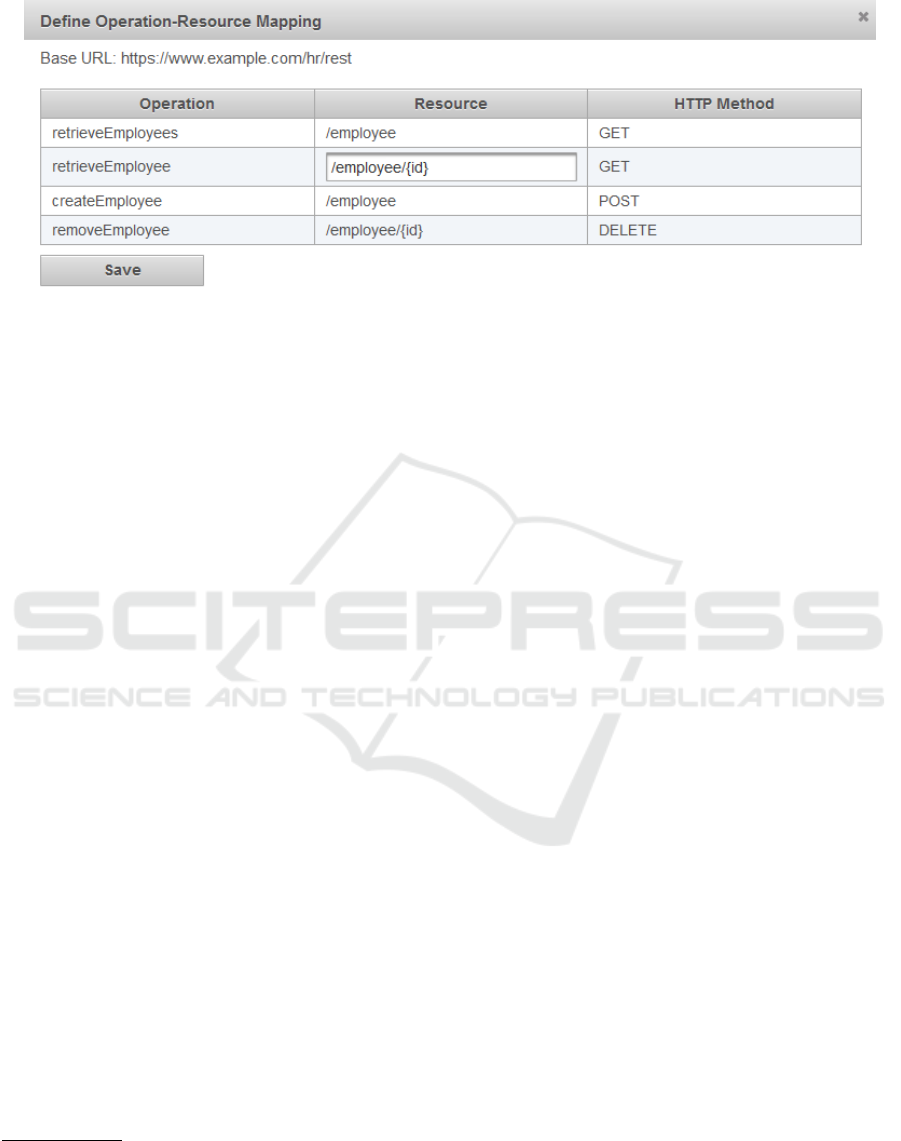

Figure 2: Prototypical user interface for proxy generation in the SOA Governance Repository.

already support caching and provide security func-

tionalities which can be extended and used for our

R2SMA. Relevant application server vendors are for

example WSO2

, Mulesoft

and IBM

. Transforma-

tion can be realized using Java libraries or XSLT

style sheets. The transformation of messages between

JSON and XML can be handled by existing libraries

like XSLTJSON

. Approaches such as (Nogatz and

uhwirth, 2014) could also be used to convert XML

to JSON schema.

As a repository we see our previously devel-

oped SOA Governance Repository (K

onigsberger and

Mitschang, 2016) as an ideal ﬁt. The repository serves

as a one stop shop for all information about the state

of an enterprise SOA and provides documentation

about services and stakeholders. Of course, the func-

tionality could be developed as a stand-alone tool.

Possibly other off-the-shelf products could be used as

a basis, for example the products discussed in Sec-

tion 3, which already provide basic functionality for

creating REST proxies.

5.2 Prototypical Implementation

We implemented prototypes for select R2SMA com-

ponents and present them in the following section.

Proxy Generator. The SOA Governance Reposi-

tory stores the service and interface descriptions of

web services as RDF triples (Resource Description

Framework

). This is accomplished by parsing the

WSDL ﬁles of the services. The implementation of

the Proxy Generator uses this information to create

the skeletons for the REST proxies.

https://www.wso2.com

https://www.mulesoft.com

https://www.ibm.com

https://github.com/bramstein/xsltjson/

https://www.w3.org/TR/rdf11-concepts/

Because of the already discussed paradigm dif-

ferences between REST APIs (resource-centric) and

conventional web services (operation-based), a man-

ual step is necessary to create a proxy. In this step, a

technical stakeholder has to map the operations onto

resource URIs and deﬁne the corresponding HTTP

methods. The base URI for the REST API is also

deﬁned in this step. Figure 2 shows the user interface

of the SOA Governance Repository for the creation of

REST proxies.

The system supports the user by providing sug-

gestions for HTTP methods, based on the names of

the operations. For example, the method GET is sug-

gested if the operation name contains the keywords

get or retrieve. This information is then also stored

as triples in the SOA Governance Repository database

and later used for the generation of a REST proxy. A

proxy consists of a generated JAVA library that can be

deployed on the application server. It exposes a REST

API to the service consumers and utilizes an accom-

panying transformation to translate the incoming re-

quests into SOAP and vice versa. Currently caching

isn’t implemented in the prototype but will be part of

further development.

REST API Documentation. The information used

for the generation of REST proxies is also used to cre-

ate their interface description documents. The inter-

faces are described using the OpenAPI speciﬁcation

(Open API Initiative, 2017). The information neces-

sary to create the description document is stored in

the SOA Governance Repository. It is extracted from

the parsed WSDL ﬁles as well as manually entered

during the operation-to-resource mapping.

The SOA Governance Repository also manages so

called Business Objects plus (BO

), we previously

presented in (K

onigsberger and Mitschang, 2017).

These BO

describe the data models for service in-

terfaces independently from any speciﬁc description

R2SMA - A Middleware Architecture to Access Legacy Enterprise Web Services using Lightweight REST APIs

709

language. They too are stored as RDF triples and can

be transformed into a XML schema deﬁnition as well

as a REST-compatible JSON schema (Internet Engi-

neering Task Force, 2017). The transformation from

RDF triples to a JSON schema can be realized using

tools such as owl2jsonschema

6 USE CASE EXAMPLE

This section gives a short use case example on how

a REST API proxy is generated from a web service

and how the mapping from operations to resources is

realized.

The following code listing describes a simple web

service using WSDL 2.0. The service MyHRPortal

contains four operations to manage employees. With

these operations existing employees (one or many)

can be retrieved, deleted or new ones can be created.

The WSDL has been shortened and non-relevant parts

have been omitted.

<?xml version="1.0" encoding="UTF-8"?>

<types>

<xs:schema [...] >

<xs:element name="employeeID"> ...

[...]

</xs:schema>

</types>

<binding name="SoapBinding"

interface="tns:HRPortal"

type="...w3.org/ns/wsdl/soap"

[...] >

</binding>

<service name="MyHRPortal"

interface="tns:HRPortal">

<endpoint name="SoapBinding"

binding="tns:SoapBinding"

address=".../hr/soap/"/>

</service>

</description>

This WSDL document is parsed by and stored in

the R2SMA’s repository component. From this in-

formation a REST proxy skeleton is created already

containing most of the abstract contents of the parsed

WSDL, such as service name, description and data

types. Then, a service developer (or other technical

https://github.com/redaktor/owl2jsonschema.js

stakeholder) would deﬁne the mapping from opera-

tions onto resources. Table 1 shows how the mapping

might be deﬁned by the developer for this speciﬁc use

case. {id} is used as a placeholder. In a request it

would hold a speciﬁc ID of an employee and the value

is mapped to the property employeeID deﬁned in the

WSDL ﬁle.

Table 1: Web service operation to REST resource mapping.

Web Service REST HTTP

Operation Resource Method

retrieveEmployees /employee GET

retrieveEmployee /employee/{id} GET

createEmployee /employee POST

removeEmployee /employee/{id} DELETE

A REST API proxy following this mapping and

providing these resource endpoints can then be made

available through the R2SMA for use by service con-

sumers.

7 ASSESSMENT

The use case example presented in the previous sec-

tion is straightforward and the mapping might even

have been done automatically. Unfortunately, not all

services can be mapped this easily. Especially if a ser-

vice’s operations have been deﬁned in an unstructured

way, a correct mapping following REST guidelines

may not always be possible. In such cases lower ma-

turity levels for an API may need to be accepted. The

services could be changed to allow for an easier map-

ping onto REST structures, but that would go against

the basic concept of our architecture to provide REST

API access without modifying existing services.

The presented architecture itself, with its abstrac-

tion of back-end services through the Rest-to-SOAP

proxy middleware (R

) and the manual deﬁnition

of resources based on the operations deﬁned in the

WSDL, fulﬁlls level 2 of the Richardson Maturity

Model (Fowler, 2010) (R

). To achieve the highest

level 3, the support of full HATEOAS would be nec-

essary. This paper lays the groundwork for that, but

for full-ﬂedged HATEOAS, it would be necessary to

further link the operations to deﬁne related actions on

certain resources. Here, further research is necessary

to be able to achieve this automatically.

All components of the architecture can also be de-

ployed utilizing load balancers or fail-over system to

achieve enterprise-grade reliability (R

The architecture adds an additional abstraction

layer, which also has an effect on overall performance

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

710

and response times. Due to the additional transforma-

tion, slightly negative effects on performance might

be possible, although the transformations themselves

are not computation-intensive. The newly introduced

cache of the R2SMA might even lead to an improve-

ment in performance and response times, as certain

repeating requests that have been answered by the

back-end services in the past now can be retrieved di-

rectly from the cache.

8 SUMMARY AND OUTLOOK

In summary, the REST-to-SOAP Middleware Archi-

tecture presented in this paper allows the continued

usage of an existing web service infrastructure for

new and more lightweight use cases without the need

to implement massive changes for these existing ser-

vices (R

). The architecture also allows to open up

new areas of business and for example make exist-

ing services available to external developers on a per-

use basis. The cache that is part of the architecture

allows to keep the load on the back-end systems as

minimal as possible while at the same time still pro-

viding the necessary level of security and support-

ing RESTful features such as the partial retrieval of

lists (R

). This means that there is only minimal, if

any, investment into more powerful hardware neces-

sary to handle the additional load. The integration of

a SOA repository allows for the management of both

REST APIs as well as conventional web services in

one place (R

) and provides the information basis for

a semi-automatic generation of REST APIs.

Future work will include the prototypical develop-

ment of the caching component as well as an experi-

mental evaluation of the architecture within an enter-

prise context to determine its feasibility in practice.

ACKNOWLEDGEMENTS

This work is partially funded by the BMWi project

IC4F (01MA17008G). The authors would also like to

thank H. Berner for valuable discussions and insights

from an enterprise perspective.

REFERENCES

Agrawal, N. (2015). HowTo – REST

API proxy to SOAP webservice.

https://blogs.mulesoft.com/dev/howto/rest-api-

proxy-to-soap-webservice.

Apigee (2014). New Apigee Wizard Converts

APIs from SOAP to REST in Minutes.

https://apigee.com/about/press-release/new-apigee-

wizard-converts-apis-soap-rest-minutes.

Bossert, O., Ip, C., and Laartz, J. (2014). A

two-speed IT architecture for the digital en-

terprise. http://www.mckinsey.com/business-

functions/business-technology/our-insights/a-two-

speed-it-architecture-for-the-digital-enterprise.

de Giorgio, T., Ripa, G., and Zuccal

a, M. (2010). An Ap-

proach to Enable Replacement of SOAP Services and

REST Services in Lightweight Processes. In Current

Trends in Web Engineering. Springer.

Fielding, R. T. (2000). Architectural Styles and the Design

of Network-based Software Architectures. Disserta-

tion, University of California, Irvine.

Fielding, R. T. (2008). REST APIs must be hypertext-

driven. http://roy.gbiv.com/untangled/2008/rest-apis-

must-be-hypertext-driven.

Fowler, M. (2010). Richardson Maturity

Model: Steps Toward the Glory of REST.

https://martinfowler.com/articles/richardsonMaturity

Model.html.

Internet Engineering Task Force (2017). JSON Schema.

https://tools.ietf.org/html/draft-handrews-json-

schema-00.

onigsberger, J. and Mitschang, B. (2016). A Semantically-

enabled SOA Governance Repository. In Proceedings

of the 2016 IEEE 17th International Conference on

Information Reuse and Integration. IEEE Computer

Society.

onigsberger, J. and Mitschang, B. (2017). Business Ob-

jects plus (BO+): An Approach to Enhance Service

Reuse and Integration in Cross-Domain SOA Com-

pounds. In Proceedings of the 2017 IEEE 18th Inter-

national Conference on Information Reuse and Inte-

gration. IEEE Computer Society.

Nogatz, F. and Fr

uhwirth, T. W. (2014). From XML Schema

to JSON Schema: Translation with CHR. In Proceed-

ings of the Eleventh Workshop on Contraint Handling

Rules, volume abs/1406.2125.

Open API Initiative (2017). The OpenAPI Speci-

ﬁcation. https://github.com/OAI/OpenAPI-

Speciﬁcation/blob/master/versions/3.0.0.md.

Pautasso, C., Zimmermann, O., and Leymann, F. (2008).

Restful Web Services vs. ’Big’ Web Services: Mak-

ing the Right Architectural Decision. In Proceedings

of the 17th International Conference on World Wide

Web. ACM.

Peng, Y. Y., Ma, S. P., and Lee, J. (2009). REST2SOAP:

A framework to integrate SOAP services and REST-

ful services. In 2009 IEEE International Confer-

ence on Service-Oriented Computing and Applica-

tions (SOCA).

R2SMA - A Middleware Architecture to Access Legacy Enterprise Web Services using Lightweight REST APIs

711
