Co-Transformation to Cloud-Native Applications

Development Experiences and Experimental Evaluation

Josef Spillner

, Yessica Bogado

, Walter Ben

ıtez

and Fabio L

opez-Pires

Service Prototyping Lab, Zurich University of Applied Sciences, Winterthur, Switzerland

Information and Communication Technology Center, Itaipu Technological Park, Hernandarias, Paraguay

Keywords:

Cloud-Native Applications, Elasticity, Resilience, Continuous Development, Music Royalties.

Abstract:

Modern software applications following cloud-native design principles and architecture guidelines have in-

herent advantages in fulﬁlling current user requirements when executed in complex scheduled environments.

Engineers responsible for software applications therefore have an intrinsic interest to migrate to cloud-native

architectures. Existing methodologies for transforming legacy applications do not yet consider migration from

partly cloud-enabled and cloud-aware applications under continuous development. This work thus introduces

a co-transformation methodology and validates it through the migration of a prototypical music identiﬁcation

and royalty collection application. Experimental results demonstrate that the proposed methodology is capa-

ble to effectively guide a transformation process, resulting in elastic and resilient cloud-native applications.

Findings include the necessity to maintain application self-management even on modern cloud platforms.

1 INTRODUCTION

Users regularly expect software applications with out-

standing features according to speciﬁc requirements,

but also with indisputable technical qualities, inclu-

ding unlimited on-demand availability, constant high-

quality behaviour independent from any interference

or outside circumstances, as well as predictable costs

which are aligned with the actual utilisation.

Modern cloud computing concepts and technolo-

gies facilitate the creation of such applications, but do

not themselves guarantee them per se, and would thus

not meet the requirements of SMEs and other users

unless additional steps are taken (Wood and Buck-

ley, 2015). Rather, application engineers are tasked

to exploit these facilities to weave the desired quali-

ties into the applications. This process is currently

not dissimilar from a lottery. With a bit of luck, archi-

tects may create the right software architecture and

engineers may correctly implement it. However, in

order to make properly engineered cloud applications

a commodity, a well-deﬁned methodology to achieve

Cloud-Native Applications (CNAs) is needed (Tof-

fetti et al., 2017; Andrikopoulos, 2017; Yousif, 2017).

Current research still focuses on transforming legacy

version of existing applications but do not account for

double effort when development and transformation

to a cloud-native architecture occur in parallel.

In this context, the aim of this paper is thus to in-

troduce a co-transformation methodology which star-

ting from a sub-optimal and not fully reversible legacy

application design through transformation during de-

velopment achieves the desired characteristics in he-

terogeneous cloud computing environments.

To demonstrate the proposed methodology, we in-

troduce HENDU

as running example. HENDU is an

unﬁnished, continuously developed web-based appli-

cation to record and analyse music played at arbitrary

locations, events and radio stations (see Section 4).

This considered application was designed and imple-

mented taking into account some cloud principles and

could be initially classiﬁed as a cloud-enabled appli-

cation at the start of our work (see Section 2).

In order to provide essential characteristics for its

massive deployment in production, HENDU must in-

clude cloud-native characteristics such as elasticity

and resilience, which are achieved by co-transforming

the application from a cloud-enabled to a cloud-native

application, considering an application-speciﬁc co-

transformation concept derived from the generic co-

transformation methodology proposed in this work.

In order to validate that the co-transformed applica-

tion fulﬁls the requirements during development, se-

veral experiments are part of the concept.

Guaran

ı word that means listen.

596

Spillner, J., Bogado, Y., Benítez, W. and López-Pires, F.

Co-Transformation to Cloud-Native Applications.

DOI: 10.5220/0006790305960607

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 596-607

ISBN: 978-989-758-295-0

According to (Toffetti et al., 2017), cloud-native

characteristics considered in this work can deﬁned as:

• Elasticity: CNAs supports adjusting their capa-

city by adding or removing resources to provide a

required Quality of Service (QoS) in face of load

variation avoiding over- and under-provisioning.

CNAs should take full advantage of cloud envi-

ronments being a measured service offering on-

demand self-service and rapid elasticity.

• Resilience: CNAs anticipate failures and ﬂuctu-

ation in QoS for both cloud resources and third-

party services needed to implement an applica-

tion to remain available during outages. Resource

pooling in clouds imply that unexpected ﬂuctua-

tions of the infrastructure performance need to be

expected and accordingly managed.

The remainder of this paper is structured in the

following way: First, a model of cloud computing

application maturity levels is introduced, and the

generic cloud-native co-transformation methodology

is proposed. Subsequently, a detailed analysis of

the HENDU application scenario is performed and

a concrete ﬁtting co-transformation concept is deri-

ved. The resulting implementation and an experimen-

tal evaluation thereof are then shown in the perfor-

med experiments. Finally, conclusions of this work

are summarised.

2 CLOUD APPLICATION

MATURITY LEVELS

Even though cloud computing is a well established

research area, the work on cloud applications is of-

ten sidelined and not rigorous (Yousif, 2017). The

lack of a model to describe the cloudiness of an ap-

plication is particularly evident and vague terms such

as cloud-ready are often seen. Andrikopoulos deﬁnes

an entire lifecycle for engineering cloud-based appli-

cations (Andrikopoulos, 2017) but it applies prima-

rily to new software development without considering

legacy code bases. The Open Data Center Alliance

(ODCA) deﬁnes a four-level model (Ashtikar et al.,

2014) but assumes isolated applications. Based on

previous work (Toffetti et al., 2017), we therefore in-

troduce a model which captures the cloudiness aspect

as maturity levels even though application engineer-

ing not necessarily proceeds through all levels chro-

nologically.

The presented model (see Figure 1) assumed a

four-level maturity evolution for cloud applications.

The ﬁrst level (legacy) encompasses legacy applicati-

ons which have not been designed for cloud environ-

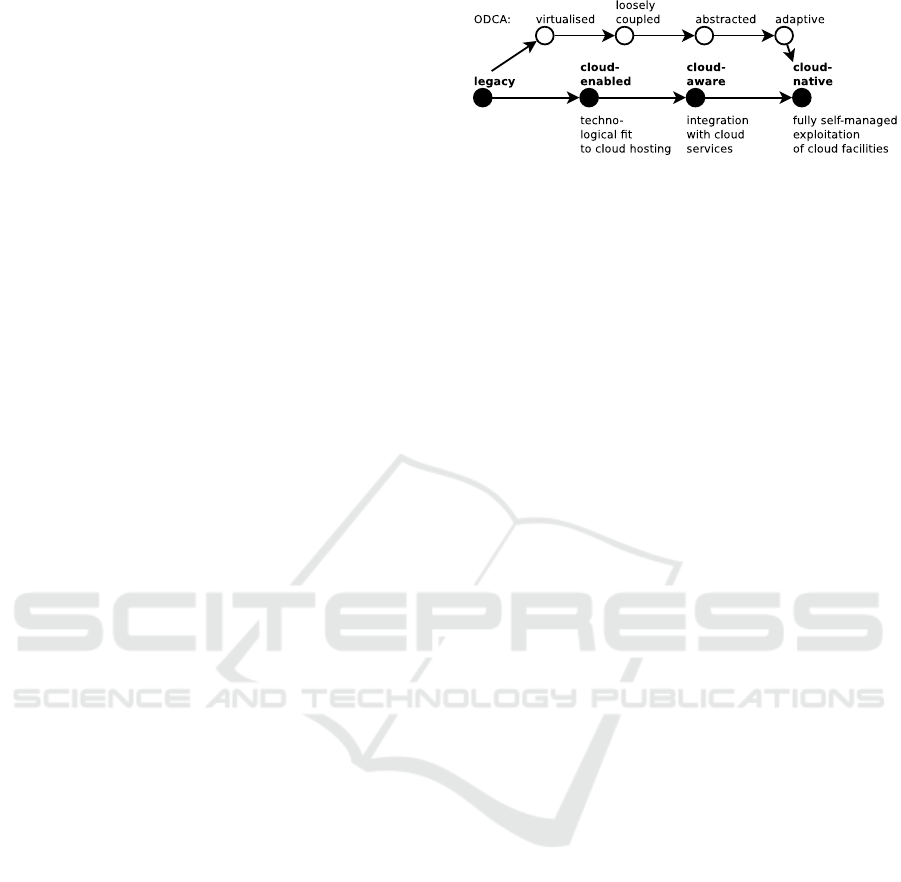

Figure 1: A generic model for cloud application maturity

levels and associated criteria, contrasting ODCA’s model.

ments. Often, this type of application even predate

the corresponding platform technologies and require

a manual installation and sizing. The second level

(cloud-enabled) comprises of applications which al-

ready ship in a ready-to-deploy format such as a vir-

tual machine or a container. Yet such applications

work as isolated units outside of the platform’s feed-

back loop. This is the starting point of the conside-

red HENDU application. When instead they integrate

with surrounding cloud services such as service bro-

kers, databases or health checks which are provisio-

ned on demand outside of the application scope, the

next level is achieved (cloud-aware). Finally, if appli-

cations fully exploit all facilities cloud environments

offer to maximise availability, elasticity and resilience

through self-management, they are considered to have

reached the ﬁnal level (cloud-native). The sequence

of all levels is shown in Figure 1.

This work focuses on presenting a novel co-

transformation methodology to migrate applications

under current development from cloud-enabled to

cloud-native levels. In more colloquial terms, we may

say that cloud-enabled means that the application can

be deployed and runs, cloud-aware means that it in-

tegrates with its environment but behaves counterin-

tuitively concerning some of the expected behaviours

in clouds, and cloud-native means that it behaves per-

fectly under any circumstances.

Each level can be subdivided to account for the

amount of effort required by the application engineer

or operator for maintaining the application offered

as a service. For instance, the detection of platform

services and the rebinding may happen automatically

through discovery, or manually through conﬁguration

settings. Thus, the levels are not fully discrete but rat-

her indicate the progress on a maturity spectrum.

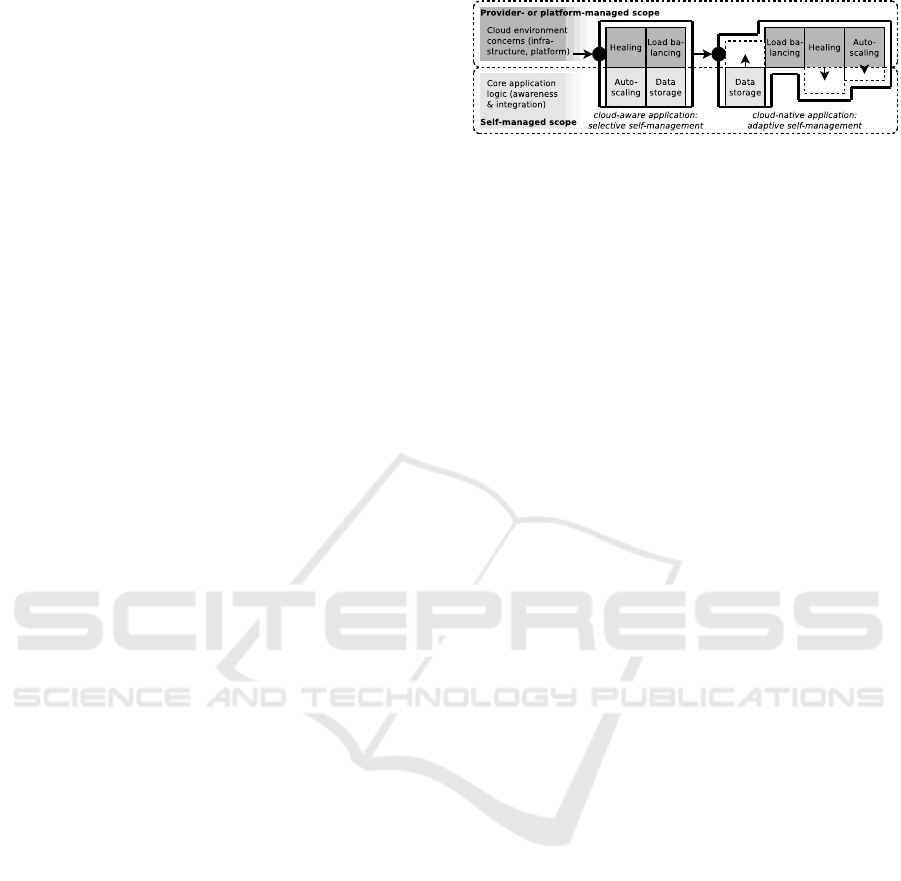

Eventually, a CNA should be elastic and resilient

through a certain degree of self-management. On an

architectural level, the self-management can be com-

pletely self-contained within the application logic, or

partially or wholly outsourced to an application ma-

nagement platform, e.g. a container platform in cloud

environments. The platform must then expose the

same characteristics, being elastic and resilient.

Co-Transformation to Cloud-Native Applications

597

3 TRANSFORMATION

METHODOLOGIES

The specialised literature on Cloud-Native Applicati-

ons and suitable architectures reports on several mi-

gration and transformation strategies. In this section,

we brieﬂy present an overview about the ﬁeld to jus-

tify the need for a proper co-transformation methodo-

logy, and then proceed to present ours as main contri-

bution of this work.

3.1 Existing Methodologies

Similar to the perspective differences between cloud

computing operations and cloud applications engi-

neering, there is still a gap between cloud-native com-

puting infrastructure and platforms, such as the ecosy-

stem deﬁned by the Cloud-Native Computing Foun-

dation and other industrial approaches, and the ap-

plications side whose progress is driven by academic

research, often through experience reports.

The previous work of one of the authors on trans-

forming legacy software applications to cloud-native

ones consisted of a technological ﬁtting to distributed

container and conﬁguration management systems at

that time (Toffetti et al., 2017). The application under

transformation, Zurmo CRM, gained horizontal sca-

ling and resilience capabilities which were validated

experimentally over the period of almost two years.

Another experience report published in parallel

by Balalaie et al. instead focused on reusability, de-

centralised data governance, automated deployment

and built-in scalability, leaving little overlap in terms

of deﬁning the characteristics of the resulting cloud-

native application (Balalaie et al., 2015). Additio-

nally, a more recent architecture evolution progress

proposal by Fowley et al. focuses on the feasibility of

cloud-native transformations for SMEs (Fowley et al.,

2017). It acknowledges the lack of in-house compe-

tencies and the need for re-engineering existing code

due to the contained investment. According to the aut-

hors, the beneﬁts will eventually outweigh associated

costs.

A recent proposal, inspired by industrial research,

is BlueShift which attempts to automate application

transformation to cloud-native application architectu-

res. The application functionality is discovered, ana-

lysed, transformed into artefacts and ﬁnally enabled

as a cloud service (Vukovic et al., 2017). The method

is leaning towards IBM’s BlueMix offering as target

platform. It is not clear if this method, or any other,

would work for generic targets.

In summary, existing methodologies to transform

and lift applications to the cloud-native level do not

yet consider migration for partly cloud-enabled and

cloud-aware applications under continuous develop-

ment. In consequence, this work introduces a co-

transformation methodology, validating it through the

migration of a prototypical music identiﬁcation ap-

plication, resulting in an elastic and resilient cloud-

native application.

3.2 Co-Transformation Methodology

The proposed methodology consists of a number of

transformation steps of which almost all can be exe-

cuted in parallel to speed up the transformation in on-

going software development projects.

The necessary steps to achieve a cloud-aware

application based on a cloud-enabled one are:

• The application must be aware about the cloud

environment it is running in and about available

associated capabilities for ﬂexible use of cloud

services and platform features to outsource cri-

tical secondary functionality (e.g. data storage).

Standardised discovery and broker services such

as the Open Service Broker API increasingly be-

come enablers for the awareness.

• The application contains mechanisms for se-

lective static use of cloud management facilities,

such as declaring rules for auto-scalers or load-

balancers based on general metrics (e.g. CPU), as

well as health checks and restarts.

To mature the application to a fully cloud-

native level to maximise elasticity and resilience,

the following additional steps are necessary:

• Conversion to a strictly separated set of stateless

and stateful microservices as a set of types.

• Self-healing logic (in a basic form, restarts) for all

microservices as a set of type instances in addition

to platform features.

• Inclusion of sophisticated auto-scaling logic ba-

sed on domain-speciﬁc metrics (e.g. response

time) in addition to platform-deﬁned metrics.

• Further self-management including policies to

adaptively and autonomously enact the me-

chanisms for switching between application-

controlled and platform-controlled services.

The methodology is not without alternatives. For

example, it might be possible to create cloud-native

applications without microservices. Given today’s

trends in cloud platforms, such alternative designs

would however be more costly and less native. Furt-

hermore, the methodology does not mandate a loca-

tion of implementation. Given the requirement of

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

598

adaptivity, the location may vary with the cloud envi-

ronment. For instance, a cloud application hosted on

Kubernetes may simply declare an auto-scaling rule

which is processed outside of the application scope.

The same application must however be prepared to

execute in the same manner on other stacks and the-

refore needs portable platform services for the self-

management which, even in a basic form, could serve

as drop-in replacements for these mechanisms.

Summarising, Figure 2 shows the basic integra-

tion of an application under successive transformation

to a cloud-aware and a cloud-native maturity level

into a corresponding cloud computing environment.

The cloud-nativeness is determined by the ability of

the application to process environment information to

make autonomous decisions about the degree of self-

management.

4 HENDU

CO-TRANSFORMATION

As previously described, the scenario application

HENDU could be classiﬁed as a cloud-enabled ap-

plication (see Figure 1) considering that its original

version (cloud-enabled HENDU) is composed of a set

of services, detailed in Section 4.1. These mentioned

services are packed into Docker containers for high

scalability (Dikaleh et al., 2016), being possible to run

in platforms such as Google Container Engine, Ama-

zon Elastic Container Service or even plain Docker

computing environments.

Services in cloud-enabled HENDU still work as

isolated units and required characteristics as elasticity

and resilience are not achieved. Consequently, cloud-

enabled HENDU must be transformed to a cloud-

native HENDU to achieve current requirements for

massive deployment. To demonstrate an application-

speciﬁc application of the proposed methodology,

Section 4.2 presents concepts and steps performed for

the application co-transformation.

4.1 Original Cloud-enabled HENDU

Music royalties are often subject to fees on natio-

nal composer or publisher rights organisations such

as APA (Paraguay), SUISA (Switzerland) or GEMA

(Germany). In this context, HENDU uses a mu-

sic ﬁngerprint database to heuristically determine the

played songs, create a list of songs relevant to an event

or radio station and ﬁnally submits it to the rights or-

ganisation for subsequent charging and billing.

HENDU (cloud-enabled) is composed of seven

services: (1) Hash Generator, (2) Communication,

Figure 2: Typical cloud-native application integration into a

runtime environment.

(3) Radio Monitor, (4) Audio Recognition, (5) Fil-

ter, (6) Web User Interface and (7) Event Handler, as

shown in Figure 3. Additionally it considers two da-

tabase systems: (1) Operational (non-relational) and

(2) Application Management (relational). The above

mentioned components run as a single-instance con-

tainer conﬁguration without auto-scaling rules. As a

main consequence, cloud-enabled HENDU does not

achieve neither elasticity nor resilience.

Figure 3 shows the service architecture of cloud-

enabled HENDU and its interaction with the external

components for data acquisition as well as data vi-

sualisation for users. To be able to identify music,

it is necessary to obtain the complete ﬁngerprint of

each music track. For that purpose, the Hash Ge-

nerator service creates a set of ﬁngerprints for each

music M

, dividing the original music M

in blocks

of 30 seconds (i.e. m f

a,i

), considering an overlap of

15 seconds. The obtained set of ﬁngerprints for each

music track M

is stored in a Music Fingerprint col-

lection and in a Musics table for further processing

and comparison with collected samples. Music is col-

lected for recognition from radio stations and events,

as considered in the motivational examples of service

operations presented as follows.

4.1.1 Music Recognition from Radios

The monitor of online radio stations is made through

the Radio Monitor service that obtains audio samples

and generates the ﬁngerprint of each radio stream af-

ter a registration in Radios table for further proces-

sing and identiﬁcation. The Radio Monitor service

connects to the stream through the URL of radio R

Then, the mentioned service collects 30 second sam-

ples s

on MP3 format to generate a sample ﬁnger-

print s f

b, j

for each collected sample j of the radio R

The generated sample ﬁngerprint (s f

b, j

), radio name

), radio station location and a time-stamp are sto-

red in the Sample Fingerprint collection.

Once a ﬁngerprint s f

b, j

is generated and stored in

the Sample Fingerprint collection, the Audio Recog-

nition service compares it with existing music ﬁnger-

prints (e.g. m f

a,i

), previously created with the Hash

Generator service, resulting in a list of possible ma-

tches sorted by an afﬁnity value called score. The

Co-Transformation to Cloud-Native Applications

599

Single-Host

Sensor 1

App

Sensor m

App

Communication

OPERATIONAL

SAMPLE

FINGERPRINT

MUSIC

FINGERPRINT

MUSIC

BINARY

RAW

RESULTS

NON-RELATIONAL DATABASE MANAGEMENT SYSTEM

MANAGEMENT

MUSICS DEVICES

RESULTS

USERS

RELATIONAL DATABASE MANAGEMENT SYSTEM

R R

Web User Interface

Event Handler

Audio Recognition

Hash Generator

Filter

JSON

SQL

User 1

User n

Web Browser Web Browser

HTTP

SQL

JSON

SQL

Radio 1

Radio Monitor

JSON

Radio k

RADIOS

SQL

JSON

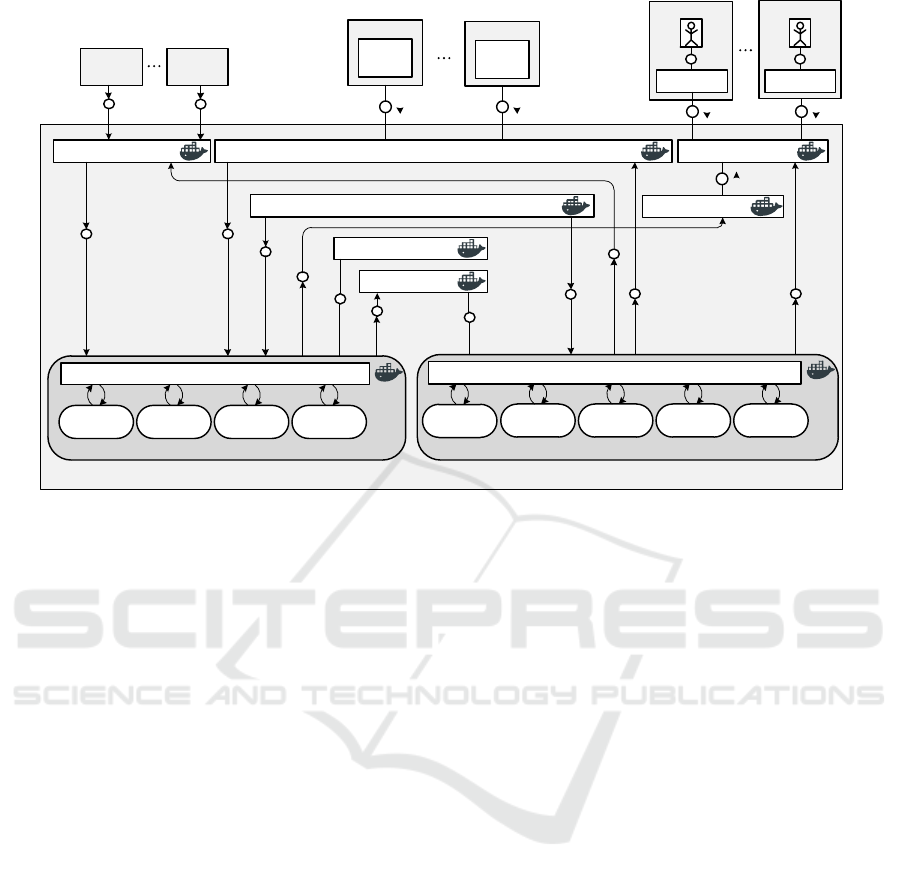

Figure 3: Original cloud-enabled HENDU architecture.

identiﬁed music with the highest score is stored in the

Raw Results collection as a suitable match.

Based on the results of the Audio Recognition,

the Filter service analyses and deﬁnes what music is

played. The service creates threads for each radio,

ensuring the concurrency for a faster process. Each

thread T

process the set of documents d

b,k

in the Raw

Result collection that corresponding with its own as-

signed radio R

. The thread T

reads the music of

the ﬁrst document d

b,1

, and the amount of blocks q

of that music, previously stored in Musics table and

deﬁned by its duration, then search’s for a match in

the next q

− 1 documents. If a match threshold is

reached, the ﬁlter removes all the set d

b,q

of the col-

lection and considers that the music was played, then

save this information on the Results table. But if not,

the ﬁlter removes only the document d

b,1

and the cy-

cle start again with the next document d

b,2

4.1.2 Music Recognition from Events

At the same time that the system monitors online

radio stations, it can obtain audio from events, ha-

ving a similar process. The purpose in events is to

obtain and process audio gathered from the environ-

ment through sensors S

for the creation of sample ﬁn-

gerprints s f

c, j

. These are subsequent sent to the server

for recognition. The sensor S

establishes a commu-

nication with the system through the Communication

service using a Transmission Control Protocol (TCP)

connection with an application-speciﬁc protocol, de-

signed to handle multiple clients in a single instance.

The connection between the sensor S

and the service

is made through three steps. The sensor S

sends a

request with its International Mobile Station Equip-

ment Identity (IMEI) for habilitation. With IMEI the

service consults Devices table and sends the response.

Once the S

receives the response, it sends another re-

quest asking for a speciﬁc port. The server responds

to this and opens a dedicated port to receive data

from S

, this mean that another sensor cannot con-

nect through the same port assigned to S

. The sensor

sends the sample data and the service stores it in the

Sample Fingerprint collection, closing the assigned

port. The rest of the process is similar to online ra-

dios, with the difference that the Filter service creates

threads and processes documents according to Devi-

ces table.

4.1.3 Data Visualisation

The main purpose of HENDU is to give information

to musicians about music played in different events

and online radio stations. Musicians can login to the

system through the Web User Interface service and vi-

sualise which musics were played and where, as well

as other relevant information registered. The Event

Handler service establish a web socket connection,

this is necessary for consults the Users tables for the

tion from the Results table.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

600

4.2 Transformation Concept

Following the co-transformation methodology, a

HENDU application-speciﬁc concept is derived.

First, the application maturity needs to be lifted from

cloud-enabled to cloud-aware, considering that:

• Cloud-Aware 1 (CA

): Applications must be

able to ﬂexibly switch between self-managed and

provider-managed services. As cloud awareness

requires a conscious use of platform services, an

explicit awareness about whether HENDU needs

to launch its own data handling services, such as

containerised databases, or bind to third-party ser-

vices within or even beyond hosting platforms,

such as Database as a Service (DBaaS), is needed

along with a suitable reconﬁguration mechanism.

• Cloud-Aware 2 (CA

) Addition of auto-scaling

rules for main services. This step is required to ba-

sically fulﬁl the elasticity characteristic expected

for HENDU. Typically, this would be a combina-

tion of dynamic rules for auto-scalers and static

rules for the initial scaling following the method

of Ram

ırez L

opez (L

opez and Spillner, 2017).

With these steps, the application becomes cloud-

aware as it integrates with stateful services of the en-

vironment and becomes itself entirely stateless. Sub-

sequently, the maturity needs to be lifted further from

cloud-aware to cloud-native, considering that:

• Cloud-Native 1 (CN

): Services must be de-

composed into qualiﬁed microservices (see Figure

4). To support the disposable nature of microser-

vice instances, their implementations, for instance

container images, should be as fast-booting as

possible, which calls for more light-weight ima-

ges.

• Cloud-Native 2 (CN

): Provider-managed and

self-managed health-checking for self-healing

tools and restart mechanisms must be included

for the application. This step is required to ba-

sically fulﬁl the resilience characteristic expected

for HENDU.

• Cloud-Native 3 (CN

): Addition of auto-scaling

rules for all microservices based on domain-

speciﬁc metrics. Auto-scaling rules based on

general-purpose metrics (e.g. CPU utilisation

bounds) are not applicable for cloud-native appli-

cations that must perform with an expected QoS

deﬁned particularly for the application.

• Cloud-Native 4 (CN

): Provider-managed servi-

ces could be limited for CNAs and consequently,

CNAs should be able to independently and adap-

tively complement the cloud platform, and pro-

vide application-controlled services to avoid plat-

form limitations (e.g. platform-controlled health

checks).

5 IMPLEMENTATION

We have transformed HENDU into a cloud-native ap-

plication following the proposed concept. Due to

space limitations, this section reports on selected im-

plementation aspects for CA

, CN

and CN

5.1 Flexibility (CA

)

In today’s cloud platforms, the bindings to microser-

vices are conﬁgured either by custom hostnames assu-

ming authority over the Domain Name System (DNS)

or by environment variables. DNS records can be up-

dated any time during the execution but may be limi-

ted by incorrect Time-To-Live (TTL) settings, causing

outdated records to be used.

Environment variables (e.g. MYDB=192.168.0.1)

require a hierarchical launch of containers called

master-slave model (Amaral et al., 2015) and furt-

hermore require a restart of the container upon any

change. In this context, Table 1 summarises the adap-

tivity options in two considered target cloud plat-

forms.

Independent of the technical means to realise

the bindings, there needs to be a systematic process

to identify all binding locations, retrieve the list

of candidate services, and perform the rebinding.

For manual rebinding, this process needs to be

made available to the developer through appropriate

tooling. In our co-transformation work, we have

designed a new tool to (i) parse HENDU’s Docker

Compose ﬁles, (ii) identify service links within

the composition, and (iii) offer to the developer

to override the bindings. Thus, for any speciﬁed

self-managed service, equivalent platform-hosted

services may be used instead. Docker Compose

would generate environment variables of the form

MYSQL

1 PORT 3306 TCP=tcp://192.168.0.1:3306.

Upon the developer decision to use a platform-hosted

service instead, the self-managed service is removed

from the composition and the equivalent environment

variables are injected into all services previously

depending on it. Additionally, to achieve CA

considered platform-managed auto-scalers based on

CPU utilisation metrics as liveness probes for health

checks in Kubernetes for service restarts.

Co-Transformation to Cloud-Native Applications

601

Table 1: Discovery and adaptivity comparison among cloud platforms.

Adaptivity Feature Docker-Compose Kubernetes

Hostnames only in Docker Cloud yes

Environment variables only in Docker Cloud yes

Kubernetes-Cluster

Sensor 1

App

Sensor m

App

User 1

User n

Web Browser Web Browser

Radio 1 Radio k

Sensor 1

App

Sensor m

App

User 1

User n

Web Browser Web Browser

Radio 1 Radio k

R R

external communication svc

Communication

Redis

Audio

Recognition

audio recognition svc

recognition svc

mongo svc

Recognition

Persistence

Mongo

MongoDB

Persistent

volume

Hash Generator

Web User

Interface

Event Handler

MySQL

persistence mongo svc

Persistent

Volume

web interface svc

mysql svc

Radio Monitor

internal communication svc

Filter

hash

generator

svc

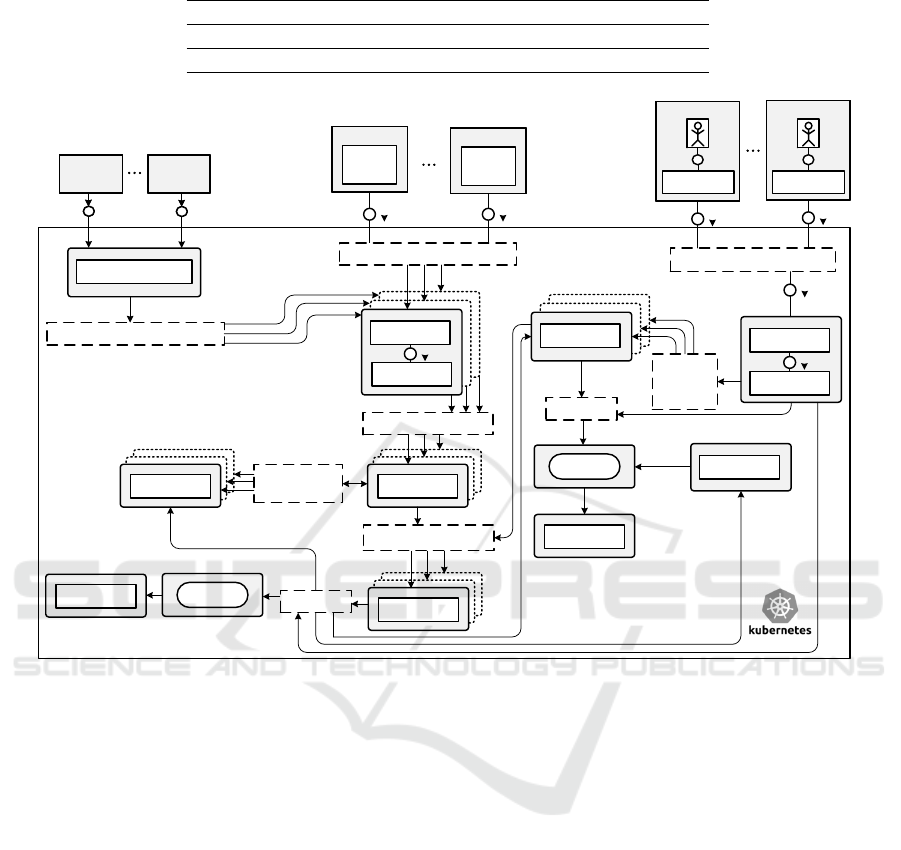

Figure 4: Resulting cloud-native HENDU microservice architecture. Notice that svc means service.

5.2 Microservices Decomposition (CN

)

We have realised CN

by proposing a new microservi-

ces architecture of cloud-native HENDU. In contrast

with the original cloud-enabled HENDU architecture

shown in Figure 3, the microservice architecture pre-

sented in Figure 4 considers several pods, compo-

sed by one or more containers for each microservice.

These pods can be elastically replicated according to

current demand. Each pod, except Filter, has a ser-

vice layer to communicate with the others, represen-

ted in the architecture with dotted lines. Additionally,

we have realised CN

by switching from Ubuntu Doc-

ker base images to Alpine images. Due to their small

size, Alpine-based services are sometimes referred to

as micro-containers. Across all image sizes, the re-

duction in size has on average been 81% (see Table 2)

and consequently a reduction in taking snapshots and

live migration time for containers has been signiﬁcant

as well. Measuring the time saved for these two ma-

nagement actions is out of the scope of this work and

left as a future work.

5.3 Self-healing Method (CN

)

Originally, self-management has been a crucial

functionality within applications to survive faults and

usage surges in the cloud. With the leverage of por-

table off-the-shelf microservice management frame-

works, the alternative approach is to deploy those in

conjunction with the application on plain disposable

virtual machines or lower-level containers. Thus, the

principle of dumb pipes, smart endpoints is evolved

to dumb pipes, dumb infrastructure, smart endpoints

which greatly simpliﬁes the application design. Still,

a bare minimum of self-management must be present

within the application to account for failures within

the platform. Consequently, the container composi-

tion of HENDU has been ported from Docker Com-

pose to Kubernetes. In this context, Table 3 compares

the self-management aspects of both platforms. What

is apparent is the inability of both platforms to de-

tect crashes and inconsistencies within the platform

itself, leading to the need to include complementary

application-level checks for high resilience. Over-

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

602

Table 2: Reductions in image size when considering microcontainers for microservices.

HENDU Service Ubuntu image size (MB) Alpine image size (MB) Reduction

Communication 212 16 92%

Radio Monitor 771 166 78%

Hash Generator 770 165 78%

Audio Recognition 532 111 79%

Filter 544 118 78%

all, the co-transformation experience for HENDU is

summarised in Tables 4 and 5 for the successively

considered maturation levels (cloud-enabled to cloud-

aware to cloud-native). The mentioned tables contrast

the respective steps from the co-transformation met-

hodology, from the derived application-speciﬁc trans-

formation concept, and from the resulting considered

implementation.

6 EXPERIMENTAL EVALUATION

We have installed HENDU in its various maturity le-

vels for a side-by-side comparison into a container

management platform hosted at the institutional data

centre of one of the authors which provides cloud self-

services to all research and teaching staff.

The system runs OpenStack and offers Ubuntu

16.04 VMs in a m1.small instance size conﬁguration.

A second control installation was set up at the fede-

rated cloud of the European Grid Initiative (EGI) for

comparison and cross-checking. In both cases, the

container composition was scheduled using Docker

Compose and Kubernetes running atop the virtual ma-

chines.

Additionally, a Kubernetes cluster composed by 2

nodes with the following characteristics was installed:

• RAM: 3GB.

• CPU: 4 cores (AMD Opteron 23xx 2.4Ghz).

• OS: CentOS 7.

For monitoring and visualisation purposes the He-

apster service with an Inﬂuxdb database as well as

Kubernetes dashboard to retrieve metrics.

6.1 Platform-managed Elasticity (CA

)

To demonstrate that HENDU may elastically adjust

its computational resources according to current de-

mand, it was evaluated against a HENDU version wit-

hout auto-scaling capabilities as the original cloud-

enabled HENDU. To achieve this, a workload simu-

lation was considered, taking into account JMeter as

suitable benchmark tool. The application was con-

ﬁgured to simulate a workload trace of 100 HTTP

POST requests, sent using a uniform distribution in 5

seconds periods, over a duration of 10 minutes. Obtai-

ned results were measured considering the Average

Response Time (AvRT) and the Number of Requests

Correctly Sent per minute (RS/m).

Experimental results are summarised as follows:

• HENDU with CPU auto-scaling:

– AvRT = 120 (ms).

– RS/m = 2833.1.

• HENDU without auto-scaling:

– AvRT = 2923 (ms).

– RS/m = 1212.7.

As the obtained results reveal, even when consi-

dering a basic metric for auto-scaling such as CPU,

applications can improve response times by adjus-

ting computational resources according to current de-

mand. Including more sophisticated domain-speciﬁc

metrics that are particular for each different applica-

tion may incur in better QoS. Achieving this type of

auto-scaling is left as a future work.

6.2 Platform-managed Resilience (CN

)

Existing experimentation tools such as Chaosmonkey

or MC-EMU allow for random termination of micro-

services of an application (Spillner, 2017). As our

interest is ﬁnding out about the combined resilience

of application and platform, we have designed and

implemented an MC-EMU-inspired custom parame-

terised Docker container terminator which targets the

process running in the container as well as the mana-

gement processes of Docker.

Docker represents a container management plat-

form with three kinds of operating system processes

on the host system: the top-level process dockerd,

as its child the instance handling process containerd

and below it a per-instance process called containerd-

shim. Through a restart policy, Docker is supposed to

be resilient against crashes.

We have assessed the resilience of the Docker en-

gine with a technique which forces a single or repea-

ted termination of up to two of these processes. Spe-

ciﬁcally, we run the assessment in two modes: One

Co-Transformation to Cloud-Native Applications

603

Table 3: Self-management features comparison.

Self-Management Feature Docker-Compose Kubernetes

Termination detection internal crash only yes

Slowness detection no no

Inconsistency detection no no

Custom detection yes (health check) yes (liveness, readiness)

Table 4: Methodology, Concept and Implementation for Transforming Cloud-Enabled to Cloud-Aware Applications.

Methodology (Sect. 3.2) Concept (Sect. 4.2) Implementation (Sect. 5)

The application must be aware

about the cloud environment it is

running in and about available as-

sociated capabilities for ﬂexible use

of cloud services and platform fea-

tures to outsource critical secondary

functionality.

Applications must be able to ﬂex-

ibly switch between self-managed

and provider-managed services. As

cloud awareness requires a cons-

cious use of platform services, an

explicit awareness about whether

HENDU needs to launch its own

services . . . or bind to third-party

services . . . (CA

Manual implementation as a

YAML conﬁguration ﬁle in

the deployment process. It

contains references to end-

points and credentials which

can be turned into links

to platform-managed secrets

for higher security.

The application contains mecha-

nisms for selective static use of

cloud management facilities, such

as declaring rules for auto-scalers

or load-balancers based on general

metrics, as well as health checks

and restarts.

Addition of auto-scaling rules for

main services. This step is required

to basically fulﬁl the elasticity cha-

racteristic expected for HENDU.

Typically, this would be a combi-

nation of dynamic rules for auto-

scalers and static rules for the initial

scaling . . . (CA

Use of Kubernetes horizon-

tal auto-scaling API with

data provided by Heap-

ster monitoring service, al-

lowing auto-scaling based

on Target CPU: 20%, Min

Pods: 1 and Max Pods: 20.

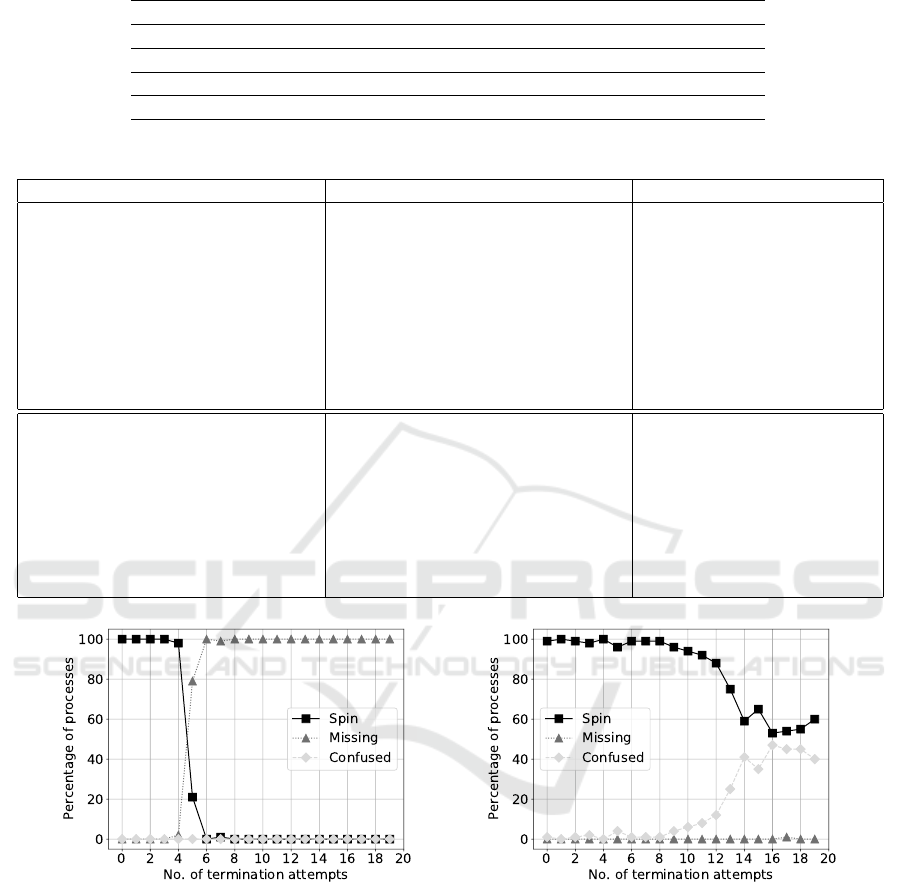

Figure 5: Resilience of the Docker container platform – left graph: containerd-shim, right graph: containerd and containerd-

shim.

which only targets containerd-shim and one which

also targets its parent process with hard termination

signals (SIGKILL) in successive order with breaks

of 0.1s. After each termination sequence, the usa-

bility of the container under test is checked repea-

tedly, again using 0.1s intervals. For each number

of termination attempts per sequence, 100 runs are

performed. The results as shown in Figure 5 are cle-

arly showing weaknesses within Docker which due

to it being a core runtime also affects container ma-

nagement platforms such as Docker’s own Compose,

Kubernetes and OpenShift. While few terminations

do not show practical issues, repeatedly terminating

containerd-shim eventually leads to exited containers

with forgotten restarts (missing state). When also ter-

minating containerd, containers rarely go missing but

the Docker engine often ends up in a confused in-

consistent state where the process list shows a con-

tainer as running but Docker commands sent to it re-

port about a non-existing container (confused). Even-

tually, in both cases the number of successful waits

(spin), which use an exponential back-off strategy, is

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

604

Table 5: Methodology, Concept and Implementation for Transforming Cloud-Aware to Cloud-Native Applications.

Methodology (Sect. 3.2) Concept (Sect. 4.2) Implementation (Sect. 5)

Conversion to a strictly separated

set of stateless and stateful micro-

services as a set of types.

Services must be decomposed into

microservices. To support the dis-

posable nature of microservice in-

stances, their implementations, for

instance container images, should

be as fast-booting as possible,

which calls for more light-weight

images (CN

Services were decomposed

into microservices using

Flask as a micro-framework

for Python and changing

the application speciﬁc

protocols to REST for inter-

operability. Additionally,

container images were also

considerably reduced.

Self-healing logic (in a basic form,

restarts) for all microservices as a

set of type instances in addition to

platform features.

Provider-managed and self-

managed health-checking for

self-healing tools and restart me-

chanisms must be included for the

application. This step is required

to basically fulﬁl the resilience

characteristic expected for HENDU

(CN

Use of liveness probe for

the Kubernetes implementa-

tion and health-checks for

the docker-compose imple-

mentation.

Inclusion of sophisticated auto-

scaling logic based on domain-

speciﬁc metrics . . . in addition to

platform-deﬁned metrics.

Addition of auto-scaling rules for

all microservices based on domain-

speciﬁc metrics. Auto-scaling rules

based on general-purpose metrics

. . . are not applicable for cloud-

native applications that must per-

form with an expected QoS deﬁ-

ned particularly for the application

(CN

Left as a future work.

For HENDU, application-

speciﬁc metrics such as

response time and instance

count would be useful.

Further self-management including

policies to adaptively and auto-

nomously enact the mechanisms

for switching between application-

controlled and platform-controlled

services.

Provider-managed services could

be limited for CNAs and conse-

quently, CNAs should be able to

independently and adaptively com-

plement the cloud platform, and

provide application-controlled ser-

vices to avoid platform limitations

. . . (CN

Left as a future work. In

conjunction with multi-

tenancy and notiﬁcations

from service brokers,

cloud-native HENDU could

optimise non-functional

properties following com-

plex requirements.

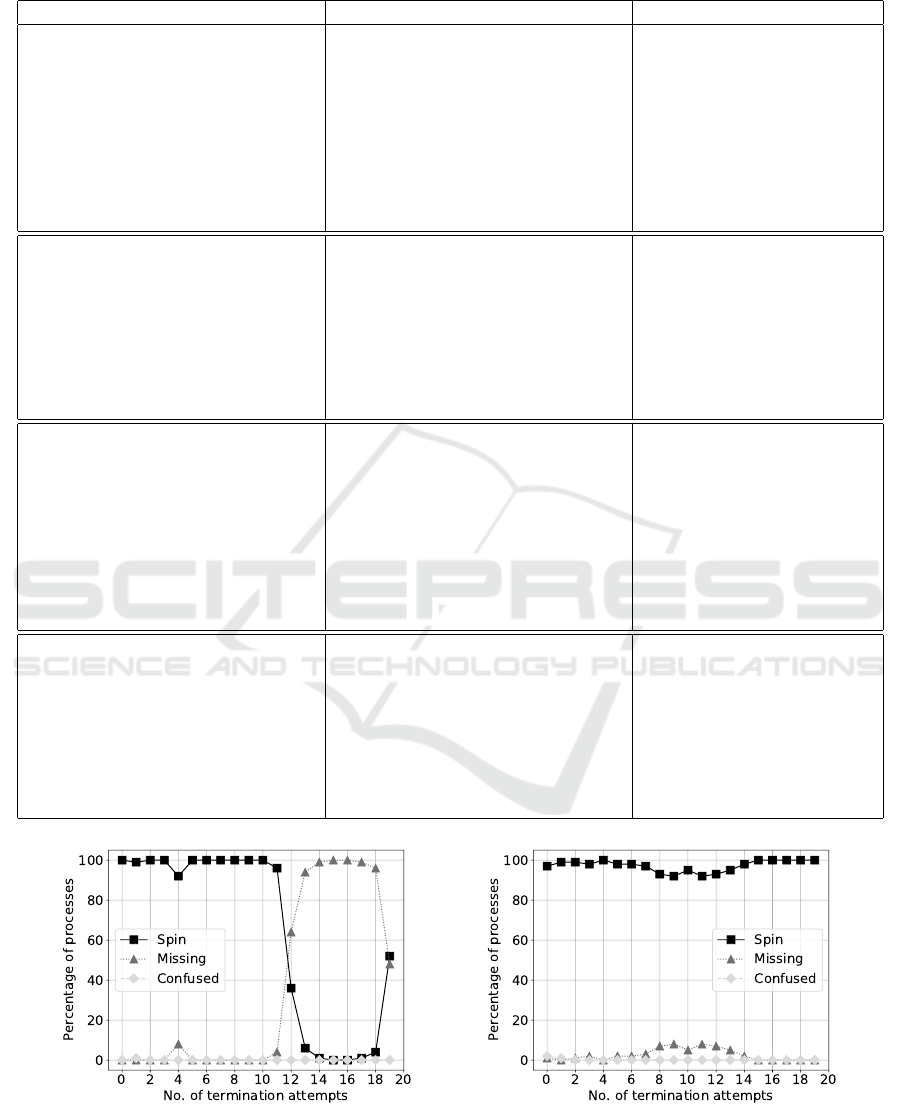

Figure 6: Improved resilience of the Docker container platform with revive container – left graph: 2s revive window, right

graph: 5s revive window.

diminished signiﬁcantly to around 0% and 60%, re-

spectively.

6.3 Self-managed Resilience (CN

)

In the next step, we have implemented and deployed

an auxiliary (side car) container called Revive which

Co-Transformation to Cloud-Native Applications

605

runs in privileged mode with control over the Docker

command socket as part of the application. It auto-

nomously monitors launched containers, learns about

their names and launch commands, and replicates the

exact setup in case the container goes amiss.

As there is a race condition between Docker’s re-

start attempts, the clean restart attempts at the end of

each experiment rounds and Revive’s own attempts,

the success of each attempt is carefully checked for

and information about new instances is read from

Docker’s process list in case of losing the restart race.

With Revive, the number of missing containers when

terminating only containerd-shim decreases signiﬁ-

cantly as shown in Figure 6. Furthermore, the average

time for bringing the container back into service de-

creases signiﬁcantly from 5.10s to 1.87s which gre-

atly improves the overall application availability es-

pecially for delay-sensitive scenarios.

Figure 7 explains Docker’s container restart beha-

viour in greater detail. By default, a container is sche-

duled to be restarted after a cooldown period which is

characterised by an exponential backoff. The period

is reset after ten seconds of uninterrupted container

runtime. A manual restart in the scheduled waiting

period takes priority and leads to less cooldown, es-

pecially when greedily restarting containers already

marked for restart. Some measurements did not ter-

minate due to Docker health-checks enabled in these

runs. When health checks are enabled, there is a like-

lihood that terminating the container from within does

not succeed and the appropriate termination com-

mand hangs forever, followed by an inconsistent state

in which a container is shown as running but can-

not be referenced anymore. As result of the last ex-

periment, Figure 8 shows that independently of the

injected termination signal (SIGTERM or SIGKILL)

within the container, there is a rate of around 34–37

inconsistent states after 1000 terminations, which is

rather high (3.55%) and unacceptable for a production

application. The results lead to a three-pronged re-

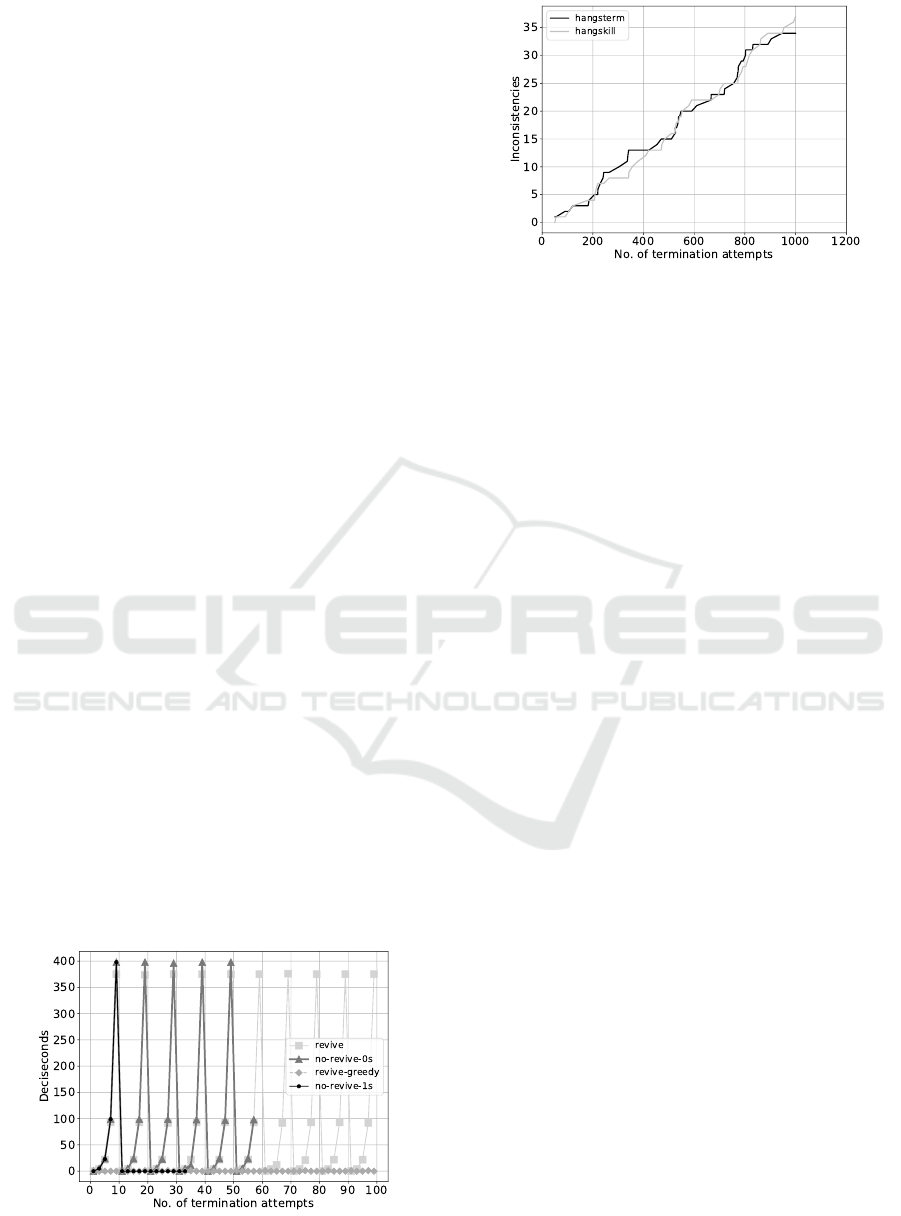

Figure 7: Exponential backoff during repetitive restarts of

Docker container with health check and 0/1s kill pauses.

Figure 8: Hanging termination commands as precursor to

container scheduling inconsistencies.

commendation for self-healing CNAs aiming at hig-

her resilience on contemporary platforms.

1. Platform mechanisms to handle crashes of micro-

services should be complemented by application-

controlled handlers for crashes and quality degra-

dations in service implementations. These mecha-

nisms are necessary but insufﬁcient.

2. Due to immature microservice management plat-

forms, consistency checks need to be performed

and resolved, for instance by restarting the plat-

form itself.

3. Portable microservice implementations should be

implemented and deployed over multiple plat-

forms to decrease the risk of failure, at the expense

of additional network trafﬁc and reduced volume

discounts.

7 CONCLUSIONS AND FUTURE

WORK

Software application engineering increasingly targets

cloud computing environments for evident beneﬁts in

the quality level of the application delivery process.

Our work, following the use case of the music royalty

application HENDU operated in the cloud, has deli-

vered a detailed analysis concerning systematic mi-

gration strategies through co-transformation and con-

cerning resilient cloud-native applications in contem-

porary runtime environments. By systematically ap-

plying the proposed generic co-transformation metho-

dology (see Tables 4 and 5), we introduced elasticity

and resilience to the HENDU application.

Additionally, we have shown experimentally that

outsourcing application-level self-management featu-

res, in particular self-healing to achieve resilience, to

application management platforms is showing limited

results. In particular, Docker, which also forms the

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

606

basis for Kubernetes and several other container plat-

forms, does not protect against slowness of responses

from microservices, and its protection against cras-

hes and inconsistencies is limited due to missing self-

resilience within the platform. Future work will in-

clude the consideration of additional fault types, im-

proved automated derivation of scaling rules to cut

down the engineering effort on their deﬁnition, and a

strengthened co-transformation by considering deve-

lopment integration in modern cloud onboarding pla-

forms such as the Kubernetes-based OpenShift.

Several future directions were also been identiﬁed

to further advance this relevant research area. Our ex-

periment code and raw data results are available for

future research at https://osf.io/zsj7k/.

REFERENCES

Amaral, M., Polo, J., Carrera, D., Mohomed, I., Unuvar, M.,

and Steinder, M. (2015). Performance evaluation of

microservices architectures using containers. In 14th

IEEE International Symposium on Network Compu-

ting and Applications, NCA 2015, Cambridge, MA,

USA, September 28-30, 2015, pages 27–34.

Andrikopoulos, V. (2017). Engineering Cloud-based Ap-

plications: Towards an Application Lifecycle. In 3rd

International Workshop on Cloud Adoption and Mi-

gration (CloudWays), Oslo, Norway.

Ashtikar, S., Barker, C., Casper, D., Clem, B., Fichadia,

P., Krupin, V., Louie, K., Malhotra, G., Nielsen, D.,

Simpson, N., and Spence, C. (2014). Architecting

Cloud-Aware Applications Rev. 1.0. Open Data Cen-

ter Alliance Best Practices.

Balalaie, A., Heydarnoori, A., and Jamshidi, P. (2015). Mi-

grating to cloud-native architectures using microservi-

ces: An experience report. CoRR, abs/1507.08217.

Dikaleh, S. G., Moghal, S., Sheikh, O., Felix, C., and Mi-

stry, D. (2016). Hands-on: build and package a highly

scalable microservice application using docker contai-

ners. In Proceedings of the 26th Annual International

Conference on Computer Science and Software Engi-

neering, CASCON 2016, Toronto, Ontario, Canada,

October 31 - November 2, 2016, pages 294–296.

Fowley, F., Elango, D. M., Magar, H., and Pahl, C. (2017).

Software system migration to cloud-native architec-

tures for SME-sized software vendors. In SOFSEM

2017: Theory and Practice of Computer Science -

43rd International Conference on Current Trends in

Theory and Practice of Computer Science, Limerick,

Ireland, January 16-20, 2017, Proceedings, pages

498–509.

opez, M. R. and Spillner, J. (2017). Towards Quantiﬁa-

ble Boundaries for Elastic Horizontal Scaling of Mi-

croservices. In 6th International Workshop on Clouds

and (eScience) Applications Management (CloudAM)

/ 10th IEEE/ACM International Conference on Utility

and Cloud Computing (UCC) Companion, pages 35–

40, Austin, Texas, USA.

Spillner, J. (2017). Multi-Cloud Simulation + Emu-

lation framework (MC-SIM/MC-EMU). online:

https://github.com/serviceprototypinglab/mcemu.

Toffetti, G., Brunner, S., Bl

ochlinger, M., Spillner, J., and

Bohnert, T. M. (2017). Self-managing cloud applica-

tions: design, implementation, and experience. Future

Generation Computer Systems, 72:165–179.

Vukovic, M., Hwang, J., Rofrano, J. J., and Anerousis, N.

(2017). Blueshift: Automated application transforma-

tion to cloud native architectures. In 2017 IFIP/IEEE

Symposium on Integrated Network and Service Mana-

gement (IM), Lisbon, Portugal, May 8-12, 2017, pages

778–792.

Wood, K. and Buckley, K. (2015). Reality vs hype - does

cloud computing meet the expectations of SMEs? In

CLOSER 2015 - Proceedings of the 5th Internatio-

nal Conference on Cloud Computing and Services

Science, Lisbon, Portugal, 20-22 May, 2015., pages

172–177.

Yousif, M. (2017). Cloud-native applications—the journey

continues. IEEE Cloud Computing, 4(5):4–5.

Co-Transformation to Cloud-Native Applications

607
