OneDataShare

A Vision for Cloud-hosted Data Transfer Scheduling and Optimization as a Service

Asif Imran, Md S. Q. Zulkar Nine, Kemal Guner and Tevﬁk Kosar

Department of Computer Science and Engineering,

University at Buffalo, State University of New York, Buffalo, 14260, U.S.A.

Keywords:

Managed File Transfer, Cloud Computing, Throughput Optimization, Protocol Translation, Data Management.

Abstract:

Fast, reliable, and efﬁcient data transfer across wide-area networks is a predominant bottleneck for data-

intensive cloud applications. This paper introduces OneDataShare, which is designed to eliminate the issues

plaguing effective cloud-based data transfers of varying ﬁle sizes and across incompatible transfer end-points.

The vision of OneDataShare is to achieve high-speed data transfer, interoperability between multiple trans-

fer protocols, and accurate estimation of delivery time for advance planning, thereby maximizing user-proﬁt

through improved and faster data analysis for business intelligence. The paper elaborates on the desirable

features of OneDataShare as a cloud-hosted data transfer scheduling and optimization service, and how it is

aligned with the vision of harnessing the power of the cloud and distributed computing. Experimental evalua-

tion and comparison with existing real-life ﬁle transfer services show that the transfer throughout achieved by

OneDataShare is up to 6.5 times greater compared to other approaches.

1 INTRODUCTION

Cloud services have gained tremendous popularity

amongst the general public for its low cost, high avail-

ability, and elasticity. Millions of data ﬁles of vary-

ing sizes and formats are transferred from one storage

to another every day using the cloud, irrespective of

their locations. However, the beneﬁts of cloud com-

puting cannot be fully utilized due to the limitations in

data transfer mechanisms, which have become a main

bottleneck restraining full utilization of the cloud’s

strength. For example, transfer of a 1 TB dataset

over to a cloud storage may take several weeks de-

spite the high-speed networks available (Garﬁenkel,

2007). For this reason, many IT companies and aca-

demic research labs prefer sending their data through

a shipment service provider such as UPS or FedEx

rather than using wide-area networks (Cho and Gupta,

2011). Some cloud storage providers (e.g., Amazon

S3) even provide import/export services in which the

users can ship multiple hard drives via FedEx to the

storage provider, and the provider copies data to the

cloud storage directly (Zhao et al., 2013).

As data has become more abundant and data

resources become more heterogeneous, accessing,

sharing and disseminating these data sets become

a bigger challenge. Using simple tools to re-

motely logon to computers and manually transfer

data sets between sites is no longer feasible. Man-

aged ﬁle transfer (MFT) services such as Globus On-

line (Chard et al., 2017), PhEDEx (Egeland et al.,

2010), Mover.IO (Mover.io, 2017), B2SHARE (A.

et al., 2015), and RSSBUS (RSSBUS, 2017) have al-

lowed users to do more, but these services still rely

on the users providing speciﬁc details to control this

process, and they suffer from shortcomings including

low transfer throughput, inﬂexibility, restricted pro-

tocol support, and poor scalability. Table 1 shows

a comparative analysis of different data transfer and

scheduling services available today.

Transferring large datasets with heterogeneous

ﬁle sizes (i.e., small and large ﬁles mixed) causes

inefﬁcient utilization of the available network band-

width. Small ﬁle transfers may cause the underlying

transfer protocol not reaching the full network utiliza-

tion due to short-duration transfers and connection

start up/tear down overhead; and large ﬁle transfers

may suffer from protocol inefﬁciency and end-system

limitations. Application-level TCP tuning parameters

such as buffer size, pipelining, parallelism, and

concurrency are effective in removing these bottle-

necks, mainly when used together and in correct

combinations. These tunable transfer parameters play

a signiﬁcant role in improving the achievable transfer

throughput as shown in Figure 1. Here we can see,

616

Imran, A., Nine, M., Guner, K. and Kosar, T.

OneDataShare.

DOI: 10.5220/0006793506160625

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 616-625

ISBN: 978-989-758-295-0

(a)

0 5 10 15 20 25 30 35

Pipelining

4000

4500

5000

5500

6000

6500

7000

7500

Throughput (Gbps)

Achieved throughut for different pipelining when concurrency (9) and parallelism (32) fixed

(b)

Figure 1: This ﬁgure shows the variation in achievable throughput in 10 Gbps XSEDE network between Stampede (TACC)

and Gordon (SDSC). Cubic spline surface is constructed to interpolate throughput for the whole parameter space. (a) Shows

the impact of concurrency and parallelism parameters on the throughput. The colors represent the throughput in Mbps, blue

being the lowest and yellow being the highest throughput. The blue dots represent actual measured throughput values for the

corresponding parameters. (b) The impact of pipelining on throughput is demonstrated.

same transfer can achieve different throughputs for

different parameter values. Figure 1(a) shows the

joint effect of concurrency and parallelism over a

single transfer, where Figure 1(b) shows the effect

of pipelining. However, setting the optimal levels

for these parameters is a challenging task and an

open research problem. Poorly-tuned parameters

can either cause underutilization of the available

network bandwidth or overburden the network links

and degrade the performance of the end-to-end data

transfer due to increased packet loss, end-system

overhead, and other factors.

In this paper, we present the vision of One-

DataShare as a cloud-hosted data transfer scheduling

and optimization service. OneDataShare has three

major goals: (i) optimization of end-to-end data

transfers and reduction of the time to deliver the

data; (ii) interoperation across heterogeneous data

resources (both streaming and at-rest) and on-the-ﬂy

inter-protocol translation; and (iii) predicting the

data transfer time and decreasing the uncertainty in

real-time decision-making processes.

OneDataShare’s data transfer optimization,

interoperability, and prediction services are being

implemented completely at the application-level, not

requiring any changes to the existing infrastructure

nor to the low-level networking stack, although dras-

tically increasing the end-to-end performance of data

transfers and data-intensive applications depending

on data transfer. Experiments demonstrated that

OneDataShare achieved throughput increase of up to

6.5 times compared to existing services.

2 RELATED WORK

The motivation for a platform-independent cloud-to-

cloud data transfer system has been speciﬁed in (IBM,

2017b). Important gridlocks like local-area storage

bottleneck, WAN transport bottleneck, session restore

limitation and slow throughput of data object transfers

are limiting the data transfer performance. Hence, As-

pera (IBM, 2017a) urged for development of a funda-

mental system that will cater to these issues. They

identiﬁed some of the important characteristics which

a cloud based data object transfer mechanism need to

exhibit. Since the majority of cloud based storage are

object storage, separation of ﬁle data and metadata

together with replication across commodity storage

are key to the success of effective data transfer (IBM,

2017b). Also, there is a need to address the challenges

faced when data objects are transferred across differ-

ent continents via provisioned cloud instances.

Rclone is developed as a data transfer solution

which is installed at the client end and accessed

through the command line interface (RClone, 2017).

It contains an array of commands which can be used

to transfer data using a variety of protocols and APIs

like SFTP, Dropbox, and Amazon S3. Although

the application can conduct data transfers at a faster

rate, however it requires extensive conﬁguration pro-

cedures before it is ready to be used. Cloud based

data transfer via GUI which shows the directories of

remote machines in one dashboard is achieved by

CloudFuze (CloudFuze, 2016). The platform uses

FTP for data transfer and implements an interface in

which the users can drag and drop the data ﬁles from

the source to destination. However, the solution is

OneDataShare

617

Table 1: Comparison among different managed ﬁle transfer services.

General Overview Optimization information

Name Source Cloud Parameters Fsize Interface Protocols Metadata

Globus Open Cloud Parallelism, Pipelining, Concurrency All GUI GridFTP, FTP Yes

PhEdEX Open Client Compression All GUI FTP, SCP, SFTP Yes

Waarp Open Client None All Cmd line FTP No

DivConq Open Cloud Compression All Cmd line HTTP(S), SFTP No

ﬁleXhub Open Cloud Distributed decoupling Large Cmd line FTP, HTTP, SFTP No

LDR Open Client None Medium Cmd line HTTP, FTP No

Mover.io Closed Cloud Compression, Parallelism All GUI FTP, SFTP, SMTP Yes

IBM Aspera Closed Cloud HDD striping, Compression, FASP All GUI FASP Yes

MoveIt Closed Client CPU Freq, Parallelism, Pipelining Medium GUI FTP, SFTP, HTTP Yes

Gscape EFT Closed Client None All GUI FTP, HTTP No

RSSBus Closed Cloud HDD Stripe, TCP buffer All GUI FTP, HTTP, Yes

RClone Open Client TCP buffer All Cmd line SFTP, Amazon S3, Google Drive Yes

Serv-U Closed Cloud None All GUI FTP No

CloudFuze Closed Cloud Caching All GUI SFTP, Dropbox, Amazon S3 No

proprietary and requires payment for each bit of data

which is transferred. Next, server to server data trans-

fer with the ability to share data via emails was show-

cased by Serv-U (Serv-U, 2017). Despite its cloud

hosted transfer capabilities, the speed of transfer re-

mains a lot to be desired which is identiﬁed here.

Server to server data transfers in industry environ-

ments have been evaluated in (Carroll, 2017). The

proponents have analyzed what benchmarks should

be followed when transferring data from one server

to another at an industry level. They have evaluated

and emphasized the importance of logging and time-

stamping the transfer activity at every stage of the

transfer for security and auditing purpose. Addition-

ally, the authors provided a mechanism for identifying

nearest server when the transfer needs to be speed ef-

fective. However, besides security and speed, how to

support multi-protocol data transfers and design cri-

teria for such a distributed data transfer system were

not discussed. Also the overhead of time-stamping at

every stage has been ignored by the researchers.

Usage of cloud platform to provide data transfer as

a service to scientists with increased performance in

terms of speed and security has been addressed in (A

et al., 2012) which identiﬁes Globus as a probable so-

lution. Recent developments have focused on secured

data transfer using Globus with transfer optimization

by static parameters (Chard et al., 2017; Liu et al.,

2017). The authors showed results of data transfers

using static parameters over network via REST APIs,

however Globus does not employ dynamic throughput

optimization or interprotocol translation.

Scalability and data exchange capabilities of dif-

ferent MFT platforms have been discussed in (Singh

et al., 2016). Vertical and horizontal scaling systems

have been suggested by the authors in order to address

the issue of disk space overﬂow. Endpoint Scanning,

Auto Recovery and Scheduler modules have been pro-

posed to address the need for constantly keeping the

connectivity up and running to ensure glitch-free data

transfer. Single point of scheduling server for mul-

tiple MFT communication, conﬁguring one or more

properties of servers and updating the entire system

about it and using a centralized server for managing

conﬁgurable job queue have been proposed. How-

ever, the issue of achieving effective software designs

to incorporate patch updates at run time has been ad-

dressed to a limited extent by the authors. Addition-

ally, the throughput of data transfer for a variety of

ﬁle sizes have not been addressed, however, research

has shown that ﬁle size is a critical component.

Several MFT solutions present web based dash-

boards which allow users to specify the sending and

receiving entities and also enable selection of the ﬁle

which will be transferred over the network (Mover.io,

2017). However, many of these solutions are com-

mercial and users need to purchase subscriptions in

order to use these services for transferring the data.

Also cross protocol data transfers together with op-

timization of the transfer itself are hardly addressed.

Unfortunately, the commercial MFT services do not

provide estimation of data arrival time, which is a crit-

ical information as it allows the recipient to prepare

storage and data analytic tools. Also, automated pro-

tocol translation features have been incorporated to

a limited extent. Finally, lack of robustness in these

services is a common bottleneck to user-friendliness,

which ultimately causes users to revert to traditional

mechanisms of data transfers like FedEx. A compar-

ative analysis of various MFT services from the per-

spective of functionality, usability and optimization

capability is presented in Table 1.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

618

3 OneDataShare VISION

Efﬁcient transfer of data is still a challenge despite

the modern innovations in network infrastructure

and availability of large bandwidth Internet (Yildirim

et al., 2016). Being able to effectively use these high

speed networks is becoming increasingly important

for wide-area data transfer as well as for distributed

and cloud computing applications which are data in-

tensive. We propose OneDataShare as a solution for

universal data transfer with the following major goals:

Reduce the Time to Delivery of the Data. Large

scale data easily generated in a few days may

presently take weeks to transfer to the next stage

of processing or to the long term storage sites,

even assuming high speed interconnection and the

availability of resources to store the data (NSF,

2011). Through OneDataShare’s application-level

tuning and optimization of TCP-based data transfer

protocols (i.e., FTP, GridFTP, SCP, HTTP), the users

will be able to obtain throughput close to the theoreti-

cal speeds promised by the high-bandwidth networks,

and the performance of data transfer will not be a

major bottleneck for data-intensive applications any

more. The time to the delivery of data will be greatly

reduced, and the end-to-end performance of data-

intensive applications relying on remote data will in-

crease drastically.

Provide Interoperation Across Heterogeneous

Data Resources. To meet speciﬁc needs of users

(i.e., scientists, engineers, educators and others), nu-

merous data storage systems with specialized transfer

protocols have been designed, with new ones emerg-

ing all the time (Shoshani et al., 2002). Despite the

familiar ﬁle system-like architecture that underlies

most of these systems, the protocols used to exchange

data with them are mutually incompatible and re-

quire the usage of specialized software. The difﬁcul-

ties in accessing heterogeneous data storage servers

and incompatible data transfer protocols discourage

researchers from drawing from more than a handful

of resources in their research, and also prevent them

from easily disseminating the data sets they produce.

OneDataShare will provide interoperation across het-

erogeneous data resources (both streaming and at-

rest) and on-the-ﬂy translation between different data

transfer protocols. Sharing data between traditionally

non-compatible data sources will become very easy

and convenient for the scientists and other end users.

Decrease the Uncertainty in Real-time Decision-

making Processes. The timely completion of some

compute and analysis tasks may be crucial for espe-

cially mission-critical and real-time decision-making

processes. If these compute and analysis tasks depend

on the delivery of certain data before they can be pro-

cessed and completed, then both the timely delivery

of data and the predictive ability for estimating the

time of delivery become very important (DOE, 2013).

This would allow the researchers/users to do better

planning, and deal with the uncertainties associated

with the delivery of data in real-time decision mak-

ing process. OneDataShare’s data throughput and

delivery time prediction service will eliminate possi-

ble long delays in completion of a transfer operation

and increase utilization of end-system and network re-

sources by giving an opportunity to provision these

resources in advance with great accuracy. This will

enable the data schedulers to make better and more

precise scheduling decisions by focusing on a speciﬁc

time frame with a number of requests to be organized

and scheduled for the best end-to-end performance.

While realizing these goals, OneDataShare will

make the following contributions to the distributed

and cloud computing community: (i) implementa-

tion of novel and proven techniques (online optimiza-

tion based on real-time probing, off-line optimization

based on historical data analysis, and combined op-

timization based on historical analysis and real-time

tuning) for application-level tuning and optimization

of the data transfer protocol parameters to achieve

best possible end-to-end data transfer throughput; (ii)

development of a universal interface speciﬁcation for

heterogeneous data storage endpoints and a frame-

work for on-the-ﬂy data transfer protocol translation

to provide interoperability between otherwise incom-

patible storage resources; (iii) instrumentation of end-

to-end data transfer time prediction capability, and

feeding of it into real-time scheduling and decision

making process for advanced provisioning, high-level

planning, and co-scheduling of resources; and (iv) de-

ployment of these capabilities as part of a stand-alone

OneDataShare cloud-hosted service to the end users

with multiple ﬂexible interfaces.

4 OneDataShare DESIGN

OneDataShare will add signiﬁcant value to the ﬁeld

of cloud based data transfers due to its adoption of

elasticity and sustainability. However, signiﬁcant fea-

tures have been speciﬁed in OneDataShare architec-

ture to ensure that the solution adheres to its promised

performance. Incorporation of these features is not

only performance critical, but also vital to the accep-

tance of OneDataShare by the general users.

This section identiﬁes some of the most important

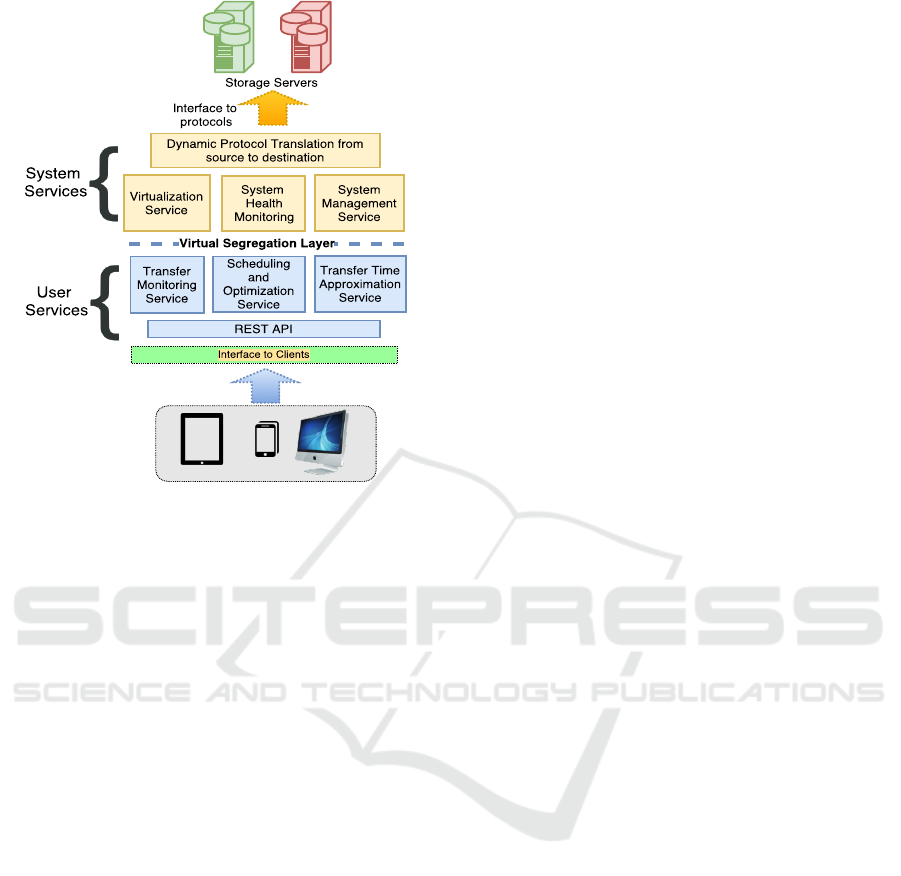

key design features of OneDataShare. Figure 2 pro-

vides a visual representation of OneDataShare, show-

OneDataShare

619

Figure 2: OneDataShare high-level overview.

ing the interim protocols and mechanisms in place

and how it achieves improved data sharing and trans-

fer optimization while providing a thin client inter-

face to the users. OneDataShare is designed to sup-

port a variety of interfaces for the users which include

web interface, smartphone and tablet apps, as well as

command-line and ﬁle system interfaces. When a user

makes a request to OneDataShare for a data trans-

fer, the request is submitted to the engine of the One-

DataShare via RESTful API. OneDataShare contains

a collection of schedulers, protocol translators, prove-

nance managers and cloud manager. This complex

and dynamic collection of modules appears as a black

box to the general users of OneDataShare. Also, the

entire protocol translation, optimization and schedul-

ing of arrival time of the data ﬁles is maintained in the

cloud, thus ensuring reliability and high availability of

service to the users. It is a ubiquitous service as users

will only have to pay for the resource requirements

of their speciﬁc requests, thereby saving unnecessary

costs. Status of data transfers and health of the inter-

nal components are monitored by the system through

the system-level services.

Based on the dynamic nature of OneDataShare,

it must cater to the demands of the users regarding

transfer of data which involves high speed of data

delivery, interoperability, and improved estimation of

delivery time which are discussed below.

4.1 High Speed Data Delivery

The most desirable feature of OneDataShare is high

speed delivery of the data through application-level

protocol tuning using the underlying network archi-

tecture. Prior work on application level tuning of

transfer parameters mostly proposed static or non-

scalable solutions to the problem with some prede-

ﬁned values for some generic cases (A et al., 2012;

Hacker et al., 2002; Crowcroft and Oechslin, 1998;

Lu et al., 2005). The main problem with such so-

lutions is that they do not consider the dynamic na-

ture of the network links and the background trafﬁc

in the intermediate nodes. In our previous work, we

have developed three highly-accurate predictive mod-

els (Yin et al., 2011; Yildirim et al., 2011; Kim et al.,

2012) which would require as few as three real-time

sampling points to provide very accurate predictions

for the optimal parallel stream number. These models

have proved to have higher accuracy compared to ex-

isting similar models (Hacker et al., 2002; Lu et al.,

2005) which lack in predicting the parallel stream

number that gives the peak throughput. We have ana-

lyzed the combined effect of these transfer parameters

on end-to-end data transfer throughput, and devel-

oped several predictive (ofﬂine) and dynamic (online)

algorithms to choose the best parameter combination

to minimize the delivery time of the data (Yildirim

et al., 2016; Arslan et al., 2013; Kim et al., 2015;

Yildirim and Kosar, 2012; Arslan et al., 2016).

As heuristic approaches are solely based on do-

main knowledge, an alternative approach would be

the acquisition of such knowledge directly from the

historical data transfer logs. Heuristic approaches

might over-generalize the prediction for some sys-

tems, where historical analysis based approaches ac-

tually mine useful knowledge from the user data

transfer patterns, end node characteristics, and the

speciﬁc parameter values of the connecting links.

Such approach can provide more personalized op-

timization for the users and the corresponding sys-

tems. We have collected production level data trans-

fer logs from XSEDE, a well-known infrastructure

for high performance scientiﬁc computing. Those

transfer logs contain information about end systems,

dataset, network links, and the protocol along with

parameter settings. Proper data mining techniques on

such a rich collection of historical logs should reveal

interesting user transfer patterns, intensity of network

trafﬁc (e.g., peak or off-peak hours), and end-system

speciﬁc suitable parameter settings. Even if the data

transfer logs are very detailed, it is not possible to

collect information for a transfer with many differ-

ent parameter settings. Only a partial view of the

whole parameter space can be extracted. As the par-

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

620

200

400

600

800

1000

1200

1400

1600

1800

2000

2200

scp

sftp

rsync

Mover.io

CloudFuse

Rclone

ServU

GirdFTP

ODS(ANN)

ODS(ASM)

Throughput (Mbps)

Global Optima

Peak hour

Offpeak hour

Figure 3: Performance comparison between different data

transfer services for both peak and off-peak hours.

tial view of parameter space might not contain the op-

timal settings, we can use regression or interpolation

techniques to predict a more detailed view.

Another important aspect of data transfer opti-

mization is the dynamic load change in the network

link. Even if the historical analysis provides more

ﬁne-grained parameter tuning than heuristics based

approaches, still it might prove to be sub-optimal for

a network load that is different from the network load

present in the historical logs. Instead of transfer-

ring the whole dataset using parameters from histor-

ical analysis, some portion of the dataset could be

transferred to assess the network load intensity and

based on the results the parameters can be tuned ef-

fectively. However, deciding the appropriate sample

transfer size and number is a critical research issue.

Since the network load can change during a long data

transfer, dynamic tuning of the parameters on the ﬂy

will be a very useful feature.

We introduced historical analysis based approach

in ANN+OT (Nine et al., 2015) that uses machine

learning techniques to learn optimal parameters from

the historical logs. In this model we have used ma-

chine learning based techniques to get optimal pa-

rameters for different types of network. We have

used Artiﬁcial Neural Networks (ANN) and Support

Vector Machines (SVM), two well-known supervised

learning techniques, to learn optimal parameters from

the transfer logs. This approach provided consider-

able improvement over the existing techniques. Even

though historical analysis can provide more accurate

parameters than heuristic approaches, the dynamic

nature of the network might prove those parameters

sub-optimal. Therefore, current network condition is

also an important factor to set tuning parameters. We

have made some progress in real-time sampling in

ANN+OT. It performs a series of real-time sampling

to assess the current network condition and update pa-

rameters.

In our most recent work (Nine et al., 2017), we in-

troduced a two-phase model aiming to reduce the per-

formance degradation due to sampling overhead. It

uses a robust mathematical model based ofﬂine anal-

ysis on the historical logs to interpolate the through-

put surface for the parameter space. It stores the most

interesting regions of the surface and local maxima

points for different network conditions. During online

phase, instead of performing sample transfers blindly,

it adapts the parameters using guidelines from ofﬂine

analysis to achieve faster convergence.

In an effort to compare OneDataShare perfor-

mance to other state-of-the-art solutions, we have run

an experiment in which we transferred data using two

production level data centers, one located in Washing-

ton DC and the other one in San Jose, CA. Here, the

data were transferred from the server in Washington

DC to the server in San Jose. Both servers were provi-

sioned with Ubuntu Operating System and conﬁgured

for transferring a common data set using a number of

MFT services mentioned here. This testing was con-

ducted based on our study of current MFT services

and it is a good indicator of the performance of cur-

rent MFTs. We tested the MFTs by transferring data

during peak and off-peak times of the day. The same

dataset was used for all the MFTs. The dataset was

15.4 GB in size and each individual ﬁle ranged be-

tween 200 MB to 300 MB. The peak time was con-

sidered between 9:00 AM till 7:00 PM and off-peak

time includes the rest of the hours. We transferred

the data using different ﬁle transfer services, such as

- SCP, Rsync, SFTP, Mover.io, Rclone, CloudFuze,

Serv-U, GridFTP, Globus Online (GO) and compared

those results with our OneDataShare (ODS) service

with two different optimization models - ANN+OT

and ASM as shown in Figure 3, where we refer them

as ODS(ANN) and ODS(ASM) respectively.

Most of the current data transfer services achieve a

fraction of the achievable throughput due to their sub-

optimal protocol parameter choices. SCP and Rsync

are very popular ﬁle transfer tools, however, their per-

formance is quite marginal. SFTP protocol itself has

many performance issues for long RTT high speed

networks. It can be observed in Figure 3 that all data

transfer mechanisms display a performance between

83.28 Mbps to 1900 Mbps. Mover.io MFT has the

lowest thoughput of 83.28 Mbps. Mover.io uses SFTP

to transfer the data, however, its limitation of scaling

horizontally when multiple ﬁles need to be transferred

was the prime bottleneck for the observed through-

put (Mover.io, 2012). Additionally, Mover.io ser-

vice providers have mentioned slow transfer speeds

when their platform is used to transfer ﬁles via SFTP

(Mover.io, 2012). Following Mover.io, tests were

conducted for CloudFuze, which is a cloud based

ﬁle transfer application providing low overhead and

OneDataShare

621

high speed (CloudFuze, 2016). CloudFuze provided

a throughput of 402 Mbps during peak hours and 572

Mbps during off-peak hours. It provided fast and se-

cure ﬁle migrations which deployed a user-friendly

interface for the clients. Next, Rclone was tested;

Rclone is a client application to sync ﬁles between

two servers. It does not provide a GUI, however it

supports a wide variety of storage platforms includ-

ing DropBox, Microsoft Azure, WebDAV, and Yan-

dex (RClone, 2017). Rclone yielded a throughput of

304 Mbps and 402 Mbps during peak and off-peak

hours respectively. Afterwards another proprietary

cloud based ﬁle transfer mechanism called Serv-U

(Serv-U, 2017) was tested. It supports ﬁle transfers

and provides a user interface which can be used to

upload, transfer and download data into the servers.

During data transfers, it was seen that the throughput

of Serv-U is 371 Mbps during peak hours. During

off-peak hours, it gives a throughput of 407 Mbps.

GridFTP overcomes many issues of FTP based pro-

tocols, such as data channel reuse, pipelining, par-

allel streams, concurrent ﬁle transfers. We can see

that GridFTP and Globus Online perform better than

SCP, Rsync or SFTP. However, performance can be

increased by tuning the protocol parameters, like -

pipelining, parallelism, concurrency, and tcp-buffer

size. One of the two optimization algorithms used in

OneDataShare, ODS(ANN), shows 2x performance

increase compared to GO during peak hours. Our

second optimization algorithm, ODS(ASM), achieved

the highest throughput among all tested tools during

both peak and offpeak hours.

4.2 Interoperability

OneDataShare ensures that data sent using Protocol

X can be delivered at the recipient in a different pro-

tocol (i.e. Protocol Y) without much effort from the

user end. This protocol translation mechanism is a

black box to the user and implements a fast, effective

and timely solution to on-the-ﬂy interoperability be-

tween different transfer protocols. In Figure 4, it is

seen that a user from Location A wants to transfer a

ﬁle to a system at Location B using GridFTP proto-

col. However, the user from location B will accept

the data ﬁle using a protocol which is not compatible

with GridFTP (e.g., Dropbox).

Placing the burden of protocol translation on the

user will provide extra burden on them. Users may

not be adept at protocol translation mechanisms as

they are not used to technological perspectives of con-

verting data from one protocol to the next. It is very

common that large volumes of data are transferred

by users with no background of computing knowl-

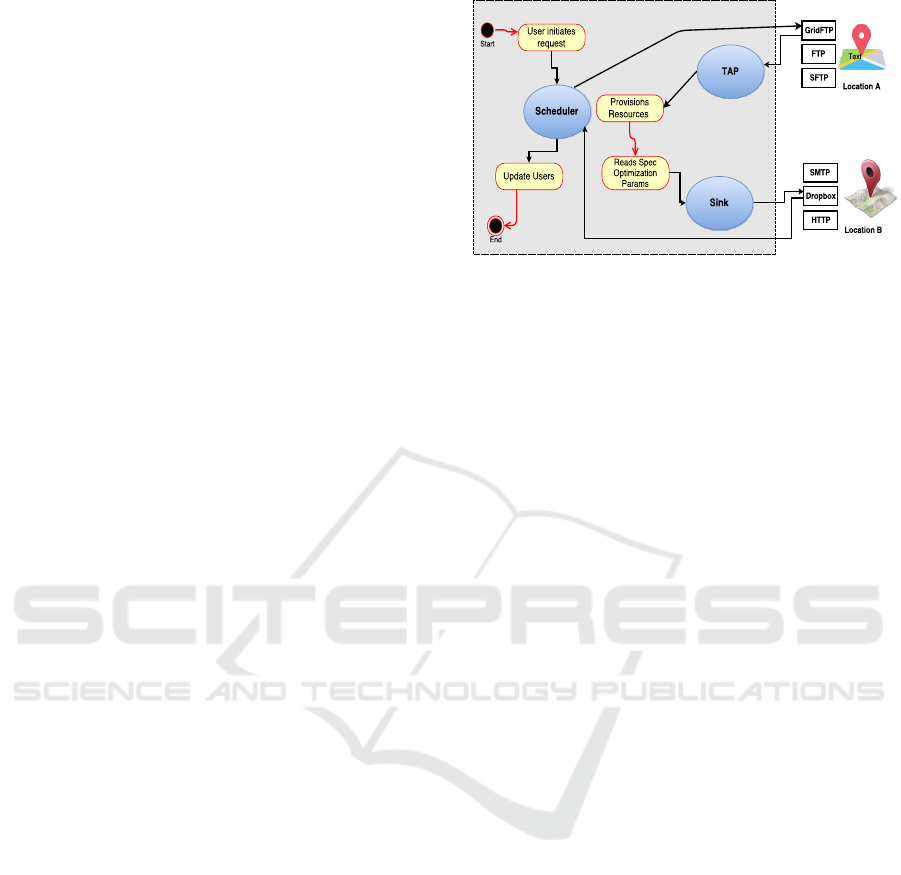

Figure 4: OneDataShare’s interoperability components.

edge, hence, carrying out protocol translation man-

ually by users will impose burden on them and dis-

courage them to use the network for transferring data.

OneDataShare uses the state of the art Tap and

Sink mechanisms for protocol translation as shown in

Figure 4. When the process is passed through the

protocol translation gateway and the server is trig-

gered, instantaneously the server reads the incoming

ﬁle properties and contents, analyzes the incoming

protocols used in the tap and writes the data in mem-

ory. After that, the data bytes are re-commissioned

into a desirable format of the protocol accepted at the

recipient, which is Dropbox in this example. Finally,

the ﬁle is delivered.

In this framework, the readable resources imple-

ment the Tap operation to acquire a data tap which

will emit data into a data sink; and the write-able re-

sources implement Sink operation to acquire a data

sink which will drain data from a data tap. The life

cycle of OneDataShare inter-protocol translation be-

gins with the user triggering a transfer to the transfer

manager known as tap. The tap is one of the core

modules which is responsible for accessing the ﬁles

source and preparing the protocol translation for suc-

cessful transfer of the ﬁle to its destination

The Tap is the frontier interface, responsible

for abstracting the back-end components of One-

DataShare, which may pose signiﬁcant complexity if

exposed to general users. The Tap provisions a uniﬁed

single point opening wedge to the system. The UI

is a dashboard which presents all the functionalities

which can be harnessed by the users. The dashboard

is also responsible for transmitting the selected func-

tionalities and optimization to the back-end engine.

Afterwards, provisioning of the computing and net-

work resources are done. The system obtains autho-

rized ﬁle access permissions and loads all child direc-

tories from which the transfer ﬁles may be selected.

Next, the Tap receives this input and ultimately en-

ables the deployment of the process which places the

data ﬁles into the provisioned resources, attaches pro-

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

622

tocol related information which primarily constitutes

of the names of source and destination protocols and

transmits these journals to Sink.

The Sink is the delivery manager of data which

triggers the recipients of the incoming requests and

prepares them for receiving this data. It is a self-

protocol-translating system which takes input from

the Tap and formats the data into forms which are

suitable to be accepted at the recipient. It envis-

ages the incoming data and loads it in memory, typ-

ically associating them to the resulting protocol, em-

bedding them and mitigating the network transfer re-

quirements based on the optimization parameters as

speciﬁed by users. It is empowered with a multitude

of child processes which cater to the requirements

of multiple block data transfers per unit time. More

speciﬁcally, Sink is fully ﬁtted with the required pro-

cesses of computing, memory and network resources

which are used during protocol translations.

This solution presents a number of strengths over

other solutions: i) neither servers nor clients need

to install custom software to take advantage of the

protocol translation OneDataShare offers; ii) sup-

port for additional protocols can be added on-the-ﬂy

without having to make changes to any other sys-

tem. Through this framework, OneDataShare will

provide interoperability and on-the-ﬂy protocol trans-

lation between a wide-range of data transfer proto-

cols and storage systems, including but not limited

to FTP, GridFTP, HTTP, SCP, SFTP, Rsync, UFTP,

UDT, iRODS, SMTP, Dropbox, and Google Drive.

4.3 Transfer Time Estimation

It is seen in the modern world that both scientiﬁc re-

search organizations and industries are struggling to

estimate the time of arrival of data after it has been

transferred. This information is critical as the arrival

of data will require provisioning storage for the data

itself at the recipient’s end. Additionally, the algo-

rithms and software components which will be used

to analyze these data need to be prepared before it ar-

rives, and compute resources need to be provisioned.

If storage and compute resources are provisioned

long time before the arrival of data then the client

needs to pay for the time during which these resources

were provisioned but left idle because the data did

not arrive. Hence, estimation of arrival time accu-

rately will provide beneﬁts to the users in a multitude

of ways which includes time and cost beneﬁts. One-

DataShare will use dynamic prediction algorithms to

estimate arrival time of data to a signiﬁcant degree of

accuracy, thereby allowing the users to provision both

storage, computing, software and human resources on

time for using the data. It principally ensures that the

user is well aware and can plan ahead to better utilize

the resources and analyze the data.

Using the prediction models which we have de-

veloped in our previous work, OneDataShare will

provide an “end-to-end data transfer throughput and

delivery time estimation service” for external data

scheduling and management tools. Prior research on

predictive models showed that we can estimate the

real-time achievable throughput with as low as 5% er-

ror rate on average (Kim et al., 2015; Yildirim and

Kosar, 2012; Yildirim et al., 2013). This service

will include information regarding available end-to-

end network throughput for the user, the total time it

will take to transfer a particular dataset, network and

end-system parameters that need to be used in order

to achieve highest end-to-end throughput.

5 CONCLUSIONS

We have presented our vision for OneDataShare as a

cloud-hosted data transfer scheduling and optimiza-

tion service, which aims to remove the burden of

managing end-to-end data transfers from the shoul-

ders of users. It en-visions the goal of providing a

simple, yet user friendly platform to share data irre-

spective of size, type, and difference in protocols be-

tween sender and receiver. Real life experiments have

been conducted to exhaustively compare the perfor-

mance of OneDatashare with other existing services

and it is seen that the data transfer throughput of One-

DataShare is up to 6.5 times greater than the other

solutions currently in place. Building OneDataShare

into a reliable and sustainable system beneﬁcial to all

is an area of future research.

ACKNOWLEDGEMENTS

This project is in part sponsored by the National Sci-

ence Foundation (NSF) under award number OAC-

1724898. We also would like to thank Brandon Ross,

Vandit S. Aruldas, Mythri Jonnavittula, Ahmad M.

Temoor, Dhruva K. Srinivasa, Jimmy Huang, Sourav

Puri, Siddharth Ravikumar, and Amardeep Virdy for

their contributions in the implementation of different

OneDataShare components.

OneDataShare

623

REFERENCES

A, B., Bresnahan, J., Childers, L., Foster, I., Kandaswamy,

G., Kettimuthu, R., Kordas, J., Link, M., Martin, S.,

Pickett, K., and Tuecke, S. (2012). Software as a ser-

vice for data scientists. Commun. ACM, 55(2):81–88.

A., S. B., H

akansson, C. J., Laure, E., Livenson, I., Stran

ak,

P., Dima, E., Blommesteijn, D., and van de Sanden,

M. (2015). B2share: An open escience data sharing

platform. In e-Science (e-Science), 2015 IEEE 11th

International Conference on, pages 448–453. IEEE.

Arslan, E., Guner, K., and Kosar, T. (November 2016).

Harp: predictive transfer optimization based on his-

torical analysis and real-time probing. In Proceedings

of IEEE/ACM Supercomputing Conference (SC16).

Arslan, E., Ross, B., and Kosar, T. (August 2013). Dynamic

protocol tuning algorithms for high performance data

transfers. In Proceedings of the Int. European Confer-

ence on Parallel and Distributed Computing (Euro-

Par 2013), Aachen, Germany.

Carroll, J. (2017). Systems and methods for managed data

transfer. US Patent 9,537,834.

Chard, K., Foster, I., and Tuecke, S. (2017). Globus: Re-

search data management as service and platform. In

Proceedings of the Practice and Experience in Ad-

vanced Research Computing 2017 on Sustainability,

Success and Impact, page 26. ACM.

Cho, B. and Gupta, I. (2011). Budget-constrained bulk data

transfer via internet and shipping networks. In 8th In-

ternational Conference on Autonomic Computing.

CloudFuze (2016). Why cloudfuze: Quickly con-

nect with powerful providers like google drive,

dropbox, or box from a single screen and login.

https://www.cloudfuze.com/why-cloudfuze/.

Crowcroft, J. and Oechslin, P. (1998). Differentiated end-

to-end internet services using a weighted proportional

fair sharing tcp. ACM SIGCOMM Computer Commu-

nication Review, 28(3):53–69.

DOE (2013). Accelerating scientiﬁc knowledge discovery

(askd) working group report.

Egeland, R., Wildish, T., and Huang, C.-H. (2010). Phedex

data service. In Journal of Physics: Conference Se-

ries, volume 219, page 062010. IOP Publishing.

Garﬁenkel, S. (2007). An evaluation of Amazon’s Grid

computing services: EC2, S3 and SQS. Tech. Rep.

TR-08-07, Aug 2007.

Hacker, T. J., Noble, B. D., and Atley, B. D. (2002). The

end-to-end performance effects of parallel tcp sock-

ets on a lossy wide area network. In Proceedings of

IPDPS ’02, page 314. IEEE.

IBM (2017a). Aspera fasp high-speed transport.

http://asperasoft.com/ﬁleadmin/media/Asperasoft.com/

Resources/White Papers/fasp Critical Technology

Comparison AsperaWP.pdf.

IBM (2017b). Ibm aspera direct-to-cloud storage.

https://www-01.ibm.com/common/

ssi/cgi-bin/ssialias?htmlﬁd=ZZW03322USEN.

Kim, J., Yildirim, E., and Kosar, T. (2015). A highly-

accurate and low-overhead prediction model for trans-

fer throughput optimization. Cluster Computing.

Kim, J., Yildirim, E., and Kosar, T. (November 2012). A

highly-accurate and low-overhead prediction model

for transfer throughput optimization. In Proc. of

DISCS’12 Workshop.

Liu, Z., Balaprakash, P., Kettimuthu, R., and Foster, I.

(2017). Explaining wide area data transfer perfor-

mance. In Proceedings of the 26th International

Symposium on High-Performance Parallel and Dis-

tributed Computing, HPDC ’17, pages 167–178, New

York, NY, USA. ACM.

Lu, D., Qiao, Y., Dinda, P. A., and Bustamante, F. E. (2005).

Modeling and taming parallel tcp on the wide area net-

work. In Proceedings of IPDPS ’05, page 68.2. IEEE.

Mover.io (2012). Sftp is moving in.

https://mover.io/blog/2012/08/28/sftp-is-moving/.

Mover.io (2017). Mover.io cloud ﬁle migrations.

”url:https://mover.io/services/”. Access: 2017-11-01.

Nine, M. S. Q. Z., Guner, K., and Kosar, T.

(2015). Hysteresis-based optimization of data trans-

fer throughput. In Proceedings of the Fifth Inter-

national Workshop on Network-Aware Data Manage-

ment, NDM ’15, pages 5:1–5:9, New York, NY, USA.

Nine, M. S. Q. Z., Kemal, G., Ziyun, H., Xiangyu, W.,

Jinhui, X., and Tevﬁk, K. (2017). Data transfer op-

timization based on ofﬂine knowledge discovery and

adaptive aampling. In Proceedings of the IEEE Inter-

national Conference on Big Data.

NSF (2011). Task force on grand challenges ﬁnal report.

RClone (2017). Rclone-rsync for cloud storage.

https://rclone.org/commands/rclone sync/.

RSSBUS (2017). Rssbus: Load

blanced and high availability setups.

”url:https://www.rssbus.com/kb/articles/tutorial-

high-availability.rst”. Accessed: 2017-11-02.

Serv-U (2017). Serv-u managed ﬁle

transfer and serv-u ftp server.

https://support.solarwinds.com/Success Center/Serv-

U Managed File Transfer Serv-U FTP Server.

Shoshani, A., Sim, A., and Gu, J. (2002). Storage resource

managers: Middleware components for grid storage.

In NASA Conference Publication, pages 209–224.

Singh, A., Gupta, B., Yatzeck, F., Dixit, S., Mandadapu, S.,

and Vallamkonda, S. (2016). Managed ﬁled transfer

utilizing dynamic horizontal and vertical scaling. US

Patent 9,521,187.

Yildirim, E., Arslan, E., Kim, J., and Kosar, T. (2016).

Application-level optimization of big data trans-

fers through pipelining, parallelism and concurrency.

IEEE Transactions on Cloud Computing, 4(1):63–75.

Yildirim, E., Kim, J., and Kosar, T. (2013). Model-

ing throughput sampling size for a cloud-hosted data

scheduling and optimization service. Future Genera-

tion Computer Systems, 29(7):1795–1807.

Yildirim, E. and Kosar, T. (2012). End-to-end data-ﬂow

parallelism for throughput optimization in high-speed

networks. JGC, Springer, 10(3):395–418.

Yildirim, E., Yin, D., and Kosar, T. (2011). Prediction of

optimal parallelism level in wide area data transfers.

IEEE Transactions on Parallel and Distributed Sys-

tems, 22(12).

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

624

Yin, D., Yildirim, E., and Kosar, T. (2011). A data through-

put prediction and optimization service for widely dis-

tributed many-task computing. IEEE Transactions on

Parallel and Distributed Systems, 22(6).

Zhao, S., Prenger, K., and Smith, L. (2013). Stormbow:

A Cloud-Based Tool for Reads Mapping and Expres-

sion Quantiﬁcation in Large-Scale RNA-Seq Studies.

ISRN Bioinformatics, 2013:1–8.

OneDataShare

625
