Essence: Reference Architecture for Software Engineering

Representing Essence in Archimate Notation

Nestori Syynimaa

Faculty of Information Technology, University of Jyväskylä, Jyväskylä, Finland

Gerenios Ltd, Tampere, Finland

Sovelto Plc, Helsinki, Finland

Keywords: SEMAT, Essence, Kernel, Software Development Method.

Abstract: Essence is a standard for working with methods in software engineering. As such, it can be seen as the

reference architecture for software engineering. The Essence consists of the Kernel, and a notation called the

Language. This representation is not widely known and likely hinders the adoption of the Essence. This paper

represents the work-in-progress of representing the Essence using ArchiMate, the de facto notation for

enterprise architecture. Our purpose is to help organisations to adopt Essence by representing it in the language

already understood by different stakeholders.

1 INTRODUCTION

The Essence is a standard for working with methods

in software engineering. It consists of a kernel and a

language for the software engineering methods. It is

built by the Software Engineering Methodology and

Theory (SEMAT) community. Essence allows people

to describe the essentials of their software

engineering methods and practices enabling further

analysis and comparison (OMG, 2015). The Essence

Kernel captures the essential elements of the software

engineering, but it is described using the Essence

Language, which is not widely known.

This paper attempts to analyse and describe the

Essence using widely known ArchiMate 3 language.

2 ESSENCE

In this section, we will introduce the Essence and its

constituent elements as described in Essence

specification by the Object Management Group

(OMG, 2015).

The Essence uses a layered higher-level method

architecture as illustrated in Figure 1. The key

concepts of the higher-level method are method,

practice, The Kernel and The Language. As it can be

seen in the architecture, a method is a composition of

practices which are described using the Kernel

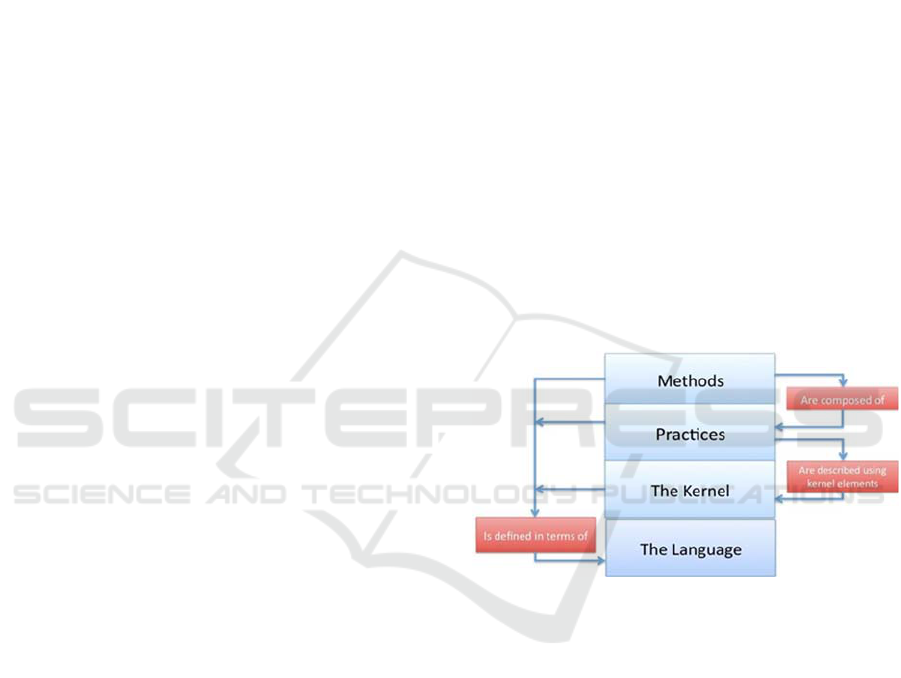

Figure 1: Method architecture (OMG, 2015, p. 10).

elements.

The Kernel is organised into three areas, namely

Customer, Solution, and Endeavor, as illustrated in

Figure 3. Each area contains Alphas, Activity Spaces,

and Competencies.

2.1 Alphas

Alphas are representations of the essential things to

work with. They capture the key concepts involved in

software engineering, allow tracking and assessing of

any software engineering endeavour, and provide a

common ground for the definition of software

engineering methods. Alphas are defined in Table 1

and illustrated in Figure 1, and illustrated in Figure 4.

Syynimaa, N.

Essence: Reference Architecture for Software Engineering.

DOI: 10.5220/0006793603450350

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 345-350

ISBN: 978-989-758-298-1

345

Figure 2: The Kernel Alphas (OMG, 2015, p. 17).

Figure 3: The Three Areas of Concern (OMG, 2015, p. 16).

Table 1: The Kernel Alphas.

Alpha Description

Opportunity

The set of circumstances that

makes it appropriate to

develop or change a software

stem.

Stakeholders The people, groups, or

organizations who affect or

are affected by a software

stem.

Requirements What the software system

must do to address the

opportunity and satisfy the

stakeholders.

Sofware System A system made up of

software, hardware, and data

that provides its primary value

by the execution of the

software.

Alpha Description

Wor

Activity involving mental or

physical effort done in order

to achieve a resul

Tea

A group of people actively

engaged in the development,

maintenance, delivery, or

support of a specific

software s

stem.

Way-of-

Working

The tailored set of practices

and tools used by a team to

uide and support their wor

2.2 Activity Spaces

Activity Spaces are representations of the essentials

things to do, and they complement the Alphas by

providing an activity-based view to software

engineering. Activity Spaces are described in Table 2

Table 2: The Activity Spaces.

Activity Space Description

Explore

Possibilities

Explore the possibilities

presented by the creation of a

new or improved software

system. This includes the

analysis of the opportunity to

be addressed and the

identification of the

stakeholders.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

346

Table 2: The Activity Spaces (cont.).

Activit

Space Description

Understand

Stakeholder

Needs

Engage with the stakeholders

to understand their needs and

ensure that the right results are

produced. This includes

identifying and working with

the stakeholder representatives

to progress the

opportunit

Ensure

Stakeholder

Satisfaction

Share the results of the

development work with the

stakeholders to gain their

acceptance of the system

produced and verify that the

opportunity has been

successfull

addresse

Use the System Observe the use of the system

in a live environment and how

it benefits the stakeholders.

Understand the

Requirements

Establish a shared

understanding of what the

system to be produced must

do.

Shape the

system

Shape the system so that it is

easy to develop, change and

maintain, and can cope with

current and expected future

demands. This includes the

overall design and architecting

of the system to be produced.

Implement the

System

Build a system by

implementing, testing, and

integrating one or more

system elements. This

includes bug fixing and unit

testin

Test the System Verify that the system

produced meets the

stakeholders’ requirements.

Deploy the

System

Take the tested system and

make it available for use

outside the development team.

Operate the

System

Support the use of the

software system in the live

environmen

Prepare to do

the Work

Set up the tea

and its

working environment.

Understand and commit to

completing the work.

Coordinate

Activity

Co-ordinate and direct the

team’s work. This includes all

on-going planning and

replanning of the work, and

re-shaping of the team.

Activit

Space Description

Support the

Team

Help the team members to

help themselves, collaborate

and improve their way of

working.

Track Progress Measure and assess the

rogress made by the team.

Stop the Wor

Shu

-down the software

engineering endeavour and

handover of the team’s

responsibilities.

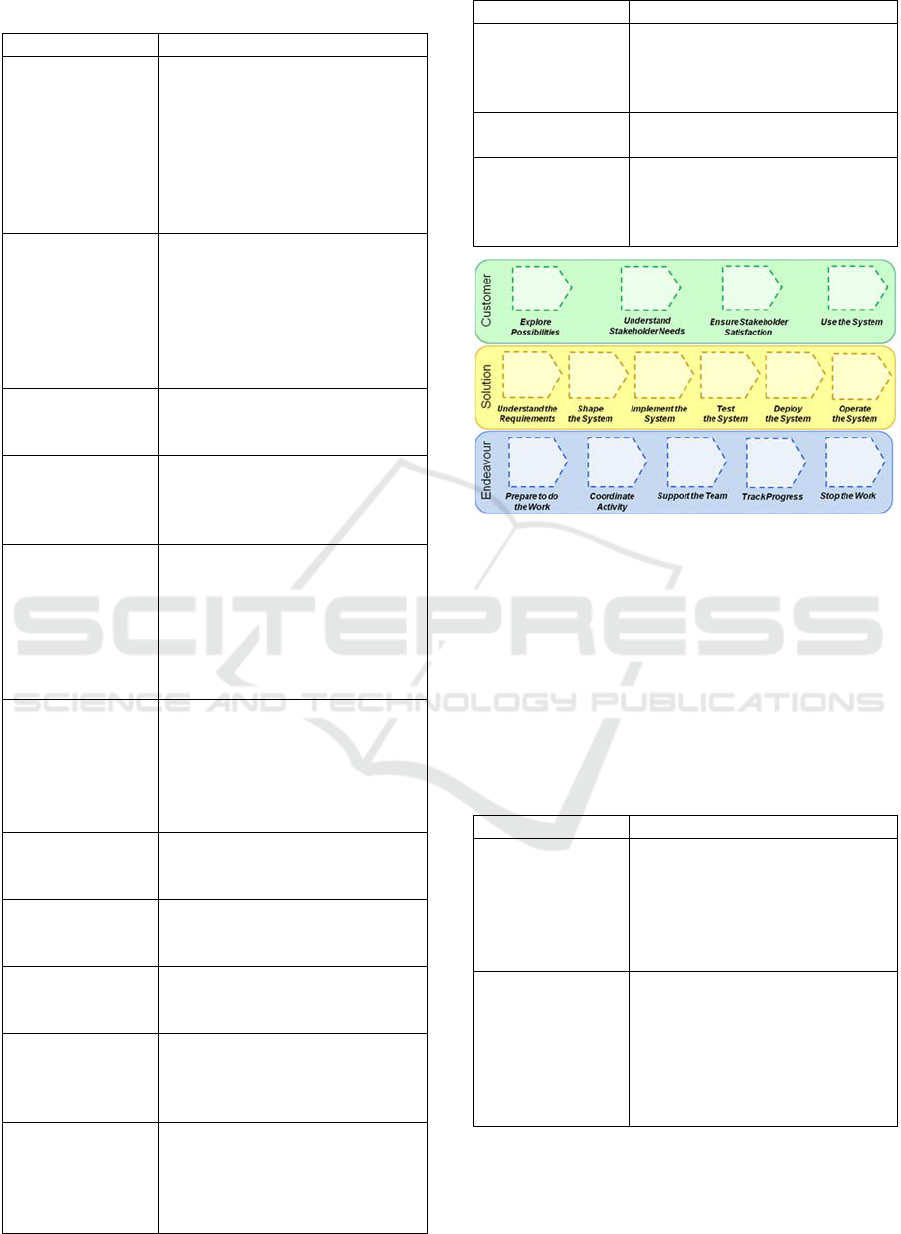

Figure 4: The Kernel Activity Spaces (OMG, 2015, p. 19).

2.3 Competencies

Competencies are representations of the key

capabilities required in software engineering, which

complement the Alphas and Activity Spaces to

provide the key capabilities required in software

engineering. The competencies are described in Table

3 and illustrated in Figure 5.

Table 3: The Competencies.

Competency Description

Stakeholder

Representation

This competency encapsulates

the ability to gather,

communicate, and balance the

needs of other stakeholders,

and accurately represent their

views.

Analysis This competency encapsulates

the ability to understand

opportunities and their related

stakeholder

needs, and transform them

into an agreed and consistent

set of requirements.

Essence: Reference Architecture for Software Engineering

347

Table 3: The Competencies (cont.).

Competenc

Description

Developmen

This competency encapsulates

the ability to design and

program effective software

systems

following the standards and

norms agreed by the team.

Testing This competency encapsulates

the ability to test a system,

verifying that it is usable and

that it meets the requirements.

Leadership This competency enables a

person to inspire and motivate

a group of people to achieve a

successful conclusion to their

work and to meet their

objectives.

Managemen

This competency encapsulates

the ability to coordinate, plan

and track the work done by a

team.

Figure 5: The Kernel Competencies (OMG, 2015, p. 20).

Each competency has five levels of achievements.

The levels are 1) assists, 2) applies, 3) masters, 4)

adapts, and 5) innovates.

3 ENTERPRISE ARCHITECTURE

AND ARCHIMATE

Enterprise architecture can be defined as a formal

description of the current and future state of the

enterprise (Syynimaa, 2015). Typically these

descriptions are provided for four layers; business,

information, information systems, and technology

(Pulkkinen, 2006). Some industries have industry-

specific architectures which can be adopted and

adapted by anyone. For software engineering, there

are frameworks such as Scrum, and Kanban, which

can be categorised as industry-specific architectures.

These kinds of architectures are generally called

reference architectures. Therefore, the Essence can

also be categorised as a reference architecture for

software engineering.

Boundary objects (Star and Griesemer, 1989) are

artefacts that support knowledge sharing between

different communities of practice (Abraham, 2013).

For this purpose, enterprise architecture descriptions

are often produced using ArchiMate (The Open

Group, 2015) language, a de facto notation of

enterprise architecture.

ArchiMate framework is organised into layers and

aspects as illustrated in Figure 6.

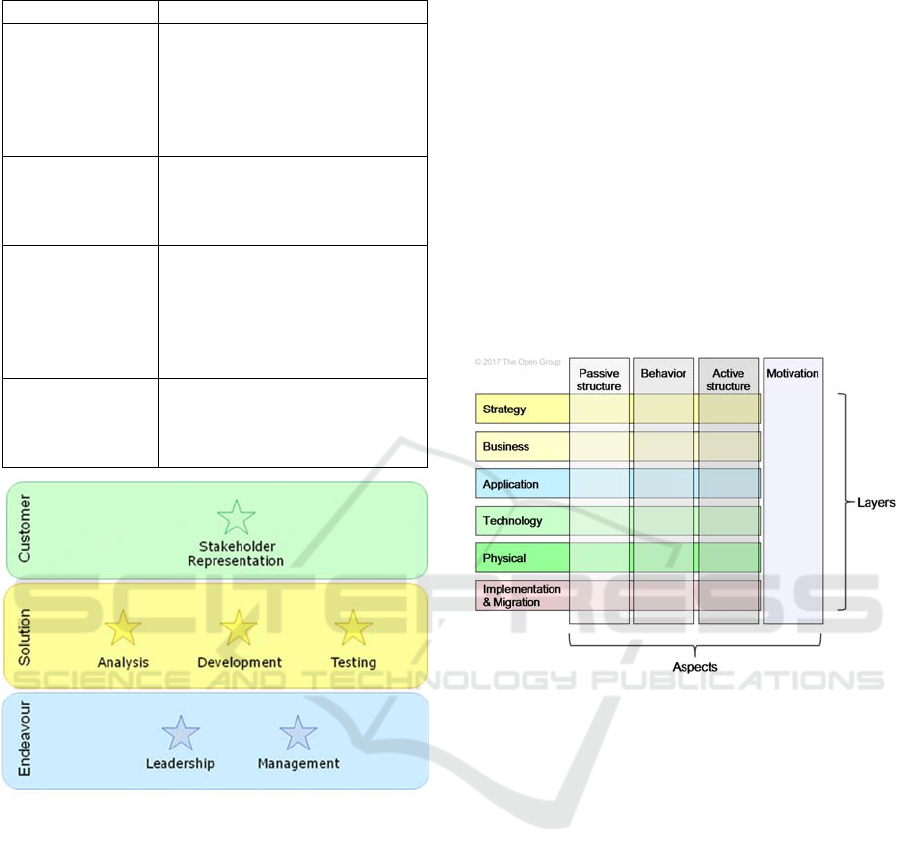

Figure 6: Full ArchiMate Framework (The Open Group,

2017).

3.1 Alphas

ArchiMate presentation of Alphas can be seen in

Figure 7. First, we mapped the Areas of concern to

ArchiMate Group. A Stakeholder is mapped to

ArchiMate Stakeholder element. We mapped

Opportunity to ArchiMate Assessment element and

added an Access association between it and

Stakeholder. In other words, Stakeholder provides the

Opportunity. The Opportunity is Realised by

Requirements which maps directly to the

Requirement element. The Requirements are Realised

by the Software System, which we mapped as a

Product. The Software System is Accessed by the

Stakeholders. The Software System is Accessed by the

Team, which is mapped to a Business Role element.

The Team Uses Way of Working, which is mapped to

a Business Process element. Finally, we mapped

Work to a Business Collaboration element, which

Aggregates the Team. Mapping of Alphas to

ArchiMate elements is summarised in Table.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

348

3.2 Activity Spaces

All Activity Spaces are mapped to Business Process

ArchiMate element and are illustrated in Figure 8.

Table 4: Mapping of Alphas to ArchiMate elements.

Alpha ArchiMate elemen

Stakeholders Sta

eholde

Opportunit

Assessmen

Requirements Requirements

Software S

stem Produc

Tea

Business Role

Way of Working Business Process

Wor

Business Collaboration

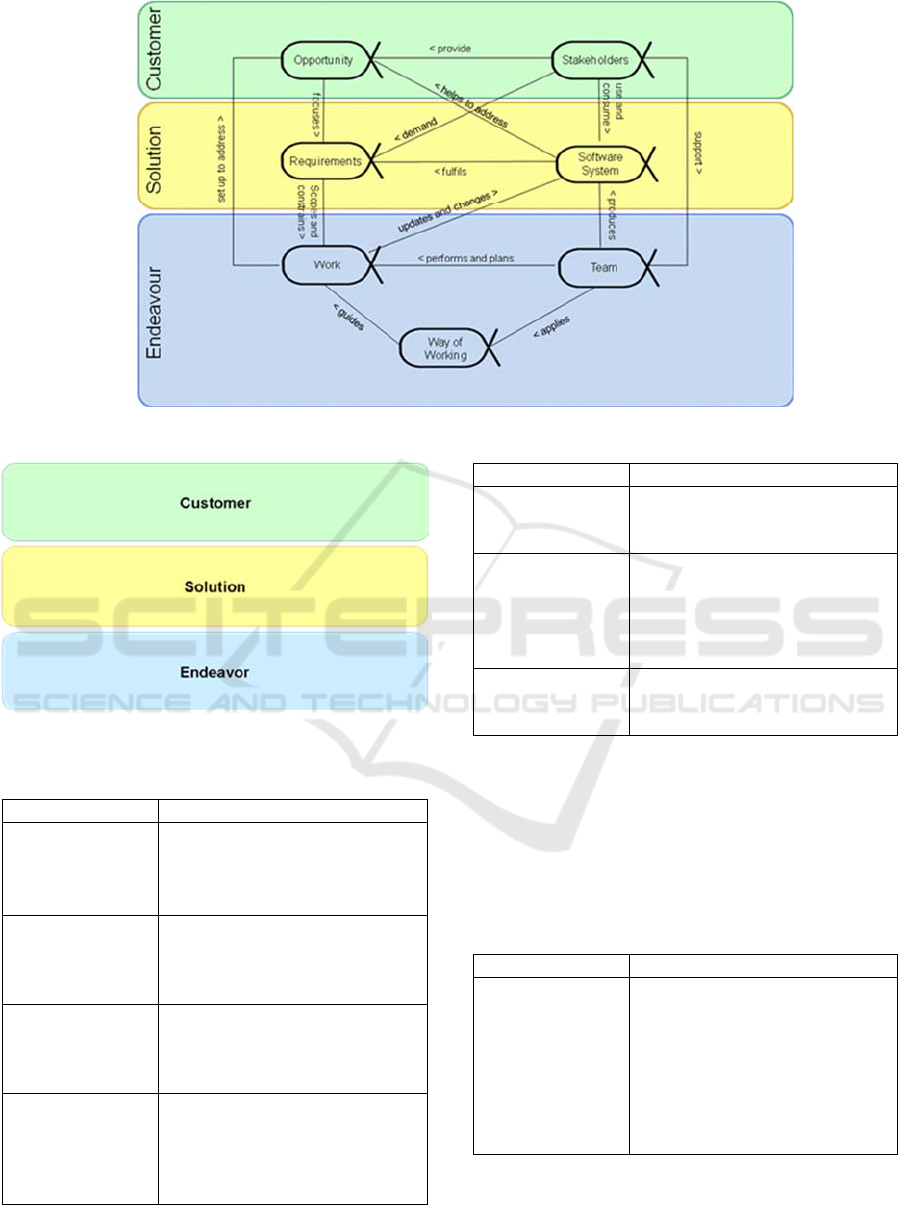

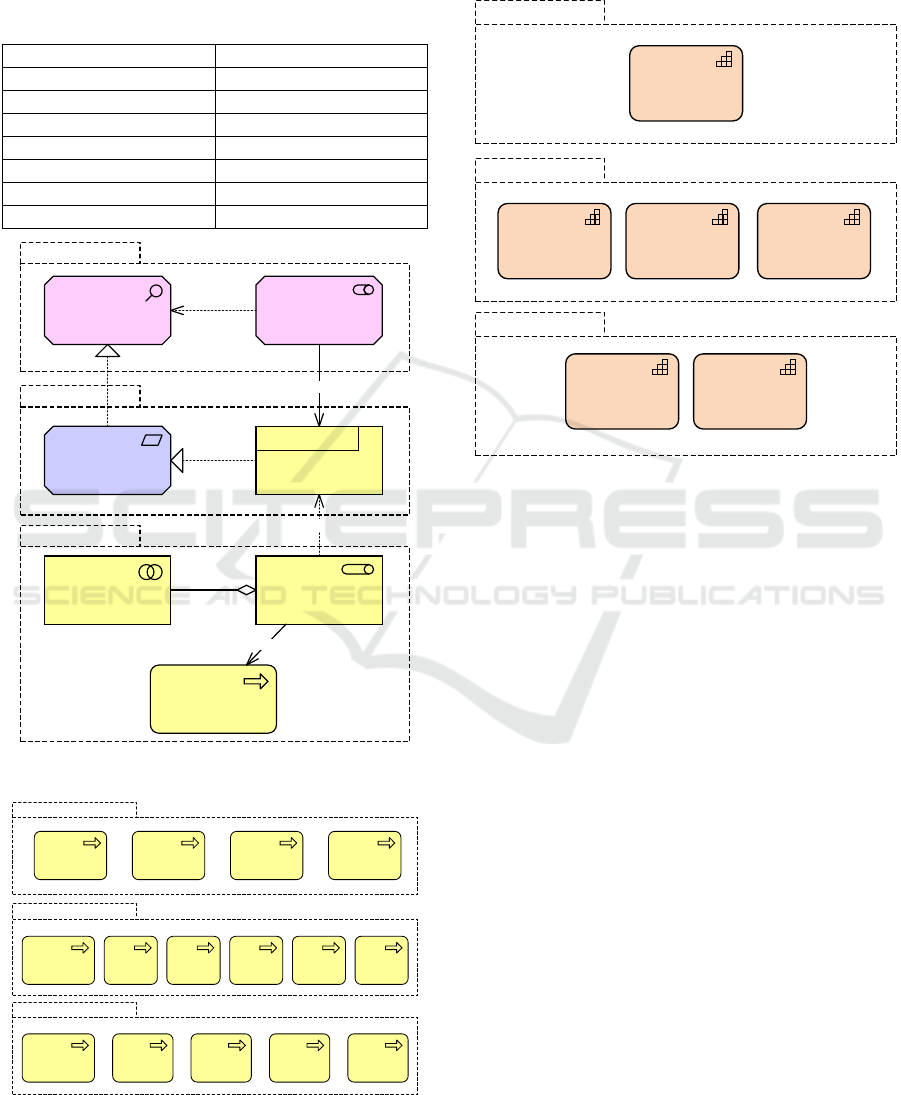

Figure 7: The Kernel Alphas in ArchiMate notation.

Figure 8: The Kernel Activity Spaces in ArchiMate

notation.

3.3 Competencies

All Competencies are mapped to Capability

ArchiMate element are illustrated in Figure 9.

Figure 9: The Kernel Competencies in ArchiMate notation.

4 DISCUSSION

4.1 Conclusions

This study is the first attempt to represent Essence

using ArchiMate, the de facto enterprise architecture

notation. Our purpose is to help organisations to adopt

the Essence and use it as a reference architecture for

software engineering.

4.2 Limitations

In this paper, we have presented only a subset of

Essence, namely the Kernel Alphas, Activity Spaces,

and Competencies. The study does not cover for

instance the different states of Alphas, or various

Ways of Working, such as scrum.

4.3 Directions for Future Research

A more detailed representation of Alphas, including

their states, needs to be created. This would further

help organisations in adopting Essence. Moreover,

different Ways of Working should be represented

using ArchiMate notation. For instance, representing

Scrum and Scaled Agile Framework (SAFe) using

Opportunity Stakeholders

Requirements

Team

WayofWorking

SofwareSystem

Work

Provide

Produces

Applie s

Usesandconsume

Customer

S o l u t i o n

Endeavour

Customer

S o l u t i o n

Endeavour

Explore

Possibilities

Understand

StakeholderNeeds

Ensure

Stakeholder

Satisfaction

UsetheSystem

Understandthe

Requirements

Shapethe

System

Implement

the Syst em

Testthe

System

Deploythe

System

Operatethe

System

Preparetodothe

Work

Coordinate

Activity

Supportthe

Team

TrackPr ogres s

Stopthe

Work

Customer

S o l u t i o n

Endeavour

Stakeholder

Representation

Analysis Development Testing

Leadership Management

Essence: Reference Architecture for Software Engineering

349

ArchiMate notation would help many organisations

struggling in their adoption.

REFERENCES

Abraham, R. (2013). Enterprise Architecture Artifacts As

Boundary Objects - A Framework Of Properties. ECIS

2013 Completed Research., (Paper 120). URL:

http://aisel.aisnet.org/ecis2013_cr/120.

OMG (2015). Essence - Kernel and Language for Software

Engineering Methods. Version 1.1.

Pulkkinen, M. (2006). Systemic Management of

Architectural Decisions in Enterprise Architecture

Planning. Four Dimensions and Three Abstraction

Levels. Proceedings of the 39th Annaul Hawaii

International Conference on System Sciences,

HICSS’06.

Star, S. L. & Griesemer, J. R. (1989). Institutional Ecology,

'Translations' and Boundary Objects: Amateurs and

Professionals in Berkeley's Museum of Vertebrate

Zoology, 1907-39. Social Studies of Science, 19(3),

387-420.

Syynimaa, N. (2015). Modeling the Dynamics of Enterprise

Architecture Adoption Process. In: Hammoudi, S.,

Maciaszek, L., Teniente, E., Camp, O. & Cordeiro, J.,

eds. ICEIS 2015, LNBIP 241, 2015. Springer

International Publishing Switzerland, 577-594.

The Open Group. (2015). ArchiMate®. URL:

http://www.opengroup.org/subjectareas/enterprise/arch

imate [Apr 21

2015].

The Open Group. (2017). ArchiMate® 3.0.1 Specification.

URL:

http://pubs.opengroup.org/architecture/archimate3-

doc/ [Dec 4

2017].

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

350
