Fault Tolerance in the Trafﬁc Management System of a Last-mile

Transportation Service

Koji Hasebe, Shohei Sasaki and Kazuhiko Kato

Department of Computer Science, University of Tsukuba, 1-1-1, Tennodai, Tsukuba 305-8573, Japan

Keywords:

Last-mile Transportation, Trafﬁc Management System, Fault Tolerance, Passive Replication.

Abstract:

A last-mile transportation system has previously been developed using semi-autonomous driving technologies.

For trafﬁc management of this system, travel requests are gathered at a central server and, on this basis, the op-

eration schedule is periodically updated and distributed to each vehicle via intermediate servers. However, the

entire trafﬁc system may stop if the central server malfunctions owing to an unforeseen event. To address this

problem, we propose a fault-tolerant mechanism for the trafﬁc management system of a last-mile transporta-

tion service. We use a modiﬁed primary-backup (or so-called passive) replication technique. More precisely,

one of the intermediate servers is chosen as the central server and the other intermediate servers periodically

receive state-update messages from the central server, allowing them to update their state to match that of the

central server. If the central server fails, one of the node servers is selected to take over as the new central

server. The present paper also demonstrates the availability through failure patterns in experiments with a

prototype implementation.

1 INTRODUCTION

Improvements to public transport are important in re-

alizing the next-generation smart city. The conve-

nience of basic public transportation infrastructure,

such as railroads and large-scale facilities, is being

improved but the last-mile transportation network is

still underdeveloped. There is thus a need for the cre-

ation and social implementation of a new transporta-

tion system having high accessibility.

Last-mile transportation systems offer a conve-

nient means of transportation, especially for elderly

people and people with disabilities because a stop

can be ﬁnely moved to where there is passenger de-

mand. However, the transport network of such a sys-

tem tends to be complicated, and there remains the

problem that the speed of passenger transport is re-

duced by taking all passengers to all stops and by the

transfer operation during the movement process.

To improve the situation described above, a last-

mile public transportation system based on technolo-

gies of semi-autonomous driving has been developed

(Hasebe et al., 2017b). The previously proposed sys-

tem involved vehicles of two types, those that lead a

ﬂeet and are driven manually and those that are driver-

less and follow another vehicle. One of the major fea-

tures of the system is the ability for vehicles to run in

a ﬂeet without physical connecting points, allowing

a ﬂeet of vehicles to be smoothly reorganized. With

this feature, even if passengers with different desti-

nations board the same ﬂeet of vehicles, by appro-

priately detaching or reorganizing vehicles at branch

points of the route (called nodes), the passengers can

reach their destinations without transferring between

ﬂeets.

This transportation system aggregates the travel

requests in real time and dynamically determines the

schedule of the vehicles. To realize such scheduling,

the system has a single central server and intermedi-

ate servers (called node servers) placed at each node

to manage the trafﬁc of the ﬂeet by centralizing de-

mand information, and the system instructs each ve-

hicle from this central hub. However, the entire traf-

ﬁc system may stop if the central server malfunctions

owing to some unforeseen event.

To address this problem, we propose in this pa-

per a fault tolerant mechanism for the trafﬁc manage-

ment systems of last-mile transportation services. We

use a primary-backup (or so-called passive) replica-

tion technique to make the central server redundant.

More precisely, one of the node servers is chosen as

the central server and processes requests from pas-

sengers and then decides a new schedule to be de-

livered to other node servers at regular intervals. The

552

Hasebe, K., Sasaki, S. and Kato, K.

Fault Tolerance in the Trafﬁc Management System of a Last-mile Transportation Service.

DOI: 10.5220/0006794505520557

In Proceedings of the 4th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS 2018), pages 552-557

ISBN: 978-989-758-293-6

other node servers receive the schedule from the cen-

tral server and give instructions to nearby vehicles.

These servers also periodically receive state-update

messages from the central server, allowing them to

update their state to match that of the central server.

If the central server fails, one of the node servers is

selected to take over as the new central server.

We here use the replication technique introduced

by (Hasebe et al., 2014) as the algorithm that re-

alizes this primary-backup replication; i.e., instead

of using the usual primary-backup technique based

on the majority-based consensus algorithm, we use

a modiﬁed Paxos algorithm that allows agreement to

be reached by fewer than half the nodes. Using this

replication technique, it is possible to continue trafﬁc

management even if the network is divided and the

majority of the node servers fail.

In this paper, we also demonstrate availability

through failure patterns in experiments with a proto-

type implementation.

The remainder of the paper is organized as fol-

lows. Section 2 discusses related work. Section 3

overviews the transportation system targeted in this

study. Section 4 presents our passive replication tech-

nique for trafﬁc management systems. Section 5

demonstrates the availability of the trafﬁc manage-

ment system given various patterns of failure through

simulations. Finally, Section 6 concludes the paper

and presents future work.

2 RELATED WORK

Most replication techniques that have been proposed

so far can be classiﬁed into two main categories: state

machine and primary-backup replications.

In state machine (i.e., active) replication (Schnei-

der, 1990), each server processes requests from

clients and transitions independently. Generally, each

transition is coordinated across servers by means of a

consensus algorithm. Although this technique is use-

ful, it has two important drawbacks as a result of its

low response time: a high computational cost and the

need for client requests to be processed in a determin-

istic manner. Meanwhile, primary-backup replication

is useful because of its low computational cost and

applicability to nondeterministic services. However,

as mentioned in Section 1, a mechanism that allows

agreement on the current primary and its implemen-

tation is needed; this is not necessary in state machine

replication systems. As explained above, the mer-

its and demerits of these techniques are complemen-

tary. To counter these drawbacks, variant schemes

have been proposed in recent years. These include

Figure 1: Conceptual illustration of a ﬂeet of passenger-

carrying vehicles.

semiactive replication (Stodden, 2007) and semipas-

sive replication (Defago and Schiper, 2004).

However, it is assumed that these techniques will

employ a majority-based consensus. Thus, although

the techniques guarantee replica consistency, they

cannot tolerate the simultaneous failure of a major-

ity of the nodes or partitioning of the network. To

address the issue of availability, Dolev et al. (Dolev

et al., 2010) proposed optimistic state machine repli-

cation based on a self-stabilizing consensus algorithm

(Dijkstra, 1974; Dolev, 2000). Subsequently, they

suggested a self-stabilizing primary backup replica-

tion technique and its application to Internet service

platforms (Hasebe et al., 2011).

As shown above, various replication techniques

have been proposed and widely used in distributed

systems. However, application of the techniques to

transportation systems has not been thoroughly inves-

tigated. One motivation of the present study is to

show the usefulness of such a replication technique

in the development of a transportation system.

3 OVERVIEW OF LAST-MILE

TRANSPORTATION SYSTEMS

This section outlines the last-mile transportation sys-

tem targeted in this study. (Also see the literature

(Hasebe et al., 2017b; Hasebe et al., 2017a) for a more

detailed explanation.)

3.1 Vehicles

The transportation system targeted in this study con-

sists of vehicles that are able to travel in a row without

having physical contact points. A conceptual illustra-

tion is shown in Fig. 1.

The vehicles are classiﬁed according to their func-

tion into two types.

• Lead vehicles: vehicles driven manually at the

head of a ﬂeet of vehicles.

• Trailing vehicles (or trailers for short): driver-

less vehicles that run autonomously behind an-

other vehicle.

Vehicles can be arbitrarily connected through elec-

tronic control to a ﬂeet as long as the ﬂeet capacity

is not exceeded.

Fault Tolerance in the Trafﬁc Management System of a Last-mile Transportation Service

553

3.2 Trafﬁc Network

In the transportation system, as for existing railroad

and bus networks, the travel routes connect a plural-

ity of prescribed stops where passengers may board

or alight. Additionally, in this travel route network,

zones are provided depending on the geographic lo-

cation where stops overlap with one or more zones.

Usually, there are multiple stops in each zone and a

travel route passing through all the stops in a zone

is set. Here, a stop located in multiple zones (i.e., a

stop at branch points in the trafﬁc network) is called a

node.

3.3 Reorganization of Vehicles

Lead vehicles can disconnect any trailers at a node.

In addition, a location for a vehicle pool is provided

at each node for the temporary parking of detached

unmanned lead vehicles. Furthermore, a lead vehicle

can be provided with any number of trailers from the

vehicle pool, as long as the ﬂeet capacity is not ex-

ceeded.

3.4 Vehicle Trafﬁc Management

To realize our vehicle trafﬁc management scheme, the

operation schedule needs to be arranged according to

the current requests and delivered to each vehicle. We

here assume a certain centralized control. Speciﬁ-

cally, we set up a server for vehicle operation man-

agement (hereinafter referred to as the central server)

in the system’s hub. The central server receives re-

quests for travel from passengers using smartphones

or other means of communication, minimizes passen-

ger waiting time, determines a targeted optimum op-

eration schedule, and instructs each lead vehicle.

Moreover, in addition to the central server, a

server at each node (hereinafter referred to as a node

server) is maintained. The conﬁguration and the op-

eration route of a ﬂeet as determined by the central

server are transmitted once to each vehicle via the

node server within the communication network.

4 REPLICATION TECHNIQUE

FOR A TRAFFIC

MANAGEMENT SYSTEM

4.1 Overview

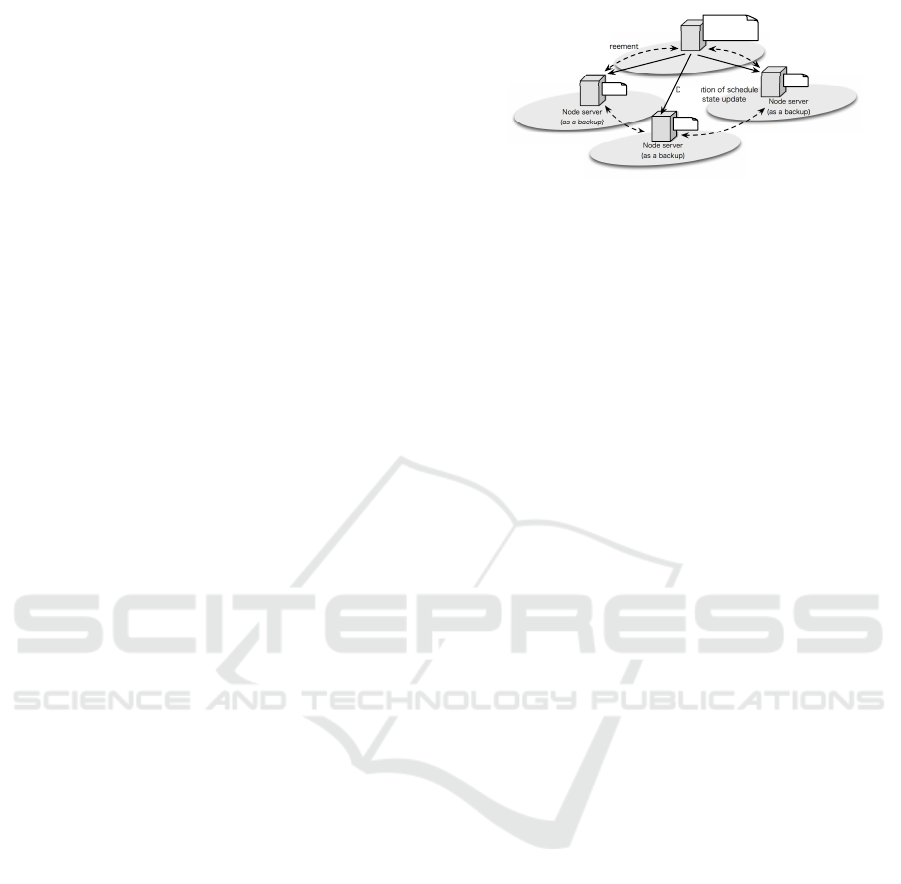

Figure 2 is an overview of the proposed trafﬁc man-

agement system. (See also the literature for the de-

Figure 2: Overview of the trafﬁc management system.

tailed primary-backup replication used in this system

(Hasebe et al., 2011; Hasebe et al., 2014)). As ex-

plained above, in our proposed trafﬁc management

system, one node is selected as the central server.

The central server receives the travel demand sent by

the passengers using smart phones and similar de-

vices and periodically determines the optimized travel

schedule with respect to the waiting times of the pas-

sengers and the traveling costs. Furthermore, this

schedule is delivered to each node server and gives

instructions to each vehicle arriving at a node. (The

reason for passing through node servers is that this

method is cheaper than constructing a communication

network that issues direct commands from the central

server to each vehicle in a wide-area transportation

network.) Simultaneously with the distribution of the

schedule, the central server periodically distributes in-

formation on the travel demand accumulated at the

central server as an update state to the node servers.

In addition to the above process, all node servers

continually execute the optimistic consensus algo-

rithm originally introduced in (Hasebe et al., 2011)

in parallel to agree on the current central server. If the

central server fails, according to the failure detector

installed at each node server and the consensus algo-

rithm, another node server will become the new cen-

tral server. (In this sense, the central and node server

are hereinafter referred to as the primary and backup,

respectively.

4.2 Fault Tolerant Mechanism

The proposed fault tolerant mechanism in the trafﬁc

management system is realized by three processes.

1. Failure detection

2. Periodic execution of the optimistic consensus al-

gorithm of (Hasebe et al., 2011)

3. Primary-backup communications

4.2.1 Failure Detection

Failure detectors are popular applications that are re-

sponsible for detecting server failures or crashes in

a distributed system. Our proposed system is based

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

554

on the usual heartbeat-style technique; i.e., each node

periodically transmits its own heartbeat packet while

simultaneously monitoring the heartbeat packets re-

ceived from other servers. If a heartbeat is not ob-

served within a threshold time interval, the receiver

considers the sender to have failed.

4.2.2 Optimistic Consensus Algorithm

The agreement algorithm decides which server is cen-

tral among node servers. According to this algorithm,

a value to be agreed upon is proposed by a server

called the coordinator. The coordinator is in charge of

a server with the lowest server ID among the servers

judged to be normal. The coordinator proposes the

role of each server, and each server agrees with the

proposal. A proposed value is created so that any one

of the servers judged to be normal can be set as the

central server and other servers are usual node servers.

4.2.3 Primary-backup Communications

Primary backup communication replicates the state of

the central server to other node servers. This com-

munication also receives the request sent by the pas-

senger, calculates the operation schedule, and returns

the response. The state update is transmitted from the

central server to the other servers. Here, the state up-

date includes the passengers’ requests that have been

received so far, the latest operation schedule, and the

schedules distributed so far to each node server. In

addition, the latest schedule is delivered by this com-

munication.

4.2.4 Behavior of Vehicles

Each lead vehicle informs the node server that it has

arrived at the node and receives an instruction from

the node server. In particular, when arriving at the

node, if the node server is out of order, the lead ve-

hicle runs on a predetermined emergency route while

considering the destination of the present passenger in

travelling to another node. The vehicle then receives

the latest schedule and continues operation.

5 EXPERIMENTS WITH

IMPLEMENTATION

To verify the correctness of our proposed mechanism

and to demonstrate the availability with various types

of server and network failures, we conducted ex-

prements with our current prototype implementation.

The modules described in the previous section behave

independently and communicate with each other by

means of asynchronous message passing. To imple-

ment these concurrent processes, our prototype was

developed by Scala (Odersky et al., 2008). In par-

ticular, the interprocess communications were imple-

mented by means of Akka, which is a Scala Actors

library.

5.1 Experimental Setup

The experiments were conducted on 12 identical PC

servers, each of which was equipped with Intel Xeon

CPU E3-1220L V2 2.30 GHz, two HDDs with 1TB

capacity, and 4GB of memory. The OS is Ubuntu

16.04.3 LTS. Each server was connected to a sin-

gle switch via a 100Base-T network adapter. In our

implementation, each node server, lead vehicle, and

trailer was implemented as a single actor.

In this experiment, we assumed that there were

7 node servers, 2 lead vehicles, and 3 trailers in the

transportation system. The failure detector transmit-

ted the heartbeat every 10 seconds and conﬁrmed the

heartbeat received every 20 seconds. The agreement

algorithm executed every 60 seconds and the upper

limit time for the coordinator to wait for replies was

20 seconds. In addition, usual network delay was

mimicked by generating artiﬁcial random delay up to

5 seconds for all communications.

As examples of possible failures in real systems,

we considered the follwoing four cases.

Case 1. Failure of the majority of nodes: four node

servers (Server 1–4), including the primary, fail at

the same time.

Case 2. Network delay: communication delay oc-

curs in the network between two groups of node

servers, Servers 1–4 and 5–7, and then the system

recovers.

Case 3. Network partitioning: network partioning

occurs, splitting the node servers into two groups,

Servers 1–4 and 5–7, and then the system recov-

ers.

Case 4. Failure to receive operation schedule: a

lead vehicle that arrived at a node fails to receive

the operation schedule from the node server.

5.2 Experimental Results

5.2.1 Case 1: Failure of the Majority of Nodes

Fig. 3 illustrates the behavior of the system when the

majority of node servers (Servers 1–4) fail and the

system recovers after a lapse of 30 and 300 seconds,

respectively.

Fault Tolerance in the Trafﬁc Management System of a Last-mile Transportation Service

555

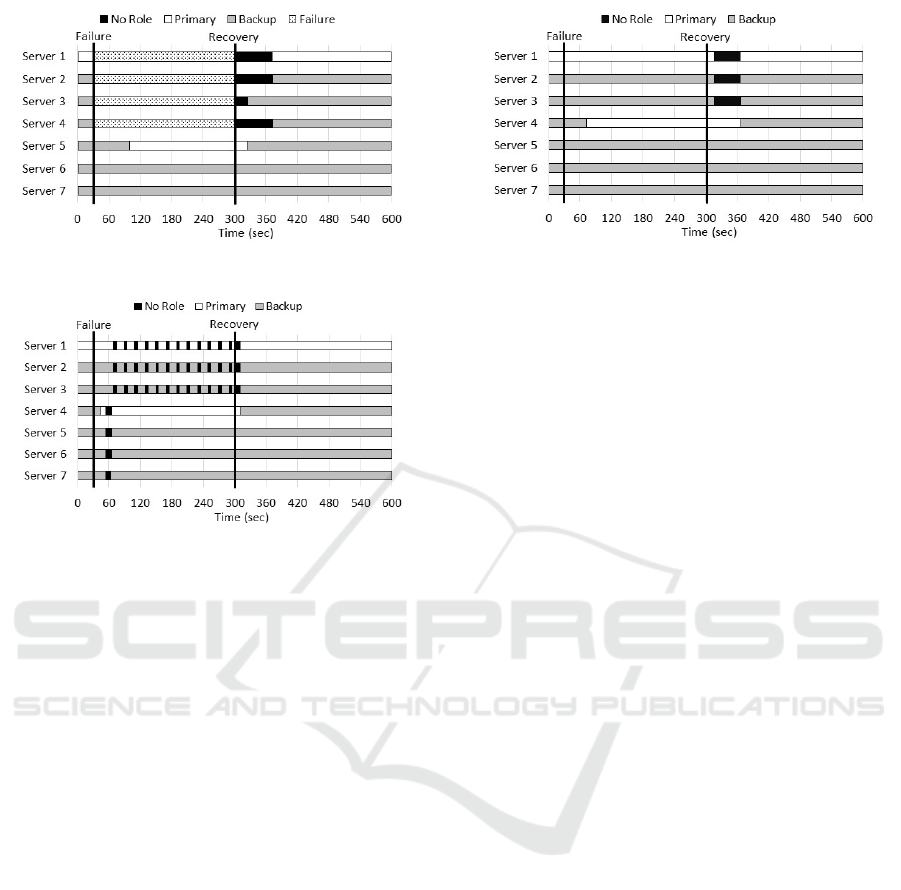

Figure 3: Case 1. failure of the majority of nodes.

Figure 4: Case 2. network delay.

In this experiment, after 60 seconds from the fail-

ure, the consensus algorithm is executed for the ﬁrst

time after the failure. In this execution, the procedure

of the consensus is continued even though the major-

ity of node servers fail, and then, after 100 seconds

from the failure, Servers 5–7 agree with the value that

makes Server 5 primary and Servers 6 and 7 backups,

and the role of central server was inherited. Further-

more, after 60 seconds from the recovery, the consen-

sus algorithm is executed again in which all servers

including Servers 1–4 participate. As a result, after

20 seconds, agreement is reached by the execution of

the algorithm that makes Server 1 primary and the rest

backups.

5.2.2 Case 2. Network Delay

Fig. 4 illustrates the behavior of the system when

communication delay occurs in the network between

two groups of node servers, Servers 1–4 (say, Group

A) and Servers 5–7 (say, Group B), and then the sys-

tem recovers after a lapse of 30 and 300 seconds, re-

spectively.

As a result of executing the consensus algorithm

immediately after the occurence of delay, agreement

is reached with the value that makes the Server 1 pri-

mary, as before the delay. After 40 seconds, the con-

sensus algorithm is executed independently in each

of Groups A and B. As a result, in Group A, Server 1

becomes primary while Servers 2 and 3 become back-

Figure 5: Case 3. network partitioning.

ups. On the other hand, in Group B, Server 4 becomes

primary and Servers 5–7 become backups.

Furthermore, in the execution of the next consen-

sus algorithm, since the decision value of the previ-

ous agreement in Group A has not arrived at Group

B caused by the communication delay, the role of the

servers in Group B is not given.

In the subsequent executions of the consensus al-

gorithm, in Group A, the case where roles are not

given because the previous agreed value in Group B

arrives and the case where they agree on the sug-

gested value of Server 1 alternately appear. On the

other hand, in Group B, Server 4 becomes primary

and Servers 5–7 continue to be backups.

As a result, in the period when the communica-

tion delay occurs, although the system conﬁguration

often changes, there is no time in which the primary

does not exist. Also, after recovering from the com-

munication delay, the system immediately returns to

a normal state, where Server 1 becomes primary and

the remaining servers become backup.

5.2.3 Case 3. Network Partitioning

Fig. 5 illustrates the behavior of the system when net-

work partitioning occurs between two groups of node

servers, Servers 1–4 (say, Group A) and Servers 5–7

(say, Group B) and then the system recovers after a

lapse of 30 and 300 seconds, respectively.

After the occurrence of network partitioning, the

consensus algorithm is executed independently in the

two groups. As a result, Server 1 and Server 4 are

chosen as primary. This suggests that although the

consistency of the system cannot be guaranteed, it is

possible to avoid the interruption of services due to

the loss of the central server. When recovering from

the network partitioning, after a lapse of 360 seconds,

the consensus algorithm is executed by all servers,

and after 20 seconds, they reach the agreement that

returns the system to the state before the occurence of

the failure.

VEHITS 2018 - 4th International Conference on Vehicle Technology and Intelligent Transport Systems

556

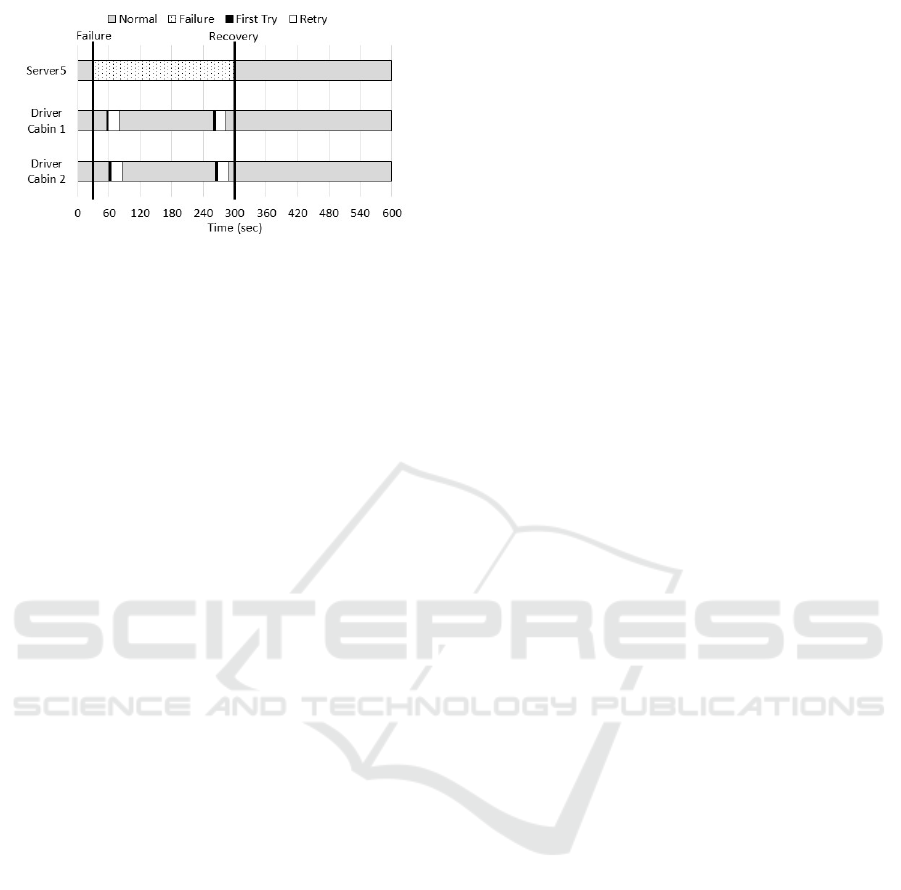

Figure 6: Case 4. failure to receive operation schedule.

5.2.4 Case 4. Failure to Receive Operation

Schedule

Fig. 6 illustrates the behavior of the system when

Lead vehicle 1 arrives at the node where the server 5 is

located after a lapse of 55 seconds. In this experiment,

Lead vehicle 1 tries to receive the operation schedule

from the server in 4 seconds immediately after arrival,

but could not receive it due to a failure of the server.

Therefore, this process is repeated ﬁve times in suc-

cession. Still, because the vehicle could not receive

the operation schedule, it moves to another certain

node in order to try to receive the operation sched-

ule from another server. As a result, it can be avoided

that the vehicle keeps waiting under the failed server,

and the operation of the vehicle can be continued.

In addition, Lead vehicle 1 arrives again at the

same node after 259 seconds, but similarly it was

unable to receive the operation schedule in the ﬁrst

4 seconds, and repeatedly waited for reception ﬁve

times and moved to another node again. Also, for the

Lead vehicle 2, after arriving at the same node, it be-

haves similarly to the Lead vehicle 1 without termi-

nating the transportation service.

6 CONCLUSIONS AND FUTURE

WORK

We proposed a fault-tolerant mechanism for the trafﬁc

management system of a last-mile transportation ser-

vice. The basis of our mechanism is to use a primary-

backup replication technique. More precisely, one

of the node servers is selected as the central server

and the other servers periodically receive state-update

messages, thereby allowing another node server to

take over when the central server fails. In particular,

the primary-backup replication used in this study is

an optimistic version previously introduced (Hasebe

et al., 2011). This makes it possible to tolerate var-

ious patterns of failures, including the simultaneous

failure of the majority of servers and network parti-

tioning.

We are currently conducting demonstration exper-

iments using golf carts to realize this transportation

system. In future work, we will investigate the trans-

portation system further to reﬁne our implementation

in experiments.

REFERENCES

Defago, X. and Schiper, A. (2004). Semi-passive replica-

tion and lazy consensus. Journal of Parallel and Dis-

tributed Systems, 64(12):1380–1398.

Dijkstra, E. W. (1974). Self-stabilizing system in spite

of distributed control. Communication of the ACM,

17(11):643–644.

Dolev, S. (2000). Self-Stabilization. MIT Press.

Dolev, S., Kat, R. I., and Schiller, E. M. (2010). When con-

sensus meets self-stabilization. Journal of Computer

and System Science, 76(8):884–900.

Hasebe, K., , Tsuji, M., and Kato, K. (2017a). Deadlock

detection in the scheduling of last-mile transportation

using model checking. In 15th IEEE International

Conference on Dependable, Autonomic and Secure

Computing.

Hasebe, K., Kato, K., Abe, H., Akiya, R., and Kawamoto,

M. (2017b). Trafﬁc management for last-mile public

transportation systems using autonomous vehicles. In

IEEE 3rd International Smart Cities Conference.

Hasebe, K., Nishita, N., and Kato, K. (2014). Highly

available primary-backup mechanism for internet ser-

vices with optimistic consensus. In IEEE Third Inter-

national Workshop on Cloud Computing Interclouds,

Multiclouds, Federations, and Interoperability, pages

410–416.

Hasebe, K., Yamatozaki, K., Sugiki, A., and Kato, K.

(2011). Self-stabilizing passive replication for inter-

net service platforms. In 4th IFIP International Con-

ference on New Technologies, Mobility and Security.

Odersky, M., Spoon, L., , and Venners, B. (2008). Program-

ming in Scala. Artima.

Schneider, F. B. (1990). Implementing fault-tolerant ser-

vices using the state machine approach: A tutorial.

ACM Computing Surveys, 22(4):299–319.

Stodden, D. (2007). Semi-active workload replication and

live migration with paravirtual machines. In Xen Sum-

mit, Spring 2007.

Fault Tolerance in the Trafﬁc Management System of a Last-mile Transportation Service

557
