Gathering and Combining Semantic Concepts

from Multiple Knowledge Bases

Alexander Paulus, Andr

e Pomp, Lucian Poth, Johannes Lipp and Tobias Meisen

Institute of Information Management in Mechanical Engineering, RWTH Aachen University, Aachen, Germany

Keywords:

Semantic Computing, Semantic Model, Knowledge Graph, Ontologies, Semantic Similarity.

Abstract:

In the context of the Industrial Internet of Things, annotating data sets with semantic models enables the auto-

matic interpretability and processing of data values and their context. However, ﬁnding meaningful semantic

concepts for data attributes cannot be done fully automated as background information, such as expert knowl-

edge, is often required. In this paper, we propose a novel modular recommendation framework for semantic

concepts. To identify the best ﬁtting concepts for a given set of labels, our approach queries, weights and

aggregates the results of arbitrary pluggable knowledge bases. The framework design is based on an intensive

review of labels that were used in real-world data sets. We evaluate our current approach regarding correctness

and speed as well as stating the problems we found.

1 INTRODUCTION

Enabling semantics in data processing allows data

users to understand data sets without detailed sys-

tem knowledge and extensive research. It also mit-

igates interpretation errors or missing units of mea-

surement and enables systems to store meta informa-

tion alongside the original data set. Semantics are

usually expressed using annotations to one or more

data attributes of a data set containing an arbitrary

but homogeneous number of data points. These an-

notations set each label of the data set into a semantic

context to create a domain speciﬁc meaning. With-

out those additional information, the user (e.g., data

analyst or broker) has to interpret the meaning of cer-

tain attributes only by the attribute name, the actual

values of such attributes, or by using a possibly ex-

isting documentation. Unfortunately, most data sets

are created by persons who assume implicit domain

knowledge or use identiﬁers which only they can un-

derstand, e.g., names or identiﬁers which have been

agreed upon on company site, but which are otherwise

not as easy to understand. Furthermore, if the used

format does not allow any hierarchy, such as in CSV

ﬁles, relations between attributes are not expressed.

In the context of the Industrial Internet of Things

and Big Data approaches in todays companies, this

leads to unforeseen problems when data sets from

multiple sites are combined, e.g., while using a data

lake. Analysts mostly do not possess sufﬁcient de-

tailed domain knowledge of each site and each pro-

cess to fully understand implicit conventions in nam-

ing or interpreting cryptic data attribute names such

as ’a24d7ff-2’. In the wake of big data technolo-

gies, data is gathered from all available sources with-

out considering the compatibility and usability of ran-

dom collected data sets from different branches, sub-

companies, production sites and countries.

Using semantic annotations allows data providers

(persons who own/create data) to annotate their data

sets such that other persons can understand the data

without the provider’s explicit knowledge. By addi-

tionally deﬁning relations between the concepts, one

can describe the data set in more detail. This is called

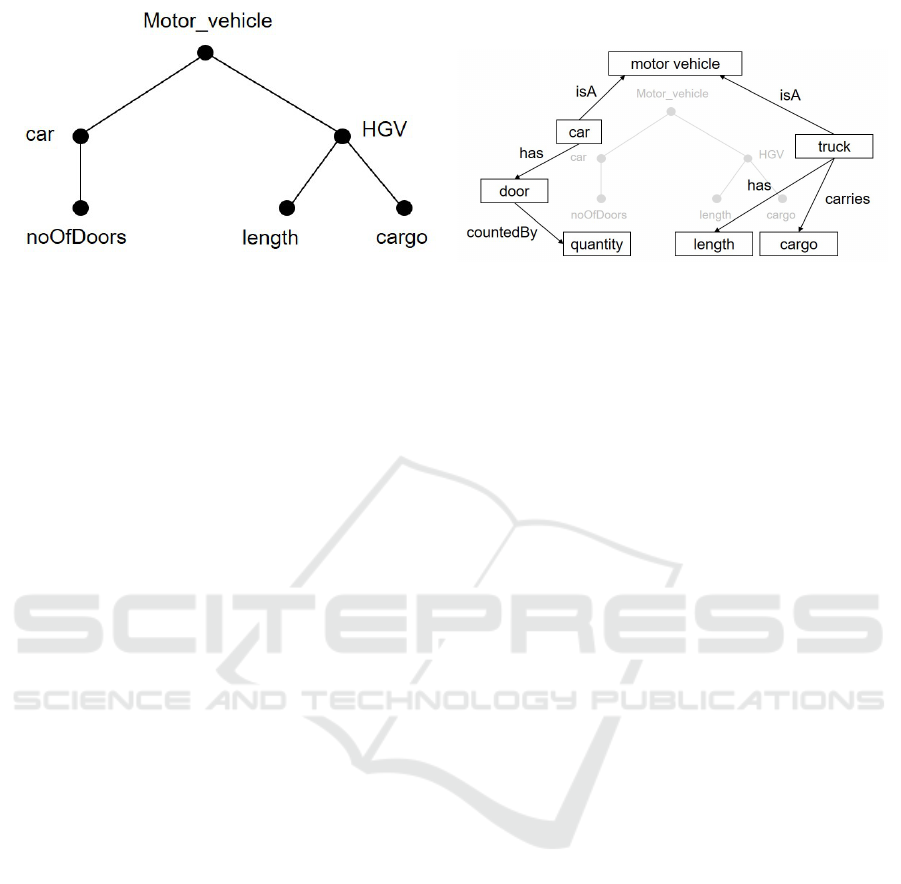

semantic modeling. Figure 1 shows an example data

set in raw format and with its semantic model. In

the annotated version, meta concepts (i.e., concepts

without any data attached to them), such as ’motor

vehicle’ can also be added to indicate the linkage of

two or more attributes. Semantic models usually also

provide information about units of measurement, re-

lations to other attributes or domain information that

helps to understand the context of the acquired data.

The semantic model is not limited and depends on the

provider’s view of the world to fully understand the

information contained in the data set. Usually, se-

mantic models are based on an underlying ontology

describing all possible or valid relations and entities.

When a data set is about to be shared, the provider

has to create such a semantic model. Therefore, the

Paulus, A., Pomp, A., Poth, L., Lipp, J. and Meisen, T.

Gathering and Combining Semantic Concepts from Multiple Knowledge Bases.

DOI: 10.5220/0006800700690080

In Proceedings of the 20th International Conference on Enterprise Information Systems (ICEIS 2018), pages 69-80

ISBN: 978-989-758-298-1

(a) Data model (b) Semantic model

Figure 1: Exemplary data set before and after semantic modeling. During the process, each attribute has been assigned a

semantic concept which describes the attribute. In addition, relations allow to reﬁne the meaning of the used concepts.

provider annotates each data attribute of the data set

with an entity that is available in the ontology. In ad-

dition, he can deﬁne relations between the deﬁned en-

tities. As manually selecting and creating concepts

for each attribute can be a time consuming task, our

goal is to automate this step as far as possible.

In this paper, we present our approach of a con-

cept recommendation framework, which generates a

selection of possible semantic concepts from which

the user can choose. Our framework provides an ab-

straction layer for external sources, such as BabelNet,

WordNet or speciﬁc domain ontologies. This layer

enables users to also add additional knowledge bases,

such as Wikipedia, to the recommendation process.

Results from all sources are combined to form a single

list of recommendations, relieving the user of search-

ing for concepts and allowing an automated annota-

tion in the best case. The framework design is based

on an intensive review of the labels observed in real-

world data sets that are either available on Open Data

platforms or were obtained from local companies. We

implemented and evaluated the framework in the con-

text of the semantic data platform ESKAPE (Pomp

et al., 2017a), (Pomp et al., 2017b). Hence, ES-

KAPE’s knowledge graph will be one of the knowl-

edge bases used by our recommendation framework.

The remainder of this paper is organized as fol-

lows: Section 2 motivates the necessity to develop a

generic framework for gathering semantic concepts.

Afterwards, Section 3 provides an overview of related

approaches and Section 4 deﬁnes the problem classes

which we identiﬁed when reviewing real-world data

sets. Based on these classes, we present our approach

in Section 5 consisting of querying, weighting and

aggregating results from multiple knowledge bases.

Section 6 gives an evaluation of our approach before

we conclude the paper with a summary and a short

outlook in Section 7.

2 MOTIVATING EXAMPLE

In this section, we provide a motivating example illus-

trating the necessity for annotating data with seman-

tic models and supporting the modeling process with

a framework that enables semantic concept gathering

from multiple knowledge bases.

The scenario consists of a simpliﬁed production

process of a large global enterprise with multiple sites

in different countries. The enterprise is specializing

in manufacturing products that need to be deformed

and painted. Example products may be bicycles or

cars. On the production sites, different versions of the

good are produced in multiple steps by using different

production lines and machines.

During the production process, different parts of

the involved systems generate different kinds of data.

As a global strategy for improving the manufacturing

process based on data science, the enterprise decided

to collect all these data in a centralized data lake. This

lake collects all kinds of batch and streaming data pro-

duced by any production line and machine. To ad-

ditionally support the process of ﬁnding exactly the

data required by the data analysts, the management

decided to set up an enterprise ontology with the help

of two external experts. Based on this ontology, the

employees who are responsible for a data source (e.g.,

the data produced by the sensors of one machine) have

to create semantic models. We consider these em-

ployees to be domain experts knowing the meaning

(semantics) of the data, calling them data providers.

For example, the data provider DP

creates the se-

mantic model for the data set illustrated in Table 1.

Please note that this is just an example data set. In-

dustrial real-world data sets usually contain hundreds

of columns. For deﬁning the semantic model, DP

forced to use all the entities and relations (vocabulary)

that are available in the enterprise ontology. Figure 2

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

Figure 2: Exemplary semantic model for the data set provided in Table 1. The concepts used in the semantic model are

obtained from the underlying ontology of the enterprise.

Table 1: Exemplary data set for which DP

has to create a

semantic model.

Time Pressure E-Power Temp ID

1476835200 0.50 1400 312 4

1476845200 0.49 1350 311 5

1476855200 0.50 1445 314 6

... ... ... ... ...

illustrates the example semantic model that was cre-

ated by DP

. Assuming that all data sets of the enter-

prise are annotated with semantic models, a data sci-

entist DS

can now search for data sets using the vo-

cabulary deﬁned in the enterprise’s ontology. In addi-

tion, the provided semantic model helps the data sci-

entist to understand the meaning of each data value.

When examining this scenario, we identify differ-

ent drawbacks of the common solution for the current

process of data providing as well as data consuming.

First, both the data provider DP

and the data scientist

are limited to the vocabulary provided by the un-

derlying ontology. Terms such as synonyms, that are

not present in the ontology but may refer to the same

entity cannot be used for creating semantic models

or searching data sources. As ontologies can become

very large and unhandy, it will be challenging for both

parties to get an overview about the available vocab-

ulary. Hence, a system which is capable of using a

more advanced vocabulary without adjusting the en-

terprise’s ontology would be desirable.

Another drawback of the current scenario is that

data providers have to create the semantic models

manually. To support a user in creating semantic mod-

els, it will be necessary for a system to automatically

identify the concepts that map best to a speciﬁc col-

umn. This is especially important if we consider large

data sets containing hundreds of columns. However,

comparing the data labels with the concepts available

in the enterprise’s ontology will also lead to differ-

ent challenges. In the example illustrated above we

mapped the concept Temperature to the column Temp.

Here, a simple comparison of the label Temp with the

concept Temperature will not yield any result. As data

labels in the real-world are very heterogeneous and

are rarely annotated with meaningful terms (cf. Sec-

tion 4), a simple comparison against an enterprise on-

tology would fail.

Finally, when using an enterprise ontology de-

signed by experts, the ontology would need to cover

any concept and relation that will be available in data

sets that are added in the future. Otherwise, the data

publisher could not map any concept from the ontol-

ogy to the new data attribute. While deﬁning a com-

prehensive ontology may be realizable in a closed and

controllable environment (e.g., inside a single depart-

ment of a company), it is very unrealistic for a global

company with multiple sites in different countries or

in an open scenario where data sources are added over

a long time period by multiple independent actors,

such as local companies, city administration or pri-

vate end users.

Hence, it would be desirable to develop a sys-

tem that is capable of combining the knowledge of an

enterprise ontology with additional external knowl-

edge bases and pre-processing steps to identify ex-

actly those concepts that are relevant for creating or

querying semantic models.

Gathering and Combining Semantic Concepts from Multiple Knowledge Bases

3 RELATED WORK

The problem of ﬁnding a correct or at least meaning-

ful semantic concept for a given label or search term

is well-known in research areas like ontology match-

ing and alignment, schema matching, semantic tag-

ging, semantic annotation or semantic modeling. Re-

searchers working in these areas came up with dif-

ferent solutions for generating meaningful labels that

help them to solve their problem.

In the areas of schema matching as well as on-

tology matching and alignment, the goal is to align

a given ontology A to another ontology B that dif-

fer in number and kind of used relations or entity

labels. To target the problem of ﬁnding the correct

label in ontology B for a given entity of ontology

A, approaches like structure-based, instance-based or

lexical-based methods are frequently used strategies

(M. H. Khan et al., 2015). For lexical-based as well

as structure-based methods, the use of upper ontolo-

gies (cf. (Mascardi et al., 2010)) or external sources,

such as Wikipedia, DBPedia or WordNet is very com-

mon (cf. (M. H. Khan et al., 2015), (Smirnov et al.,

2011), (Maedche et al., 2002)).

Compared to ontology matching, the research area

of semantic annotation targets the problem of ﬁnding

an appropriate semantic concept for a given label of

a data attribute (e.g., the label of a column in a table)

(Goel et al., 2012), (Ramnandan et al., 2015). The

ﬁeld of semantic modeling goes one step further by

additionally generating meaningful semantic relations

and more abstract concepts (e.g., combining the con-

cepts name, age and hair color to the abstract concept

of a person) (Taheriyan et al., 2016), (Taheriyan et al.,

2015). To perform the task of semantic annotation,

Goel et al. (Goel et al., 2012) use the data provided by

previous data sets to train a machine learning model

that learns the representation of the data enabling to

suggest semantic concepts without considering the la-

bel. As opposed to this, approaches like (Syed et al.,

2010) or (Wang et al., 2012) use external knowledge

bases, such as WordNet, Wikipedia or Probase to sug-

gest concepts based on the present data labels. To

create full-ﬂedged semantic models, Taheriyan et al.

(Taheriyan et al., 2016), (Taheriyan et al., 2015) addi-

tionally use speciﬁc domain ontologies and frequently

occurring relations in Linked Data sources.

Beside the presented research ﬁelds, the area of

semantic tagging focuses on either automatically gen-

erating or suggesting accurate tags for unstructured

and binary data, such as documents, images and audio

or video ﬁles (Du H et al., 2012). Proposed solutions

use tag ontologies (e.g., MOAT and SCOT) (Kim

et al., 2008), search engines such as Google (Sing-

hal and Srivastava, 2014) or external knowledge bases

such as WordNet, DBPedia, OpenCyc or Wikipedia

(Du H et al., 2012), (M. Kalender et al., 2010), (Hong

et al., 2015). Beside the already mentioned external

knowledge bases WordNet, Wikipedia, OpenCyc or

DBPedia, we identiﬁed additional useful sources. Ba-

belNet (Navigli and Ponzetto, 2012) is a fully auto-

matic generated multilingual semantic network com-

bining knowledge from multiple other sources (e.g.,

WordNet, DBPedia or Wikipedia). However, Ba-

belNet lacks the possibility to be extended by third-

parties, which results in, e.g., missing domain knowl-

edge. In addition, the automatic gathering of the ex-

isting knowledge bases may lead to inconsistencies.

Another external knowledge base is Wolfram Alpha

(Wolfram Alpha, 2017), a search engine that allows

to retrieve knowledge about topics, such as physics,

materials or people and history. Hence, this knowl-

edge base covers very speciﬁc knowledge which may

be missing in the other knowledge bases.

The developed approaches of the discussed re-

search areas use different strategies to solve their

problems. Here, most of the presented solutions rely

on the use of one or more preset external knowledge

bases to ﬁnd the best matching concept. Hence, com-

pared to the presented approaches, our work focuses

on developing a single semantic search framework,

which is capable of returning a set of best matching

concepts. Instead of predeﬁning a set of possible ex-

ternal knowledge bases, our work offers the user the

possibility to add more knowledge bases and priori-

tize them. In comparison to BabelNet, our approach

does not store the results of the connected sources. It

queries, merges and sorts the results on-demand. Fur-

thermore, it enables enterprises to connect their own

external knowledge bases (e.g., a uniﬁed company-

wide ontology) without leaking this internal knowl-

edge to the public.

Compared to the discussed broader research

ﬁelds, domain speciﬁc approaches like the NCBO

Ontology (Jonquet et al., 2010) are a ﬁrst attempt

in recommending the best ﬁtting ontology for a pre-

deﬁned use case. Therefore, users can enter keywords

or a full-text and the recommender identiﬁes the best

ﬁtting ontologies. However, compared to our work,

the Ontology recommender aims in identifying the

best ﬁtting ontology whereas the goal of our approach

is not to identify the best ﬁtting knowledge base. In-

stead, our approach tries to identify the best ﬁtting

concept based on all concepts that are available in the

connected knowledge bases. The underlying system

can then add this concept to its ontology or knowl-

edge graph if it is not present yet.

To identify the most ﬁtting concept, semantic re-

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

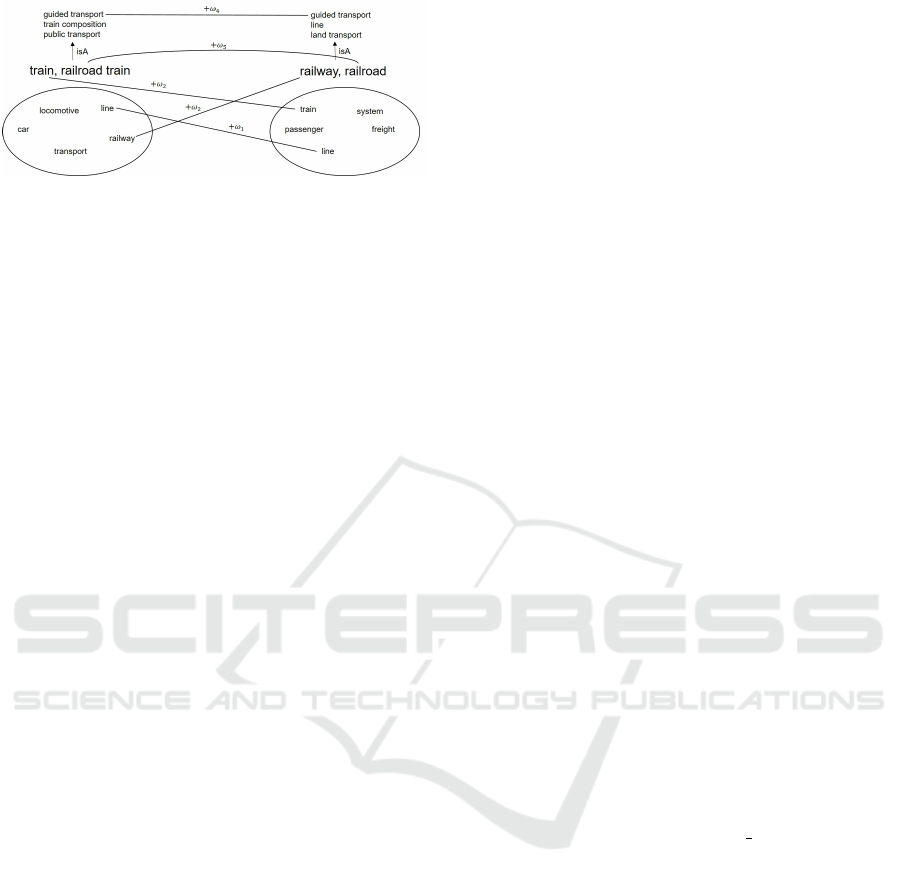

latedness is a prominent measure to use. It helps iden-

tifying clusters of possible candidates by comparing

the semantic concepts to each other and computes a

measure of how likely those elements are. (Banerjee

and Pedersen, 2003) propose the use of gloss overlaps

to compute the measure. However, we extend and re-

ﬁne this approach by extracting keywords from the

text ﬁrst, thus generalizing the approach and releas-

ing it from WordNet relations to allow general com-

parisons between concepts.

4 REVIEWING REAL-WORLD

DATA SETS

Before we started to design and implement our search

framework, we performed an intensive research on

the way people label columns and data attributes in

real-world data sets. We collected the data from mul-

tiple Open Data platforms such as San Francisco,

New York, Los Angeles, Berlin, Aachen, Munich

and multiple other cities as well as from OpenGov,

mCloud and from multiple local partner companies.

We limited our review to ﬁve common structured data

formats (CSV, XML, XLSX, JSON and GJSON) and

collected a total of 272 ﬁles. Afterwards, we manu-

ally reviewed each data set to identify problems that

will occur when trying to identify a label for the cor-

responding column or data attribute. We used the

gained insights to formulate problem classes for data

labels as well as data sets. A label can belong to none,

exactly one or multiple problem classes. However,

some of the problems may occur together whereas

other problems directly exclude others. Depending on

the classes a label or a data set belongs to, it will be

more or less difﬁcult to identify the correct semantic

concept. Altogether, we identiﬁed the following ten

problem classes for labels:

• Abbreviations: Instead of writing the complete

label, people tend to abbreviate labels. Prominent

examples we found are lat, lon, www, etc.

• Different Languages: Depending on the source

of the data, labels may be in different languages.

Moreover, it may occur that languages are mixed

within data sets.

• Natural Language: Instead of labeling data with

a concrete concept or a single word, people tend

to describe data attributes in more detail. One ex-

ample is ’Number of accidents where persons got

injured’.

• Time Labels: Depending on the data, people tend

to label columns or data attributes with points in

time or time spans (e.g., Monday, 1-2PM, etc.).

• Misspelling: The person who labeled the data

made a simple mistake. Examples are Acess Point,

Telehphone Number, etc.

• Splitting Characters: Beside white spaces in

labels, some labels contained special characters

(e.g., ’ ’ or ’-’) to split words. One example we

found is telephone number.

• Camel Case Input: Similar to splitting charac-

ters, some persons tend to split words using the

camel case syntax (e.g., StreetNumber).

• Additional Information: In a few data sets, we

identiﬁed labels that contained additional valuable

semantic knowledge that can be used to specify

the semantic concept in more detail (e.g., temper-

ature in

◦

C).

• Plural: In multiple data sets, people labeled

columns using the plural instead of the singular

(e.g., names vs. name or street vs. streets).

• Random Labels: Labels which do not follow any

meaning and are just random generated strings,

such as hash codes or increasing numbers. Ex-

amples are 1, 2, 8321b319b1781, etc.

Beside the challenges that we identiﬁed for single

labels, we also identiﬁed a problem class for a com-

plete data set. We observed that identifying the cor-

rect concept for humans becomes much simpler and

unambiguous if the labels within the data set belong

to the same domain. Hence, we created the class do-

main context.

• Domain Context: The labels within data sets can

either belong to the same domain or they may be-

long to different domains.

Depending on the classes a label belongs to, ﬁnd-

ing appropriate concepts that specify the information

that is present in the data set can be more or less chal-

lenging. While classes like Abbreviations, Different

Languages, Misspelling, Splitting Characters, Camel

Case Input and Plural can be tackled by suitable pre-

processing steps, classes like Natural Language, Time

Labels and Additional Information or Random Labels

require more sophisticated strategies. For instance,

one will never be capable of identifying appropriate

concepts for labels that belong to the Random La-

bel class by just considering labels. Here, we require

strategies that consider the data within the column to

achieve appropriate results. On the other hand, the

class of Additional Information requires the search

framework to consider and model the additional in-

formation. Hence, the result for a label can be more

than a single concept. It can also be a small graph

describing the semantics of the label.

Gathering and Combining Semantic Concepts from Multiple Knowledge Bases

5 SEMANTIC CONCEPT

GATHERING

In this section, we describe the main concept and pro-

totype of our recommendation framework mainly fo-

cusing on the Domain Context problem class. We give

necessary background information on semantic net-

works and present the main approach afterwards.

5.1 Semantic Networks

Semantic networks help modeling information by

deﬁning concepts (e.g., engine, boat) and relations

(e.g., has, isA, partOf ) to represent knowledge that is

available in the world, similar to an ontology. Those

networks exist to help machines gain meta informa-

tion to their data by modeling this knowledge in

a standardized way. Semantic networks can either

model domain speciﬁc or general purpose knowledge.

Most of them are available online with a public API,

which can have metered access in some cases.

However, when receiving a result from a semantic

network, those replies may contain multiple similar

concept suggestions, usually from different domains.

Identifying the one concept that can be aligned with

concepts found for other labels in the data set can be

a challenging task. Some semantic networks offer a

way of querying multiple concepts at the same time,

yielding a combined result for all labels (e.g., the pub-

licly available Babelfy).

For example, Table 2 shows the ﬁrst resulting con-

cept from BabelNet for the search term ’car’. In ad-

dition to the main label ’car’, several synonyms are

given in combination with a short glossary descrip-

tion of the concept. This glossary can help to distin-

guish between multiple similar concepts from differ-

ent domains. The result also contains meta informa-

tion like other related concepts (e.g., car isA motor

vehicle). All elements obtained from a source also

have a unique identiﬁer which helps identifying equal

concepts, thus allowing us to combine several search

results from the same data source.

When receiving a response from a semantic net-

work, multiple possible concepts can be included,

e.g., IP address or postal address for the label ’ad-

dress’. Hence, the resulting challenge is the selection

of the most ﬁtting concepts for our queried label. By

additionally considering the concepts obtained for the

other labels (context) and by querying multiple se-

mantic networks for the complete set of labels, the

challenge is getting bigger. However, not all seman-

tic networks may return a concept for a queried label.

Hence, the concepts returned for other labels might

originate from other semantic networks thus not al-

lowing a comparison based on relations available in a

single semantic network. In the following, we present

our semantic concept recommendation framework to

mitigate this problem.

5.2 Concept

Detecting suitable semantic concepts for data at-

tributes is a multi-layered task. First, a set of pos-

sible matches has to be gathered for each label, fol-

lowed by an evaluation of those candidates. From all

possible candidates, the best candidates have to be se-

lected for presentation to the user. However, those

recommendations can vary heavily if we consider dif-

ferent domains in which our semantic model is built.

A single label can have multiple meanings in different

domains or in rare cases even in the same domain if

combined with speciﬁc other concepts of that domain.

This implies that, in order to present a matching can-

didate, the recommendation framework has to detect

the domain and consider not only the expression but

also parent or sibling elements. The framework’s task

is to provide as many suitable matches for semantic

concepts as possible for each input label.

To achieve this goal, our framework is comprised

of different parts. Before the knowledge bases are

queried, the label is pre-processed in multiple steps

to tackle the deﬁned problem classes (e.g., Differ-

ent Languages, Misspelling etc.) and prepare it for

the connectors. Next, the communication to semantic

sources is realized using connectors, which are proxy

modules helping to retrieve a standardized result from

the different and independent knowledge bases. All

connectors provide their results to the recommenda-

tion module which computes the most likely matches

from all candidates and returns the result to the user.

5.2.1 Querying Semantic Networks

As a ﬁrst step, using the connectors, a query is sent

to selected semantic networks (cf. Section 5.1) which

return a list of possible concepts for this expression.

New semantic networks can be added by implement-

ing connectors for those sources and registering them

in our framework. A schematic view of a connec-

tor for a data source is given in Figure 3. The la-

bel is prepared for each connector such that it closely

matches the naming structure of the connected source.

Next, each connector runs the query and transforms

the result to a homogeneous representation which can

be handled by the framework. Based on the type of

network queried, the returned set of concepts might

include unique IDs, glossaries and additional linked

concepts like hyper- and hyponyms. Those additional

linked concepts can range from zero or a few entries

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

Table 2: Example query result for ’car’ from BabelNet. Linked concepts are underlined.

Field Content

Label automobile, car, auto, machine, motorcar

Glossary A motor vehicle with four wheels; usually propelled by an internal combustion engine

Is A motor vehicle

Category Automobiles, Wheeled vehicles

Figure 3: Querying a semantic source by pre-processing the

input, pre-selecting a ﬁxed amount of resulting concepts and

returning the result to the recommendation module.

Figure 4: Comparing all semantic concepts to candidate

concepts for other labels. Each similarity boosts this con-

cept’s score.

to more than a thousand. Therefore, all queries are

ﬁltered by a set of considered relations (e.g., isA or

partOf ) to reduce the complexity of the following

steps. As our framework can currently only consider

a limited amount of ﬁve relations, all source-speciﬁc

relation types have to be mapped to a set of preset

relations or be dropped during the implementation of

the connector.

5.2.2 Intra Source Selection

Beside the mapping of relations, a pre-selection of

concepts is done inside the connector. The metric

which determines the candidates selected is currently

chosen by the connector’s developer, but could be

conﬁgurable later. Depending on the connector, re-

sults can be ﬁltered and sorted by speciﬁed metrics

(e.g., sort the concepts by the number of edges they

have to others and take the ﬁrst n). However, any

other metric is possible. To reduce the implementa-

tion overhead for each connector, the pre-selection on

the concepts is solely done for one label. The rela-

tions between the queried label and the other avail-

able labels are not considered at this point. This is

currently done in the Inter Source Scoring step (cf.

Section 5.2.3).

After all query results have been obtained and pre-

selected, all candidates from different sources for a

given label are combined to a single list (cf. Figure

4). Duplicates that are obtained from the same data

source are eliminated per list (e.g., BabelNet return-

ing WordNet concepts).

Hence, formally, we have a set K of m knowledge

bases and a data set with n labels. For each label l

where i ∈ {1...n}, we query each knowledge base K

where j ∈ {1...m} and receive a set of concepts C

Finally, we combine all results from all knowledge

bases K

and for the same label l

into a single set C

5.2.3 Inter Source Scoring

In this process, we compare the set of concepts C

for

each label l

with the set of concepts C

for each label

where j ∈ {1...n}, j 6= i to select the most ﬁtting

concepts for each label. Therefore, all concepts are

scored based on their coherence with concepts found

for other labels. Assuming that multiple sources yield

results from different domains, we want to identify

the most prominent domain or combination of labels.

As we do not have any valid relations between con-

cepts from different semantic networks, we can only

consider the concept’s name and the description pro-

vided by the network as well as possible linked con-

cepts (from the same source).

Scoring is done by comparing keywords from con-

cept labels, glossary and related concept labels. For

two concepts c

and c

the coherence score is com-

puted using ﬁve partial scores s. We assume that each

concept c

consists of a set of main labels ml

, a glos-

sary g

and a set of related concept labels r

. As

glossaries mostly contain natural language, a keyword

extraction algorithm KE is used to extract keywords

from the text.

= (ml

, g

, r

)

, c

) =

|KE(g

) ∩ KE(g

min{|KE(g

)|, |KE(g

)|}

, c

) = |ml

∩ KE(g

, c

) = |ml

∩ r

, c

) = |r

∩ r

, c

) = |ml

∩ ml

(1)

Currently, we use https://stanfordnlp.github.io/CoreNLP/

Gathering and Combining Semantic Concepts from Multiple Knowledge Bases

Figure 5: Example comparison of concepts ’train’ and ’rail-

road’ obtained from BabelNet and reduced for simplicity.

Each match on one of the given scores adds the assigned

weighting ω to the total score.

Equation (1) shows the deﬁnition of a semantic con-

cept c

for the algorithm and the aforementioned ﬁve

partial scores.

• s

weights the matches from glossary keywords

by comparing all found keywords for both con-

cepts and scoring matches against the total num-

ber of possible matches which is equal to the num-

ber of elements in the smaller keyword set.

• s

yields scores if concept labels match to key-

words in the second concept’s glossary.

• s

scores the number of concept c

labels match-

ing labels in c

’s related concepts (e.g., parent-

child relations). From related concepts, only the

labels are checked, not the glossary or even more

related concepts.

• s

increases if matches of both concepts’ related

entities exist (e.g., sibling relation indicated by

same parent element).

• s

compares the labels of both concepts and in-

creases if there is a direct match.

With C

being the set of concepts for each label l

we deﬁne C

i=1

as the set of concepts for all

labels. Let c

∈ C

be a concept for which we want

to calculate the coherence score. The total score S for

the concept c

is deﬁned as:

S(c

) =

∑

∈C

∑

p∈1,..,5

× s

, c

) (2)

Each score is weighted by ω to allow ﬁne tuning of

the results for each comparison. The resulting com-

parison can be seen in Figure 5. Here, each match on

one score yields the mentioned ω value, and thus in-

creases the score. By performing this calculation for

each concept c

∈ C

and each C

∈ C

we receive a

coherence score S for each concept of each label.

5.2.4 Sorting and return

After weighting and comparing, the initial user pref-

erence as given in the request is applied. This user

preference contains which sources shall get a higher

priority when merging the results. Therefore, we mul-

tiply the retrieved scores for all concepts with a factor

given for their original data source. This enables the

algorithm to, e.g., prioritize domain-speciﬁc sources

before common networks. The candidate list of each

node is then sorted in descending order and the top

n elements of each list are selected and returned to

the user. This way, the framework yields a number of

ranked candidate concepts, including their description

and possible other meta information as well as linked

concepts.

5.3 Implementation

For evaluating our approach, we implemented the

concept as a Java application available via REST in-

terface. The application expects a JSON Object con-

taining the labels of the data set that should be an-

notated and a weighting for each knowledge base

enabling the user to easily prioritize those knowl-

edge bases from which he expects better results (e.g.,

those containing domain knowledge). Connectors for

WordNet, BabelNet and the internal smart city knowl-

edge graph available via ESKAPE have been imple-

mented as proof of concepts. The Google Knowledge

Graph was also connected in earlier stages but did

only perform well on named entities, which are less

common in data set labels. It was therefore skipped

for the evaluation.

Before labels of a data set are sent to the different

semantic networks, they are pre-processed to improve

the result’s quality and comparability. For example, to

tackle the mentioned problem classes, the labels are

converted to lowercase, translated to English and all

special characters, such as ’-’ or ’ ’, are removed. In

addition, the camel case labels are split into multiple

words. Further pre-processing steps, such as resolv-

ing labels for abbreviations, are not implemented yet.

After pre-processing the labels, the framework

queries the semantic networks for concept sugges-

tions for all labels. To narrow down the number of

results from the semantic networks, only concepts are

added to the list of suggestions. Named entities are

currently not considered in the framework as they

rarely appear as labels in data sets. The connectors

are set to return up to n = 5 elements to the engine.

As described in Section 5.2, the returned elements are

ﬁltered for duplicates and rated according to the de-

ﬁned steps. As the amount of comparisons between

the different suggestions grows quickly with a larger

data set, multi-threading is used for the rating process.

Thereafter, for each label, the suggestions are sorted

by their rating and the top ﬁve entries are returned.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

The weighting inside the algorithm is currently

undergoing constant evaluation with different factors

while keeping the initial order ω

≤ ω

≤

. Our initial setting, which is also used during

evaluation initializes ω

with 1, ω

with 2 and so

forth. We disabled all source ﬁltering and weighted

all sources equally.

6 EVALUATION

We evaluated our approach by annotating different

publicly available data sets using results from Word-

Net (WN), BabelNet (BN) and a small knowledge

graph (KG) covering the domain of smart city and

transportation. Table 3 shows the results of an an-

notation of the crime data set from the public domain

of Vancouver

. For all contained labels, we measured

the number of returned concepts (# column) and, if

a suitable concept has been found, how high it was

ranked in the returned list (c column). We observed

that general concepts like ’month’, ’year’, ’hour’,

’minute’ and ’neighborhood’ are easily detected as

they are quite unique and can hardly be interpreted for

something else. The label ’hundred block’ returned,

although normalized, no results. This is mostly due to

the fact that we currently cannot safely handle multi

word labels. In addition, our framework also lacks

public semantic networks of this very speciﬁc term

from the domain of rural addressing or law enforce-

ment (which is also not covered by the smart city KG).

However, due to the design of ESKAPE’s knowledge

graph, ESKAPE is capable of learning this concept

(cf. (Pomp et al., 2017b)). The ’x’ and ’y’ labels,

which represent coordinates in this model could not

be identiﬁed, and although they were added to the

KG by another source and therefore recognized, they

were ranked low (rank three and four) in the process

as we did not boost the KG ratings as a domain spe-

ciﬁc source. This lead to a higher ranking for more

general concepts like ’X [24th letter of Roman alpha-

bet]’. The total processing time for this request was

on average 2.18 seconds, including queries.

The results from all evaluation sets can be seen in

Table 4. For this evaluation, we chose another data set

from the public domain of Vancouver

, two from the

San Francisco transportation domain

and one from

http://data.vancouver.ca/datacatalogue/crime-data.htm

http://data.vancouver.ca/datacatalogue/culturalSpaces.htm

https://data.sfgov.org/Transportation/Clearance-

Heights-for-Large-Vehicle-Circulation/sccd-iwvp

https://data.sfgov.org/Transportation/Meter-Operating-

Schedules/6cqg-dxku

the European Data Portal

. The total number of labels

for each data set is written in brackets, with the posi-

tion columns indicating how many most ﬁtting labels

were found on that position in the returned lists. For

most of the labels, we could ﬁnd suitable matches,

although not always in prime positions. This shows

that our basic idea of presenting the top n results in-

stead of the best ranked result will lead to better rec-

ommendations in a production system. As in the case

of the crime data set, missing concepts were mostly

caused by sources that did not offer any concepts at

all for speciﬁc labels which we could trace back to

some of our deﬁned problem classes (cf. Section 4)

like ’Applied Color Rule’, ’Object ID’, which is far

too generic, or ’CULTURAL SPACE NAME’ which

could not be identiﬁed altogether. However, the ef-

fect of adding a possibly proprietary semantic source

is clearly visible as multiple concepts, e.g., from the

clearance data set, could be resolved by using a source

containing smart city domain knowledge. Multiple of

those sources could be attached to improve the results.

We also compared our approach to Babelfy, an on-

line algorithm dealing with the context aware seman-

tic annotation of sentences, keywords or labels. Those

keywords can be inserted at the same time, allowing

Babelfy to consider relations of the underlying Ba-

belNet network when building the reply. We tested a

general set of labels which would completely rule out

the smart city knowledge graph as the labels belong to

the domain IT infrastructure. Thus, both algorithms

operate solely on the WordNet/BabelNet networks.

For labels, we chose a common combination on a list

of network participants: ’computer’, ’lan’, ’network’,

’subnet’, ’address’ ’port’. This combination has mul-

tiple domain speciﬁc meanings (e.g., ’address’ can ei-

ther be IP or MAC address or postal address) to test

the detection of the right domain. The results can be

seen in Table 5. Both algorithms managed to clearly

identify unambiguous labels like ’computer’ or the

acronym ’lan’ ’network’ was interpreted differently

in both cases and no superior concept could be identi-

ﬁed between both suggestions. However, considering

the ambiguous labels ’subnet’, ’address’ and ’port’,

our framework performed better than Babelfy, which

in all cases returned the most common concepts when

querying for the label without any context and in case

of ’subnet’ even chose the sub par second concept

for a mathematic topology. Although we cannot state

that our approach will be performing well on all label

combinations, it has been shown that even the base-

line algorithm can improve the recommendation of

semantic concepts for labels.

https://www.europeandataportal.eu/data/en/dataset/east-

sussex-county-council-recycling-sites

Gathering and Combining Semantic Concepts from Multiple Knowledge Bases

Table 3: Results for the crime data set for sources Wordnet (WN), WordNet and BabelNet (WN/BN), Knowledge Graph (KG)

and all sources combined. The # column indicates the considered number of results from a source, c indicates the position of

the (subjectively) most matching concept in the suggestion list.

Sources WN WN/BN KG All

Numbers # c # c # c c

Label

hundred block

month 2 1 4 1 1

year 4 1 5 1 1

neighborhood 2 1 5 1 1

hour 4 3 5 1 1 1 1

x 3 5 1 1 3

y 2 5 1 1 4

minute 5 2 5 1 1

type 5 5 1 1 3

day 5 3 5 1 1

Table 4: Summary of results from WordNet (WN), WordNet and BabelNet (WN/BN) and our smart city knowledge graph

(KG) on publicly available data sets (numbers in brackets indicate total number of labels). Position indicates the position of

the (subjectively) most ﬁtting concept in the suggestion list.

Sources WN WN/BN KG All

Position 1 2 3 1 2 3 1 2 3 1 2 3

Data set

crimeData(10) 3 1 2 6 0 0 3 0 0 6 0 2

culturalSpaces(11) 4 2 0 5 1 1 0 0 0 6 1 0

recycling(7) 4 0 1 4 0 1 0 0 0 4 0 1

clearance(6) 1 1 1 2 1 0 3 0 0 2 2 0

schedules(12) 1 1 0 1 0 1 5 0 0 5 0 1

Table 5: Comparison of Babelfy results to top concepts found by our framework. Text in brackets indicates a description to

distinguish different concepts of the same name. Semantic source of both results was BabelNet only. Bold markings indicate

(subjectively) better matching results.

label Babelfy result Framework result

computer computer computer

lan local area network local area network

network [interconnection of things or people] Internet

subnet subnet [mathematic topology] subnetwork [IP]

address address [postal] IP address

port port [sea port] interface [computing]

7 CONCLUSION AND FUTURE

WORK

In this paper, we presented the current state of a

framework for combining multiple semantic networks

to suggest semantic concepts for multiple labels. Re-

sults form different semantic sources are combined

solely by comparing (main) labels, glossary and la-

bels of related concepts as no valid relations exist be-

tween concepts of separate networks. We have shown

that our framework is able to use knowledge from

public sources as well as proprietary sources undis-

closed to the public (e.g., company networks). Using

a modular approach, our framework can be extended

using connectors to attach new semantic sources. The

scoring of single concepts is retrieved by comparing

its attributes to those of possibly related concepts in

pursuit of identifying the correct domain.

We achieved acceptable results when applying our

approach to data sets from public sources. We could

assign matching concepts to labels, especially when

domain-speciﬁc labels were annotated. This shows

that the strength of our framework is strongly based

on the sources connected, as some entries could not

be found in any data source and therefore remained

unassigned at all. It has to be tested, whether our ap-

proach is capable of handling results from more than

three sources and if the domain identiﬁcation, e.g. as

ICEIS 2018 - 20th International Conference on Enterprise Information Systems

shown in the computer network example, still per-

forms as strong as it did in our current evaluation. It

could be seen that the weighting of different sources

is important, as multiple sources providing different

deﬁnitions of a label contest against each other and

more general concepts like ’X’ as a letter sometimes

get higher scores in direct comparison. However, as

no domain has been declared during a ﬁrst matching

run, this has to be done manually or with the help of

multiple runs.

For future work, we are planning to improve the

framework by establishing a more iterative ranking

procedure. Instead of ranking all single concepts

against all other available concepts, we will establish

a ranking system which iteratively combines concepts

to larger tuples. This way, the framework would not

return a list of possible concepts for each label, but a

combination of probable concepts which harmonize

best. In addition, we are planning to increase the

ﬂexibility of the connectors to allow for more rela-

tions to be considered which could help to improve

intra-source selection of ﬁtting labels. Implementing

a subgraph matching similar to the one used by Ba-

belfy could be a further possibility in the future. This

would allow the framework to select only the most

context ﬁtting concepts before the comparison algo-

rithm runs, thus keeping the runtime low. Altogether,

we try to improve our algorithm to perform better on

the identiﬁed problem classes. Here, we especially

want to focus on the problem class of Random La-

bels by examining and comparing presented data with

already captured data. Finally, we are planning to

extend the framework to identify and return concept

subgraphs for labels that contain more than a single

semantic information.

REFERENCES

Banerjee, S. and Pedersen, T. (2003). Extended gloss over-

laps as a measure of semantic relatedness. In Ijcai,

volume 3, pages 805–810.

Du H, W., Rau, J. W., Huang, J. W., and Chen, Y. S.

(2012). Improving the quality of tags using state tran-

sition on progressive image search and recommen-

dation system. In 2012 IEEE International Confer-

ence on Systems, Man, and Cybernetics (SMC), pages

3233–3238.

Goel, A., Knoblock, C. A., and Lerman, K. (2012). Ex-

ploiting structure within data for accurate labeling

using conditional random ﬁelds. In Proceedings of

the 14th International Conference on Artiﬁcial Intelli-

gence (ICAI).

Hong, H. K., Park, K. W., and Lee, D. H. (2015). A novel

semantic tagging technique exploiting wikipedia-

based associated words. In Computer Software and

Applications Conference (COMPSAC), 2015 IEEE

39th Annual, volume 3, pages 648–649.

Jonquet, C., Musen, M. A., and Shah, N. H. (2010). Build-

ing a biomedical ontology recommender web service.

Journal of Biomedical Semantics, 1(1):S1.

Kim, H. L., Passant, A., Breslin, J. G., Scerri, S., and

Decker, S. (2008). Review and alignment of tag on-

tologies for semantically-linked data in collaborative

tagging spaces. In Semantic Computing, 2008 IEEE

International Conference on, pages 315–322.

M. H. Khan, S. Jan, I. Khan, and I. A. Shah (2015). Evalua-

tion of linguistic similarity measurement techniques

for ontology alignment. In Emerging Technologies

(ICET), 2015 International Conference on, pages 1–

M. Kalender, J. Dang, and S. Uskudarli (2010). Unipedia: A

uniﬁed ontological knowledge platform for semantic

content tagging and search. In Semantic Computing

(ICSC), 2010 IEEE Fourth International Conference

on, pages 293–298.

Maedche, A., Motik, B., Silva, N., and Volz, R. (2002).

Mafra—a mapping framework for distributed ontolo-

gies. In Knowledge engineering and knowledge man-

agement: ontologies and the semantic web, pages

235–250. Springer.

Mascardi, V., Locoro, A., and Rosso, P. (2010). Automatic

ontology matching via upper ontologies: A system-

atic evaluation. IEEE Transactions on Knowledge and

Data Engineering, 22(5):609–623.

Navigli, R. and Ponzetto, S. P. (2012). Babelnet: The au-

tomatic construction, evaluation and application of a

wide-coverage multilingual semantic network. Artiﬁ-

cial Intelligence, 193:217–250.

Pomp, A., Paulus, A., Jeschke, S., and Meisen, T. (2017a).

ESKAPE: Information Platform for Enabling Seman-

tic Data Processing. In Proceedings of the 19th

International Conference on Enterprise Information.

SCITEPRESS - Science and Technology Publications.

Pomp, A., Paulus, A., Jeschke, S., and Meisen, T. (2017b).

ESKAPE: Platform for Enabling Semantics in the

Continuously Evolving Internet of Things. In 2017

IEEE 11th International Conference on Semantic

Computing (ICSC), pages 262–263.

Ramnandan, S. K., Mittal, A., Knoblock, C. A., and

Szekely, P. (2015). Assigning semantic labels to data

sources. In Proceedings of the 12th ESWC.

Singhal, A. and Srivastava, J. (2014). Leveraging the web

for automating tag expansion for low-content items. In

Information Reuse and Integration (IRI), 2014 IEEE

15th International Conference on, pages 545–552.

Smirnov, A., Kashevnik, A., Shilov, N., Balandin, S.,

Oliver, I., and Boldyrev, S. (2011). Principles of ontol-

ogy matching, translation and interpretation in smart

spaces. In 2011 IEEE Consumer Communications and

Networking Conference (CCNC), pages 158–162.

Syed, Z., Finin, T., Mulwad, V., and Joshi, A. (2010). Ex-

ploiting a web of semantic data for interpreting tables.

In Proceedings of the Second Web Science Confer-

ence, volume 5.

Gathering and Combining Semantic Concepts from Multiple Knowledge Bases

Taheriyan, M., Knoblock, C., Szekely, P., Ambite, J. L.,

and Chen, Y. (2015). Leveraging linked data to infer

semantic relations within structured sources. In Pro-

ceedings of the 6th International Workshop on Con-

suming Linked Data (COLD 2015).

Taheriyan, M., Knoblock, C. A., Szekely, P., and Ambite,

J. L. (2016). Learning the semantics of structured data

sources. Web Semantics: Science, Services and Agents

on the World Wide Web, pages –.

Wang, J., Wang, H., Wang, Z., and Zhu, K. (2012). Un-

derstanding tables on the web. Conceptual Modeling,

pages 141–155.

Wolfram Alpha (2017). Computational Knowledge Engine.

https://www.wolframalpha.com/.

ICEIS 2018 - 20th International Conference on Enterprise Information Systems
