Exploiting Load Imbalance Patterns for Heterogeneous Cloud

Computing Platforms

Eduardo Roloff, Matthias Diener, Luciano P. Gaspary and Philippe O. A. Navaux

Informatics Institute, Federal University of Rio Grande do Sul, Porto Alegre, Brazil

Keywords:

Cloud Computing, Cost Efﬁciency, Load Imbalance, Heterogeneity.

Abstract:

Cloud computing providers offer a variety of instance sizes, types, and conﬁgurations that have different pri-

ces but can interoperate. As many parallel applications have heterogeneous computational demands, these

different instance types can be exploited to reduce the cost of executing a parallel application while main-

taining an acceptable performance. In this paper, we perform an analysis of load imbalance patterns with

an intentionally-imbalanced artiﬁcial benchmark to discover which patterns can beneﬁt from a heterogeneous

cloud system. Experiments with this artiﬁcial benchmark as well as applications from the NAS Parallel Ben-

chmark suite show that the price of executing an imbalanced application can be reduced substantially on a

heterogeneous cloud for a variety of imbalance patterns, while maintaining acceptable performance. By using

a heterogeneous cloud, cost efﬁciency was improved by up to 63%, while performance was reduced by less

than 7%.

1 INTRODUCTION

Executing large parallel applications in cloud envi-

ronments is becoming an important research focus in

cloud computing. Among the three service models of-

fered by the Cloud Computing model, the most suit-

able for High-Performance Computing (HPC) is the

IaaS model, since it provides instances that can be cu-

stomized according to the users’ needs and combined

to build a cluster system. Currently, many cloud pro-

viders offer a large number of instance types that tar-

get applications from the HPC domain. In contrast

to traditional cluster systems, which usually consist

of homogeneous cluster nodes, cloud systems offer

the possibility to ﬂexibly allocate different types of

instances and interconnect them, thus creating large

heterogeneous platforms for distributed applications.

Normally the heterogeneity of the cloud is explored

near the hardware level (Dong et al., 2017) and is

most related to the provider side. However, there are

few studies that aim to explore the heterogeneity in

public clouds.

One way in which such a heterogeneous system

can be interesting is by matching the demands of the

application to the underlying hardware. In the context

of this paper, we focus on matching the load of the

different processes of a parallel application to diffe-

rent instance types, thus providing a way to mitigate

the load imbalance that is common in such applicati-

ons. Previous work (Roloff et al., 2017a; Roloff et al.,

2017b) has shown that such a matching can be bene-

ﬁcial for the cost efﬁciency of an application, by exe-

cuting processes with a larger load on faster but more

expensive instances, while executing processes with

a lower load on slower but cheaper instances. In this

way, the overall cost of the execution can be reduced,

while maintaining the same performance. Due to the

principle of persistence (Kal

e, 2002), which says that

load imbalance will stay the same during execution

and between several executions for most applications,

proﬁling and matching has to be done only once per

application.

In this paper, we study the beneﬁts of heteroge-

neous clouds, focusing on which type of load imba-

lance is most suitable for these cloud systems. We

introduce an MPI-based benchmark, ImbBench, that

can simulate several types of load imbalance patterns

in parallel applications. With this benchmark, users

can proﬁle cloud instances to choose the instances

that best meet their needs. We use the benchmark on

the Microsoft Azure Cloud provider to prove that is

it possible to save money while not reducing the per-

formance of an unbalanced application across a wide

range of imbalance patterns, using up to three diffe-

rent instance types. Furthermore, we also validate our

approach using the MPI version of the NAS Parallel

Benchmarks (NPB). All of our evaluations were done

using the IaaS service model.

248

Roloff, E., Diener, M., Gaspary, L. and Navaux, P.

Exploiting Load Imbalance Patterns for Heterogeneous Cloud Computing Platforms.

DOI: 10.5220/0006807502480259

In Proceedings of the 8th International Conference on Cloud Computing and Services Science (CLOSER 2018), pages 248-259

ISBN: 978-989-758-295-0

2 THE IMBBENCH BENCHMARK

The HPC ﬁeld uses many benchmarks that focus on

speciﬁc performance aspects, such as the LINPACK

benchmark (Dongarra et al., 2003), which is used to

measure performance for the TOP500 list; the NAS

suite (Bailey et al., 1991), which consists of Compu-

tational Fluid Dynamics (CFD) benchmarks; and the

Rodinia suite (Che et al., 2009), which was designed

for benchmarking CPU+GPU systems, among others.

However, to the best of our knowledge, there is a lack

of benchmark suites designed for cloud computing.

Moreover, there are few tools that help the users to

exploit the heterogeneity of cloud computing instan-

ces, both in terms of price and performance.

In most cases, HPC applications are executed on

homogeneous clusters (or clouds), which are clusters

that consist of several nodes with the same conﬁgura-

tion, number of cores, memory, and disk. It is natural

that the available benchmarks were designed with a

homogeneous behavior. However, cloud computing

provides a large variety of heterogeneous resources,

in which users can build clusters of nodes with diffe-

rent characteristics (Chohan et al., 2010), thus crea-

ting a heterogeneous cluster.

To better evaluate heterogeneous systems, we

developed the Imbalance Benchmark (ImbBench),

which is a set of MPI-based applications that simu-

late several behaviors in terms of process loads. Imb-

Bench was designed with the heterogeneity of the

cloud in mind. Its goal is to help the user to choose the

most suitable conﬁguration to execute an application

in the cloud. ImbBench distributes the load among all

the available processes according to a preselected im-

balance pattern. The patterns that can be simulated by

ImbBench are illustrated in Figure 1. In the ﬁgure, the

y-axis indicates the relative load of each rank (norma-

lized such that the maximum load equals 100), while

the x-axis shows the MPI ranks (there are 64 ranks in

total). These patterns were chosen as they represent

common types of imbalance in parallel applications.

In the Balanced pattern, all MPI ranks execute the

same load, simulating the most desirable behavior for

an HPC application. The Multi-level pattern shows

distinct load levels, between two and eight levels, si-

mulating an application with several different loads

among the processes. The Two-level pattern is a spe-

cial case of the Multi-level pattern. We include it be-

cause is a fairly common imbalance pattern of parallel

applications. The Amdahl pattern simulates an appli-

cation that has one process that executes much more

work than all the others processes, normally a beha-

vior where an application needs a central process to

distribute all the tasks and collect the results. Finally,

0 10 20 30 40 50 60

100

MPI rank

Relative load

Balanced

0 10 20 30 40 50 60

100

MPI rank

Relative load

Multi-level

0 10 20 30 40 50 60

100

MPI rank

Relative load

Two-level

0 10 20 30 40 50 60

100

MPI rank

Relative load

Amdahl

0 10 20 30 40 50 60

100

MPI rank

Relative load

Linear

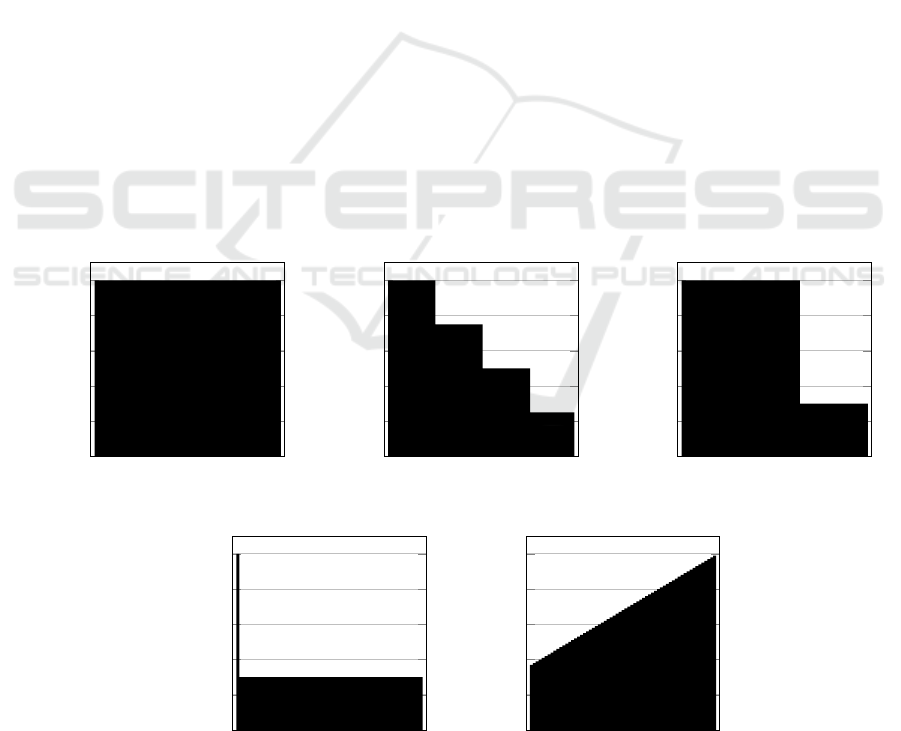

Figure 1: Overview of the load imbalance patterns that ImbBench can create. The y-axis indicates the relative load of each

rank (0–100), while the x-axis contains the MPI ranks (0–63).

Exploiting Load Imbalance Patterns for Heterogeneous Cloud Computing Platforms

249

the Linear pattern simulates an application where all

processes have a different load, starting from a low

load on rank 0 and linearly increasing up to rank n.

For the load simulation, ImbBench uses random

number generation. When a process needs to execute

a higher load than another, it simply generates more

random numbers. In a future version, we intend to

experiment with other load creation strategies, such as

other algorithms, or strategies that focus on ﬂoating

point calculations or the memory subsystem, among

others. ImbBench can create these patterns for any

number of MPI ranks. The current version scales up

to 512 ranks.

3 EXPLORING LOAD

IMBALANCE PATTERNS WITH

IMBBENCH

Public cloud providers offer a wide range of instance

conﬁgurations. Two of the main cloud providers,

Microsoft Azure and Amazon Web Services, pro-

vide several conﬁgurations to speciﬁc purposes. They

offer machines with a focus on Storage, Memory,

GPU/FPGA, among others. In terms of number of co-

res, they vary from an instance that shares a core with

other users, up to instances with 128 exclusive cores.

The price per hour varies from an instance that costs

less than a cent up to an instance that costs US$ 14.00

per hour. Microsoft Azure has more than 60 diffe-

rent instance conﬁgurations while Amazon AWS of-

fers more than 50 different conﬁgurations.

These large numbers of instance conﬁgurations in-

dicate that there are many possibilities to create a he-

terogeneous cloud, but it is necessary to compare in-

stances for their performance and cost efﬁciency in

order to ﬁnd the most suitable combination for a gi-

ven application load imbalance. In this section, we

use ImbBench to analyze Azure instances and deter-

mine the beneﬁts of heterogeneous environments for

different imbalance patterns.

3.1 Measuring Cost Efﬁciency with the

Cost-delay Product

An important aspect when evaluating cloud instance

types is comparing their price and performance trade-

off. Several basic metrics can be employed to mea-

sure this tradeoff. In our previous work (Roloff et al.,

2017a), we introduced a new metric, the cost-delay

product (CDP), that can be used to compare the cost

efﬁciency of an application being executed in a given

environment. As it will be used in the rest of the pa-

per, this section gives a brief overview of this metric.

The CDP metric is deﬁned with the following

equation:

CDP = cost of execution × execution time (1)

The cost of execution represents the price of the

cloud environment used to execute the application.

Most public cloud providers base their price model

on hours of use, and the cost is then the price per hour

(in US$) of all allocated instances. The executiontime

is the application’s execution time in the allocated en-

vironment. Lower values of the CDP metric indicate

a better cost efﬁciency for a certain application in a

cloud environment.

The CDP metric can be extended with a weighted

approach, depending on whether cost or performance

is more important to the user. These metrics, C

and CD

P respectively, are deﬁned as follows:

DP = (cost of execution)

× executiontime (2)

P = cost of execution × (execution time)

(3)

Cloud users can calculate these metrics for their

target environments to compare the cost efﬁciency of

an application.

3.2 ImbBench Evaluation

In our experiments, we use Microsoft Azure for the

evaluation, which has shown a good performance for

HPC applications (Roloff et al., 2012).

3.2.1 Performance and Price of Azure Instance

Types

Among all the available instances in Azure, we se-

lected the instances with 16 cores, because this size

of instances has seven different conﬁgurations offe-

ring a multitude of heterogeneous choices. The in-

stances used in our evaluation were: D16, D5, E16,

F16, H16, G4, and L16. They are conﬁgurable with

different memory and disk sizes and processor types.

To proﬁle the instances, we executed the High-

Performance Linpack benchmark (Dongarra et al.,

2003) to measure the processing capacity of each

instance in GigaFlops, the same methodology used

to create the TOP500 rank. With the Linpack re-

sults we can organize the instances into three diffe-

rent groups of processing power: High, Medium, and

Low. The High group contains only the H16 instance

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

250

Table 1: Characteristics of the Azure Instance Types.

Name Price/hour Linpack (GFlops) GFlop/US$

D16 US$ 0.936 247.54 264.46

D5 US$ 1.117 280.04 250.71

E16 US$ 1.186 254.97 214.98

F16 US$ 0.997 263.51 264.31

G4 US$ 3.072 417.32 135.85

H16 US$ 1.941 657.64 338.81

L16 US$ 1.376 406.63 295.52

type, which achieved more than 650 GigaFlops and

was the most powerful machine in our experiments.

The Medium group consists of the L16 and G4 instan-

ces, both achieved slightly more than 400 GigaFlops.

The Low group is composed of the other four machi-

nes types: D16, D5, E16, and F16, with a Linpack

performance of about 250 GigaFlops.

The price of the instances can also be classiﬁed

into the same three groups. The G4 and H16 instances

are in the High and Medium groups, respectively, with

the G4 instance costing around three dollars per hour

and the H16 instance costing around two dollars. All

the other instances are in the Low cost group, with the

price near one US dollar per hour.

Another aspect is the cost efﬁciency of the instan-

ces, which helps the users understand how efﬁcient

an instance is, in terms of processing power per dol-

lar. To compare this characteristic of the instances,

we calculate how many GigaFlops an instance deli-

vers per dollar. We can calculate this metric for the

Linpack benchmark as follows:

GigaFlop/US$ =

Linpackresult

Priceper hour

(4)

Using Equation 4, we can determine that the in-

stance H16 presents the best relation between price

and performance. The L16 instance is slightly lower

than H16, but still presented a good relation. The G4

instance shows the worst price-performance relation,

because it has the highest price among all the instan-

ces in our evaluation. The other instances presented a

price-performance relation near the level of 250 Gig-

aFlops per US$. Table 1 summarizes the results of the

Linpack benchmark, the cost efﬁciency, as well as the

price of the proﬁled instances.

3.2.2 ImbBench Performance and Cost

Efﬁciency

After completing the proﬁle of the instances, we exe-

cuted the ImbBench to evaluate if it is possible to

beneﬁt from the heterogeneity presented in these in-

stances of Microsoft Azure. For the evaluation, we

built clusters with 64 cores, using four Azure in-

stances. The nodes are running with Ubuntu 16.04

(kernel 4.13), GCC version 5.4, and Open MPI ver-

sion 1.10.2. We executed each ImbBench pattern 30

times, the results are the average execution time of the

30 executions. As the baseline, we use the most po-

werful instance type, H16, which also presented the

best cost efﬁciency. We built a homogeneous cluster

with four H16 instances and compare the heterogene-

ous clusters against it. We created several heteroge-

neous conﬁgurations until we found the conﬁguration

most similar to the baseline cluster in terms of total

execution time. Since we only identiﬁed three dif-

ferent performance levels of the Azure instances, we

executed only the Two-Level and Four-Level patterns

from the Multi-Level patterns of ImbBench. The Am-

dahl and Linear patterns were also used in the evalua-

tion.

The Amdahl Pattern. The ﬁrst analyzed pattern is

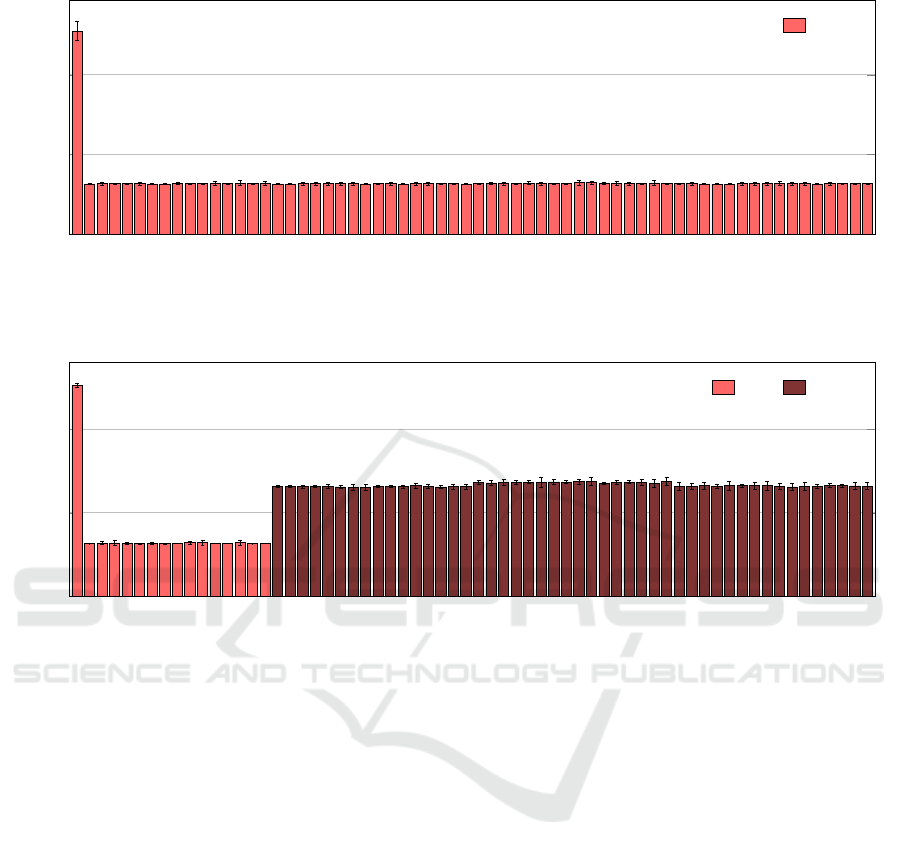

the Amdahl pattern. Figure 2 shows the results of

Amdahl pattern of ImbBench using the cluster made

of four H16 instances. As can be seen in the ﬁgure,

rank 0 presented a signiﬁcantly higher execution time

(approx. 5 seconds) than the other ranks (approx.

1 second), as expected.

With these results, we determined that a heteroge-

neous hardware environment can be beneﬁcial for this

load imbalance pattern, by using a powerful instance

together with less powerful and less expensive instan-

ces. Thus, we build a cluster with one H16 instance

and three D16 instances. The reason to choose the

D16 instances was that the D16 instance is the chea-

pest instance among all the instances used in our eva-

luation. The results of the heterogeneous execution of

Amdahl pattern are shown in Figure 3.

As we can see in the ﬁgure, the total execution

time remains the same, because the process with the

highest demand was executed in the same instance as

before, and the other processes, even when executed

in D16 instances, do not reduce the total execution

time. It is possible to note that the processes from 0

to 15 executed faster than the processes 16 to 63. The

reason is that the processes 0 to 15 were executed on

the H16 instance, and took 1 second to ﬁnish, and the

processes 16 to 63 were executed in the D16 instan-

ces, and took approx. 3 seconds to ﬁnish. We can

conclude that, even with 3/4 of the processes execu-

ted on instances with less processing power, the total

execution time was not affected, because they execu-

ted faster than the process with the highest load.

In terms of price, the execution of an Amdahl-like

application in a heterogeneous environment is very

advantageous. The price per hour of the H16 cluster

is US$ 7.764 and the price per hour of the heteroge-

Exploiting Load Imbalance Patterns for Heterogeneous Cloud Computing Platforms

251

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62

MPI rank

Time in Seconds

Amdahl, homogeneous

H16

Figure 2: Execution time of ImbBench using the Amdahl pattern executed in the homogeneous cluster of H16 instances.

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62

MPI rank

Time in seconds

Amdahl, heterogeneous

H16 D16

Figure 3: Execution time of ImbBench using the Amdahl pattern in the heterogeneous cluster of one H16 instance and three

D16 instances. Ranks 0-15 are running on the H16 instance, while 16-63 are running on the D16 instances.

neous cluster is US$ 4.749, a saving of US$ 3.015 per

hour, corresponding to a 38% total cost reduction.

The Two-level Pattern. The next pattern is the

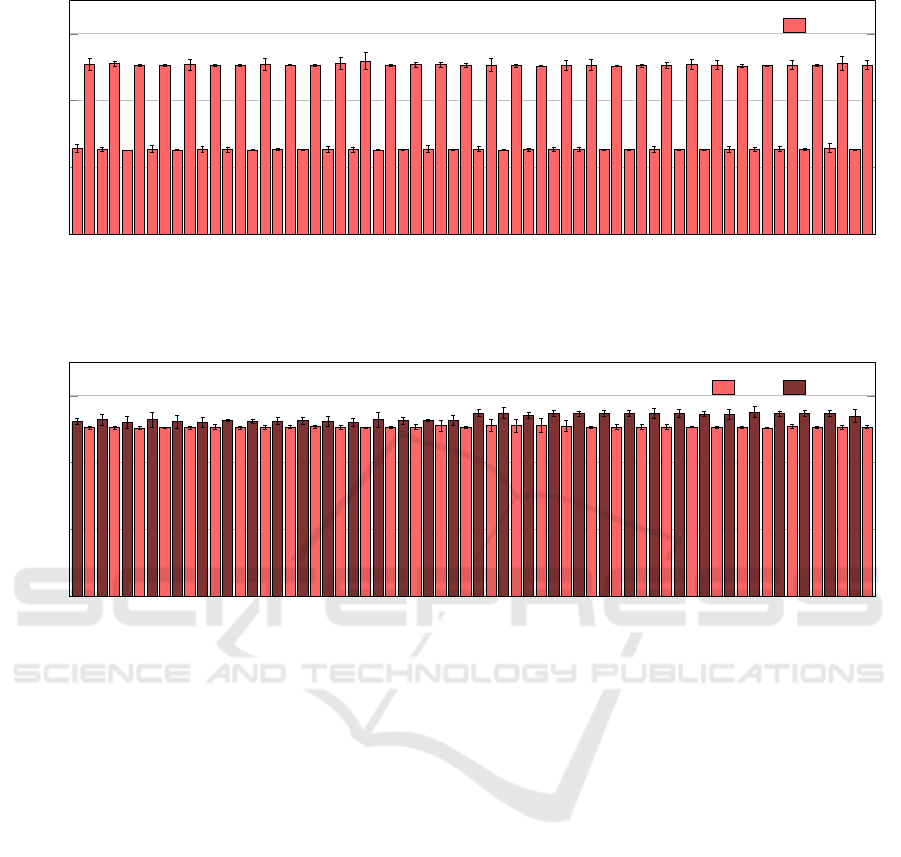

Two-Level, where the application is divided into two

levels of demand. The higher level computes a certain

amount of work and the low level computes exactly

half of the high level. Figure 4 shows the results of

the Two-Level pattern of ImbBench using the cluster

made of four H16 instances. As seen in the ﬁgure, the

odd processes are the high demand processes and they

took around 5 seconds to perform their work. The

even numbers are the low demand processes and they

fulﬁlled their work in around 2.5 seconds.

Analyzing the results, we can conclude, as in the

Amdahl pattern, that a user of an application with

this behavior can take advantage of the heterogeneous

cloud computing instances by mixing two instance ty-

pes. Using an Instance with high processing power

to execute the processes with high demand and a in-

stance with less processing power to execute the pro-

cesses with less demand. We build a cluster with two

instance types and with two instances of each type.

We chose the H16 and D16 instances, the H16 be-

cause it is the baseline instance and the D16 because

it is the cheap instance in our chosen group. The re-

sults of the Two-Level pattern execution on the hete-

rogeneous cluster are shown in Figure 5.

As we can see in the ﬁgure, the total execution

time was slightly higher than the execution on the

H16 cluster. We can observe that the even processes,

which are processes with less demand, now took more

time to perform their work, because they were execu-

ted in D16 instances. We can conclude that, even with

half of the processes being executed in instances with

less processing power, the total execution time pre-

sented only a small increase.

In terms of price, the execution of such an ap-

plication in a heterogeneous environment is very ad-

vantageous. The price per hour of the H16 cluster is

US$ 7.764 and the price per hour of the heterogene-

ous cluster is US$ 5.754, a saving of US$ 2.01 per

hour or a 25% reduction of the total cost.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

252

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62

MPI rank

Time in seconds

Two-level, homogeneous

H16

Figure 4: Execution time of ImbBench using the two-level pattern for application load in the homogeneous H16 cluster.

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62

MPI rank

Time in seconds

Two-level, heterogeneous

H16 D16

Figure 5: Execution time of ImbBench using the two-level pattern for application load in the heterogeneous cluster. Even

ranks are running on D16 instances, odd ranks on H16 instances.

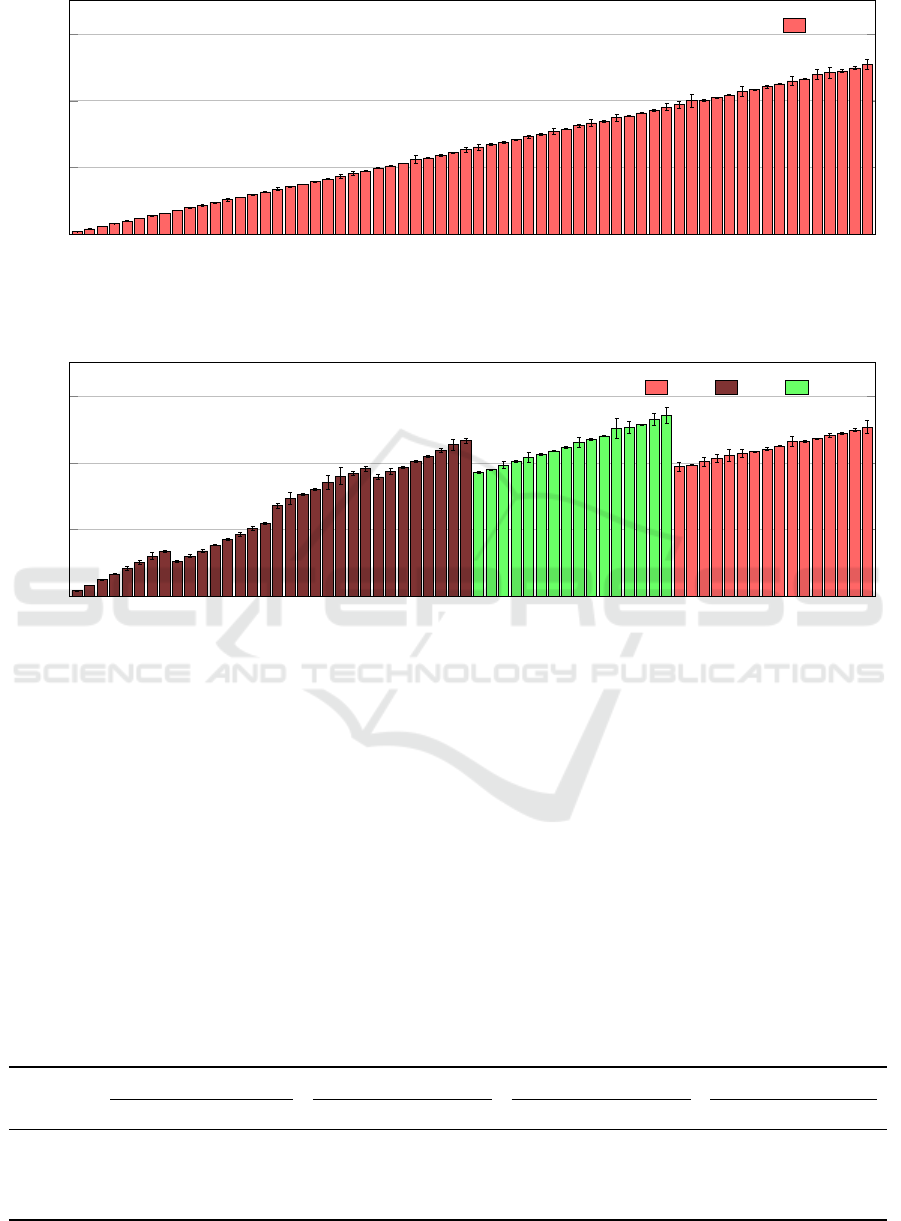

The Four-level Pattern. In the Four-Level pattern,

the application load is divided into four levels of de-

mand. The difference between the levels is constant,

the lowest level computes X instructions, the next le-

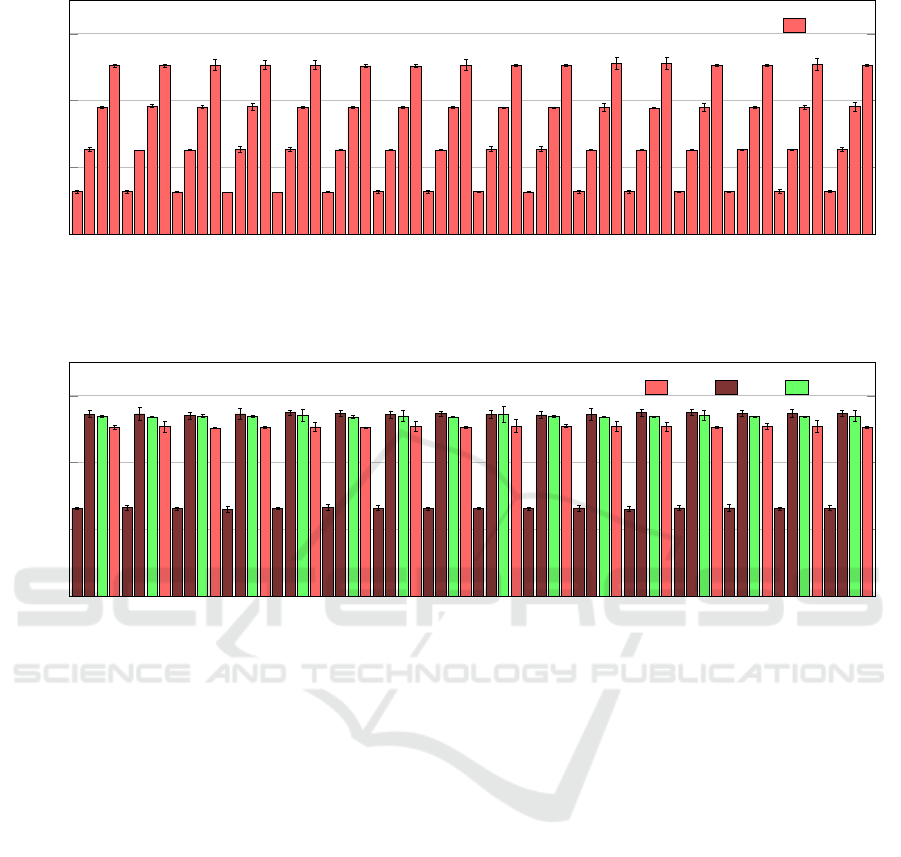

vel computes 2X and so on. Figure 6 shows the results

of the Four-Level pattern of ImbBench using the ho-

mogeneous cluster of four H16 instances. The ﬁgure

shows that the processes’ demands are divided into

groups of four, where the fourth process in each group

is the one that made more computation than the ot-

hers. In practical terms, the time spent by every fourth

process is the time spent by the application, approxi-

mately 5 seconds.

By analyzing the results, we can see that the ﬁrst,

second and third processes can be executed on machi-

nes with less power without increasing the total exe-

cution time. After a few simulations, we determined

that the most suitable conﬁguration for this pattern

was to create a cluster with three different instance

types. The processes with less demand were executed

on two D16 instances, the processes with intermedi-

ate demand were executed on an L16 instance and the

processes with high demand were executed on an H16

instance. The results of the execution of the Four-

Level pattern on the heterogeneous cluster are shown

in Figure 7.

We can observe in the ﬁgure that the execution

time was slightly higher than the execution on the H16

cluster. The group of processes with less demand exe-

cuted in D16 instances increased their time, but do not

affect the total time. The group of processes that were

executed in L16 instance increased their time as well

and the processes executed in a H16 instance keep

their execution time. We can conclude that, even with

3/4 of the processes being executed on instances with

less processing power, the total execution time was

increased only slightly.

In terms of cost efﬁciency, the execution of an ap-

plication similar to the Four-level pattern is advan-

tageous. The price per hour of the H16 cluster is

US$ 7.764, and the price per hour of the heteroge-

neous cluster is US$ 5.189, a saving of US$ 2.575 per

hour or a 33% total execution cost.

Exploiting Load Imbalance Patterns for Heterogeneous Cloud Computing Platforms

253

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62

MPI rank

Time in seconds

Four-level, homogeneous

H16

Figure 6: Execution time of ImbBench using the four-level pattern for application load in the homogeneous H16 cluster.

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62

MPI rank

Time in seconds

Four-level, heterogeneous

H16 D16 L16

Figure 7: Execution time of ImbBench using the four-level pattern for application load in the heterogeneous cluster. Ranks

0-1,4-5,8-9,... run on D16 instances, ranks 2,6,10,14,... run on an L16 instance , ranks 3,7,11,15,... run on an H16 instance.

The Linear Pattern. The last pattern is the Linear

pattern, where each process of the application has a

different load. The process with rank 0 has the lo-

west computational demand and the demand increa-

ses in a linear way when the rank increases. Figure 8

shows the results of the Linear pattern of ImbBench

using the cluster of four H16 instances. The ﬁgure

shows that the processes’ execution time increases as

expected when the process rank increases. The total

execution time of the application is the execution time

of the process with the highest rank, which is around

5 seconds.

To create a conﬁguration with mixed instances

that does not affect the execution time, a few simula-

tions were made and the most suitable conﬁguration

was the same as in the Four-Level pattern; a cluster

with two D16 instances, one L16 instance and one

H16 instance. The ﬁrst 32 processes were executed

on the D16 instances, the processes from 32 up to 47

were executed on the L16 instance and the processes

from 48 up 63 were executed on the H16 instance.

The results of the execution of the Linear pattern in

the heterogeneous cluster are presented in Figure 9.

As seen in the ﬁgure, the ﬁrst 32 processes incre-

ased their execution time, but this does not affect the

total execution time, because their execution time was

below the processes with high demand. The proces-

ses executed on the L16 instance, increased their time

as well, and were slightly higher than the execution

time on the H16 cluster. The processes that were exe-

cuted on the H16 instance kept their execution time.

The conclusion is the same as for the Four-Level pat-

tern, even with 3/4 of the processes being executed in

instances with less processing power, the total execu-

tion time presented an increase up less than 7%.

In terms of price, the execution of an application

with a linear behavior presents advantage in an he-

terogeneous environment. The price per hour of the

H16 cluster is US$ 7.764 and the price per hour of

the heterogeneous cluster is US$ 5.189, a saving of

US$ 2.575 per hour or a 33% reduction of the total

cost.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

254

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62

MPI rank

Time in seconds

Linear, homogeneous

H16

Figure 8: Execution time of ImbBench using the Linear pattern for application load in the homogeneous H16 cluster.

0 2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40 42 44 46 48 50 52 54 56 58 60 62

MPI rank

Time in seconds

Linear, heterogeneous

H16 D16 L16

Figure 9: Execution time of ImbBench using the Linear pattern for application load in the heterogeneous cluster. Ranks 0-31

run on D16, ranks 32-47 on L16, ranks 48-63 on H16.

Summary of Results. Table 2 summarizes the re-

sults of ImbBench using both homogeneous and he-

terogeneous clusters. As we can see in the table, the

performance loss when using the heterogeneous con-

ﬁguration was less than 7% for all the cases. The

only exception is the Amdahl Pattern, where we ob-

served a small performance gain. When analyzing

the cost efﬁciency, the CDP results are better with

the heterogeneous conﬁgurations, with a minimum

gain of 21.23%, which means that this conﬁguration

is 21.23% more cost efﬁcient than the homogeneous

one. If we use the C

DP to focus on the cost of exe-

cution, then the results are much more favorable for

the heterogeneous conﬁgurations, with cost efﬁciency

gains of up to 62.92% compared to the homogeneous

conﬁguration. When the CD

P is used to focus on

execution performance, the results of the heteroge-

neous conﬁgurations presented results up to 39.92%

better than the homogeneous conﬁguration. In terms

of costs, the heterogeneous conﬁgurations were bet-

ween 25% and 38% cheaper than the homogeneous

one, and in a cloud scale these results can have a huge

impact in the user’s budget.

Table 2: Summary of the ImbBench results.

Pattern

Execution Time CDP C

DP CD

Hom. Het. gains Hom. Het. gains Hom. Het. Gains Hom. Het. gains

Two-Level 5.18s 5.51s -5.92% 1.12 0.88 21.23% 2.41 1.41 41.62% 5.79 4.85 16.27%

Four-Level 5.13s 5.49s -6.65% 1.11 0.79 28.40% 2.38 1.14 52.15% 5.67 4.35 23.29%

Amdahl 5.10s 5.05s 0.90% 1.10 0.67 39.38% 2.37 0.88 62.92% 5.61 3.37 39.92%

Linear 5.09s 5.43s -6.35% 1.10 0.73 33.60% 2.37 1.13 52.30% 5.58 4.26 23.78%

Exploiting Load Imbalance Patterns for Heterogeneous Cloud Computing Platforms

255

EP LU MG SP

Benchmark

Cost efﬁciency

CDP -Hom. CDP -Het.

DP -Hom. C

DP -Het. CD

P -Hom. CD

P -Het.

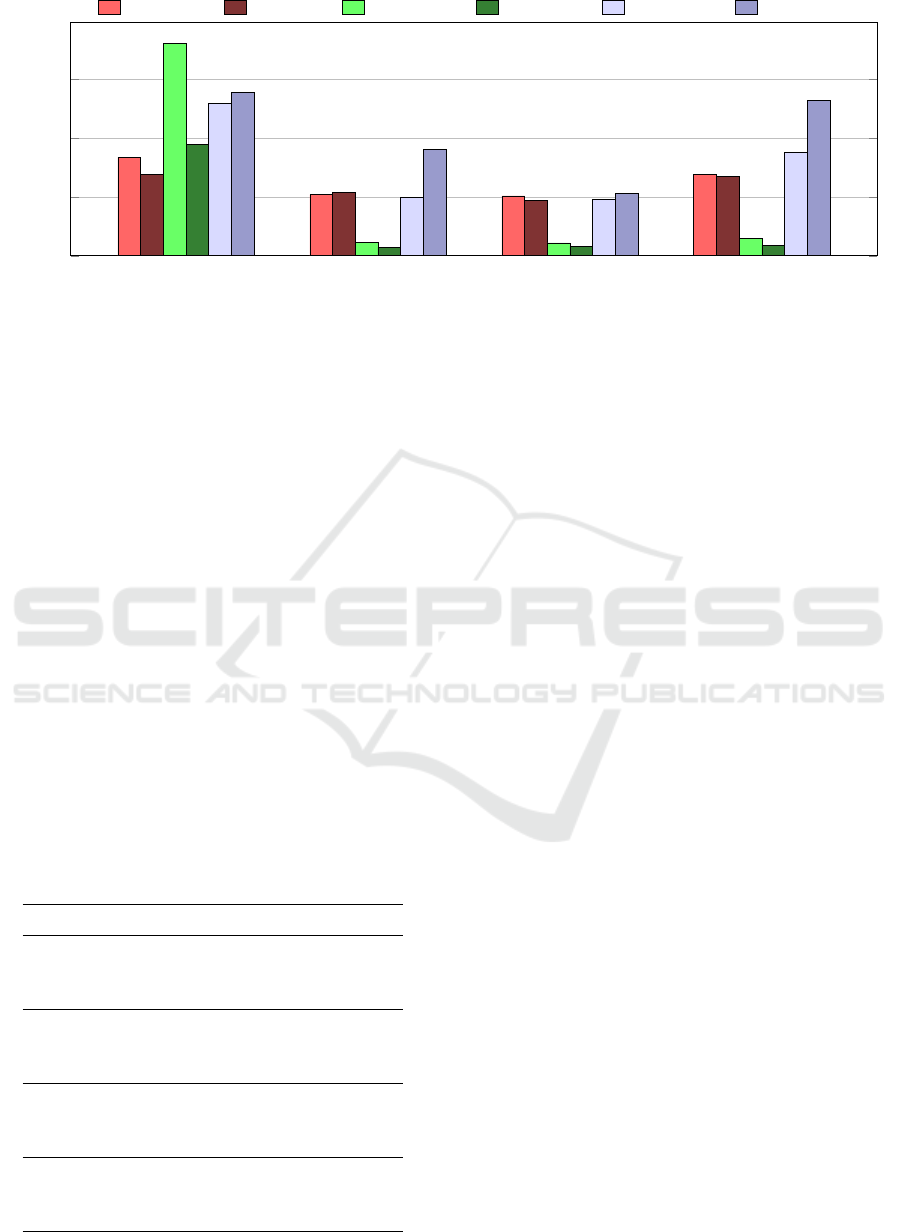

Figure 10: Cost efﬁciency results of the NAS benchmarks. Lower values indicate higher cost efﬁciency.

4 EVALUATION OF THE NAS

PARALLEL BENCHMARKS

After evaluating heterogeneous clouds with Imb-

Bench, we tested whether the heterogeneous con-

ﬁgurations are suitable for real HPC applications.

We chose the MPI version of the NAS suite of pa-

rallel benchmarks (NPB) (Bailey et al., 1991), ver-

sion 3.3.1, which is a widely used workload in the

HPC community. Most applications of NAS show im-

balance patterns similar to the Amdahl and Two-level

patterns discussed in Section 2. From the NAS suite,

we selected the applications with the highest imba-

lance for our evaluation: EP, LU, MG, and SP. We

measure the cost efﬁciency of the execution on the

H16 homogeneous cluster and several mixed instan-

ces, using 64 cores and MPI ranks in all cases, as

before. All the NAS applications were executed 30

times, and we show the average values for the results.

Table 3: Summary of the NAS results.

Name Metric Gains Best het. conﬁguration

EP CDP 17% 1-H16 3-F16

EP C

DP 47% 1-H16 3-F16

EP CD

P -7% 1-H16 3-F16

LU CDP -4% 1-H16 3-L16

LU C

DP 35% 1-H16 3-D16

LU CD

P -38% 1-H16 3-L16

MG CDP 7% 1-H16 3-L16

MG C

DP 27% 1-H16 3-D16

MG CD

P -9% 1-H16 3-L16

SP CDP 2% 1-H16 3-D16

SP C

DP 39% 1-H16 3-D16

SP CD

P -49% 2-H16 2-L16

The results of the four homogeneous H16 instan-

ces and the best heterogeneous conﬁgurations are

shown in Figure 10. As we can see in the ﬁgure, the

applications EP, MG and SP presented better CDP

in the heterogeneous execution than the homogene-

ous. This means that these applications executed in

an acceptable time with a lower cost. As expected the

DP was better in all the four heterogeneous executi-

ons, because its dominant factor is the cost.Regarding

to the CD

P, the homogeneous conﬁgurations were

slightly better in EP and MG and much better in LU

and SP.

The best heterogeneous conﬁguration for LU re-

garding the three metrics was one H16 instance and

three F16 instances. LU performed better for CDP

with a cluster composed of one H16 instance and

three F16 instances. For the C

DP, the best result was

achieved using a conﬁguration with one H16 instance

and three D16 instances, and for the CD

P the best re-

sult was achieved with one H16 and three F16 instan-

ces. The MG application performed better for both

CDP and CD

P using a conﬁguration with one H16

instance and three L16 instances, and for the C

metric the best result was achieved by using a conﬁ-

guration with one H16 and three D16 instances.

SP performed better for the CDP and C

DP by

using a conﬁguration with one H16 and three D16

instances. For the CD

P, the best result was achie-

ved with a conﬁguration of one H16 and three L16

instances. Table 3 summarizes the results of CDP,

DP, and CD

P of NAS. We can conclude that it is

possible to beneﬁt from the cloud heterogeneity and

mix of different instance types to create a more suita-

ble execution environment. As a side conclusion, we

performed several simulations mixing three and four

instance types, but the results were not better than the

ones with two instances for these benchmarks.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

256

5 RELATED WORK

The work of Yeo et al. (Yeo and Lee, 2011) focused

on the provider side. They analyzed how the con-

stant hardware upgrades, made by the providers, in-

troduce heterogeneity in the datacenter. They inves-

tigated how the providers could mitigate this impact

to not affect the cloud users, in terms of performance

and overall quality of service. However, their work

does not allow the cloud tenants to exploit the infor-

mation about the underlying infrastructure to improve

the cost/efﬁciency of their applications.

From the multiple sources of heterogeneity in the

cloud, Crago and Walters (Crago and Walters, 2015)

analyzed how the usage of accelerators such as GPUs

and Xeon Phi coprocessors could be challenging for

the service stack of a cloud datacenter. Their work

showed that heterogeneity may need to be exposed to

users to help them adapt their applications to it and to

improve the quality of service.

Mitigating the load imbalance of parallel and dis-

tributed applications is a well-studied topic (Pearce

et al., 2012). Most solutions focus on software-level

approaches in the application or runtime to distribute

and migrate work among the tasks of the applica-

tion (Blumofe and Leiserson, 1994; Min et al., 2011;

Zhuravlev et al., 2012; Diener et al., 2015a). Such

software approaches are however not possible for all

types of applications, and often incur a runtime over-

head during execution. In this paper, we use the oppo-

site approach to mitigate load imbalance, by adapting

the hardware environment to the imbalance present in

the application. Apart from load imbalance, another

common type of imbalance is the usage of memory

controllers (Dashti et al., 2013; Diener et al., 2015b).

Su et al. (Su et al., 2013) developed a cost-efﬁcient

task scheduling algorithm for executing large pro-

grams in the cloud. Their strategy is to map tasks

to cost efﬁcient VMs while preserving the expected

performance of the application. Their algorithm de-

cides which instance produces the best ratio, but it is

limited because it does not select heterogeneous VM

instances, rather only a single type offered by the pro-

vider. They were able to improve the scheduling time,

but validated their approach using only simulation.

Zhang et al. (Zhang et al., 2014; Zhang

et al., 2015) aim to ﬁnd a deployment with better

cost/performance for MapReduce applications. To

achieve this, they explored the cloud heterogeneity.

They made their validation in Amazon AWS using

MapReduce jobs with no data dependencies between

them. The simulation was made using three different

instance sizes and they try to obtain the same perfor-

mance by reducing the cost of the allocations. Their

results presented a difference in cost when using ho-

mogeneous or heterogeneous deployments. In some

cases, the cost reduction was signiﬁcantly high. Our

work differs, because it includes MPI applications,

and benchmarks with communication between instan-

ces.

Cheng et al. (Cheng et al., 2017) introduced Ant,

a mechanism that adapts MapReduce tasks in hetero-

geneous clusters. The main purpose of Ant is to cus-

tomize the MapReduce tasks with different conﬁgura-

tions to be more suitable for execution in heterogene-

ous nodes, according to their conﬁguration. However,

the authors only took into account the performance

and not the different costs of heterogeneous instan-

ces. Also, their mechanism was developed to work

only with MapReduce tasks. Our work considers the

instance prices and is suitable for a wide range of ap-

plications.

Carre

no et al. (Carre

no et al., 2016) developed a

mechanism that maps the tasks of an application to

cloud instances, taking into account the communi-

cation between the tasks and the network speed be-

tween instances. When a system with several instan-

ces is allocated in the cloud, their mechanism per-

forms a proﬁling of all the instances, analyzing the

network latency among all of them. This information

is used to map the application processes that have a

larger amount of communication and execute them

on instances that have faster network interconnecti-

ons. However, their work used homogeneous clusters,

made of instances of the same type, for each execution

and they did not take computational performance into

account. In our work, we compare the performance

when mixing different types of VMs.

Our previous work (Roloff et al., 2017b; Roloff

et al., 2017a) introduced the concepts of heteroge-

neous clouds and the CDP metric, and showed their

beneﬁts for several NAS applications. In this paper,

we extend this concept by performing an investiga-

tion of which types of imbalance patterns can beneﬁt

from heterogeneous clouds by using an intentionally-

imbalanced benchmark. We also evaluate the advan-

tages of using more than two different instance types

in a single heterogeneous cloud system.

6 CONCLUSIONS AND FUTURE

WORK

When developing HPC applications, a goal is to dis-

tribute the work equally among the tasks. However,

this goal can not always be achieved and a certain

amount of imbalance can be observed in most parallel

applications. Heterogeneous clouds that are compo-

Exploiting Load Imbalance Patterns for Heterogeneous Cloud Computing Platforms

257

sed of different instance types are an interesting way

to execute parallel, load imbalanced applications. In

such a heterogeneous system, tasks with lower com-

putational demands execute on slower but cheaper

machines, while tasks with higher demands execute

on faster but more expensive machines, thus increa-

sing the overall cost efﬁciency of the application.

In this paper, we introduced the Imbalance Ben-

chmark (ImbBench), whose main purpose is to help

users to proﬁle their environment in terms of the he-

terogeneity of the instances, and to discover oppor-

tunities for heterogeneous clouds. During the eva-

luation of ImbBench we discovered that, depending

on the application imbalance pattern, it is possible to

improve the cost efﬁciency of the cloud environment

without or with only a small increase of the execution

time. Our results shown that were possible to incre-

ase the cost efﬁciency up to 63% with less than 7%

of performance reduction. Experiments with the NAS

Parallel Benchmarks showed that these gains can also

be observed with traditional distributed applications.

These results show us that it is possible for users to

take advantage of the heterogeneity offered by cloud

providers.

In the future, we will increase the capabilities of

ImbBench, adding more features, such as a measure-

ment capability of the network performance, memory

operations, and ﬂoating point operations, so that the

environmental proﬁle will be more accurate. We will

extend our evaluation to cover a more diverse environ-

ment as well, by using other cloud providers, a private

cloud, and even the instances with variable costs, such

as the AWS Spot instances. Furthermore, we intend to

develop a mechanism feature to help users take advan-

tage of cloud heterogeneity in an automated way, by

analyzing instance options and application behavior

and providing a recommendation of the most suitable

environment for the users.

ACKNOWLEDGEMENTS

This research received funding from the EU H2020

Programme and from MCTI/RNP-Brazil under the

HPC4E project, grant agreement no. 689772. This re-

search received partial funding from CYTED for the

RICAP Project, grant agreement no. 517RT0529. Ad-

ditional funding was provided by FAPERGS in the

context of the GreenCloud Project.

REFERENCES

Bailey, D. H., Barszcz, E., Barton, J. T., Browning, D. S.,

Carter, R. L., Dagum, L., Fatoohi, R. A., Frederick-

son, P. O., Lasinski, T. A., Schreiber, R. S., et al.

(1991). The nas parallel benchmarks. The Internatio-

nal Journal of Supercomputing Applications, 5(3):63–

73.

Blumofe, R. D. and Leiserson, C. E. (1994). Scheduling

multithreaded computations by work stealing. In Sym-

posium on Foundations of Computer Science (FOCS),

pages 1–29.

Carre

no, E. D., Diener, M., Cruz, E. H. M., and Navaux,

P. O. A. (2016). Automatic communication optimi-

zation of parallel applications in public clouds. In

IEEE/ACM 16th International Symposium on Clus-

ter, Cloud and Grid Computing, CCGrid 2016, Cart-

agena, Colombia, May 16-19, 2016, pages 1–10.

Che, S., Boyer, M., Meng, J., Tarjan, D., Sheaffer, J. W.,

Lee, S. H., and Skadron, K. (2009). Rodinia: A ben-

chmark suite for heterogeneous computing. In 2009

IEEE International Symposium on Workload Charac-

terization (IISWC), pages 44–54.

Cheng, D., Rao, J., Guo, Y., Jiang, C., and Zhou, X. (2017).

Improving performance of heterogeneous mapreduce

clusters with adaptive task tuning. IEEE Transactions

on Parallel and Distributed Systems, 28(3):774–786.

Chohan, N., Castillo, C., Spreitzer, M., Steinder, M., Tan-

tawi, A. N., and Krintz, C. (2010). See spot run: Using

spot instances for mapreduce workﬂows. HotCloud,

10:7–7.

Crago, S. P. and Walters, J. P. (2015). Heterogeneous cloud

computing: The way forward. Computer, 48(1):59–

61.

Dashti, M., Fedorova, A., Funston, J., Gaud, F., Lachaize,

R., Lepers, B., Qu

ema, V., and Roth, M. (2013). Traf-

ﬁc Management: A Holistic Approach to Memory

Placement on NUMA Systems. In Architectural Sup-

port for Programming Languages and Operating Sys-

tems (ASPLOS), pages 381–393.

Diener, M., Cruz, E. H. M., Alves, M. A. Z., Alhakeem,

M. S., Navaux, P. O. A., and Heiß, H.-U. (2015a). Lo-

cality and Balance for Communication-Aware Thread

Mapping in Multicore Systems. In Euro-Par, pages

196–208.

Diener, M., Cruz, E. H. M., and Navaux, P. O. A. (2015b).

Locality vs. Balance: Exploring Data Mapping Poli-

cies on NUMA Systems. In International Conference

on Parallel, Distributed, and Network-Based Proces-

sing (PDP), pages 9–16.

Dong, D., Stack, P., Xiong, H., and Morrison, J. P. (2017).

Managing and unifying heterogeneous resources in

cloud environments. In Proceedings of the 7th Inter-

national Conference on Cloud Computing and Servi-

ces Science - Volume 1: CLOSER,, pages 143–150.

INSTICC, SciTePress.

Dongarra, J. J., Luszczek, P., and Petitet, A. (2003). The

linpack benchmark: past, present and future. Con-

currency and Computation: practice and experience,

15(9):803–820.

CLOSER 2018 - 8th International Conference on Cloud Computing and Services Science

258

Kal

e, L. V. (2002). The virtualization model of parallel pro-

gramming : Runtime optimizations and the state of

art. In LACSI 2002, Albuquerque.

Min, S.-J., Iancu, C., and Yelick, K. (2011). Hierarchical

work stealing on manycore clusters. In Conference on

Partitioned Global Address Space Programming Mo-

dels, pages 1–10.

Pearce, O., Gamblin, T., de Supinski, B. R., Schulz, M., and

Amato, N. M. (2012). Quantifying the effectiveness of

load balance algorithms. In ACM International Con-

ference on Supercomputing (ICS), pages 185–194.

Roloff, E., Diener, M., Carissimi, A., and Navaux, P. O.

(2012). High performance computing in the cloud:

Deployment, performance and cost efﬁciency. In

Cloud Computing Technology and Science (Cloud-

Com), 2012 IEEE 4th International Conference on,

pages 371–378. IEEE.

Roloff, E., Diener, M., Carre

no, E. D., Moreira, F. B., Gas-

pary, L. P., and Navaux, P. O. A. (2017a). Exploi-

ting price and performance tradeoffs in heterogeneous

clouds. In Companion Proceedings of the 10th Inter-

national Conference on Utility and Cloud Computing,

UCC 2017, Austin, TX, USA, December 5-8, 2017, pa-

ges 71–76.

Roloff, E., Diener, M., Diaz Carre

no, E., Gaspary, L. P., and

Navaux, P. O. A. (2017b). Leveraging cloud hetero-

geneity for cost-efﬁcient execution of parallel appli-

cations. In Rivera, F. F., Pena, T. F., and Cabaleiro,

J. C., editors, Euro-Par 2017: Parallel Processing:

23rd International Conference on Parallel and Dis-

tributed Computing, Santiago de Compostela, Spain,

August 28 – September 1, 2017, Proceedings, pages

399–411. Springer International Publishing.

Su, S., Li, J., Huang, Q., Huang, X., Shuang, K., and Wang,

J. (2013). Cost-efﬁcient task scheduling for execu-

ting large programs in the cloud. Parallel Computing,

39(4–5):177 – 188.

Yeo, S. and Lee, H. H. (2011). Using mathematical mo-

deling in provisioning a heterogeneous cloud compu-

ting environment. Computer, 44(8):55–62.

Zhang, Z., Cherkasova, L., and Loo, B. T. (2014).

Exploiting cloud heterogeneity for optimized

cost/performance mapreduce processing. In Procee-

dings of the Fourth International Workshop on Cloud

Data and Platforms, CloudDP ’14, pages 1:1–1:6,

New York, NY, USA. ACM.

Zhang, Z., Cherkasova, L., and Loo, B. T. (2015). Ex-

ploiting cloud heterogeneity to optimize performance

and cost of mapreduce processing. SIGMETRICS Per-

form. Eval. Rev., 42(4):38–50.

Zhuravlev, S., Saez, J. C., Blagodurov, S., Fedorova, A., and

Prieto, M. (2012). Survey of Scheduling Techniques

for Addressing Shared Resources in Multicore Proces-

sors. ACM Computing Surveys (CSUR), 45(1):1–32.

Exploiting Load Imbalance Patterns for Heterogeneous Cloud Computing Platforms

259
