The Impact of Clustering for Learning Semantic Categories

Mário Antunes

, Diogo Gomes

1,2

and Rui L. Aguiar

1,2

Instituto de Telecomunicações, Universidade de Aveiro, Aveiro, Portugal

DETI, Universidade de Aveiro, Aveiro, Portugal

Keywords:

Clustering, Text Mining, Machine Learning, IoT, M2M, Context Awareness.

Abstract:

The evergrowing number of small devices with sensing capabilities produce massive amounts of diverse data.

However, it becomes increasingly difﬁcult to manage all these new data sources. Currently, there is no sin-

gle way to represent, share, and understand IoT data, leading to information silos that hinder the realization

of complex IoT/M2M scenarios. IoT/M2M scenarios will only achieve their full potential when the devices

become intelligent: communicate, work and learn together with minimal human intervention. Pursuing these

goals, we developed methods to estimate semantic similarity based on distributional proﬁles. Cluster algo-

rithms were used to learn semantic categories and improve the model accuracy. In this paper, we discuss the

impact of the clustering algorithm and respective heuristic to estimate input parameters for the task of learning

semantic categories. Our evaluation has shown that K-means combined with silhouette methods achieved the

higher result.

1 INTRODUCTION

Mining information from data has been the main

task of computers over the past years. Yet, the fo-

cus is shifting, computers of the near future will be

used to extract knowledge from information. This

shift can be explained by the ever-growing number

of devices, a direct consequence of the Internet of

Things (IoT) (Wortmann et al., 2015) and machine-

to-machine (M2M) (Chen and Lien, 2014).

The sheer volume and complexity of data make it

difﬁcult to extract possible relevant information and

knowledge. Data gathered by these devices has no

value in its raw state, it must be analysed, interpreted

and understood. Context-awareness computing plays

an important role in tackling this issue (Perera et al.,

2014), and is an intrinsic property of IoT and M2M

scenarios.

In IoT and M2M scenarios, its possible to learn/

detect an entity’s context by combining data from

multiple sources. An entity’s context can them be

used to provide added value: improve efﬁciency, op-

timize resources and detect anomalies. However, re-

cent projects still follow a vertical approach (Fantacci

et al., 2014; Robert et al., 2016; Datta et al., 2016).

Devices/manufacturers do not share context informa-

tion, or share it with a different structure, leading

to low interoperability and information silos respec-

tively. This has hindered interoperability and the re-

alization of even more powerful IoT scenarios, which

are being pursued mostly by large corporations with a

dominant market position and considerable resources

(e.g. Google, Amazon and Microsoft). Another im-

portant issue is the need felt for a new way to manage,

store and process such diverse machine made con-

text information; unconstrained and without limiting

structures. The full potential of IoT and M2M sce-

narios will only be achieved when we overcome these

limitations.

In previous publications, we addressed the above-

mentioned issues and developed an organization

model that relies on machine learning features to

organize context information. At the time we ex-

plored two types of features: semantic (Antunes et al.,

2017a) and stream similarity (Jesus et al., 2017).

Regarding semantic similarity, we developed a

model named Distributional Proﬁle of Word Cate-

gories (DPWC) and an unsupervised method to learn

the model from common web services, such as search

engines. The learning method uses clustering al-

gorithms to identify word categories automatically

(word category is closely related to concepts and the

possible meaning of a word). Our prototype relied on

k-means to cluster the distributional proﬁle into cate-

gories. However, the algorithm has two main disad-

vantages: is not deterministic and requires the num-

320

Antunes, M., Gomes, D. and Aguiar, R.

The Impact of Clustering for Learning Semantic Categories.

DOI: 10.5220/0006813603200327

In Proceedings of the 3rd International Conference on Internet of Things, Big Data and Security (IoTBDS 2018), pages 320-327

ISBN: 978-989-758-296-7

ber of clusters a priori. In this paper, we explore other

clustering methods and study their impact on category

learning. Since the DPWC learning method is unsu-

pervised, we are interested in automatic methods to

estimate the clustering parameters.

The remainder of the paper is organized as fol-

lows. In Section 2 we detail our context organization

model. Section 3 summarizes the DPWC semantic

model. An overview of clustering algorithms is given

in Section 4. In Section 5 we discuss the clustering

algorithms and parameters’ estimation heuristic used.

Section 6 gives important details about our prototype.

The results of our evaluation are given in Section 7.

Finally, discussion and conclusions are presented in

Section 8.

2 CONTEXT ORGANIZATION

MODEL

Context information is an enabler for further data

analysis, potentially exploring the integration of an

increasing number of information sources. Com-

mon deﬁnitions of context information (Abowd et al.,

1999; Dey, 2001) do not provide any insight about its

structure. In fact, each device can share context infor-

mation with a different structure. One important ob-

jective of context representation is to standardize the

process of sharing and understanding context infor-

mation. However, nowadays no widely accepted con-

text representation scheme exists; instead, there are

several approaches to deal with context information.

These can be divided into three categories: i) adopt/

create a new context representation, ii) normalize the

storing process through ontologies, iii) accept the di-

versity of context representations.

We accepted the diversity of context representa-

tion as a consequence of economic pressures and de-

vised a bottom-up model (Antunes et al., 2016) to or-

ganize context information without enforcing a spe-

ciﬁc representation. Our organization model is di-

vided into four main parts, as depicted in Figure 1.

The ﬁrst two components represent the structured part

of our model and account for the source ID and ﬁxed

d-dimensions respectively. These d-dimensions al-

low human users to select information based on time,

location or even other dimensions and can be under-

stood as an OLAP cube helping in the process of ﬁl-

tering information. The remaining components of our

model extract information from the content itself and

organize it based on semantic and stream similarity.

This paper focuses on semantic features, especially

the impact of clustering on category detection.

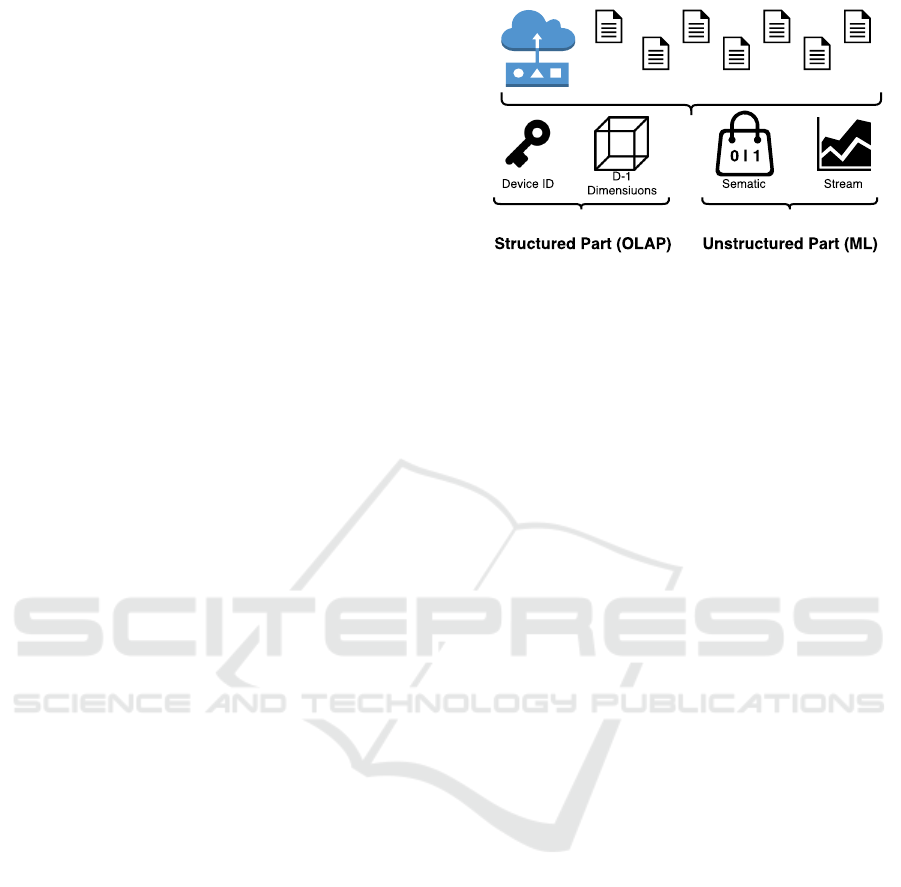

Figure 1: Context organization model based on semantic

and stream similarity.

3 DISTRIBUTIONAL PROFILE

OF WORD CATEGORIES

Semantic distance/similarity is a property of lexical

units, typically between words but this notion can be

generalized to larger units such as phrases, sentences,

etc. Two words are considered semantically close

if there is a lexical semantic relation between them.

There are two types of lexical relations: classical re-

lation (such as synonyms, antonyms and hypernymy)

and ad-hoc non-classical relation (such as cause-and-

effect). If the closeness in meaning is due to a certain

classical relation, then the terms are said to be seman-

tically similar. On the other hand, semantic relat-

edness is the term used to describe the more general

form of semantically closeness caused by any seman-

tic relation. For instance the nouns liquid and water

are both semantically similar and related, whereas the

nouns water and boat are semantically related but not

similar.

Semantic features allow us to estimate similarity

between concepts. This similarity allows us to orga-

nize, extract and cluster information based on con-

cepts and not on sub-strings nor regular expressions.

In other words, the devices are able to autonomously

learn concepts and not only strings. These concepts

provide latent knowledge to the underlying informa-

tion and do not depend on human users or context

representation. This is especially important for IoT/

M2M scenarios. IoT/M2M devices share a diverse

amount of data.

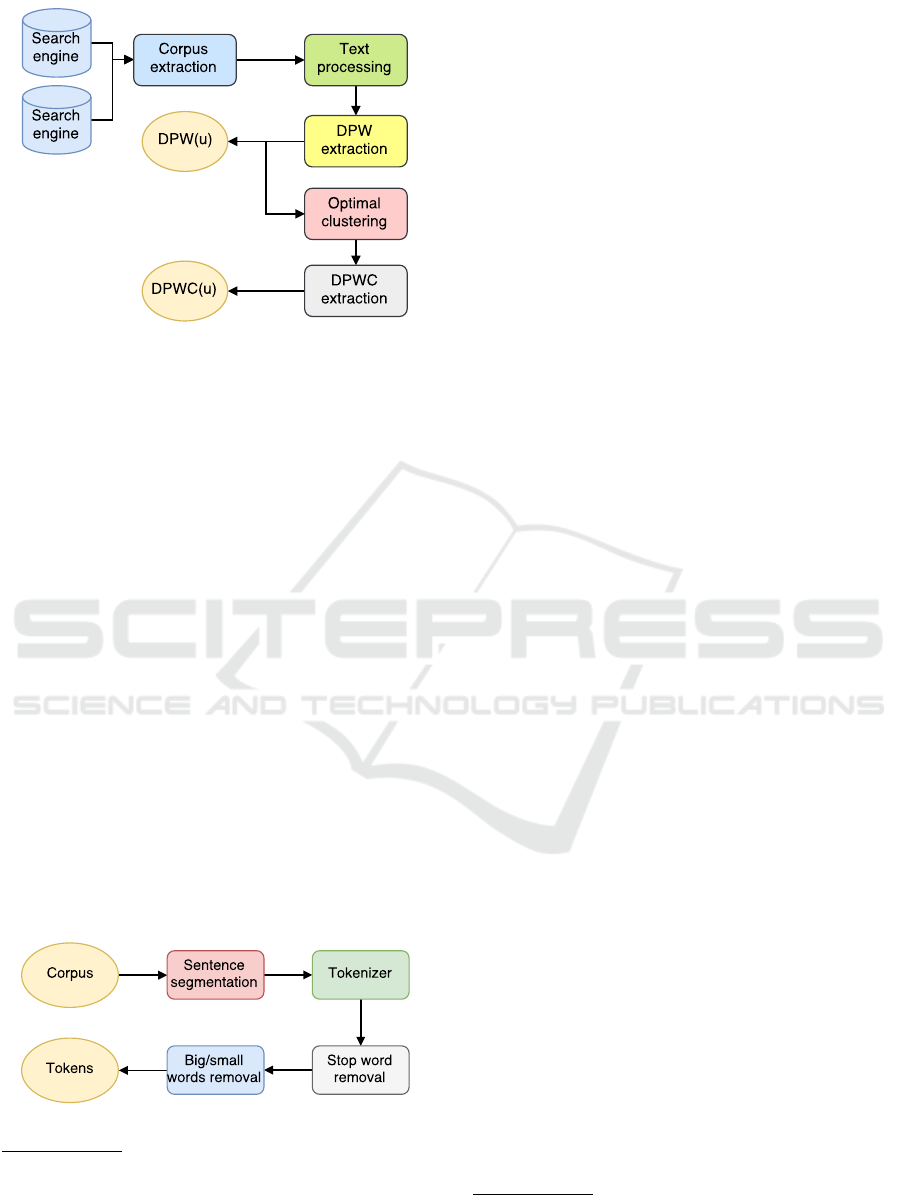

Given a target word u we use public web services,

namely search engines, to gather a potentially relevant

corpus and extract the word u distributional proﬁle.

The proﬁle is built based on proximity, which means

if a word w is within the neighbourhood of a target

word u it is properly processed and extracted. This

distributional proﬁle of a word (DPW ) is deﬁned as

The Impact of Clustering for Learning Semantic Categories

321

DPW(u) = {w

, f (u, w

);...;w

, f (u, w

)} (1)

where u is the target word, w

are words that oc-

cur within the neighbourhood of u and f stands for

co-occurrence frequency (can be generalized for any

strength of association metric). A distributional pro-

ﬁle can also be interpreted as a vector that represents

a point in high dimensional space, each word w

rep-

resent a dimension and f (u, w

) represents its value in

that dimension. From this point onward we will refer

to words inside a DPW as dimensions. We evaluate

the similarity between two DPW with cosine similar-

ity:

S(u, v) =

∑

i=1

f (u, w

) × f (v, w

)

∑

i=1

f (u, w

)

∑

i=1

f (v, w

)

(2)

Other similarity measures can be used, however co-

sine is invariant to scale, which means it does not take

into account the vector’s magnitude, only their direc-

tion. This property is important for unbalanced cor-

pus, such as corpus in M2M scenarios or corpus gath-

ered from web services (due to the ranking algorithms

used by web-services).

Although public web services offer some impor-

tant advantages, they also have some disadvantages.

Distributional proﬁles can be noisy and contain sev-

eral dimensions with low relevance. A dimension

with low relevance is a dimension with a low value

of co-occurrence frequency ( f (u, w

)). The com-

bined weight of several low relevance dimensions can

change the direction of the word vector and damage

the cosine similarity. Also, a proﬁle can contain sev-

eral senses of the target word (sense-conﬂation). Mul-

tiple words senses in a single proﬁle may also change

the word vector direction and decrease accuracy, lim-

iting the potential of this method.

In order to minimize the above-mentioned issues,

we propose using clustering (overview of clustering

methods in Section 4) on the distributional proﬁle to

identify categories/word senses. The rationale is that

dimensions belonging to the same category are closer

to each other than words from other categories. Clus-

tering methods require a distance metric in order to

group similar elements. Co-occurrence was used as

a distance metric to cluster the dimensions into cate-

gories.

It is important to mention that the clusters do

not represent word senses from a Roget-style the-

saurus (Jarmasz and Szpakowicz, 2004). Which

means that there is not a one-to-one relation between

the clusters and a word in a thesaurus. Conceptually

the clusters are more similar to categories in latent se-

mantic analysis, and may not have a correspondence

to our human perception. Since a cluster may not rep-

resent a classical word sense, from this point onward

we will refer to them as categories. One implication

of this statement is that some clusters represent high

relevance categories, while others represent low rel-

evance categories. Consider the following scenario,

two target words u and v are not related but may end

up with the same low relevance category. These cate-

gories match with each other and produce a false pos-

itive.

In order to minimize this issue, our model incor-

porates an afﬁnity value between the target word and

each category (can be understood as a bias) that mea-

sures the natural tendency from a word to be used

as a speciﬁc category. The afﬁnity is computed as

the average similarity between the target word and all

the cluster’s elements. After the clustering and com-

puting the afﬁnity of the target word to each cluster,

the distributional proﬁle of multiple words categories

(DPWC) is extracted from the DPW and grouped ac-

cording to the clusters obtained. After computing all

the afﬁnity values, they are normalized between ]0, 1]

with the following expression

max(a)

(3)

The proﬁle is deﬁned as follows:

DPWC(u) =







; DPW

(u)

...

; DPW

(u)







(4)

where u is the target word, DPW

(u) is the distribu-

tional proﬁle for the word category i and a

is the

afﬁnity between u and a word category.

Finally, the similarity between two DPWC is

given by the following expression

S(u, v) = max(cosine(u

, v

) × (a

+ a

2)) (5)

where u

and v

represent a speciﬁc category from

u and v respectively and a represents the category’s

afﬁnity. Our ﬁnal similarity measure is the maxi-

mum similarity between all the possible categories

weighted by the average category’s afﬁnity. By in-

corporating afﬁnities our model minimizes the effect

of low relevance categories.

4 BACKGROUND AND RELATED

WORK

Machine learning provides methods that automati-

cally learn from data and accurately predict future

data based on what we learn from current obser-

vations (generalization). In classiﬁcation tasks, we

have a labelled set of training points, and we learn

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

322

the grouping structure in a supervised way. In other

words, classiﬁcation tries to predict the label of (un-

labelled) data. However, when a labelled set is not

available, it is possible to groups data into ”natural“

categories without class labels. This task is named

clustering.

Cluster algorithm deals with ﬁnding some struc-

ture in a collection of unlabeled data, as such are con-

sidered unsupervised learning. A loose deﬁnition of

clustering could be the process of “organizing objects

into groups whose members are similar in some way”.

A cluster is a collection of objects which are “simi-

lar” between them and are “dissimilar”to the objects

belonging to other clusters. In simple words, the aim

is to segregate groups with similar traits and assign

them into clusters.

Clustering algorithms can be organized into sev-

eral taxonomies, one of the most common character-

izations is by the underlying model. In the following

list, we present four classes of clustering algorithms.

1. Connectivity-based clustering: Or hierarchical

clustering, these models are based on the notion

that closer data points exhibit more similarity to

each other than the points lying farther away.

These models can follow two approaches. In the

ﬁrst approach, they start with classifying all data

points into separate clusters & then aggregating

them as the distance decreases. In the second

approach, all data points are classiﬁed as a sin-

gle cluster and then partitioned as the distance in-

creases. Also, the choice of distance function is

subjective. These models are very easy to inter-

pret but lacks scalability for handling big datasets.

Examples of these models are hierarchical cluster-

ing algorithm (Ward, 1963) and its variants.

2. Centroid-based models: These are iterative clus-

tering algorithms in which the notion of similarity

is derived by the closeness of a data point to the

centroid of the clusters. The number of clusters is

required beforehand, which makes it important to

have prior knowledge about the dataset. K-Means

clustering algorithm (Lloyd, 1982) is a popular al-

gorithm that falls into this category.

3. Distribution-based models: These clustering

models are based on the notion of how probable

is it that all data points in the cluster belong to

the same distribution (e.g. Normal, Gaussian). A

popular example of these models is Expectation-

maximization algorithm (Dempster et al., 1977)

which uses multivariate normal distributions.

4. Density-based Models: These models search the

data space for areas with high density of data

points. It isolates them into different density re-

gions and assign the data points within these re-

gions to the same cluster. Popular examples of

density models are DBSCAN(Ester et al., 1996)

and OPTICS(Ankerst et al., 1999).

In Section 5 we discuss the algorithms considered

and the parameters’ estimation heuristics evaluated.

5 LEARN SEMANTIC

CATEGORIES THROUGH

CLUSTERING

As previously stated, we use clustering algorithms to

learn semantic categories from distributional proﬁles.

This minimizes the issue of sense-conﬂation and im-

proves the semantic similarity estimation. However,

most clustering algorithms require ﬁne-tuning in or-

der to achieve good results.

In this paper, we discuss the impact of clustering

algorithm and the possible methods to estimate the

initial parameters on the task of learning categories.

In our previous work (Antunes et al., 2017a) we used

K-means++ (Arthur and Vassilvitskii, 2007) with a

method for estimating the number of clusters simi-

lar to gap statistics (Tibshirani et al., 2001), without

having to generate reference features based on the el-

ements to compare the clustering with a uniform sam-

ple. The framework used was proposed in (Pham

et al., 2005).

Although this combination provided good results,

it is unstable. Since k-means algorithm is not deter-

ministic, each time it is executed can lead to different

results. One way to deal with this issue is to run the

algorithm several times and only consider the set of

clusters with lower distortion, the obvious drawback

is the performance penalty.

With this in mind, we intended to explore alter-

native clustering algorithms. The ideal cluster al-

gorithm should be reasonably fast (if possible deter-

ministic) and require little no none initial parameters.

Hierarchical-based and Distribution-based clustering

are not ideal techniques for this task. Hierarchical-

based clustering is computationally expensive and re-

quires a method to extract cluster from the hierar-

chy. DPW models are highly dimensional by na-

ture, meaning that parameter estimation is rather dif-

ﬁcult. Distribution-based clustering requires a distri-

bution model to ﬁt the data points. As mentioned,

the high dimensionality associated with DPW makes

it difﬁcult to ﬁt a distribution. Taking this into ac-

count we selected for this evaluation three algorithms:

K-means++, DBSCAN and Fast Greedy Clustering

(FGC).

The Impact of Clustering for Learning Semantic Categories

323

K-means++ only requires the number of clusters

a priori. Several algorithms can be used to esti-

mate this parameter, we evaluated the following ap-

proaches. Elbow method, this method computes the

distortion for each set of clusters, it takes into account

the percentage of variance explained as a function of

the number of clusters: one should choose a number

of clusters so that adding another cluster doesn’t give

much better modelling of the data. More precisely,

if one plots the average distortion against the num-

ber of clusters. The ﬁrst clusters will add much in-

formation, but at some point the marginal gain will

drop, giving an angle in the graph (named “elbow”).

We used Kneedle algorithm (Satopaa et al., 2011) to

identify the elbow. Average silhouette method, this

approach measures the quality of a clustering, it de-

termines how well each object lies within its cluster.

It uses a metric named silhouette (Rousseeuw, 1987),

a high average silhouette width indicates a good clus-

tering. Average silhouette method computes the aver-

age silhouette for different values of k. The optimal

number of clusters k is the one that maximizes the av-

erage silhouette. Finally, gap statistics can be used

to estimate the ideal number of clusters, as mentioned

we used an alternative framework to achieve the same

result.

DBSCAN clusters data points based on point den-

sity, one important advantage is that it can produce

cluster with any shape. It requires two parameters,

ε and minPts. ε is the maximum distance it uses to

search for neighbour data points, and minPts is the

minimal number of neighbours to be considered a

dense region. Unfortunately, to the best of our knowl-

edge, there is no method or heuristic to identify these

two parameters. As a rule of thumb, a minimum

minPts can be derived from the number of dimensions

D in the dataset, however, the nature of DPW makes it

difﬁcult to select the ideal minPts. Although distribu-

tional proﬁles are highly dimensional, there are few

data points. In fact, each data point is a dimension,

the number of data points is equal to the number of

dimensions. However, it is possible to select the ideal

ε based on the number of minPts. The value for ε can

then be chosen by using a k-distance graph, plotting

the average distance to the k nearest neighbours or-

dered from the largest to the smallest value (Schubert

et al., 2017). Good values of ε are where this plot

shows an “elbow”, again we used the Kneedle algo-

rithm to automatically identify the “elbow”. In our

evaluation, we tested several values of minPts (from

3 to 5, more than 5 isn’t relevant since almost no data

point had 6 neighbours), and returned the set of clus-

ters with lower distortion.

FGC is a clustering algorithm developed for a spe-

ciﬁc scenario (Antunes et al., 2017b), cluster GPS

data points to identify potholes. Algorithm 1 de-

scribes in detail the inner-workings of the method.

It is a cross between DBSCAN and K-means, iter-

ates over the points a single time to identify poten-

tial pairs but only merges them if the resulting clus-

ter does not invalidate the radius parameters. It has

two advantages, it automatically identiﬁes the num-

ber of clusters and only requires a single parameter,

a maximum radius for the clusters. This parameter

controls the growth of each cluster. We evaluated

two different heuristics to estimate the radius. The

ﬁrst one was similar to the DBSCAN method, ﬁxed

a number of neighbours and selected the ideal el-

bow from a k-distance graph. Tested several values

of neighbours, and selected the ones that generate a

cluster with smaller distortion. The second one esti-

mated the radius based on threshold algorithms, these

types of algorithm separate data points in two differ-

ent groups (high and low groups). These methods are

used in image processing to convert a grey scale im-

age into black and white. The algorithm used to esti-

mate the ideal threshold was IsoData (Ridler and Cal-

vard, 1978), due to its simplicity this algorithm can be

adapted to several use cases.

Algorithm 1: Fast Greedy Clustering Algorithm.

1: function CLUSTERING(points, radius)

2: kdTree ← KDTree.init(points, radius)

3: pairs ← {}

4: for each p ∈ points do

5: neighbours ← kdTree.near(p, radius)

6: pairs ← pairs + neighbours

7: end for

8: clusters ← {}

9: for each p ∈ pairs do

10: c ← f indClosestCluster(cluster s, p)

11: if maxRadius(c + p) < radius then

12: c ← c + p

13: end if

14: end for

15: return clusters

16: end function

6 IMPLEMENTATION

In this section, we discuss some relevant details about

our prototype implementation. Our prototype is di-

vided into 5 different components as depicted in Fig-

ure 2. All the components were written in Java.

The ﬁrst component (corpus extraction) bridges

our solution with web search engines. Given a target

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

324

Figure 2: Proposed DP extraction system’s architecture.

word u our prototype uses web search engines to ex-

tract its DPW (u) and DPWC(u). It can be used with

any search engine, and currently it uses three: Fa-

roo

, Yacy

and Searx

. This component basic func-

tion is to extract a corpus from search engines. The

corpus is composed of snippets returned by search-

ing for the target word. In a previous work (Antunes

et al., 2017a) we compared the impact of using only

snippets against the full web-pages. We observed that

snippets contain enough information to build reliable

DPWs.

The second component (text processing) imple-

ments a preprocessing pipeline that cleans the corpus

and divides it into tokens. The various spaces of the

pipeline are depicted in Figure 3. First the snippets

are tokenized and the resulting tokens are ﬁltered us-

ing a stop word ﬁlter. Stop words are deemed irrel-

evant because they occur frequently in the language

and provide little information. We used the MySQL

stop word list

. For the exact same reason, we also

remove tokens that are too big or too small: any token

with less than 3 or more than 14 (9 being the average

word length in English) characters was removed from

the pipeline.

Figure 3: Text processing pipeline.

http://www.faroo.com/hp/api/api.html

http://yacy.net/en/index.html

https://searx.me/

https://dev.mysql.com/doc/refman/5.1/en/fulltext-

stopwords.html

The DPW extraction component analyses the out-

put of the pipeline and extracts the DPW of the tar-

get word u. After extracting the DPW , we cluster the

proﬁle dimensions based on co-occurrence similar-

ity. The methods discussed in Section 5 were imple-

mented and used at turns for the evaluation. Finally,

the DPWC component uses the DPW and the clusters

to return the DPWC(u) of the target word, this com-

ponent also computes the afﬁnity between the target

word and each category.

7 PERFORMANCE EVALUATION

We evaluate our model against Miller-Charles

dataset (Miller and Charles, 1991), the reference

dataset for semantic similarity evaluation. It is com-

posed of 30 word-pairs rated by a group of 38 human

subjects. The word pairs are rated on a scale from 0

(no similarity) to 4 (perfect synonymy).

To the best of our knowledge, there is no seman-

tic dataset speciﬁcally for IoT/M2M available. In or-

der to evaluate our semantic features against IoT vo-

cabulary, we devised one. We mined a popular IoT

plaform

to extract the most commonly used terms

(ranked by term frequency). The 20 most used terms

were collected and organized into 30 word pairs. Each

pair was rated on a scale from 0 to 4 by ﬁve fellow

researchers. Although not as comprehensive as the

Miller-Charles dataset, our still reach 0.8 correlation

amongst human classiﬁcation. In a future work, we

intend to further explore and improve our dataset. The

ﬁnal similarity of each pair is the average of the previ-

ously stated rates. This dataset is publicly available

and can be used by other researchers.

Correlation between sets of data is a measure of

how well they are related. The correlation r can range

from −1 to 1. A r of −1 indicates a perfect nega-

tive linear relationship between variables, an r of 0

indicates no linear relationship between variables, ﬁ-

nally and an r of 1 indicates a perfect positive linear

relationship between variables. In short, the highest

correlation indicates the most accurate solution.

We evaluated the performance of DPW(u) and

DPWC(u) (using multiple clustering algorithms).

Our models were learned from a corpus formed from

the top 300 snippets returned by three search engines:

Faroo, Yacy and Searx.

The results of the evaluation using Miller-Charles

and IoT dataset are listed in Table 1 and Table 2

respectively. The optimal neighbourhood’s size for

ThingSpeak: https://thingspeak.com/

https://github.com/mariolpantunes/ml/blob/master/src/

main/resources/en-iot-30.csv

The Impact of Clustering for Learning Semantic Categories

325

Miller-Charles and IoT dataset appears to be 7 and 5

respectively. K-means with silhouette method outper-

forms the other clustering algorithms. In our tests, it

proved to be more stable and robust than the statis-

tic framework. The statistic framework appears to

be less robust than the non-deterministic behaviour

of the clustering algorithm. Through manual veriﬁ-

cation, we veriﬁed that when the clusters better repre-

sent semantic categories all three methods preformed

well. However, the overall quality of the clusters de-

creased when elbow and statistic methods have dif-

ﬁculty in identifying the correct number of clusters.

Both DBSCAN and FGC generate a single cluster

with all the data points. As mentioned, the high di-

mensionality associated with DPW proﬁles leads to a

classical curse of dimensionality problem. Since each

data point is also a dimension, it becomes a highly di-

mensional clustering problem with few examples. In

short, the heuristic used to estimate the optimal dis-

tances (either ε or radius) selected a distance large

enough to group all the data points into a single clus-

ter.

In a future publication, we will address this is-

sue and devise new methods to correctly estimate the

distance for DBSCAN and FGC for this speciﬁc sce-

nario. In the mean time, k-means combined with aver-

age silhouette method appears to be the ideal method

to learn semantic categories from distributional pro-

ﬁles.

Table 1: Performance evaluation on Miller-Charles dataset.

Neighborhood size

Methods 3 5 7

DPW 0.32 0.37 0.45

DPWC (k-means elbow) 0.37 0.27 0.25

DPWC (k-means silhouette) 0.34 0.45 0.61

DPWC (k-means statistic) 0.28 0.41 0.46

DPWC (DBSCAN elbow) 0.32 0.37 0.45

DPWC (FGC elbow) 0.32 0.37 0.45

DPWC (FGC IsoData) 0.32 0.37 0.45

Table 2: Performance evaluation on IoT dataset.

Neighborhood size

Methods 3 5 7

DPW 0.25 0.38 0.32

DPWC (k-means elbow) 0.35 0.32 0.39

DPWC (k-means silhouette) 0.37 0.51 0.39

DPWC (k-means statistic) 0.15 0.19 0.29

DPWC (DBSCAN elbow) 0.25 0.38 0.32

DPWC (FGC elbow) 0.25 0.38 0.32

DPWC (FGC IsoData) 0.25 0.38 0.32

8 CONCLUSIONS

The number of IoT devices is increasing at a steady

step. Each one of them capable of generating mas-

sive amounts of diverse data. However, each device/

manufactures share context information with a dif-

ferent structure, hindering interoperability in IoT and

M2M scenarios.

In a previous publication, we developed a model

named Distributional Proﬁle of Word Categories

(DPWC) and an unsupervised method to learn the

model from common web services, such as search

engines. The learning method uses clustering al-

gorithms to identify word categories automatically

(word category is closely related to concepts and the

possible meaning of a word). The implementation re-

lied on k-means to cluster the distributional proﬁle

into categories. However, there are several cluster-

ing algorithms, each one of them with speciﬁc advan-

tages. It is important to mention the high dimension-

ality associated with DPW distributional proﬁles. In

this paper, we explore the impact of clustering on cat-

egory detection. Since the DPWC learning method

is unsupervised, we are also interested in automatic

methods to estimate the clustering parameters.

For our evaluation, we selected k-means, DB-

SCAN and FGC as good candidates to learn seman-

tic categories. Each of them has at least a heuristic

to estimate the ideal parameters. All of them were

evaluated using two different datasets Miller-Charles

dataset (Miller and Charles, 1991) and an IoT seman-

tic dataset. Based on our results we can state that k-

means combined with silhouette method appears to

be the ideal combination to learn semantic categories.

The other two clustering algorithms appear to suffer

from the curse of dimensionality and outputted a sin-

gle cluster with all the data points. This implies that

the heuristics used were not able to capture the rele-

vant characteristics.

There is still room for improvement, hypernyms

can be used to learn more abstract dimensions im-

proving performance and decrease the size of each

distributional proﬁle. Non-negative matrix factoriza-

tion can also be used to discover latent semantic infor-

mation in distributional proﬁles and increase accuracy

(by estimating the value of dimensions with value

zero). Furthermore, other elbow detection method can

be devised and tested. This algorithm has a crucial

role is selecting the ideal ε and radius for DBSCAN

and FGC respectively. We intend to explore several

of the previous mentions optimizations and improve

our model. Nevertheless, our model was able to learn

distributional proﬁles from a small corpus, achieving

a relatively high accuracy on both datasets.

IoTBDS 2018 - 3rd International Conference on Internet of Things, Big Data and Security

326

ACKNOWLEDGEMENTS

The present study was developed in the scope of

the Smart Green Homes Project [POCI-01-0247-

FEDER-007678], a co-promotion between Bosch

Termotecnologia S.A. and the University of Aveiro.

It is ﬁnanced by Portugal 2020 under the Competitive-

ness and Internationalization Operational Program,

and by the European Regional Development Fund.

This work was also partially supported by research

grant SFRH/BD/94270/2013.

REFERENCES

Abowd, G. D., Dey, A. K., Brown, P. J., Davies, N., Smith,

M., and Steggles, P. (1999). Towards a better under-

standing of context and context-awareness. In Proc.

of the 1st international symposium on Handheld and

Ubiquitous Computing, pages 304–307.

Ankerst, M., Breunig, M. M., Kriegel, H.-P., and Sander, J.

(1999). OPTICS: ordering points to identify the clus-

tering structure. ACM SIGMOD Record, 28(2):49–60.

Antunes, M., Gomes, D., and Aguiar, R. L. (2016). Scalable

semantic aware context storage. Future Generation

Computer Systems, 56:675–683.

Antunes, M., Gomes, D., and Aguiar, R. L. (2017a). To-

wards IoT data classiﬁcation through semantic fea-

tures. Future Generation Computer Systems.

Antunes, M., Gomes, D., Barraca, J. P., and Aguiar, R. L.

(2017b). Vehicular dataset for road assessment condi-

tions. In Procedings in the third IEEE Annual Inter-

national Smart Cities Conference (ISC2 2017).

Arthur, D. and Vassilvitskii, S. (2007). K-means++: The

advantages of careful seeding. In Proceedings of the

Eighteenth Annual ACM-SIAM Symposium on Dis-

crete Algorithms, SODA ’07, pages 1027–1035. So-

ciety for Industrial and Applied Mathematics.

Chen, K.-C. and Lien, S.-Y. (2014). Machine-to-machine

communications: Technologies and challenges. Ad

Hoc Networks, 18:3–23.

Datta, S. K., Bonnet, C., Costa, R. P. F. D., and Härri, J.

(2016). Datatweet: An architecture enabling data-

centric iot services. In 2016 IEEE Region 10 Sym-

posium (TENSYMP), pages 343–348.

Dempster, A. P., Laird, N. M., and Rubin, D. B. (1977).

Maximum likelihood from incomplete data via the

EM algorithm. Journal of the Royal Statistical So-

ciety, Series B, 39(1):1–38.

Dey, A. K. (2001). Understanding and using context. Per-

sonal and Ubiquitous Computing, 5(1):4–7.

Ester, M., Kriegel, H.-P., Sander, J., and Xu, X. (1996).

A density-based algorithm for discovering clusters a

density-based algorithm for discovering clusters in

large spatial databases with noise. In Proceedings of

the Second International Conference on Knowledge

Discovery and Data Mining, KDD’96, pages 226–

231. AAAI Press.

Fantacci, R., Pecorella, T., Viti, R., and Carlini, C. (2014).

Short paper: Overcoming iot fragmentation through

standard gateway architecture. In 2014 IEEE World

Forum on Internet of Things (WF-IoT), pages 181–

182.

Jarmasz, M. and Szpakowicz, S. (2004). Roget’s thesaurus

and semantic similarity. In Recent Advances in Nat-

ural Language Processing III, page 111. John Ben-

jamins Publishing Company.

Jesus, R., Antunes, M., Gomes, D., and Aguiar, R. (2017).

Extracting knowledge from stream behavioural pat-

terns. In Proceedings of the 2nd International Con-

ference on Internet of Things, Big Data and Security.

SCITEPRESS - Science and Technology Publications.

Lloyd, S. (1982). Least squares quantization in pcm. In-

formation Theory, IEEE Transactions on, 28(2):129–

137.

Miller, G. A. and Charles, W. G. (1991). Contextual corre-

lates of semantic similarity. Language and Cognitive

Processes, 6(1):1–28.

Perera, C., Zaslavsky, A., Christen, P., and Georgakopoulos,

D. (2014). Context aware computing for the internet

of things: A survey. IEEE Communications Surveys

Tutorials, 16(1):414–454.

Pham, D. T., Dimov, S. S., and Nguyen, C. D. (2005). Se-

lection of k in k-means clustering. Proceedings of the

Institution of Mechanical Engineers, Part C: Journal

of Mechanical Engineering Science, 219(1):103–119.

Ridler, T. and Calvard, S. (1978). Picture thresholding using

an iterative selection method. IEEE Transactions on

Systems, Man, and Cybernetics, 8(8):630–632.

Robert, J., Kubler, S., Traon, Y. L., and Främling, K. (2016).

O-mi/o-df standards as interoperability enablers for

industrial internet: A performance analysis. In IECON

2016 - 42nd Annual Conference of the IEEE Industrial

Electronics Society, pages 4908–4915.

Rousseeuw, P. J. (1987). Silhouettes: A graphical aid to

the interpretation and validation of cluster analysis.

Journal of Computational and Applied Mathematics,

20:53–65.

Satopaa, V., Albrecht, J., Irwin, D., and Raghavan, B.

(2011). Finding a "kneedle" in a haystack: Detecting

knee points in system behavior. In 2011 31st Interna-

tional Conference on Distributed Computing Systems

Workshops. IEEE.

Schubert, E., Sander, J., Ester, M., Kriegel, H. P., and Xu,

X. (2017). DBSCAN revisited, revisited. ACM Trans-

actions on Database Systems, 42(3):1–21.

Tibshirani, R., Walther, G., and Hastie, T. (2001). Estimat-

ing the number of clusters in a data set via the gap

statistic. Journal of the Royal Statistical Society: Se-

ries B (Statistical Methodology), 63(2):411–423.

Ward, J. H. (1963). Hierarchical grouping to optimize an

objective function. Journal of the American Statistical

Association, 58(301):236–244.

Wortmann, F., Flüchter, K., et al. (2015). Internet of

things. Business & Information Systems Engineering,

57(3):221–224.

The Impact of Clustering for Learning Semantic Categories

327
