Secure Benchmarking using Electronic Voting

Vivek Agrawal and Einar Arthur Snekkenes

Department of Information Security and Communication Technology,

Norwegian University of Science and Technology, Gjøvik, Norway

Keywords:

Ballot, Benchmarking, Electronic Voting, Response, Secure Benchmark.

Abstract:

It is a common practice in the industry to organize benchmark processes to establish information security

performance evaluation standards. A benchmarking system collects information security-related data from

the organization to establish a standard. The information shared by the organization often contains sensitive

data (details of the vulnerability, Cyber attacks). The present benchmarking systems do not provide a secure

way of exchanging sensitive information between the submitter and the benchmark authority. Furthermore,

there is a lack of any mechanism for the submitters to verify that the ﬁnal benchmark result contains the

response submitted by them. Hence, people are reluctant to take active participation in sharing their sensitive

information in the benchmarking process. We propose a novel approach to solve the security limitations of

present benchmarking systems by applying the concepts of electronic voting to benchmark. Our solution

provides secrecy to submitters’ identity and to the benchmark responses. Our approach also ensures that all

the submitted responses have been correctly counted and considered in the ﬁnal benchmark result.

1 INTRODUCTION

Researchers and experts suggest that the development

and use of sound and repeatable Information Secu-

rity Management (ISM) practices bring organizations

closer to meeting their business objectives. Organiza-

tions can measure the quality of ISM practices, either

by comparing their processes to other organizations or

by measuring compliance according to established se-

curity standards (Whitman and Mattord, 2014). Infor-

mation security is considered to be one of the business

requirements that should be appropriately addressed

by the enterprises. Enterprises hold a large volume

of valuable information which is required to follow

compliance with regulations and law about informa-

tion security.

Benchmarking is a well-known process of im-

proving performance by continuously identifying, un-

derstanding, and adapting security practices and pro-

cesses found inside and outside an organization (Hi-

dalgo and Albors, 2008). Benchmarking requires

sharing organization-speciﬁc sensitive information to

compare the performance in a speciﬁc domain. Typ-

ically, it requires Benchmark Submitters (members

who possess valuable information) to submit the an-

swers to a set of questions to establish a benchmark

standard. However, the most signiﬁcant barrier to

benchmarking is the fact that many organizations are

not willing to share their organization-speciﬁc sensi-

tive data. The submitter may need to share the critical

information, i.e., information related to security inci-

dents that they often face. Information related to any

successful attack is often perceived as a failure and is

kept secret by the organization. The details of these

events can create a bad image for the organization in

the marketplace (Whitman and Mattord, 2014). Any

security incident within the company can jeopardize

the business operation and reputation (Kanno, 2009).

Therefore, it may be considered risky to participate in

the benchmarking process as illegitimate access to the

sensitive information may hamper the business oper-

ation of the organization.

Currently, benchmarking is practiced almost all

over the world (O’Rourke et al., 2012). There is a

variety of methods by which different forms of data

are developed, collected, and transmitted during the

benchmarking event. There may be conﬂicts of inter-

ests in and incentives for the benchmark authorities

to manipulate the benchmark process (IOSCO, 2013).

The current benchmarking models fail to provide a

secure way to share sensitive information (Kanno,

2009). Benchmark does not provide an efﬁcient way

for the data submitters to verify that the ﬁnal bench-

mark result contains the response submitted by them

(ABB, 2017), (ISF, 2017). Hence, it lacks the sense

Agrawal, V. and Snekkenes, E.

Secure Benchmarking using Electronic Voting.

DOI: 10.5220/0006827800250040

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 25-40

ISBN: 978-989-758-319-3

of transparency with collecting the data, analyzing the

data, and publishing the ﬁnal result.

We are establishing ’UnRizkNow’ (Agrawal et al.,

2017), (Agrawal and Snekkenes, 2017), (Agrawal

and Szekeres, 2017) as an open electronic community

of practice (eCoP) (Mathwick et al., 2008), (Wiertz

and de Ruyter, 2007) to allow information security

practitioners (ISP) to share InfoSec knowledge

without violating the information security require-

ments. We are working towards providing a secure

benchmarking service on UnRizkNow eCoP. We aim

to protect the identity of the members who participate

in the benchmark task. We also target to protect the

sensitive data shared by the members/organization in

the benchmarking process. Therefore, we propose

applying the concepts of electronic voting to the

benchmarking process on eCoP. We formulate the

current benchmarking model based on a literature

review. We also establish the requirements of a

secure benchmarking system. Furthermore, we map

the benchmarking system to electronic voting system

by mapping their protocol, structure, and concepts.

We also demonstrate how a secure benchmark can

be conducted on the UnRizkNow platform using the

electronic voting approach. We have identiﬁed the

following research questions in this study.

RQ1 What are the requirements of a secure bench-

marking system?

RQ2 How can a secure benchmarking system be

mapped to a electronic voting system?

RQ3 How can a benchmarking system be built us-

ing the electronic voting concepts

RQ4 To what extent does the EV approach make

the benchmarking system secure?

The paper is organized as follows: In Section 2,

we overview of benchmarking and describe the

benchmarking model that is widely used. In Section

3 the research method used in this study is described.

In Section 4, an overview of the electronic voting

system is presented. The essential phases of an EV

system, the structure of vote, and security require-

ment of EV systems and schemes are also presented.

A mapping of benchmarking concepts to EV concepts

is presented in Section 5. In Section 6, an application

of EV concepts to a benchmarking system is de-

scribed to demonstrate how secure benchmarking can

be conducted using the EV approach. A discussion

based on the security analysis follows in Section 7.

The limitation of the current study and the scope of

further improvement is highlighted in Section 8. We

conclude in Section 9.

2 OVERVIEW OF

BENCHMARKING

The aim of this section is to provide a general

overview of benchmarking. We identify major activ-

ities and actors involved in a typical benchmarking

system. The benchmark model that is widely used ev-

erywhere is also presented.

2.1 Benchmarking Protocol

Development of benchmarks is an iterative and on-

going process that is likely to involve sharing infor-

mation with other organizations working towards an

agreeable method (Kelessidis, 2000). Benchmark-

ing is pioneered by Xerox Corporation in the 1979s

to perform better in the international competition in

the photocopier market (Kelessidis, 2000). The idea

of benchmarking was restricted to very few compa-

nies, e.g., AT&T, Motorola, Xerox in the beginning.

However, governmental and non-proﬁt organizations

have begun implementing benchmarking as late as the

early 1990’s. Information security Forum (ISF) pro-

vides benchmarks in the form of their premium ser-

vice (ISF, 2017). We derive the benchmarking proto-

col from (ESMA-EBA, 2013) report. A benchmark-

ing system typically comprises the following activi-

ties and actors:

1. Benchmark Administration: It includes all the

stages and processes involved in the benchmark-

ing process. The establishment, design, produc-

tion, and dissemination of a benchmark from the

gathering of the input data and the calculation of

the benchmark based on the input data to the dis-

semination of the Benchmark to users including

any review, adjustment, and modiﬁcation of this

process. The legal person or entity responsible for

executing this phase is called Benchmark Admin-

istrator (BA). BA also takes care of of publishing

Benchmark values, which includes making avail-

able such values on the internet or by any other

means, whether free of charge or not. According

to (ESMA-EBA, 2013) report, the activity of pub-

lishing benchmark values can be carried out by a

separate entity, Benchmark Publisher.

2. Benchmark Submission: The activity of con-

tributing to Benchmark data submissions to a BA.

The Benchmark submission is done by Bench-

mark Submitter (BS). The data submitted by BS

are used exclusively for the calculation of the

Benchmark.

3. Benchmark Calculation: The activity of per-

forming the calculation of the Benchmark based

on the methodology provided by a Benchmark

SECRYPT 2018 - International Conference on Security and Cryptography

Administrator and the data collected by the entity

performing the calculation or the BA or submit-

ted by BS. A legal person or entity responsible for

performing this phase is called Benchmark Calcu-

lation Agent (BCA).

4. Benchmark Service: The activity of evaluating

the performance in a certain domain by fetching

benchmark data from BA. A profession client (by

paragraphs 1, 2 and 3 of Section I of Annex II

to Directive 2004/39/EC) who is interested in tak-

ing benchmark data from BA is called Benchmark

User (BU).

The task of BA and BCA may be performed by

distinct legal entities or may be grouped such that

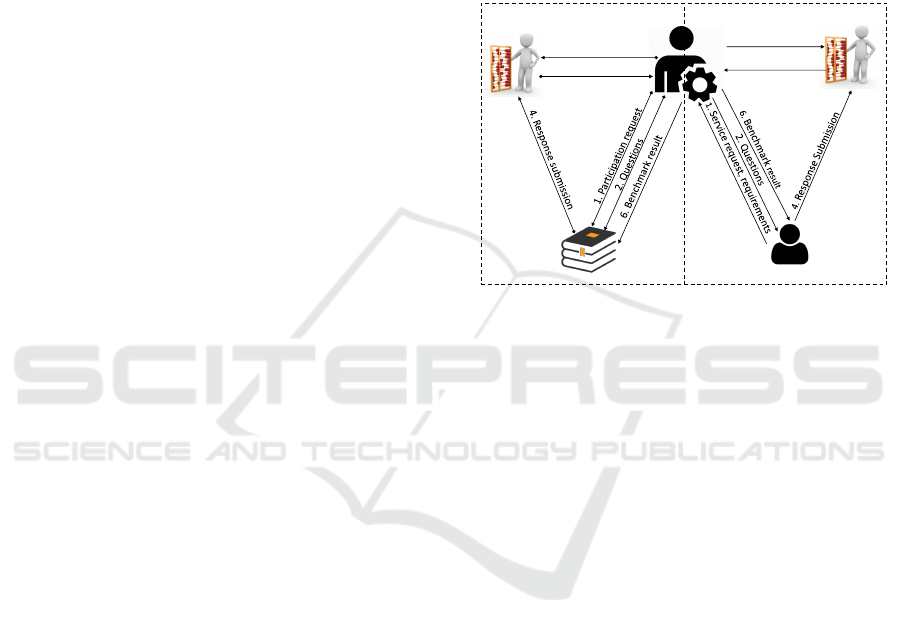

one entity performs more than one. Figure 1 shows

the information ﬂow among the actors involved in the

benchmarking process.

2.2 Structure of a Benchmark

The structure of benchmark depends on the overall

objective of the benchmark. A benchmark typically

consists of some questions created to assess the per-

formance of the various organization in a particular

domain. The question has options which indicate the

possible answer to the question. The structure con-

taining the answers to the questions is called a re-

sponse. There are the following types of question for-

mats:

• Yes/No questions: Submitter’s answer is either

Yes or No. The benchmark result of this ques-

tion is a histogram chart consists of the frequency

distribution of yes and no generated from the valid

responses.

• Multiple-option Question: A question consists of

various options, but the submitter can submit only

one option. The benchmark result of this question

will be a histogram chart consists of the frequency

distribution of all the options calculated from the

valid response.

• Open question (Numerical): Submitter can for-

mulate the answer and write it down. However,

the answer must be a numeral that follows the

condition provided in the question. For instance,

the age of the submitter question can only take

numbers in the range of 1-100. The benchmark

result of this question will be an average value cal-

culated on the total valid responses submitted by

the benchmark submitter.

2.3 Benchmarking Model

In this study, the principles of benchmarking model

are set up according to the guideline given by Euro-

pean Securities and Markets Authority (ESMA) and

European Banking Authority (ESMA-EBA, 2013).

The same principles are widely followed by many

organizations, e.g., ISF (Forum, 2017), ABB (ABB,

2017) and ISM-Benchmark (Kanno, 2009). The

benchmarking process is usually conducted in two

phases, i.e., Benchmark standard establishment and

Benchmark as service. An overview of a complete

benchmarking process is shown in Figure 1. The de-

tails of the two phases are given as follows:

3. Methodology

BCA

5. Calculated data

Benchmark standard

establishment

Benchmark as Service

Phase I

Phase II

BCA

3. Methodology

5. Calculated data

Figure 1: The information ﬂow among the benchmarking

actors in a benchmarking system. Phase I is carried out

among BA, BCA, and BS. Phase II is carried out among

BA, BCA, and BU.

2.3.1 Benchmark Standard Establishment

The ﬁrst phase of the benchmark process is called

Benchmark standard establishment. The aim of per-

forming this phase is to collect data from the relevant

organization to understand how well they perform in

a given domain. This phase is usually executed syn-

chronously, i.e., all the participants involved in the

benchmarking task work simultaneously. Typically,

BA hires or establishes a contract with an entity that

can act as a BCA in the process. BA also makes a

list of all the potential entities who can serve as a sub-

mitter. The details of step 1-6 in Phase I are given as

follows:

1. BA sends a formal request to the members to par-

ticipate in the benchmarking process and ask for

response submission. The status of the member is

marked as BS when the member agrees to partici-

pate

2. BA sends questions to assess a particular domain

to BS.

3. BA sends the details of the question format and

calculation method to BCA. The methodology is

used by BCA to calculate the benchmark result.

4. BS sends the response to BCA.

Secure Benchmarking using Electronic Voting

5. BCA applies the methodology on the aggregated

benchmark data and calculate the result of each

question. BCA sends the benchmark result to BA.

6. BA sends the benchmark result to BS or posts it on

a common web portal.

2.3.2 Benchmark as Service

The second phase of the benchmarking is called

Benchmarking as a service. It is often provided by

a private organization as a paid service, and by a pub-

lic organization (government) as a free service. A user

(BU) who is interested to know the status of its perfor-

mance usually go for this type of service. This phase

is executed asynchronously, i.e., it is not necessary

that all the users contact BA at the same time. How-

ever, there is some service-level-agreement involved

between BA and BU. The details of the steps 1-6 in

phase II are given as follows:

1. BU establishes a contract with BA to get the latest

benchmarked data in the given domain. BU sends

the details of the requirements, i.e., the domain of

the benchmark, the format of the outcome, deliv-

ery time to BA.

2. BA chooses the relevant questions from the list

used in phase I and creates a new set of questions

speciﬁc to the requirement received from BU.

3. BA sends the details of the question format and

calculation method to BCA. The methodology is

used by BCA to calculate the benchmark result.

4. BU answers the questions of benchmark and

sends the response to BCA.

5. BCA applies the methodology on the aggregated

benchmark data from BU and calculate the result

of each question. BCA sends the benchmark result

to BA.

6. BA sends the benchmark result to BU. This bench-

mark result contains the response submitted by

BU to the given questions and the values that

have been collected by BA in phase I. In this way,

BU can compare its response with the benchmark

standard and assess its performance.

2.3.3 Requirements of a Secure Benchmarking

System

In this section, we answer RQ1 by establishing the se-

curity requirements of the benchmarking system. As

far as we know, no comprehensive list of benchmark-

ing security requirements have been published. Hav-

ing carefully considered security issues in the context

of benchmarking, we state what we believe are the

key benchmarking security requirements.

1. Completeness: All valid responses should be

counted correctly in the ﬁnal calculation.

2. Uniqueness: Benchmark submitter can submit

the response only once. The submitters should

be allowed to submit their responses only once

to control any practice to manipulate the overall

result of the benchmark by submitting many re-

sponses.

3. Universal Veriﬁability: Anyone can verify that

the published result is correctly computed from

the responses that were correctly submitted. This

is an important requirement as it signiﬁes that the

benchmarked data is calculated using the original

submitted responses and it is not manipulated.

4. Individual Veriﬁability: Each eligible submitter

can verify that his valid response was counted.

5. Eligibility: Only entitled benchmark submitter

can submit a response.

6. Secrecy: Neither benchmark authorities nor any-

one else can ﬁnd out which submitter submitted

which response.

7. Soundness: Any invalid response should not be

counted in the ﬁnal calculation.

3 RESEARCH METHOD

We applied the concepts of Design Science Research

(DSR) (Hevner et al., 2004) to develop the scientiﬁc

approach in this study. This research aims to solve an

existing practical problem in the domain of Informa-

tion system by creating an artifact based on the ex-

isting theories of electronic voting and cryptography.

The problem is solved by applying creativity, inno-

vation, and problem-solving capabilities. The created

artifact would then be applied to UnRizkNow eCoP

to enhance information sharing without compromis-

ing the sensitivity of the information. We adopted the

ﬁve-step research process (Johannesson and Perjons,

2014) to research this study. Figure 2 shows the es-

sential steps in the DSR model.

Explicate

problem

Define

Requirements

Design and

Develop artefact

Demonstrate

artefact

Evaluate

artefact

Explicated

problem

Requirements

Artefact

Demonstrated

artefact

Initial

Problem

Evaluated

artefact

Figure 2: An overview of research method in Design

Science Research Methodology (Johannesson and Perjons,

2014).

The ﬁrst step of the DSR process, i.e., explicate

problem is to investigate and analyze the practical

problem. We deﬁned the problems in the present

benchmarking system, i.e., the lack of security. Fur-

SECRYPT 2018 - International Conference on Security and Cryptography

ther, deﬁne requirements outlines a solution to the ex-

plicated problem in the form of an artifact and elic-

its requirements, which can be seen as a transforma-

tion of the problem into demands on the proposed ar-

tifact. We suggest a novel approach of conducting

benchmark using the concepts of the Electronic vot-

ing scheme. In the phase, Design and develop artifact

an artifact is created to address the explicated problem

and fulﬁll the deﬁned requirements. Our artifact con-

sists of mapping the structure, protocol, and the con-

cepts of benchmarking to electronic voting. Demon-

strate artifact uses the developed artifact and applies

this to a real-life case or any illustrative case. This

phase aims to show that the artifact can solve an in-

stance of the deﬁned problem. We incorporate the

proposed artifact to the UnRizkNow platform so that

a secure benchmarking can be conducted on the plat-

form. The ﬁnal step is evaluate artifact, which deter-

mines how well the designed artifact solves the pri-

mary problem. We perform the security analysis on

the developed artifact to show to what extent it fulﬁlls

the security requirements of a secure benchmarking

system.

We also applied the DSR knowledge contribution

framework (Gregor and Hevner, 2013) to highlight

the nature of the contribution of our study. Figure

3 presents a 2X2 matrix of DSR research contribu-

tions. The x-axis, i.e., Application Domain Maturity

(ADM) shows the maturity of the problem from high

to low. The y-axis, i.e., Solution Maturity (SM) repre-

sents the current maturity of the artifacts from high to

low that exist as potential starting points for solutions

to the questions. The 2x2 matrix also identiﬁes four

kinds of design science contribution. A low ADM

and low SM deﬁnes a new solution for new prob-

lems, and it is referred as Invention. A high ADM and

Low SM deﬁnes new solutions for known problems,

also known as Improvement. A low ADM and High

SM indicates known solutions for new problems, also

known as Exaptation. Finally, A high ADM and high

SM indicates known solution for known problems,

referred as routine design. Unlike other entities of

the matrix, the routine design does not have a major

knowledge contribution.

The idea of using the concepts of electronic vot-

ing conducting benchmarking tasks makes the bench-

marking process more secure and trustworthy. The

concept of electronic voting has been evolving in last

two decades to facilitate election process in the demo-

cratic setting. However, it was never applied and

tested in the setting of benchmarking. Therefore, our

approach of solving the security and trust challenges

in the present benchmarking process by extending the

design knowledge that exists in the electronic voting

place our contribution is in the exaptation quadrant of

the DSR knowledge contribution framework.

Improvement

Develop new

solutions for known

problems

Invention

New solution for

new problems

Routine Design

Known solution for

known problems

Exaptation

Known solutions

for

new problems

Solution Maturity

High

Low

Application domain maturity

Figure 3: Design science contributions, adapted from (Gre-

gor and Hevner, 2013).

4 AN OVERVIEW OF

ELECTRONIC VOTING (EV)

The aim of the section is to present a detailed descrip-

tion of the electronic voting protocol, the structure

of electronic voting along with the security require-

ments.

4.1 Electronic Voting

Electronic voting (EV) is appearing as an efﬁcient

and cost-effective way for conducting a voting pro-

cess. The term e-voting is used to denote a voting

process which allows voters to cast a secure and se-

cret ballot over a network (Gritzalis, 2002). The ﬁrst

EV scheme was proposed by David Chaum (Chaum,

1981) in 1981. There have been many other schemes

proposed by researchers since 1981, e.g., EV schemes

with publicly veriﬁable secret sharing (Schoenmak-

ers, 1999), (Neff, 2001); EV based on homomorphic

encryption (Hirt and Sako, 2000); EV based on secret

sharing techniques with a secure multiparty computa-

tion (Chen et al., 2014). (Gerlach and Gasser, 2009)

describes EV experiences by mentioning how EV sys-

tems worked in Geneva and Zurich in Switzerland.

Similarly, the EV systems of Estonia are studied in

(Madise and Martens, 2006), (Vinkel, 2012). An EV

protocol has many essential phases to carry out a suc-

cessful election. We have compiled a list of phases

that are very common across different EV protocols.

The phases are as follows:

• Election administration: The process of setting up

the election, publication of the identities of eligi-

ble voters, the list of candidates and the result of

the election.

Secure Benchmarking using Electronic Voting

• Registration: The process of distributing secret

credentials to voters and registering the corre-

sponding public credentials.

• Tallying: The process of validating votes and de-

termine the number of votes each party has re-

ceived.

• Voting: The process of casting a vote in an elec-

tion

• Ballot Processing: The processing of ballots and

storing valid ballots in the bulletin board.

EV protocols involve several parties executing

some speciﬁc set of roles (Cortier et al., 2014a). How-

ever, different schemes use different terms to denote

the parties involved in the EV process. Table 1 de-

scribes the actors who are responsible for performing

the EV tasks in ﬁve EV schemes.

4.2 Structure of Electronic Voting

The structure of voting depends on the nature of the

election and the expected outcome. An election has

a candidacy which consists of some candidates run-

ning in the election. A structure containing the vote

is called a ballot. We identify the following typical

election types:

• Yes/No voting: Voter’s answer is yes or no. A

typical example of this election where a voter is

asked to reply to the question, ”Do you agree

with”regarding ’Yes’ or ’No’ answers.

• 1-out-of-L voting: Voter has L possibilities but

can choose only one. This election format is used

to select a leader (e.g., president) from a list of L

candidates.

• K-out-of-L voting: Voter selects K different ele-

ments from the set of L possibilities. This type

of election is used to choose council members in

which the voter selects K from L candidates. The

candidates who are selected the most number of

times will be appointed as the council members.

The order of the selection of the candidates is not

important. (1,L) ⇒ {K ∈ N : 1 ≤ K ≤ L}

• K-out-of-L ordered voting: Voter puts into or-

der K different elements from the set of L pos-

sibilities. This type of election can be used to

choose council members, but the candidate who

is marked by the voter as ﬁrst will get the most

points.

• Write-in Voting: Voter can formulate the answer

and write it down. This type of election is done

when the answers are not ﬁxed at the beginning

and voters are asked to give their opinion on the

given matter.

4.3 Requirements of the Secure

Electronic Voting

Several researchers have proposed schemes for secure

electronic voting processes with varying assumption.

Therefore, different schemes fulﬁll different security

requirements. We have compiled a list of require-

ments from different literature sources to highlight all

the useful requirements that have been identiﬁed in

the existing literature. We made a distinction between

schemes and systems while compiling the list. There-

fore, we have different criteria for the study selection

in scheme and system.

Electronic Voting Scheme: Scheme is referred to the

study where the conceptual model of electronic voting

is presented regarding algorithm or theory. We used

the search terms in Figure 4a to select the primary

studies on the security requirements of electronic vot-

ing schemes. Additionally, we applied the following

criteria on the search result to narrow down the rele-

vant study.

• The literature is published on and after the year

2000.

• The literature has over 50 citations in the aca-

demic literature.

• Published in the English language.

The list is by far complete, but we restricted this

study to include six schemes (Zu02 (Rja

skov

a, 2002),

Le02 (Lee and Kim, 2003), Le00 (Lee and Kim,

2000), Hi10 (Hirt, 2010), Ch05 (Chaum et al., 2005),

Li04 (Liaw, 2004).

Electronic <OR> online <OR> Virtual

<OR> digital

Voting <OR> ballot <OR> electoral

Scheme <OR> protocol <OR>

methdology

electronicvotingscheme

AND

(a)

Electronic <OR> online <OR> Virtual

<OR> digital

Voting <OR> ballot <OR> electoral

system <OR> open source <OR>

freeware <OR> implementation

electronicvotingsystem

AND

(b)

Figure 4: Search terms used to ﬁnd a) Electronic voting

scheme b) Electronic voting system.

Electronic Voting System: We deﬁned the system

as those studies which are available as open source

code, and it has been implemented in the real case

studies. We used the search terms in Figure 4b to se-

lect the primary studies on the security requirements

of the electronic voting system. Additionally, we ap-

plied the criteria that the source code is available to

download on a reliable server (e.g. GitHub). The

source code is also supported by English documen-

tation or user manual. The list is by far complete, but

we restricted this study to include four electronic vot-

ing systems (eVote (Pierro, 2017), Belenios (Cortier

SECRYPT 2018 - International Conference on Security and Cryptography

Table 1: Actors involved in EV process in different schemes.

EV task LE02 (Lee and

Kim, 2003)

Belenios

(Cortier et al.,

2014b)

IVXV (of Es-

tonia, 2017)

CHVote

(Haenni et al.,

2017)

eVote (Pierro,

2017)

Election

administration

Election Ad-

ministrator

Election Ad-

ministrator

Organiser Election Ad-

ministrator

Managers

Registration Certiﬁcate Au-

thority

Registrar Collector Printing Au-

thority, election

authorities

Managers

Tallying Tallier Trustee Tallier Election Au-

thorities

Managers

Ballot Pro-

cessing

Tallier & Ad-

ministrator

Bulletin Board

Manager

Processor Bulletin Board Managers

Voting Voter Voter Voter Voter Voter

et al., 2014b), Chvote (Haenni et al., 2017), IVXV

(of Estonia, 2017)). The details of the requirements

of EV protocol are as follows:

1. Completeness/ Correctness: All valid ballots

should be counted correctly in the ﬁnal tally (Lee

and Kim, 2003), (Hirt, 2010).

2. Uniqueness/ Unreusability: Voters can submit

only one single ballot (Hirt, 2010).

3. Universal Veriﬁability: Anyone can verify that

the published tally is correctly computed from

the ballots that were correctly cast (Hirt, 2010),

(Rja

skov

a, 2002).

4. Individual Veriﬁability: Each eligible voter can

verify that his ballot was counted. This property

enables the voter to exclude with high probabil-

ity the possibility that the vote has been manip-

ulated by a compromised voting client (Haenni

et al., 2017).

5. Eligibility: Only entitled voters are able to cast a

ballot (Hirt, 2010).

6. Anonymous/Secrecy/Privacy: Neither voting

authorities nor anyone else can ﬁnd out which

voter submitted which ballot (Liaw, 2004), (Hirt,

2010).

7. Soundness: Any invalid ballot should not be

counted in the ﬁnal tally (Hirt, 2010).

8. Fairness: No one can get extra information about

the tally result before the publication phase (Liaw,

2004).

9. Receipt-freeness/Incoercibility: The voter can-

not be coerced into casting a particular vote by

a coercer. He must neither obtain nor be able to

construct a receipt proving the content of his vote

(Lee and Kim, 2003), (Liaw, 2004).

10. Non-cheating: Voters can accuse the authority of

cheating without revealing ballots to others (Liaw,

2004).

11. Robustness: The voting system should be suc-

cessful regardless of the partial failure of the sys-

tem (Lee and Kim, 2000).

12. Convenience: Voters to cast their ballots quickly,

in one session, and with minimal equipment or

special skills (Liaw, 2004).

13. Efﬁciency: The whole election should be held

promptly, for instance, all computations done in

a reasonable amount of time and voters are not

required to wait for other voters to complete the

process (Liaw, 2004).

14. Mobility: Voters are not restricted by physical lo-

cation from which they can cast their votes (Liaw,

2004).

15. Auditability: The system must be technically

sufﬁciently simple so that a widest possible range

of specialists could audit it (of Estonia, 2017).

Table 2 shows the list of the EV security require-

ments that are compiled from six EV schemes and

four EV systems. The presence of + indicates that

the given requirement is addressed. The require-

ment is considered as addressed if the author explic-

itly deﬁnes the given requirement in literature and

justiﬁes how the given EV protocol satisﬁes the re-

quirement. - indicates that the given scheme/system

does not address the requirement. It is also impor-

tant to note that different schemes/systems address a

security requirement under the different assumption

and adversary models. For instance, the Hi10 (Hirt,

2010) scheme addresses ’soundness’ for K-out-of-L

voting structure, and Zu02 scheme (Rja

skov

a, 2002)

addresses ’soundness’ for 1-out-of-L voting structure.

Similarly, the uniqueness requirement is addressed

by LE02 (Lee and Kim, 2003) scheme under the as-

sumption that an adversary cannot access the random-

ness and any internal information saved inside the

tamper-resistant randomizer distributed to the voters.

The Li04 scheme (Liaw, 2004) addressed uniqueness

requirement under the assumption that an adversary

Secure Benchmarking using Electronic Voting

cannot obtain a random number generated by the vot-

ing center.

5 MAPPING OF A

BENCHMARKING TO AN EV

SYSTEM

The aim of this section is to answer RQ2. We demon-

strate how a benchmarking system can be mapped to

the electronic voting system. To achieve our goal, we

ﬁrst map the benchmark protocol to the EV protocol,

then we map the structure of benchmark to the struc-

ture of EV system. Finally, we map the overall con-

cepts of benchmark to the EV concepts using ontol-

ogy.

5.1 Mapping of the Benchmark

Protocol to EV Protocol

The protocol mapping consists of the mapping of the

benchmark phases and actors to the EV system phases

and the actors. Table 3 shows the mapping of bench-

mark protocol to EV protocol. The main entities in-

volved in the benchmark protocol are: a Benchmark

Administrator BA, N Benchmark Calculating Agents

BCA

( j = 1,...,N), and M Benchmark submitter BS

(i = 1, ...,M). The roles of each entity are as follows:

• Benchmark Administrator - BA veriﬁes the iden-

tities and the eligibility of M submitters. BA

manages the whole benchmarking process (cre-

ates questions and announces the benchmark re-

sult).

• Benchmark Submitter - There are M submitter BS

(i = 1,...,M). They have their digital signature

keys certiﬁed by a certiﬁcation authority (CA).

• Benchmark Calculating agent - There are N cal-

culating agents BCA

( j = 1,...,N) who coopera-

tively decrypt the collected responses to open the

result of benchmarking. A threshold t denotes the

lower bound of the number of authorities that is

guaranteed to remain honest during the protocol.

The main entities involved in the electronic voting

protocol are: an Election administrator EA, N Tallier

( j = 1, ...,N), and M voter V

(i = 1,..., M). The

roles of each entity are as follows:

• Election Administrator - EA veriﬁes the identities

and the eligibility of M voters. EA manages the

whole voting process (creates candidacy and an-

nounces the election result).

• Voter - There are M voter V

(i = 1,..., M). They

have their own digital signature keys certiﬁed by

a certiﬁcation authority (CA).

• Tallier - There are N Tallier T

( j = 1,..., N) who

cooperatively decrypt the collected ballots to open

the result of the election. A threshold t denotes the

lower bound of the number of authorities that is

guaranteed to remain honest during the protocol.

Table 3 shows the mapping of the protocol be-

tween benchmark and EV system. It is clear from the

table that the activity of Benchmark calculation can

be mapped to Tallying, a benchmark submitter can be

mapped to the voter.

5.2 Mapping of the Benchmark

Structure to EV Structure

We map the structure of benchmarking system to an

EV system with the help of the mapping of ballot,

vote, candidacy, and candidates to response, answer,

questions, and options respectively. Question QU is

mapped to Candidacy Cd, Option o is mapped to Can-

didate C, answer a is mapped to vote v, response B is

mapped to ballot BT . It is important to note that there

is only one candidacy in an election, but a benchmark

needs to have more than one question. Therefore, a

benchmarking system needs the x number of EV in-

stances to execute, where x is the number of questions

in the benchmark.

In the electronic voting scheme ω, a candidacy

Cd consists of L number of candidates C

(where i =

1,...,L) who participate in the election to be elected

to some position based on the outcome of the elec-

tion. A voter can decide to vote for only 1 candidate

(1-out-of-L voting) or more than 1 candidate (K-out-

of-L voting) based on the requirement of the election.

A voter casts his ballot in the election. A ballot BT

consists of a vector of votes,

−→

v = (v

,...,v

), where

is the vote for the i−th candidate in the election.

In K-out-of-L election, the following condition holds

(1,L) ⇒ {K ∈ N : 1 ≤ K ≤ L}.

A benchmarking system β consists of a number

of questions Q

(where i = 1,...,x). The idea of

having the questions is to collect the feedback from

the submitters to establish a performance standard.

Each question Q

comes with the list of options o

(where i = 1,...,L). BS generates a vector of answers,

−→

a = (a

,...,a

), where a

is the answer of the i−th

option and a

∈ {0,1}. BS ﬁnally generates a response

B consists of the answer vector

−→

a . The number of re-

sponse is equal to the number of questions available

in the benchmark. The ﬁnal response B

in contains

all the responses B

(i = 1,...,x). Table 4 shows how

the structure of benchmark can be completely mapped

to the structure of EV. The structure of benchmarking

system can be constructed using the K-out-of-L vot-

ing structure where (1,L) ⇒ {K ∈ N : 1 ≤ K ≤ L}.

SECRYPT 2018 - International Conference on Security and Cryptography

Table 2: The security properties of EV system, AB: Applicability to Benchmark, + indicates that the given security require-

ment is implemented in the scheme, - indicates that the given security requirement is not implemented in the scheme.

ID Property AB Zu02 Le02 Le00 Hi10 Ch05 Li04 Ch Be eV IV

1 Completeness/ Cor-

rectness

Y - + + + + + - - + -

2 Uniqueness/ Un-

reusability

Y - + + + - + - - + +

3 Universal Veriﬁability Y + + + + - - + + + -

4 Individual Veriﬁability Y + + - + - + + + + +

5 Eligibility Y + + + + + - - - - -

6 Anonymous/ Se-

crecy/privacy

Y + + + + + + + - + +

7 Soundness Y - + + + - - - - + -

8 Fairness N + + + + - + - - + -

9 Receipt-freeness/

Incoercibility

N + + + + - + - - - +

10 Non-cheating N - - - - - + - - + -

11 Robustness N + + + - - + - - - -

12 Convenience N - - - - - + - - - -

13 Efﬁciency N - - - - - + - - - -

14 Mobility N - - - - - + - - - -

15 Auditability N - - - - + - + - - +

Table 3: Mapping of the protocol.

Phase Actor

Benchmark

EV ω Benchmark

EV ω

Benchmark

Administra-

tion [BAdm]

Election Ad-

ministration

[EAdm]

Benchmark

Administrator

[BA]

Election Ad-

ministrator

[A]

Benchmark

calculation

[Bcal]

Tallying

[ETal]

Benchmark

calculating

agent [BCA]

Tallier [T ]

Benchmark

submission

[BSub]

Voting [Vo] Benchmark

submitter

[BS], user

[BU ]

Voter [V]

It is important to notice that 1-out-of-L voting struc-

ture is not suitable for the mapping between bench-

mark and electronic voting. 1-out-of-L voting struc-

ture expects only one vote in the ballot unlike K-out-

of-L voting where a ballot contains a vector of votes.

Therefore, BCA cannot calculate the frequency of in-

dividual option in the benchmark result using 1-out-

of-L voting structure.

The structure of the benchmark for different ques-

tion types are as follows:

5.2.1 Yes/No or True/False Questions

For this type of question in the benchmark L = 2, i.e.,

there are two options o

and o

available for the ques-

tion. The answer vector will consist of

−→

a = (a

As submitter can select only option in the answer, the

Σa

= 1. Therefore, the structure of B = (a

) The

total response for this question is M ∗ B (where M is

the number of submitter). The total number of yes can

be counted by adding the a

answer vector and total

number of No can be counted by adding the a

answer

vector from all the submitters.

Result of Q

= {Frequency of Yes , Frequency of No

}

= Σ

i=1

)],Σ

i=1

)] (1)

where BS

)] denotes the response B

sub-

mitted by BS

; B

) denotes the answer component

of response B

This type of question in benchmark is mapped to

a K-out-of-L voting system (where K = 1) according

to the mapping presented in Table 4. Yes, and No op-

tions are presented with candidate c

and c

respec-

tively. The ballot BT contains the vote vector {v

}

against the candidate c

and c

. The frequency of yes

and no can be counted by adding the votes cast by M

voters in the favor of the candidates. Equation 1 takes

the following form in EV.

result of Cd

= {votes received by c

, votes received

by c

}

= Σ

i=1

[BT

)],Σ

i=1

[BT

)] (2)

where V

[BT

)] denotes the ballot BT

cast by

; BT

) denotes the vote component v

of Ballot

Secure Benchmarking using Electronic Voting

Table 4: Mapping of the benchmark structure to EV structure. There are M number of voters and submitters, x number of

questions and candidacy, L number of option, answer, candidates, and votes.

Benchmark EV

Question Option Answer Response ⇒ Candidacy Candidate Vote Ballot

...o

....a

...c

...v

...o

....a

...c

...v

... ... ... ... ... ... ... ...

...o

....a

...c

...v

5.2.2 Multiple Option Question

This type of question contains L possible option to

choose from where L > 2. The answer vector will

consist of

−→

a = (a

,..,a

). As submitter can select

only one valid option out of L option, the Σa

= 1.

Therefore, the structure of B = (a

,..,a

) The total

response for this question is M ∗ B (where M is the

number of submitter). The frequency histogram can

be generated by adding the answer vectors from all

the submitters.

Result of Q

= {Frequency of o

,...., Frequency of

}

i=1

[B(a

)],....,Σ

i=1

[B(a

)] (3)

where BS

)] denotes the response B

submitted

by BS

; B

) denotes the answer component a

response B

This type of question in benchmark is mapped to

K-out-of-L voting system according to the mapping

presented in Table 4. L possible options are mapped

to L candidates. The ballot BT contains the vote vec-

tor {v

,...,v

} against the candidate c

,...c

.The fre-

quency of the i−th option is calculated by adding the

votes received to i−th candidate. Therefore, the equa-

tion 3 takes the following form in EV.

i=1

[BT

)],....,Σ

i=1

[BT

)] (4)

where V

[BT

)] denotes the ballot BT

cast by V

;

) denotes the vote component v

of Ballot BT

5.2.3 Open Question (Numerical)

This type of question does not provide any pre-

deﬁned options to the submitters. However, the sub-

mitter can enter a numeric value in the option ﬁeld.

Option ﬁeld consists of a number of empty bits based

on the numerical range provided to the submitter. The

value of L in the option ﬁeld is calculated as the ceil-

ing function of log

MX, i.e., L = dlog

MXe where

MX is the range. The number entered by the submit-

ter is converted into the equivalent binary string to be

saved into the answer vector

−→

a . Let’s take the case of

question 2 in the appendix, ”What percentage of the

employee recognize a security issue? [range 0-100]”.

The valid values this question takes is 101. Therefore,

the value of L can be calculated by applying the ceil-

ing function to dlog

101e, i.e., L = 7. Let’s assume

that BS submit 50 as the answer of the question. The

answer vector

−→

a = (0100110). The total number of

the response for question Q

is M ∗B (where M is the

number of submitter). For option i (where i = 1,...,L),

the i−th components of each valid response of M sub-

mitters are summed up, i.e, aa

= Σ

w=1

)],

where aa

is a count of the number of answers that

has been received for the i−th bit of the binary rep-

resentation to the question by all the submitters. The

mean value of the Question Q

is calculated by adding

all aa

in the following equation

µ =

i=1

i−1

(5)

Open numerical question in benchmark is mapped to

K-out-of-L voting system according to the mapping

presented in Table 4. L possible options are mapped to

L candidates. The ballot BT contains the vote vector

,...,v

} against the candidate c

,...c

. The mean

of the Question Q

is calculated by ﬁrstly adding

the i−th components of each valid ballot in vv, and

then adding all vv and converting them to the decimal

value. Equation 5 takes the following form:

= Σ

w=1

[BT

)];µ =

i=1

i−1

(6)

where vv

is a count of the number of votes that has

been received for the i−th bit of the binary represen-

tation of the candidates to the candidacy by all the

voters.

5.3 Mapping of Overall Concepts

We map the concepts of benchmarking system to elec-

tronic voting system using an ontology. The idea,

of using and developing an ontology to explain the

concepts, is derived from (Agrawal, 2016). Figure

5 presents ontologies of benchmarking system and

electronic voting system. In our proposed ontology,

there are ten main concepts (circular boxes) and ten

SECRYPT 2018 - International Conference on Security and Cryptography

relationships (solid arrow lines). The text above the

horizontal dotted line corresponds to the benchmark-

ing system, while the text below the horizontal dotted

line corresponds to the electronic voting system. The

dotted horizontal line also demonstrates how can a

concept and relationship from benchmark be mapped

to electronic voting. Thus, ﬁgure 5 helps to under-

stand the relationship between the benchmark and

electronic voting clearly. It is evident from the given

ontology that the concepts of the benchmark can be

mapped to EV system.

The ontology of benchmark states that Benchmark

Administrator performs benchmark administration by

creating Benchmark. Benchmark has some Questions

that consists of options. Submitter from different Or-

ganization participates in the Benchmark by submit-

ting their response. A response contains answer of

the questions. A response can be considered valid or

invalid on the basis of the benchmark rules. Bench-

mark calculating agent (BCA) counts response based

on a given methodology, and ﬁnally, BA publishes the

Benchmark result.

The ontology also depicts that an election admin-

istrator (EA) performs administration by creating an

election. The election has Candidacy that consists of

some Candidate running for a certain post in the elec-

tion. Voters from different Constituency area partic-

ipate in the election by submitting their ballot which

contains the vote for the candidates. A ballot can be

valid or invalid based on the election rule. A tallier

collects and counts the valid ballot. EA ﬁnally de-

clares the election result.

6 SECURE BENCHMARK ON

UNRIZKNOW

In this section, we answer our ﬁnal research question

RQ3 by demonstrating the practical application of EV

scheme to benchmarking system using Hi10 scheme

(Hirt, 2010). We present the model, set-up, response

submission, benchmark calculation using the EV ap-

proach. The aim of this section is to present how

we can conduct a secure benchmark on UnRizkNow

platform. The members of UnRizkNow are infor-

mation security practitioners who possess knowledge

about their organization regarding people, process,

and technology. We use the cryptography tools men-

tioned in (Hirt, 2010) to establish our model.

6.1 Preliminaries

Σ−proofs- A Σ−proof is a three-move special

honest-veriﬁer zero-knowledge proof of knowledge.

A Σ−proof is called linear if the veriﬁer’s test pred-

icate is linear, i.e., the sum of two accepting conver-

sations is accepting as well. The details of Σ−proof

s is given in section 2.1 of (Hirt, 2010). BA acts as a

veriﬁer in our benchmark model.

Identiﬁcation Scheme - An identiﬁcation scheme is

an interactive protocol between two parties, a prover

(benchmark submitter) and a veriﬁer (Benchmark Ad-

ministrator). If the protocol is successful, then at the

end of the protocol the BA is convinced he is interact-

ing with the BS, or more precisely, with someone who

knows the secret key that corresponds to the prover’s

public key. For benchmark submitter identiﬁcation,

we assume an identiﬁcation scheme where the identi-

ﬁcation protocol can be written as a linear Σ−proof .

It is easy to verify that Schnorr’s identiﬁcation scheme

(Schnorr, 1991) satisﬁes this requirement. The secret

key of BS is denoted by z

, and the corresponding

public key by Z

= g

for an appropriate generator

Designated-Veriﬁer Proofs- A designated-veriﬁer

proof is a proof which is convincing for one particu-

lar (designated) veriﬁer, but completely useless when

transferred from this designated veriﬁer to any other

entity (Jakobsson et al., 1996). The requirements of

the encryption function are drawn from (Hirt, 2010).

A semantically-secure probabilistic public-key en-

cryption function E

: VX R ⇒ E,(a,α) 7→ e, where

Z denotes the public key, V denotes a set of answers,

R denotes the set of random strings, and E denotes

the set of encryptions. The decryption function is

: E ⇒ V,e 7→ a, where z denotes the secret key.

It is also required to have E to be q− invertible for

a given q ∈ Z. It implies that for every encryption e,

the decryption a and the randomness α of qe can be

efﬁciently computed. It is also required that there is

a number u 6 q, large enough that 1/u is considered

negligible (Hirt, 2001). Furthermore, we use modiﬁed

ElGamal and Pailier homomorphic encryption func-

tion.

Modiﬁed ElGamal Encryption - A traditional ElGa-

mal system with an encryption function E with the

property: E(M

)XE(M

) = E(M

+ M

Pailier Encryption - As mentioned in section 3.3 of

(Hirt, 2010).

Re-encrypting and Proving Re-encryptions - A

random re-encryption e

of a given encryption e =

E(a,α) is an encryption with the same answer a, but

a new (independently chosen) randomness α

. Such

a re-encryption can be computed by adding a random

encryption of 0 to e. The rest of the details can be

obtained from (Hirt, 2010) by substituting vote v with

answer a, .

Secure Benchmarking using Electronic Voting

Benchmark

Administrator

--------------------------------

Election Administrator

Benchmark calculating agent

---------------------------------

Tallier

Question

---------------

Candidacy

Benchmark

-----------------

Electronic Voting

Submitter

----------------

Voter

creates

hasQuestion

-----------------------

hasCandidacy

Response

---------------------

Ballot

submitsResponse

-----------------------

castsBallot

isSubmittedIn

------------

isCastedIn

Counts

Benchmark result

-----------------------

Election result

hasBenchmarkResult

--------------------------

hasElectionResult

Option

----------------

Candidate

hasOption

----------------

hasCandidate

Xsd:Integer

validResponse

----------------

validBallot

invalidResponse

------------------

invalidBallot

publishes

hasSubmitter

------------------

hasVoter

Xsd:datetime

declarationTime

Answer

---------------

Vote

containsAnswer

-------------------

containsVote

getsAnswer

-------------

getsVote

Organization

---------------------

Constituency area

Figure 5: An ontology of benchmarking system and electronic voting system. The diagram shows that the concepts, actors,

phases of benchmarking system can be mapped to electronic voting system.

6.2 Details of The Benchmark Protocol

We use the non-receipt free K-out-of-L voting proto-

col of (Hirt, 2010) to establish our benchmark pro-

tocol. Figure 6 shows the various steps involved in

carrying out the benchmark on UnRizkNow platform.

UnRizkNow

Platform

1. Participation request

2. List of submitter,

Questions

6. Benchamark

Result

BS BCA

Bulletin

Board

3. Methodology

Figure 6: An overview of the benchmark model on UnRiz-

kNow portal.

Model - We use the benchmark entities as men-

tioned in the section 5.1. The communication among

the benchmark entities happens through UnRizkNow

platform. The platform has a bulletin board to post

any announcement. BS post their encrypted response

on the bulletin board with their signature. This also

prevents re-submission of the responses on the bul-

letin board. Anyone can read and verify the posted re-

sponse on bulletin board, but nobody can delete from.

The bulletin board can be considered as an authen-

ticated public channel with memory. The commu-

nication channel between BA and BS is secured us-

ing TLS. A threshold t denotes the lower bound of

the number of authorities that is guaranteed to remain

honest during the protocol.

Benchmark Structure - The structure of question

follows the structure mentioned in the section 2.2.

We assume that we have yes/no, multiple choice, and

open question (numerical) in the benchmark. A sam-

ple of the list of questions is given in Appendix. The

mapping of the question to candidacy is performed

as mentioned in the mapping section 5.2. The Un-

RizkNow platform maintains a double array a[x][y] to

save the label for the question format, and bit requires

to generate the option for the question. The labels are

yn for yes/no question, mc for multiple choice ques-

tion, and op for the open numerical question. The

submitter sees the questions in the form as presented

in Appendix. The platform has a program module m

that reads the value from the array a[x][y] and takes

care of the translation of option o to the required bits.

Benchmark Administration - N calculating agents

(BCA

,...BCA

) execute the key generation proto-

col using ElGamal encryption scheme. The resulting

public key of the benchmarking system is announced

to the registered members of UnRizkNow community,

and the corresponding secret key is shared among

BCA. BA also publishes the questions, and response

format on the bulletin board of UnRizkNow.

Benchmark Submission - Benchmark submitter con-

structs a random encryption

−→

e = E(

−→

a ,

−→

α ) for his

answer vector

−→

a and randomness

−→

α ∈

, and

posts it onto the bulletin board of UnRizkNow. The

submitter also posts a proof of validity. A response

B =

−→

a = (a

,...a

) is valid if and only if a

∈ {0,1}

for i = 1, ...,K and Σa

= K. A validity proof for

the encrypted response

−→

e = (e

,...,e

) is also con-

structed. The details of the construction of validity

proof is given in section 5.4 in (Hirt, 2010). The en-

crypted response is submitted by BS to the bulletin

board of UnRizkNow.

SECRYPT 2018 - International Conference on Security and Cryptography

Benchmark Calculation - BCA collects the en-

crypted responses from the bulletin board. The bench-

mark result Π is performed for each question sep-

arately. For Question Q

, the i−th components of

each valid encrypted response from M submitters are

summed up using the homomorphic property of the

encryption scheme and decrypted using the veriﬁable

decryption protocol of the encryption scheme.

Benchmark Result - The result of the benchmark is

published for the individual questions. The result is

calculated according to the equation 1, 3, 5.

7 DISCUSSION

In this section, we answer the ﬁnal research question

RQ4. Firstly, we address the adversary model and the

security assumption that we considered in this study.

The adversary model highlights what are the capa-

bilities of an adversary. Secondly, we perform the

security analysis on the main security requirements

which are typical for benchmarking systems. Finally,

we mention the behavior of the benchmarking system

using EV concepts towards the considered adversary

model.

7.1 Adversary Model and Trust

Assumption

The adversary model depicts the attack potential that

is a measure of the minimum effort to be expended in

an attack to be successful (Idrees et al., 2014). The be-

havior of an adversary can change largely according

to the implemented protocols and the capabilities of

the adversary. An internal attacker is equipped with

cryptographic keys and credentials that enable them

to participate in the execution of the processes in the

system. An external attacker does not possess such

keys and credentials. In this section, we provide a

general model of the adversary for benchmarking sys-

tem and EV system and map them.

In our adversary model, BS, BCA, and BA can act

as an internal attacker to break the system secrecy,

but not to inﬂuence the election outcome via bribery

or coercion. We assume that all the parties involved in

the benchmarking scenario are polynomially bounded

and thus incapable of solving hard problems or break-

ing cryptographic primitives such as contemporary

hash functions. Adversaries cannot efﬁciently de-

crypt ElGamal ciphertexts without knowing the pri-

vate keys. For preparing and conducting a benchmark

event, as well as for computing the ﬁnal result, we

assume that at least one honest benchmark author-

ity does not collude. We take into the consideration

that dishonest BCA may collude with the adversary,

but not all of them in the same benchmark event. A

threshold t denotes the number of BCA that is required

to decrypt the responses, and which is also able to

break the secrecy of an answer. BS cannot create an

invalid response that can pass the validity proof. An

external or internal adversary cannot delete any con-

tent from the UnRizkNow bulletin board.

7.2 Fulﬁllment of the Security

Requirements of Benchmarking

System

In this section, we show how the security require-

ments of the benchmarking system stated in section

2.3.3 can be fulﬁlled by adopting the EV approach.

We establish the security of our proposed benchmark

model using the established security proofs from the

electronic voting scheme. We utilize the security

proof and concepts given in (Hirt, 2010).

1. Completeness: The dishonest submitter BS

may

create an invalid response, but the probability that

the validity proof of encrypted response is negli-

gible. Therefore, the invalidity of the encrypted

response is detected in the validity proof of the

scheme and the invalid vote will not be counted.

2. Uniqueness: The encrypted response along with

the proof of the validity is posted on the bulletin

board of UnRizkNow platform. Therefore, the

submitter can submit only once, and the double

submission is detected easily.

3. Universal Veriﬁability: Anyone can read the en-

crypted response posted on the bulletin board.

One can check its validity by verifying the K-out-

of-L encryption proof. Since the encryption func-

tion uses the homomorphic property, he can also

sum up all valid encrypted response to obtain the

encryption of sum of the answers. Since the de-

cryption is veriﬁable, he can also check whether

the sum of the answers has been correctly de-

crypted (Hirt, 2001), (Hirt, 2010).

4. Individual Veriﬁability: The individual veriﬁa-

bility of the benchmarking system is guaranteed

by the homomorphic property of the encryption

function and the veriﬁable decryption of the en-

cryption scheme (Hirt, 2001), (Hirt, 2010).

5. Eligibility: The eligibility of the benchmarking

system is ensured by the use of Schnorr’s identi-

ﬁcation scheme. It is essential that each submit-

ter know his secret key, and this is ensured by the

public-key infrastructure. A protocol for ensuring

knowledge of the secret key for Schnorr’s iden-

Secure Benchmarking using Electronic Voting

tiﬁcation scheme is provided in (Hirt and Sako,

2000).

6. Secrecy: The secrecy of the benchmarking sys-

tem is guaranteed under the assumption that no t

BCA can maliciously pool their information and

the assumption that the encryption scheme is se-

mantically secure.

7. Soundness: The soundness of the benchmarking

system can be proved using the proofs given in the

re-encrypting and proving re-encryption of (Hirt,

2010).

8 LIMITATION AND FUTURE

WORK

The security requirements of benchmarking system

are formulated mainly to address the secrecy of the

sensitive information shared by the benchmark sub-

mitter and the transparency of the benchmark pro-

cess. There could be an extra requirement of receipt-

freeness for an enhanced version of benchmarking

system. Receipt-freeness property ensures that the

submitter cannot prove to a third party that they sub-

mitted a particular set of responses. A secure elec-

tronic voting scheme usually addresses the receipt-

freeness requirement because the selling of the vote

is a serious problem in the election. The selling of

the vote is often initiated by the entity who wants a

certain candidate to win in the election. However,

in our benchmark model, we do not think this prob-

lem is widespread as there is no candidate involved

in it. However, the signiﬁcance of this requirement

needs further investigation by producing a use-case

scenario.

The mapping of the benchmark structure to EV

system uses K-out-of-L voting structure. We con-

structed a response as an answer vector

−→

a where

∈ {0,1}. The benchmark result is constructed by

adding the i−th components of each valid response

using the homomorphic property of the encryption

function. Therefore, it is not possible to get the actual

number entered by the submitter in the open numer-

ical question as we cannot combine all the answers

in the response and decrypt it. The system can ap-

ply homomorphic operation on the i−th bit of the an-

swer. This property helps to ensure the conﬁdentiality

of the answer submitted, but at the same time, it does

not allow to get all the actual numbers submitted by

BS. The presence of an actual number in the bench-

mark could help to create a distribution graph of all

the value submitted. In other words, it would provide

how many submission lies below and above his sub-

mission. However, in our proposed model, one can

only see if his performance is either below or above

the average performance.

Our proposed solution is still prone to a vulner-

ability of conﬂicts of interests in and incentives to

manipulate the benchmark process where the bench-

mark submitters are also the market participants with

stakes in the level of the benchmarks. The conﬂicts

in the interest can create an incentive for abusive con-

duct of the benchmark process. Benchmark submit-

ters may attempt to manipulate a benchmark by sub-

mitting false or misleading data to break the credibil-

ity of the benchmark result. Our future work will con-

sist of conducting a risk analysis of the benchmark-

ing system. We will adopt CIRA method (Agrawal

and Szekeres, 2017) to conduct the risk analysis ex-

ercise. The aim of this exercise will be to assess the

conﬂict in the interest of the stakeholders involved in

the benchmarking system and propose the treatment

plan to reduce the conﬂict.

The EV schemes and system that we analyzed in

this study is far from the complete list. There might be

more relevant EV schemes and system available that

can be suitable for our benchmark model on UnRiz-

kNow platform. As our future work, we would like

to implement different electronic voting schemes on

the UnRizkNow platform and test their performance

in the benchmark context. We are also interested in

conducting similar studies with Group Signature, the

Secure Multi-Party computation to analyze their role

in conducting secure benchmark on UnRizkNow.

The ontology of benchmark and electronic voting

presents an overview of the concepts and relationships

involved in the system. The ontology needs to be

formalized with Web Ontology Language (OWL) for

modeling the ontology. The formal ontology will en-

able the possibility to be used by an automated tool to

perform the mapping between benchmark and EV.

The future work also includes the assessment

of other EV schemes to conduct secure benchmark

on UnRizkNow. For instance, the LE02 schemes

also meet all the requirements of secure benchmark.

Therefore, Le02 can also be a good candidate to adopt

for a future secure benchmark solution. However,

there is a concern with the efﬁciency of the LE02

scheme. This scheme has the overall performance

complexity of O(xL

B) where B represents the num-

ber of bits used to store one group element, x repre-

sents the number of questions, and L is the number

of bits in the answer. In other words, every submitter

sends his encrypted response using (xL

B) bits. On

the other hand, the overall performance complexity of

Hi10 scheme is O(xLB). In other words, every sub-

mitter sends his encrypted response using the (xLB)

bits.

SECRYPT 2018 - International Conference on Security and Cryptography

9 CONCLUSION

We have presented the model of a benchmarking sys-

tem that is typically used by an organization to es-

tablish the benchmark standard and provide bench-

mark as a service. We highlighted the security chal-

lenges that the current benchmark model face, and

therefore, a need to develop more secure benchmark-

ing system is also justiﬁed. The security limitation of

current benchmarking systems may hinder sharing of

important information between the submitters and the

benchmark authorities. Therefore, the requirements

of a secure benchmarking system are established. We

proposed a novel approach to solving the security lim-

itation of benchmarking systems by adopting the se-

cure cryptographic proofs from the ﬁeld of secure

electronic voting. We demonstrated how a bench-

marking system could be mapped to the electronic

voting system by mapping its protocol, structure, and

concepts. We also demonstrated how the different

formats of benchmark question can be presented and

how the benchmark result can be calculated using the

concepts of electronic voting. Our solution is based

on the electronic voting protocol that provides secure

transmission of the benchmark responses throughout

the system. Furthermore, the identity of the response

submitter is preserved by secrecy provided by the

cryptographic protocols. The members who partici-

pate in the benchmark process can ensure that their

responses have been counted correctly while calcu-

lating the benchmark result. Afterward, we demon-

strated that how a secure benchmark can be designed

for UnRizkNow platform using the concepts of EV

system. We showed that a benchmarking system is

more secure if it follows EV system approach as it

can satisfy the necessary security requirements. We

adopted Hi10 scheme to demonstrate the feasibility

of our approach for UnRizkNow platform, but other

relevant EV schemes can also be adapted to perform

the benchmark on UnRizkNow platform.

REFERENCES

ABB (2017). Cyber security benchmark.

Agrawal, V. (2016). Towards the ontology of iso/iec 27005:

2011 risk management standard. In HAISA, pages

101–111.

Agrawal, V. and Snekkenes, E. A. (2017). Factors Affecting

the Willingness to Share Knowledge in the Communi-

ties of Practice, pages 32–39. Springer International

Publishing, Cham.

Agrawal, V. and Szekeres, A. (2017). Cira perspective on

risks within unrizknow - a case study. In 2017 IEEE

4th International Conference on Cyber Security and

Cloud Computing (CSCloud), pages 121–126.

Agrawal, V., Wasnik, P., and Snekkenes, E. A. (2017). Fac-

tors inﬂuencing the participation of information secu-

rity professionals in electronic communities of prac-

tice. In Proceedings of the 9th International Joint

Conference on Knowledge Discovery, Knowledge En-

gineering and Knowledge Management, pages 50–60.

Chaum, D., Ryan, P. Y. A., and Schneider, S. (2005). A

practical voter-veriﬁable election scheme. In Proceed-

ings of the 10th European Conference on Research

in Computer Security, ESORICS’05, pages 118–139,

Berlin, Heidelberg. Springer-Verlag.

Chaum, D. L. (1981). Untraceable electronic mail, return

addresses, and digital pseudonyms. Commun. ACM,

24(2):84–90.

Chen, C.-L., Chen, Y.-Y., Jan, J.-K., and Chen, C.-C.

(2014). A secure anonymous e-voting system based

on discrete logarithm problem. Applied Mathematics

& Information Sciences, 8(5):2571.

Cortier, V., Galindo, D., Glondu, S., and Izabachene,

M. (2014a). Election veriﬁability for helios under

weaker trust assumptions. In European Symposium

on Research in Computer Security, pages 327–344.

Springer.

Cortier, V., Galindo, D., Glondu, S., and Izabach

ene,

M. (2014b). Election Veriﬁability for Helios under

Weaker Trust Assumptions, pages 327–344. Springer

International Publishing, Cham.

ESMA-EBA (2013). Final report:esma-eba principles for

benchmark-setting processes in the eu. Technical re-

port.

Forum, I. S. (2017). Benchmark as a service - informa-

tion security forum. https://www.securityforum.org/

products-services/benchmark-as-a-service/. Online;

accessed 28 November 2017.

Gerlach, J. and Gasser, U. (2009). Three case studies from

switzerland: E-voting. Berkman Center Research

Publication No, 3:2009.

Gregor, S. and Hevner, A. R. (2013). Positioning and pre-

senting design science research for maximum impact.

MIS Q., 37(2):337–356.

Gritzalis, D. A. (2002). Principles and requirements for a

secure e-voting system. Comput. Secur., 21(6):539–

556.

Haenni, R., Koenig, R. E., Locher, P., and Dubuis, E.

(2017). Chvote system speciﬁcation. IACR Cryptol-

ogy ePrint Archive, 2017:325.

Hevner, A. R., March, S. T., Park, J., and Ram, S. (2004).

Design science in information systems research. MIS

Q., 28(1):75–105.

Hidalgo, A. and Albors, J. (2008). Innovation management

techniques and tools: a review from theory and prac-

tice. R&D Management, 38(2):113–127.

Hirt, M. (2001). Multi Party Computation: Efﬁcient Pro-

tocols, General Adversaries, and Voting. Hartung-

Gorre.

Hirt, M. (2010). Towards trustworthy elections. chapter

Receipt-free K-out-of-L Voting Based on Elgamal En-

Secure Benchmarking using Electronic Voting

cryption, pages 64–82. Springer-Verlag, Berlin, Hei-

delberg.

Hirt, M. and Sako, K. (2000). Efﬁcient Receipt-Free Voting

Based on Homomorphic Encryption, pages 539–556.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Idrees, M. S., Roudier, Y., and Apvrille, L. (2014). Model

the System from Adversary Viewpoint: Threats Iden-

tiﬁcation and Modeling. EPTCS 165, 2014, pp. 45-58.

arXiv:1410.4305v1.

IOSCO (2013). Principles for ﬁnancial benchmarks. Tech-

nical report.

ISF (2017). The isf benchmark and benchmark as a

service. https://www.securityforum.org/tool/the-isf-

benchmark-and-benchmark-as-a-service/. online; ac-

cessed 19 November 2017.

Jakobsson, M., Sako, K., and Impagliazzo, R. (1996).

Designated veriﬁer proofs and their applications. In

Maurer, U., editor, Advances in Cryptology — EU-

ROCRYPT ’96, pages 143–154, Berlin, Heidelberg.

Springer Berlin Heidelberg.

Johannesson, P. and Perjons, E. (2014). An introduction to

design science. Springer.

Kanno, Y. (2009). Information security measures bench-

mark (ism-benchmark). Technical report, T Security

Center, Information-technology Promotion Agency

(IPA).

Kelessidis, V. (2000). Innoregio: dissemination of innova-

tion management and knowledge techniques.

Lee, B. and Kim, K. (2000). Receipt-free electronic voting

through collaboration of voter and honest veriﬁer. In

Proceeding of JW-ISC2000, pages 101–108.

Lee, B. and Kim, K. (2003). Receipt-free electronic voting

scheme with a tamper-resistant randomizer. In Pro-

ceedings of the 5th International Conference on In-

formation Security and Cryptology, ICISC’02, pages

389–406, Berlin, Heidelberg. Springer-Verlag.

Liaw, H.-T. (2004). A secure electronic voting protocol for

general elections. Comput. Secur., 23(2):107–119.

Madise,

U. and Martens, T. (2006). E-voting in estonia

2005. the ﬁrst practice of country-wide binding inter-

net voting in the world. Electronic voting, 86(2006).

Mathwick, C., Wiertz, C., deRuyter, K., served as edi-

tor, J. D., and served as associate editor for this ar-

ticle., E. A. (2008). Social capital production in a vir-

tual p3 community. Journal of Consumer Research,

34(6):832–849.

Neff, C. A. (2001). A veriﬁable secret shufﬂe and its ap-

plication to e-voting. In Proceedings of the 8th ACM

Conference on Computer and Communications Secu-

rity, CCS ’01, pages 116–125, New York, NY, USA.

ACM.

of Estonia, S. E. O. (2017). General framework of elec-

tronic voting and implementation thereof at national

elections in estonia.

O’Rourke, L., Board, N. R. C. U. T. R., Program, N. C.

F. R., of Transportation. Research, U. S. D., and Ad-

ministration, I. T. (2012). Handbook on Applying En-

vironmental Benchmarking in Freight Transportation.

English short title catalogue Eighteenth Century col-

lection. Transportation Research Board.

Pierro, M. D. (2017). evote tutorials.

Rja

skov

a, Z. (2002). Electronic voting schemes. Diplomov

aca, Bratislava.

Schnorr, C. P. (1991). Efﬁcient signature generation by

smart cards. Journal of Cryptology, 4(3):161–174.

Schoenmakers, B. (1999). A Simple Publicly Veriﬁable Se-

cret Sharing Scheme and Its Application to Electronic

Voting, pages 148–164. Springer Berlin Heidelberg,

Berlin, Heidelberg.

Vinkel, P. (2012). Internet Voting in Estonia, pages 4–12.

Springer Berlin Heidelberg, Berlin, Heidelberg.

Whitman, M. and Mattord, H. (2014). Management of in-

formation security. Cengage learning.

Wiertz, C. and de Ruyter, K. (2007). Beyond the call of

duty: Why customers contribute to ﬁrm-hosted com-

mercial online communities. Organization Studies,

28(3):347–376.

APPENDIX

List of Benchmarking Questions

1. Do you perform background checks on all em-

ployees with access to sensitive data, areas, or ac-

cess points?

• Yes

• No

2. What percentage of the employee recognize a se-

curity issue? [range 0-100]

3. Where do you store your sensitive information?

• laptop

• Paper document

• Data server (internal)

• Data Server (external)

SECRYPT 2018 - International Conference on Security and Cryptography
