A Commit Change-based Weighted Complex Network Approach to

Identify Potential Fault Prone Classes

Chun Yong Chong

and Sai Peck Lee

School of Information Technology, Monash University Malaysia, Jalan Lagoon Selatan,

47500 Bandar Sunway, Selangor, Malaysia

Department of Software Engineering, Faculty of Computer Science and Information Technology,

University of Malaya, Kuala Lumpur 50603, Malaysia

Keywords: Software Fault Identification, Software Change Coupling, Commit Change Data, Mining Software

Repositories, Complex Network.

Abstract: Over the past few years, attention has been focused on utilizing complex network analysis to gain a high-

level abstraction view of software systems. While many studies have been proposed to use interactions

between software components at the variable, method, class, package, or combination of multiple levels,

limited studies investigated how software change history and evolution pattern can be used as a basis to

model software-based weighted complex network. This paper attempts to fill in the gap by proposing an

approach to model a commit change-based weighted complex network based on historical software change

and evolution data captured from GitHub repositories with the aim to identify potential fault prone classes.

Experiments were carried out using three open-source software to validate the proposed approach. Using the

well-known change burst metric as a benchmark, the proposed method achieved average precision of 0.77

and recall of 0.8 on all the three test subjects.

1 INTRODUCTION

In recent years, research in software engineering in

the aspect of representing software systems using

complex networks has started to emerge with the

aim to gain a high-level abstraction view of the

analysed software systems (Ma et al. 2010, Concas

et al., 2011). Representing software systems using

complex networks allows software maintainers to

gain more insights on the studied software by

discovering unique or recurring structural patterns,

detecting abnormalities and outliers, or even

predicting future evolution trends (Turnu et al.,

2013). For instance, the work by Zimmermann and

Nagappan (Zimmermann and Nagappan, 2008) has

shown that it is possible to predict software defects

using graph theory metrics to reveal some extra-

deterministic information of the software that are

otherwise hidden from software maintainers, such as

fault prone software components.

However, the ways to represent software-based

complex networks are generally not standardized

across multiple studies due to the fact that different

studies might be addressing some specific issues at

different levels of granularity, i.e. package level

(Hyland-Wood et al., 2006), class level (Chong and

Lee 2015, Chong and Lee, 2017), or code level

(Myers, 2003). While most of the existing studies

focus on utilizing source code as the main source of

information to form a software-based complex

network, there is a lack of studies that attempt to

harness the data and metadata that are available on

source code management systems (SCMS).

Software engineering and big data researchers

have been drawn into using SCMS such as GitHub

due to its integrated social features and the metadata

that can be accessed through its API (Kalliamvakou

et al., 2015). Much research including qualitative

and quantitative studies have been conducted on

GitHub. In qualitative studies, the research focus on

analyzing software developers’ behavior, in an

attempt to identify the traits and characteristics of

software developers in successful software

development (Begel et al., 2013). On the other hand,

quantitative studies focus on using commit change

data to understand the evolution of a software, and

to construct software bug predictors to facilitate its

maintenance in the GitHub environment (Gousios et

Chong, C. and Lee, S.

A Commit Change-based Weighted Complex Network Approach to Identify Potential Fault Prone Classes.

DOI: 10.5220/0006828104370448

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 437-448

ISBN: 978-989-758-320-9

437

al., 2014). Due to the vast amount of data available

for projects hosted on GitHub, it is easy to retrieve

commit change related information of a particular

software. Various studies have found the frequency

of software change, especially pre or post-release, is

positively correlated to its fault proneness

(Nagappan et al., 2010). Hence, by studying the

commit change requests in GitHub, researchers are

able to discover and study recurring patterns of fault

prone software components.

However, based on our knowledge through

literature review, there is no study that attempts to

fully exploit the commit change data mined from

SCMS by creating a commit change-based complex

network to reveal the co-change behavior of

software components from a graph theory point-of-

view. We argue that a complex network modelled

based on the commit change data of software

systems can aid in the identification of bug prone

components by applying relevant graph theory

metrics. Graph theory metrics such as degree

centrality, closeness centrality, and clustering

coefficient had been proven to be correlated to the

quality of software systems (Chong and Lee, 2015).

Hence, applying this set of well-established graph

theory metrics on the proposed commit change-

based complex network can reveal bug or fault

prone classes and other interdependent classes that

are strongly related to the faulty class, i.e. when

ClassA is changed, there is a high probability that

ClassB will need to be changed as well.

This research proposes a way to utilize historical

software change and evolution data as an input to

model a commit change-based weighted complex

network. Through the application of well-

established graph theory metrics, potential fault

prone classes are identified. We use the well-known

change burst metrics proposed by (Nagappan et al.,

2010) as a benchmark to evaluate the accuracy of

our proposed approach on three open source projects

hosted on GitHub, namely fastjson, bitcoinj, and

kairosdb. Experiments show that the proposed

approach managed to achieve an average precision

of 0.77 and a recall of 0.8 when using change burst

metric as a benchmark. This paper is organized as

follows: Section 2 discusses the background and

related works in utilizing complex network analysis

to study the structure of software, as well as works

on change coupling metrics to identify potential

fault prone software components. Section 3 presents

the proposed approach to model a commit change-

based weighted complex network. Section 4 presents

the experimental design, along with the execution of

the experiment. Section 5 gives an overall

discussion based on the results obtained in the

previous section, followed by concluding remarks

and potential future work.

2 RELATED WORKS

There are several features in graph theory that can

be used to analyze the structure and behavior of

software systems. Recent studies of representing

objected-oriented software systems as complex

networks revealed that many of them share some

global and fundamental topological properties such

as scale free and small world (Potanin et al. 2005;

Concas et al., 2007; Louridas et al., 2008; Pang and

Maslov, 2013; Baxter et al., 2006). The scale free

characteristic in software systems can be interpreted

as the level of reuse of important classes, or the

number of dependencies between classes, while

software-based networks that exhibit small world

property signify that the cohesion strength among

software components are strong from a graph

theory’s point of view. Thus, complex networks and

graph theory analysis are excellent in evaluating the

impact of a particular class with respect to the whole

system.

Before applying graph theory metrics onto a

software system to be analyzed, one must construct

its complex network in advance. An object-oriented

software is typically composed of multiple classes.

At the source code level, classes in object-oriented

software may contain data structures, objects,

methods, and variables. Two classes can be

considered related if there are actions such as

passing of messages. Due to multiple ways of

representing nodes and edges, there is a need to

perform an in-depth review on existing works that

model software systems using complex networks.

2.1 Modelling Software-based Complex

Network

The work by Myers (Myers, 2003) proposed a

method to model software systems using complex

network by analyzing the interdependencies of

source code. A software collaboration graph based

on the calling of methods by one another is used to

analyze the structure and complexity of software

systems. The work by Myers is later extended in the

work by LaBelle et al. (LaBelle and Wallingford,

2004) and Hyland et al. (Hyland-Wood et al., 2006)

to include the usage of classes and packages.

On the other hand, the work by Oyetoyan et al.

(Oyetoyan et al., 2015) proposed an approach to

ICSOFT 2018 - 13th International Conference on Software Technologies

438

investigate the relationship between cyclic

dependencies and software maintainability. Cyclic

dependency graphs are used in this work, where

classes are represented as nodes and relationships

between classes are represented as edges. The

authors examined the change frequency of software

components in multiple releases, and identified if

the classes involved in circular dependencies are

more prone to changes. Based on their finding, the

authors discovered that circular dependencies are

positively correlated to change frequency, and it will

adversely affect the maintainability of software

systems.

The work by Valverde and Solé (Valverde and

Solé, 2003) discussed the usage of two graphs,

namely Class Graph and Class-Method Graph, to

analyze the global structure of software systems.

Class Graph is derived based on UML class

diagrams, where classes are represented as nodes,

while relationships among classes, such as

dependency and association, are depicted as edges

between nodes. Class-Method Graph is modeled

based on source code using the similar concept. For

both types of graphs, the complexity of nodes and

edges is ignored mainly because the authors

assumed that internal complexities do not change the

global structure of a software.

Based on the these studies, it is obvious that

there are various ways to represent software-based

complex network mainly because different studies

are addressing different issues at varying levels of

granularity. Since the focus of this paper is to

identify bug or fault prone software components,

information related to the evolution of software

components such as change history can be useful to

model a software-based complex network. It is

widely acknowledged that software components

constantly undergoing changes are more likely to be

fault prone due to their unstable structure. Hence, by

studying the commit change in SCMSs such as

GitHub, one can attempt to discover and learn

recurring patterns of bug or fault prone software

components.

2.2 Change Metric to Identify Bug or

Fault Prone Software Components

Studies have found that apart from using popular

source code metrics in software bug prediction,

change metrics are equally good, if not better, in

identifying bug or fault prone software components

when compared to code metrics (Muthukumaran et

al. 2015, Nagappan et al. 2010, Hassan 2009).

Change coupling, which is one of the most widely

used change metrics, was defined in (Wiese et al.,

2015) as the situation associated with recurrent co-

changes of software components found in the

software evolution or change history. In other

words, change coupling between any two classes is

measured by observing their co-change or co-evolve

patterns over a period of development history

(Ambros et al., 2009; Ajienka and Capiluppi).

According to the work by Zimmermann., et al

(Zimmermann et al., 2004), the authors treat change

coupling as association rules. The association rule

defines that if given a situation where when class A

is changed, class B is also changed in response to

that action, that will result in the association rule of

 ⟹ .

Various research studies were conducted to

analyze the relationships between all the software

components, evolution patterns, and relevant

information mined from SCMSs such as GitHub and

Subversion (Kagdi et al. 2013, Yang et al. 2017) in

order to capture the co-changing behavior.

Experimental results had shown that by studying co-

change patterns among software components,

developers can actually identify hidden

dependencies that are not revealed by traditional

static code metrics and it can be used to form the

basis of bug prediction model (Zimmermann et al.

2004, Xia et al. 2016, Huang et al. 2017).

Meanwhile, Nagappan et al (Nagappan et al.,

2010) proposed a new code change metric, called

the change burst metric, which is capable of

accurately predicting fault prone software

components in software projects with high

frequency of changes. The authors define change

burst as a sequence of consecutive changes in a

fixed interval of time, i.e. pre-release or post-release

of a major software version. If the amount of change

burst is relatively high on a piece of code, it could

indicate that the code is not tested or designed

properly, causing developers to issue emergency

post-release patch to fix the issue. With precision

and recall exceeding 90% when tested on Windows

Vista, the authors have shown that code change

metrics can outperform conventional source code

metrics for predicting defects in large-scale

commercial software.

Based on the these studies, it is clear that

utilizing data mined from software repositories can

be a promising way to study the inherent complexity

and co-change behavior of software systems. In this

paper, an approach to model a commit change-based

weighted complex network is proposed. The

proposed commit change-based network is capable

of revealing extra-deterministic information about

A Commit Change-based Weighted Complex Network Approach to Identify Potential Fault Prone Classes

439

the fault proneness of software components with the

aid of graph theory metrics such as degree centrality

and betweeness centrality. After applying relevant

graph metrics, one can identify the important nodes

in the network, or in this context, classes that change

frequently (due to the fact that the network is

modelled based on commit change data of software

components) throughout a fixed period of software

development lifecycle. The information derived

from graph theory analysis can be used to

supplement the raw commit change data mined from

SCMS to aid in identifying bug-prone software

components. The contribution of this paper can be

summarized as follows:

1. A novel way to model a commit change-

based weighted complex network

2. A way to identify classes that change

frequently (direct and indirect neighbouring

classes included) in order to reveal potential

bug prone classes, based on the modelled

commit change-based weighted complex

network.

3. Evaluation of the proposed approach using

three open-source projects archived in

GitHub repositories.

3 PROPOSED APPROACH

A complex network,  , , is made up of a set

of nodes V, and a set of edges ⊆ that

connect pairs of nodes. In general, a complex

network can either directed or undirected. In both

directed and undirected networks, edges may be

associated with weights to denote the similarity of a

pair of nodes connected by an edge or the cost of

traveling through that particular edge. In a directed

network ,, ,  ∈  signifies that there is

an edge in  that is linking node  to node  where 

is the origin and is the terminus. On the other hand,

in an undirected network



,, if ,  ∈ ,

then edge ,  ∈  as well because the origin and

terminus are not specified in an undirected network.

Both directed and undirected networks can be

represented by their own adjacency matrix A. The

matrix A is a







matrix where the rows and

columns represent the nodes of the network. In an

undirected network, the entry



1, if,  ∈

;∀,  ∈ 1, ⋯ ,



. Value 0 indicates that there is

no relationship in between nodes and . Meanwhile

for a directed network, the value 



represents the

weight associated with edge, . The value of

adjacency matrix A is symmetric for an undirected

network such that







. In a directed network,

however, the relation 



is asymmetrical.

In OO software systems, objects and classes are

normally related through different kinds of binary

relationships, such as inheritance, composition and

dependency. Thus, the notion of associating graph

theory to represent large OO software systems and

to analyze their properties, be it structural

complexity or maintainability, is feasible.

In this paper, an approach to model a commit

change-based weighted complex network is

proposed. Table 1 illustrates an example where there

exist four commit changes over a period of time. For

each commit, all the affected classes (including add

a new line of codes, modify existing code, or

removal of code) are listed in the table. For example,

in Commit #1120, three classes, namely A.java,

B.java, and G.java were affected. Based on the

information provided in Table 1, a way to model the

associated weighted complex network is proposed.

Figure 1 illustrates an example of the proposed

approach to create a commit change-based weighted

complex network.

Table 1: Example of four commit changes and classes

affected by each commit change.

Commit

#1120

Commit

#1121

Commit

#1122

Commit

#1123

Affected

Classes

A.java

B.java

G.java

A.java

G.java

F.java

A.java

F.java

H.java

C.java

F.java

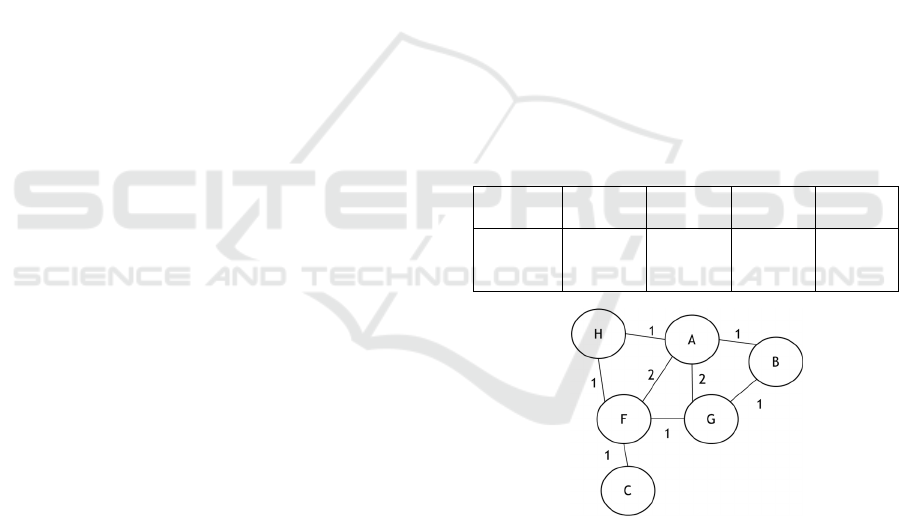

Figure 1: Example of commit change-based weighted

complex network.

The proposed approach takes into consideration

any kind of changes, including adding one or many

lines of code, modifying one or many lines of code,

and removing one or many lines of code. Based on

the commit change information shown in Table 1, a

weighted complex network that resembles the

interaction of commit changes among all classes is

created. Classes that are affected by the same

commit change are linked together with edges, while

the frequency of co-changes is used as a basis to

ICSOFT 2018 - 13th International Conference on Software Technologies

440

calculate the weights of edges. For example,

Commit #1120 affects three classes, namely A.java,

B.java, and G.java. Hence, edges are created to

connect all these three classes affected by the same

commit change #1120. As for the frequency of co-

changes, Class A.java and G.java were both affected

in Commit #1120 and Commit #1121. Hence, a

value of 2 is assigned to the edge connecting node A

and G.

Once the target software is modelled into its

respective weighted complex network, we can then

analyze it using graph theory metrics that are

correlated to fault proneness of software systems.

Before choosing the appropriate metrics, we need to

define the characteristics of complex network that

are capable of revealing fault proneness of software

components.

3.1 Community Structure of Commit

Change-based Network

The work by Malliaros and Vazirgiannis (2013)

discussed that real-world networks (networks not

modelled from random data) have special structural

patterns and properties that distinguish themselves

from random networks. One of the most distinctive

features in a real-world network is the community

structure, such that the topology of the network is

organized in several modular groups, commonly

known as communities or clusters. However, in

large-scale real-world networks (such as social

network, power grid network, and World Wide

Web), the community structure is usually hidden

from users, largely due to their inherit complexity.

Thus, discovering the underlying community

structure of a real-world network, or commonly

referred as community detection, is crucial toward

the understanding of the analyzed network.

In this paper, community structure of commit

change-based network can be used to represent and

identify classes that tend to co-change together from

a graph theory point-of-view. As mentioned earlier,

the work by Ambros, et.al., (Ambros et al. 2009)

found that change coupling for a collection of

classes, or in other words, the tendency for those

classes to co-change together, is positively

correlated to fault proneness. In this paper, several

community detection techniques that are commonly

used in the field of brain network research will be

adopted to discover the community structure of

commit change-based weighted complex network.

The findings will be used to identify classes that

exhibit high change coupling behavior.

3.1.1 Identifying Network Hubs

Figure 2 shows a snippet of commit change-based

weighted complex network constructed using the

proposed method on an open-source software

written in Java, called the Gson. The commit change

data were extracted from 1

January 2014 until 1

January 2015. The complex network is modelled

using an open-source network visualization tool,

called Cytoscape.

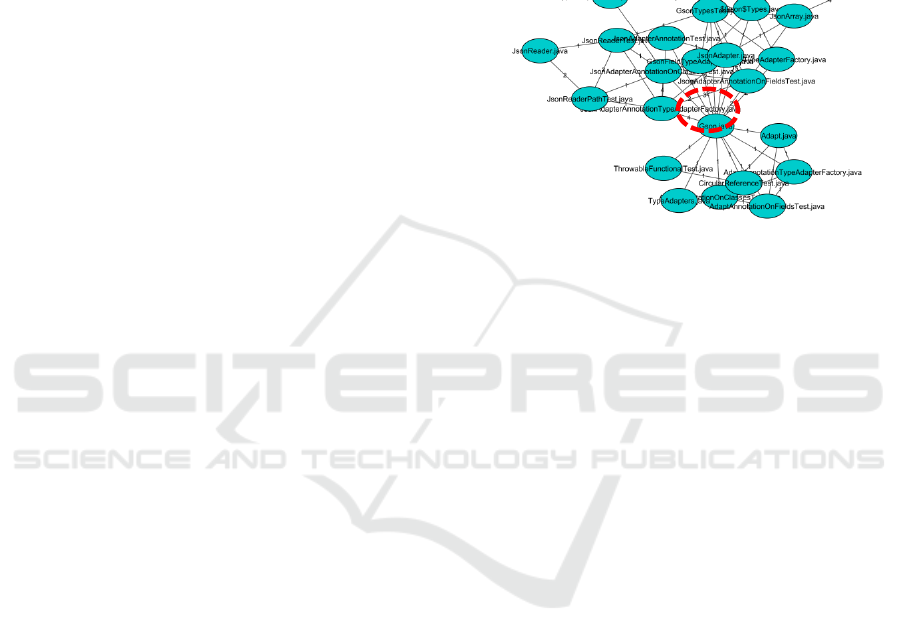

Figure 2: Snippet of Gson project represented in weighted

complex network using the proposed method.

Gson is a relatively small project and there were

only 109 commit changes during the examined one-

year period. Therefore, we can easily identify the

community structure of the network through visual

inspection. For example, the node marked with the

dotted circle possesses high degree centrality

(Gson.java) because a lot of other nodes are

converging toward this particular node. In the field

of graph theory, the presence of node with high

degree centrality is usually referred as a hub. The

work by Ravasz and Barabasi (2003) showed that a

hub plays a very important role in complex network

because it is responsible for bridging multiple small

groups of clusters into a single, unified network.

From the software change and evolution point-

of-view, hubs with high degree centrality are classes

that often co-change with other classes. This

behavior can be caused by the hub class providing

methods to be used by other classes, or in scenarios

where the hub classes are passing parameters to be

used by other classes. Hence, making changes to the

hub class will have cascading effect on other related

classes as well. The work by Turnu et al. (2012) also

demonstrated that there is a very high correlation

between the degree distribution of software-based

complex network and the system’s bug proneness.

Hence, we argue that identifying community

structure, or in other words, formation of hubs, is

important to reveal bug or fault prone software

components of the analyzed software. However,

since the complex network modelled in this paper is

A Commit Change-based Weighted Complex Network Approach to Identify Potential Fault Prone Classes

441

based on commit change data, identifying hub

classes alone will not be sufficient enough to

analyze the co-change pattern of all the classes exist

in a software.

3.1.2 Identifying Classes That Form Clique

with Hubs

Clustering coefficient of a node is the average

tendency of pairs of neighbors of a node that are

also neighbors of each other. If all the inspected

nodes are adjacent to each other, where there exists

an edge that connects each pair of the neighbors, it is

considered a complete clique (Watts and Strogatz

1998). Nodes inside a complete clique are

considered to be tightly coupled to each other, and

in the context of this paper, high change coupling.

Therefore, by combining the concept of hubs

and clustering coefficient, one can identify the

neighboring classes that are closely related to the

hubs. Neighboring classes that form a complete

clique with a hub can be interpreted as classes that

frequently co-change together with the hub classes

(Malliaros and Vazirgiannis 2013).

One way to identify hubs is by observing the

nodes which possess high degree at the tail of the

degree distribution in log-log scale (Ravasz and

Barabasi 2003). Figure 3 shows an example of the in-

degree distribution of a project in log-log scale. Based

on the figure, most of the nodes possess in-degree of

1, and the extreme values are roughly 60 times higher

than the average in-degree. The tail of the degree

distribution, as depicted by the red circle in Figure 3,

shows that there are several nodes with exceptionally

high in-degree. These nodes are usually considered as

the hubs, as discussed by Ravasz et al.

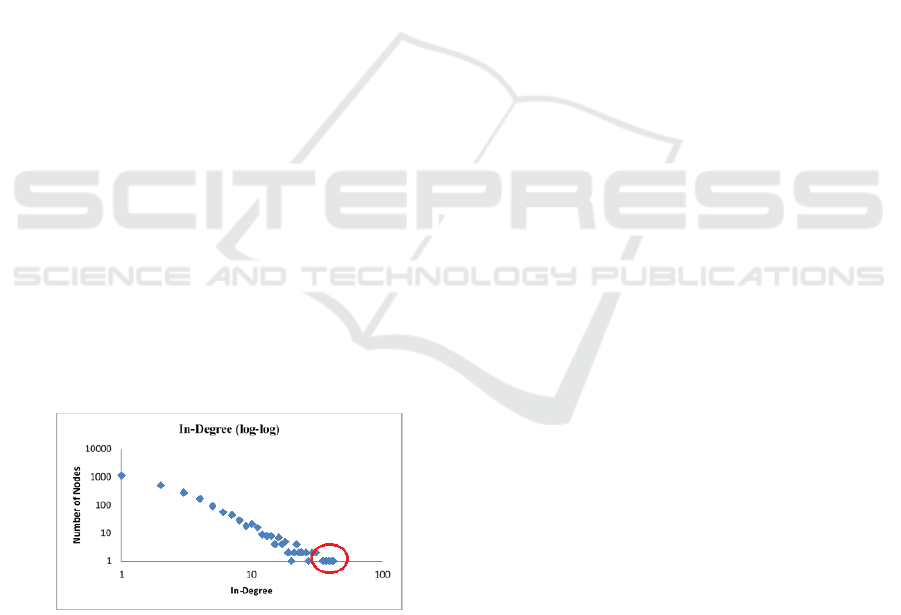

Figure 3: Identify hubs by observing the degree

distribution of in-degree.

However, it is possible that the identified nodes

(classes) with high in-degree might actually be god

classes or utility classes. Therefore, it is important

to differentiate between hubs and god classes.

Several studies have discovered that nodes that

behave like god classes share several characteristics,

especially when observed from the graph theory’s

point of view (Turnu et al. 2013, Turnu et al. 2012,

Concas et al. 2007). For instance, according to

Turnu et al. (2013), god classes tend to possess high

in-degree and out-degree. Therefore, in this study,

when a node is found to possess exceptionally high

in-degree and out-degree when compared to other

classes, it is flagged as god classes instead of hubs.

However, do note that the proposed approach to

model nodes and edges is based on the classes that

are affected by one or many commit changes. If

there are 5 classes affected in a commit change,

edges will be established between all 5 nodes that

correspond to the associated classes (i.e. every node

is connected to all the other nodes). In that case, for

every commit change that involved more than 2

nodes, a clique will be created.

In order to prevent false positive results when

identifying classes that form clique with hub classes,

the following technique is adopted. Given a

collection of classes 



,



,…



, if these classes

only co-change together once (or very rarely), then

we can assume that the co-change behavior is only a

one-off operation in a certain period of software

development lifecycle. Hence, using the proposed

approach to model the commit change-based

weighted complex network, the weight of the edges





,



,…



that connect between all the

associated classes (nodes) 



,



,…



representing

these classes will be very low to reflect this sporadic

behavior. Therefore, in this paper, we only take into

consideration classes that co-change together more

than 3 times in order to capture significant co-

change behavior. As a result, the modelled commit

change-based weighted complex network will only

consist of edges with weightage value of 3 or above.

There is a strong reason why a value of 3 is chosen.

As mentioned earlier, using a value of 1

(consider classes that co-change for a minimum one

time) will end up with creating a network with

complete clique, i.e. all classes (nodes) are linked to

each other. Figure 4a shows an example of network

formed when the value is set at 1 using kairosdb, an

open-source project available on GitHub. The

constructed network in Figure 4a is too densely

connected where almost all classes formed complete

clique with each other because the threshold for

minimum co-change was set at 1.

Using a value of 2, on the other hand, still do not

eliminate false positive results by a huge margin

(Figure 4b). In our preliminary experiment, plenty of

complete clique among all classes still exist with a

value of 2 (consider classes that co-change for a

minimum 2 times). It is only when the value is

change is 3 (consider classes that co-change for a

ICSOFT 2018 - 13th International Conference on Software Technologies

442

minimum 3 times), a lot of false positive results are

eliminated.

Any value larger than 3 is not suitable because

there is only a handful of classes that co-change

more than 3 times.

Besides that, we are using graph theory metrics

that consider weights of edges to help mitigate the

issue. For instance, maximum weighted clique is

used to identify classes that form a clique with hub

classes with the largest weight. This will ensure that

only significant co-change patterns are captured and

analyzed.

4 EXPERIMENT SETUP

In order to facilitate reproducibility and follow up

research, the tool that we used to extract relevant

commit change information from GitHub repository

is made available to the public (Chong 2017). The

shell script provides users a way to extract co-

change behaviour from any GitHub repository and

return the query in a csv format which contains three

columns, which are “weight”, “source”, and “target”

respectively. Users can specify the target repository

by changing the "repository name" variable. The

code also provides a way to specify the range of

dates for inspection by modifying the "SINCE" and

"UNTIL" variable. The output can be easily

exported to Cytoscape for further analysis.

Four open-source software systems written in

Java are chosen in this study. The sizes of the

software systems vary from 394 to 2422 classes to

reflect some representative distribution on the

population of open-source OO software systems.

Table 2 shows additional information about the

chosen projects.

Table 2: Summary of chosen projects.

Name

classes

Inspection

Period

Number

Commit

Changes

Nodes/

Edges

fastjson 2422

Jan 2016 –

Jan 2017

1510 129/488

dubbo 1212

Jan 2013 –

Jan 2016

50 0/0

bitcoinj 415

Jan 2016 –

Jan 2017

269 94/568

kairosdb 394

Jan 2016 –

Jan 2017

181 52/279

The inspection period in the third column refers to

the duration where we captured the commit change

data from the selected project. For fastjson, bitcoinj,

and kairosdb, the inspection period was set to be 1

year, from 1

January 2016 to 1

January 2017. A

total of 1510, 269, and 181 commit changes were

identified during the 1-year period for fastjson,

bitcoinj, and kairosdb respectively. On the other hand,

due to the fact that the dubbo is a relatively stable

project with less active developers, the inspection

period was stretched to 3 years instead, from 1

January 2013 to 1

January 2016. For the said 3-year

period, a total of 50 commits were identified.

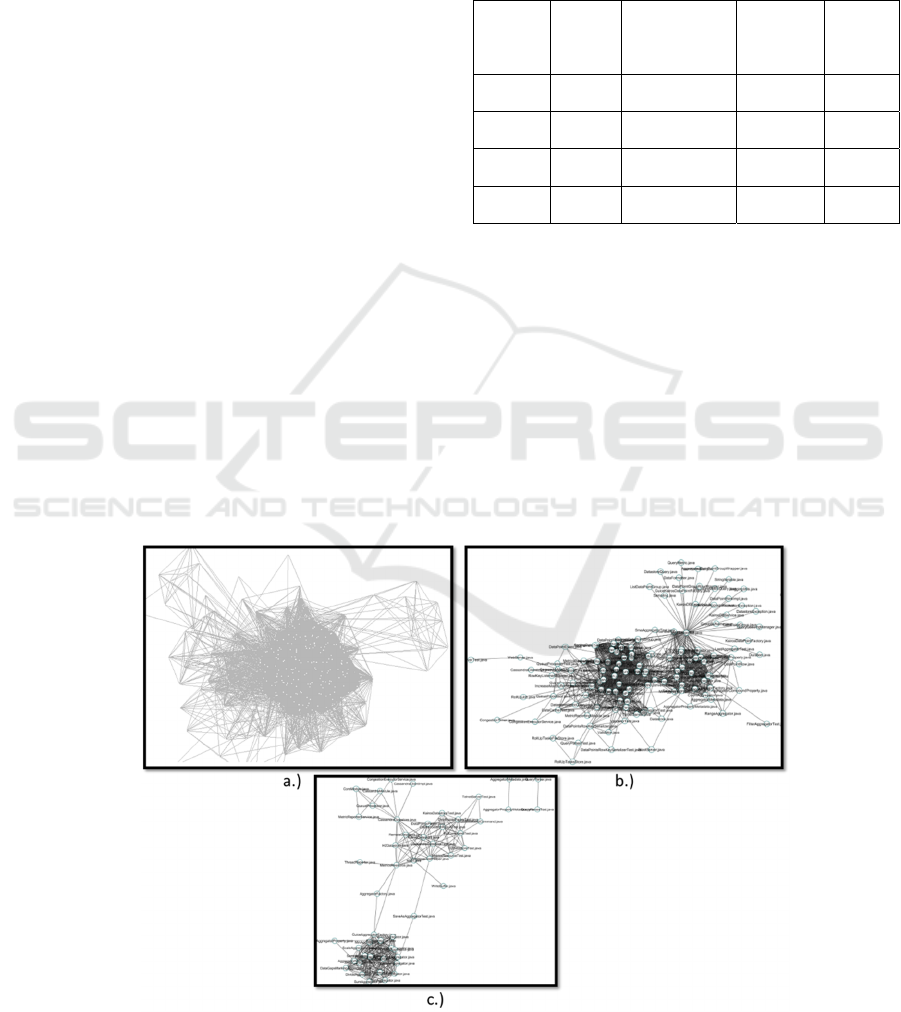

Figure 4: Formation of network by varying the minimum co-change threshold on kairosdb project. a) 1 time, b) 2 times, c) 3

times.

A Commit Change-based Weighted Complex Network Approach to Identify Potential Fault Prone Classes

443

The last column refers to the total number of

nodes and edges formed in the commit change-based

weighted complex network using the proposed

approach. It was observed that for the dubbo project,

all the 50-commit changes (under inspection) were

unique, i.e. there were no classes that co-change

together more than once. There was however one

exception, where classes JavaBeanSerializeUtilTest.

java and JavaBeanSerializeUtil.java did co-change

twice during the 3-year inspection period.

Based on the dubbo project release notes, it was

further revealed that the project did not release any

major updated version from 2013 to 2016. There

were only small incremental updates to fix minor

compatibility issues. As a result, the commit change-

based weighted complex network to represent the

dubbo project only contains edges with weighted

value of 1, which is similar to an unweighted

network. Ultimately, it prevents us from identifying

significant community structure through analyzing

the weighted degree centrality of each node in the

network. Hence, we decided to discard the dubbo

project from the experiment. This unexpected

behavior had eventually revealed one of the

limitations of the proposed approach, such that it is

less suitable to be applied on structural stable

software, or software that undergoes a small amount

of changes or updates over a period of development

history.

4.1 Identification of Faulty Prone

Software Components

Next, based on the commit change-based weighted

complex network, graph theory metrics discussed in

Section 3.1.1 and 3.1.2 were applied to analyze the

chosen software, using several Cytoscape plugins

including Nemo (Orrú et al., 2015) (calculate

clustering coefficient and identify formation of

hubs), CytoNCA (Tang et al., 2015) (calculate

weighted degree centrality), and MClique (calculate

maximum weighted clique). Tables 3 shows the list

of hubs identified using CytoNCA plugin.

The second column of Table 3 records the

weighted degree centrality values of all the

identified hubs. It can be observed that although

fastjson is relatively larger (from the perspective of

number of classes) when compared to bitcoinj, the

weighted degree centrality values of the identified

hubs are almost comparable. Further investigation

revealed that 24 new releases were published for

fastjson during the 1-year inspection period, while

only 6 new releases were published for bitcoinj. This

observation is mainly attributed by the fact that on

Table 3: Summary of identified hubs.

Identified Hubs

Weighted Degree

Centrality

fastjson

ASMSerializerFactory.java 219

JavaBeanSerializer.java 191

JavaBeanDeserializer.java 185

ParserConfig.java 168

JSONSerializer.java 153

FieldSerializer.java 147

ASMDeserializerFactory.java 145

bitcoinj

WalletTest.java 191

TransactionBroadcastTest.java 133

PaymentChannelClientState.java 122

WalletProtobufSerializerTest.java 114

BitcoinUIModel.java 114

Wallet.java 110

PeerGroup.java 108

kairosdb

CassandraDatastore.java 49

AggregatorName.java 49

CassandraDatastoreTest.java 49

DatastoreTestHelper.java 43

average, more classes were affected by each commit

change request in the bitcoinj project. 23 out of the

24 identified releases published by fastjson during

the inspection period were either bug fixes,

compatibility updates, or optimization updates. Only

one of the releases introduced new functionalities.

On the other hand, the bitcoinj project is still on

its beta version. Hence, each commit change in the

bitcoinj project affected a relatively larger number of

classes because new functionalities are introduced to

the system in an incremental manner.

Next, we use the MClique plugin to identify the

maximum weighted clique in all the three studied

networks. Table 4 shows the results of the analysis.

Based on Table 4, it can be observed that some of

the hubs identified in Table 3 are also part of the

largest weighted clique. For instance, in fastjson

project, classes FieldDeserializer.java, ASMSeriali

ICSOFT 2018 - 13th International Conference on Software Technologies

444

zerFactory.java, ParserConfig.java, and JavaBean

Deserializer.java which were identified as hubs, also

formed clique among themselves. There are two

factors that contributed toward this observation.

Firstly, the studies discussed in Section 2 had

established a positive correlation between the

frequency of change and fault proneness of software

components. Due to that fact the proposed commit

change-based weighted complex network is

modelled based on commit change frequency,

classes (nodes) that possess high degree centrality

are deemed to be classes that change frequently

throughout a certain period of software development

cycle. Hence, it is likely that these identified hubs

are potentially poorly designed such that developers

are forced to perform periodical software patches to

fix the issues. Evidently, as pointed out earlier, 23

out of 24 releases of the fastjson project during the

inspection period were related to bug fixes.

Secondly, the reason why the identified hubs

also formed cliques among themselves is due to the

co-change tendency of highly coupled classes, which

in return also points toward poorly designed or low-

quality classes. The work by Chatzigeorgiou and

Melas (Chatzigeorgiou and Melas 2012) discovered

that in general, software components follows a

‘preferential attachment’ where some classes tend to

interact with the classes that belong to a similar

community or functional groups.

The authors claimed that important nodes (high

weighted degree centrality) in a software-based

complex network tend to act as attractors for new

members that join an existing network. Evidently,

this is shown in the bitcoinj project where the classes

involved in forming the largest clique were all

responsible for the payment functionality. Hence,

this behavior had caused the identified hub classes to

form clique among themselves.

4.2 Experiment Results

In order to evaluate the proposed approach, we

decided to utilize the change burst metric proposed

by (Nagappan et al. 2010) as a benchmark to

compare against our findings.

In (Nagappan et al. 2010), the authors defined

the change burst metric as a “sequence of

consecutive changes” to a file. They argued that if a

file gets changed frequently over a short period of

time, the probability of that file being faulty is

extremely high. The change burst metric contains

two parameters, namely gap size and burst size. Gap

size is used to determine the minimum time gap

between two changes (commits) to a file. If the time

interval or gap between the change commits is lesser

than the gap size, they belong to the same “change

burst” sequence. Burst size on the other hand,

determines the minimum number of changes

(commits) in a change burst. If the number of

commits in a change burst is less than the burst size,

the change burst will not be considered. Nagappan et

al. evaluated their proposed approach on Windows

Vista where they fixed the gap size and burst size to

the value of 3. Experiments showed that change

burst metric is an effective way to aid in identifying

fault prone software components. Hence, we decided

to use the change burst metric as the benchmark and

oracle to crosscheck our experiment findings using

the following steps.

1. Identify the list of hub classes that form cliques

among themselves by referring to Table 3 and

Table 4.

2. Run change burst metric to identify a list of

classes that undergoes frequent change burst.

The list of classes with high change burst value

are treated as the oracle in our experiment.

3. Crosscheck the list of identified classes in Step

1 and Step 2 and calculate the precision and

recall of the proposed method.

We have prepared another shell script to

automate the process of extracting change burst

behavior from GitHub repository, which is also

publicly available (Chong 2017). The underlying

working principle of the script is based on the work

by Nagappan et.al.

Table 4: Summary of identified cliques.

fastjson bitcoinj kairosdb

FieldDeserializer.java WalletTest.java CassandraDatastore.java

ASMSerializerFactory.java BitcoinUIModel.java DatastoreTestHelper.java

ParserConfig.java TransactionBroadcastTest.java KairosDatastore.java

JavaBeanDeserializer.java PaymentChannelClientState.java DataPointsParser.java

ASMDeserializerFactory.java PeerGroup.java H2Datastore.java

TypeUtils.java CoreModule.java

DataPointsParserTest.java

A Commit Change-based Weighted Complex Network Approach to Identify Potential Fault Prone Classes

445

Users can specify the target repository and the

range of inspection date by changing the provided

variables. Users can also specify the gap size and

burst size of the inspected project accordingly. The

output of this script returns a csv file which lists

down the maximum burst size and number of change

bursts for each and every file in the project. Table 5

shows the results of analyzing the change burst

characteristics of all the three analyzed software.

Table 5: Change burst metrics of the analyzed software.

Identified Hubs

Max

burst

size

Number of

change

bursts

fastjson

TypeUtils.java 10 7

SerializeConfig.java 12 6

JavaBeanDeserializer.java 25 5

ParserConfig.java 20 4

ASMDeserializerFactory.java 14 3

ASMSerializerFactory.java 40 3

FastJsonHttpMessageConverter.

java

17 3

JSONPath.java 12 3

JSONSerializer.java 13 3

DefaultJSONParser.java 26 2

bitcoinj

WalletTest.java 8 4

Transaction.java 5 3

Peer.java 8 2

Wallet.java 20 2

AbstractBitcoinNetParams.java 3 1

PeerGroup.java 4 1

kairosdb

CassandraDatastore.java 4 3

CoreModule.java 3 1

DataPointsParser.java 4 1

DataPointsParserTest.java 5 1

DatastoreTestHelper.java 4 1

PutCommandTest.java 4 1

PutMillisecondCommand.java 4 1

In Table 5, the maximum burst size is the

maximum number of consecutive changes in all

qualified change bursts. On the other hand, number

of change bursts is defined as the number of

qualified change bursts for the given gap size and

burst size (set at 3 in this case). As discussed in the

work by Nagappan et.al., change bursts show risky

activities which are indicative of the fault-proneness

of software components. Hence, high amount of

change bursts and burst size could indicate that these

classes are particularly risky and fault prone.

Based on the results retrieved from Table 4 and

Table 5, the precision and recall is calculated. Table

6 depicts the precision and recall of the proposed

approach when compared against the change burst

metric, where the metric is used as the oracle in our

experiment.

Table 6: Precision and recall of the proposed approach.

Project Precision Recall

fastjson 0.6 0.677

bitcoinj 0.5 0.5

kairosdb 0.714 0.714

It is shown that the average precision of the

proposed approach, when applied on the three test

subjects is 0.61, while the average recall is 0.63. One

important factor contributed toward this observation

- we have set a high threshold value for the gap size

and burst size, i.e. 3. The reference threshold of 3

was proposed by (Nagappan et al. 2010) when

experimenting with the Windows Vista operating

system in order to identify potential fault prone

software components. It is reasonable to assume that

the amount of commit change for a very large-scale

commercial software like the Windows Vista is

going to be much more frequent and larger in

volume when compared to open-source software.

Hence, when we applied the gap size and burst size

of 3 to the three test subjects, only a small number of

classes were identified. We attempt to rerun the

experiment by varying the burst size from 1 to 3,

while fixing the gap size to 3 in order to provide

some leniency toward the time interval between

multiple commits since the chosen test subjects are

not particularly large scale projects. Table 7 shows

the experiment results.

Table 7: Precision and recall for varying the gap size and

change burst values.

Gap Size = 3, Burst Size = 1

Project Precision Recall

fastjson 0.8 0.6

bitcoinj 0.84 0.5

kairosdb 0.8 0.7

AVERAGE 0.813 0.6

Gap Size = 3, Burst Size = 2

Project Precision Recall

fastjson 0.76 0.8

bitcoinj 0.7 0.76

kairosdb 0.86 0.84

AVERAGE 0.77 0.8

Gap Size = 3, Burst Size = 3

Project Precision Recall

fastjson 0.6 0.677

bitcoinj 0.5 0.5

kairosdb 0.714 0.714

AVERAGE 0.605 0.63

ICSOFT 2018 - 13th International Conference on Software Technologies

446

When the burst size is fixed at 1, the average

precision improve significantly. However, this

decision is at the trade-off of relaxing the constraint

of change burst metric. Using a threshold value of 1

for burst size is only suitable for inactive project

which have very little amount of commit changes

throughout the project lifecycle. Besides that, the

average recall is low when the gap size and burst

size is fixed at 1. This is mainly because when the

threshold for burst size is low, a large amount of

independent commit changes are treated as a series

change burst activities when in fact they are just

regular and routine updates to the projects, i.e. two

commit changes which are 3 days apart (gap size =

3) are considered as two change burst activities

(burst size = 1).

On the other hand, when the burst size is 2, the

results yield average precision and recall of 0.77 and

0.8 respectively for all the 3 chosen projects. We

argued that the threshold value of 2 is relatively

more well-suited for our experiment setting since the

chosen projects are considered small to medium-

sized projects, with moderately active developers.

5 CONCLUSION AND FUTURE

WORK

While a lot of research were conducted in both

software-based network analysis and software

change coupling metrics, we found that there is a

lack of studies that attempted to combine both

approaches to identify potential fault prone software

components. In this paper, we have proposed a novel

way to model commit change-based weighted

complex network based on historical data mined

from GitHub. Three open-source were chosen to

evaluate our proposed approach. In order to identify

potential fault prone classes, we decided to use three

well-established graph theory metrics that have been

proven to correlate with the structural stability of

software components such as the weighted degree

centrality and the clustering coefficient. To validate

the accuracy of our proposed approach, we used the

change burst metric as the benchmark. When the

threshold of the gap size and burst size of the change

burst metrics were set at 3, the proposed approach

achieved mediocre precision and recall. It is when

the burst size threshold were relaxed, the precision

and recall of the proposed approach improved

significantly. During the experiment, we had

unintentionally discovered one of the limitations of

the proposed approach, where it is not suitable to be

applied on structural stable software, or software

that rarely undergo changes. We argued that this

limitation is negligible, since it is counter-intuitive

to use the proposed approach on high quality and

well-designed software to identify potential fault

prone classes.

As part of the future work, we plan to expand the

proposed approach by utilizing more graph theory

metrics such as the eigenvector centrality,

betweenness centrality, and closeness centrality in

order to improve the richness of the graph theory

analysis results. With the aid of more graph metrics,

we can then experiment the proposed approach on

larger-scale open-source or commercial software

systems.

ACKNOWLEDGEMENTS

This work was carried out within the framework of

the research project FP001-2016 under the

Fundamental Research Grant Scheme provided by

Ministry of Higher Education, Malaysia.

REFERENCES

Ajienka, N. and Capiluppi, A. 'Understanding the

Interplay between the Logical and Structural Coupling

of Software Classes', Journal of Systems and Software.

Ambros, M. D., Lanza, M. and Robbes, R. (2009) On the

Relationship Between Change Coupling and Software

Defects, translated by 135-144.

Baxter, G., Frean, M., Noble, J., Rickerby, M., Smith, H.,

Visser, M., Melton, H. and Tempero, E. (2006)

'Understanding the shape of Java software', SIGPLAN

Not., 41(10), 397-412.

Begel, A., Bosch, J. and Storey, M. A. (2013) 'Social

Networking Meets Software Development:

Perspectives from GitHub, MSDN, Stack Exchange,

and TopCoder', Software, IEEE, 30(1), 52-66.

Chatzigeorgiou, A. and Melas, G. (2012) Trends in object-

oriented software evolution: Investigating network

properties, translated by IEEE, 1309-1312.

Chong, C. Y. (2017) 'Commit Change-based WCN',

[online], available: https://github.com/chongchun

yong/Commit-Change-based-WCN [Accessed

27/12/2017].

Chong, C. Y. and Lee, S. P. (2015) 'Analyzing

maintainability and reliability of object-oriented

software using weighted complex network', Journal of

Systems and Software, 110, 28-53.

Chong, C. Y. and Lee, S. P. (2017) 'Automatic clustering

constraints derivation from object-oriented software

using weighted complex network with graph theory

analysis', Journal of Systems and Software, 133,28-53.

A Commit Change-based Weighted Complex Network Approach to Identify Potential Fault Prone Classes

447

Concas, G., Marchesi, M., Murgia, A., Tonelli, R. and

Turnu, I. (2011) 'On the Distribution of Bugs in the

Eclipse System', IEEE Transactions on Software

Engineering, 37(6), 872-877.

Concas, G., Marchesi, M., Pinna, S. and Serra, N. (2007)

'Power-Laws in a Large Object-Oriented Software

System', Software Engineering, IEEE Transactions on,

33(10), 687-708.

Gousios, G., Pinzger, M. and Deursen, A. v. (2014) 'An

exploratory study of the pull-based software

development model', in Proceedings of the 36th

International Conference on Software Engineering,

Hyderabad, India, 2568260: ACM, 345-355.

Hassan, A. E. (2009) 'Predicting faults using the

complexity of code changes', in Proceedings of the

31st International Conference on Software Engineer-

ing, 1555024: IEEE Computer Society, 78-88.

Huang, Q., Xia, X. and Lo, D. (2017) Supervised vs

Unsupervised Models: A Holistic Look at Effort-

Aware Just-in-Time Defect Prediction, translated by

159-170.

Hyland-Wood, D., Carrington, D. and Kaplan, S. (2006)

Scale-free nature of java software package, class and

method collaboration graphs, translated by.

Kagdi, H., Gethers, M. and Poshyvanyk, D. (2013)

'Integrating conceptual and logical couplings for

change impact analysis in software', Empirical

Software Engineering, 18(5), 933-969.

Kalliamvakou, E., Gousios, G., Blincoe, K., Singer, L.,

German, D. M. and Damian, D. (2015) 'An in-depth

study of the promises and perils of mining GitHub',

Empirical Software Engineering, 1-37.

LaBelle, N. and Wallingford, E. (2004) 'Inter-package

dependency networks in open-source software', arXiv

preprint cs/0411096.

Louridas, P., Spinellis, D. and Vlachos, V. (2008) 'Power

laws in software', ACM Trans. Softw. Eng. Methodol.,

18(1), 1-26.

Ma, Y. T., He, K. Q., Li, B., Liu, J. and Zhou, X. Y.

(2010) 'A Hybrid Set of Complexity Metrics for

Large-Scale Object-Oriented Software Systems',

Journal of Computer Science and Technology, 25(6),

1184-1201.

Malliaros, F. D. and Vazirgiannis, M. (2013) 'Clustering

and community detection in directed networks: A

survey', Physics Reports-Review Section of Physics

Letters, 533(4), 95-142.

Muthukumaran, K., Choudhary, A. and Murthy, N. L. B.

(2015) Mining GitHub for Novel Change Metrics to

Predict Buggy Files in Software Systems, translated by

15-20.

Myers, C. R. (2003) 'Software systems as complex

networks: Structure, function, and evolvability of

software collaboration graphs', Physical Review E,

68(4), 046116.

Nagappan, N., Zeller, A., Zimmermann, T., Herzig, K. and

Murphy, B. (2010) Change bursts as defect predictors,

translated by IEEE, 309-318.

Orrú, M., Monni, C., Marchesi, M., Concas, G. and

Tonelli, R. (2015) Predicting Software Defectiveness

through Network Analysis, translated by.

Oyetoyan, T. D., Falleri, J. R., Dietrich, J. and Jezek, K.

(2015) Circular dependencies and change-proneness:

An empirical study, translated by 241-250.

Pang, T. Y. and Maslov, S. (2013) 'Universal distribution

of component frequencies in biological and

technological systems', Proceedings of the National

Academy of Sciences.

Potanin, A., Noble, J., Frean, M. and Biddle, R. (2005)

'Scale-free geometry in OO programs', Commun.

ACM, 48(5), 99-103.

Ravasz, E. and Barabasi, A. L. (2003) 'Hierarchical

organization in complex networks', Phys Rev E Stat

Nonlin Soft Matter Phys, 67(2 Pt 2), 026112.

Tang, Y., Li, M., Wang, J., Pan, Y. and Wu, F.-X. (2015)

'CytoNCA: A cytoscape plugin for centrality analysis

and evaluation of protein interaction networks',

Biosystems, 127(Supplement C), 67-72.

Turnu, I., Concas, G., Marchesi, M. and Tonelli, R. (2013)

'The fractal dimension of software networks as a

global quality metric', Information Sciences, 245(0),

290-303.

Turnu, I., Marchesi, M. and Tonelli, R. (2012) Entropy of

the degree distribution and object-oriented software

quality, translated by 77-82.

Valverde, S. and Solé, R. V. (2003) 'Hierarchical small

worlds in software architecture', arXiv preprint cond-

mat/0307278.

Watts, D. J. and Strogatz, S. H. (1998) 'Collective

dynamics of 'small-world' networks', Nature,

393(6684), 440-442.

Wiese, I. S., Kuroda, R. T., Re, R., Oliva, G. A. and

Gerosa, M. A. (2015) 'An Empirical Study of the

Relation Between Strong Change Coupling and

Defects Using History and Social Metrics in the

Apache Aries Project' in Damiani, E., Frati, F., Riehle,

D. and Wasserman, A. I., eds., Open Source Systems:

Adoption and Impact: 11th IFIP WG 2.13

International Conference, OSS 2015, Florence, Italy,

May 16-17, 2015, Proceedings, Cham: Springer

International Publishing, 3-12.

Xia, X., Lo, D., Pan, S. J., Nagappan, N. and Wang, X.

(2016) 'HYDRA: Massively Compositional Model for

Cross-Project Defect Prediction', IEEE Transactions

on Software Engineering, 42(10), 977-998.

Yang, X., Lo, D., Xia, X. and Sun, J. (2017) 'TLEL: A

two-layer ensemble learning approach for just-in-time

defect prediction', Information and Software

Technology, 87(Supplement C), 206-220.

Zimmermann, T. and Nagappan, N. (2008) Predicting

defects using network analysis on dependency graphs,

translated by ACM, 531-540.

Zimmermann, T., Weisgerber, P., Diehl, S. and Zeller, A.

(2004) 'Mining Version Histories to Guide Software

Changes', in Proceedings of the 26th International

Conference on Software Engineering, 999460: IEEE

Computer Society, 563-572.

ICSOFT 2018 - 13th International Conference on Software Technologies

448
