Towards an Enhanced Security Data Analytic Platform

Gustavo Gonzalez-Granadillo, Susana Gonzalez-Zarzosa and Mario Faiella

Atos Research and Innovation, Cyber Security Department, Spain

Keywords:

XL-SIEM, SIEM Enhancements, Security Data Analytic Platforms, SIEM Analysis.

Abstract:

We present in this paper a Cross-Layer Security Information and Event Management tool (herein after denoted

as XL-SIEM) as an enhanced security data analytics platform with added high-performance correlation en-

gine able to raise alarms from a business perspective considering different events collected at different layers.

The platform is composed of a set of distributed agents, responsible for the event collection, normalization

and transfer of data; an engine, responsible for the ﬁltering, aggregation, and correlation of the events col-

lected by the agents, as well as the generation of alarms; a database, responsible of the data storage; and a

dashboard, responsible for the data visualization in the web graphical interface. The proposed platform has

been deployed on top of the open-source SIEM OSSIM (AlienVault) providing enhanced features compared

to current open-source solutions, in particular associated to data sources, correlation engine, visualization, and

reaction capabilities. A testbed implementation is described to show the integration and applicability of the

tool over a security infrastructure.

1 INTRODUCTION

Several companies have developed SIEM software

products in order to detect network attacks and

anomalies in an IT system. Gartner reports (Ka-

vanagh et al., 2016) analyze the SIEM tools avail-

able in the market provided by the top 14 leading

SIEM vendors. According to these reports, products

are classiﬁed into four groups based on the ability to

execute and the completeness of vision.

Among them, we ﬁnd classical IT companies such

as IBM, LogRhythm, Splunk, HP, and Intel as the

leaders, that provide products with good requirements

behavior and have the foresight for future require-

ments; others as challengers (i.e., EMC - RSA Se-

curity, providing products that do not comply gen-

eral market requirements, execute well at present or

may control a large segment, but do not demonstrate

knowledge of future requirements; others as vision-

aries (i.e., AlienVault, that forecast trending of mar-

ket, but do not yet execute well; and others as niche

players (i.e., MicroFocus, Trustwave, SolarWinds,

Fortinet, EventTracker, ManageEngine, and Black-

Stratus), that execute well in a particular segment of

market but are unfocused and do not out-innovate or

outperform others.

Besides the great variety of commercial and open-

source SIEMs, current tools are unable to cope with

the new and complex attack patterns. Most of them

do not provide high-level security risk metrics and

their correlation rules are basic and weak (Barros,

2017). Current solutions lack on user and entity be-

havior analytic (UEBA) features, and their storage,

visualization and reaction capabilities are very limited

(Scarfone, 2015), (Kavanagh et al., 2016), (Sheridan,

2017), (Caccia et al., 2017).

Based on the aforementioned limitations, we in-

troduce a Cross-Layer SIEM (XL-SIEM) as an en-

hanced security data analytic platform deployed on

top of Alienvault Open Source SIEM (OSSIM)

, that

overcomes limitations detected in current solutions.

In particular, XL-SIEM enhances the performance

and scalability of current open source SIEMs, allow-

ing the processing of increasing amounts of data and

adding the possibility of event correlation at different

layers with more complex rules.

Paper Organization: The remainder of the paper is

structured as follows: Section 2 describes the archi-

tecture of the XL-SIEM. Section 2 deﬁnes architec-

ture and the different modules that compose the XL-

SIEM platform. Section 3 details the extended ca-

pabilities of the proposed platform. Section 4 shows

the implementation and testbed of the XL-SIEM plat-

form. Finally, conclusions and perspective for future

work are presented in Section 5.

https://www.alienvault.com

Gonzalez-Granadillo, G., Gonzalez-Zarzosa, S. and Faiella, M.

Towards an Enhanced Security Data Analytic Platform.

DOI: 10.5220/0006831104530458

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 453-458

ISBN: 978-989-758-319-3

453

2 XL-SIEM ARCHITECTURE

Figure 1 depicts the XL-SIEM architecture with its

main components. The collection of data is done on

the monitored infrastructure by SIEM Agents, and the

events are sent to the XL-SIEM engine core running

on Apache Storm

, where they are processed and cor-

related. The events gathered as well as the alarms

generated and the conﬁguration used are integrated

with the OSSIM deployment in the XL-SIEM for its

storage and visualization.

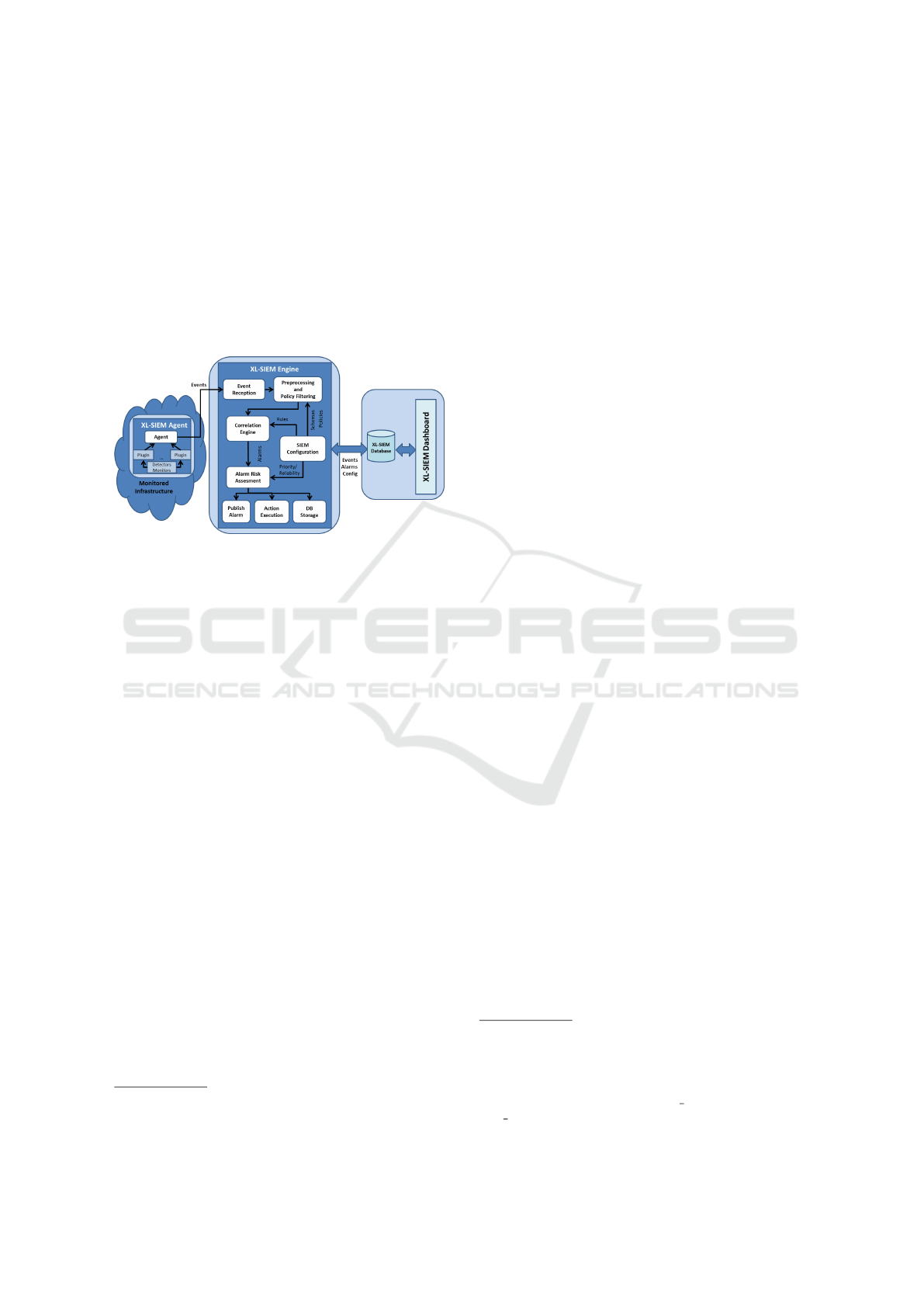

Figure 1: XL-SIEM Architecture.

2.1 XL-SIEM Agent

The XL-SIEM agent is the resource layer compo-

nent responsible for the event collection, normaliza-

tion and transfer to the XL-SIEM Engine for its pro-

cessing. Events are generated by different sensors

(e.g., network trafﬁc, honepypot, intrusion detection

systems) deployed on the customer’s monitored in-

frastructure.

The main advantages of the XL-SIEM compared

to other open source solutions are as follows:

• support the usage of TLS (Transport Layer Se-

curity) certiﬁcates in the communication between

agents and XL-SIEM engine;

• support for anonymization/encryption of normal-

ized ﬁelds before transmission. The user has the

possibility of deﬁning which ﬁelds in an event

type are sensitive and need to be transmitted and

stored anonymized;

• new output to RabbitMQ (RabbitMQ, 2008) mes-

saging system in JSON (Bray, 2014) format for

sharing events collected;

• generation of heartbeats to monitor the status of

the agents.

Open source distributed real-time computation system for

processing large volumes of data http://storm.apache.org/

2.2 XL-SIEM Engine

The XL-SIEM Engine is the component on the back-

end layer of the monitoring architecture responsible

for the analysis and processing of the events collected

by the XL-SIEM Agents, and the generation of alarms

based on a predeﬁned set of correlation rules or secu-

rity directives. XL-SIEM is implemented in a Storm

topology running in an Apache Storm cluster

which

allows to take advantage of the beneﬁts of this archi-

tecture.

Previous to the correlation of the collected events,

there is a phase of Pre-processing and Policy Filter-

ing, in which the system veriﬁes if the user has spec-

iﬁed some conditions to ﬁlter the incoming events

before they arrive to the correlation engine (e.g.,

source/destination IP, port, time/date range, type of

event, or the SIEM agent where the event is col-

lected).

The Correlation Engine is the core of the XL-

SIEM engine and integrates the open source high per-

formance correlation engine Esper

. The correlator

uses Event Processing Language

(EPL), which al-

lows a ﬂexible and complex deﬁnition of the corre-

lation rules. It is a SQL-like language that includes

for example the detection of patterns, the deﬁnition of

data windows or the aggregation and ﬁltering of in-

coming events into more complex events.

2.3 XL-SIEM Database

The XL-SIEM takes advantage of the OSSIM

database and storage capabilities. The format used

by the XL-SIEM for the events and alarms storage is

consequently the same deﬁned in OSSIM. The main

aspects of this module are as follows:

• Data is stored in MySQL relational databases;

• There is a separate database for historical data;

• It does not support integration with cloud storage

services;

• The data storage can be in a different machine

from the one where the event processing takes

place to improve the performance or in case it is

required more storage capacity.

http://storm.apache.org/index.html

http://storm.apache.org/releases/2.0.0-

SNAPSHOT/Setting-up-a-Storm-cluster.html

http://www.espertech.com/esper/

https://docs.oracle.com/cd/E13157 01/wlevs/docs30/

epl guide/overview.html

SECRYPT 2018 - International Conference on Security and Cryptography

454

2.4 XL-SIEM Dashboard

XL-SIEM web graphical interface is deployed on top

of OSSIM dashboard and consequently, it integrates

the following visualization capabilities.

• different graphical charts are shown to the user as

an overview of the monitored system status;

• alarms, security events and raw logs can be visu-

alized by the user;

• additional information provided by open source

tools (e.g., Netﬂow trafﬁc detected by Fprobe,

vulnerabilities detected by Nessus or OpenVAS)

is integrated in the graphical interface;

• it is possible to generate PDF reports with a sum-

mary of the SIEM analysis;

3 XL-SIEM EXTENDED

CAPABILITIES

This section details the additional features integrated

in the XL-SIEM that enhance their capabilities in

terms of data sources, correlation, visualization, and

reaction.

3.1 Data Sources

Besides the data sources supported by open source

SIEMs (e.g., database, log, remote logs, security de-

vice event exchange, windows management infras-

tructure), the following data sources have been added

to the XL-SIEM:

• Structured Threat Information eXpres-

sion(STIX) format data (Barnum, 2014):

Cyber-threat observations, represented using

this type of structured language for cyber threat

intelligence, are supported through a STIX

plug-in that parses the STIX data and generates

its representation in the OSSIM normalized event

format used in the XL-SIEM.

• JavaScript Object Notation (JSON) format

data (Bray, 2014): It supports data received from

the open source message broker RabbitMQ

that

implements the Advanced Message Queuing Pro-

tocol (AMQP).

3.2 Correlation Engine

One of the advantages of XL-SIEM architecture is the

use of a high-performance correlation engine running

https://www.rabbitmq.com/

in an Apache Storm cluster for the processing of the

incoming security events.

XL-SIEM makes use of Esper

for event cor-

relation and generation of alarms. This complex

event processing engine is able of processing 500,000

events per second with latency below 10 microsec-

onds average with more than 99% predictability. For

more complex queries, these values are slightly re-

duced to a throughput of 120,000 events per second

(Mathew, 2014), keeping good performance capabili-

ties for processing large volume of data.

Security rules in the XL-SIEM are expressed us-

ing the Event Processing Language

(EPL). This lat-

ter is a declarative programming language that allows

expressing security directives with rich event condi-

tions and patterns in a simple way. The usage of EPL

adds a business perspective to the deﬁnition of secu-

rity directives.

In addition, for the deﬁnition of security di-

rectives, XL-SIEM supports two means: (i) Pre-

conﬁgured categories of rules: where the user se-

lects one or several directive categories (e.g., scans

behaviours, malware detection, denial of service at-

tacks, brute force attacks, network attacks) for which

a pre-conﬁgured set of rules or security directives is

included; and (ii) User custom rules: where users

have the possibility to deﬁne their own rules or se-

curity directives and select them in the conﬁguration

of each correlation process.

3.3 Visualization Capabilities

Besides the visualization capabilities inherited by OS-

SIM, the XL-SIEM includes high-level charts and di-

agrams in different dashboards to provide valuable

information about incidents to non-security expert

users.

These diagrams can be adapted based on the client

needs and requirements. Examples of available dash-

boards are Executive Dashboard: showing a high-

level information relevant for a C-level administrator,

e.g., the current threat level of the monitored system

with a color code (green, yellow and red); Opera-

tional Dashboard: showing information relevant for

system administrators to be able of taking decisions,

e.g., the top ﬁve detected incidents, the hosts identi-

ﬁed as source of security incidents or alarms, or the

destination TCP/UDP ports of the attacks; and Situa-

tional Awareness Dashboard: showing a graph with

the monitored network topology including the num-

ber of events detected in each component as well as

http://www.espertech.com/esper/

https://docs.oracle.com/cd/E13157 01/wlevs/docs30/

epl guide/overview.html

Towards an Enhanced Security Data Analytic Platform

455

representing with a color code (green, yellow, red) the

risk level of each node.

3.4 Reaction Capabilities

The processes running in the XL-SIEM topology in-

clude support to provide the same reaction capabili-

ties offered by the open source version of the Alien-

Vault SIEM (e.g., execute a script, send an email or

create a ticket) but with an enhanced performance.

On the one hand, the different actions can be as-

sociated to each correlation process, which allows its

execution for speciﬁc alarms and not only associated

to a deﬁned policy. On the other hand, since there is a

speciﬁc process deﬁned in the Storm topology for the

application of these reactions, it is possible to increase

its parallelism to reduce the reaction time or even de-

cide in which node of the cluster this process will be

launched. This is useful in situations where the script

to be invoked or the email server is only available in

a speciﬁc node.

4 XL-SIEM IMPLEMENTATION

AND TEST-BED

The XL-SIEM has been deployed in a security infras-

tructure to correlate logs and detect abnormal situa-

tions. The test-bed is composed of two servers, each

one holding a web application (i.e., ownCloud

, and

Github

); the XL-SIEM Engine, holding the core

of the SIEM; the XL-SIEM Agent deployed together

with two IDSs (i.e., Snort

and Suricata

; the XL-

SIEM Database and Dashboard, as depicted in Fig-

ure 2. In addition, an internal sub-net composed of

several users with different privileges and access right

over the applications has been integrated into the plat-

form.

The purpose of this test-bed is to detect unusual

connections against the web applications that could

lead to the execution of attacks (e.g., brute-force,

DoS, SQL injection). The Agent sends the suspi-

cious events to the engine for correlation and treat-

ment. Events are stored in the XL-SIEM Database

and displayed in the Dashboard for further analysis.

https://owncloud.org/

https://github.com/

https://www.snort.org/

https://suricata-ids.org/

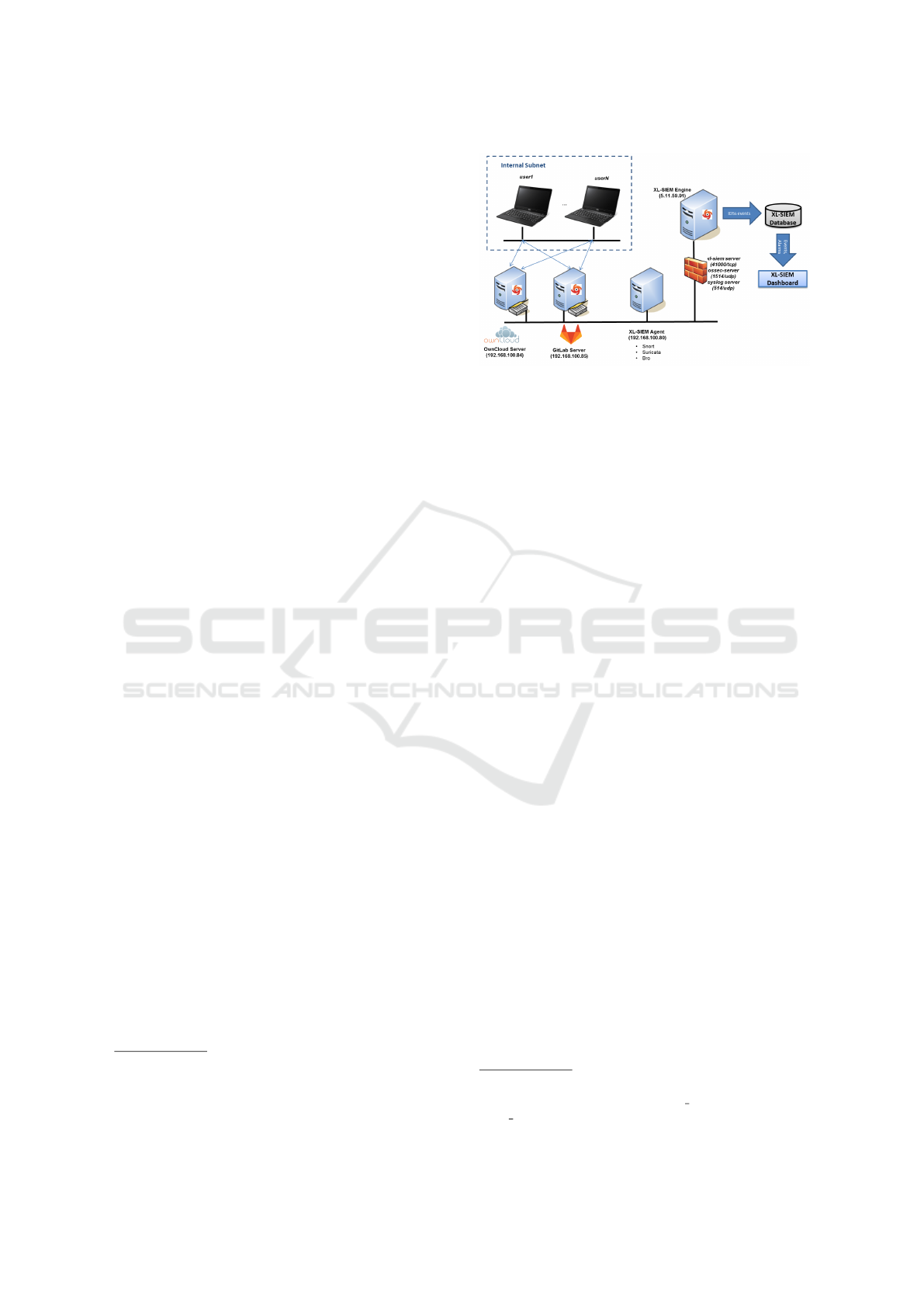

Figure 2: XL-SIEM Testbed.

4.1 Attack Description

A possible Brute-force has been detected via correlat-

ing events seen on the network . Brute Force attempts

are one of the few events in security that are identiﬁ-

able by their volume, not by their type. While a sys-

tem can be exploited with as little as a single packet

of data, brute-force intrusions require greater numbers

of packets to be achieved.

All hosts accessible from the Internet are con-

tinually been scanned and attacked from malicious

hosts, searching for vulnerable systems to compro-

mise and re-use. While this brute-force attempt may

therefore be legitimate, it is not necessarily targeted

directly against the organization. We must cross-

reference against other activities from this system

222.186.52.199 to be aware if this host is engaging in

further activities beyond an unsuccessful brute-force

access attempt.

4.2 XL-SIEM Detection

Data are collected through the XL-SIEM Agents, di-

rectly from the sensors deployed in the monitored in-

frastructure. These data are then normalized and sent

to the XL-SIEM Engine, for further analysis and cor-

relation. For this purpose we use the open source

high performance correlation engine Esper

, which

allows deﬁning speciﬁc security rules using the Event

Processing Language

(EPL), a ﬂexible SQL-like

declarative language.

As explained in section 2.2, the incoming event,

before being correlated, is ﬁltered considering spe-

ciﬁc policies. The ﬁltering operation is performed

taking into account the source and destination IP ad-

dresses, the source and destination port numbers, the

http://www.espertech.com/esper/

https://docs.oracle.com/cd/E13157 01/wlevs/docs30/

epl guide/overview.html

SECRYPT 2018 - International Conference on Security and Cryptography

456

event type (e.g., ANY; DS Groups (i.e., Executable

ﬁles, Suspicious DNS, Network anomalies); Taxon-

omy (Product Type, Category, Subcategory)), and the

name of the XL-SIEM agent involved.

The following example shows a policy created for

any IP source and destination, any source and desti-

nation port, an event type of DS Groups detected by

any agent:

ANY, ANY, ANY, ANY, DSGroups, ANY

After this pre-processing and ﬁltering operation,

the normalized events are correlated, using speciﬁc

correlation rules. The deﬁnition of these latter is a

process that requires (i) the deﬁnition of statements

and (ii) the deﬁnition of directives. A statement indi-

cates the sources from which the information will be

evaluated. They do not ﬁre an alarm but the gener-

ated output is used by other services. A statement is

composed of a unique name and a value that indicates

the variables and the sources of information. For in-

stance, plugin id=1001 refers to data source SNORT.

Directives contain the pattern used in the evalua-

tion of the rule. They are deﬁned using Event Pro-

cessing Language (EPL). They ﬁre an alarm for every

matching pattern. For every EPL directive, we can

assign a category (e.g., alarm , antivirus, authentica-

tion, application, etc.), a subcategory (e.g., Attacks,

Bruteforce, DoS, Malware, Network, etc.), a reliabil-

ity score (from 1 to 10), and a priority score (from 1

to 5).

A concrete example of a correlation rule, associ-

ated to the attack described in section 4.1, used by the

XL-SIEM engine is shown in Table 1.

Table 1: XL-SIEM Correlation Rule Example.

Name: BruteForce Microsoft SQL Server authen-

tication attack against SRC IP

EPL Statement

Insert into BruteForce Microsoft SQL Server

authentication attempt failed detected select

* from ossimSchema default where (plu-

gin id = 1001) and (plugin sid = 50051 2) and

(dst port=1433)

EPL Directive

Insert into directive sls 1 select * from pattern

[every-distinct(a.src ip, 15 seconds) a = Brute-

Force Microsoft SQL Server authentication

attempt failed detected → ([3] b = BruteForce

Microsoft SQL Server authentication attempt

failed detected ((b.src ip=a.src ip) and

(b.dst ip=a.dst ip)))]

The previous rule is deﬁned to raise an alarm af-

ter 3 failed Microsoft SQL Server authentication at-

tempts. The EPL statement will increase the value of

the related variable from the default OSSIM scheme,

where the plugin id corresponds to Snort (value =

1001), and the plugin sid correspond to a failed Mi-

crosoft SQL Server authentication attempt (value =

50051 2).

The EPL directive shows the correlation rule used

to ﬁre an alarm if there is a match in the pattern de-

ﬁned within the brackets. In this case: every sequence

that considers distinctively the IP source and 15 sec-

onds of timeout will generate an alarm. For this ex-

ample we have deﬁned a failed Microsoft SQL Server

authentication attempt as the event to check, if the de-

ﬁned condition matches (i.e., the IP source and desti-

nation are the same) and the same event occurs more

than 3 times, then we will generate a correlated alarm.

4.3 XL-SIEM Analysis

The XL-SIEM dashboard shows a list of both events

(e.g. Suspicious TCP trafﬁc, Potential SSH Scan at-

tempts) and alarms (e.g., Brute-force attack, Network

Scan). The former should not be considered as real

alarms, they constitute the output produced through

the EPL statements. Then, this output is further an-

alyzed through the EPL directives for raising alarms,

if speciﬁc conditions are met, as explained in Section

4.2.

Regarding the alarms, they are triggered from a

correlation rule having Snort and/or Suricata as in-

put devices. Two or more conditions must be met

(e.g., several particular log events in the same time pe-

riod, or an event from a security control that matches

against a particular host’s current condition). We will

focus on an alarm with a high risk level: Brute-force

attack, Microsoft SQL server authentication attack

against 222.186.52.199.

By clicking on the alarm name, we obtained more

information about the events, that triggered such an

alarm. In this case, we identiﬁed that four individual

events with the same source and destination IP ad-

dresses within a period of 12 hours have triggered this

alarm. Moreover, by clicking on the tabs ”Source”

and ”Destination”, speciﬁc information related to the

source and destination IP addresses, respectively, can

be consulted. For example, the geographic location

of the IP address can be visualized through a map.

For a further analysis, information associated to both

the alarm and each single event, which contributed to

raise the former, can be visualized.

5 CONCLUSION

This paper presents a Cross-Layer Security Informa-

tion and Event Management tool (XL-SIEM) as a se-

Towards an Enhanced Security Data Analytic Platform

457

curity data analytic platform that enhances current

open-source SIEMs in terms of data sources, corre-

lation, visualization and reaction capabilities.

The XL-SIEM provides several advantages com-

pared to current open source solutions: e.g., the sup-

port of STIX and JSON data formats, secure commu-

nications between the XL-SIEM engine and agents,

Data anonymization, high processing performance,

advanced visualization options, and enhanced corre-

lation capabilities that reduce the reaction time and

allow customizing the reaction options.

The main drawbacks of the XL-SIEM are the

following: (i) No cloud storage service supported,

XL-SIEM uses MySQL relational databases for data

storage; (ii) No User and Entity Behavior Analysis

(UEBA) or machine learning capabilities, although it

is possible to include behavioral analysis at the ap-

plication level through the implementation of speciﬁc

plug-ins to normalize the data; (iii) No built-in net-

work forensics capabilities; (iv) very basic ad-hoc im-

porting capabilities to deal with a huge number of un-

structured data as inputs; (v) no support for dealing

with new and speciﬁc targeted attacks (e.g., zero-day

attacks).

Future work will concentrate in improving the

aforementioned limitations and providing a platform

able to evaluate defense in depth by analyzing multi-

ple and diverse security devices (e.g., IDSs, ﬁrewalls,

honeypots). As a result, accuracy on the detection will

be improved, and false alarm rates reported back to

the system will be reduced. In addition, limitations

of actual SIEMs based on the last two drawbacks, as

stated in (Gonzalez-Zarzosa, 2017) and (ThreatCon-

nect, 2018), will be studied more in details.

The ﬁnal objective of the security data analytic

platform is to integrate the XL-SIEM with a threat

intelligence platform, able to gather, process, and

normalize unstructured information from external

sources (e.g., OSINT sources). In this way, the XL-

SIEM drawback in terms of ad-hoc importing capa-

bilities will be overcome and the new detection rules

could be dynamically created and injected directly

into both the XL-SIEM and the sensors that interact

with it, making it possible to recognize zero-days at-

tacks that were not previously identiﬁable. Moreover,

integrating the XL-SIEM with a threat intelligence

platform, as highly recommended in (ThreatConnect,

2016), will also improve information sharing capa-

bilities, considering that the platform itself will han-

dle both the input and the output information ﬂows.

This will have a positive impact, because threat in-

telligence sharing is considered as a critical activity

against new generation threats by governments and

companies, for empowering incident response and de-

fense capabilities (Ring, 2014) (US-CERT, 2013).

ACKNOWLEDGEMENTS

This work is supported by the European Commis-

sion, as part of the H2020 Diversity enhancement

for SIEMs (DiSIEM) project (under grant agree-

ment 700692) and H2020 European Network for Cy-

bersecurity (NeCS) project (under grant agreement

675320).

REFERENCES

Barnum, S. (2014). Standardizing cyber threat intelligence

information with the structure threat information ex-

pression (stix). Whitepaper .

Barros, A. (2017). Siem correlation is overrated. Gartner

Blog Network.

Bray, T. (2014). The javascript object notation (json) data

interchange format. RFC7159 available online at:

https://tools.ietf.org/html/rfc7159.

Caccia, R., Cassetto, O., and Shteiman, B. (2017). The fu-

ture of siem. International Information Systems Secu-

rity Certiﬁcation Consortium (ISC

) Webminar avail-

able at https://www.brighttalk.com/.

Gonzalez-Zarzosa, S. (2017). In-depth analysis of siems

extensibility. DiSIEM Project Technical Report D2.1.

Kavanagh, K. M., Rochford, O., and Bussa, T. (2016). 2016

magic quadrant for siem. Gartner Technical Report

G00290113.

Mathew, A. (2014). Benchmarking of complex event pro-

cessing engine esper. Technical Report.

RabbitMQ (2008). Amqp advanced message queuing proto-

col, protocol speciﬁcation, version 0-9-1. A General-

Purpose Messaging Standard, Technical Report.

Ring, T. (2014). Threat intelligence: why people dont share.

3:5–9.

Scarfone, K. (2015). Comparing the best siem systems on

the market. Online Research.

Sheridan, K. (2017). Future of the SIEM. Dark Reading,

threat intelligence article.

ThreatConnect (2016). SIEM + Threat Intelligence:

Quickly Identify the Threats that Matter to You. White

Paper.

ThreatConnect (2018). Threat intelligence platforms every-

thing youve ever wanted to know but didnt know to

ask. Technical Report.

US-CERT (2013). Cybersecurity questions for ceos. White

Paper.

SECRYPT 2018 - International Conference on Security and Cryptography

458
