Holistic Database Encryption

Walid Rjaibi

IBM Canada Lab, 8200 Warden Avenue, Markham, Ontario, Canada

Keywords: Databases, Encryption, Key Management, Security, Compliance.

Abstract: Encryption is a key technical control for safeguarding sensitive data against internal and external threats. It

is also a requirement for complying with several industry standards and government regulations. While

Transport Layer Security (TLS) is widely accepted as the standard solution for encrypting data in transit, no

single solution has achieved similar status for encrypting data at rest. This is particularly true for database

encryption where current approaches are forcing organizations to compromise either on the security side or

on the database side. In this paper, we discuss the design and implementation of a holistic database

encryption approach which allows organizations to meet their security and compliance requirements without

having to sacrifice any critical database or security properties.

1 INTRODUCTION

Internal threats, external threats, government

regulations, and industry standards require

organizations to implement security controls to

ensure information is adequately protected. Failure

to do so can have a negative impact on an

organization such as loss of customer data, damage

to brand reputation, and even financial penalties.

Encryption is a key technical control for protecting

information. It is also an explicitly stated

requirement for compliance with many regulations

and standards such as the General Data Protection

Regulation (Voigt et al., 2017) and the Payment

Card Industry Data Security Standard (Chuvakin and

Williams, 2009).

While TLS is widely accepted as the standard

solution for encrypting data in transit, no single

solution has achieved similar status for encrypting

data at rest. This is particularly true for database

encryption where current approaches are forcing

organizations to compromise either on the security

side or on the database side. Indeed, database

encryption poses some very unique challenges as not

only the solution needs to be sound from a security

perspective, but it also needs to coexist in harmony

with critical database properties such as

performance, integrity, availability, and

compression.

The rest of this paper is organized as follows.

Section 2 discusses the related work around database

encryption. In section 3, we state our contributions.

Section 4 defines the threats our database encryption

solution defends against. In section 5, we describe

our solution design in full details. Lastly, section 6

summarizes our approach and outlines our future

work.

2 RELATED WORK

Current database encryption solutions can be divided

into four main categories: Column encryption

(Benfield and Swagerman, 2001), tablespace

encryption (Freeman, 2008), file system encryption

(Anto, 2018), and self-encrypting disks (Dufrasne et

al., 2016). Unfortunately, each of these solutions

forces the organization to make a compromise either

on the database side or on the security side.

Column encryption negatively affects database

performance as queries with range predicates cannot

benefit from index-based access plans to limit the

data to read from the table. Instead, the database

system is forced to read the entire table to evaluate

the query. Tablespace encryption may leave certain

data vulnerable to attacks when, for example, an

administrator inadvertently takes an action that

moves data from an encrypted tablespace to an

unencrypted one. An example of such action would

be the creation of a materialized query table (MQT)

to speed up the execution of data warehousing

queries. File system encryption and self-encrypted

472

Rjaibi, W.

Holistic Database Encryption.

DOI: 10.5220/0006833604720477

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 472-477

ISBN: 978-989-758-319-3

disks provide no protection against privileged users

on the operating system. As long as the file

permissions allow access, such users can easily view

the content of the database by browsing the

underlying files on the operating system.

3 CONTRIBUTIONS

The crux of our contribution is the design of a

holistic database encryption approach which allows

organizations to meet their security and compliance

requirements without having to make compromises

either on the security side or on the database side.

Our solution improves over the state of the art

discussed above as follows:

 Pervasiveness: All data is encrypted whether it is

user tablespace data, system tablespace data,

temporary tablespace data, transaction logs data,

or database backups data.

 Security: The database content is not vulnerable

to attacks by malicious administrators who may

choose to bypass the database and access the

database indirectly through the file system

interfaces.

 Performance: The database system is not forced

to dismiss index-based access plans to answer

queries with range predicates.

 Breadth: The solution is built into the database

engine itself which means that it is available on

all platforms where the database system itself

runs. Also, it does not force the database system

to dismiss the opportunity to bypass the file

system and write data directly to raw devices in

order to boost performance.

 Quantum-safety: The implementation does not

make use of asymmetric encryption to wrap data

encryption keys. Data encryption keys are

wrapped with symmetric encryption (Chandra et

al., 2014). Therefore, the implementation is safe

against future attacks by quantum computers

implementing Shor’s algorithm which is known

to break asymmetric encryption that is based on

integer factorization such as RSA or on discrete

logarithms such as Diffie-Hellman (Shor, 1997).

Additionally, the default encryption key size is

256 bits. This also makes the implementation

safe against future attacks by quantum computers

implementing Grover’s algorithm which is

known to offer a quadratic improvement in

brute-force attacks on symmetric encryption

schemes like AES (Grover, 1996).

We have also implemented the solution in a

commercial database system (IBM DB2 for Linux,

Unix, and Windows).

4 THREAT MODEL

We focus on protecting data at rest. For protecting

data in transit between a database server and a client

application against eavesdroppers, we assume TLS

has been configured to provide this protection. TLS

is the standard for protecting data in transit and is

implemented by all major database systems.

The content of a database deployed on a given

database server can be accessed in two different

ways: Directly and indirectly. Direct access is when

users interact with the database using the usual

database interfaces such as querying the database

tables using SQL. In this context, we assume that the

database authentication and authorization

mechanisms have been configured to ensure that

data is accessible only to the appropriate users.

Authentication ensures that users are who they claim

they are while authorization ensures that

authenticated users have access only to those objects

or elements within objects for which they have been

granted permissions (Rjaibi and Bird, 2004).

Indirect access is when a user chooses to bypass

the database system altogether and uses operating

system commands to browse the content of the

database. For example, on Linux, the following

command would display the content of the physical

file associated with a given tablespace:

strings

‘/u01/database/payroll_tbspace’

This command will be executed by the operating

system bypassing all the database authentication and

authorization controls.

Our solution addresses this threat by encrypting

the database and ensuring that such encryption is

under the control of the database system itself. This

means that if a user chooses to bypass the database

system as shown above, the operating system

command will return cipher text which will be of no

value to the attacker.

An attacker may also choose to access the

database content from decommissioned hard drives

or by physically stealing such hard drives. Our

solution addresses this concern as well because the

attacker will only find cipher text on those drives.

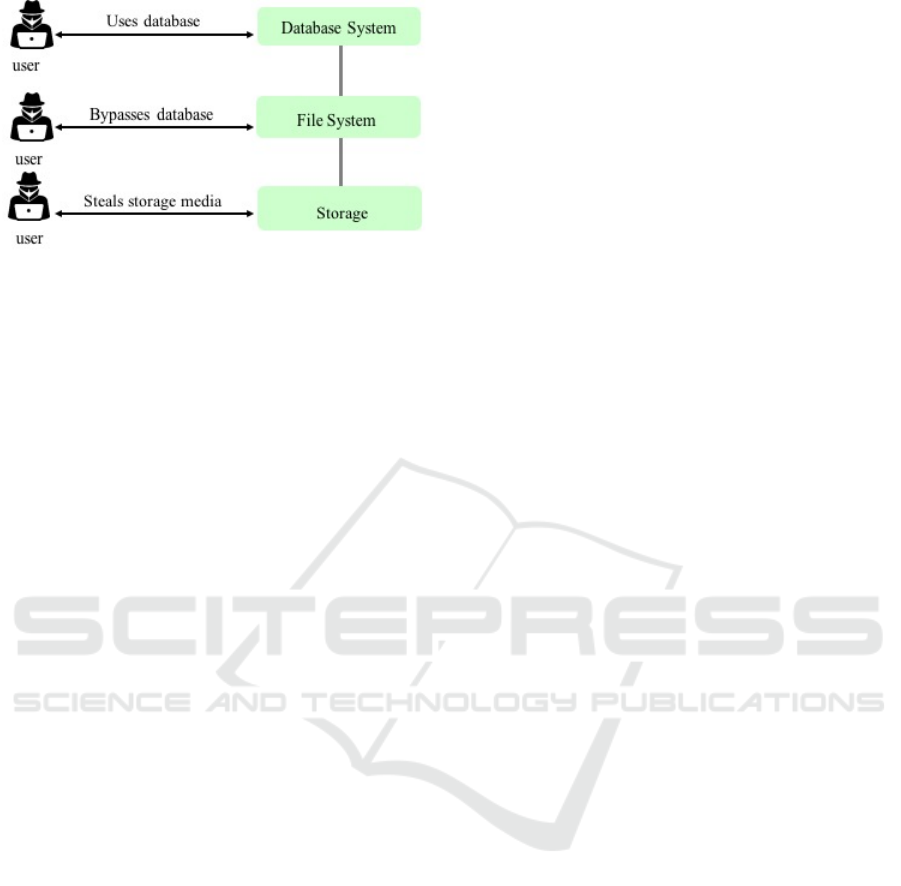

Figure 1 gives a high level overview of our database

threat model.

Holistic Database Encryption

473

Figure 1: Database threat model.

5 DATABASE ENCRYPTION

DESIGN

5.1 Encryption Key Management

Encryption key management is a critical aspect of an

encryption solution. Our solution uses two types of

encryption keys: A Data Encryption Key (DEK) and

a Master Key (MK).

The DEK is the encryption key used to encrypt

the actual data in the database. It is automatically

generated by the database system at database

creation time. The DEK is encrypted with the MK

and stored within the database configuration

structures together with the following attributes:

 The encryption key size: This is the length of the

encryption key in bits (e.g., 256 bits).

 The encryption algorithm: This is the symmetric

encryption algorithm used to encrypt the data

with the DEK (e.g., AES).

 The master key label: This is the unique

identifier of the master key within the external

management system. For example, if the external

management system is a Hardware Security

Module (HSM), then the database system will

call out to the HSM and ask it to either encrypt

or decrypt the DEK as required. A call to decrypt

the DEK is done once when the database system

starts up. A call to encrypt the DEK is also done

once when the database is created.

 The master key integrity value: To guard against

the (rare) event where the MK acquired at some

future point in the life of the database is not the

one that was actually used to encrypt the DEK,

we calculate an integrity value for the MK. We

do this by applying a Hash Message

Authentication Code (HMAC) function to the

MK and store the result. Before making use of

the DEK, we first compute an HMAC based on

the MK acquired. If the computed HMAC and

the stored HMAC match this implies that the

master key acquired is indeed the one that was

used to encrypt the DEK. Although rare, this is

important to avoid corrupting data through

decryption with the wrong key.

The MK is the encryption key used to encrypt the

DEK. Only a unique identifier of the MK is stored

within the database configuration structures. The

MK itself is stored in an external key management

system such as an HSM.

The reasons for choosing these two types of keys

are security, performance, and availability. By

storing the MK physically away from the database

system, we are assured that compromise of the

database system infrastructure does not give the

attacker access to both the encrypted data and the

encryption keys. Additionally, the concept of MK

allows database administrators to rotate encryption

keys without impacting the database performance or

worse requiring the database to be taken offline to

complete the operation. In fact, rotating the MK only

requires decrypting the DEK with the old MK and

re-encrypting it again with the new MK. In contrast,

rotating the DEK requires reading the whole

database, decrypting the data with old DEK, re-

encrypting it with the new DEK, and writing it back

to disk. Thus, the two types of keys we chose in our

solution design (DEK and MK) allow administrators

to meet their regulatory compliance needs around

rotating encryption keys without necessarily having

to incur a performance penalty or take a downtime.

5.2 Data Encryption

Implementing security in database systems is always

a delicate balance between meeting the security

requirements, and ensuring that security coexists in

harmony with other critical database features such as

performance, compression, and availability. For

database encryption, this means that the placement

of the encryption run-time processing is key to

designing an effective solution.

5.2.1 Encryption Run-time Placement

Our design places the encryption run-time

processing just above the database I/O layer in the

database kernel stack. The reasons for this choice are

the following:

 Pervasiveness: This ensures that all data is

encrypted whether it is user tablespace data,

system tablespace data, temporary tablespace

SECRYPT 2018 - International Conference on Security and Cryptography

474

data, or transaction logs data.

 Transparency: This ensures that encryption has

no impact on database schemas and user

applications. In fact, encryption can be thought

of as invisible to them.

 Performance: This ensures that data stored in the

database buffer cache remains in clear text.

Consequently, encryption imposes no restrictions

on the database system when it comes to

selecting the most efficient plan to execute a

query (e.g., queries with range predicates).

 Compression: Database systems implement

compression techniques to reduce the size of the

data stored on disk. Typically, these techniques

look for repeating patterns in order to avoid

storing all copies of such patterns. Encryption,

by definition, removes all patterns. This means

that the order in which compression and

encryption are performed is important. For

example, if encryption is performed first, then

the compression rate will be zero as encryption

will leave no patterns. Thus, placing our

encryption run-time processing just above the

database I/O layer ensures that encryption and

compression can coexist in harmony.

5.2.2 Encryption Run-time Processing

The encryption run-time processing consists of two

functions: Encryption and decryption. Encryption

takes place when the database system is writing data

out to the storage system. Decryption happens when

the database system is reading data in from the

storage system.

While the solution can easily support any

symmetric block cipher for encryption/decryption,

we have chosen to implement support for only AES

and 3DES as they are the most commonly used

block ciphers. AES is actually the standard

symmetric block cipher. Block ciphers support many

modes of operations. Electronic Code Book (ECB)

is the easiest mode to implement but is also the

weakest from a security perspective. This is because

in ECB mode the same clear text input will always

result in the same cipher text. This may be fine for

encrypting small pieces of data such as a password,

but not for database encryption as this will introduce

patterns and may compromise the encryption

solution. Instead, we have chosen to use the Cipher

Block Chaining (CBC) mode as it does not introduce

patterns. This means we need to provide an

initialization vector when calling the block cipher in

CBC mode for encryption, as well as maintain that

initialization vector in our meta-data so that it is

available for decryption purposes. Note that the

initialization vector is not meant to be a secret. It

only needs to be random.

When writing data to the file system, the

database system writes them in chunks to minimize

the I/O overhead. A chunk is a collection of data

pages where each page is 4KB in size. A page is set

of rows, and a database table is a collection of pages.

This poses an interesting question as to the level of

granularity to adopt for encryption. We have chosen

the data page to be that level granularity. A row

level granularity would have had a higher impact on

performance as encryption calls would have to be

made for each row separately. A chunk level

granularity would have created a dependency

between the pages in that chunk due to the chaining

inherent to the CBC mode. For example, to decrypt

page 5, one must first decrypt pages 1, 2, 3, and 4.

This would have had a negative impact on query

performance as it diminishes the value of index-

based access.

It is also worth noting that the data page level

granularity has allowed us to avoid having to

needlessly increase the database size due to

encryption. In fact, encryption block ciphers such as

AES and 3DES encrypt data one block at a time. For

example, the block size for AES is 16 Bytes. This

means that when the clear text to encrypt is not an

exact multiple of the block size, padding is required

and this obviously increases the cipher text

compared to the original clear text. Fortunately, the

choice of a data page for the encryption granularity

avoids this problem as data pages are always an

exact multiple of the encryption block size.

5.2.3 Transaction Logs

Transaction logs are files where the database system

logs transactions such as insert, delete, and update

operations. They are a critical component for

ensuring the integrity of the database as well as for

allowing recoverability of the database following a

database crash. The structure of a transaction log file

consists of two pieces: A header which contains

meta-data about the file, and a payload which

contains the actual database transaction details.

In section 5.2.2 above, we have seen how the

placement of the encryption run-time ensures that all

data written to disk, including transaction logs, is

automatically encrypted. However, transaction logs

pose one additional challenge. In a database

recovery scenario, we must be able to decrypt the

transaction logs even when the database system is

down. This means that we cannot rely on the DEK

Holistic Database Encryption

475

related information (section 5.1 above) to decrypt

the transaction logs as the database system may be

offline. To address this challenge, the transaction

logs structure has been extended so that these logs

are self-contained when decryption is required. More

specifically, the header piece of the transaction logs

structure has been extended so that it contains its

own copy of the DEK related information. This also

opens the door for an opportunity to further boost

security by generating a separate DEK for the

transaction logs that is distinct from the DEK for the

database.

5.2.4 Database Backups

A database backup is a copy of the database content

at a given point in time. Database systems provide a

command and/or API to allow users to take those

backups. In the case of a database crash, the

database can be recovered to the state it was at when

the last backup was taken. Additionally, when

healthy transaction logs from the damaged database

are available, it is possible to recover the database to

a further point in time by reapplying the database

transactions from the transaction logs. Like

transaction logs, a database backup consists of two

pieces: A header which contains meta-data about the

backup, and a payload which contains the actual

copy of the database.

Database backups pose the same challenge as

transaction logs in the sense that they too need to be

self-contained when decryption is required.

Consequently, this challenge is addressed in the

same way by extending the database backup header

piece so that it contains its own copy of the DEK

related information. Like transaction logs, database

backups have their own unique DEK.

6 CONCLUSION AND FUTURE

WORK

In this paper, we have presented a holistic approach

to database encryption which allows organizations to

meet their security and compliance needs without

having to make compromises either on the security

side or on the database side. Figure 2 gives a high

level overview of the architecture, which we

implemented in IBM DB2 for Linux, Unix, and

Windows.

In our future work, we intend to enhance our

holistic database encryption solution to better

address two challenges. The first challenge is

encrypting existing databases. Unlike newly created

databases, an existing database already has data and

turning encryption on for that database means not

only encrypting new incoming data, but also

encrypting that existing data. The current solution

requires the organization to turn on the encryption

for the existing database during a scheduled database

maintenance window. This is because the current

approach for encrypting an existing database works

by having the database administrator take a backup

of the existing database and then restoring it using

the RESTORE DATABASE command. While

processing the restore, the database system encrypts

the data as that is analogous to new incoming data.

We would like to allow database administrators to

turn on encryption for their existing databases

without having to wait for a scheduled maintenance

window. To do so, we plan to investigate creating a

background process which encrypts the database

incrementally while the database system continues

to serve applications. The main challenge would be

finding out how to perform this incremental

encryption without compromising the data integrity.

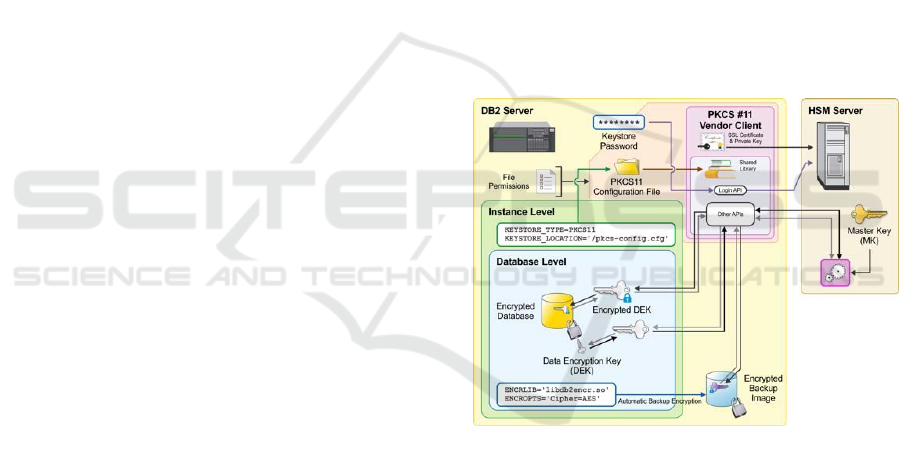

Figure 2: Database encryption architecture.

The second challenge is rotating the DEK online.

Currently, our solution allows rotating only the MK

online. While rotating the MK is usually sufficient,

there may be situations where rotating the DEK

itself is required. Currently, the only way to do this

is during a scheduled maintenance window

following the same database backup and restore

discussed above. We believe that the solution for

encrypting existing databases without having to wait

for scheduled maintenance window would also

allow rotating the DEK online as that is

fundamentally the same problem. That is, in both

cases, the database content needs to be read, re-

encrypted with a new DEK, and written back to disk.

SECRYPT 2018 - International Conference on Security and Cryptography

476

ACKNOWLEDGEMENTS

The author would like to thank Saifedine Rjaibi and

Devan Shah for their valuable comments.

REFERENCES

Rjaibi, W., Bird, P., 2004. A Multi-Purpose

Implementation of Mandatory Access Control in

Relational Database Management Systems. In

VLDB’04, 30th International Conference on Very

Large Data Bases. Morgan Kaufmann.

Chandra, S., Paira, S., Alam, S., Sanyal, G., 2014. A

Comparative Survey of Symmetric and Asymmetric

Key Cryptography. In ICECCE’14, International

Conference on Electronics, Communication and

Computational Engineering. IEEE.

Grover, L., 1996. A Fast Quantum Mechanical Algorithm

for Database Search. In STOC’96, 28th Annual ACM

Symposium on Theory of computing. ACM.

Shor, P., 1997. Polynomial-Time Algorithms for Prime

Factorization and Discrete Logarithms on a Quantum

Computer. SIAM Journal on Computing, Volume 26

Issue 5.

Dufrasne, B., Brunson, S., Reinhart, A., Tondini, R., Wolf,

R., 2016. IBM DS8880 Data-at-rest Encryption, IBM

Redbooks. New York, 7th edition.

Benfield, B., Swagerman, R., 2001. Encrypting Data

Values in DB2 Universal Database. IBM

DeveloperWorks.

Anto, J., 2008. Understanding EFS. IBM

DeveloperWorks.

Freeman, R., 2008. Oracle Database 11g New Features,

McGraw-Hill.

Voigt, P., Von Dem Bussche, A., 2017. The EU General

Data Protection Regulation (GDPR), Springer

International.

Chuvakin, A., Williams, B., 2009. PCI Compliance:

Understand and Implement Effective PCI Data

Security Standard Compliance, Elsevier.

Holistic Database Encryption

477
