Flexible Motion Planning for Object Manipulation in Cluttered Scenes

Marco Costanzo, Giuseppe De Maria, Gaetano Lettera, Ciro Natale and Salvatore Pirozzi

Dipartimento di Ingegneria, Università degli Studi della Campania Luigi Vanvitelli, Via Roma 29, Aversa, Italy

Keywords:

Reactive Robot Control, Robot Motion Planning, Object Recognition, Obstacle Avoidance.

Abstract:

The work implements a new real-time ﬂexible motion planning method used for reactive object manipulation

in pick and place tasks typical of in-store logistics scenarios such as shelf replenishment of retail stores. This

method uses a new hybrid pipeline to recognize and localize an object observed through a depth camera,

by integrating and optimizing state of the art techniques. The proposed algorithm guarantees recognition

robustness and localization accuracy. The desired object is then manipulated. The motion planner, based on

the obstacles detected in the scene, plans a collision-free path towards the target pose. The planned trajectory

optimizes a cost function that reﬂects the best solution among those available and produces natural and smooth

path through a smart IK constrained solution which avoids robot unnecessary reconﬁgurations. A reactive

control based on distributed proximity sensors is ﬁnally adopted to locally modify the planned trajectory in real

time to avoid collisions with uncertain or dynamic obstacles. Experimental results in a supermarket scenario

populated with cluttered obstacles demonstrate smoothness of the robot motions and reactive capabilities in a

typical fetch and carry task.

1 INTRODUCTION

Nowadays, robotic systems are used in unstruc-

tured environments where motions cannot be pre-

programmed. The state-of-the-art (SoA) motion

planners are based on off-line sample-based algo-

rithms, such as Rapidly-exploring Random Tree

(RRT) (Kuffner and LaValle, 2000), Probabilistic

RoadMap (PRM) (Kavraki et al., 1996), Expansive

Spaces Tree (EST) (Phillips et al., 2004), Kine-

matic Planning by Interior-Exterior Cell Exploration

(KPIECE) ( ¸Sucan and Kavraki, 2009), which are all

tree-based planners. They are theoretically consistent

but difﬁcult to tune and to effectively use in prac-

tice without a speciﬁc customization for the consid-

ered application. Moreover, their random nature often

causes unnatural trajectories. These planners work in

joint space so they need an IK solution as input for

the target pose. The most used Inverse Kinematics

(IK) solver is Kinematic and Dynamic Solver (KDL)

(Khokar et al., 2015), which is based on Newton’s

method with some random jumps. However, careless

use of IK solvers can produce unneeded robot recon-

ﬁgurations.

Another challenge for robots acting in unstruc-

tured environments is the object recognition and

localization task. The SoA techniques propose

pipelines too application-tailored, which are difﬁcult

to generalize. Some local descriptors, such as Fast

Point Feature Histograms (FPFH) (Rusu et al., 2009)

or Signature of Histograms of OrienTations (SHOT)

(Tombari et al., 2010), work well when only few ob-

jects are in the scene, far enough from each other

and not similar. On the other hand, the main limit

of global descriptors, such as Viewpoint Feature His-

togram (VFH) (Rusu et al., 2010), is the possible pres-

ence of partial occlusions.

The technologies described so far for object

recognition and localization and for robot motion

planning are the key enablers for the robotization

of many processes typical of the logistic and intra-

logistic application ﬁelds. With reference to the retail

market, both in the distributions centers and in the su-

permarket stores, a large number of single items per

time unit have to be fetched and carried from a place

to another, e.g., in a store, from a trolley to a shelving

unit. Robots have not entered yet into such a con-

text for their limited manipulation abilities in terms

of number and type of objects that they can safely

grasp and handle. Safe grasping is not the only chal-

lenge but also motion planning is quite a difﬁcult task

for a robot. Usually, many different items have to be

fetched from a tray to a shelf, where other objects are

already present and can be misplaced and where the

110

Costanzo, M., Maria, G., Lettera, G., Natale, C. and Pirozzi, S.

Flexible Motion Planning for Object Manipulation in Cluttered Scenes.

DOI: 10.5220/0006848701100121

In Proceedings of the 15th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2018) - Volume 2, pages 110-121

ISBN: 978-989-758-321-6

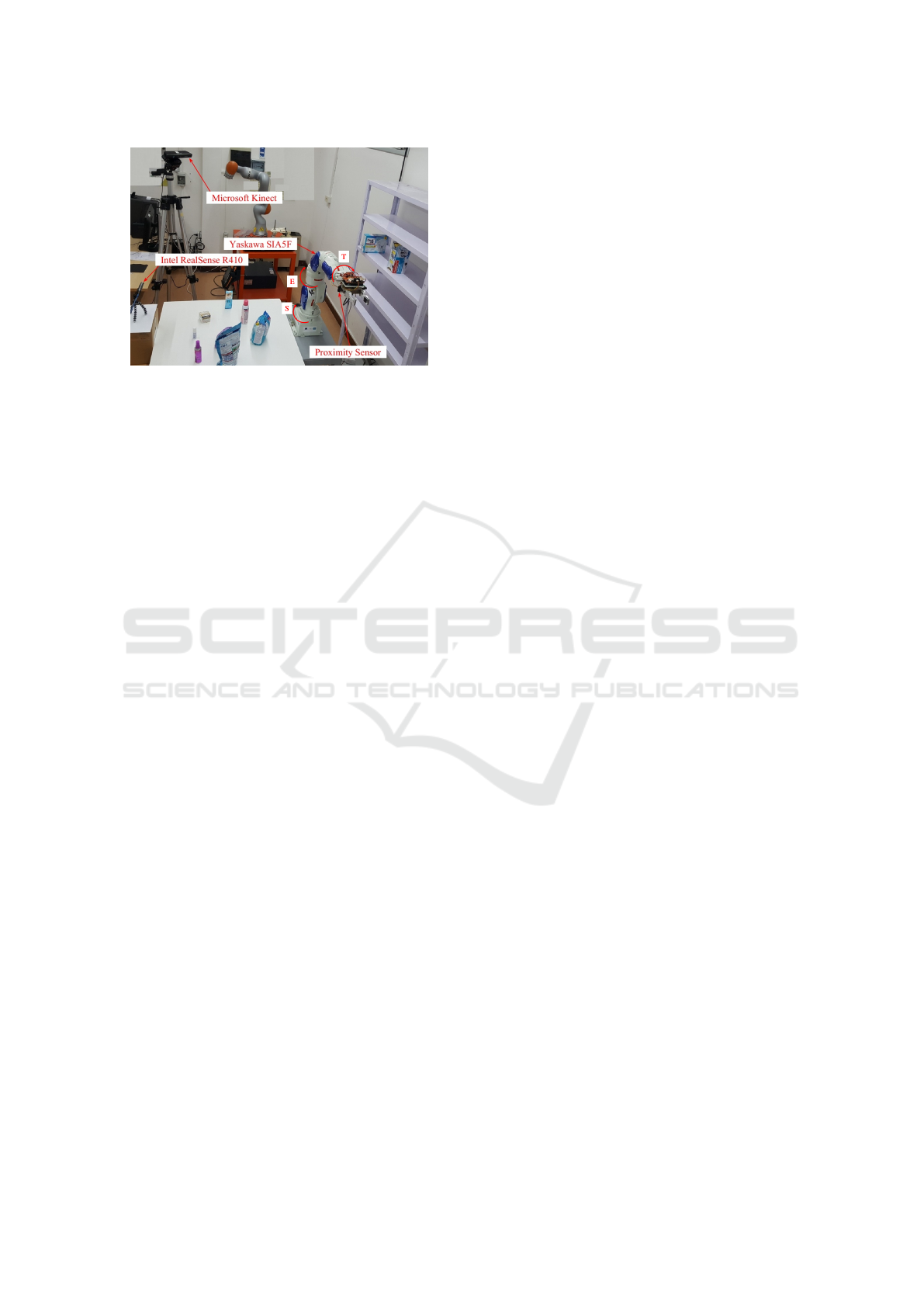

Figure 1: Experimental set-up.

items have to be placed in usually narrow spaces and

very close to each other.

This paper tries to overcome the discussed SoA

limitations. The main contributions can be summa-

rized as follows. A novel hybrid pipeline for object

recognition and localization is proposed to achieve

more reliability and the accuracy needed for a correct

grasp. The considered task consists in detecting an

assigned object among many placed on a trolley tray,

picking it and placing it on a shelf. Therefore, given

the model of the object, the scene is segmented and

the clusters identiﬁed, then the model is compared to

each cluster and the association depends not only on

the comparison of the descriptors selected for model-

ing the object and the cluster but also on the alignment

process itself. An obvious drawback of this approach

is the longer computational time, that is the price to

pay for a higher success rate. A second contribution

consists in a procedure that ensures a planned motion

with no unnecessary arm. This is achieved by careful

use of a constrained IK solver to look for a joint con-

ﬁguration corresponding to the target pose as close

as possible to the initial one. Last but not least, this

paper does not limit to a simple “plan and act” ap-

proach, which suffers from uncertainties and dynamic

changes in the scene. The robot is endowed with a

reactive control capability that usefully exploits dis-

tributed proximity sensors providing information on

the actual location of the obstacles near the end effec-

tor, an idea used also by (Nakhaeinia et al., 2018). A

simple control algorithm is proposed to locally mod-

ify directly the planned trajectory in the joint space so

as to ensure avoidance of unexpected or uncertainly

placed obstacles. To demonstrate the effectiveness of

the new approaches proposed in the paper, a number

of experiments have been conducted on a fairly large

object set and with an industrial robot in a setting rep-

resentative of a shelf reﬁlling task of a supermarket

scenario (Figure 1).

2 OBJECT RECOGNITION AND

LOCALIZATION

This section describes the proposed object recogni-

tion and 6D localization algorithm, with special em-

phasis on the hybrid pipeline. The algorithm pro-

cesses information obtained from the point clouds ac-

quired by the sensory system described in Section 2.1.

The aim is to align point clouds using a model-based

approach, which compares object geometric informa-

tion of some objects, placed on a planar surface, with

those of the given 3D target model.

2.1 Sensory System

A structured light sensor has been adopted for creat-

ing depth maps. The Intel RealSense R410 camera

has been used as vision device for both object recog-

nition and localization (see Figure 1). It uses an IR

emitter to project a light pattern and an IR sensor to

detect the deformations in the projected pattern for re-

solving the depth, without any RGB information. The

R410 maximum resolution is 1280x720. After selec-

tion of the ﬁxed camera position according to the cri-

teria explained in Section 2.3.4, a calibration proce-

dure has been required to estimate both the intrinsic

and extrinsic parameters of the camera. In particular,

a simple procedure has been developed to obtain the

homogeneous transformation matrix from the camera

frame to the robot frame, i.e., the T

robot

camera

matrix. The

procedure generates two transformation matrices, by

using a third coordinate frame on a ﬁxed object cor-

ner: T

robot

ob ject

, which expresses the pose of the object

frame with respect to the robot base frame; T

camera

ob ject

which expresses the pose of the object frame with re-

spect to the camera frame. By combining them, the

recognized object pose can be expressed relatively to

the robot frame, to allow the robot to manipulate it.

2.2 Object Set and Models

The set of objects used for the training process is

shown in Figure 2. Since no 3D models are directly

available for the selected objects, many of them have

been reconstructed automatically using the Intel sen-

sor and the ReconstructMe online software. For the

objects of simple geometry, a CAD model has been

directly drawn using a CAD program. Views of the

resulting 3D models can be seen in Figure 3. Note that

ReconstructMe is not able to distinguish the liquid in-

side the transparent objects or to track thin or polished

items during the rotation required by the modeling

procedure. Therefore, such kind of objects have been

eventually excluded form the considered set (those

Flexible Motion Planning for Object Manipulation in Cluttered Scenes

111

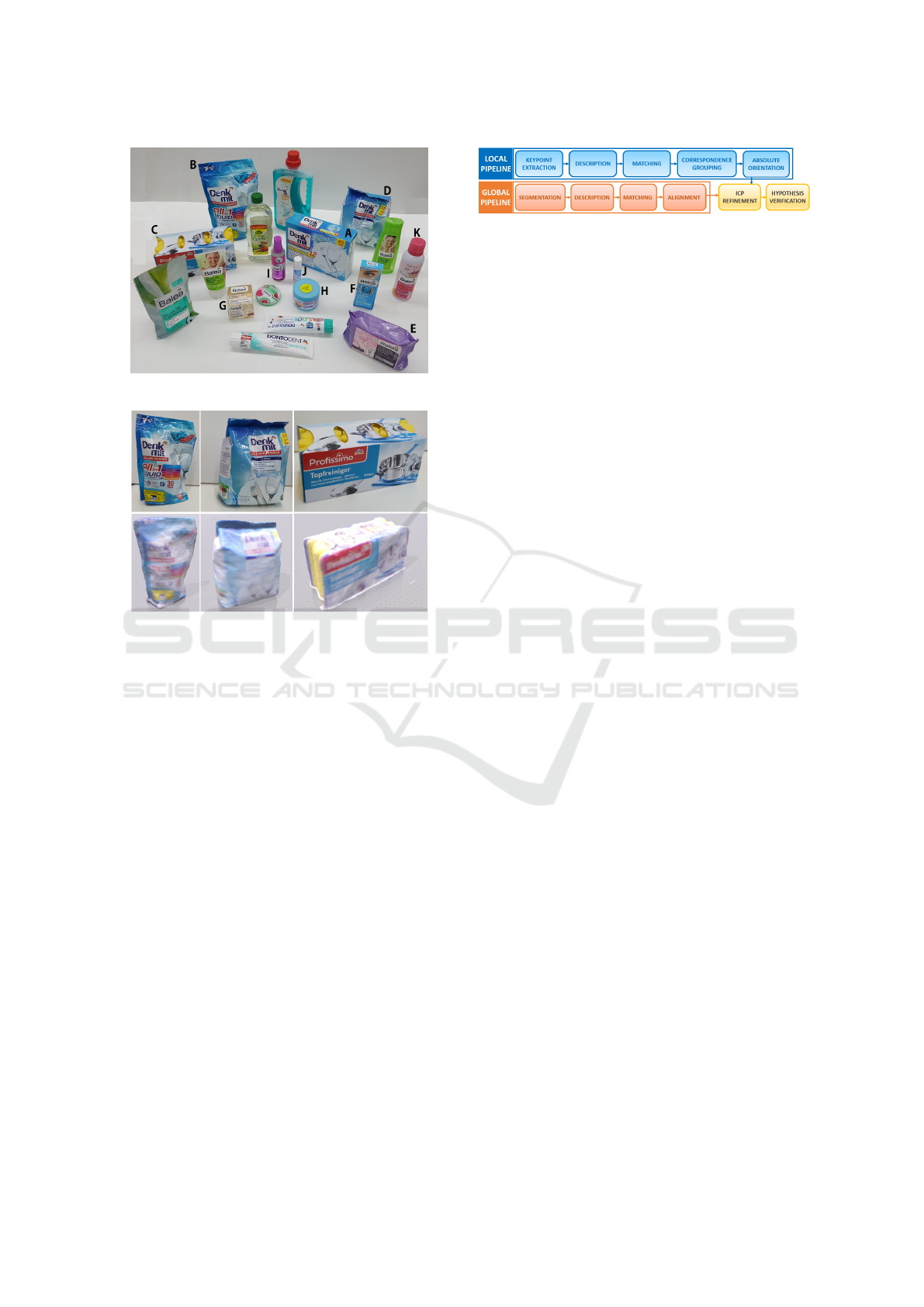

Figure 2: Object training set.

Figure 3: Some reconstructed 3D models.

not labelled in Figure 2). All the models are ﬁnally

converted into Point Cloud Data (.pcd) ﬁles, to be

elaborated by the Point Cloud Library (PCL) (Rusu

and Cousins, 2011). A complete point cloud model

could have regions that are doubled in overlapping ar-

eas, due to small registration errors, and holes, due

to scanning surfaces that did not return any distance

measurements (e.g., shiny or metallic objects). There-

fore, the obtained point clouds are then ﬁltered with

the Moving Least Squares (MLS), which is a widely

used technique for approximating scattered data us-

ing smooth functions.

2.3 Comparison Among Existing

Algorithms

One of the main goals of 3D data processing is about

matching regions. This process generally happens

between two point sets S

and S

, which can be

compared through a method based on the descrip-

tor notion. Descriptors can be deﬁned like the struc-

tures that contain useful information to summarize the

points of a point cloud and in this work they are used

to search correspondences between an object model

and scene points. As described in (Aldoma et al.,

2012), depending on the way they represent the infor-

Figure 4: The SoA local and global pipelines.

mation, 3D descriptors can be divided into two main

categories: Signatures or Histograms. The descrip-

tor of each category, depending on the extension of

the point cloud to which it is applied, can be local or

global. Descriptors of single objects and scene areas

belong to the local category, while global descriptors

describe the scene using all pixels of the image. On

this distinction, the state of the art advises to follow

two possible pipelines, depending on the case study,

shown in Figure 4. However, many limitations have

been found to generalize the recognition and localiza-

tion tasks and that is why a new hybrid approach has

been adopted.

2.3.1 Local Pipeline

3D local descriptors work on speciﬁc points, called

keypoints. They contain information from a neighbor-

hood, which is usually determined by selecting points

within a radius from the center point. The descrip-

tion of a complete object consists in associating each

point with a descriptor of the local geometry of the

same point. Referring to Figure 4, the main phases of

a local pipeline are the ﬁrst three:

1. Keypoint Extraction: They represent points

of interest which are stable, characteristic or distinc-

tive. However, tests carried out with extracted edges,

a typical keypoint criterion, did not produce satisfac-

tory results in cluttered scenes.

2. Description: This second step associates the

descriptors to the keypoints. As above, a common

trait of all local descriptors is the deﬁnition of a local

support used to determine the subset of neighboring

points around each keypoint that will be used to com-

pute its description: the best choice for the support

size was about 0.02m. Intuitively, it is understood

how the support size may be deﬁned either in terms

of length, or in terms of the number of neighbors.

During experimental tests, the choice has been obvi-

ously a trade-off since a ﬁxed number of neighbors

means that histograms will have the same total magni-

tude but will also be more susceptible to differences in

point density. This means that the radius parameter is

somewhat robust but its size does need to be tuned for

the speciﬁc class of object that is being recognized: if

the size is too small, the descriptor will describe basic

features like planes and corners and will lose its abil-

ity to discriminate. On the other hand, if the radius is

too large it will contain information from much of the

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

112

background and it will not match to anything.

3. Matching: Then, a pair of points (p

, p

with p

point of the model and p

point of the

scene, can be deﬁned a correspondence if their Eu-

clidean distance is below a certain threshold, chosen

a priori by the user. To make the comparison step

even more efﬁcient, it has been applied a particular

comparison pattern on the matching neighborhoods

found, called the Fast Library Approximate Near-

est Neighbors (FLANN) algorithm (Muja and Lowe,

2009). Even in this step, searching the optimal thresh-

old value is crucial: a too low value generates too

many possible combinations in the total scene; a too

high value makes the matching algorithm too greedy.

Searching a unique value for different scenes and the

same model was impossible.

2.3.2 Global Pipeline

Global descriptors are high-dimensional representa-

tions of the geometric features of an object. Their use

is similar to that of local descriptors but, due to high

computational cost, they are generally calculated af-

ter a 3D segmentation. Even if the global sequence of

phases is similar to that of the local pipeline, there is a

deep difference: the object is now described in its en-

tirety and not only through some of its points, without

keypoints. With reference to Figure 4, the main steps

of a global pipeline are:

1. Segmentation: Segmentation is a well-

researched topic and several techniques exist

(Bergstrom et al., 2011), (Mishra and Aloimonos,

2011), (Comaniciu and Meer, 2002). It is needed

to identify the various objects that are part of the

scene. Different techniques can be used, such as

the Differences between point clouds, which is

a background subtraction method, the Euclidean

pooling method that splits point clouds in a series of

subgroups distant among each other a given amount

(similar to the k-mean segmentation), Extraction of

polygons and solids, which detects a subset of points

that resemble a geometrical primitive (cylinder,

sphere, ...), Segmentation of normal method, based

on the extraction of surfaces whose normals have a

particular direction.

2. Description: The output of scene segmenta-

tion is a set of clusters, supposedly each representing

a single object of the scene. The shape and geometry

of each of these objects are described by means of a

proper global descriptor and represented by a single

histogram. It is obvious that the obtained descriptor

is highly affected by partial occlusions, hence the fol-

lowing matching phase will likely fail in such cases.

3. Matching: In all cases, the histogram is in-

dependently compared against those obtained in the

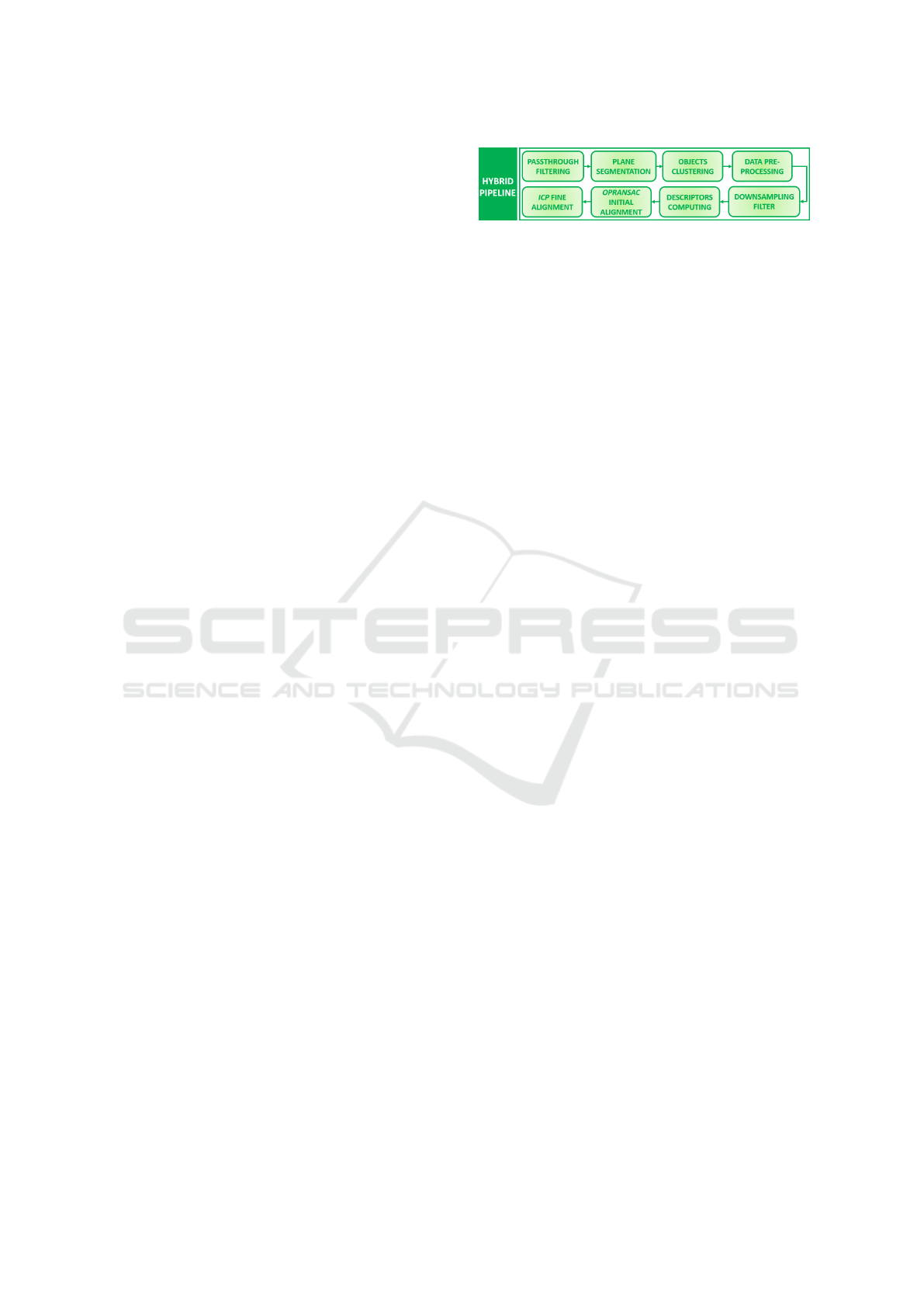

Figure 5: The proposed hybrid pipeline.

training stage, getting the best N matches. Matches

are not pairs of points as in the case of local descrip-

tors, but the set of N model views that can be su-

perimposed on the scene by applying a transforma-

tion. Typically, the histogram matching is done using

FLANN by means of a brute force search, and the dis-

tance between histograms is computed using the L

metric.

2.3.3 Hybrid Pipeline

Taking into account that, in the considered applica-

tion, only geometric information about the objects

is available (no visual features are used), the scene

is usually large and affected by partial occlusions,

similar objects are close to each other, local and

global SoA pipelines are not suitable for the limita-

tions discussed above. The proposed algorithm ex-

tracts the most generalizable steps of each standard

SoA pipeline, that means the global segmentation and

the local descriptor robustness, as shown in Figure 5.

Moreover, a new approach is introduced: unlike the

SoA pipeline that provides the matching phase and the

alignment phase as two separated steps, the proposed

algorithm takes the two phases in one step. It also

optimizes a critical parameter to be more efﬁcient and

robust than the traditional approach. The initial coarse

alignment provided by the RANdom SAmple Con-

sensus (RANSAC) method (Papazov and Burschka,

2011) is ﬁnally reﬁned by the Iterative Closest Point

(ICP) method (Rusinkiewicz and Levoy, 2001). The

output of the proposed algorithm is the 6D pose of the

recognized object. The hybrid pipeline is divided into

8 steps:

1. PassThrough Filtering. A series of ﬁlters

available in the PCL library are applied to the input

point cloud in order to reduce undesirable data. Since

the objects are all placed on a ﬂat surface of known

size and location, it is easy to identify the portion of

the scene of interest and remove the rest.

2. Plane Segmentation. The segmentation of

normal method, cited in the global pipeline, has been

chosen because in the supermarket scenario objects to

pick are placed on trolley trays. PCL provides a very

useful component to perform this task, called Sample

Consensus Segmentation. This component is based

on the RANSAC method, which is a randomized al-

gorithm for robust model ﬁtting. It is used to esti-

Flexible Motion Planning for Object Manipulation in Cluttered Scenes

113

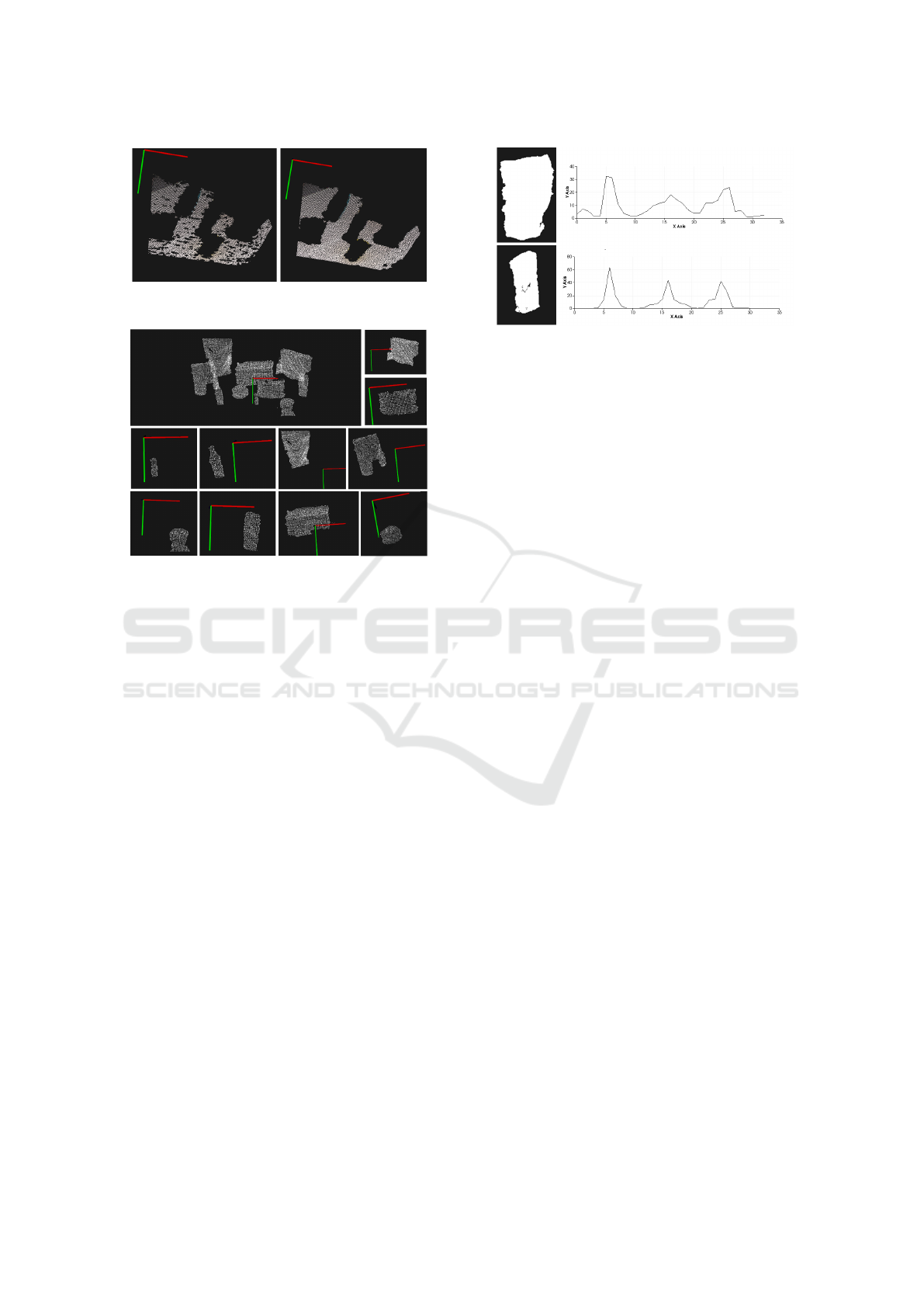

Figure 6: k dependence for the plane segmentation. (a) k=5;

(b) k=100.

Figure 7: Clustering process.

mate parameters of a mathematical model from a set

of observed data that contain both inliers (those points

satisfying the model condition) and outliers (all other

points). The output of this segmentation process is a

vector of model coefﬁcients, which are used to show

the contents of the inlier set. Note that extracting the

plane strongly depends on the quality of the surface

normals, as shown in Figure 6. The image on top-left

of Figure 7 illustrates the outcome of this step.

3. Objects clustering. The ﬁnal step of the seg-

mentation process is the clustering, that means cat-

egorize objects of the scene. The task uses the Eu-

clidean Cluster Extraction approach: assuming that a

Kd-tree structure is used for ﬁnding the nearest neigh-

bors, it is needed to ﬁx a threshold d

, which indi-

cates how close two points are required to belong to

the same object. By selecting d

, the clusters reported

in Figure 7 are obtained from the scene.

4. Data Pre-processing. Before the descriptor

analysis, as already done for the object models, each

cluster is passed through the MLS ﬁlter, to improve

the quality of the geometric descriptor.

5. VoxelGrid Filter Downsampling. To apply

the local FPFH descriptor, a simple downsampling

step through a Voxelized Grid approach has been used

as a keypoint extraction method. Because model and

scene can be provided by different data sources, as

seen in Section 2.2, this step makes them more sim-

ilar and improves the consistency between the model

descriptor of an object and the descriptor of the re-

Figure 8: FPFH descriptors of two objects in the set.

spective cluster, by providing a priori knowledge of

the point cloud density. Furthermore, downsampling

reduces computational cost.

6. FPFH Descriptors. Several experiments with

different descriptors have been carried out and the

FPFH local descriptor has been selected for its robust-

ness. Global descriptors like VFH, ESF or PFH have

been analyzed but everyone suffers from some of the

speciﬁc application requirements. Although the per-

formance of these global descriptors, in ideal oper-

ating conditions as described by their authors, repre-

sents a good solution to solve the object recognition

problem, the following factors have led to the selec-

tion of a local descriptor:

• the scenarios are complex in the sense that they

contain many objects also similar to each other;

• the objects can be distant from the camera up to

two times the ideal distance of 0.5 m deﬁned in

the ideal operating conditions (see Section 2.3.4);

• the objects are very often occluded;

FPFH features represent the surface normals and the

curvature of the objects, as shown in Figure 8.

7. Point clouds initial alignment: OPRANSAC.

Given two generic S

source

and S

target

point clouds in

3D space, to be compared they need to be aligned, that

means to calculate the rigid geometric transformation

to be applied to S

source

to align it to S

target

. In this

work, an initial alignment is obtained by following

the approach in (Buch et al., 2013), i.e., the Prerejec-

tive RANSAC. This method uses the local FPFH de-

scriptors as the parameters of the consensus function,

it ﬁnds inliers points and ﬁnally it provides the es-

timated geometric transformation. This alignment is

calculated without having previous knowledge about

the position or orientation of the target object. To

setup the alignment process, the class SampleConsen-

susPrerejective has been used, which implements an

efﬁcient RANSAC pose estimation loop.

The following difﬁculties have been encountered

during this phase: in some similar scenes in which the

objects on the table were slightly moved, the SoA al-

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

114

gorithm did not correctly recognize the model object,

often confusing it with objects of different geometry.

When it recognized the model, the correspondence

rates were very different from one scene to another or

similar for different objects. So, the results obtained

by these common techniques did not meet the super-

market scenario requirements. This is why a careful

analysis of this crucial step has been carried out in or-

der to identify only the most sensitive parameters that

affect the algorithm result. The critical parameter that

has been identiﬁed is the number of nearest features

to use (γ): small changes generate very different out-

puts. Then, the objective was to try to select a single

value of this parameter for every observed scene and

for every object model but all attempts were vain. The

adopted solution is to maximize the following ﬁtness

function over γ:

[I, H] = RANSAC(S

source

target

,γ) (1)

f itness(γ) =

|I|

source

, (2)

where |I| is the cardinality of the set I of inliers

points between the two point clouds S

target

and S

source

after the RANSAC alignment calculated by using the

current value of γ, and H is the 4 × 4 homogenous

transformation matrix to perform such alignment.

In order to maximize the ﬁtness function, two

nested loops have been implemented. The inner one

computes the best γ variable by increasing it each time

of a ﬁxed step (i.e., δ

= 5). The external one ex-

ecutes this operation for each target cluster S

target

[ j]

labelled in the speciﬁc scene, i.e., with j from 1 to the

number of clusters identiﬁed in the scene. Finally, the

best result is chosen: the corresponding homogenous

transformation matrix and the labelled cluster are se-

lected. This approach has provided surprising and ro-

bust results and it has been called OPRANSAC to un-

derline the optimization process. The pseudo-code is

reported in Algorithm 1.

The maximum ﬁtness value, equal to 1, is obtained

when all the points have a near distance below the

ﬁxed δ

threshold. The partiality of the views (clus-

ters) and therefore of the point clouds makes unlikely

an high level of ﬁtness, although over 70% of match-

ing in the experimental tests have been found. The

deﬁnition of the similarity parameter therefore allows

to compare incomplete objects and models but also it

allows to deﬁne an optimization heuristics based on

the cardinality of the point clouds. Figure 9 shows

some results.

8. ICP. Finally, the ICP algorithm is applied to

reﬁne the estimated 6-DoF object pose. Figure 10 il-

lustrates its output.

Algorithm 1: OPRANSAC initial alignment.

1: input:

2: S

source

← model point cloud to identify

3: S

target

← vector of all labelled clusters

4: γ

← initial value of the critical parameter γ

5: N ← number of iteration for internal loop

6: δ

← ﬁxed step for the critical parameter

7: procedure PERFORM ALIGNMENT

8: f itness = 0

9: H = I

4×4

10: label = 0

11: for j = 1 to S

target

.size do

12: γ = γ

13: for i = 1 to N do

14: [I, H

temp

] = RANSAC(S

source

target

[ j],γ)

15: f itness

temp

= |I|/|S

source

16: if f itness

temp

> f itness then

17: f itness = f itness

temp

18: H = H

temp

19: label = j

20: γ+ = δ

Figure 9: Coarse alignment: cluster (green) and

OPRANSAC result (red).

2.3.4 Tests and Performance Assessment

In this subsection the most interesting results obtained

by testing the proposed algorithm will be discussed.

Camera Placement. Camera placement depends

on three factors. Camera height inﬂuences both plane

segmentation and object clustering processes. The

higher it is placed, the better is the plane segmen-

tation, however the worse is the object clustering.

Camera distance from the scene affects the dimen-

sions of the clusters and the dimensions of the cap-

tured scene. The larger is the distance, the smaller are

the object clusters and the corresponding point clouds

have fewer points. On the other hand, to frame as

many objects as possible the distance should be large

enough. Finally, the distance should high enough to

let the camera stay out of the robot workspace so as

to avoid an additional obstacle for the pick and place

process. As a trade off among the discussed factors,

Flexible Motion Planning for Object Manipulation in Cluttered Scenes

115

Figure 10: Reﬁned alignment: ICP (yellow) adjusts the

OPRANSAC (blue) alignment on the cluster (green).

Figure 11: Good alignment with an incorrect clustering (ob-

jects too close).

the best distance range of the camera with respect to

the objects is between 0.30m and 0.90m.

Object Placement. Other relevant aspects are the

distance among objects and their placement on the

tray. In this work objects are assumed to be randomly

placed but all upright on the tray and at a minimum

distance of 0.3 m, which is quite critical for a success-

ful collision free motion planning of the grasp phase

(see Section 3.2). However, tests with shorter dis-

tances have been demonstrated that the recognition

phase has still good results as in the example shown

in Figure 11, where a cluster erroneously contains two

objects but the OPRANSAC alignment algorithm cor-

rectly aligns the model to the right part of the cluster.

Analysis of the Execution Time. Several experi-

ments have been done to measure the execution times

and to evaluate the performance of the recognition al-

gorithm. Table 1 shows the main parameters settings.

Then the execution time of the two main phases of the

algorithm is calculated, based on an observed scene

containing 11 objects. The data, expressed in seconds,

are reported in Table 2. Note that the OPRANSAC

step requires more computational time due to the in-

troduction of the N-loop for each cluster. The reﬁne-

ment ICP phase shows a constant trend around 700

milliseconds, which is irrelevant.

Confusion Matrix. To evaluate the behavior of

the proposed algorithm in terms of its precision and

reliability during the object classiﬁcation, an exten-

sive test has been executed, where the known objects

are randomly placed on a tray as explained above.

The confusion matrix (Table 3) related to twenty dif-

ferent scenes shows the recognition rate of the pro-

posed algorithm. It is important to remark that with-

Table 1: Alignment parameters settings.

OPRANSAC

ransac_max_iter 50000

ransac_inlier_fraction 0.25

ransac_num_samples 3

ransac_similarity_thresh 0.9

ICP

icp_max_corr 0.01

icp_out_thresh 0.01

icp_max_iter 50000

Table 2: Execution times (in seconds).

min max mean

OPRANSAC 31.25 134.7 75.7

ICP 0.5 1.4 0.7

out a criterion to exclude uncertain recognitions, ob-

jects are always recognized and this can produce a

high value of false positives. A simple way to reduce

this phenomenon is to ﬁx a threshold, δ

f it

, to exclude

the cases of poor likeness. This alternative method

improves also the execution time of the algorithm be-

cause the expected loop is interrupted if the average

model-cluster correspondence is lower than δ

f it

. For

each test, the algorithm is invoked, taking the model

of the object to be recognized as input. The algorithm

output is a selected cluster with a ﬁtness value, ﬁt-

ness. By comparing ﬁtness with δ

f it

, it is possible to

choose if the correspondence is acceptable or not: if

f itness > δ

f it

, the model-cluster association is con-

sidered valid (1), otherwise no (0). Table 3 reports

the percentage results by repeating this test for all ob-

ject models in the same scene and for twenty different

scenes. The values in the last column correspond to

the cases of failed recognition ( f itness < δ

f it

The C, D, F boxes have a higher number of hits be-

cause their ﬁtness match values are always the high-

est for their respective clusters than that with the other

clusters, and so the percentage of failure when the aim

is to recognize these objects is low. However, they

are the objects with simpler geometry and large sur-

face extension, and this means that their point clouds

clusters have obviously more samples than those of

the others objects. On the opposite side, the clusters

of the G, H, I, J objects have fewer points because

they are small items and also their distance from the

camera cause very coarse and distorted clusters. This

limits the ﬁtness values and therefore the success of

the algorithm. The curvatures of the smaller objects

are not well deﬁned in the clusters and even the ﬁl-

tering is not enough to represent them better. So, the

result is a low ﬁtness value implying that the desired

model is often confused with an incorrect cluster.

By aggregating the data, 220 tests have been car-

ried out: the algorithm has produces 156 true positive

and 52 false positives, which correspond to a correct

recognition in the 71% of cases and a wrong recog-

nition in the remaining 23%: the remaining 6% of

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

116

Table 3: Confusion matrix based on 20 observed scenes

(recognition rate%): models (capital letter) and clusters

(lowercase letter) as labelled in Figure 2. UR indicates un-

recognition rates.

a b c d e f g h i j k UR

A 50 10 20 20 0 0 0 0 0 0 0 0

B 0 90 0 0 0 10 0 0 0 0 0 0

C 0 0 100 0 0 0 0 0 0 0 0 0

D 0 0 0 100 0 0 0 0 0 0 0 0

E 0 0 0 0 60 0 30 10 0 0 0 0

F 0 0 0 0 0 100 0 0 0 0 0 0

G 0 0 0 0 0 0 60 40 0 0 0 0

H 0 0 0 0 0 0 20 70 0 0 0 10

I 0 0 0 0 0 20 0 10 60 0 0 10

J 0 0 0 0 0 0 0 0 40 30 0 30

K 0 0 0 0 0 0 0 0 0 30 60 10

the cases analyzed did not produce any association at

least equal to δ

f it

3 FLEXIBLE MOTION

PLANNING

Enabling a robot manipulator to have the perception

of its workspace can drastically improve the ﬂexibil-

ity of a industrial system. In this context, this work

aims not only to design a 3D vision system able to

identify the desired object pose, but also a reliable

control able to manipulate it in a dynamic scene. The

accuracy has to be sufﬁcient to move the object into

the robot workspace without causing issues such as

damage or errors. This section describes how two

main problems have been solved: the planning of

unnecessary robot reconﬁgurations, and the on-line

collision avoidance with unexpected and uncertainly

placed objects. The ﬁrst problem has been solved in-

tegrating the Stochastic Trajectory Optimization for

Motion Planning (STOMP) planner and the Trac-IK

kinematics solver into the MoveIt! framework used

for motion planning. The second problem has been

solved with a reactive control strategy based on dis-

tributed proximity sensors used to compute in real-

time a modiﬁcation of the planned trajectory to avoid

collisions with unexpected objects in the scene.

3.1 Sensory System

The optimal placement of the RealSense camera

for the localization and recognition task (see Sec-

tion 2.3.4) did not allow to frame the whole robot

workspace. Thus, a second depth camera, the Mi-

crosoft Kinect, after the calibration procedure already

described in Section 2.1, has been integrated into the

MoveIt! architecture to build the 3D scene recon-

struction for robot motion planning.

To better avoid collisions during the robot planned

trajectories, e.g., with objects not known or not per-

fectly modeled in the scene, four proximity sensors

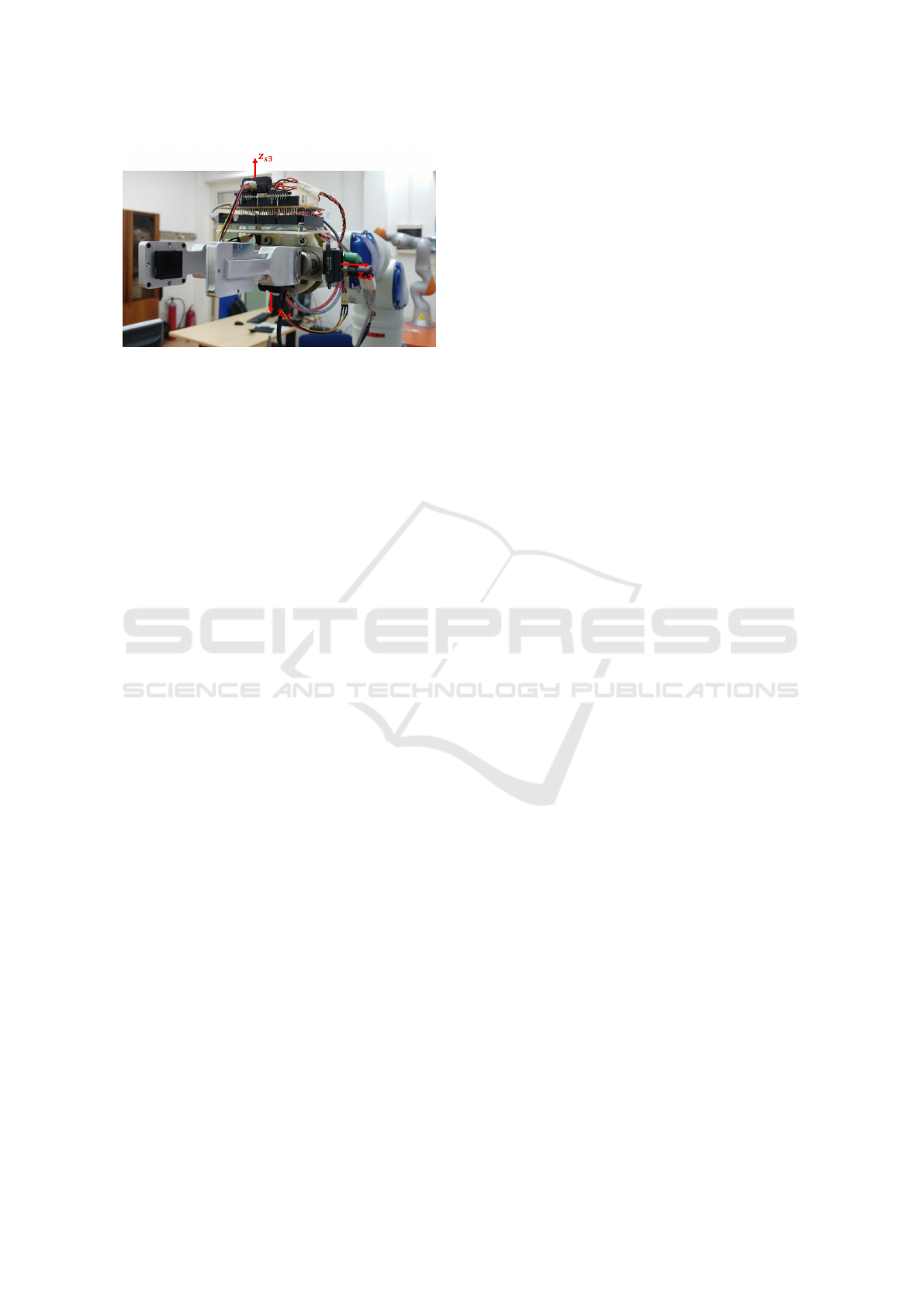

have been mounted on the gripper (see Figure 14),

along four main directions (top, bottom, right, left).

They have been connected to the Arduino Mega

2560 micro-controller through a TinkerKit shield con-

nected to the ROS network via a serial interface.

3.2 Motion Planning Pipeline

Humans use a remarkable set of strategies to manip-

ulate objects, especially in complex scenes. They

pick up, push, slide, and sweep objects with their

hands and arms to rearrange surrounding clutter. But

the robots look the world differently: they move ob-

jects through pick-and-place actions, typically grasp-

ing objects in ﬁxed points. The aim of this subsection

is to develop a smart pipeline for the robotic manipu-

lation planning based on heuristic considerations.

IK Constrained Solution. Trac-IK Solver is

an inverse kinematics solver developed by Traclabs

that achieves more reliable solutions than commonly

available open source IK solvers (Beeson and Ames,

2015). It provides an alternative inverse kinemat-

ics solver to the MoveIt! interface and replaces the

default KDL solver. During the experimental tests,

KDL algorithms, based on Newton’s method, had

convergence problems due to the presence of joint

limits. Instead, Trac-IK merges a simple extension

to KDL’s Newton-based convergence algorithm, that

detects and mitigates local minima due to joint limits

by random jumps, and a Sequential Quadratic Pro-

gramming (SQP) constrained nonlinear optimization

approach, which uses quasi-Newton methods that bet-

ter handle joint limits. By default, the IK search re-

turns immediately when either of these algorithms

converges to an answer. For this work, secondary con-

straints of manipulability are also provided in order

to obtain the ‘best’ IK solution. To avoid unneces-

sary reconﬁgurations, virtual joint limits on relevant

joints (see Section 4 for more details) have been used

to compute the target conﬁguration to keep it as close

as possible to the starting conﬁguration.

STOMP Planner. To choose which planner to

use, both the planning time and the quality of the

trajectories have been analyzed in detail. First of

all the default MoveIt! Open Motion Planning Li-

brary (OMPL) has been considered. OMPL pro-

vides eleven motion planning algorithms, many of

which implement different SoA methods (Kalakrish-

nan et al., 2011). All these planners have been

tested, by studying the signiﬁcant parameters and

tuning their values. Some planners are quite slow,

while some others are unable to provide a solution.

The table in Figure 12a shows the results: only

Flexible Motion Planning for Object Manipulation in Cluttered Scenes

117

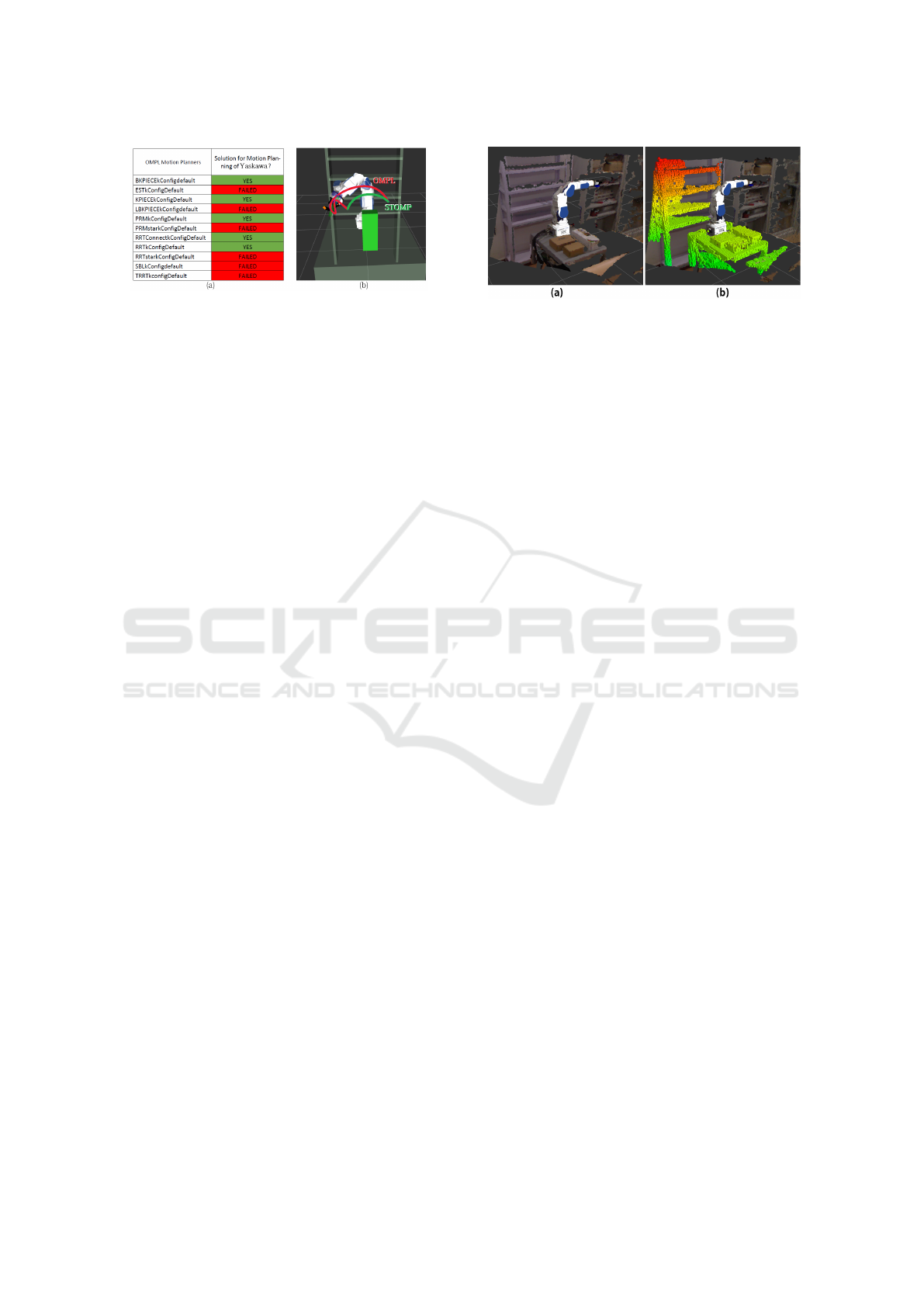

Figure 12: Typical OMPL planned path Vs STOMP solu-

tion.

ﬁve of them provided a solution in complex scenar-

ios. In particular, only three planners (RRTConnec-

tkConﬁgDefault, RRTkConﬁgdefault and BKPieceK-

ConﬁgDefault) gave good solutions in the shortest

planning time.

The conclusion of these tests is that OMPL pro-

vides consistent theoretical algorithms but difﬁcult

to tune and use effectively in practice. The idea

of having a limited number of parameters, which

the user is called to deﬁne to conﬁgure the chosen

method, implies that the motion planning manage-

ment is fully centralized in the algorithm itself and

determined by the user in a small part. In these terms,

on the one hand this is an advantage but, in practice,

the strong stochastic nature of sample-based motion

planners has been unsatisfactory because the plan-

ners often elaborate unnatural trajectories, as the red

planned trajectory in Figure 12b shows. For this rea-

son, a more recent optimal planning algorithm, called

STOMP (Kalakrishnan et al., 2011), has been inte-

grated. After hundreds of tests carried out in differ-

ent environments, the conclusion is that in complex

scenes, the STOMP motion planner presents a little

longer response time to plan a path, but returns the

best natural and smooth trajectories, far enough from

the obstacles.

Obstacle Avoidance. The Kinect camera frames

the real-time changes of the scene and sends these in-

formation to MoveIt! that updates the ROS environ-

ment. There are some ROS drivers available to in-

tegrate this camera with ROS: this system uses the

openni_kinect driver, which provides point clouds.

The camera is ﬁxed in such a way to cover the robot

worksapace as in Figure 1. Figure 13a shows how

MoveIt! takes the Kinect depth map as input and

publishes a ﬁltered cloud into its RViz environment.

This ﬁltered cloud includes the environment around

the robot except the robot kinematic chain and every-

thing described as ‘collidable’ object into the URDF

ﬁle. The problem is that MoveIt! cannot consider

the appearing objects in the scene as obstacles only

through the point cloud. For this purpose, it is nec-

essary to create the 3D Occupancy Map as shown in

Figure 13b. The Octomap provides the 3D models in

Figure 13: (a)Point cloud into ROS environment; (b) Oc-

toMap.

the form of volumetric representation of the space and

lets the motion planner plans the collision free path.

It is a 3D occupancy grid map, based on the octree

structure (Hornung et al., 2013).

Among the MoveIt! capabilities, the collision de-

tection is solved through a default collision checking

library, called Flexible Collision Library (FCL). FCL

supports collision checking for various object types,

e.g., OctoMap (Pan et al., 2012).

Task Planning. The implementation of the super-

market scenario task reveals some difﬁculties, such

as:

• the motion planner must have exact knowledge

about the robot and its environment;

• every collision that could harm the robot and the

environment itself has to be avoided but other col-

lisions are necessary, e.g., when the robot has to

get in contact with the graspable object;

• the grasped object has to be considered as an ad-

ditional part of the robot, hence it should be in-

cluded in the robot kinematic chain during the

motion planning because it possibly increases the

size of the end effector;

• it is possible to have additional constraints, such

as carrying bottles ﬁlled with liquid in an upright

position.

A temporal segmentation of the whole task can be a

simple solution:

1. Pre-grasp Phase. The robot moves from its cur-

rent conﬁguration to the grasp point neighbor-

hood.

2. Grasp Phase. The robot grasps the object.

3. Manipulation Phase. The grasped object is

raised a few centimeters from its support plane

and ﬁnally moved till the target point neighbor-

hood.

4. Release Phase. The robot reaches the goal loca-

tion and releases the object.

5. Retreat Phase. The robot retreats from the ob-

ject.

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

118

Figure 14: Gripper with proximity sensors (red arrows are

the z axes of the sensor frames).

For each subtask, starting from the robot current con-

ﬁguration and given the target pose, the IK is solved

by the TracIK solver, which returns to STOMP the

target conﬁguration. Finally, STOMP off-line plans

the desired trajectory in the joint space, that is q

(t).

3.3 Reactive Control

Even though the planned arm path is collision-free,

the uncertainties on the object locations and the pos-

sibility of unseen subjects could lead to unexpected

collisions. To counteract these issues, a real-time re-

active control algorithm is used at execution time to

adapt the planned motion to the actual scene. The

method is based on the well-known artiﬁcial poten-

tial approach (Khatib, 1986) and further developed

in (Falco and Natale, 2014) for a mobile manipulator.

The planned motion in the joint space q

(t) is modi-

ﬁed on the basis of the distances d

,i = 1,.. .,4 com-

puted by the four proximity sensors mounted on the

gripper as shown in Figure 14. A frame Σ

is attached

to the ith sensor, with an orientation with respect to

the robot base frame represented by the rotation ma-

trix R

(q), where q is the current robot conﬁguration.

Then a virtual repulsive force applied to the ith sensor

is computed as



[

0 0 −α/d

]

if d

< d

[

0 0 0

]

otherwise

(3)

being α a suitable gain and d

and d

two thresholds

deﬁning the distance range within which the reactive

control is active. This repulsive force is then trans-

lated into a joint displacement as

δq = β

∑

i=1

(q)R

, (4)

where J

(q) is the arm jacobian computed until the ith

sensor frame and β is a gain (with the dimensions of

a rotational compliance) translating the virtual elas-

tic joint torque J

(q)R

into a joint displacement.

Finally, such displacement is simply added to the

planned motion q

(t), thus endowing the robot with

the capability to react to scene uncertainties and dy-

namics as demonstrated by the experiment presented

in the next section.

4 EXPERIMENT

This section describes the execution of a fetch and

carry task typical of a shelf reﬁlling process in a su-

permarket. The robot workspace is shown in Figure 1,

with a table and some objects to grasp. Under the as-

sumptions speciﬁed in Section 2.2, they are randomly

located on the plane and their positions and orienta-

tions are not known. The goal of the considered task

is to place two objects (labelled as F and K in Fig-

ure 2) on the shelving unit, by ﬁxing a target pose

very close to other objects already present.

Object Recognition and Localization. After

preparing the scene, it is possible to select the spe-

ciﬁc object to grab. There are two main steps. First of

all, an instantaneous frame of the RealSense scene is

saved in the form of point cloud. Then, the hybrid

pipeline proposed in Section 2.3.3 is called to rec-

ognize a speciﬁc object, starting from its point cloud

model. The algorithm provides the object pose with

respect to the robot base represented by the T

base

grasp

ho-

mogenous transformation matrix.

Off-line Trajectory Planning. The T

base

grasp

matrix

is used to deﬁne the picking pose of the end effec-

tor. The planning pipeline described in Section 3.2

is sequentially executed. The STOMP planner is in-

voked at every step. It generates a trajectory by con-

sidering the robot current conﬁguration and the target

conﬁguration provided by the IK solver. The Trac-IK

solver ﬁnds a solution which has to be collision-free.

If the target pose corresponds to an unreachable or

colliding pose, the solver gives up and the task is in-

terrupted. During the tests, the S, E and T joints (see

Figure 1) have been identiﬁed as the most critical for

the robot reconﬁguration problem. Two sets of virtual

joint limits, one with positive ranges for the selected

joint angles and the other negative, have been deﬁned.

The IK solver chooses between the two sets according

to the signs of the selected joints in the robot current

conﬁguration, thus trying to avoid a reconﬁguration,

e.g., from elbow up to elbow down.

Reactive Control. Octomap has proved to be a

rough method to plan collision-free trajectories for

tasks that require high accuracy and responsiveness.

Unfortunately, it cannot be sufﬁcient. In this exper-

iment, some objects are placed on the shelving unit

and the robot is asked to place the grasped object in

Flexible Motion Planning for Object Manipulation in Cluttered Scenes

119

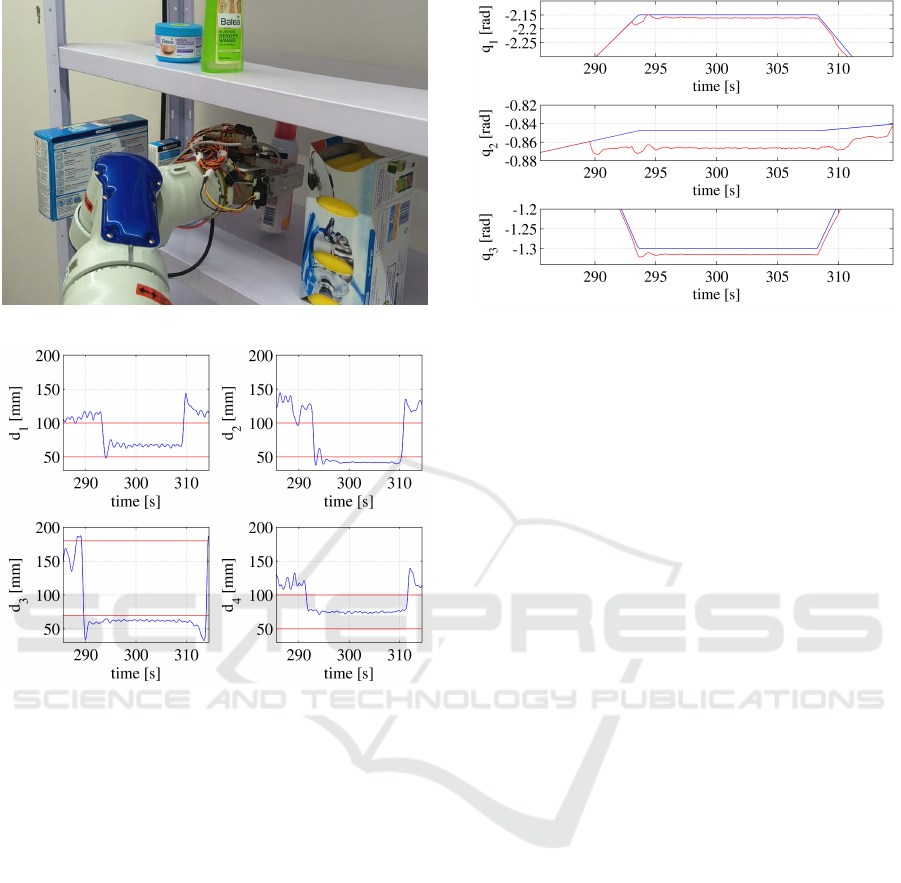

Figure 15: Local trajectory adjustment: place phase.

Figure 16: Distances measured by the proximity sensors

during the place subtask (thresholds in red).

a position very close to them. The Kinect accuracy

is not enough to satisfy the required precision. The

use of the proximity sensors can locally correct the

planned trajectory, in order to better place the objects.

According to this task, the proximity sensors thresh-

olds in (3) are set as follows:

• d

= 50mm, d

= 100mm, i=1,2,4

• d

= 70mm, d

= 170mm

while the gains are α = 5 Nmm and β = 0.3 rad/Nm.

The use of proximity sensors has proved to be fun-

damental during the place phase. As shown in Fig-

ure 15 and in the distance signals reported in Fig-

ure 16, when the robot end effector enters the shelv-

ing unit, the 3rd proximity sensor (with reference to

the numbers in Figure 14) detects the upper edge of

the shelf, which produces a repulsive downward force

applied to the end effector computed as in (3). This

force is transformed into joints displacement δq and

added to the planned conﬁguration q

(t) until the spe-

ciﬁc sensor reads distances into the reactive range, as

shown in Figure 17, which reports some planned and

Figure 17: Planned (blue) and actual (red) positions of the

ﬁrst three arm joints.

actual joint positions. Then, the 2nd sensor detects

the presence of an obstacle, which produces a repul-

sive rightward force applied to the end effector. From

this moment, the joints displacement δq overlaps the

effects of both sensors. Subsequently, the end effector

tries to reach the deep target pose following the mod-

iﬁed planned trajectory. Thus, even the right object is

detected by the 1st sensor. As before, a new repulsive

force is generated and the combination of the other

two produces a new displacement. In this way, the

grasped object is safely placed on the shelf. A video

of the complete experiment can be found at the link:

https://www.dropbox.com/s/3817sotnno70khp

/clip.mp4?dl=0.

5 CONCLUSIONS

This paper presented the implementation of a com-

plete fetch and carry task typical of the in-store logis-

tic scenario, where a large number of different items

have to be handled. The proposed methods range

from object recognition and localization in cluttered

scenes to motion planning and reactive control. El-

ements of novelty have been proposed in all these

technologies that revealed essential for a successful

execution of the task in a real setting. Limitations of

the approach are mainly due to the perception sys-

tem for object recognition. The objects are required

to be placed at a certain distance from each other and

no transparent or thin or polished objects can be han-

dled as it is difﬁcult to reconstruct a good quality point

cloud in such cases. Future work will be devoted to

integrate the approach with the slipping control strat-

egy by (Costanzo et al., 2018), which aims at enhanc-

ing robustness of the task execution.

ICINCO 2018 - 15th International Conference on Informatics in Control, Automation and Robotics

120

ACKNOWLEDGEMENTS

This work was supported by the European Commis-

sion within the H2020 REFILLS project ID n. 731590

and the H2020 LABOR project ID n. 785419.

REFERENCES

Aldoma, A., Marton, Z.-C., Tombari, F., Wohlkinger, W.,

Potthast, C., Zeisl, B., Rusu, R., Gedikli, S., and

Vincze, M. (2012). Tutorial: Point cloud library:

Three-dimensional object recognition and 6 DOF pose

estimation. IEEE Robotics & Automation Magazine,

19(3):80–91.

Beeson, P. and Ames, B. (2015). TRAC-IK: An open-

source library for improved solving of generic inverse

kinematics. In 2015 IEEE-RAS 15th International

Conference on Humanoid Robots (Humanoids), pages

928–935. IEEE.

Bergstrom, N., Bjorkman, M., and Kragic, D. (2011). Gen-

erating object hypotheses in natural scenes through

human-robot interaction. In 2011 IEEE/RSJ Interna-

tional Conference on Intelligent Robots and Systems,

pages 827–833. IEEE.

Buch, A. G., Kraft, D., Kamarainen, J.-K., Petersen, H. G.,

and Kruger, N. (2013). Pose estimation using local

structure-speciﬁc shape and appearance context. In

2013 IEEE International Conference on Robotics and

Automation, pages 2080–2087. IEEE.

Comaniciu, D. and Meer, P. (2002). Mean shift: A robust

approach toward feature space analysis. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

24:603–619.

Costanzo, M., De Maria, G., and Natale, C. (2018). Slip-

ping control algorithms for object manipulation with

sensorized parallel grippers. In 2018 IEEE Interna-

tional Conference on Robotics and Automation. IEEE.

Falco, P. and Natale, C. (2014). Low-level ﬂexible planning

for mobile manipulators: a distributed perception ap-

proach. Advanced Robotics, 28:1431–1444.

Hornung, A., Wurm, K. M., Bennewitz, M., Stachniss, C.,

and Burgard, W. (2013). OctoMap: An efﬁcient prob-

abilistic 3D mapping framework based on octrees. Au-

tonomous Robots, 34:189–206. Software available at

http://octomap.github.com.

Kalakrishnan, M., Chitta, S., Theodorou, E., Pastor, P., and

Schaal, S. (2011). STOMP: Stochastic trajectory opti-

mization for motion planning. In 2011 IEEE Interna-

tional Conference on Robotics and Automation, pages

4569–4574. IEEE.

Kavraki, L., Svestka, P., Latombe, J.-C., and Overmars, M.

(1996). Probabilistic roadmaps for path planning in

high-dimensional conﬁguration spaces. IEEE Trans-

actions on Robotics and Automation, 12(4):566–580.

Khatib, O. (1986). Real-time obstacle avoidance for manip-

ulators and mobile robots. Int. J. Rob. Res., 5:90–98.

Khokar, K., Beeson, P., and Burridge, R. (2015). Imple-

mentation of KDL inverse kinematics routine on the

atlas humanoid robot. Procedia Computer Science,

46:1441–1448.

Kuffner, J. and LaValle, S. (2000). RRT-connect: An efﬁ-

cient approach to single-query path planning. In Pro-

ceedings 2000 ICRA. Millennium Conference. IEEE

International Conference on Robotics and Automa-

tion. Symposia Proceedings (Cat. No.00CH37065),

pages 995–1001. IEEE.

Mishra, A. and Aloimonos, Y. (2011). Visual segmentation

of simple objects for robots. In Robotics: Science and

Systems VII, pages 1–8. Robotics: Science and Sys-

tems Foundation.

Muja, M. and Lowe, D. G. (2009). Fast approximate near-

est neighbors with automatic algorithm conﬁguration.

In In VISAPP International Conference on Computer

Vision Theory and Applications, pages 331–340.

Nakhaeinia, D., Payeur, P., and Laganiére, R. (2018).

A mode-switching motion control system for reac-

tive interaction and surface following using indus-

trial robots. IEEE/CAA Journal of Automatica Sinica,

5:670–682.

Pan, J., Chitta, S., and Manocha, D. (2012). FCL: A general

purpose library for collision and proximity queries. In

2012 IEEE International Conference on Robotics and

Automation, pages 3859–3866. IEEE.

Papazov, C. and Burschka, D. (2011). An efﬁcient

RANSAC for 3d object recognition in noisy and oc-

cluded scenes. In Computer Vision – ACCV 2010,

pages 135–148. Springer Berlin Heidelberg.

Phillips, J. M., Bedrosian, N., and Kavraki, L. (2004).

Guided expansive spaces trees: A search strategy for

motion- and cost-constrained state spaces. In 2004

IEEE Intl. Conf. on Robotics and Automation, pages

3968–3973. IEEE.

Rusinkiewicz, S. and Levoy, M. (2001). Efﬁcient variants

of the ICP algorithm. In Proceedings Third Interna-

tional Conference on 3-D Digital Imaging and Mod-

eling, pages 145–152. IEEE Comput. Soc.

Rusu, R. B., Blodow, N., and Beetz, M. (2009). Fast point

feature histograms (FPFH) for 3d registration. In 2009

IEEE International Conference on Robotics and Au-

tomation, pages 3212–3217. IEEE.

Rusu, R. B., Bradski, G., Thibaux, R., and Hsu, J. (2010).

Fast 3d recognition and pose using the viewpoint fea-

ture histogram. In 2010 IEEE/RSJ International Con-

ference on Intelligent Robots and Systems, pages 1–4.

IEEE.

Rusu, R. B. and Cousins, S. (2011). 3d is here: Point cloud

library (PCL). In 2011 IEEE International Conference

on Robotics and Automation. IEEE.

¸Sucan, I. A. and Kavraki, L. E. (2009). Kinodynamic mo-

tion planning by interior-exterior cell exploration. In

Springer Tracts in Advanced Robotics, pages 449–

464. Springer Berlin Heidelberg.

Tombari, F., Salti, S., and Stefano, L. D. (2010). Unique

signatures of histograms for local surface description.

In Computer Vision – ECCV 2010, pages 356–369.

Springer Berlin Heidelberg.

Flexible Motion Planning for Object Manipulation in Cluttered Scenes

121
