Formalizing Agile Software Product Lines with a RE Metamodel

Hassan Haidar

, Manuel Kolp

and Yves Wautelet

LouRIM-CEMIS, Université Catholique de Louvain, Belgium

KULeuven, Faculty of Economics and Business, Belgium

Keywords: Agile Product Line Engineering, Requirements Engineering, Goal Model, Feature, Feature Model, AgiFPL.

Abstract: Requirements engineering (RE) techniques can play a determinant role when making the strategic decision

to adopt an Agile Product Line approach to the production of software-intensive systems. This paper

proposes an integrated goal and feature-based metamodel for agile software product lines. The aim is to

allow analysts and developers to produce specifications that precisely capture the stakeholder’s needs and

intentions as well as to manage product line variabilities. Adopting practices from requirements engineering,

especially goal and feature models, helps designing the domain and application engineering tiers of an agile

product line. Such an approach allows a holistic perspective integrating human, organizational and agile

aspects to better understand product lines dynamic business environments. It helps bridging the gap between

product lines structures and requirements models, and proposes an integrated framework to all actors

involved in the product line architecture.

1 INTRODUCTION

“Agile Product Line Engineering” is considered as a

pioneer approach that deals with the growing

complexity of information systems and the handling

of competitive and changing needs of the IT

production industry (da Silva et al., 2011). This

approach offers better support for reusable and

evolving software artefacts and helps managing

changes in requirements, promoting product quality,

decreasing development costs and reducing time to

market.

Requirements engineering (RE) – more precisely

in this research GORE (Goal-Oriented Requirements

Engineering) and Feature Modeling ̶ including

elicitation, analysis, specification, verification, and

management (Pohl et al., 2010), plays a determinant

role in making the strategic decision to adopt a

Software Agile Product Line.

Considering this role of requirements

engineering, we formulate the following research

question: Which requirements engineering

techniques allow analysts and developers of an agile

product line to represent efficiently, stakeholders’

intentions and goals on the one hand and product

line variabilities and communalities on the other

hand?

Intentions, goals and variability play an

important role in the development life tiers of

product lines i.e., domain and application

engineering. In domain engineering, intentions and

goals guide the variability development of the

product line, while they are used for the

configuration of products in the application

engineering.

This paper focuses on defining a Goal and

Feature-based Metamodel for engineering agile

product lines. We apply it on a concrete example

taken from the literature for illustration purpose. The

metamodel is defined mainly for feature-oriented

agile product lines such as our own methodology

called AgiFPL (Haidar et al., 2017a) considered in

the context of this research. Usually these agile

approaches involve two classical tiers of product line

engineering: Domain Engineering and Application

Engineering.

The domain engineering deals with all the

aspects of managing reusable assets (artifacts), while

the application engineering aims at developing a

specific product for a particular stakeholder.

Therefore, requirements engineering approaches

have to cope with the different organizational levels

and architectural complexity. Specifically, for

product lines, requirements engineering, captures

Haidar, H., Kolp, M. and Wautelet, Y.

Formalizing Agile Software Product Lines with a RE Metamodel.

DOI: 10.5220/0006849000900101

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 90-101

ISBN: 978-989-758-320-9

both commonality and variability among product

line members (Borba and Silva, 2009).

Our proposed metamodel follows a holistic

approach that allows the modeling of the

organizational and operational context of a product

line within flexible and rapid environment. It offers

thus a better understanding of the representation of

product lines requirements and their stakeholders’

requirements. In addition, our model takes

inspiration from research in GORE frameworks such

as iStar 2.0 (Dalpiaz et al., 2016), and from feature-

oriented modeling (Acher et al., 2012), related to

agile requirements practices like user stories

(Leffingwell, 2011; Wautelet et al., 2014).

The remainder of this paper is organized as

follows. Section 2 describes the main concepts of

our metamodel and details the main representative

elements using the Z specification. Section 3

highlights an example of application of our proposal.

Section 4 presents briefly the integration of our

proposed metamodel to our AgiFPL agile

methodology. Section 5 concludes the paper.

2 A METAMODEL FOR AGILE

PRODUCT LINES

Our motivation is to understand and build an

efficient structure of the requirements engineering of

a feature-oriented product line in an agile context.

This leads us to define a goal and feature-oriented

specification to provide modeling constructs that

permit:

 Representations of stakeholder’s intentions

and goals;

 Variability, commonality and technical

elements of the agile product line;

 Requirements artifacts and their

relationships used by agile teams.

The proposed metamodel defines two main

perspectives. The first one is the product line

engineering perspective itself, in which goal (i.e.

Family goal model) and feature models provide

different variability perspectives and the rationale of

the variability. The second one is the agile

development perspective, in which the agile

requirements artifacts and goal models provide an

exhaustive structure for the implementation of

product line’s features and products derivation.

Standard goal models languages like i* (Yu et

al., 2011) can represent intentional variability, but

lack mechanisms for representing differences

between intentional spaces of various systems (i.e.,

product line variability in the intentional space).

Therefore, Asadi et al. (2016) have introduced the

notion of family goal model to extend standard goal

modeling techniques, which we apply in this paper

to iStar 2.0 (Dalpiaz et al., 2016).

Our metamodel connects family goal models and

features models through mappings. They provide

bidirectional relationships and traceability links

between high-level stakeholders’ business

objectives, which are described by goal models and

implementation units enclosed within features in

feature models. In addition, we seek to support the

stakeholders of a product line, especially in the

application engineering tier, through iStar 2.0

models, which provide a graphical and

comprehensive vision of the stories and their

relationships. In fact, in our proposed model,

Backlog items (i.e., user stories,…), and family goal

models are connected by mappings performed

through heuristics rules proposed in (Jaqueira et al.,

2013) and (Apel et al., 2010).

Figure 1 introduces the main entities and

relationships of our metamodel. We subdivide it into

four sub-models:

 The Organizational sub-model, describing

the members (i.e. actors, teams, …) of the

product line, their organizational roles,

responsibilities, capabilities and

relationships;

 The Goal-oriented sub-model, describing

the intentions of the product line

stakeholders and generating a stakeholder’s

view of feature models;

 The Feature-oriented sub-model,

illustrating the product line variability;

 The Agile requirements artifacts sub-model

defining the requirements artifacts used by

agile teams, as well as the relationships

among these artifacts.

The primitives of our framework are also of

different types. We classify them as:

 Meta-concepts: Goal, Feature, Actor, User

Story …

 Meta-relationships: Qualifies, Refines,

Composition, Aggregation, Generalization

…

 Meta-attributes: Power, Motivation ...



Meta-constraints: implications between

features located in different parts of the

feature hierarchy.

All meta-concepts, meta-relationships and meta-

constraints have the following mandatory meta-

attributes: Name, and Description.

Formalizing Agile Software Product Lines with a RE Metamodel

Figure 1: Requirements-oriented Meta-model for Agile Product Lines.

ICSOFT 2018 - 13th International Conference on Software Technologies

Name allows unambiguous reference to the instance

of the meta-concept; and Description provides a

precise and unambiguous description of the

corresponding instance of the meta-concept. The

description should contain sufficient information for

a formal specification to be derived for use in

requirements specifications for a future product or

application of the product line.

Figure 1 insists on meta-concepts and meta-

relationships. Meta-attributes and meta-constraints are

formalized with the Z state-based specification

language (O’Regan, 2013). We use Z since it provides

sufficient modularity, abstraction and expressiveness

to describe the requirements engineering aspects of

agile product line and the wider context in which they

are used in a consistent and structured way. In

addition, Z offers a pragmatic approach to

specifications by allowing a clear transition between

specification and implementation of product line’s

applications. Moreover, it is widely accepted in the

software development industry and Academia.

Due to lack of space, this paper only details the

organizational, goal-oriented, feature-oriented sub-

models and their integration, and user story concept.

It also discusses their relevance for agile product

lines requirements engineering.

2.1 Organizational Sub-model

This sub-model identifies the relevant Actors of the

product line, the Roles they occupy, and the

Dependum for which Actors depend on one another.

2.1.1 Actor

Most of stakeholders are represented as actors.

Actors can be human, organizations, technical

systems (i.e. hardware, software), or any

combination thereof. Actors are active, autonomous

entities that aim at achieving their goals by

exercising their know-how, in collaboration with

other actors. According to the iStar 2.0 language,

two types of actors can be distinguished (Dalpiaz et

al., 2016):

• Role: an abstract characterization of the

behavior of a social actor within some

specialized context or domain of endeavor.

• Agent: an actor with concrete, physical

manifestations, such as a human individual,

an organization, or a department.

Actor’s intentionality is made explicit through the

actor boundary, which is a graphical container for

their intentional elements.

[Name]

[Informal_Defintion]

[Actor_Type] := Role | Agent

[Goal]

Actor

name : Name

description : Informal_Definition

is_a : Actor_Type

want : set Goal

own : set Resource

possess : set Capability

(want ≠ ø) ˄ (possess ≠ ø) (c1)

(∀ act : Actor) act.is_a = Agent  act.own ≠ ø (c2)

The Actor schema above shows the Z formal

specification of the Actor concept. The first part of

the specification represents the definition of types.

The Actor specification first defines the type Name

(which represents the Name attribute) by writing

[Name]. This declaration introduces the set of all

names, without making assumptions about the type

(i.e. whether the name is a string of characters and

numbers, or only characters,…). The type

[Actor_Type] is defined as being either a Role or an

Agent or even just an Actor.

More complex and structured types are defined

with specific schemata. For instance, the Actor

schema is partitioned horizontally into two sections:

• The declaration section introduces a set of

named, typed variable declarations.

• The predicate section provides predicates

that constrain values of the variables. We

use identifiers e.g. “(c1)” to refer to

predicate, i.e. constraint (c1) of the schema.

In essence an Actor of an agile product line

wants to fulfil the product line Goals as well his/her

own Goals. In fact, an Actor possesses his/her

specific Capabilities and owns a set of Resources.

Each Actor applies plans that are part of his/her

Capabilities and uses Resources in order to achieve

the Goal that he/she wants. As the Actor is present

in a rapid and flexible environment, he/she to take

into account the changing Intentional Elements

related to the product line as well as the ones related

to specific customer’s needs, in order to adapt its

behavior to environmental circumstances.

Considering these changes is crucial when eliciting

Formalizing Agile Software Product Lines with a RE Metamodel

product line requirements as well as Stakeholders

(i.e. product owner, etc.) requirements.

Since an Actor can be also a Role or an Agent,

two different types of actor links exist:

• is-a: represents the concept of generalization or

specification. Only Roles can be specialized

into Roles, or general Actors into general

Actors. However, Agents cannot be

specialized via is-a, as they are concrete

instantiations.

• participates-in: represents any kind of

association, other than generalization or

specialization, between two Actors. No

restriction exists on the type of actors linked

by this association. Note that every Actor can

participates-in multiple other Actors.

Thus, a is-a relationship applies only between pairs

of Roles or pairs of Actors. There should be no is-a

cycles. In addition, there should be no participate-in

cycles. A pair of Actors can be linked by at most one

actor link. It is not possible to connect two actors via

both is-a and participates-in. An Actor can

(sometimes, has to) cooperate with another Actor to

fulfil common Goals to the Roles that each of these

Actors occupies.

2.1.2 Role

As stated above, an organizational Role of the

product line is an abstract characterization of

expected behavior of an Actor within some specified

context of the product line. An Actor can occupy

multiple Roles and multiple Actors can occupy a

Role.

The following Role schema shows the Z formal

specification of Role concept within a product line.

Each Role requires a set of Capabilities to fulfil or

contribute to Goals for which it is responsible. An

Actor can occupy the Role only if it possesses the

required Capabilities (c4). Moreover, to entering

Roles, Actors should be able to leave roles at

runtime (c5).

Roles are responsible for Goals (c6) and can

control their fulfilment. This control procedure

requires that a single Actor can never occupy distinct

Roles that are responsible of and control the

fulfilment of the Goal (c7). In addition, Roles can

have different levels of authority. Consequently, a

Role can have authority on other Roles. The

authority on relationship specifies the hierarchical

structure of the product line.

[Goal_control_Status]

Role

name : Name

description : Informal_Definition

require : set Capability

responsible : set Goal

control : set (Goal, Goal_control_status)

authoroty_on : set Role

(require ≠ ø) ˄ (responsible ≠ ø) (c3)

(∀ act : Actor ; r : Role) (c4)

r ∈ act.occupy  r.require ⊂ act.possess

(∀ act : Actor ; r : Role) (c5)

act.leave  r ∉ act.occupy

(∀ r : Role ; g : Goal) (c6)

g ∈ r.responsible  g.sec_is_a = Goal

(∀ r

, r

: Role ; g : Goal ; a

, a

: Actor) (c7)

(g.sec_is_a = Goal ˄ g ∈ r

.responsible ˄

g ∈ r

.control ˄ r

≠ r

˄ r

∈ act.occupy ˄

∈ act.occupy)  a

≠ a

2.1.3 Dependum

In social models such as iStar 2.0, dependencies

represent social relationships. A dependency is

defined as a relationship with five arguments:

• Depender is the actor that depends for

something (the dependum) to be provided;

• DependerElmt is the intentional element

within the depender's actor boundary where

the dependency starts from, which explains

why the dependency exists;

• Dependum is an intentional element that is

the object of the dependency;

• Dependee is the actor that should provide

the dependum;

• DependeeElmt is the intentional element

that explains how the dependee intends to

provide the dependum.

Dependencies link the dependerElmt within the

depender actor to the dependum, outside actor

boundaries, to the dependeeElmt within the

dependee actor.

The type of the dependum specializes the

semantics of the relationship:

o Goal: the dependee is expected to achieve

the goal, and is free to choose how;

ICSOFT 2018 - 13th International Conference on Software Technologies

o Quality: the dependee is expected to

sufficiently satisfy the quality, and is free to

choose how;

o Task: the dependee is expected to execute

the task in a prescribed way;

o Resource: the dependee is expected to

make the resource available to the

depender.

[Dependum_Type] := Goal | Quality | Task | Resource

Dependum

name : Name

description : Informal_Definition

type : Dependum_Type

depender : set Role

dependee : set Role

(type ≠ ø) ˄ (depender ≠ ø) ˄ (dependee ≠ ø) (c8)

(∀ d : Dependency ; dpd : Dependum ; r

, r

: Role) (c9)

≠ r

˄ (d ≡ r

x dpd x r

)  (depender = r

˄ dependee = r

)

(∀ d : Dependency ; dpd : Dependum ; r

, r

: Role) (c10)

≠ r

˄ (d ≡ r

x dpd x r

) ˄ (dpd.type = authorization)

 r

∈ r

.authoroty_on

(∀ res : Resource ; a

, a

: Actor ; cap

, cap

: Capability ;

, t

: Task ; r

, r

: Role) (c11)

≠ a

∧ cap

≠ cap

∧ t

≠ t

∧ (t

∈ cap

.composed_of ∧

cap

∈ a

.possess) ∧ (t

∈ cap

.composed_of ∧

cap

∈ a

.possess) ∧ res ∈ t

.postcondition ∧

res ∈ t

.input ∧ r

∈ a

.occupy

∧ r

∈ a

.occupy ∧ { r

, r

} ∉ { a

.occupy ∩ a

.occupy})

⇔ (∃ dm: Dependum ∧ dm.type = Resource ∧

dm.name = res.name ∧ dm.depender = r

∧

dm.dependee = r

)

The Dependum schema above shows the

formal specification of the Dependum. Resource

dependency allows us to represent any specialization

of the Resource concept as a Dependum. For

example, a Role (r

) might depend on another Role

) for an Authorization. This has implication on the

authority on relationship, as this dependency means

that r

must have authority on r

(i.e. c11). In

addition, the constraint (c11) demonstrates that the

existence of a Resource Dependum among Roles has

implications on the Input and Postcondition of Tasks

accomplished by Actors that occupy these Roles.

2.2 Goal Sub-Model

Intentional elements are the actors’ needs. As such,

they model different kinds of requirements and are

central to our proposal. The following elements are

considered as Intentional Elements (Family Goal

Model Elements) in this work:

• Goal: a state of affairs that the actor wants

to achieve and that has clearly cut criteria

of achievement;

• Quality: an attribute for which an actor

desires some level of achievement;

• Task: an action that an actor wants to be

executed, usually with the purpose of

achieving some goal;

• Resource: a physical or informational entity

that the actor requires in order to perform a

task.

[Family_Goal_Element] := Goal | Quality | Task | Resource

[Goal_Type] := Requirement | Expectation

[Goal_Pattern] := Achieve | Cease | Maintain | Avoid

[Status] := Fulfilled | Unfulfilled

[Refinement_Alternative]

Family Goal Model

name : Name

description : Informal_Definition

intentional_elmt_is_a : Family_Goal_Element

goal_is_a : Goal_Type

pattern : Goal_Pattern

status : Status

refined_by : set Refinement_Alternative

(∀ g: Goal ; t: Task) g.intentional_elmt_is_a = Goal ∧

t.intentional_elmt_is_a = Task  (g.status ≠ ∅)

∧ (t.status ≠ ∅) (c12)

(∀ g: Goal) g.intentional_elmt_is_a = Goal

∧ ∃ tset = {t

, ... , t

} ⇒ g.status = Fulfilled (c13)

(∀ g : Goal ; r : Role ; act : Actor) (c14)

(g.intentional_elmt_is_a = Goal ∧ r ∈ act.occupy

∧ g ∈ r.responsible ∧ act.isa = Agent) 

g.goal_is_a = Requirement

(∀ g : Goal ; r : Role ; ac t: Actor) (c15)

(g.intentional_elmt_is_a = Goal ∧ r ∈ act.occupy

∧ g ∈ r.responsible ∧ act.isa = Role) 

g.goal_is_a = Expectation

Formalizing Agile Software Product Lines with a RE Metamodel

The Family Goal Model schema above

highlights the formal specification of the Family

Goal Model adopted in our proposal. Constraint

(c12) states that Goals and Tasks must have a non-

empty status. In addition, if there is a set of Tasks

(tset), such that the Goal is a subset of tset, then the

Goal is fulfilled (c13). Moreover, a Goal is a

Requirement if there is some Agent Actor act which

occupies a Role which in turn is responsible for the

Goal (c14). A Goal is an Expectation, if there is

some specific Role that is responsible for the Goal

(c15).

Several types of link exist in order to connect

intentional elements. These links are: refinement,

needed-by, contribution and qualification.

Refinement is an n-ary relationship relating one

parent to one or more children. An intentional

element can be the parent in at most one refinement

relationship. There are two types of refinement –

applied to any kind of parent (i.e. Goal or Task) –

that define the logical operator relating the parent

with the children:

• AND-refinement: the fulfillment of all the n

children (n ≥ 2) makes the parent fulfilled.

• Inclusive OR: the fulfillment of at least one

child makes the parent fulfilled.

The Needed-By relationship links a task with a

resource and indicates that the actor needs the

resource in order to execute the task. The

Contribution links represent the effects of intentional

elements on qualities, and are essential to assist

analysts in the decision-making process among

alternative goals or tasks. Contribution links lead to

the accumulation of evidence for qualities. The

Qualification relationship relates a quality to its

subject (i.e. a task, goal, or resource).

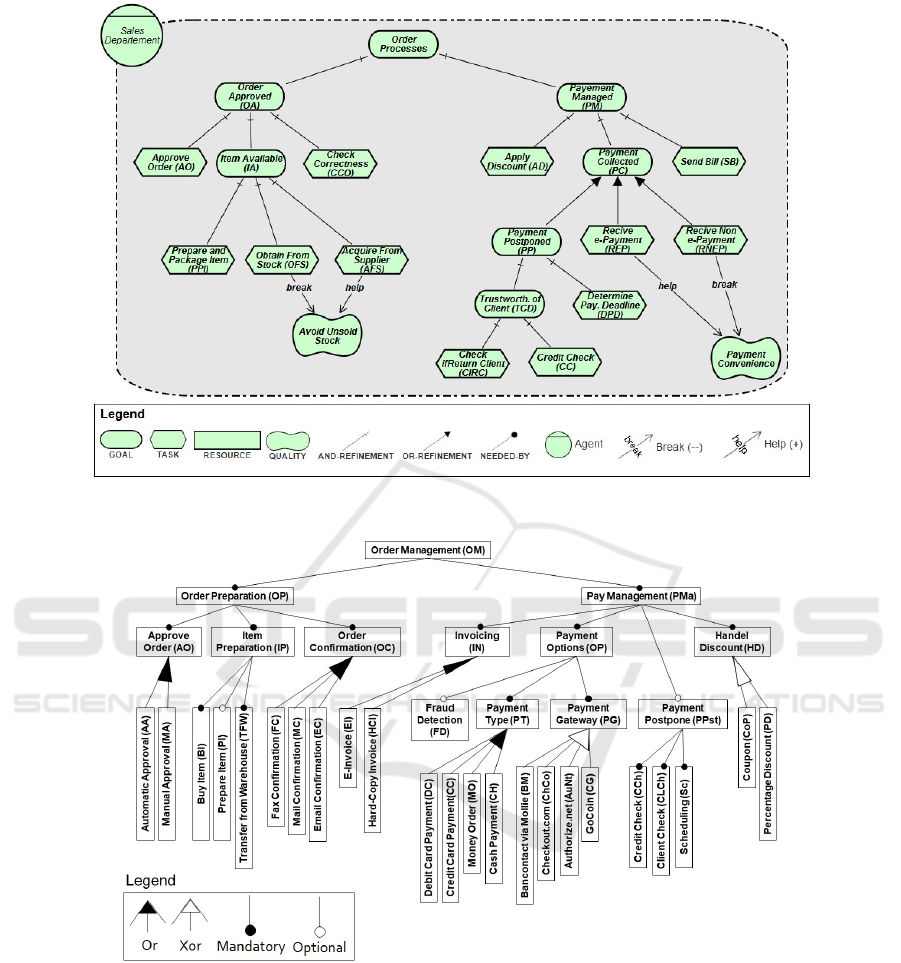

In our proposal the goal model called Family

Goal Model, represent the intentional space of a

domain for which the product line is developed.

Basically, the adopted goal-oriented approach helps

to build artifacts that represent stakeholders’

objectives and strategies.

2.3 Feature Sub-Model

As stated above, our proposal offers feature-oriented

design and implementation for which Feature

Models are a standard visual representation. Feature

models support a natural description of a wide range

of variability schemata.

Several definitions to what domain experts call

“feature” exist in the literature (See Haidar et al.,

2017b). Due to the lack of space, we will not list

them here and adopt the following definition of the

term “feature” based on (Haidar et al., 2017b): A

feature is a characteristic or end-user-visible

behavior of a software system. Features are used in

product line engineering to specify and

communicate commonalities and differences of the

products between stakeholders, and to guide

structure, reuse, and variation across all phases of

the software life cycle (Apel et al., 2013).

A feature model is a tree whose nodes are

labelled with feature names. It also proposes various

parent-child relationships between features and their

constraints. In fact, if a feature f is a child of another

feature p, f can be selected only when p is also

selected. Typically, a feature model includes mutual

relations between features. In addition, Mandatory

and Optional features are distinguished within the

feature model. Note that in our proposal we focus on

Boolean features identified by a name. In principle,

non-Boolean features or attributes of features may

also be of interest in distinguishing applications of

the product line. In this paper, we cover essentially

Boolean features; non-Boolean features will be

studied in future work.

[Feature_Type] := Parent | Child | Abstract | Concrete

[Feature_Availability] := Available | Unavailable

[Feature_Constraint_Type] := Mandatory | Optional |

Alternative | Or

Feature Model

name : Name

description : Informal_Definition

is_a : Feature_Type

availability : Feature_Availability

constraint_type : Feature_Constraint_Type

root (f) ≡ f (c16)

mandatory (p, f) ≡ f ⇔ p (c17)

optional (p, f) ≡ f  p (c18)

alternative (p, {f

, … , f

}) ≡ ((f

˅ … ˅ f

) ⇔ p)

˄ ( ∧

i < j

¬ (f

˄ f

)) (c19)

Or (p, {f

, … , f

}) ≡ (f

˅ … ˅ f

) ⇔ p (c20)

The Feature Model schema above formalizes

the Feature Model concepts. All feature names from

ICSOFT 2018 - 13th International Conference on Software Technologies

the set F of feature names are interpreted as

propositional variables, p, f and f

represents

members of F. Each edge in the tree is defined by

exactly one feature constraint, that is, by a

declaration of one of the feature constraint types

mandatory, optional, alternative, or “or”.

A mandatory feature definition between a

parent feature and a child feature corresponds to a

logical equivalence. That is, whenever the parent

feature is selected, so must the child and vice-versa

(c17).

An optional feature corresponds to implication.

The implication states that the parent feature may be

chosen independently from the child feature, but the

child feature can only be chosen if the parent feature

is selected (c18).

The alternative constraint defines a one-out-of-

many choice. The definition of the constraint (c19)

has the parent feature as first parameter and a non-

empty set of child features as second parameter. This

constraint is a disjunction, in which, at least, one

child feature is selected when the parent is chosen.

In addition, we ensure for each pair of child features

that no two child features are selected together.

An unrestricted choice or “or” defines a some-

out-of-many choice. Again, the constraint (c20) has

a non-empty set of child features as second

parameter. The selection of parent feature is

equivalent to a disjunction of the child features.

Additionally, a set of cross-tree constraints may

be defined in the Feature Model. The corresponding

propositional formula of the feature constraints and

the cross-tree constraints are conjoined resulting in

one logic formula that represents the semantics of

the whole Feature Model.

2.4 User Story Concept

Our proposed metamodel focuses on agile

perspectives. Relevant agile requirements artifacts

play, thus a core role within the proposal. This

section details the user story concept, which the

proposed metamodel integrates. User stories are

considered here due to their wide use and to take

profit from their effectiveness.

Leffingwell (2011) and Chon (2004), consider them

as an increasingly popular textual notation to capture

requirements in agile software development. User

stories are statements that use a simple template

such as “As a

⟨

role

⟩

, I want

⟨

goal

⟩

, [so that

⟨

benefit

⟩

]”.

[User_Story_Element] := Format | Role | Means | Ends

[Mean] := Subject | Action_Verb | Direct_Object |

Indirect_Object | Adjective

[End] := Clarification | Dependency | Quality

[Status] := To_Do | In_Progress | Testing | Done

__ User Story

identifier : Identifier

user_story_elmt_is_a : User_Story_Element

mean_is_a : Mean

end_is_a : End

status : Status

( ∀ μ

, μ

: User_Story) (c21)

is_Full_Duplicate (μ

, μ

) ↔ μ

syn

( ∀ μ

, μ

: User_Story) (c22)

is_Sem_Duplicate (μ

, μ

) ↔ μ

= μ

∧ μ

≠

syn

( ∀ μ

, μ

: User_Story ; m

, m

: Means ; E

, E

: Ends) (c23)

diff_Means_same_Ends (μ

, μ

) ↔ m

≠ m

∧ E

⋂ E

≠ ∅

( ∀ μ

, μ

: User_Story ; m

, m

: Means ; E

, E

: Ends) (c24)

same_Means_diff_Ends (μ

, μ

) ↔ m

= m

∧ (E

∖ E

≠ ∅ ∨ E

∖ E

≠ ∅)

( ∀ μ

, μ

: User_Story ; m

, m

: Means ; E

, E

: Ends ;

, r

: Role) (c25)

same_Role_diff_Story (μ

, μ

) ↔ r

≠ r

∧

= m

∨ E

⋂ E

≠ ∅)

( ∀ μ

, μ

: User_Story ; m

, m

: Means ; E

, E

: Ends) (c26)

purpose_is_Means (μ

, μ

) ↔ E

= {m

}

( ∀ μ

: User_Story ; f

, f

std

: Format) (c27)

is_not_Uniform (μ

, f

std

) ↔ f

≠

syn

std

( ∀ μ

: User_Story ; av

, av

: Action_Verb ;

, do

: Direct_Object) (c28)

has_Dep (μ

, μ

) ↔ depends (av

, av

) ∧ do

= do

( ∀ μ

, μ

∈ U : User_Story ; do

, do

: Direct_Object) (c29)

has_is_a_Dep (μ

, μ

) ↔ ∃ μ

∈ U . is_a (do

, do

)

( ∀ μ

, μ

∈ U : User_Story ; av

, av

: Action_Verb ;

, do

: Direct_Object) (c30)

void_Dep (μ

) ↔ depends (av

, av

) ∧ ∄ μ

∈ U . do

= do

The User Story schema above formalizes the

User Story (μ

) concept. Let U = {μ

, μ

,…} a set of

user stories in a project. A user story μ is a 4-tuple μ

⟨

, m

, E

, f

⟩

where r is the role, m is the means, E

Formalizing Agile Software Product Lines with a RE Metamodel

= {e

, e

,…} is a set of ends, and f is the format. In

addition, a means m is a 5-tuple m =

⟨

s, av, do, io,

adj

⟩

where s is a “subject”, av is an “action verb”,

do is a “direct object”, io is an “indirect object”,

and adj is an “adjective” (io and adj may be null).

A user story μ

is an exact duplicate of another

user story μ

when they are identical (c21). The

constraint (c22) indicates that a user story μ

duplicates the request of μ

, while using a different

text (i.e. Semantic Duplicate). (c23) denotes two or

more user stories that have the same end, but

achieve this using different means. (c24) represents

the case in which two or more user stories use the

same means to reach different ends. For the case

where two or more user stories with different roles,

but same means and/or ends we formalize the

constraint (c25).

When there is a strong semantic relationship

between two user stories, it is important to add

explicit dependencies to the user stories, although

this breaks the independent criterion (c26).

Uniformity in the context of user stories means

that a user story format is consistent with the one of

the majority of user stories in the same set.

Therefore, the format f

of an individual user story

is syntactically compared to the most common

format f

std

to determine whether it adheres to the

uniformity criterion (c27).

In some cases, it is necessary that one user story

be completed before the developer can start on

another story μ

. Formally, the predicate has-Dep(μ

) holds when μ

causally depends on μ

(c28).

Moreover, an object of one user story μ

can refer to

multiple other objects of stories in U, indicating that

the object of μ

is a parent or superclass of the other

objects. Formally, predicate has-is-a-Dep(μ

, μ

) is

true when μ

has a direct object superclass

dependency based on the sub-class do

o do

(c29).

Implementing a set of user stories U should lead

to a feature-complete application. While user stories

should not thrive to cover 100% of the application’s

functionality preemptively, crucial user stories

should not be missed, for this may cause a show

stopping feature-gap. The predicate void-Dep(μ

)

holds when no story μ

satisfies a dependency for

’s direct object (c30).

3 APPLYING THE METAMODEL

A simple and short example related to an e-

commerce product line is outlined below to describe

and show the applicability of our proposed

metamodel. The e-commerce case study is available

in the SPLOT repository (Software Product Lines

Online Tools – http://www.splot-research.org/).

We first design the family goal model related to

the case study and then follow the practices of our

proposed metamodel to generate the correspondent

feature model. Due to the lack of space, we only

present the application of Goals and Features sub-

models, the mapping from the goal model to its

correspondent feature model and an example of user

story.

Figure 2 shows a concrete “Family Goal Model”

of the “Order Process” related to e-commerce case

study (modeled using iStar 2.0). It represents the

intentional elements and relations. For example, the

goal <Item_Available> can be achieved by

<Prepare_and_Package_Item>, by

<Obtain_From_Stock>, and by

<Aquire_From_Supplier>. In addition, satisfactions

of the tasks <Obtain_From_Stock>, and

<Aquire_From_Supplier> lead to satisfaction and

dissatisfaction of the quality

<Avoid_Unsold_Stock>. In fact, if the “sales

department” adopts a “Make to Stock” strategy, it

could could lead to unsold items. However, adopting

“Make to Order” strategy will help to avoid a stock

of unsold items.

According to our proposed framework, to

represent a mapping we should develop a mapping

relation (Φ) for each mapped task. For example, the

Approve Order (AO) task is mapped to the

Automatic Approval, and Manual Approval features.

Therefore, the mapping relation created is the

following:

ΦAO (Approve Order, {Automatic Approval,

Manual Approval}).

Moreover, the Receive e-Payment (REP) task is

mapped to Debit Card Payment, Credit Card

Payment, and Payment Gateway. Thus, the mapping

relation created is the following:

ΦREP (Receive e-Payment, { Debit Card

Payment, Credit Card Payment, Payment

Gateway}).

Once the “explicit mapping” between tasks in

family goal model and features in feature model is

executed, we can start an “implicit mapping”

between intermediate tasks, goals, and features. The

implicit mapping is performed between “intentional

relations” in family goal models and “feature

relations” in feature models. For example, following

our proposed metamodel, we can infer that the goal

ICSOFT 2018 - 13th International Conference on Software Technologies

Figure 2: A family goal model for "Order Processes" modeled from the e-commerce case study.

Figure 3: Correspondent Feature Model.

Payment Managed (PM) in the family goal model

(see Figure 2) is implicitly mapped to the feature

Payment Management (PMa) (see Figure 3).

Note that, if a feature is mapped to more than

one goal or/and task, then the corresponding feature

appears in the mapping relations of all those goals

or/and tasks.

Figure 3 shows the corresponding feature model

of the family goal model presented in Figure 3. The

obtained feature model is represented using a tree

graphical notation that could be translated into

propositional logic. In addition, the feature model of

Figure 3 is generated according to the rules and

practices of our proposed metamodel.

Based on the illustrated example, it was shown

that the modeled family goal model of “Order

Processes” (i.e. Figure 2) captures the intentional

variability and describes the intentions behind

existing features in the product line of e-commerce.

Hereafter we present some mapping as follow:

Formalizing Agile Software Product Lines with a RE Metamodel

Order Processes (G-OP) = Order Management

Order Approved (G-OA) = Order Preparation

Payment Managed (G-PM) = Payment Management

Item Available (G-IA) = Item Preparation

Check Correctness of Order (T-CCO) = Order Confirmation

(FC ˅ MC ˅ EC)

Obtain From Stock (T-OFS) = TFW

Acquire From Supplier (T-AFS) = BI

Apply Discount (T-AS) = (CoP ˅ PD)

Finally, as an illustration of user stories

generated according to our proposed metamodel

from the correspondent features, <Invoicing> could

be realized by several user stories, such as:

⟨

Accountant

⟩

, I want to

⟨

Generate and Send

Invoices

⟩

, so that

⟨

the Invoice can be paid

⟩

4 THE AgiFPL METHODOLOGY

This section illustrates how our proposed metamodel

could be applied for the requirements engineering

processes of agile product lines, precisely our very

own methodology AgiFPL.

Like classical agile product lines methodologies,

AgiFPL is a feature-oriented approach involving two

classical tiers of product line engineering: Domain

Engineering and Application Engineering.

AgiFPL also considers two spaces: the Problem

and Solution ones. The problem space calls attention

to the perspective of stakeholders and their

problems, requirements, and views of the entire

domain and individual products. The solution space

represents the developer’s and vendor’s perspectives

(Apel et al., 2013). The Solution Space is not

targeted in this work since our proposed metamodel

is designed essentially for the requirements

engineering concerned by the Problem Space.

Integrating our proposed metamodel to AgiFPL

allows modelling and managing intentions, goals,

variabilities and commonalities of the product lines.

For example, the “Family Goal Models” of our

proposed metamodel will guide the development of

variability of the product line in the domain

engineering, while they are used for the

configuration of products in the application

engineering.

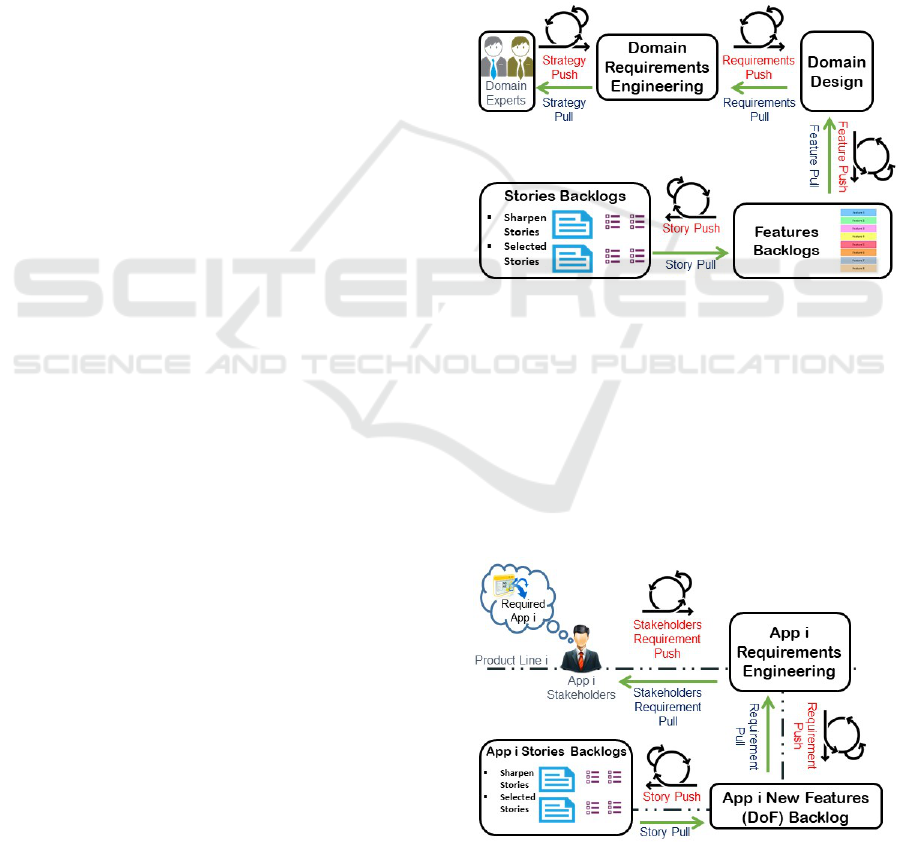

Figure 4 illustrates the problem space of the

Domain Engineering tier. The figure depicts the

main steps of the RE process followed in the domain

engineering. Based on the strategy of a software

vendor who decides to adopt AgiFPL, Domain

Experts and concerned teams apply our proposed

metamodel as follows:

1. Execute a sub-process for modeling the

family goal models. (i.e. Goal-oriented

requirements engineering);

2. Apply the stated practices and rules of our

proposal in order to generate the

correspondent feature models. (Specifies

and design the desired domain – i.e.

Domain Design & Feature Backlog);

3. Prioritize the identified features of the

designed domain and then document the

required user stories. (Apply the

correspondent agile requirements practices

– i.e. Stories Backlog, tests, …).

Figure 4: Problem space of Domain Engineering in

AgiFPL.

Figure 5 presents the problem space of

Application Engineering tier. The concerned

requirements engineering process of this tier starts

with the goals and the intentions of a specific

product owner. These personal goals and intentions

are studied, modelled and realized according to our

proposed metamodel. For this stage, we propose two

optional ways.

Figure 5: Problem space of Application Engineering in

AgiFPL.

ICSOFT 2018 - 13th International Conference on Software Technologies

100

Based on the goals and intentions of the “App i

Owner” and the context of the “Line i”, the “Line i

Team” has to choose the way that best fits the

context: First, in the case where the “line team” has

to develop new reusable artefacts that do not exist

within the common assets, the team applies the same

process used for the domain engineering phase.

Second, in the case where some stakeholders’ goals

do not affect the product line, have not equivalent

features in the common assets, and concern a

specific product, the “Line Team” produces directly

the User Stories and their Backlogs.

5 CONCLUSION

The aim of this paper was to propose an integrated

and consistent metamodel for software analysts and

developers who adopt agile product line approaches.

The research was conducted in the context of defining

our own agile software product line called AgiFPL.

The main contribution of the metamodel is to allow

capturing intentional variability and describing the

intentions behind existing features in the agile product

line. As a consequence, by using family goal models

we can ensure that existing features and variability

relations in feature models are aligned with

intentional variability in the family goal models. In

addition, we can trace back differences in products to

differences in the intentions of stakeholders.

Moreover, applying intentional elements within agile

product lines not only facilitates identifying features

in domain engineering lifecycle, but also eases the

selection of features based on stakeholder’s intentions

and needs in the application engineering lifecycle.

Modeling the organizational and operational

context of the domain and application engineering

tiers within the flexible and rapid environment of a

product line is usually founded on primitive

concepts such as those of Goal, Role, Feature, Actor,

and User Story. Our paper proposed an integrated

metamodel, described its main concepts, illustrated

it with an example and related it to our AgiFPL

methodology. Our approach differs from others

primarily in the fact that it is based on ideas from

goal-oriented requirements engineering frameworks,

feature-oriented approaches, and agile requirements

practices found to be relevant for the solicited

requirements engineering approach.

Future work will develop a procedure to discover

inconsistencies in mapping results (i.e. generated

goal models and/or generated feature models).

Finally, we will lead a formal and empirical

evaluation of our proposed framework.

REFERENCES

Acher M., Collet P., Lahire P., and France R. B. 2012.

Separation of concerns in feature modeling. In

Proceedings of the 11th international conference on

Aspect-oriented Software Development, New York,

NY, USA, 1-12.

Apel S., Batory D., Kästner C., and Saake G. 2013.

Feature-oriented Software Product Lines. Springer-

Verlag, Berlin Heidelberg.

Asadi M., Gröner G., Mohabbati B., and Gasevic D. 2016.

Goal-oriented modeling and verification of feature-

oriented product liens. Softw Syst Model 15: 257.

Borba, C. Silva C. 2009. A comparison of goal-oriented

approaches to model software product lines variability.

In: LNCS, vol. 5833, pp. 184-253, Springer-Verlag.

Cohn, M. (2004). User Stories Applied for Agile Software

Development. Boston: Pearson Education Inc.

da Silva, I. F., Neto, P., O'Leary, P., de Almeida, E., and

de Lemos, S. R.. 2011. Agile Software product lines: a

systematic mapping study. 41(8) 2011, pp. 899–920.

Dalpiaz, F., Franch, X., and Horkoff, J. 2016. iStar 2.0

Language Guide, cs.SE 2016, arXiv: 1605.07767v3,

https://arxiv.org/pdf/1605.07767v3.pdf (accessed on

17-09-2017).

Ernst, N. A., Borgida, A., Mylopoulos, J., Jureta, I. J.

2012. Agile requirements evolution via paraconsistent

reasoning. In: Proceedings of CAiSE’12, pp. 382–397.

Springer, Berlin.

Haidar, H., Kolp, M., and Wautelet. Y. 2017a. Agile

Product Line Engineering: The AgiFPL Method. In

Proceedings of the 12th International Conference on

Software Technologies – Vol. 1: ICSOFT, 275-285,

Madrid, Spain.

Haidar, H., Kolp, M., Wautelet, Y. 2017b. Goal-oriented

requirement engineering for agile software product

lines: an overview. LouRIM Working Paper Series,

2017/02, http://hdl.handle.net/2078.1/185846.

Jaqueira A., Lucena M., Alencar F. M. R., Castro J., and

Aranha E. 2013. Using i* Models to Enrich User

Stories. In the proceedings of the 6th International i*

workshop, pp. 55-60.

Leffingwell, D. 2011. Agile Software Requirements.

Addison-Wesley Professional.

O’Regan G. 2013. Z Formal Specification Language. In:

Mathematics in Computing. Springer, London.

Pohl, K., Böckle, G., and van der Linden, F. J. 2010.

Software Product Line Engineering: Foundations,

Principles and Techniques. Springer Publishing

Company, Inc.

Wautelet Y., Heng S., Kolp M., Mirbel I. 2014. Unifying

and Extending User Story Models. In: CAiSE 2014.

vol 8484. Springer, Cham.

Yu E., Giorgini P., Maiden N., Mylopoulos J. (eds.). 2011.

Social Modeling for Requirements Engineering. MIT,

Cambridge, MA.

Formalizing Agile Software Product Lines with a RE Metamodel

101
