A Trace-based Emulator for Vehicular Ad Hoc Networks

Pedro Cirne

, Andr

e Z

uquete

and Susana Sargento

Instituto de Telecomunicac¸

oes, Universidade de Aveiro (IT-UA), Aveiro, Portugal

DETI/IEETA, Universidade de Aveiro, Aveiro, Portugal

Keywords:

VANET Traces, Performance Analysis, Secure Routing.

Abstract:

In this paper we present loop (loop over orderly phases), a trace-based emulator for Vehicular ad hoc networks

(VANETs). This is an alternative and novel method to evaluate improvements on VANET protocols, which

relies and takes advantage of real data samples collected from an existing network. Those samples are vehicles’

geographical locations and radio reception events, which represent mobility and communication patterns of the

VANET. From those samples, loop creates a synthetic environment to simulate and evaluate communication

protocols on the target VANET. loop also includes an interactive mode to manage the emulation process

and a visualization mode that shows different time and geographical-dependent aspects. The development of

loop was motivated by the need of an non-intrusive methodology to intensively analyse and deterministically

compare the impact of several strategies for communication protocols and all their possible variations in a

realistic scenario, both in terms of mobility and radio communication opportunities. Namely, we created loop

to evaluate the impact of adding security features to the routing control plane of an VANET. Since the VANET

includes hundreds of vehicles, the computational performance is critical to speed-up evaluations. With loop

we were able to perform complex, multi-variable performance evaluations of 24 hour periods in durations

ranging from 6 up to 30 minutes.

1 INTRODUCTION

VANETs are a class of wireless ad hoc networks

where the majority of the nodes are carried by ve-

hicles and a relatively small part are placed near

roads. The former is known as On Board Unit (OBU)

and the latter as Road Side Unit (RSU)

. VANETs

may have hundreds or thousands of nodes and inherit

most of the characteristics of Mobile Ad Hoc Net-

works (MANETs). Nonetheless, by their very sin-

gular nature and requirements when compared with

MANETs (Engoulou et al., 2014; Qu et al., 2015; Bali

et al., 2014; Amit Dua, 2014), the academic research

community has given an increasing amount of atten-

tion to the topic and its challenging tasks.

In wireless networks, the design of new commu-

nication protocols cannot ignore that the overall per-

formance will be affected by external and uncon-

trolled conditions, such as environmental and spatial.

When the existence of those conditions is not properly

considered, the protocols may not behave according

We may indistinctly refer both types of nodes as

VANET Units (VUs).

to the expectations when deployed in real scenarios.

Moreover, some conditions may be completely irre-

producible, which makes it impossible to perform a

fair comparison among different strategies. Simula-

tion tools can mitigate some of these drawbacks.

The complexity and cost involved in the deploy-

ment of a city-scale VANET led to the develop-

ment of numerous tools aiming to simulate the mo-

bility and the radio propagation characteristics of a

VANET (Ros et al., 2014). Nevertheless, the results

yielded by simulators, especially in large scale wire-

less networks and mobile networks, are highly inﬂu-

enced by propagation and mobility models and their

discrepancies with the real world (Tan et al., 2010).

Furthermore, the use of any of the existent simulators

to validate communication protocols in VANETs can

provide unrelated results when deploying the proto-

cols in an existent VANET (Viriyasitavat et al., 2011;

Uppoor et al., 2013; Ros et al., 2014; Lim et al.,

2016).

Cirne, P., Zúquete, A. and Sargento, S.

loop - A Trace-based Emulator for Vehicular Ad Hoc Networks.

DOI: 10.5220/0006854503910402

In Proceedings of 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications (SIMULTECH 2018), pages 391-402

ISBN: 978-989-758-323-0

391

1.1 Motivation

The main objective of our work is to study commu-

nication protocols in VANETs. For that purpose, we

consider as a very important use case the VANET op-

erating in Porto city (FutureCities Project, 2017), cur-

rently with more than 600 VANET Units (VUs). In

this VANET, the OBUs are devices carried by buses.

These OBU’s, together with a small set of 50 RSU’s,

provide an IP routing service that provides Internet

connectivity to the buses’ passengers.

Since we already have a deployed VANET, we

could take advantage of this network and use it for

real experiments, instead of modelled data. However,

using a real VANET to test new ideas and functional-

ities would be critical, specially in the early develop-

ment stages, since they could put the entire VANET

operation at risk. Alternatively, limiting the tests to a

small number of devices could lead to biased evalua-

tions. In both cases, considering the uncontrolled pa-

rameters (e.g. human factors and environmental con-

ditions), the experiments could not be completely

controlled, so not repetitive nor re-analysable under

the same conditions (Schiller and Knoll, 2015; Buis-

set et al., 2010). Finally, running tests in the VANET

would make the results appear slowly, without any

possibility of speedup over the wall-clock time.

However, once having a VANET up and running,

an interesting a posteriori alternative is to start from

mobility and radio reception samples, collected in that

VANET, and use them as the starting point to study

the performance of communication protocols. This

allows us to improve the protocols already in place

or to create new ones without having to use modelled

data.

This led us to create a trace-based emulator, loop

(loop over orderly phases), to support the evaluation

of protocols in VANETs given from a set of contex-

tual data sampled in a real VANET, instead of models

(mobility, radio propagation, etc.). With loop we are

able to simulate a variety of modiﬁcations in the pro-

tocols under test for exactly the same contextual data.

Note, however, that this contextual data can also be

provided by mobility and communication models, in-

stead of being real samples.

1.2 Contributions

The main contribution of this article is the speciﬁ-

cation of loop, a trace-based emulator of VANET

protocols. loop uses previously collected traces of

vehicle’s location and the correspondent connectivity

information among VUs to simulate multiple, inter-

dependent protocols and evaluate their overall qual-

ity. loop can simulate the protocols with an arbitrary

speedup over wall-clock while interacting with ex-

ternal real system applications running at wall-clock

time.

loop was initially created to exhaustively evalu-

ate the performance and impact of TROPHY (Trust-

worthy VANET routing with group authentication

keys (Cirne et al., 2018)) protocols in the routing con-

trol plane being used in the Porto’s VANET. While

building a tool for that speciﬁc purpose, we envi-

sioned similar requirements in a near future for other

types of protocols. Therefore, we conceived loop for

tackling our speciﬁc and well-deﬁned problem, but

still with special attention on modularity and future

extensions to support other distinct use cases.

loop was developed in C++ for performance and

modularity. It includes an almost lock-free logging

system to collect data for a posteriori analysis with

minimum interference, a visualization system to show

any time-dependent state of the VANET and an inter-

active mode in a Command-Line Interface (CLI) style

with the possibility to run pre-scheduled commands in

batch. Such commands can be used to trigger events

in the simulation in speciﬁc circumstances (e.g. time).

While developing loop, we focused on perfor-

mance and scalability, decoupling and parallelizing

processes as much as possible, since those would be

important factors for the immediate and future suc-

cess of the tool. Each time a compromise between

performance and non-technical usability emerged, we

have chosen performance. We made considerable ef-

forts to make loop specially developer and technical-

user friendly. We did not sacriﬁce performance nei-

ther increased code complexity for non-technical user

facilities, e.g. a visually rich command GUI (Graphi-

cal User Interface).

In our speciﬁc use case (Cirne et al., 2018), run-

ning in a high-end desktop computer

, loop emulated

24 hours of VANET interactions on our most demand-

ing scenario, with a 1 millisecond time granularity

and devices exchanging messages in periods of 100

milliseconds, in less than 30 minutes. This includes

the simulation of all the required protocols among 446

devices, namely, a protocol for the vanilla routing and

another distinct set of protocols for the secure rout-

ing. In that time frame, we simulated both protocols,

comparing and logging the relevant differences for a

posteriori analysis.

When compared with scenarios where trafﬁc and

network simulators are used, our strategy has the ad-

vantage of having a high level of detail and accuracy

since both mobility and network conditions are real-

istic. Besides that, this gives an extreme ﬂexibility

Intel(R) Core(TM) i7-7700 CPU @ 3.60GHz

SIMULTECH 2018 - 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

392

to evaluate scenarios on deployed VANETs without

the need for valid mobility or network models. On

the other hand, when compared with tests performed

in deployed VANETs, it has the beneﬁts of being non-

intrusive and non-destrutive, as well as free of logistic

and business constraints.

2 RELATED WORK

Simulators have been considered the most important

tools for the design and evaluation in works related

with VANETs (Ros et al., 2014). Under the VANETs

context, we have two distinct categories of simulators

to be considered: microscopic trafﬁc simulators and

network simulators.

The microscopic trafﬁc simulators generate traces

of vehicles and possible other entities (Krajzewicz,

2010; Conceic¸

ao et al., 2008; Park and Qi, 2006;

Cameron et al., 1994; Choffnes and Bustamante,

2005; Owen et al., 2000; H

arri et al., 2006), while

network simulators use those traces to simulate the

communications between entities (Ikeda et al., 2011;

Varga and Hornig, 2008; Barr et al., 2005; Pal, 2012).

With a few exceptions that implement both types

of simulators side-by-side (Wang et al., 2007; Mang-

haram et al., 2006), the two types are decoupled and

independently developed from each other. Other sim-

ulators that integrate one network simulator and one

microscopic trafﬁc simulator provide a bridge be-

tween them and give some extra facilities to deal with

VANET’ speciﬁc scenarios (Sommer et al., 2008;

orkowski et al., 2008).

The use of simulators is subject to the problem of

the assumptions and the correspondent performance

of the models in use. It is widely accepted that

simplistic wireless-related models lead to biased re-

sults (Ros et al., 2014; Lim et al., 2016) and mobility

patterns have a huge inﬂuence in the results yielded

by mobility dependent simulators (Viriyasitavat et al.,

2011; Uppoor et al., 2013). Moreover, increasing the

accuracy in VANET models, as well as the number

of devices being simulated, is intrinsically associated

to an increase of mathematical complexity (Uppoor

et al., 2013) and subsequent performance issues.

By using real traces with mobility and network

characteristics embedded, we remove a huge stack

of complexity and possible sources of biased re-

sults. However, the use of collected data to emulate

VANETs is not a common approach found in liter-

ature, because it requires a deployed VANET in the

ﬁrst place.

The emulation of mobile networks based on col-

lected traces was ﬁrstly proposed by Noble et al. (No-

ble et al., 1997). Although in distinct conditions,

the authors highlighted a question for which, in the

VANETs context, neither real tests nor simulations

are the answer: ”How does one subject a mobile com-

puting system to realistic yet reproducible wireless

networking conditions?”. The proposed answer given

by the authors excludes real tests due to the lack of re-

producibility and relies on collected traces to create a

“synthetic networking environment rather than a syn-

thetic workload” as done by simulators. We followed

the idea of creating a synthetic networking environ-

ment (loop, the VANET emulator) but with clear dif-

ferences in terms of implementation, since on top of

the emulator we still have synthetic workloads (the

protocols being emulated).

In (Noble et al., 1997) the authors developed their

work based on traces of end-to-end connections and

the emulation of unmodiﬁed applications, running at

wall-clock time. We, by contrast, used traces of point-

to-point connections to simulate different protocols

based on a model of the protocol, possibly interact-

ing with external entities. Since we are modeling

protocols, we still have synthetic workloads. How-

ever, compared with mobility and propagation mod-

els, modeling network protocols is much less criti-

cal and prone to biased results. Besides, we have

the advantage of running simulations faster then wall-

clock time, even when interacting with external appli-

cations.

The concept of a simulated network interacting

with a real system was introduced by Fall (Fall, 1999)

as network emulation. Along with it, the author high-

lights the problem of coupling two entities with dif-

ferent notions of time: real system and a simulator

running faster than wall-clock time. Fall solves the

problem by introducing a delay in the simulation, run-

ning the coupled system at wall-clock time.

(Weing

artner et al., 2011) tackled the same prob-

lem by using an independent synchronization compo-

nent and execute both the simulated network and the

real system in a virtualized environment with virtual-

ized time controlled by the synchronization compo-

nent. This solution was proposed for cases where the

simulation runs slower than wall-clock time. Each en-

tity is allowed to run for a certain amount of time and

then blocks until all others entities reach the same vir-

tual point in time.

We solved this problem using self-synchronised

interactions between loop and coupled real systems,

i.e. on each contact made by loop it is sent the

time-stamp of the simulation and (if needed) the cou-

pled system should use this temporal information. By

doing this we allow loop to run with an arbitrary

speedup over wall-clock time. Internally, loop shares

loop - A Trace-based Emulator for Vehicular Ad Hoc Networks

393

with the work presented by Weing

artner et al. a simi-

lar notion of multiple slices of time and synchroniza-

tion points between slices.

Buisset et al. (Buisset et al., 2010) presented a

work focused in vehicular network emulation. Al-

though being the very same topic, the requirements

and directions of their work do not match any of ours.

The emulation of a small number of devices implies

the use of multiple operative systems executing mul-

tiple processes. Our requirements do not allow such

architecture, mainly due to the lack of scalability.

Schiller et al. (Schiller and Knoll, 2015) pre-

sented a work related with VANETs’ emulation fo-

cused on the evaluation of automotive embedded sys-

tems. Their goal is clearly distinct from ours, since

it is focused on the evaluation of unmodiﬁed applica-

tions running on embedded system, rather than net-

work protocols.

Pessoa et al. (Pessoa et al., 2017) proposed the

emulation of a VANET focused on content distribu-

tion and Delay-Tolerant Networks (DTNs). The au-

thors propose the use of real traces of vehicles and

real network information along with the emulation

of one VU per operative system process, sockets for

inter-process communication and a complex architec-

ture to deliver time-dependent information, made out

of a distributed messaging framework and an Apache

server with a PHP module to connect to a MySQL

database in order to provide JSON data over HTTP.

Comparing with this last approach, we model the

protocols instead of having them being implemented

by independent processes, one per VU. Each VU is

represented by its own internal state, and each phase is

responsible for the modiﬁcation of a well-deﬁned part

of it. The interaction between the different emulated

VUs is implemented by lock-free memory accesses,

and the time-dependent information is preloaded and

made available to the emulation without causing de-

lays. All those differences allow loop to run with a

high speedup over wall-clock, not possible when us-

ing numerous operating system processes. Further-

more, in terms of resource consumption loop it is ex-

tremely lighter, since it uses a single process with a

small number of threads. The results presented in this

article were obtained with a single thread. Still, we

are not limited to a single thread and can adapt this

number to the target machine and the tasks running in

the emulator.

Finally, in general the integration of real traces

with the most common simulators used nowadays

is a task with remarkable limitations and challenges

caused by the different approaches (simulation versus

emulation) and their inﬂuence in the software archi-

tecture (Fontes et al., 2017). On the contrary, loop

can be easily integrated with mobility and network

simulators, as these can provide the data (modeled

data, in this case, instead of sampled data) it uses for

emulating scenarios where protocols are to be tested,

as shown in Figure 1.

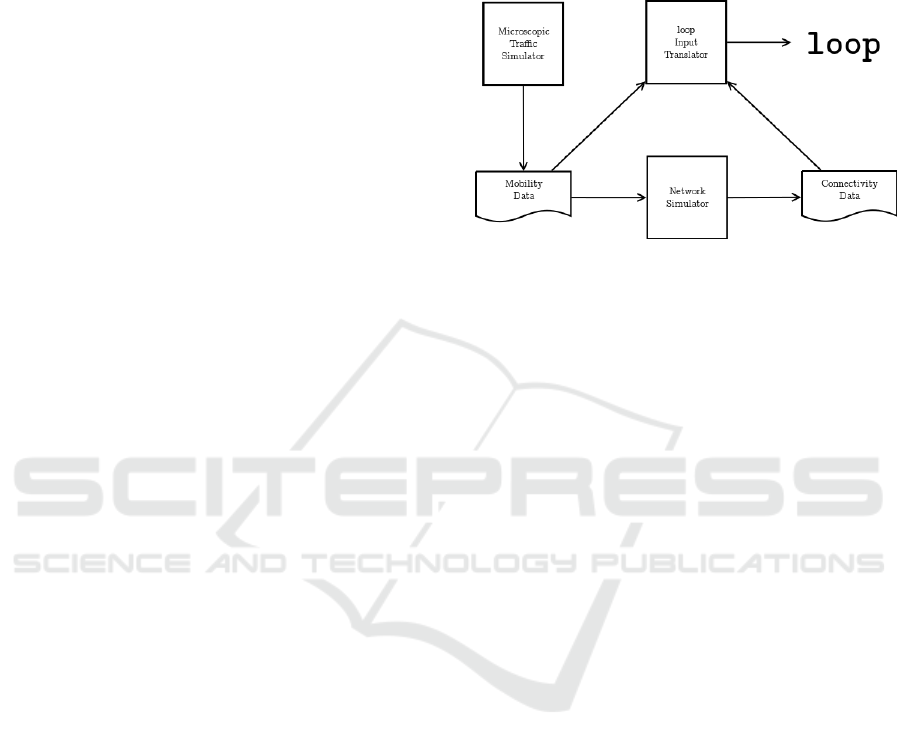

Figure 1: loop relying on mobility and network simulators

to generate the input data.

3 loop

loop is a trace-based VANET emulator that creates

a synthetic environment to simulate VANET-related

protocols that may need to interact with real applica-

tions. It was conceived tacking into consideration the

following assumptions:

1. Simulate mobility and network status of a VANET

is hard and not accurate.

2. Network protocols are the easier and less critical

component to model and simulate.

3. Applications external with the VANET are likely

to be complex and so, not likely to be easily sim-

ulated nor emulated.

Based on (1), we decided to emulate both mobility

and network status from input data in order to capture

all the real details. Based on (2), we model protocols,

on a needed basis, according to strict rules that ben-

eﬁt speedup over wall-clock. Finally, based on (3)

we guarantee that we can interconnect external ap-

plications with very limit modiﬁcations, even if such

requirement becomes reﬂected in the models of the

protocols being simulated.

loop has multiple threads of execution. The visu-

alization and the interaction features run in two sep-

arate threads. Since they only offer extra output and

input features, and may not be needed in all use cases,

they can be activated and deactivated on a needed ba-

sis. The only thread always running is the one associ-

ated to the evolution on the emulation state.

The core of the emulation is a loop over differ-

ent phases, repetitively over the time, where each of

SIMULTECH 2018 - 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

394

the phases is responsible for a well-deﬁned part of the

task being simulated.

We prepared loop to emulate discrete time slices.

The total emulated time is divided into two ﬁxed pe-

riods: macro periods and micro periods, each com-

posed by a set of homogeneous time splices. The

macro period has to be equal or greater than the micro

period, so one macro period always has one or more

micro periods. All these time intervals can be cus-

tomized. For emulations in (Cirne et al., 2018), each

time slice was set to 1 millisecond, macro periods to

2 seconds and micro periods to 100 milliseconds.

The macro period is associated to the periodicity

of the changes on the emulator internal state. By ’em-

ulator internal state’ we mean all the state that only

exists for convenience of the emulation (e.g. update

the traces’ information available and the graphical vi-

sualization). In other words, macro periods reﬂect in-

tervals where the status of the VANET, in terms of

location of VUs and their connectivity, remains con-

stant. Naturally, it should be equal to the time interval

between consecutive real VANET samples.

The micro period is associated to the periodicity

of the changes on the VUs internal state. This state is

solely associated to modelled protocols, which may or

not be able to exchange messages between VUs given

the current connectivity status within by the macro pe-

riod.

3.1 Phases of the Emulation

loop separates its internal state from the state of the

VUs. Different protocols are modeled based on the

division into multiple tasks. Generically, each task

can have up to 4 different execution phases:

1. once on macro period start;

2. once on micro period start;

3. on macro period;

4. on micro period.

The former two execution phases are associated

to the state of the emulator; thus, the state of the VUs

is only accessible for reading operations and not al-

lowed to be modiﬁed. The latter two phases of execu-

tion are VU’s speciﬁc and executed for each VU with

permission to modify its state (as well as permission

to read all the other VUs’ public state).

VUs are associated to one speciﬁc time slice of

the micro period and keep that same position in the

multiple micro periods until the end of the emulation.

loop jumps from time slice to time slice and for each

task, on a needed basis, it executes the code associated

to each phase. The different phases of execution are

shown in Figure 2.

once on macro period start

on macro period

on inner period

once on inner period start

MS%100!=0

AND

MS%2000!=0

MS+=1

MS%2000==0

MS%100==0

FOR ALL VUs

FOR EACH VU ASSOCIATED

TO THE SPECIFIC MS

END OF EMULATION

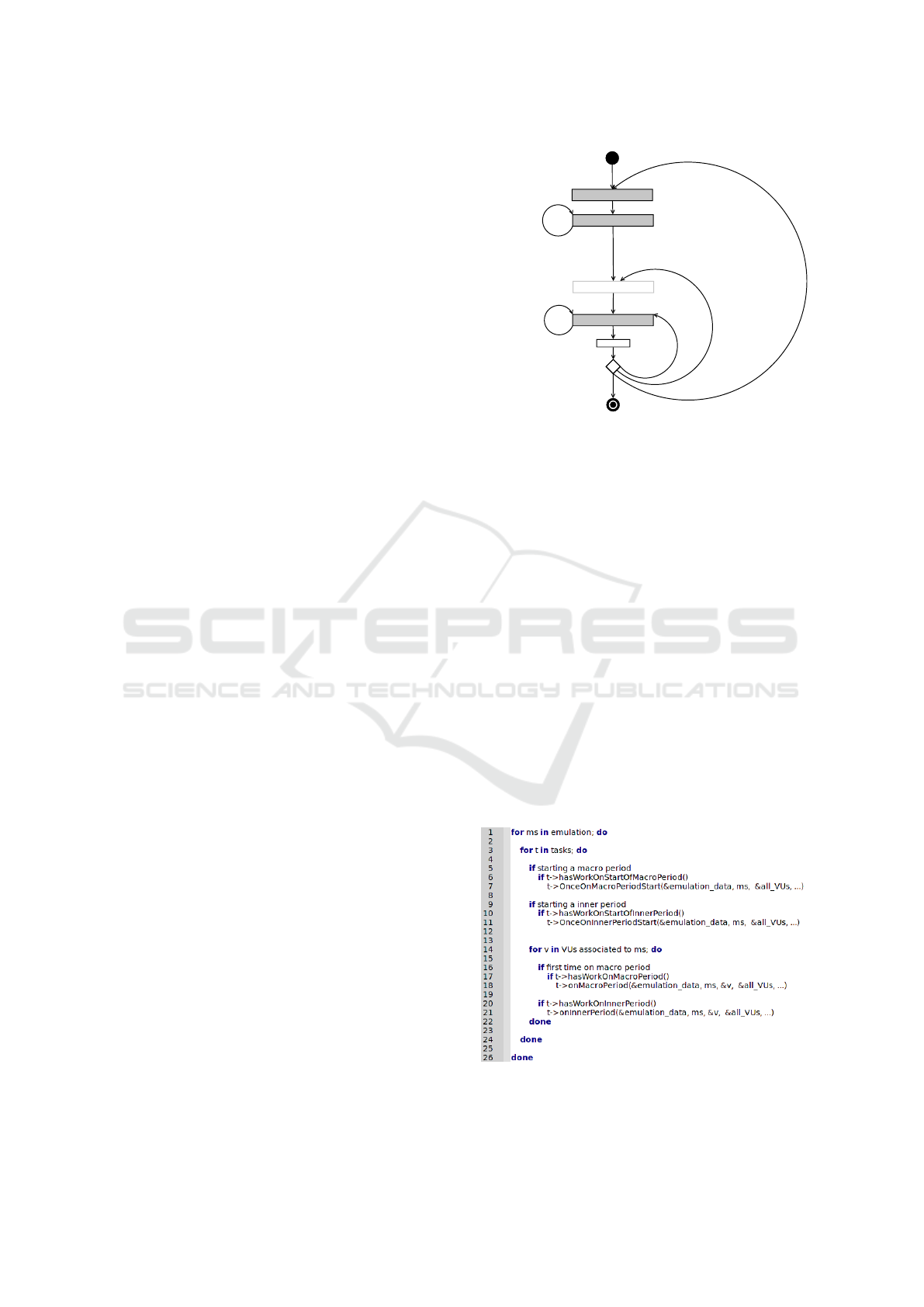

Figure 2: Execution phases of loop (with "%" representing

the modulo operation and "==" and "!=" boolean tests).

To guarantee the determinism of the execution

of the tasks, if two or more VUs are associated to

the same millisecond, running each of the task on

that millisecond should yield the same result indepen-

dently of the order. This is obtained enforcing a strict

rule for all the phases: the visible state of each VU is

immutable. With this guarantee, we can concurrently

apply the same task in all the VUs associated to the

same time slice.

loop was built with C++ and the generic task

was implemented as an abstract stateless C++ class.

Well deﬁned tasks should be implemented by state-

less classes with a relation of inheritance to the ab-

stract class. After the initial setup, where VUs are

associated to a millisecond of the micro period and a

list of tasks (a list of C++ object pointers) is created,

loop runs based on successive calls to the members of

the task objects that represent the phases of execution

(see Figure 3).

Figure 3: Pseudo code of loop.

loop - A Trace-based Emulator for Vehicular Ad Hoc Networks

395

3.1.1 Communication with External

Applications

Since loop was built to run protocol models faster

than wall-clock time and possibly interact with real

applications, time synchronization is an issue. We

solve this problem while being conservative, i.e., by

creating well-deﬁned points of synchronization to

avoid inconsistent states. This is done by imposing

all of the following three conditions:

1. Interactions are always initiated by loop;

2. The time of the real application is synchronized

with loop time in all the interactions;

3. loop blocks while the real system takes actions

relatively to loop time.

As consequence, the real applications interacting with

loop can only react to contacts made by loop. Taking

in consideration that we want a fully reproducible en-

vironment, truly sporadic events from external appli-

cations to loop are not desirable. Effects of predicted

events from applications can be supported as part of

the implemented protocol model, by using a polling

strategy. Although this clearly increases the complex-

ity of the protocol being modeled, it is essential to let

the coupled system run faster than wall-clock. The al-

ternative would be bidirectional synchronization with

an external application running at wall-clock time,

which would force the coupled system to run all to-

gether at wall-clock time.

Time synchronization is currently achieved by

sending the simulation time in all the contacts made

by loop with external applications, which need to be

modiﬁed to receive it.

For a unidirectional ﬂow of information, from

loop to an application, during the exchange of infor-

mation loop blocks and the application takes actions

relatively to the emulation time.

For a non-instantaneous bidirectional ﬂow of in-

formation, both round-trip delay and the time taken

to process the request is considered in the protocol

model used within loop. Namely, the (blocking) con-

nection should be delayed and the effect will only be

visible at a well-deﬁned time.

3.2 Simulation of Protocols

We simulate the 2 versions of the routing protocol

side by side: a protocol for the vanilla routing al-

ready in use (an insecure one), and another distinct set

of protocols for the secure routing being tested. We

identiﬁed 3 distinct tasks and implemented the 3 cor-

respondent C++ classes with members (representing

phases) to be executed in loop during the emulation

time. Those tasks are, in order:

1. Apply the effect of time (Proc)

2. Transmit information (Tx)

3. Receive information (Rx)

The different tasks inﬂuence each other, as de-

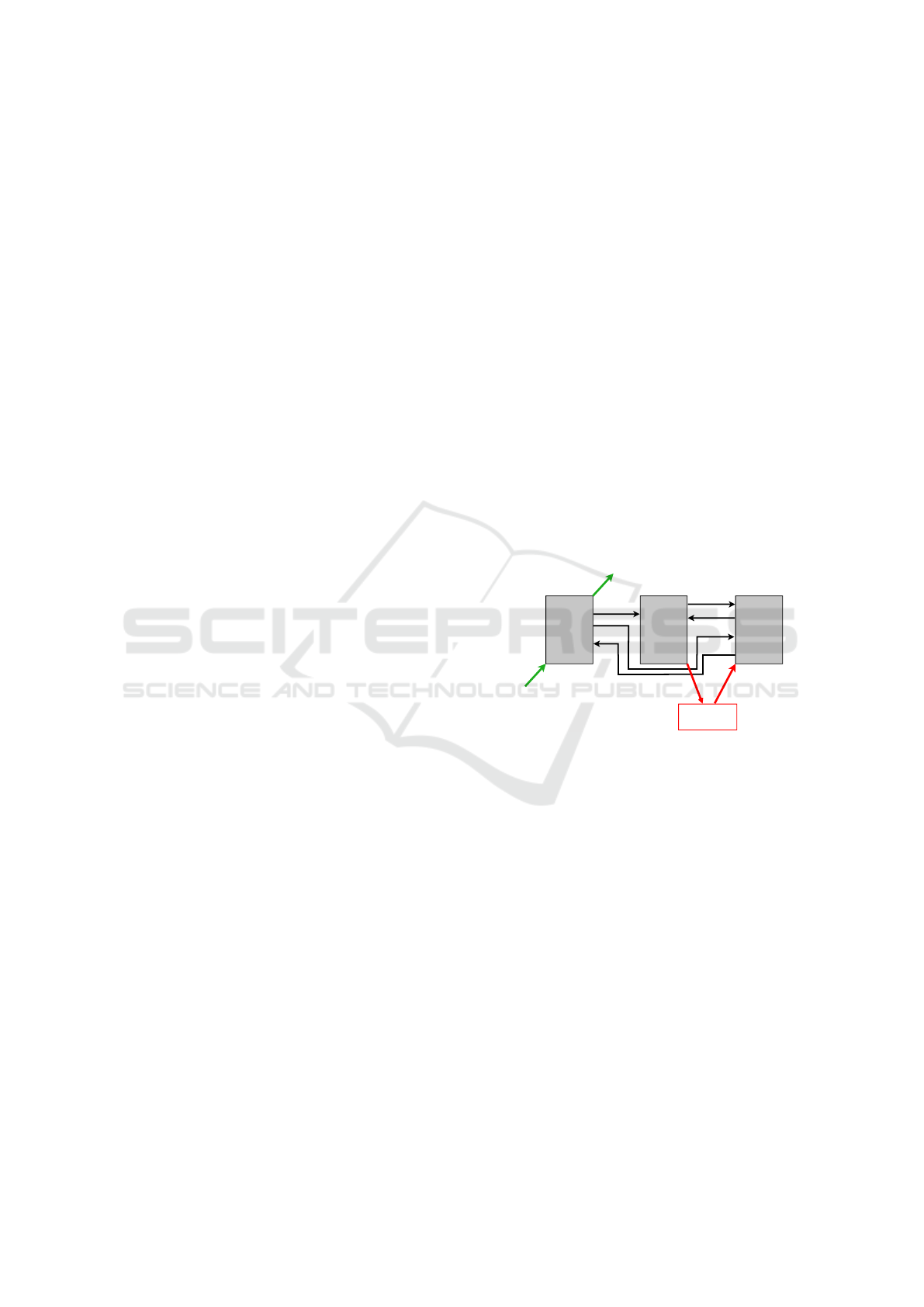

scribed in Figure 4. In the ﬁgure, an arrow between

tasks A → B, represents a relation of inﬂuence of A

on B. The labels are used to identify the cases in

the following explanations. Left to right arrows (→)

represent an immediate inﬂuence visible for the next

phase, right to left ones (←) represent delayed in-

ﬂuence, only visible one micro period or one macro

period later. Black arrows represent internal inﬂu-

ence (i.e., the same VU), red ones represent inﬂu-

ence across multiple VUs, and green ones represent

the optional external interaction (IN) and the optional

visualization (OUT). Since tasks are implemented by

stateless objects, the inﬂuence is not in the tasks them-

selves but in the VUs and loop global state used by

the tasks.

PROC TX

OUT

(1)

(2)

(3)

(4)

(5)

Neighbors

Figure 4: Inﬂuence of tasks between each other.

We built a Key Distribution Center (KDC) as a

TCP/IP server that receives and handles the requests

made by the emulator as they were made by real

RSUs. The KDC was built to run in a real environ-

ment but prepared to receive the emulation time along

with each contact made by loop. Since the KDC has

to interact with loop, some facilities were included

for the start and the end of each emulation.

Since all the loop requirements will not be needed

when running the KDC in real environment, we kept

the logic of the KDC decoupled from them. For the

start and the end of each emulation this is transparent,

since in real environment such functionalities can be

simply deactivated. The time synchronization mech-

anism is implemented at an early stage of each re-

quest. Although not completely transparent, the re-

quired changes are limited in scope. All the other

speciﬁc emulation requirements are part of the pro-

tocol models, and so, the KDC used with loop can be

used with real RSUs.

SIMULTECH 2018 - 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

396

The interactions between vehicular elements and

KDC are supported by the CLI of loop.

3.2.1 Task PROC: Apply the Effect of Time

This task has two phases of execution, both associ-

ated with macro periods: one to update the state of

VUs and another one to update the state of the emu-

lator. Updating the state of VUs consists on set them

as online or ofﬂine (1). When the VUs are online, the

position and the list of neighbors are also updated on a

needed basis. Updating the state of the emulator con-

sists on handling all the counters in use for logging

purposes, as well as to prepare a new visualization for

the speciﬁc macro period. The visualization is depen-

dent of the previous messages received (4).

3.2.2 Task TX: Transmit Information

This task has two phases of execution for VUs, for

both macro and micro periods. In the micro periods

(of 100 milliseconds) we model the transmission of

routing messages by all VUs. The other type of trans-

missions, the much less frequent requests for new in-

formation made by RSUs to the KDC, are modeled on

a needed basis in the macro periods.

The transmission of beacons is modeled by mak-

ing information available to all other VUs, so, when

needed, such information can be read (5). All the

transmissions of a VU are inﬂuenced by the previous

data received (3). When the requests made by RSUs

to the KDC have a reply, such reply is received and

stored, and all the effects of the received data on the

simulation are handled by Rx (2).

3.2.3 Task RX: Receive Information

This task has one only phase of execution for VUs: in

the micro period. In this phase we model the reception

of routing beacons and also, in case of RSUs, the re-

ception of messages from the KDC (2). The reception

of beacons is modeled by reading the messages on the

correspondent neighbors at that time (5). The beacons

read from neighbors represent the beacons received in

the last 100 milliseconds, on a FIFO order.

The received information handled in Rx are bea-

cons from others (5) and KDC replies in the case of

RSUs (2). The former may or may not contain signed

messages, that need to be validated with the KDC

public key before being used. Since such validation

is a time consuming operation, we limited its number

in the micro periods (corresponding to 100 millisec-

onds) and delayed to the next micro period the miss-

ing validations. We limited the number of validations

based on tests performed in VUs’ hardware, where

each signature validation has a well deﬁned cost.

The messages are used at this point by VUs to

update their internal state: the received messages are

stored and will inﬂuence the future transmissions (3),

and the update of the internal state in VUs will inﬂu-

ence the next visualizations (4).

Based on the received messages we build, update

and compare two routing tables: one based on all the

beacons and another one based on the authenticated

messages.

3.3 Input Data

loop uses as input sets of real traces collected from

each of the VUs in operation. We pre-process the col-

lected information associated to each VU. For the ac-

tive periods of each device, the information present in

the traces is a list of entries containing:

• The timestamp;

• The geographic coordinates;

• The number of neighbors listened;

• The number of neighbors that listen the VU;

• A list of pairs of values from listened neighbors:

identiﬁcation, signal strength;

• A list of identiﬁcations of neighbors that listen to

the VU.

3.4 Visualization

The visualization let us follow the process and eas-

ily understand what is happening at which moment.

Relying on the OpenCV library, a video-like view is

created based on successive images during the emu-

lation, based on the state of VUs. There are two dif-

ferent windows: one with a map showing the state of

VUs, and another one with some temporal parameters

plotted.

The map is associated to the area used by all VUs.

A base image to the visualization area can be initially

loaded, to help the identiﬁcation of the different areas.

At the beginning, the data of all VUs are loaded

and the base image is populated with the coordinates

of the VUs along the time. These coordinates will

end up showing all the paths used by the VUs (see

Figure 5).

After the loading of the data, the simulation starts,

and a second window appears (see Figure 6). This

window shows the time of the simulation, and the net-

work state regarding to 2 different metrics: the per-

centage of devices that are able to participate in the

loop - A Trace-based Emulator for Vehicular Ad Hoc Networks

397

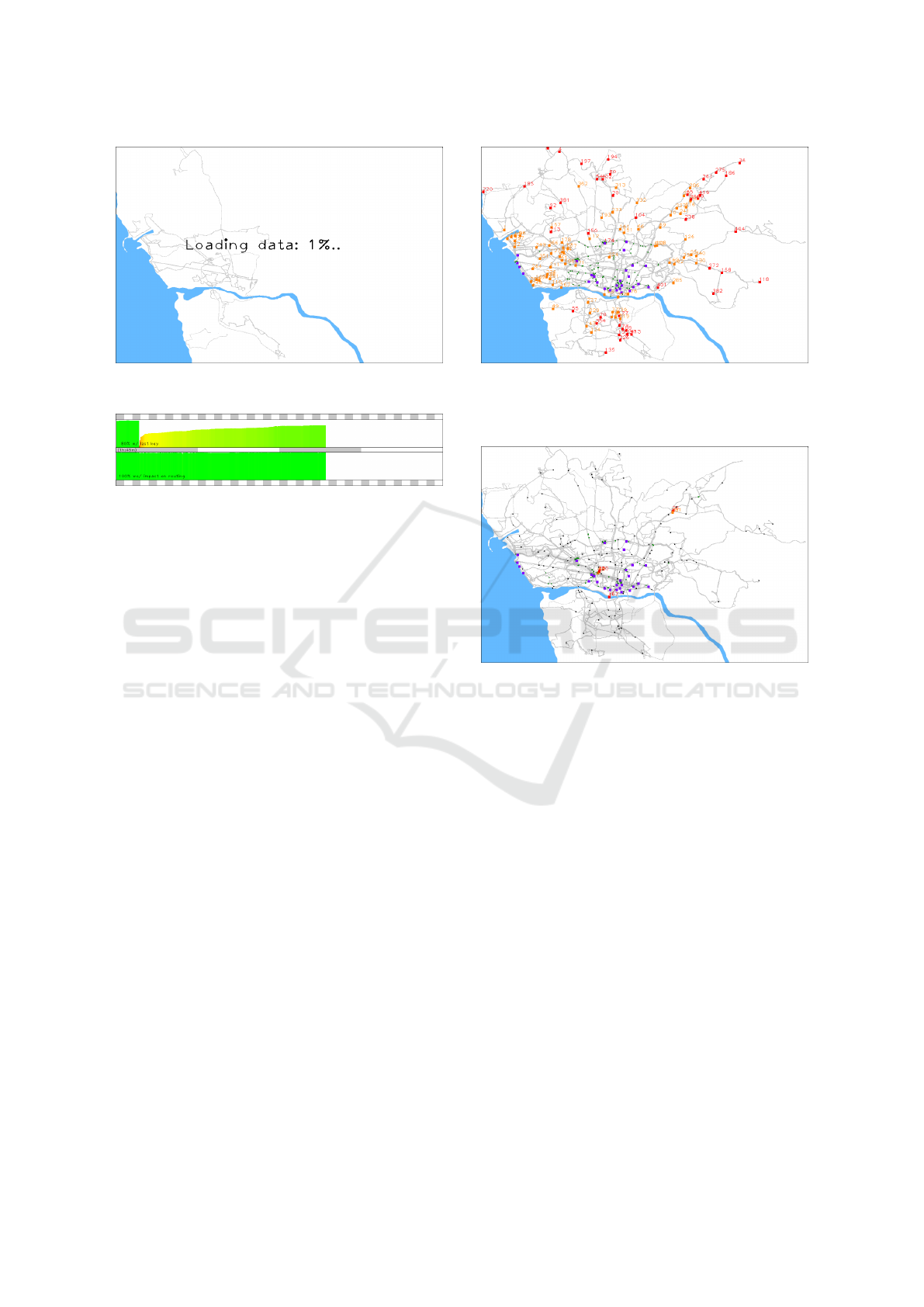

Figure 5: Loading the data for the emulation. Gray paths

are formed by coordinates used by OBUs.

Figure 6: Parameters plotted during the emulation. The red-

dest parts are closer to 0, while the green ones are closer to

100. The smaller gray bars represent 1 minute of the simu-

lation time, while the bigger ones represent 10 minutes.

secure routing; and the percentage of impact relat-

ing the 2 routing strategies being simulated side by

side (secure and insecure one). Those are the useful

metrics for the analysed scenario and exemplify the

generic capabilities of loop.

During the emulation the map may have multiple

views available, selected with the map command (fol-

low by an identiﬁer of the map) available in loop CLI.

Each view can show a different aspect of the internal

state of devices. In the analysed scenario, RSUs are

always represented by a violet square while the OBUs

are shown as squares of different colors according to

their state. The 2 map views created were:

The big brother view: Shows the active OBUs in 3

possible colors, green, orange and red, according

to the state of their cryptographic material when

compared with the KDC (see Figure 7). In this

view it is possible to analyse the epidemic prop-

agation of the context produced by the KDC and

the impact that RSUs have to the closest OBUs.

The OBUs that have received the last message

produced by the KDC are shown in green. The

other OBUs are shown in orange (if they miss a

”few” messages and can be updated by an OBU)

or red (if they miss a ”great amount” of messages

and can only be updated by RSUs). The outdated

OBUs are highlighted: they are bigger and present

their identiﬁcation. This helps to diagnose why a

particular OBU is not updated.

The naive view: Shows the active OBUs in 4 possible

Figure 7: Map showing the big brother view. RSUs are

shown in violet. Active OBUs are shown in 3 colors (green,

orange and red) according to the state of their cryptographic

material when compared with KDC.

Figure 8: Map showing the naive view. RSUs are shown

in violet. Active OBUs are shown in 4 colors (black, green,

orange and red) according to the state of their cryptographic

material when compared with their neighbors.

colors, black, green, orange and red, according

to the state of their cryptographic material when

compared with their neighbors (see Figure 8). In

this view it is possible to analyze the evolution

of the relations created between neighbors. The

isolated OBUs, the ones that are not listened nor

listen any other, are shown in black. The OBUs

that listen one or more neighbors all with the cryp-

tographic material in the same state (so they can

produce and validate messages among each other)

are shown in green. The OBUs that are listening

neighbors with cryptographic material in a differ-

ent state are shown in orange or red, if they are the

more or the less updated ones, respectively. Along

with the red OBUs, it is shown a red line con-

necting them to any neighbor that has a more up-

dated cryptographic material. When listening or

listened by neighbors with cryptographic material

in a different state, the OBUs are bigger and show-

ing their identiﬁcation. This map highlights the

situation where routing beacons may be discarded

SIMULTECH 2018 - 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

398

due to discrepancies on the keys being used by

neighbor OBUs.

4 RESULTS

We run loop with 24 hours of traces collected from

the VANET, containing 396 OBUs and 50 RSUs. All

VUs send periodic routing messages (beacons) in in-

tervals of 100 milliseconds, informing all neighbors

about their current routing state. The traces have the

logged state of all nodes in periods of 2 seconds, in-

cluding their geographic position and a list of neigh-

bors listened during the 2 seconds, along with the cor-

respondent beacon signal strength. The area used by

OBUs was about 21.1 by 18.5 kilometers.

Based on the lists of the neighbors per VU, we

simulated the transmission and reception of beacons

in periods of 100 milliseconds. We simulate 2 differ-

ent scenarios side by side: the insecure routing imple-

mented by the base routing protocol, SB2RP (Ameix-

ieira, 2016), and the secure version relying on Trust-

worthy VANET Routing with group authentication

keys (TROPHY) (Cirne et al., 2018). In the secure

version we consider the limitations imposed by the

cryptographic operations in the VUs’ hardware, and

also the connections made by the RSUs to the KDC

and respective content exchanged.

4.1 Test Scenarios

As previously stated, loop was built, at start, to guide

the modiﬁcation of a routing protocol that was sup-

porting a service in a VANET. To compare the im-

pact of TROPHY with the original insecure routing

strategy, we tested multiple parameters associated to

TROPHY and analyse the differences between them

and between insecure routing.

With the base routing all the messages received

are considered valid messages; this is our reference

since it is the best possible case. With TROPHY VUs

may or may not be able to validate the received rout-

ing beacons from neighbors. One of the purposes of

the evaluation is to analyse the percentage of beacons

that can be validated and its real impact in the routes.

Since TROPHY needs to transmit extra information,

another aspect to analyse is the overhead in terms of

number of larger messages. Besides that, it is im-

portant to evaluate different parameters that can in-

ﬂuence the distribution of the messages produced by

the KDC across the VANET. Finally, the VANET cov-

ers Porto city and its periphery and RSUs are placed

in the center of the city. With TROPHY, we rely on

the epidemic propagation across the VANET of mes-

sages produced by KDC (which only communicate

with RSUs) to update the cryptographic material of

the OBUs moving around the periphery, without forc-

ing them to visit the city center. This epidemic prop-

agation is also an important aspect to analyse.

With loop we evaluated 8 distinct parameters:

1. Percentage of secure messages exchanged consid-

ered valid (according to TROPHY);

2. Percentage of lost routes due to security (assum-

ing routes between OBUs and RSUs with a maxi-

mum of 3 hops, according to the base routing pro-

tocol);

3. Percentage of equivalent routes (same route to

same destination with TROPHY and base rout-

ing);

4. Percentage of secure routes with more hops;

5. Percentage of secure routes with the same number

of hops but using a path with lower quality (based

on Received Signal Strength Indication (RSSI));

6. Total number of messages stored in the active

VUs;

7. Percentage of beacons transmitted with 2 different

types of overhead.

Due to the large extension of the VANET and the

distinct situations that may occur, we also instructed

loop to produce maps where geographical-dependent

parameters are shown. Considering our case, it was

relevant to detect any area of the city where the impact

of the secure strategy would be worst than in the over-

all city. When the parameters associated to TROPHY

were not properly conﬁgured, it was possible to see

the different magnitudes of the negative impact asso-

ciated to different areas of the city.

One of the important parameters associated to

TROPHY is the period of the cryptographic material

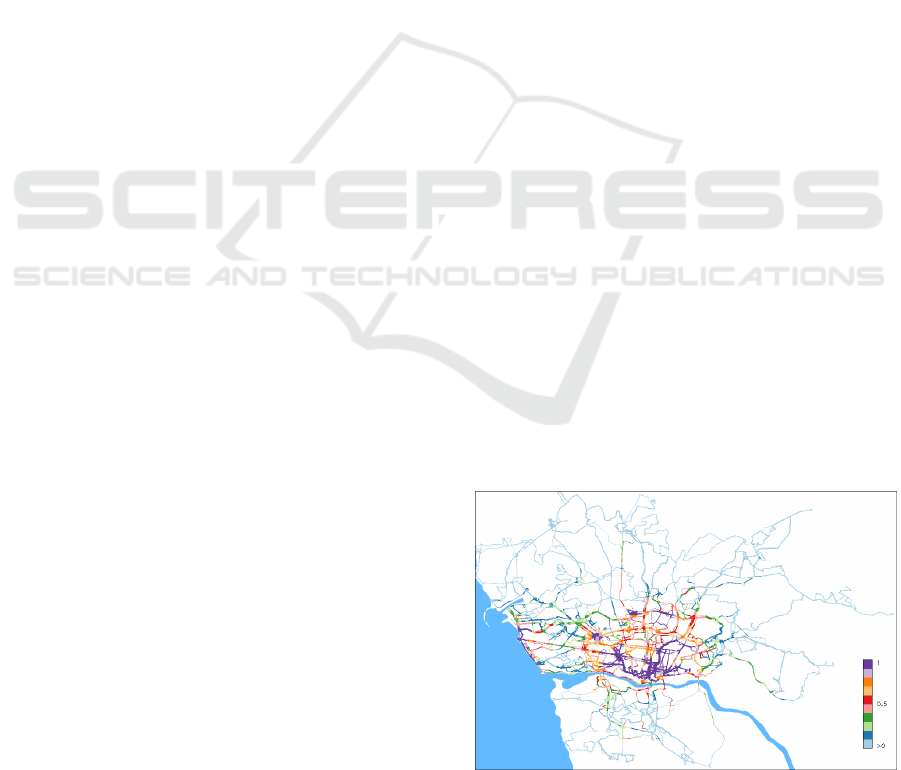

Figure 9: Percentage of updated OBUs per location while

requesting the update of the cryptographic material in peri-

ods of 10 minutes.

loop - A Trace-based Emulator for Vehicular Ad Hoc Networks

399

18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Hour

100

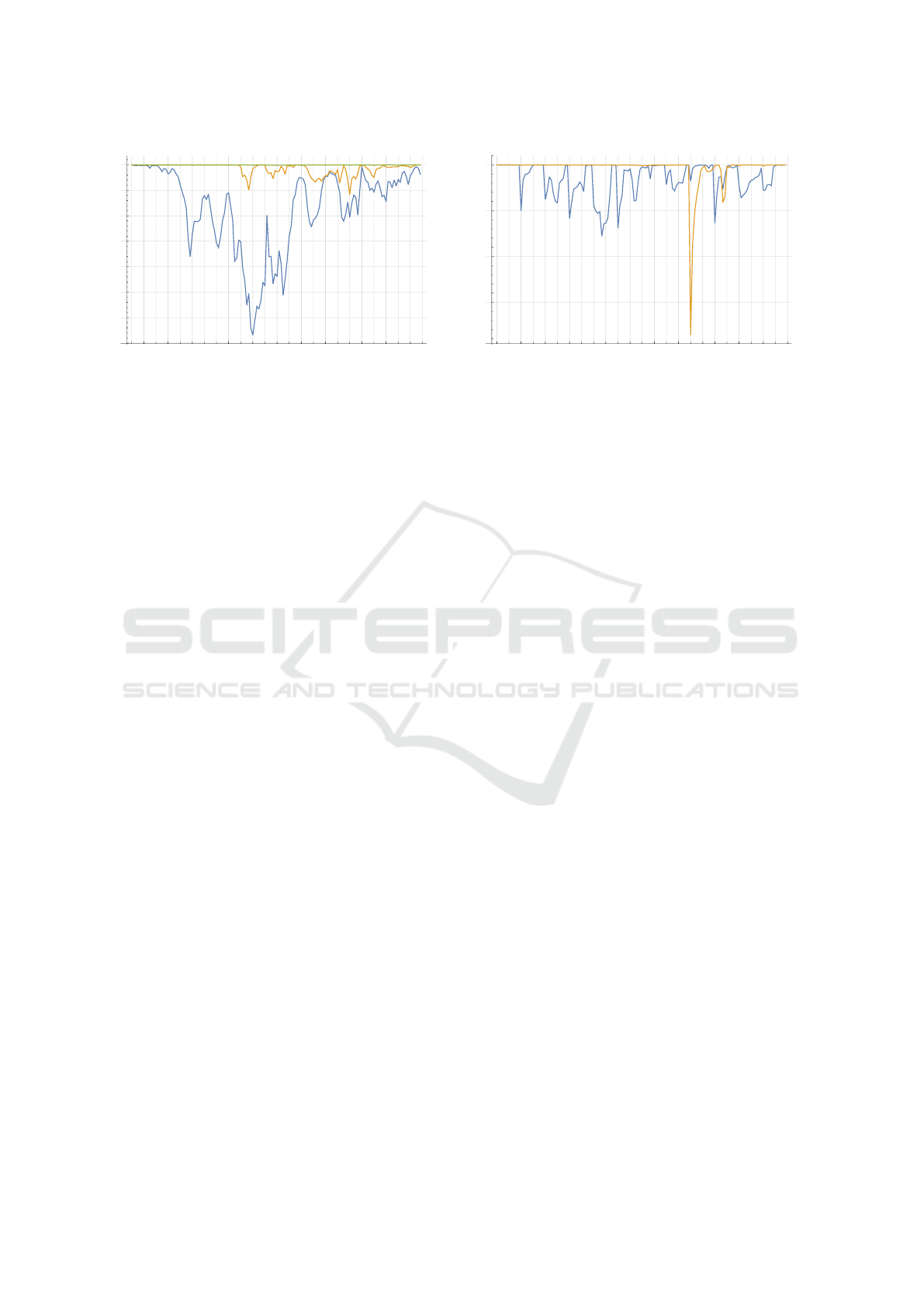

Figure 10: Percentage of routing beacons received and con-

sidered authentic while requesting the update of the cryp-

tographic material in periods of 10 minutes (blue), 1 hour

(orange) and 2 hours (green).

update. To manage the secure routing and to prevent

the cryptanalysis of some of the cryptographic keys,

the cryptographic material used by TROPHY has to

be strategically updated. The updates are initiated by

the KDC and distributed across the VANET based on

an epidemic propagation.

Figure 9 shows the case where the KDC contin-

uously demands the update of the cryptographic ma-

terial of all VUs in periods of 10 minutes. Since 10

minutes is not enough to deliver the information to the

periphery of the city, the cryptographic material the

VANET is not synchronised. As a consequence, the

negative impact in the secure routing is visible in the

periphery of the city. With a periodicity of 2 hours,

such impact is not relevant in any part of the city.

Besides the impact in different areas, updating

the cryptographic material in different periodicity also

has a different impact according to the time of the day.

This impact is shown in Figure 10 for 3 different peri-

ods: 10 minutes, 1 hour and 2 hours. With the video-

like visualization, we are able to go a bit further, and

see the iterations of VUs at a speciﬁc time and the

behavior associated to those iterations.

We evaluated different associations of parameters

related to distinct actions with the management of

the cryptographic material in the VANET. Since we

were exploring a strategy to secure a routing protocol,

TROPHY was developed taking in consideration the

need to exclude multiple VUs (detected as compro-

mised). The usefulness of such actions is associated

to their consequences when they are applied to the

VANET, i.e. it would be useless to be able to exclude

VUs if such action was breaking the connectivity for

long periods of time. With loop we were able to sim-

ulate and analyse such actions along the 24 hours pe-

riod. Figure 11 shows the temporal behavior of the

VANET in 2 hypothetical scenarios: the exclusion of

1 VUeach 2 hours, and the exclusionof 16 VUs at once.

18 19 20 21 22 23 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18

Hour

100

Figure 11: Percentage of routing beacons received and con-

sidered authentic while performing the exclusion of 1 VU

each 2 hours (blue) and the exclusion of 16 VUs at once at

10:00 (orange).

5 CONCLUSION

In this article we presented loop, a trace-based emu-

lator of VANET environments, that uses real data con-

taining the mobility and connectivity patterns of VUs

operating in a VANET. Based on the collected data,

loop emulates the VANET and allows the simulation

of protocol models much faster than wall-clock.

loop takes advantage of an existent VANET and

emulates a reproducible environment where commu-

nication protocols can be simulated in the same con-

ditions without putting in risk the original VANET.

Currently most of the VANET communication

protocols are evaluated based on real environments or

based on mobility and network simulators, with the

latter being the preferable solution.

loop introduces an alternative with considerable

beneﬁts to both cases: it is easy to setup and manage

compared to the tools relying in mobility and network

models, and at the same time it uses realistic informa-

tion in the way of real test-beds.

ACKNOWLEDGEMENTS

This work is funded by FCT/MEC through na-

tional funds under the project, S2MovingCity CMUP-

ERI/TIC/0010/2014.

REFERENCES

Ameixieira, C. (2016). Method and system for operat-

ing a vehicular data network based on a layer-2 peri-

odic frame broadcast, in particular a routing protocol.

WO2016135711A1.

SIMULTECH 2018 - 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

400

Amit Dua, N. K. (2014). A systematic review on routing

protocols for Vehicular Ad Hoc Networks. Vehicular

Communications, 1(1):33–52.

Bali, R. S., Kumar, N., and Rodrigues, J. J. P. C. (2014).

Clustering in vehicular ad hoc networks: Taxonomy,

challenges and solutions. Vehicular Communications,

1(3):134–152.

Barr, R., Haas, Z. J., and van Renesse, R. (2005). JiST:

An Efﬁcient Approach to Simulation Using Virtual

Machines: Research Articles. Softw. Pract. Exper.,

35(6):539–576.

Buisset, A., Ducourthial, B., Ali, F. E., and Khalfallah, S.

(2010). Vehicular Networks Emulation. In 2010 Pro-

ceedings of 19th International Conference on Com-

puter Communications and Networks, pages 1–7.

Cameron, G., Wylie, B. J. N., and McArthur, D. (1994).

PARAMICS-moving vehicles on the connection ma-

chine. In Proceedings of Supercomputing ’94, pages

291–300.

Choffnes, D. R. and Bustamante, F. E. (2005). An Inte-

grated Mobility and Trafﬁc Model for Vehicular Wire-

less Networks. In Proceedings of the 2Nd ACM In-

ternational Workshop on Vehicular Ad Hoc Networks,

VANET ’05, pages 69–78, New York, NY, USA.

ACM.

Cirne, P., Z

uquete, A., and Sargento, S. (2018). TROPHY:

Trustworthy VANET routing with group authentica-

tion keys. Ad Hoc Networks, 71:45–67.

Conceic¸

ao, H., Damas, L., Ferreira, M., and Barros, J.

(2008). Large-scale Simulation of V2v Environments.

In Proceedings of the 2008 ACM Symposium on Ap-

plied Computing, SAC ’08, pages 28–33, New York,

NY, USA. ACM.

Engoulou, R. G., Bella

ıche, M., Pierre, S., and Quintero, A.

(2014). VANET security surveys. Computer Commu-

nications, 44:1–13.

Fall, K. (1999). Network Emulation in the Vint/NS Simu-

lator. In Proceedings of the The Fourth IEEE Sympo-

sium on Computers and Communications, ISCC ’99,

pages 244–, Washington, DC, USA. IEEE Computer

Society.

Fontes, H., Campos, R., and Ricardo, M. (2017). A

Trace-based Ns-3 Simulation Approach for Perpetu-

ating Real-World Experiments. In Proceedings of the

Workshop on Ns-3, WNS3 ’17, pages 118–124, New

York, NY, USA. ACM.

FutureCities Project (2017). Living lab

: Vehicular adhoc networking, url :

http://futurecities.up.pt/site/vehicular-ad-hoc-

networking-testbed.

arri, J., Filali, F., Bonnet, C., and Fiore, M. (2006). Vanet-

MobiSim: Generating Realistic Mobility Patterns for

VANETs. In Proceedings of the 3rd International

Workshop on Vehicular Ad Hoc Networks, VANET

’06, pages 96–97, New York, NY, USA. ACM.

Ikeda, M., Kulla, E., Barolli, L., and Takizawa, M. (2011).

Wireless Ad-hoc Networks Performance Evaluation

Using NS-2 and NS-3 Network Simulators. In 2011

International Conference on Complex, Intelligent, and

Software Intensive Systems, pages 40–45.

Krajzewicz, D. (2010). Trafﬁc Simulation with SUMO –

Simulation of Urban Mobility. pages 269–293.

Lim, K. G., Lee, C. H., Chin, R. K. Y., Yeo, K. B., and

Teo, K. T. K. (2016). Simulators for vehicular ad

hoc network (VANET) development. In 2016 IEEE

International Conference on Consumer Electronics-

Asia (ICCE-Asia), pages 1–4.

Mangharam, R., Weller, D., Rajkumar, R., Mudalige, P.,

and Bai, F. (2006). GrooveNet: A Hybrid Simulator

for Vehicle-to-Vehicle Networks. pages 1–8. IEEE.

Noble, B. D., Satyanarayanan, M., Nguyen, G. T., and Katz,

R. H. (1997). Trace-based Mobile Network Emu-

lation. In Proceedings of the ACM SIGCOMM ’97

Conference on Applications, Technologies, Architec-

tures, and Protocols for Computer Communication,

SIGCOMM ’97, pages 51–61, New York, NY, USA.

ACM.

Owen, L. E., Zhang, Y., Rao, L., and McHale, G.

(2000). Trafﬁc ﬂow simulation using CORSIM.

In 2000 Winter Simulation Conference Proceedings

(Cat. No.00CH37165), volume 2, pages 1143–1147

vol.2.

Pal, D. (2012). A Comparative Analysis of Modern Day

Network Simulators. In Wyld, D. C., Zizka, J., and

Nagamalai, D., editors, Advances in Computer Sci-

ence, Engineering & Applications, volume 167, pages

489–498. Springer Berlin Heidelberg, Berlin, Heidel-

berg.

Park, B. and Qi, H. (2006). Microscopic simulation model

calibration and validation for freeway work zone net-

work - a case study of VISSIM. In 2006 IEEE Intelli-

gent Transportation Systems Conference, pages 1471–

1476.

Pessoa, G., Dias, R., Condeixa, T., Azevedo, J., Guardal-

ben, L., and Sargento, S. (2017). New Insights on

Content Distribution Emulation for Vehicular Net-

works.

orkowski, M., Raya, M., Lugo, A. L., Papadimitratos, P.,

Grossglauser, M., and Hubaux, J.-P. (2008). TraNS:

Realistic Joint Trafﬁc and Network Simulator for

VANETs. SIGMOBILE Mob. Comput. Commun. Rev.,

12(1):31–33.

Qu, F., Wu, Z., Wang, F. Y., and Cho, W. (2015). A Security

and Privacy Review of VANETs. IEEE Transactions

on Intelligent Transportation Systems, 16(6):2985–

2996.

Ros, F. J., Martinez, J. A., and Ruiz, P. M. (2014). A

survey on modeling and simulation of vehicular net-

works: Communications, mobility, and tools. Com-

puter Communications, 43:1–15.

Schiller, M. and Knoll, A. (2015). Emulating Vehicular

Ad Hoc Networks for Evaluation and Testing of Au-

tomotive Embedded Systems. In Proceedings of the

8th International Conference on Simulation Tools and

Techniques, SIMUTools ’15, pages 183–190, ICST,

Brussels, Belgium, Belgium. ICST (Institute for Com-

puter Sciences, Social-Informatics and Telecommuni-

cations Engineering).

Sommer, C., Yao, Z., German, R., and Dressler, F. (2008).

On the Need for Bidirectional Coupling of Road Traf-

loop - A Trace-based Emulator for Vehicular Ad Hoc Networks

401

ﬁc Microsimulation and Network Simulation. In Pro-

ceedings of the 1st ACM SIGMOBILE Workshop on

Mobility Models, MobilityModels ’08, pages 41–48,

New York, NY, USA. ACM.

Tan, K., Wu, D., Chan, A., and Mohapatra, P. (2010). Com-

paring simulation tools and experimental testbeds for

wireless mesh networks. In 2010 IEEE International

Symposium on ”A World of Wireless, Mobile and Mul-

timedia Networks” (WoWMoM), pages 1–9.

Uppoor, S., Fiore, M., and H

arri, J. (2013). Synthetic Mo-

bility Traces for Vehicular Networking. In Vehicular

Networks, pages 209–245. John Wiley & Sons, Inc.

Varga, A. and Hornig, R. (2008). An Overview of the OM-

NeT++ Simulation Environment. In Proceedings of

the 1st International Conference on Simulation Tools

and Techniques for Communications, Networks and

Systems & Workshops, Simutools ’08, pages 60:1–

60:10, ICST, Brussels, Belgium, Belgium. ICST (In-

stitute for Computer Sciences, Social-Informatics and

Telecommunications Engineering).

Viriyasitavat, W., Bai, F., and Tonguz, O. K. (2011). Dy-

namics of Network Connectivity in Urban Vehicular

Networks. IEEE Journal on Selected Areas in Com-

munications, 29(3):515–533.

Wang, S., Chou, C., and Lin, C. (2007). The design and

implementation of the NCTUns network simulation

engine. Simulation Modelling Practice and Theory,

15(1):57–81.

Weing

artner, E., Schmidt, F., Lehn, H. V., Heer, T., and

Wehrle, K. (2011). SliceTime: A Platform for Scal-

able and Accurate Network Emulation. In Proceed-

ings of the 8th USENIX Conference on Networked

Systems Design and Implementation, NSDI’11, pages

253–266, Berkeley, CA, USA. USENIX Association.

SIMULTECH 2018 - 8th International Conference on Simulation and Modeling Methodologies, Technologies and Applications

402
