Towards Supporting the Extended DevOps Approach through

Multi-cloud Architectural Patterns for Design and Pre-deployment

A Tool Supported Approach

Juncal Alonso

, Marisa Escalante

, Lena Farid

, Maria Jose Lopez

, Leire Orue-Echevarria

and Simon Dutkowski

ICT Divsion, TECNALIA, Bizkaia Technology Park, Derio, Spain

Fraunhofer Institute for Open Communication Systems (FOKUS), Berlin, Germany

Keywords: Cloud Computing, Multi-cloud, Continuous Design, Continuous Pre-deployment, Deployment Optimization,

DevOps.

Abstract: Recently the world of Cloud Computing is witnessing two major trends: Multi-cloud applications pushed by

the increasing diversity of Cloud services leading to hybrid infrastructures and the DevOps paradigm,

promising increased trust, faster software releases, and the ability to solve critical issues quickly (Steinborn,

2018). This paper presents a solution for merging and adapting both trends so that the benefits for software

developers and operators are multiplied. The authors describe a tool-supported approach to extend the DevOps

philosophy with the objective of supporting the design and pre-deployment of multi-cloud software

applications. The paper begins with the presentation of the theoretical concepts, the proceeds with the

description of the developed tools and the discussion of the validation performed with a sandbox application.

1 INTRODUCTION

In the past few years, DevOps has become a common

word. DevOps is a set of practices that automates the

processes between software development (Dev) and

IT teams (Ops) so they can build, test, release and

deploy software applications more quickly, reliably

and continuously. In traditional DevOps approaches,

IT roles are merged and communication is enhanced

to improve the production release frequency and

maintain software quality (Riungu-Kalliosaari et al.,

2016). The foreseen benefits of the DevOps

philosophy include increased trust, faster software

releases, automated testing and the ability to solve

critical issues quickly.

In parallel, the world of cloud computing is

witnessing a growing trend by the increasing diversity

of cloud services offerings leading to hybrid and

multi-cloud infrastructures, which are available for

complex software applications that can profit from

these variety of offers and features.

Multi-cloud can be understood as the use of

multiple computing services for the deployment of a

single application or service across different cloud

technologies and/or Cloud Service Providers. This

may consist of PaaS, IaaS and SaaS entities

(Gavilanes et al., 2017). This definition of multi-

cloud, when referring to the resources where different

components are deployed, includes services which

are in disperse cloud providers or different cloud

platforms (regardless of vendor) (Escalante et al.,

2017)

Following this definition, the authors understand

“multi-cloud” based applications, as software

applications that are defined as a set of components

distributed across heterogeneous cloud resources but

that still succeed in interoperating as a single whole.

Developing, deploying and operating such multi-

cloud applications present challenging shortcomings,

that have not been deeply analysed nor supported by

current DevOps solutions. These multi-cloud specific

peculiarities include:

 Applications need to be responsive to

hybrid/multi-cloud model scenario in which an

application that is executing in a concrete set of

cloud services bursts into a new one when the

working conditions are not met. This implies that

the application architecture shall be re-designed to

be “multi-cloud” aware simplifying the cloud

application assembly and the deployment process.

Alonso, J., Escalante, M., Farid, L., Lopez, M., Orue-Echevarria, L. and Dutkowski, S.

Towards Supporting the Extended DevOps Approach through Multi-cloud Architectural Patterns for Design and Pre-deployment - A Tool Supported Approach.

DOI: 10.5220/0006856008130823

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 813-823

ISBN: 978-989-758-320-9

813

 Means shall be provided to manage and assess

cloud deployment alternatives to better support

cloud re-deployment decisions. This implies

profiling and classifying application components

and cloud nodes, as well as analysing and

simulating the behaviour of the application to

support the deployment decision making process

considering additional factors such as Non-

Functional Requirements (NFR), namely

performance, availability, localization, cost, or

risks associated with the change of cloud

resources. Multi-cloud has value only when the

right providers are selected, whether public or

private (combined into different cloud

deployment models), to meet functional and NFR.

But the manual selection and combination of

those Cloud Services to create the best

deployment scenario may imply huge effort, time

and knowledge needs.

 Existing cloud services shall be made available

dynamically, broadly and cross border. so that

software providers can re-use and combine cloud

services, assembling a dynamic and re-

configurable network of interoperable, legally

secured, quality assessed (against SLAs) single

and composite cloud services,

The current paper presents a solution proposed by the

authors extending the DevOps approach with the

objective of supporting the design and pre-

deployment of multi-cloud software applications,

while facing the aforementioned challenges, imposed

by the peculiarities of the multi-cloud deployment.

2 EXTENDED DEVOPS

APPROACH FOR

MULTI-CLOUD

APPLICATIONS

2.1 Traditional DevOps

DevOps refers (DECIDE Consortium, 2017) to the

emerging professional movement and philosophy that

advocates for a collaborative working relationship

between Development and IT Operations, lowering

barriers and silo-based teams, resulting in the fast

flow of planned work (i.e., high deploy rates, better

quality and faster releases), while simultaneously

increasing the reliability, stability, and resilience of

the production environment. This is often called the

“DevOps Paradox” (Edwards, 2015): “Going faster

brings higher quality, lower costs, and better

outcomes”. DevOps pivots around three axes

(UpGuard, 2016): processes, people and technology.

From the people perspective, DevOps symbolizes a

cultural change where collaboration and cooperation

are key pillars, and this often results in an increased

understanding to prioritize requests that the business

needs. From the processes perspective, DevOps

advocates for more agile change processes, with an

increased rate of acceptance for new features,

improved quality in software developments, a

decrease in number of incidents per release and an

increased time to market and velocity to pass from

development to production. Finally, from the

technology point of view, DevOps results in an

application with a reduced number of defects and

therefore with more quality, and in an increased

deployment of features.

After an analysis of the current coverage of the

DevOps approach to the peculiarities of multi-cloud

applications and considering the phases of the

software development lifecycle (SDLC), and

software operation lifecycle (SOLC) of these targeted

applications, the authors propose a novel extended

DevOps approach to overcome current shortcomings.

2.2 Extended DevOps = DevOps +

Continuous Architecting +

Pre-deployment

The work presented here is being developed in the

context of the DECIDE project, that proposes an

extension of the “traditional” DevOps approach on

both axis: Dev and Ops. This paper, however,

presents an approach for the extension of the

Development phase. For the Dev axis, the authors

propose to extend the development phase with

previous and subsequent activities that cover: 1) the

architectural design for multi-cloud applications (at

generic level and specific to non-functional

requirements), 2) the election of the best deployment

configuration based on theoretical simulations. With

this in mind, the authors propose an “Extended Dev”

covering:

 Multi-cloud applications continuous architecting

and development

 Multi-cloud applications (pre) deployment

2.2.1 Existing Approaches and Tools

There are some on-going initiatives to create a

DevOps framework integrating development and

operation tools into a unique framework.

The Eclipse Cloud Development project (Eclipse

Cloud Development, 2018), composed of four sub-

projects (Che, Orion, Dirigible and Flux), is aiming

SE-CLOUD 2018 - Special Session on Software Engineering for Service and Cloud Computing

814

for a rich IDE to be executed through the browser.

This could be considered as DevOps but it does not

provide other advanced features. IBM Bluemix

DevOps Services (IBM BlueMix, 2016) can be used

by a web-based IDE or plug-ins for the most common

IDEs. It allows the automatic build and deployment

to IBMs cloud platform Bluemix, built on top of the

PaaS engine CloudFoundry. BlueMix also covers

continuous integration mechanisms as the update of

deployed applications. None of these tools, cover the

peculiarities of the multi-cloud applications at

architectural level, nor analyse the impact of non-

functional properties in the design of the multi-cloud

application and vice-versa.

For the deployment simulation, the authors have

not found a similar tool.

However, most of these initiatives, open source

projects and commercial tools do not fully support the

SDLC and SOLC of a multi-cloud application as they

target one cloud platform at a time, and also miss

other aspects related with the architectural aspects of

the applications or the definition of the “best”

deployment configurations (DECIDE Consortium,

2017).

At research level, it has been established in

different works, that the adoption of DevOps and/or

Continuous Delivery (CD) brings new challenges to

software development and thus affects the design of

applications. There are numerous works dedicated to

this topic. Some of which, deal with architecting for

CD in terms of tooling (Mojtaba, 2015) and

compliance with Architecturally Significant

Requirements (ASR) (Chen, 2015). These

approaches are meaningful and very much needed as

they have proven to facilitate the deployability,

modifiability, security, monitorability, loggability,

and testability of applications (Chen, 2015).

However, when it comes to Cloud technologies,

especially multi-cloud, other tools, requirements and

best practices for Cloud native applications are

needed on top of the aforementioned because herein

additional architectural challenges are permitted.

There has been little research in the multi-cloud

domain targeted at the design process in conjunction

with the pre-deployment of (and ultimately

DevOps/CD) for multi-cloud native applications, as it

is a fairly new field. The existing models and systems

are still maturing.

Nevertheless, tools for architectural best practices

or patterns for cloud native applications have been

researched in the ARTIST project (Kopanelli et al.,

2015) and MODAClouds (Di Nitto et al., 2017).

The ARTIST project produced a refined list of

Cloud Computing optimization patterns (ARTIST

Consortium, 2014) for migrating legacy applications

into the Cloud enhancing the non-functional

properties and MODAClouds produced a set of

concepts and patterns targeted at multi-cloud.

MODAClouds additionally looked at DevOps tooling

for application design, cloud services selection and

automated deployment. Another point that differs

these two projects from the authors’ goals is that they

considered an application as a whole in contrast to

investigating a decomposed application and each

component’s individual requirements and business

needs.

2.2.2 Challenges

In the following table, the authors summarize the

challenges encountered in each of the phases and sub-

phases of the traditional DevOps approach, when

applying it to multi-cloud applications. Some of the

challenges encountered have served as motivation for

the proposal of the tools and mechanisms exposed in

section 3.

Table 1: Challenges identified at “Dev” phase.

Sub-phase Challenge

Design NFR specification

Design

Best practices for multi-cloud

architectural design

Implementation Multi-cloud Development suppor

Integration Integration of tools in the Dev phase

Pre-deployment

Application (nodes and

communication included)

profiling/classification

Pre-deployment

Automatic Theoretical deployment

generation

Pre-deployment CSP modeling

Pre-deployment Simulation (deployment)

Pre-deployment Automatic Cloud services discovery

Optimization Code optimization

Design/Pre-deployment (MC)SLA definition

In this paper, the Multi Cloud Service Level

Agreement (MCSLA) definition and the proposed

solution on how to approach this challenge in the

context of the multi-cloud applications Dev phase has

not been described.

3 TOOLS AND MECHANISMS

SUPPORTING THE DESIGN

AND PRE-DEPLOYMENT OF

MULTI-CLOUD

APPLICATIONS

As presented in the previous section, the extension of

Towards Supporting the Extended DevOps Approach through Multi-cloud Architectural Patterns for Design and Pre-deployment - A Tool

Supported Approach

815

the Dev phase introduces new activities to be carried

out by the developers of multi-cloud applications,

both before and after the actual development phase

takes place, which currently are not supported by

existing tools. The DECIDE project aims to

implement several tools which support these new

activities incorporated to the DevOps cycle. In the

following section, the functional description,

structural architecture and technology used for the

implementation of these supporting components are

explained.

3.1 ARCHITECT: Continuous

Architecting

Continuous architecting is a step introduced in order

to support the design process in an application’s

lifecycle with the motivation of moving back and

forth within said lifecycle in order to satisfy the needs

of other DevOps phases, such as continuous pre-

deployment, continuous deployment, monitoring, etc.

in a multi-cloud context.

Furthermore, when integrating the design process

into DevOps, the adoption of business and technical

requirements (i.e. NFRs or deployment targets)

becomes possible at a very early stage of the

applications lifecycle and thus, any defined

requirement from Dev side is easily injected into each

Ops task (from CI/CT to pre-deployment, through

deployment and monitoring).

In light of the novelty and peculiarities of multi-

cloud deployment and operation, developers and

organisations may not be familiar with applying the

best architectural solutions for complying in such an

environment. Therefore, the authors propose a tool as

part of the continuous architecting phase which

incorporates a large number of best practices, namely

multi-cloud architectural patterns. This will aid

developers in tackling multi-cloud idiosyncrasies.

3.1.1 Multi-cloud Architectural Patterns

A design or architectural pattern provides a general,

reusable solution to a commonly occurring problem

in the development and/or deployment of software

components (Gamma, et al., 1995). The solutions are

provided as descriptions and are never a fully finished

design. This is intentional in order for these patterns

to be applicable to a wide range of scenarios and

remain vendor agnostic.

In view of this, the use of architectural patterns in

object-oriented programming and distributed

applications has dramatically improved many aspects

in software and systems engineering, such as their

quality, speed maintainability and accessibility. For

the same reason, a large number of Cloud Computing

architectural patterns have been developed (Fehling,

et al., 2014).

Since the focus of the DECIDE project is to aid

developers in designing multi-cloud aware

applications (and not single-cloud aware), the authors

have curated a catalogue of multi-cloud architectural

patterns consisting of a number of cloud computing

patterns for distributed applications (and presumably

non-cloud patterns). The patterns collectively address

the multi-cloud peculiarities. The patterns have been

categorised as fundamental, development,

deployment and optimisation patterns (Farid, et al.,

2017).

Fundamental patterns are those deemed necessary

for the use of the DECIDE DevOps Framework and

provide a minimal set that needs to be applied. An

example of such pattern would be to containerize the

application.

Development patterns are those that aid the

developer with best practices for building a multi-

cloud application. Example patterns are: distributed

application (splitting the application into

microservices), loose coupling or stateless.

Deployment patterns address how the deployment

configuration for multi-cloud applications should be

handled. For instance, managing the deployment

scripts as well as storing them should be designed

from a multi-cloud perspective. Here types of

technological risks as well as geographical locations

of the components (data or business logic) are

accounted for. Furthermore, the deployment patterns

take into account DECIDE principles of re-

adaptability and re-deployment for multi-cloud

environments.

Optimization patterns are those that aid the

developer in improving the applications NFRs by

taking adequate measures in optimizing the

application code to reflect on these requirements.

Optimization patterns can optimize the use of cloud

resources, such as elasticity. An example is

leveraging a cloud persistence layer instead of

implementing it as part of the application.

In the context of DECIDE, these patterns will be

fed into the ARCHITECT tool. ARCHITECT will

then use different information about the application

along with the NFRs to recommend multi-cloud

architectural patterns for the developers.

3.1.2 The ARCHITECT Tool

The ARCHITECT tool holds a catalogue of

architectural patterns and supports the developer with

SE-CLOUD 2018 - Special Session on Software Engineering for Service and Cloud Computing

816

preparing the application for a multi-cloud

deployment scenario by recommending a set of

(multi-)cloud architectural patterns, which must or

should be applied to the application.

By preparing the application for a multi-cloud

deployment scenario, the authors mean optimising an

application’s development and deployment in order

for an application to be dynamically re-adapted and

re-deployed.

The patterns recommendation is based on the

selected and prioritized NFRs as well as on additional

data concerning the application and its components.

The recommended patterns provide a description of

how these patterns can and may be applied to the

source code. The tool is designed to be close to the

development process, yet is language agnostic and

can be run as a RESTful microservice.

Structural Description

The ARCHITECT component has a set of functional

requirements that can be summed up into the

following functionalities:

 Provide/ recommend users (i.e. the developer)

architectural patterns based on their prioritized

NFRs as well as additional information (supplied

by the users), with guidelines on how to apply

them, to which component (e.g. microservice) it

needs to be applied and in which order.

 Provide a repository of multi-cloud architectural

patterns.

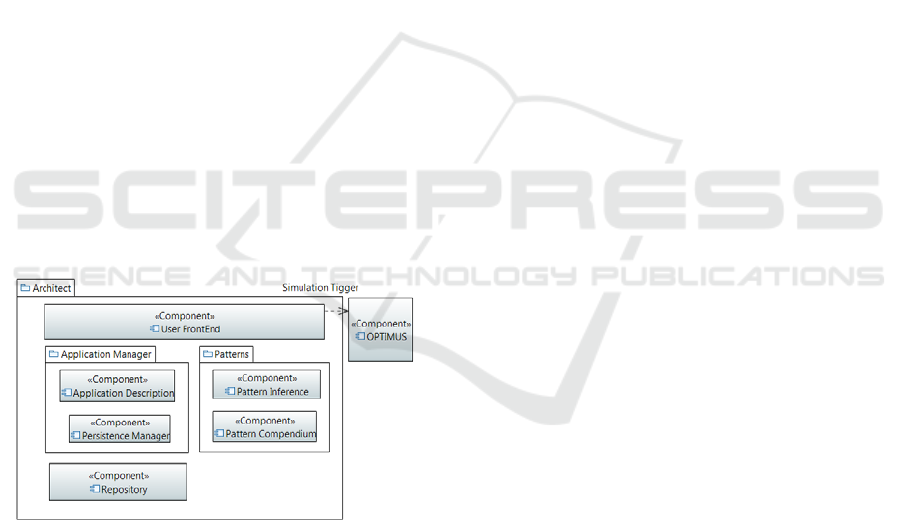

Figure 1: Component Diagram of ARCHITECT.

ARCHITECT is decomposed in several

functional blocks and interfaces. It consists of three

core elements, as depicted in the figure above. A

frontend for user interaction, the application

description manager for dealing with the DECIDE

project model, and finally the patterns catalogue with

the pattern inference engine.

 User Frontend. This element depends on the

context. For example, if ARCHITECT is

integrated in an IDE or is a web based solution,

this part provides the mechanism for plugging in

the ARCHITECT component. Its main task is the

interaction with the developer and it provides the

necessary user interfaces to view and manage the

patterns and also to trigger the recommendation

process. The User Frontend is the workflow-

controlling component of ARCHITECT.





Application Manager. This element is responsible

for a convenient abstraction level for the

information model of the DECIDE application. It

manages all application information in a

persistent manner. That means, it encapsulates

and hides the technical details, (e.g. the fact that

the application description is coded and stored as

a JSON structure inside a code repository).





Patterns. This element contains a catalogue of

patterns, NFRs and their relationships. The

contained information can be enriched to hold

additional information experienced over time.

The patterns catalogue provides functions that

allow the inferring of patterns based on a given set

of NFRs and optionally some fixed patterns.



Technical Description

ARCHITECT’s Patterns component is implemented

as an autonomous Java library and its functionality is

offered also as a RESTful microservice and as such is

accessible for other implementations. This allows an

easy integration of ARCHITECT in a polyglot

environment

For instance, its functionality can be integrated via

web-based tools by using its API or directly into a

Java client, such as an IDE (e.g. Eclipse).

The first attempt for the pattern recommendation

is realised using semantic technologies. The patterns

are semantically enriched by using ontology based

techniques and rely on the NFRs for inferring viable

patterns.

The means for communicating with the pre-

deployment phase (OPTIMUS tool) is realised using

a common DevOps mechanism. The recommended

patterns, which are relevant for the pre-deployment

phase, are stored in the Application Description, a

JSON file in a git repository. This file acts as a single

point of truth for the multi-cloud application and may

be easily managed and accessed via the Application

Manager library.

The Application Manager library encapsulates all

git operations for reading and writing to the

Application Description JSON file (Farid et al.,

2017).

3.2 OPTIMUS: Continuous Simulation

DECIDE OPTIMUS deployment simulation tool eva-

Towards Supporting the Extended DevOps Approach through Multi-cloud Architectural Patterns for Design and Pre-deployment - A Tool

Supported Approach

817

luates and optimizes the characteristics of the multi-

cloud application deployment from the developer’s

perspective considering a set of provided cloud

resources alternatives.

DECIDE OPTIMUS provides the best possible

deployment application topology, based on the non-

functional requirements set by the developer and the

requirements of the multi-cloud application,

automating the provisioning and selection of

deployment schemas for multi-cloud applications.

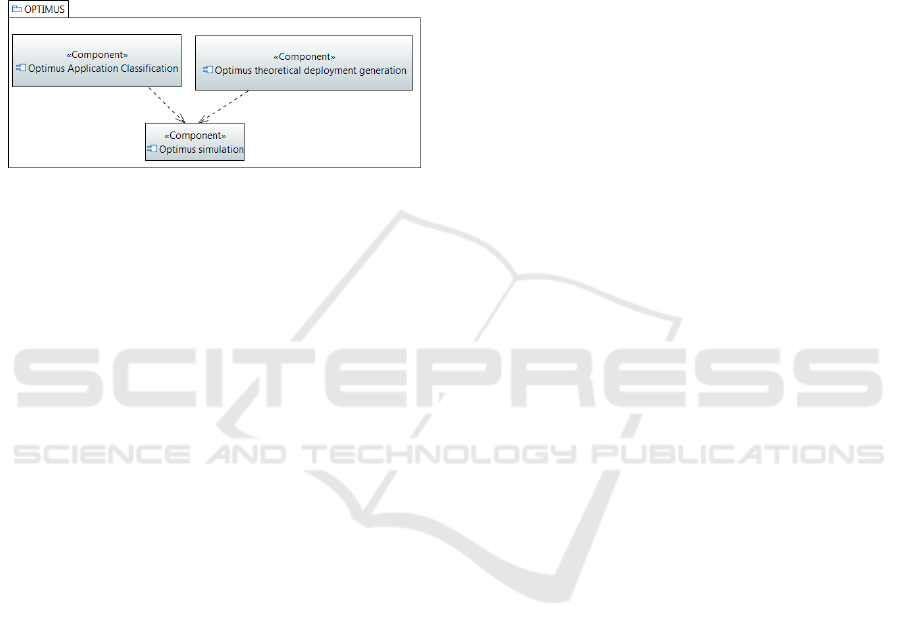

Figure 2: OPTIMUS High level architecture.

3.2.1 Structural Description

DECIDE OPTIMUS consists of three main

components and each of them provides the

corresponding functionality:

 Application Classification

The Application Classification subcomponent

interacts with the developer through OPTIMUS UI,

from where the developer provides the information

about the multi-cloud application that OPTIMUS

needs to classify each of the microservices of the

multi-cloud application. The Application

Classification process will match the information

stored about the types of microservices and the

characteristics associated with each of the multi-

cloud application microservices.

The concept "types of microservices" can be

found in the OPTIMUS architecture and in the related

references to the classification process. Each of the

microservices need a Cloud Service that fulfils the

requirements for deploying it properly. Type of

microservices groups a set of characteristics that are

required from a Cloud Service to be selected and

matched with a specific microservice.

The output of the classification is stored into the

Apps Classification Repository, physically located in

the Application Description JSON file.

The Types management subcomponent manages

the system knowledge about the Cloud Services that

the microservices need to be deployed.

 Theoretical deployment generation

Once the classification is completed, knowing the

type of each microservice, OPTIMUS is capable to

work out the Cloud Services that are suitable for it.

The Deployment Types Repo Management performs

the equivalence among the microservices types and

the CSPs in which they could be theoretically

deployed.

Considering the classification, the characteristics

of each microservice and the NFRs associated to them

by the developer, the Theoretical Deployment

Preparation creates a list of requirements to invoke to

the Advanced Cloud Service (meta-) intermediator

(ACSmI) Discovery Service and obtain the Cloud

Services that meet them.

This request is composed of generic Cloud

Services, and the list of resources that the

microservices need. This functionality requires

interacting with ACSmI’s API to obtain the sorted list

of Cloud Services that meet the criteria requested.

 Simulation

Keeping in mind the obtained group of different

possibilities for the deployment, a complex algorithm

performs a combination of all these possibilities and

scores them in a list. The first theoretical deployment

in that list will be the "best schema", and if this

schema has not been selected before (checking the

historical deployment configurations repository), it is

presented to the developer.

Within the continuous approach of DECIDE

OPTIMUS tool, this Simulation phase can be

triggered the first time when the application is

deployed, by the developer, or it can be triggered

when a violation of the MCSLA occurs. In this case,

the current deployment configuration is invalidated

and OPTIMUS should obtain another best schema for

the deployment, considering the new circumstances.

3.2.2 Technical Description

The Classification module and the UI for collecting

the information about the microservices, has been

developed as an eclipse plugin using Eclipse Java EE

IDE for Web Developers, Version Oxygen.1 Release

(4.7.1). The simulation process is a RESTful service

that could be invoked from different points of the

DECIDE framework.

3.3 ACSmI: Continuous Resource

Discovery

The Advanced Cloud Service (meta-) intermediator

(ACSmI) (Escalante et al., 2017) aims to provide the

means for the discovery, contracting, managing and

monitoring of different cloud service offerings. In this

paper, the authors explained the approach followed

by the ACSmI discovery functionality.

SE-CLOUD 2018 - Special Session on Software Engineering for Service and Cloud Computing

818

As authors mentioned in (Escalante et al., 2017),

ACSmI Discovery component covers the

functionality of services discovery based on the

request passed by OPTIMUS. To be able to discover

services, these services should be endorsed

previously in the service registry. The endorse

functionality, as well as, the modification and

deletion of the services in the registry are also covered

by this component. The most relevant requirements

covered in this component are:

 Collect the requirements of OPTIMUS, these

requirements are specified following the different

terms defined for the modelling of the CSPs and

their services. This allows for an automatic

comparison of the requirements with the services

stored in the registry.

 Provide a list of services from the service registry

that fulfil (totally or partially) the requirements

specified by OPTIMUS.

 Provide means to create, read, update and delete

the services registry.

 To allow CSPs or ACSmI administrator (for

Large CSPs) to endorse their services in the

service registry. The registry of each service

covers the different terms defined in the

modelling of the CSPs and their services. This

allows the automatic discovery of the services

from the registry.

3.3.1 Structural Description

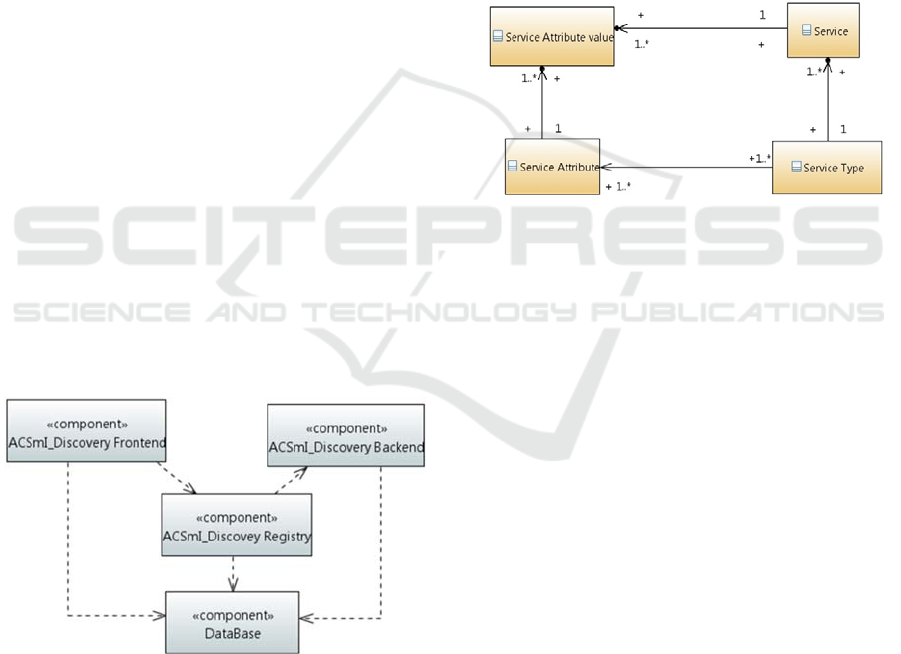

ACSmI discovery component is structured in four

main components, as shown in Figure 3.

Figure 3: ACSmI Discovery Components.

 Frontend. This component has two main

objectives: 1) To implement the graphical

interface to allow inserting the requirements for

the discovery of the services as well as to allow

CSPs to introduce the information regarding their

services, 2) To manage users. This component

enables to create, read, update and delete users in

ACSmI discovery.

 Backend. This component is in charge of 1)

carrying out the discovery of the services based on

the information provided by the user and 2) the

endorsement of the services based on the

information provided by the CSP through the

frontend. To carry out these activities, this

component manages the database to create, delete,

modify the service types, services, CSPs, etc.

 Registry. This component coordinates the

communication between the frontend and the

backend.

 Database, which stores the services. This

component is a MySQL database, following the

data model shown in the Figure 4.

Figure 4: ACSmI Cloud services model.

3.3.2 Technical Description

ACSmI Discovery has been developed using

JHipster. The main objective of JHipster (JHipster,

2015) is to generate a modern and complete web

application or microservice architecture. JHipster is

not a development framework, it is more a frontend

and backend generator based on different

technologies. JHipster allows the use of Swagger to

define the communication between the frontend and

backend. Each functional component communicates

with the other through REST API, even though these

components are in the same service of the backend.

4 THE SOCKSHOP

MICRO-SERVICE BASED

APPLICATION: INITIAL

APPROACH VALIDATION

The SockShop App (Weaveworks, 2016) has been

selected as an exemplary application to showcases

which multi-cloud patterns can be applied in order to

render it multi-cloud aware and which Cloud Services

fit best in a multi-cloud scenario.

Towards Supporting the Extended DevOps Approach through Multi-cloud Architectural Patterns for Design and Pre-deployment - A Tool

Supported Approach

819

The different components developed and used for

the validation of the proposed approach

(ARCHITECT, OPTIMUS, ACSmI) are still isolated

components (not integrated) so that the results

obtained through the exercise performed with the

SockShop application within the three components

are not linked. In the next versions, the validation will

be done with the integrated components so that the

results obtained through the different components are

coherent.

Again, multi-cloud aware in the context of the

DECIDE project implies that the application is

distributed over multiple heterogeneous CSPs and

can be seamlessly re-deployed, i.e. ported across

CSPs and re-adapted.

4.1 SockShop Architecture

The selected application is a loosely coupled

microservices demo application. It simulates the user-

facing part of an e-commerce website that sells socks.

It is open source software and has been developed

with the intention to aid in demonstrating and testing

microservices and cloud native technologies

(Weaveworks, 2016).

With this in mind, the SockShop App is designed

to provide as many microservices as possible. The

microservices are designed to encapsulate

functionality required in an e-commerce site and are,

of course, loosely coupled. The microservices are

designed to have minimal expectations and use DNS

to find other services. The Application uses a message

broker for sending messages by means of queues

(Weaveworks, 2016). All services communicate

using REST over HTTP. Furthermore, the SockShop

App is polyglot as it is built using Spring Boot

(Spring, n.d.), Go kit (Bourgon, 2017) and Node.js

(Node.js Foundation, n.d.) and is packaged in Docker

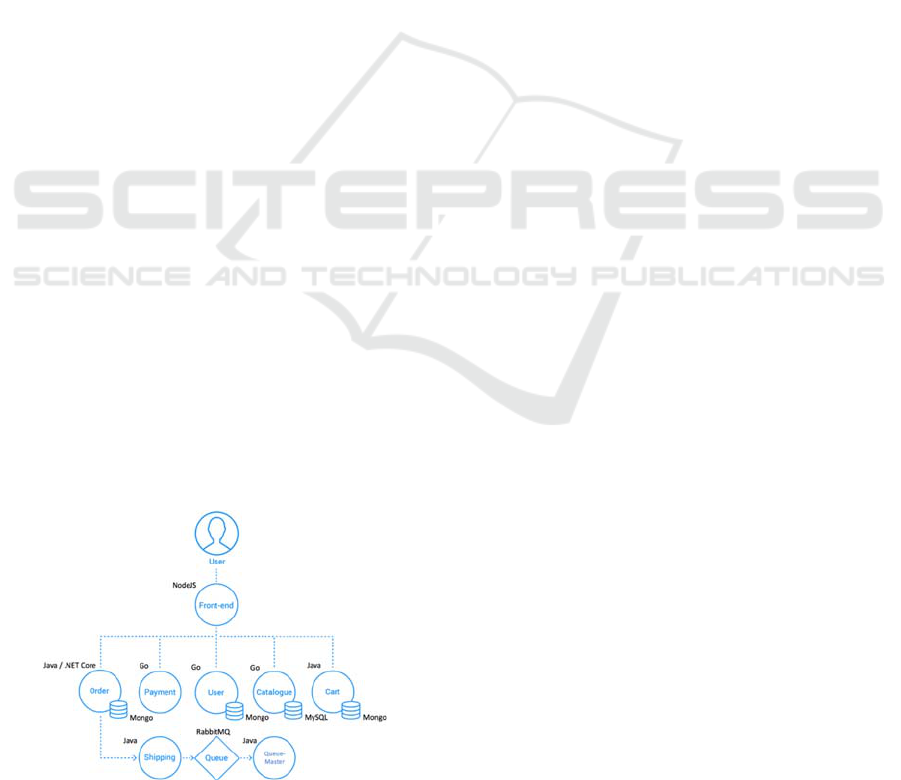

(Docker, n.d.) containers. Figure 5 shows the original

architecture of the application.

Figure 5: SockShop Application Architecture

(Weaveworks, 2016).

4.2 Preparing for Extended DevOps

For the SockShop App a set of NFRs have been

defined, based on hypothetical assumptions in the

context of an e-commerce application and prioritize

them as follows:

 Scalability – Hypothetically, it is assumed that

market research and data analytics show that the

user base is active during morning hours and after

8 PM otherwise unpredictable workloads can be

expected.

 Performance – the performance of the application

is important as the users expect rendering of the

website and the transactions speed to be at most 2

seconds.

 Availability – To maintain a good reputation the

service has to be available at 99% or at all times.

 Cost – As the SockShop is a start-up, keeping

costs to a minimum is vital.

With this list of NFRs set, the pattern

recommendation can commence with regards to

preparing the application for a multi-cloud

environment.

4.3 Candidate DECIDE Patterns

As understood by the wider software engineering

community, architectural patterns provide solutions

or best practices for commonly occurring problems

(Fehling et al., 2014). With a pattern-based approach,

developers can be guided in preparing their

applications for a multi-cloud environment and

knowledge can be acquired with regards to the most

optimal deployment topology.

This section introduces a selection of design

patterns that address the NFRs and the original

architecture, Furthermore, insight is given with

regards to their relevance for the SockShop App.

DECIDE Fundamental Patterns

The SockShop App fulfils evidently a number of

patterns that are fundamental for the use of the

DECIDE Framework. These are:

 Distributed Application - The SockShop App

consists of microservices. This allows the

application to be deployed in a distributed manner

and thus make use of a multi-cloud strategy.

 Loose Coupling - The microservices

communicate via REST over HTTP.

 Three-Tier Cloud Application - Front-end,

Business Logic (Order, Shipping, Payment),

Persistence (Order, User, Catalogue, Cart)

 Containerization (Farid et al., 2017) – The Sock-

SE-CLOUD 2018 - Special Session on Software Engineering for Service and Cloud Computing

820

Shop App is developed as container-based

architecture.

With these patterns the ground work for the NFRs:

Scalability, Performance, Cost and Availability

can start to be addressed.

Other fundamental patterns that still need to be

applied are:

 Managed Configuration – Deployment and

configuration scripts have to be stored in a central

area external to the built binaries.

 Service Registry - The SockShop App uses DNS

to discover services. As DNS propagation is slow,

using DNS tables is probably problematic in a

multi-cloud scenario, because of re-deployment

and access issues. Furthermore, given the fact,

that many instances will be spawned or scaled out

and there is probably a number of

communications taking place between the

different microservices, this needs to be handled

by a service. Therefore, the authors propose the

service registry pattern, with which a type of

database or table dynamically holds the current

location of the services, their instances and

locations. Registration and de-registration of the

service instances takes place during start-up and

shutdown, respectively.

DECIDE Optimization Patterns

 Elastic Load Balancer – As workloads are

unpredictable at certain times (during the day) it

is vital to scale out automatically depending on the

current experienced workload. The components

resulting in being scaled out by an elastic load

balancer are Front-End, Order, Payment, User,

Catalogue and Cart.

 Elastic Queue – since the SockShop App uses

message queues in its architecture and scalability

is an important NFR, an Elastic Queue should be

employed to manage the number of instances

(Shipping and QueueMaster) depending on the

number requests to be queued.

DECIDE Development Patterns

The SockShop App fulfils a number of development

patterns that are part of the DECIDE multi-cloud

pattern catalogue. These are:

 Data Access Component – The microservices,

which access a data base are themselves

implemented in a way that isolates complexity of

data, enable additional data consistency, and

ensure adjustability of handled data elements to

meet different customer requirements.

 User Interface Component – The front-end

microservice is decoupled from the rest of the

application (i.e. microservices) and loosely

coupled. The front-end is therefore, exchangeable

and customisable. Furthermore, it can be scaled

out independently if need be.

 Processing Component – The SockShop App’s

microservices can be scaled out independently, as

separation of concerns has been considered here

at the design time of the application.

DECIDE Deployment Patterns

 Hybrid * - The patterns involving hybrid cloud,

such as hybrid user interface, hybrid processing,

hybrid data, hybrid backup, hybrid backend, and

hybrid application functions (Fehling et al., 2014)

all involve using multiple hosting environments

that best suit the requirements and needs of the

application. This is relevant in a multi-cloud

strategy and can drastically reduce cost if, for

instance, certain microservices do not require

elasticity they can be hosted on a private cloud

that does not feature these capabilities. Also

sharing IT-resources between different tenants

can drastically reduce costs.

4.4 Resulting Architecture

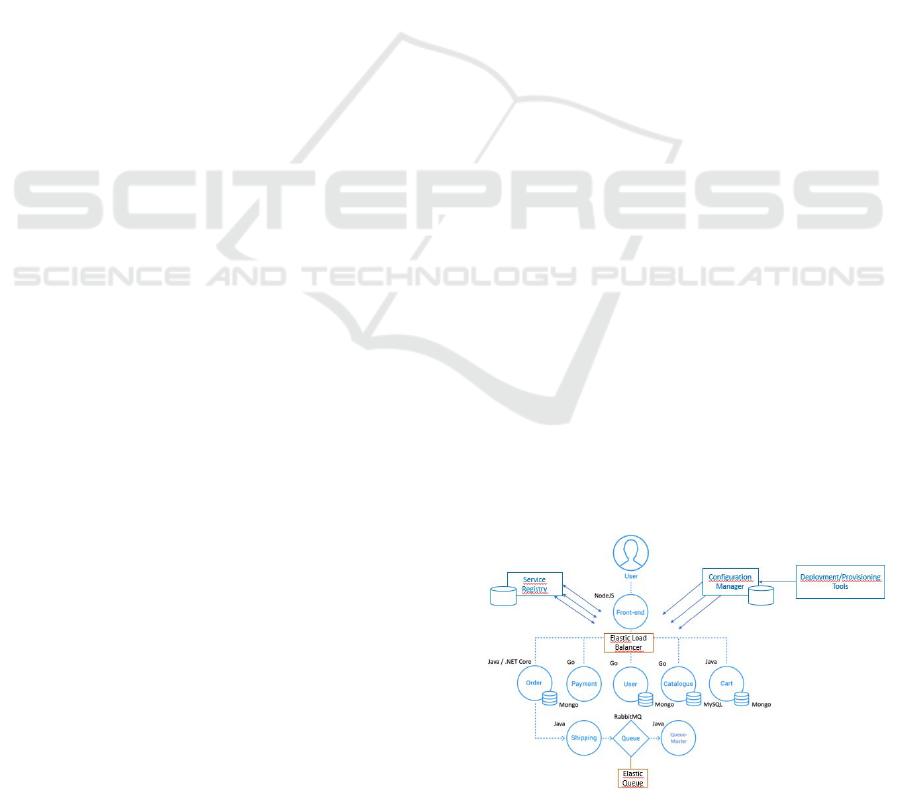

Figure 6 depicts the architecture for the SockShop

App after the recommended patterns have been

applied. As one can see, an independent

Configuration Manager component has been

introduced to allow for dynamic configuration of the

microservices as well as allow other automated

deployment and provisioning tools to access the

configuration information needed for their tasks.

Furthermore, a Service Registry has been

introduced in order to facilitate the discovery of the

location of the microservices that have been newly

instantiated by the Elastic Load Balancer. And lastly

an Elastic Queue manages the number of needed

Queue Masters depending on the number of the

messages received by the Rabbit MQ.

Figure 6: Resulting Architecture of SockShop Application.

Towards Supporting the Extended DevOps Approach through Multi-cloud Architectural Patterns for Design and Pre-deployment - A Tool

Supported Approach

821

4.5 OPTIMUS. Classification

Once the developer knows which are the different

microservices of the application, he can introduce

information related to them through the Classification

User Interface.

The collected data include the nature of the

microservice (developed by the user or not), if it is

Stateless, if it needs a IP to expose it publicly to

access to it, the dependencies among the rest of the

microservices (order), if it uses a detachable resource

and its characteristics, and the Non- Functional

requirements.

Finally, when the information about all

microservices is completed, based on the groups of

Cloud Services managed by the tool, the result of the

classification for the SockShop Application would be

as presented in the next section.

4.6 OPTIMUS. Simulation

The simulation process, based on the previous

classification made, includes as a first step, the

association among each microservice and the group

of Cloud Services that can be suitable for their

deployments, as is depicted in the table 2.

Table 2: Cloud Services classification for the SockShop

Application.

Microservice Type of Cloud Service needed

Front-end VM or Container (with Public IP)

Order VM or Container + DB

Payment VM or Container.

User VM or Container + DB

Catalogue VM or Container + DB

Cart VM or Container + DB

Shipping VM or Container.

QueueMaster VM or Container + QueueSystem

The NFRs are very important aspects in order to

be able to select the best deployment within the

DECIDE framework. Considering these NFRs,

assigned by the developer, and the group of Cloud

Services selected in the Classification phase,

OPTIMUS creates a specific request to invoke to the

ACSmI Discovery Service.

Considering location as one of NFRs selected and

the value set to Ireland, OPTIMUS could build the

structure of the request to perform, for the two first

microservices.

The service exposed by ACSmI Discovery will be

invoked including the prior mentioned request, and as

a result, OPTIMUS would receive a list of Cloud

Services that fulfil the requirements.

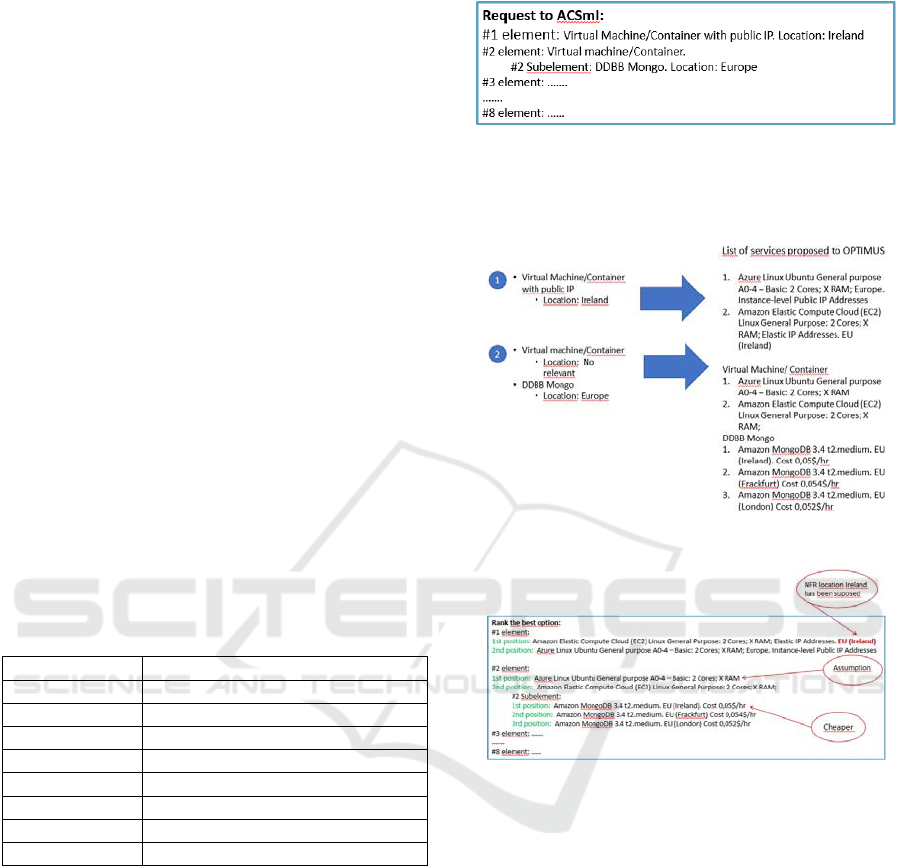

Figure 7: Request to invoke to ACSmI Discovery.

Figure 8 shows the ACSmI Discovery response

for the request made.

Figure 8: ACSmI Discovery Cloud Services options.

Figure 9: Ranked options for the deployment.

OPTIMUS Simulation process is a complex

algorithm allowing the developer to obtain the best

deployment schema, based on a set of characteristics

that are important for the proper functioning of the

multi-cloud application. Taking into account all those

inputs and the knowledge about the Cloud Services

and how the different combinations of them can

impact to the general performance, OPTIMUS

Simulation establishes a rank of the Cloud Services in

order to assign the first of them to the best

Deployment Schema. Considering the Location

values and the cost for some of the options, the result

of the simulation will be the one shown in the Figure

The developer will accept the Deployment offered

and confirm it as the Best Deployment Schema, using

the OPTIMUS User Interface.

SE-CLOUD 2018 - Special Session on Software Engineering for Service and Cloud Computing

822

This deployment schema would be transformed

into the concrete deployment script and will be usde

to support the Ops (Operation) phase of the multi-

cloud application.

5 CONCLUSIONS AND FUTURE

WORK

This paper has presented a tool-based approach for

the adaptation of the DevOps philosophy to the

specific case and needs of applications distributed

over different cloud resources (multi-cloud

applications).

The solution described intends to solve some of

the challenges of multi-cloud applications design.

These challenges include:

 Applications need to be responsive to

hybrid/multi-cloud model scenario.

 Means shall be provided to manage and assess

cloud deployment alternatives to better support

cloud resources selection and discovery.

 Existing cloud services shall be made available

dynamically, broadly and cross border.

The novel concept and first versions of the tools

created for the implementation of the extended “Dev”

concept has been validated in a sandbox scenario with

the SockShop application. Future work will include

the complete development (including all the

functionalities) of the presented tools (ARCHITECT,

OPTIMUS and ACSmI), their integration into a

holistic DevOps toolchain and their validations on

real business scenarios.

ACKNOWLEDGEMENTS

The project leading to this paper has received funding

from the European Union’s Horizon 2020 research

and innovation programme under grant agreement No

731533.

REFERENCES

ARTIST Consortium, 2014. D9.4 Collection of

optimization patterns, s.l.: s.n.

Bourgon, P., 2017. Go Kit. [Online] Available at:

https://gokit.io/ [Accessed 10 March 2018].

Chen, L., 2015. Towards Architecting for Continuous

Delivery. In 12th Working IEEE/IFIP Conference on

Software Architecture (WICSA).

DECIDE Consortium, 2017. DECIDE Grant Agreement,

s.l.: s.n.

Di Nitto, E., Matthews, P., Petcu, D. & Solberg, A., 2017.

Model-Driven Development and Operation of Multi-

Cloud Applications. 1 ed. s.l.:Springer International

Publishing.

Docker, n.d. Docker. [Online] Available at:

https://www.docker.com/ [Accessed November 2017].

Eclipse Cloud Development, 2018. Eclipse Cloud

Development. [Online] Available at:

http://www.eclipse.org/ecd/ [Accessed March 2018].

Edwards, D., 2015. DevOps paradox: Going Faster Brings

Higher Quality, Lower Costs, & Better Outcomes, s.l.:

s.n.

Escalante, M. et al., 2017. D5.1 ACSmI requirements and

technical design, s.l.: s.n.

Escalante, M. et al., 2017. D5.2 Initial Advanced Cloud

Service meta-Intermediator (ACSmI), s.l.: s.n.

Farid, L. et al., 2017. Initial architectural patterns for

implementation, deployment and optimisation, s.l.: s.n.

Fehling, C. et al., 2014. Cloud Computing Patterns:

Fundamentals to Design, Build, and Manage Cloud

Applications. s.l.:Springer.

Gamma, E., Helm, R., Johnson, R. & Vlissides, J., 1995.

Design Patterns: Elements of Reusable Object-

Oriented Software.. s.l.:Addison-Wesley.

Gavilanes, J. et al., 2017. D2.1-Detailed Requirements

Specification, s.l.: s.n.

IBM BlueMix, 2016. IBM BlueMix DevOps services.

[Online] Available at: hub.jazz.net [Accessed 2018].

JHipster, 2015. JHipster. [Online] Available at:

http://www.jhipster.tech/ [Accessed November 2017].

Kopanelli, A. et al., 2015. A Model Driven Approach for

Supporting the Cloud Target Selection Process. s.l.,

Elsevier.

Mojtaba, S., 2015. Architecting for DevOps and

Continuous Deployment. In proceedings of the ASWEC

2015 24th Australasian Software Engineering

Conference (ASWRC '15 Vol. II).

Node.js Foundation, n.d. Node.js. [Online] Available at:

nodejs.org [Accessed 2018 march 2018].

Riungu-Kalliosaari, L. et al., 2016. DevOps Adoption

Benefits and Challenges in Practice: A Case Study. s.l.,

International Conference on Product-Focused Software

Process Improvement.

Spring, n.d. Spring Boot. [Online] Available at:

https://projects.spring.io/spring-boot/ [Accessed

November 2017].

Steinborn, T., 2018.

The future of DevOps is mastery of

multi-cloud environments, s.l.: Open Source.

UpGuard, 2016. The four prerequisites for DevOps success,

s.l.: s.n.

Weaveworks, 2016. SockShop App. [Online] Available at:

https://microservices-demo.github.io/

Towards Supporting the Extended DevOps Approach through Multi-cloud Architectural Patterns for Design and Pre-deployment - A Tool

Supported Approach

823
