Analysis of Data Structures Involved in RPQ Evaluation

Frank Tetzel

, Hannes Voigt

, Marcus Paradies

, Romans Kasperovics

and Wolfgang Lehner

Dresden Database Systems Group, Technische Universit

at Dresden, Germany

DLR, Jena, Germany

SAP SE, Walldorf, Germany

Keywords:

Graph Data Management, Regular Path Queries, Experimental Analysis.

Abstract:

A fundamental ingredient of declarative graph query languages are regular path queries (RPQs). They provide

an expressive yet compact way to match long and complex paths in a data graph by utilizing regular expres-

sions. In this paper, we systematically explore and analyze the design space for the data structures involved

in automaton-based RPQ evaluation. We consider three fundamental data structures used during RPQ pro-

cessing: adjacency lists for quick neighborhood exploration, visited data structure for cycle detection, and the

representation of intermediate results. We conduct an extensive experimental evaluation on realistic graph data

sets and systematically investigate various alternative data structure representations and implementation vari-

ants. We show that carefully crafted data structures which exploit the access pattern of RPQs lead to reduced

peak memory consumption and evaluation time.

1 INTRODUCTION

In recent years, the graph data model had a renais-

sance in the database community, positioning itself as

an alternative to the traditional relational data model.

The interest is mainly driven by novel, emerging use

cases like the analysis of social networks. In such use

cases the relationships between the entities and the-

refore the topology of the graph are as important as

other data attached to the entities.

Major database vendors adopted graph data ma-

nagement and integrated it into their database sys-

tems, e.g., Oracle PGX (Raman et al., 2014) and SAP

HANA Graph (Rudolf et al., 2013). Graph database

systems excel in handling multi-hop relationships be-

tween entities, e.g., multi-hop stakeholder relations-

hips between offshore proﬁts and potential tax eva-

ders. One expressive way to match multi-hop re-

lationships are regular path queries (RPQs) (Wood,

2012). Many declarative graph query languages

have support for RPQs, e.g., SPARQL (W3C, 2013),

PGQL (van Rest et al., 2016), and G-Core (Angles

et al., 2018).

RPQs are a compact way to match long paths in a

data graph which conform to a given regular expres-

sion. The regular expression is deﬁned over the set

of edge labels in the data graph. Additionally, every

label can be reversed which checks for incoming ed-

ges with the label instead of outgoing edges, e.g., ex-

pression ˆlikes checks for incoming edges with la-

bel likes. This type of queries is also called two-way

regular path queries (2RPQs). The concatenation of

all edge labels on a path from the start vertex to the

end vertex has to be in the language of the given regu-

lar expression, otherwise it is not a part of the result

set. The result set is a distinct set of tuples consisting

of the start vertex and the end vertex of each matched

path.

One state-of-the-art way to evaluate RPQs is to

transform the regular expression to an equivalent au-

tomaton and use it to guide the search for matching

paths in the data graph. An automaton consists of

one initial state s and one or multiple ﬁnal states

f . The states are connected by directed transitions

which have edge labels attached as predicates. Fi-

gure 1b shows an automaton for the regular expres-

sion (likes/hasCreator)+.

The search traverses synchronously the automaton

and the data graph, starting at the initial state and all

vertices if no additional index is available which li-

mits the set of start vertices. The transitions in the

automaton restrict which edges in the data graph can

be followed. The edge labels have to be equivalent.

When the traversal reaches one of the ﬁnal states in

the automaton, a result tuple is produced, consisting

of the vertex from which the search in the data graph

334

Tetzel, F., Voigt, H., Paradies, M., Kasperovics, R. and Lehner, W.

Analysis of Data Structures Involved in RPQ Evaluation.

DOI: 10.5220/0006860303340343

In Proceedings of the 7th International Conference on Data Science, Technology and Applications (DATA 2018), pages 334-343

ISBN: 978-989-758-318-6

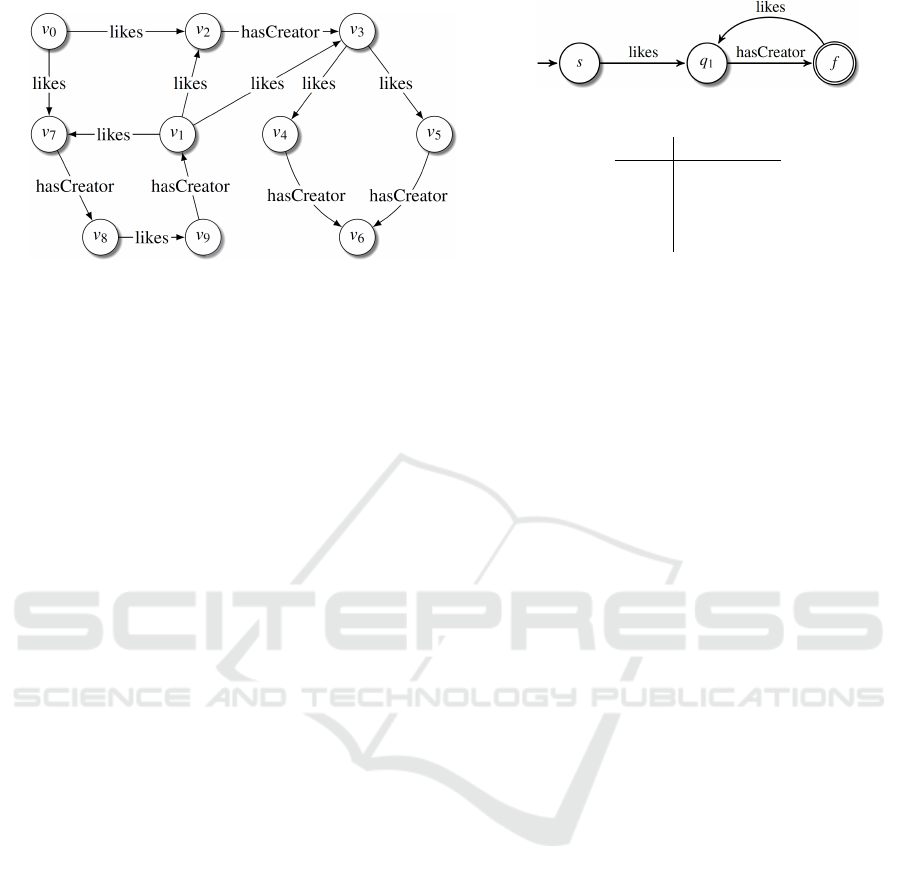

(a) Data graph.

(b) Automaton for (likes/hasCreator)+.

start end

on the start vertex.

Figure 1: Example for RPQ evaluation.

started and the current vertex when the ﬁnal state was

reached. Figure 1 shows a small example. The re-

sulting pairs are shown grouped on the start vertex.

Many graph database systems operate purely or

mainly in main memory. One major challenge of RPQ

evaluation in this context is the very high peak me-

mory consumption in many queries, which can easily

lead to slow-downs or out-of-memory situations. Es-

pecially RPQs with unbounded recursions, e.g., with

a Kleene-star, produce large intermediate results, and

also large result sets. To investigate how this memory

consumption can be reduced we study the data struc-

tures involved in the RPQ evaluation, and search for

mitigations and alternatives.

Our contributions in this paper are three-fold:

1. We revisit automaton-based RPQ evaluation, ex-

amine involved data structures, and discuss their

usage in the algorithm. Section 2 outlines the al-

gorithm with the relevant data structures.

2. We provide a detailed discussion of implementa-

tion variants for each involved data structure ai-

ming to lower the memory footprint and improve

the evaluation time. This is described in Section 3.

3. We experimentally evaluate the discussed variants

of the data structures on data graphs of various

sizes and different query sets. Section 4 discusses

the experiments and our ﬁndings.

Section 5 examines related work and Section 6 con-

cludes the paper.

2 AUTOMATON-BASED RPQ

EVALUATION

Using an automaton representation of the regular

expression is a state-of-the-art method to evaluate

RPQs. The automaton is used to guide the search for

matching paths in the data graph, similar to a pattern

graph in graph pattern matching. Most often a de-

terministic ﬁnite automaton (DFA) is employed as it

has only a single initial state which acts as a natural

starting point for the search. Attached to every state

transition in the DFA is an edge label predicate. It

represents a traversal step in the data graph along an

equivalent edge label. ε-transitions, which have the

empty word as predicate on the transition, are not al-

lowed.

The search has to keep track where it initially star-

ted from as the start vertex is part of the result pairs.

The matched paths are not returned, so it is sufﬁcient

to just track the start vertex. Information to recon-

struct the path is not required. Additionally, the se-

arch has to know the current state in the automaton

and the current vertex in the data graph. Hence, the

search state is a triple (v

,s,v

) consisting of the start

vertex v

, the state s, and the current vertex v

Let S be the set of all valid start vertices in the

graph. For each v

∈ S we have one initial search state

,s,v

), e.g., in Fig. 1 one initial state is (v

,s,v

). S

is either given by the user, a nesting query, or includes

all vertices of the graph. All initial search states form

the ﬁrst intermediate results (IR).

The search proceeds in traversal steps. Each step

transforms search states from IR into new search sta-

tes or drops them. The edges of the current vertex

are examined if they match an edge label predicate

of an outgoing transition of the current state. As is

standard in most graph processing engines, an adja-

cency list (ADJ) is used to provide quick access to all

incoming and outgoing edges of each vertex. Each

match produces a new search state consisting of the

start vertex which is just copied over, the state where

the matching transition leads to, and the vertex where

the matching edge leads to. The new search states are

then checked against a visited data structure (VIS) to

make sure it is a search state which was not seen be-

Analysis of Data Structures Involved in RPQ Evaluation

335

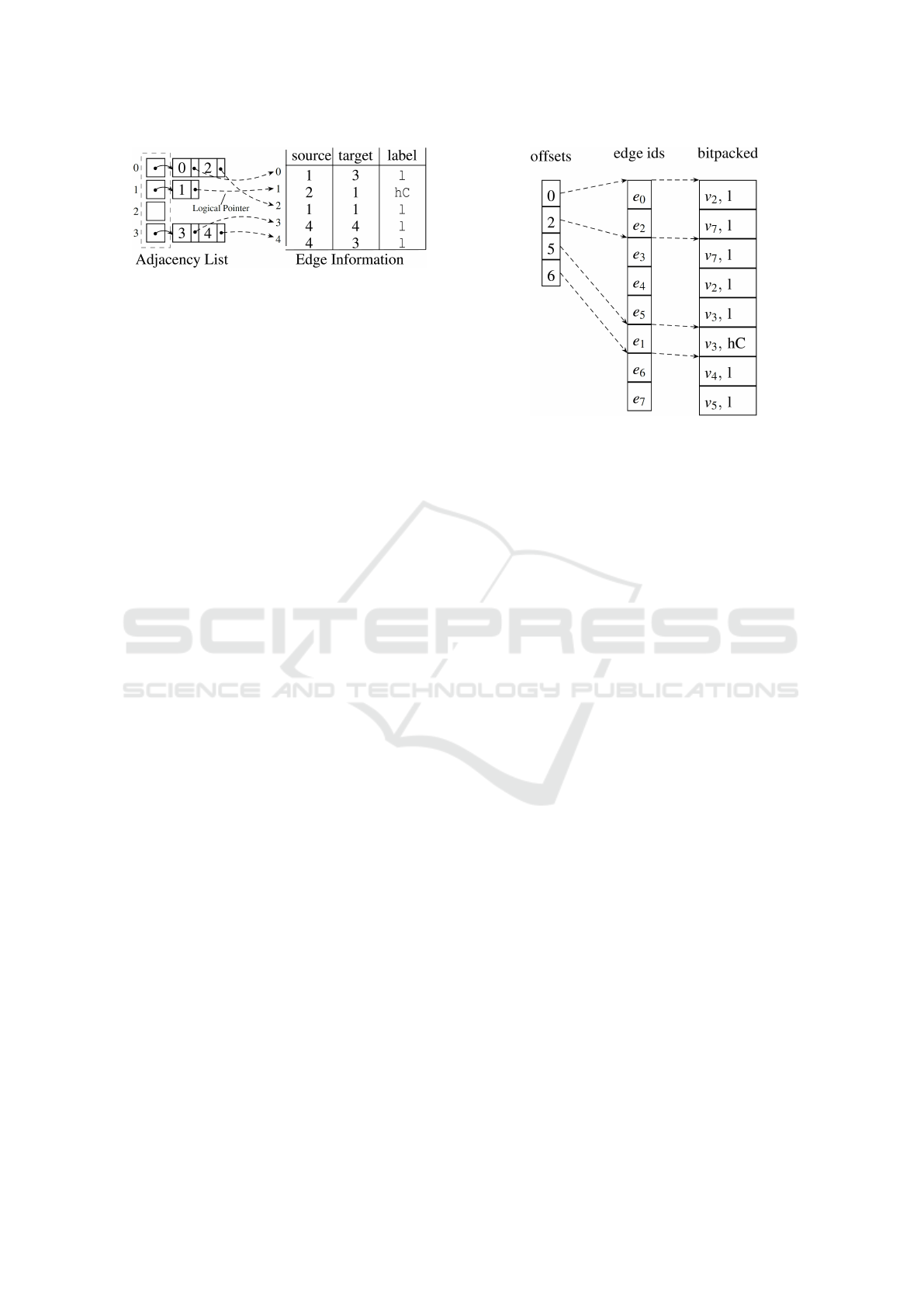

Figure 2: Mutable adjacency list consisting of a two-

dimensional dynamic array with edge identiﬁers which re-

fer to edge information like source, target and label of the

referenced edge.

fore. If it is new, it is added to IR for the next step

and also to VIS, otherwise it is dropped. In Fig. 1, the

search state (v

,s,v

) would produce two new search

states (v

) and (v

) as there are two mat-

ching edges leading to v

and v

which match the only

outgoing transition of the initial state s to the state q

When the search reaches a ﬁnal state, a new tuple

for the result set (RS) consisting of the start vertex

and the current vertex is produced, additionally to the

new search state. The search ends when there are no

search states available anymore to explore. In other

words, IR is empty.

The search can be conducted with two diffe-

rent traversal strategies: depth-ﬁrst search (DFS) and

breadth-ﬁrst search (BFS). The major difference is

that DFS does not materialize IR and always produ-

ces just one search state, and follows it. It employs

backtracking to reach old search states and produces

the next search states from them. Therefore, DFS is

better suited for memory constraint situations.

3 DATA STRUCTURES

In the following sections, we investigate in detail vari-

ous implementation variants of the data structures for

adjacency list (ADJ), visited (VIS), and intermediate

results (IR).

3.1 Adjacency List

The graph topology is commonly stored in an adja-

cency list to support fast access to adjacent edges and

vertices. All edges have a unique identiﬁer and pro-

vide the information about the edge label, source ver-

tex and target vertex. Vertices have unique identiﬁers

as well. As edge label predicates can be reversed in

RPQs, the graph traversal has to follow not only out-

going but also incoming edges, from target vertex to

source vertex. Hence, it is common practice to use

two adjacency lists: one containing all outgoing ed-

ges per vertex and one for all incoming edges per ver-

Figure 3: CSR with edge identiﬁers and CSR with bitpac-

ked values consisting of vertex identiﬁer and label identiﬁer,

both can share the offset array.

tex. In the following, we only discuss each variant for

outgoing edges.

Vectors. A common representation is a two-

dimensional dynamic array which contains edge iden-

tiﬁers, as illustrated in Fig. 2.

The ﬁrst dimension is a dynamic array containing

one entry per vertex. Each entry is yet another dyn-

amic array containing all outgoing edges originating

from the corresponding vertex. Edges are represented

with edge identiﬁers, which can be used to lookup the

edge information.

The use of dynamic arrays allows the insertion and

removal of edges and vertices. The entries in the dyn-

amic array are stored consecutively in memory which

results in good cache locality and, therefore, good

read performance. The name adjacency list might im-

ply the use of linked lists, but the worse read perfor-

mance of linked lists, because of pointer chasing, ma-

kes them a less appealing choice.

CSR. Another widespread representation is the CSR

(compressed sparse row) format. It trades off mutabi-

lity for a more compact and cache friendly represen-

tation. The arrays in the second dimension are col-

lapsed into one single array which then contains one

entry for each edge in the data graph, sorted in such

a way that all outgoing edges of the ﬁrst vertex are

grouped together at the beginning of the array. There-

after all outgoing edges of the second vertex are sto-

red, then for the third vertex, and so on.

The entries in the ﬁrst array are offsets into the

second array, marking the beginning of the outgoing

edges for the corresponding vertex. The end is mar-

ked with the beginning for the next vertex. The left

side of Fig. 3 gives an illustration of CSR.

An insertion into a CSR structure is time-

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

336

consuming since it has to shift following existing en-

tries to make space before adding the new entry. The

order of the entries has to be kept. Therefore, CSR is

usually employed when the data graph remains static.

Bitpacked. A CSR format optimized for RPQ evalu-

ation uses bitpacked values instead of edge identiﬁers.

A bitpacked value combines label and target vertex of

the edge into a single value. It removes the additio-

nal indirection to lookup edge label and target vertex

with the edge identiﬁer. The lookup is in general an

expensive random access with a cache miss which is

avoided by having all the information already in the

adjacency list.

Dictionary-encoded edge labels only require a few

bits to be stored. Bitpacking reserves a ﬁxed number

of low bits for the edge label and encodes the target

vertex identiﬁer in the remaining high bits. For most

data graphs it is possible to use 32-bit value types,

e.g., LDBC scale factor 10 has 29 146 487 vertices and

15 different edge labels, which require 25 bits and 4

bits, respectively.

The array with bitpacked values can replace or

complement the array with edge identiﬁers in a CSR

structure as shown in Fig. 3. The complementing va-

riant still allows access to further edge data, such as

edge properties, if required, e.g., graph pattern mat-

ching with predicates on edge properties.

Vertical Partitioning. Another well-known variant

of the CSR format is vertical partitioning. Most re-

gular expressions in RPQs use only a small number

of different edge label predicates. Additionally, if one

looks at a single traversal step which corresponds to a

single state transition in the automaton, the number of

edge labels which have to be checked in the adjacency

of a vertex shrinks even more.

This can be exploited by vertically partitioning the

adjacency list by edge label. Each partition contains

only edges of a single label and is represented by a

CSR with target vertex identiﬁers in the second ar-

ray. Hence, scanning of non-matching edges can be

avoided and all matching target vertices can be easily

extracted.

3.2 Visited

Next to the adjacency list one key data structure for

good performance in RPQ evaluation is VIS, which

keeps track of already discovered search states and

avoids redundant exploration of the same graph regi-

ons. If the data graph and automaton are cyclic, it is

also necessary to guarantee program termination.

The search state consists of the start vertex, the

state in the automaton and the current vertex in the

data graph. We assume for all following variants that

the search state is grouped on the state. Hence, for

each state in the automaton one separate data struc-

ture for VIS is used, storing a tuple consisting of start

vertex and reached vertex.

It is sufﬁcient to only keep track of discovered ver-

tices as we do not store full path information during

the RPQ processing. It is not relevant for the result

over which edge a certain vertex has been reached as

it is essentially only reachability information constrai-

ned by the regular expression.

In the following paragraphs, we introduce four

data structures, which we employed as VIS.

hashset. One obvious choice for VIS is a hashset,

e.g., C++’s std::unordered set. It stores tuples of

vertex identiﬁers for start vertex and visited vertex.

Since vertex identiﬁers are 32-bit values, we essenti-

ally store one 64-bit value per entry.

hashmapset. A variation of a single hashset is a

hashmapset which maps each start vertex to its own

hashset of reached vertices. Splitting the hashset into

multiple smaller hashsets reduces the overhead of re-

hashing. It is hard to estimate the size of VIS in ad-

vance, which results in a lot of resizing and, therefore,

rehashing of the hashset. Since rehashing is less ex-

pensive for smaller hashsets, it is beneﬁcial to split

the single hashset.

roaring. Another obvious choice next to hashsets

are bitsets, in case of roaring, a compressed bitset.

The number of possible values for a tuple of start and

reached vertex is too large for a ﬁxed-size bitset. It

requires |V |

bits with V being the set of vertices in

the data graph, additionally multiplied by the number

of states in the automaton. For a graph with 3141 713

vertices like LDBC scale factor 1, the required me-

mory has to encompass several terabytes which is un-

reasonable. Hence, we investigated into compressed

bitsets, and settled for the recently proposed Roaring

Bitmap (Chambi et al., 2016; Lemire et al., 2016).

A Roaring Bitmap prunes unset regions in the bitset

very efﬁciently and still provides fast random access

which is required for the frequent lookups in VIS.

bitset. One simple trick to still make use of a ﬁxed-

size bitset is to treat start vertices separately and unset

the bitset when the traversal for one start vertex is

done and the traversal for the next one starts. That

way, the size of the bitset is limited to the number of

vertices in the graph. One bit per vertex, multiplied by

the number of states in the automaton as we have vi-

sited per state, is an affordable memory size for most

graphs. Unsetting the bitset has to be very fast to not

become the bottleneck during execution. SIMD in-

structions are used to efﬁciently unset the whole bit-

set. For queries which only visit a small portion of the

graph, we only partially unset the bitset by keeping

Analysis of Data Structures Involved in RPQ Evaluation

337

track of changed words in the bitset.

3.3 Intermediate and End Results

The number of paths matched by an RPQ can be large,

especially for RPQs with unbounded recursions. Ma-

terializing and storing the end result set can already

be challenging. For some queries intermediate results

are even larger than the end result set. Intermediate

results are only materialized during a BFS graph tra-

versal, but not during a DFS traversal. Hence, a DFS

has much lower peak memory consumption for most

RPQs. We brieﬂy introduce two basic data structures

to store the end result set in the following paragraphs.

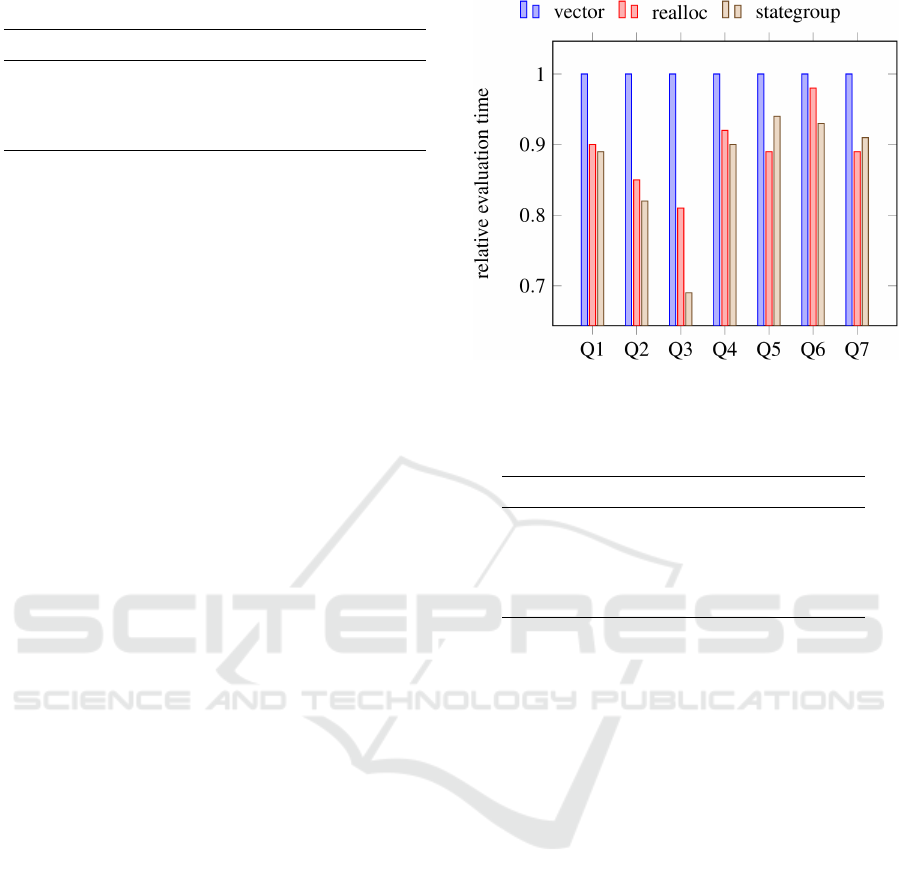

vector. The simplest data structure to store the end

result set in is a dynamic array, e.g., a C++ std::vector.

It simply stores all tuples in an array of consecutive

memory. One major drawback is the necessary resi-

zing as the result set size is not known in advance.

During resizing more than twice the amount of me-

mory is allocated for a short moment as the data is

copied to the newly allocated memory. Copying a

large amount of data is a costly operation. The use

of overprovisioned allocation, which allocates more

memory than strictly needed, reduces the number of

resizes considerably.

realloc. Another technique to grow a dynamic array

is reallocation. How reallocation works depends on

the used memory allocator. The default allocator in

Linux

uses various allocation schemes depending on

the size of the allocation, and this also changes how

reallocation works. We will only discuss the large

allocation scheme as this is used for the large result

sets. When the allocation size is very large (around

128 KiB

), the default allocator employs anonymous

memory mapping to allocate memory from the ope-

rating system. In case of a reallocation, the opera-

ting system enlarges the allocated memory without

copying. The operating system can relocate memory

in the virtual address space efﬁciently by manipula-

ting page table entries.

In addition to the two resizing strategies introdu-

ced above, we investigated various grouping strate-

gies for the intermediate results (IR). IR is conceptual

set of search states which are triples. Storing triples

runs easily out-of-memory for many RPQs. Hence,

we always group on the start vertex and therefore only

have to store a tuple consisting of state and current

vertex. The tuples are stored in a dynamic array which

either utilizes copying or reallocation as resizing stra-

tegy.

Other operating systems have similar mechanisms.

the threshold is dynamic, see manpage for mallopt()

and parameter M MMAP THRESHOLD for details

Table 1: LDBC social network with various scale factors.

SF1 SF3 SF10

vertices 3 141 713 8 967 247 29 146 487

edges 17 080 008 50 711 019 171 506 420

stategroup. The tuple can be grouped once more,

in this case on state. For each state, we now only

store a simple list of current vertices. We employed an

array with one entry for each state in the automaton.

The number of states is usually small in most RPQs.

The list of current vertices is realized with a dynamic

array utilizing reallocation for resizing. The memory

footprint is reduced considerably as many tuples share

the same state during the traversal of most RPQs.

vertexgroup. Grouping on vertex instead of state

is also possible but gives no beneﬁt for most RPQs.

There are not many vertices in the data graph reached

in the same traversal step in different states, such that

tuples share the same vertex and have different states.

Another problem is the diversity of the reached verti-

ces in one traversal step. An array with one entry per

vertex in the graph would waste a lot of memory. We

used a hash map instead to map the reached vertex to

a bitset which represents the different shared states.

4 EXPERIMENTAL EVALUATION

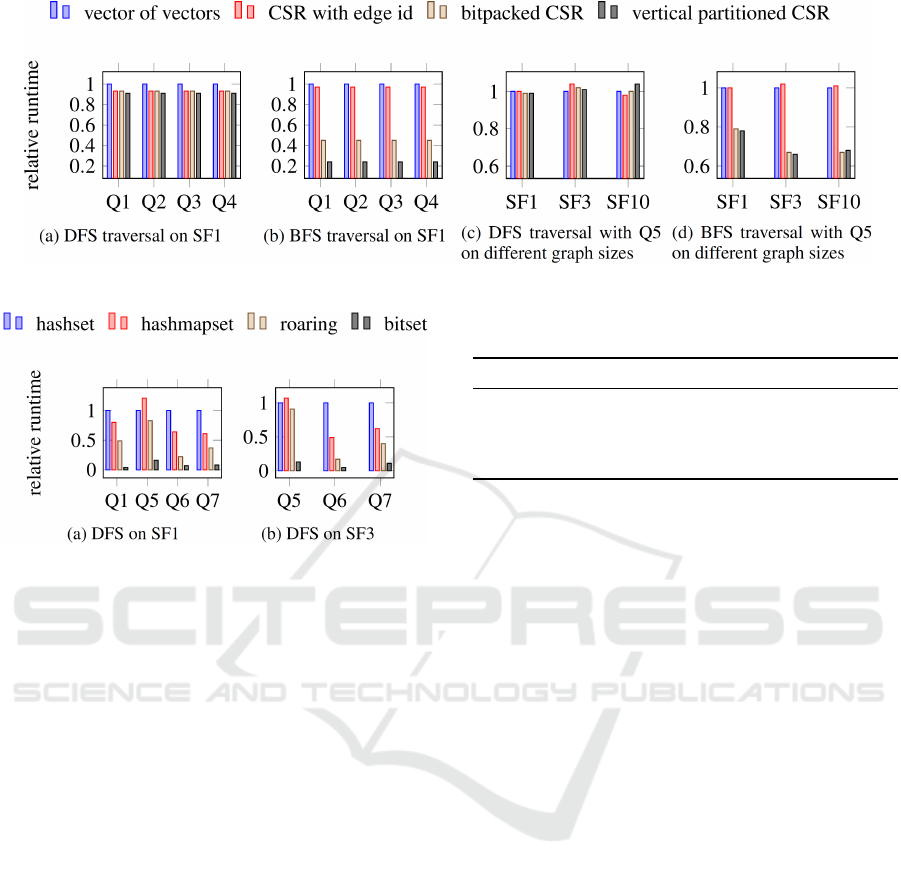

We experimentally study the impact of the various

data structures described in Section 3 on the LDBC

social network graph. We choose three different scale

factors with an increasing number of vertices and ed-

ges (cf. Table 1). By default, we use vertical parti-

tioning for ADJ, bitset for VIS, stategroup for IR and

realloc for RS. In each experiment we only vary one

data structure; all other data structures remain ﬁxed.

Our prototype provides a columnar, dictionary-

encoded storage for the graph data. Edges are sto-

red in an edge table consisting of source vertex, target

vertex, and edge label. Other edge or vertex proper-

ties are not imported as they are not relevant for the

RPQ evaluation. All columns are dictionary-encoded,

i.e., a dense domain of integer values are stored in the

columns. Source and target share a common dictio-

nary for all vertices.

All experiments were conducted on a Haswell

two-socket machine (Intel(R) Xeon(R) CPU E5-2660

v3) running at 2.6 GHz. The machine has 20 cores

(with SMT up to 40 hardware threads) and 128 GB

of RAM. The RPQ evaluation utilizing a depth-ﬁrst

traversal is trivially parallelized by running up to 40

traversals starting in different start vertices in paral-

http://ldbcouncil.org/

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

338

lel. The breadth-ﬁrst traversal is additionally inter-

nally parallelized.

We deﬁne our own set of queries as there is no

benchmark readily available which includes RPQs.

The LDBC benchmarks only consider rudimentary

RPQs: a path of variable length consisting only of

one edge label, e.g., knows+. The queries Q1 − Q4

are larger recursive queries, matching a long, re-

peated path. They exemplify the expressiveness of

RPQs. According to a recent study of SPARQL query

logs (Bonifati et al., 2017) most real world RPQs are

surprisingly simple. That is why we added three ad-

ditional queries, Q5, Q6 and Q7, which are less com-

plex and also have a much smaller result set. The

query set written in the syntax of SPARQL property

paths looks as follows:

Q1 : (likes/hasCreator)+

Q2 : (hasInterest/ˆhasTag/hasCreator)+

Q3 : (likes/isLocatedIn/ˆisLocatedIn/ˆworkAt)+

Q4 : (likes/isLocatedIn/ˆisPartOf/ˆisLocatedIn/ˆstudyAt)+

Q5 : knows+

Q6 : knows/(likes|ˆhasCreator)

Q7 : ˆisLocatedIn/(hasInterest|hasTag)

The ﬁrst experiments we conducted analyze the diffe-

rent data structures used for ADJ.

4.1 Adjacency List

Time Measurements. We ﬁrst run the more com-

plex recursive queries Q1 − Q4 on the smallest data

set with scale factor 1 (SF1). Figures 4a and 4b show

our results. All queries have very similar behavior.

The performance of the DFS is not really impacted

by changing the data structure for ADJ which is not

surprising as a DFS reads only one edge from ADJ

and moves forward with it. Avoiding the lookup into

the edge table only gives a very small speedup.

The BFS on the contrary, gets a lot of speedup

from avoiding the additional lookup as can be seen

by the big drop in evaluation time from CSR with

edge identiﬁers to CSR with bitpacked values. Ver-

tical partitioning gives yet another small boost as all

adjacent vertices with the correct label can be extrac-

ted directly from the data structure without any addi-

tional check.

Another set of experiments was conducted with

different scale factors of the graph (SF1, SF3 and

SF10). As the more complex recursive RPQs Q1 − 4

run out-of-memory for SF10, we opted for the less

complex query Q5 which has a much smaller result

Table 2: Memory consumption in MB of different data

structures for ADJ on the LDBC dataset of various scale fac-

tors.

SF1 SF3 SF10

vectors 143.7 418.1 1385.5

CSR 80.9 238.7 802.6

bitpacked 80.9 238.7 802.6

partitioned 256.8 740.9 2434.8

set with less pressure on the memory system. Figures

4c and 4d show our results.

We observe the same general behavior as in the

previous experiment. Changing the data structure for

ADJ has little to no impact on the runtime of the

DFS traversal. For BFS on the other hand, avoi-

ding the lookup in the edge table gives about a two

times speedup. Vertical partitioning gives again anot-

her boost in performance.

Memory Consumption. We imported the data sets

into the various data structures for ADJ and measu-

red the memory consumption of each data structure

separately. Table 2 summarizes our ﬁndings. As one

would expect, the compact format CSR has the smal-

lest memory footprint. The bitpacked values have the

same size as the edge identiﬁers. Therefore, the whole

data structure requires the same amount of memory.

The mutable adjacency list vectors with dynamic ar-

rays is bigger than CSR because the dynamic arrays

overprovision their internal memory usage. They al-

locate more memory than strictly required by their

content to avoid growing the data structure too often

when new data is inserted. Growing a dynamic array

is an expensive operation.

Vertical partitioning has the worst memory foot-

print. The edges are partitioned per edge label which

requires no additional memory, but the offsets array

which has as many entries as vertices in the graph is

copied per edge label. In most graphs the number of

edges is way bigger than the number of vertices. The

number of distinct edge labels is also small in most

data sets. Therefore, the increased memory consump-

tion is noticeable but bearable considering the beneﬁts

it yields in evaluation time.

4.2 Visited

To evaluate variants of VIS we ﬁxed all other data

structures to the fastest variant, e.g., employing the

vertical partitioned adjacency list, and only varied vi-

sited data structure. Since the BFS and DFS traversal

strategies resulted in very similar behavior, we only

report our ﬁndings with the DFS traversal.

Time Measurements. Fig. 5 shows the relative run-

time of each variant, relative to the hashset variant,

in various queries for scale factor 1 and 3. The me-

Analysis of Data Structures Involved in RPQ Evaluation

339

Figure 4: ﬁg:plot-adj-recursive

Figure 5: Relative evaluation time for variants of VIS.

mory consumption, especially for the hashset, was too

big to run the experiments on larger graphs. Complex

queries like Q1 ran out of memory already for scale

factor 3 with the hashset as visited data structure.

The hashmapset gives only a small speedup, and

it heavily depends on the query. It still suffers from

frequent resizing and, therefore, rehashing. As the

hashset also employs overprovisioning, it is not al-

ways better to split it into multiple parts. Q5 shows a

slowdown for hashmapset. Due to overprovisioning,

a large hashset grows faster than many small hashsets

which leads to less frequent rehashing.

Roaring is a promising bitset compression scheme

which works better than hashset and hashmapset. But

again, it heavily depends on the query and which ver-

tices are reached in the traversals. If the vertex iden-

tiﬁers are nicely clustered together, the compression

and pruning is very efﬁcient in roaring as it relies on

partitioning. A more compact storage leads also to

faster access times.

As obvious from the plots, the ﬁxed-size bitset

with special handling of unsetting is the fastest va-

riant by far, improving evaluation time by a factor of

5 to 14. The bitset ﬁts in both investigated graphs into

the last-level cache which makes the random acces-

ses less costly. The data structure is completely pre-

allocated, i.e., it never has to be resized, which allows

it to reside in the cache for the whole RPQ evalua-

Table 3: Comparison of memory consumption in MB for

VIS across various queries on SF1.

VIS Q1 Q5 Q6 Q7

hashset 34 978.3 3 774.8 9 079.3 135.8

hashmapset 44 570.4 2 562.3 11 063.7 128.3

roaring 2 486.5 80.6 745.1 7.5

bitset 1.2 0.8 1.2 1.2

tion. Additionally, the adaptive strategy for unsetting

exploits the different characteristics of the traversals,

only unsetting changed values when just a few verti-

ces got visited and utilizing vector instructions when

a lot of vertices got visited.

Memory Consumption. To explain the considera-

ble runtime difference we measured the memory con-

sumption of each data structure for various queries.

Table 3 shows the results of our experiment. The me-

mory consumption heavily depends on the query and

how many vertices the graph traversal visits. Query

Q1 produces a large result set and visits a big portion

of the graph. Therefore, all visited data structures re-

quire a lot of memory compared to the other queries,

except bitset. It has a ﬁxed size: as many bits as there

are vertices in the data graph, multiplied by the num-

ber of states in the automaton. It does not depend on

the query.

The bitset is also way smaller than all other data

structures as it is only used for one start vertex and

then unset for the next. All other visited data structu-

res have the problem of a huge input domain they have

to cover. Every vertex in the graph can potentially be

a start vertex, and every vertex could be reached from

each start vertex. Additionally, a separate visited data

structure is required per state in the automaton.

Most queries have a considerably smaller number

of reached vertices and therefore only a sparse num-

ber of entries to store in VIS. The use of a compact

data structure like roaring bitmaps has a lot of bene-

ﬁts. It stores sparse data efﬁciently in memory and the

previous experiment showed that it still provides fas-

ter access to the data than the hash-based containers.

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

340

Table 4: Varying return type on SF1 with different queries.

result size vector[ms] realloc[ms] speedup

Q1 79 438 658 10 881.0 5 780.0 1.88

Q5 96 353 856 7 222.7 925.2 7.81

Q6 373 252 434 25 717.8 1 460.9 17.6

Q7 761 791 89.1 71.0 1.25

In the end the best choice for the visited data struc-

ture is the bitset. It has by far the lowest memory

footprint and also provides the fastest evaluation time.

The only limitation is that it can only be used by one

start vertex at a time.

4.3 Intermediate and End Results

We ﬁrst run a simple experiment where we only vary

the return type. The goal is to see the impact reallo-

cation can have when materializing a large result set.

We used the DFS graph traversal so that no interme-

diate results are materialized.

Time Measurements. Table 4 summarizes our ﬁn-

dings for scale factor 1. The speedup achievable by

employing reallocation instead of copying greatly de-

pends on the result size which has to be materialized.

Copying gets more and more expensive with a larger

amount of entries. With reallocation, the operating

system kernel only has to relocate all memory pages

which make up the dynamic array in the worst case.

A very cheap operation compared to copying. Larger

scale factors did not provide any new insights which

is why we omitted them here.

Memory Consumption. Using a different resizing

strategy does not change the memory consumption as

both data structures employ overprovisioned allocati-

ons in the same way.

The second experiment we conducted focuses on

IR. We use the BFS graph traversal as DFS does not

materialize IR. For the result set we use reallocation

as it was consistently faster in the ﬁrst experiment.

Time Measurements. Utilizing reallocation for IR

gives consistently a small speedup as is shown in

Fig. 6. The difference is small as IR is not resized of-

ten. When the frontier of the BFS traversal gets larger,

IR also has to get larger, but the size is not decreased

for a small frontier. It stays at the large size.

Grouping the tuple additionally on state (state-

group) gives another speedup in most queries. Many

entries in IR share the same value for state and can

therefore beneﬁt from grouping as less data is stored.

The grouping operation increases the code complex-

ity of the data structure and adds runtime overhead to

the access method. Therefore, not all queries show

an improved runtime. It depends on how many en-

tries share the value the grouping operation works on.

Figure 6: Relative evaluation time for intermediate repre-

sentations.

Table 5: Memory consumption of variants for IR.

vector realloc stategroup

Q1 2 097 152 2 097 152 1 122 304

Q2 16 777 216 16 777 216 8 658 944

Q5 131 072 131 072 73 728

Q6 4 194 304 4 194 304 2 113 536

Q7 1 572 864 1 572 864 892 928

Grouping on vertex (vertexgroup) instead of grouping

on state, was consistently four times slower in each

query which is why we omitted it from the plot. Not

many entries in IR share the same vertex in different

states and rehashing of the employed hash map crea-

ted a performance bottleneck.

Memory Consumption. Table 5 shows the memory

consumption of the variants of IR. vertexgroup is

omitted as the employed hash map used too much

memory to be competitive to the non-grouping tu-

ples. vector and realloc both simply store tuples in

the same format, only the resizing strategy is diffe-

rent. Hence, both data structures have the exact same

memory consumption.

stategroup uses considerable less memory than

vector and realloc as a lot of entries in IR share the

same state. The grouping removes the redundant

storage of state and reduces the memory consump-

tion consistently by a factor of two. Therefore, it is

advisable to always group IR on state.

4.4 Discussion

The adjacency list is a key data structure which is fre-

quently accessed in the RPQ evaluation and a lot of

other graph algorithms. Specialization for the access

pattern during RPQ evaluation resulted in a conside-

Analysis of Data Structures Involved in RPQ Evaluation

341

rable speedup. RPQs consist only of edge label pre-

dicates, so it is advisable to integrate edge label in-

formation into the adjacency list. We exempliﬁed it

by using bitpacked values in the adjacency list, con-

sisting of the edge label and the vertex identiﬁer of

the adjacent vertex. We showed that this approach re-

duces the evaluation time considerably by having the

same memory footprint as an adjacency list with edge

identiﬁers. Vertical partitioning of the adjacency list

provides even more runtime improvements, but requi-

res also more memory.

For the visited data structure, we found that a

ﬁxed-size bitset with a specialized way for unsetting

all bits gives the best results. It provides the fastest

evaluation time and smallest memory footprint. The

only limitation is that it can only be used by a single

start vertex at the time.

Roaring bitmaps provide a nice alternative when

the traversal should start from multiple start vertices

at the same time. It stores sparse data considerably

more efﬁciently in a compact data structure compared

to hash-based containers like a hashset. Therefore, the

memory footprint is smaller and the evaluation time

does not suffer from the compact storage as it still

provides fast random access.

Reallocation is a preferable resizing technique for

intermediate results and for the result set. It is con-

sistently faster than copying and avoids sharp spikes

in the memory consumption. Grouping of intermedi-

ate results on the automaton state results in considera-

ble smaller memory consumption and a small speedup

compared to the handling of tuples.

5 RELATED WORK

The broad applicability of RPQs has spurred the de-

velopment of various extensions to the class of 2RPQ

queries (Calvanese et al., 2000; Deutsch and Tannen,

2002). PGQL (van Rest et al., 2016) supports arbi-

trary predicates on any attribute of an edge or vertex

along the path, not just edge label equivalence. G-

Core (Angles et al., 2018) goes one step further with

existential subqueries on sub-branches of the mat-

ching path.

Conjunctive regular path queries (CRPQs) com-

bine several RPQs to a more complex pattern mat-

ching query. Since the general data access patterns

to the underlying data structures are the same as for

2RPQs, we focus in our analysis on the less complex

2RPQs without conjunctions of multiple RPQs.

Extended conjunctive RPQ (ECRPQ) (Barcelo

et al., 2010) extends 2RPQs further by allowing

access to the matched paths as a result, instead of just

pairs of vertices. The added functionality comes at

the expense of making ECRPQs computationally in-

tractable, which is typically not desirable for practical

graph query languages. Therefore, we omit ECRPQs

and paths as a result type from our analysis.

Naturally, the performance of RPQs is sensitive

to the order in which parts of the RPQ are evaluated,

effectively providing an opportunity for query opti-

mization. An interesting approach are so-called rare

labels, i.e., edge labels appearing only seldom on ed-

ges in the data graph (Koschmieder and Leser, 2012).

Rare labels are used to split the regular expression

into subexpressions, which can be evaluated indepen-

dently using a bidirectional BFS traversal. Finally, all

partial solutions are combined into the ﬁnal result set.

Since rare labels are an optimization technique, they

are orthogonal to our study of data structures for RPQ

evaluation.

WAVEGUIDE (Yakovets et al., 2015) provides

another technique to speedup RPQ processing by in-

troducing waveplans, which allow changing the eva-

luation direction in each traversal step. WAVEGUIDE

supports the materialization of intermediate results

(subexpressions) through views, which can be reused

in the query, e.g., a transitive closure over a path seg-

ment. Both techniques employed by WAVEGUIDE—

match ordering and views—are orthogonal to the

choice of data structures used for RPQ evaluation.

EmptyHeaded (Aberger et al., 2016) introduced

an adaptive adjacency list handling density skew. The

degree of a vertex can vary by a large margin, espe-

cially in social graphs which usually contain super-

nodes. The layout of the list of adjacent vertices is

chosen according to the degree and picks either a sim-

ple array layout or a compact bitset layout.

6 CONCLUSION

We systematically investigated variants of the data

structures involved in the evaluation of RPQs. Care-

fully crafted data structures specialized for their use in

RPQ evaluation showed considerable runtime impro-

vements and decreased memory consumption compa-

red to general purpose data structures.

It is advisable to integrate the edge label infor-

mation into the adjacency list as the RPQ evalua-

tion accesses label information very frequently. In

the form of bitpacked values, it leads to considerable

runtime improvements and no increased memory con-

sumption. Vertical partitioning of the adjacency list

results in even better runtime performance, but requi-

res also additional memory. Another specialization is

grouping on common values in the intermediate re-

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

342

presentation, e.g., grouping on the state of the auto-

maton reduces the memory consumption by half and

results additionally in a small runtime improvement

as less data must be written and read. Reallocation

also avoids spikes in the memory consumption and

therefore reduces peak memory consumption consi-

derably.

In the future, we want to investigate how succinct

data structures affect RPQ evaluation. They are ex-

pected to trade off evaluation time for a very com-

pact representation, e.g., the K

-Tree (Brisaboa et al.,

2009), which is a compact adjacency representation.

Another direction we would like to study is the use of

bidirectional traversal instead of unidirectional DFS

and BFS, especially how to detect that both directions

meet each other and how it inﬂuences the choice of

intermediate representations. Furthermore, omitting

the check against VIS in some states of the automaton

is an interesting algorithmic variation. Depending on

the query and the data graph it can lead to reduced

memory consumption as less data has to be stored in

VIS, but also to multiple explorations of the same se-

arch states and therefore increased evaluation time.

REFERENCES

Aberger, C. R., Tu, S., Olukotun, K., and R

e, C. (2016).

EmptyHeaded: A Relational Engine for Graph Pro-

cessing. In Proceedings of the 2016 International

Conference on Management of Data, SIGMOD ’16,

pages 431–446, New York, NY, USA. ACM.

Angles, R., Arenas, M., Barcel

o, P., Boncz, P. A., Fletcher,

G. H. L., Gutierrez, C., Lindaaker, T., Paradies, M.,

Plantikow, S., Sequeda, J., van Rest, O., and Voigt,

H. (2018). G-CORE: A Core for Future Graph Query

Languages. In SIGMOD’18.

Barcelo, P., Hurtado, C., Libkin, L., and Wood, P. (2010).

Expressive Languages for Path Queries over Graph-

structured Data. In PODS ’10, pages 3–14.

Bonifati, A., Martens, W., and Timm, T. (2017). An Analy-

tical Study of Large SPARQL Query Logs. PVLDB,

11(2):149–161.

Brisaboa, N. R., Ladra, S., and Navarro, G. (2009). k2-

Trees for Compact Web Graph Representation. In

Karlgren, J., Tarhio, J., and Hyyr

o, H., editors, SPIRE,

volume 5721 of Lecture Notes in Computer Science.

Springer.

Calvanese, D., De Giacomo, G., Lenzerini, M., and Vardi,

M. Y. (2000). Containment of Conjunctive Regular

Path Queries with Inverse. In KR’00, pages 176–185.

Chambi, S., Lemire, D., Kaser, O., and Godin, R. (2016).

Better bitmap performance with Roaring bitmaps. pa-

ges 709–719.

Deutsch, A. and Tannen, V. (2002). Optimization Properties

for Classes of Conjunctive Regular Path Queries. In

Database Programming Languages, pages 21–39.

Koschmieder, A. and Leser, U. (2012). Regular Path Que-

ries on Large Graphs, pages 177–194.

Lemire, D., Ssi-Yan-Kai, G., and Kaser, O. (2016). Con-

sistently faster and smaller compressed bitmaps with

Roaring.

Raman, R., van Rest, O., Hong, S., Wu, Z., Chaﬁ, H., and

Banerjee, J. (2014). PGX.ISO: Parallel and Efﬁcient

In-Memory Engine for Subgraph Isomorphism. In

GRADES’14, pages 5:1–5:6.

Rudolf, M., Paradies, M., Bornh

ovd, C., and Lehner, W.

(2013). The graph story of the sap hana database. In

BTW, volume 214 of LNI, pages 403–420.

van Rest, O., Hong, S., Kim, J., Meng, X., and Chaﬁ, H.

(2016). PGQL: A Property Graph Query Language.

In GRADES’16, pages 7:1–7:6.

W3C (2013). SPARQL 1.1 Overview. http://www.w3.org/

TR/2013/REC-sparql11-overview-20130321/.

Wood, P. T. (2012). Query Languages for Graph Databases.

SIGMOD Rec., 41(1):50–60.

Yakovets, N., Godfrey, P., and Gryz, J. (2015). WAVEG-

UIDE: Evaluating SPARQL Property Path Queries. In

EDBT’15, pages 525–528.

Analysis of Data Structures Involved in RPQ Evaluation

343
