BRAID

A Hybrid Processing Architecture for Big Data

Corinna Giebler, Christoph Stach, Holger Schwarz and Bernhard Mitschang

Institute for Parallel and Distributed Systems, University of Stuttgart,

Universit

atsstraße 38, D-70569 Stuttgart, Germany

Keywords:

Big Data, IoT, Batch Processing, Stream Processing, Lambda Architecture, Kappa Architecture.

Abstract:

The Internet of Things is applied in many domains and collects vast amounts of data. This data provides

access to a lot of knowledge when analyzed comprehensively. However, advanced analysis techniques such

as predictive or prescriptive analytics require access to both, history data, i. e., long-term persisted data, and

real-time data as well as a joint view on both types of data. State-of-the-art hybrid processing architectures

for big data—namely, the Lambda and the Kappa Architecture—support the processing of history data and

real-time data. However, they lack of a tight coupling of the two processing modes. That is, the user has

to do a lot of work manually in order to enable a comprehensive analysis of the data. For instance, the user

has to combine the results of both processing modes or apply knowledge from one processing mode to the

other. Therefore, we introduce a novel hy

rid p

ocessing

rchitecture for b

ata, called BRAID. BRAID

intertwines the processing of history data and real-time data by adding communication channels between the

batch engine and the stream engine. This enables to carry out comprehensive analyses automatically at a

reasonable overhead.

1 INTRODUCTION

In the Internet of Things (IoT), everyday objects are

interconnected. Various sensors built into these objects

capture the current context. This knowledge can be

shared with any other connected Thing, i. e., a device

equipped with sensors and connectivity options. These

Things are used in various domains to optimize pro-

cesses. The examples presented in this work focus

on the Industry 4.0 as this domain is one of the key

proﬁteers from the IoT (Middleton et al., 2013). Yet,

the conclusions and results can be applied to any other

big data use case.

By collecting a great amount of data over time,

precise analyses provide insights into production pro-

cesses, e. g., about the efﬁciency of a machine at the

shop ﬂoor. At the same time, real-time analyses on

data streams can be used to trigger automatic reactions

in the case of an emergency, e. g., when a machine is

overheating. Thereby, the efﬁciency and quality of the

production process can be enhanced (Geissbauer et al.,

2014).

A combination of both kinds of analyses provides

even more insights, e. g., history production data can

be analyzed to ﬁnd patterns indicating an ideal pro-

duction setting where only little rejects are produced.

By analyzing real-time machine data, these patterns

can be used as decision models to predict the quality of

the workpieces, e. g., to stop the production process at

an early stage if too many rejects would be produced.

As a consequence, mining algorithms such as the

VFDT algorithm (Domingos and Hulten, 2000) operate

on both, history data as well as real-time data. Initi-

ally, such an algorithm learns patterns from existing

production data via batch processing. Then, it applies

and reﬁnes these patterns using real-time production

data via stream processing. Therefore, an underlying

processing architecture has to support both modes of

data processing. Current architectures strictly separate

these processing modes, whereby such comprehensive

analytics are hard to be realized. Yet, these analy-

tics hold inestimable business value (Columbus, 2016).

Therefore, we introduce a hybrid processing architec-

ture, in which the processing of history and real-time

data is tightly intertwined.

Thus, we make the following ﬁve contributions:

(

) We describe an Industry 4.0 application scenario

and identify required processing steps for big data

analytics. (

) We analyze existing data processing

architectures—namely, architectures for batch proces-

sing, stream processing, as well as the Lambda and

294

Giebler, C., Stach, C., Schwarz, H. and Mitschang, B.

BRAID - A Hybrid Processing Architecture for Big Data.

DOI: 10.5220/0006861802940301

In Proceedings of the 7th International Conference on Data Science, Technology and Applications (DATA 2018), pages 294-301

ISBN: 978-989-758-318-6

Kappa Architecture—and assess their suitability for

comprehensive analytic processes. (

) We introduce a

novel hy

rid p

ocessing

rchitecture for b

ata, cal-

led BRAID. Whereas state-of-the-art architectures have

strictly isolated processing branches for history and

real-time data, BRAID provides additional communi-

cation channels via which intermediate results from

batch processing can be used in stream processing

and vice versa. This enables comprehensive analytics.

(

) We evaluate our architecture and compare it with

the Lambda and Kappa Architecture. (

) We discuss

implementation alternatives for BRAID.

The structure of this paper is as follows: An In-

dustry 4.0 application scenario is given in Section 2.

Section 3 presents different data processing approa-

ches and assesses their usability. We introduce a novel

architecture called BRAID in Section 4. We assess

the applicability of BRAID to the introduced big data

use case in Section 5. We discuss implementation al-

ternatives in Section 6 before Section 7 concludes the

paper.

2 APPLICATION SCENARIO

Underutilization of data generated during process exe-

cution is one of the key problems in current manu-

facturing IT systems (Gr

oger et al., 2014). By using

advanced data analytic techniques, new knowledge

about manufacturing processes can be gained from

this data. For instance, current and future processes

can be optimized by modifying process control at run-

time. In the following, we characterize how a therefore

required comprehensive analysis can be realized (see

Figure 1).

The Master Dataset contains all data collected du-

ring a production process (1). This includes, e. g.,

throughput times or temperature changes in the work-

pieces. These highly heterogeneous data can be stored

and managed in a dedicated data system such as Co-

reDB (Beheshti et al., 2017).

The long-term process data persisted in the Master

Dataset is processed by a batch processing engine (2).

The processing logic is implemented and conﬁgured

by the administrator of the system. Descriptive ana-

lytics can be applied to the persisted data in order to

condense the huge amount of raw data. Most business

intelligence solutions support this kind of analytics.

For instance, it is possible to reconstruct which data

records led to a successful production result and the

data can be annotated accordingly. Subsequently, pre-

dictive analytics can be used to make predictions for

future production processes. For example, classiﬁca-

tion algorithms can operate on the pre-processed data

Data Flow ConfigurationData Access

Master

Dataset

Data

Mining

Model

Data

Stream

Result

Layer

1 2

3 4

Users

Admin

Batch Processing

Stream Processing

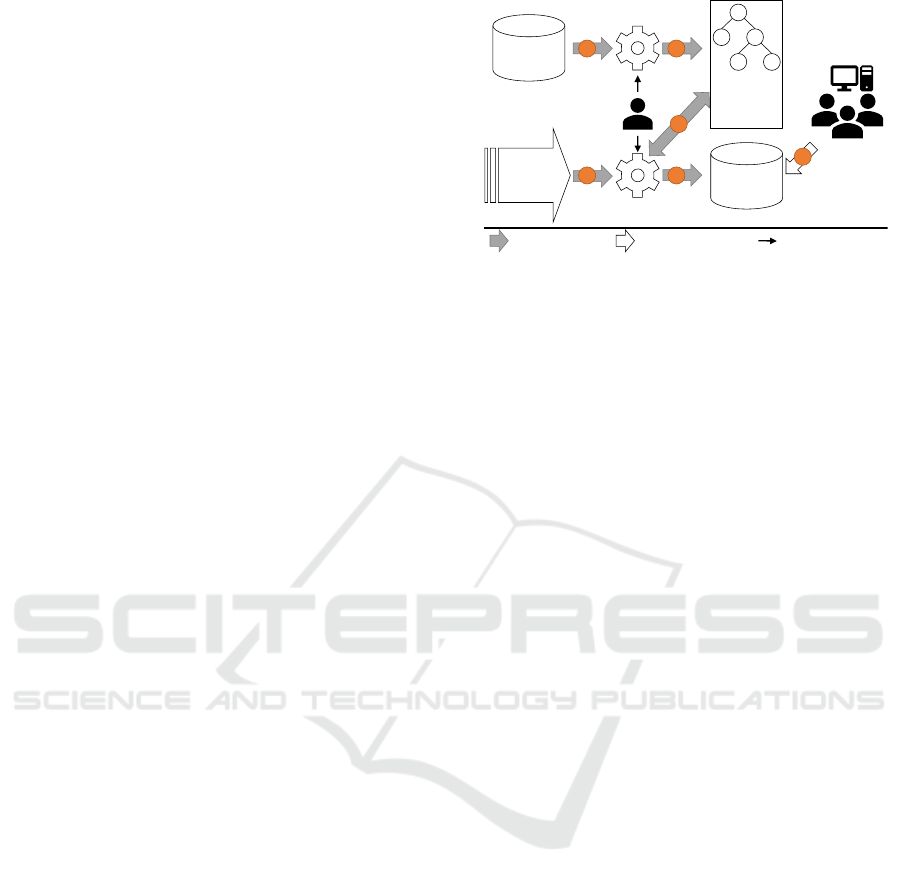

Figure 1: Comprehensive Analysis Steps.

and generate a decision tree based on the annotations.

The decision tree enables to predict which production

times, temperatures, etc., lead to what production out-

come. The decision tree is stored as a Data Mining

Model.

However, to achieve a maximum business beneﬁt

from these models, they have to be applied to pro-

duction data in real-time (Gr

oger et al., 2014). These

data are emitted from the sensors installed in the pro-

duction machines (3). They are processed by a stream

processing engine (4).

In order to enable comprehensive analytics, de-

cision trees generated on basis of the long-term pro-

cess data have to be loaded into the stream processing

engine as an initial conﬁguration (5). Thereby, it is

possible to detect production errors at an early stage

and either initiate countermeasures or terminate subse-

quent production steps for an affected workpiece if a

successful production result can no longer be achieved.

The combined results of the comprehensive analytics

process are stored in the Result Layer and made avai-

lable for users or other systems (6).

However, as production conditions might alter over

time, it is not appropriate to use a static decision tree

model. Therefore, the results of the real-time analysis

have to inﬂuence the model as well. Data mining al-

gorithms such as VDFT (Domingos and Hulten, 2000)

consider this. Here, the decision tree is adjusted to

changing conditions. This means that not only a re-

commendation for action is calculated, but also the

achieved outcome is evaluated. If some of the tree’s

parameters are no longer up to date, the stored model

has to be changed (5). For instance, new raw materials

might be less prone to temperature changes, whereby

the temperature thresholds at which rejects are presu-

mably produced have to be changed in the tree. It is

evident that therefore a tight coupling between the two

processing components is required. However, there is

little software support for this kind of analytics as such

methods have special requirements towards the under-

lying infrastructure. In the following, we look into

BRAID - A Hybrid Processing Architecture for Big Data

295

Serving Layer

Speed Layer

Batch Layer

Batch Processing

Batch Views

Stream Processing

Real-time Views

Master

Dataset

Query

Data

Stream

Config

Figure 2: The Lambda Architecture (adapted from (Marz and Warren, 2015)).

current big data processing architectures and discuss

their applicability.

3 RELATED WORK

As shown in the preceding section, two different types

of data have to be considered in order to accomplish

comprehensive analyses: On the one hand, persisted

long-term process data are required to gain knowledge

about past production processes in order to draw con-

clusions about future production processes. This kind

of long-term data is labeled as history data in the fol-

lowing. As history data is gathered and stored over a

long period of time, a processing system for this data

has to be able to handle a large amount of data whereas

the required processing time is of secondary impor-

tance. On the other hand, data which is sent directly

from a data source (e. g., a sensor) to a processing sink

without persisting it, has to be processed in order to

analyze current production processes. This kind of

data is labeled as real-time data in the following. As

real-time data is only signiﬁcant for a short period of

time (e. g., a deviation from a reference value has to

be detected as soon as it occurs to enable immediate

countermeasures), a processing system for this data

has to be able to handle it very fast. However, only a

small amount of data has to be processed at each point

in time.

This shows that different processing systems are

required in order to process both, history data and real-

time data. Literature differentiates between three alter-

native big data processing methods: batch processing

(see Section 3.1), stream processing (see Section 3.2),

and hybrid processing (see Section 3.3) (Casado and

Younas, 2015). Hybrid approaches provide both, ba-

tch processing and stream processing. The Lambda

Architecture (Marz and Warren, 2015) and the Kappa

Architecture (Kreps, 2014) are state-of-the-art concer-

ning hybrid big data processing. Section 3.4 discusses

the applicability of the reviewed architectures for the

realization of comprehensive analyses.

3.1 Batch Processing

Batch processing systems operate on large amounts of

data which are stored persistently in a database or a ﬁle

system. By processing this data, it is expected that data

mining results will be most accurate due to the large

data stock. A batch processing system splits the en-

tire data volume into smaller subsets, the batches, and

processes each on distributed computation nodes. Ty-

pically, processing takes long due to the large amount

of data. In most cases, a result is only available after

all batches have been processed. In addition, the pro-

cessing logic cannot be adjusted after processing has

started (Casado and Younas, 2015). For instance, Apa-

che Hive can be used for batch processing (Barbierato

et al., 2013).

Batch processing systems are mostly used to pro-

cess history data. However, it is also possible to pro-

cess real-time data via such a system. When incoming

real-time data is buffered in a very small data store

for a limited amount of time, this store can be used

as input for the batch processing system. Thereby, all

data can be processed as a single small batch and the

results are available in near-real-time. Yet, this is not

the intended purpose of a batch processing system.

3.2 Stream Processing

A stream processing system splits incoming data for

processing as streams are inﬁnite (Casado and Younas,

2015). The processing results are immediately availa-

ble to the users. Thereby, the processing logic can be

altered at any time and the changes are automatically

applied to the subsequent data entries. Aurora is an

example for a stream processing system (Abadi et al.,

2003).

Stream processing systems are mostly used to pro-

cess real-time data. Yet, any data source can be pro-

cessed as a data stream. For this purpose, each stored

data set is sent individually to a sink. In this way, his-

tory data can also be processed by a stream processing

system (cf. the Kappa Architecture in Section 3.3.2).

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

296

Stream Processing

Results

Config1

Config2

Config3

Query

Master

Dataset

Data

Stream

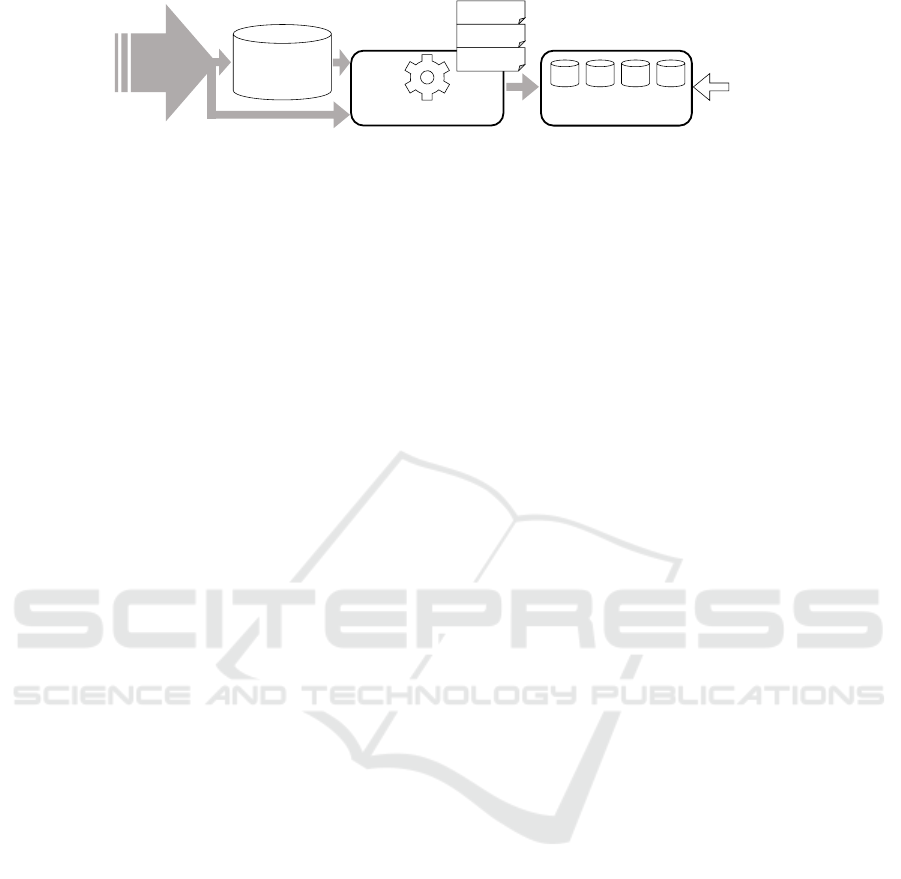

Figure 3: The Kappa Architecture (adapted from (Kreps, 2014)).

However, this kind of processing system is not meant

to detect complex correlations within huge data stocks.

3.3 Hybrid Processing

Often both, high accuracy and low processing time

are required. As neither batch nor stream processing

can achieve this, hybrid processing combines both

techniques. In the following, the Lambda and the

Kappa Architecture are presented.

3.3.1 Lambda Architecture

The Lambda Architecture has separate branches for

batch and stream processing (Marz, 2011). As shown

in Figure 2, data is distributed to both branches. In

the Batch Layer, data is added to an append-only data

storage, the Master Dataset. Periodically, this data is

processed using batch processing. Here, the raw data

is prepared for the user. For instance, data mining is

used to assess past production processes. The results

are saved in so called Batch Views. Users can query

these data via the Serving Layer.

However, batch processing operates only on data

which is available in the Master Dataset when the

processing is started. Since processing a large Master

Dataset takes a lot of time, the batch views usually

do not contain the most recent data. The Speed Layer

addresses this issue. Here, data is processed in real-

time by using stream processing. The results are stored

in the Real-time Views.

Batch Views contain analytics results, which are

based on a huge set of history data but without any

information about the latest incoming data. Such infor-

mation is provided as part of the Real-time Views, but

only for a limited time frame. To obtain a complete

view on the production process data, the user has to

query both views and combine the results manually.

The two branches are strictly isolated from each

other, i. e., each branch has its own processing logic, as

indicated by the separate conﬁguration ﬁles in Figure 2.

The logic used in the Speed Layer can be adjusted

quickly, while the Batch Layer is highly scalable. As a

result, the schemata of the Batch Views and the Real-

time Views can differ. Users have to consider this in

their queries. Data access is therefore complex and

time-consuming.

3.3.2 Kappa Architecture

The Kappa Architecture addresses this issue as it uses

stream processing, only (Kreps, 2014). That is, inco-

ming data is persisted in the Master Dataset and also

processed immediately. The architecture is shown in

Figure 3.

A key feature of the Kappa Architecture is the pos-

sibility to perform several separate stream processing

jobs in parallel. This is indicated in Figure 3 by the

several conﬁguration ﬁles on the stream processing

component. Due to this feature, the Kappa Architec-

ture enables to process the entire Master Dataset, i. e.,

history data, in parallel to incoming real-time data.

This way, history data can be processed again at any

time with an alternative processing logic. This proce-

dure can be used to perform a batch-like processing of

history data via stream processing engines.

The advantage of the Kappa Architecture is its

single data processing engine, which can be adjusted

quickly. Yet, there is an increased demand concerning

computational power and storage capacity when pro-

cessing voluminous history data in parallel to real-time

data streams.

3.4 Discussion

As shown in Section 2, there is a need for joint analy-

tics of history and real-time data (for further use cases

see (Gr

oger, 2018)). Yet, architectural support is re-

quired to enable all analytic steps. Three observations

can be made in this respect based on the state of art:

(

) Only hybrid architectures have the ability to process

both, history and real-time data. (

) Only the Kappa

Architecture has the ability to combine the results from

batch and stream processing automatically. This ma-

kes data access considerably easier for users. (

III

) No

current state-of-the-art approach enables to exchange

intermediate results such as the data mining model in

the given use case between the two processing engines.

Yet, this is crucial to perform comprehensive analytics.

BRAID - A Hybrid Processing Architecture for Big Data

297

Batch Processing

Stream Processing

Shared Storage

Data

Stream

Master

Dataset

Result Layer

Batch Views

Real-time Views

Buffer

Query

Config

Figure 4: Architecture of BRAID (components that exceed state-of-the-art are depicted in orange).

4 THE BRAID APPROACH

Due to the aforementioned shortcomings of the state-

of-the-art, a novel approach is required in order to

enable comprehensive data analytics. Thus, we in-

troduce BRAID (see Figure 4), which provides the

required functionalities.

All incoming data is persisted in the Master Da-

taset. In BRAID, the Master Dataset is assigned to a

Shared Storage available for both, batch and stream

processing. Additionally, the latest data is also tempo-

rarily buffered for real-time processing. From there,

the data is forwarded to one of the two processing bran-

ches (details on the two branches are given later). The

Shared Storage is the key component towards com-

prehensive analytics as introduced in Section 2. For

instance, intermediate results from batch processing

(e. g., a data mining model) can be send back to the

Shared Storage and used as input or conﬁguration for

the stream processing and vice versa.

After the processing, the results are stored in a

shared Result Layer. Thereby, result sets can be sto-

red in a joint data storage. Thus, the user can query

the Result Layer directly, without considering which

processing branch created the particular data. Diffe-

rent data schemata in the two result sets do not pose

a problem for many storage systems such as HDFS

The data can be annotated with structure metadata to

facilitate data access (Quix et al., 2016).

The processing logic for both, batch and stream

processing, is deﬁned in conﬁguration ﬁles which are

stored in the Shared Storage. As both branches have

read and write permissions for the Shared Storage, a

common conﬁguration ﬁle can be used to deﬁne the

The Hadoop Distributed File System (HDFS (Shvachko

et al., 2010)) is dominant in the context of storing and pro-

cessing big data, since it is highly available and scalable (Az-

zedin, 2013).

logic for both processing modes. In addition, results

can be written back to the Shared Storage, e. g., to ad-

just the conﬁguration at runtime. This enables ﬂexible

and application-oriented processing. The following

paragraphs detail on the various aspects of the two

processing branches.

The Batch Processing Branch is similar to the Ba-

tch and Serving Layer in the Lambda Architecture.

Periodically, content of the Master Dataset is proces-

sed using batch processing, where conﬁgurations and

results from the Shared Storage can be used. The

results are stored in Batch Views in the Result Layer.

The Stream Processing Branch corresponds to the

Speed Layer of the Lambda Architecture. Data is

processed via stream processing. The use of the buffer

is intended for real-time processing, as it ensures faster

access times. By using data from the Master Dataset

a Kappa-like behavior can be realized. In addition,

access to the Shared Storage also enables to adjust the

conﬁguration ﬁles and write back results.

BRAID supports several processing modes. It

can be used to emulate all architectures mentioned

in Section 3. Additionally, the interconnection bet-

ween the batch and the stream processing components

due to the Shared Storage and the common Result

Layer offers new processing possibilities, e. g., the re-

alization of comprehensive analytics, as described in

Section 2.

Batch and Stream Processing.

Using the Master Da-

taset and BRAID’s batch processing branch enables

pure batch processing. Accordingly, pure stream pro-

cessing can be realized by using the buffer and the

stream processing branch.

Lambda Architecture.

As BRAID is able to emulate

both, batch and stream processing, also the Lambda

Architecture can be emulated easily. To do so, real-

time data is stored in the Master Dataset before being

processed in the stream processing branch. The Master

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

298

Dataset itself is processed in periodic intervals via

batch processing. The Shared Storage is used to store

the Master Dataset, and each of BRAID’s branches has

its own conﬁguration. In the Result Layer, the results

are persisted, but not combined.

Kappa Architecture.

To emulate the Kappa Architec-

ture, BRAID’s batch processing branch is deactivated.

Incoming real-time data is stored in the Master Da-

taset and processed in the stream processing branch.

Parallel processing jobs can be started at any time. The

Master Dataset is used as a data source and conﬁgura-

tions are stored in the Shared Storage.

Self-adjusting Mode.

In addition to the aforementi-

oned processing modes, BRAID enables to use and

combine results from both branches within the proces-

sing logic for comprehensive analytics. For this, a data

mining model is trained and tested in the batch pro-

cessing branch using history data. This model can be

stored in both, the Result Layer as well as the Shared

Storage, where it is integrated into a conﬁguration for

the stream processing branch. Incoming real-time data

can be classiﬁed using the model created from history

data. By using VFDT, the model can be reﬁned further

by real-time data. This adjusted model is written back

to the Shared Storage to be applied to both, history and

real-time data. So, the application scenario introduced

in Section 2 can be realized by using BRAID.

5 ASSESSMENT

In order to be suitable for comprehensive analyses, an

architecture has to support all analytic steps described

in Section 2. However, especially Step (5) (reuse of

intermediate results for subsequent analysis steps) is

not supported by any of the current state-of-the-art

approaches.

Table 1 shows which processing steps are suppor-

ted by which architecture. The Lambda Architecture

enables both batch and stream processing, which is

why the Steps (1) to (4) are supported. Although the re-

sults of both processings can be combined, the user has

to do this manually by corresponding requests. Step (6)

is therefore only partially supported. Step (5) is not

realizable using the Lambda Architecture, as the Batch

and Serving Layer and the Speed Layer are strictly

separated. It is therefore not possible to automatically

reuse results from the batch processing in stream pro-

cessing. To realize this step, an administrator has to

adjust the conﬁguration for the batch or stream pro-

cessing engine manually. The Kappa Architecture

also enables batch and stream processing, realizing the

Steps (1) to (4). Additionally, results can be combined

easily, which supports Step (6). Yet, no insights gained

Table 1: Feature Support of Data Processing Architectures.

Step Lambda Kappa BRAID

(1) 3 3 3

(2) 3 3 3

(3) 3 3 3

(4) 3 3 3

(5) 7 7 3

(6) (3) 3 3

from prior processing steps can be applied automati-

cally to the processing logic for subsequent analyses

as processing logic has to be deﬁned statically before-

hand. Therefore, Step (5) is also not supported by the

Kappa Architecture. However, BRAID supports all six

processing steps. As it is a hybrid architecture, all four

batch and stream processing steps are supported. Like

in the Kappa Architecture, a joint Result Layer ena-

bles the automatic combination of result sets (Step (6)).

Additionally, the Shared Storage enables the reuse of

results as, e. g., conﬁgurations. Therefore, BRAID

is the only architecture which supports Step (5) and

therefore all comprehensive analytics steps.

Thus, BRAID meets all requirements resulting

from the use case given in Section 2. In the subsequent

section, we discuss various implementation alternati-

ves. That is, we assess the applicability of different

processing engines for the implementation of BRAID.

6 IMPLEMENTATION

CONSIDERATIONS

There are multiple implementation alternatives for

both of BRAID’s processing engines. This section

discusses ﬁve of these data processing engines. Due to

BRAID’s modular structure, the engines can be repla-

ced if necessary, based on a given optimization goal,

e. g., runtime or memory usage. Similar to the Lambda

Architecture, BRAID has two separated processing

branches for batch processing and stream processing.

Hence, the same processing engines as in the Lambda

reference implementation can be used for BRAID:

Hadoop MapReduce

is a batch processing engine

based on the MapReduce paradigm (Dean and Ghema-

wat, 2004) which is highly scalable and distributable.

The data is processed in two separate steps: map and

reduce. Input and output data are key-value pairs. In

the map function, intermediate results are calculated

from the data and forwarded to the reduce function

see https://hadoop.apache.org

BRAID - A Hybrid Processing Architecture for Big Data

299

as key-value-pairs. Here, data with the same key is

consolidated.

Storm

is a stream processing system promoted

as “Hadoop for real-time”. Incoming real-time data is

distributed to different nodes which process the data.

If necessary, the data is repartitioned after each step.

However, since most processing engines for big

data can process both, batches as well as data streams,

for simplicity in terms of installation and maintenance

effort, the same engine can be used for the batch and

stream processing branch as well. Especially, the con-

solidation of BRAID’s Shared Storage and the Result

Layer is facilitated by using a common processing

engine. Therefore, three engines are considered in

the following, which can be used to realize the batch

branch as well as the stream branch.

Spark

is highly fault tolerant alternative to MapRe-

duce (Zaharia et al., 2010). Initially, it was a pure batch

processing engine. Nowadays, it also supports stream

processing using micro batches. Data arriving within

a certain time window is computed as one micro batch.

Additionally, Spark provides various extensions such

as Spark SQL or MLlib for machine learning.

Samza

operates directly on data streams, similar to

Storm. The stream is partitioned and distributed before

being processed. To manage the distribution of the

workload, Samza relies on Hadoop YARN (Vavilapalli

et al., 2013). It uses Kafka (Kreps et al., 2011) to

exchange messages between processing nodes. Samza

offers an integration with HDFS but also provides an

SQL interface as well.

Flink

is another stream processing engine. Howe-

ver, in contrast to Storm and Samza, Flink can process

large-scale datasets as a kind of ﬁnite data streams.

This approach ensures very low processing time. Ad-

ditionally, Flink relies on continuous ﬂows instead of

micro batches. Similar to Spark, Flink provides many

extensions, such as an SQL interface or Flink ML for

machine learning.

Spark, Samza, and Flink support different data

storage systems, such as HDFS or relational database

systems. In contrast, Hadoop MapReduce depends on

HDFS as it is a part of the Hadoop project. Due to

this missing support of different data sources, it is less

suited for BRAID. Samza is able to access various data

storage systems through Kafka. Yet, it still needs the

Hadoop framework due its usage of Hadoop YARN.

Spark and Flink can be ﬂexibly applied to different

applications due to their manifold extensions. These

are the only two of the presented systems which enable

see https://storm.apache.org

see https://spark.apache.org

see https://samza.apache.org

see https://ﬂink.apache.org

both batch and stream processing out of the box. Other

extensions enable the use of e. g., graph databases

(Spark’s GraphX or Flink’s Gelly) or machine learning

techniques (Spark’s MLlib or Flink ML). In the context

of BRAID, those extensions can be used to achieve a

signiﬁcant beneﬁt. For instance, the machine learning

libraries can be used to train machine learning models

on the batch processing branch. These models can be

applied to the processing of real-time data. Therefore,

Spark and Flink are best suited for a BRAID prototype.

Since all of these approaches provide integration

of HDFS, we also use HDFS for our implementation

of the BRAID prototype. However, aside from HDFS,

any other data storage systems and query languages

can be used, such as relational database management

systems (e. g., the Oracle Database

) or NoSQL ap-

proaches (e. g., Google BigTable (Chang et al., 2008)).

7 CONCLUSION

Due to the IoT, more and more contextual data are

collected. A lot of knowledge can be gained from

these data if they are analyzed comprehensively. This

knowledge has a high economic value (e. g., to detect

production problems at an early stage). To this end,

a processing architecture for big data not only has to

provide batch processing for history data and stream

processing for real-time data, but also a tight coupling

of these processing modes. That is, communication

channels between the batch and stream processing en-

gines are required in order to exchange data. Existing

hybrid processing architectures for big data, namely

the Lambda and the Kappa Architecture, lack such a

tight coupling—here, batch and stream data are hand-

led in two separate processes and have to be combined

manually.

For this reason, we introduce BRAID, a novel hy-

brid processing architecture for big data, which intert-

wines the processing of history and real-time data by

adding communication channels between the batch

and stream engine. Via these channels, not only data

is exchanged, but also the conﬁguration of the batch or

stream engine can be controlled. That is, the proces-

sing logic can be modiﬁed automatically at runtime,

whereby BRAID is able to react to altered conditions.

We discuss different implementation techniques in or-

der to ﬁnd a suited implementation strategy for BRAID.

Evaluation results show that BRAID enables more ﬂex-

ible and accurate data analytics than the Lambda and

Kappa Architecture.

see https://www.oracle.com/database/index.html

DATA 2018 - 7th International Conference on Data Science, Technology and Applications

300

In the IoT domain, privacy is a critical issue con-

cerning the processing of data. Future work has to

consider, how to realize privacy protection in BRAID

without compromising analytic quality. A possible

approach towards this goal is PATRON (Stach et al.,

2017; Stach et al., 2018).

ACKNOWLEDGEMENTS

This paper is part of the PATRON research project

which is commissioned by the Baden-Wrttemberg Stif-

tung gGmbH. The authors would like to thank the

BW-Stiftung for ﬁnancing this research.

REFERENCES

Abadi, D. J., Carney, D.,

C¸

etintemel, U., Cherniack, M.,

Convey, C., Lee, S., Stonebraker, M., Tatbul, N., and

Zdonik, S. (2003). Aurora: A New Model and Ar-

chitecture for Data Stream Management. The VLDB

Journal — The International Journal on Very Large

Data Bases, 12(2):120–139.

Azzedin, F. (2013). Towards a Scalable HDFS Architecture.

In Proceedings of the 2013 International Conference

on Collaboration Technologies and Systems, CTS ’13,

pages 155–161.

Barbierato, E., Gribaudo, M., and Iacono, M. (2013). Mo-

deling Apache Hive Based Applications in Big Data

Architectures. In Proceedings of the 7

International

Conference on Performance Evaluation Methodologies

and Tools, ValueTools ’13, pages 30–38.

Beheshti, A., Benatallah, B., Nouri, R., Chhieng, V. M., Xi-

ong, H., and Zhao, X. (2017). CoreDB: A Data Lake

Service. In Proceedings of the 2017 ACM on Con-

ference on Information and Knowledge Management,

CIKM ’17, pages 2451–2454.

Casado, R. and Younas, M. (2015). Emerging Trends and

Technologies in Big Data Processing. Concurrency and

Computation: Practice and Experience, 27(8):2078–

2091.

Chang, F., Dean, J., Ghemawat, S., Hsieh, W. C., Wallach,

D. A., Burrows, M., Chandra, T., Fikes, A., and Gruber,

R. E. (2008). Bigtable: A Distributed Storage System

for Structured Data. ACM Transactions on Computer

Systems, 26(2):4:1–4:26.

Columbus, L. (2016). Industry 4.0 Is Enabling A New Era

Of Manufacturing Intelligence And Analytics. Forbes.

https://www.forbes.com/sites/louiscolumbus/2016/08/

07/industry-4-0-is-enabling-a-new-era-of-

manufacturing-intelligence-and-analytics.

Dean, J. and Ghemawat, S. (2004). MapReduce: Simpliﬁed

Data Processing on Large Clusters. In Proceedings

of the 6

Conference on Symposium on Opearting

Systems Design & Implementation – Volume 6, OSDI

’04, pages 137–149.

Domingos, P. and Hulten, G. (2000). Mining High-Speed

Data Streams. In Proceedings of the Sixth ACM

SIGKDD International Conference on Knowledge Dis-

covery and Data Mining, KDD ’00, pages 71–80.

Geissbauer, R., Schrauf, S., Koch, V., and Kuge, S. (2014).

Industry 4.0 – Opportunities and Challenges of the

Industrial Internet. PricewaterhouseCoopers.

oger, C. (2018). Building an Industry4.0 Analytics Plat-

form. Datenbank-Spektrum, 18(1):5–14.

oger, C., Schwarz, H., and Mitschang, B. (2014). Prescrip-

tive Analytics for Recommendation-Based Business

Process Optimization. In Proceedings of the 17

Inter-

national Conference on Business Information Systems,

BIS ’14, pages 25–37.

Kreps, J. (2014). Questioning the Lambda Architec-

ture. OReilly Media. https://www.oreilly.com/ideas/

questioning-the-lambda-architecture.

Kreps, J., Narkhede, N., and Rao, J. (2011). Kafka: A Dis-

tributed Messaging System for Log Processing. In

Proceedings of the 6

International Workshop on Net-

working Meets Databases, NetDB ’11, pages 1–7.

Marz, N. (2011). How to beat the CAP theo-

rem. http://nathanmarz.com/blog/how-to-beat-the-cap-

theorem.html.

Marz, N. and Warren, J. (2015). Big Data - Principles

and best practices of scalable real-time data systems.

Manning Publications Co.

Middleton, P., Kjeldsen, P., and Tully, J. (2013). Fore-

cast: The Internet of Things, Worldwide. Gartner,

Inc. http://www.gartner.com/document/2625419.

Quix, C., Hai, R., and Vatov, I. (2016). Metadata Ex-

traction and Management in Data Lakes With GEMMS.

Complex Systems Informatics and Modeling Quarterly,

9(9):67–83.

Shvachko, K., Kuang, H., Radia, S., and Chansler, R. (2010).

The Hadoop Distributed File System. In Proceedings

of the 2010 IEEE 26

Symposium on Mass Storage

Systems and Technologies (MSST), MSST ’10, pages

1–10.

Stach, C., D

urr, F., Mindermann, K., Palanisamy, S. M., Ta-

riq, M. A., Mitschang, B., and Wagner, S. (2017). PA-

TRON – Datenschutz in Datenstromverarbeitungssys-

temen. In Tagungsband der 47. Jahrestagung der Ge-

sellschaft f

ur Informatik e.V., pages 1085–1096. (in

German).

Stach, C., D

urr, F., Mindermann, K., Palanisamy, S. M.,

and Wagner, S. (2018). How a Pattern-based Privacy

System Contributes to Improve Context Recognition.

In Proceedings of the 2018 IEEE International Confe-

rence on Pervasive Computing and Communications

Workshops, CoMoRea ’18, pages 238–243.

Vavilapalli, V. K., Murthy, A. C., Douglas, C., Agarwal, S.,

Konar, M., Evans, R., Graves, T., Lowe, J., Shah, H.,

Seth, S., Saha, B., Curino, C., O’Malley, O., Radia,

S., Reed, B., and Baldeschwieler, E. (2013). Apache

Hadoop YARN: Yet Another Resource Negotiator. In

Proceedings of the 4

Annual Symposium on Cloud

Computing, SOCC ’13, pages 5:1–5:16.

Zaharia, M., Chowdhury, M., Franklin, M. J., Shenker, S.,

and Stoica, I. (2010). Spark: Cluster Computing with

Working Sets. In Proceedings of the 2

USENIX Con-

ference on Hot Topics in Cloud Computing, HotCloud

’10, pages 1–7.

BRAID - A Hybrid Processing Architecture for Big Data

301
