Reference Architecture Design: A Practical Approach

Mustapha Derras

, Laurent Deruelle

, Jean Michel Douin

, Nicole Levy

, Francisca Losavio

Yann Pollet

and Valérie Reiner

Berger-Levrault, Boulogne Billancourt, France

CNAM – CEDRIC, Paris, France

Universidad Central de Venezuela, Caracas, Venezuela

Keywords: Software Product Lines (SPL), Software Architecture, Reference Architecture Design, Software Product

Quality, Bottom-up Strategy.

Abstract: Reference Architectures (RA) in a Software Product Line (SPL) context are generic schemas that can be

instantiated to configure concrete architectures for particular software systems or products of the SPL family.

SPLs claim to be reusable industrial solutions to reduce development cost and time to market; however their

development requires a huge effort, since the RA must be evolutionary. The goal of this work in progress is

to present a practical RA domain engineering method for the Human Resources domain based on a bottom-

up strategy applied to the early Scope phase of SPL Engineering. A usual industrial practice in this

development is to start from a single existing product built by the enterprise and incrementally derive the RA

by adding new elements. Four architectural configurations are developed and quality properties are considered

early as major responsible of the SPL variability. Our approach is applied to a real industrial case study.

1 INTRODUCTION

The architecture is an abstract representation of a

software system with related (connected or

communicating) components. (Shaw and Garlan,

1996); (Taylor et al., 2009). A component describes a

part of the system holding an individual behaviour.

The whole system behaviour is defined by the

composition of the individual behaviours of the

components. Every component must be specifically

implemented and it holds certain quality properties

(maintainability, usability, security, etc.); they must

be identified and more or less satisfied in order that

the component can maintain a suitable functional

behaviour. The architecture is composed by abstract

components in the sense that the implementation

details are not known already. An abstract component

can be implemented in different ways, but all the

implementations satisfy the behaviour of the abstract

component. A concrete architecture is composed by

precise implementations of abstract components.

A Reference Architecture (RA) (Bosch, 2000),

(Clements et al., 2001), (Oquendo et al., 2014),

(ISO/IEC 26550, 2015) represents a family of

abstract architectures. It highlights the presence of

established common components, and of other

components that are not common, which are called

variants and that are grouped into variation points

(Pohl et al., 2005). A variation point is a particular

component defining the variants’ common behaviour

and their connections with all other architectural

components; it identifies a set of variants (eventually

empty at first), from which only one can be chosen.

RA must satisfy a set of rules describing the

constraints that should be satisfied while selecting a

configuration with the chosen variants. The goal of

RA is to be configured to obtain a particular concrete

architecture of a software system by choosing

convenient variants. During the configuration of RA,

consistency properties between the selected variants

must be satisfied. The RA is the main asset of the

Domain Engineering (DE) lifecycle of SPL

Engineering (SPLE) (Pohl et al., 2005) (ISO/IEC

26550, 2015).

Our research questions are: “how to develop a RA

from existing products or systems” and “how to

concretise the RA abstract components into

executable modules”.

Feature models are frequently associated to RA.

A feature model (Kang et al., 1990), where every

Derras, M., Deruelle, L., Douin, J., Levy, N., Losavio, F., Pollet, Y. and Reiner, V.

Reference Architecture Design: A Practical Approach.

DOI: 10.5220/0006865005990606

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 599-606

ISBN: 978-989-758-320-9

599

node of the feature model tree is a variation point and

the sub-nodes are the variants, can be associated to

RA. The advantage of the feature model, which

provides a tree-like view of RA, is the visualization

of the choices to obtain the architecture of the system.

However, as RA contains variations points, feature

models do not provide any new information. Let us

note that it is difficult in general to include properties

that are not directly perceived by the user, such as the

quality properties (Benavides D. et al., 2007). Then,

in the present approach we consider building RA

without using a feature model.

The main goal of this work in progress is to

propose a method to build a RA, inspired in the work

of (Losavio et al., 2014), and the standard reference

model guidelines for SPLE (ISO/IEC 26550, 2015).

The method is applied to an industrial case study, the

SEDIT Human Resources (HR) System of the French

Berger-Levrault Group, based on the one hand, on the

behaviour of the abstract functional components

representing SEDIT behaviour and on the other hand,

considering non-functional requirements. We have

started the work on this research topic a couple of

years ago with the Healthcare Information Systems

Domain (Losavio et al., 2015). The RA is developed

following a reactive bottom-up strategy (Apel et al.,

2013), meaning that the RA will be constructed from

a unique product already built by the industrial

partner, thus reducing the whole RA design effort.

This work considers the experience with the Vacation

Request Subsystem (VRS), which is a major complex

functionality defining services offered to municipal

communities by the SEDIT system.

Functional Requirements (FR) are the system

basic functionalities accomplishing prescribed

functional goals, expressed in our case by the

enterprise business processes. However, non-

functional goals that are required by functionalities to

behave properly, i.e., to be functionally suitable

(ISO/IEC 25010, 2011), must also be considered.

Non-functional Requirements (NFR) must be taken

into account while studying existing products. There

is a general agreement on the fact that NFR must be

considered early in the software development

lifecycle to increase software maintainability. The

SPLE reference model claims that NFR are greatly

responsible of RA variability. However, these aspects

are considered only at the late domain design stage

when the RA is already built, contradicting this

assumption. In usual industrial practice these issues

are poorly treated, being often left to the

responsibility of the particular development platform

used. Notice that SPLE favours a global top-down

design to build the SPL from scratch considering a

very huge and time consuming domain analysis;

however, the first SPL scope phase recommends

bottom-up strategies since domain existing products

have to be analysed. We start using this strategy that

also contributes to the light-weightiness of our

methodology, reducing the effort in the subsequent

DE phases, namely Domain Requirements

Engineering (DRE) and Domain Design (DD).

The structure of this paper, besides this

introduction, is the following: section 2 details the

method and the underlying process; section 3 presents

the application of the process to the VRS case study;

section 4 analyses related works, and finally section 5

provides the conclusion and some perspectives.

2 METHOD TO BUILD RA

SPLE includes two lifecycles: DE where domain

knowledge is captured to build RA, and Application

Engineering (AE) where the concrete products of the

SPL family are configured according to the variability

model contained in the RA. The proposed method is

framed into the SPLE Domain Engineering lifecycle

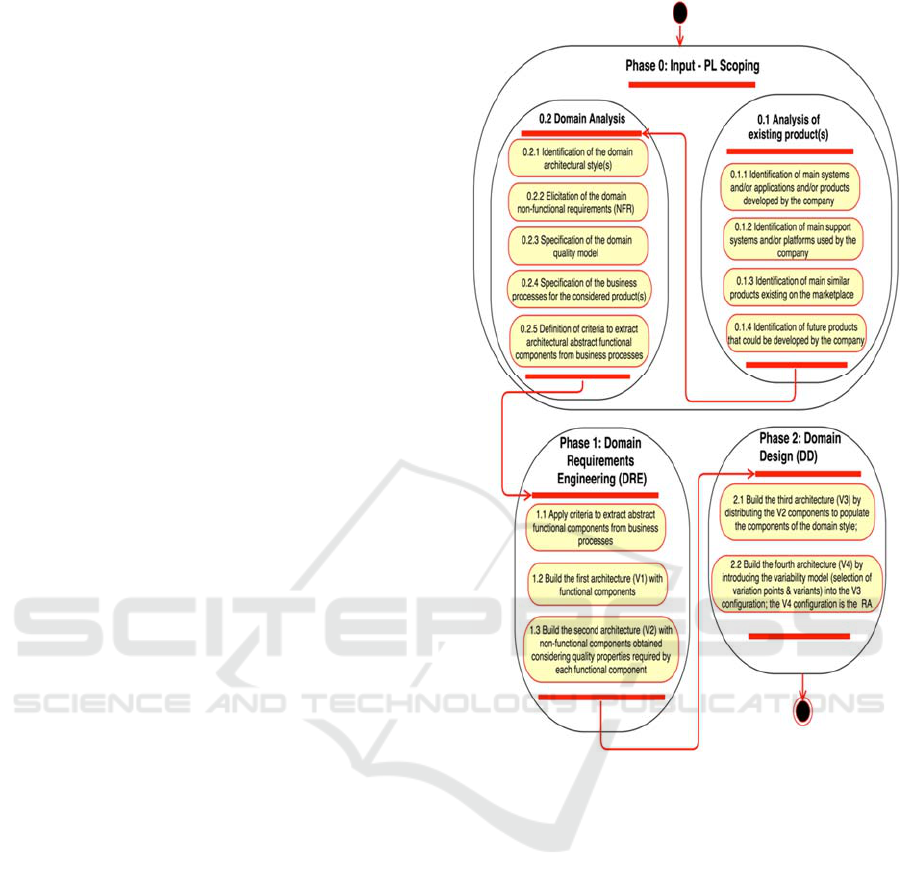

and follows the systematic process shown in Figure

1; it concerns a four-phases process; the first two

steps can be used to develop any quality driven single

system architecture; the third step defines the Domain

Requirement Engineering Architecture, and the

fourth step defines the RA, maintaining quality

traceability through functional and non-functional

components. Figure 1 presents the process as a UML

Activity Diagram.

3 APPLICATION OF THE

PROCESS

The phases of the process shown in Figure 1 will be

detailed in the following sections; however, note that

Phase 0.1 was performed for only one product and

will not be discussed here.

3.1 Phase 0.2, Activities 0.2.1. 0.2.2,

0.2.3 Identification of Domain Style

and Quality Properties

VRS belongs to the family of HR Information

Systems (HRIS) that combines a number of systems

and processes to ensure the easy management of

business employees and data. The programming of

data processing systems evolved into standardized

routines and packages of Enterprise Resource

ICSOFT 2018 - 13th International Conference on Software Technologies

600

Planning (ERP) software. Another important issue

that HRIS should support is the changing of legal

requirements, such as laws and country specific

regulations, for example the SAP Company has to

handle manually these issues.

We consider a business goal as an observable and

measurable end-result having one or more objectives

to be achieved within a more or less fixed timeframe.

The main business goal of the company is HR and

financial management on French local authorities,

i.e., communities, departments, regions, etc., where

people invested in public offices exercise authority

over their territory. The hierarchy of assigned

authority is relevant to provide the correct signature

to authorize different administrative transactions.

SEDIT verifies the HRIS domain hybrid architectural

style (Shaw and Garlan, 1996): event-based, layers

and client/server model for communication and main

quality properties.

One of its most important qualities, the functional

suitability (appropriateness), is to be compliant at any

time with laws that are constantly changing; the

system must guarantee this compliance. The

hierarchy of people in office can also change at any

time, impacting signature circuits, and this

compliance must be also assured. The VRS system

studied is a classic Web-based information system.

The availability of services is conditioned also by the

network connection.

3.2 Phase 0.2, Activities 0.2.4, 0.2.5 -

Specify Business Processes and

Criteria to Conform Architectural

Components

The stakeholders of the company were interviewed to

capture the information about the functional

behaviour of the system. The workflows relative to

the participant (person or system) activities were

specified using BPMN; they will not be shown here

to abridge the presentation. The idea is to “translate”

into architectural components these activities or tasks

expressing functional behaviours to accomplish a

specific goal. Some automatic tools are available to

“translate” business processes into

choreography/orchestration of services, requiring in

general optimization processes; but there are few

automatic tools to translate business processes

activities into functional architectural components,

such as ArchiMate (The Open Group Architecture

Framework) (Open Group, 2012).

The whole VRS representing a service to be

accomplished by the SEDIT HRIS, is one of the

enterprise business goals.

Figure 1: Domain Engineering process to build the RA.

3.3 Phase 1 (DRE), Activities 1.1, 1.2 -

First Architecture (V1) with Main

Functional Components

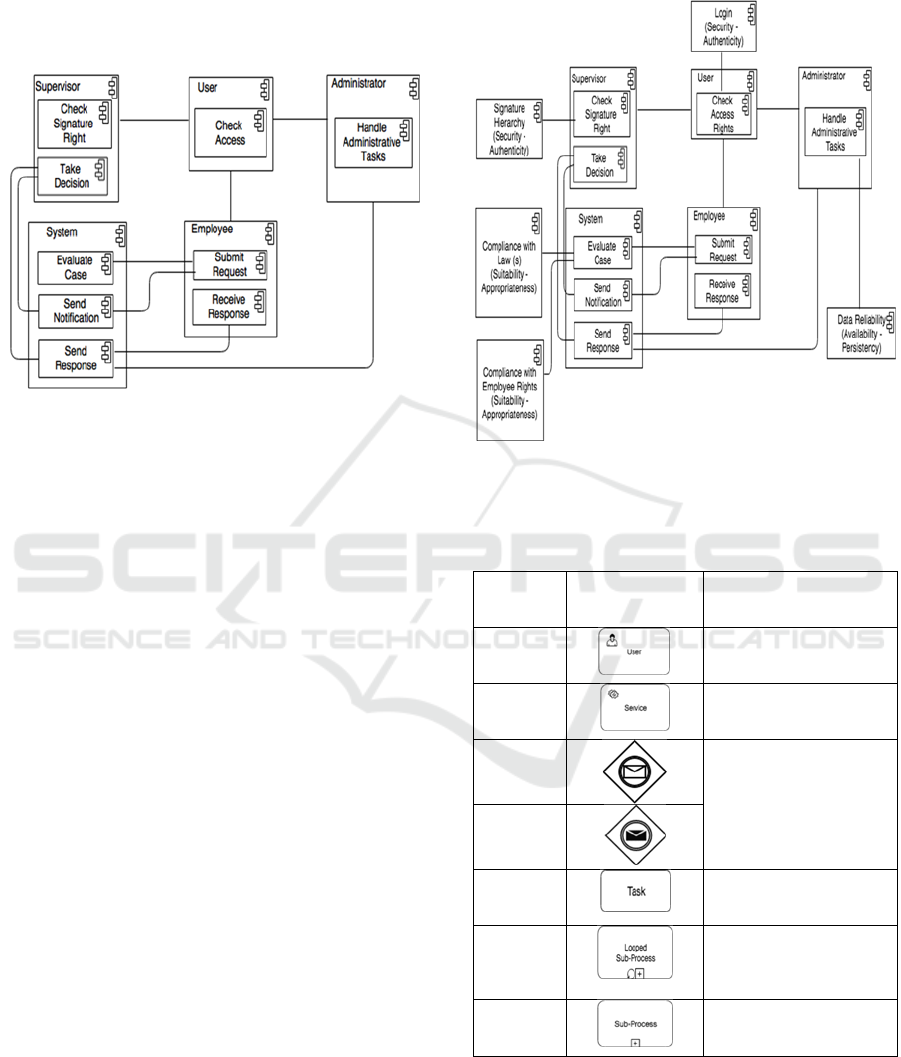

The architecture shown in Figure 2 is derived from

the BPMN workflows for the VRS, applying the rules

shown in Table 1.

The idea is to organize this first configuration by

introducing components by grouping the functional

activities accomplishing business goals in the

stakeholders’ lanes; all components are considered at

a high abstraction level. Architectural configurations

are represented as UML 2.0 logic views (Krutchen,

1995); note that the UML notation we used here does

not show components’ interfaces. Components are

associated to each BPMN stakeholder’s lane, to

accomplish business goals and sub-goals, in the

following way:

Reference Architecture Design: A Practical Approach

601

 A component can group lane’s activities

(performed from a human or a system),

representing a sub-goal.

 Only functionalities and their cooperation are

concerned.

Figure 2: First architecture with functionalities (V1).

3.4 Phase 1 (DRE), Activity 1.3 -

Second Architecture (V2) with

Functional and Non-Functional

Components

Non-functional components represent properties or

features not directly perceived by the user (see Figure

3). However, they are required by the functional

components to satisfy completely their goals. Notice

that the quality properties treated are part of the

Domain Quality Model (ISO/IEC 25010, 2011). The

functional components of V2 must satisfy four

priority quality properties:

- Security (Authenticity) realized by non-functional

components Login-Security (authenticity) to provide

access to the right kind of user, and Signature

Hierarchy (authenticity), also required by functional

component Check Signature Rights, to follow the

enterprise hierarchy of assigned authority.

- Suitability (Appropriateness) is realized by non-

functional components Compliance with Law (s) and

Compliance with Employee Rights; this quality

property appears because the employee must fill up

the right formulary according to legal requirements

and must also be compliant with the employee legal

rights.

- Appropriateness is required by the Evaluate Case

functional component.

- Data Reliability is added as a new non-functional

component to satisfy Availability-Persistency, since

the Administrative Tasks functional component

requires storing results of the whole vacation request

process.

Figure 3: Second architecture with functionalities and

quality properties (V2).

Table 1: Rules to convert BPMN workflows into

architectural components.

Tasks BPMN graphical

representation

Rules for BPMN

conversion to

architectural components

User

(human)

A user task is represented

as 1 functional component

involving an interface

Service

A service task is

represented as 1 system

functional componen

Receive They are gateways to

catch or receive messages;

they are represented as

connections between the

actor or system

components

Send

Abstract

It represents an abstract

component that will be

specified later on

Looped

Sub-

process

A looped sub-process is

represented as 1 functional

component involving an

iterative process

Sub-

process

A sub-process is

represented as 1 functional

componen

Notice that Usability and Efficiency are priority

quality properties for the User Interface (UI), but they

will not be considered here because they depend on

the UI particular design and not on the system

architecture. The Maintainability (Modifiability)

ICSOFT 2018 - 13th International Conference on Software Technologies

602

quality property has not yet been satisfied in the V2

configuration, and it will appear when the

architectural style is considered.

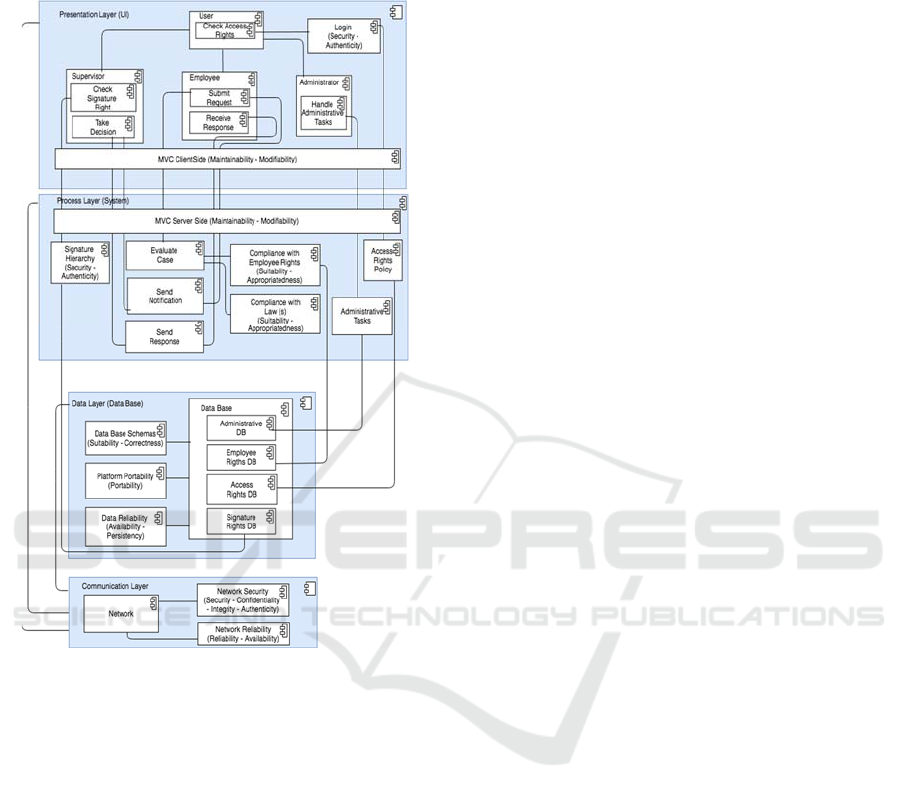

Figure 4: Third architecture with domain style (V3).

3.5 Phase 2 (DD), Activity 2.1, Third

Architecture (V3) with Domain

Style

The choice of an architectural style depends on the

domain. Each V2 component has been placed in the

V3 configuration as a sub-component of the

components of the style (see Figure 4). Notice that

some components are divided into several sub-

components in order to satisfy the style; that is why a

Data Base component is introduced to populate the

Data Layer.

Each layer is considered as a component; hence

we have UI as Presentation Layer, System as Process

Layer, Data Base as Data Layer; finally the

Communication Layer communicates the different

layers and exterior systems/services.

Notice that the

UI requirement Maintainability (Modifiability) is

usually solved by the MVC (Model, View Controller)

pattern, and it is split into two components MVC-

ClientSide and MVC-ServerSide, to interface

Presentation and Process layers (see Figure 4).

The

Process Layer corresponds to the VRS business goal

and it contains all the remaining functional and non-

functional components of the V2 configuration with

the same connections. Component Access Rights

Policy is introduced to solve security for access

control, and Signature Hierarchy to satisfy the

authenticity imposed by the signature rights.

Administrative Tasks is in charge of managing and

maintaining the vacation request information and a

database is introduced to satisfy persistency. In the

Data Base Layer four functional sub-components

have been added to satisfy NFR requirements,

Administrative DB, Employee Rights DB, Access

Rights DB, and Signature Rights DB. Correctness is

required by data base schemas, persistency to

store/get the process results and portability since they

are presumably relational databases and do not work

directly with object-oriented languages like Java. In

the Communication Layer the UI can connect to the

Network for e-mail and other external services

through a usual browser and to communicate with the

Process Layer; Security (authenticity, confidentiality,

integrity) in message transmission should be realized

by Network Security, and Reliability (Availability) for

system access is realized by Network Reliability; they

are also priority quality properties that have been

added as non-functional components to the

Communication Layer since they can jeopardize the

whole Web-based system functioning.

Notice that this third step could have been applied

at the beginning of the process since the domain style

is known; however we have decided to apply it here

to ease repeatability with small incremental steps.

3.6 Phase 2 (DD), Activity 2.2 - Fourth

Architecture (V4) with Variability

Model, the RA

Software variability is the ability of a system to be

efficiently extended, changed, customized or

configured for use in a particular context (Van Grup,

2000). In SPL the term variability model (Pohl et al.,

2005) is used to organize variant elements in such a

way that they can be reused at the moment of deriving

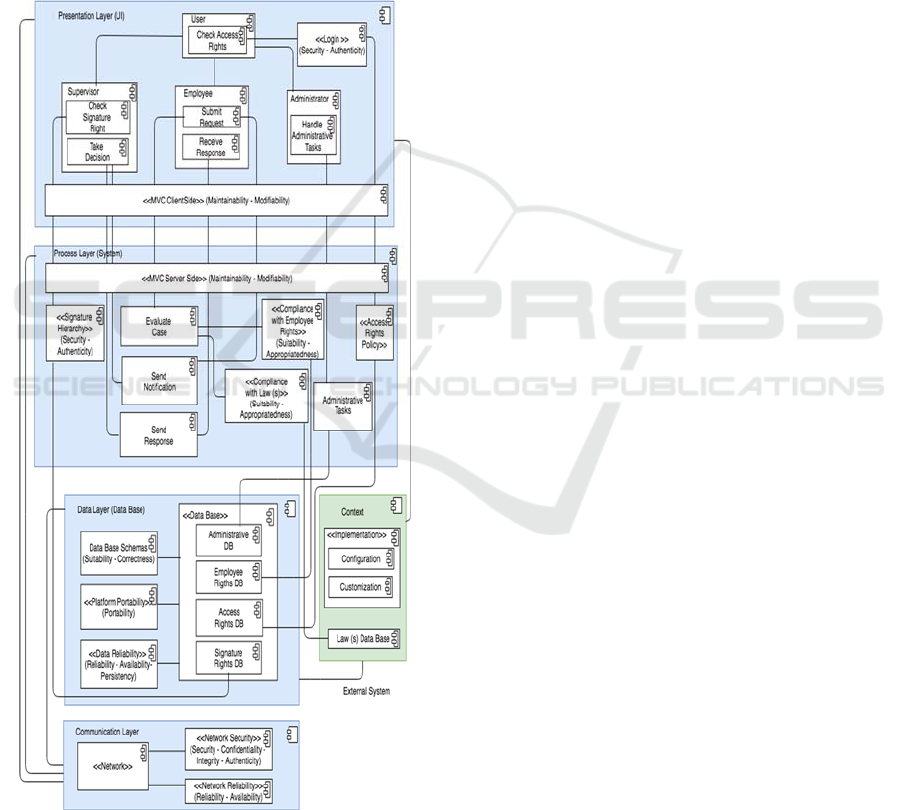

concrete products from the RA. Variation Points are

elements (placeholders) of the variability model; in

our case they may be functional or non-functional

components and they are denoted here by <<name>>

as UML stereotypes (see Figure 5). A variation point

denotes a set of components called variants; the

connector of a variation point denotes a set of

connectors, each one belonging to a variant.

Reference Architecture Design: A Practical Approach

603

The activity 2.2 of our process is the identification

of the variation points and their variants from the

architecture obtained in V3. In order to achieve this,

other similar existing products should have been

studied or future products to be built should be

considered to cope with the SPL evolution, and new

planned functionalities could also have been added,

see activities 0.1.3 and 0.1.4 of Phase 0.1. If this study

is not done, variation points and their variants are

identified directly on the V3 architecture, establishing

some criteria, leading to the configuration shown in

Figure 5, the RA for a VRS family of systems. All RA

abstract functional and non-functional components

should be traced and concretized to the corresponding

reusable code modules; if no reusable module can be

found, it should be adapted or constructed to provide

all assets to perform the concrete product derivation

from the RA and guarantee complete functional

suitability. The Variability Model in the V4 last

configuration is defined by the following specific

activities:

a. Describe the Context as an external system, to

proceed with the Application Engineering

lifecycle of the SPLE model; the RA variation

points should be instantiated to derive the SPL

concrete products. This system is in charge of

putting into operation or “implement” a concrete

product on the client demand, according to a

configuration and/or customization process. This

part is still an on-going work.

b. Identify functional and non-functional

components that can have different choices to

accomplish their goals; mark them as stereotyped

variation point components.

c or each variation point, identify possible variants,

such as for example the Hibernate tool to solve

Oracle portability to Java objects.

d. Describe the dependencies and constraints among

choices of variants.

4 RELATED WORKS

Many works are found in the literature about SPL

development and industrial adoption, but few treat the

whole SPLE process. In this work we are more

concerned with the Domain Requirements life cycle

of SPLE, where the RA is built. Three literature

reviews will be discussed.

The work of (Chen et al., 2010) treats variability

management for the RA evolution; this topic has been

studied for almost 20 years. An empirical study using

focus group of SPL experts in different fields

(industry, consultancy, academy, etc.) were

questioned to collect data; two of the first

contributions to variability management research and

practice were the known Feature-Oriented Domain

Analysis (FODA) (Kang et al., 1990) method and the

Synthesis approach (Kasunic, 1992) focused on a

family of similar systems for a business area. This

approach arises for SPL from evidence that, within a

class of systems, the understanding of similarities

provides significant leverage for constructing a great

variety of high-quality systems cheaply and reliably.

With Synthesis, a domain is conceived as a realization

of the declared business objectives of the specific

organization. Business goals determine the types of

systems to build and customers. These goals are set

on the expertise already available within the

organization, as a result of experience in building

systems in the past. Among the technical issues, many

challenges were considered, such as: - Requirements:

complexity management in feature modelling that

affects maintainability, the lack of standards in

feature representations that affects understandability,

and the extraction of commonality and variability

from existing poor documentation. - Architecture

design: extract the variability from technical artefacts

of different similar products and build a common

architecture for those products. Decisions are not

documented properly and are hard to be retraced. -

Evolution: when requirements change, in some cases,

the existing architecture does not support the required

variability in the new requirements. In an extreme

case where the SPL started with one single product,

evolving the architecture towards an SPL was seen as

an issue. With respect to non-technical aspects,

several issues were considered, such as the Business

Model that does not encourage reuse. In conclusion,

it was found that variability management relies

mainly on the technical aspects, the standardization

of variability representation and modelling, the

documentation, and management.

In our work, the use of standards is favoured; we

adopt a bottom-up strategy to build the RA from a

single product, following the mentioned Synthesis

approach, starting from a BPMN specification of

business processes, extracted from interviewing

industrial stakeholders.

The work of (Mazo et al., 2014) on the ERP

domain aims to identify and analyse the different

ways to improve ERP engineering issues with

methods, techniques and tools provided by SPLE. An

ERP system is not a family of applications, but a

single application. However, just like a product line,

configuration mechanisms are used to satisfy the

various requirements from different companies. ERP

implementation (customization and configuration)

ICSOFT 2018 - 13th International Conference on Software Technologies

604

focuses the major research axis in ERP. The goal is to

take into account the specific needs of the

organization when ERP standards and configurable

features cannot achieve them. Variability

management and the ability for the system to be

configured/customized and adapted to a potentially

undefined number of environments are two main

challenges. ERP configuration deals with parameter

changes and it can take several months and no results

can be guaranteed; customization instead refers to

interface development or code modification, and it

requires to be regularly updated to maintain the

system agility.

Figure 5: Fourth architecture with Variability Model (V4).

This complexity of ERP systems is maybe the

most important obstacle to use ERP systems in an

efficient and predictable way. The paradigm was

adopted to configure and/or customize ERP systems

using different methods with varying approaches.

However, from the point of view of ERP customers

and users, it is difficult to differentiate between

product variability and customization.

With respect to our work, the compliance with

laws has been found as a non-solved problem; the

configuration of the legal requirements as reusable

assets is still an open problem in the HRIS domain;

this issue must be handled by the SPLE Application

Engineering lifecycle.

The ERP domain and SPLE approach are also

treated in (Ouali, 2011), focusing on the evolution

issue and on the problem of tool support for these

approaches. SPL fits to ERP business, and ERP

systems can benefit greatly from the concepts of

commonality and variability to enhance

maintainability or evolution capability. Four methods

are reviewed, Van Group, Ziadi, Delstra and Djebbi,

being the Main drawbacks: the lack of sufficient tool

support and poor interactivity with their users. The

SPL development approaches themselves are not

enough automated for deriving automatically a

concrete product from the RA; most of them use

proprietary notations which can handle problems of

standardization and interoperability; they do not

cover all aspects of SPLE. Every method tries to

focus on a particular part of the SPL construction

process. However, in this work the discussion on the

experimentation with ERP is very limited, and no

case study is provided.

The Office of Management and Budget (OMB,

2012) launched the Human Resources Line of

Business (HR LOB) Data Model, an effort to build a

set of enterprise architectures in compliance with the

USA Federal Enterprise Architecture standards for

the human resources business function. It is an

interesting and complete work and conceptual

elements can be used for the general HRIS domain,

however it is data-oriented for enterprise

architectures and does not concern directly the RA

development for SPL.

The revised works mention standardization as an

open problem; the ISO/IEC 26550 standard has been

recently formulated to provide a framework for SPLE

guidelines (ISO/IEC 26550, 2015). The problem of

early consideration of software quality is discussed

affirming its importance, but it is left to the late

Domain Design phase. The bottom-up strategy is

recommended in the SPLE Scoping phase to reduce

the effort in the subsequent development phases. In

our present work we adopt this approach. A couple of

years ago we started to work on a SPL Domain

Engineering quality-driven method based on the

Reference Architecture Design: A Practical Approach

605

extractive bottom-up strategy, considering several

existing products in the Healthcare Information

Systems domain (Losavio et al., 2014), (Losavio et

al., 2015).

5 CONCLUSIONS

The main outcome of this paper is the definition of a

domain engineering method to build incrementally a

RA, according to a bottom-up reactive strategy. This

method, inspired in (ISO/IEC 25010, 2011), defines a

systematic and repeatable practical process to build

the RA, and it has been applied to a real industrial

case. In addition, we have considered the compliance

(functional suitability-appropriateness) to legal

requirements (laws and regulations) as a priority

quality requirement, since they change often overtime

and their management is a time consuming and non-

systematic process in HR systems involving full-time

human resources. On the other hand, the traceability

among functional, non-functional components and

their technical solutions has been clearly established

by taking into account quality requirements, early in

the SPLE lifecycle.

Among the perspectives, it is clear that more

lower level architectural configurations can be

produced from Figure 4 to detail the variants of

variation points, such as ‘e-mail’ and ‘electronic

document’ in <<Submit Request>>. However, to

solve our second research question, an intermediate

layer has to be defined to link the abstract RA

components to the reusable modules of code, which

are all reusable SPL assets. Moreover, mechanisms

based on architectural patterns are under design to

determine the choice of variants and the addition of

new functionalities, without modifying the existing

code. Our present work is a first step towards the idea

of offering a “product on demand” for HR

management to French territorial communities, by

facilitating a configuration/ customization of on-line

process of the HR system.

REFERENCES

Apel, S., Don, S., Batory, S., Kastner, C., Saake, G., 2013.

Feature-Oriented Software Product Lines - Concepts

and Implementation. Springer.

Benavides D. et al., 2007. FAMA: Tooling a Framework

for the Automated Analysis of Feature Models. In

Workshop on Variability Modelling of Software-

intensive Systems.

Bosch J., 2000. Design and Use of Software Architectures

– Adopting and evolving a product-line approach,

Addison-Wesley.

Chen, L. and Babar, M. A., 2010. Variability Management

in SPL: An Investigation of Contemporary Industrial

Challenges, SPLC 2010, LNCS 6287, 166–180,

Springer-Verlag Berlin Heidelberg.

Clements, P. and Northrop, L., 2001, SPL: practices and

patterns, 3rd ed. Readings, MA, Addison Wesley,

Van Grup J., 2000. Variability in Software Systems, the key

to software reuse. Sweden: Univ. of Groningem.

ISO/IEC 25010, 2011. Systems and software engineering -

Systems and software Quality Requirements and

Evaluation (SQuaRE) -- System and software quality

models. ISO/IEC JTC1/ SC7/ WG6, Draft.

ISO/IEC 26550, 2015. Software and Systems Engineering

– Reference Model for Software and Systems Product

Lines, ISO/IEC JTC1/SC7 WG4.

Kang, K.C., et al. 1990. Feature-Oriented Domain Analysis

(FODA) Feasibility Study. Tech. Report CMU/SEI-90-

TR-021, SEI.

Kasunic, M., 1992. Synthesis: A reuse-based software

development methodology. Process Guide, Version 1.0.

Tech. Rep., Software Productivity Consortium Services

Corporation.

Krutchen, P., 1995. Architectural Blueprints — The “4+1”

View Model of Software Architecture, IEEE Software

12 (6) 42-50, November.

Mazo, R., Assar, S., Salinesi, C. and Hassen, N. B., 2014.

Using Software Product Line to improve ERP

Engineering: Literature Review and Analysis, Latin

American Journal of Computing LAJC, Vol. 1 (1).

Ouali, S., Kraiem, N. and Ben Ghezala, H., 2011.

International Journal of Software Engineering &

Applications (IJSEA), Vol.2, No.2, April.

Pohl, K., Bockle, G. and Van Der Linden, F., 2005. SPL

Engineering: Foundations, Principles, and Techniques,

Springer.

Shaw, M. and Garlan, D., 1996. Software Architecture.

Perspectives of an emerging discipline, Prentice-Hall.

Oquendo et al., 2014. Reference Architectures, Chapter 2,

Edited by Mourad C. Oussalah, Wiley.

Supakkul S., Chung L., 2004. Integrating FRs and NFRs: A

Use Case and Goal Driven Approach.

Open Group, 2012. ArchiMate 2.1 Specification,

www.opengroup.org/subjectareas/enterprise/archimat.

Office of Management and Budget (OMB), 2006, Human

Resources Line of Business (HR LOB) Data Model

Version 1, Office of the Chief Information Officer,

Washington, DC 20415, February, OCIO-2006-01.

Losavio, F., Ordaz, O. and Levy, N., 2014. Refactoring.

Graph for Reference Architecture Design Process. In

AFADL, 103-108, CNAM, Paris.

Taylor R. N., Medvidovic N., Dashofy E., 2009. Software.

Architecture: Foundations, Theory and Practice, Wiley.

Losavio, F., Ordaz, O. and Esteller, V., 2015. Quality-based

Bottom-up Design of Reference Architecture Applied

to Healthcare Integrated Information Systems, In 9th

RCIS, IEEE,76-81, Athens, Greece.

ICSOFT 2018 - 13th International Conference on Software Technologies

606
