On the Use of Models for Real-time Reconﬁgurations of Embedded

Systems

Naima Armaoui, Mohamed Naija and Samir Ben Ahmed

Laboratory of Computer for Industrial Systems, INSAT, Tunis, Tunisia

Keywords:

Real-time & Embedded Systems, MPSoC, Co-modeling, MARTE, Reconﬁguration, Performance Estimation.

Abstract:

The development of Multi-Processor System-on-Chip (MPSoC) for high-performance embedded applications

has become a major challenge for designers due to a number of crucial constraints to meet, such as functional

correctness and temporal performance. This paper presents a new process intended to support and facilitate

the co-design and scheduling analysis of high-performance applications on MPSoCs. The contribution of this

process is that it is designed to i) model the system functionality, execution architectures and allocation of

software and hardware parts using a high-level modeling language ii) verify scheduling analysis of the system

using a simulation tool and iii) offer a reconﬁguration technique in order to meet constraints and preserve the

system non-functional properties (NFPs). As a proof of concepts, we present a case study consisting of a JPEG

encoder, with very promising results.

1 INTRODUCTION

The performance of materials, the explosion of functi-

onality in embedded systems and the emergence of

new architectures that is characterized by software

ﬂexibility have introduced a new dimension to the de-

sign problem by expanding all possible conﬁgurati-

ons. Thus, it is difﬁcult for the designer to solve the

problem of assigning tasks to the different available

execution resources while respecting non-functional

properties (such as time constraints).

To effectively address the design challenges of

multi-processors systems on chip MPSoC, multiple

ingredients need to be considered: 1) Performance es-

timation from the early stages of design would verify

compliance with non-functional constraints and vali-

date the chosen run-time conﬁguration as a quality of

service, and 2) the use of the models transformation

via the Model Driven Engineering (MDE)(Schmidt,

2006) in the development of such systems, offers

complexity abstraction.

There are two types of reconﬁguration; static re-

conﬁguration (Angelov et al., 2005) and dynamic re-

conﬁguration (Khalgui and Hanisch, 2011).

Our previous work (Naija et al., 2016) regards re-

conﬁguration as any change in the structure, behavior,

or architecture of the system to adapt an external or in-

ternal change in its operating environment or context.

The reconﬁguration can be software or hardware

(Khalgui and Hanisch, 2011). Software reconﬁgura-

tion is deﬁned by the settings of the update task at

runtime. However, the hardware reconﬁguration is

a process that adjusts the processor frequency and/or

migrates tasks originally scheduled for the software

to one or more hardware components. The recon-

ﬁguration techniques implemented for RTES (Real-

Time Embedded Systems) can affect several models

of these: i) The functional model when there is a

change in the behavior of the system, ii) the plat-

form model in the case of a hardware resource perfor-

mance adjustment or iii) the implementation model

when there is a task migration between resources.

To address the reconﬁguration of the system, our

design process proposes new techniques to model, si-

mulate and improve the behavior of such systems. In

short, we use the UML/MARTE proﬁle (Modeling

and Analysis Real-Time Embedded systems) (OMG,

2011) and the Y-Chart approach (Combemale, 2008)

to specify applications and architectures and to as-

sociate them while considering another technique to

stop the choice of design at an early stage of the deve-

lopment cycle. This technique consists of simulating

the behavior of the system by examining the worst

execution scenario. For this, we have the tool to ad-

dress the reconﬁguration of the system to meet per-

formance constraints related to the execution time.

The remainder of the paper is structured as fol-

lows. Section 2 summarizes the state of the art.

280

Armaoui, N., Naija, M. and Ahmed, S.

On the Use of Models for Real-time Reconﬁgurations of Embedded Systems.

DOI: 10.5220/0006867302800287

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 280-287

ISBN: 978-989-758-320-9

Section 3 gives a formal presentation of the Y-

Chart approach and the UML/MARTE concepts used.

Section 4 details our proposed methodology with the

reconﬁguration solutions for MPSoC. Section 5 pro-

vides our case study. Finally, section 6 concludes the

paper and sketches some future work.

2 RELATED WORKS

Several approaches have been proposed in the litera-

ture for the design and veriﬁcation of RTES. In this

work, we focus on approaches and design ﬂows that

particularly deal with high-level design and veriﬁca-

tion of reconﬁgurable systems.

In (Gueye et al., 2017), the authors describe an

autonomous control architecture for DPR (Dynamic

Partial Reconﬁguration) based on behavioral models.

This work proposes a framework deﬁning several

control layers and their interactions, as well as a met-

hod for systematic modeling of the reconﬁguration

and conﬁguration space of the target system class.

The scheduling layer executes the sequences of recon-

ﬁgurations by generating a table encoding the sche-

duling process based on the tasks implementations to

run. Nevertheless, there is no automated support for

the scheduling test which is an ad-hoc test.

In the same vein (Borde et al., 2009) propose a

methodology providing solutions to design and ana-

lyze critical and reconﬁgurable embedded systems by

leaning on both AADL and Lightweight CCM stan-

dards. Unlike this contribution, we aim to propose a

process for designing complex systems which are in-

dependent of any speciﬁc standard.

In (Krichen et al., 2012) authors propose a frame-

work to describe the software concepts of reconﬁgu-

rable RTES using the UML/MARTE proﬁle. This so-

lution makes designers able to design all the system

features and verify NFP properties. However, the pro-

posed approach does not address improving system

performance when time constraints are not met.

Other efforts have been speciﬁcally tailored to re-

conﬁgurable multi-agent architectures. In (Khalgui

et al., 2011) (Zhang et al., 2015) the coordination be-

tween agents has been treated in the design to ma-

nage reconﬁguration. Unlike those approaches that

only consider hardware reconﬁguration, our approach

supports software and hardware reconﬁguration.

3 BACKGROUND

In this section, we offer some background about Y-

Chart approach and UML/MARTE proﬁle.

3.1 The Y-Chart Approach

The Y-Chart Approach is a methodology to provide

designers with quantitative data obtained by analy-

zing the performance of architectures for a given set

of applications (Kienhuis et al., 2001). In this appro-

ach, an application model describes the functional be-

havior of an application regardless of time and archi-

tecture. A platform deﬁnes the architecture resources

and catches their performance constraints. Mapping

is made by linking structure and system behavior to

suitable elements of the architecture. To explore de-

sign alternatives and optimize results, its mandatory

to perform transformations. As part of the quantita-

tive performance analysis, the performance of each

application/architecture combination can be evalua-

ted. In order to improve the architecture and adapt the

application(s), the designer can explore the resulting

performance numbers and try different functional and

platform customizations. This approach brings less

reﬁnement, decreases development time, and increa-

ses the production volume.

3.2 MARTE Concepts

Among 15 concepts proposed by MARTE proﬁle, we

work with 3 of them that are useful in our context.

We are interested in the Schedulability Analysis

Model (SAM) sub-proﬁle to express the functional

task model. It’s designed to analyze the scheduling

of real-time systems. An early analysis of a design

model can detect real-time architectures not realiza-

ble, errors related to the temporal aspect and assess

the impact of migration to another platform. In SAM

model, the graphic description of all tasks allows ex-

pressing the access to data and at the same time data

dependencies, so the executions order of tasks.

Then, to specify all instances of the architecture,

we use the Hardware Resource Modeling (HRM)

package that allows you to model the hardware re-

sources. Another feature of this Sub-proﬁle is sup-

port for most hardware concepts thanks to a big range

of stereotypes and once more its layered architecture.

If no speciﬁc stereotype corresponds to a particular

hardware component, a generic stereotype may ma-

tch. This is also appropriate to support new hardware

concepts of new technologies (OMG, 2011).

Also, we employ the Alloc package to specify how

the application will be placed on the platform run-

ning. The main concept is represented by the Alloca-

ted stereotype, which is used to specify associations

between the model elements of the application and

elements of architecture model.

On the Use of Models for Real-time Reconﬁgurations of Embedded Systems

281

4 OUR PROPOSAL

This section details the proposed design and reconﬁ-

guration solution used to reestablish the MPSoC fe-

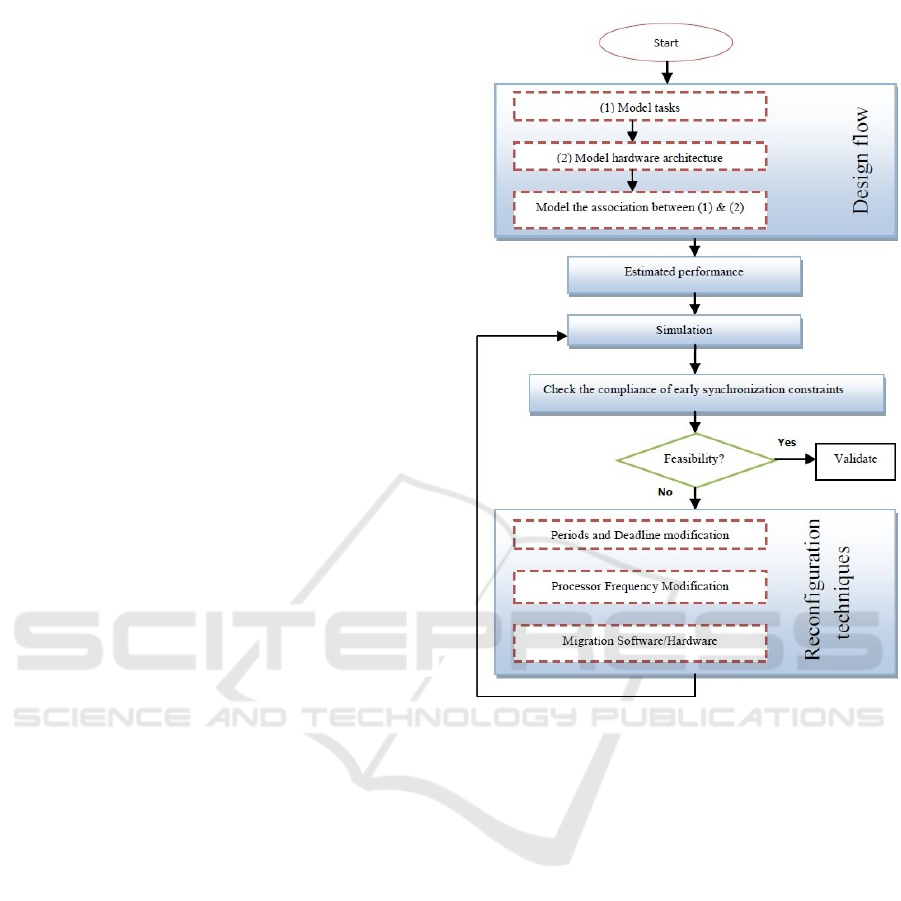

asibility. Our process is performed in a hierarchical

order as depicted in Figure 1. In this current research,

our goal is to assist in the design and reconﬁguration

of real-time embedded systems on MPSoC. This pro-

cess presents a solution with three different reconﬁgu-

ration techniques: i) The ﬁrst step consists of system

co-modeling that describe the application, the archi-

tecture, and the association between them, ii) In the

second part of our process (Estimated performance

and Simulation), we estimate the performance of the

conﬁguration from the association step to move to the

simulation, and iii) Finally, after verifying the compli-

ance of the early synchronization constraints imposed

on the system, the current conﬁguration will be vali-

dated if it ensures compliance with the non-functional

constraints. Otherwise, the designer must reconﬁgure

his system to achieve the expected performance. In

this context, we propose three reconﬁguration techni-

ques of real-time embedded systems.

The following subsections give details of the inter-

mediate steps produced by our methodology and the

different proposed reconﬁguration techniques.

4.1 System Co-modeling

We start our proposed approach by separately mo-

deling the different tasks of the chosen application

((1) Model tasks), the hardware architecture ((2) Mo-

del hardware architecture) and the association bet-

ween them (Model the association between (1) & (2)).

This modeling is based on the MARTE proﬁle and the

well-known method in Y. At this design level, the fe-

atures and modeling architecture can be viewed as a

collection of components connected via ports. The

association refers to the connection of the application

elements on the hardware platform. This allows mo-

ving from a high-level description to a description of

the executable model.

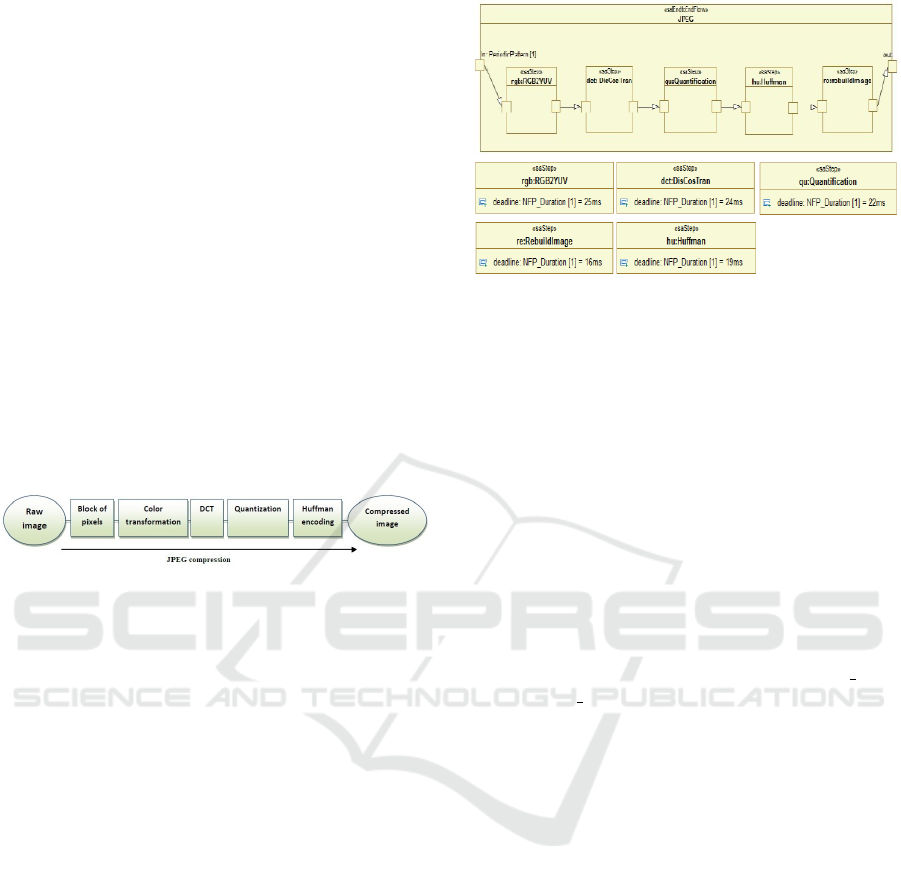

4.1.1 Modeling Tasks

To model the behavioral scenario of a real-

time system, we chose the SAM sub-proﬁle of

UML/MARTE with standard annotations. This sub-

proﬁle helps us to detect errors related to the tempo-

ral aspect and the feasibility of architectures in real

time. In this level, we specify a periodic stream of the

functional part of the application that we stereotype

saEndtoEndFlow. Then we employ the SaStep ste-

reotype to specify the instantiated steps of the system

while respecting the functional constraints imposed at

Figure 1: Flowchart of our process.

this stage of the application. For each step, the dead-

line property is used to model the execution date of

each task.

4.1.2 Modeling Hardware Architecture

For this purpose, an abstract view of the resources of

the execution platform is assumed to have an estimate

of the execution time for the steps.

We specify, using HRM sub-proﬁle, an abstract

view of the execution platform stereotyped hwRe-

source which deﬁnes the resources of the latter, the

connections between them and the means of commu-

nication. Thus, resources can be computational units

such as processors that are stereotyped hwProcessor

and programmable FPGA processing that is stereoty-

ped hwPLD. To be executed, a software resource must

obviously be mapped to computational units or buses.

The shared resources involved must also be described.

ICSOFT 2018 - 13th International Conference on Software Technologies

282

4.1.3 Association Modeling

In order to be executed, a software resource must ob-

viously be allocated on processors or busses. The

concept of allocation allows the designer to establish

a link between a MARTE application and platform

execution using the stereotype Allocated of the Alloc

package of UML/MARTE. Indeed, we must specify

how the application will be placed on the platform

running. This placement (Glitia and Boulet, 2008) is

both spatially and temporally. The spatial placement

is the placement of tasks on resources running. The

time is deﬁned by the placement of a series of sche-

duling tasks allocated to the same execution resource.

4.2 Estimated Performance and

Simulation

During the design phase, it’s crucial to have some pre-

dictability and to ensure that the physical resources,

allocated to the implementation of an application’s

tasks, can check the deadlines properties. This requi-

res a full knowledge of system time constraints and

algorithmic assignment of priorities. In our approach,

the validation is performed off-line by system simu-

lation on Cheddar tool (Singhoff et al., 2004) for a

sufﬁcient period of time called period simulation.

In a MARTE model, the design of functional be-

havior corresponds to a ﬂow from start to ﬁnish. It

consists of a set of tasks related to each other through

their input and output ports via a link precedence.

This creates an additional cost due to the communi-

cation between tasks. In addition, the type and cha-

racteristics of each physical resource associated with

a hardware implementation must be deﬁned. For ex-

ample, in a processor-based architecture model that

MARTE proﬁle characterized by a speed factor and a

bus is characterized by a bit rate of data transfer by

the wordWidth attribute. From this, it’s necessary to

have an estimated time related to a high level of ab-

straction, to ensure consistency of the transition from

a purely modeling in MARTE to the Cheddar tool si-

mulation model. A good estimation of the execution

time in the worst case noted WCET, that is obtained

before the encoding and based on an analytical model.

To calculate the WCET of a task, we propose an

analytical algorithm (Algorithm 1).

4.3 Reconﬁguration Techniques

Once the scheduling test is done, the next stage is to

reconﬁgure the system when time constraints are not

met.

Algorithm 1: Calculate the WCET of a task.

Variables :

int DataSize //The amount of data

int wW //The transfer rate on the bus provided by

the wordWidth attribute MARTE

int A1, A2, B,B1, B2 //Tasks

int T1, T2,T3, T4 , TB// The execution time of each

task

int WCET // The worst-case execution time

Require: TC = DataSize/wW //Transfer time

if (A1 and A2 are connected by the relation of pre-

cedence sequential) then

if (both marks are assigned to the same compu-

ting resource) then

WCET ← T 1 + T 2

else {include the communication time}

WCET ← T 1 + T 2 + TC

end if

else if (A1 and A2 converge at B: Relationship pre-

cedence Merge OR and Join) then

if (both marks are assigned to the same compu-

ting resource) then

WCET ← max(T 1,T 2) + T B

else {include the communication time}

WCET ← max(T 1 + TC,T 2 + TC) + T B

end if

else if (A1 diverges to B1 and B2 Relationship pre-

cedence Decision OR and Fork) then

if (both marks are assigned to the same compu-

ting resource) then

WCET ← T 1 + max(T 3,T 4)

else {include the communication time}

WCET ← T 1 + TC + max(T 3,T 4)

end if

We propose three reconﬁguration techniques to

meet performances of the system. There are software

and hardware solutions able to reduce processor uti-

lization by changing the period in order to increase

it and therefore increasing the deadline. That is, to

have a performance behavior of a system before mis-

sing delays, better processor frequency values must

be provided. For that, the adjustment of the frequency

is suggested and the software/hardware migration of

tasks by transforming some of the application tasks in

hardware to improve its performance.

4.3.1 Periods and Deadline Modiﬁcation

The ﬁrst proposed technique is to modify the task pe-

riods to minimize CPU utilization, overloaded upper

U-1 to U before reconﬁguration (less than or equal to

1) according to the reconﬁguration scheduling policy.

On the Use of Models for Real-time Reconﬁgurations of Embedded Systems

283

In our case, we opt for the EDF scheduling algorithm.

The application of the feasibility test guaranteed both

respects for property CPU usage and deadlines. This

condition from (Liu and Layland, 1973) is necessary

and sufﬁcient for the feasibility of scheduling.

Indeed, to minimize CPU usage, we calculate the

minimum period T’ arrival ﬂow from end to end Flow

end-to-endFlow noted in MARTE in the following

formalism:

∑

i=1

≤ 1 (1)

So,

≤

∑

i=1

(2)

This solution aims to increase the period and the-

refore the deadline (we work with due tasks on re-

quest). This increase will allow the overloaded pro-

cessor to complete the execution of the workﬂow that

is assigned to him before receiving another. After re-

conﬁguration action, period T is replaced by the new

period T’ that minimizes the use of computing resour-

ces and ensures schedulability of the task system.

4.3.2 Processor Frequency Modiﬁcation

We hope to assume that this technique expedites the

processing of functional behavior of the application.

For this, we propose to adjust the execution frequency

of the processors involved in the execution. By incre-

asing or decreasing the frequency of a processor, the

execution time of a given task will increase or decre-

ase respectively. The designer will have to opt for a

change of choice hardware upgrade.

At this early stage of the design, any change at

the architectural level is still possible as long as it can

meet the time constraints. However, the best values

of frequencies of processors are those that provide the

performance behavior of a system before missing de-

adlines. This requires computing the optimal value of

the performance of the processor frequency. This op-

timal frequency, denoted f, is the one that handles its

workload W before maturity exceeding T.

f ← W /T (3)

Note that frequency change affects energy con-

sumption.

4.3.3 Migration Software/Hardware

We seek through this technique reconﬁguration, the

migration of some originally planned features in soft-

ware to one or more hardware components. It is a way

to improve application performance by transforming

some of its tasks (those that are greedy in terms of

execution time) in hardware. The choice of candidate

task for the migration is based on the percentage occu-

pancy noted processor(R name, Occ%) with R name

is the name of the resource calculation, and Occ is a

real belonging to the interval [0..100]. If two tasks

have the same percentage of processor occupancy, we

choose the one with a low exchange rate to reduce

the impact of communication. We calculate the ideal

number of tasks that must be migrated from a proces-

sor to a hardware compute unit based on CPU utili-

zation factor U. As long as this later is greater than 1,

we increment the number of tasks to migrate. The fol-

lowing algorithm (Algorithm 2) presents more details

on this technique.

Algorithm 2: Migration Software/Hardware.

Variables :

string R name // Name of the resource calculation,

int CT // Candidate task.

int nb // Number of tasks to migrate.

real RE //Rate of exchange

real Occ ∈ [0..100] .

real OccMax //the maximum percentage occupancy

nb ← 0

Require: U =

∑

i=1

i ← 1

OccMax← (processor(R name, Occ%) of T

CT ← T

while (U ≥ 1) do

for (i = 2,i ≤ n,i + +) do

if (processor(R name, Occ%) of T

> OccMax

) then

OccMax←(processor(R name, Occ%) of T

CT ← T

else if (processor(R name, Occ%) of T

OccMax) then

if (RE

< RE

) then

CT ← T

end if

end for

nb ← nb + 1.

end while

5 CASE STUDY

To illustrate the design of an MPSoC according to

our approach, we opt a multimedia application and

a multiprocessors architecture to implement the ap-

plication. This methodology, based on Y-chart and

MARTE proﬁle, is designed for performance analysis

and feasibility of scheduling via reconﬁguration. So,

we choose the JPEG image compression standard as

ICSOFT 2018 - 13th International Conference on Software Technologies

284

a case study, where it works on large amounts of data

by making calls to process high-performance compu-

ting.

5.1 Co-modeling

5.1.1 Modeling Features of JPEG

The JPEG compression process (Wallace, 1992), il-

lustrated in Figure 2, accepts as input a raw image

from an input device (camera). The ﬁrst stage of com-

pression is to cut the image into blocks (8 * 8) or 64

pixels. Each block of pixels is applied to a processing

luminance and chrominance color. After that, a DCT

transform is applied to each block of pixels in order to

express the image information in terms of frequency

and amplitude. The stream passes through the com-

pression result by the quantization step which is the

basis of the compression. Finally, the application of

the coding to the resulting Huffman matrix quantiza-

tion step leads to a compressed image.

Figure 2: JPEG compression ﬂow.

Our design methodology that speciﬁes various

parts of a system (application, architecture, and asso-

ciation), is done in the Eclipse environment that bene-

ﬁts from the integrability of the Papyrus editor. This

editor uses UML as modeling language and allows the

addition of proﬁles to enrich the model with speciﬁc

details in a design ﬁeld. Thus, we present the mo-

deling, as a high level of abstraction, of the characte-

ristics of the JPEG algorithm using the SAM package.

In this context, we specify (see Figure 3) perio-

dic ﬂow from end to end application level (or functi-

onal), stereotyped saEndtoEndFlow called JPEG. In-

deed, the ﬁve instances of steps: rgb, dct, qu, hu and

re are stereotyped SaStep and are executed sequenti-

ally (each elementary behavior depends on that which

precedes it). For example, the ﬁrst instance of dct of

component DisCoST can be activated before the ﬁrst

instance rgb of component RGB2YUV is processed.

Similarly, the other instances (qu, hu, re) are activa-

ted. This allows us to infer functional constraints im-

posed at the application level. These constraints re-

present an execution order of tasks. For each step, the

date for execution is indicated by the deadline pro-

perty. In addition, we use the MARTE proﬁle to add

details of the speciﬁcation, including the input port

with the direction in (raw image) and the output port

with the out direction (compressed image).

Figure 3: Modeling features of JPEG in MARTE.

We want to have a rate of compression of 15 fra-

mes per second in JPEG image size (256 x 256) pixels

encoding, i.e., the maximum time to encode an image

is 0066 seconds.

5.1.2 Architecture Modeling

In order to implement the algorithm described above,

we consider a hardware architecture consisting of

two processors and a programmable processing unit

FPGA, which communicate with each other through

a shared memory via a bus located between the exe-

cution and memory units. The three computational

units, with rights writing and reading memory com-

petitors, are deﬁned to address the different functional

components of the JPEG application. The cpu 1 bo-

dies and cpu 2 are stereotyped hwProcessor and the

programmable FPGA processing is stereotyped hw-

PLD. The memory model instantiated by the hw-

Memory stereotype is deﬁned as a shared storage re-

source and recovery of data and program instructions.

The role of the transmitter (the instance of Camera

component) and the receiver (the instance of Screen

component) is to produce and consume pixels. They

are respectively stereotyped hwSensor and hwActua-

tor. The communication between different physical

resources requires the stereotype hwBus of compo-

nent Bus. All instances of the architecture compo-

nents are speciﬁed with concepts in HRM MARTE

proﬁle. Figure 4 illustrates, in a high level of ab-

straction, the architecture model of the JPEG appli-

cation.

5.1.3 Modeling Association

The concept of allocation allows the designer to esta-

blish a link between a MARTE application and plat-

form execution. In MARTE, this concept of alloca-

tion is expressed by the Allocate stereotype. Figure

5 shows an example of an association of JPEG appli-

cation on different execution resources through ste-

On the Use of Models for Real-time Reconﬁgurations of Embedded Systems

285

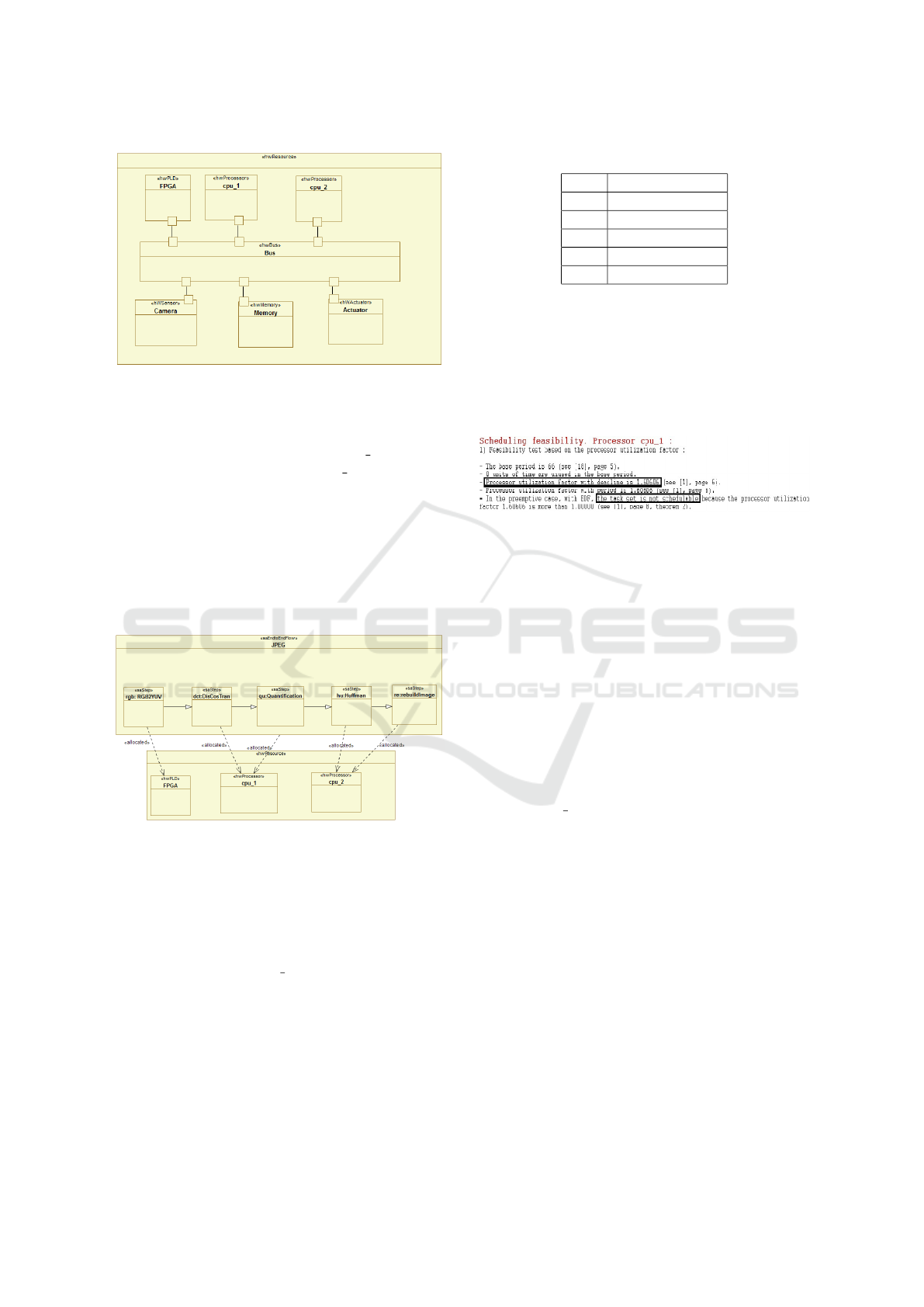

Figure 4: Architecture modeling in MARTE.

reotyped connectors Allocated: rgb ﬁrst step is as-

signed to the programmable FPGA computing, dct

and qu steps that are associated with cpu 1 processor,

hu and re steps are assigned to cpu 2 processor. A

good combination of software and hardware can sig-

niﬁcantly reduce the execution time of the application

features and respect the constraints dependencies to

ensure the proper functioning of the system. Thus,

for MPSoC architecture, several choices of associa-

tion can be considered. In this part of the process of

modeling the designer’s experience plays a key role

in the consistency of spatial and temporal placement.

Figure 5: Modeling association.

5.2 Estimated Performance

We estimate time-related perforations in this case

study using the steps of the performance estimation

algorithm (Algorithm 1). As a conﬁguration, we

chose to combine all cpu 1 functional tasks. This

choice is motivated by the lack of parallelism with

task performance and reduced overhead costs due to

the communication between CPUs. Table 1 shows an

estimate of tasks number times in clock cycles.

Table 1: Estimations of tasks in cycles.

Step Duration (cycle)

rgb 7714816

dct 7387136

qu 7086080

hu 5636096

re 4704256

5.3 Simulation and Reconﬁguration

We consider this section to analyze the system beha-

vior on the Cheddar tool dedicated to the check of

properties deadlines. Figure 6 offers a simulation re-

sult for checking the conﬁguration from the associa-

tion step.

Figure 6: First Cheddar simulation.

We can see that the system does not meet these

time requirements and therefore it’s not schedulable.

One way to improve the performance of an on-board

MPSoC system is to reconﬁgure it in order to adapt to

its environment without any perturbation. We propose

in this context 3 reconﬁguration techniques which are

already detailed in Subsection 4.3. There are able to

reduce the CPU utilization noted U factor, given by

the following formula

∑

, with C

the cost of

task i and T is her period. When U is greater than 1,

said the processor is overloaded. We carry our testing

early in the design phase, and therefore any change in

the application settings or architectures is allowed.

In this case study, we opt for a frequency modiﬁ-

cation of cpu 1 execution to reconﬁgure our system.

We seek the frequency that ensures the implementa-

tion of all tasks durations total clock cycles 32528384

processor in a period of 0.066s. The optimal fre-

quency is 493MHZ instead of 300MHZ. This requires

recalculation of the new task durations. We also recal-

culate the temporal parameters of tasks, such as the

date of revival and maturity, to consider all the prece-

dence constraints. Table 2 summarizes the new tem-

poral parameters of tasks. A new simulation shows

that the studied system is now schedulable (Figure 7).

6 CONCLUSIONS

In this paper, we have proposed a new process for de-

signing complex embedded systems with hard real-

time constraints. Our solution is integrated into the

ICSOFT 2018 - 13th International Conference on Software Technologies

286

Table 2: Estimated times of new tasks.

Step WCET(ms) ri Di

Rgb 16 0 66

Dct 15 16 50

Qu 14 31 35

Hu 11 45 21

Re 10 56 10

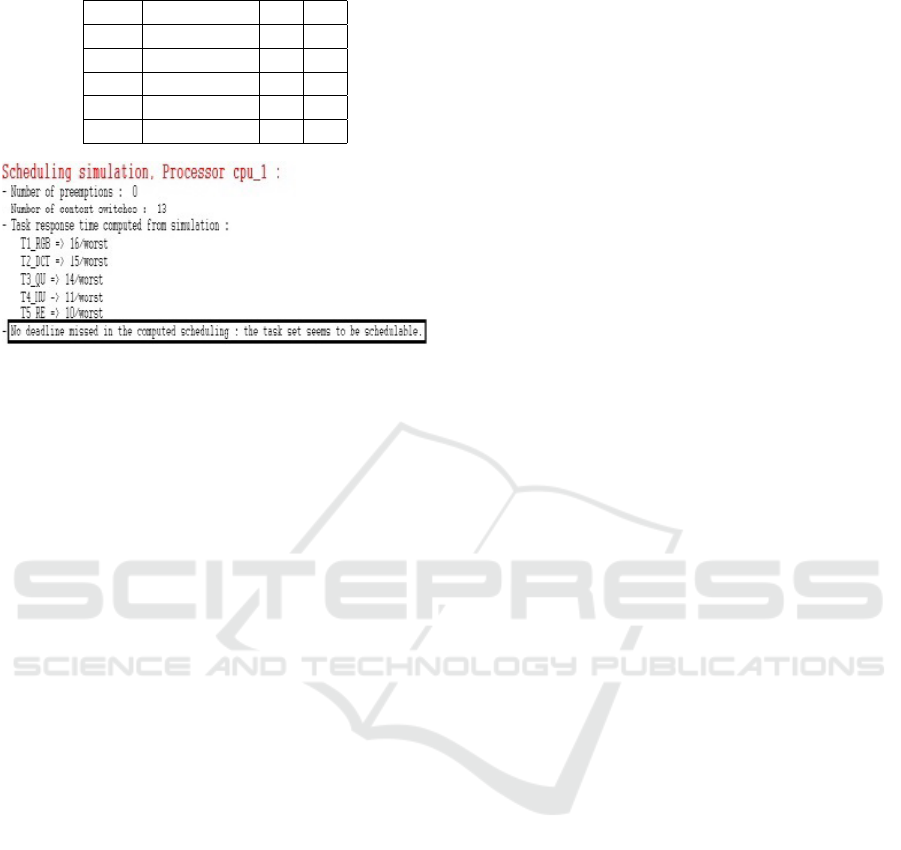

Figure 7: Second simulation time constraints with the

Cheddar tool.

software life-cycle since the very beginning that auto-

mates the transition from functional model to design

model. It’s based on modeling the system functio-

nality, execution architectures and allocation of both

parts using the MARTE proﬁle. After the calculation

of the execution time through a proposed algorithm,

the scheduling test is performed using the Cheddar

tool. In addition, we developed 3 reconﬁguration

techniques in order to preserve system NFPs at a high

abstraction level. Such approach provides a guideline

for the designer to ﬁnd an implementable concurrency

model describing a real-time application. We showed

the effectiveness of our approach through a case study

of high-performance applications on MPSoCs.

Now, to extend the current research, we are imple-

menting the proposed solution in a practical system

based on a multi-agent architecture. Also, we will ad-

dress the placement issue, during the reconﬁguration

step, considering the uncertainty of the execution time

of each task and the availability of resources.

REFERENCES

Angelov, C., Sierszecki, K., and Marian, N. (2005). Design

models for reusable and reconﬁgurable state machi-

nes. In International Conference on Embedded and

Ubiquitous Computing, pages 152–163. Springer.

Borde, E., Ha

ık, G., and Pautet, L. (2009). Mode-based

reconﬁguration of critical software component archi-

tectures. In Proceedings of the Conference on Design,

Automation and Test in Europe, pages 1160–1165. Eu-

ropean Design and Automation Association.

Combemale, B. (12 aot 2008). ng

enierie dirig

ee par les

modles (idm).

Glitia, C. and Boulet, P. (2008). High level loop transforma-

tions for multidimensional signal processing embed-

ded applications. In International Symposium on Sy-

stems, Architectures, MOdeling, and Simulation (SA-

MOS VIII).

Gueye, S. M.-K., Rutten,

E., and Diguet, J.-P. (2017). Auto-

nomic management of missions and reconﬁgurations

in fpga-based embedded system. In Adaptive Har-

dware and Systems (AHS), 2017 NASA/ESA Confe-

rence on, pages 48–55. IEEE.

Khalgui, M. and Hanisch, H.-M. (2011). Reconﬁguration

protocol for multi-agent control software architectu-

res. IEEE Transactions on Systems, Man, and Cyber-

netics, Part C (Applications and Reviews), 41(1):70–

80.

Khalgui, M., Mosbahi, O., Li, Z., and Hanisch, H.-M.

(2011). Reconﬁguration of distributed embedded-

control systems. IEEE/ASME Transactions on Mecha-

tronics, 16(4):684–694.

Kienhuis, B., Deprettere, E. F., Van der Wolf, P., and Vis-

sers, K. (2001). A methodology to design programma-

ble embedded systems. In International Workshop on

Embedded Computer Systems, pages 18–37. Springer.

Krichen, F., Hamid, B., Zalila, B., and Jmaiel, M. (2012).

Design-time veriﬁcation of reconﬁgurable real-time

embedded systems. In High Performance Compu-

ting and Communication & 2012 IEEE 9th Internati-

onal Conference on Embedded Software and Systems

(HPCC-ICESS), 2012 IEEE 14th International Con-

ference on, pages 1487–1494. IEEE.

Liu, C. L. and Layland, J. W. (1973). Scheduling algo-

rithms for multiprogramming in a hard-real-time en-

vironment. Journal of the ACM (JACM), 20(1):46–61.

Naija, M., Bruel, J.-M., and Ahmed, S. B. (2016). To-

wards a marte extension to address adaptation me-

chanisms. In High Assurance Systems Engineering

(HASE), 2016 IEEE 17th International Symposium

on, pages 240–243. IEEE.

OMG, O. M. G. (2011). A uml proﬁle for marte: Modeling

and analysis of real-time embedded systems.

Schmidt, D. C. (2006). Model-driven engineering.

Computer-IEEE Computer Society-, 39(2):25.

Singhoff, F., Legrand, J., Nana, L., and Marc

e, L. (2004).

Cheddar: a ﬂexible real time scheduling framework.

In ACM SIGAda Ada Letters, volume 24, pages 1–8.

ACM.

Wallace, G. K. (1992). The jpeg still picture compression

standard. IEEE transactions on consumer electronics,

38(1):xviii–xxxiv.

Zhang, J., Khalgui, M., Li, Z., Frey, G., Mosbahi, O., and

Salah, H. B. (2015). Reconﬁgurable coordination of

distributed discrete event control systems. IEEE Tran-

sactions on Control Systems Technology, 23(1):323–

330.

On the Use of Models for Real-time Reconﬁgurations of Embedded Systems

287
