Towards a Taxonomy of Bad Smells Detection Approaches

Mouna Hadj-Kacem and Nadia Bouassida

Mir@cl Laboratory, Sfax University, Tunisia

Keywords:

Detection Approaches, Code Smells, Anti-patterns, Design Smells, Taxonomy.

Abstract:

Refactoring is a popular maintenance activity that improves the internal structure of a software system while

maintaining its external behaviour. During the refactoring process, detecting bad smells plays a crucial role

in establishing reliable and accurate results. So far, several approaches have been proposed in the literature to

detect bad smells at different levels. In this paper, we focus on reviewing the state-of-the-art of object-oriented

bad smells detection approaches. For the purpose of comparability, we propose a hierarchical taxonomy by

following a development methodology. Our taxonomy encompasses three main dimensions describing the

detection approach via the used method, analysis and assessment. The resulting taxonomy provides a deeper

understanding of existing approaches. It highlights many key factors that concern the developers when making

a choice of an existing detection approach or when proposing a new one.

1 INTRODUCTION

With the growth of software complexity, maintenance

has become increasingly more arduous and time-

consuming phase. According to many researchers in

the ﬁeld, the cost required to carry out maintenance

activities accounts for about 90% of the total project

budget (Erlikh, 2000). The main reason behind the

high cost associated with this phase is driven by the

continuous changes that occur throughout the soft-

ware life cycle. These changes, like new environmen-

tal constraints and imposed customer requirements,

may lead to the emergence of several design problems

that negatively impact the software quality.

Presence of bad smells (Fowler et al., 1999) is

one of the most known and serious design problems

that frequently deteriorates the software structure and

hence quality. According to (Fowler et al., 1999), a

bad smell is deﬁned as ’a surface indication that usu-

ally corresponds to a deeper problem in the system’.

In the literature, many studies have investigated empi-

rically the impact of bad smells on the software qua-

lity (Soh et al., 2016; Khomh et al., 2012) and indica-

ted that their presence makes the system more fault-

tolerant and more difﬁcult to maintain and evolve.

Mostly, this kind of problems is introduced unwit-

tingly and unknowingly by developers either due to

inappropriate design decisions or the lack of expe-

rience and practice. So, in order to avoid problems

inherent to bad smells, a set of refactoring operations

should be performed (Fowler et al., 1999).

In fact, refactoring is recognized as one of the ef-

ﬁcient maintenance activities that aim at improving

the software quality with economical costs (Mens and

Tourwe, 2004). As stated by (Fowler et al., 1999), re-

factoring is a process that applies changes in the in-

ternal software structure without altering its external

behaviour. The starting point in the refactoring pro-

cess performs through the search and identiﬁcation

of bad smells locations, called detection phase (Mens

and Tourwe, 2004). Then, when accurately detected,

a set of refactoring operations are applied and after-

wards evaluated in order to ensure the preservation of

the software quality. In the refactoring process, the

detection phase plays a fundamental role since its re-

sults have a decisive impact on the other phases.

In this context, a wide range of approaches have

been suggested to detect bad smells at both source

and model levels. Each approach has its own par-

ticular strengths and weaknesses whose understan-

ding can provide for a fair comparison and a deci-

sive choice between them based on the developer’s

needs. Towards this end, we provide in this paper a

survey of the research studies that detect bad smells

in object-oriented software systems. The outcome of

this phase is a classiﬁcation of the existing approa-

ches into a comprehensive taxonomy that is broadly

represented by three different dimensions depending

upon the used methods, analysis and assessment cri-

teria. The aim of the proposed taxonomy is to give a

thorough overview of different approaches in order to

help developers to understand and compare between

164

Hadj-Kacem, M. and Bouassida, N.

Towards a Taxonomy of Bad Smells Detection Approaches.

DOI: 10.5220/0006869201640175

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 164-175

ISBN: 978-989-758-320-9

existing detection approaches.

It is important to note that, in the surveyed studies,

bad smells are interpreted under several terms, inclu-

ding but not limited to, code smells, design smells,

anti-patterns (Brown et al., 1998), design ﬂaws (Sa-

lehie et al., 2006), etc. In the detection approaches,

some authors treated them indifferently, while others

consider minor differences among them. To a certain

extent, these terms share the similar basic principle of

bad smells; they refer to poor solutions of recurring

design and implementation problems. Nonetheless,

they differ in other aspects like granularity and the

abstraction level.

The remainder of this paper is organized as fol-

lows. Section 2 describes related work. Section 3 pre-

sents the taxonomy and explains its development met-

hodology. In the following three sections, the main

dimensions of the taxonomy are separately described

in detail. Section 7 concludes with some recommen-

dations for future research directions.

2 RELATED WORK

Historically, the term of bad smells has been a subject

of interest for many years. A number of books have

been written about them and the way to mitigate their

negative effects. Over time, several designations have

been appeared in the literature referring to the same

problem, with some differences in the granularity le-

vels.

Because of the ambiguity inherent to the similar

deﬁnitions, several taxonomies have been proposed to

facilitate their analysis and understanding. (Mantyla

et al., 2003) suggested a taxonomy that categorizes si-

milar bad smells into seven classes (bloaters, object-

orientation abusers, change preventers, dispensables,

encapsulators, couplers, and others). Besides the

taxonomy, the authors recognized the existing corre-

lations between the smells. Later, (Moha et al., 2005;

Moha et al., 2010) performed another categorization

which includes both anti-patterns and code smells.

These two latter defects are classiﬁed into intra-class

(related to the inner workings of classes) and inter-

class (related to the relationships among classes). In

another work (Ganesh and Sharma, 2013), the aut-

hors tried to resolve the ambiguity between the diffe-

rent concepts reported in the literature. They presen-

ted their own observation at cataloguing and classi-

fying design smells based on the object-oriented de-

sign principles that are violated.

As mentioned in the introduction, bad smells are

known under a variety of terms in many studies. Even

though the original deﬁnitions stated that bad smell

presents a probably defect and anti-pattern is an actual

defect in the system, they are however frequently trea-

ted as synonymous because of the considerable over-

laps existing between them. For example, the code

smell God Class and the anti-pattern Blob are inter-

preted as similar in the detection approaches. Accor-

dingly, in our taxonomy, we also do not make a dis-

tinction between these terms in order to cover a large

variety of interesting detection approaches.

Several studies have been carried out on the de-

tection of bad smells, but very few researchers have

performed literature reviews related to the study of the

developed approaches. According to the abstraction

level, the previous works can be divided into two

main categories. At code level, (Ghulam and Zees-

han, 2015) have presented a systematic literature re-

view complemented by a snowballing. Some types of

techniques were excluded from the review; they are

manual code smell detection techniques and duplica-

ted code smell detection techniques. In a second part,

the authors conducted an empirical comparison bet-

ween three available tools on four code smells. (Pa-

lomba et al., 2014) have performed a literature review

of 11 anti-patterns deﬁned by (Brown et al., 1998;

Fowler et al., 1999) together with 6 linguistic anti-

patterns deﬁned by (Arnaoudova et al., 2013). The

authors have reviewed only the methods used for the

detection of the 11 anti-patterns. For the linguistic

anti-patterns, the methods for their detection were not

provided. At model level, (Din et al., 2012) examined

11 papers that have appeared between 2009 and 2011.

Mainly, they have discussed the basic functionalities

of each approach. However, they did not provide their

own classiﬁcation for recognizing them.

Unlike the aforementioned works, the aim of the

present paper is to build a broader taxonomy that co-

vers the life cycle of the approaches performing de-

tection of bad smells at either source or model level.

3 TAXONOMY DEVELOPMENT

METHODOLOGY

In this paper, we present a current state-of-the-art co-

vering researches on bad smells detection approaches

at source as well as at model level. Our aim is to

make an attempt towards a comprehensive taxonomy

encompassing the existing detection approaches. On

the one hand, this taxonomy reﬂects the evolving tra-

jectory of research in the identiﬁcation of design pro-

blems. On the other hand, it is intended to help deve-

lopers to make appropriate decisions.

The process we followed for the taxonomy de-

velopment is based on the basic guidelines sugge-

Towards a Taxonomy of Bad Smells Detection Approaches

165

Bad Smells

Detection Approaches

Detection Method

Abstraction Level

Code Level

Model Level

Automation Level

Manual

Semi-automatic

Automatic

Machine Learning

Logic-based

Rule-based

Visualization-based

Search-based

Techniques

Detection Analysis

Thresholds

Fixed

Adaptive

Analysis Time

Static

Dynamic

Hybrid

Structural Properties

Semantic Properties

Historical Properties

Behavioural Properties

Properties Type

Detection Assessment

Benchmark

Quantitative

Qualitative

Assessment Type

Small

Medium

Large

Figure 1: Hierarchy of the proposed taxonomy.

sted by (Nickerson et al., 2013). It focuses on

the combination of the empirical-to-deductive and

deductive-to-empirical approaches in order to identify

the main dimensions and their corresponding meta-

characteristics.

According to (Nickerson et al., 2013), the process

of the taxonomy development starts with the deﬁni-

tion of meta-characteristics in order to deﬁne later the

corresponding dimensions. Then, the ending conditi-

ons are drawn to portray the expected structure. After

that, a number of iterations are performed through two

different approaches that are empirical-to-deductive

and deductive-to-empirical. In the ﬁrst one, a sub-

set of the collected data is categorized according to

the common meta-characteristics and dimensions. In

the second one, the meta-characteristics and dimensi-

ons are extracted from the literature. When the ending

conditions are met, the iterations stopped and the pro-

cess of the taxonomy development ends.

Our proposed taxonomy encompasses three di-

mensions: detection method, detection analysis and

detection assessment. For more details, our three-

dimensional taxonomy is graphically depicted in Fi-

gure 1. The dimensions are examined in turn in the

next sections.

4 DETECTION METHOD

The ﬁrst dimension in our taxonomy focuses on pre-

senting the approach in a general way to put it in

context. It deals with the abstraction level (where),

the automation level (how) and the used techniques

(what). Each one of them is explained in more details

in the following.

4.1 Abstraction Level

Since the focus of this paper is on object-oriented de-

tection approaches, two major abstraction levels are

considered. They are mainly code level (called code

smells) and model level (called design smells). As

shown in Table 1, we found that at least two-thirds of

detection approaches are applied at code level.

Code Level. The majority of approaches performed

at code level because of its richness with extra infor-

mation useful for the detection of bad smells, e.g.,

number of lines, number of parameters, etc. Howe-

ver, despite the helpful information coming from the

source code, the detection at this level is considered

too late. As stated by (Akiyama et al., 2011), it is sig-

niﬁcantly practical to identify and ﬁx bad smells as

early as possible at the model level in order to gain

effort in later steps of development.

Model Level. The detection at the model level is

more challenging than at the code level. The chal-

lenge is due to the different modelling notations and

diagrams upon which the model can be based. For

example, the detection approach of (Travassos et al.,

1999) is based on three UML diagrams: state dia-

gram, class diagram and sequence diagram. As the

two latter diagrams are the most popular diagrams in

object modelling, detection approaches at model level

are generally based on one or both of them. In (Fou-

rati et al., 2011), the authors have used and extracted

the needed information of detection through these two

diagrams to identify ﬁve anti-patterns.

Recently, a study (Karasneh et al., 2016) has

empirically investigated the translation of four anti-

patterns occurrences from the models to the source

code. The authors have shown that around 37% of the

affected classes in the models persist at the code le-

vel under the same type of anti-pattern. So, as the

anti-patterns appear early in the design phase, it is

strongly recommended to identify them before the co-

ding phase. However, despite the importance of de-

tecting early the anti-patterns at the model level, this

task is challengeable and less covered in the literature

(see Table 1). On the one hand, the lack of semantic

ICSOFT 2018 - 13th International Conference on Software Technologies

166

traceability among the various diagrams hinders the

detection. On the other hand, as argued by (Ghannem

et al., 2016), the main issue at this level is that there

are many metrics applied during the detection at the

code level cannot be mapped to the model level. Con-

sequently, an extra effort is needed to tackle this hard

task.

4.2 Automation Level

The detection approaches can be classiﬁed based on

their automation level into three categories: manual,

semi-automatic and automatic.

Manual. The manual approaches offer basically hu-

man processes. They are conducted by experts who

spent too much time and effort to identify inconsisten-

cies by inspecting the design parts that correspond to

the deﬁnition of bad smells. Detecting manually bad

smells is regarded as a costly, time-consuming and

error-prone procedure. When analysing large-scale

systems, the identiﬁcation becomes more tedious and

complicated. In addition, it is subjective because it

depends on the expert’s personal perception.

In his book, (Fowler et al., 1999) listed 22 code

smells together with guidance rules to locate them.

For each code smell, they proposed a set of refacto-

ring operations to limit their negative impact. Also,

the approach led by (Travassos et al., 1999) was one

of the ﬁrst manual detection approaches. The authors

deﬁne a set of inspection rules referred to as reading

techniques that help to detect defects in UML arti-

facts. Each inspection rule is a guideline assisting the

designer to identify inconsistencies in class, sequence

and state diagrams.

Semi-automatic. In order to avoid the aforementi-

oned limitations of manual detection, semi-automatic

approaches have emerged as a partial solution. They

are a good compromise between fully automatic de-

tection techniques that can be efﬁcient but loose track

of context, and pure human inspection that is slow and

inaccurate (Langelier et al., 2005). In this type of de-

tection, the decision making about whether an ano-

maly candidate is an actual defect or not, is asserted

by an expert. According to (Dhambri et al., 2008),

when facing a complicated situation, a human inter-

vention is mandatory to provide its own perception.

Although they are less tedious than manual de-

tection, the semi-automatic detection approaches are

still time-consuming and subjective as they necessi-

tate a human intervention.

Automatic. Several approaches have appeared ai-

ming at the automation of the whole detection pro-

cess to overcome the above problems of manual and

semi-automatic ones. They reﬂect the extent to which

the tool could examine the system by itself without

requiring a human intervention. Many methods have

been exploited to reduce the time of the detection in

particularly large-scale systems. However, despite the

signiﬁcant progresses with the automatic approaches,

there is still a need for an additional effort to standar-

dize and calibrate bad smells deﬁnitions in a formal

way to optimize the detection results (De Mello et al.,

2017).

4.3 Techniques

Surveyed detection techniques consist of ﬁve broad

categories: machine learning, logic-based, rule-

based, visualization-based and search-based.

Machine Learning. Machine learning techniques

are an effective way to detect the existence of bad

smells. They are based on a training set of informa-

tion collected and evaluated by experts. A classiﬁer

learns using the training set of information, and it is

then used for testing systems to detect bad smells.

Different learning algorithms have been used in

the detection approaches, including Support Vec-

tor Machines (Maiga et al., 2012a; Maiga et al.,

2012b), Bayesian Belief Networks (Khomh et al.,

2009; Khomh et al., 2011), Association Rule Mining

(Palomba et al., 2015; Fu and Shen, 2015), etc.

Recently, (Arcelli Fontana et al., 2016) have ex-

perimented with 16 supervised machine learning al-

gorithms on four code smells that are Data Class,

Large Class, Feature Envy and Long Method. The se-

lected algorithms are J48 (with pruned, unpruned and

reduced error pruning), JRip, Random Forest, Na

ıve

Bayes, SMO (with Radial Basis Function and Polyno-

mial kernels) and LibSVM (with the two algorithms

C-SVC and ν-SVC in combination with Linear, Poly-

nomial, RBF and Sigmoid kernels).

Logic-based. Logical reasoning represents another

interesting alternative for detecting bad smells. Gene-

rally, it relies on a mathematical basis and it is able

to provide faster results. (Tourwe and Mens, 2003)

have demonstrated a logic-based approach that uses a

logic meta-programming for detecting bad smells and

for providing the appropriate set of refactoring ope-

rations. The logic programming language used for

the implementation is called SOUL, known as a vari-

ant of Prolog with some minor differences. Similarly,

Towards a Taxonomy of Bad Smells Detection Approaches

167

(Stoianov and S¸ora, 2010), proposed a logic-based de-

tection approach using Prolog predicates. According

to the authors, the approach is characterized by its

simplicity since it is able to detect 5 design-patterns

and 6 anti-patterns by means of their structural and

behavioural aspects. The achieved results show that

no false positives were found among the automatic

detected anti-patterns. These results are proven by a

manual inspection of the code.

Rule-based. Most of existing bad smells detection

approaches are based on rules that are established at

one of the mentioned automation levels. Generally,

the rules tend to closely describe the characteristics

of bad smells via a particular combination of known

and/or newly deﬁned metrics. For each bad smell, its

related rules are implemented through combining a

metric with its appropriate threshold. However, de-

ﬁning the right threshold value of a given metric for a

given bad smell is not obvious and necessitates a sig-

niﬁcant analysis effort because there is no consensus

for their calibration. Therefore, several interpretati-

ons exist to translate the detection of the same bad

smell deﬁnition into a rule. This non-compromise

may conduct to the decrease of accuracy results re-

ported by this type of approaches.

A detection strategy suggested by (Marinescu,

2004) formulates metrics-based rules that capture de-

viations from good design principles and heuristics.

The strategy is based on two mechanisms of ﬁltering

and composition. The ﬁltering aims to detect design

fragments with speciﬁc properties captured by a me-

tric. However, the composition is based on a set of

operators which are used to associate the metrics in

an articulated rule. Likewise, (Munro, 2005) pro-

posed precise deﬁnitions of bad smells based on the

informal descriptions provided originally by (Fowler

et al., 1999) in order to prevent the diversity of inter-

pretations varying between developers. The proposed

speciﬁcations are in form of template that consists of

three parts: the bad smell name, main descriptions of

its characteristics and design heuristics for its identi-

ﬁcation. The rules are constructed using if-then-else

conditional statements combining the metric with its

threshold.

(Moha et al., 2010) proposed a method called DE-

TEX (DETection EXpert). The DETEX is an instance

of DECOR (DEtection & CORrection) that represents

all the steps necessary for the speciﬁcation and de-

tection of bad smells. Using a domain-speciﬁc lan-

guage, DETEX automatically generates the detection

algorithms. These algorithms are obtained from the

models of rule cards which describe the properties of

a class having been considered as a smell. Besides the

detection, this approach enables the correction of the

defects. (Hozano et al., 2015) exploited the develo-

pers’ feedback of speciﬁc projects in order to produce

personalized rules. Four code smells are recognized

as relevant according to the collected feedback.

Visualization-based. (van Emden and Moonen,

2002) presented a code smell browser called

jCOSMO which detects and visualizes code smells in

java code. After having parsed the source code, the

tool shows a graphical overview containing the parts

affected by bad smells besides the relations between

them. In another work, (Langelier et al., 2005) pro-

posed a visualization framework that exploits percep-

tion capabilities of the human visual system in order

to support quality analysis in software systems. Based

on the main features of the latter approach, (Dhambri

et al., 2008) propose a detection approach combining

automatic pre-processing with visual representation

and analysis of data. The authors develop a tool cal-

led VERSO. For a given system, the tool generates 3D

representations of anti-pattern locations that necessi-

tate the intervention of a human analyst to provide his

judgement.

Unlike the other visualization tools which are li-

mited to represent modular structures based on a sin-

gle view, a multiple-view approach enriched with

concern properties is proposed by (Carneiro et al.,

2010). The authors develop SourceMiner, an Eclipse

plug-in that integrates different sets of view and is

able to detect three code smells: Feature Envy, God

Class and Divergent Change. Another Eclipse plug-

in called Stench Blossom for detecting code smells

is suggested by (Murphy-Hill and Black, 2010). The

plug-in provides the programmer with three different

views: ambient, active and explanation views. These

views are designed to give developers progressively

more informations on the bad smells in the code being

visualized.

Search-based. Search-based techniques have been

more recently considered in bad smells detection ap-

proaches. They are used in SBSE (Search-Based Soft-

ware Engineering) to solve optimization problems in

many domains. When a software engineering is-

sue is structured as a search problem, different meta-

heuristic search techniques like genetic programming,

simulated annealing and chemical reaction optimiza-

tion can solve it. For example, the genetic program-

ming is used by (Ouni et al., 2013) in their appro-

ach to automatically generate detection rules. For

the approach proposed in (Ghannem et al., 2016), the

authors used a meta-heuristic search based on gene-

tic algorithms. By exploiting an existing corpus of

ICSOFT 2018 - 13th International Conference on Software Technologies

168

known design defects, the approach detects three anti-

patterns in UML class diagrams. Also, (Kessentini

et al., 2011) have used and compared between three

search algorithms that are Harmony Search, Particle

Swarm Optimization, and Simulated Annealing. The

proposed approach is based on a dataset of examples

containing only the instances of the detected defects.

The dataset of examples consists of detected design

defects that are collected from previously inspected

projects.

(Sahin et al., 2014) were the ﬁrst to propose a met-

hod for generating code smells detection rules as a Bi-

Level Optimization Problems (BLOPs). The appro-

ach is composed of two levels of optimization tasks:

lower-level and upper-level. In their adaptation, the

upper-level optimization generates a set of detection

rules in order to cover a base of code smell exam-

ples and populate the lower-level with artiﬁcial code

smells. The lower-level optimization will generate a

maximum number of artiﬁcial code smells that cannot

be identiﬁed by the rules produced by the upper-level.

5 DETECTION ANALYSIS

The second taxonomy’s dimension describes the main

features of the approach during the analysis.

5.1 Properties Type

There are four categories of properties used in the

analysis: structural, semantic, historical and behavi-

oural properties.

Structural Properties. As depicted in Table 1, the

majority of approaches exploit structural properties

in the detection. This type of properties relates to

the structure of the system constituents ranging from

ﬁne-grained elements to coarse-grained elements (e.g.

class, interface, method, ﬁeld, parameter, etc.) (Moha

et al., 2010). For instance, LOC (Lines of Code), CY-

CLO (Cyclomatic Complexity) and ATFD (Access To

Foreign Data) are some examples of metrics that re-

spectively characterize the size, complexity and cou-

pling that are related to the software quality (Lanza

and Marinescu, 2007). Based on the structural infor-

mation, the metric values needed for the detection are

calculated.

In addition to the standard metrics in the litera-

ture, it is possible to develop complementary metrics

to deal with speciﬁc requirements. In (Fourati et al.,

2011), four new metrics are created at the model level

that describe both the complexity and coupling of the

system. In the same way, (Nongpong, 2015) propo-

sed a new metric called FEF (Feature Envy Factor) to

detect the smell of Feature Envy.

Semantic Properties. The semantic properties rely

on linguistic information provided by the main cha-

racteristics of bad smells classes. According to

(Dhambri et al., 2008), semantic properties are not

represented in the source code in an explicit manner

as they refer to the application domain knowledge. In

their approach, these properties are required by the

analyst to ensure that the inspected fragment plays the

targeted roles. In (Fourati et al., 2011), the determi-

nation of the semantic properties of anti-patterns is

handled through lexical dictionaries like the WordNet

dictionary. The proposed approach detects ﬁve anti-

patterns in UML diagrams. It relies on a set of ex-

isting and other design metrics newly deﬁned by the

authors. In this approach, three types of model pro-

perties were considered: structural and semantic in-

formations extracted from the class diagram, as well

as behavioural informations extracted from the se-

quence diagram.

Historical Properties. (Ratiu et al., 2004) extended

the original concept of detection strategy (Marinescu,

2004) by extracting historical information from the

suspected defect structure. The authors deﬁne his-

tory measurements that describe the evolution of the

bad smells and then combine the results with the ori-

ginal detection strategies. The proposed approach is

evaluated on God Class and Data Class, and provi-

des more accurate detection results. (Palomba et al.,

2013; Palomba et al., 2015) proposed an approach

named HIST (Historical Information for Smell de-

Tection) to detect ﬁve types of bad smells. In this

work, only historical information extracted from ver-

sion control systems was used. Likewise, (Fu and

Shen, 2015) proposed a detection approach by mining

the evolutionary history of projects extracted from re-

vision control system. Three code smells are chosen

to be detected from 5 projects, whose the duration of

the evolutionary history vary from 5 to 13 years.

Behavioural Properties. In (Fourati et al., 2011),

the extraction of behavioural properties is based on

the transformation of the sequence diagram into an

XML document and metric calculation such as met-

hod calling, the sender, the receiver, etc. Also, (Stoia-

nov and S¸ ora, 2010) used the Prolog predicates to des-

cribe behavioural properties of both design patterns

and anti-patterns.

Towards a Taxonomy of Bad Smells Detection Approaches

169

5.2 Analysis Time

Analysis time identiﬁes the moment when bad smells

are detected. Three types of analysis time are deﬁned:

static, dynamic and hybrid.

Static. As summarized in Table 1, static analysis

is the most commonly used way to analyse a system

code. It takes into account the examination of either

the source code form or the meta-model form that is

the abstract representation of the code. Static analysis

is still the most adopted choice because of its simpli-

city and rapidity comparing to the dynamic analysis

which is costly as it necessitates more time and other

resources for the running of the program. However,

in such a scenario, this type of analysis can indeﬁni-

tely make hypothesis about the running behaviour of

a system. Consequently, many detected bad smells

could be rarely or never executed, which leads to the

problem of false positives. For this reason, few stu-

dies recently opted for combining static with dynamic

analysis (Ligu et al., 2013).

Dynamic. Dynamic analysis is performed during

the execution of the system under evaluation. In other

words, it is the inspection of a running system, such as

a unit test. (Kumar and Chhabra, 2014) proposed an

approach based on dynamic analysis to detect Feature

Envy smell. Their approach consists of two levels. At

the ﬁrst level, the methods that may suffer from the

bad smell Feature Envy are obtained dynamically. At

the second level, the non-suspect methods are elimi-

nated and thus the detection becomes more efﬁcient as

the overhead is reduced. According to the authors, the

dynamic analysis is more accurate in object-oriented

environment.

Hybrid. Hybrid analysis is the combination of sta-

tic and dynamic analysis. In (Ligu et al., 2013), the

authors proposed an approach that is implemented

as an extension of the detecting JDeodorant Eclipse

plug-in (Fokaefs et al., 2007). Based on an hybrid

analysis, the approach is able to detect the code smell

Refused Bequest more accurately than using only sta-

tic analysis. The static analysis of the source code

is employed to identify suspicious hierarchies. Ho-

wever, the dynamic analysis serves to determine the

subclass that actually exhibits the smell.

5.3 Thresholds

The detection results are heavily affected by the diver-

sity and the estimation methods of threshold values.

Because of the lack of a standard method for measu-

ring suitable thresholds, the detection approaches cal-

culate these values in different ways (Fontana et al.,

2016). While some rely on deﬁning ﬁxed thresholds

based on expert knowledge, others propose adaptive

threshold values. In the literature, several alternatives

exist to overcome this problem (Alves et al., 2010;

Oliveira et al., 2014; Fontana et al., 2015; Liu et al.,

2016), but there is not yet an optimal solution that ful-

ﬁls all the requirements to equally perform an accu-

rate detection.

Fixed. A ﬁxed threshold is a pre-deﬁned value that

pertains to the expert knowledge and opinion. This

type of threshold may be interpreted incorrectly as

it is inﬂexible. In fact, the estimation of appropri-

ate thresholds depends on many factors, such as the

size of the system, its application domain, the organi-

zation best practices, the perception of the developer

who deﬁnes these values (Fontana et al., 2012). Ho-

wever, a ﬁxed threshold value cannot deal with the

variation and the acceleration information of the sy-

stem during its evolution in the way that the adaptive

threshold does.

Adaptive. Unlike the ﬁxed threshold, the adaptive

threshold is more ﬂexible as it is based on one or a

set of the system features upon which its value is for-

mulated in different ways. In many research studies,

the calibration of threshold values is inferred by a tu-

ning machine (Mihancea and Marinescu, 2005). By

creating a dataset of bad smell instances, the tuning

machine selects the thresholds values. The larger the

dataset is, the more accurate the threshold will be.

6 DETECTION ASSESSMENT

This dimension refers to the assessment of the per-

formance and efﬁciency of the approach in terms of

the used benchmark and the assessment type. For the

benchmark, we follow the classiﬁcation suggested in

(Radjenovi et al., 2013) that categorizes the systems

into small, medium and large according to the size

(number of lines of code and/or number of classes).

Then, when ﬁnally detected, a quantitative and/or a

qualitative assessment is carried out to provide the

accuracy of the approach.

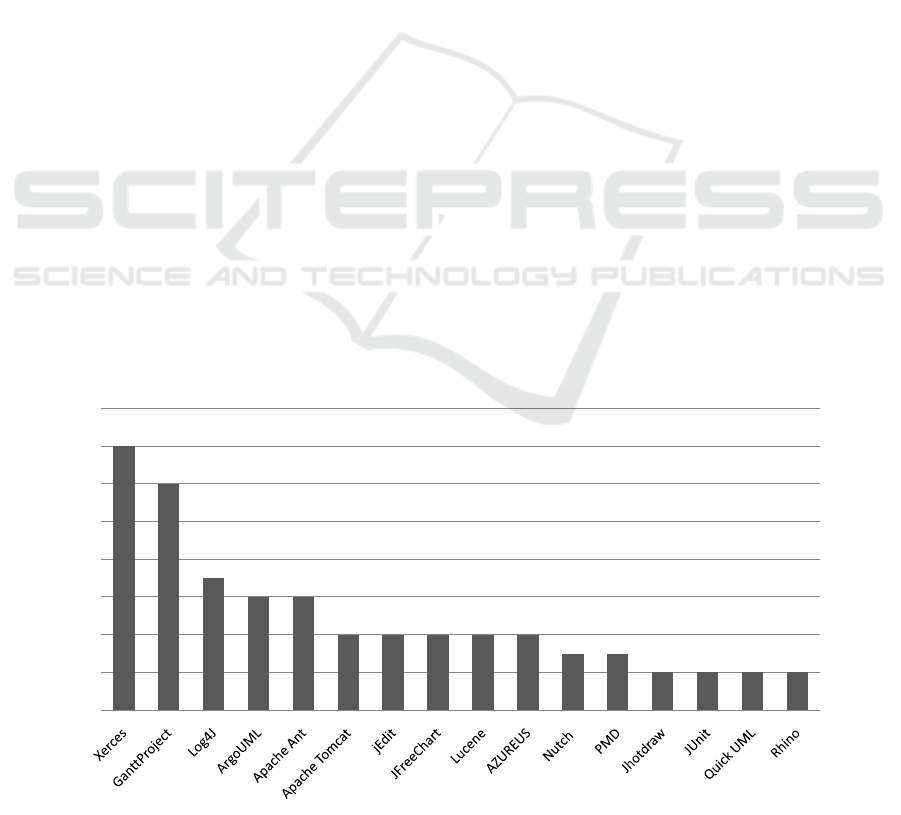

6.1 Benchmark

A benchmark is a standard for evaluating the perfor-

mance of approaches. It is a set of known systems

ICSOFT 2018 - 13th International Conference on Software Technologies

170

upon which the experiments are conducted. Anot-

her purpose of using a benchmark is to enable com-

parative analysis between studies. Actually, the ben-

chmarks vary in their features, such as programming

language (e.g. java, C++), availability (open source,

commercial project, constructed project, student pro-

ject), size (small, medium, large), etc. In our taxo-

nomy, the benchmark categorization depends on the

size. Our focus on the benchmark size is justiﬁed by

its important aspect for determining the external vali-

dity of the approach (Radjenovi et al., 2013). In fact,

when using only small benchmark, it is highly possi-

ble that the approach’s accuracy may be affected, and

accordingly, the reported results will be subjectively

interpreted. Therefore, in order to maximize objecti-

vity, evaluations on different sizes are strongly recom-

mended and particularly on the larger ones. Indeed,

this is crucial to ensure the generalization and the va-

lidation of the approach’s ﬁndings.

In order to distinguish between small, medium

and large benchmarks, we follow the guidelines pre-

sented in (Radjenovi et al., 2013). Based on the statis-

tics information provided by the surveyed studies, the

system is classiﬁed into one of the three groups. Over-

all, the statistics information are performed through

the lines of code (LOC) and/or the number of classes.

For a small benchmark, the lines of code or the num-

ber of classes are, respectively, less than 50 KLOC

(thousands of LOC) or 200 classes. In a medium ben-

chmark, the number of lines is restricted between 50

KLOC and 250 KLOC, or the number of classes is

restricted between 200 classes and 1000 classes. Fi-

nally, a benchmark is classiﬁed as large if the lines

of code or the number of classes are, respectively,

more than 250 KLOC or 1000 classes. When a study

provides the values of both lines of code and num-

ber of classes, the system is classiﬁed in the higher

category (Radjenovi et al., 2013). For example, if a

system contains 100 KLOC and 150 classes, the sy-

stem is classiﬁed as medium according to the lines of

code, and as small according to the number of clas-

ses. Thus, the system is affected to the higher cate-

gory which is medium. However, when the needed

information is not stated, the assigned category is by

default small. The more the benchmark is large and

varied, the more the approach proves its efﬁciency.

When performing a comparison between tools, it

is recommended to conduct experiments on known

and commonly used benchmark. Thus, the results of

each approach can be measured and accordingly they

can be compared equally against others. To this end,

we extract a list of the benchmark exploited in the sur-

veyed studies. This list includes only open source sy-

stems because they are the most frequently used ben-

chmark in the evaluations. Because of lack of space,

we will not show the tabulated list but rather illustrate

the ﬁnal result in Figure 2. To improve comparability,

this histogram illustrates the systems that are used at

least in two studies. Xerces was found the most fre-

quently used system in the evaluation of approaches,

followed by GanttProject and Log4J.

6.2 Assessment Type

Once the bad smells are detected, we conclude with

the accuracy that is an important factor for determi-

ning the whole performance of the approach. In most

studies, the accuracy is assessed quantitatively in or-

der to ensure the objectivity of the approach. Nonet-

heless, there are other studies that are based only on

Figure 2: Distribution of the commonly used benchmark in the studies.

Towards a Taxonomy of Bad Smells Detection Approaches

171

qualitative assessment which may decrease their ob-

jectivity.

Quantitative. In order to provide an objective as-

sessment, it is necessary to follow a standard method

to calculate the accuracy of an approach. Broadly, two

metrics are used to assess the accuracy, namely preci-

sion and recall. They are well-known metrics in infor-

mation retrieval (Baeza-Yates et al., 1999). The pre-

cision metric indicates the correctness of the appro-

ach, it gives the rate of correctly identiﬁed bad smells

by the number of detected bad smell candidates. Ho-

wever, the recall metric measures the completeness

of the approach, it is the rate of correctly identiﬁed

bad smells by the totally number of actual bad smells.

These two metrics are calculated as follows:

Precision =

|{Existing Bad Smells} ∩ {Detected Bad Smells}|

|{Detected Bad Smells}|

True Positive

True Positive + FalsePositive

(1)

Recall =

|{Existing Bad Smells} ∩ {Detected Bad Smells}|

|{Existing Bad Smells}|

True Positive

True Positive + False Negative

(2)

A third metric, called F-measure (Baeza-Yates

et al., 1999), is the harmonic mean of precision and

recall. Overall, it reﬂects the whole detection accu-

racy in one value. It is deﬁned as follows:

F −Measure = 2 ×

Precsion × Recall

Precsion + Recall

(3)

Qualitative. The qualitative assessment is purely

based on the judgement of either the authors of the

approach or external analysts. This type of evaluation

depends on the knowledge and the work-experience

of the evaluators. Their own perceptions to the dom-

ain may be different and may guide to conﬂicting re-

sults. Therefore, the qualitative assessment is mainly

known by its subjectivity because the evaluators may

exaggerate or underestimate the actual performance

of the approach. For this reason, in the studies using

only qualitative assessment, there is a greater possibi-

lity that their ﬁndings are limited and cannot be gene-

ralized. This fact makes impossible to establish a fair

comparison with other approaches.

Notwithstanding the aforementioned limitations,

it would be interesting to complement this type of as-

sessment with the determination of the precision and

recall metrics. Consequently, a high validity is esta-

blished.

7 CONCLUSION

Throughout the refactoring process, the more accurate

are the detection results, the more effective and cor-

rect are the later phases. Bad smells detection phase

has a decisive inﬂuence on the whole refactoring pro-

cess, and accordingly on the results of the mainte-

nance. Over the last decade and half, this subject has

attracted substantial interest from both academia and

industry. Numerous approaches have been, and still

are, appearing to deal with this challenging problem.

In this paper, we provide a comprehensive taxo-

nomy to classify and characterize detection approa-

ches. This taxonomy is derived from a survey of

the research studies that detect bad smells in object-

oriented software systems. Three dimensions are pro-

posed to describe the whole detection approach star-

ting from the choice of the used techniques, the ana-

lysis characteristics to the assessment criteria. In ad-

dition to its knowledgeable value, this taxonomy is

addressed to researchers as a basis for classifying and

evaluating different works. Also, it can be used by

developers who may suggest promising opportunities

for creating new approaches or combining between

existing techniques.

Owing to its important role in the maintenance,

the ﬁeld of bad smells detection gets more and more

attention. Despite the variety of existing detection ap-

proaches and the remarkable advances reached up to

now, a number of research issues remain open and re-

quire further investigation in future works. Among

the most common problems encountered during de-

tection process is the ambiguity of bad smells deﬁni-

tions that should be carefully resolved by providing

a standard upon which the next detection approaches

are based on. Also, there is the issue of threshold that

could be alleviated if the ﬁrst problem is resolved. In

fact, a wrong threshold calculation may lead to false

or missing detections. Another issue is the impact of

the chosen benchmark on the integrity of the obtained

results. This may lead to biased comparisons between

approaches.

To summarize, it would be fruitful to develop

a framework encompassing all the necessary ingre-

dients for the detection process, i.e. formal deﬁnitions

of bad smells, uniﬁed benchmark for the evaluation.

Also, it is strongly recommended to broaden the ap-

plicability of the detection approaches to commercial

systems.

ICSOFT 2018 - 13th International Conference on Software Technologies

172

Table 1: Detection approaches according to the proposed taxonomy.

Approaches

Detection Method Detection Analysis Detection Assessment

Abstraction

Level

Automation

Level

Techniques Properties

Type

Analysis

Time

Thresholds Assessment Type Benchmark

(Arcelli Fontana et al.,

2016)

Code Automatic Machine learning Structural Static Adaptive Quantitative 74 systems

S: 19 - M: 38 - L: 17

(Fu and Shen, 2015) Code Automatic Machine learning Historical

Structural

Static Adaptive Quantitative 5 systems

S: 5 - M: 0 - L: 0

(Kumar and Chhabra, 2014) Code Automatic Search-based Structural

Behavioural

Dynamic Adaptive Quantitative 2 systems (selected parts)

S: 2 - M: 0 - L: 0

(Munro, 2005) Code Semi-

automatic

Rule-based Structural Static Fixed Qualitative 2 case studies

S: 2 - M: 0 - L: 0

(Ghannem et al., 2016) Model Automatic Search-based Structural Static Adaptive Quantitative 4 systems

S: 0 - M: 3 - L: 1

(Hozano et al., 2015) Code Automatic Rule-based Structural Static NM Quantitative 2 systems

S: 2 - M: 0 - L: 0

(Nongpong, 2015) Code Automatic Rule-based Structural Static NM Qualitative Student Projects

S: 2 - M: 0 - L: 0

(Carneiro et al., 2010) Code Semi-

automatic

Visualization Structural Static NM Quantitative An academic project (5 ver-

sions)

S: 1 - M: 0 - L: 0

(Hassaine et al., 2010) Code Automatic Machine learning Structural Static Adaptive Quantitative 2 systems

S: 1 - M: 1 - L: 0

(Moha et al., 2010) Code Automatic Rule-based Structural Static

Semantic

Adaptive Quantitative 10 systems

S: 5 - M: 3 - L: 2

(Murphy-Hill and Black,

2010)

Code Semi-

automatic

Visualization Structural Static Fixed Qualitative 2 systems (selected parts)

S: 2 - M: 0 - L: 0

(Stoianov and S¸ora, 2010) Code Automatic Logic-based Structural

Behavioural

Static NM Qualitative 6 systems

S: 6 - M: 0 - L: 0

(Sahin et al., 2014) Code Automatic Search-based Structural Static Adaptive Quantitative 9 systems

S: 2 - M: 5 - L: 2

(Dexun et al., 2013) Code Automatic Rule-based Structural Static Fixed Quantitative 6 systems

S: 4 - M: 1 - L: 1

(Ligu et al., 2013) Code Automatic Search-based Structural Hybrid NM Qualitative 1 system

S: 0 - M: 1 - L: 0

(Khomh et al., 2009) Code Semi-

automatic

Machine learning Structural Static Adaptive Quantitative 2 systems

S: 1 - M: 1 - L: 0

(Dhambri et al., 2008) Code Semi-

automatic

Visualization Structural

Semantic

Static NM Quantitative 2 systems

S: 0 - M: 2 - L: 0

(Ouni et al., 2013) Code Automatic Search-based Structural Static Adaptive Quantitative 6 systems

S: 2 - M: 2 - L: 2

(Palomba et al., 2013) Code Automatic Machine learning Historical Static Adaptive Quantitative 8 systems

S: 0 - M: 6 - L: 2

(Saranya et al., 2017) Model Automatic Search-based Structural Static Adaptive Quantitative 3 systems

S: 0 - M: 3 - L: 0

(Salehie et al., 2006) Code Automatic Rule-based Structural Static Fixed Quantitative 1 system

S: 0 - M: 0 - L: 1

(Kreimer, 2005) Code Automatic Machine learning Structural Static NM Quantitative 2 systems

S: 2 - M: 0 - L: 0

(Langelier et al., 2005) Code Semi-

automatic

Visualization Structural Static NM Qualitative 1 system

S: 0 - M: 0 - L: 1

(Palomba et al., 2015) Code Automatic Machine learning Historical Static Adaptive Quantitative 20 systems

S: 6 - M: 9 - L: 5

(Walter et al., 2015) Code Automatic Rule-based Structural Static Fixed Quantitative 1 system (selected parts)

S: 0 - M: 1 - L: 0

(Kessentini et al., 2014) Code Automatic Search-based Structural Static Adaptive Quantitative 9 systems

S: 2 - M: 5 - L: 2

(Travassos et al., 1999) Model Manual Rule-based Structural

Semantic

Static NM Qualitative An Academic project

S: 1 - M: 0 - L: 0

(Maiga et al., 2012a) Code Automatic Machine learning Structural Static Adaptive Quantitative 3 systems

S: 0 - M: 1 - L: 2

(Marinescu, 2004) Code Automatic Rule-based Structural Static Fixed Quantitative 2 industrial case studies

S: 0 - M: 2 - L: 0

(Ratiu et al., 2004) Code Automatic Rule-based Historical Static Fixed Quantitative 3 case studies

S: 2 - M: 1 - L: 0

(Tourwe and Mens, 2003) Code Automatic Logic-based Structural Static NM Qualitative 1 system

S: 1 - M: 0 - L: 0

(Fourati et al., 2011) Model Automatic Rule-based Structural

Behavioural

Semantic

Static Fixed Qualitative Several designs collected

from literature

S: NM - M: 0 - L: 0

(Mansoor et al., 2017) Code Automatic Search-based Structural Static Adaptive Quantitative 7 systems

S: 0 - M: 2 - L: 5

(van Emden and Moonen,

2002)

Code Semi-

automatic

Visualization Structural Static NM Qualitative 1 academic project

S: 1 - M: 0 - L: 0

(Akiyama et al., 2011) Model Automatic Logic-based Structural Static NM Qualitative Industrial system

S: 1 - M: 0 - L: 0

(Kessentini et al., 2011) Code Automatic Search-based Structural Static Adaptive Quantitative 2 systems

S: 0 - M: 2 - L: 0

(Khomh et al., 2011) Code Semi-

automatic

Machine learning Structural Static Adaptive Quantitative 2 systems

S: 1 - M: 1 - L: 0

(Oliveto et al., 2010) Code Automatic Machine learning Structural Static Adaptive Qualitative 2 systems

S: 2 - M: 0 - L: 0

S: Small, M: Medium, L: Large

Towards a Taxonomy of Bad Smells Detection Approaches

173

REFERENCES

Akiyama, M., Hayashi, S., Kobayashi, T., and Saeki, M.

(2011). Supporting design model refactoring for im-

proving class responsibility assignment. In Model

Driven Engineering Languages and Systems.

Alves, T. L., Ypma, C., and Visser, J. (2010). Deriving

metric thresholds from benchmark data. In IEEE Int.

Conf. on Software Maintenance, pages 1–10.

Arcelli Fontana, F., M

antyl

a, M. V., Zanoni, M., and Ma-

rino, A. (2016). Comparing and experimenting ma-

chine learning techniques for code smell detection.

Empirical Software Engineering, 21(3):1143–1191.

Arnaoudova, V., Penta, M. D., Antoniol, G., and Guhneuc,

Y. G. (2013). A New Family of Software Anti-

patterns: Linguistic Anti-patterns. In 17th Eur. Conf.

on Software Maintenance and Reengineering.

Baeza-Yates, R., Ribeiro-Neto, B., et al. (1999). Modern

information retrieval. ACM press New York.

Brown, W. H., Malveau, R. C., McCormick, H. W., and

Mowbray, T. J. (1998). AntiPatterns: refactoring soft-

ware, architectures, and projects in crisis.

Carneiro, G. d. F., Silva, M., Mara, L., Figueiredo,

E., Sant’Anna, C., Garcia, A., and Mendonca, M.

(2010). Identifying Code Smells with Multiple Con-

cern Views. In Br. Symp. on Software Engineering.

De Mello, R. M., Oliveira, R. F., and Garcia, A. F. (2017).

On the Inﬂuence of Human Factors for Identifying

Code Smells: A Multi-Trial Empirical Study. In

ACM/IEEE Int. Symp. on Empirical Software Engi-

neering and Measurement, pages 68–77.

Dexun, J., Peijun, M., Xiaohong, S., and Tiantian, W.

(2013). Detection and refactoring of bad smell cau-

sed by large scale. Int. J. of Soft. Eng. & Applications.

Dhambri, K., Sahraoui, H., and Poulin, P. (2008). Visual

Detection of Design Anomalies. In 12th Eur. Conf.

on Software Maintenance and Reengineering, pages

279–283.

Din, J., AL-Badareen, A. B., and Jusoh, Y. Y. (2012). Anti-

patterns detection approaches in Object-Oriented De-

sign: A literature review. In 7th Int. Conf. on Compu-

ting and Convergence Technology, pages 926–931.

Erlikh, L. (2000). Leveraging Legacy System Dollars for

E-Business. IT Professional, 2(3):17–23.

Fokaefs, M., Tsantalis, N., and Chatzigeorgiou, A. (2007).

JDeodorant: identiﬁcation and removal of feature

envy bad smells. In Int. Conf. on Soft. Maintenance.

Fontana, F. A., Braione, P., and Zanoni, M. (2012). Auto-

matic detection of bad smells in code: An experimen-

tal assessment. Journal of Object Technology.

Fontana, F. A., Dietrich, J., Walter, B., Yamashita, A., and

Zanoni, M. (2016). Antipattern and code smell false

positives: preliminary conceptualization and classiﬁ-

cation. In 23rd IEEE Int. Conf. on Software Analysis,

Evolution, and Reengineering, pages 609–613.

Fontana, F. A., Ferme, V., Zanoni, M., and Yamashita, A.

(2015). Automatic metric thresholds derivation for

code smell detection. In 6th IEEE/ACM Int. Works-

hop on Emerging Trends in Software Metrics, pages

44–53.

Fourati, R., Bouassida, N., and Abdallah, H. B. (2011).

A metric-based approach for anti-pattern detection in

uml designs. In Computer and Information Science.

Fowler, M., Beck, K., Brant, J., Opdyke, W., and Roberts,

D. (1999). Refactoring: improving the design of exis-

ting code.

Fu, S. and Shen, B. (2015). Code bad smell detection

through evolutionary data mining. In Int. Symp. on

Empirical Soft. Engineering and Measurement, pages

1–9.

Ganesh, S. and Sharma, T. (2013). Towards a Principle-

based Classiﬁcation of Structural Design Smells.

Journal of Object Technology.

Ghannem, A., El Boussaidi, G., and Kessentini, M. (2016).

On the use of design defect examples to detect model

refactoring opportunities. Software Quality J.

Ghulam, R. and Zeeshan, A. (2015). A review of code smell

mining techniques. J. of Soft.: Evolution and Process.

Hassaine, S., Khomh, F., Gueheneuc, Y. G., and Hamel, S.

(2010). IDS: an immune-inspired approach for the de-

tection of software design smells. In 7th Int. Conf. on

the Quality of Information and Communications Tech.

Hozano, M., Ferreira, H., Silva, I., Fonseca, B., and Costa,

E. (2015). Using Developers’ Feedback to Improve

Code Smell Detection. In 30th Annual ACM Symp. on

Applied Computing, pages 1661–1663.

Karasneh, B., Chaudron, M. R. V., Khomh, F., and Gue-

heneuc, Y. G. (2016). Studying the Relation between

Anti-Patterns in Design Models and in Source Code.

In 23rd IEEE Int. Conf. on Software Analysis, Evolu-

tion, and Reengineering, volume 1, pages 36–45.

Kessentini, M., Sahraoui, H., Boukadoum, M., and Wim-

mer, M. (2011). Search-based design defects detection

by example. In Fundamental App. to Soft. Eng.

Kessentini, W., Kessentini, M., Sahraoui, H., Bechikh,

S., and Ouni, A. (2014). A Cooperative Paral-

lel Search-Based Software Engineering Approach for

Code-Smells Detection. IEEE Trans. Softw. Eng.

Khomh, F., Penta, M. D., Gu

eneuc, Y.-G., and Antoniol,

G. (2012). An exploratory study of the impact of anti-

patterns on class change- and fault-proneness. Empi-

rical Software Engineering, 17(3):243–275.

Khomh, F., Vaucher, S., Guhneuc, Y. G., and Sahraoui, H.

(2009). A Bayesian Approach for the Detection of

Code and Design Smells. In 9th Int. Conf. on Quality

Software, pages 305–314.

Khomh, F., Vaucher, S., Guhneuc, Y.-G., and Sahraoui, H.

(2011). BDTEX: A gqm-based Bayesian approach for

the detection of antipatterns. J. of Sys. and Software.

Kreimer, J. (2005). Adaptive detection of design ﬂaws.

Electronic Notes in Theoretical Computer Science.

Kumar, S. and Chhabra, J. K. (2014). Two level dynamic

approach for Feature Envy detection. In Int. Conf. on

Computer and Communication Technology.

Langelier, G., Sahraoui, H., and Poulin, P. (2005).

Visualization-based Analysis of Quality for Large-

scale Software Systems. In 20th IEEE/ACM Int. Conf.

on Automated Software Engineering, pages 214–223.

ICSOFT 2018 - 13th International Conference on Software Technologies

174

Lanza, M. and Marinescu, R. (2007). Object-oriented me-

trics in practice: using software metrics to charac-

terize, evaluate, and improve the design of object-

oriented systems.

Ligu, E., Chatzigeorgiou, A., Chaikalis, T., and Ygeiono-

makis, N. (2013). Identiﬁcation of refused bequest

code smells. In Int. Conf. on Software Maintenance,

pages 392–395.

Liu, H., Liu, Q., Niu, Z., and Liu, Y. (2016). Dyna-

mic and automatic feedback-based threshold adapta-

tion for code smell detection. IEEE Trans. Softw. Eng.

Maiga, A., Ali, N., Bhattacharya, N., Saban, A., Guhneuc,

Y. G., and Aimeur, E. (2012a). SMURF: A SVM-

based Incremental Anti-pattern Detection Approach.

In 19th Working Conf. on Reverse Engineering.

Maiga, A., Ali, N., Bhattacharya, N., Saban, A., Guhneuc,

Y. G., Antoniol, G., and Ameur, E. (2012b). Support

vector machines for anti-pattern detection. In 27th Int.

Conf. on Automated Software Engineering.

Mansoor, U., Kessentini, M., Maxim, B. R., and Deb, K.

(2017). Multi-objective code-smells detection using

good and bad design examples. Software Quality J.

Mantyla, M., Vanhanen, J., and Lassenius, C. (2003). A

taxonomy and an initial empirical study of bad smells

in code. In Int. Conf. on Software Maintenance.

Marinescu, R. (2004). Detection strategies: metrics-based

rules for detecting design ﬂaws. In 20th IEEE Int.

Conf. on Software Maintenance, pages 350–359.

Mens, T. and Tourwe, T. (2004). A survey of software re-

factoring. IEEE Trans. Softw. Eng., 30(2):126–139.

Mihancea, P. F. and Marinescu, R. (2005). Towards the Op-

timization of Automatic Detection of Design Flaws in

Object-Oriented Software Systems. In 9th Eur. Conf.

on Software Maintenance and Reengineering.

Moha, N., Gueheneuc, Y. G., Duchien, L., and Meur, A.

F. L. (2010). DECOR: A Method for the Speciﬁca-

tion and Detection of Code and Design Smells. IEEE

Trans. Softw. Eng., 36(1):20–36.

Moha, N., Huynh, D.-l., Gu

eneuc, Y.-G., and Team, P.

(2005). A Taxonomy and a First Study of Design Pat-

tern Defects. STEP 2005, page 225.

Munro, M. J. (2005). Product metrics for automatic identi-

ﬁcation of bad smell design problems in Java source-

code. In 11th IEEE Int. Software Metrics Symp.

Murphy-Hill, E. and Black, A. P. (2010). An Interactive

Ambient Visualization for Code Smells. In 5th Int.

Symp. on Software Visualization, pages 5–14. ACM.

Nickerson, R. C., Varshney, U., and Muntermann, J. (2013).

A method for taxonomy development and its applica-

tion in information systems. Eur. J. of Information

Systems.

Nongpong, K. (2015). Feature envy factor: A metric for

automatic feature envy detection. In 7th Int. Conf. on

Knowledge and Smart Technology, pages 7–12.

Oliveira, P., Valente, M. T., and Lima, F. P. (2014). Ex-

tracting relative thresholds for source code metrics. In

IEEE Conf. on Software Maintenance, Reengineering,

and Reverse Engineering, pages 254–263.

Oliveto, R., Khomh, F., Antoniol, G., and Gueheneuc, Y. G.

(2010). Numerical Signatures of Antipatterns: An Ap-

proach Based on B-Splines. In 14th Eur. Conf. on Soft-

ware Maintenance and Reengineering.

Ouni, A., Kessentini, M., Sahraoui, H., and Boukadoum,

M. (2013). Maintainability defects detection and cor-

rection: a multi-objective approach. Automated Soft-

ware Engineering, 20(1):47–79.

Palomba, F., Bavota, G., Penta, M. D., Oliveto, R., Lucia,

A. D., and Poshyvanyk, D. (2013). Detecting bad

smells in source code using change history informa-

tion. In 28th IEEE/ACM Int. Conf. on Automated Soft-

ware Engineering, pages 268–278.

Palomba, F., Bavota, G., Penta, M. D., Oliveto, R., Poshyva-

nyk, D., and Lucia, A. D. (2015). Mining Version His-

tories for Detecting Code Smells. IEEE Trans. Softw.

Eng., 41(5):462–489.

Palomba, F., Lucia, A. D., Bavota, G., and Oliveto, R.

(2014). Anti-pattern detection: Methods, challenges,

and open issues. 95:201 – 238.

Radjenovi, D., Heriko, M., Torkar, R., and ivkovi, A.

(2013). Software fault prediction metrics: A syste-

matic literature review. Inf. and Software Technology,

55(8):1397 – 1418.

Ratiu, D., Ducasse, S., G

ırba, T., and Marinescu, R. (2004).

Using History Information to Improve Design Flaws

Detection. In 8th Eur. Conf. on Software Maintenance

and Reengineering, pages 223–232.

Sahin, D., Kessentini, M., Bechikh, S., and Deb, K. (2014).

Code-Smell Detection As a Bilevel Problem. ACM

Trans. on Software Engineering and Methodology.

Salehie, M., Li, S., and Tahvildari, L. (2006). A

Metric-Based Heuristic Framework to Detect Object-

Oriented Design Flaws. In 14th IEEE Int. Conf. on

Program Comprehension, pages 159–168.

Saranya, G., Nehemiah, H. K., Kannan, A., and Nithya,

V. (2017). Model level code smell detection using

EGAPSO based on similarity measures. Alexandria

Engineering Journal.

Soh, Z., Yamashita, A., Khomh, F., and Guhneuc, Y. G.

(2016). Do Code Smells Impact the Effort of Diffe-

rent Maintenance Programming Activities? In 23rd

IEEE Int. Conf. on Software Analysis, Evolution, and

Reengineering, volume 1, pages 393–402.

Stoianov, A. and S¸ ora, I. (2010). Detecting patterns and an-

tipatterns in software using Prolog rules. In Int. Joint

Conf. on Computational Cybernetics and Technical

Informatics, pages 253–258.

Tourwe, T. and Mens, T. (2003). Identifying refactoring op-

portunities using logic meta programming. In 7th Eur.

Conf. on Software Maintenance and Reengineering.

Travassos, G., Shull, F., Fredericks, M., and Basili, V. R.

(1999). Detecting defects in object-oriented designs:

using reading techniques to increase software quality.

van Emden, E. and Moonen, L. (2002). Java quality assu-

rance by detecting code smells. In 9th Working Conf.

on Reverse Engineering, pages 97–106.

Walter, B., Matuszyk, B., and Fontana, F. A. (2015). Inclu-

ding Structural Factors into the Metrics-based Code

Smells Detection. In Scientiﬁc Workshop Proc. of XP.

Towards a Taxonomy of Bad Smells Detection Approaches

175
