Evaluating the Provision of Botnet Defences using Translational

Research Concepts

Dilara Acarali, Muttukrishnan Rajarajan and Nikos Komninos

School of Mathematics, Computer Science and Engineering, City, University of London, London, U.K.

Keywords:

Cyber-security, Botnets, Translational Research, Implementation Science, Botnet Propagation.

Abstract:

Botnet research frequently draws on concepts from other ﬁelds. An example is the use of epidemiological

models when studying botnet propagation, which facilitate an understanding of bot spread dynamics and

the exploration of behavioural theory. Whilst the literature is rich with these models, it is lacking in work

aimed at connecting the insights of theoretical research with day-to-day practice. To address this, we look

at botnets through the lens of implementation science, a discipline from the ﬁeld of translational research in

health care, which is designed to evaluate the implementation process. In this paper, we explore key concepts

of implementation science, and propose a framework-based approach to improve the provision of security

measures to network entities. We demonstrate the approach using existing propagation models, and discuss

the role of implementation science in malware defence.

1 INTRODUCTION

Botnets are malware-based platforms built illicitly on

vulnerable networks to serve a cyber-crime agenda. In

botnet research, propagation modelling often appro-

priates epidemiological models of diseases (Brauer,

2008) to identify dissemination factors, to devise im-

munisation strategies (Yong et al., 2012), and to pre-

dict reach and speed. However, ﬁndings may not

be applied appropriately in day-to-day practice. Net-

works are highly variable, meaning that any proposed

security measure will ﬁt some scenarios but fall short

in others. Translational research (TR) is a ﬁeld of

public health care for converting experimental results

into care for patients (Rubio et al., 2010) (Woolf,

2008). We believe that botnet research would beneﬁt

from a similar approach. Standard methods for ob-

serving and evaluating security provisions would en-

sure that a) they are fully utilised in practice, and b)

they are applied consistently and effectively for max-

imum impact.

In this paper, we aim to start a discussion about us-

ing TR and implementation science (IS) to effectively

apply botnet research ﬁndings to real-life networks.

This is particularly relevant to botnet propagation,

where mitigation can prevent worsening outcomes.

To our knowledge, this topic has not previously been

explored. Our contributions are 1). an adaptation

of the Dynamic Sustainability Framework (DSF) to

apply IS methods to botnet defence, 2). an analysis

of propagation-based usage scenarios, demonstrating

how DSF can help deliver better protection, and 3). a

discussion of the potential role of IS in malware de-

fence. Section 2 provides a background on TR. Sec-

tion 3 introduces the DSF and demonstrates its use,

whilst Section 4 provides a discussion on the usage of

IS. Related works are covered in Section 5, and we

conclude in Section 6.

2 BACKGROUND

Translational research (TR) investigates the process

of converting scientiﬁc knowledge into practical solu-

tions for standard practice, described as “the interface

between basic science and clinical medicine” (Woolf,

2008). Basic science is the pursuit of knowledge with

no practical consideration (Rubio et al., 2010) (analo-

gous to bot case studies). Clinical research introduces

patients for behavioural analysis (Rubio et al., 2010)

(analogous to botnet propagation simulations). TR

has 2 parts (Figure 1). The ﬁrst (called T1) applies

lab-based studies to clinical trials, whilst the second

(T2) uses obtained results to aid practical decision-

making (Rubio et al., 2010) (Woolf, 2008). T1 re-

quires in-depth scientiﬁc knowledge and the relevant

tools for innovative research, whilst T2 requires un-

derstanding of communities, culture, and work envi-

514

Acarali, D., Rajarajan, M. and Komninos, N.

Evaluating the Provision of Botnet Defences using Translational Research Concepts.

DOI: 10.5220/0006884405140519

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 514-519

ISBN: 978-989-758-319-3

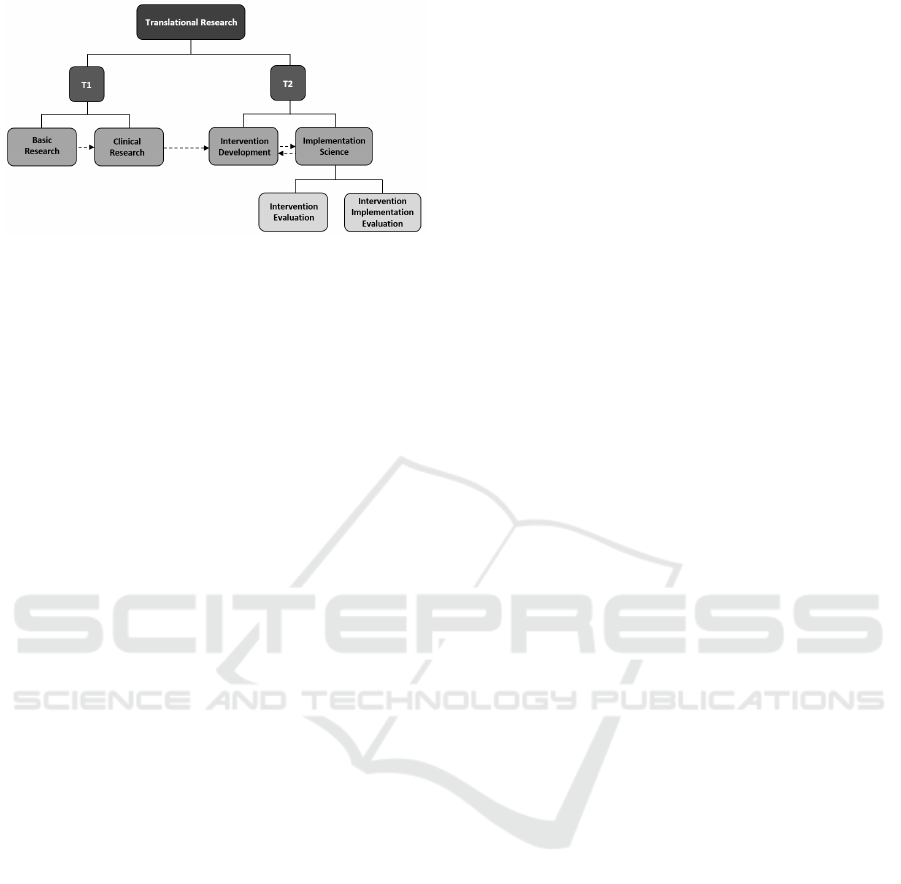

Figure 1: Breakdown of translational research into sub-

ﬁelds.

ronments (Woolf, 2008) (Rubio et al., 2010). T2 has

2 stages: 1) the translation of results to practice, and

2) the evaluation of this process (Woolf, 2008), also

known as implementation science (IS). For botnets,

we focus on T2, with the development, application,

and evaluation of security policies.

To reap maximum beneﬁt from T1 results, there

must be a systematic, well-observed process of im-

plementing new ideas into existing systems (Woolf,

2008) (Khalil, 2016) (Bauer et al., 2015). IS broadly

refers to the application of new approaches (Woolf,

2008) with performance evaluation and due consider-

ation of surrounding inﬂuential factors (Khalil, 2016).

A single new method is an intervention, and a pack-

age of interventions (with a common goal) is a strat-

egy (Bauer et al., 2015). IS considers the possibility

of inconsistent application leading to “quality gaps”

(Bauer et al., 2015), and as a result, enables us to ob-

serve and evaluate natural variation and responses to

interventions (Bauer et al., 2015). Health care litera-

ture organises this process into frameworks.

3 FRAMEWORK

3.1 Outline & Deﬁnitions

We use the Dynamic Sustainability Framework

(DSF), proposed by Chambers et al. (2013). It incor-

porates internal and external context environments, as

well as temporal change, allowing us to evaluate the

intervention over time. This means that DSF focuses

on sustainability to address “voltage drops” and “pro-

gram drift” (Chambers et al., 2013). It enables the

continuous improvement of results by exposing the

intervention to changing populations, and adapting

it to better ﬁt emerging conditions (Chambers et al.,

2013). In networks, segmentation results in internal

and external spaces. User behaviours, business prac-

tices, and new technologies add variability that can

affect intervention roll-out. These factors impact the

uniform implementation of new policies, highlighting

the need for spatio-temporal sustainability. Evolving

malware also means interventions must be robust and

adaptable.

DSF splits the process into 3 layers; the interven-

tion, the practice setting, and the ecological system

(Chambers et al., 2013). We split the practice setting

into 2 parts for a layered inner environment to mimic

the layers of an organisational network (Figure 3). In-

ﬂuencing factors at each layer are deﬁned as a set of

constructs. Our adaptations of these are listed in Table

1. The intervention includes actionable steps, desired

outcomes, delivery platforms, and practitioners. It is

deployed within the practice setting, which represents

all internal inﬂuences (e.g. systems, resources, and

staff) (Chambers et al., 2013). This sits within the

ecological system, representing external factors like

legislation, regulation, and market forces (Chambers

et al., 2013). DSF operates over periods, denoted as

, T

, ... T

). Hence, the intervention process cov-

ers each layer across all periods, revealing changes in

implementation. This approach is unique to DSF, de-

signed to improve patient health by adapting interven-

tions as required (Chambers et al., 2013). Observing

how the network state changes with time under our

defensive interventions is key to botnet mitigation.

3.2 Usage Scenarios

We now outline how the framework may be applied

to impede botnet propagation. Three epidemic sce-

narios are considered, in: 1) an enterprise network,

2) a mobile network, and 3) a social network. We

use epidemics as our practical example because prop-

agational success plays a large role in determining

a botnet’s eventual impact. The propagation stage

also provides opportunities for mitigation of future

attacks. Additionally, epidemic modelling is widely

used in botnet literature to test behavioural theories

and spread parameters. Lastly, epidemic modelling

ﬁts into the clinical research stage of T1, and we can

carry the results over to the real-life settings of T2.

3.2.1 Enterprise Network Epidemics

Yong et al. (2012) used a modiﬁed SIRS model to

deﬁne reproductive ratio R

in relation to 2 types of

I (infected) node; hidden and active. They recom-

mended keeping R

< 1 by a) minimising S (suscep-

tibles), b) increasing removal rate, and c) decreas-

ing transmission rate. Success depends on defence

architecture, location, and deployment time. Dagon

et al. (2006) used the SIR model to capture the di-

urnal nature and regional bias of botnets. Observ-

ing a “natural quarantine effect” (Dagon et al., 2006),

Evaluating the Provision of Botnet Defences using Translational Research Concepts

515

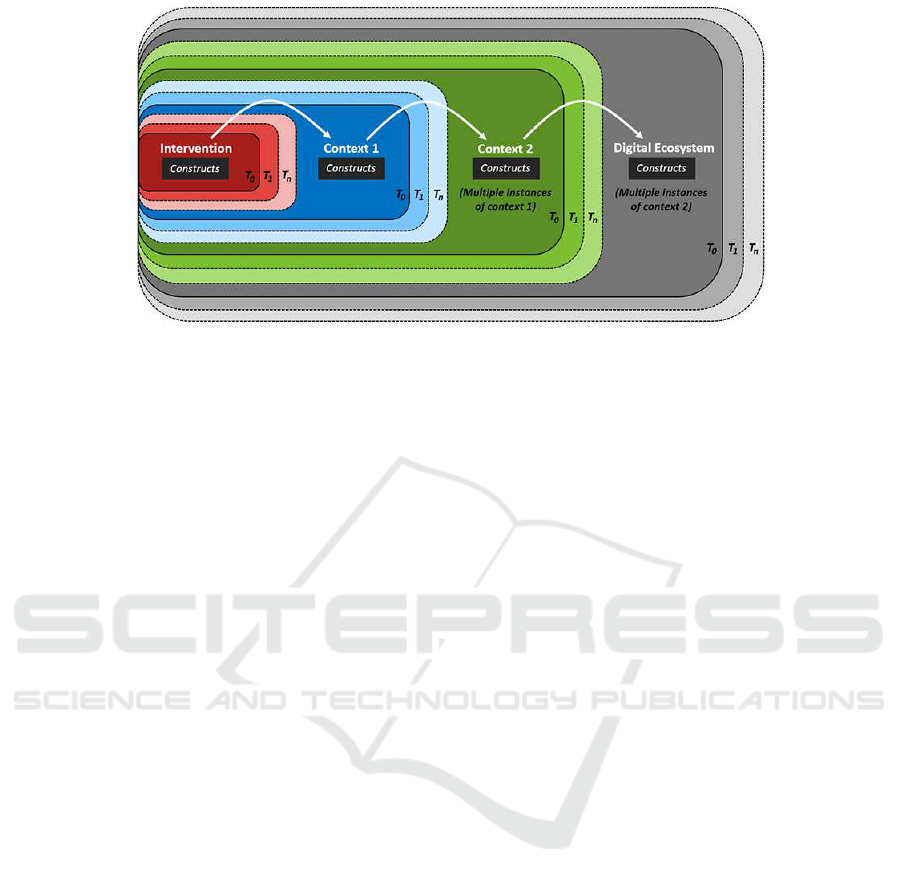

Figure 2: Diagram of updated Dynamic Sustainability Framework (Chambers et al., 2013), showing the 4 layers and their

constructs, along with increments in time (T

they found that worms have optimal release times

and suggested appropriate surveillance and geograph-

ical/temporal prioritisation for defenders.

We now apply the framework to bolster defences

against a possible epidemic outbreak. Based on the

results above, this network’s intervention includes im-

proving user awareness and patching policies (to min-

imise S), reducing R

, identifying risky malware de-

ployment spots and times, centralising security sys-

tems across departments, and deploying a resilient

infrastructure (for quarantining to minimise contact).

The patients are network nodes, and practitioners are

the users, admins, policy makers, and security direc-

tors. The 1st internal context is a network segment

(e.g. a departmental LAN), whilst the 2nd is the wider

enterprise, which is made up of multiple segment con-

texts. Meanwhile, the external context is the con-

nected community around this enterprise. For evalu-

ation, we need to consider the quality of training and

user receptiveness, adherence to policies, and system

performance. Collecting data on these factors then

provides a feedback loop, allowing both the strategy

and the implementation to be improved (Chambers

et al., 2013).

3.2.2 Mobile Network Epidemics

The SIR model is used by Khouzani et al. (2012) in

their proposed malware quarantine scheme based on

regulating each node’s communication range. When

the reception gain of S nodes is decreased, contact fre-

quency also drops. This should be balanced against

the lowest acceptable QoS for the network. Lu et al.

(2016) employs epidemic principles stochastically to

demonstrate that spread in WiFi networks is depen-

dent on node proximity, and speciﬁcally on node den-

sity, wireless transmission range, and the node mobil-

ity radius. Propagation eventually stops if the mobil-

ity radius is limited enough (Lu et al., 2016).

This time, an epidemic is already underway. The

intervention involves responsive measures like track-

ing of I nodes, grounding (where possible) of mobile

devices (reducing their mobility radius), reducing the

gains of S nodes near to I nodes, and performing tar-

geted clean-up. Users should be notiﬁed and may as-

sist in grounding. As before, nodes represent patients,

whilst users, admins, and owners of WiFi infrastruc-

ture are the practitioners at various levels. The 1st

internal context is the speciﬁc cell or geographic lo-

cation of the infection, whilst the 2nd is the wider cel-

lular/geographic region surrounding it. The external

context is the wider WiFi network, and the Internet.

The effectiveness of this implementation will be im-

pacted by users’ attitudes to the event and to the mea-

sures taken. For example, the reduction in network

quality might garner a negative reaction. The prac-

ticality of the grounding policy, ability to accurately

detect and track I nodes, and the efﬁciency of the re-

covery process also need to be measured for evalua-

tion, and can provide opportunities for improvement.

3.2.3 Social Network Epidemics

Sanzgiri et al. (2012) used the SI setup to model

Twitter-based botnets, with propagation impacted by

degree of followers, activity levels, and the level of

response/interest in tweets, contributing to the proba-

bility of user clicks on malicious URLs. They sug-

gest limiting the sharing of links, or better control

and monitoring of short-URLs, noting that individ-

uals may not be aware of potential risks. Yan et al.

(2011) used epidemiological concepts to demonstrate

that propagation rate is inﬂuenced by friendship net-

works, activity, and the infection source. They sug-

SECRYPT 2018 - International Conference on Security and Cryptography

516

Table 1: Outline of network constructs at each layer of updated DSF (Chambers et al., 2013).

Constructs Description

Intervention

Components Collection of individual elements that make up the intervention.

Practitioners Individuals who will implement the intervention across all levels.

Characteristics Collection of descriptive characteristics for the intervention.

Aims Targeted outcomes of the intervention.

Delivery Vectors Means of delivery of the intervention.

Practice Setting

Context 1 - Local Network

Infrastructure Topology and design of the network at this level, including defences.

Systems Collection of specialised systems or technical resources used.

People Collection of local staff, including count, roles, and hierarchy.

Culture & Climate Social environment created by management, individuals, and group attitudes.

Business Function Function of this context in the wider network.

Training Nature and availability of knowledge and skills transfer to practitioners.

Supervision Collection of regulators and enforcement methods.

Context 2 - Wider Network

Infrastructure Topology and design of the wider network, interconnection of local contexts.

Systems Collection of systems or resources used organisation-wide, e.g. email services.

People Collection of management staff, including count, roles, and hierarchy.

Culture & Climate Social environment created by management based on brand/organisation ethos.

Business Model Goals of organisation, plus functions/services, ﬁnancial and implementation plans.

Digital Ecosystem

Regulation & Legislation Industry standards and national legislature inﬂuencing operations.

Market Trends Current popular technologies, activities of competitors.

Populations Characteristics of populations engaging with devices and services.

Usage Culture Attitudes towards technology and current trends in behaviour.

Partners Collaborating third-parties, shared infrastructure.

Upcoming Technology Collection of technologies in the pipeline for mass deployment.

gest the use of an early warning system that prop-

agates alerts amongst users to reduce susceptibility,

and the use of centralised servers to monitor and sani-

tise suspicious URLs (Yan et al., 2011).

To defend a social network against a potential epi-

demic, the intervention incorporates early detection,

suspension of infected accounts to reduce activity, in-

creased monitoring for URLs shared by highly-active

highly-connected users, and an in-built URL short-

ening service. Users should be notiﬁed of risks and

ongoing security events. The internal context is the

user community or friendship group, encapsulated by

the wider social network, made up of multiple simi-

lar communities. The external context is the rest of

the Internet. Patients could be user accounts or users

themselves, with practitioners being the platform ad-

mins and security staff. Evaluation needs to consider

the culture/brand of the social networking platform,

user engagement with security advice, public recep-

tion to new policies (including privacy concerns), and

the effectiveness of early detection systems. Sug-

gested data collection includes user feedback, activity

logs over time and region, frequency and distribution

of URL and short-URL use, and performance metrics

for detection systems and URL-shortening services.

4 DISCUSSION

The scenarios in Section 3.2 show how the framework

can be applied to different situations, populations, and

infrastructures. It enables us to identify speciﬁc ac-

tions via the intervention strategy, and then to deter-

mine areas where implementation may be insufﬁcient.

The provided suggestions are based on literature and

experience, but real-life application will ﬂag signif-

icant, unpredicted problem areas. Consideration of

these factors over time means that improvements can

be made to the intervention incrementally, providing

sustained long-term solutions. Being able to achieve

this with a standardised framework is highly beneﬁ-

cial, as it eases the process and makes different in-

terventions comparable. Sustainability of an inter-

vention should be a top priority. Networks become

vulnerable due to changes in technology and usage

over time, a process mirrored by evolving malware

threats. Therefore, it is difﬁcult to predict what the

future will bring. Furthermore, when deploying new

technology, it is not possible to consider a priori ev-

ery scenario surrounding its use. Hence, interventions

must be ﬂexible enough to incorporate new insights.

The aim of DSF is the improvement of interventions

Evaluating the Provision of Botnet Defences using Translational Research Concepts

517

Table 2: DSF applied to 3 usage scenarios, with interventions (Strategy) derived from epidemic modelling results. Impact

Factors determine intervention success, and Measures denote evaluative considerations.

Scenario 1 Scenario 2 Scenario 3

Settings -Enterprise -Mobile -Social

Strategy -Train users for response -Inform users of situation -Add early detection systems

-Shrink S via patching & updates -Ground infected devices -Send regular advice to users

-Centralise defensive systems -Drop reception gains of close S’s -Suspend infected accounts

-Find optimal spread spots, times -Targeted cleaning of detected I’s -Track URLs of active users

-Add network contingencies to

take segments ofﬂine

-Add in-built short-URL service

Impact -Engagement of users in training -Culture & attitudes of users -Culture & attitudes of users

Factors -Uniform delivery of training -Ability to ground devices -Reception of new policies

-Adequate supervision -Ability to monitor movement -User response to security advice

-Adherence to patching policy -Efﬁciency of gains reduction -Effectiveness of early detection

-Efﬁciency of recovery process -Efﬁciency of recovery process -Uptake of short-URL service

-Robustness of contingencies

Measures -User skills levels, experience -User experience -User feedback

& -Vulnerability status -Current QoS -Activities over time & region

Feedback -Usage of spread spots -Current estimated S count -Freq. & distribution of URL use

-Activity at optimal times -Current estimated I count -Detection system performance

-Defence system performance -Current R count -Short-URL service performance

- through constant measurement from a dynamic con-

text, interventions can be optimised (Chambers et al.,

2013).

In both health care and cyber-security, a lot of

resources are put into T1. However, T2 efforts

may actually have the larger practical impact (Woolf,

2008). Therefore, the proper translation and delivery

of new research should receive greater funding and

focus. Well-realised T2 endeavours can bring return-

on-investment for T1 processes (Woolf, 2008). Ad-

ditionally, a more pragmatic outlook may be beneﬁ-

cial in epidemiological studies. Galea (2013) argues

that epidemiology should shift to become more con-

sequentionalist (where models’ worth are measured

based on results rather than theory), suggesting that,

given limited time and resources, this would help to

prioritise actions to maximise overall health (Galea,

2013). Finally, TR is concerned with the overall im-

provement of public health, including the observed

environment, plus the overall distribution of health

across different regions (Galea, 2013). We suggest

that a similar mentality be adopted against botnets.

The threat is worldwide and successful defence in one

environment is insufﬁcient - botnets formulated else-

where can still attack this environment. Therefore,

we should work collaboratively on global systems

to mitigate bot malware at the highest level, collec-

tively protecting national systems, businesses, homes,

NGOs, and the shared Internet infrastructure. Only

when this distribution of sustained network health can

be achieved will the botnet threat truly lose its po-

tency.

5 RELATED WORK

Dedeke (2017) discussed the NIST Cyber-Security

Framework (CSF) (NIST, 2014), designed for organ-

isations to identify and reduce security risk within

their systems. CSF aims to create a paradigm shift

from compliance-based to risk management-based

defence, which should yield higher quality precau-

tions (Dedeke, 2017). CSF has 3 sections, with the

core housing 5 functions. These are 1). identiﬁcation

of requirements, 2). development of safety measures,

3). monitoring, 4). development of action plans, and

5). deployment of recovery strategies (Dedeke, 2017)

(NIST, 2014). This aligns with some actions in our

suggested intervention strategies. CSF outlines a co-

ordination scheme between executive, business and

implementation levels (NIST, 2014), but does not in-

corporate dynamic delivery contexts. Dedeke (2017)

highlights the use of implementation tiers to track

progress over time, as changes are not otherwise con-

sidered.

Bassam and Deborah (2010) presents an ESM

(Enterprise Security Management) framework for

building secure, well-structured enterprises with

adaptive processes. The framework consists of 12

steps, starting with an analysis of requirements, fol-

lowed by: identiﬁcation of capability gaps, priori-

tisation of tasks, development of architecture, mon-

itoring, and continuous realignment - described as

the “periodic reassessment of requirements, capabili-

ties and updating the architecture” (Bassam and Deb-

orah, 2010). This allows the system to keep pace

SECRYPT 2018 - International Conference on Security and Cryptography

518

with emerging threats. Layers within the enterprise

are considered, with emphasis on information sharing

across domains (Bassam and Deborah, 2010). The

inclusion of change, and the layered view of enter-

prises, makes ESM similar to DSF. However, DSF is

not enterprise-speciﬁc, allowing it to be used ﬂexibly

in many different scenarios.

These frameworks approach security implemen-

tation predominantly from a business perspective.

However, they do not formalise a process for turn-

ing pure research (T1) into applicable methods (T2).

As such, they do not focus on getting the best out

of available knowledge. They also do not integrate

time and internal/external contexts, and so cannot im-

prove interventions against changing trends and pop-

ulations. We believe that taking inspiration from the

well-established ﬁeld of health care provides a unique

angle to exploit in generating new ideas for the main-

tenance of network health.

6 CONCLUSIONS

In health care, TR delivers research knowledge to

patients. We have proposed that a similar approach

be applied for botnet mitigation - bringing technical

knowledge and innovative solutions more effectively

to users and networks. To demonstrate this approach,

we utilised the Dynamic Sustainability Framework,

applying it to epidemic modelling scenarios for bot

propagation. We suggested measurement techniques,

highlighted key constructs, and discussed the evalua-

tive process. IS deals with the impact and implemen-

tation of an intervention, allowing us to consider how

we develop multi-faceted approaches, how/where we

deliver them, what meaningful impact they have, and

why they may be lacking. This is vital for improving

and sustaining the health of networks. We hope that

this work contributes towards a discussion about how

we deliver new solutions and how TR may play a role

in this.

REFERENCES

Bassam, S. F. and Deborah, L. F. (2010). Cyber Security

Framework for Enterprise System Development: En-

hancing Domain Security through ESM. In Military

Communications Conference, 2010-MILCOM 2010,

pages 924–929. IEEE.

Bauer, M. S., Damschroder, L., Hagedorn, H., Smith, J., and

Kilbourne, A. M. (2015). An Introduction to Imple-

mentation Science for the Non-Specialist. BMC Psy-

chology, 3(1):32.

Brauer, F. (2008). Compartmental Models in Epidemiol-

ogy. In Mathematical Epidemiology, pages 19–79.

Springer.

Chambers, D. A., Glasgow, R. E., and Stange, K. C. (2013).

The Dynamic Sustainability Framework: Addressing

the Paradox of Sustainment Amid Ongoing Change.

Implementation Science, 8(1):117.

Dagon, D., Zou, C. C., and Lee, W. (2006). Modeling Bot-

net Propagation Using Time Zones. In NDSS, vol-

ume 6, pages 2–13.

Dedeke, A. (2017). Cybersecurity Framework Adoption:

Using Capability Levels for Implementation Tiers and

Proﬁles. IEEE Security Privacy, 15(5):47–54.

Galea, S. (2013). An Argument for a Consequentialist

Epidemiology. American Journal of Epidemiology,

178(8):1185–1191.

Khalil, H. (2016). Knowledge Translation and Implemen-

tation Science: What is the Difference.

Khouzani, M., Altman, E., and Sarkar, S. (2012). Optimal

Quarantining of Wireless Malware through Reception

Gain Control. IEEE Transactions on Automatic Con-

trol, 57(1):49–61.

Lu, Z., Wang, W., and Wang, C. (2016). On the Evolu-

tion and Impact of Mobile Botnets in Wireless Net-

works. IEEE Transactions on Mobile Computing,

15(9):2304–2316.

NIST (2014). Framework for Improving Critical Infrastruc-

ture Cybersecurity. Last accessed 5th January 2018.

Rubio, D. M., Schoenbaum, E. E., Lee, L. S., Schteingart,

D. E., Marantz, P. R., Anderson, K. E., Platt, L. D.,

Baez, A., and Esposito, K. (2010). Deﬁning Trans-

lational Research: Implications for Training. Aca-

demic Medicine: Journal of the Association of Ameri-

can Medical Colleges, 85(3):470.

Sanzgiri, A., Joyce, J., and Upadhyaya, S. (2012). The Early

(Tweet-ing) Bird Spreads the Worm: An Assessment

of Twitter for Malware Propagation. Procedia Com-

puter Science, 10:705–712.

Woolf, S. H. (2008). The Meaning of Translational Re-

search and Why it Matters. Jama, 299(2):211–213.

Yan, G., Chen, G., Eidenbenz, S., and Li, N. (2011). Mal-

ware Propagation in Online Social Networks: Nature,

Dynamics, and Defense Implications. In Proceedings

of the 6th ACM Symposium on Information, Computer

and Communications Security, pages 196–206. ACM.

Yong, W., Tefera, S. H., and Beshah, Y. K. (2012). Under-

standing Botnet: From Mathematical Modelling to In-

tegrated Detection and Mitigation Framework. In Soft-

ware Engineering, Artiﬁcial Intelligence, Networking

and Parallel & Distributed Computing (SNPD), 2012

13th ACIS International Conference on, pages 63–70.

IEEE.

Evaluating the Provision of Botnet Defences using Translational Research Concepts

519
