A Software Product Line Approach for
Feature Modeling and Design of Secure Connectors
Michael Shin
1
, Hassan Gomaa
2
and Don Pathirage
1
1
Department of Computer Science, Texas Tech University, Lubbock, TX, U.S.A.
2
Department of Computer Science, George Mason University, Fairfax, VA, U.S.A.
Keywords: Software Product Line, Feature Model, Secure Connector, Secure Software Architecture, Component-based
Software Architecture, Secure Software Design, Message Communication Patterns, Security Patterns,
Model-based Design, UML.
Abstract: This paper describes a software product line approach to modeling the variability of secure software
connectors by means of a feature model, which consists of security pattern and communication pattern
features used in the design of secure component-based software architectures for concurrent and distributed
software applications. Applying separation of concerns, these features are designed as security and
communication pattern components. Each secure connector is designed as a composite component that
encapsulates both security pattern and communication pattern components. Integration of these components
within a secure connector is enabled by a security coordinator. This paper describes the feature model,
design of secure connectors, how applications are built using secure connectors, and the validation of the
approach.
1 INTRODUCTION
Secure component-based software architectures for
concurrent and distributed software applications are
composed of components and connectors in which
connectors encapsulate the details of communication
between components. Although connectors are
typically used in software architecture (Medvidovic
and Taylor, 2010) to encapsulate communication
mechanisms between components, security concerns
can also be encapsulated in software connectors,
which are referred to as secure connectors (Shin et
al., 2012, 2016a, 2016b, 2017) separately from
application components that contain application
logic. However, to facilitate reusing secure
connectors in different applications, it is necessary
to design secure connectors that are both modular
and reusable.
Each secure connector is designed as a
composite component using component concepts by
reusing security pattern components and
communication pattern components, which are
designed separately from each other. Each security
pattern component encapsulates a security pattern,
such as symmetric encryption or digital signature.
Each communication pattern component
encapsulates the communication pattern between
application components, such as synchronous or
asynchronous message communication. A secure
connector is then constructed by composing security
pattern components and communication pattern
components. Integration of security patterns and
communication patterns within a secure connector is
provided by a security coordinator. Once a secure
connector is constructed, it can then be reused in
different applications.
This paper describes modeling secure connectors
by means of a software product line (SPL) approach.
Our previous papers (Shin et al., 2007, 2012, 2016a,
2016b, 2017) have focused on designing single
reusable secure connectors in an ad hoc way. This
paper investigates how applying SPL concepts can
lead to a more systematic approach that addresses
the inherent variability in the design of secure
connectors that separately encapsulate both the
security and communication concerns.
This paper is organized as follows. Section 2
describes existing approaches to modeling and
designing security concerns in software applications.
Section 3 describes a software product line approach
for secure connectors, followed by the feature model
506
Shin, M., Gomaa, H. and Pathirage, D.
A Software Product Line Approach for Feature Modeling and Design of Secure Connectors.
DOI: 10.5220/0006904805060517
In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 506-517
ISBN: 978-989-758-320-9
Copyright © 2018 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
for secure connectors in section 4. Section 5
describes communication and security features
components. Section 6 describes security coordina-
tor components. Section 7 describes a secure
connector derived from a software product line for
secure connectors. Section 8 describes the validation
of reusable secure connectors. Section 9 describes
conclusion of this paper with future research.
2 RELATED WORK
Related work focuses on approaches to designing
software architectures for secure applications,
patterns for distributed communication and
component-based software product lines. The
authors in (Lodderstedt et al., 2002) proposed
SecureUML, which is a new modeling language
based on UML for the model-driven development of
secure systems. Work has also been proposed to
provide an extension of UML called UMLsec
(Jürjens, 2002) that helps with the expression of
security-relevant information within design
diagrams. In model-driven security (Basin et al.,
2011), a system is modeled with its security
requirements and security infrastructures are
generated using the models.
Using connectors as the central construct, a
distributed CBSA in (Gomaa et al., 2001, 2011) is
composed of a set of components and a set of
connectors that can be used to connect the
components. In (Ren et al., 2005), a connector
centric approach is used to model, capture, and
enforce security. The security characteristics of a
CBSA are described and enforced using software
connectors. Methods in (Al-Azzani and Bahsoon,
2012) propose SecArch to evaluate architectures
with significant security concerns.
Security patterns in (Fernandez-Buglioni, 2013;
Schumacher et al., 2006) address the broad range of
security issues that should be taken into account in
the stages of software development lifecycle. The
authors describe the problem, context, solution, and
implementation of security patterns in a structured
way with a template so that the presentations are
consistent. The security patterns can help developers
to construct secure systems, even though the
developers may not have security expertise.
A software product line (SPL) (Gomaa, 2005) is
a family of software systems that have some
common functionality and some variable
functionality. The functionality of a SPL can be
modeled by means of features, which are designed
with kernel, optional, and variant components. Each
component has ports with provided and required
interfaces. The authors in (Gomaa and Shin, 2004,
2007, 2008, 2010) addressed multiple-view
modeling and meta-modeling of software product
lines. A co-author in (Abu--Matar and Gomaa, 2011;
Fant et al., 2015; Tzeremes and Gomaa, 2018)
investigated the design of the software product line
architecture for service-oriented systems, space
flight systems, and smart spaces.
In recent work by the authors (Shin et al., 2012)
described secure asynchronous and synchronous
connectors for modeling the software architectures
for distributed applications and the design of
reusable secure connectors that are structured into
reusable security components and communication
components. The authors in (Shin et al., 2016a,
2016b, 2017) address the design of secure
connectors in terms of maintainability and evolution,
which are used in the design of secure software
architectures. A co-author in (Gomaa et al., 2010;
Albassam et al., 2016) has also investigated
designing dynamically adaptable and recoverable
connectors.
3 SPL FOR SECURE
CONNECTORS
A security service (Farahmandian and Hoang, 2017;
Taha et al., 2017) is software functionality for
realizing a security goal, such as authentication,
authorization, confidentiality, integrity, availability
or non-repudiation, which can be implemented by
means of different security techniques. A security
service can be realized by means of different
security patterns (Fernandez-Buglioni, 2013;
Schumacher et al., 2006), each of which addresses a
specific security technique that realizes a security
service. For instance, a confidentiality security
service can be realized by means of a symmetric
encryption security pattern (Fernandez-Buglioni,
2013) or an asymmetric encryption security pattern
(Fernandez-Buglioni, 2013).
Although there are other types of
communications between distributed components,
typical message communication patterns between
the components are synchronous message
communication with reply, synchronous message
communication without reply, asynchronous
message communication, and bidirectional
asynchronous message communication (Gomaa,
2011). Communication patterns (Schneider, 2005)
are frequently used protocols by which distributed
A Software Product Line Approach for Feature Modeling and Design of Secure Connectors
507
components communicate with each other. Each
communication pattern is designed with a sender
communication pattern component (CPC) and a
receiver communication pattern component (CPC),
which are encapsulated in a secure sender connector
and a secure receiver connector respectively.
A secure connector is designed by separately
considering the message communication pattern and
the security patterns required by application
components. A secure connector is a distributed
connector, which consists of a secure sender
connector and a secure receiver connector that
communicate with each other. A secure sender or
receiver connector consists of a security coordinator,
one or more security objects, and a communication
object (Shin et al., 2016b). A secure connector can be
reused for different applications once it is constructed.
In this paper, the reusability of secure connectors
is enabled by applying SPL concepts to model the
variability of secure connectors and to design
reusable secure connectors in a systematic way. The
SPL approach provides a capability of modeling the
variability of secure connectors in terms of security
patterns and communication patterns. Applying SPL
concepts enables us to create variants of secure
connectors based on the variability of security and
communication patterns.
In the SPL for secure connectors, security and
communication patterns are modeled as features in a
feature model. The security pattern and
communication patterns features for secure
connectors are modeled in the feature model by
means of the optional attribute of software product
line. Also, the relationships between the security and
communication pattern features are modeled by
means of the dependencies between the features. In
addition, a feature/component table is used to
determine which communication and security
components are needed to realize each feature. To
derive a given secure connector from the feature
model, the appropriate features are selected, the
components that realize those features are then
selected and integrated as described next.
4 FEATURE MODEL FOR
SECURE CONNECTORS

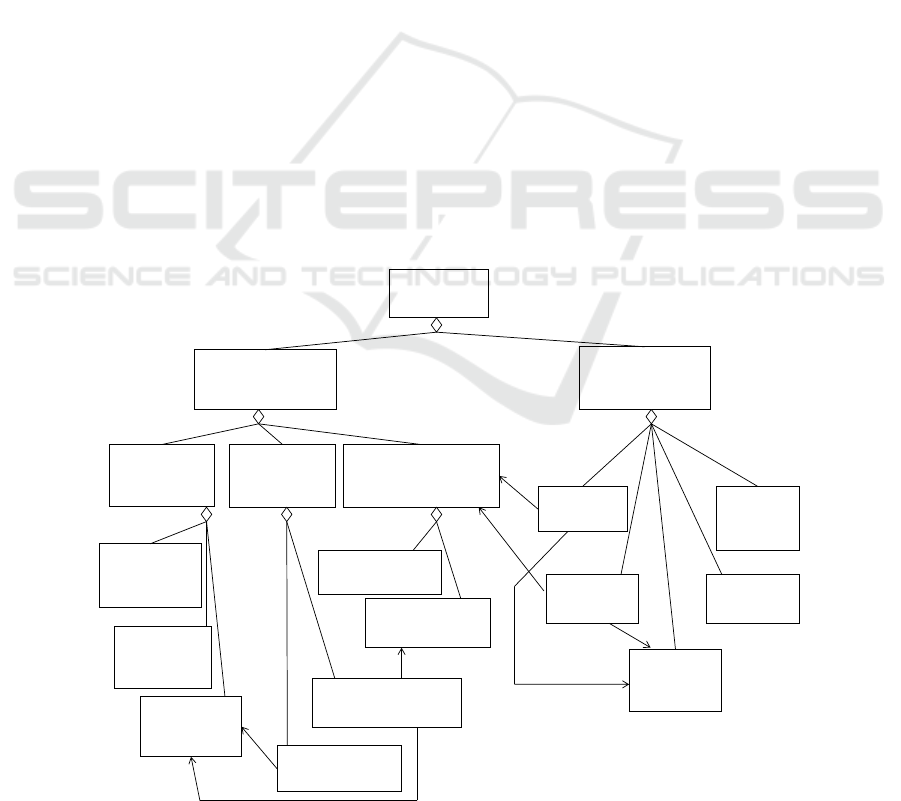

The feature model (Fig. 1) for secure connectors is
developed to describe the variability of secure
connectors in terms of communication pattern (CP)
and security pattern (SP) features and the
dependency relationships between the features. The
feature model consists of two at-least-one-of-feature
groups, Communication Patterns and Security
Patterns, which means that one or more features
need to be selected from each group. The
Communication Patterns at-least-one-of-feature
group is composed of three further feature groups:
the Unidirectional feature group, which consists of
three optional one-way message communication
pattern features (CPFs), the SMC (synchronous
message communication) without Reply, Broadcast
and AMC (asynchronous message communication)
features; the Bidirectional feature group, which
consists of two two-way optional message
communication pattern features, Bidirectional AMC
and Subscription/Notification features; and Message
with Single Reply feature group, which consists of
two optional message communication features, AMC
with Callback and SMC with Reply features. The
optional communication pattern features (Fig.1) are:
In SMC with Reply feature, a sender
component sends a message to a receiver
component and waits for a response from the
receiver. When a response arrives from the
receiver, the sender can continue to work and
send the next message to the receiver (Gomaa,
2011; Schneider, 2005).
In SMC without Reply feature, a receiver
component acknowledges a sender component
when it receives a message from the sender.
As the sender is acknowledged by the
receiver, it can continue to work and send the
next message to the receiver (Gomaa, 2011;
Schneider, 2005).
In AMC feature, an asynchronous message is
sent from a sender component to a receiver
component and is stored in a queue if the
receiver is busy. The sender component can
continue to send the next message to the
receiver component as long as the queue is not
full (Gomaa, 2011; Schneider, 2005).
Bidirectional AMC feature uses asynchronous
message communication pattern feature in
both directions between the sender and
receiver components, with the receiver
component sending responses to the sender
component asynchronously. Responses are
sent to a queue from which the sender
component retrieves each response (Gomaa,
2011; Schneider, 2005).
In AMC with Callback feature, a sender
component sends a service request message to
a server component, which includes the client
operation (callback) handle. The client com-
ponent does not wait for reply. After a
ICSOFT 2018 - 13th International Conference on Software Technologies
508
receiver component services the client request,
it uses the handle to call the client operation
remotely (the callback) (Gomaa, 2011;
Schneider, 2005).
Subscription/Notification feature uses SMC
with Reply communication pattern and asyn-
chronous message communication pattern.
Client components subscribe to receive messa-
ges of a given type from a server component
via SMC with Reply communication pattern.
When a server component receives message of
this type, it notifies all client components that
have subscribed to it through AMC pattern
(Gomaa, 2011; Schneider, 2005).
In Broadcast feature, a server component
sends a message to all client components,
regardless of whether clients want the
message or not. The client component decides
whether it wants to process the message or
just discard the message (Gomaa, 2011;
Schneider, 2005).
The security pattern features (SPFs) that
constitute the Security Patterns at-least-one-of-
feature group (Fig. 1) are Authenticator,
Authorization, Hashing, Digital Signature and
Symmetric Encryption, as follows:
Symmetric Encryption feature prevents secret
information from being disclosed to any
unauthorized party. A message sent by a
sender to a receiver is encrypted using a secret
key, and the encrypted message is decrypted
by the receiver (Fernandez-Buglioni, 2013).
Hashing feature protects against unauthorized
changes to secret information. A hash value
for a message is generated by a sender and the
message with the hash value is sent to a
receiver, which verifies the integrity of the
message using the hash value (Fernandez-
Buglioni, 2013).
Digital Signature feature protects against one
party to a transaction later falsely denying that
the transaction occurred. A message is signed
by a sender using the sender’s private key and
the signed message is verified by a receiver to
check if the sender has signed the message
(Fernandez-Buglioni, 2013).
Authenticator feature allows an entity (a user or
system) to identify itself positively to another
entity. This can be achieved using a password,
personal-identification number or challenge
response (Fernandez-Buglioni, 2013).
Authorization feature protects against
unauthorized access to valuable resources.
Authorization may be implemented using
mandatory access control, discretionary access
control, role-based access control or attribute-
based access control (Fernandez-Buglioni,
2013; Ren et al., 2005).
requires
«secure connector»
Secure
Connector
«at least one of feature
group»
«communication pattern»
Communication Patterns
«at-least-one-of feature
group»
«security pattern»
Security Patterns
«optional»
«communication
pattern»
Broadcast
«optional»
«security pattern»
Authenticator
«optional»
«security pattern»
Authorization
«optional»
«security pattern»
Symmetric
Encryption
«optional»
«security
pattern»
Hashing
«optional»
«security pattern»
Digital Signature
«feature group»
«communication
pattern»
Unidirectional
«feature group»
«communication
pattern»
Bidirectional
«optional»
«communication
pattern»
AMC
«optional»
«communication
pattern»
SMC Without Reply
«optional»
«communication pattern»
SMC With Reply
«optional»
«communication pattern»
AMC With Callback
«optional»
«communication pattern»
Bidirectional AMC
«optional»
«communication pattern»
Subscription/Notification
requires
requires
requires
requires
requires
requires
«at least one of feature group»
«communication pattern»
Message with Single Reply
Figure 1: Feature Model for Secure Connectors.
A Software Product Line Approach for Feature Modeling and Design of Secure Connectors
509
Authenticator feature and Authorization feature
each require Symmetric Encryption feature because
a sender’s credentials for authentication and sender’s
parameter for requesting permission should be
encrypted to prevent unauthorized access. Both
Authenticator feature and Authorization feature also
require Message with Single Reply feature due to
their need for a response to the original request. In
Authenticator feature, a sender requests authentica-
tion from a server and the server needs to reply the
authentication result. Similarly, in Authorization
feature, a sender requests permission from a receiver
and the receiver needs to send back the approval or
denial to the sender.
5 COMMUNICATION AND
SECURITY COMPONENTS
Each feature in the feature model for secure
connectors is designed using components, which can
be encapsulated into a secure connector that is
designed as a composite component. A security
pattern feature is designed as security pattern com-
ponents, whereas a communication pattern feature is
designed as communication pattern components.
Integration of security pattern and communication
pattern components within a secure connector is
enabled by means of a security coordinator.
Table 1 shows each feature in the feature model
and their components. The SMC with Reply feature
is designed as a SMC with Reply Sender component
for sending messages to the receiver, a SMC with
Reply Receiver component for receiving messages
from the sender, and SMC with Reply Security
Sender Coordinator and Receiver Coordinator
Components for sequencing the interactions with
one or more security components and with SMC
with Reply components. Similarly, the Broadcast,
AMC, Bidirectional AMC and SMC without Reply
features are designed as sender and receiver
components respectively. Because the Bidirectional
AMC feature depends on the AMC feature, it is
designed to use components from the AMC feature.
Also, Subscription/Notification feature is designed
to use components from both AMC and SMC with
Reply features due to its dependency on these
features. The Authenticator feature is designed as
Authenticator component whereas Authorization
feature is designed with the Authorization com-
ponent. Each of the Symmetric Encryption, Digital
Signature, and Hashing features is designed as two
components for sender and receiver components.
Table 1: Feature and their Components.
Feature Components Reuse Stereotype
SMC Without
Reply Feature
SMC Without Reply Sender Component
SMC Without Reply Receiver Component
SMC Without Reply Security Sender
Coordinator Component
SMC Without Reply Security Receiver
Coordinator Component
Optional
Optional
Optional (Variant)
Optional (Variant)
Broadcast
Feature
Broadcast Sender Component
Broadcast Receiver Component
Broadcast Security Sender Coordinator
Component
Broadcast Security Receiver Coordinator
Component
Optional
Optional
Optional (Variant)
Optional (Variant)
AMC Feature AMC Sender Component
AMC Receiver Component
AMC Security Sender Coordinator Component
AMC Security Receiver Coordinator
Component
Optional
Optional
Optional (Variant)
Optional (Variant)
Bidirectional
AMC Feature
Components from AMC Feature
Subscription/
Notification
Feature
Components from AMC Feature
Components from SMC Feature
SMC With
Reply Feature
SMC With Reply Sender Component
SMC With Reply Receiver Component
SMC With Reply Security Sender Coordinator
Component
SMC With Reply Security Receiver Coordinator
Component
Optional
Optional
Optional (Variant)
Optional (Variant)
AMC With
Callback
Feature
AMC With Callback Sender Component
AMC With Callback Receiver Component
AMC With Callback Security Sender
Coordinator Component
AMC With Callback Security Receiver
Coordinator Component
Optional
Optional
Optional (Variant)
Optional (Variant)
Authenticator
Feature
Authenticator Component Optional
Authorization
Feature
Authorization Component Optional
Symmetric
Encryption
Feature
Symmetric Encryption Encryptor Component
Symmetric Encryption Decryptor Component
Optional
Optional
Digital
Signature
Feature
Digital Signature Signer Component
Digital Signature Verifier Component
Optional
Optional
Hashing
Feature
Hashing Signer Component
Hashing Verifier Component
Optional
Optional
Public Key
Infrastructure
Feature
Public Key Repository Component Optional

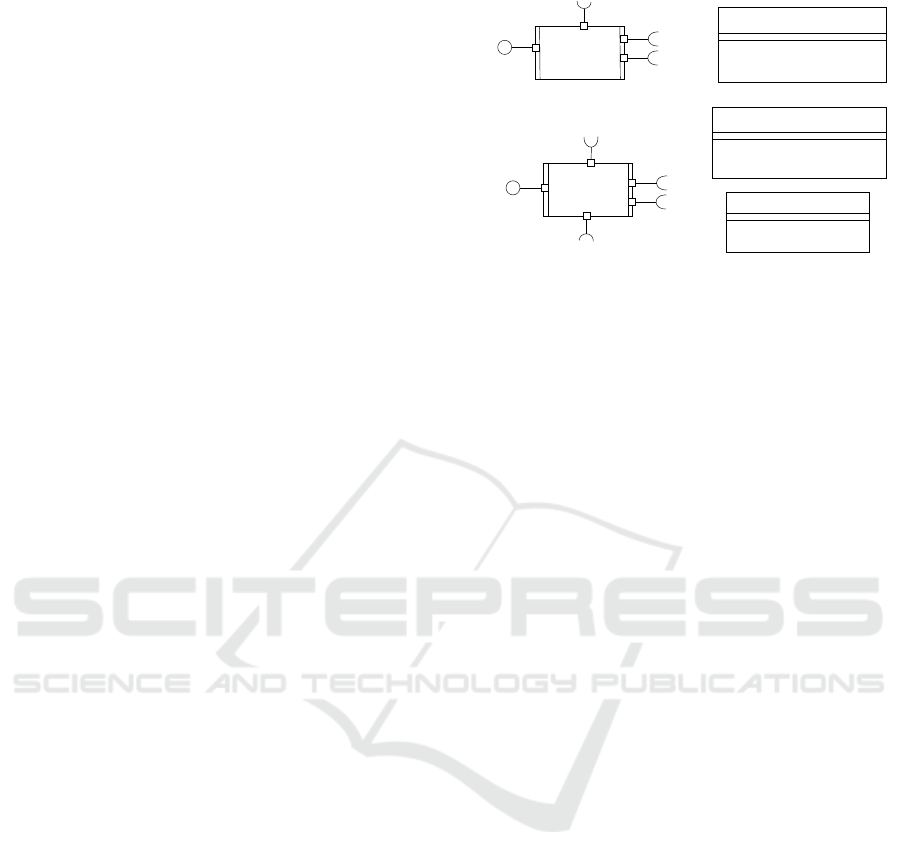

A security pattern feature (SPF) is designed
using one or two security pattern components
(SPCs), as depicted in Fig. 2. The Symmetric
Encryption SPF (Fig. 2a) is composed of the
symmetric encryption encryptor and decryptor SPCs
(Fernandez-Buglioni, 2013). The Digital Signature
SPF (Fig. 2b) is designed with the digital signature
signer SPC (Fig. 2b) and digital signature verifier
SPC (Fig. 2b) (Fernandez-Buglioni, 2013). Each
port of a component is defined in terms of provided
and/or required interfaces (Gomaa, 2011). Each
security pattern component (Fig. 2) has a provided
port through which the component provides security
services to other components. Fig. 3 depicts the inter-
faces provided by the ports of the SPCs in Fig. 2.
ICSOFT 2018 - 13th International Conference on Software Technologies
510
«optional»
«security pattern»
Symmetric
Encryption Encryptor
ISEEncryptor
PSEEncryptor
ISEDecryptor
PSEDecryptor
«optional»
«security pattern»
Digital
SignatureSigner
IDSSigner
PDSSigner
«optional»
«security pattern»
Digital
SignatureVerifier
IDSVerifier
PDSVerifier
a) Symmetric Encryption Security Pattern
b) Digital Signature Security Pattern
«optional»
«security pattern»
Symmetric
EncryptionDecryptor
Figure 2: Security Pattern Components.
«interface»
ISEEncryptor
encrypt (in message, in key, out
encryptedMessage)
«interface»
ISEDecryptor
decrypt (in encryptedMessage, in key,
out message)
«interface»
IDSSigner
sign (in message, in key, out signature)
«interface»
IDSVerifier
verify (in message&signature, in key,
out result)
Figure 3: Interfaces of Security Pattern Components.
Each communication pattern is designed with a
sender communication pattern component (CPC)
and a receiver communication pattern component
(CPC), which are encapsulated in a secure sender
connector and a secure receiver connector
respectively. Fig. 4a depicts the AMC Sender CPC
and AMC Receiver CPC for the secure AMC
connector. The AMC Sender CPC (Fig. 4a) has the
provided PAsyncMCSenderService port through
which the Security Sender Coordinator component
(Fig. 7a) sends to the AMC Sender CPC a message
being sent to the receiver component, whereas it
requests a service from the AMC Receiver CPC via
the required RNetwork port. Similarly, the AMC
Receiver CPC (Fig. 4a) has the required
RSecurityService port and provided PNetwork port.
Fig. 4b depicts the interfaces provided by each port
of the AMC Sender and Receiver CPCs.
6 SECURITY COORDINATOR
COMPONENTS
A security sender coordinator component receives
messages from a sender component, and a security
receiver coordinator component delivers messages to
a receiver component. The security sender and
receiver coordinator components are variant optional
components (Table 1), optional because they are
needed for each optional communication pattern,
and variant because the design of each coordinator
component needs to be customized for each secure
connector based on one or more selected security
features. Templates for the high-level security
sender and receiver coordinator components are
designed for each communication pattern. A
communication pattern needs one template for the
high-level security sender coordinator component
(see Fig. 5) and another template for the receiver
coordinator component (Fig, 6). The templates are
customized for each secure connector based on the
security features selected.
INetwork
RNetwork
«optional»
«communication pattern»
AsynchronousMC
Sender
PAsyncMCSenderService
IAsyncMCSenderService
ISecurityService
RSecurityService
PNetwork
INetwork
«optional»
«communication pattern»
AsynchronousMC
Receiver
a) Asynchronous Message Communication Sender and Receiver
Communication Pattern Components
b) Interfaces of Asynchronous Message Communication Sender and
Receiver Communication Pattern Components
«interface»
IAsyncMCSenderService
sendSecAsync (in messageName, in
messageContent)
«interface»
ISecurityService
sendSecAsync (in messageName, in
messageContent)
«interface»
INetwork
sendSecAsync (in messageName, in
messageContent)
Figure 4: Asynchronous Message Communication Sender
and Receiver Communication Pattern Components and
their Interfaces.
loop
-- Wait for message from sender component;
receive (SenderComponentMessageQ, message);
Extract MessageName, MessageContent and
SenderSecurityPatternAttribute from message;
-- Apply security patterns to message content;
while SecurityPatternsRequiredByMessageContent do
Apply security pattern to message content;
end while;
-- Send message to AMC Sender CPC;
AsynchronousMCSender.sendSecAsync (in MessageName, in
MessageContent);
end loop;
Figure 5: Pseudocode template for Security Sender
Coordinator in Secure AMC Connector.
The pseudocode template for the security sender
coordinator is depicted in Fig. 5 in which the
security related code (in italics) is replaced by the
pseudocode for the security patterns selected for a
secure AMC connector, as described in Section 7
depicted in Fig. 7a. Similarly, the pseudocode
template for the Security Receiver Coordinator is
specified in Fig. 6 in which the interfaces of security
receiver coordinator component are depicted in Fig.
A Software Product Line Approach for Feature Modeling and Design of Secure Connectors
511
7b. The pseudocode templates for security sender
coordinator component (Fig. 5) and security receiver
coordinator component (Fig. 6) are customized for a
secure AMC connector that encapsulates Symmetric
Encryption and Digital Signature SCPs, as described
in Section 7 and depicted in Figs. 8 and 9.
Loop
-- Wait for message from AMC Receiver CPC;
receive (AMCReceiverMessageQ, message);
Extract MessageName and MessageContent from message;
-- Apply security patterns to message content;
while SecurityPatternsRequiredByMessageContent do
Apply security pattern to message content;
end while;
-- Send message name and message content to receiver component;
if MessageContent is secure
then
ReceiverComponent.sendSecAsync (in MessageName, in
MessageContent);
end if;
end loop;
Figure 6: Pseudocode template for Security Receiver
Coordinator in Secure AMC Connector.
7 EXAMPLE OF SECURE
CONNECTOR
This section describes an example of a secure
connector that can be derived from the SPL for
secure connectors if an application requires AMC
CPF with Symmetric Encryption and Digital
Signature SPFs. This needs the selection of the one
communication pattern (AMC) and two security
patterns, namely Symmetric Encryption and Digital
Signature features (Fig. 1). The corresponding
components (from Table 1) are the AMC Sender and
Receiver components, Symmetric Encryption
Encryptor and Decryptor components, and Digital
Signature Signer and Verifier components (Table 1).
This secure AMC connector is composed of a secure
AMC sender connector (Fig. 10) and a secure AMC
receiver connector (Fig. 10). The secure AMC
sender connector (Fig. 10) is designed as a
composite component in which the Security Sender
Coordinator component (Fig. 7a) integrates the
Symmetric Encryption Encryptor and Digital
Signature Signer SPCs (Fig. 2) for the Symmetric
Encryption and Digital Signature SPFs with the
AMC Sender CPC (Fig. 4) for the AMC CPF.
a) Security Sender Coordinator and its Interface
ISEEncryptor
«security
coordinator»
SecuritySender
Coordinator
RAsyncMCSenderService
IAsyncMCSenderService
PSecAsync
SenderService
ISecAsync
SenderService
RSEEncryptor
IDSSigner
RDSSigner
b) Security Receiver Coordinator and its Interface
ISEDecryptor
ISecurityService
PSecurityService
«security
coordinator»
SecurityReceiver
Coordinator
IDSVerifier
RSecAsyncReceiverService
ISecAsyncReceiverService
RSEDecryptor
RDSVerifier
RPKRepository
IPKRepository
«interface»
IPKRepository
retrievePublicKey (in ID, out
publicKey)
«interface»
ISecurityService
sendSecAsync (in messageName, in
messageContent)
retrieveSecretKey (out secretKey)
«interface»
ISecAsyncSenderService
sendSecAsync (in messageName,
in messageContent,
in senderSecurityPatternAttribute)
Figure 7: Security Sender and Receiver Coordinators and
their interfaces for Secure AMC Connector with
Symmetric Encryption and Digital Signature security
pattern features.
Fig. 7a depicts the interface provided by the
security sender coordinator for a secure AMC
connector. The senderSecurityPatternAttribute
parameter in sendSecAsync() specifies the private
key or secret key that is needed by security pattern
components to apply security services to a
message. For integrating the components, the
Security Sender Coordinator component (Fig. 7a)
has a required RSEEncryptor port to communicate
with a provided PSEEncryptor port of the
Symmetric Encryption Encryptor SPC, which
encrypts messages using the sender’s secret key,
and it also has a required RDSSigner port to
communicate with a provided PDSSigner port of
the Digital Signature Signer SPC, which signs a
message using the sender’s private key. The signed
and encrypted messages are sent to the receiver
component. The pseudocode for the Secure Sender
Coordinator component is depicted in Fig. 8.
Similarly, the AMC Receiver Connector (Fig. 10)
is designed as a composite component that
encapsulates the Security Receiver Coordinator
component (Fig. 7b), Symmetric Encryption
Decryptor SPC (Fig. 2), Digital Signature Verifier
SPC (Fig. 2), and AMC Receiver CPC (Fig. 4). The
pseudocode for the Secure Receiver Coordinator
component is depicted in Fig. 10.

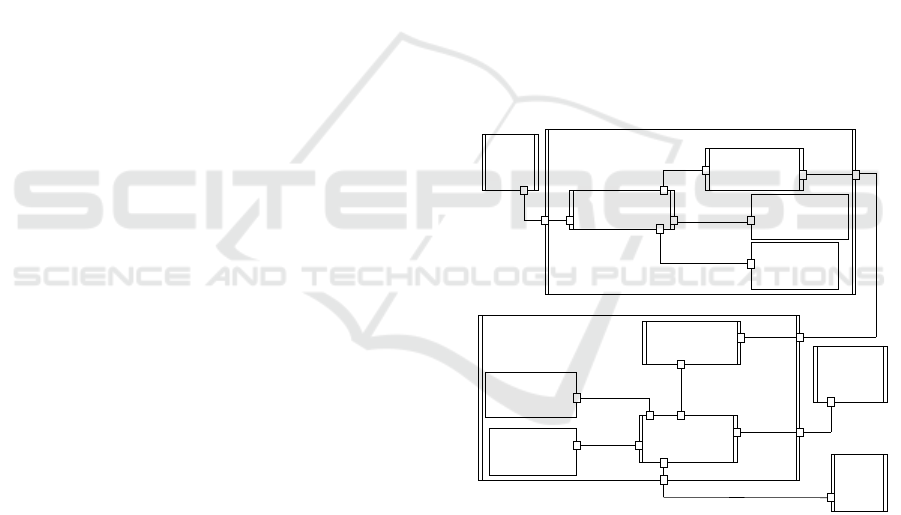

Fig. 10 depicts the structural view of the secure
AMC connector with Symmetric Encryption
security pattern and Digital Signature security
pattern, which can be applied for confirming a
shipment in a business to business (B2B) electronic
commerce application. When a Supplier component
sends a shipment confirmation to a Delivery Order
Server, the shipment confirmation is signed by the
Digital Signature Signer SPC in the secure AMC
ICSOFT 2018 - 13th International Conference on Software Technologies
512
Figure 8: Pseudocode of Security Sender Coordinator for
Secure AMC Connector with Symmetric Encryption and
Digital Signature Security Pattern features.
loop
-- Wait for message from AMC Receiver CPC;
receive (AMCReceiverMessageQ, message);
Extract MessageName and MessageContent from message;
-- Apply security patterns to message content;
if MessageContent requires confidentiality
then
ReceiverComponent.retrieveSecretKey (out SecretKey);
SymmetricEncryptionDecryptor.decrypt (in
EncryptedMessageContent&Signature,
in SecretKey, out MessageContent&Signature);
end if;
if MessageContent requires non-repudiation
then
PublicKeyRepository.retrievePublicKey (in SenderID,
out SenderPublicKey);
DigitalSignatureVerifier.verify (in MessageContent&Signature,
in Key, out Result);
end if;
-- Send message name and message content to receiver component;
if Signature is verified
then
ReceiverComponent.sendSecAsync (in MessageName,
in MessageContent);
end if;
Figure 9: Pseudocode of Security Receiver Coordinator
for Secure AMC Connector with Symmetric Encryption
and Digital Signature Security Pattern features.
sender connector assuming the Digital Signature
security pattern feature is selected for Supplier
component. The shipment confirmation and
signature is then encrypted by the Symmetric
Encryption Encryptor SPC in the secure AMC
sender connector assuming the Symmetric
Encryption security pattern feature is also selected
for Supplier component. The encrypted shipment
confirmation and signature are decrypted by the
Symmetric Encryption Decryptor SPC, and then
sent to the Delivery Order Server via the secure
AMC receiver connector, which requests the sender
component’s public key from the Public Key
Repository SPC (Table 1) that is designed for a
certificate authority in the public key infrastructure
feature (Table 1). The signature is verified by the
secure AMC receiver connector with the sender’s
public key. The behavioral view of a secure AMC
connector can be depicted using UML
communication or sequence diagrams. An example
is described in (Shin et al., 2016a) for
confidentiality and non-repudiation security
services.
«security pattern»
SymmetricEncryption
Encryptor
«security coordinator»
SecuritySender
Coordinator
«secure connector»
SecureAsynchronousMC
SenderConnector
«communication
pattern»
AMCSender
«security pattern»
DigitalSignature
Signer
PSecAsync
SenderService
PSecAsync
SenderService
PSEEncryptor
RSEEncryptor
PDSSigner
RDSSigner
RNetwork
RNetwork
PAsyncMC
SenderService
RAsyncMCSenderService
«communication
pattern»
AMCReceiver
«security pattern»
SymmetricEncryption
Decryptor
«security coordinator»
SecurityReceiver
Coordinator
«secure connector»
SecureAsynchronousMC
ReceiverConnector
«security pattern»
DigitalSignature
Verifier
PSEDecryptor
RSEDecryptor
PDSVerifier
RDSVerifier
PNetwork
PNetwork
RSecurityService
PSecurityService
RSecAsyncReceiverService
RPKRepository
RPKRepository
«application
component»
Supplier
RSecAsync
Sender
Service
«application
component»
Delivery
Order
RSecAsyncReceiverService
PSecAsyncReceiverService
PPKRepository
«security
pattern»
PublicKey
Repository
Figure 10: Secure AMC Connector with Symmetric
Encryption and Digital Signature security pattern features
in B2B application.
8 VALIDATION
The secure connectors derived from the software
product line were validated from the perspectives of
implementation and performance analysis of secure
connectors.
A Software Product Line Approach for Feature Modeling and Design of Secure Connectors
513
8.1 Implementation of Secure
Connectors
The secure connectors designed using the software
product line approach were implemented in Java.
The implementation environment used is as follows:
Eclipse 4.4.2 version on a Windows 7, 64-bit-based
computer with 4GB of memory and 2.20 GHz quad
core i7 processor. All secure message communi-
cations between application components were
implemented in a local machine.
The secure asynchronous message communica-
tion connector (Fig. 10) was implemented using
asynchronous message communication CPF and
both symmetric encryption and digital signature
CPFs. The connector was implemented using two
algorithms for security pattern features, DSA to
sign/verify the message in digital signature SPF and
DES to encrypt/ decrypt the message in symmetric
encryption SPF. The shipment confirmation using
the secure asynchronous message communication
connector in B2B application (Fig. 10) was
implemented with 7 threads for each of supplier
component security sender coordinator component,
AMC sender CPC, security receiver coordinator
component, AMC receiver CPC, public key
repository SPC, and delivery order component. Also,
a message queue was implemented and placed
between threads (for example, a message queue
between the supplier application component thread
and security sender coordinator component thread,
and a message queue between the security sender
coordinator component thread and the AMC sender
CPC thread).
In addition, another secure connector constructed
with secure synchronous message communication
with reply CPF and authenticator and symmetric
encryption SPFs in B2B application was
implemented for the validation. Encryption and
decryption SPCs for the symmetric encryption SP
were implemented using the data encryption
standard (DES) algorithm, which is a block cipher
that operates on plain text blocks of a given size (64-
bits) and returns cipher text blocks of the same size.
The DES works by using the same a 56-bit key to
encrypt and decrypt a message. The encrypted
Payment Order is sent to the Payment Order
application component, the receiver connector of
which decrypts the message using the DES
algorithm with the same secret key. Authenticator
SPC uses MySQL database to store customer’s
credentials and authenticate them. The size of the
MySQL database affects the execution time for the
authenticator SPC if the database contains a large
amount of customer credentials. The payment order
using the secure SMC with reply connector was
implemented with 7 threads and 5 separate message
buffers. These threads were implemented with
customer component, security sender coordinator
component, SMC with reply sender CPC, SMC with
reply receiver CPC, security receiver coordinator,
authenticator SPC, and payment order component.
Message buffers were implemented and placed
between threads.
8.2 Performance Analysis of Secure
Connectors
This section describes the performance analysis of
secure applications using the secure connectors
derived from the software product line and
compares them with secure applications executing
the same message communication patterns but
using other approaches for providing or not
providing security. The three approaches compared
in this section are the (1) with secure connector
approach, for secure applications that use the
approach described in this paper; (2) without
security service approach, for applications that do
not provide any security services; (3) without
secure connector approach, for secure applications
in which security services are mingled with the
application logic. In the with secure connector
approach, security services are encapsulated in
secure connectors separately from application
logic. The application functionality implemented in
each approach is all the same. However, the
underlying difference between with secure
connector approach and without secure connector
approach is that the security services in without
secure connector approach are implemented within
application components along with application
business logic, whereas with secure connector
approach separated the security services from
application components and implemented them as
secure connectors. Also, the difference between
with secure connector approach and without
security service approach is that with secure
connector approach provides security services
encapsulated in secure connectors with application
components, whereas without security service
approach implements only business application
logic without any security services.
For each communication pattern described in
this paper, namely (a) synchronous message
communication with Authenticator and Symmetric
Encryption security patterns and (b) asynchronous
message communication with Symmetric
ICSOFT 2018 - 13th International Conference on Software Technologies
514
Encryption and Digital Signature security patterns,
the performance of the with secure connector
approach was evaluated by measuring the average
time of message communication between sender
and receiver components via a secure connector.
Each message communication implemented in
section 8.1 was run 20 times to calculate the
average communication time so that the
performance evaluation would not be dependent on
a few exceptional communication times. Message
communication time (MCT) is measured by
observing the overall run time from start to finish
for each message communication pattern. For
synchronous communication, MCT measures
sending a message and receiving a response. For
asynchronous communication, MCT measures the
time to send a message from sender to receiver.
Table 2 shows the average time of multiple
message communication and a comparison of the
with secure connector approach, without security
service approach, and without secure connector
approach for the first pattern. For the with secure
connector approach, the second column of Table 2
(top section) shows that the average MCT is 44.6
milliseconds (ms) for the sender connector of
SMCWR with Authenticator and Symmetric
Encryption security patterns, 0.02 milliseconds for
the network connection, and 296.8 milliseconds for
the receiver connector. Thus the overall MCT for
the SMCWR with Authenticator and Symmetric
Encryption security pattern is 341.4 milliseconds.
For the second pattern the with secure connector
approach (bottom section of second column) shows
the MCT is 44.8 milliseconds for the sender
connector of AMC with Symmetric Encryption and
Digital Signature security patterns, 0.01
milliseconds for the network connection, 48.9
milliseconds for the receiver connector, giving a
total of 93.7 milliseconds for the overall of AMC
with Symmetric Encryption and Digital Signature
security patterns (Fig. 10).
The without security service approach (top
section in the third column of Table 2) shows that
the average MCT for SMCWR with Authenticator
and Symmetric Encryption security patterns is 2.9
ms, 0.02 ms and 8.0 ms for each portion, while the
overall average time is 10.9 ms. The bottom section
of the without security service approach shows that
AMC with Symmetric Encryption and Digital
Signature security patterns (Fig. 10) has 5.0 ms,
0.01 ms and 4.3 ms for each portion. AMC with
Symmetric Encryption and Digital Signature
security patterns has a total MCT of 9.3 ms for the
without security service approach.
The without secure connector approach (fourth
column of Table 2) shows that the average MCT
for SMCWR with Authenticator and Symmetric
Encryption security patterns is 41.7 ms, 0.02 ms,
295.9 ms for each portion, giving an overall MCT
of 340.0 ms. The bottom section of the same
column shows that the AMC with Symmetric
Encryption and Digital Signature security patterns
(Fig. 10) has MCT of 44.3 ms, 0.01ms and 47.4 ms
for each portion. The overall average MCT for
AMC with Symmetric Encryption and Digital
Signature security patterns is 91.7 ms.
The fifth column of Table 2 indicates that the
time difference between the with secure connector
approach and the without security service
approach is highly significant. This is because with
secure connector approach provides application
components with security services such as
confidentiality and non-repudiation. The security
services in the with secure connector approach
consume processing time for encrypting/decrypting
messages, authenticating messages and/or
signing/verifying digital signature, whereas the
without security service approach is much faster
due to it providing no security services. It is also
important to note that use of authenticator pattern
increases the run time of the program due to the
time taken to do database retrievals. Thus, the
additional processing time taken by the with secure
connector approach is to make applications secure
in comparison to insecure applications developed
using the without security service approach.
Comparing the performance without secure
connector approach and with secure connector
approach shows that there is no significant
difference in the runtime performance of the
communication patterns. The time difference
between the two approaches (sixth column in Table
2) ranges from 1.4 ms to 2.0 ms. Both approaches
provide applications with security services;
however, the with secure connector approach has
the advantage of separating security services from
application logic, which leads to secure software
architectures that are more maintainable and
evolvable than the without secure connector
approach.
A Software Product Line Approach for Feature Modeling and Design of Secure Connectors
515
Table 2: Average time of message communication and comparison of the with secure connector approach, without security
service approach, and without secure connector approach.
Communication pattern
With secure
connector
approach
Without
security
service
approach
Without secure
connector
approach
Time difference
between with
secure connector
approach and
without security
service approach
Time difference
between without
secure connector
approach and with
secure connector
approach
Secure SMCWR Connector with Authenticator and Symmetric Encryption security patterns
● Secure Synchronous
MC with reply Sender
44.6 ms
2.9 ms
41.7 ms
41.7 ms
2.9 ms
● Network connection
0.02 ms
0.02 ms
0.02 ms
0.00 ms
0.00 ms
● Secure Synchronous
MC with reply Receiver
296.8 ms
8.0 ms
295.9 ms
288.8 ms
0.9 ms
● Full SMCWR with
Symmetric Encryption
& Authenticator
341.4 ms
10.9 ms
340.0 ms
330.5 ms
1.4 ms
Secure AMC Connector with Symmetric Encryption and Digital Signature security patterns (Fig. 10)
● Secure Asynchronous
MC Sender (Fig. 8)
44.8 ms
5.0 ms
44.3 ms
39.8 ms
0.5 ms
● Network connection
(Fig. 8)
0.01 ms
0.01 ms
0.01 ms
0.00 ms
0.00 ms
● Secure Asynchronous
MC Receiver (Fig. 8)
48.9 ms
4.3 ms
47.4 ms
44.6 ms
1.5 ms
● Full AMC with
Symmetric Encryption
& Digital Signature
(Fig. 8)
93.7 ms
9.3 ms
91.7 ms
84.4 ms
2.0 ms
9 CONCLUSIONS
This paper has described a software product line
approach to model the variability of secure
connectors in terms of security patterns and
communication patterns, which makes it possible to
design secure software architectures for concurrent
and distributed software applications. The feature
model for secure connectors captures various
security pattern and communication pattern features,
and describes the relationships between features.
The security and communication pattern features are
designed as security and communication pattern
components that are encapsulated into secure
connectors. Each secure connector is derived from
the software product line for secure connectors,
which is designed as a composite component that
encapsulates both security pattern and communica-
tion pattern components. A security coordinator
enables security pattern and communication pattern
components to be integrated within a secure
connector. This paper has also described a secure
AMC connector, which is designed with the security
pattern and communication pattern features selected
for the applications.
This paragraph describes future research for
secure connectors. The code of a security
coordinator could be generated automatically from a
code template of a high-level security coordinator.
As security and communication pattern features are
selected for an application, the template could be
automatically filled with calls to the appropriate
methods of the corresponding pattern components. A
prototype tool could also be developed to
automatically generate the code for security
coordinators within secure connectors. In addition,
we might need to investigate how multiple
communication pattern components could be
encapsulated within a secure connector when sender
and receiver application components communicate
with each other via different types of communication
patterns.
ACKNOWLEDGEMENTS
This work
was
partially
supported
by the AFOSR
grant
FA9550-16-1-0030.
ICSOFT 2018 - 13th International Conference on Software Technologies
516
REFERENCES
Abu-Matar, M. and Gomaa, H., 2011, August. Variability
modeling for service oriented product line
architectures. In Software Product Line Conference
(SPLC), 2011 15th International (pp. 110-119). IEEE.
Al-Azzani, S. and Bahsoon, R., 2012, August. SecArch:
Architecture-level evaluation and testing for security.
In Software Architecture (WICSA) and European
Conference on Software Architecture (ECSA), 2012
Joint Working IEEE/IFIP Conference on (pp. 51-60).
Albassam, E., Gomaa, H. and Menascé, D.A., 2016, July.
Model-based Recovery Connectors for Self-adaptation
and Self-healing. In ICSOFT-EA (pp. 79-90).
Basin, D., Clavel, M. and Egea, M., 2011, June. A decade
of model-driven security. In Proceedings of the 16th
ACM symposium on Access control models and
technologies (pp. 1-10). ACM.
Farahmandian, S. and Hoang, D.B., 2017, October. SDS
2
:
A novel software-defined security service for
protecting cloud computing infrastructure. In Network
Computing and Applications (NCA), 2017 IEEE 16th
International Symposium on (pp. 1-8). IEEE.
Fant, J.S., Gomaa, H. and Pettit, R.G., 2015, July.
Integrating and applying architectural design patterns
in space flight software product lines. In Software
Technologies (ICSOFT), 2015 10th International Joint
Conference on (Vol. 1, pp. 1-11). IEEE.
Fernandez-Buglioni, E., 2013. Security patterns in
practice: designing secure architectures using
software patterns. John Wiley & Sons.
Gomaa, H., Menascé, D.A. & Shin, M.E., 2001. Reusable
component interconnection patterns for distributed
software architectures. Proceedings of the 2001
symposium on Software reusability putting software
reuse in context - SSR 01.
Gomaa, H. and Shin, M.E., 2004, July. A multiple-view
meta-modeling approach for variability management
in software product lines. In International Conference
on Software Reuse (pp. 274-285). Springer, Berlin,
Heidelberg.
Gomaa, H., 2005. Designing software product lines with
UML: from use cases to pattern-based software
architectures, Boston: Addison-Wesley.
Gomaa, H. and Shin, M.E., 2007, January. Automated
software product line engineering and product
derivation. In System Sciences, 2007. HICSS 2007.
40th Annual Hawaii International Conference on (pp.
285a-285a). IEEE.
Gomaa, H. and Shin, M.E., 2008. Multiple-view
modelling and meta-modelling of software product
lines. IET software, 2(2), pp.94-122.
Gomaa, H., Hashimoto, K., Kim, M., Malek, S. and
Menascé, D.A., 2010, March. Software adaptation
patterns for service-oriented architectures.
In Proceedings of the 2010 ACM Symposium on
Applied Computing (pp. 462-469). ACM.
Gomaa, H. and Shin, M.E., 2010. Variability modeling in
model-driven software product line engineering. In
Proceedings of the 2nd International Workshop on
Model Driven Product Line Engineering (MDPLE
2010) (p. 65).
Gomaa, H., 2011. Software modeling and design: UML,
use cases, patterns, and software architectures.
Cambridge University Press.
Jürjens, J., 2002, September. UMLsec: Extending UML
for secure systems development. In International
Conference on The Unified Modeling Language (pp.
412-425). Springer, Berlin, Heidelberg.
Lodderstedt, T., Basin, D. and Doser, J., 2002, September.
SecureUML: A UML-based modeling language for
model-driven security. In International Conference on
the Unified Modeling Language (pp. 426-441).
Springer, Berlin, Heidelberg.
Medvidovic, N. and Taylor, R.N., 2010, May. Software
architecture: foundations, theory, and practice.
In Software Engineering, 2010 ACM/IEEE 32nd
International Conference on (Vol. 2, pp. 471-472).
IEEE.
Ren, J., Taylor, R., Dourish, P. and Redmiles, D., 2005,
May. Towards an architectural treatment of software
security: a connector-centric approach. In ACM
SIGSOFT Software Engineering Notes (Vol. 30, No. 4,
pp. 1-7). ACM.
Schneider, R., 2005. Designing Software Product Lines
with UML: From Use Cases to Pattern-Based
Software Architectures. Software Quality
Professional, 7(4), p.46.
Schumacher, M., Fernandez, E.B., Hybertson, D.,
Buschmann, F. and Sommerlad, P., 2006. Security
Patterns, J.
Shin, M.E. and Gomaa, H., 2007. Software modeling of
evolution to a secure application: From requirements
model to software architecture. Sci. Comput.
Program, 66(1), pp.60-70.
Shin, M.E., Malhotra, B., Gomaa, H. and Kang, T., 2012,
July. Connectors for Secure Software Architectures.
In SEKE (pp. 394-399).
Shin, M.E., Gomaa, H., Pathirage, D., Baker, C. and
Malhotra, B., 2016. Design of Secure Software
Architectures with Secure Connectors. International
Journal of Software Engineering and Knowledge
Engineering, 26(05), pp.769-805.
Shin, M., Gomaa, H. and Pathirage, D., 2016, June.
Reusable Secure Connectors for Secure Software
Architecture. In International Conference on Software
Reuse (pp. 181-196). Springer, Cham.
Shin, M., Gomaa, H. and Pathirage, D., 2017. Model-
based Design of Reusable Secure Connectors. In 4st
International Workshop on Interplay of Model-Driven
and Component-Based Software Engineering
(ModComp) 2017 Workshop Pre-proceedings (p. 6).
Taha, A., Trapero, R., Luna, J. and Suri, N., 2017, June. A
Framework for Ranking Cloud Security Services.
In Services Computing (SCC), 2017 IEEE
International Conference on (pp. 322-329). IEEE.
Tzeremes, V. and Gomaa, H., 2018, January. Applying
End User Software Product Line Engineering for
Smart Spaces. In Proceedings of the 51st Hawaii
International Conference on System Sciences.
A Software Product Line Approach for Feature Modeling and Design of Secure Connectors
517
