Towards Efﬁcient Software Protection Obeying Kerckhoffs’s Principle

using Tamper-proof Hardware

Brandon Broadnax

, Matthias Huber

, Bernhard Löwe

Jörn Müller-Quade

and Patrik Scheidecker

Karlsruhe Institute of Technology, Karlsruhe, Germany

FZI Research Center for Information Technology, Karlsruhe, Germany

Rohde & Schwarz GmbH & Co. KG, Cologne, Germany

Keywords:

Software Protection, Kerckhoffs’s Principle, Tamper-Proof Hardware.

Abstract:

We propose the ﬁrst software protection scheme obeying Kerckhoffs’s principle that is suited for practical

implementation. Previous schemes have either been closed source or too inefﬁcient to be considered practically

viable. A key technique of our scheme is to partition the software in such a way that a hacker who knows a set

of parts cannot learn additional ones. To achieve a partition with this property, our scheme exploits the domain

knowledge that is necessary to create the software as well as the inherent complexity of the software’s code. If

a software is sufﬁciently complex to admit such a partition then we can prove that there are no successful attack

strategies on our scheme other than storing every line of code that has been executed.

1 INTRODUCTION

Software has become an increasingly important com-

mercial factor. Industrial machinery, cars or smart

devices contain more and more software innovations.

As a consequence, software protection has become an

important ﬁeld of IT security. The goal of software

protection is to make it as hard as possible for a hacker

to construct an unauthorized copy of a software.

Conventional software protection methods such as

requiring serial numbers or software activation codes

are not sufﬁcient to prevent piracy. Modern software

protection schemes use cryptographic methods such as

encryption schemes or digital signatures. The secret

keys are stored in a tamper-proof hardware, a so-called

dongle, which is distributed with the software. The

software therefore only runs properly if the dongle is

attached to the electronic device in use. A hacker who

wants to illegally resell the software has to create a

copy that runs without a dongle. Since a hacker may

also have access to one or several dongle(s), one cannot

prevent him from running the program and storing the

parts of the program code that were executed (memory

dump).

Unfortunately, all protection schemes that are used

in practice rely on keeping their mechanisms secret.

Thus, it is relatively easy for hackers who know these

mechanisms sufﬁciently well to break such protection

schemes. These schemes thus violate Kerckhoffs’s

principle which requires that a scheme should be se-

cure even if everything about it is public knowledge,

except for cryptographic keys.

Kerckhoffs’s principle, put forward by Auguste

Kerckhoffs in 1883, offers many advantages. For in-

stance, since cryptographic keys can be chosen inde-

pendently for each program, compromized keys have

no impact on another protected program and new keys

can be chosen without having to modify the scheme.

Moreover, since the mechanisms of the protection

scheme do not have to be kept secret, they are open to

public scrutiny.

In theory, there are methods that can be used to

provably guarantee software protection in accordance

with Kerckhoffs’s principle , e.g. (Goldreich and Os-

trovsky, 1996; Lin, 2016). These methods, however,

have been useless in practice so far due to the high

computational overhead of the cryptographic primi-

tives used in these methods.

We propose the ﬁrst software protection scheme

that obeys Kerckhoffs’s principle and is also suited for

practical implementation. At the core of this scheme

lies a simple assumption: a hacker, although perhaps

skilled at attacking cryptographic mechanisms, is lack-

ing the domain knowledge that is necessary to create

the software product he seeks to copy illegally. For

instance, a hacker may not be familiar with the un-

Broadnax, B., Huber, M., Löwe, B., Müller-Quade, J. and Scheidecker, P.

Towards Efﬁcient Software Protection Obeying Kerckhoffs’s Principle using Tamper-proof Hardware.

DOI: 10.5220/0006906105530558

In Proceedings of the 15th International Joint Conference on e-Business and Telecommunications (ICETE 2018) - Volume 2: SECRYPT, pages 553-558

ISBN: 978-989-758-319-3

553

derlying mathematics of a scientiﬁc program such as

a computer algebra system. This assumption is sup-

ported by the fact that if a hacker knew the relevant

domain knowledge then he could write the software

himself without having to attack the protection at all.

Hence, this is a necessary assumption for every soft-

ware protection scheme.

This lack of domain knowledge can be exploited

to obtain a secure protection. The main idea is to

partition the program code of a software in such a way

that, given an arbitrary set of parts, it is hard to come

up with the remaining parts if one lacks the domain

knowledge that is necessary to create the software. Of

course, not all programs admit a partition with such a

security property. A program needs to have “sufﬁcient

complexity” for such a partition to be possible.

Identifying which code structures are suitable for

such a partitioning is part of our current research. We

give a brief overview of our current state of research

in section 5.

2 RELATED WORK

An effective software protection scheme has to reach

at least two goals. The ﬁrst one is obvious: to prevent

an adversary from creating a copy of the program that

runs without a valid license. Since an adversary can

always create an exact copy of the software, the execu-

tion of the software has to be tied to a physical device.

The second goal is closely related to the ﬁrst one. The

adversary must not learn how the program works. If he

knows the “inner workings” of the protected program

then he can write a functionally equivalent program by

himself. For this reason, software protection and code

obfuscation are often mentioned in the same breath.

Code obfuscation is the process of modifying ma-

chine code in such a way that it becomes unintelligible,

while leaving the functionality of the original program

code unaltered. Various types of code obfuscation

can be found in the literature. Black-Box Obfuscation

(Barak et al., 2001) guarantees that every information

that can be derived from the obfuscated program can

also be learned given black-box access to the original

program. However, it has been shown (Barak et al.,

2001) that black-box obfuscation for arbitrary pro-

grams is impossible (without hardware assumptions).

Only a few applications of black-box obfuscation are

known, e.g. point-functions (Wee, 2005).

Another type of obfuscation is indistinguishability

obfuscation. Indistinguishability obfuscation guaran-

tees that the obfuscated code of two programs having

the same functionality are indistinguishable. Some

candidate indistingushiability obfuscators for arbitrary

programs have been constructed, e.g. (Garg et al.,

2016; Lin, 2016; Lin and Tessaro, 2017). Unfortu-

nately, these constructions are impractical since they

use cryptographic methods (e.g. fully-homomorphic

encryption schemes) that are so far too inefﬁcient for

practical purposes.

Apart from merely modiﬁying the program code,

other obfuscation techniques using tamper-proof hard-

ware tokens have been explored. Since these hardware

tokens can be implemented by dongles, they are also

of interest for software protection. Hardware tokens

(Katz, 2007) allow black-box obfuscation for all prac-

tically relevant functionalities. However, these con-

structions are not suited for practical implementation

because they treat programs as circuits.

Another technique that has been explored in the

context of software protection is oblivious RAM (Gol-

dreich and Ostrovsky, 1996; Pinkas and Reinman,

2010). Oblivious RAM is a method for hiding the

memory access pattern. Oblivious RAM can be com-

bined with a physically shielded CPU to construct

software protection schemes. Since we assume that

the adversary has full control over the CPU, these

constructions are not applicable in our setting. The

SGX-technology of intel may change this in the future.

Moreover, white-box cryptography provides an-

other type of obfuscation (Joye, 2008). The goal

of white-box cryptography is not to hide what the

program code does but rather to hide the key of the

cryptographic operations (encryption, decryption, etc.)

within the program code. However, known white-box

cryptography solutions, e.g. (Karroumi, 2010), do not

prevent unauthorized copying of the software but only

protect the contents the software operates with.

3 OUR CONSTRUCTION

Our scheme uses an external tamper-proof hardware

(dongle). This device is able to store small amounts

of data, execute some code and decrypt ciphers. In

the following, we will explain the mechanisms of our

scheme in detail.

3.1 Encryption

We use a secret key encryption scheme as a basic

building block in our construction. For performance

reasons, each plaintext

is encrypted with a key

which in turn is encrypted with the secret key

of the

dongle. Decryption is carried out by having the dongle

decrypt the key

which can then be used to decrypt

the ciphertext generated with

on the (fast) CPU of

the computer.

SECRYPT 2018 - International Conference on Security and Cryptography

554

3.2 Partitioning a Program

Encrypting the program as a whole with one key would

reveal it entirely after decryption. We therefore parti-

tion the program into several program blocks before

encryption. Each program block is encrypted with a

different key. These keys are encrypted together with

the variant ID using the secret key stored in the dongle

(see ﬁgure 1). Program blocks can therefore only be

decrypted with the help of the dongle. Note that a

program block is only decrypted when needed. Since

every code block is encrypted we add an initial boot-

strapping block that sends the ﬁrst encrypted key to

the dongle.

3.3 Duplication and Modiﬁcation of

Program Blocks

Given a program block, its input range is partitioned

into several segments. For each segment a copy of the

program block is created. Each copy is modiﬁed such

that it still yields correct results within the segment

of the input range it was created for, but yields false

results for any input value outside this segment. We

call this copy a variant of the program block. Further-

more, we introduce wrapper functions that determine

the index of the next variant based on the current input.

Each wrapper function is encrypted with the key of the

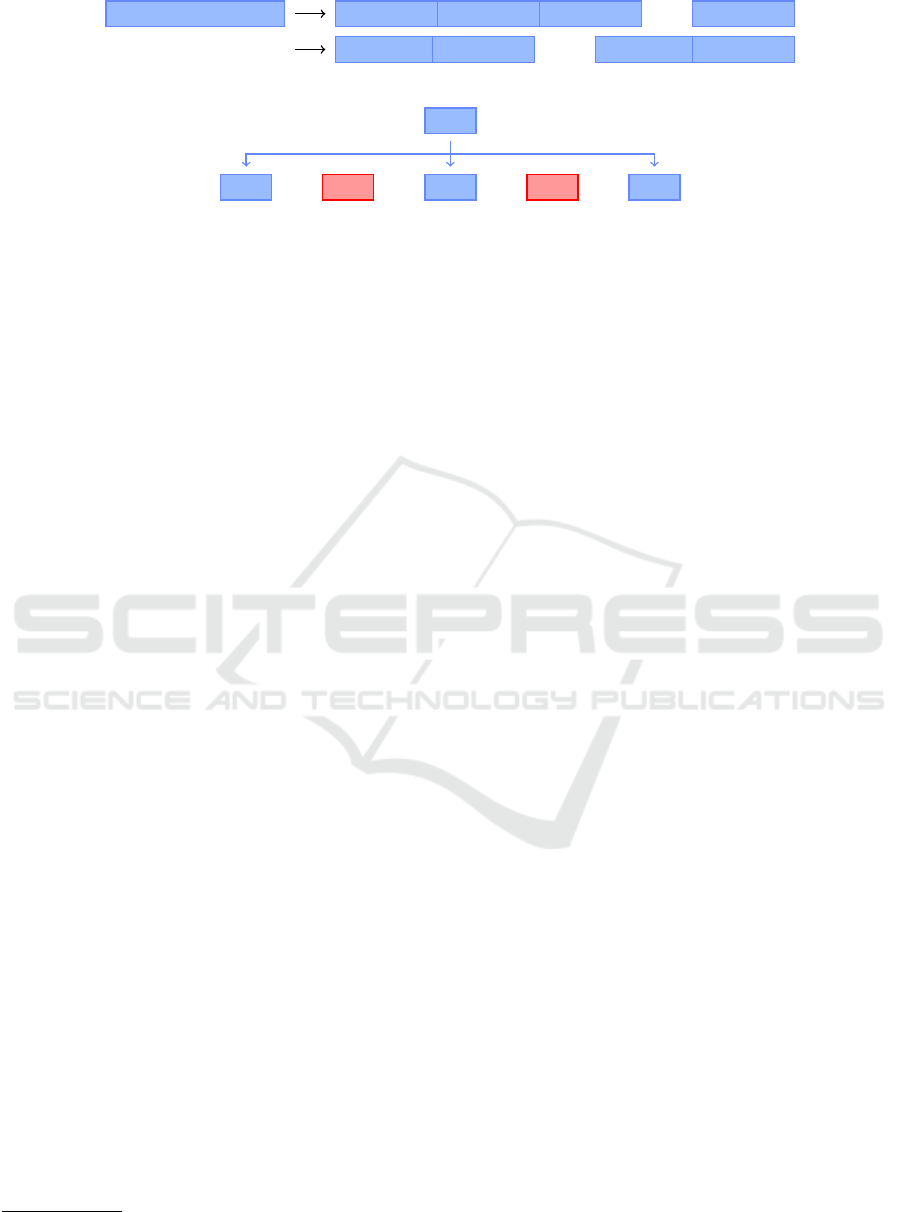

dongle (see ﬁgure 2).

The creation of variants is an important part of our

protection scheme. In order to achieve a meaningful

notion of security, the set of variants must fulﬁll the

following requirement:

Variant Security Assumption (VSA).

Given a sub-

set of variants

i, j

}

, it is hard for an adversary

to come up with additional variants.

A program has to be sufﬁciently complex to allow

for creating variants that meet this requirement. In

Section 5, we will sketch some techniques that are

useful for creating variants that fulﬁll the VSA.

3.4 Traps

Traps are a special class of variants that are added to

the program code (see ﬁgure 2). Traps do not belong

to the original program and are never called during

regular executions of the program. If an adversary tries

to decrypt a trap, the dongle locks itself, invalidating

the license. Traps prevent the adversary from simply

decrypting one variant after the other using the dongle.

3.5 Evaluation of the Wrapper

Functions on the Dongle

Code moving is the method of moving the execution

of program code into the dongle. In theory, this tech-

nique provides a nearly perfect solution for software

protection. However, it is inefﬁcient in many cases

because the dongle is a constrained hardware. Due

to these performance issues, code moving cannot be

used extensively. We use code moving only for the

determination of the next program block, i.e., for the

wrapper functions. This prevents an adversary from

learning which code block is a trap by analyzing the

wrapper functions.

3.6 Using the Dongle’s State Memory

Since the dongle knows which variant will be executed

next (because it calculated the index of the next variant,

see Section 3.5), it expects that variant to be decrypted

next. Every other variant that is sent to the dongle

in the next decryption query will force the dongle to

lock itself. We can realize this technique with only a

small amount of memory in the dongle. Note that this

technique also prevents illegal parallel executions of

the protected program (e.g. via a cloud server).

3.7 Applying a Message Authentication

Code

In order to prevent an adversary from manipulating

the encrypted keys, variant IDs or wrapper functions,

we apply a message authentication code (MAC) to the

respective ciphertexts. The key of the MAC is stored

in the dongle.

4 SECURITY

In this section, we give a brief informal security analy-

sis of our scheme.

In the ﬁeld of software protection, one generally

distinguishes the following two types of adversaries:

Static Adversaries

Static adversaries pursue a strategy that is indepen-

dent of the program code, using the dongle as a

decryption oracle.

Dynamic Adversaries

Dynamic adversaries can run the program and ana-

lyze the structure of the program code (using, e.g.,

a debugger).

Towards Efﬁcient Software Protection Obeying Kerckhoffs’s Principle using Tamper-proof Hardware

555

. . .

enc

, 1)

enc

)

. . .

enc

, n)

enc

)

Figure 1: A program P is partitioned into n program blocks. Each block is encrypted separately.

i,l

. . .

i,2

i,1

Figure 2: Traps are added. Wrapper functions determine the next variant.

We can prove that our scheme is secure against the

above-mentioned adversary types given the following

assumptions:

- Secure Encryption:

The encryption scheme is IND-

CPA-secure

- Secure MAC:

The message authentication code is

EUF-CMA-secure.

- VSA:

The variant security assumption holds for the

given program.

- Tamper-Proof Hardware:

The key stored in the

dongle is hard to extract.

In order to prove security, we have deﬁned a mathe-

matical model tailored to our setting. In the following,

we brieﬂy sketch our model as well as some of the

arguments in the security proof.

Let us ﬁrst consider static adversaries. First note

that an (arbitrary, even non-static) adversary cannot

send arbitrary code to the decryption oracle (dongle)

since this would require forging the EUF-CMA-secure

MAC because the dongle checks if the MAC tag of

a received message is valid. Therefore, an adversary

can only send encrypted variants to the oracle (more

speciﬁcally, the ciphertexts containing the keys and

variant IDs, see section 3.2). However, since the en-

crypted program code contains traps, a static adversary

will fail with high probability (depending on the num-

ber of traps) at retrieving all variants by using the

decryption oracle. Assuming the encryption scheme

is IND-CPA-secure, a static adversary who has invali-

dated the decryption oracle by decrypting a trap cannot

learn additional variants by attacking the encryption

scheme.

Now let us discuss dynamic adversaries. Consider

the attack strategy that simply runs the program and

stores all the variants that have been decrypted during

the program execution (memory dump). This type of

attack is called a Copy-and-Paste attack. This attack

cannot be prevented by our scheme. However, if the

protected program is sufﬁciently large, then this attack

See (Katz and Lindell, 2014) for a deﬁnition of IND-

CPA security and EUF-CMA security.

is impractical since an adversary would have to run the

program on an impractically large set of input values

in order to retrieve the entire program.

Still, the fact that there exists an attack that is unpre-

ventable makes deﬁning security difﬁcult, as a straight-

forward statement such as “no (dynamic) adversary

can break the scheme” cannot be achieved. However,

one can hope that there is no attack strategy that is

“better” than the Copy-and-Paste strategy.

We have therefore formalized security using the

“Real/Ideal-Paradigm” (Canetti, 2000). The “real

model” captures all possible actions of dynamic adver-

saries given the encrypted program code and a dongle.

The “ideal model”, on the other hand, only allows

Copy-and-Paste attacks. We can show that, given a

program for which the VSA holds (and assuming the

other three afore-mentioned assumptions hold as well),

every adversary in the real model can be mapped to an

equally effective adversary in the ideal model. More

speciﬁcally, we can prove that for every real model

adversary there exists an ideal model adversary that re-

trieves the same number of variants, while making the

same number of dongle calls. The latter (same number

of dongle calls) is important because an ideal model

adversary that needs to make signiﬁcantly more don-

gle calls than a given real model adversary is certainly

not comparable to that real model adversary. Since

ideal model adversaries are impractical for sufﬁciently

large programs, this provides a meaningful security

deﬁnition.

5 TOWARDS REALIZATION

As we have already mentioned, not every software can

be protected effectively with our scheme. A software

can be protected with our scheme only if it admits a

partition into variants for which the VSA holds. Note

that this property may only hold for some sufﬁciently

complex parts of the program. Typically, such a com-

plex part is exactly the critical part of the software

that is needs to be protected. Moreover, the number of

variants should be large enough so that the entire code

SECRYPT 2018 - International Conference on Security and Cryptography

556

cannot be traversed with a small set of input values.

We are currently exploring which code structures

are suitable for protection. In particular, we are in-

vestigating how variants can be created in such a way

that they fulﬁll the VSA and if such a variant creation

process can be automatized. In this section, we brieﬂy

sketch some of our current research. We list some tech-

niques that are useful for designing variants in such

a way that the VSA holds and mention some of our

ﬁndings on the efﬁciency of our scheme.

Techniques.

In the following, we describe some

techniques that are useful for creating variants that

fulﬁll the VSA.

•

Local optimization: Optimize the code for a partic-

ular input range, e.g., by deleting operations that

are not necessary on a speciﬁc interval. For in-

stance, one can delete additions with functions that

are close to zero on a given interval.

•

Adding redundant operations: Add redundant op-

erations on a speciﬁc interval, e.g., multiplications

with functions that are close to one on a given

interval.

•

Approximation: Create variants using approxima-

tion techniques (such as taylor approximation).

Each approximation (variant) only gives local in-

formation about the original function block. If

the original function is complex enough then an

adversary cannot use this local information to de-

duce the entire function since the global behavior

of this function may strongly differ from the local

approximations. Note that it sufﬁces if the original

function is only complex on a particular critical

part of its domain.

•

Exploiting branches: Exploit the branched struc-

ture (e.g. if-then-else or switch statements) of the

program code. If each branch contains code that is

not easily implied by other branches, then one can

deﬁne a variant for each branch.

•

Code Moving: As mentioned earlier, the wrapper

functions of each function block is moved into the

dongle in order to hide the input ranges of vari-

ants. This technique makes it much harder for an

adversary to ﬁnd new variants. This is because, in

general, knowledge of the input ranges of variants

considerably facilitates ﬁnding new variants. In

particular, without knowing the ranges an adver-

sary cannot ﬁnd out if he has retrieved all variants.

Implementation and Hackers Contest.

In order to

assess the practicality of our scheme, we have carried

out various performance experiments together with an

industrial partner specializing in the ﬁeld of software

protection. As it turned out, the dominating overhead

is the latency of the communication between the com-

puter on which the program is executed and the don-

gle. Variant decryption only plays a minor role. Our

protection scheme does not use signiﬁcantly more don-

gle calls than the (commercially available) protection

schemes of our industry partner. This indicates that

our scheme is practically viable. However, we still

need to thoroughly benchmark our scheme in order to

assess its exact efﬁciency.

We have carried out a global hacker contest with

over 300 participants. Each participant received a

small video game created by our industry partner and

protected by our scheme. Every participant was given

a dongle with a valid license that enabled running

the protected program. No submitted solution con-

tained functional program code. We believe that video

games are among the classes of programs that can be

effectively protected by our scheme due to their high

complexity. This is because most modern games have

a high number of “special cases” that are triggered by

the behavior of the user. These special cases can be,

e.g., a mission, a part of the balancing system, or an

easter egg. In general, every complex code structure

seems to be exploitable for variant creation.

6 OUTLOOK

The techniques for secure variant creation mentioned

above are already applicable assuming the developer

aids the variant creation process with his domain

knowledge. Since the variant creation process should

be as cheap and fast as possible, we are currently ex-

ploring ways to automatize secure variant creation.

REFERENCES

Barak, B., Goldreich, O., Impagliazzo, R., Rudich, S., Sahai,

A., Vadhan, S., and Yang, K. (2001). On the (im)

possibility of obfuscating programs. In Advances in

cryptology – CRYPTO 2001, volume 2139, pages 1–18.

Springer.

Canetti, R. (2000). Security and composition of multiparty

cryptographic protocols. Journal of CRYPTOLOGY,

13(1):143–202.

Garg, S., Miles, E., Mukherjee, P., Sahai, A., Srinivasan, A.,

and Zhandry, M. (2016). Secure obfuscation in a weak

multilinear map model. In Theory of Cryptography

Conference, pages 241–268. Springer.

Goldreich, O. and Ostrovsky, R. (1996). Software protection

and simulation on oblivious rams. Journal of the ACM

(JACM), 43(3):431–473.

Towards Efﬁcient Software Protection Obeying Kerckhoffs’s Principle using Tamper-proof Hardware

557

Joye, M. (2008). On white-box cryptography. In Proceed-

ings of the 1st International Conference Security of

Information and Networks, page 7.

Karroumi, M. (2010). Protecting white-box AES with dual

ciphers. In Information Security and Cryptology -

ICISC 2010 - 13th International Conference, Seoul,

Korea, December 1-3, 2010, Revised Selected Papers,

pages 278–291.

Katz, J. (2007). Universally composable multi-party com-

putation using tamper-proof hardware. In Advances

in Cryptology - EUROCRYPT 2007, pages 115–128.

Springer.

Katz, J. and Lindell, Y. (2014). Introduction to modern

cryptography. CRC press.

Lin, H. (2016). Indistinguishability obfuscation from

constant-degree graded encoding schemes. In Ad-

vances in Cryptology - EUROCRYPT 2016, pages 28–

57. Springer.

Lin, H. and Tessaro, S. (2017). Indistinguishability obfus-

cation from trilinear maps and block-wise local prgs.

In Advances in Cryptology - CRYPTO 2017, pages

630–660. Springer.

Pinkas, B. and Reinman, T. (2010). Oblivious ram revisited.

In Advances in Cryptology–CRYPTO 2010, pages 502–

519. Springer.

Wee, H. (2005). On obfuscating point functions. In Proceed-

ings of the thirty-seventh annual ACM symposium on

Theory of computing, pages 523–532. ACM.

SECRYPT 2018 - International Conference on Security and Cryptography

558
