A Comprehensive Approach to Compliance Management in

Inter-organizational Service Integration Platforms

Laura Gonz

alez and Ra

ul Ruggia

Instituto de Computaci

on, Facultad de Ingenier

ıa, Universidad de la Rep

ublica,

J. Herrera y Reissig 565, Montevideo, Uruguay

Keywords:

Compliance Management, Integration Platforms.

Abstract:

Organizations increasingly collaborate with each other using the service-oriented approach. Such collabora-

tion is usually supported by integration platforms which process all inter-organizational service interactions.

In turn, these collaborative environments have to satisfy compliance requirements originating from different

sources (e.g. laws, standards). This paper proposes a comprehensive approach to compliance management in

inter-organizational service integration platforms. The approach deﬁnes a compliance management life cycle

for this context and a common framework to homogeneously manage compliance issues in different areas.

1 INTRODUCTION

Organizations increasingly collaborate with each

other following the service-oriented approach. This

has led to large-scale systems which interconnect the

software applications of different, autonomous and

geographically distributed organizations (Gonz

alez

and Ruggia, 2015). Such systems are usually sup-

ported by integration platforms which are specialized

infrastructures providing connectivity and mediation

capabilities to facilitate the integration of applica-

tions (Golluscio et al., 2016). By these means, rather

than interacting directly, organizations communicate

by exchanging messages through the platform. These

messages may be processed by mediation ﬂows which

have the goal of solving integration issues by applying

operations such message transformation and routing.

These collaborative environments have to sat-

isfy compliance requirements established by various

sources (e.g. laws), concerning different areas (e.g.

quality of service) and which may apply to each orga-

nization or to the whole inter-organizational system

(Elgammal et al., 2016). Some aspects of these re-

quirements may impact on the interactions between

organizations. In these cases, integration platforms

mechanisms (e.g. transformations) can be used to

deal with such requirements.

Taking this approach, solutions for controlling

compliance requirements have been proposed in ar-

eas such as quality of service (QoS) (Gonz

alez and

Ruggia, 2011), data quality (DQ) (Pidre et al., 2017)

and data protection (DP) (Gonz

alez et al., 2016).

The common approach in these proposals is: i) pro-

cessing messages exchanged through the platform, ii)

checking if they comply with the established require-

ments, and iii) in case requirements are not met, tak-

ing actions leveraging integration platforms mecha-

nisms (e.g. transformations).

This work goes a step forward by proposing a

comprehensive approach to compliance management

in inter-organizational service integration platforms.

The approach deﬁnes a compliance management life

cycle for this speciﬁc context and a common frame-

work to homogeneously manage compliance issues.

The rest of the paper is organized as follows. Sec-

tion 2 shows a motivational scenario. Section 3 char-

acterizes the working context. Section 4 describes the

proposed approach. Section 5 analyses related work.

Section 6 presents conclusions and future work.

2 MOTIVATIONAL SCENARIO

The scenario is inspired in the Uruguayan e-

Government Interoperability Platform (eIP)

(Gonz

alez et al., 2012) which was developed by

the Uruguayan e-Government Agency (AGESIC).

The eIP allows and facilitates government organiza-

tions to offer business services leveraging the web

services technology. These web services, which

are usually hosted on organizations’ infrastructure,

are exposed and invoked through proxy services

688

González, L. and Ruggia, R.

A Comprehensive Approach to Compliance Management in Inter-organizational Service Integration Platforms.

DOI: 10.5220/0006915406880696

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 688-696

ISBN: 978-989-758-320-9

deployed on the eIP. This way, the eIP is able to

process all service invocations and apply them

security controls as well as mediation operations.

For example, Figure 1 presents how web services

messages are processed by the eIP when the Ministry

of Public Health (MSP) invokes, via a proxy service,

the Basic Information Service provided by the Civil

Identiﬁcation National Directorate (DNIC). This

service receives a citizen identiﬁer and returns basic

information about citizens (e.g. their names).

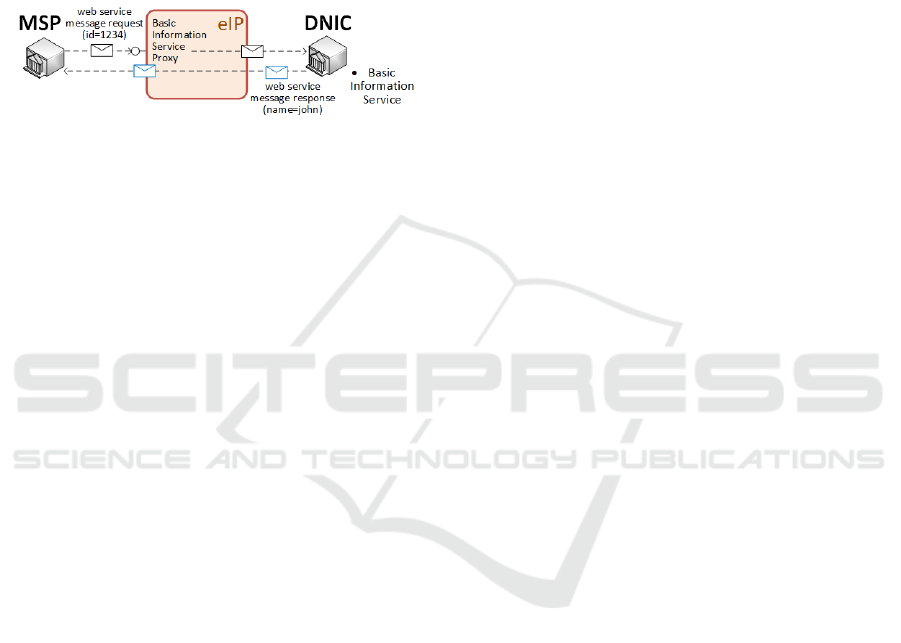

Figure 1: e-Government Interoperability Platform (eIP).

The eIP is not only intended to aid general purpose

e-government operations but also to contribute to the

development of supporting platforms in strategic sec-

tors, such as health. Indeed, the Uruguayan e-Health

Platform (Abin et al., 2015), which supports the Na-

tional Electronic Health Record (EHR) in Uruguay,

leverages and exposes services in the eIP.

2.1 Business Services

For the context of the motivational scenario, six busi-

ness services are considered.

The Basic Information Service, provided by

DNIC, makes available basic information about citi-

zens. It has one synchronous request-response opera-

tion, named GetPersonById which, given a national

identiﬁcation number (NIN), returns data including

names, last names, sex, birthdate and nationality.

The Passport Service, also provided by DNIC, al-

lows citizens scheduling an appointment to get or re-

new their passport. It has two synchronous request-

response operations. The GetAvailableDates opera-

tion receives a NIN and returns a list of available dates

and times for the appointment. The ConﬁrmAppoint-

ment operation allows conﬁrming the appointment by

receiving a NIN, a date and a time, and returning

whether or not the appointment was conﬁrmed.

The Judicial Records Certiﬁcate Service, provided

by the Technical Police National Directorate (DNPT)

allows checking if a citizen has judicial records. It has

one asynchronous request-response operation, named

HasJudicialRecords, which receives a NIN and re-

turns if the citizen with this NIN has judicial records.

The Local EHR Service, provided by Health Ser-

vice Providers, allows providers to obtain clinical

documents stored within other providers. It has one

synchronous request-response operation, named Ob-

tainDocument, which receives a document identiﬁer

and returns the clinical document associated with it.

The Procedures Status Service, provided by

AGESIC, allows organizations to notify AGESIC the

status of e-government procedures so it can be com-

municated to citizens (e.g. through a portal). It has

one one-way operation, named NotifyProcedureSta-

tus, which receives a NIN, a procedure identiﬁer, an

status and complementary information.

The Disability Records Service, provided by the

Ministry of Social Development (MIDES), allows

checking if citizens have disabilities. It has one syn-

chronous request-response operation, named HasDis-

ability, which receives an NIN and returns if the citi-

zen is registered as having a disability.

2.2 Compliance Requirements

Compliance requirements arising in the motivational

scenario are organized in four areas: QoS, Data Qual-

ity (DQ), Data Protection (DP) and Collaborations.

QoS requirements concerns aspects such as inter-

operability, performance and dependability. Interop-

erability requirements are mainly deﬁned by AGESIC

and Salud.uy (i.e. the e-health initiative in Uruguay).

AGESIC requires web services to comply with SOAP

1.1 and with the WS-I Basic Proﬁle 1.1. Salud.uy re-

quires EHR services to use HL7 Messaging Standard

Version 2.5 for exchanging clinical information and

HL7V3 Clinical Document Architecture (CDA) R2

for structuring clinical documents. Performance re-

quirements are mainly deﬁned by organizations when

they publish services in the eIP. Regarding through-

put, the Basic Information Service is expected to han-

dle seven transactions per second and the Disability

Records Service ten transactions per second. In addi-

tion, this last service is expected to have a response

time of ﬁve seconds. Dependability requirements are

also deﬁned by organizations when they publish ser-

vices. The Basic Information Service and the Disabil-

ity Records Service are expected to have an availabil-

ity of 99% and 90%, respectively. Within the motiva-

tional scenario the succesability (i.e. the percentage

of responses returned without unhandled errors) of all

services is expected to be greater than 80%.

DQ requirements concerns aspects such as in-

teroperability, completeness, accuracy and consis-

tency (Pidre et al., 2017). Regarding interoperabil-

ity, AGESIC requires the use of reference data mod-

els for exchanging data of people and addresses.

Salud.uy requires the use of SNOMED-CT and ICD-

10 for specifying clinical information such as causes

of death. With respect to completeness, Salud.uy es-

tablished minimal data sets to register speciﬁc clini-

A Comprehensive Approach to Compliance Management in Inter-organizational Service Integration Platforms

689

cal events such as centralized urgent emergency med-

ical consultations. AGESIC also established syntac-

tic accuracy requirements (e.g. countries should be

speciﬁed using the Alpha-3 codes of the ISO 3166-1

standard). It also established allowed values for civil

status, sex, gender and citizenship, among others. Re-

garding consistency, there are relational integrity re-

quirements (e.g. the locality and department of an ad-

dress should be consistent with each other as well as

the disease and sex speciﬁed in a clinical document).

There are also temporal integrity requirements (i.e.

data should be consistent over time).

DP requirements concerns aspects such as privacy,

integrity and conﬁdentiality. Regarding privacy, orga-

nizations are not allowed to share sensitive personal

data of citizens unless they provide explicit consent

for that. With respect to integrity, Salud.uy requires

Health Service Providers to sign the clinical docu-

ments they provide with advanced digital signature.

Finally, in order to ensure conﬁdentiality, data regard-

ing the racial origin and sex of citizens are required to

be encrypted when they are exchanged.

Collaboration requirements originate when two or

more organizations agree to carry out collaborative

processes. For example, the Passport Application col-

laboration allows citizens to get or renew their pass-

port and it involves three organizations: AGESIC,

DNIC and DNPT. The collaboration starts when a

citizen requests an appointment through the portal.

AGESIC interacts with DNIC, through the Passport

Service, to get the appointment and DNIC returns a

list of available dates and times. After the citizen se-

lects a date and a time, AGESIC conﬁrms these data

to DNIC via the Passport Service. DNIC checks if the

citizen has judicial records by interacting with DNPT

through the Judicial Records Certiﬁcate Service. If

the citizen has judicial records or if DNIC does not re-

ceive a response from DNPT in twenty four hours, the

appointment is canceled and DNIC informs AGESIC

of this decision via the Procedure Status Service. Oth-

erwise, DNIC informs AGESIC if the citizen could

get or renew the passport. For this collaboration two

requirements are considered: i) messages should ﬂow

as speciﬁed in the collaboration, and ii) the collabora-

tion has to be completed in less than one month.

3 WORKING CONTEXT

This section characterizes the working context taken

as starting point for the proposed approach. This

working context constitutes a generalization of the

motivational scenario presented in Section 2.

The working context comprises organizations

collaborating through an integration platform via

service-based interactions (Gonz

alez and Ruggia,

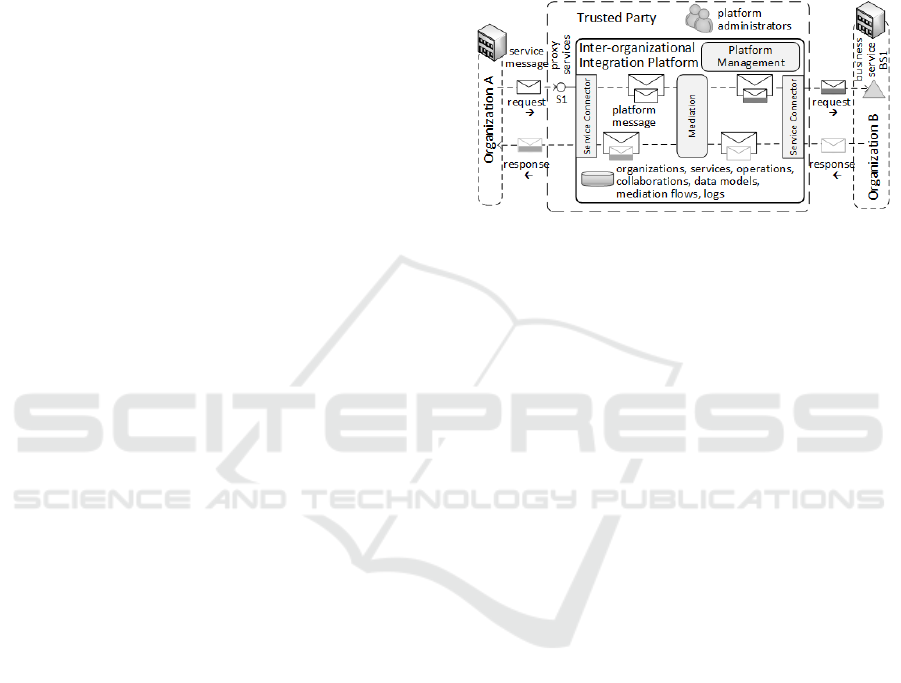

2015). To this end, as shown in Figure 2, business

services running in organizations (e.g. BS1) are ex-

posed through proxy services (e.g. S1) deployed on

the integration platform. For the context of this work,

business and proxy services are assumed to be imple-

mented as web services.

Figure 2: General Description of the Working Context.

When an organization (e.g. Organization A) in-

vokes a business service provided by another organi-

zation (e.g. BS1 provided by Organization B), ser-

vice messages (e.g. SOAP messages) are exchanged

through the platform between these organizations.

Service messages are ﬁrst processed by a connector

which creates platform-speciﬁc messages containing

a service message and message properties (e.g. a mes-

sage id). Service messages can include business data

elements. Messages properties specify the origin (e.g.

an organization), destination (e.g. a service) and iden-

tiﬁcation related data (e.g. a message id). These prop-

erties may be obtained from the service message or

may be automatically generated by the platform (e.g.

message ids). Message properties allow specifying,

for example, that a message is sent by a user (e.g.

smith) belonging to an organization (e.g. Organiza-

tion A) in order to invoke a service (e.g. S1) provided

by other organization (e.g. Organization B). The plat-

form processes these messages and may apply them

different mediation operations.

The integration platform is hosted on a trusted

party and managed by platform administrators. Ad-

ministrators maintain data required by the platform in

order to operate (e.g. integrated organizations, ser-

vices provided by organizations, the operations each

service has, collaborations, data models).

3.1 Working Context Concepts

The main concepts of the working context are: or-

ganizations, services, operations, message types, col-

laborations, data models and data elements. Figure 3

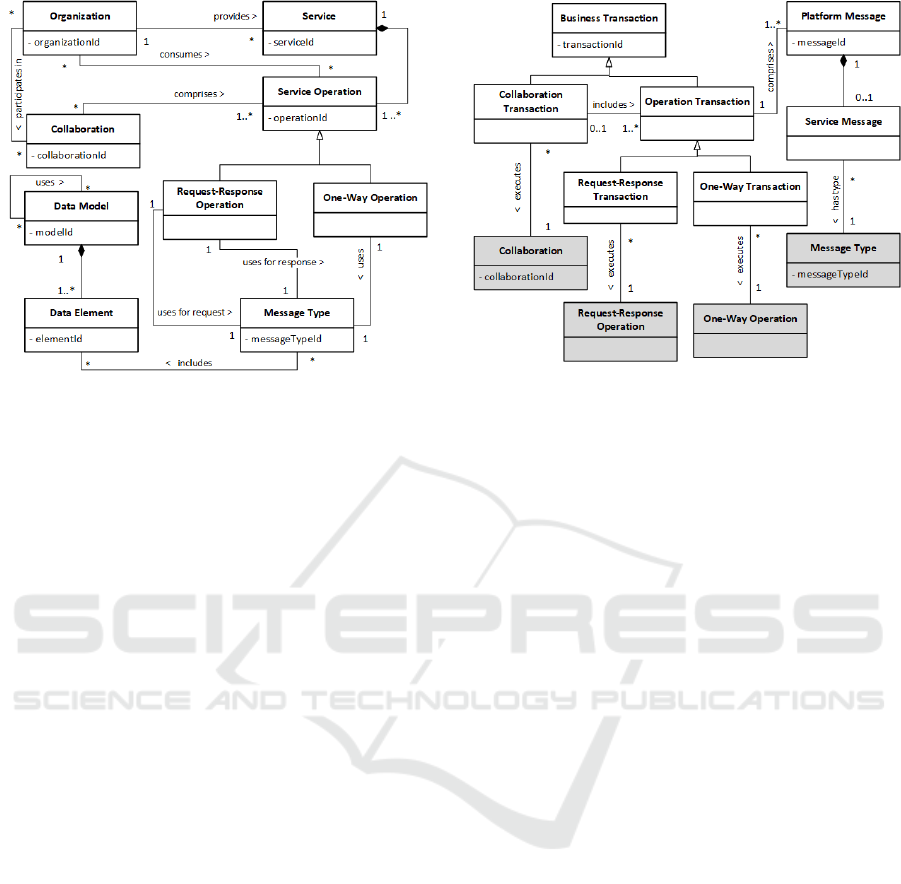

shows these concepts as well as their relationships.

ICSOFT 2018 - 13th International Conference on Software Technologies

690

Figure 3: Working Context Concepts.

Organizations provide services and consume oper-

ations of services exposed through the platform. For

example, DNPT provides the Judicial Records Cer-

tiﬁcate service which has the operation HasJudicial-

Records that is consumed by DNIC. Services have

one or more operations which can be either request-

response operations (e.g. HasJudicialRecords) or

one-way operations (e.g. NotifyProcedureStatus).

Data models specify the structure of data (e.g. per-

son) exchanged in invocations. A data model (e.g.

person model) may use others (e.g. address model)

and comprises at least one data element (e.g. name).

Message types specify the structure of messages that

organizations exchange when invoking service opera-

tions. Message types may include data elements de-

ﬁned within data models.

Organizations participate in collaborations which

comprise one or more service operations (e.g. the

Passport Application collaboration comprises the op-

erations: GetAvailableDates, ConﬁrmAppointment,

NotifyProcedureStatus and HasJudicialRecords).

3.2 Business Transactions Concepts

At runtime, organizations carry out business trans-

actions by collaborating with each other through the

platform. Figure 4 presents the main concepts related

to business transactions. The concepts in gray were

already introduced in Figure 3 and their relations are

not included in order to simplify the diagram.

Business transactions can be either operation

transactions or collaboration transactions. An oper-

ation transaction corresponds to the invocation of an

operation by a client and can be either a request-

response transaction or a one-way transaction. Op-

eration transactions comprise one or more platform

Figure 4: Business Transactions Concepts.

messages which may include a service message of a

speciﬁc type. A collaboration transaction corresponds

to the execution of a collaboration and it includes one

or more operation transactions.

4 COMPLIANCE APPROACH

This section presents the compliance management

approach for inter-organizational service integration

platforms which: i) deﬁnes a life cycle for compliance

management within the working context presented in

Section 3 and, ii) deﬁnes a common framework, com-

prising conceptual models and components, in order

to homogeneously manage compliance issues.

4.1 General Description

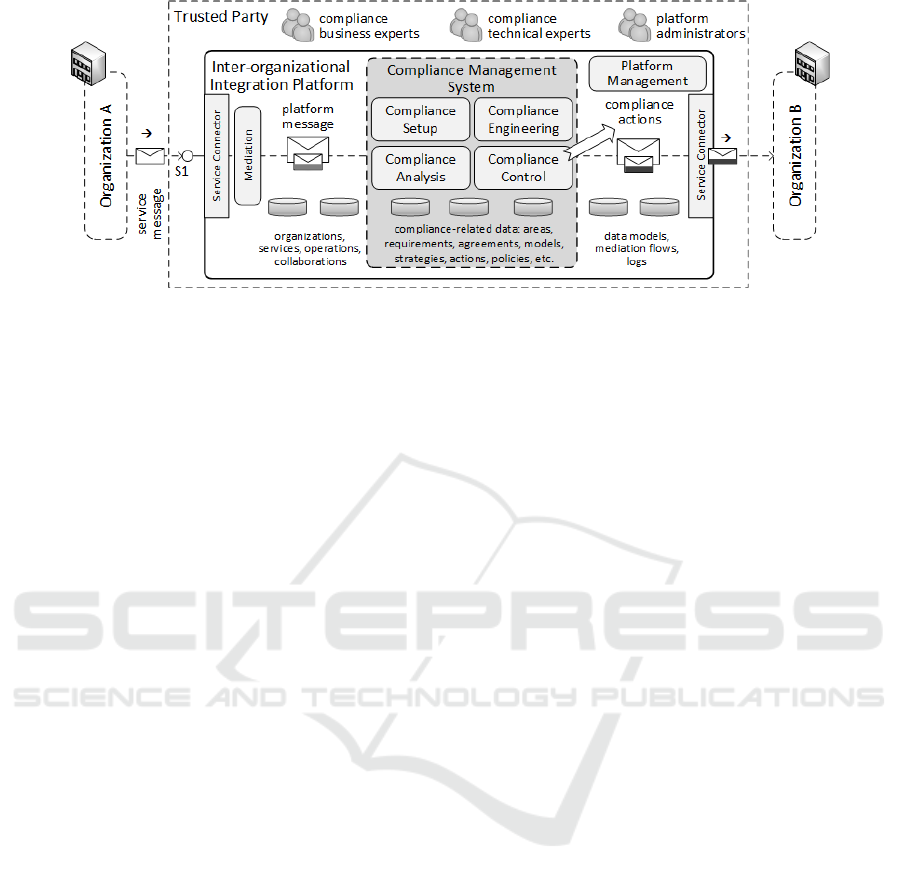

Figure 5 presents a high-level description of the pro-

posed approach showing the new compliance related

actors and how the compliance management system

extends integration platforms to support the proposed

compliance management life cycle.

Compliance actors are either Compliance Busi-

ness Experts or Compliance Technical Experts. Com-

pliance business experts are responsible for the busi-

ness related aspects of compliance management. In

particular, they are aware of the applicable reg-

ulations, how these regulations impact on inter-

organizational interactions carry out through the plat-

form and what actions (e.g. sanctions) should be

taken in case these regulations are not met. Compli-

ance technical experts are responsible for the techni-

cal related aspects of compliance management. For

instance, they know how to setup technical compli-

ance mechanisms within the platform (e.g. the avail-

able system level compliance actions) and how to im-

A Comprehensive Approach to Compliance Management in Inter-organizational Service Integration Platforms

691

Figure 5: Compliance Management Approach.

plement solutions which control (e.g. monitor, en-

force) compliance within the platform.

The compliance management life cycle proposed

in this work comprises four phases: Compliance

Setup, Compliance Engineering, Compliance Control

and Compliance Analysis. The Compliance Manage-

ment System extends inter-organizational integration

platforms in order to deal with compliance manage-

ment within them. As shown in Figure 5, it comprises

four subsystems geared towards supporting the four

phases of the compliance life cycle.

4.2 Compliance Setup

Compliance Setup involves managing elements that

allow building compliance solutions and is supported

by the Compliance Setup Subsystem. In particular,

this subsystem allows managing system level compli-

ance actions, business level compliance actions and

external compliance services.

System Level Compliance Actions are actions

taken within the platform (e.g. transforming a mes-

sage) in order to enforce compliance or to repair a

situation where compliance is not met. For example,

a ”Remove Data Values” action may remove values

of data elements from a message.

Business Level Compliance Actions (e.g. sanc-

tions) are triggered by the platform when compliance

with regulations is controlled. They have a business

connotation as opposed to system level actions. An

example of a business level action is a monetary sanc-

tion to an organization.

External Compliance Services provide access to

data attributes (e.g. additional information of a user)

or functionality (e.g. validation functions) required

for compliance control. Some examples of external

services are: ”User Roles” (it returns the roles of a

user) and ”Alpha 3 - Correct” (it returns true if the

country is speciﬁed using Alpha 3).

4.3 Compliance Engineering

Compliance Engineering focuses on the development

of compliance solutions for controlling compliance

within the platform and it is supported by the Compli-

ance Engineering Subsystem. Compliance engineer-

ing comprises Compliance Modeling, Compliance

Speciﬁcation, Compliance Development and Com-

pliance Deployment which are supported by speciﬁc

subsystems of the compliance engineering subsystem.

4.3.1 Compliance Modeling

Compliance Modeling involves managing compli-

ance aspects relevant for the integration platform.

In particular, compliance models deﬁne the relevant

compliance areas (e.g. QoS, DQ) and relevant char-

acteristics within these areas (e.g. availability, com-

pleteness). Compliance requirements specify general

requirements (e.g. response time greater than 1ms)

applying to speciﬁc objects types (e.g. operation, ser-

vice). Compliance proﬁles deﬁne a set of require-

ments for the same object type, in order to make more

agile the speciﬁcation of a set of requirements for dif-

ferent objects of the same type. Regulations are also

managed, which allows relating requirements with the

regulations from which they come from. Compliance

modeling is mainly performed by compliance busi-

ness experts. The main concepts related to compli-

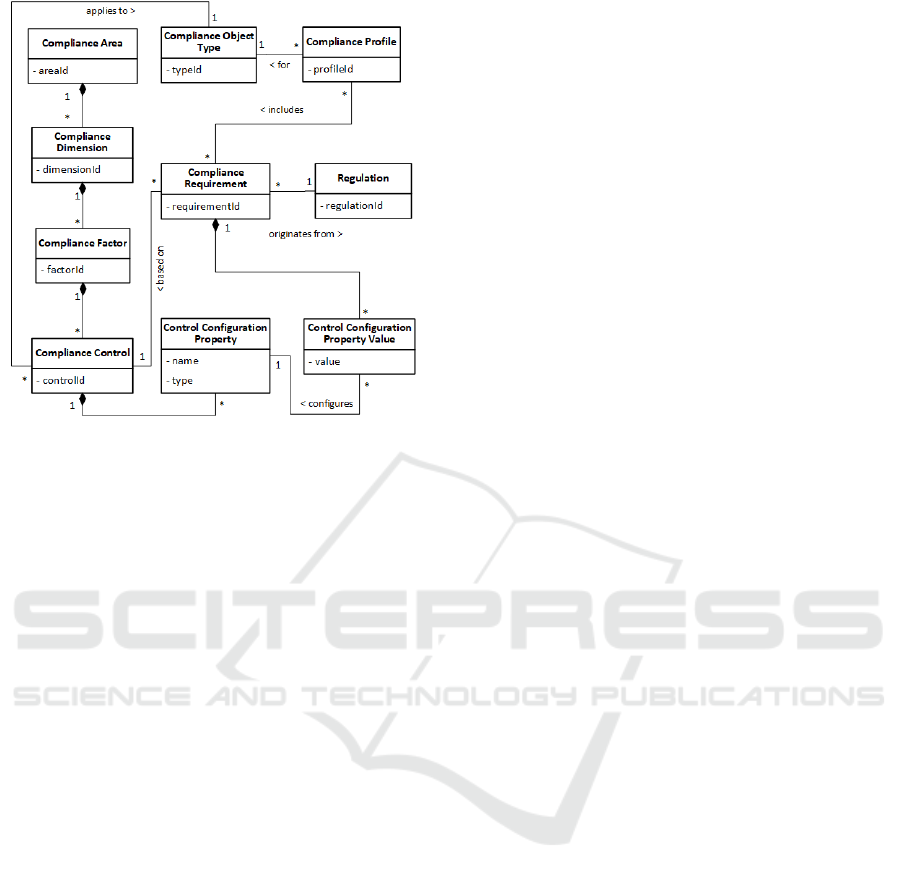

ance modeling are presented in Figure 6.

Compliance Object Types represent the types of

objects that are target of compliance control. The ob-

jects types identiﬁed in this work as well as exam-

ples of requirements for these types, within the moti-

vational scenario, are:

• Platform: SOAP web services must comply with

the WS-I Basic Proﬁle 1.1.

• Organization: The average availability of services

provided by AGESIC must be greater than 95%.

ICSOFT 2018 - 13th International Conference on Software Technologies

692

Figure 6: Compliance Modeling Concepts.

• Collaboration: Messages exchanged within the

Passport Application collaboration should follow

the speciﬁed message ﬂow.

• Service: Racial origin data must be returned en-

crypted by the Basic Information Service.

• Operation: The response time of the HasDisabil-

ity operation must be less than 5 seconds.

• Message Type: The civil status data included in

the message type associated with the getPerson-

ById operation should be syntactically correct.

Compliance Areas represent broad areas of com-

pliance (e.g. QoS, DQ). Compliance areas comprise

Compliance Dimensions which capture a high level

compliance facet (e.g. performance) within an area.

Compliance Factors represent a particular aspect of a

dimension (e.g. response time). Examples of compli-

ance areas and dimensions originating from the mo-

tivational scenario are: i) Quality of Service (dimen-

sions: Performance, Dependability, Interoperability),

ii) Data Quality (dimensions: Accuracy, Complete-

ness, Consistency, Interoperability), iii) Data Protec-

tion (dimensions: Privacy, Integrity, Conﬁdentiality),

and iv) Collaborations (dimensions: Collaboration

Messages, Collaboration Execution).

Examples of compliance factors in the QoS area

are: i) for performance: Response Time, Through-

put; ii) for dependability: Availability, Succesability;

iii) for interoperability: Standards Adoption / Confor-

mance. Examples of compliance factors in the DQ

area are: i) for accuracy: Syntactic Correctness, Pre-

cision; ii) for completeness: Density, Coverage; iii)

for consistency: Relational / Time Integrity; iv) for in-

teroperability: Standards / Recommendations Adop-

tion. Examples of compliance factors in the DP area

are: i) for privacy: Message / Data Element Privacy;

ii) for integrity: Message / Data Element Integrity; iii)

for conﬁdentiality: Message / Data Element Conﬁ-

dentiality. Examples of compliance factors in the Col-

laborations area are: i) for messages: Messages Flow;

ii) for collaboration execution: Processing Time.

Compliance Controls (e.g. max response time) are

used to control compliance factors for a speciﬁc com-

pliance object type (e.g. service). They have conﬁgu-

ration properties (e.g. response time in seconds) that

allow reusing the control. Within the motivational

scenario, a max response time control may be used

for all the response time requirements by specifying

the speciﬁc value for each service.

Compliance Requirements represent requirements

that can be applied to different objects of the same

type (e.g. availability of a service greater than 90%).

A compliance requirement is based on a compliance

control (e.g. availability of a service greater than a

percentage value) and deﬁnes a value for all its con-

ﬁguration properties (e.g. percentage value = 90%).

Compliance Proﬁles group compliance require-

ments for the same object type (e.g. service) with the

goal of facilitating the speciﬁcation of a group of re-

quirements for different objects of the same type.

Finally, compliance requirements originate from

regulations (e.g laws, agreements).

4.3.2 Compliance Speciﬁcation

Compliance Speciﬁcation involves the speciﬁcation

of compliance requirements (e.g. response time

greater than 1ms) for concrete compliance objects

(e.g. Basic Information Service). Requirements are

speciﬁed in agreements which may deﬁne actions

(e.g. notify an administrator) for different situations

(e.g. if requirements are not met). Figure 7 presents

the main concepts related to compliance speciﬁcation.

Object Compliance Requirements (i.e. compli-

ance requirements applied to concrete objects) are

speciﬁed in Compliance Agreements in which at least

one organization participates. For instance, when an

organization publish a service in the platform, it can

establish an agreement where it commits to provide

an availability of 99% by leveraging the requirement

”Availability greater than 99%”.

Compliance Agreements also comprise Agree-

ment Actions which specify the actions to be taken

in case the speciﬁed Compliance Conditions for these

actions hold. Agreement actions are based on Busi-

ness Level Compliance Actions (e.g. sanctions, in-

centives) provided by the platform. An agreement

action should specify a value for each conﬁguration

property of the associated compliance action.

A Comprehensive Approach to Compliance Management in Inter-organizational Service Integration Platforms

693

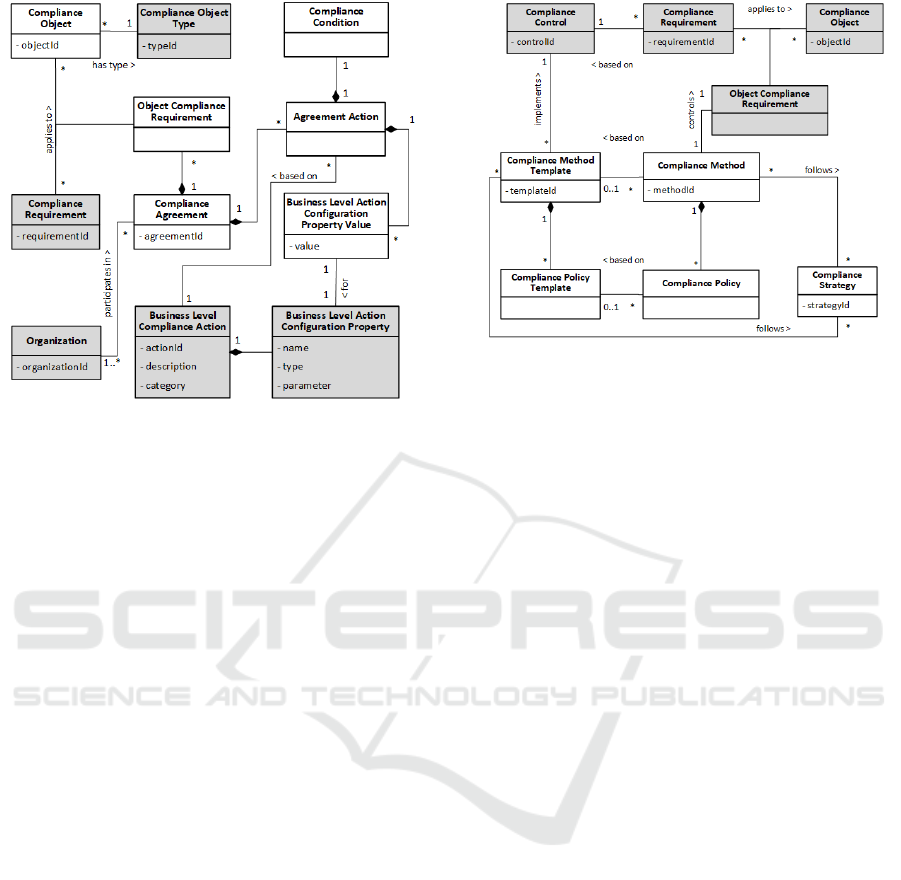

Figure 7: Compliance Speciﬁcation Concepts.

In the context of the motivational scenario, a com-

pliance agreement may be set up between DNIC,

DNPT and AGESIC in order to control the compli-

ance requirements of the Passport Application Col-

laboration. Compliance conditions may establish that

if the speciﬁed message ﬂow for the collaboration is

not followed more than three times at day, a monetary

sanction has to be issued for the three organizations.

4.3.3 Compliance Development

Compliance Development involves deﬁning how

compliance requirements have to be controlled within

the integration platform. In particular, this comprises

managing compliance strategies (e.g. reactive, pre-

ventive) and compliance methods (e.g. enforce pri-

vacy). This work takes a policy-based approach to

control compliance (Gonz

alez and Ruggia, 2017),

that is, compliance methods are speciﬁed in terms of

compliance policies. Figure 8 presents the main con-

cepts related to compliance development.

Compliance Method Templates are blueprints for

implementing compliance controls (e.g. regarding

service availability) within the platform. They are

speciﬁed in terms of Compliance Policy Templates.

Neither the methods templates nor the policy tem-

plates are completely speciﬁed given that they depend

on the speciﬁc requirement (e.g. availability greater

than 90%) and the speciﬁc object (e.g. Disability

Records Service) to which the requirement applies.

Compliance Methods control compliance require-

ments for speciﬁc compliance objects in the platform.

They may be generated from compliance method tem-

plates according to the values of conﬁguration prop-

erties for the associated compliance control. These

Figure 8: Compliance Development Concepts.

methods comprise a set of Compliance Policies which

may also be generated from policy templates associ-

ated with the method template. Also, a compliance

developer may implement compliance methods from

scratch or may modify the generated methods and

policies in order to suit the required needs.

Compliance methods and method templates may

follow Compliance Strategies (e.g. reactive) which

provide additional information about them.

4.3.4 Compliance Deployment

Compliance Deployment involves installing and let-

ting operational, in the platform, the compliance el-

ements deﬁned in the setup phase (e.g. system-level

actions) and in the previous sub-phases of the engi-

neering phase (e.g. agreements, policies). In particu-

lar, compliance policies may lead to the deployment

of monitored events, if they specify certain types of

conditions (e.g. temporal conditions). These events

are then monitored by components of the platform.

4.4 Compliance Control

Compliance Control involves controlling compliance

within the platform, based on the compliance so-

lutions developed in the engineering phase, and it

is supported by the Compliance Control Subsystem.

Compliance control comprises System-level Compli-

ance Control, Runtime Business-level Compliance

Control and A Posteriori Business-level Compliance

Control which, as shown in Figure 9, are supported

by subsystems of the compliance control subsystem.

System-level Compliance Control involves pro-

cessing platform messages in order to control com-

pliance within messages exchanges, based on the de-

ployed compliance elements (e.g. policies). This con-

trol, at the message level, may involve processing: i)

ICSOFT 2018 - 13th International Conference on Software Technologies

694

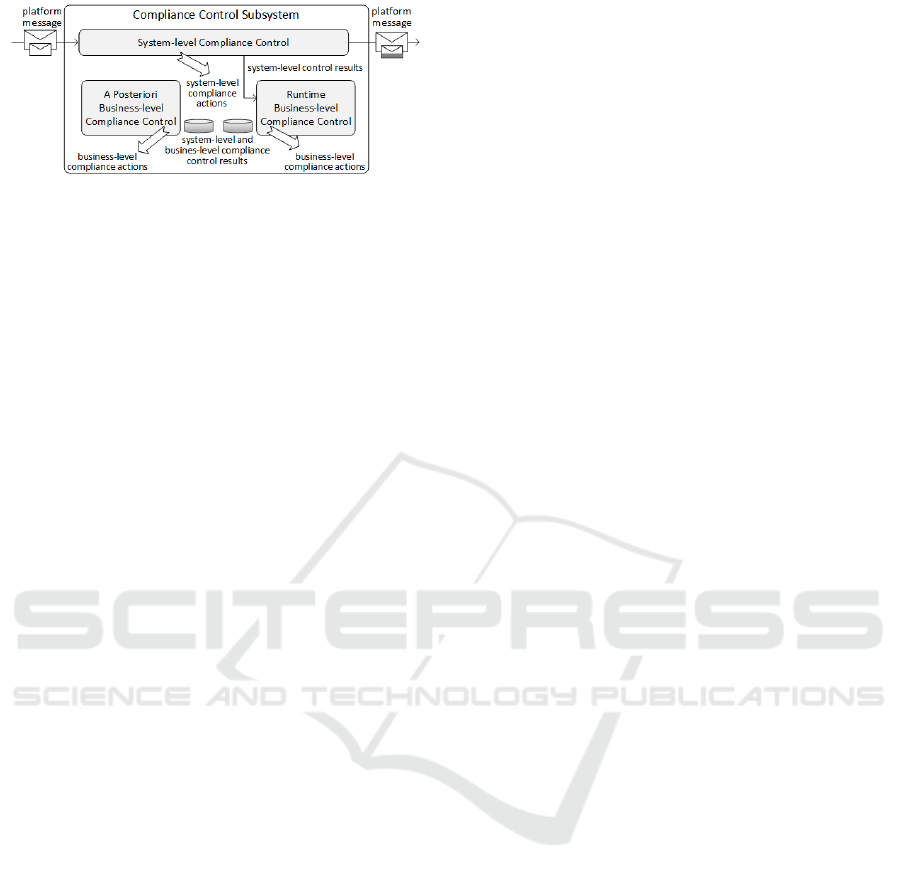

Figure 9: Compliance Control Subsystem.

only one message (e.g. to check if a data element

is compliant with ICD-10), ii) two messages (e.g. to

check if the temporal distance between a service re-

quest and a response is as speciﬁed by a response time

requirement), iii) various messages of a collaboration

(e.g. to check if they are interchanged as speciﬁed in

the corresponding messages ﬂow), or iv) various in-

dependent messages (e.g. to check if a data element,

as birthdate, is consistent over time). In case a not-

compliance is detected, system-level compliance ac-

tions speciﬁed in policies may be taken (e.g. taking

out data from a message). System-level compliance

control is automatically performed by the platform

and it is supported by the System-level Compliance

Control (SCC) Subsystem.

Runtime Business-level Compliance Control in-

volves processing system-level compliance control

results obtained from the SCC subsystem and control-

ling compliance with requirements and agreements.

Business-level compliance actions can be taken (e.g.

sanctions, incentives) after business-level compliance

control is completed. Runtime Business-level compli-

ance control is automatically performed by the plat-

form and it is supported by the Runtime Business-

level Compliance Control (RBCC) Subsystem.

A Posteriori Business-level Compliance Control

involves processing system-level and business-level

compliance control results in order to control com-

pliance. This may be needed when such controls can

not be performed by the RBCC. A posterior business-

level compliance control can be either automatically

performed by the platform or can be performed by

compliance business experts. This a posteriori con-

trol can also lead to business-level compliance actions

and it is supported by the A Posteriori Business-level

Compliance Control (PBCC) Subsystem.

4.5 Compliance Analysis

Compliance Analysis involves analyzing compliance

control results as well as deﬁning compliance analysis

artifacts (e.g. reports) in order to facilitate such analy-

sis. The activities of this phase are mainly performed

by compliance business experts and are supported by

the Compliance Analysis Subsystem which includes

three subsystems to support Compliance Traceability,

Compliance Reporting and Compliance Dashboards.

Compliance Traceability comprises tracing com-

pliance violations starting from high level elements

(e.g. compliance agreements) until reaching the mes-

sage level. This allows explaining how a compliance

violation took place in terms of platform messages.

For example, a traceability view may be set up so that

a compliance expert can obtain the violations of an

agreement as well as the associated compliance re-

quirements violations and the platform messages that

caused that those requirements were not met.

Compliance Reporting involves deﬁning compli-

ance reports, based on the deﬁned traceability views,

as well as using them to analyze compliance evalua-

tion results. A compliance report provides a view of

compliance violations for speciﬁc elements.

Compliance Dashboards group compliance re-

ports of interest for a given user so that compliance

control results are displayed in an integrated way for

that user. In addition, compliance dashboards allows

specifying the format in which these results are pre-

sented (e.g. summaries, graphs).

5 RELATED WORK

There are various proposals which identify differ-

ent phases in a compliance management process

(Sackmann and K

ahmer, 2008)(Koliadis and Ghose,

2008)(El Kharbili, 2012)(Tran et al., 2012). Our work

is aligned with these proposals; indeed it takes some

of the phases identiﬁed by them. However, compared

to our work, none of these proposals specializes the

phases for inter-organizational integration platforms.

There are also proposals that address compliance is-

sues in cross-organizational business process (Knu-

plesch et al., 2013). Our proposal also deals with this

kind of requirements, but it is not restricted to only

that. Regarding comprehensive approaches to com-

pliance management, one of the most relevant initia-

tives is the European project COMPAS that proposed

an integrated solution for runtime compliance gov-

ernance in SOA (Tran et al., 2012). However, the

project focuses on compliance management within an

organization while our work deals with compliance

management within integration platforms that process

inter-organizational service interactions.

In summary, the distinguished characteristics of

our proposal are: i) the focus on compliance manage-

ment in inter-organizational interactions, ii) policy-

based solutions that process all interactions within an

integration platform, iii) a common framework (e.g.

models) that allows dealing with different compliance

A Comprehensive Approach to Compliance Management in Inter-organizational Service Integration Platforms

695

areas in an homogeneous way, iv) non-invasive so-

lutions (i.e. not requiring deployments in organiza-

tions), and v) a compliance management life cycle in-

cluding adapted activities for the speciﬁc context.

6 CONCLUSIONS

This work proposes a comprehensive approach to

compliance management in inter-organizational ser-

vice integration platforms. The approach deﬁnes a

compliance management life cycle for this speciﬁc

context and a common framework to homogeneously

manage compliance issues.

The life cycle includes four main phases: setup,

engineering, control and analysis. The engineer-

ing phase comprises compliance modeling, speciﬁ-

cation, development and deployment. The control

phase comprises system-level compliance control and

business-level compliance control.

The common framework includes conceptual

models and components that allow managing aspects

of compliance through the whole life cycle and within

different compliance areas in an homogeneous way.

Future work consists in completing the speciﬁca-

tion of the compliance policy language to be used in

the approach. This language is inspired in XACML,

extending it to not only deal with access control is-

sues. The example in (Gonz

alez and Ruggia, 2017)

shows how compliance policies would look like. In

addition, we plan to continue advancing in the eval-

uation of the technical feasibility of the approach

through the development of prototypes. Finally, we

aim to address other compliance areas such as privacy

in the e-health domain.

REFERENCES

Abin, J., Nemeth, H., and Friedmann, I. (2015). Sys-

tems architecture for a nationwide healthcare system.

In MEDINFO 2015: Proceedings of the 15th World

Congress on Health and Biomedical Informatics.

El Kharbili, M. (2012). Business process regulatory com-

pliance management solution frameworks: A compar-

ative evaluation. In Proceedings of the Eighth Asia-

Paciﬁc Conference on Conceptual Modelling - Volume

130, APCCM ’12. Australian Computer Society, Inc.

Elgammal, A., Turetken, O., van den Heuvel, W.-J., and

Papazoglou, M. (2016). Formalizing and appling

compliance patterns for business process compliance.

Software & Systems Modeling, 15(1):119–146.

Golluscio, E., Thompson, J., and Guttridge, K. (2016). Mar-

ket Guide for Hybrid Integration Platform-Enabling

Technologies. Technical Report G00290089, Gartner.

Gonz

alez, L., Echevarr

ıa, A., Morales, D., and Ruggia, R.

(2016). An e-government interoperability platform

supporting personal data protection regulations. CLEI

Electronic Journal, 19:8 – 8.

Gonz

alez, L. and Ruggia, R. (2011). Addressing QoS issues

in service based systems through an adaptive ESB in-

frastructure. In 6th Workshop on Middleware for Ser-

vice Oriented Computing - MW4SOC’11. ACM Press.

Gonz

alez, L. and Ruggia, R. (2015). A reference ar-

chitecture for integration platforms supporting cross-

organizational collaboration. In Proceedings of 17th

International Conference on Information Integration

and Web-based Applications &Services. ACM Press.

Gonz

alez, L. and Ruggia, R. (2017). Towards a middle-

ware and policy-based approach to compliance man-

agement for collaborative organizations interactions.

In Proceedings of the 12th International Conference

on Software Technologies. SCITEPRESS.

Gonz

alez, L., Ruggia, R., Abin, J., Llamb

ıas, G., Sosa,

R., Rienzi, B., Bello, D., and

Alvarez, F. (2012).

A service-oriented integration platform to support a

joined-up e-government approach: The uruguayan ex-

perience. In Advancing Democracy, Government and

Governance, volume 7452 of Lecture Notes in Com-

puter Science. Springer Berlin Heidelberg.

Knuplesch, D., Reichert, M., Fdhila, W., and Rinderle-

Ma, S. (2013). On enabling compliance of cross-

organizational business processes. In Daniel, F.,

Wang, J., and Weber, B., editors, Business Pro-

cess Management, pages 146–154, Berlin, Heidel-

berg. Springer Berlin Heidelberg.

Koliadis and Ghose (2008). Service compliance: towards

electronic compliance programs. Technical report.

Pidre, S., Gonz

alez, Mendoza, R., Pinatares, M., Granja,

N., Serra, F., and Ruggia, R. (2017). A data quality

aware enterprise service bus for e-health integration

platforms. In 2017 XLIII Latin American Computer

Conference (CLEI). IEEE.

Sackmann, S. and K

ahmer, M. (2008). Expdt: A

policy-based approach for automating compliance.

WIRTSCHAFTSINFORMATIK, 50(5):366–374.

Tran, Zdun, Holmes, Oberortner, Mulo, and Dustdar

(2012). Compliance in service-oriented architectures:

A model-driven and view-based approach. Informa-

tion and Software Technology, 54(6).

ICSOFT 2018 - 13th International Conference on Software Technologies

696
