The Addition of Geolocation to Sensor Networks

Robert Bryce

and Gautam Srivastava

Heartland Software, Ardmore, Canada

Department of Mathematics and Computer Science, Brandon University, Brandon, Canada

Keywords:

MQTT, IoT, Networks, Protocols, Geolocation, Broker.

Abstract:

Sensor networks are recently rapidly growing research area in wireless communications and distributed net-

works. A sensor network is a densely deployed wireless network of small, low cost sensors, which can be

used in various applications like health, environmental monitoring, military, natural disaster relief, and ﬁnally

gathering and sensing information in inhospitable locations to name a few. In this paper, we focus on one

speciﬁc type of sensor network called MQTT, which stands for Message Queue Transport Telemetry. MQTT

is an open source publisher/subscriber standard for M2M (Machine to Machine) communication. This makes

it highly suitable for Internet of Things (IoT) messaging situations where power usage is at a premium or

in mobile devices such as phones, embedded computers or microcontrollers. In its original state, MQTT is

lacking the ability to broadcast geolocation as part of the protocol itself. In today’s age of IoT however, it has

become more pertinent to have geolocation as part of the protocol. In this paper, we add geolocation to the

MQTT protocol and offer a revised version, which we call MQTT-G. We describe the protocol here and show

where we were able to embed geolocation successfully.

1 INTRODUCTION

Today, due to the increased use of smartphones, push

notiﬁcation services are now commonly used (Than-

gavel et al., 2014a). Push notiﬁcations service keeps

the device online for every certain communication

cycle, and the server pushes the mess ages to each

client when necessary. Compared to the polling

method, push notiﬁcation method was proved to be

more efﬁcient in battery and data consumption (Banks

and Gupta, 2014). MQTT is a client-Server pu-

blish/subscribe messaging transport protocol, descri-

bed in Figure 2. It is light weight, open, simple,

and designed to be easy to implement by both pu-

blishers and subscribers alike. These characteristics

make it ideal for use in many situations, including

constrained environments such as for communication

in Machine to Machine (M2M) and Internet of Things

(IoT) contexts where a small code footprint is requi-

red and/or network bandwidth is at a premium. As

a well-known example, Facebook Messenger is ba-

sed on MQTT (Lee et al., 2013). MQTT Protocol is

suitable for implementing integrated Simple Notiﬁca-

tion Service (SNS) gateway servers which can merge

different SNS protocols and OS into a uniﬁed single

platform. Also, there is no restriction in messaging

while using push notiﬁcation services.

Some of the positive characteristics of MQTT are

its light weight nature and binary footprint, which

lead it to excel when transferring data over the wire.

In comparison to well used protocols like Hypertext

Transfer Protoccol (HTTP), it only has a minimal

packet overhead. Another important aspect of MQTT

is that it is extremely easy to implement on the client

side. This ﬁts perfectly for constrained devices with

limited resources. Its ease of implementation was one

of the goals that was met when MQTT was invented

(Stanford-Clark and Hunkeler, 1999).

1.1 History

MQTT was invented by Andy Stanford-Clark (IBM)

and Arlen Nipper (Arcom, now Cirrus Link) in

1999. Its initial use was to create a protocol for mini-

mal battery loss and minimal bandwidth connecting

oil pipelines over satellite connections (Stanford-

Clark and Hunkeler, 1999). It was then updated to

include Wireless Sensor Networks in 2008 (Hunkeler

et al., 2008). In (Stanford-Clark and Hunkeler, 1999),

the following goals were speciﬁed:

• Simple to implement

• Provide a Quality of Service Data Delivery

• Lightweight and Bandwidth Efﬁcient

762

Bryce, R. and Srivastava, G.

The Addition of Geolocation to Sensor Networks.

DOI: 10.5220/0006921907620768

In Proceedings of the 13th International Conference on Software Technologies (ICSOFT 2018), pages 762-768

ISBN: 978-989-758-320-9

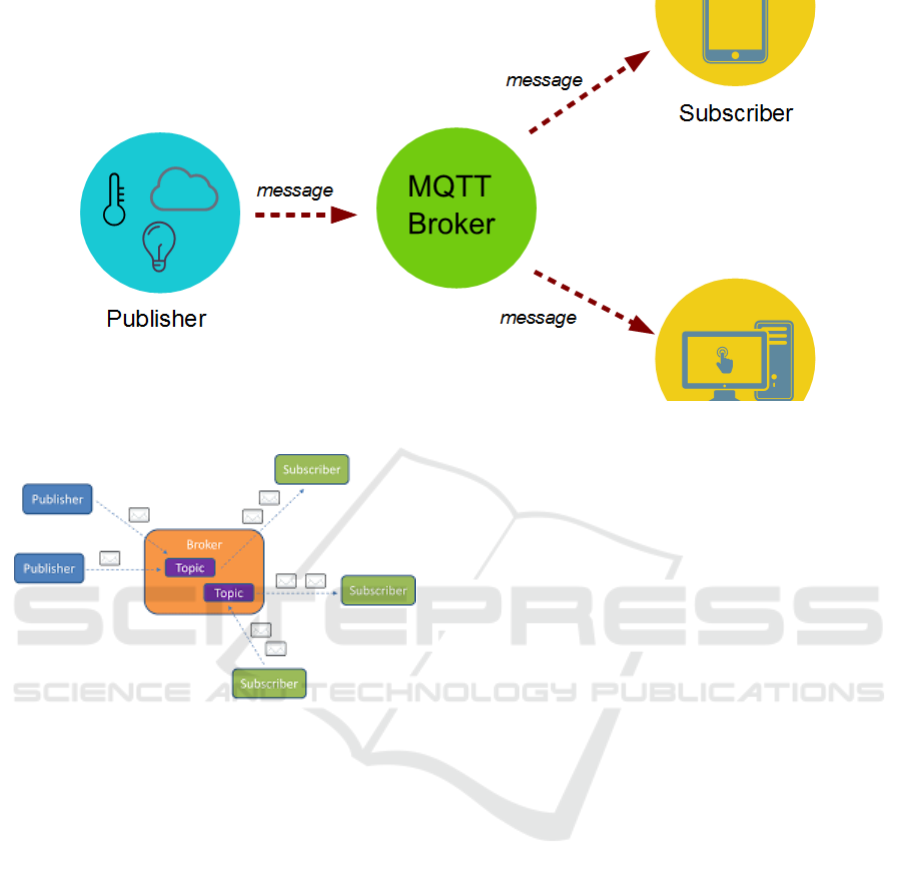

Figure 1: Publish and Subscribe Model of MQTT.

Figure 2: Publish and Subscribe Model of MQTT.

• Data Agnostic

• Continuous Session Awareness

We focus here on an open source implementa-

tion of MQTT 3.1.1 called Mosquitto, prescribed

recently in (Light, 2017). Mosquitto provides stan-

dard compliant server and client implementations of

the MQTT messaging protocol.

To quote (Light, 2017),

MQTT uses a publish/subscribe model, has

low network overhead and can be implemen-

ted on low power devices such microcontrol-

lers that might be used in remote Internet of

Things sensors. As such, Mosquitto is inten-

ded for use in all situations where there is a

need for lightweight messaging, particularly

on constrained devices with limited resources.

In our current project, we focus on three parts, na-

mely

• The main Mosquitto server

• The Mosquitto publish and subscribe client utili-

ties

• An MQTT client library written in C/C++ wrap-

per

1.2 Current Uses of Mosquitto

We have seen some very interesting applications of

MQTT recently using Mosquitto. First, (Thangavel

et al., 2014b) compared the performance of MQTT

and the Constrained Application Protocol (CoAP).

CoAP is a specialized web transfer protocol for use

with constrained nodes and constrained networks in

IoT. The protocol is designed for M2M applications

such as smart energy and building automation. In

(Fremantle et al., 2014), the authors investigated the

use of OAuth in MQTT. OAuth is an open protocol

to allow secure authorization in a simple and standard

method from web, mobile and desktop applications.

We have also seen Mosquitto used to evaluate

MQTT for use in Smart City Services (Antoni

c et al.,

2015). The authors compare MQTT and CUPUS in

the context of smart city application scenarios, which

is currently a hot topic with many large cities wan-

ting to join the digital age and become Smart Cities.

Furthermore, it has been used in the development of

an environmental monitoring system (Bellavista et al.,

2017). Mosquitto has also been used to support rese-

arch less directly as part of a scheme for remote cont-

rol of an experiment (Schulz et al., 2014).

The Addition of Geolocation to Sensor Networks

763

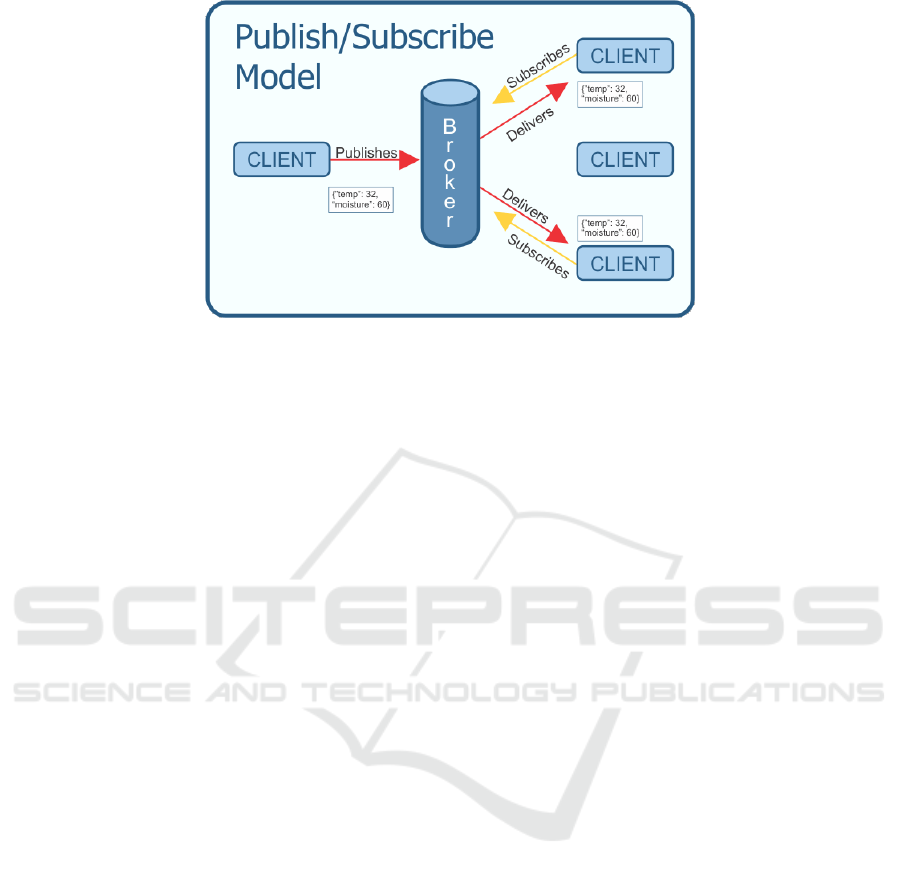

Figure 3: Publish and Subscribe Model of MQTT.

1.3 MQTT Publish/Subscribe Pattern

In a publish/subscribe pattern a client publishes in-

formation and other clients can subscribe to only the

information they want. In many cases there is a bro-

ker between the clients who facilitates and/or ﬁlters

the information. This allows for a loose coupling bet-

ween entities.

The decoupling can occur in a few different ways:

Space, Time, and Synchronization.

• Space - the subscriber does not need to know who

the publisher is, for example by IP address, and

vice-versa

• Time - the two clients do not have to be running

at the same time

• Synchronization - Publishing and receiving does

not halt operations

Through the ﬁltering done by the broker not all

subscribers have to get the same messages. The bro-

ker can ﬁlter on subject, content, or type of message.

A client, therefore could subscribe to only messages

about temperature data or only messages with content

about centrifuge machines. They could only want to

receive information about speciﬁc types of errors as

well. In our version MQTT-G, we also add the ability

for clients to receive messages based on some geolo-

cation criteria.

1.4 Simple Example

Thinking about an IoT situation with, for example,

a device with environmental sensors connected to it

such as a temperature sensor and a moisture sensor,

we could be publishing that data. Speciﬁc clients that

are connected to our broker may be interested in that

and others may not. They would subscribe to the in-

formation they want and the broker would provide the

necessary information accordingly. The topic string

is determinant regarding whether the data is forwar-

ded to the subscriber or not. To date, we have seen

lots of work on IoT with various uses and applications

(Kopetz, 2011),(Weber and Weber, 2010), (Wortmann

and Fl

uchter, 2015), and (Xia et al., 2012).

Once connected to the broker the publishing client

simply sends its data to the broker. Once there, the

broker relays the appropriate data onto the clients who

have subscribed for that data. Again, those subscrip-

tions can be ﬁltered. The subscribing client then has

the opportunity to use or discard the packet upon ar-

rival. All of this data transferring is done in a light

weight fashion designed for small, resource limited

devices; network usage is efﬁcient because logic on

the broker’s side provides the initial ﬁltering.

The message packet shown in Figure 3 is just an

example of what a message may look like. Along

with the message, or payload, a real packet would

include additional information such as a packet ID,

topic name, and quality of service (QoS) level. Also

included in the packet would be ﬂags so the broker

knows how long to retain the message and if the mes-

sage is a duplicate.

This is just the tip of the iceberg for MQTT; there

are several other features of interest as well. Features

such as Retained Messages, Quality of Service, Last

Will and Testament, Persistent Sessions, and SYS To-

pics to name a few. It should also come as no surprise

given the importance of security in today’s world, that

MQTT has strong security features as well.

1.4.1 Our Contributions

We modify MQTT by adding geolocation informa-

tion into speciﬁc MQTT packets such that, for ex-

ample, client location could be tracked by the broker,

and clients can subscribe based on geolocation. This

ICSOFT 2018 - 13th International Conference on Software Technologies

764

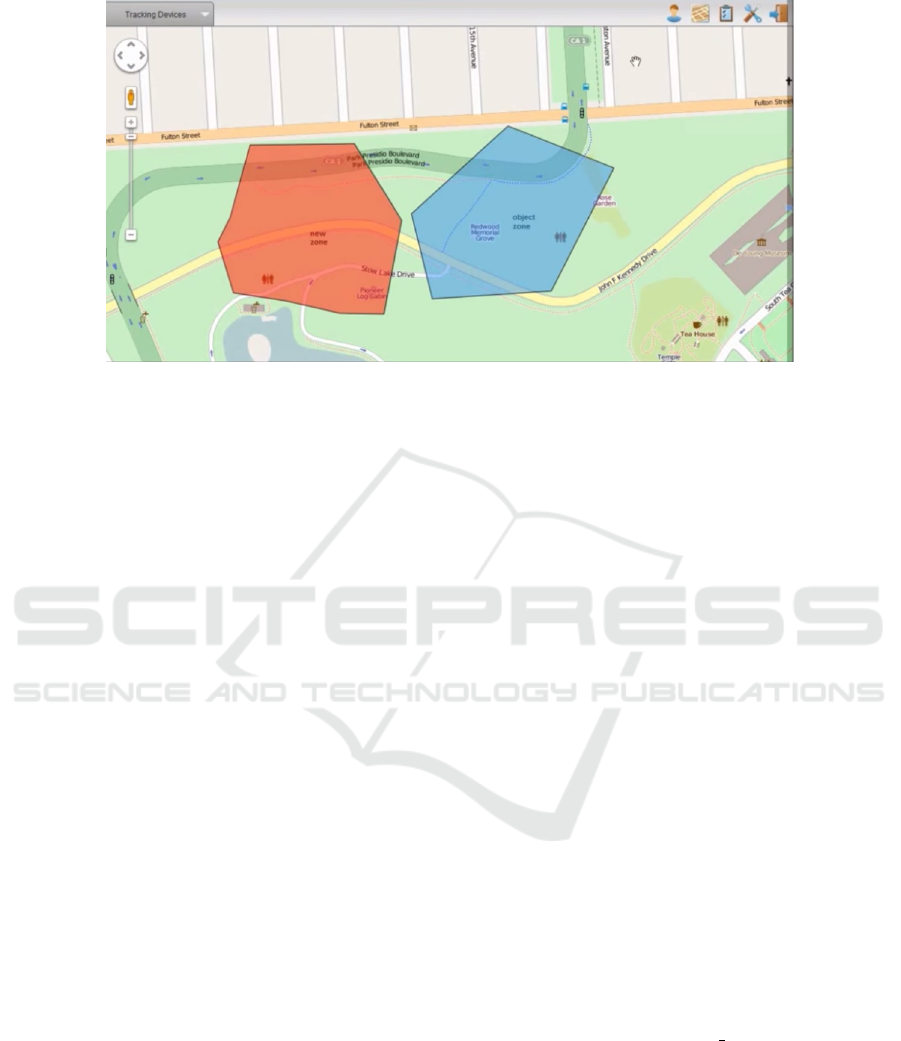

Figure 4: Polygon Geofence.

can lead to the clients last known location having a

comparison to a polygon geofence. One of the im-

portant features of GPS Tracking software using GPS

Tracking devices is geofencing and its ability to help

keep track of assets. Geofencing allows users of a

Global Positioning System (GPS) Tracking Solution

to draw zones (GeoFence) around places of impor-

tance, customers sites and secure areas.

In MQTT-G, by adding geolocation, information

reaching subscribers can be ﬁltered out by the broker

to only fall within the subscribers geofence. We can

see an example of a geofence in Figure 4. Take for

example a forest ﬁre containment situation. By pres-

cribing a geofence, speciﬁc subscribers can work to

contain the ﬁre knowing the polygon geofence in real

time as given out by the messages from the brokers

to clients and without receiving messages associa-

ted with a seperate geofence/forest ﬁre. Furthermore,

third-party additions to the containment of the ﬁre

could quickly be added to the subscriptions using the

geofence. Other subscribers (managers) may choose

geofence (being a political boundary) to monitor all

messages associated with all geofences/forest ﬁres in

a given area. The applications for this are plenty and

include:

• Field team coordination

• Search and rescue improvements

• Advertising notiﬁcations to customers within spe-

ciﬁc ranges

• Emergency notiﬁcations, such as inclement weat-

her or road closures.

2 RESULTS

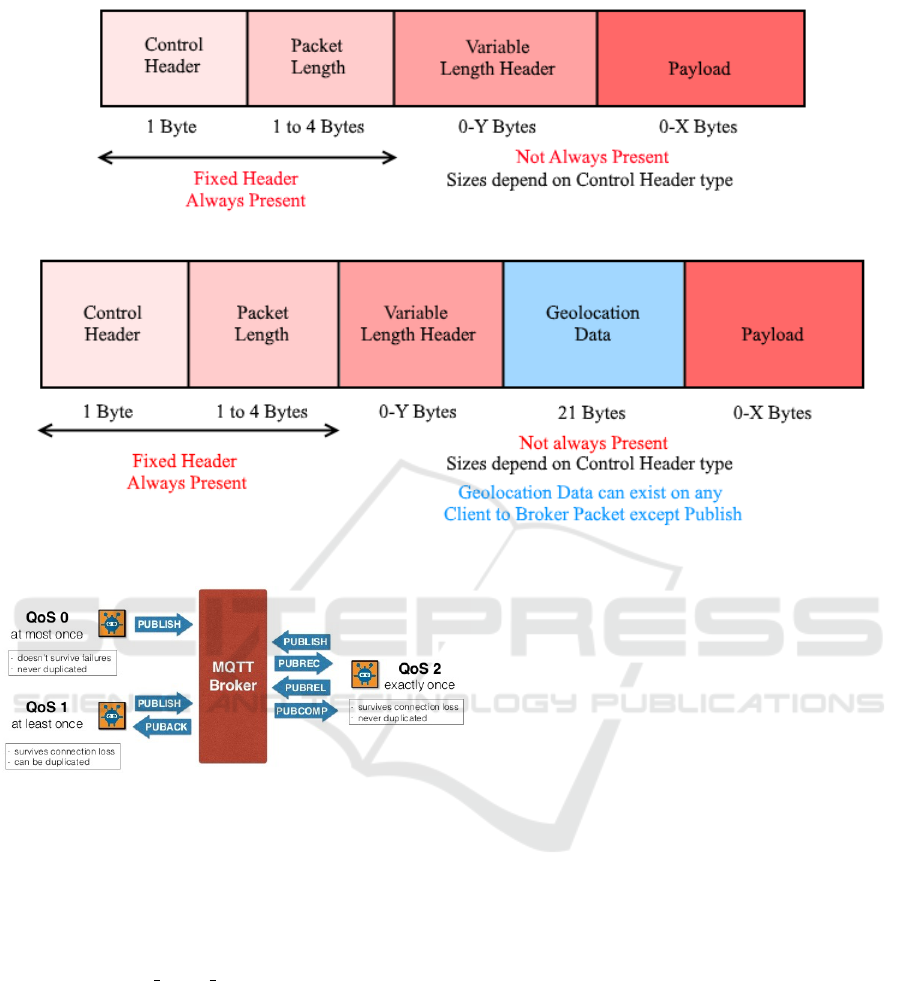

The basis of adding geolocation to MQTT is to le-

verage unused binary bin data within the protocol de-

ﬁnition itself and optionally embedding geolocation

data between the header and payload. The major

change to the packets was the inclusion of the Geo-

location Flag. The ﬂag is sent in packets between the

client to broker to notify the broker that a client is sen-

ding geolocation data in the packet. The packets that

are used to send geolocation information are given in

Table 1 derived from the original protocol implemen-

tation.

Geolocation is not sent for CONNACK, SUB-

ACK, UNSUBACK, PINGRESP packets as they are

only for information passed from broker to client, and

thereby deemed unnecesary to contain geolocation in-

formation. For all packets mentioned in Table 1, with

the exception of PUBLISH, the 3rd bit of the ﬁxed

header is unused (reserved) in the original implemen-

tation in (Stanford-Clark and Hunkeler, 1999), so we

can easily use it to indicate the presence of geoloca-

tion information.

Figures 5 and 6 explain where the location data is

on the packet. We also give the structure of the code

shown by the struct mosquitto location.

struct mosquitto_location {

uint8_t version;

double lat, lon;

float elev;

};

The PUBLISH control packet needs a different

implementation. Because the 3rd bit is already allo-

cated for Quality of Service (QOS), and all other pac-

The Addition of Geolocation to Sensor Networks

765

Table 1: Packets Used For Geolocation.

Packet Details

CONNECT client request to connect to Server

PUBLISH Publish message

PUBACK Publish acknowledgment

PUBREC Publish received (assured delivery part 1)

PUBREL Publish received (assured delivery part 2)

PUBCOMP Publish received (assured delivery part 3)

SUBSCRIBE client subscribe request

UNSUBSCRIBE Unsubscribe request

PINGREQ PING request

DISCONNECT client is disconnecting

kets are also reserved for an existing use, we chose

to implement a new control packet type. PUBLISHg

(=0xF0) is used as the ﬂag type for geolocation data

when it is to be sent. There are 16 available command

packet types within the MQTT standard and 0 through

14 are used.

We deem geolocation data as an optional attribute,

as not all clients may wish to publish any geolocation

data. The geolocation of manager of the forest ﬁre

crews in the aforementioned example does not need

to be shared with the crews, it is irrelevant. In our ap-

proach, geolocation data is not included in the packet

payload, since not all packet types support a payload,

thus rendering payloads not a viable option. Further-

more, we did not wish to require the broker to exa-

mine the payload of any packet, thus keeping our pro-

cessing footprint low.

2.1 Justiﬁcation of Overhead

There are many transport protocols that MQTT pac-

kets may go over in size, where 21 bytes may be a

concern. However, if you are using TCP/IP as we

discuss here, 21 bytes is negligible when considering

the bytes required just for the overhead of TCP/IP.

Finally, there is no need for a client to only sub-

mit MQTT-G (geolocation) packets; there is nothing

stopping a client to submit MQTT-G packets when it

is time to update location, then just use unmodiﬁed

MQTT packets otherwise. The logic is based on a

single bit, and we have not introduced any require-

ment that all packets must be MQTT-G either from a

speciﬁc client or from multiple clients.

2.2 Handling of Packets

Packets that are received without geolocation are

handled via the original Mosquitto functions, and as

such can be left unmodiﬁed. Packets that are recei-

ved with geolocation are handled similarly but with a

call to a last known location updating method, which

stores the clients unique ID and the location data into

a Hashtable object designed to be compared against

the geofence if and only if they are a subscriber to be

sent a PUBLISH. We have elected to attach geoloca-

tion data from all packet types originating from the

client to eliminate the need for speciﬁc packets car-

rying only geolocation data, and thus reducing overall

network trafﬁc as well.

2.3 Quality of Service

To ensure the reliability of messaging, MQTT sup-

ports 3 levels of Quality of Services(QoS) (Behnel

et al., 2006). Figure 7 shows packet exchange mea-

sure according to 3 different QoS levels. QoS Level 0

sends message only once following the message dis-

tribution ﬂow, and does not check whether the mes-

sage arrived to its destination. Therefore, in case of

sizable messages, it is possible that the message will

be lost when any kind of loss comes in the way. QoS

Level 1 sends the message at least once, and checks

the delivery status of the message by using the sta-

tus check message, PUBACK. However, when PU-

BACK is lost, it is possible that the server will send

the same message twice, since it has no conﬁrmation

of the message being delivered. QoS Level 2 passes

the message through exactly once utilizing the 4-way

handshake. It is not possible to have a message loss

in this level, but due to the complicated process of 4-

way handshake, it is possible to have relatively longer

end-to-end delays. The higher QoS level is the more

packets will be exchanged.

It is true that higher-level QoS is more effective if

you do not want any message loss, but such complica-

ted processes will increase the end-to-end delay. If we

can deduct appropriate QoS level utilizing correlation

analysis of the relationship between the message loss

due to the size of payload and the end-to-end delay, it

will be possible to build a optimal service network for

push notiﬁcation services.

ICSOFT 2018 - 13th International Conference on Software Technologies

766

Figure 5: Original MQTT Packet.

Figure 6: MQTT Geolocation Packet.

Figure 7: Quality of Service.

2.4 Geofencing

Creating the geofence code was a major part of the ad-

dition of geolocation to MQTT. The geofence ﬁltering

is only called when a PUBLISH reaches the broker, as

these packets are forwarded to subscribing clients.

The mosquitto check polygon returns a boolean

value indicating whether the clients last known loca-

tion is within the polygon. If the point is outside the

polygon, it simply aborts forwarding the PUBLISH

as the client has indicated it is not interested in the

message. This condition is tested for each client so

that other subscribers may receive packets of interest.

Thus, we have used our own custom geometry library

originally implemented in (Tymstra et al., 2010) with

features ﬁrst discussed in (Bose et al., 2009). The

library is unmodiﬁed for the broker implementation,

but it is reconﬁgured for mobile clients.

Geofence data is presently submitted and cleared

by a client to the broker using the $SYS MQTT to-

pic convention so that clients may individually sub-

mit geofences of interest. The broker maintains po-

lygon data for each subscribing client. Polygons may

be static in shape and location or dynamic and move

with the last known location of the client.

3 FUTURE WORK

We are still ﬁnishing the ﬁnal testing of the imple-

mentation of MQTT-G for the Android OS. Once ﬁ-

nished, the implementation pull geolocation directly

from the Android OS and allow clients to quickly and

easily create and destroy polygon geofences on the

go. Applications of the Android client are plentiful

but have some key uses in natural disaster contain-

ment and safety in this age of mobile devices and In-

ternet of Things.

One alternative approach that we have not explo-

red is introducing geolocation data to the MQTT pay-

load. However, in this instance, the packet would

need to be forwarded to a speciﬁc client understan-

ding the format of the payload, then sending the PU-

BLISH data on another topic for interested clients to

subscribe to. This division of logic between a sepa-

rate client and the broker potentially doubles the load

on the broker and is thus not considered. However,

geofencing remains an expensive operation in com-

The Addition of Geolocation to Sensor Networks

767

parison to the rest of the broker logic, and future ver-

sions of the broker will be multithreaded to address

performance concerns.

4 CONCLUSION

MQTT is an open source standard for M2M commu-

nication. Originally designed by IBM, the main use

for MQTT is as a publisher/subscriber protocol. In

this paper, we have introduced a new version, cal-

led MQTT-G, that adds geolocation information to

the protocol and offers a revised implementation, that

can help aid in the breadth of uses for MQTT. We

also modernize the protocol to include a somewhat

standard feature of most protocols in today’s IoT age.

The advanced protocol we implement can be used to

offer geolocation as part of the publish/subscribe in-

frastructure, thus aiding in the real time applications

that it can be used for. Our implementations offer ver-

sions for both its native C/C++ environment and as a

mobile Android client as well.

REFERENCES

Antoni

c, A., Marjanovi

c, M., Sko

cir, P., and

Zarko, I. P.

(2015). Comparison of the cupus middleware and

mqtt protocol for smart city services. In Telecom-

munications (ConTEL), 2015 13th international con-

ference on, pages 1–8. IEEE.

Banks, A. and Gupta, R. (2014). Mqtt version 3.1. 1. OASIS

standard, 29.

Behnel, S., Fiege, L., and Muhl, G. (2006). On quality-of-

service and publish-subscribe. In Distributed Com-

puting Systems Workshops, 2006. ICDCS Workshops

2006. 26th IEEE International Conference on, pages

20–20. IEEE.

Bellavista, P., Giannelli, C., and Zamagna, R. (2017). The

pervasive environment sensing and sharing solution.

Sustainability, 9(4):585.

Bose, C., Bryce, R., and Dueck, G. (2009). Untangling the

prometheus nightmare. In Proc. 18th IMACS World

Congress MODSIM09 and International Congress on

Modelling and Simulation, Cairns, Australia, pages

13–17.

Fremantle, P., Aziz, B., Kopeck

y, J., and Scott, P. (2014).

Federated identity and access management for the in-

ternet of things. In Secure Internet of Things (SIoT),

2014 International Workshop on, pages 10–17. IEEE.

Hunkeler, U., Truong, H. L., and Stanford-Clark, A. (2008).

Mqtt-sa publish/subscribe protocol for wireless sen-

sor networks. In Communication systems software

and middleware and workshops, 2008. comsware

2008. 3rd international conference on, pages 791–

798. IEEE.

Kopetz, H. (2011). Internet of things. In Real-time systems,

pages 307–323. Springer.

Lee, S., Kim, H., Hong, D.-k., and Ju, H. (2013). Correla-

tion analysis of mqtt loss and delay according to qos

level. In Information Networking (ICOIN), 2013 In-

ternational Conference on, pages 714–717. IEEE.

Light, R. A. (2017). Mosquitto: server and client implemen-

tation of the mqtt protocol. Journal of Open Source

Software, 2(13).

Schulz, M., Chen, F., and Payne, L. (2014). Real-time ani-

mation of equipment in a remote laboratory. In Re-

mote Engineering and Virtual Instrumentation (REV),

2014 11th International Conference on, pages 172–

176. IEEE.

Stanford-Clark, A. and Hunkeler, U. (1999). Mq telemetry

transport (mqtt). Online]. http://mqtt. org. Accessed

September, 22:2013.

Thangavel, D., Ma, X., Valera, A., Tan, H.-X., and Tan,

C. K.-Y. (2014a). Performance evaluation of mqtt

and coap via a common middleware. In Intelligent

Sensors, Sensor Networks and Information Processing

(ISSNIP), 2014 IEEE Ninth International Conference

on, pages 1–6. IEEE.

Thangavel, D., Ma, X., Valera, A., Tan, H.-X., and Tan,

C. K.-Y. (2014b). Performance evaluation of mqtt

and coap via a common middleware. In Intelligent

Sensors, Sensor Networks and Information Processing

(ISSNIP), 2014 IEEE Ninth International Conference

on, pages 1–6. IEEE.

Tymstra, C., Bryce, R., Wotton, B., Taylor, S., Armitage,

O., et al. (2010). Development and structure of pro-

metheus: the canadian wildland ﬁre growth simula-

tion model. Natural Resources Canada, Canadian

Forest Service, Northern Forestry Centre, Information

Report NOR-X-417.(Edmonton, AB).

Weber, R. H. and Weber, R. (2010). Internet of things, vo-

lume 12. Springer.

Wortmann, F. and Fl

uchter, K. (2015). Internet of

things. Business & Information Systems Engineering,

57(3):221–224.

Xia, F., Yang, L. T., Wang, L., and Vinel, A. (2012). Internet

of things. International Journal of Communication

Systems, 25(9):1101.

ICSOFT 2018 - 13th International Conference on Software Technologies

768
