RDF Mapper: Easy Conversion of Relational Databases to RDF

Eliot Bytyçi, Lule Ahmedi and Granit Gashi

University of Prishtina “Hasan Prishtina”, 10000, Prishtinë, Kosovo

Keywords: Ontology Engineering, Relational Databases, RDF, Mapping.

Abstract: Nowadays with the raised necessity to serve data through the Web in a rather Linked Data model similar to

the way DBpedia extracts structural information from Wikipedia, it is becoming usual to require existing data

provided as tables to get mapped into RDF. In this paper, a straightforward alternative to mapping of data

from relational database model to RDF is introduced. The mapper has not yet reached its maturity but

nevertheless, reduces greatly the amount of time needed for conversion. Furthermore, it allows the user to

select parts that are needed for conversion, thus preventing from the unnecessary conversion.

1 INTRODUCTION

It is becoming conventional to require existing data to

be provided as tables in order to get mapped into

Resource Description Framework (RDF). That is

similar to the approach that DBpedia

extracts

structural information from Wikipedia

. Main reason

for that lies in the raised necessity to serve data

through the Web in a rather Linked Data model. Of

course, the reason for that is the model that enables

things and people be described arbitrarily, as opposed

to the presentation of information on the actual web

via HTML pages. Semantic Web and its Linked Data

is capable of the representation of information with

their description on the web via metadata models such

as RDF, a W3C

recommendation (Carroll, et al.,

2004). Hence, there lies the struggle of relating and

mapping relational database data with RDF conceptual

descriptions. That, and the usage of other tools during

our work, served as motivation for creating another

tool that would overcome barriers presented.

The RDF Mapper introduced in this paper is

responsible for the smooth transition between the two

models, namely the relational database and the

ontology described in RDF. Although, currently the

mapper supports mapping only of databases created

in MySQL, in the future it is planned to extend its

support to other database systems like Oracle, DB2,

MS SQL, and PostgreSQL by keeping an abstraction

www.dbpedia.org

www.wikipedia.org

www.w3.org

between the mapping code and the database layer.

In the RDF Mapper, the user first specifies the

database from which the mapper shall get the data.

After that, the user specifies the ontology that is

expected to be populated with those data. RDF

Mapper is a desktop system developed in JAVA

including the Apache Jena (Carroll and Klyne, 2004)

extension to support working with ontologies, as well

as the Swing toolkit (Eckstein, et al., 1998) for the

user interface components. Its architecture is

presented in Figure 1.

When a user connects to the database, it is initially

the schema of the database that will be read prior to

further processing.

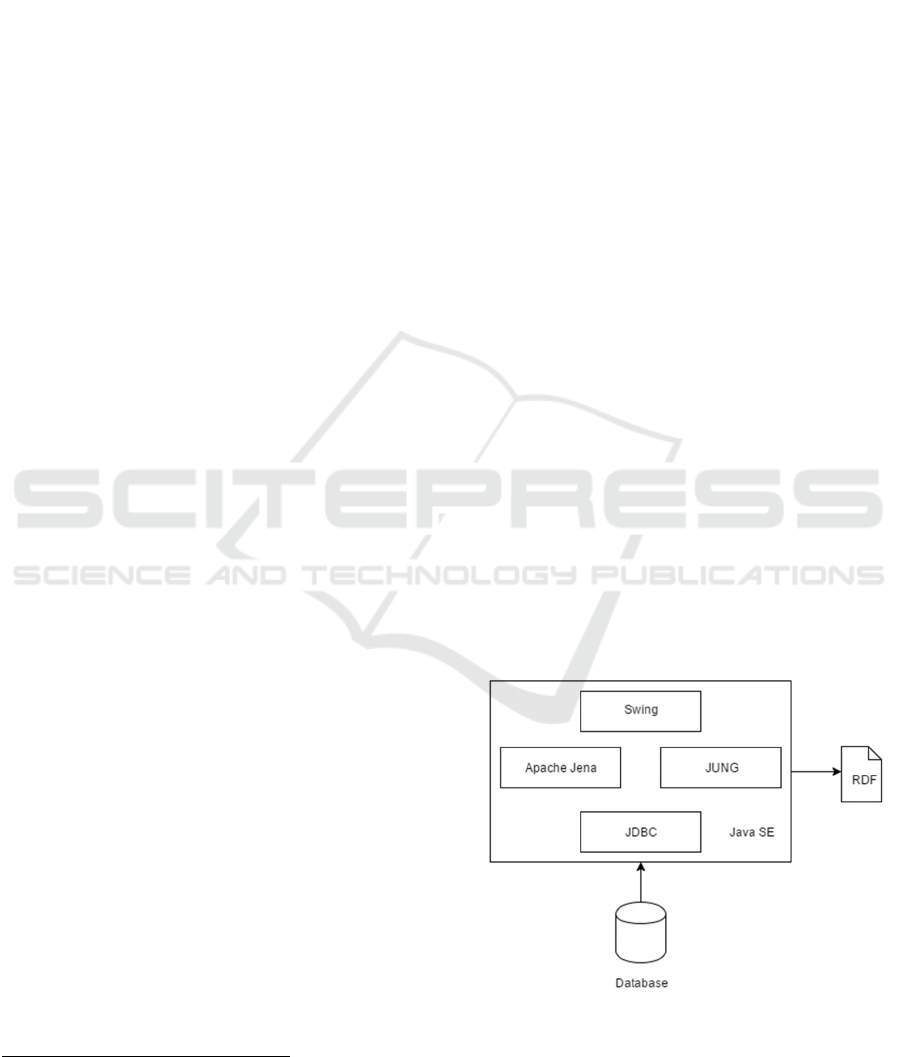

Figure 1: Implementation architecture of the RDF Mapper.

Bytyçi, E., Ahmedi, L. and Gashi, G.

RDF Mapper: Easy Conversion of Relational Databases to RDF.

DOI: 10.5220/0006925501610165

In Proceedings of the 14th International Conference on Web Information Systems and Technologies (WEBIST 2018), pages 161-165

ISBN: 978-989-758-324-7

161

Even though this step, i.e., the schema extraction

is done automatically, the user has the possibility to

intervene by choosing himself / herself which

relevant data to be mapped or left out. By default,

every table of the database will be mapped to a Class

in ontology, while every database attribute will be

mapped to a Property in ontology. Further mapping

relations between the database schema and the

ontology are presented in Table 1.

Table 1: Mapping rules.

Relational DB Ontology

Table Class | rdfs:Class

Attribute Property | rdf:Property

Tuple of X table Class X instance

Attributes of a tuple Instance literals

SQL datatypes

RDFS datatypes |

rdfs:Datatype

The remainder of this article is organized as

follows. Section 2 will cover the related work.

Section 3 summarizes the mapping schema, while

section 4 covers a mapping example. Finally, in

section 5, conclusions and future work will be

discussed.

2 RELATED WORK

In (Spanos, et al., 2012), authors have conducted a

survey on the creation of an ontology from an existing

database instance and the discovery of mappings

between an existing database instance and an existing

ontology. Their classification of the approaches falls

into two categories based on database reverse

engineering. Approaches that apply reverse

engineering try to recover the initial conceptual

schema from the relational schema and translate it to

an ontology expressed in a target language

(Aumueller, et al., 2005). On the other hand, there are

methods that, instead of reverse engineering

techniques, apply few basic translation rules from the

relational to the RDF model and/or rely on the human

expert for the definition of complex mappings and the

enrichment of the generated ontology model. The best

representatives of the former approach are: D2RQ,

SPYDER, COMA++ and Virtuoso.

D2RQ (Bizer and Seaborne, 2004) supports both

automatic and manual modes. In the automatic mode,

the ontology is created according to the rules common

among reverse engineering techniques. While in the

user assisted mode, the mapping is completely

specified by the user. It is similar to RDF Mapper

when used in semi-automatic mode, where the user

builds on the automatically generated mapping in

order to modify it at will.

Spyder (Miller and McNeil, 2010) creates an

RDFS view of a relational database, supporting the

entire range of automation levels. The automatic

mode is based on the basic approach and its own

mapping representation languages. Spyder’s mapping

language is rich, while the tool also supports a fair

amount of R2RML features.

COMA++ (Aumueller, et al., 2005) in contrast to

other systems from the same era, COMA++ is built

explicitly also for inter-model matching.

Virtuoso (Blakeley, 2007) offers an RDF view

over a relational database with its RDF Views feature

with similar functionality to D2RQ. It supports both

automatic and manual operation modes. In the

former, an RDFS ontology is created following the

basic approach, while in the latter, a mapping

expressed in the proprietary Virtuoso Meta-Schema

language is manually defined.

Another more recent paper (Sequeda, 2013)

discusses standards of W3C proposed to bridge the

gap between Relational Databases and Semantic

Web. It presents two specifications: mapping of

relational data to RDF and R2RML: RDB to RDF

mapping language. The R2RML subset called

R2RML

core

which has a simpler structure but could be

similar to Direct Mapping (Sequeda, et al., 2012) if

views are allowed as input. Direct Mapping.

3 MAPPING SCHEMA

RDF Mapper relies on the Apache Jena (Carroll, et

al., 2004) open source library for working with

ontologies. That means reading an ontology as well

as creating RDF instances based on that ontology. For

interacting with SQL databases, the corresponding

JDBC driver is used, while for visualizing RDF

graphs it utilizes another open source library, namely

Java Universal Network/Graph Framework

(JUNG)(O’Madadhain, et al., 2003).

Compared to the challenges of other mappers, which

are summarized in (Pinkel, et al., 2015), RDF Mapper

supports the following:

─ naming conflicts are resolved by letting the user

manually intervene during the mapping through

renaming of certain database schema constructs

towards unique naming conventions between

database and ontology,

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

162

─ some of the structural heterogeneity conflicts,

which involve:

─ type conflicts – and in our case the

normalization and denormalization are

supported, albeit with a little work around from

user, by letting the user “relate” those attributes

which belong to several tables to a single class

in case of normalization, and the other way

around for denormalization.

─ key conflicts as well are supported and that both

primary and foreign keys,

In the other hand, RDF Mapper at this stage does not

yet support covering class hierarchies, dependency

conflicts and semantic heterogeneity while mapping,

which will be in the future considered for

implementation.

Every resulting instance in the RDF will have a

rdf:Description tag, which allows grouping of one or

more statements into a single container. Furthermore,

the linkage between a given instance and the class to

which it belongs, in RDF Mapper the rdf:Type

relation will be used.

In order to evaluate methods for ontology

matching, and initiative has been created called

Ontology Alignment Evaluation Initiative (OAEI,

2018) to mandate consensus for evaluation of the

methods. In order to achieve goals such as assessing

strengths and weaknesses of alignment / matching

systems or compare the techniques or even improve

evaluation, the initiative will organize yearly events

and publicize them for further analyses.

4 MAPPING EXAMPLE

In order to emphasize the features and the

characteristics of the RDF Mapper, a walk through

examples will be presented. Initially schema reading

will be discussed, followed by the generation of RDF.

4.1 Connection and Schema Reading

Initially on the start of the RDF mapper, the user

should select the database to connect to. The database

can be a local one or stored in any remote server. In

the latter case, besides the username, password and

database name, the user should also specify the

address where the database is stored. Comparing with

other approaches presented in related work, our

approach against the database is different from most

of database approaches where the schema is typically

not predefined. In our case, the schema is first read

from the database, and as a result, metadata becomes

data. As illustration, one of built-in metadata (system)

relations in MySQL information_schema.columns is

read to extract necessary information regarding

columns such as name, type, etc. of a certain table like

students using the following command:

SELECT * FROM

information_schema.columns

WHERE table_schema = 'students'

Further, for instance, to allow finding out all foreign

keys in the database and their relationship to

corresponding tables and columns, another metadata

relation should be read called

information_schema.key_column_usage, as pre-

sented in example below:

SELECT * FROM

information_schema.key_column_usage

WHERE table_schema = 'students'

AND referenced_table_name

IS NOT NULL

4.2 Mapping through Our Approach

After the above mentioned successful connection to a

given database, the application will read the schema

of that database and show its corresponding tables

and attributes. Those will be shown in tree view, in

order to have a clearer and easier way for the user to

eventually change their names, to show their details

and choose what to include. Including means

everything from the database – all by default, or what

to exclude from mapping. The process can be tried

several times in order to have a different mapping

each time – depending on user selections for inclusion

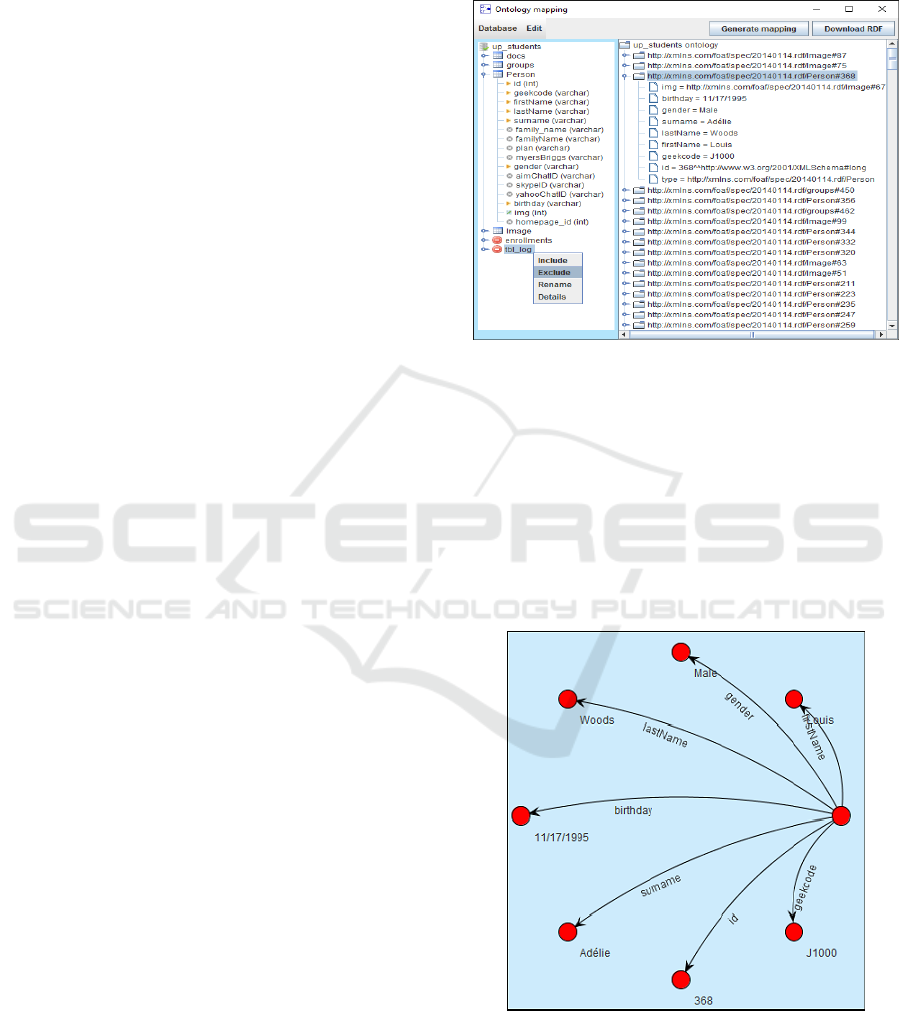

and exclusion of mapping parameters. Figure 2

represents one view of a certain database ready for

mapping (left-hand side), with a preview of the

generated mapping result (right-hand side), while its

graph representation is shown in Figure 3.

Initially, the user defines the base URI of the

target ontology, and then it is connected to a table

through its name, chosen as well by the user, since the

user can modify the given name. In addition, classes

will have their rdf:type as decided by W3C rdfs:Class.

An example of an RDF/XML output as generated by

the mapper is provided next.

RDF Mapper: Easy Conversion of Relational Databases to RDF

163

<rdf:Description

rdf:about="http://xmlns.com/foaf/sp

ec/20140114.rdf/Person#368">

<foaf:birthday>11/17/1995</foaf:bir

thday>

<foaf:gender>Male</foaf:gender>

<foaf:surname>Adélie</foaf:surname>

<foaf:lastName>Woods</foaf:lastName

<foaf:firstName>Louis</foaf:firstNa

me>

<foaf:geekcode>J1000</foaf:geekcode

<foaf:id

rdf:datatype="http://www.w3.org/200

1/XMLSchema#long"

>368</foaf:id>

<foaf:img

rdf:resource="http://xmlns.com/foaf

/spec/20140114.rdf/Image#67"/>

<rdf:type

rdf:resource="http://xmlns.com/foaf

/spec/20140114.rdf/Person"/>

</rdf:Description>

The generation of this RDF by the mapper is

illustrated in Figure 2. From that we can present few

of the examples mentioned in the beginning of this

section such as renaming example, usage of keys,

foreign keys and exclusion of unneeded features.

By consulting Figure 2, we observed class Person

in the FOAF ontology, which is actually mapped by

the user from the table students. Renaming is

performed manually within the mapper so that table

student becomes Person class, and hence correspond

to the target Person ontology.

Again from the Figure 2 as an example of usage

of Keys we observed that the URIs of the instances

are composed of the base URI of the ontology,

followed by class name and then the primary key

value of the given tuple (high-lighted in the Figure 2

case of key 368) of the table.

Similar to the primary keys, the foreign Keys

example can be viewed in Figure 2. The user has

mapped the table profile_pics to the FOAF class

Image and then the many-to-one relationship between

table students and profile_pics to the FOAF object

property img.

Of course, with the tables, which do not have any

meaning in the ontology such as enrolments, user can

choose to exclude them from the mapping.

Figure 2: A ready-for-mapping database example.

4.3 RDF Generator

After the user has performed necessary edit on the

database parameters prior to mapping, the system is

ready for ontology generation. The view of the

mapping result will be in a tree like form, but as well

as a graph for better visualization, as depicted in

Figure 3. The triplets generated by the graph represent

subject, predicate and object.

Figure 3: The graph of the ontology resulting from

mapping.

In the end, a user can choose among several

representation formats of RDF data for exporting the

file like to RDF/XML, N-triples, Turtle and N3.

WEBIST 2018 - 14th International Conference on Web Information Systems and Technologies

164

5 CONCLUSION

The RDF mapper even though in its first stage, has

proven to be of a value when dealing with MySQL

databases. It offers a straightforward and practical

system for relational database conversion into RDF.

Some of the contributions to mention are the drag and

drop possibilities (add or remove constructs) or even

the renaming of construct names such as classes,

prefixes or properties).

In the future, the system will be further extended

with other new features, making it possible to deal

with other database formats and with more complex

relational databases. Furthermore, the system will be

extended to deal with conflicts not supported at this

stage such as automatic process of normalized

database schema where sometimes we may have a

case that some of the attributes of a record that need

to be mapped to a single RDF instance, are stored in

another table and related with a foreign key. There is

also the case of a denormalized database schema

where we may want to map a record of a table into

more than one RDF instances. Moreover, covering

class hierarchies, de-pendency conflicts and semantic

heterogeneity while mapping, will also be challenges

to be addressed in the future.

REFERENCES

Aumueller, D., Do, H.H., Massmann, S. and Rahm, E.,

2005, June. Schema and ontology matching with

COMA++. In Proceedings of the 2005 ACM SIGMOD

international conference on Management of data (pp.

906-908). ACM.

Bizer, C. and Seaborne, A., 2004, November. D2RQ-

treating non-RDF databases as virtual RDF graphs. In

Proceedings of the 3rd international semantic web

conference (ISWC2004) (Vol. 2004). Proceedings of

ISWC2004.

Blakeley, C., 2007. Mapping relational data to RDF with

Virtuoso’s RDF Views. OpenLink Software.

Carroll, J. J., Dickinson, I., Dollin, C., Reynolds, D.,

Seaborne, A. and Wilkinson, K., 2004, May. Jena:

implementing the semantic web recommendations. In

Proceedings of the 13th international World Wide Web

conference on Alternate track papers & posters (pp. 74-

83). ACM

Carroll, J. J. and Klyne, G., 2004. Resource Description

Framework ({RDF}): Concepts and Abstract Syntax.

Eckstein, R., Loy, M. and Wood, D., 1998. Java swing.

O'Reilly & Associates, Inc..

Miller, A. and McNeil, D., 2010. Revelytix RDB Mapping

Language Specification. Revelytix.

O’Madadhain, J., Fisher, D., White, S. and Boey, Y., 2003.

The jung (java universal network/graph) framework.

University of California, Irvine, California.

OAEI, 2018. Ontology Alignment Evaluation Initiative.

[Online] Available at: http://oaei.ontology

matching.org/ [Accessed 20 07 2018].

Pinkel, C., Binnig, C., Jiménez-Ruiz, E., May, W., Ritze,

D., Skjæveland, M.G., Solimando, A. and Kharlamov,

E., 2015, May. RODI: A benchmark for automatic

mapping generation in relational-to-ontology data

integration. In European Semantic Web Conference

(pp. 21-37). Springer, Cham.

Sequeda, J., 2013, October. On the Semantics of R2RML

and its Relationship with the Direct Mapping. In

International Semantic Web Conference (Posters &

Demos) (Vol. 2013, pp. 193-196).

Sequeda, J. F., Arenas, M. and Miranker, D.P., 2012, April.

On directly mapping relational databases to RDF and

OWL. In Proceedings of the 21st international

conference on World Wide Web (pp. 649-658). ACM.

Spanos, D. E., Stavrou, P. and Mitrou, N., 2012. Bringing

relational databases into the semantic web: A survey.

Semantic Web, 3(2), pp.169-209.

RDF Mapper: Easy Conversion of Relational Databases to RDF

165
